Won-Door FireGuard Moveable Fire Wall is a horizontal sliding accordion fire door which sits concealed away inside a pocket cavity, closing automatically under an alarm activation — FireGuard Moveable Fire Wall (MFW) is Won-Door’s insulated model fire door.

When the Building Code restricts the size of penetrations in a fire barrier, the MFW is an alternative performance solution that is UL Certified as meeting the criteria required by ANSI/UL263 (ASTM E-119, NFPA No.251). FireGuard MFW provides designers a solution to open up spaces while still being able to quickly shut them down and create safe passages in the event of fire.  Two options are available; MFW1 (-/60/60) and MFW2 (-/120/120) with maximum opening dimensions of 9.144m wide and 3.740m tall.

The concealed pocket offers architects a completely hidden fire separation solution for compartmentalising buildings, while still maintaining clear unimpeded sight lines. Manufactured in America by Won-Door Corporation, FireGuard incorporates a steel twin walled design operating on twin top-hung tracks — there are no floor tracks required. Opening up design capabilities for architects in areas such as lobbies, atriums, stairways and corridors. A reliable and completely hidden solution.

Key Features
  • Completely concealed solution — MFW is stored inside a pocket, out of sight until deployment
  • Tested in accordance with ANSI / UL 263 (ASTM E119, NFPA No. 251) in the USA
  • No floor tracks or exposed hardware — offering clean and unimpeded sight lines
  • No access panels required
  • Recessed top tracks blending seamlessly into the surrounding environment
  • The Pocket Cover Door can be designed by architect (to manufacturers spec) to match the surrounding environment
  • Heights up to 3.740m tall, and widths up to 9.144m wide
  • Door can be reset after an alarm activation at the push of a button — no need to call a technician
  • Door is wired into the building's AC Power supply as well as having a back-up DC battery supply
  • Built in micro-processor continuously monitoring doors condition for faults
  • Option to specify security hardware or key switch operation for intertenancy separation
Scope of Use
  • Ideal for oversize openings under 9.144m wide and 3.740m tall requiring a concealed and reliable fire separation solution
  • Ideal for shutting down large openings in fire barriers requiring both integrity and insulation ratings
  • Fire ratings up to (-/120/120)
  • Pocket Depth dependent on Clear Opening Width (refer Stack Depth Calculator)
  • Pocket Width 508mm
  • Hanging weight of 32kg per m²

FireGuard Moveable Fire Wall is typically specified for integrity and insulation fire separation in:

  • Education facilities (schools/universities)
  • Hotels
  • Shopping centres
  • Museums
  • Hospitals and medical centres
  • Public venues — airports, stadiums, auditoriums
  • Commercial, mixed-use high rise

Specification Options

Track/Header Specification:

Must spec one of the below:

  • Wood Header by Contractor: Contractor prepares a plywood header lined in fire rated plasterboard. Won-Door fixes tracks to underside. This spec offers cost savings but does require more work for the contractor
  • Unitised Track System by Won-Door: Patented Track System supplied by Won-Door which is supported via threaded rods to structure above. This spec has a minor cost loading but will save time and costs for the contractor

Optional Extras:

  • Key Switch for building occupant and facility management operation, recommended by manufacturer
  • Security and  Access Control — FireGuard can be optioned for intertenancy and security closure (Refer L1 Access Control options in Specification Document)
  • Infrared Light Beam to monitor doors path and sound an audible alarm if blocked
  • Remote operation and monitoring such as BMS or security office
  • LCD screen to show Door Status Display
  • Push to open Fire Exit Hardware located on both sides of the door (Fire Exit Hardware not a standard feature to FireGuard MFW)

Colours:

  • The FireGuard door itself only comes in Platinum (silver) colour
  • Tracks come standard in white to tie in with ceiling environments — can be optioned in other colours
  • Striker Extrusion comes in Platinum (silver) colour — can be optioned in other colours
Limitations on Use
  • Maximum opening dimensions of 9.144m wide and 3.740m tall
  • Not suitable for external use or exposure to outside elements
  • Header to remain parallel with floor level within +/-3mm tolerance

In comparison to the integrity rated FireGuard model, the insulated and integrity rated Moveable Fire Wall:

  • Takes up more stack space in the pocket as it is lined inside with an insulation blanket.
  • Requires a slightly wider 508mm wide pocket than the standard 460mm wide pocket for FireGuard
  • Is only available as a Single Parting door (not Bi-Parting)
  • Can only be supplied as a straight door (no curves available)
  • Is more expensive than the standard non-insulated model Won-Door FireGuard
Statement of Building Code Compliance

FireGuard Moveable Fire Wall has been tested in accordance with ANSI / UL 263 (ASTM E119, NFPA No. 251) in the USA and 2 options are available;

  • Won-Door FireGuard Moveable Fire Wall 1 (MFW1)  -/60/60
  • Won-Door FireGuard Moveable Fire Wall 2 (MFW2)  -/120/120

Note: When specifying Moveable Fire Wall a fire engineer uses the above international testing standards. The Moveable Fire Wall product must be put forward as a Performance Solution.



In-Service History

Won-Door are the world pioneer and market leader in accordion fire doors. Over the last 50 years Won-Door FireGuard has become a globally trusted solution for architects, fire engineers and code officials as it allows them to open up large spaces in buildings while still being able to safely compartmentalize and close these areas down in the event of fire.
There are over a hundred thousand FireGuard installations around the globe, including local projects such as:

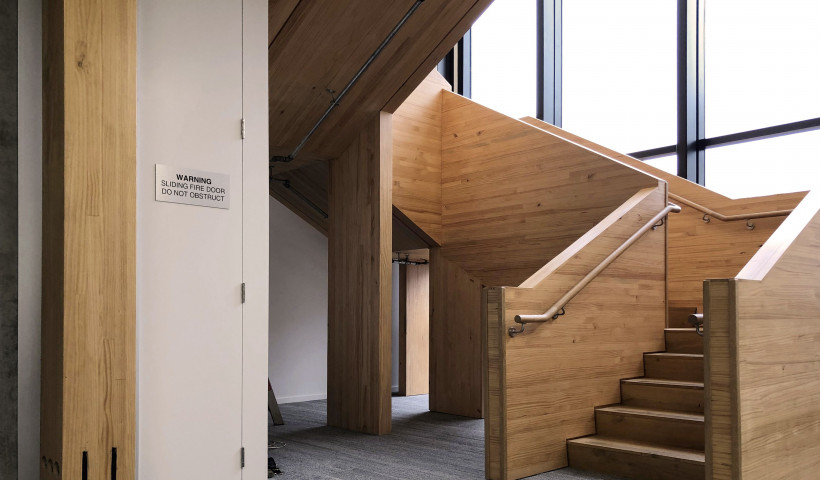

  • Lyttelton Port Waterfront House
  • Porsche Christchurch
  • Victoria Street Development Christchurch
  • Castlereagh Street Podium (Sydney)
Other Performance Attributes

FireGuard Moveable Fire Wall is manufactured and tested in America to the rigorous standards of Underwriters Laboratory, a third party global safety certification company who have been around for over a century. With offices in 46 countries around the world.

  • Won-Door Corporation, manufacturer of FireGuard, is required to execute 30,000 endurance cycle tests on the signalling portion of the controls for FireGuard
  • Leading Edge is pressure sensitive such that contact with an obstruction shall cause the door to stop, pause for 3 seconds, then re-close when in alarm mode
  • Thermal Lockout Switch - if the ambient temperature on the other side of the door rises above 260deg celsius the Won-Door thermal lockout switch will be triggered preventing someone opening or moving through to an untenable environment
  • Closing speed of 223mm/s, with high speed options available. Note: Bi-Parting spec will half the closing time
  • Perimeter Seals shall consist of continuous extruded sweeps attached to the top and bottom of the fire door to form a smoke and draft seal
  • Each FireGuard comes with a built in microprocessor which sends and receives signals from the fire control panel and constantly monitors the doors condition for faults, including:
    • Continuously monitoring AC & DC power sources for missing, faulty or low supply
    • Detect if a charging circuit is bad or fuses have failed
    • Monitor the health of the drive chain
    • Monitor faults and inputs associated with Door Block and Key Switches
    • Run a 'watchdog' monitoring circuit which will force a software restart in the event the software hangs and record any faults for diagnostic purposes
    • Indicate faults or supervised information both locally and at a remote location

Warranty

  • Won-Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of three years (must be installed by Won-Door technician)
  • As with all life safety products FireGuard should be maintained in strict accordance with Won-Door’s documented procedures and by a technician trained by the manufacturer. Won-Door New Zealand has fully trained FireGuard technicians and offers a full preventative maintenance programme on all installations throughout the country
