Residential Awning and Casement Windows

VANTAGE Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

Product Enquiries

Description

A flat-face frame gives a clean and contemporary architectural look. The 35mm platform ensures robust performance and suitability in a wide range of wind exposures. Awning and casement windows have bead-glazed or pocket-glazed options with possible maximum IGU thickness of 24mm.

Specialist product options are available including passive ventilation features, French casement formats, replacement frames and chair frames.

Key Features

For mainstream residential use
Squared off frame and no grooves or die lines on sashes and frames for a clean, contemporary appearance

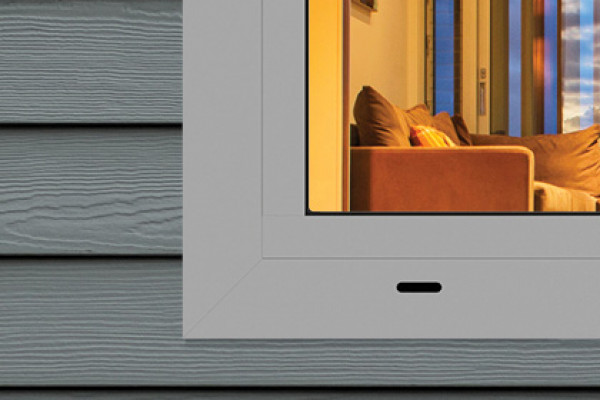

Flat face frame and sash for a clean look

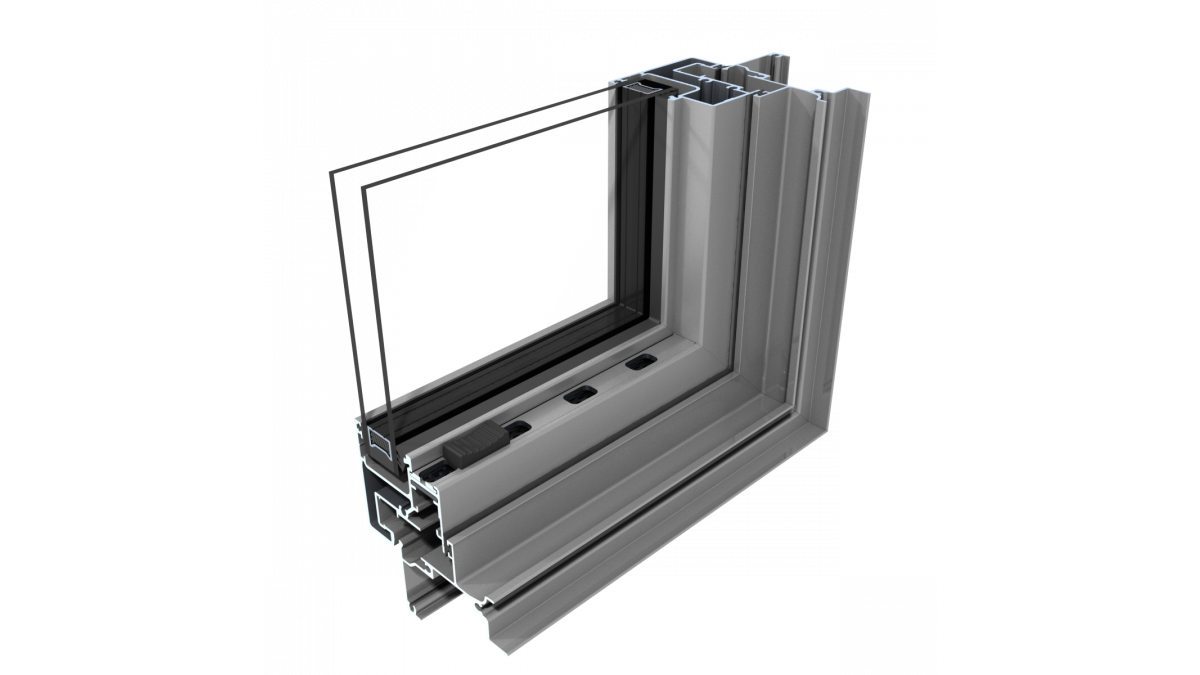

A strong frame with a 35mm platform for high performance
Bead-glazed or pocket-glazed options with possible maximum IGU thickness of 24mm
Condensation collected in a channel

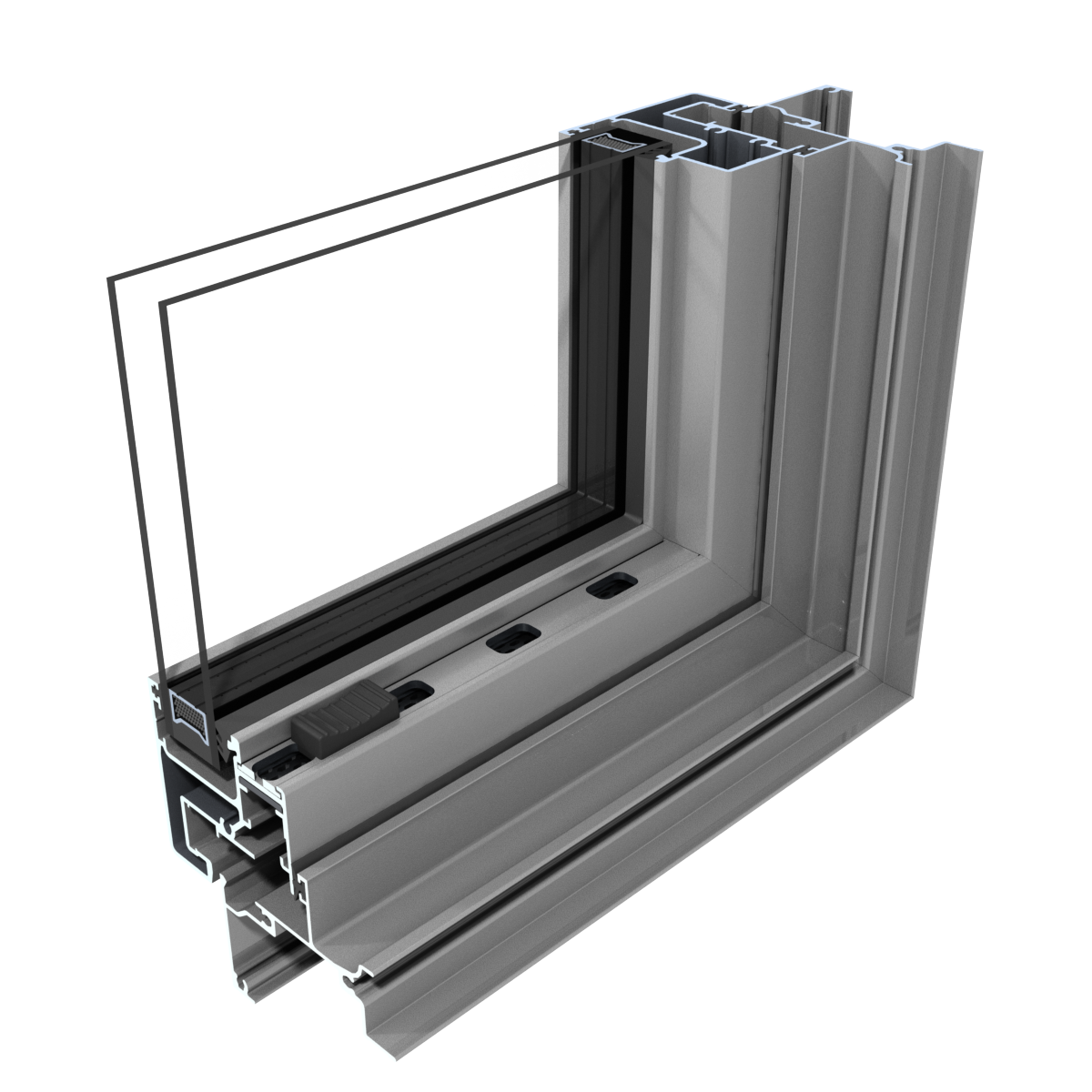

Three passive ventilation options with windows closed — Sashvent, Aerovent and Ventient.

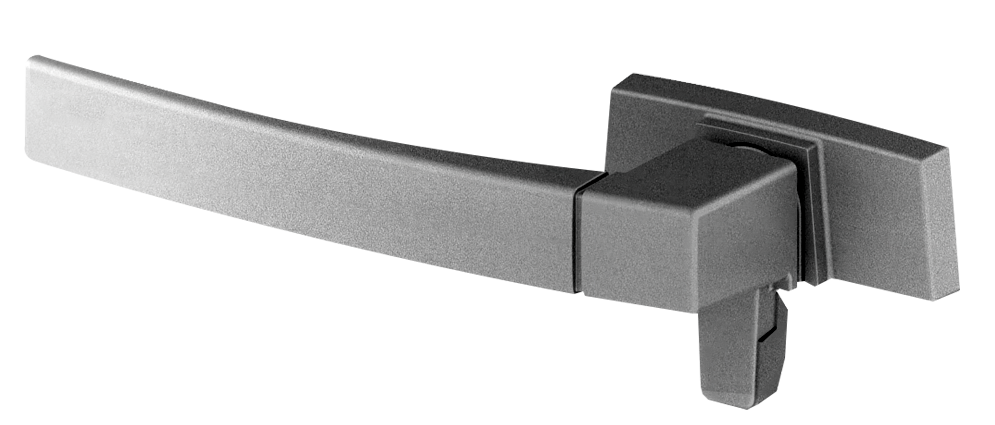

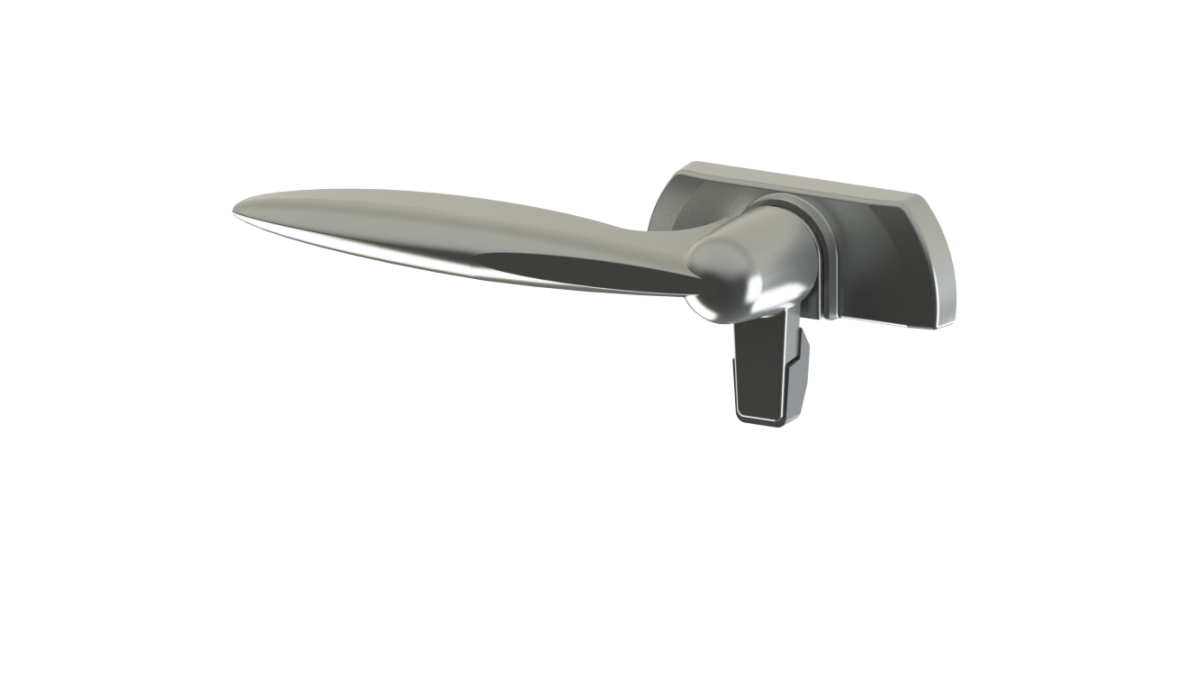

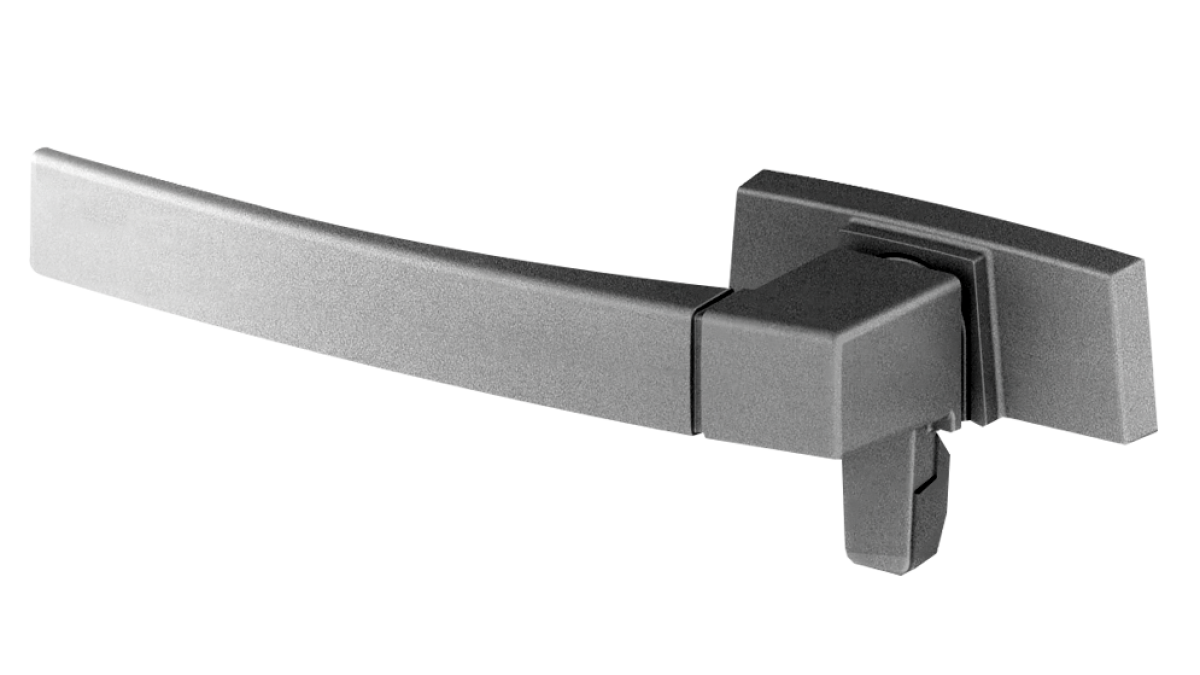

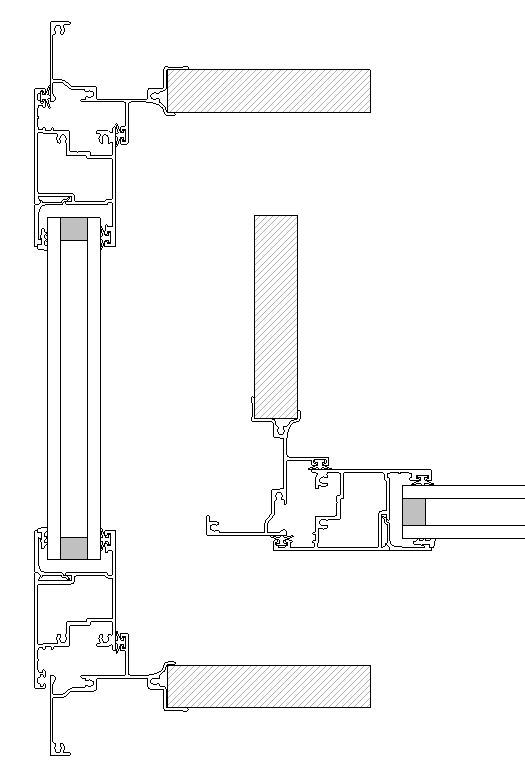

Two–point espagnolette locking available

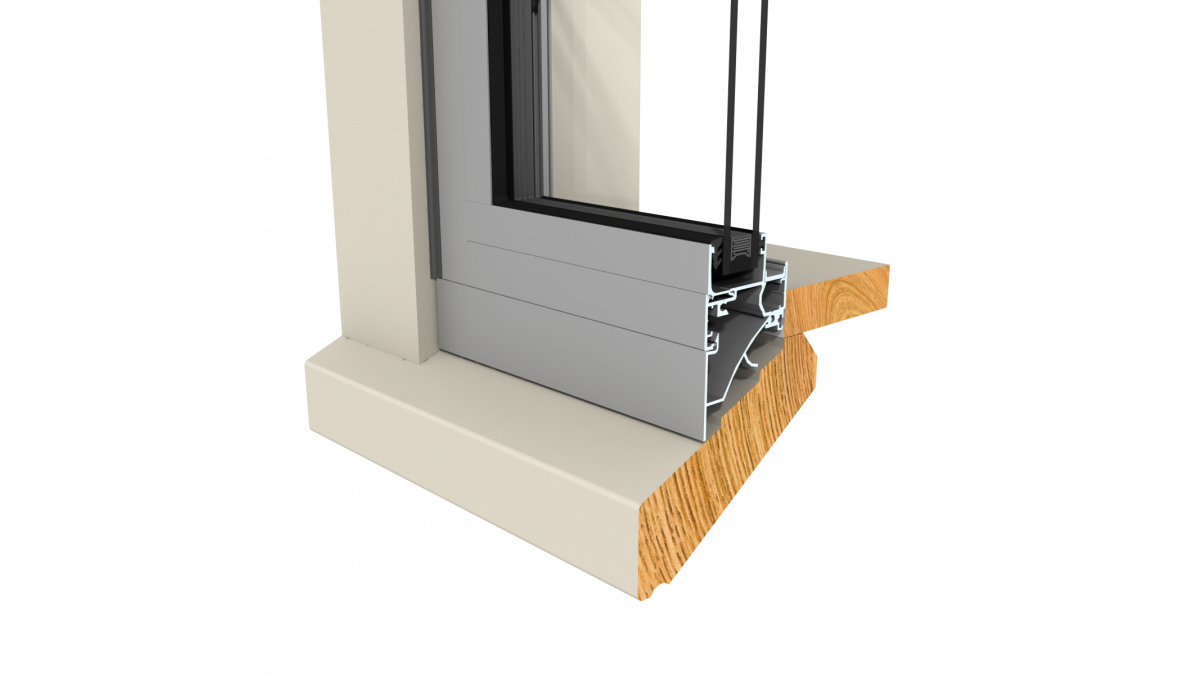

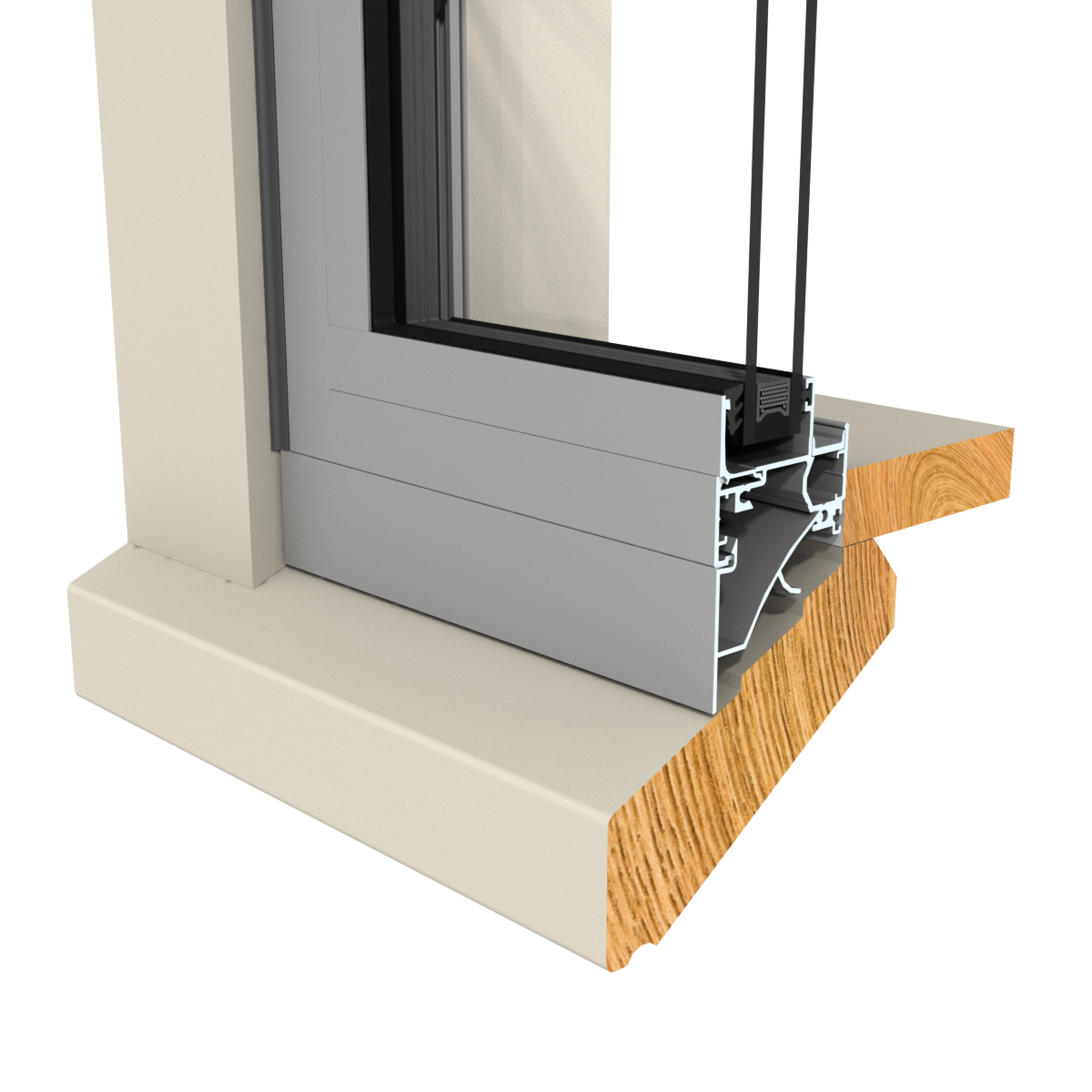

Three frame options — standard frame, replacement frame and chair frame

Ranges

Residential Series

Scope of Use

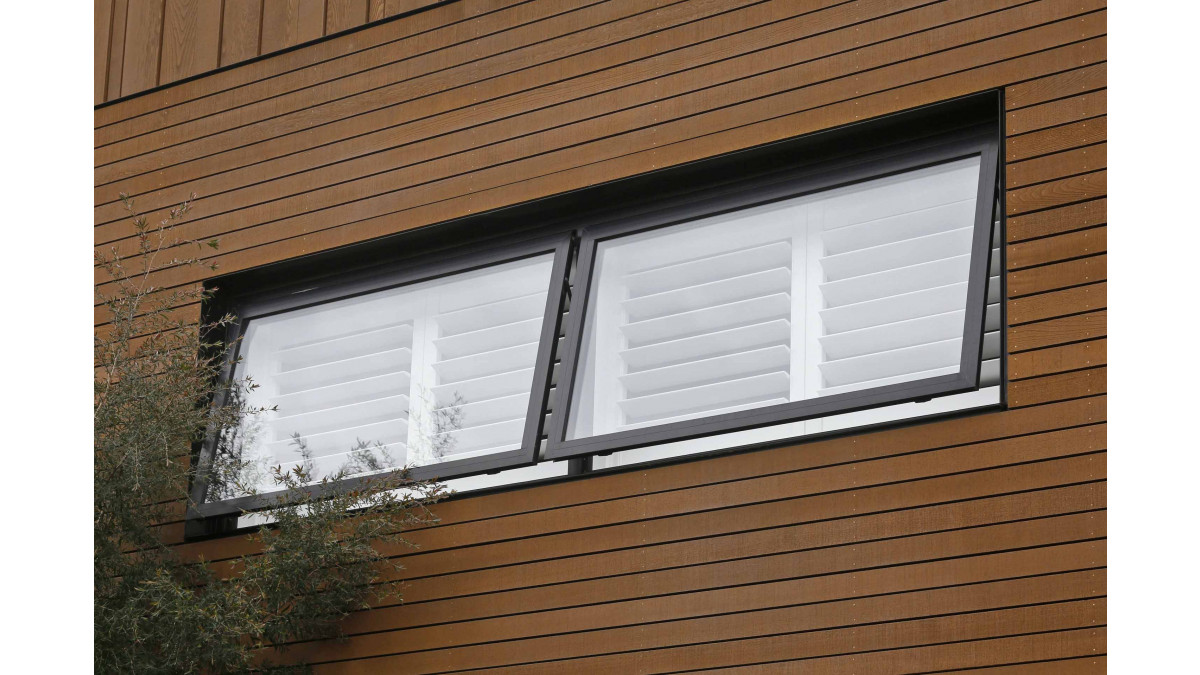

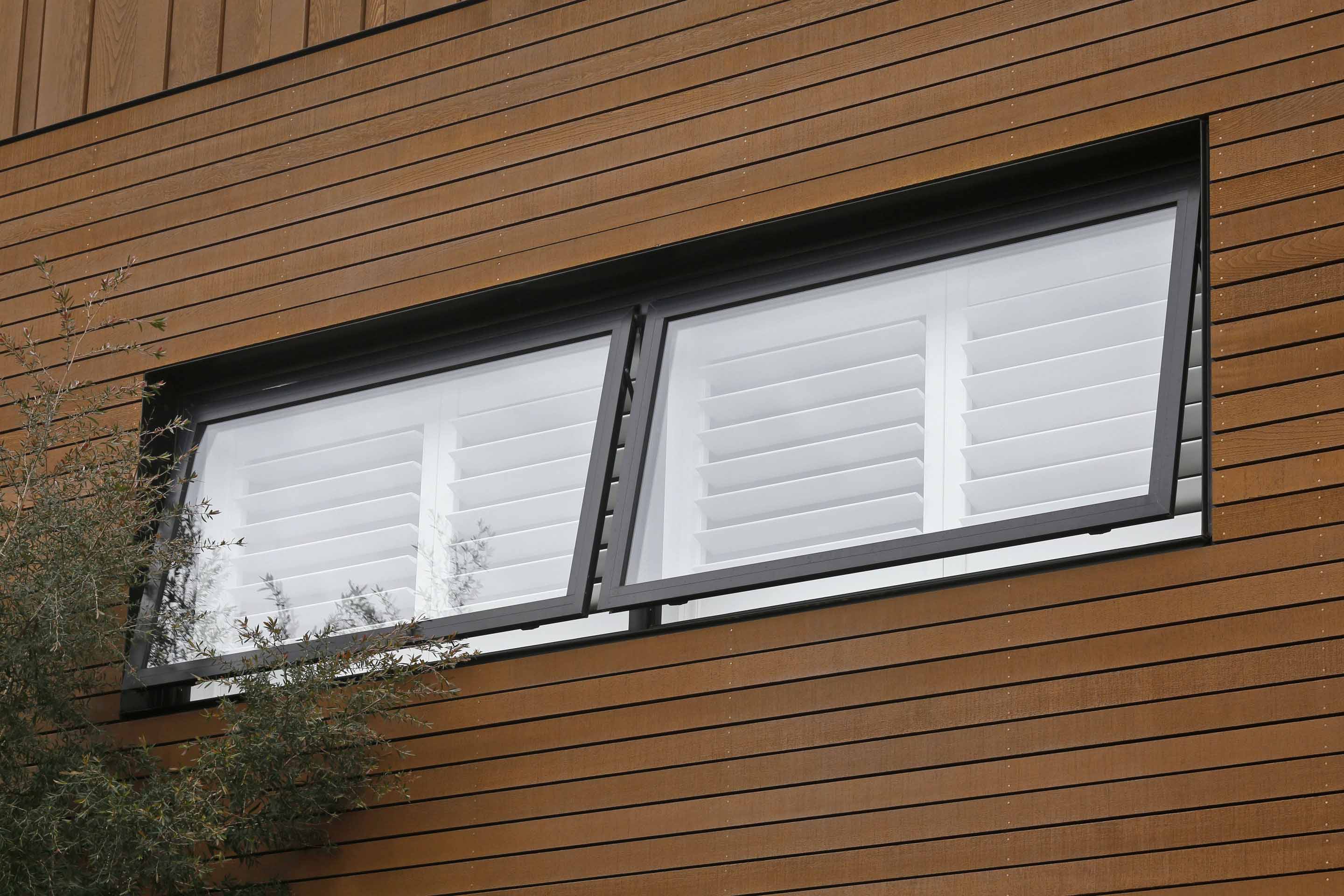

Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure
Can be used for sun shading, windbreak, privacy and as an architectural feature

Limitations on Use

Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
Consider a horizontal sliding window to protect walkways
Caution is required for the use of casements which open directly into prevailing winds
Casements beyond benches may have top fasteners that are hard to reach

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Extensively used in residential projects throughout New Zealand for more than 40 years with continuous design upgrades
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

External Moisture

News

APL Brands Offer New Residential Frame

VANTAGE Windows & Doors

August 2019

New Products

Documents

Data Sheet

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Innovative Flood Prevention with the Jesani Door Channel

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects

Parkwood Estate: A Cutting-Edge 64-Unit Terraced House Project Featuring Triboard

SECTIONS

Collecting Drinking Water from Roofs in Five Steps

Passive Fire Protection in CLT Construction

The Take-Up of AAC Intertenancy Walls in Aotearoa

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

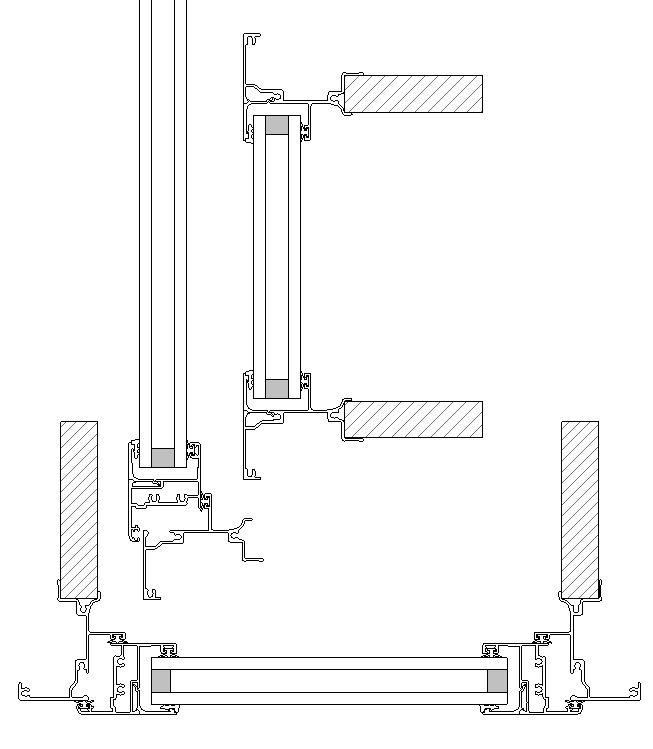

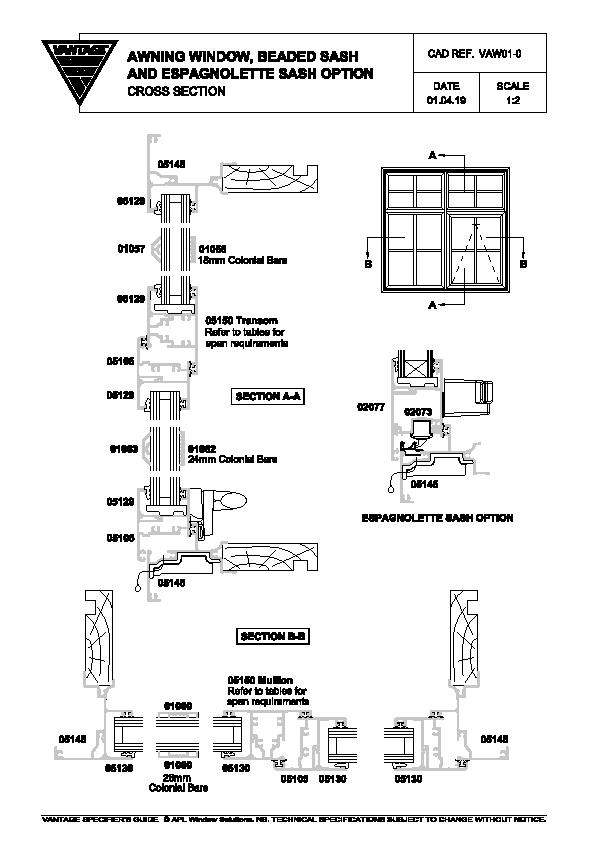

Vantage Residential Awning Window Beaded and Espagnolette Sash Option

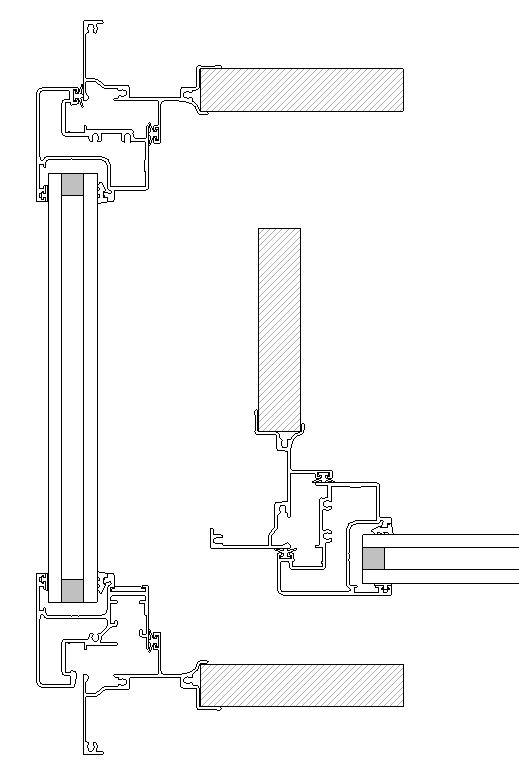

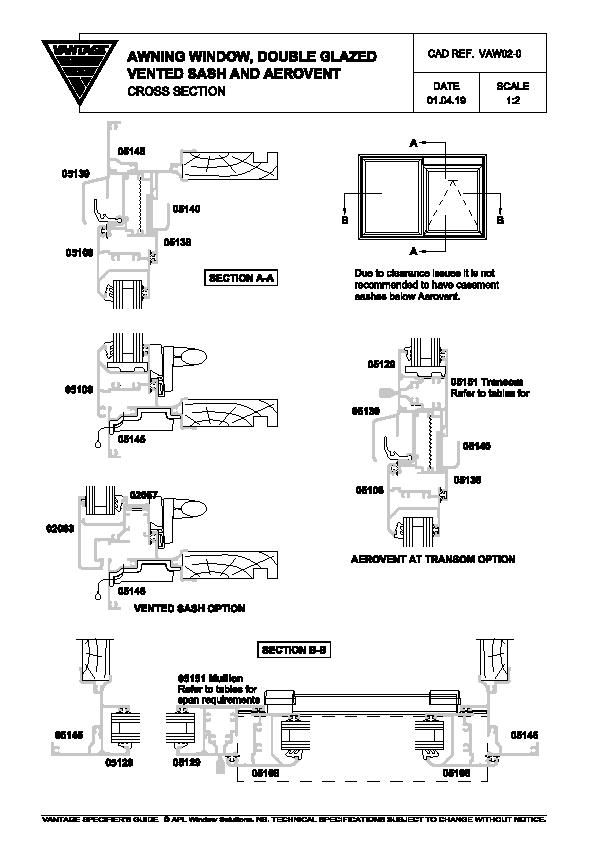

Vantage Residential Awning Window Double Glazed Sash, Vented & Aerovent Sash

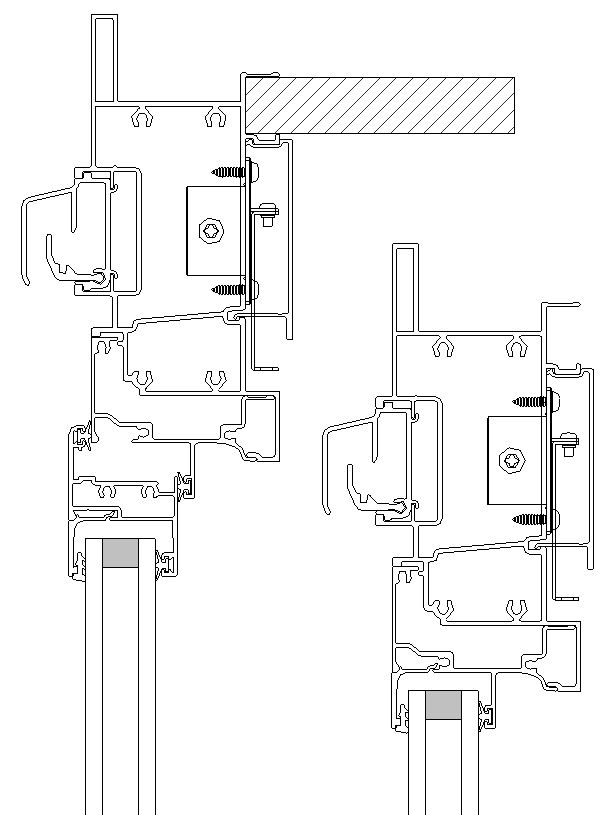

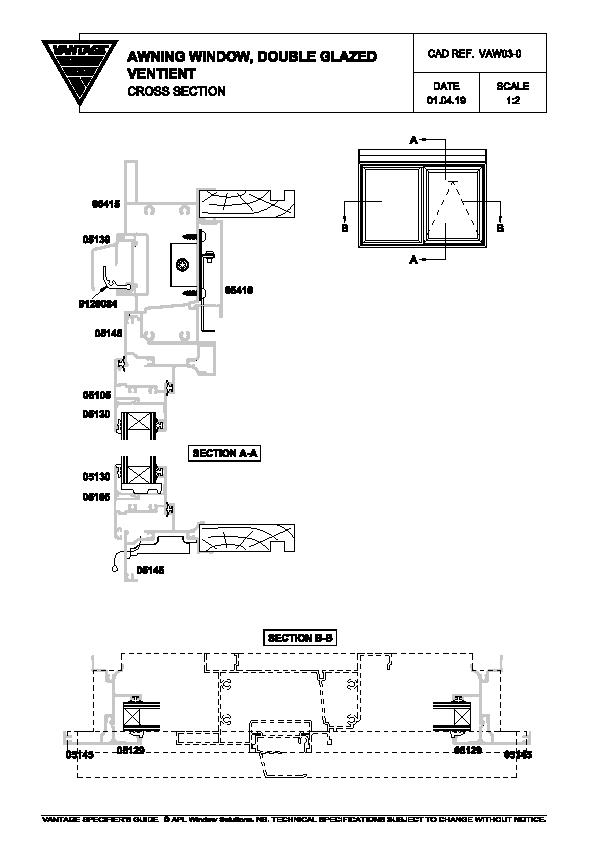

Vantage Residential Awning Window, Ventient

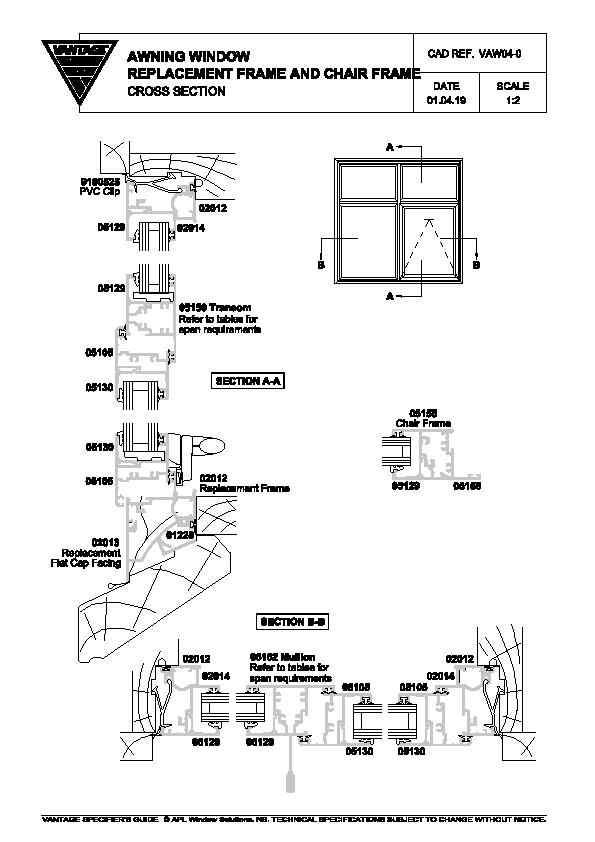

Vantage Residential Awning Window, Replacement Frame and Chair Frame

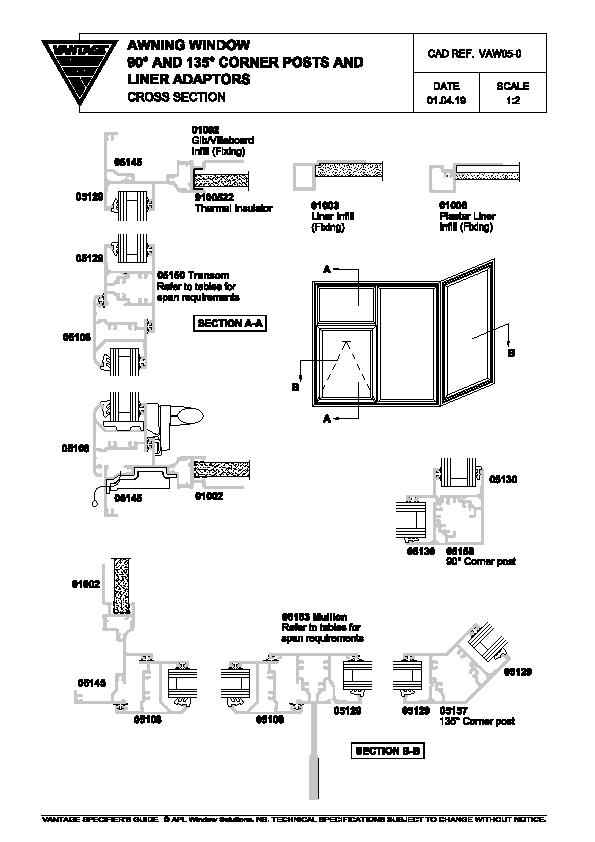

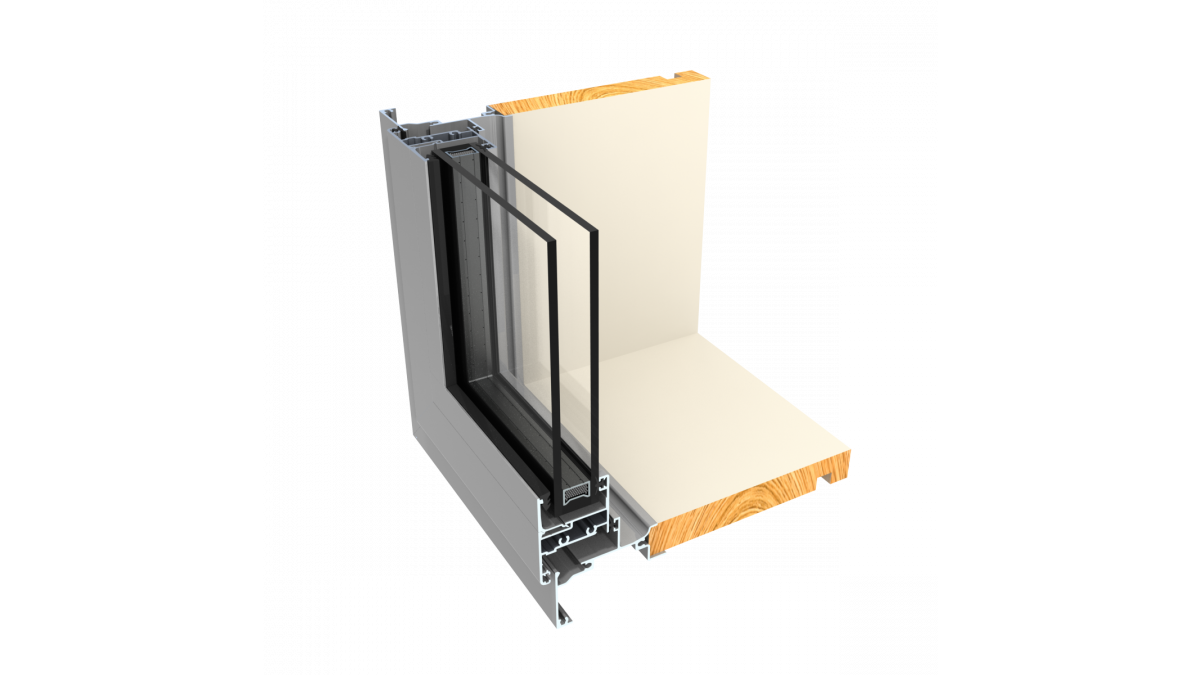

Vantage Residential Awning Window, 90º and 135º Corner Posts and Liner Adaptors

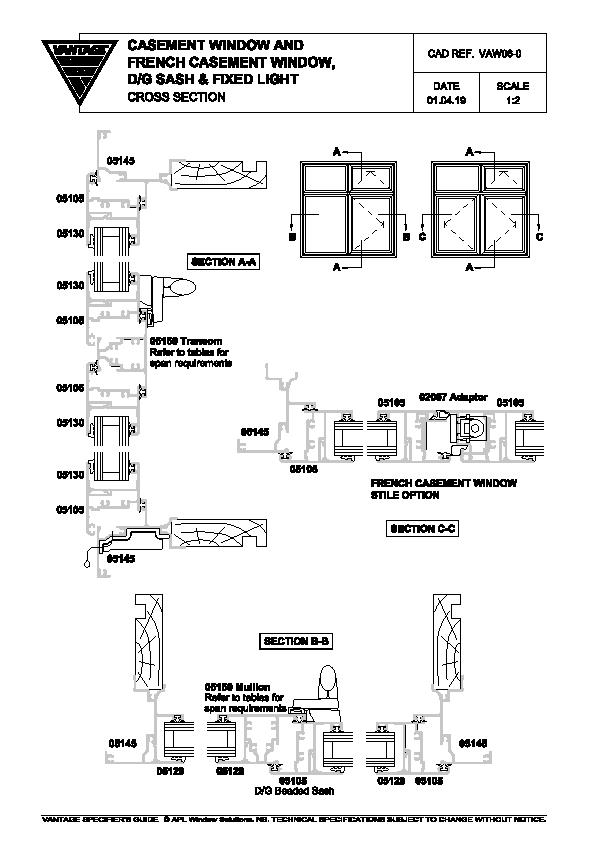

Casement Window and French Casement Window, D/G Sash & Fixed Light

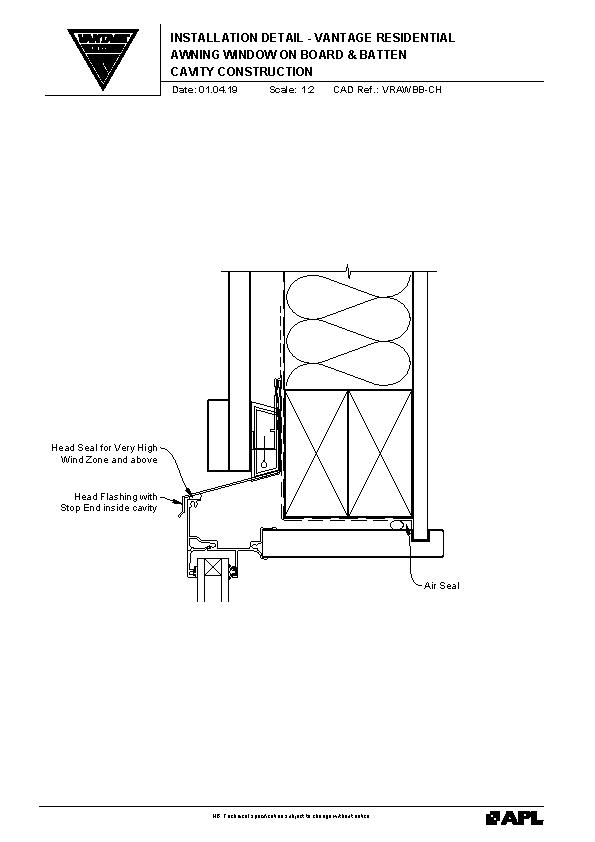

Vantage Residential Awning Window on Board and Batten

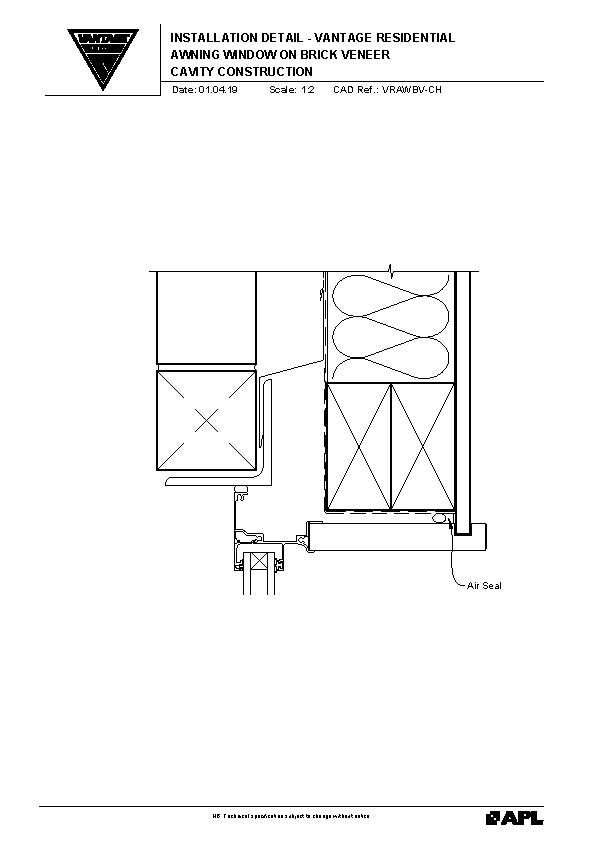

Vantage Residential Awning Window on Brick Veneer

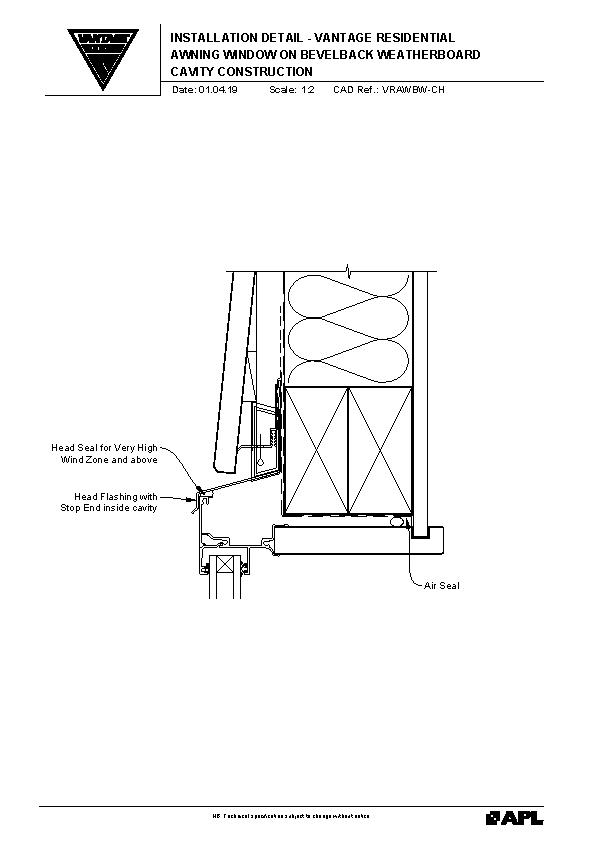

Vantage Residential Awning Window on Bevelback Weatherboard

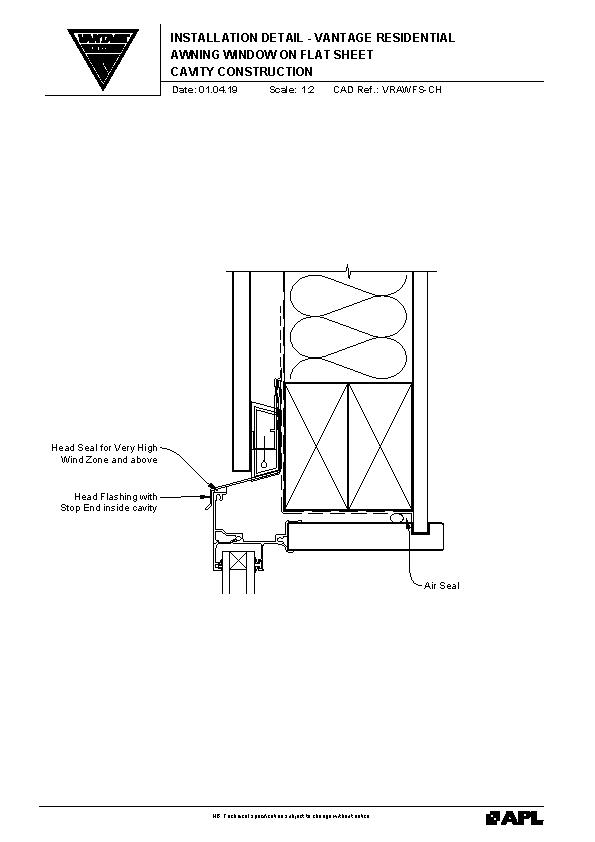

Vantage Residential Awning Window on Flat Sheet

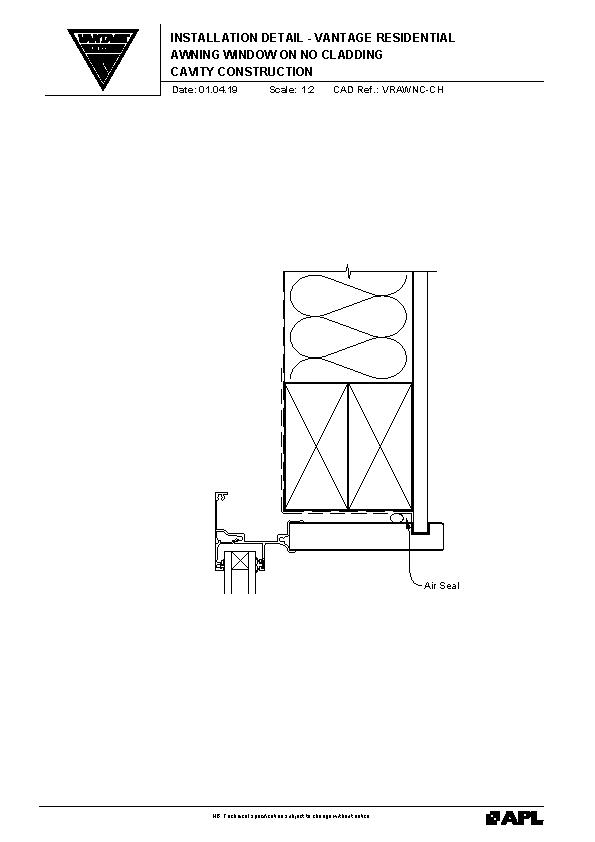

Vantage Residential Awning Window on No Cladding

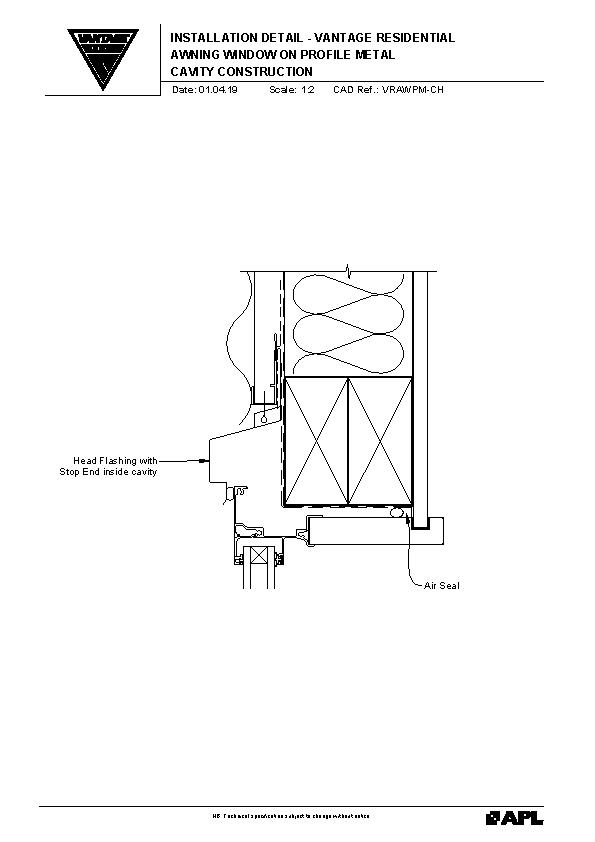

Vantage Residential Awning Window on Profile Metal

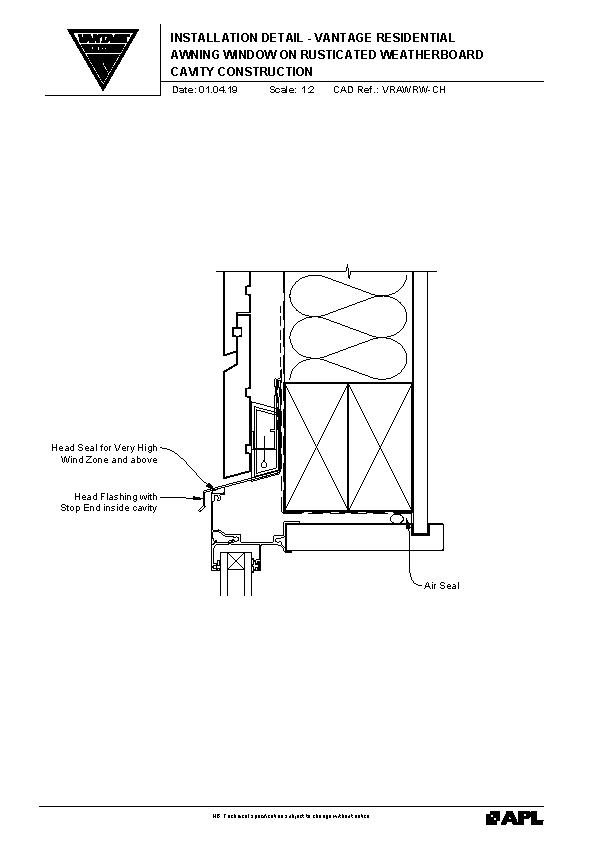

Vantage Residential Awning Window on Rusticated Weatherboard

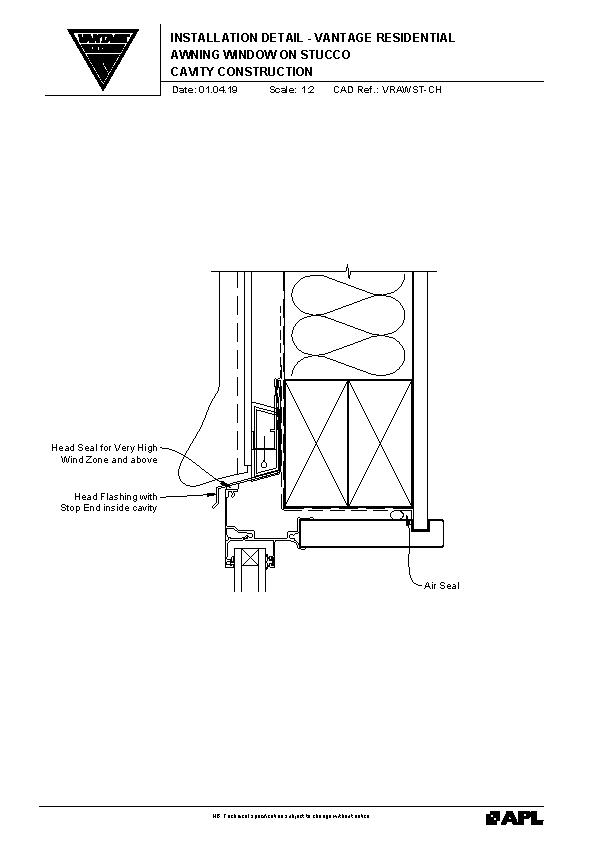

Vantage Residential Awning Window on Stucco

APL Internal Liner Infills and Adaptors

APL Residential Awning Window with Mullion and Transom

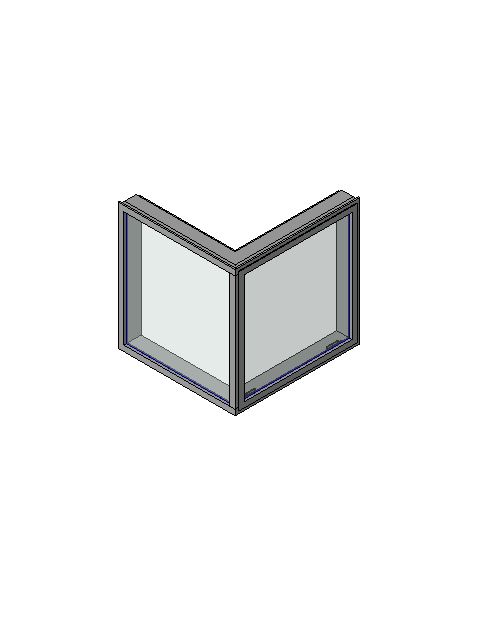

Awning Window 90° and 135° Corner

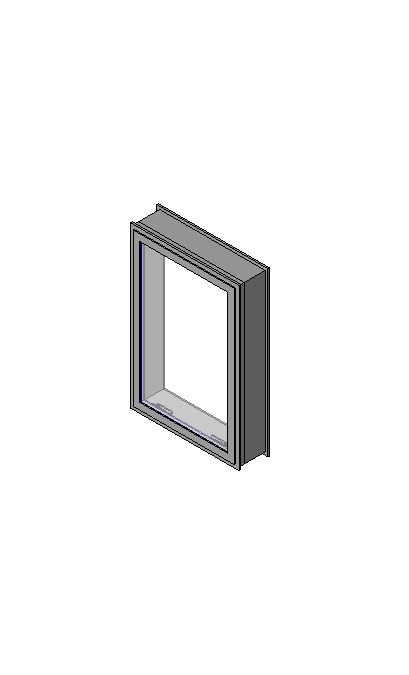

Awning Window Single Panel

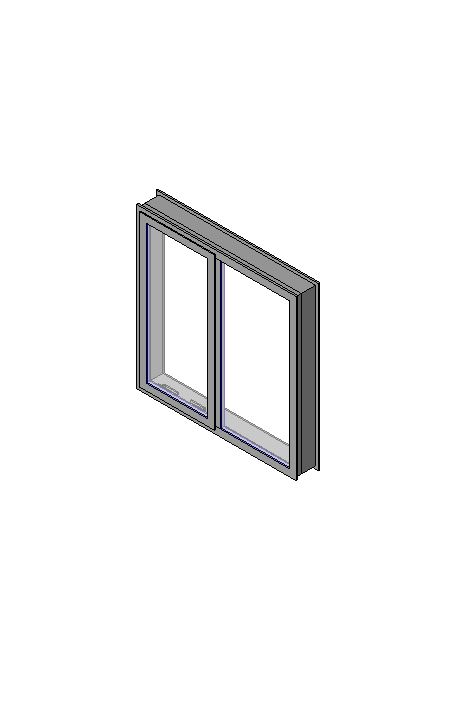

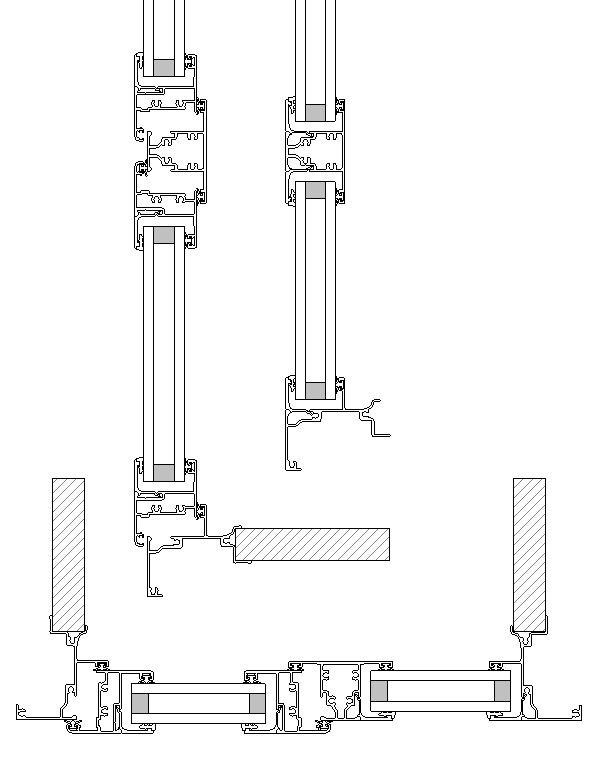

Awning Window Two Panel

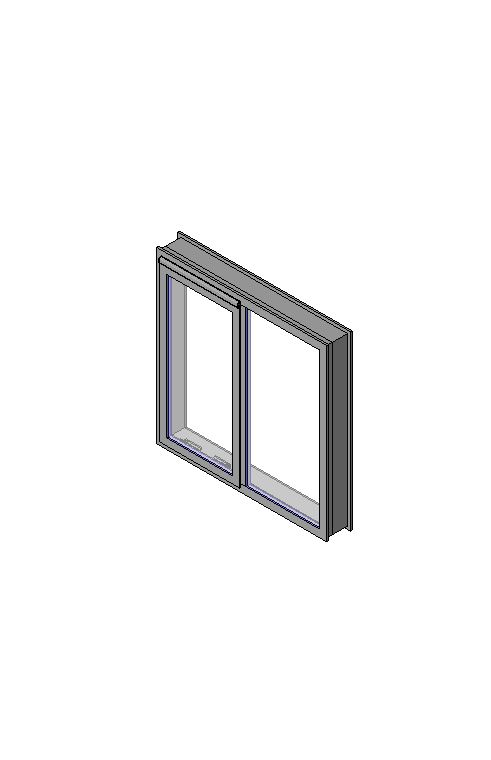

Awning Window Two Panel with Aerovent

Awning Window Two Panel with Ventient

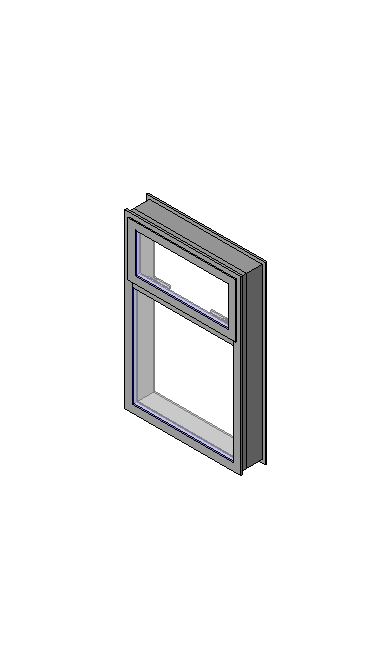

Awning Window with Underlight

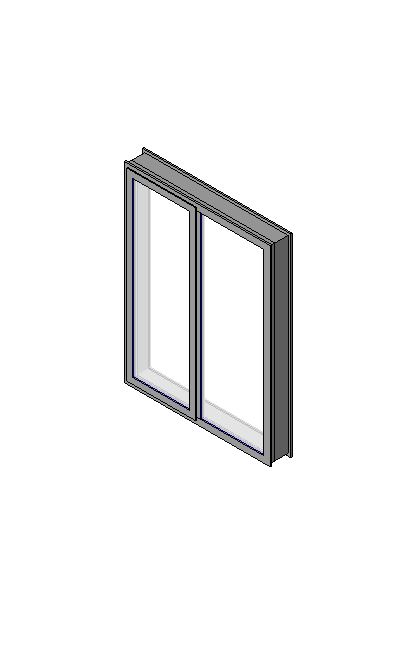

Casement Window Two Panel

Residential Series Awning Window Aerovent

Residential Series Awning Window Espagnolette Sash

Residential Series Awning Window Single Panel

Residential Series Awning Window Two Panel

Residential Series Awning Window Vented Sash

Residential Series Awning Window Ventient
