Vantage APL Architectural Series Sliding Doors
Description

Sliding doors slide on an outside track and can meet at 90 degree corners without the need for a corner post. For most configurations a fixed side panel is required. However, a bypass slider option is available where two or three panels move.

The sliding door system has also been designed for convenient use as a cavity slider or for sliding back over a wall.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • A high-performance series of windows and doors ideal for architecturally designed houses and apartments
  • Designed for suitability for Extra High wind zones and Specific Design applications

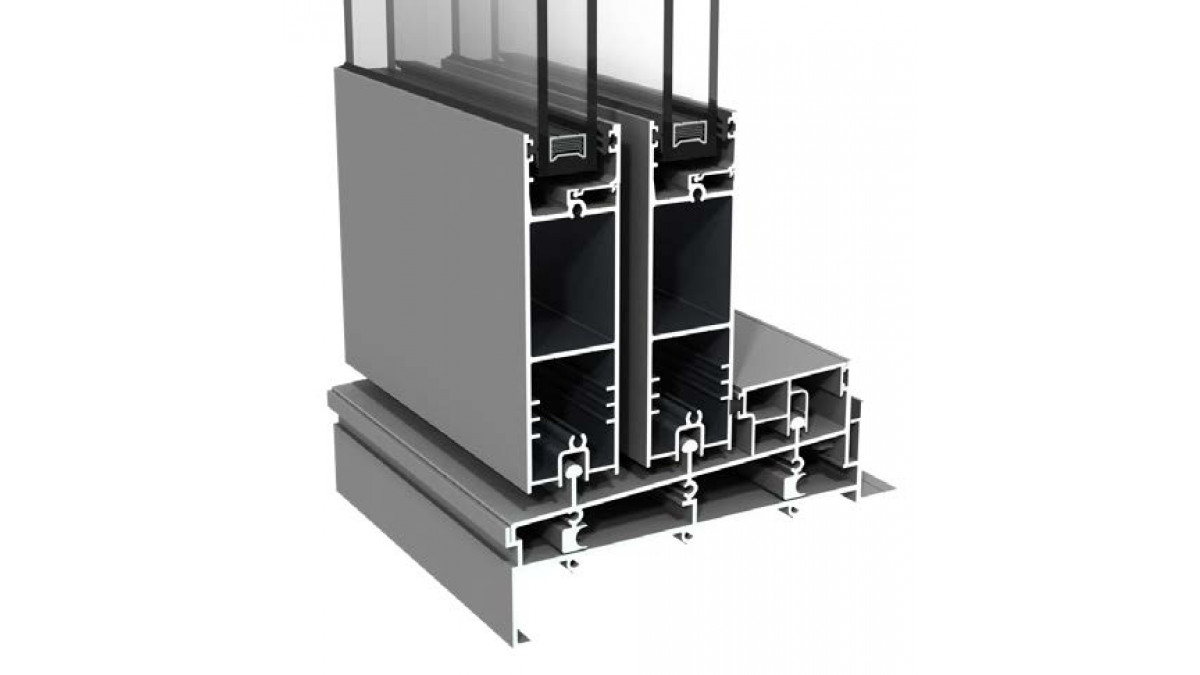

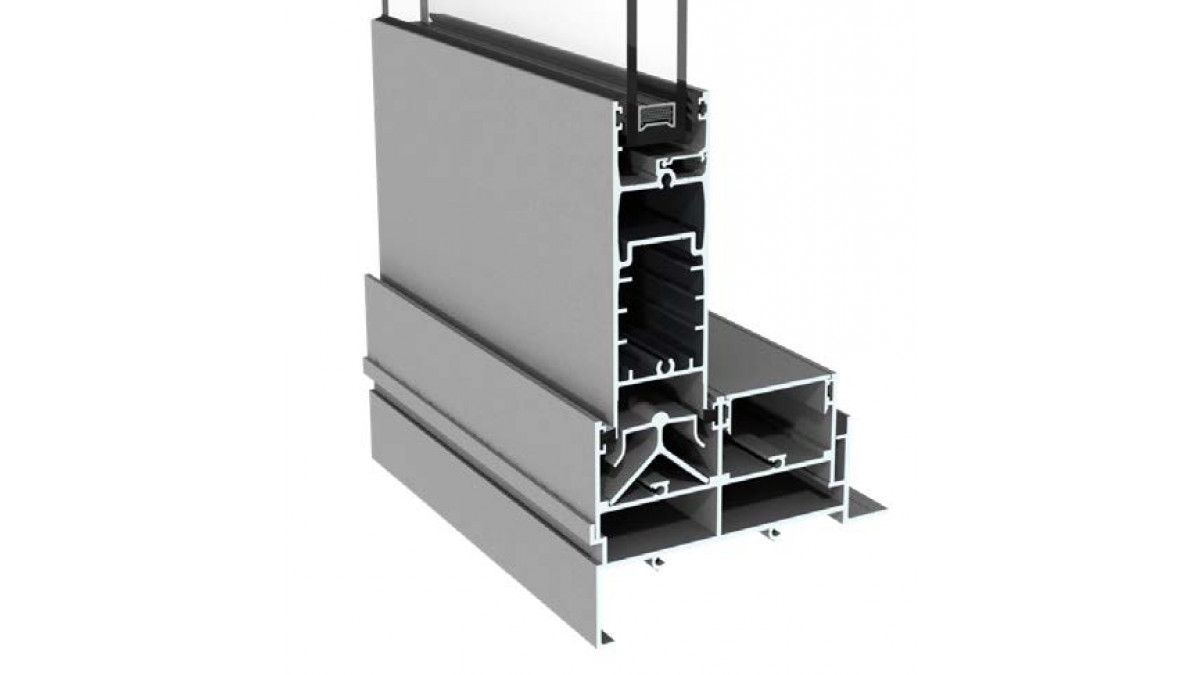

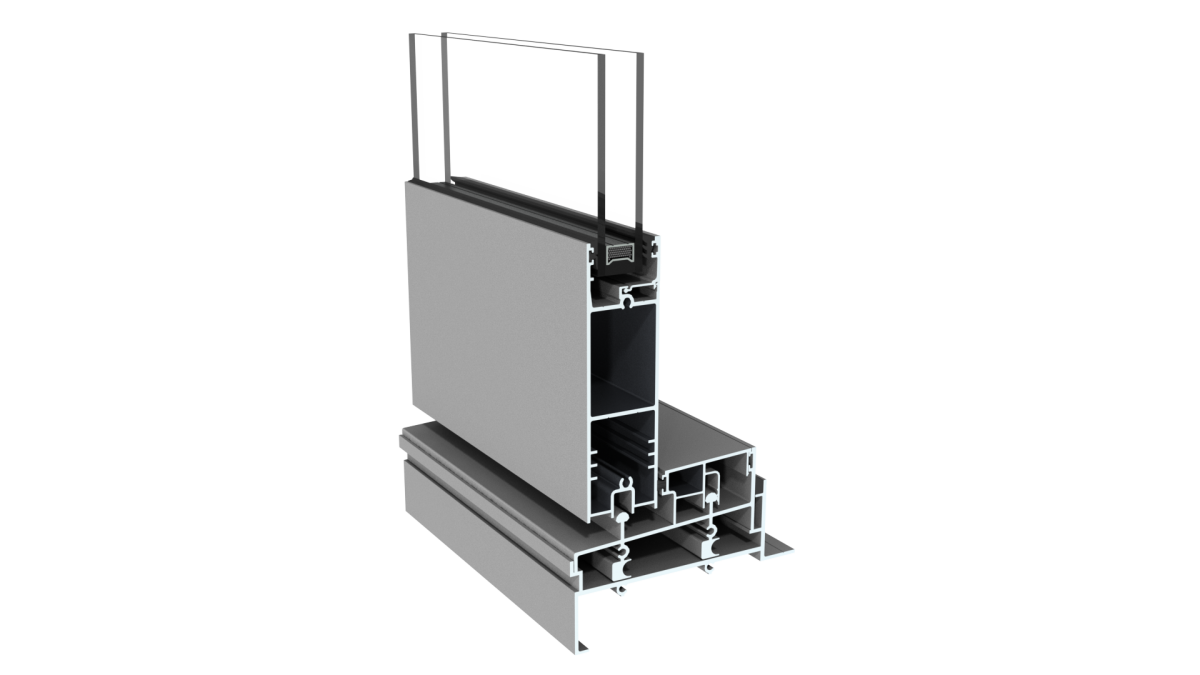

  • The sill frame has both sloped and flush track options
  • Interlocker stiles and mullions are flush in the closed position
  • A bypass slider is available where two or three panels can be moved independently without a fixed panel

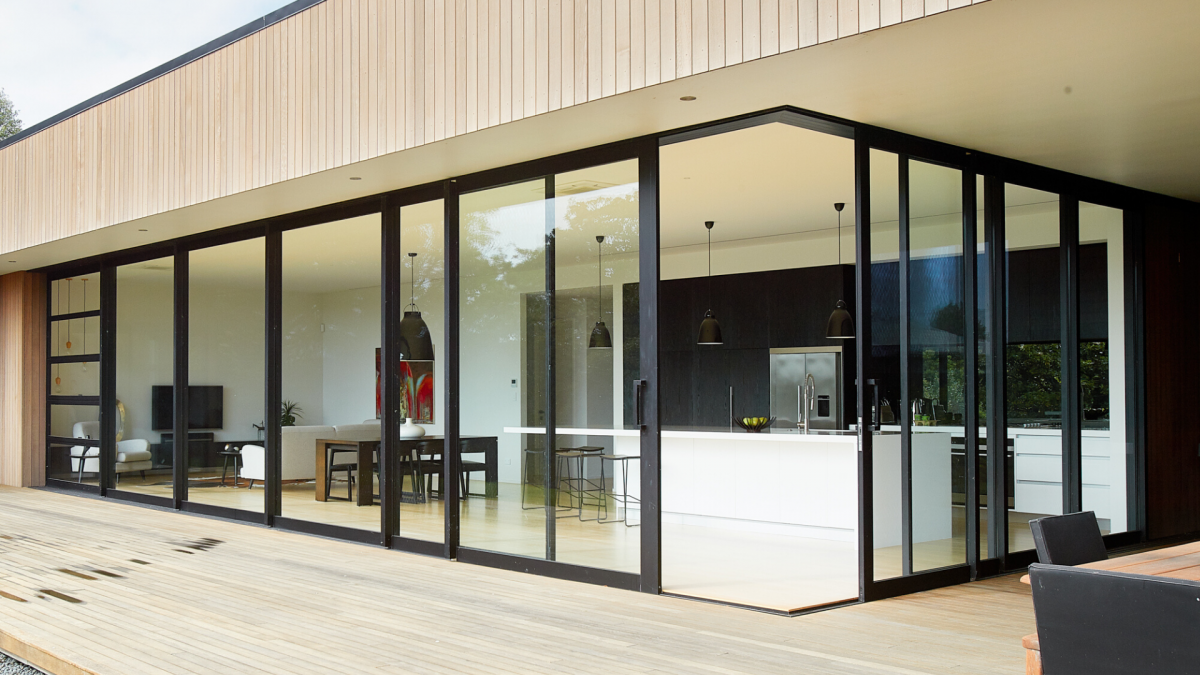

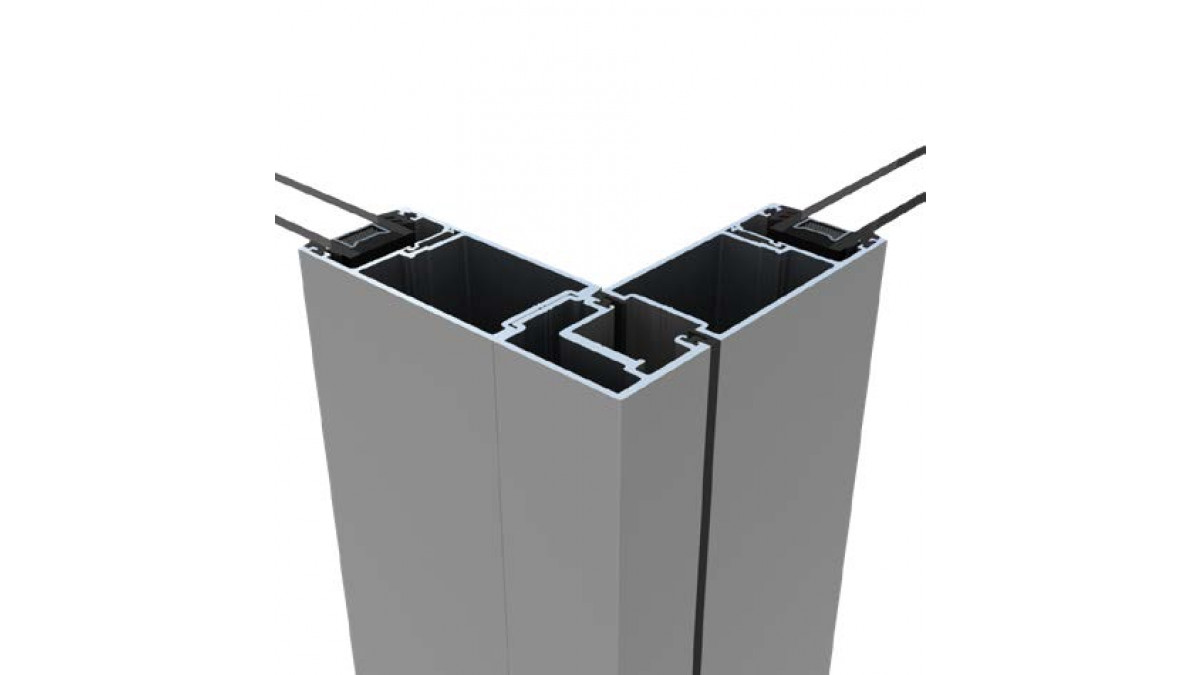

  • Corner sliders (90º) are available with no corner post (exterior and interior corners)
  • Three sliders can stack over a fixed panel

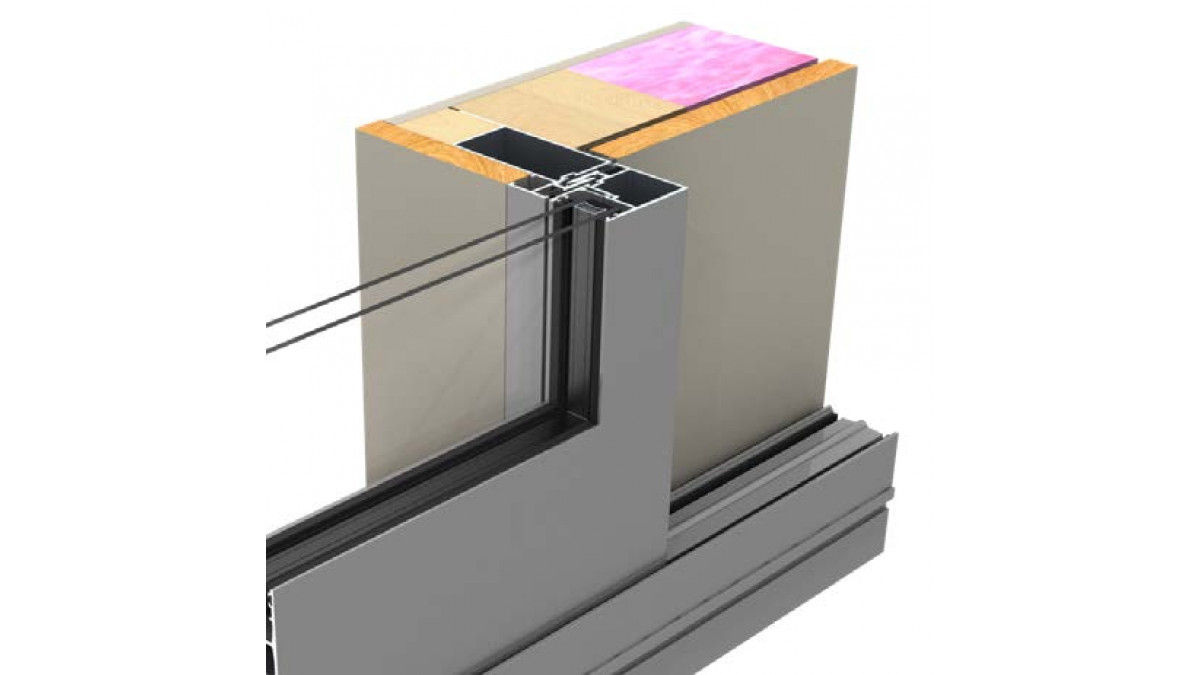

  • Overwall and cavity sliding options are available.
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • Narrow stiles and large glass expanses maximise views in the closed position
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2017
Hardware
Manufacturer Contact List
Span Tables
Specifier Guide
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

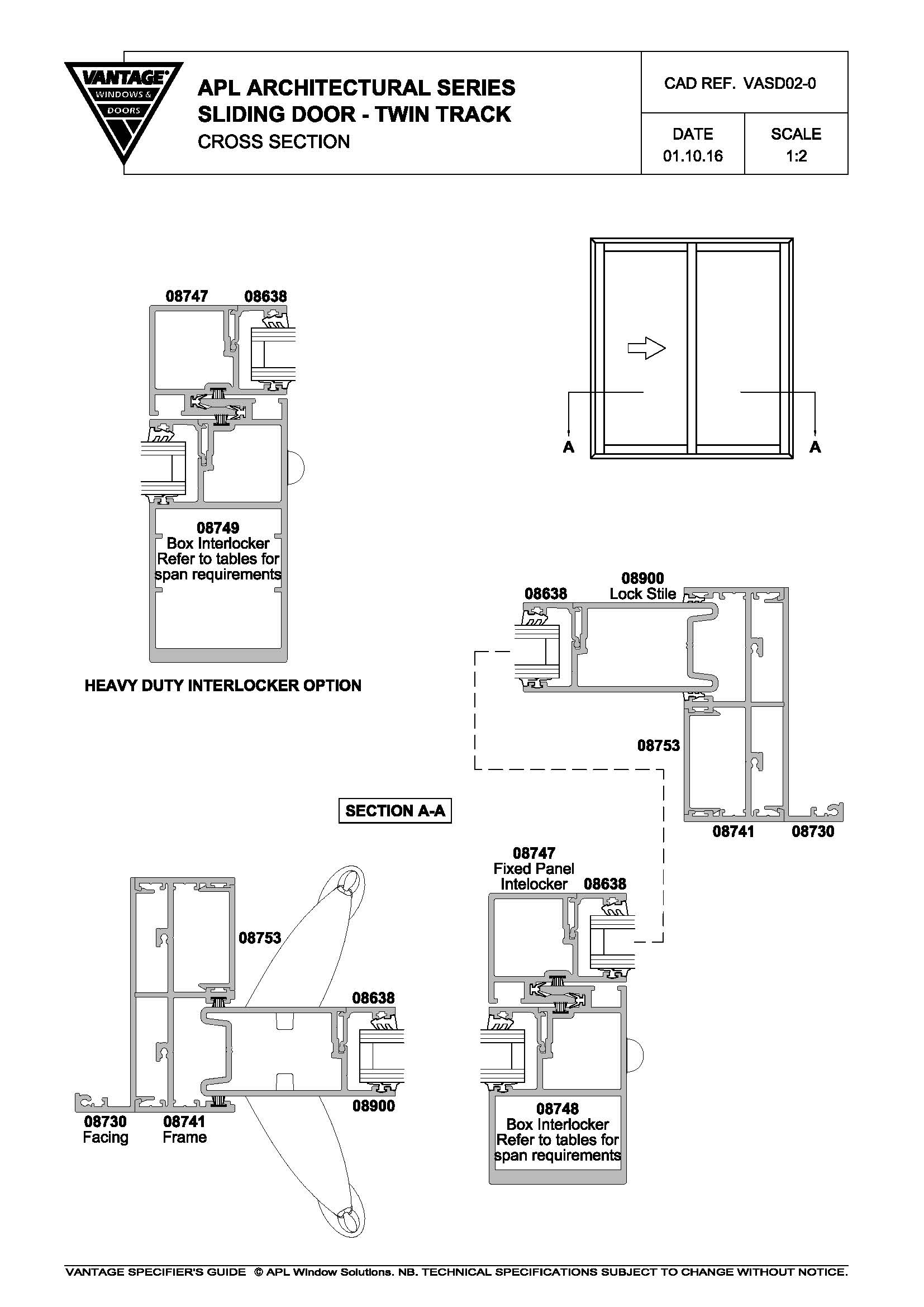

Vantage APL Architectural Series Sliding Door - Twin Track

VASD02-0

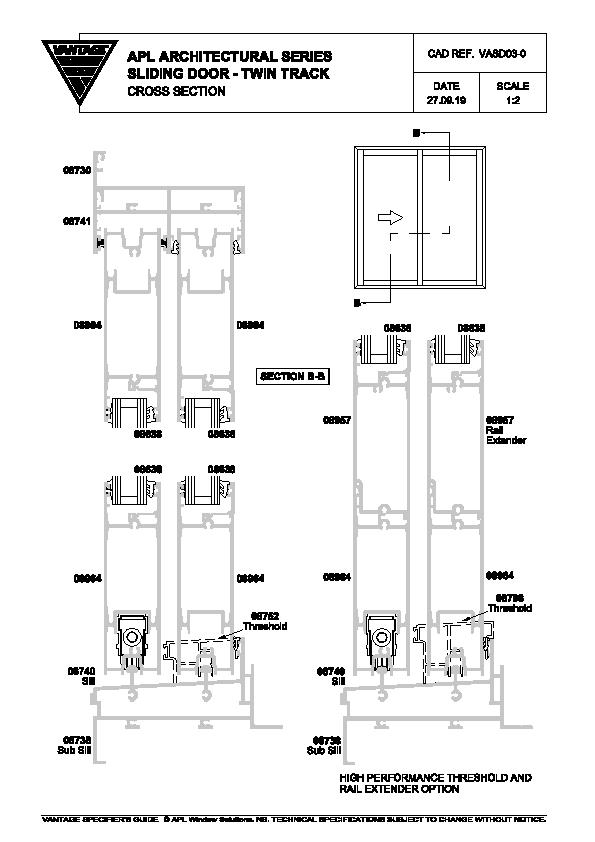

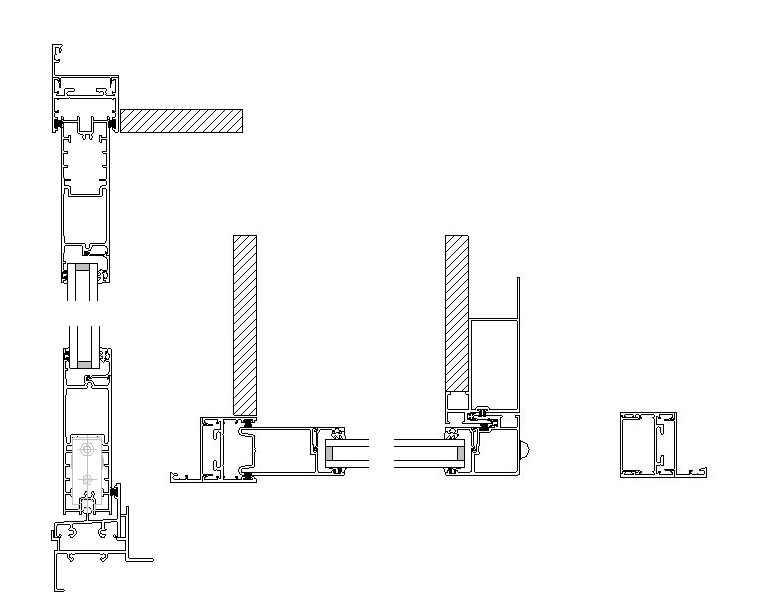

Vantage APL Architectural Series Sliding Door Twin Track Cross Section

VASD03-0

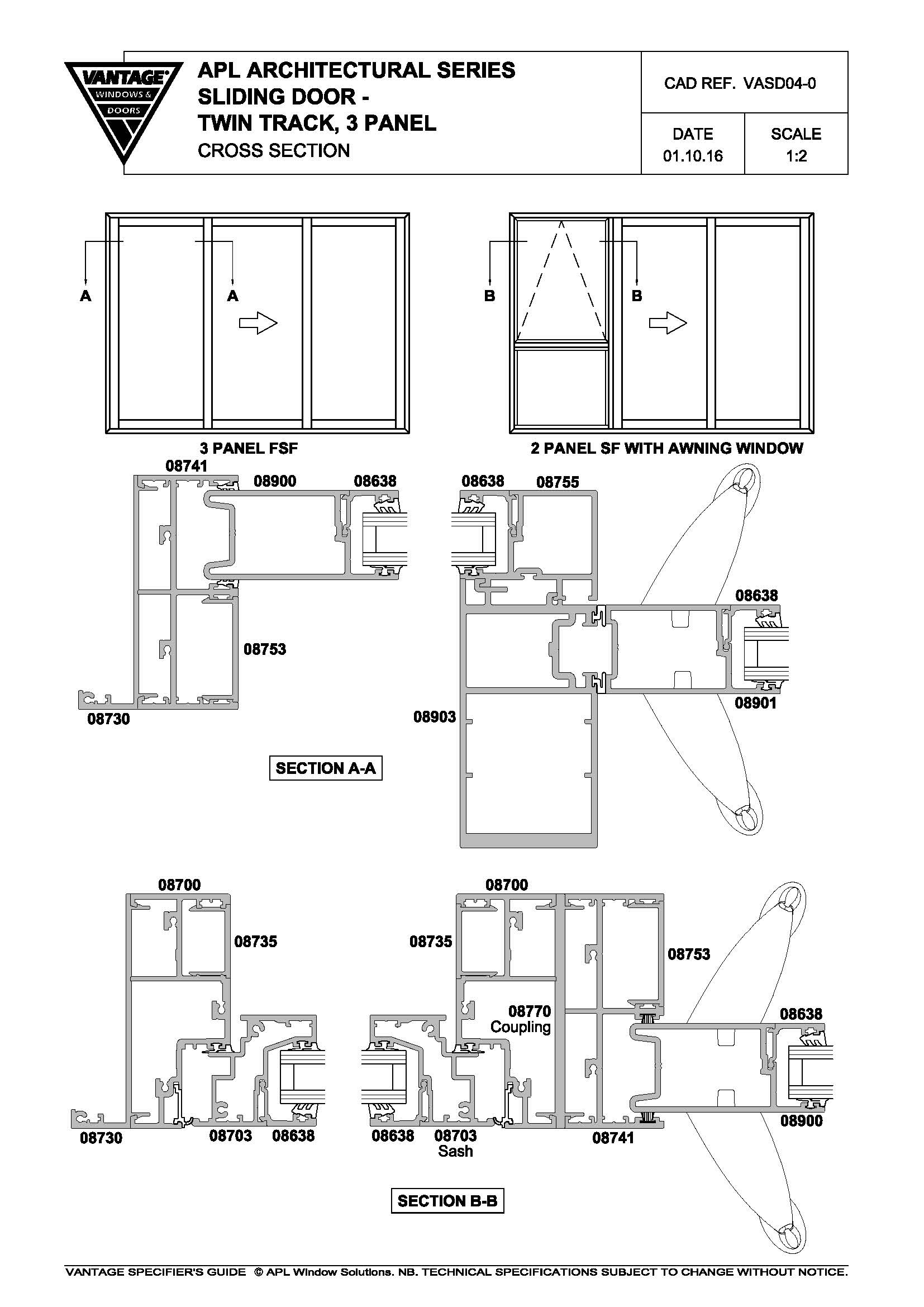

Vantage APL Architectural Series Sliding Door - Twin Track, 3 Panel

VASD04-0

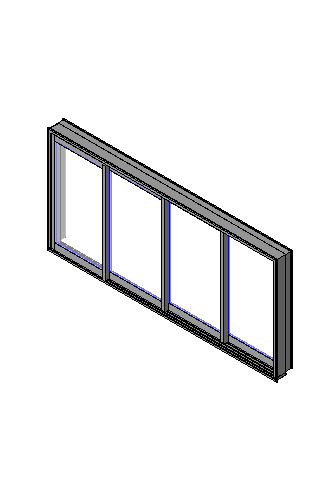

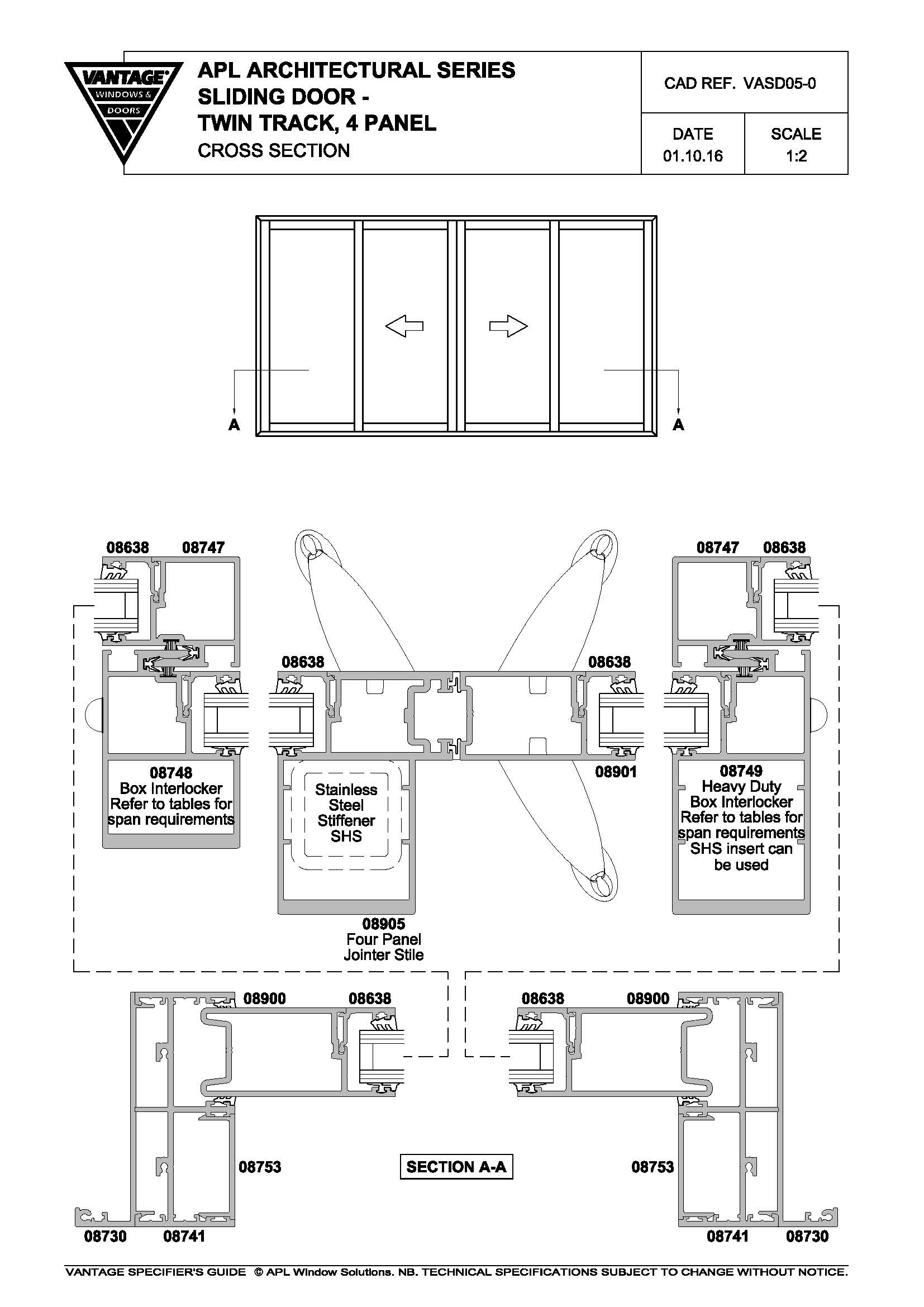

Vantage APL Architectural Series Sliding Door Twin Track, 4 Panel

VASD05-0

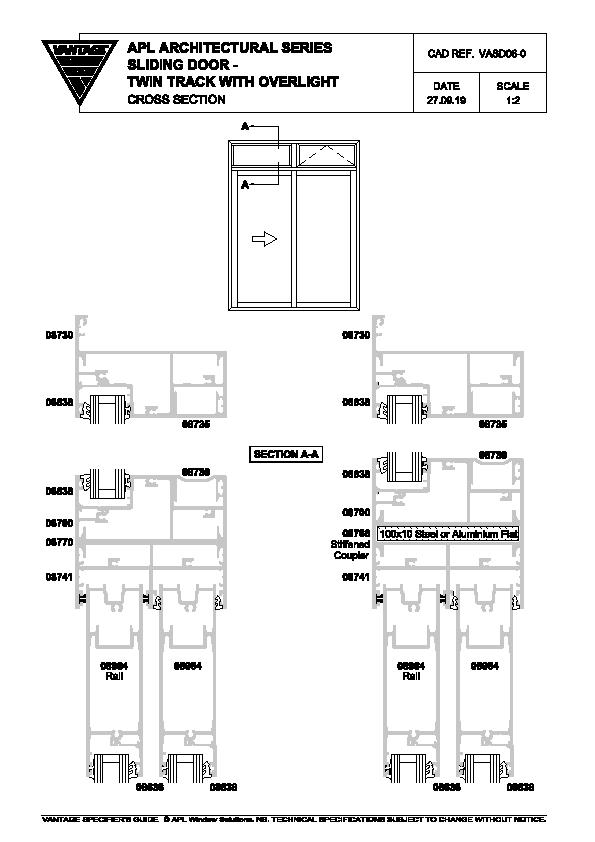

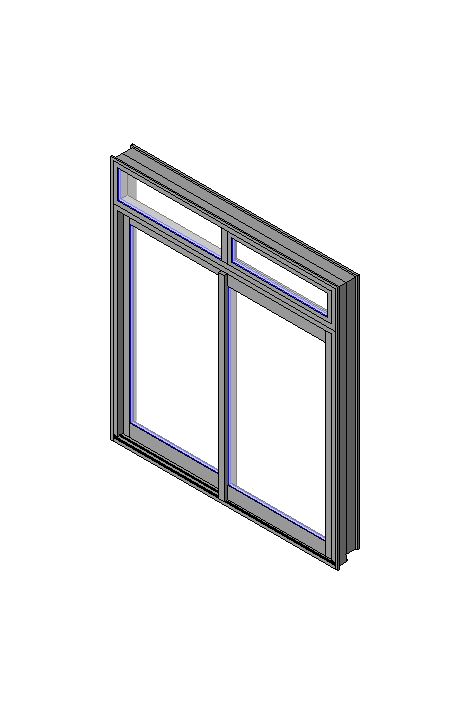

Vantage APL Architectural Series Sliding Door - Twin Track with Overlight

VASD06-0

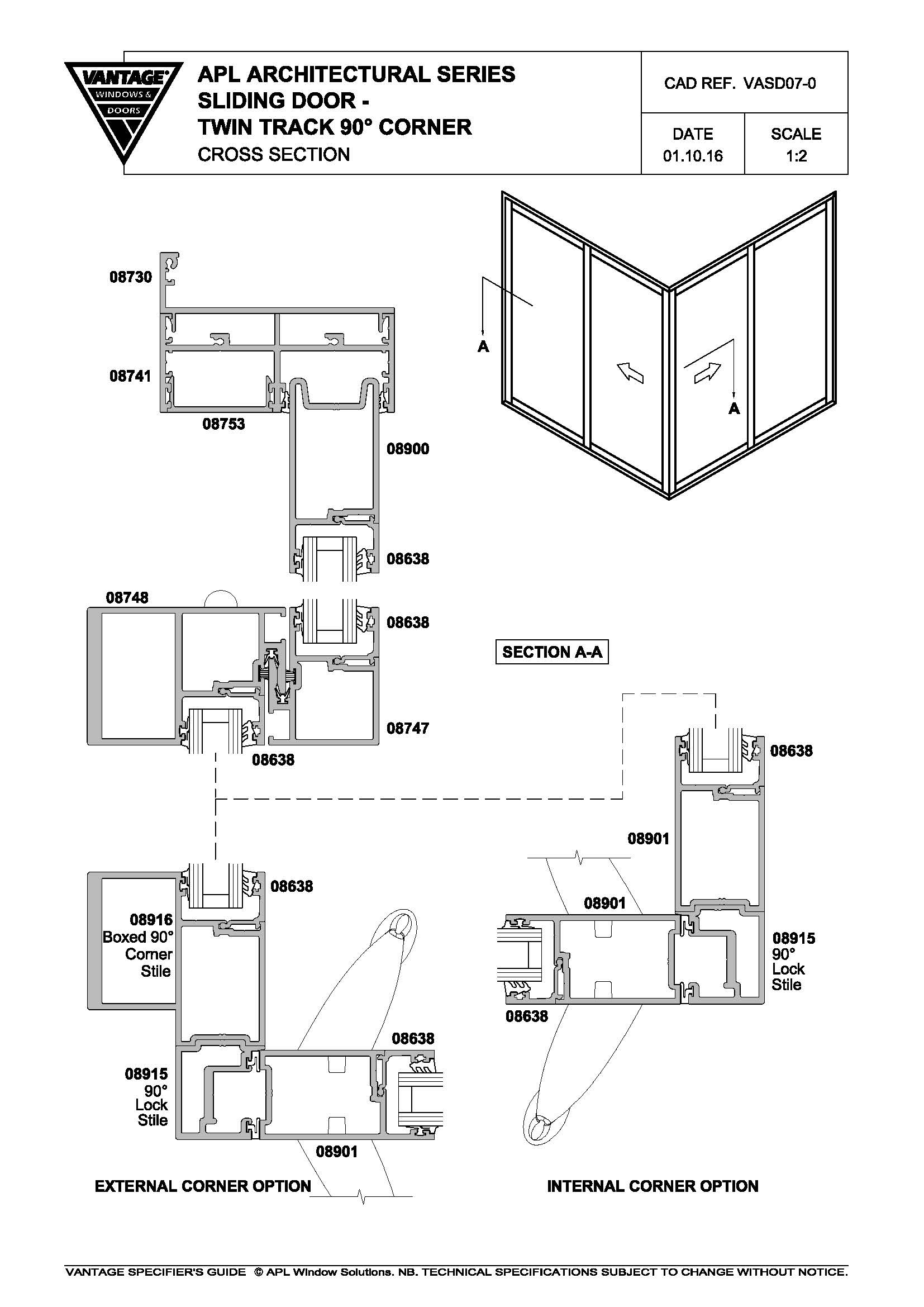

Vantage APL Architectural Series Sliding Door - Twin Track 90º Corner

VASD07-0

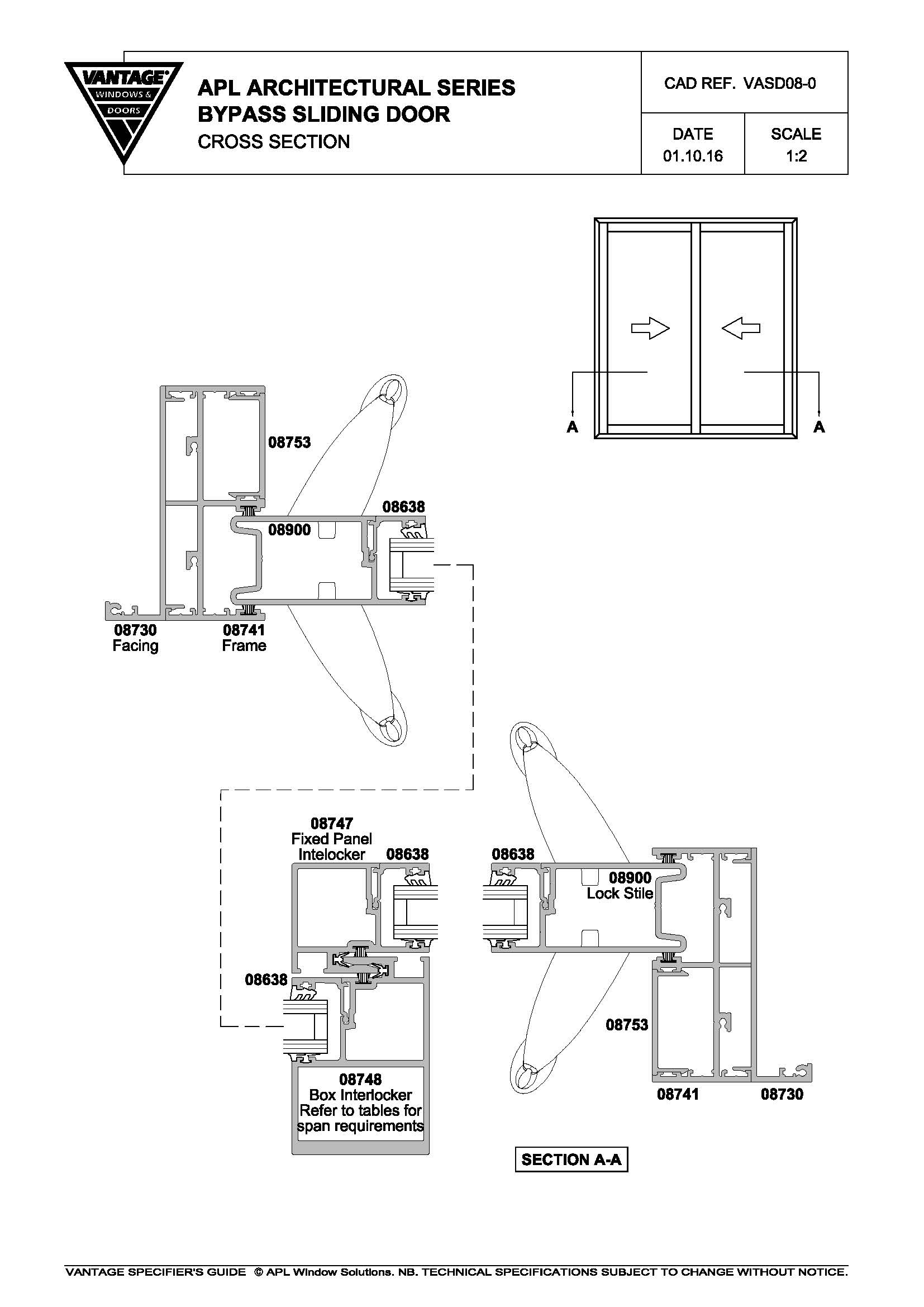

Vantage APL Architectural Series Bypass Sliding Door

VASD08-0

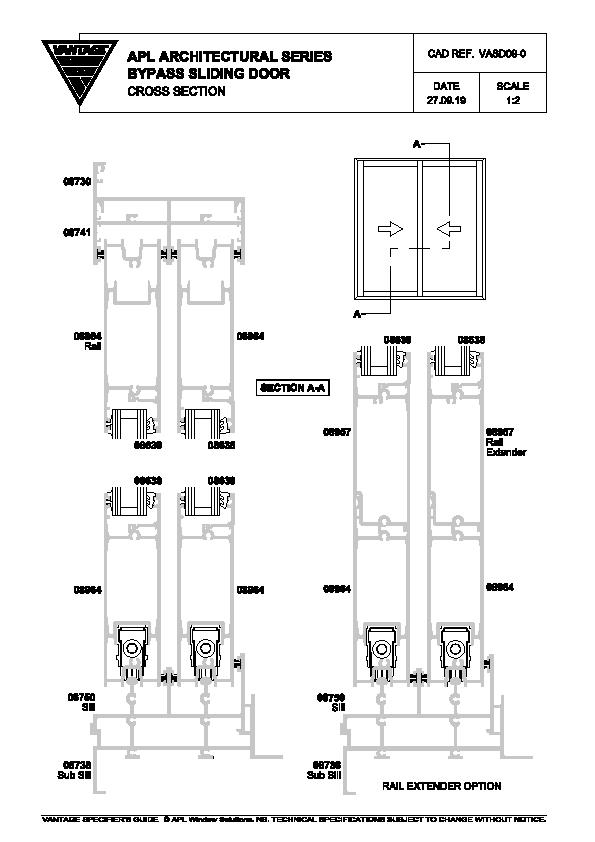

Vantage APL Architectural Series Bypass Sliding Door

VASD09-0

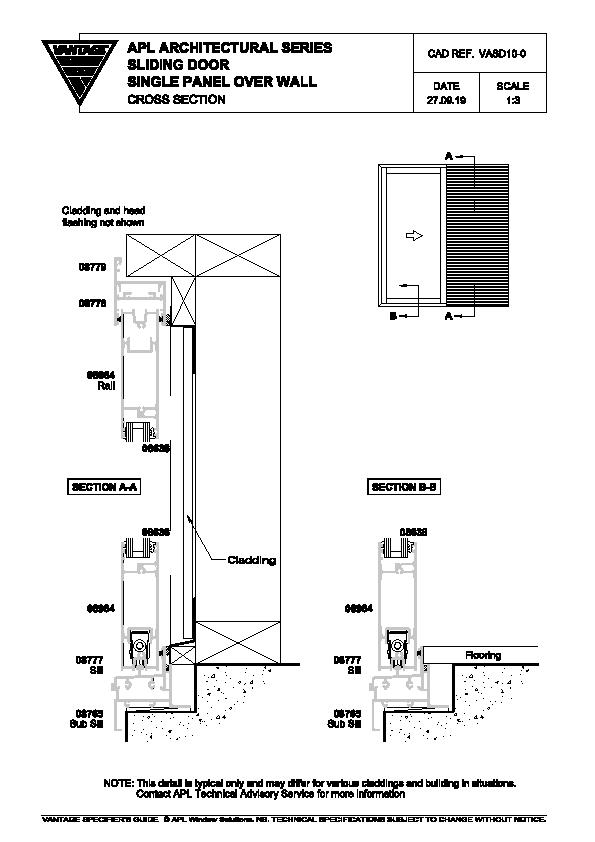

Vantage APL Architectural Series Sliding Door - Single Panel Over Wall

VASD10-0

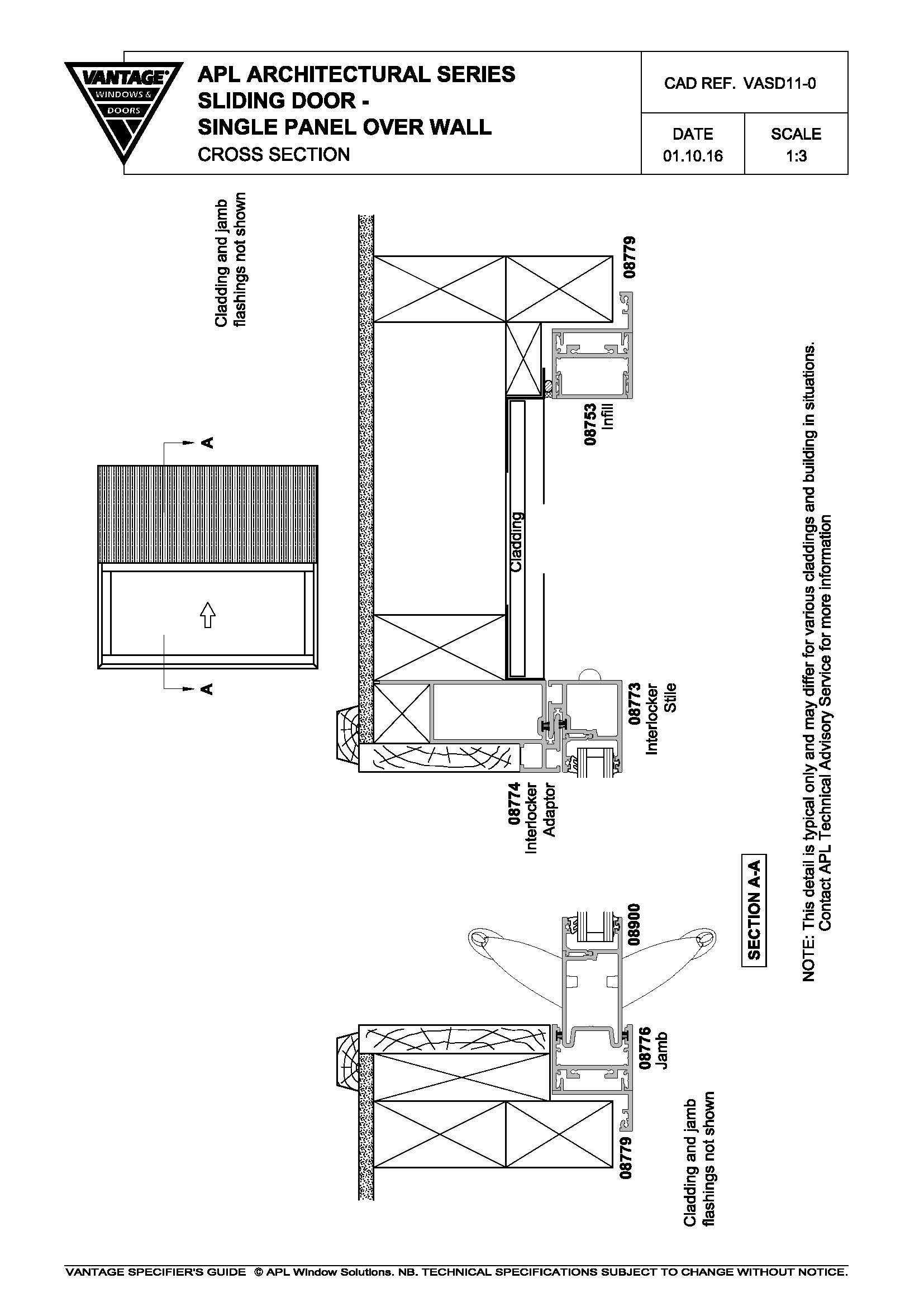

Vantage APL Architectural Series Sliding Door - Single Panel Over Wall

VASD11-0

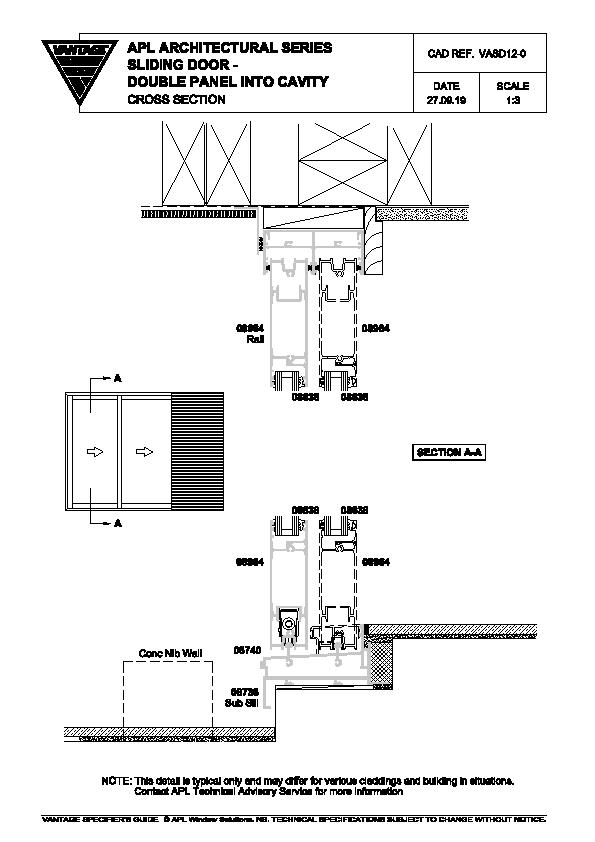

Vantage APL Architectural Series Sliding Door - Double Panel into Cavity

VASD12-0

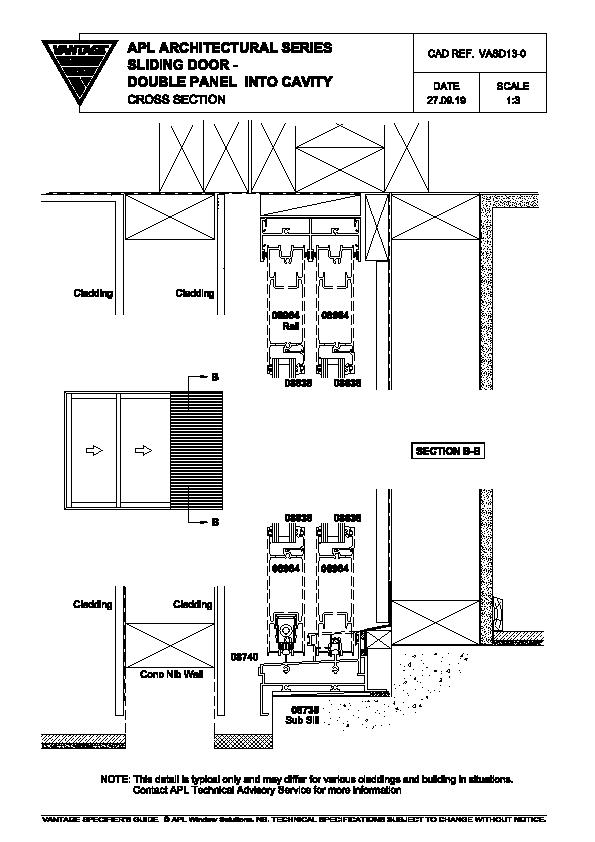

Vantage APL Architectural Series Sliding Door - Double Panel into Cavity

VASD13-0

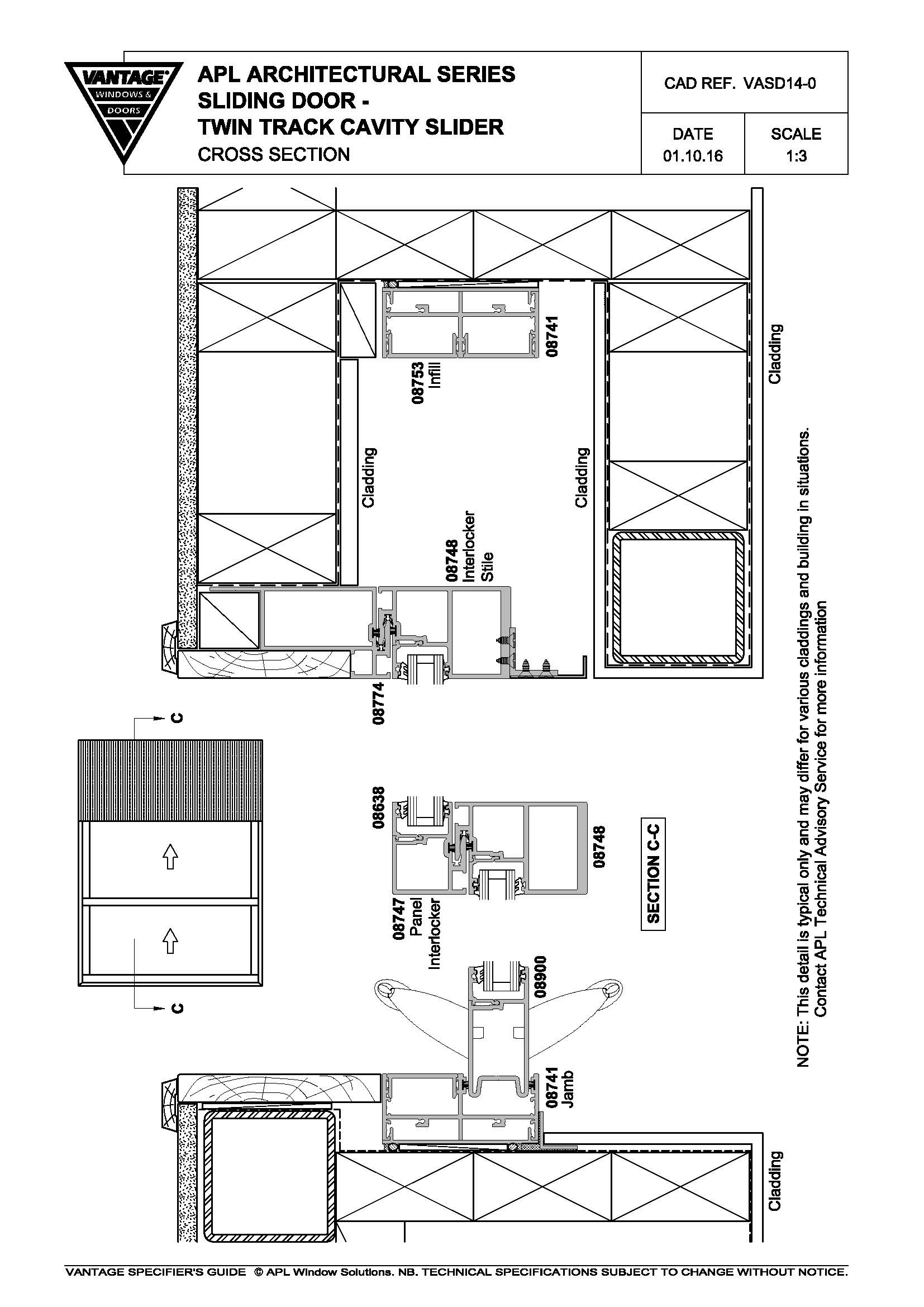

Vantage APL Architectural Series Sliding Door - Twin Track Cavity Slider

VASD14-0

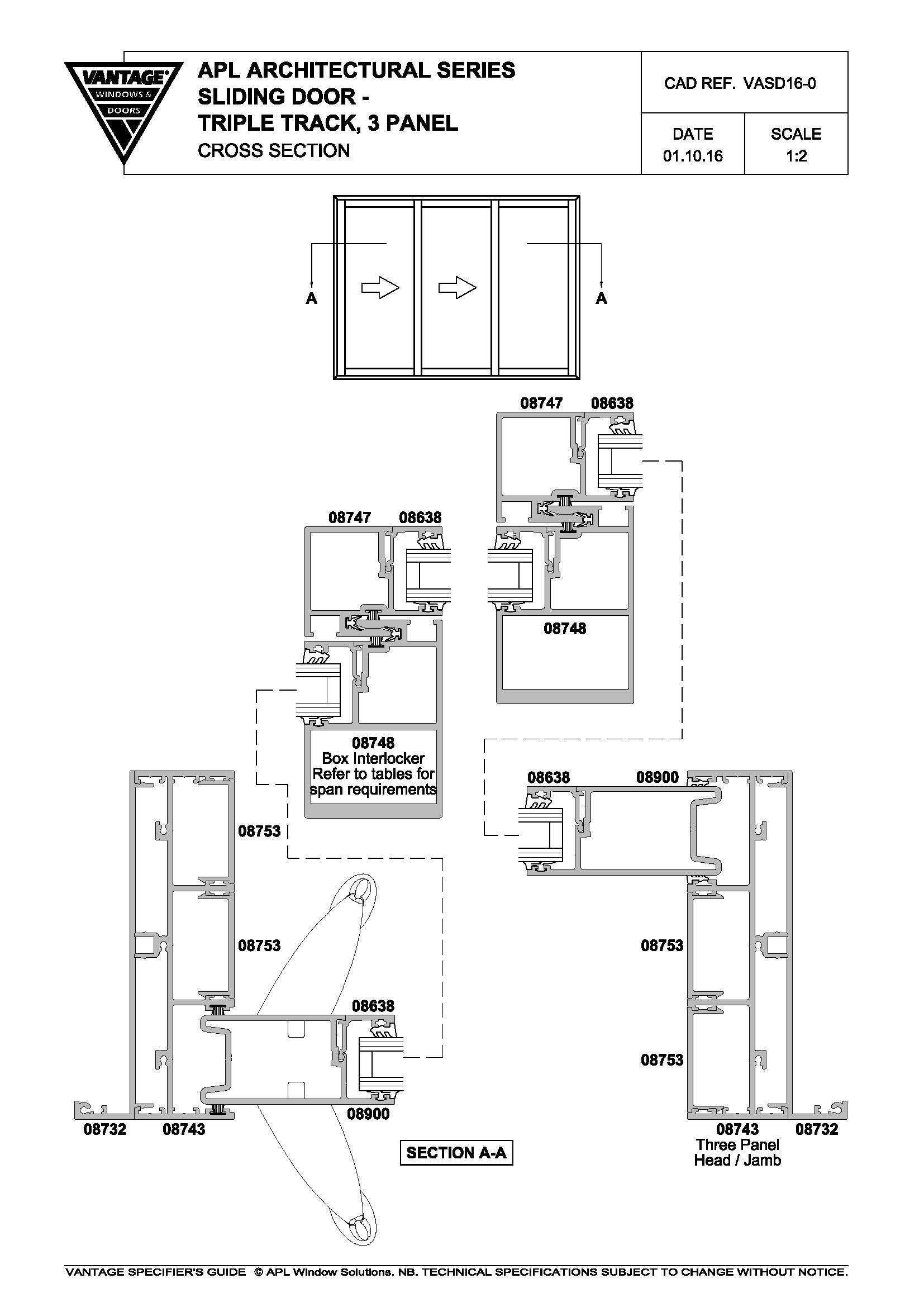

Vantage APL Architectural Series Sliding Door - Triple Track, 3 Panel

VASD16-0

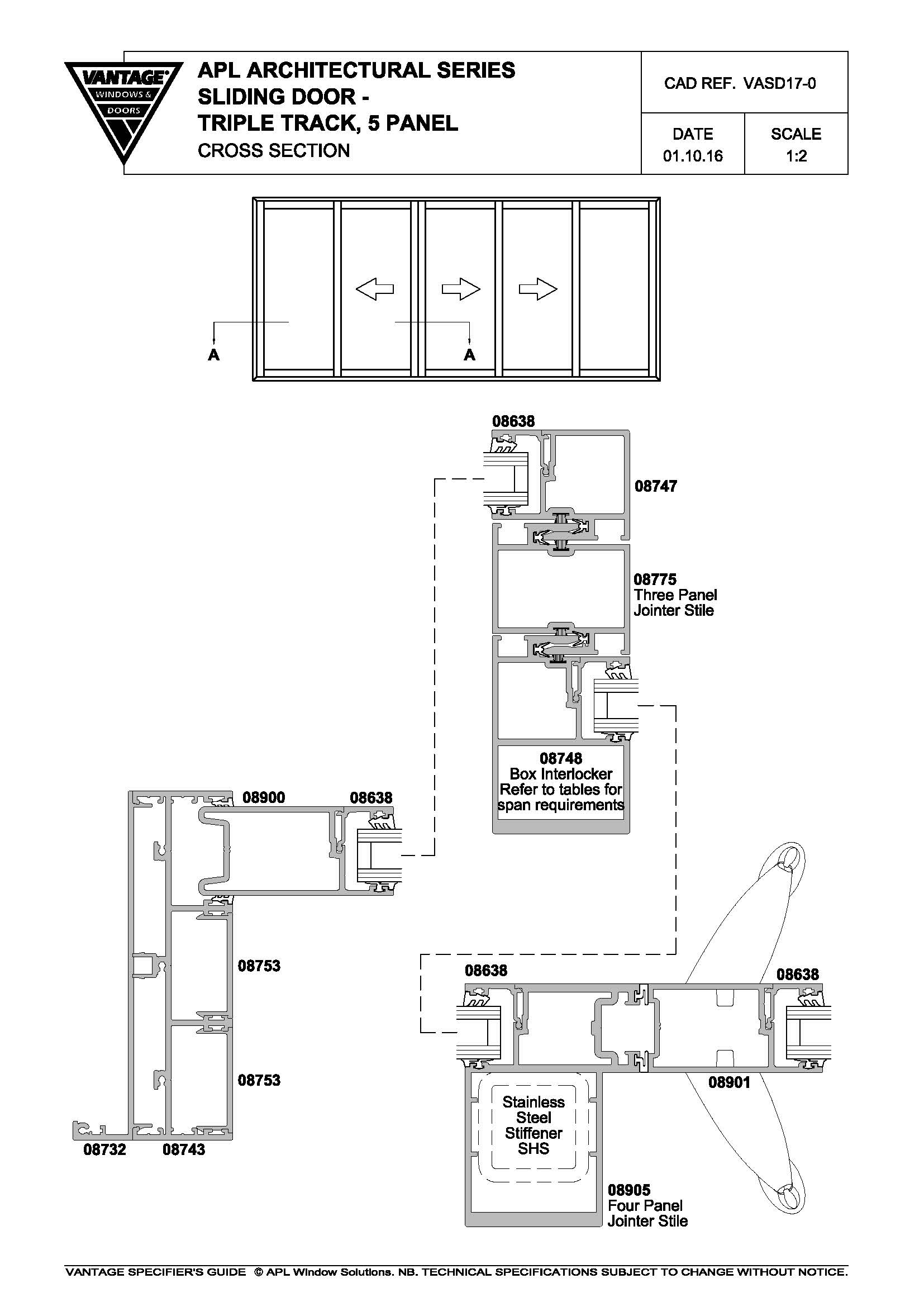

Vantage APL Architectural Series Sliding Door - Triple Track, 5 Panel

VASD17-0

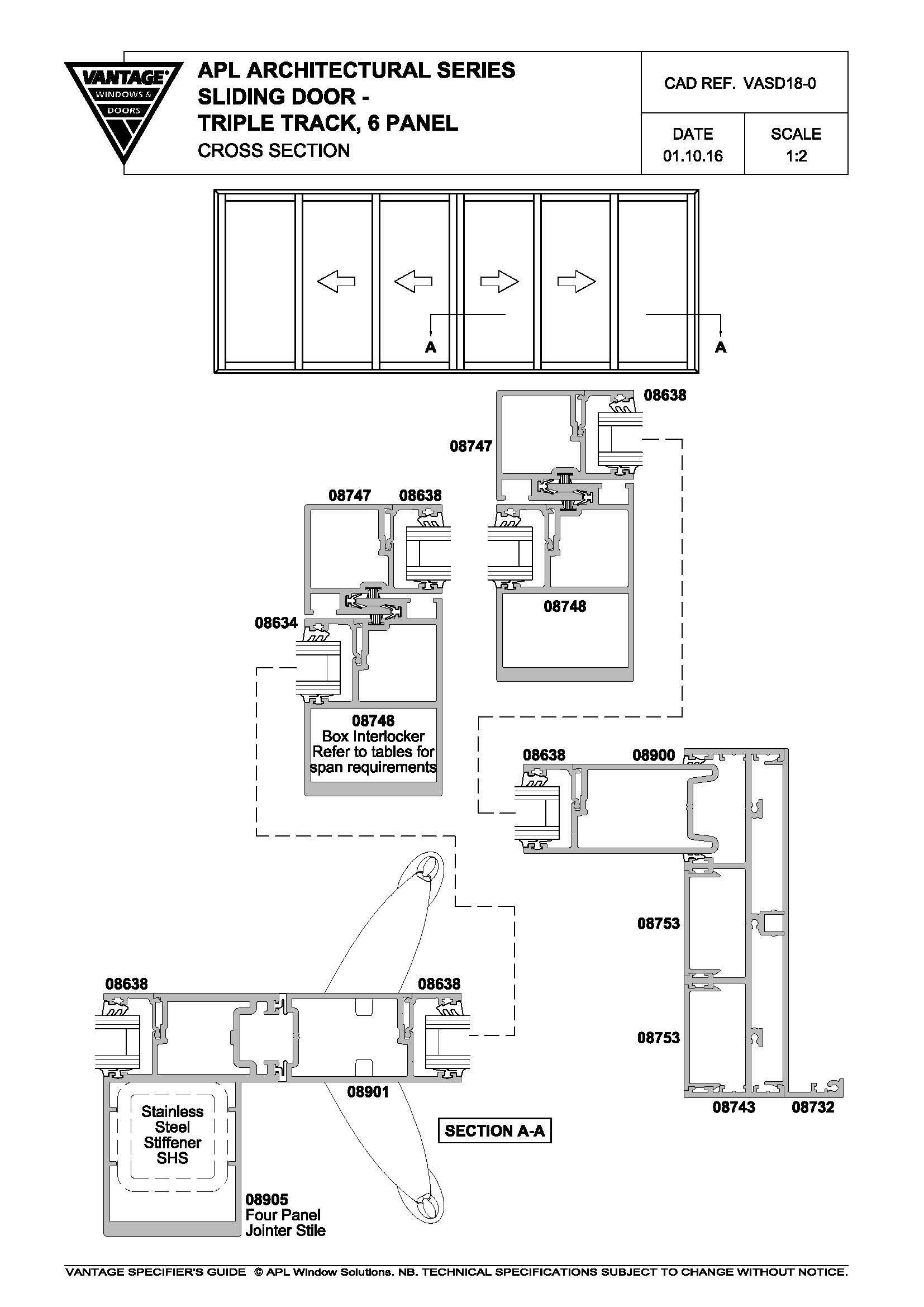

Vantage APL Architectural Series Sliding Door - Triple Track, 6 Panel

VASD18-0

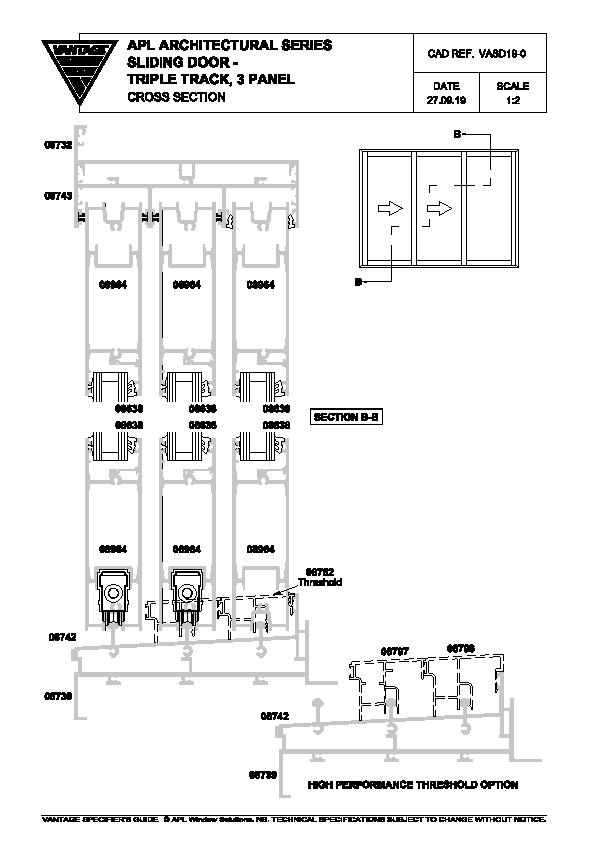

Vantage APL Architectural Series Sliding Door - Triple Track, 3 Panel

VASD19-0

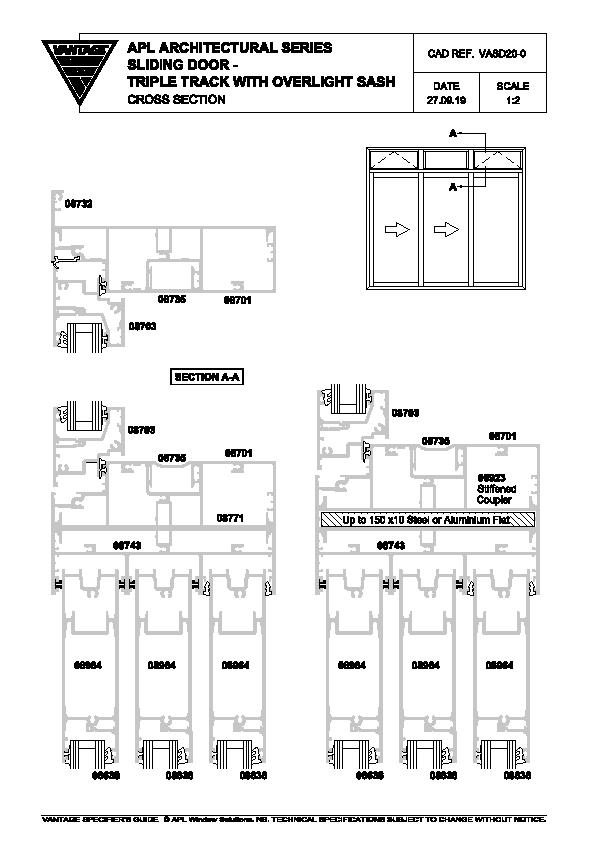

Vantage APL Architectural Series Sliding Door - Triple Track with Overlight Sash

VASD20-0

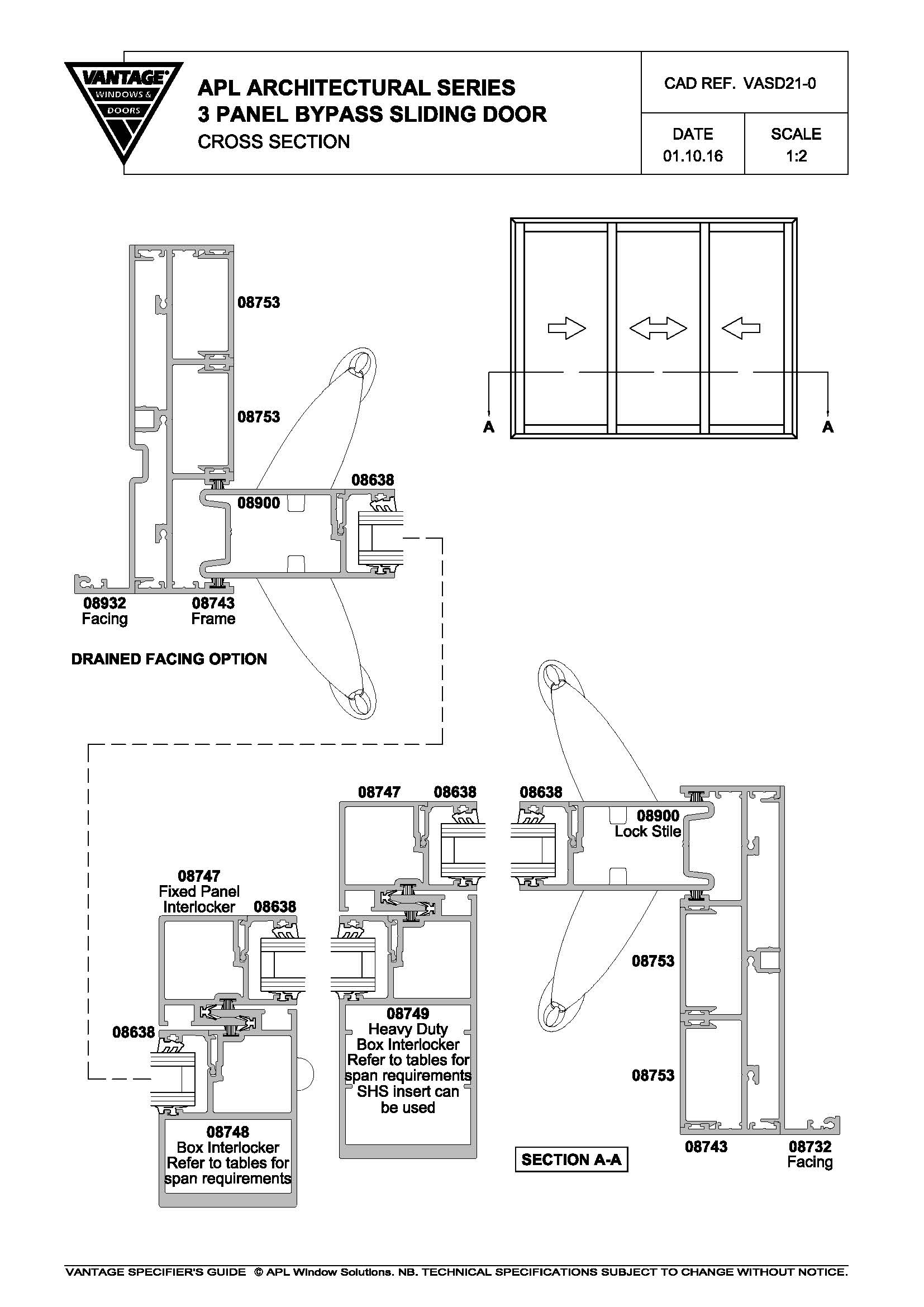

Vantage APL Architectural Series 3 Panel Bypass Sliding Door

VASD21-0

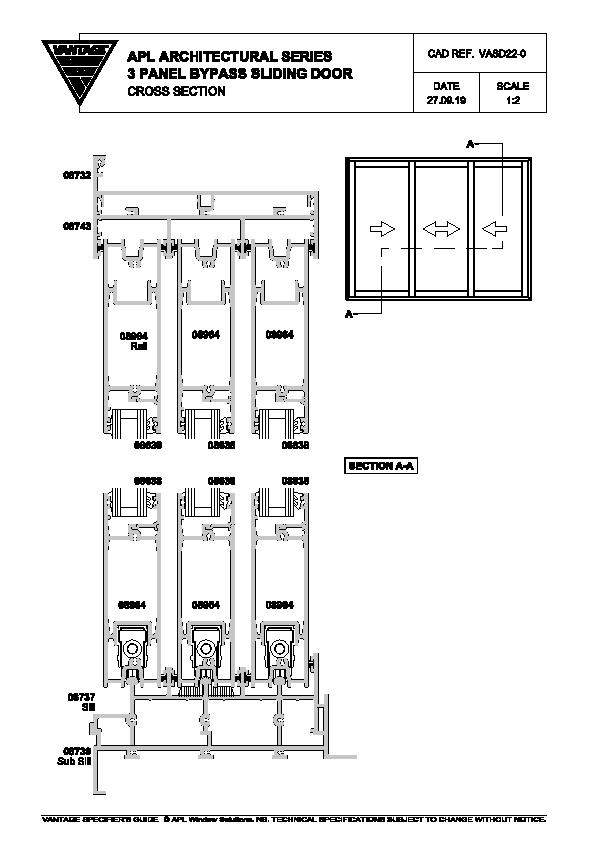

Vantage APL Architectural Series 3 Panel Bypass Sliding Door

VASD22-0

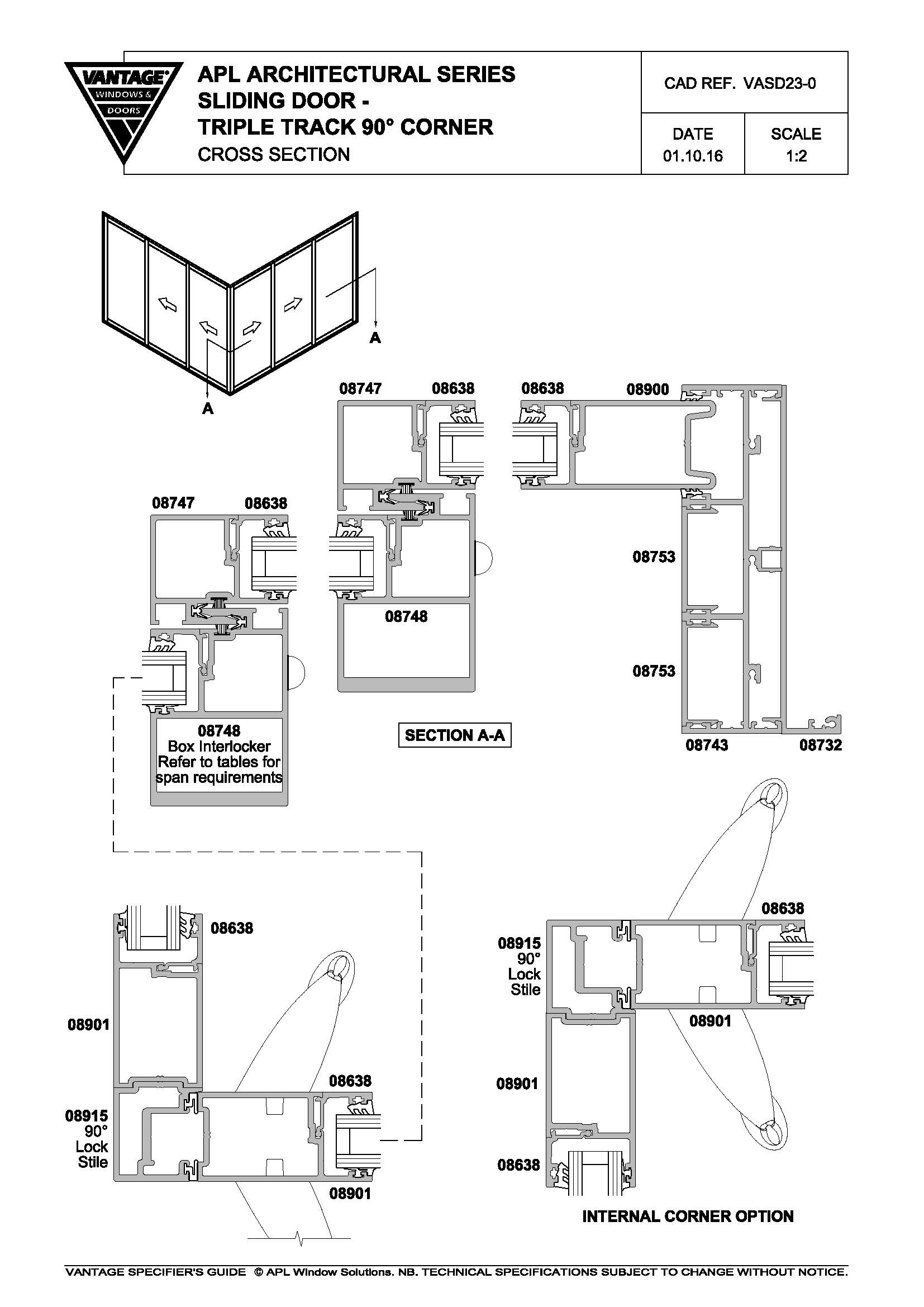

Vantage APL Architectural Series Sliding Door - Triple Track 90º Corner

VASD23-0

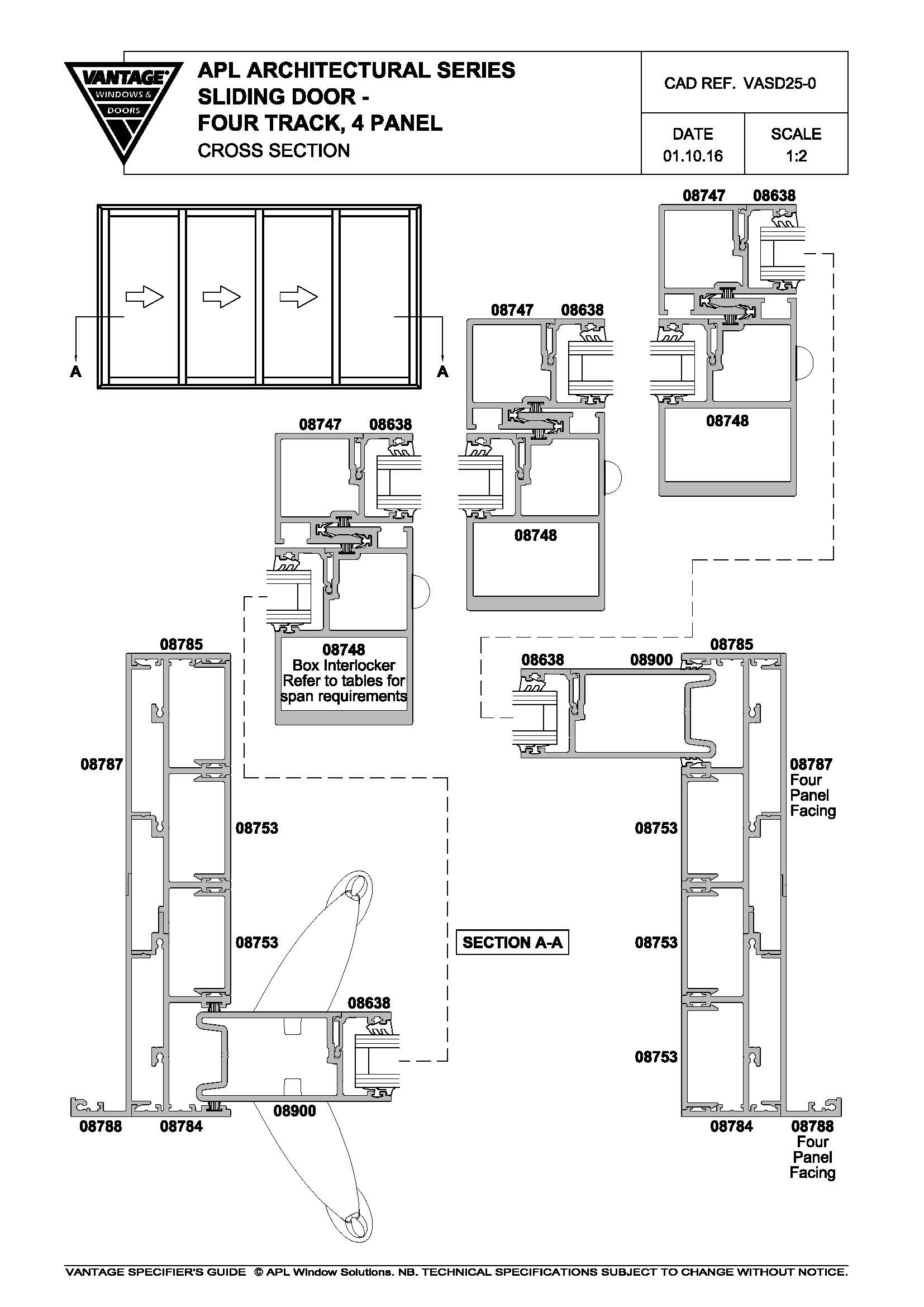

Vantage APL Architectural Series Sliding Door - Four Track, 4 Panel

VASD25-0

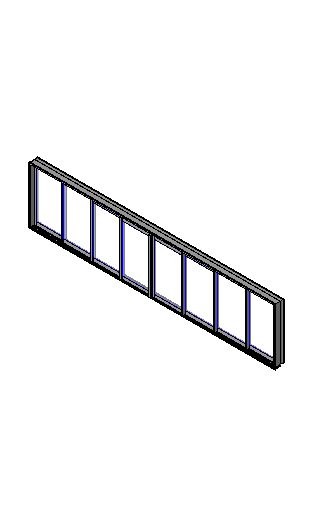

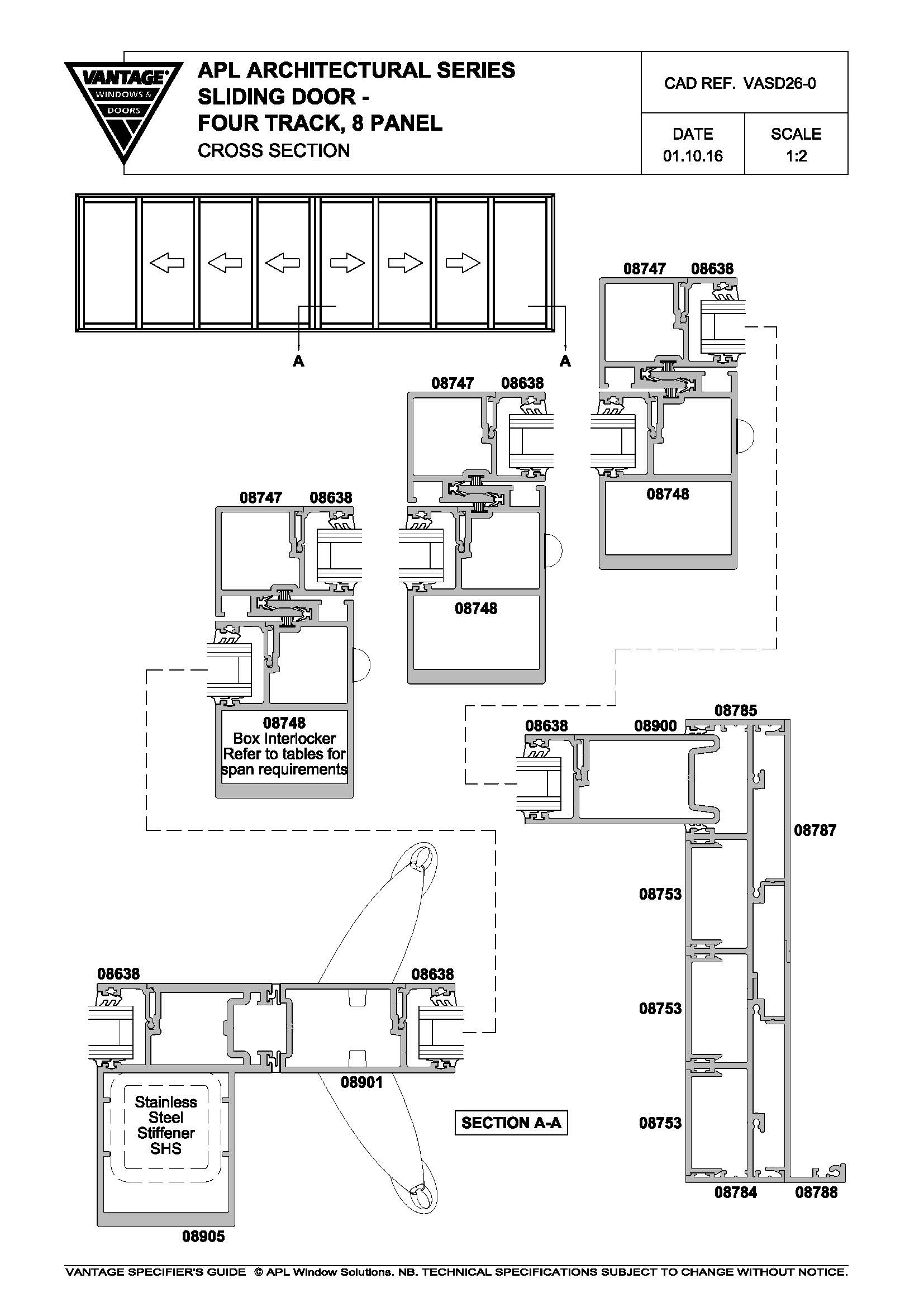

Vantage APL Architectural Series Sliding Door - Four Track, 8 Panel

VASD26-0

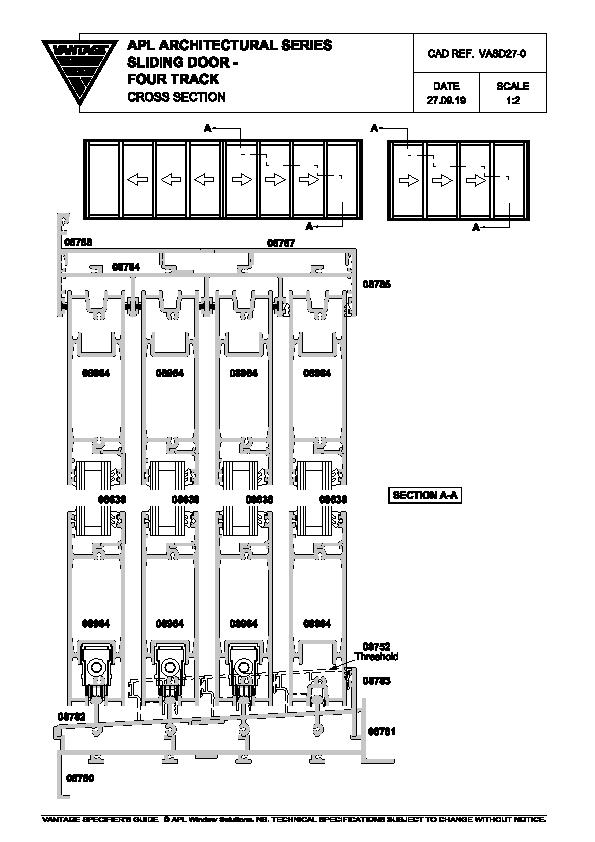

Vantage APL Architectural Series Sliding Door - Four Track

VASD27-0

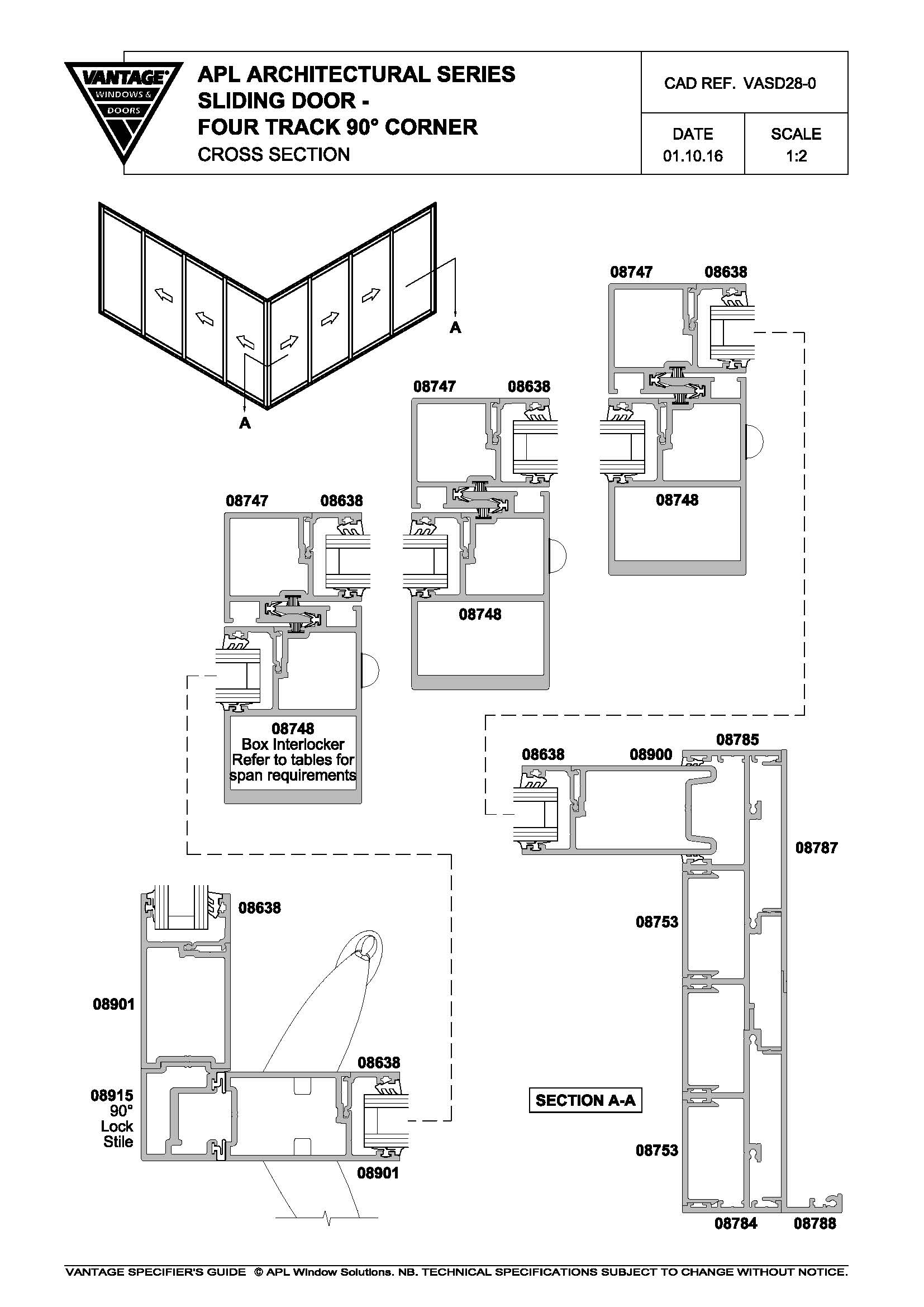

Vantage APL Architectural Series Sliding Door - Four Track 90º Corner

VASD28-0

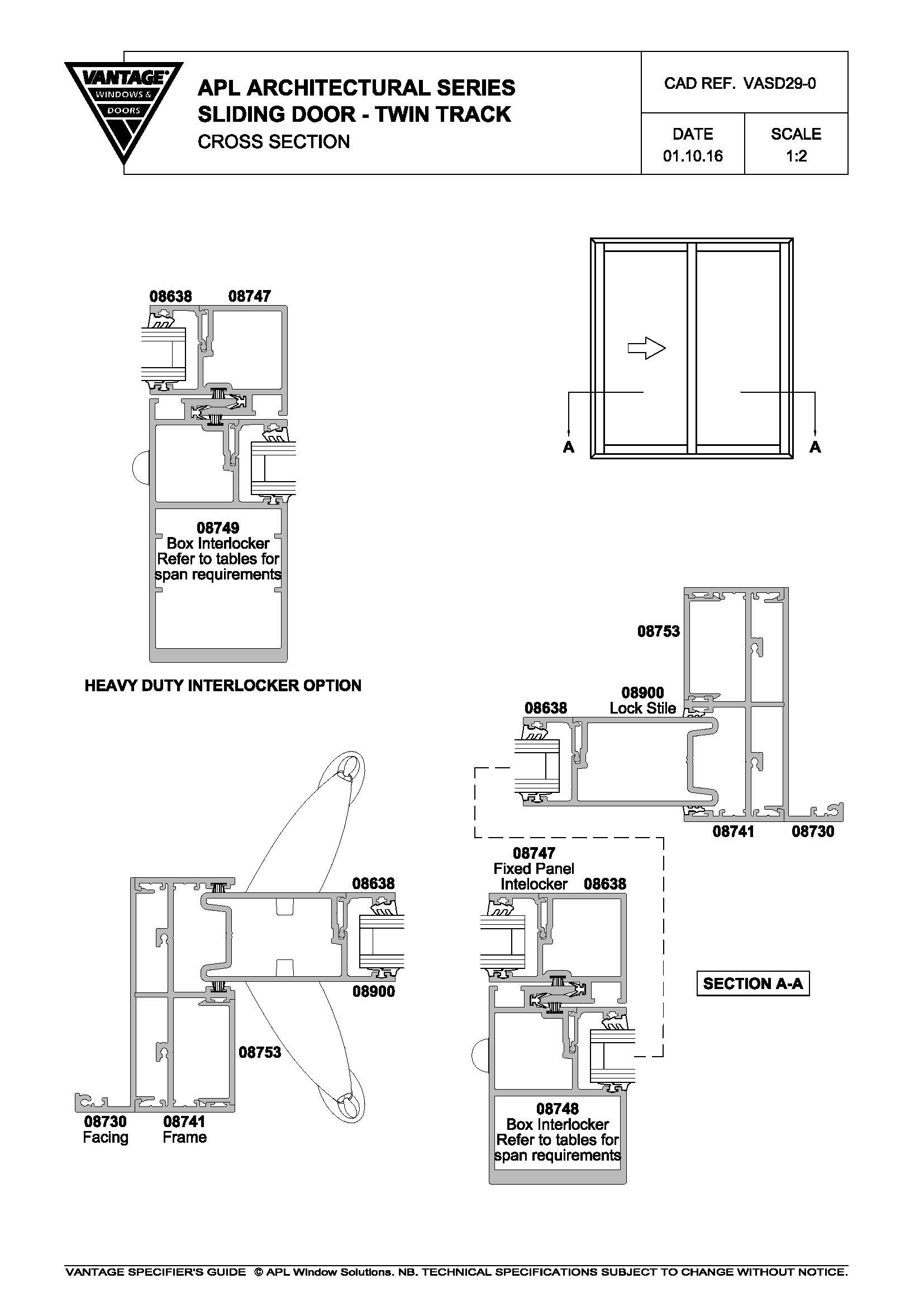

Vantage APL Archtiectural Series Sliding Door - Twin Track

VASD29-0

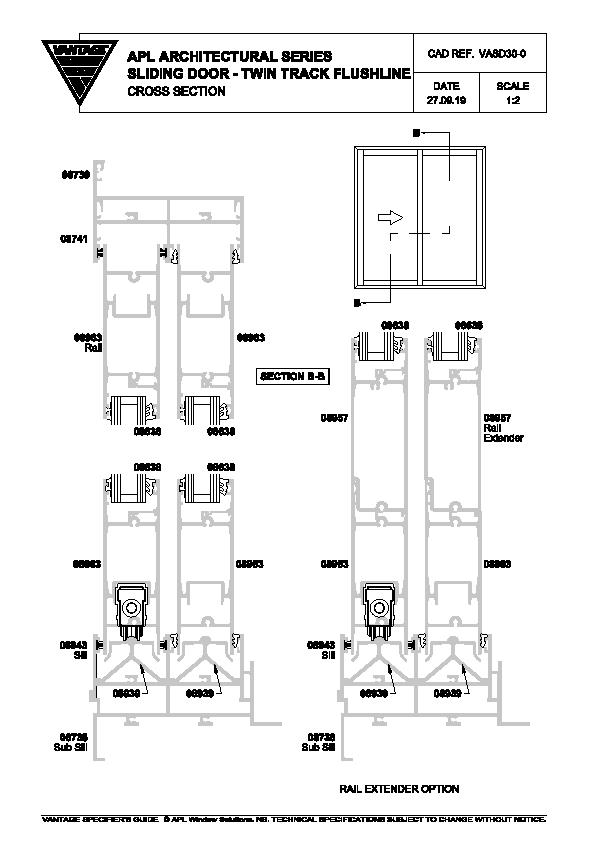

Vantage APL Archtiectural Series Sliding Door - Twin Track Flushline

VASD30-0

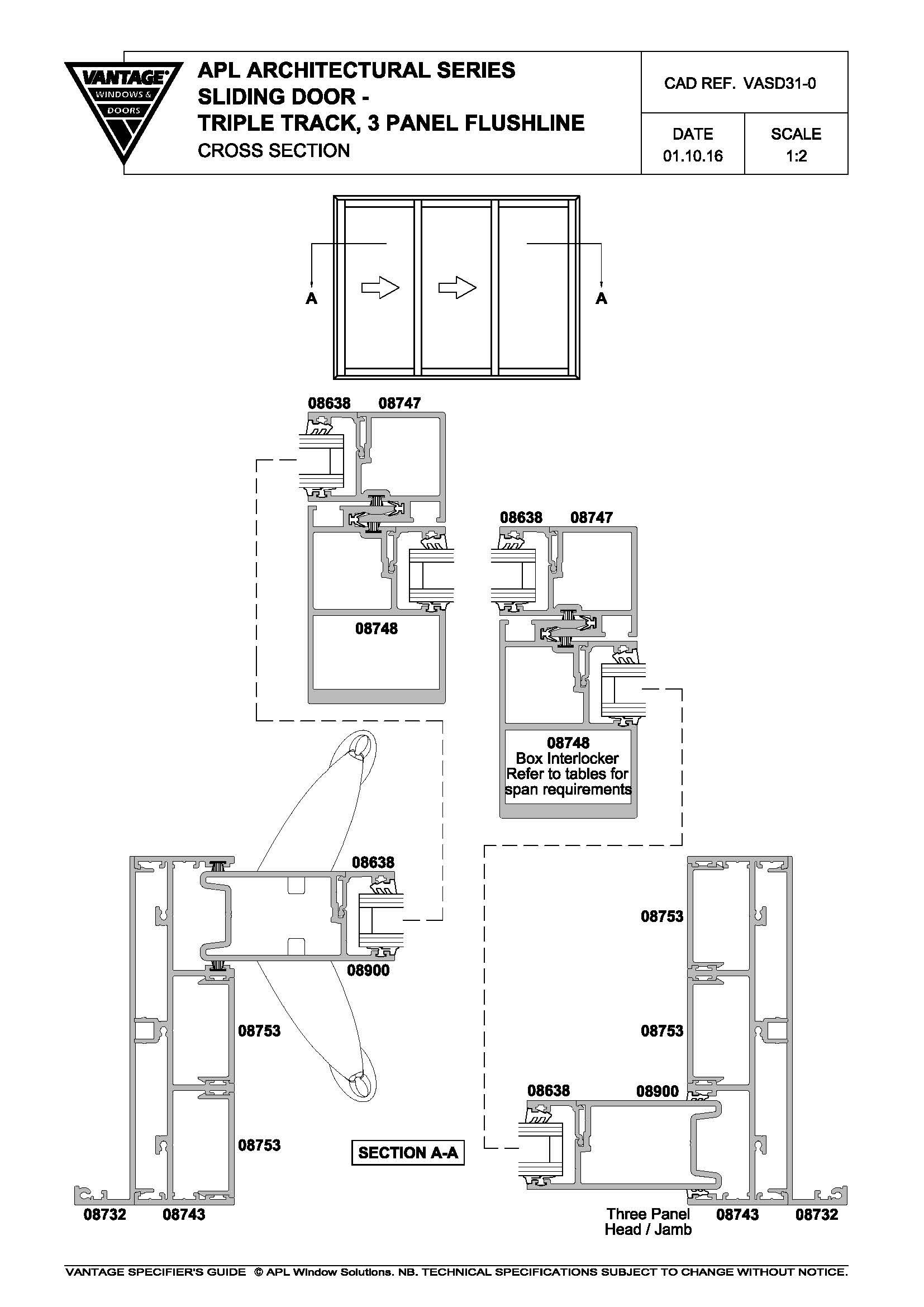

Vantage APL Architectural Series Sliding Door - Triple Track, 3 Panel Flushline

VASD31-0

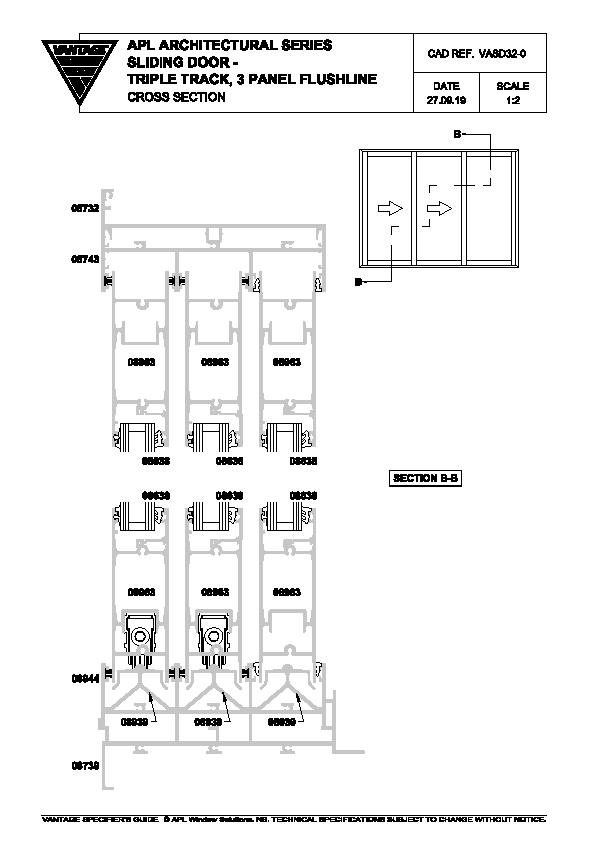

Vantage APL Architectural Series Sliding Door - Triple Track, 3 Panel Flushline

VASD32-0

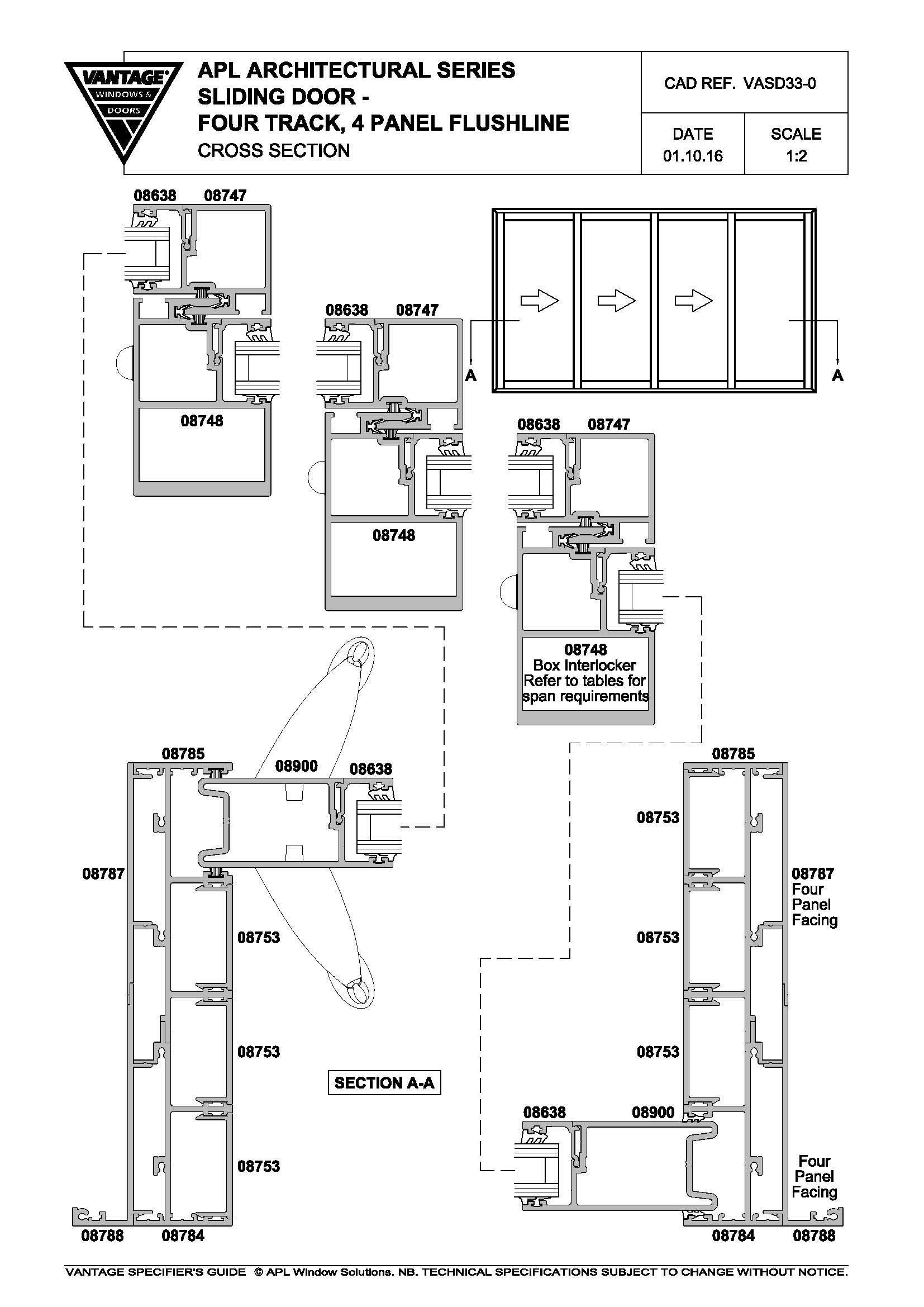

Vantage APL Archtiectural Series Sliding Door - Four Track, 4 Panel Flushline

VASD33-0

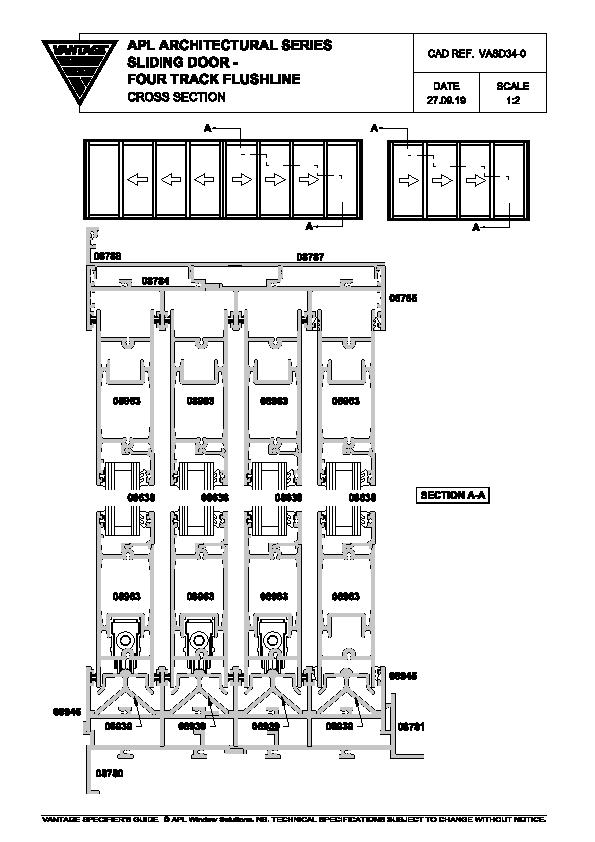

Vantage APL Architectural Series Sliding Door - Four Track Flushline

VASD34-0

Installation Details
Vantage APL Architectural Series Sliding Door Two Track on Board and Batten

ASS2BB

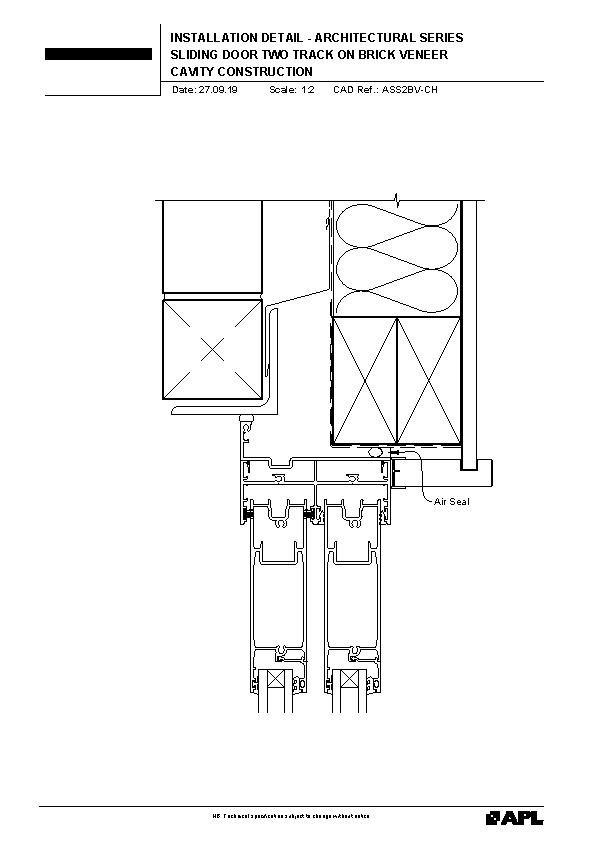

Vantage APL Architectural Series Sliding Door Two Track on Brick Veneer

ASS2BV

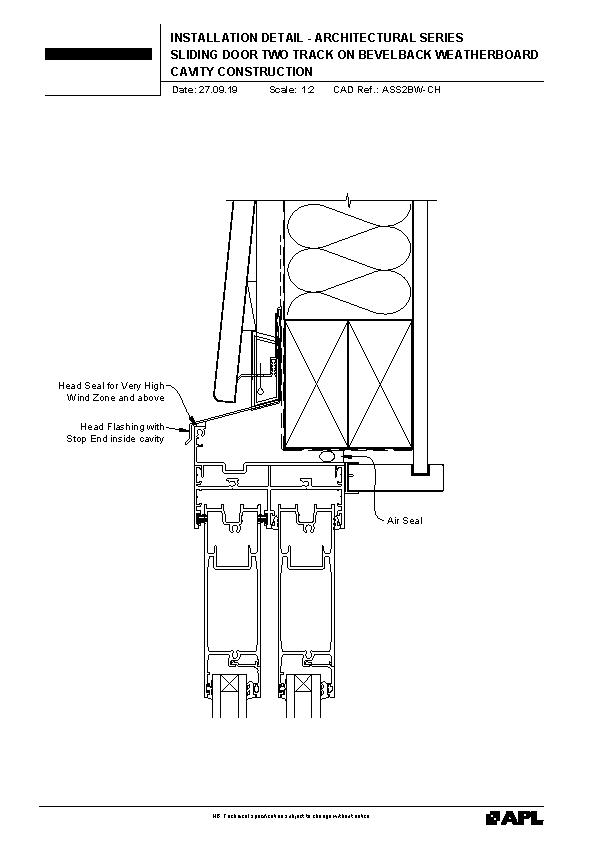

Vantage APL Architectural Series Sliding Door Two Track on Bevelback Weatherboard

ASS2BW

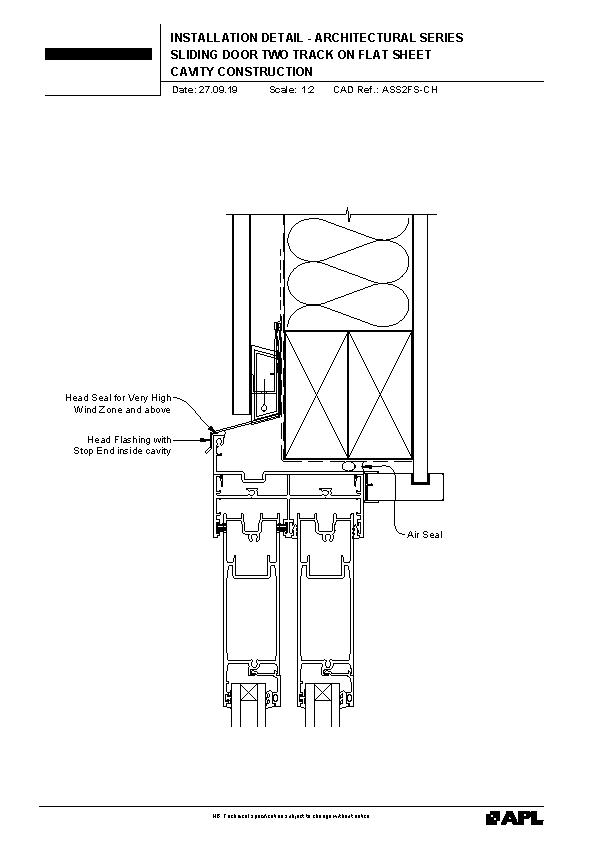

Vantage APL Architectural Series Sliding Door Two Track on Flat Sheet

ASS2FS

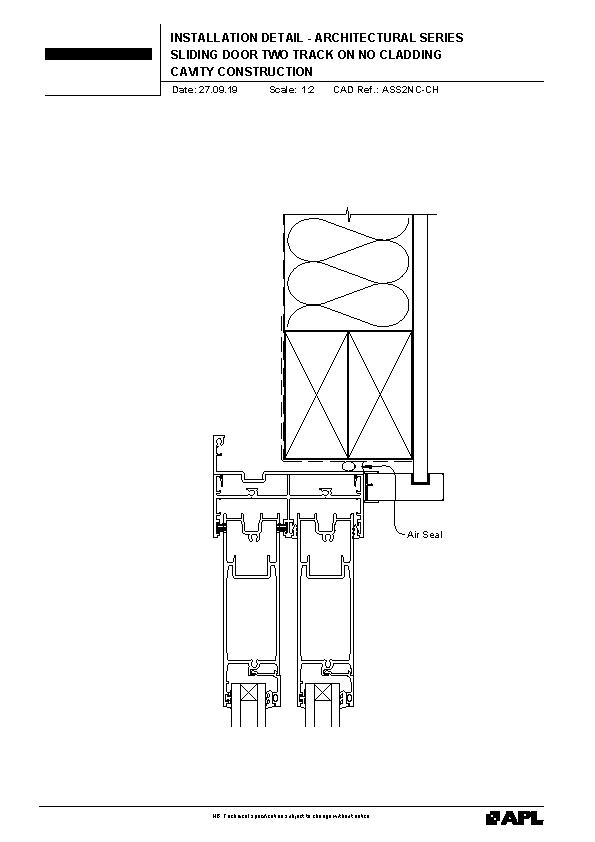

Vantage APL Architectural Series Sliding Door Two Track on No Cladding

ASS2NC

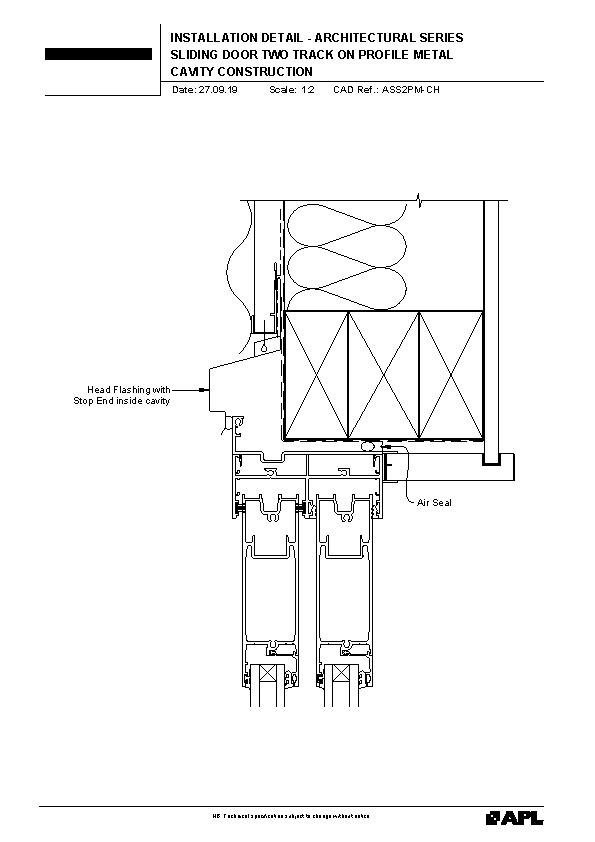

Vantage APL Architectural Series Sliding Door Two Track on Profile Metal

ASS2PM

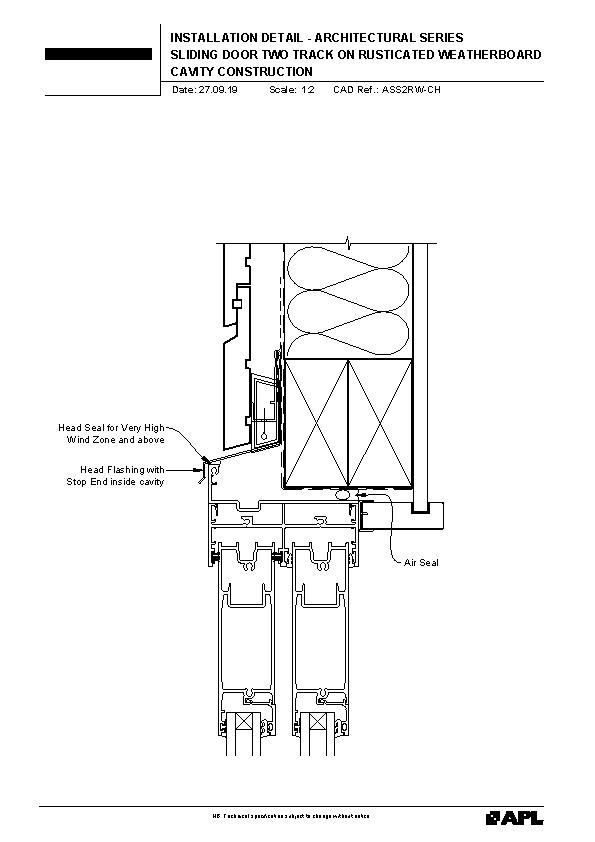

Vantage APL Architectural Series Sliding Door Two Track on Rusticated Weatherboard

ASS2RW

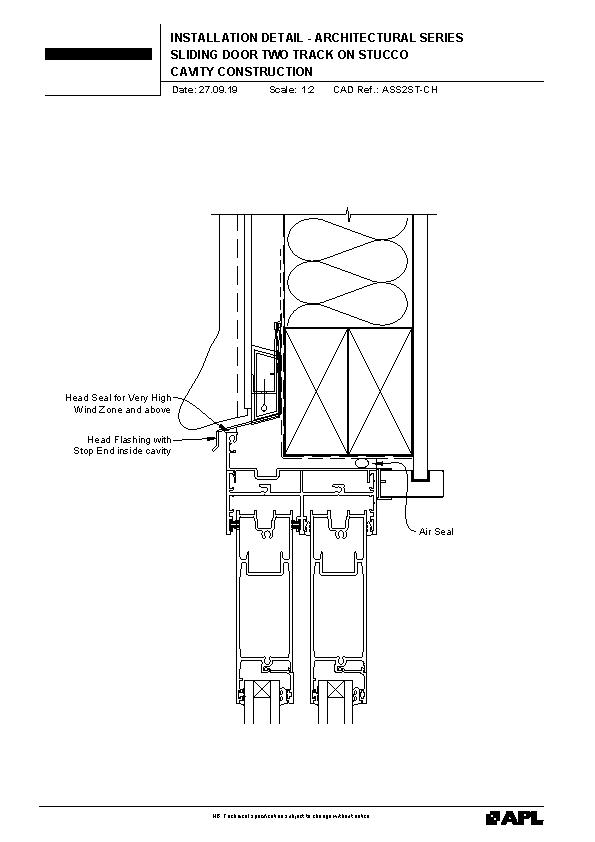

Vantage APL Architectural Series Sliding Door Two Track on Stucco

ASS2ST

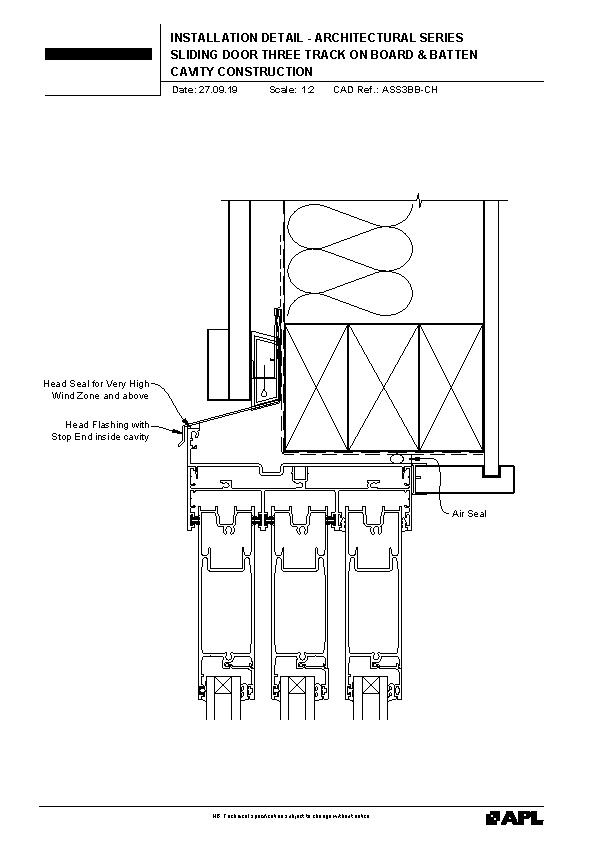

Vantage APL Architectural Series Sliding Door Three Track on Board and Batten

ASS3BB

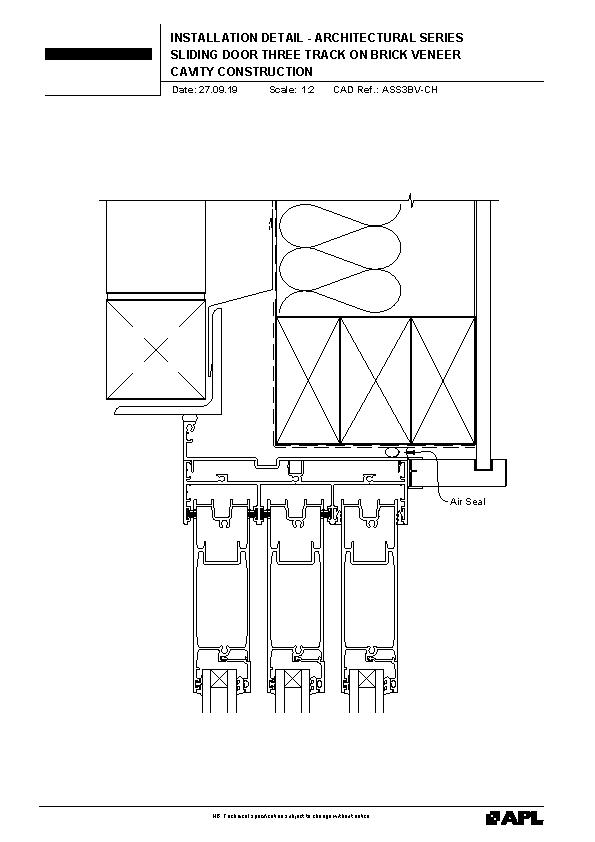

Vantage APL Architectural Series Sliding Door Three Track on Brick Veneer

ASS3BV

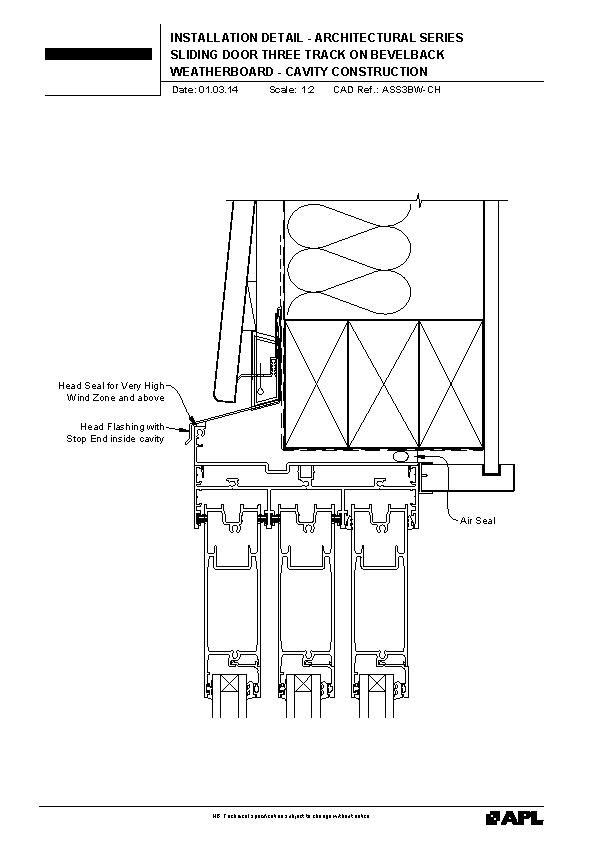

Vantage APL Architectural Series Sliding Door Three Track on Bevelback Weatherboard

ASS3BW

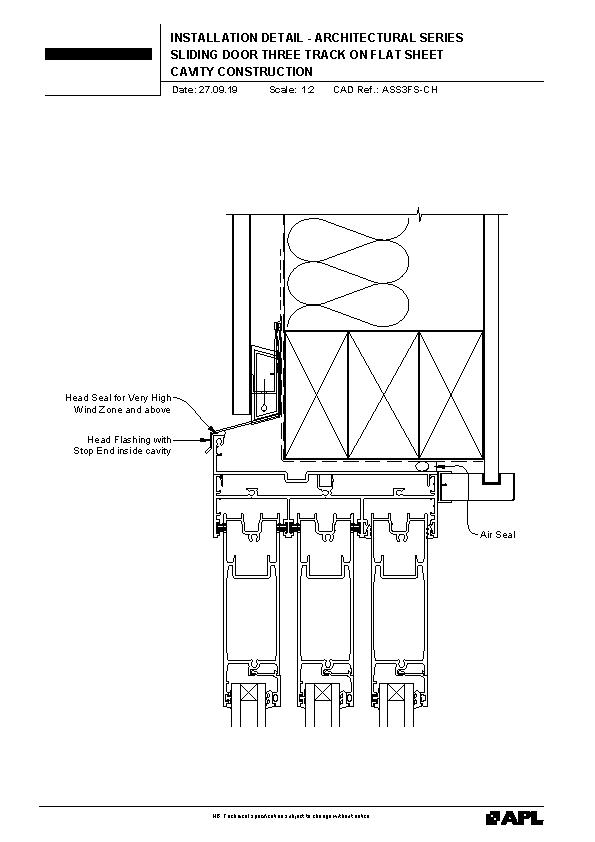

Vantage APL Architectural Series Sliding Door Three Track on Flat Sheet

ASS3FS

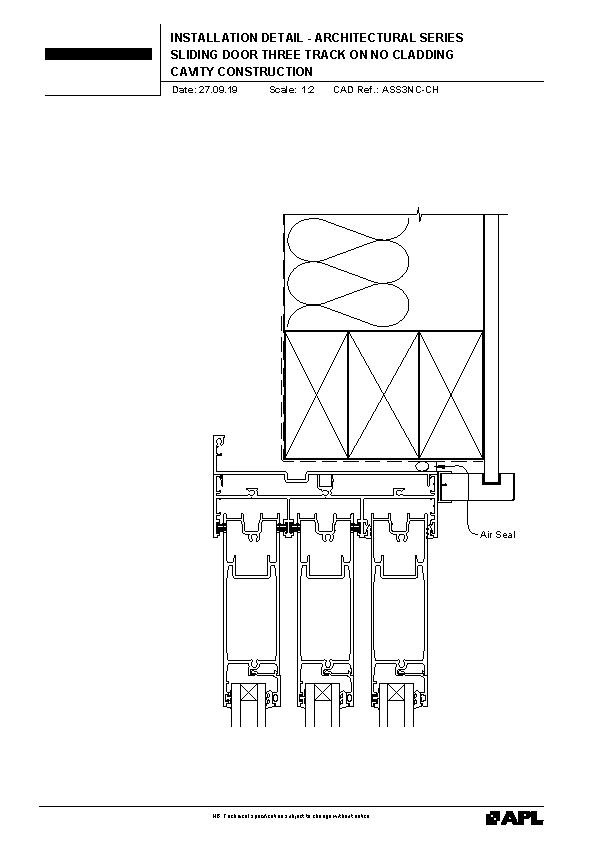

Vantage APL Architectural Series Sliding Door Three Track on No Cladding

ASS3NC

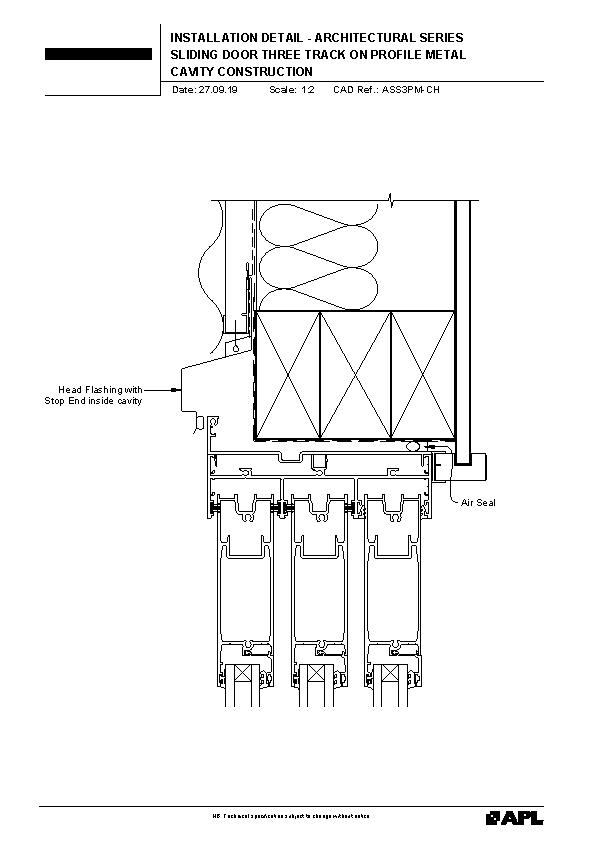

Vantage APL Architectural Series Sliding Door Three Track on Profile Metal

ASS3PM

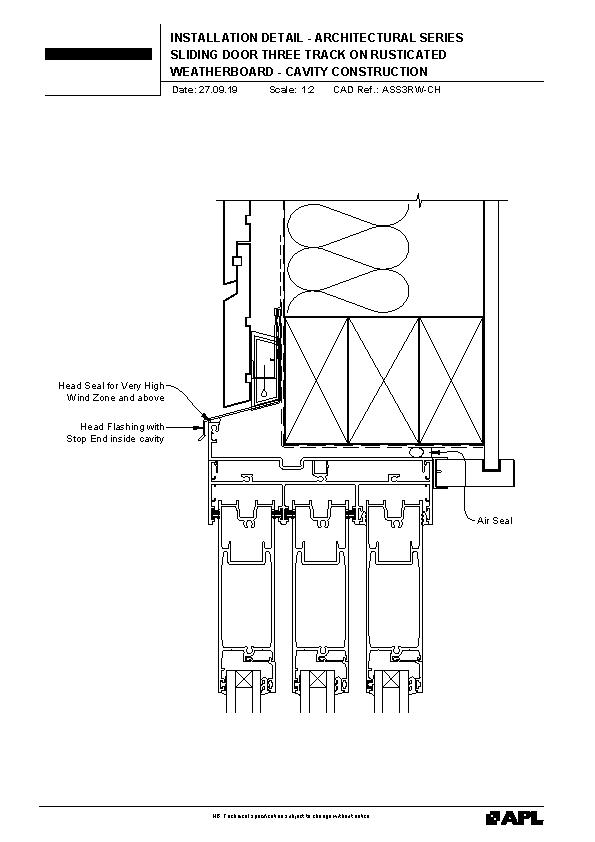

Vantage APL Architectural Series Sliding Door Three Track on Rusticated Weatherboard

ASS3RW

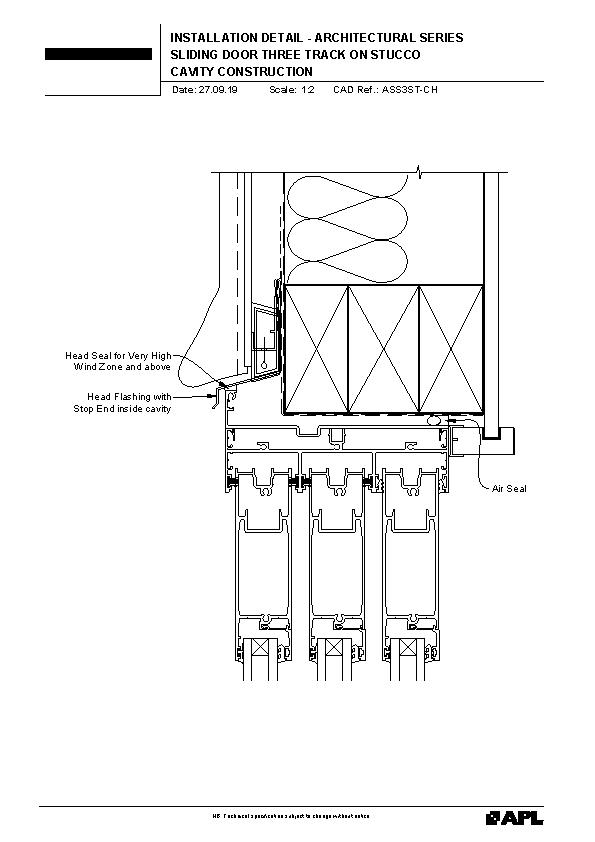

Vantage APL Architectural Series Sliding Door Three Track on Stucco

ASS3ST

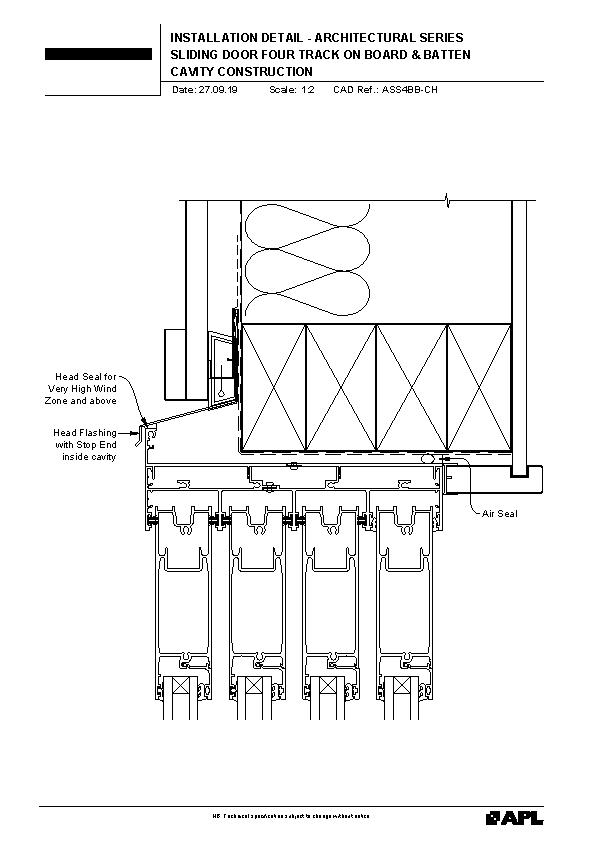

Vantage APL Architectural Series Sliding Door Four Track on Board and Batten

ASS4BB

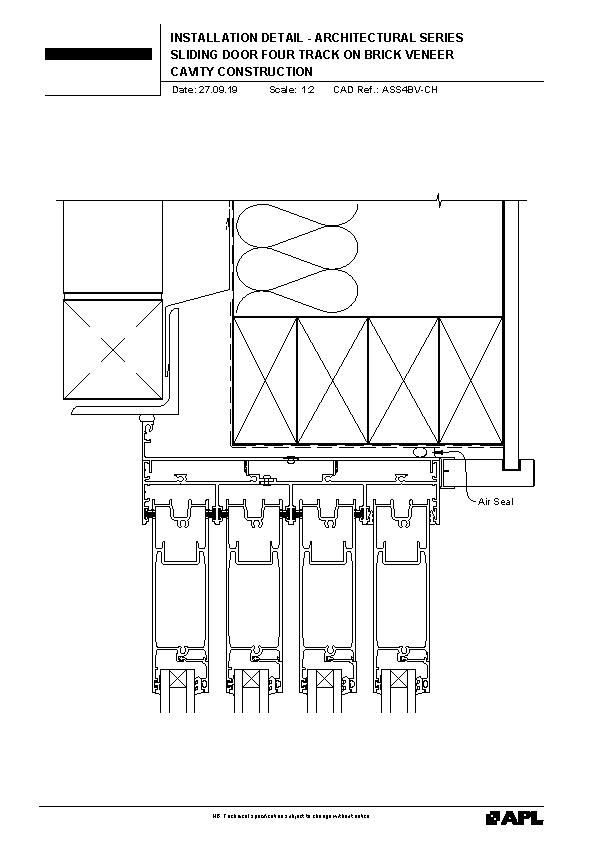

Vantage APL Architectural Series Sliding Door Four Track on Brick Veneer

ASS4BV

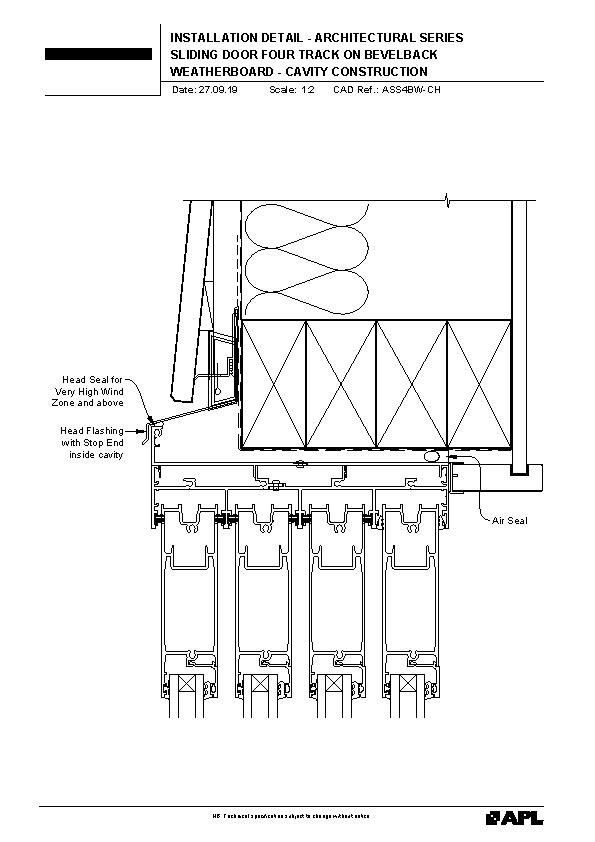

Vantage APL Architectural Series Sliding Door Four Track on Bevelback Weatherboard

ASS4BW

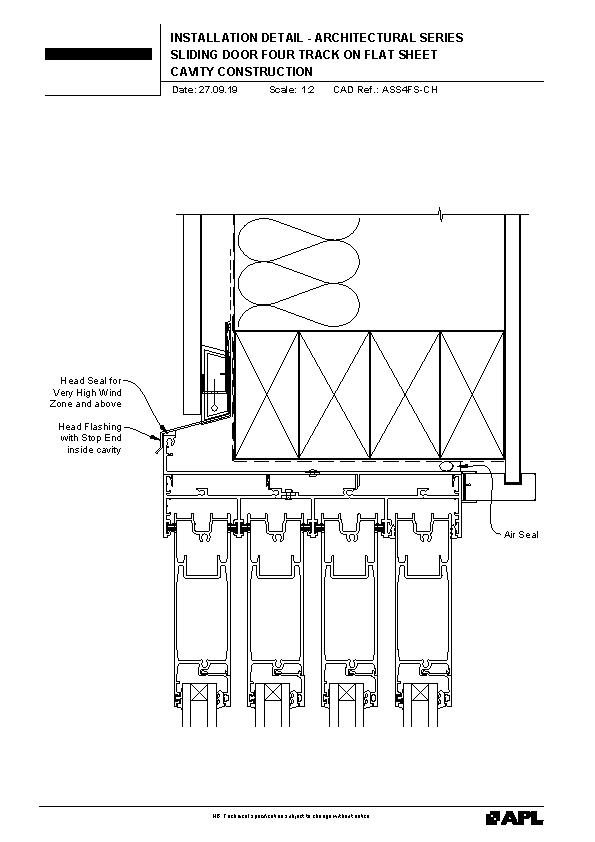

Vantage APL Architectural Series Sliding Door Four Track on Flat Sheet

ASS4FS

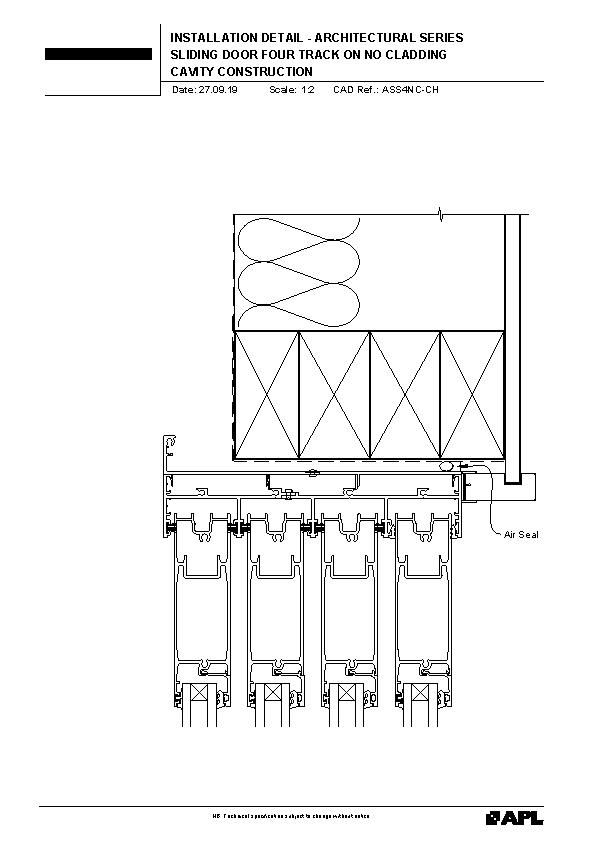

Vantage APL Architectural Series Sliding Door Four Track on No Cladding

ASS4NC

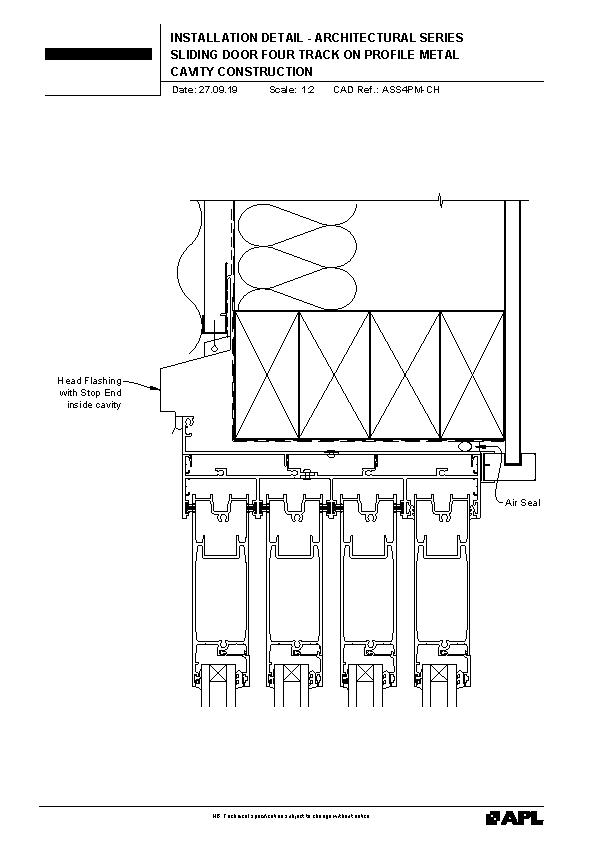

Vantage APL Architectural Series Sliding Door Four Track on Profile Metal

ASS4PM

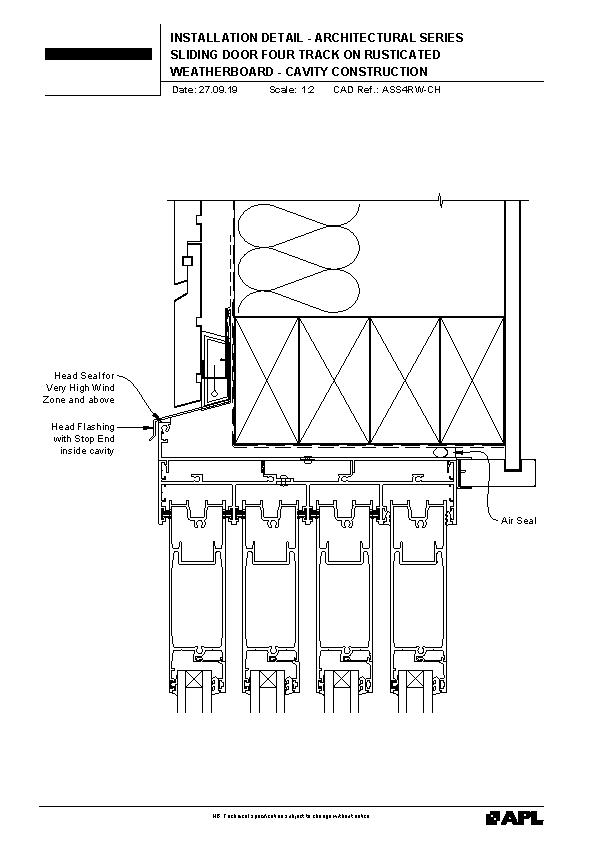

Vantage APL Architectural Series Sliding Door Four Track on Rusticated Weatherboard

ASS4RW

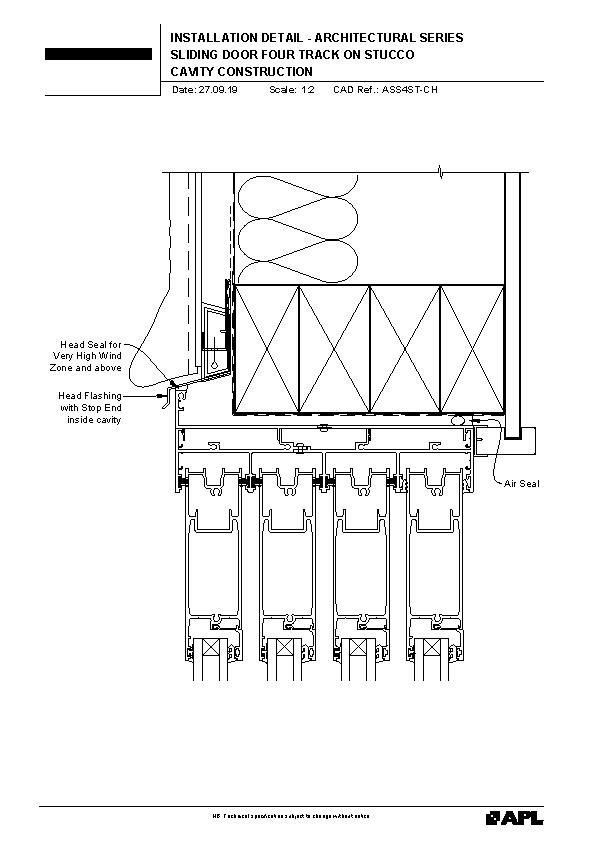

Vantage APL Architectural Series Sliding Door Four Track on Stucco

ASS4ST

BIM Objects

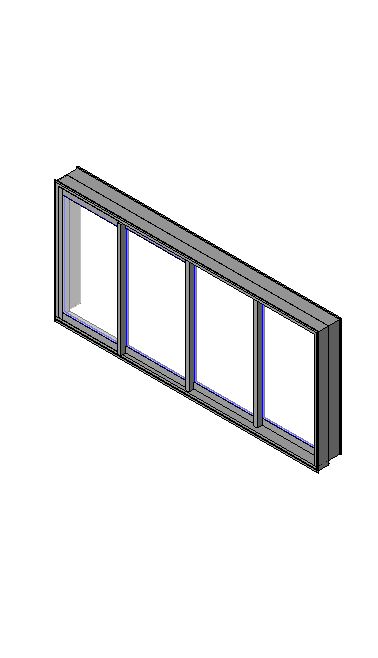

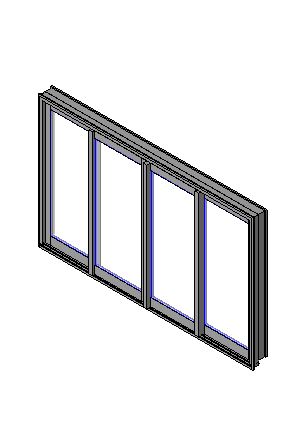

Vantage APL Architectural Series Sliding Door Four Track Bypass Flushline

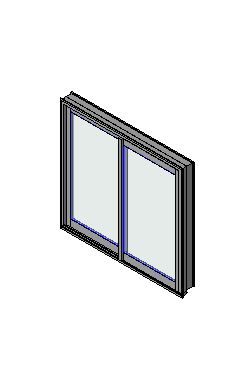

Vantage APL Architectural Series Sliding Door FS

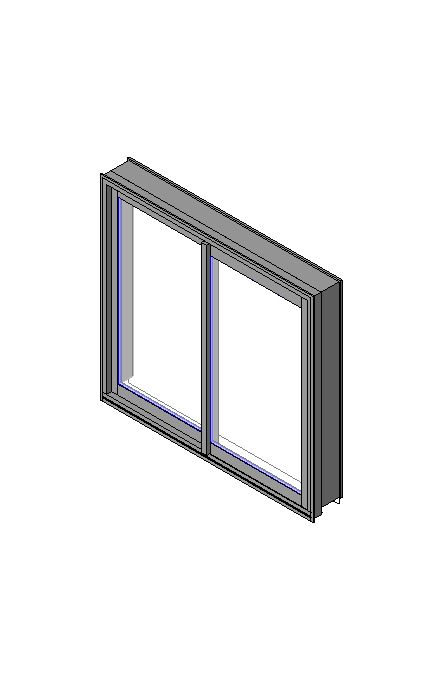

Vantage APL Architectural Series Sliding Door FS Twin Track Flushline
Vantage APL Architectural Series Sliding Door FS with Overlight

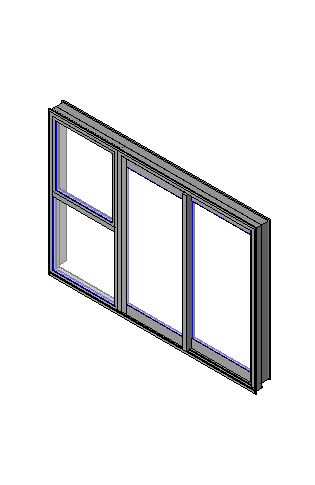

Vantage APL Architectural Series Sliding Door FS with Sidelight
Vantage APL Architectural Series Sliding Door FSSF
Vantage APL Architectural Series Sliding Door FSSSSF

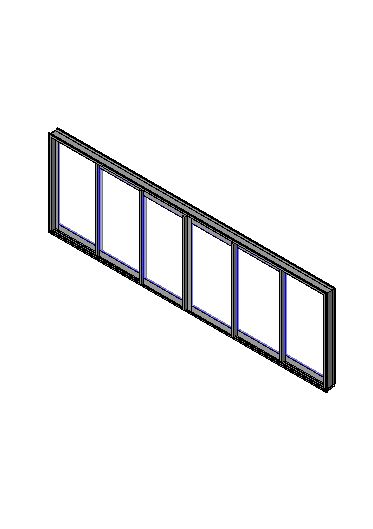

Vantage APL Architectural Series Sliding Door FSSSSSSF
Vantage APL Architectural Series Sliding Door SSF

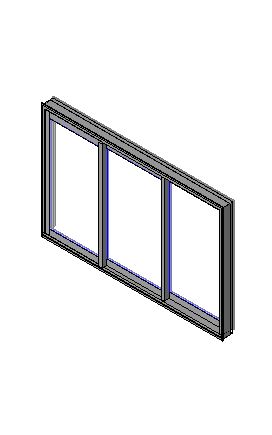

Vantage APL Architectural Series Sliding Door SSF Triple Track Flushline

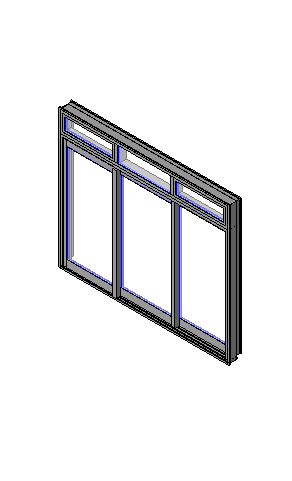

Vantage APL Architectural Series Sliding Door SSF with Overlight

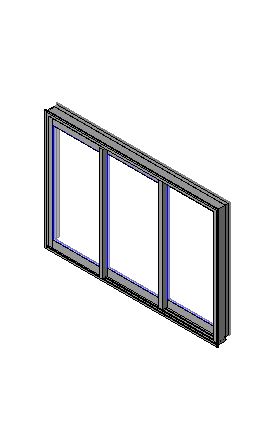

Vantage APL Architectural Series Sliding Door SSSF

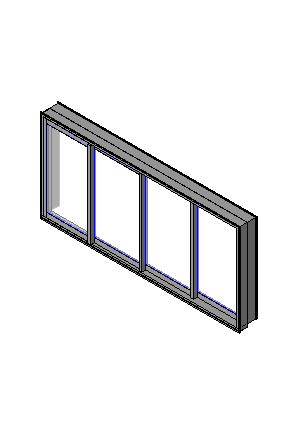

Vantage APL Architectural Series Sliding Door SSSF Four Track Flushline

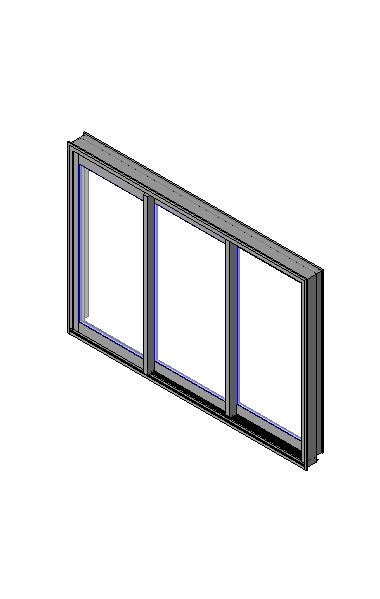

Vantage APL Architectural Series Sliding Door Three Track Bypass

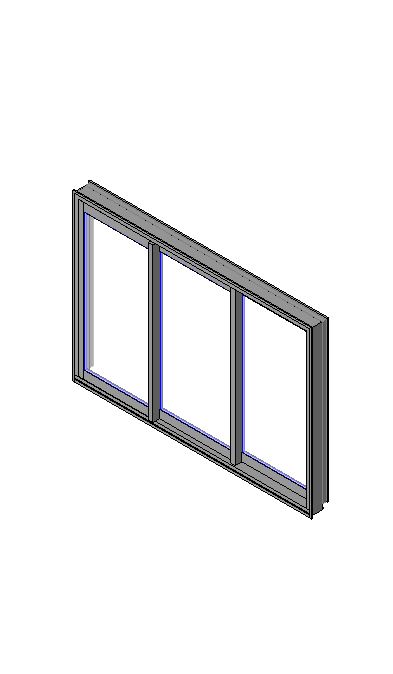

Vantage APL Architectural Series Sliding Door Three Track Bypass Flushline

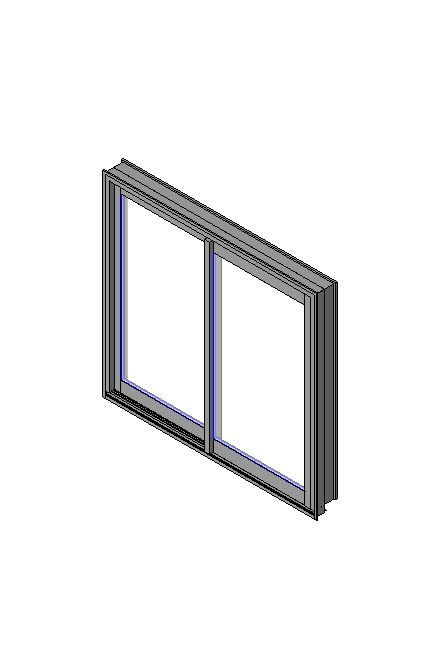

Vantage APL Architectural Series Sliding Door Twin Track Bypass

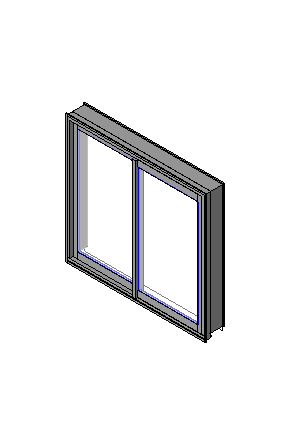

Vantage APL Architectural Series Sliding Door Twin Track Bypass Flushline
Vantage APL Architectural Series Sliding Door, Corner Lock Stile options
Vantage APL Architectural Series, Single Panel Over Wall

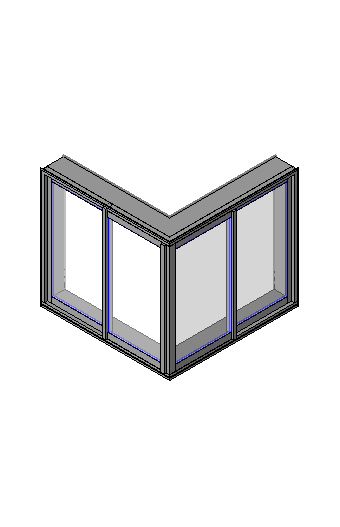

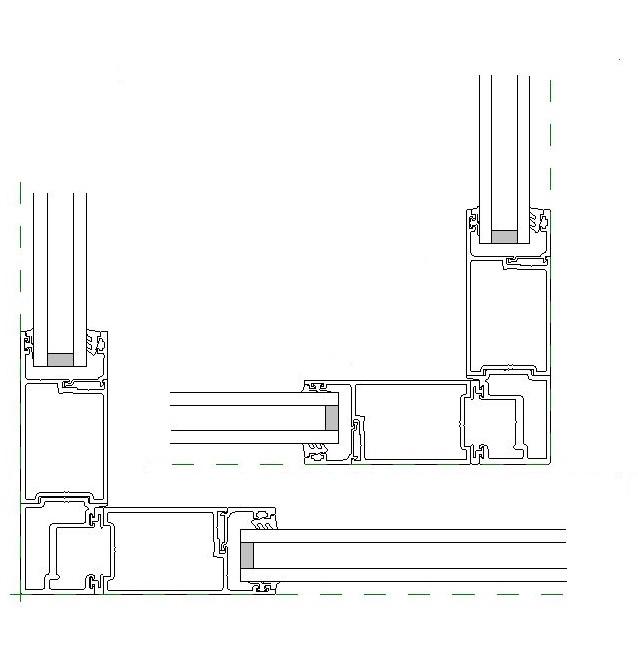

Vantage APL Architectural Sliding Door Two Track 90° External Corner
Vantage APL Architectural Sliding Door Two Track 90° Internal Corner
