Vantage Metro Series Hinged & French Doors
Description

Hinged doors are 45mm thick and are available in open-out and open-in formats. Both frames have flat faces and can be coupled with sidelights and overlights.

French doors have rebated meeting stiles for a clean, flush look. As with the rest of the Metro Series door range, hinged doors are rated up to 2.4m high in very high wind zones.

Key Features
  • Recommended maximum 2400mm high doors in Extra High wind zones. For larger sizes consider using the APL Architectural Series
  • Metro occupies an intermediate position between Vantage Residential and the APL Architectural Series

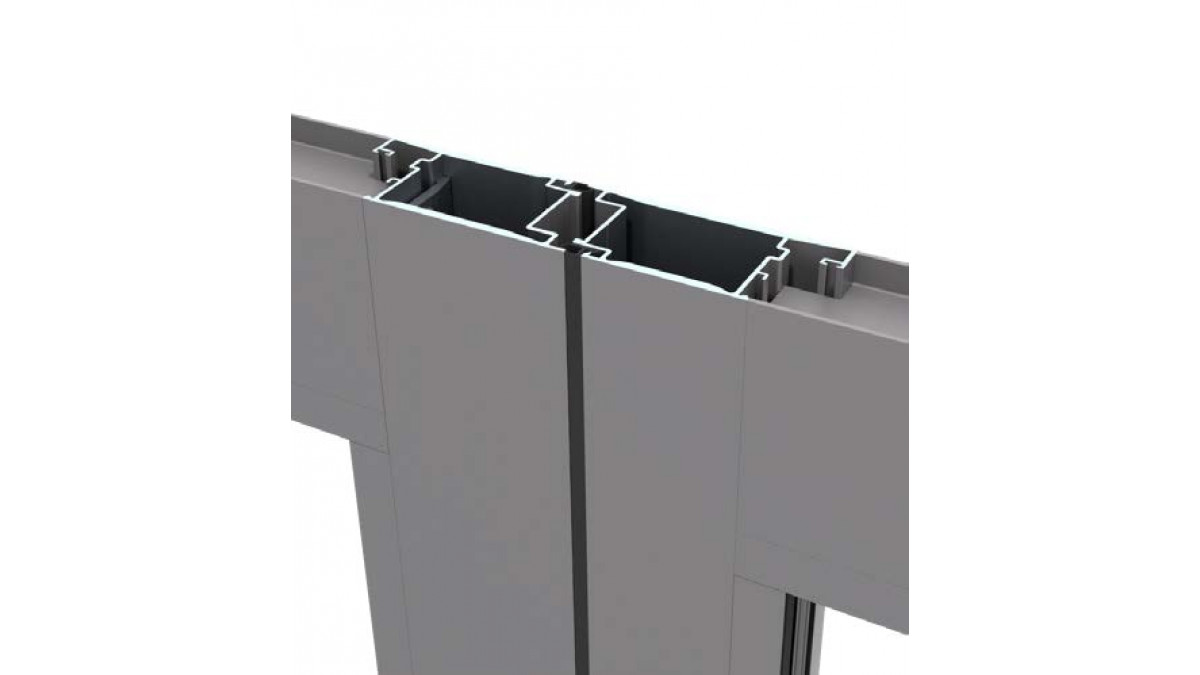

  • Rebated meeting stiles give a flush appearance where French doors overlap and provide superior weathering
  • Open-out and open-in frames available

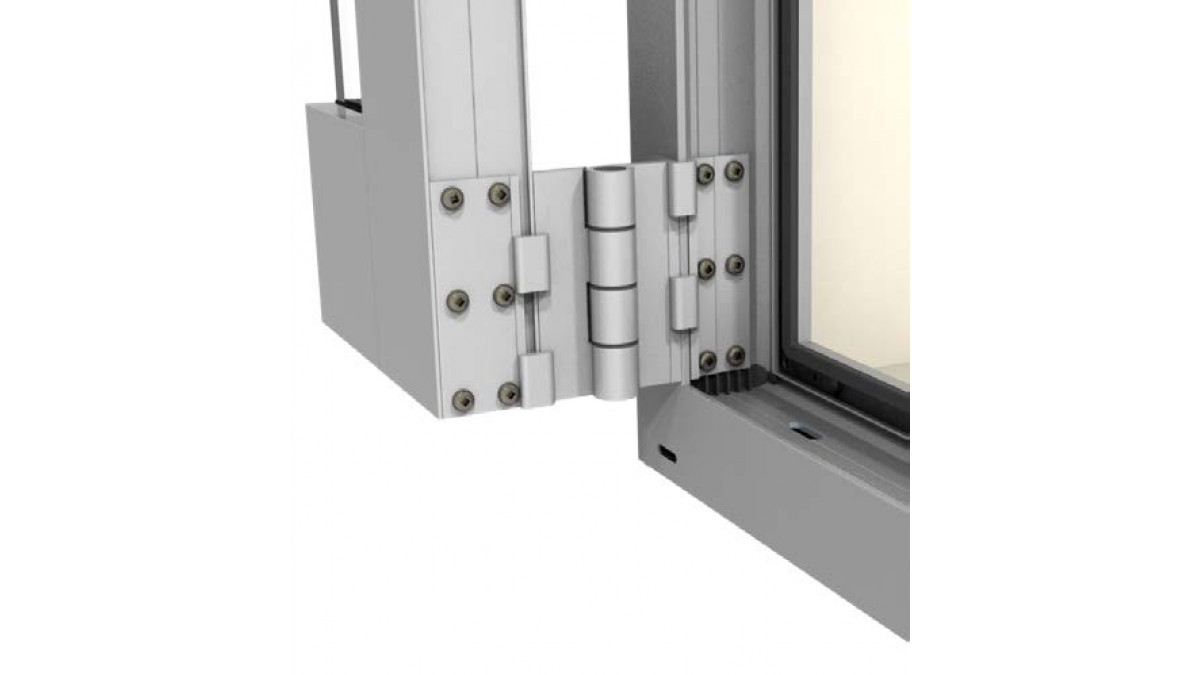

  • Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Scope of Use
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2400mm high doors in Extra High wind zones — For larger sizes consider using the APL Architectural Series
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2.
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed.
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2017
Manufacturer Contact List
Span Tables
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

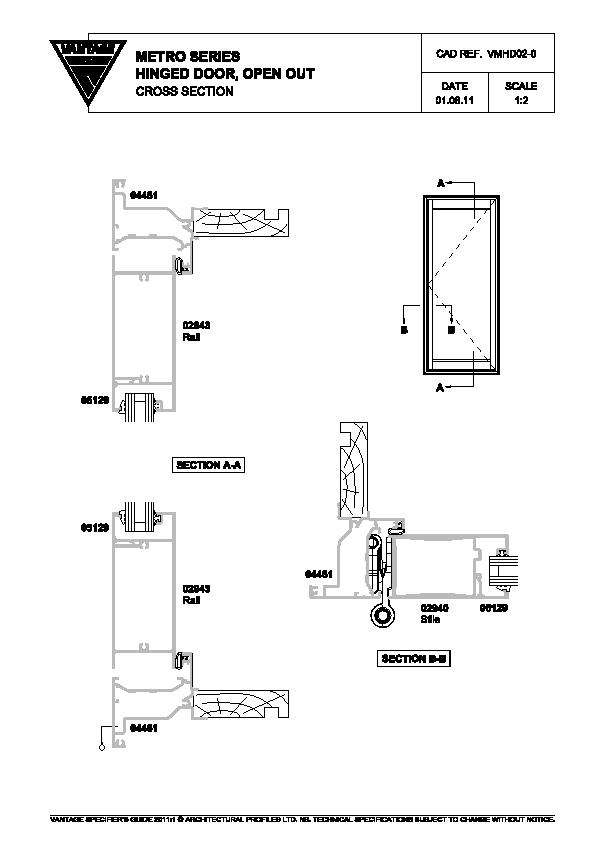

Vantage Metro Series Hinged Door, Open Out

VMHD02-0

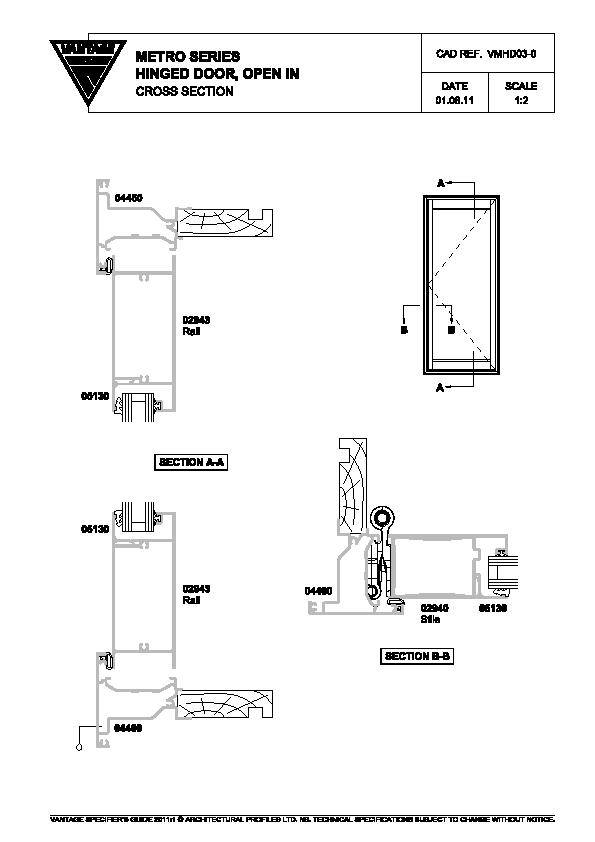

Vantage Metro Series Hinged Door, Open In

VMHD03-0

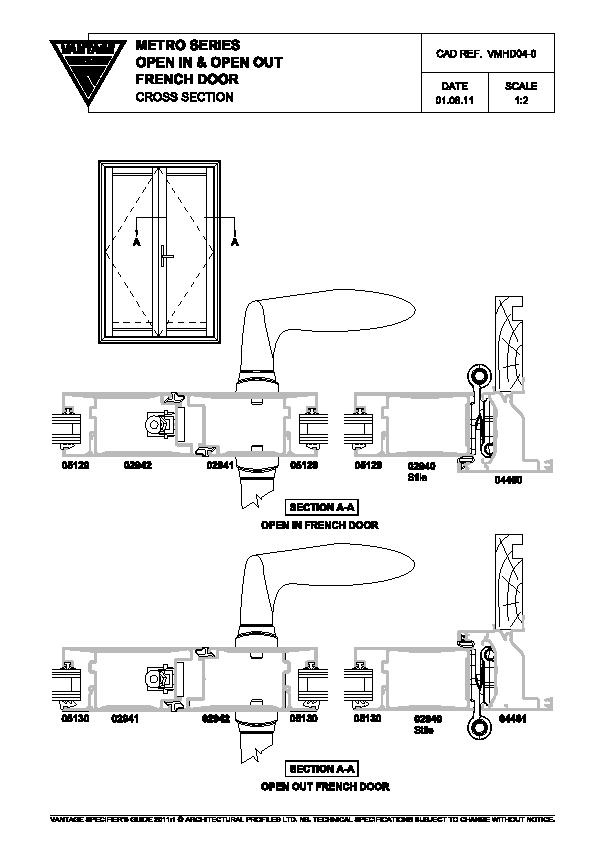

Vantage Metro Series Open In & Open Out French Door

VMHD04-0

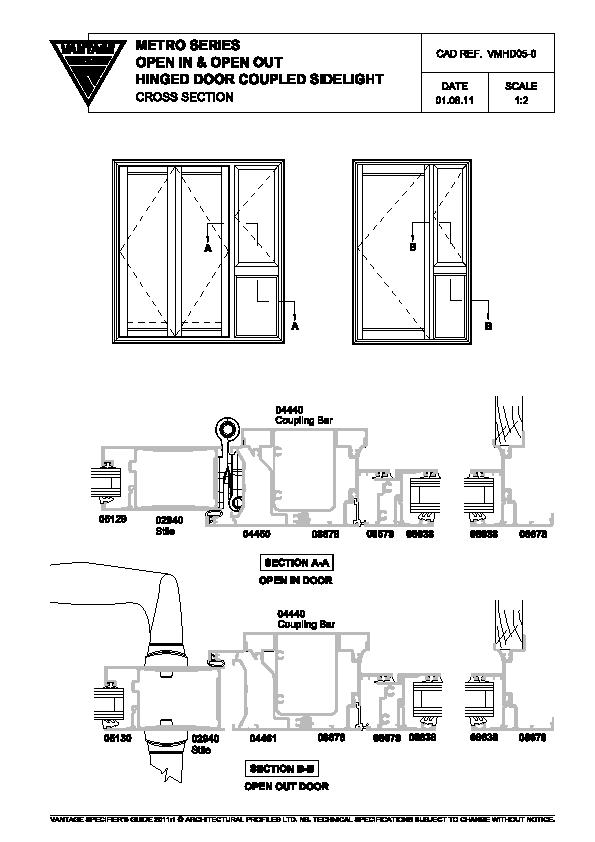

Vantage Metro Series Open In & Open Out Hinged Door Coupled Sidelight

VMHD05-0

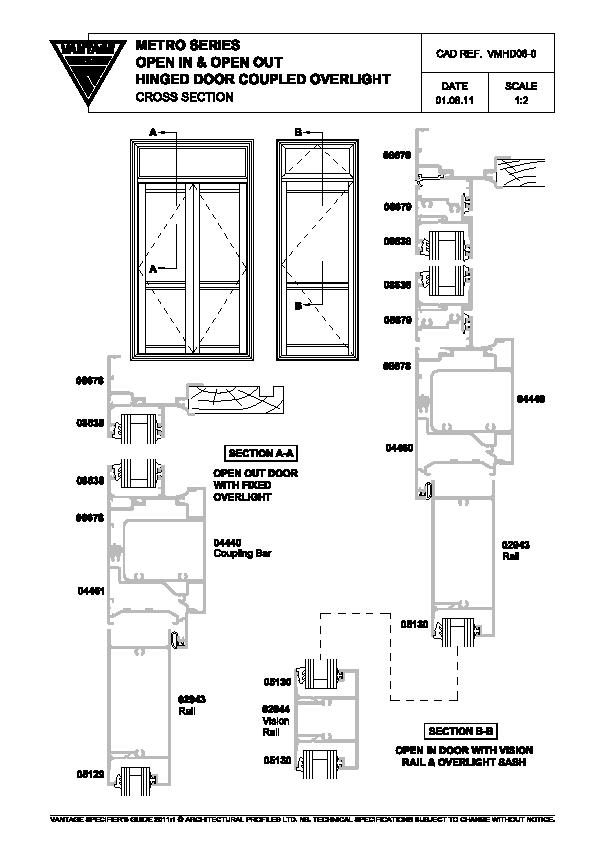

Vantage Metro Series Open In & Open Out Hinged Door Coupled Overlight

VMHD06-0

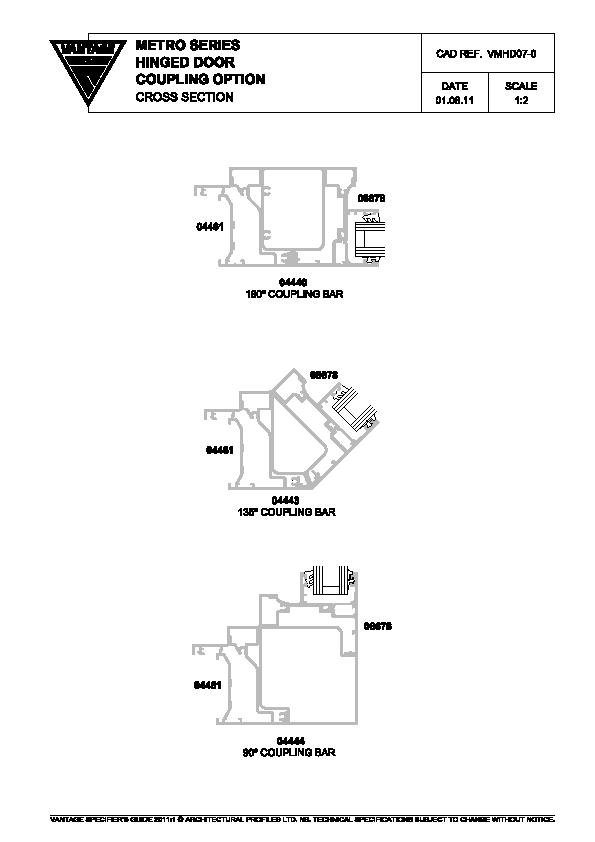

Vantage Metro Series Hinged Door Coupling Option

VMHD07-0

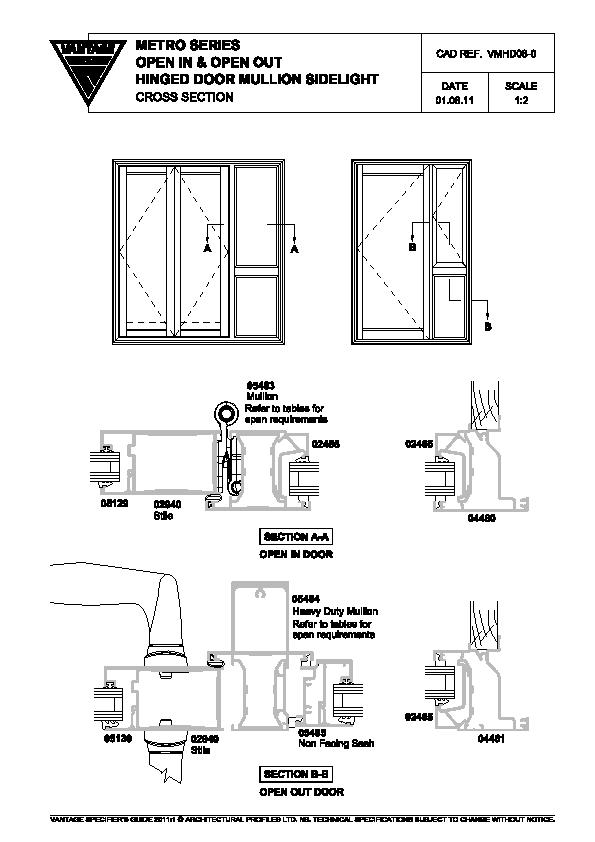

Vantage Metro Series Open In & Open Out Hinged Door Mullion Sidelight

VMHD08-0

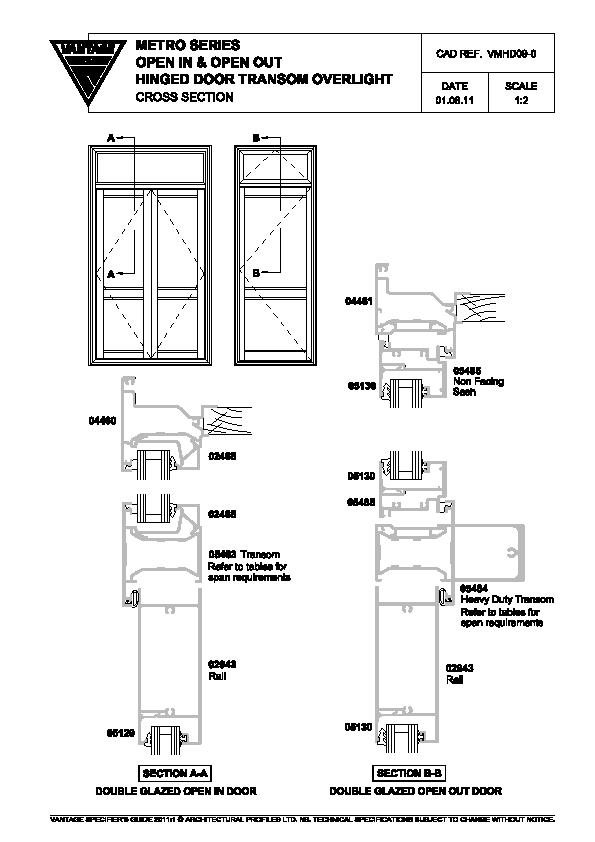

Vantage Metro Series Open In & Open Out Hinged Door Transom Overlight

VMHD09-0

Installation Details

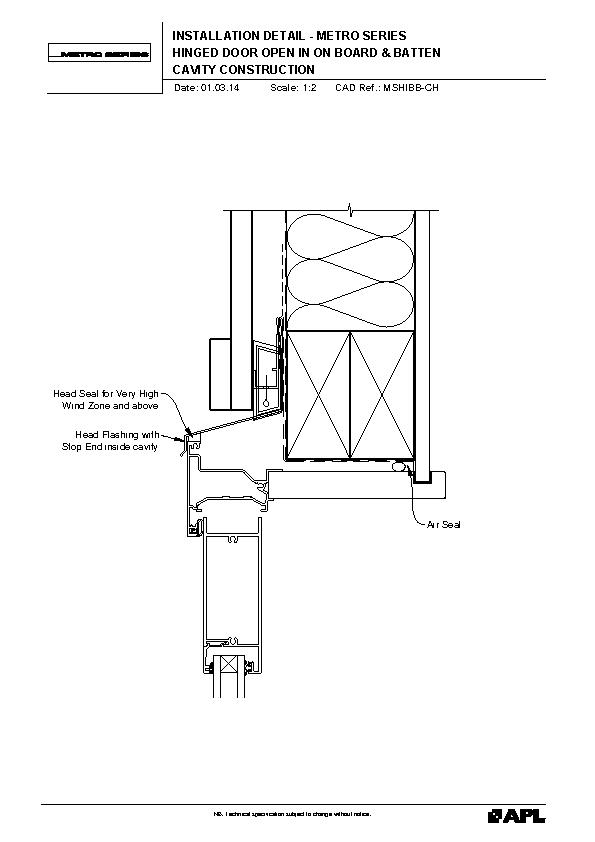

Vantage Metro Series Hinged Door Open In on Board and Batten

MSHIBB

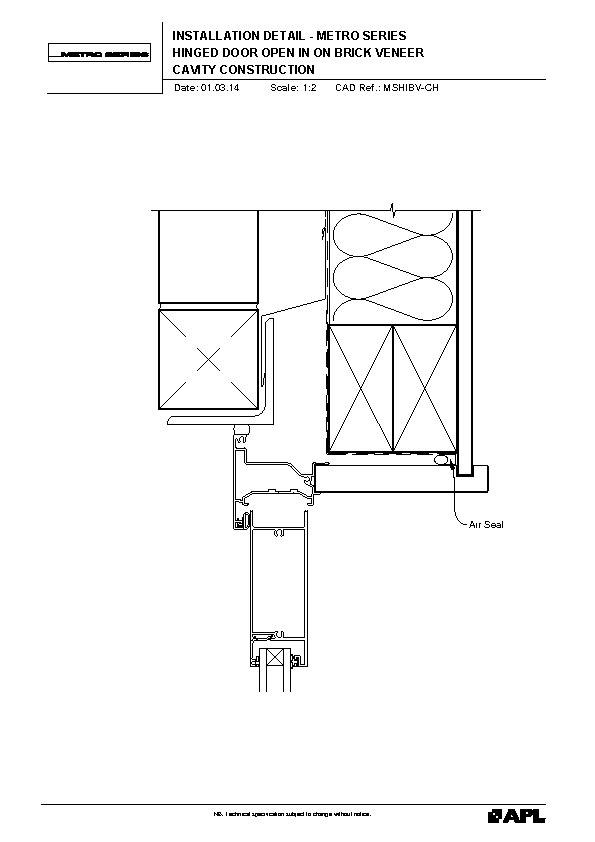

Vantage Metro Series Hinged Door Open In on Brick Veneer

MSHIBV

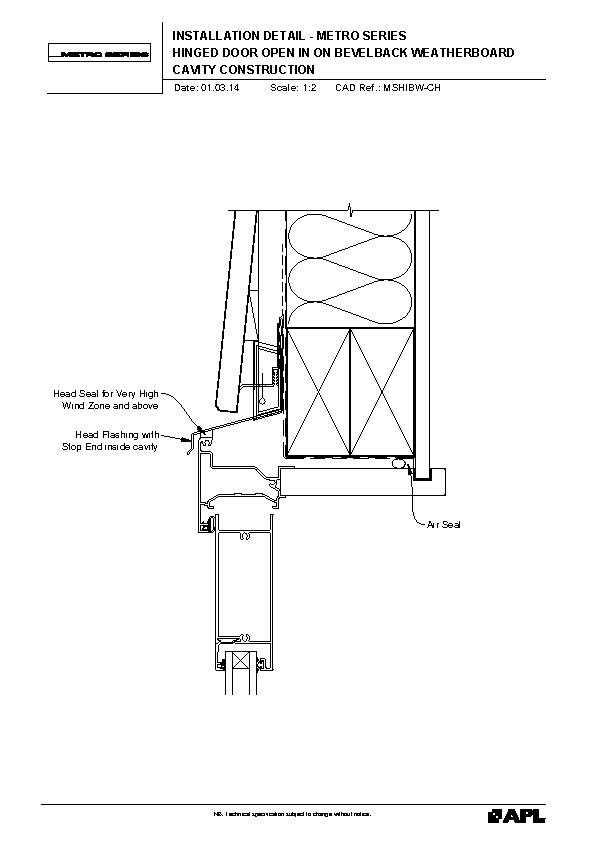

Vantage Metro Series Hinged Door Open In on Bevelback Weatherboard

MSHIBW

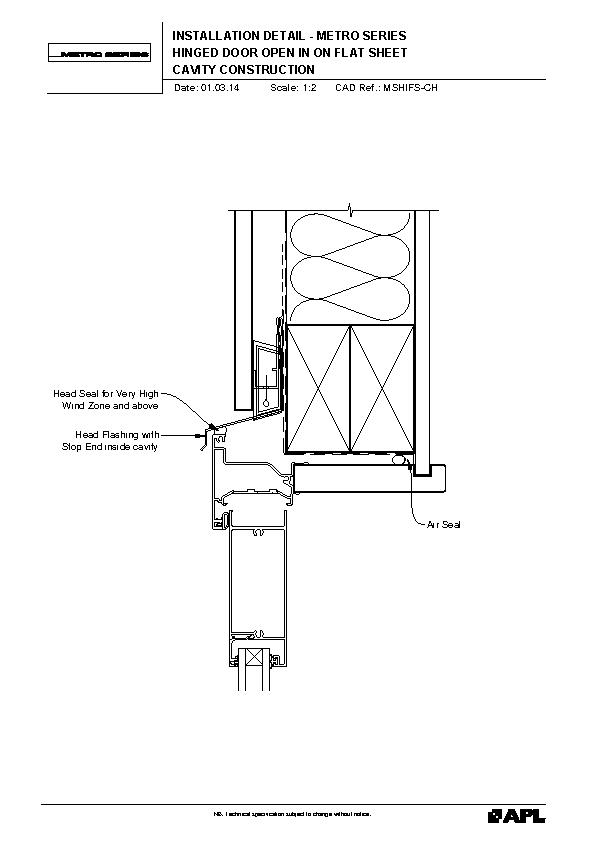

Vantage Metro Series Hinged Door Open In on Flat Sheet

MSHIFS

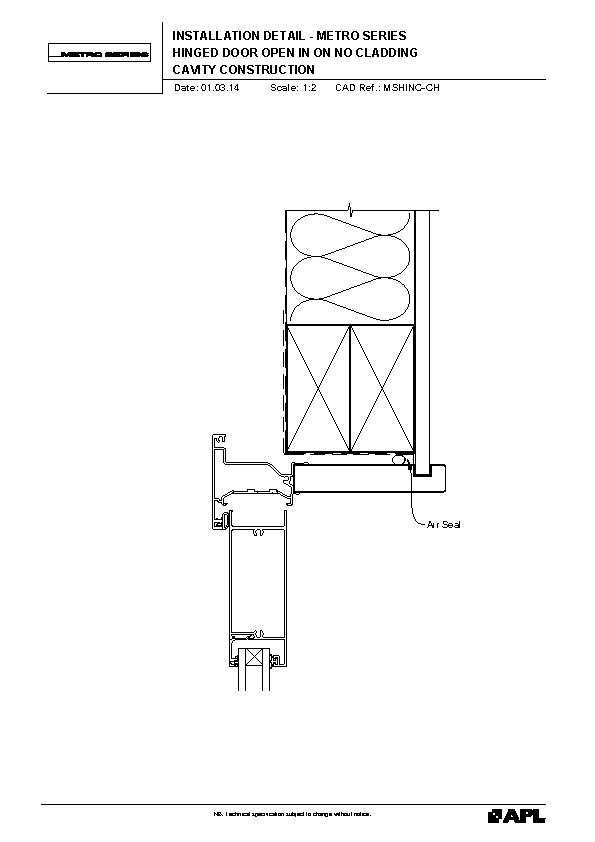

Vantage Metro Series Hinged Door Open In on No Cladding

MSHINC

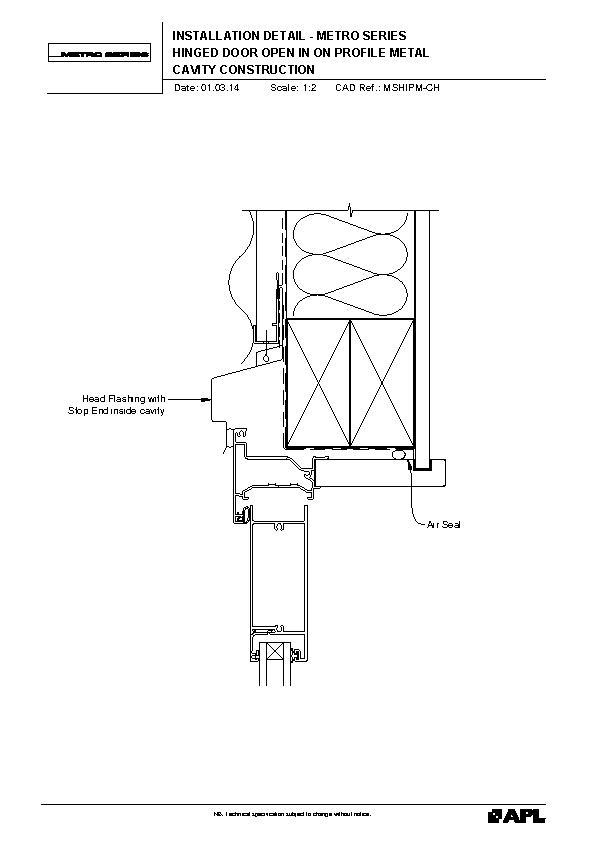

Vantage Metro Series Hinged Door Open In on Profile Metal

MSHIPM

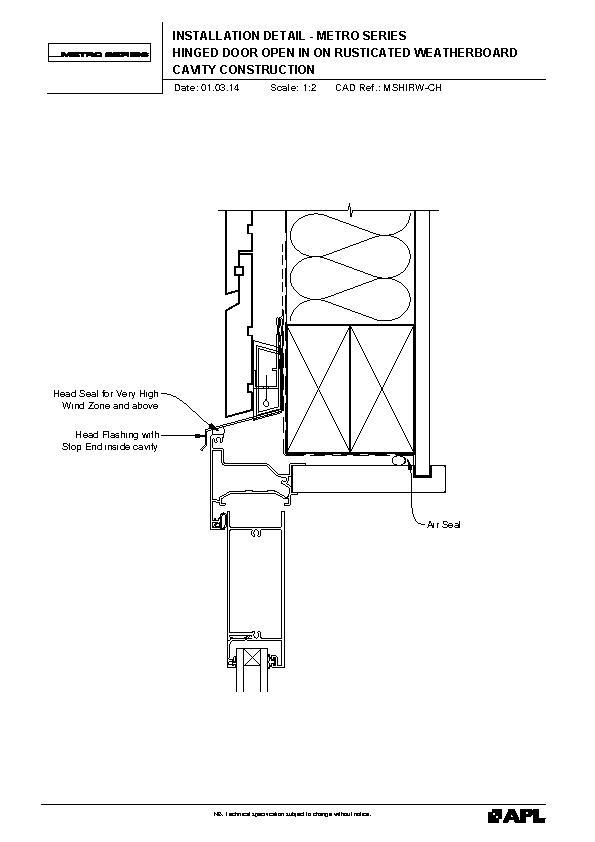

Vantage Metro Series Hinged Door Open In on Rusticated Weatherboard

MSHIRW

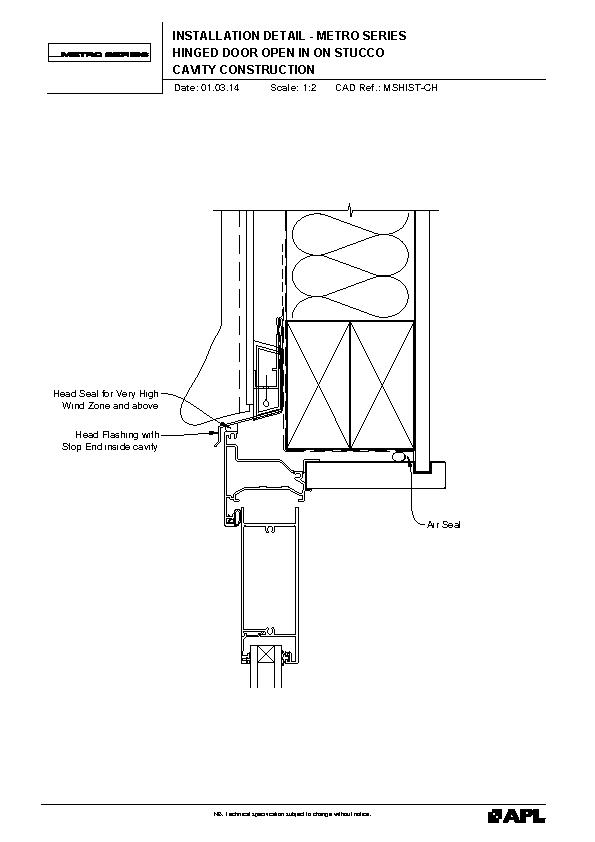

Vantage Metro Series Hinged Door Open In on Stucco

MSHIST

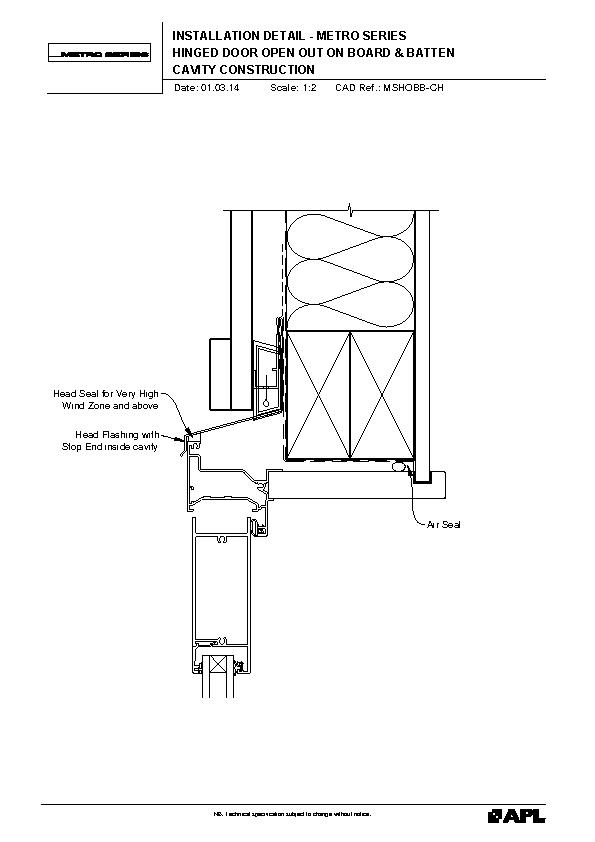

Vantage Metro Series Hinged Door Open Out on Board and Batten

MSHOBB

Vantage Metro Series Hinged Door Open Out on Brick Veneer

MSHOBV

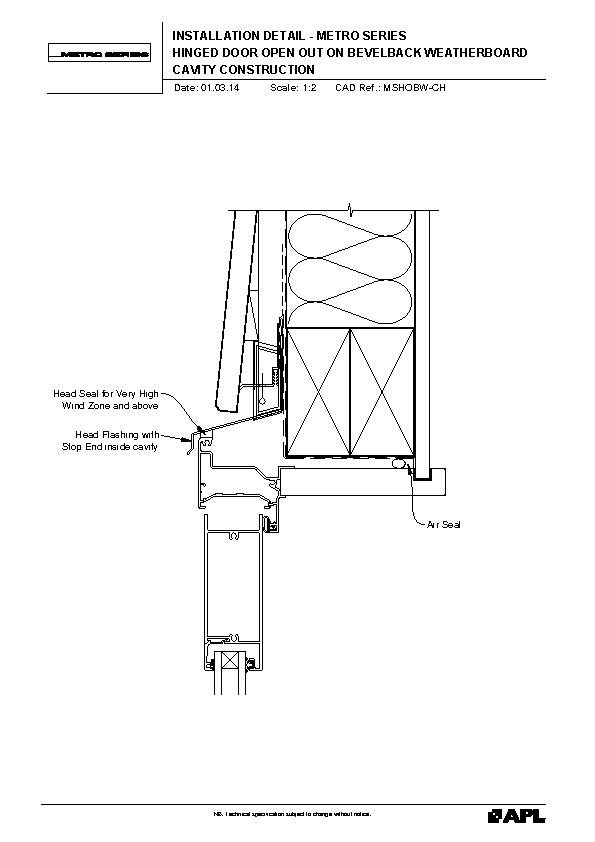

Vantage Metro Series Hinged Door Open Out on Bevelback Weatherboard

MSHOBW

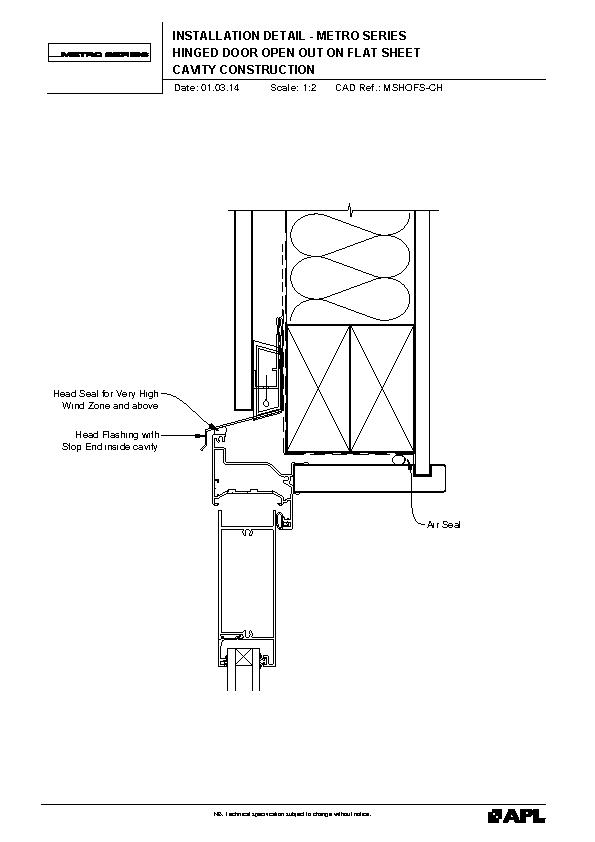

Vantage Metro Series Hinged Door Open Out on Flat Sheet

MSHOFS

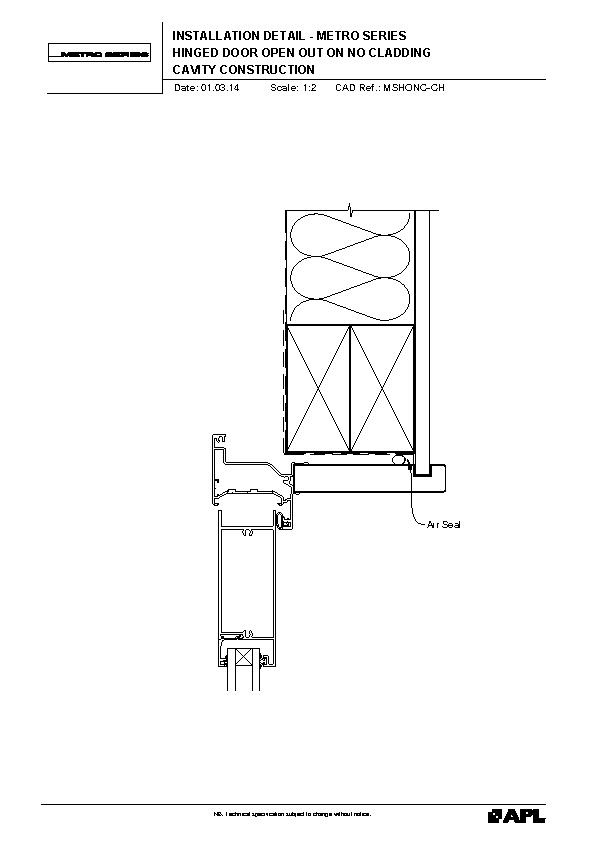

Vantage Metro Series Hinged Door Open Out on No Cladding

MSHONC

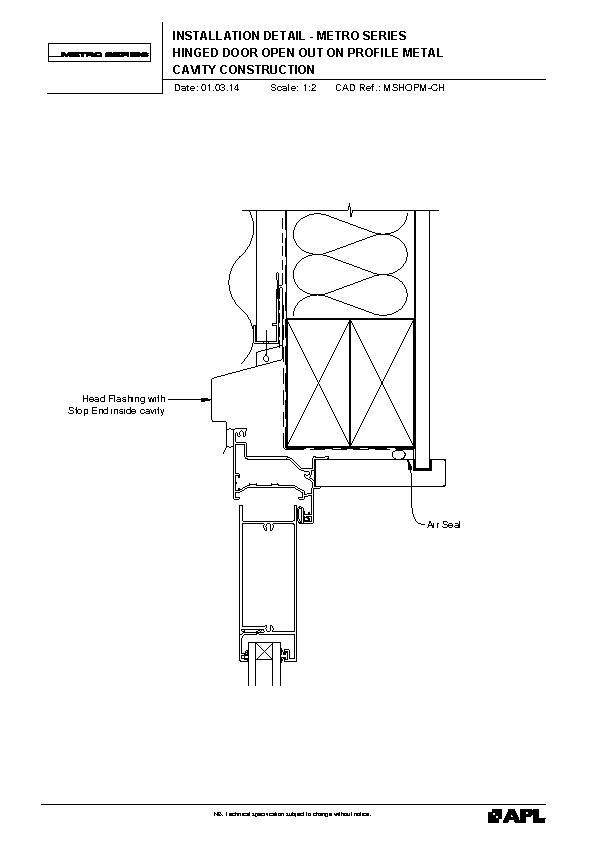

Vantage Metro Series Hinged Door Open Out on Profile Metal

MSHOPM

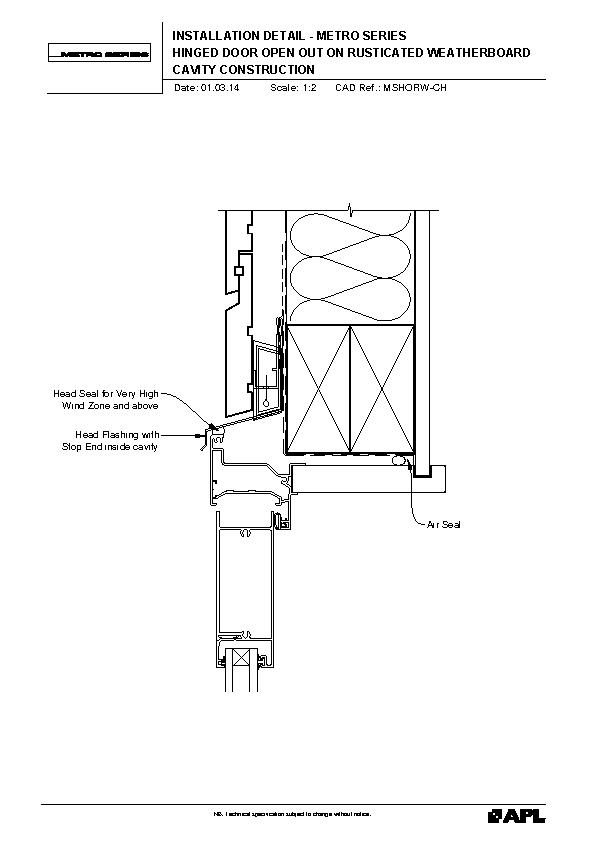

Vantage Metro Series Hinged Door Open Out on Rusticated Weatherboard

MSHORW

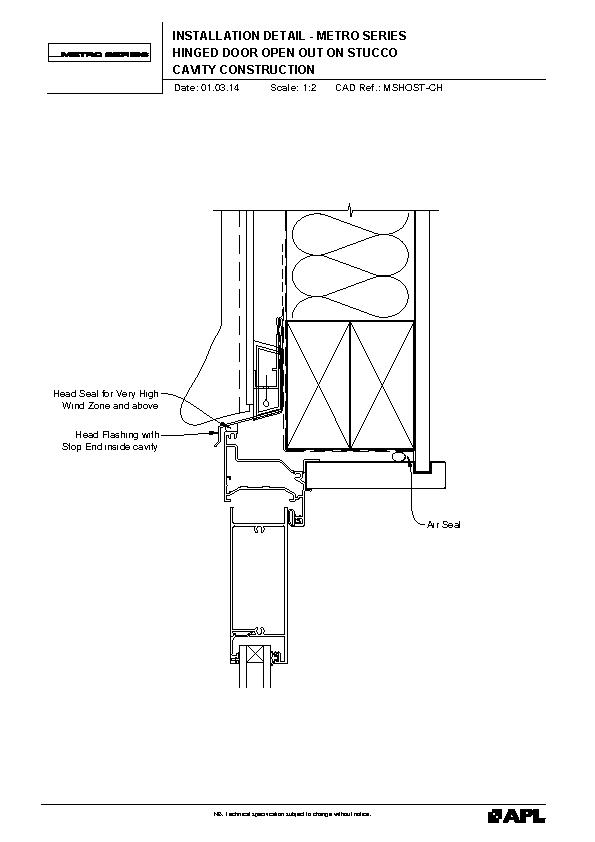

Vantage Metro Series Hinged Door Open Out on Stucco

MSHOST

BIM Objects

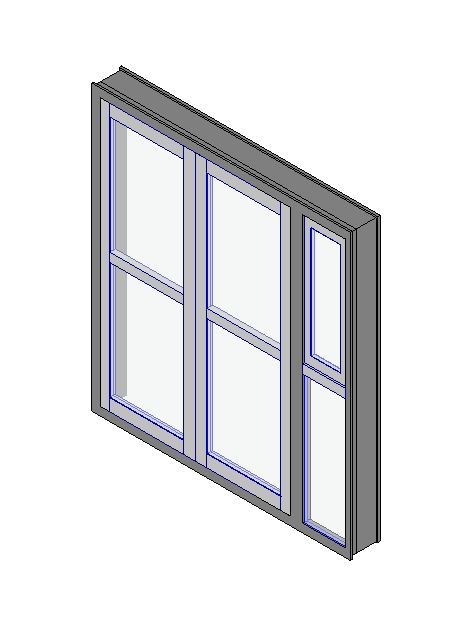

Vantage Metro Series French Door Coupled Sidelight Open Out

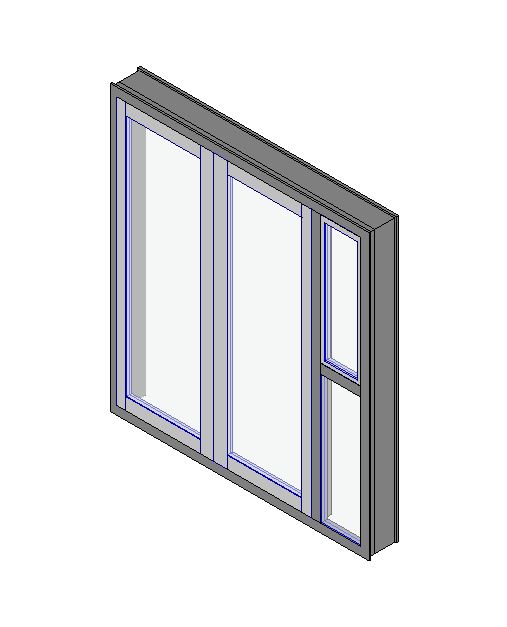

Vantage Metro Series French Door Mullion Sidelight Open Out

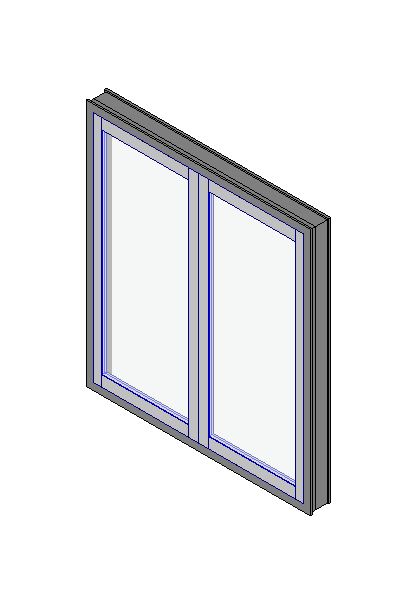

Vantage Metro Series French Door Open Out

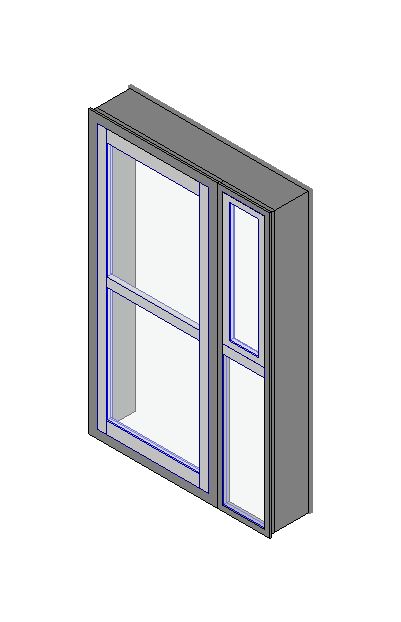

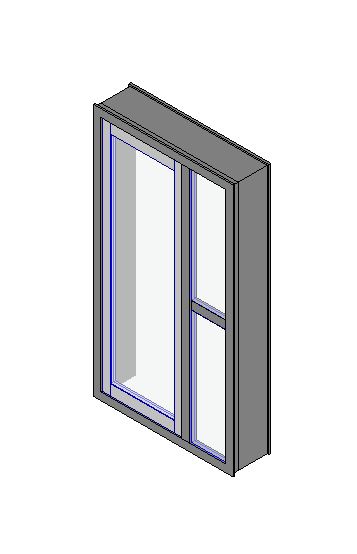

Vantage Metro Series Hinge Door Coupled Sidelight Open Out
Vantage Metro Series Hinge Door Mullion Sidelight Open In

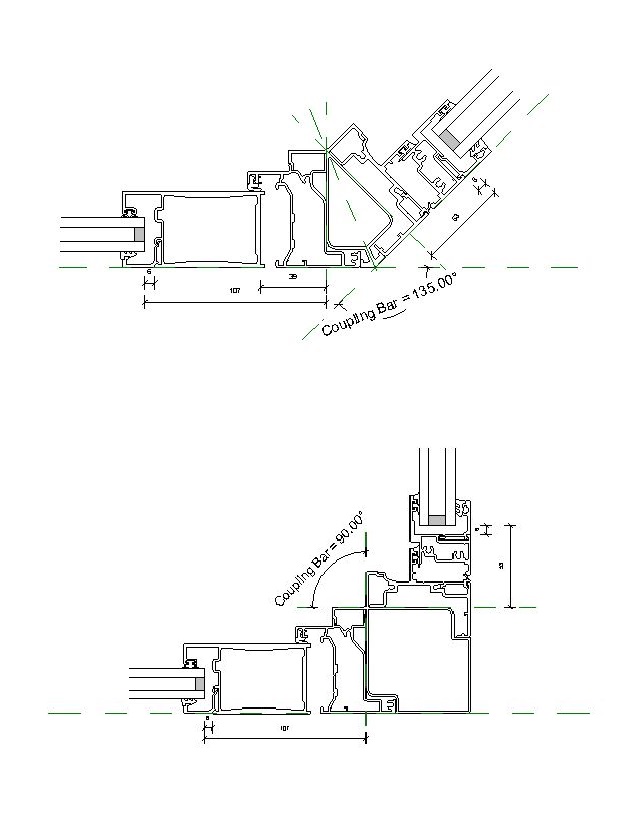

Vantage Metro Series Hinged Door 90° and 135° Coupling Open Out

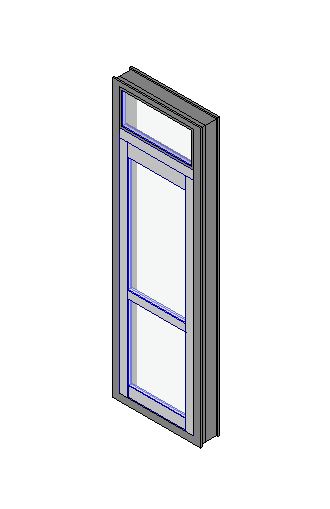

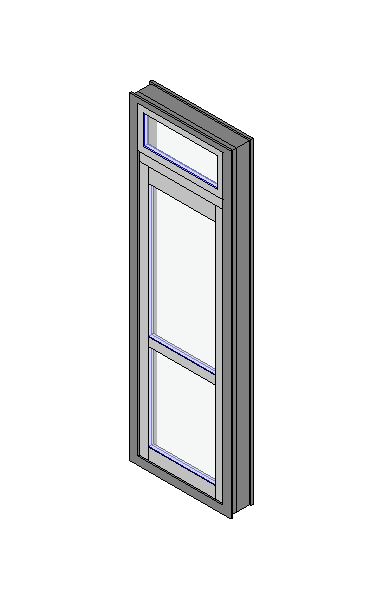

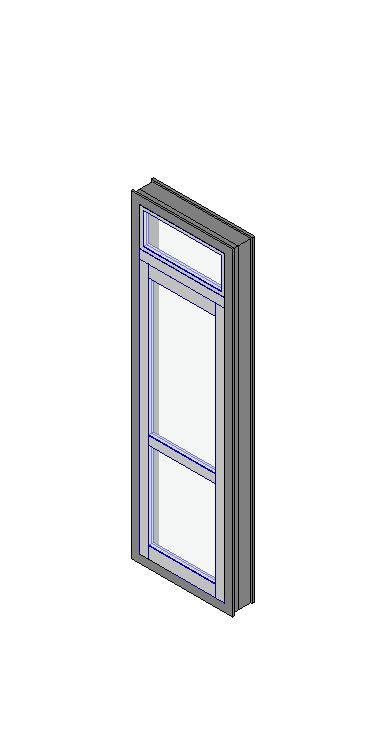

Vantage Metro Series Hinged Door Coupled Overlight Open In
Vantage Metro Series Hinged Door Coupled Overlight Open Out
Vantage Metro Series Hinged Door Open In

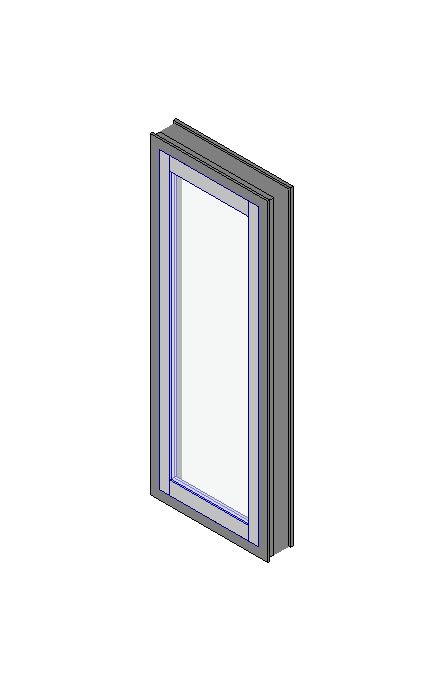

Vantage Metro Series Hinged Door Open Out
Vantage Metro Series Hinged Door Transom Overlight Open Out
