True Oak Deep Roofing & Cladding
Roofing Industries
All products

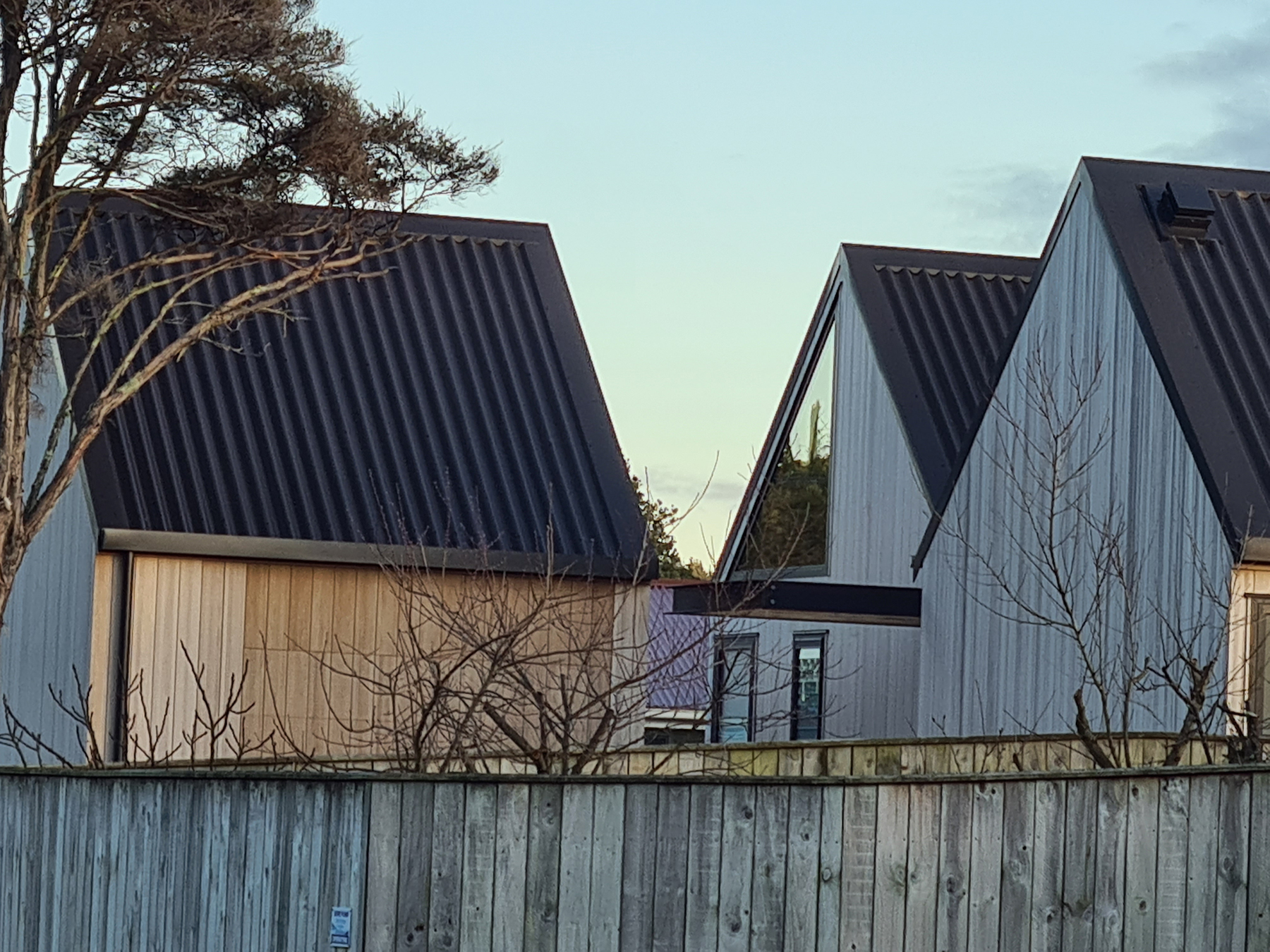

DSC 0156 002

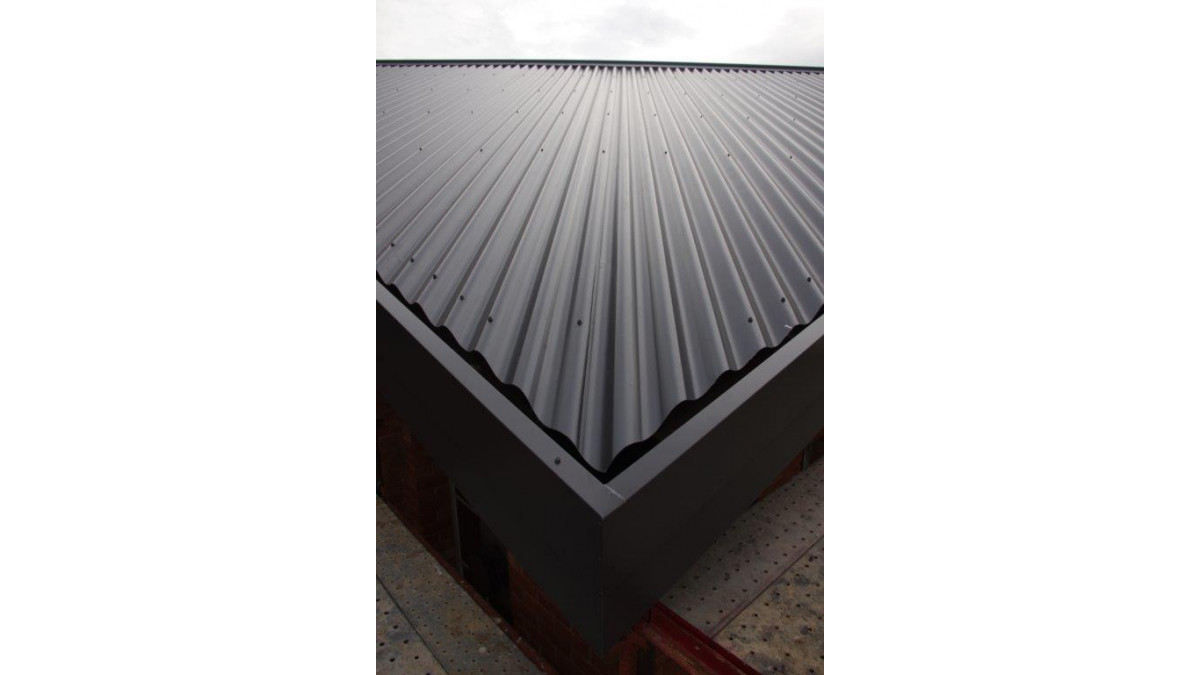

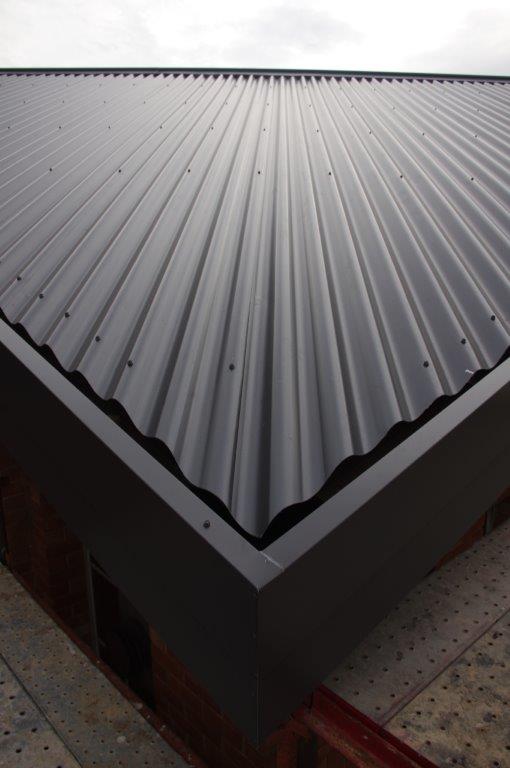

IMGP2073 low res to be photoshopped
IMGP1764 low res
true oak deep profile grab
Description

A bold and revolutionary new commercial and residential corrugated profile arising from the respected True Oak range of roofing and cladding products. Aesthetically pleasing, functional and providing many design benefits, True Oak Deep will be viewed as a replacement for the 'fibre cement' and asbestos products of yesteryear and providing design inspiration for new builds.

True Oak Deep is manufactured in any length and is supplied from a wide selection of unpainted substrates or pre-painted Colorcote, Colorsteel and pre-painted aluminium coatings.

True Oak Deep is exclusive to Roofing Industries and as an extremely difficult product to roll-form, required the very latest in advanced manufacturing technology in bringing the product to reality. As a forerunner to True Oak Deep — True Oak Corrugate has already been readily accepted and widely used by specifiers throughout the country particularly taking into consideration the benefits of lower pitch, versatility, spanning, physical strength and finally aesthetics. It is expected True Oak Deep will be equally as popular.

Physical properties:

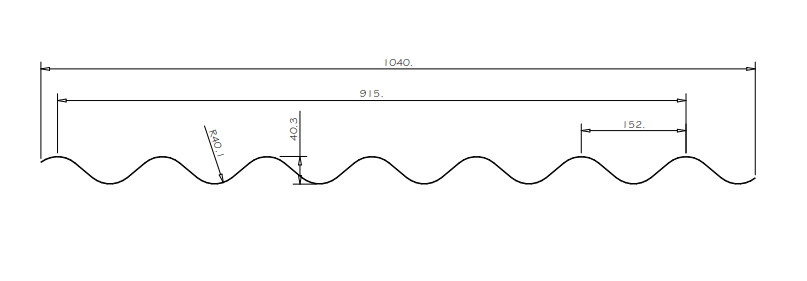

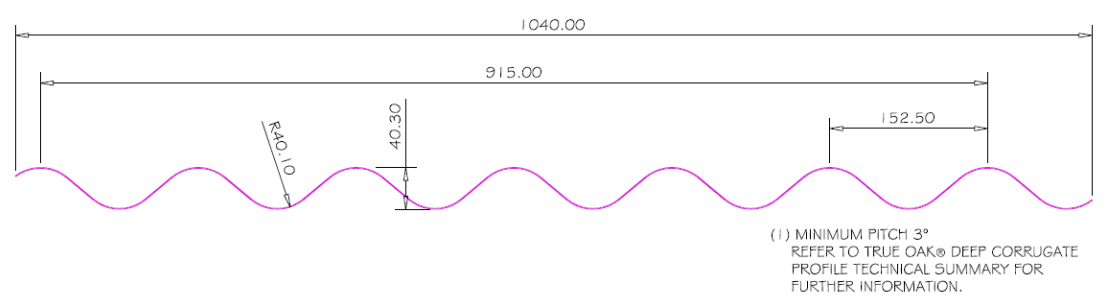

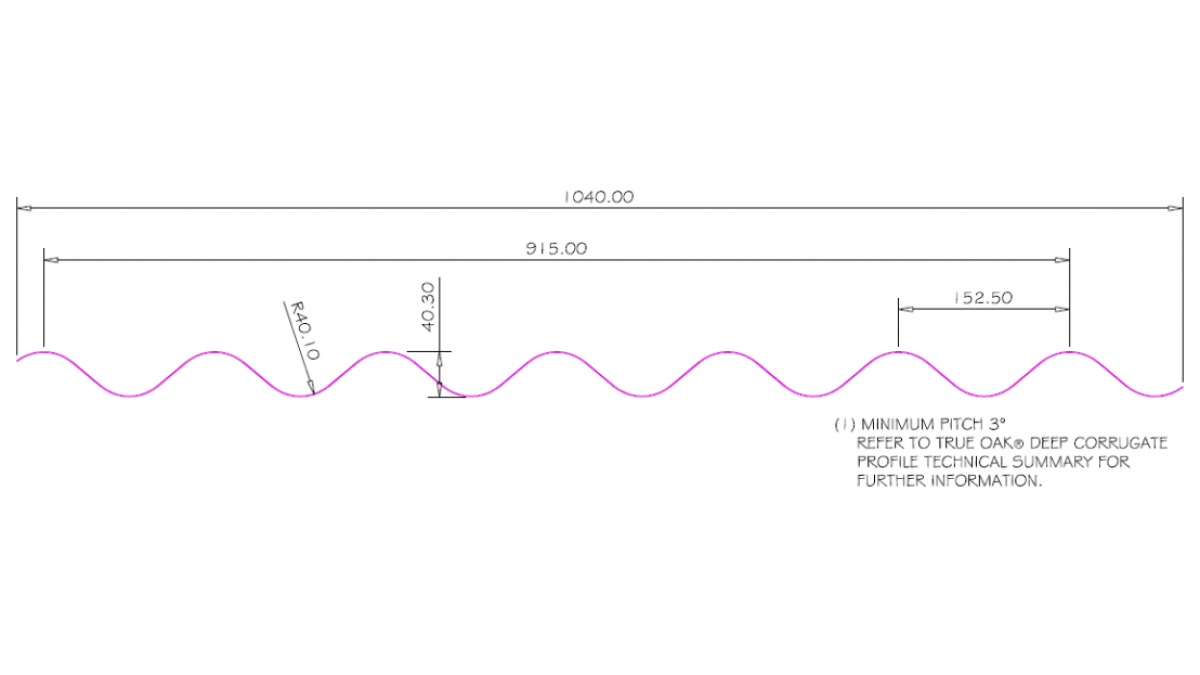

  • 40.3mm rib height and 152mm pitch
  • 1040mm overall sheet width with 915mm effective cover per sheet
  • Manufactured from .55 BMT (Standard) G550 Zincalume substrate, and .90 Aluminium
  • Other gauges, substrates, plus Colorcote, Colorsteel and other pre painted aluminium materials available



Key Features
  • True Oak Deep is a major development in high strength sinusoidal corrugate
  • Strikingly different to traditional shallow corrugated profiles with no flat areas
  • Smooth rounded and deeper sinusoidal wave profile integrating both form and function — creating distinct shadowlines that can be seen from afar
  • Stronger and deeper than traditional corrugated roofing and cladding
  • Much higher strength underfoot, and far less susceptible to denting by foot traffic
  • A replacement product for similar fibre-cement high rib corrugate — manufactured and supplied to any length
  • Wider sheet coverage, ensuring rapid installation, fewer sheet laps reducing construction costs and possibility of water ingress
  • Superior water carrying capacity
  • Where building regulations permit, can be installed at a roof pitch as low as 3°
  • Can be both drape curved with mechanical curving being developed
  • True Oak Deep features an extensive colour and metal substrate selection, providing greater design options and choice
  • Exclusive design protected manufacturing technology
  • Full product warranty meets the statutory requirements of the NZBC
Categories
Metal Cladding Metal Roofing

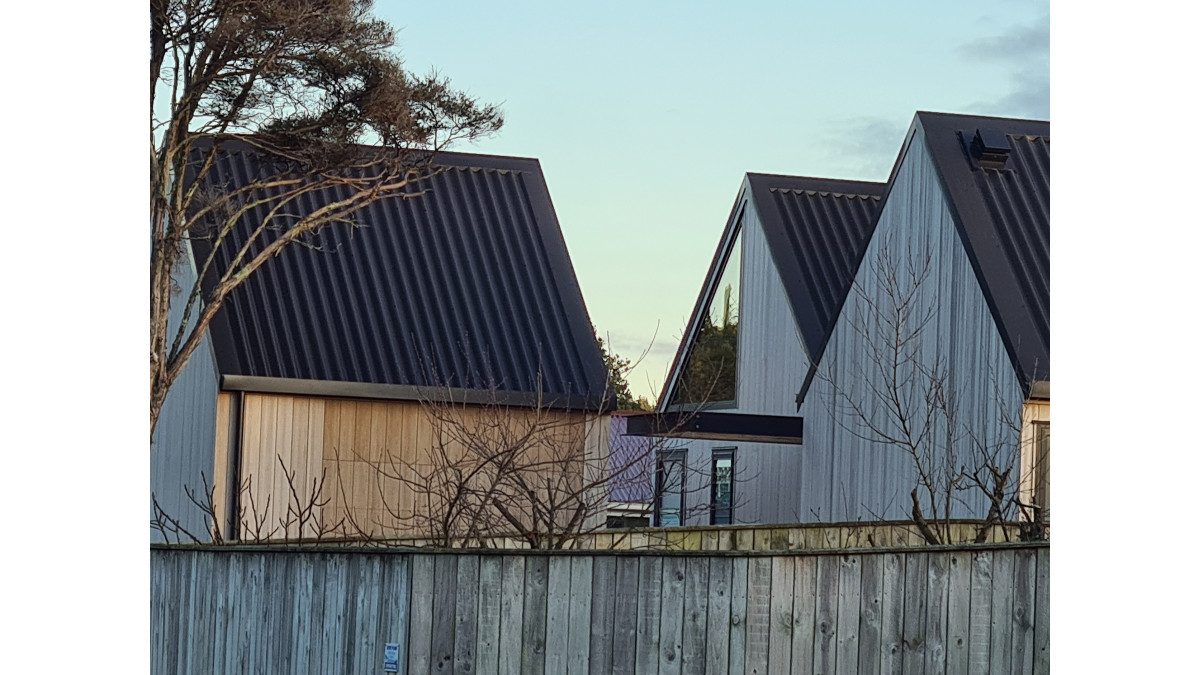

Scope of Use
  • Commercial and residential

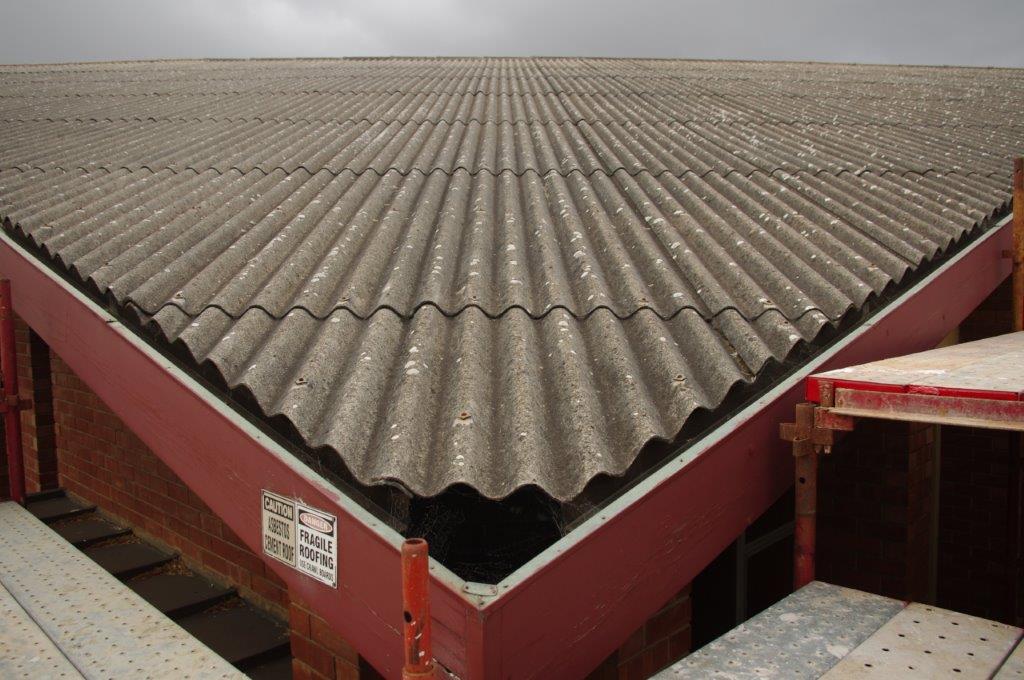

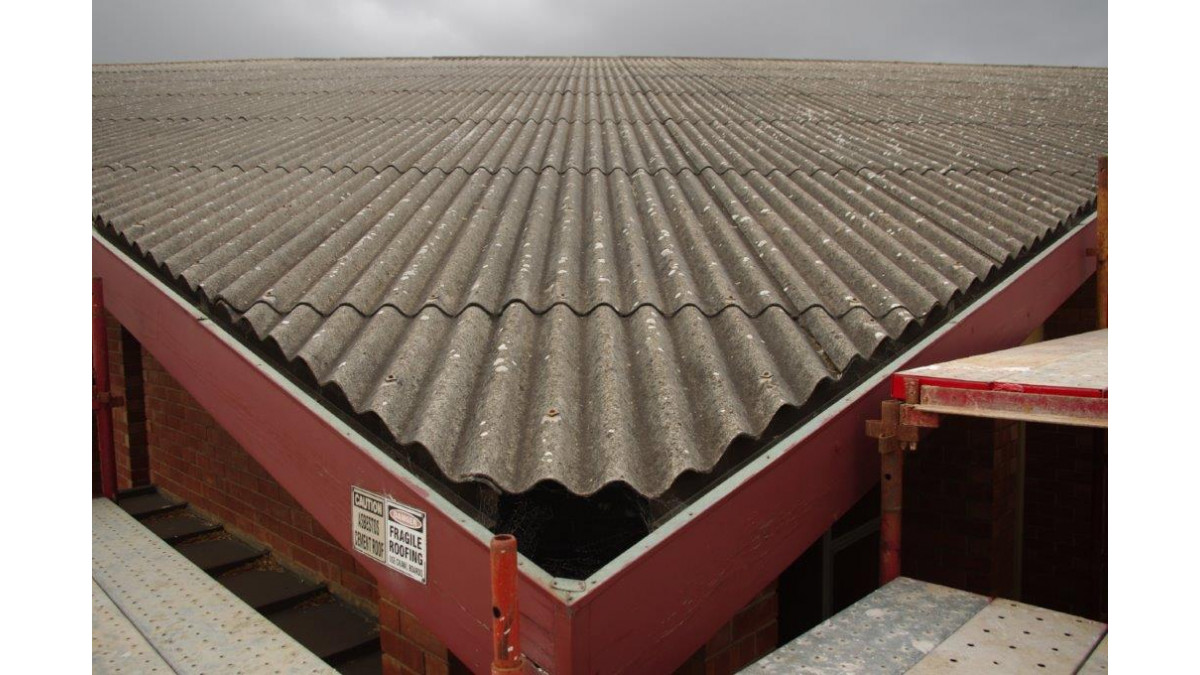

  • Ideal replacement for the 'fibre cement' and asbestos products, or for new builds
  • Manufactured to custom lengths
  • Translucent roof lighting is available to match
Limitations on Use
  • 3 degree minimum roof pitch subject to sheet length
Statement of Building Code Compliance

True Oak Deep will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Corrugate performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
  • News
Documents
Product Brochure: True Oak Deep

2023

pdf
Brochure: Ezy-Flo Rainwater Systems
pdf
Brochure: Roofing with Style

2023

pdf
Profile Technical Summary

2020

pdf
Tekton Report — E2 Compliance: True Oak Deep

2021

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
RANZ Roofing Guide
URL
True Oak Deep Flyer

2020

pdf
CAD/PDF Details
View full
Filters
Commercial or Residential
Roofing Details
Wall Cladding Details
Clear filters
Roofing Industries Gutter Profiles

RI-F01

2020

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf
True Oak Deep Residential Full Set of Drawings

Ri-RTD

pdf

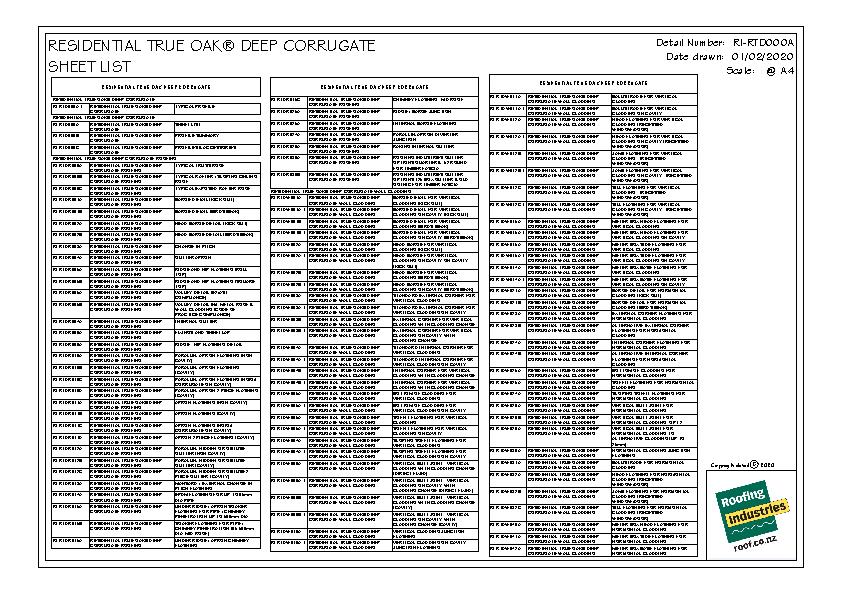

True Oak Deep Residential Sheet List

RI-RTD-000A

dwg
pdf

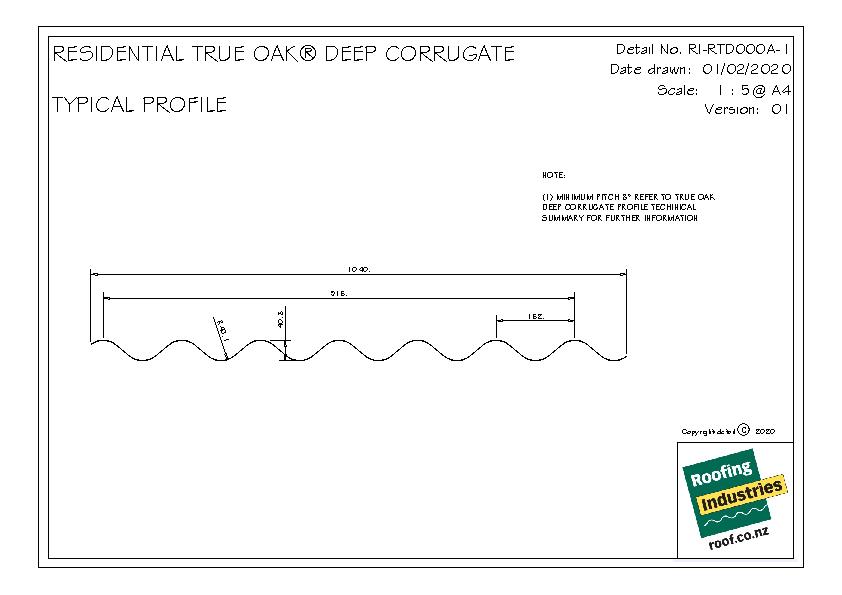

True Oak Deep Typical Profile

RI-RTD-000A-1

dwg
pdf

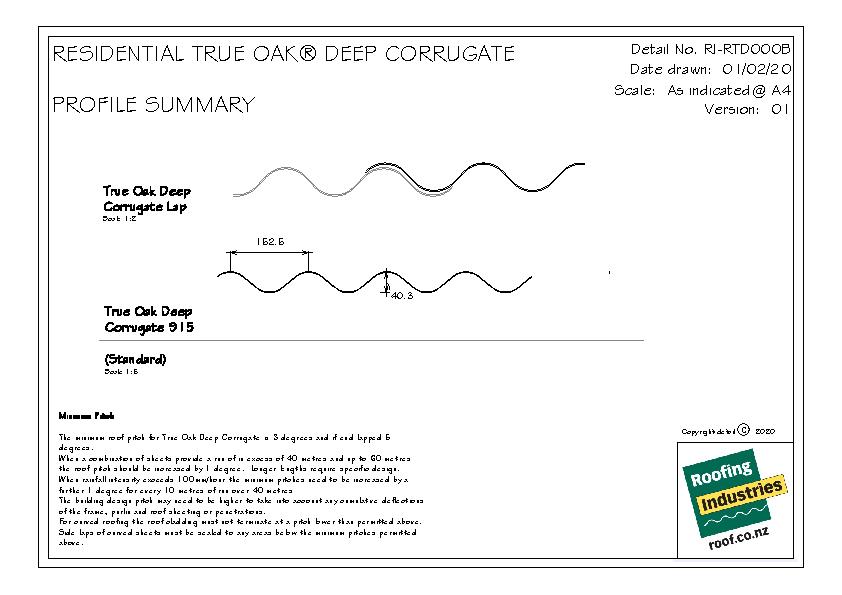

True Oak Deep Profile Summary

RI-RTD-000B

dwg
pdf

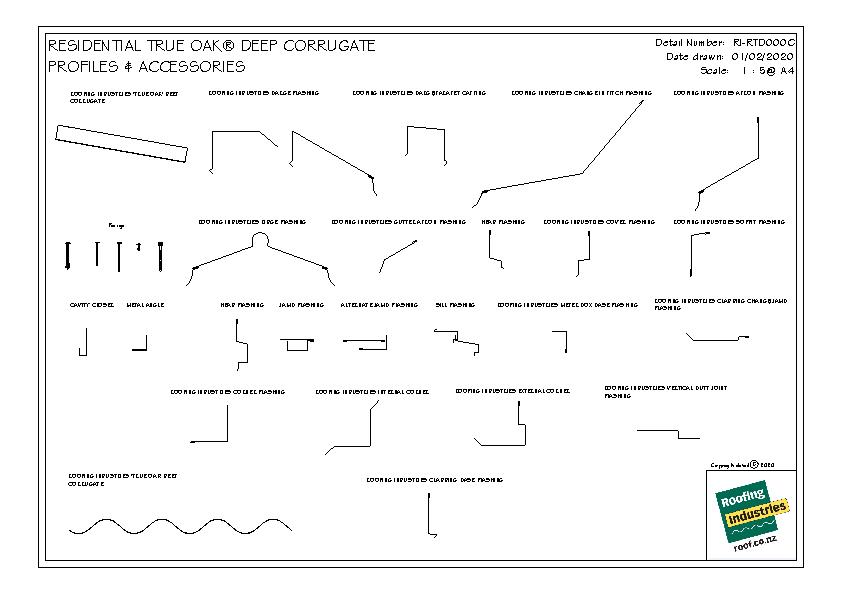

True Oak Deep Profiles and Accessories

RI-RTD-000C

dwg
pdf

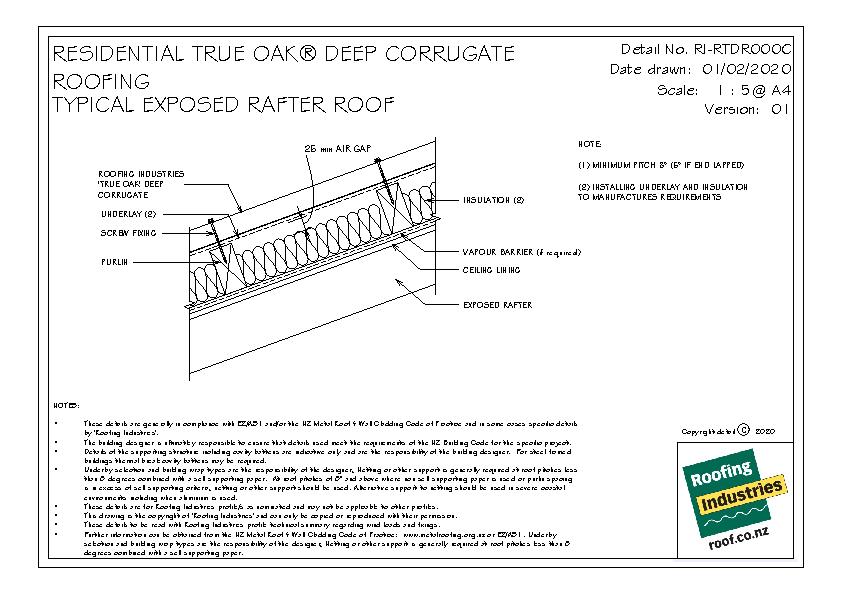

True Oak Deep Typical Exposed Rafter Roof

RI-RTD-000C

dwg
pdf

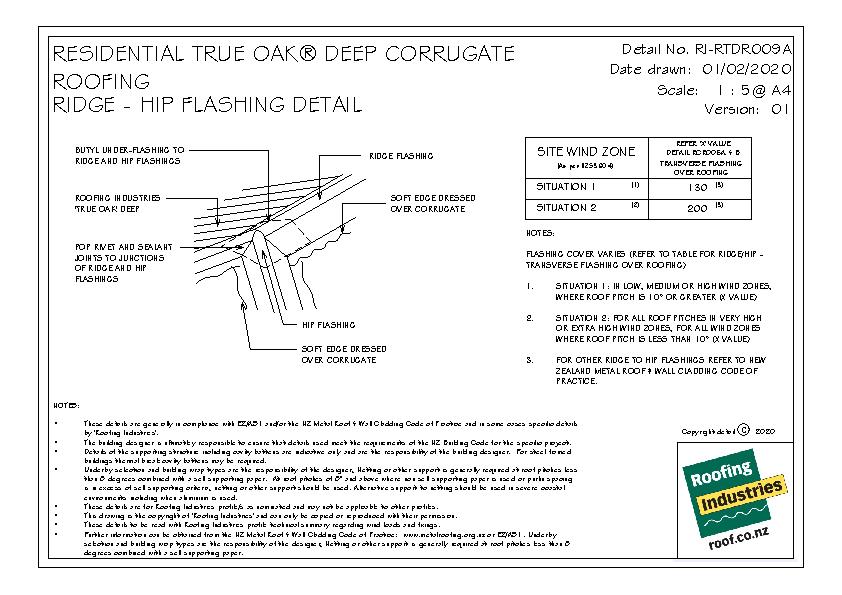

True Oak Deep Ridge / Hip Flashing Detail

RI-RTD-009A

dwg
pdf

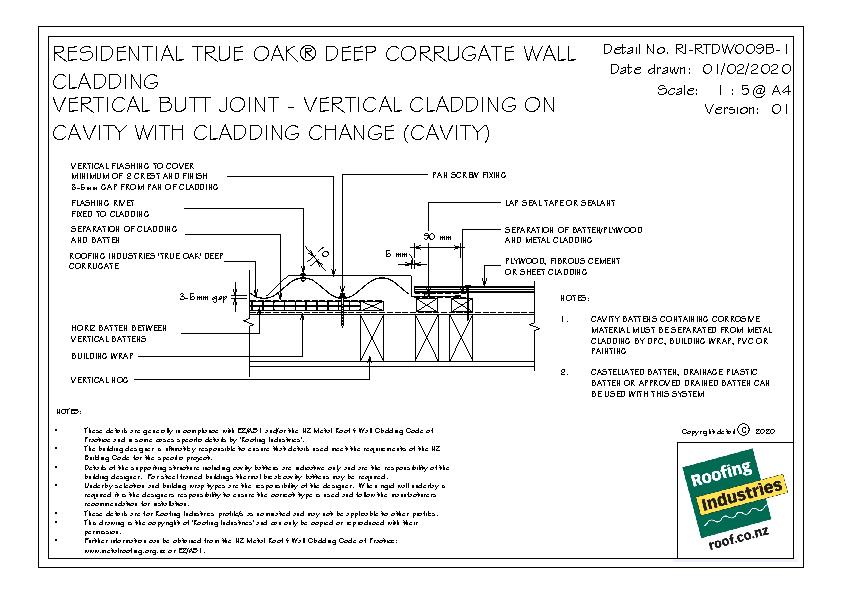

True Oak Deep Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RTD-009B-1

dwg
pdf

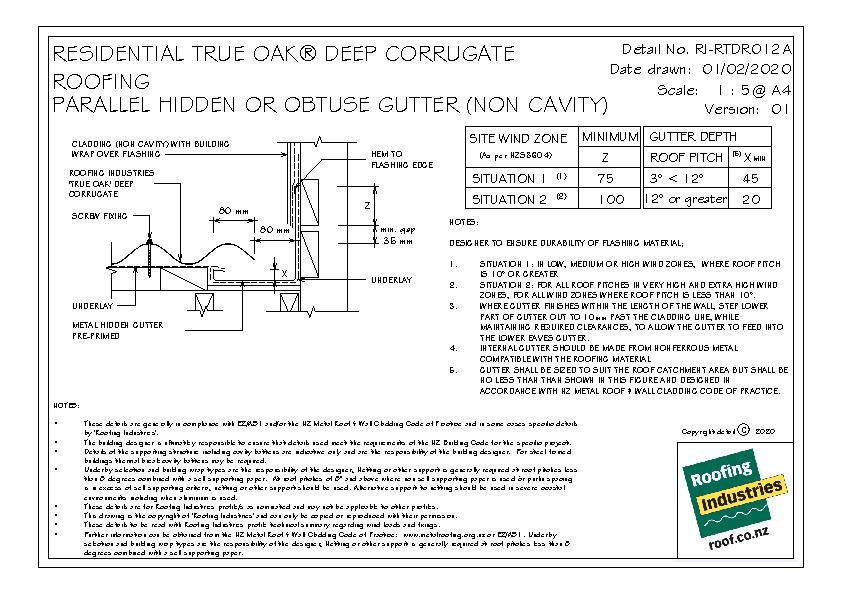

True Oak Deep Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RTD-012A

dwg
pdf

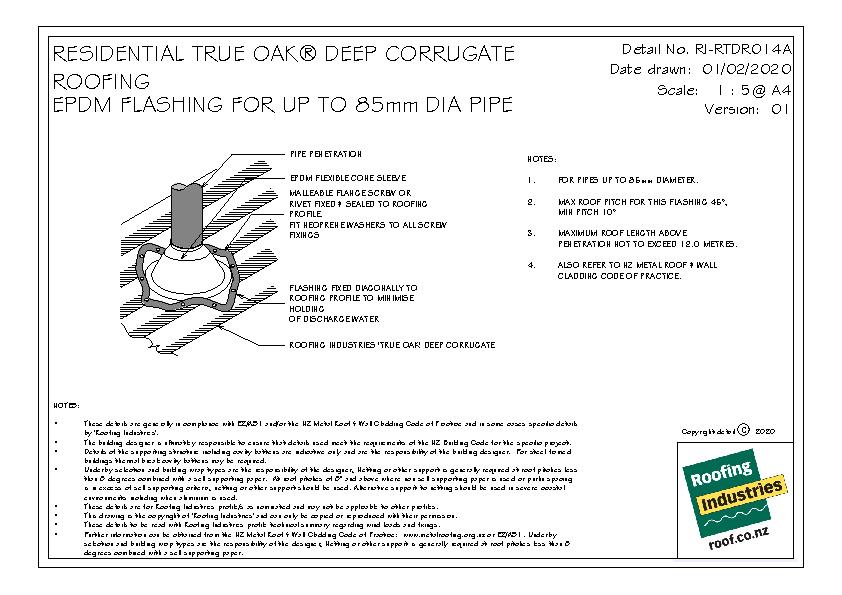

True Oak Deep EPDM Flashing for up to 85mm Diameter Pipe

RI-RTD-014A

dwg
pdf

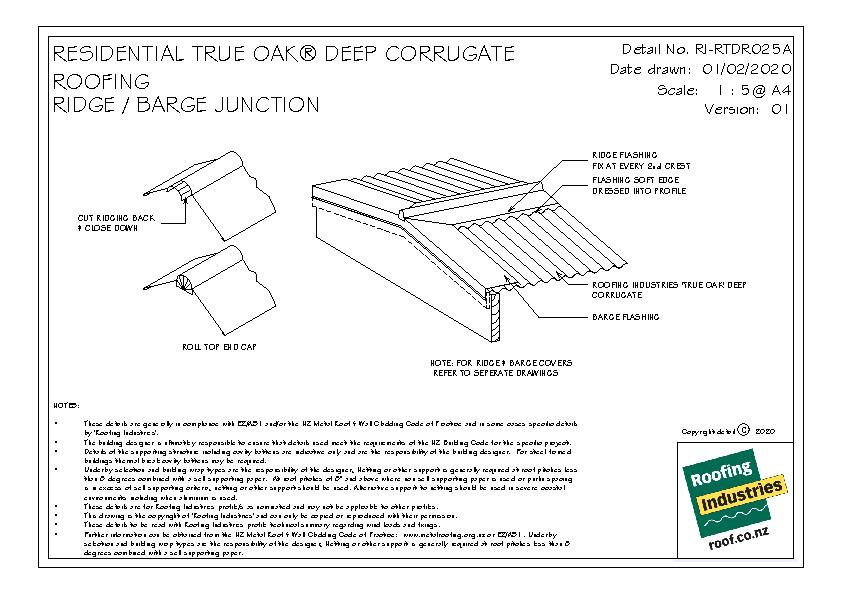

True Oak Deep Ridge Barge Junction

RI-RTD-025A

dwg
pdf

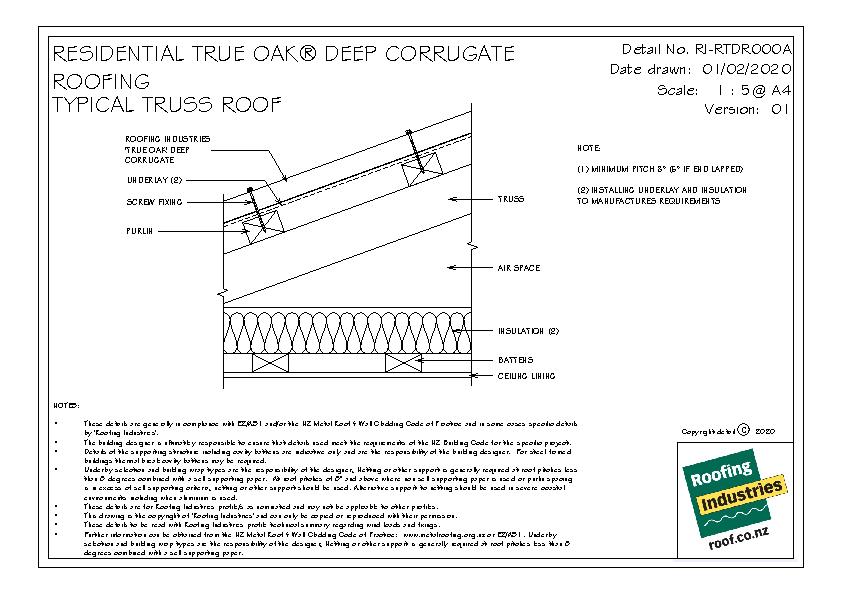

True Oak Deep Typical Truss Roof

RI-RTD-R000A

dwg
pdf

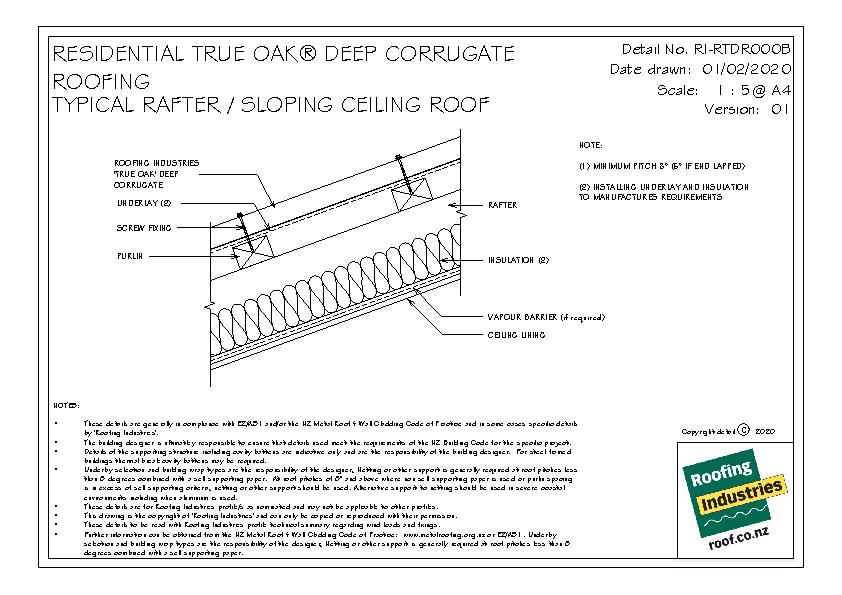

True Oak Deep Typical Rafter / Sloping Ceiling Roof

RI-RTD-R000B

dwg
pdf

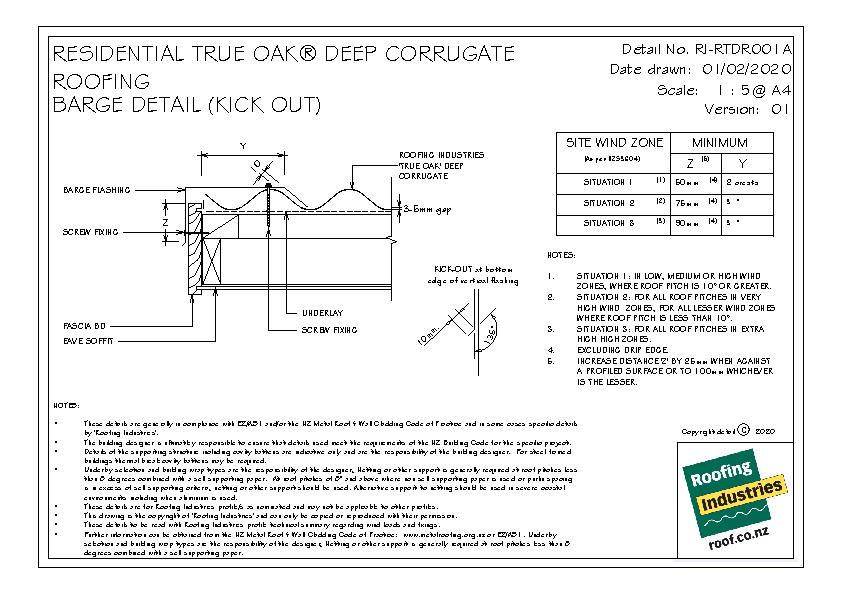

True Oak Deep Barge Detail (Kick Out)

RI-RTD-R001A

dwg
pdf

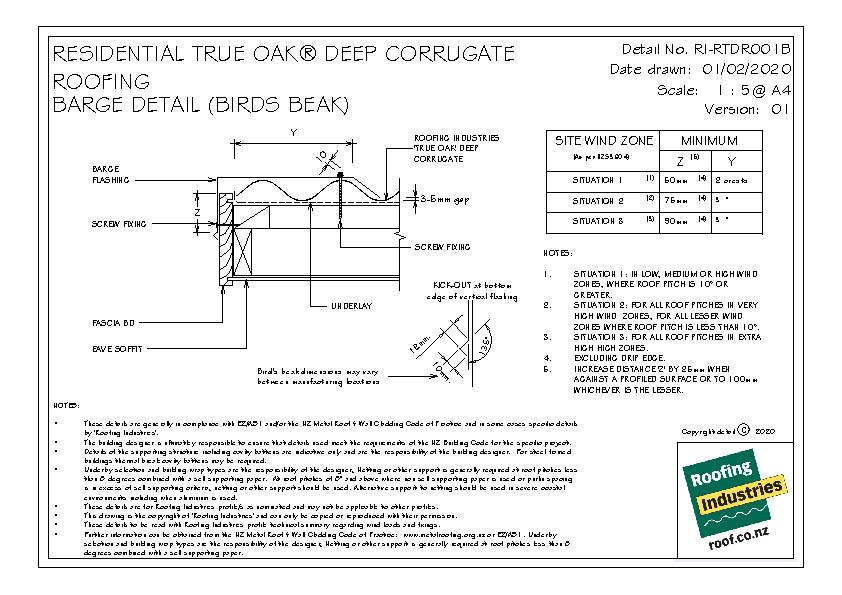

True Oak Deep Barge Detail (Bird's Beak)

RI-RTD-R001B

dwg
pdf

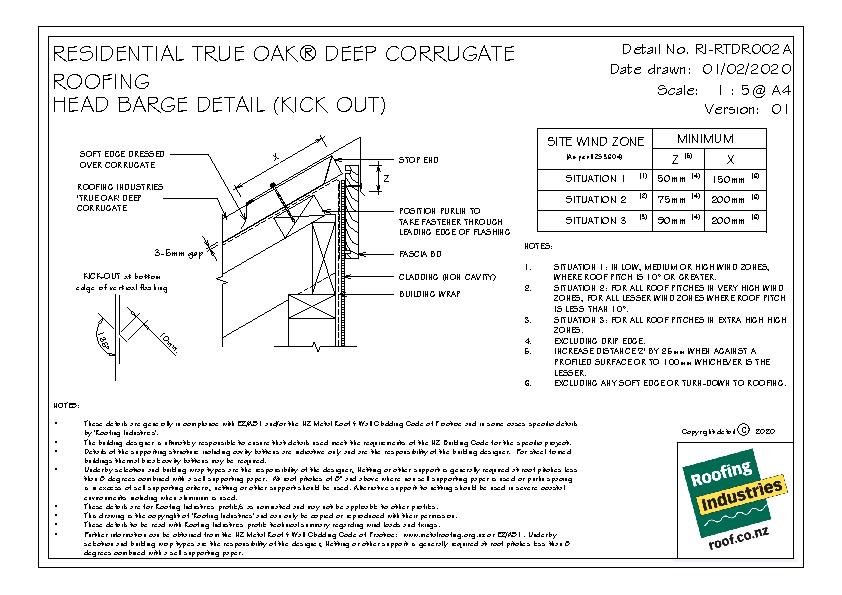

True Oak Deep Head Barge Detail (Kick Out)

RI-RTD-R002A

dwg
pdf

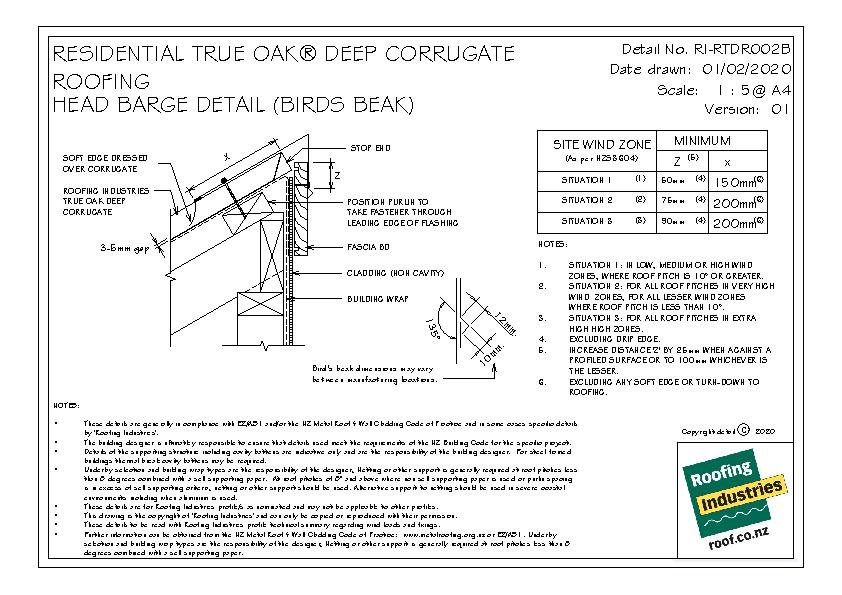

True Oak Deep Head Barge Detail (Bird's Beak)

RI-RTD-R002B

dwg
pdf

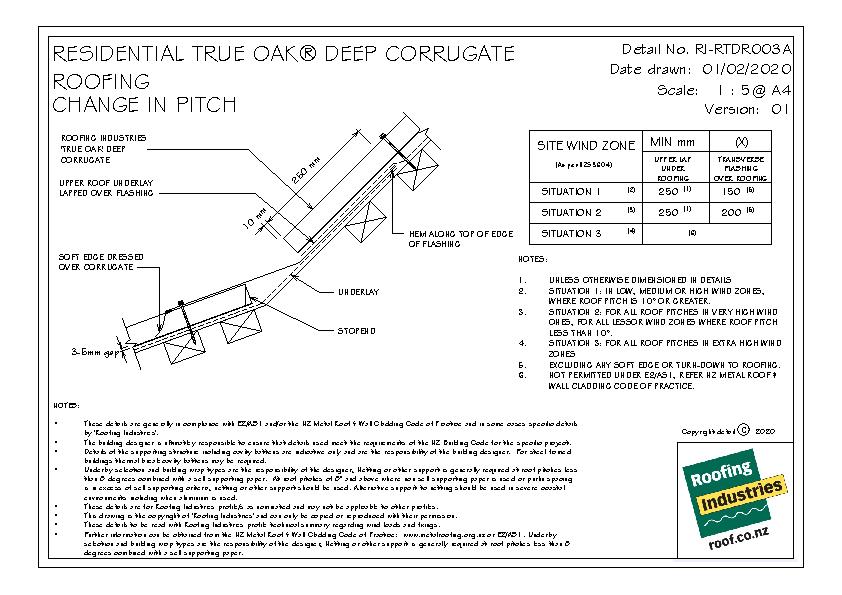

True Oak Deep Change in Pitch

RI-RTD-R003A

dwg
pdf

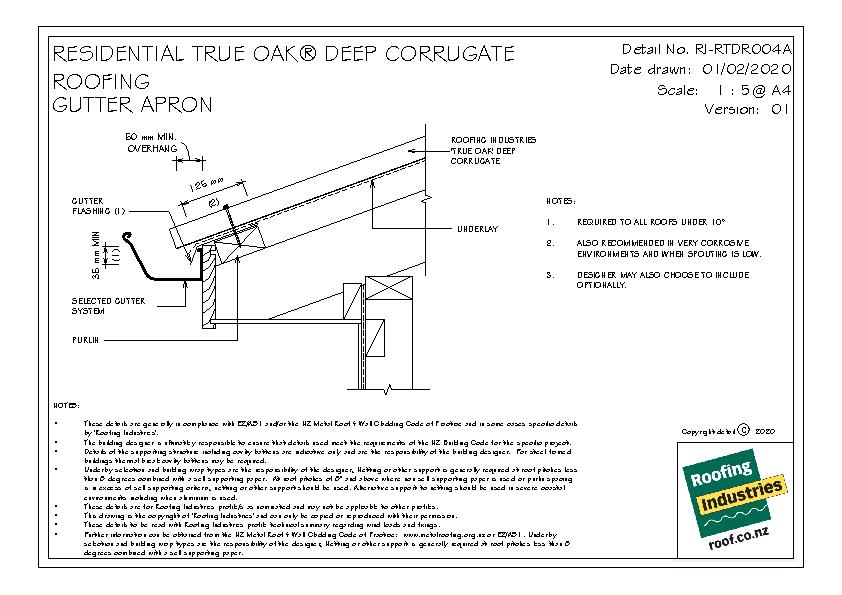

True Oak Deep Gutter Apron

RI-RTD-R004A

dwg
pdf

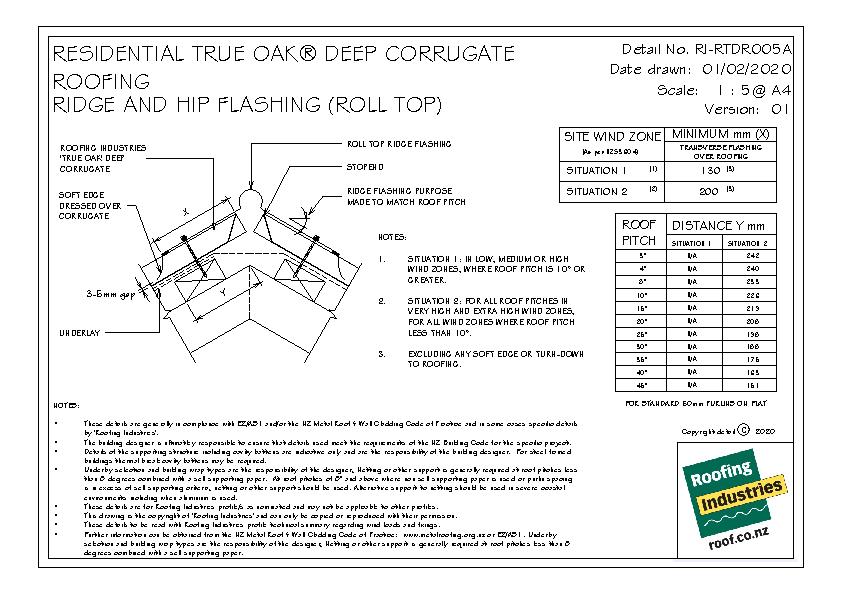

True Oak Deep Ridge and Hip Flashing (Roll Top)

RI-RTD-R005A

dwg
pdf

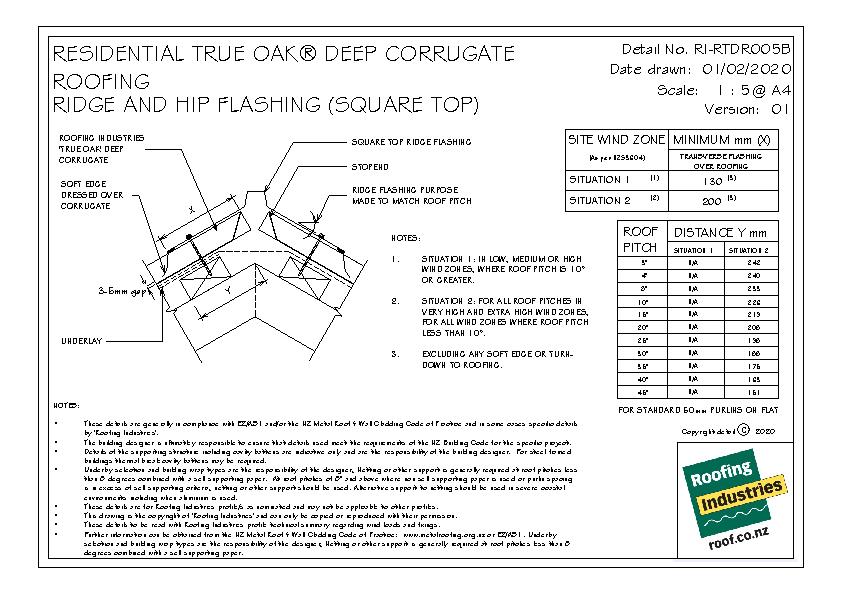

True Oak Deep Ridge and Hip Flashing (Squarel Top)

RI-RTD-R005B

dwg
pdf

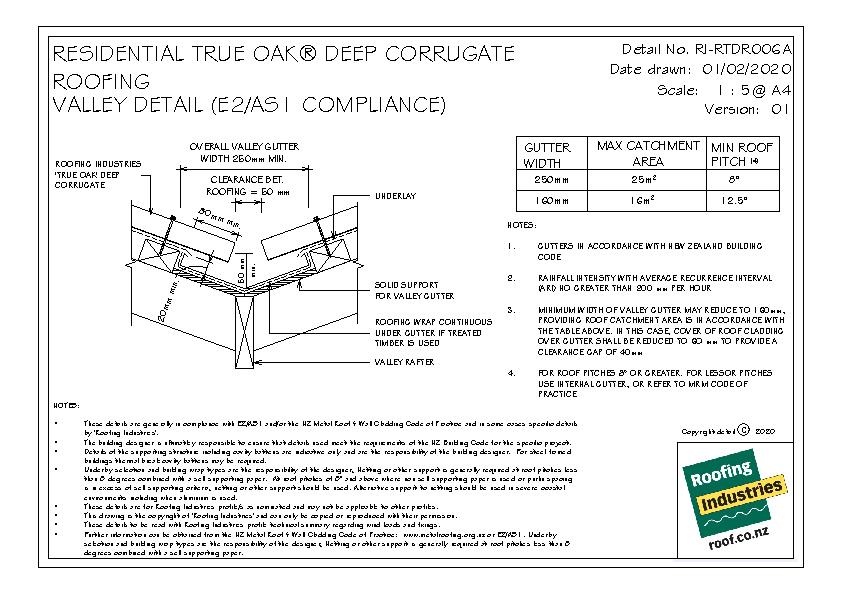

True Oak Deep Valley Detail (E2/AS1 Compliance)

Ri-RTD-R006A

dwg
pdf

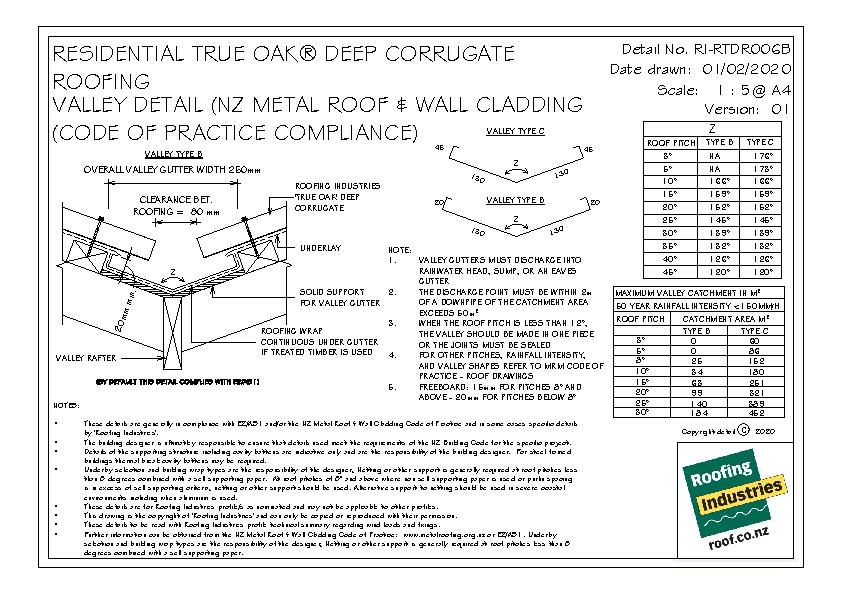

True Oak Deep Valley Detail (Code of Practice Compliance)

RI-RTD-R006B

dwg
pdf

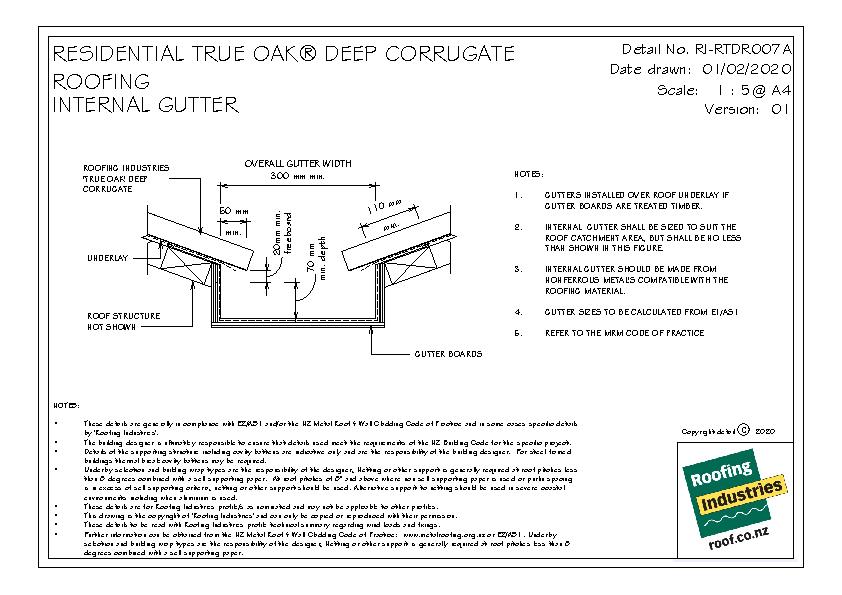

True Oak Deep Internal Gutter

RI-RTD-R007A

dwg
pdf

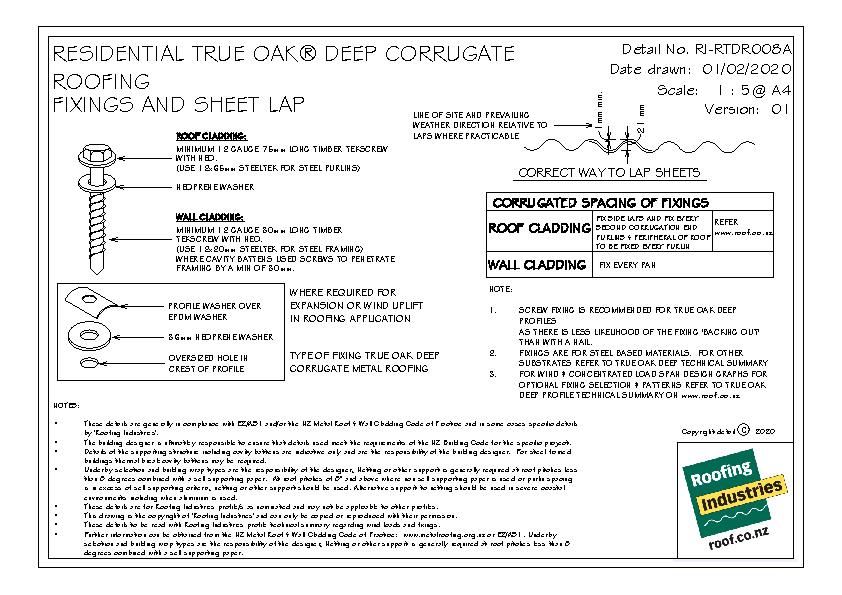

True Oak Deep Fixings and Sheet Lap

RI-RTD-R008A

dwg
pdf

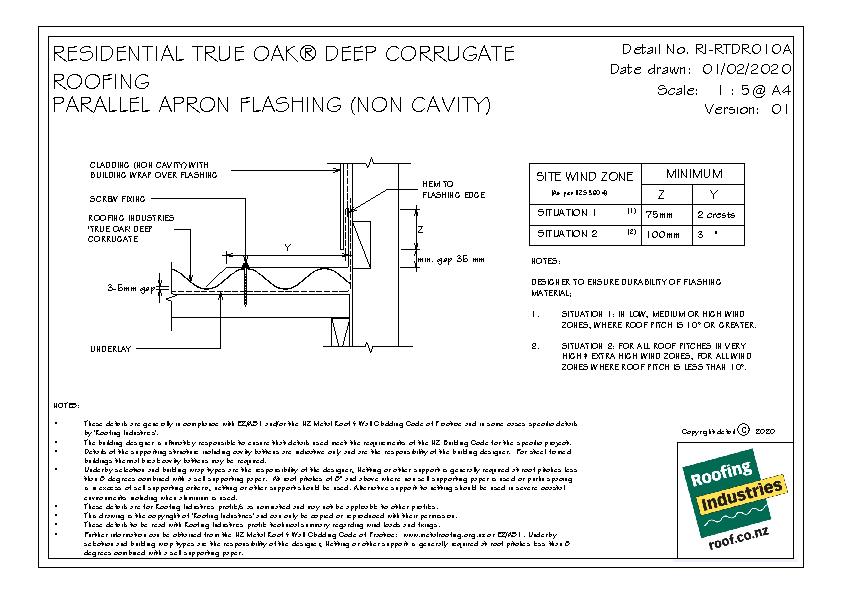

True Oak Deep Parallel Apron Flashing (Non-Cavity)

RI-RTD-R010A

dwg
pdf

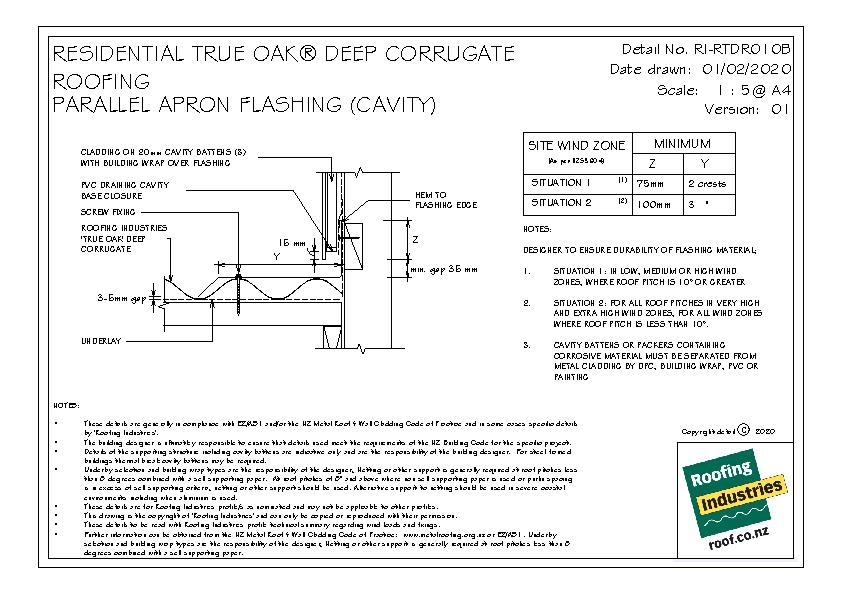

True Oak Deep Parallel Apron Flashing (Cavity)

RI-RTD-R010B

dwg
pdf

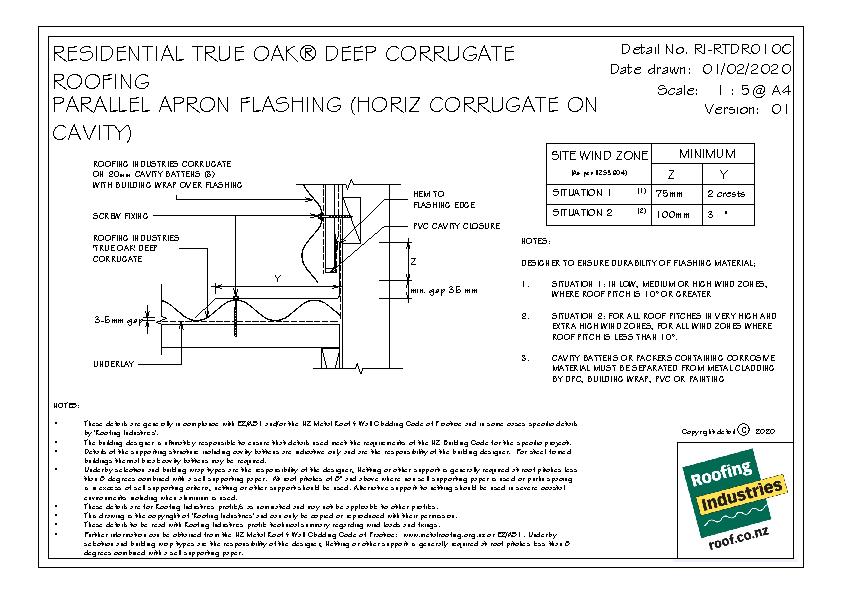

True Oak Deep Parallel Apron Flashing (Horizontal on Cavity)

RI-RTD-R010C

dwg
pdf

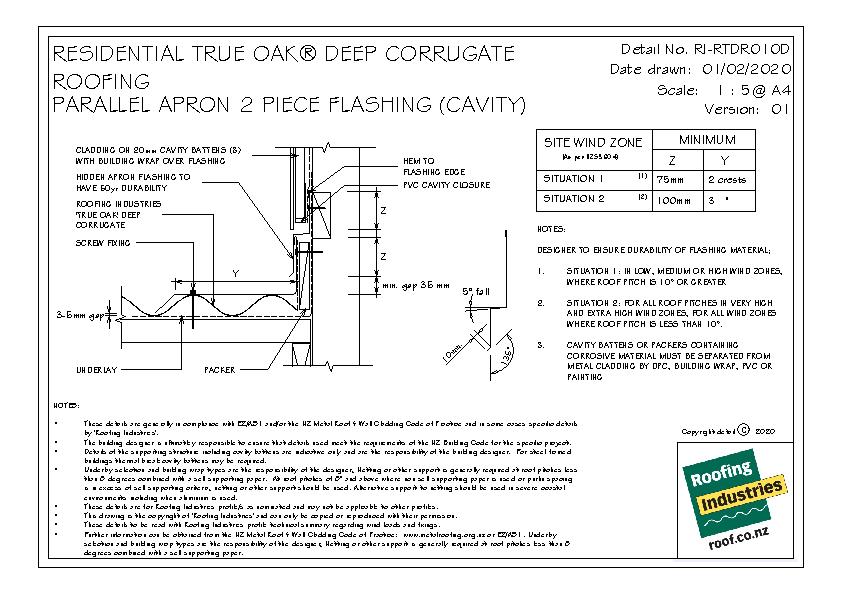

True Oak Deep Parallel Apron 2 Piece Flashing (Cavity)

RI-RTD-R010D

dwg
pdf

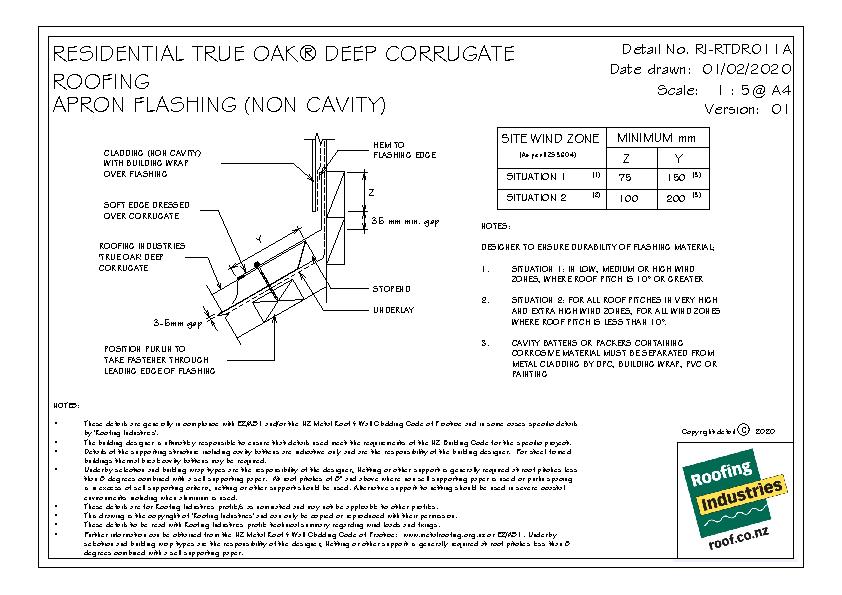

True Oak Deep Apron Flashing (Non-Cavity)

RI-RTD-R011A

dwg
pdf

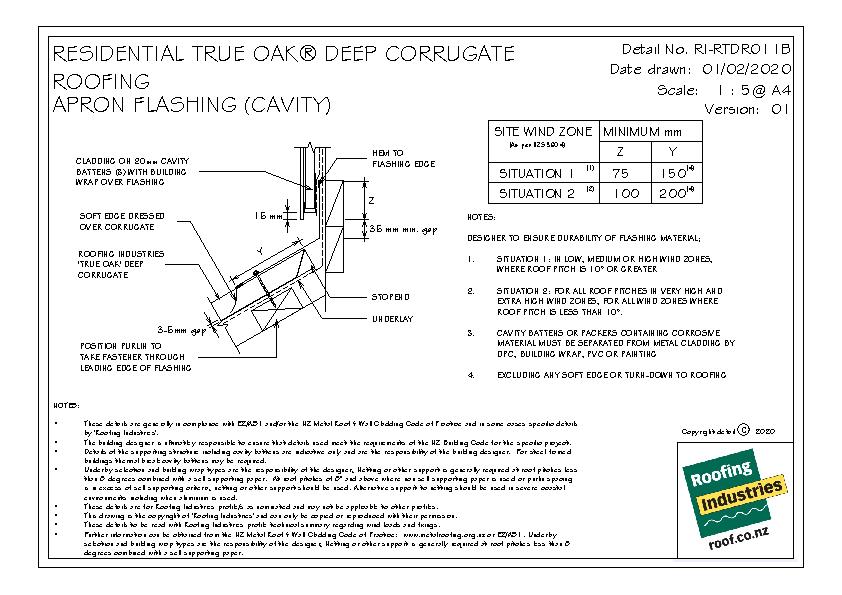

True Oak Deep Apron Flashing (Cavity)

RI-RTD-R011B

dwg
pdf

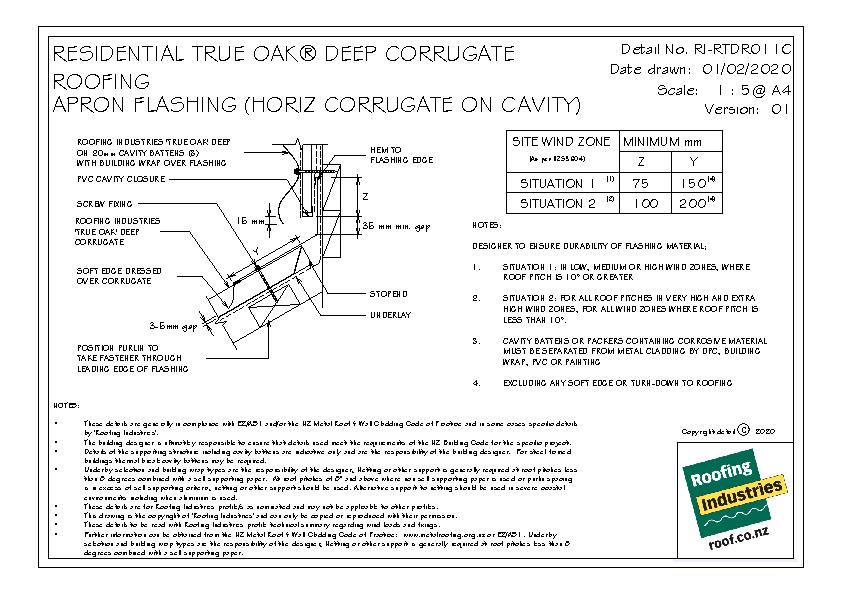

True Oak Deep Apron Flashing (Horizontal on Cavity)

RI-RTD-R011C

dwg
pdf

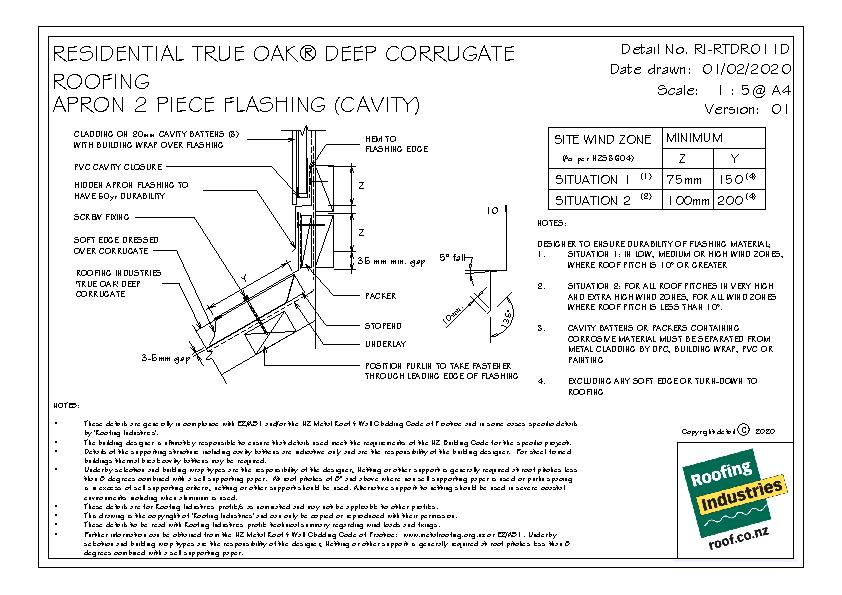

True Oak Deep Apron 2 Piece Flashing (Cavity)

RI-RTD-R011D

dwg
pdf

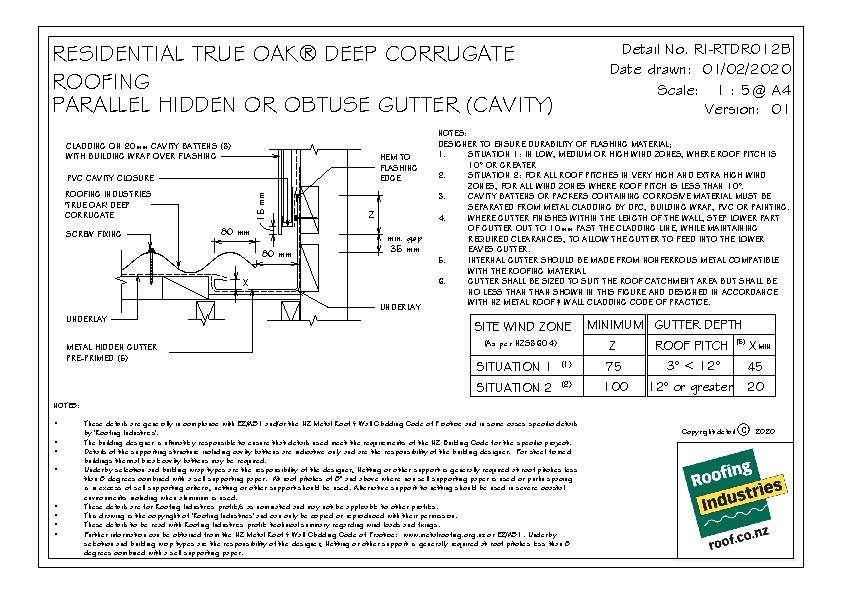

True Oak Deep Parallel Hidden or Obtuse Gutter (Cavity)

RI-RTD-R012B

dwg
pdf

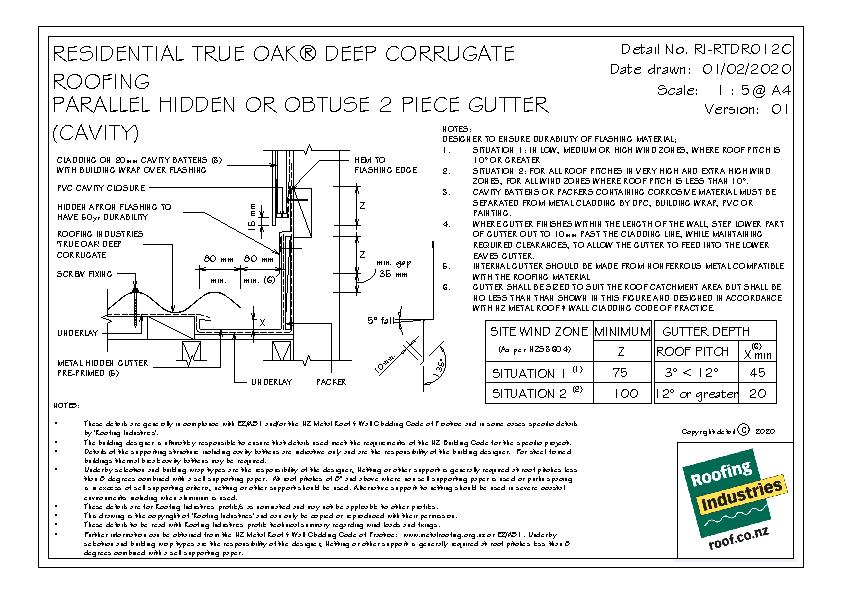

True Oak Deep Parallel Hidden or Obtuse 2 Piece Gutter (Non-Cavity)

RI-RTD-R012C

dwg
pdf

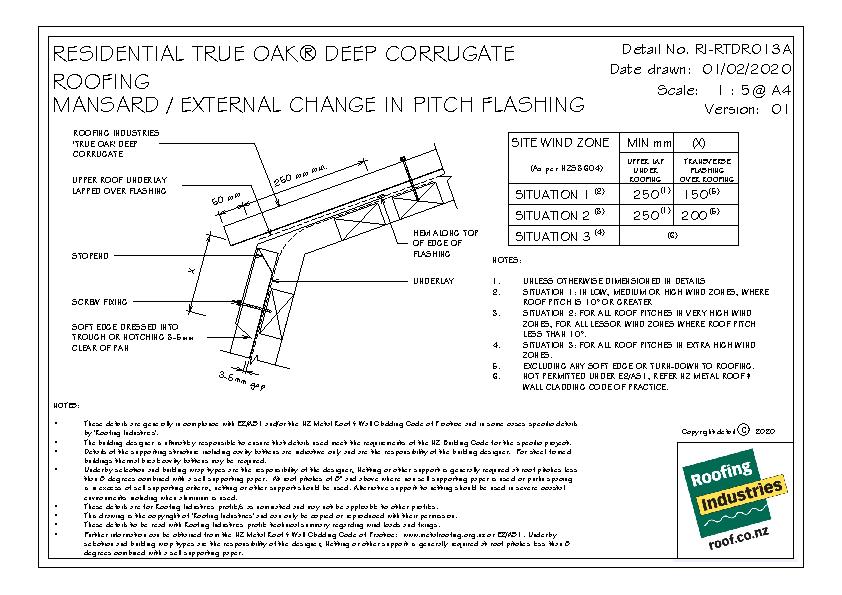

True Oak Deep Mansard / External Change in Pitch Flashing

RI-RTD-R013A

dwg
pdf

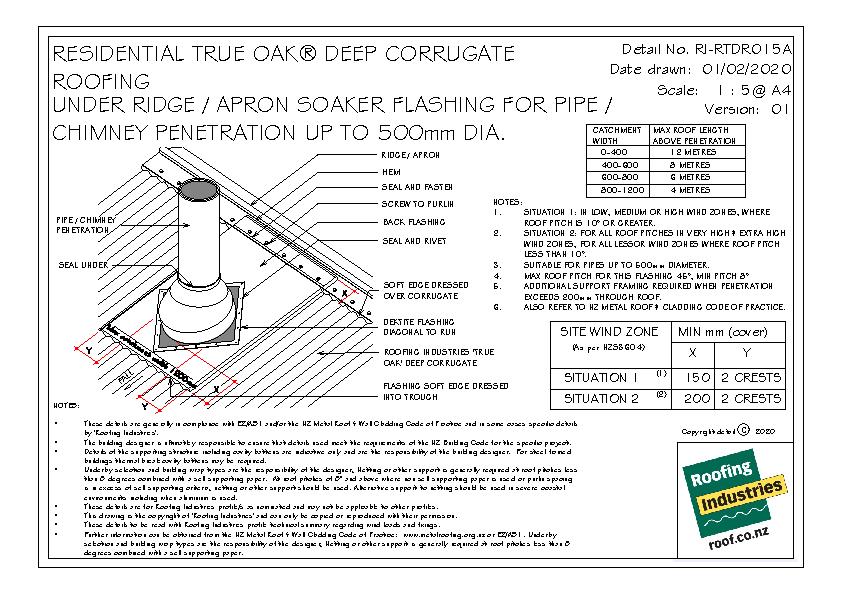

True Oak Deep Under Ridge / Apron Soaker Flashing for Chimney Pipe Penetration up to 500mm Diameter

RI-RTD-R015A

dwg
pdf

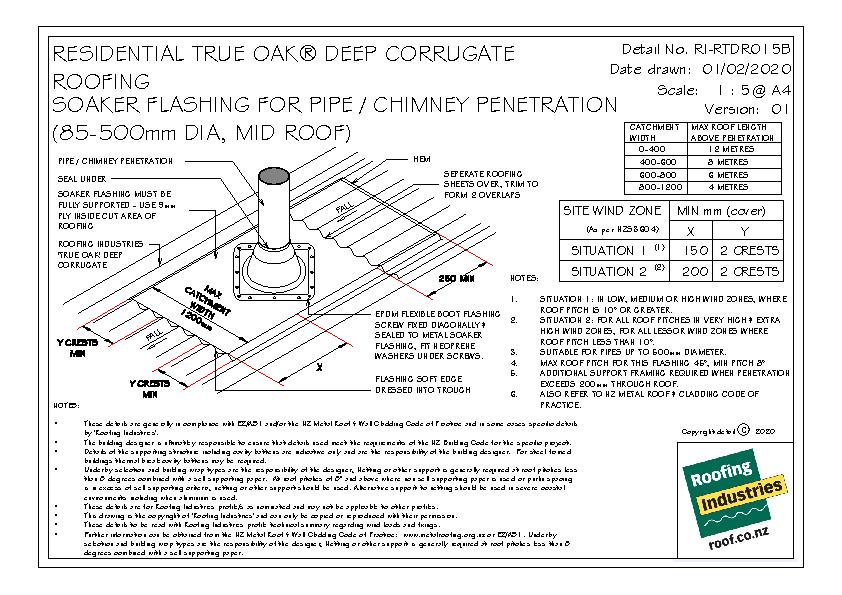

True Oak Deep Soaker Flashing for Chimney / Pipe Penetration 85-500mm Diameter (Mid-Roof)

RI-RTD-R015B

dwg
pdf

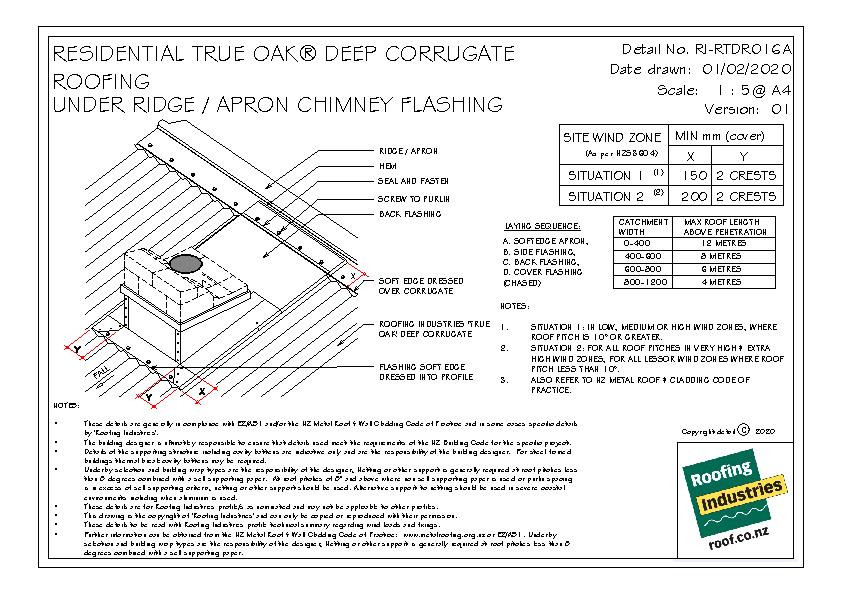

True Oak Deep Under Ridge / Apron Chimney Flashing

RI-RTD-R016A

dwg
pdf

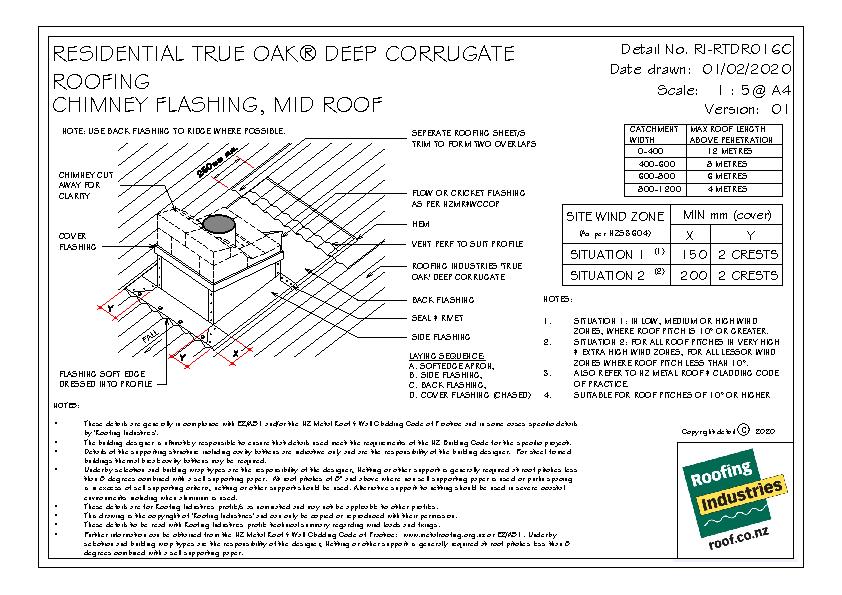

True Oak Deep Chimney Flashing (Mid-Roof)

RI-RTD-R016C

dwg
pdf

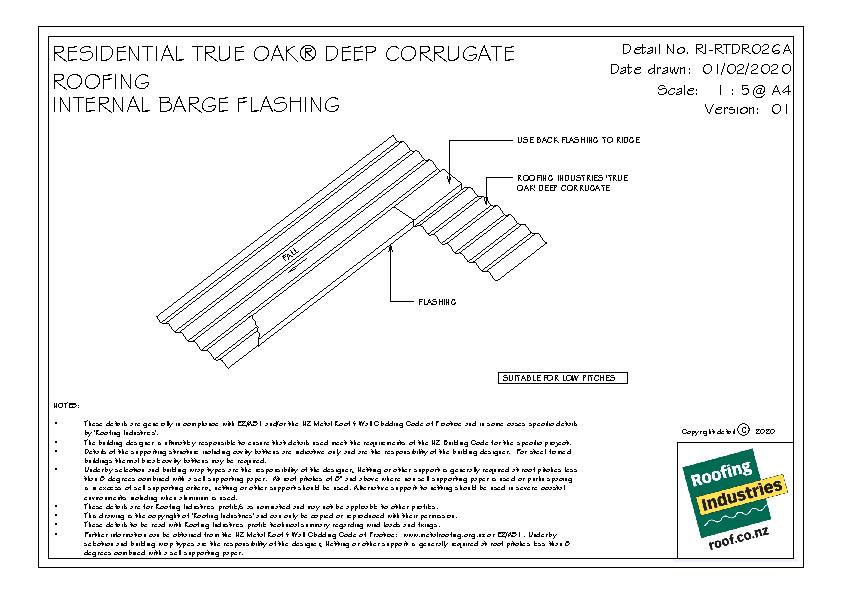

True Oak Deep Internal Barge Flashing

RI-RTD-R026A

dwg
pdf

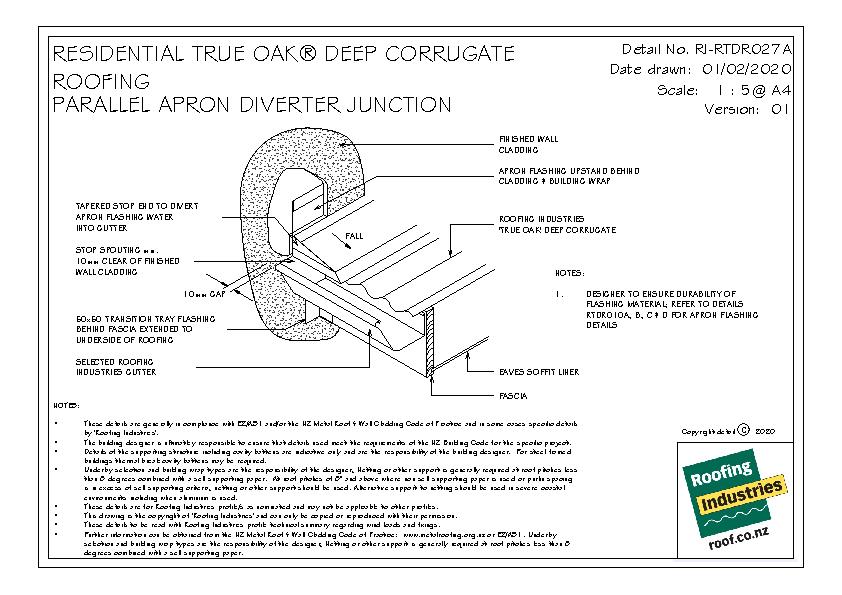

True Oak Deep Parallel Apron Diverter Junction

RI-RTD-R027A

dwg
pdf

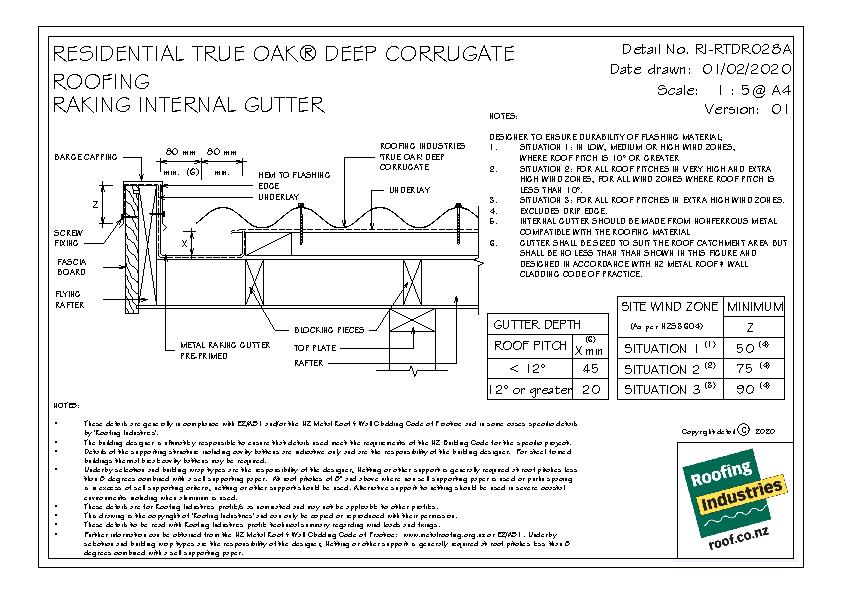

True Oak Deep Raking Internal Gutter

RI-RTD-R028A

dwg
pdf

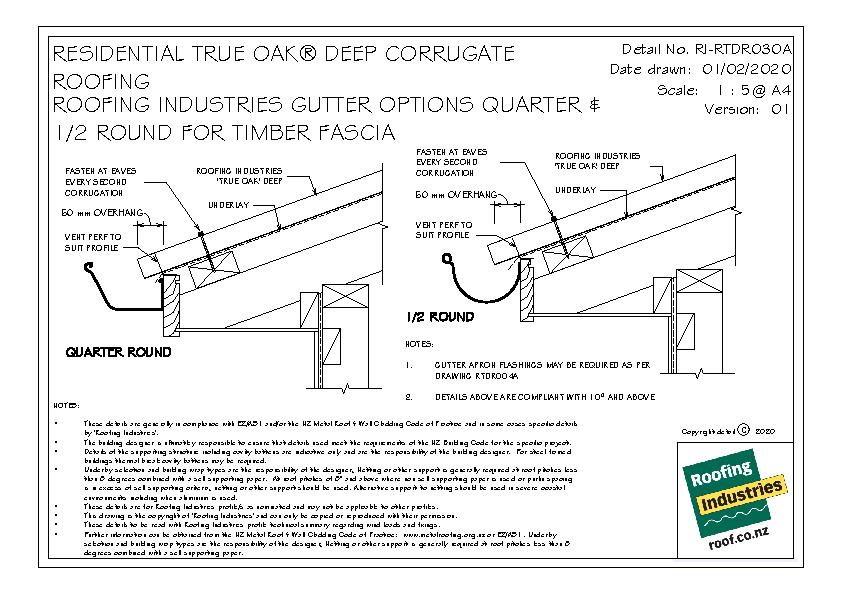

True Oak Deep Gutter Options (Quarter & Half Round for Timber Fascia)

RI-RTD-R030A

dwg
pdf
True Oak Deep Gutter Options (125 Box & Old Gothic for Timber Fascia)

RI-RTD-R030B

dwg
pdf

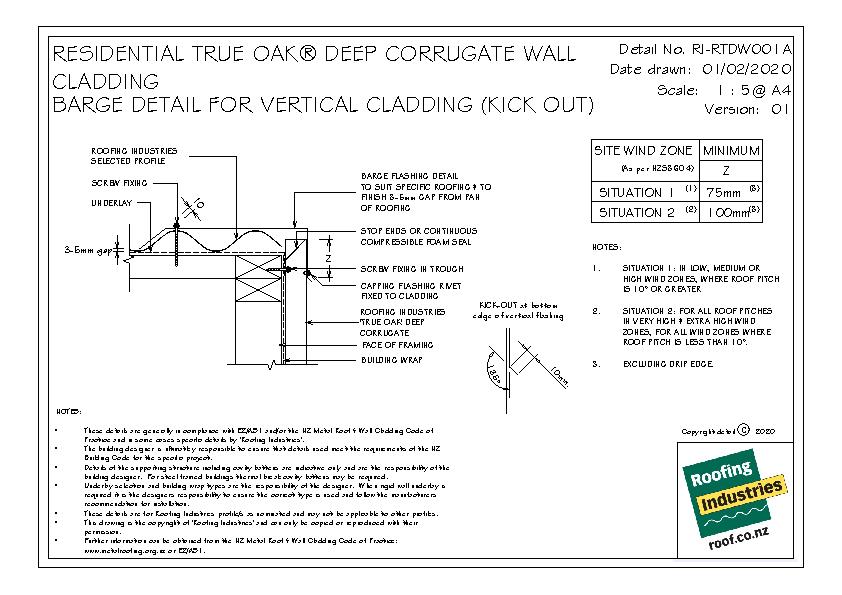

True Oak Deep Barge Detail for Vertical Cladding (Kick Out)

RI-RTD-W001A

dwg
pdf

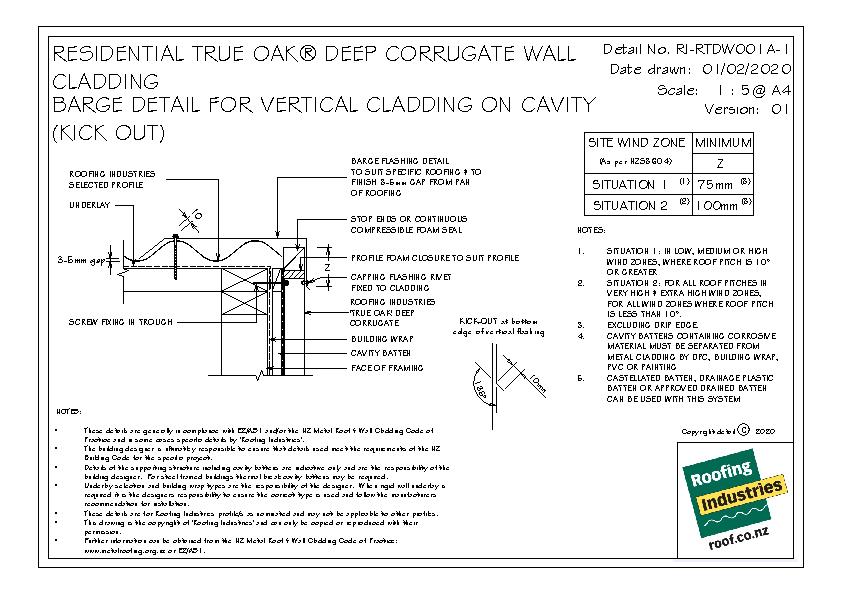

True Oak Deep Barge Detail for Vertical Cladding On Cavity (Kick Out)

RI-RTD-W001A-1

dwg
pdf

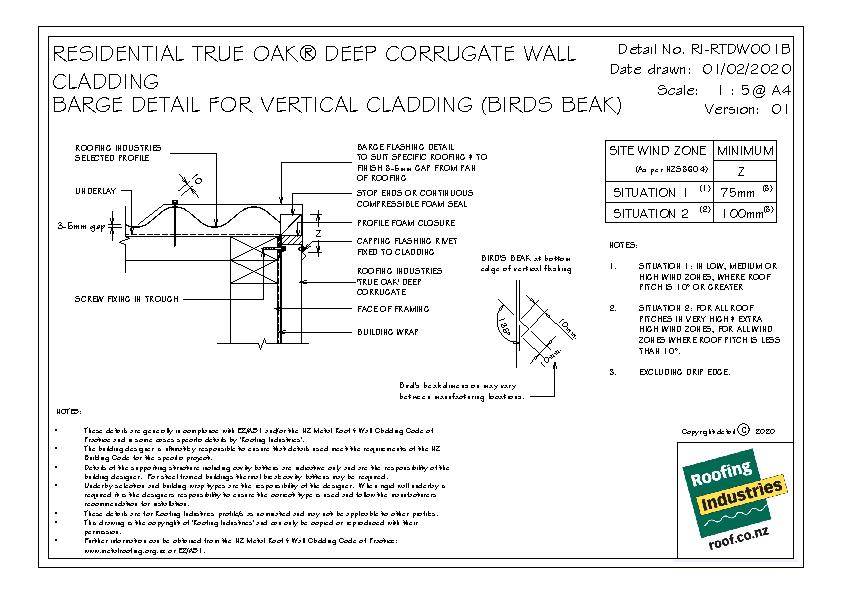

True Oak Deep Barge Detail for Vertical Cladding (Bird's Beak)

RI-RTD-W001B

dwg
pdf

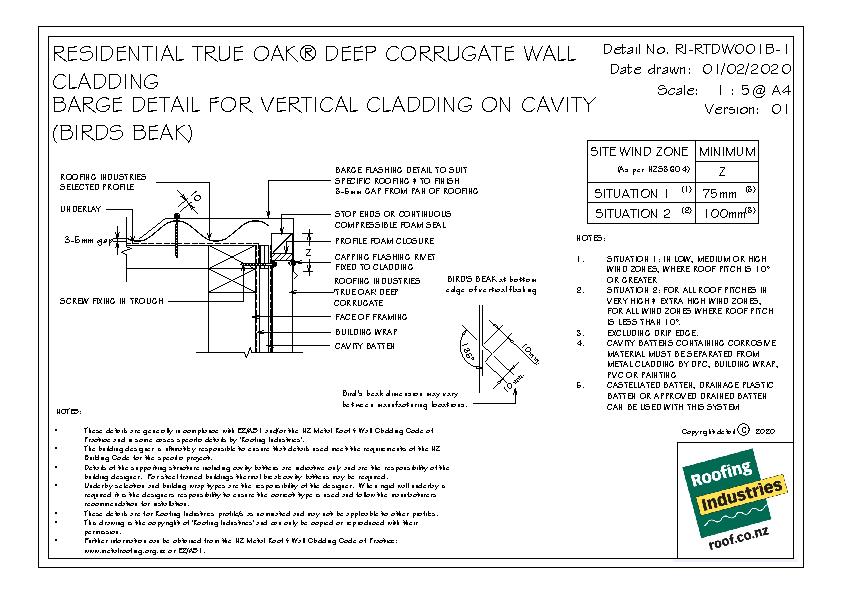

True Oak Deep Barge Detail for Vertical Cladding On Cavity (Bird's Beak)

RI-RTD-W001B-1

dwg
pdf

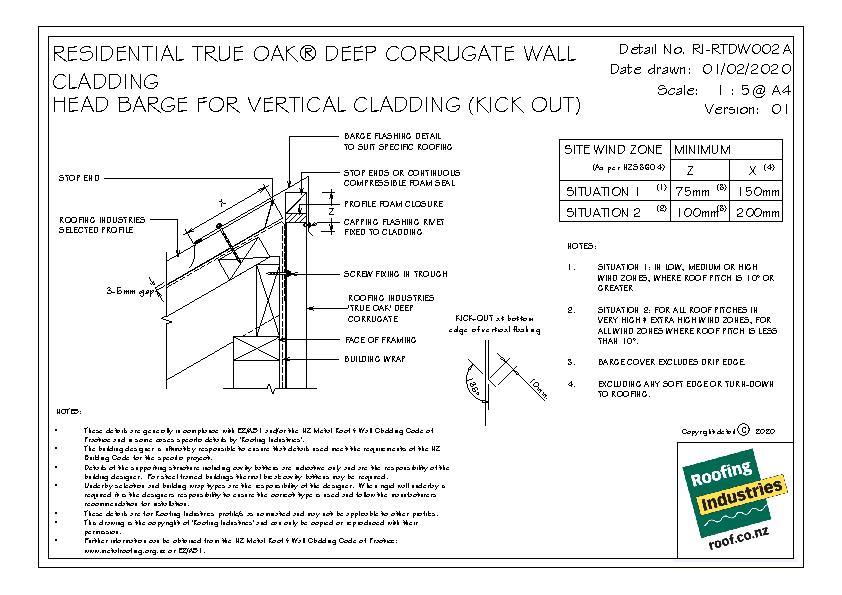

True Oak Deep Head Barge for Vertical Cladding (Kick Out)

RI-RTD-W002A

dwg
pdf

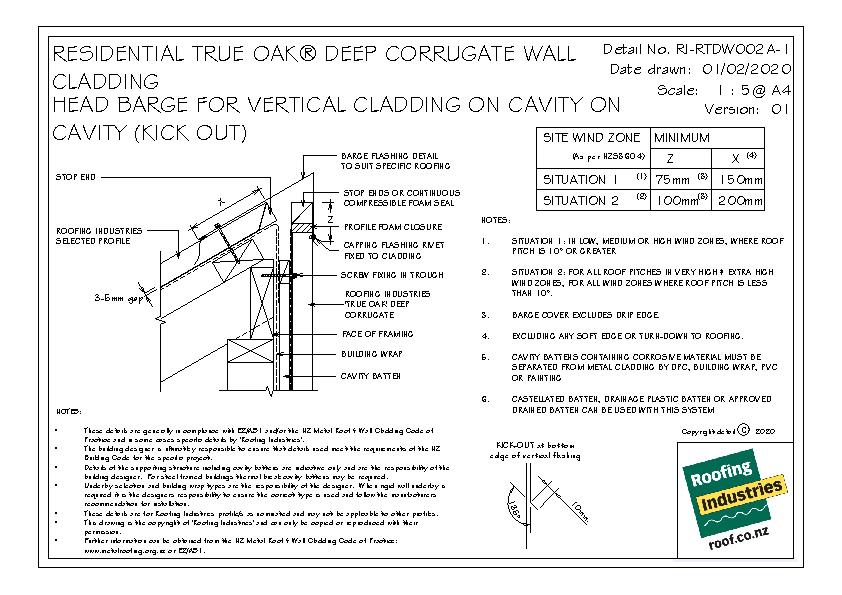

True Oak Deep Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RTD-W002A-1

dwg
pdf

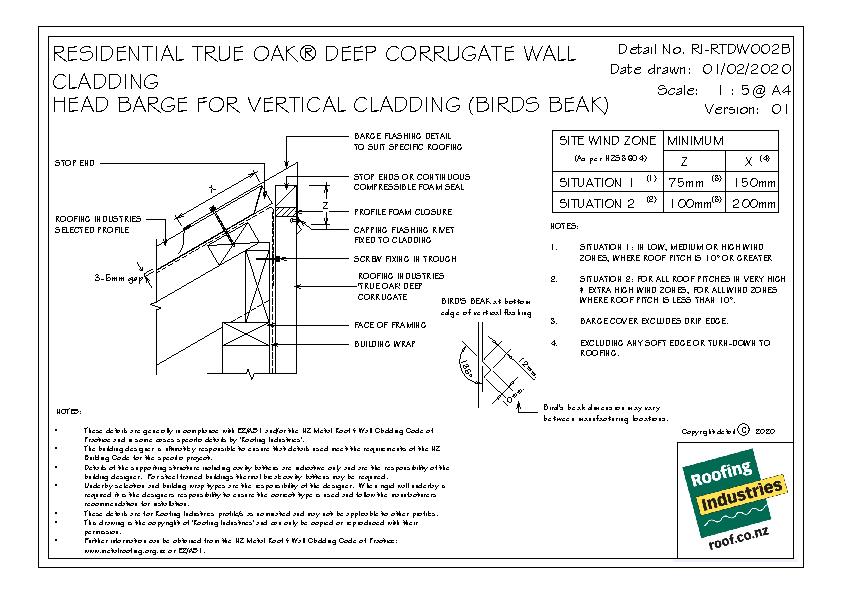

True Oak Deep Head Barge for Vertical Cladding (Bird's Beak)

RI-RTD-W002B

dwg
pdf

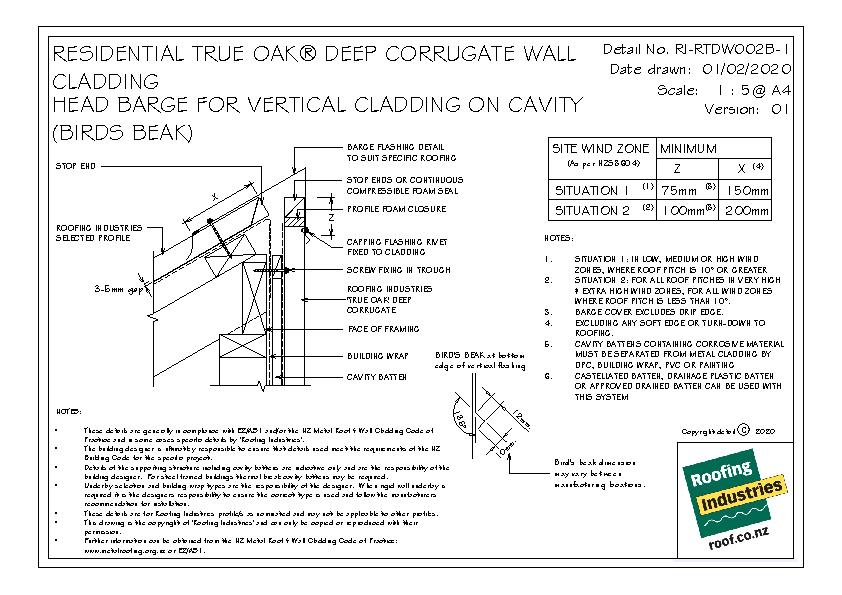

True Oak Deep Head Barge for Vertical Cladding on Cavity (Bird's Beak)

Ri-RTD-W002B-1

dwg
pdf

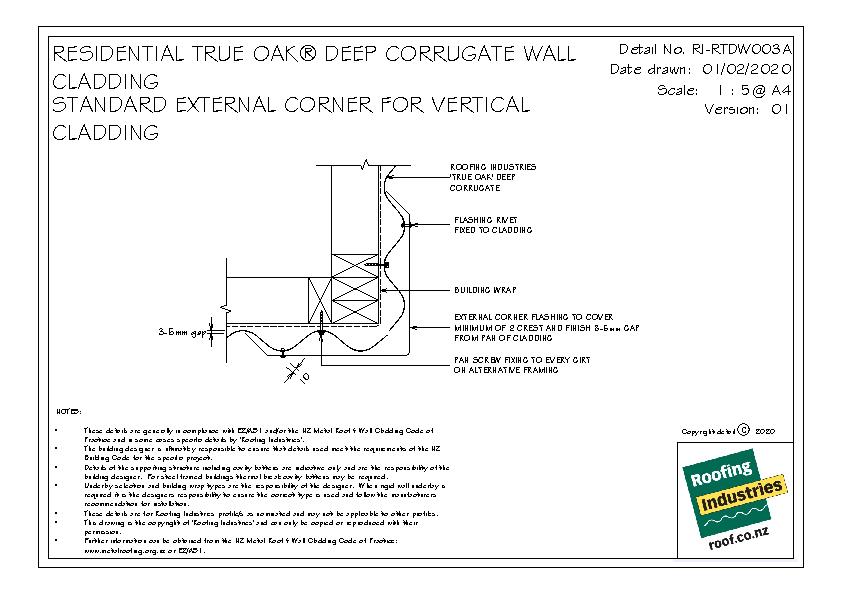

True Oak Deep Standard External Corner for Vertical Cladding

RI-RTD-W003A

dwg
pdf

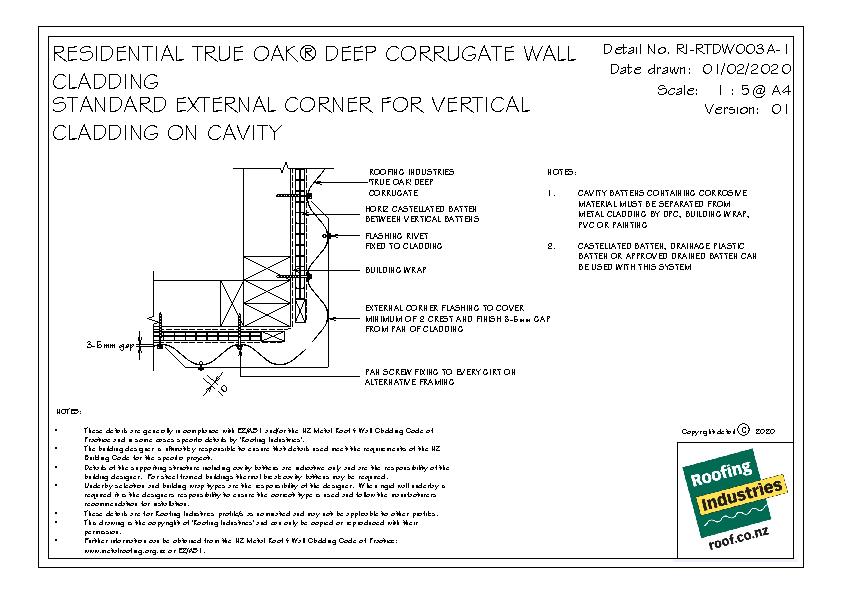

True Oak Deep Standard External Corner for Vertical Cladding on Cavity

RI-RTD-W003A-1

dwg
pdf

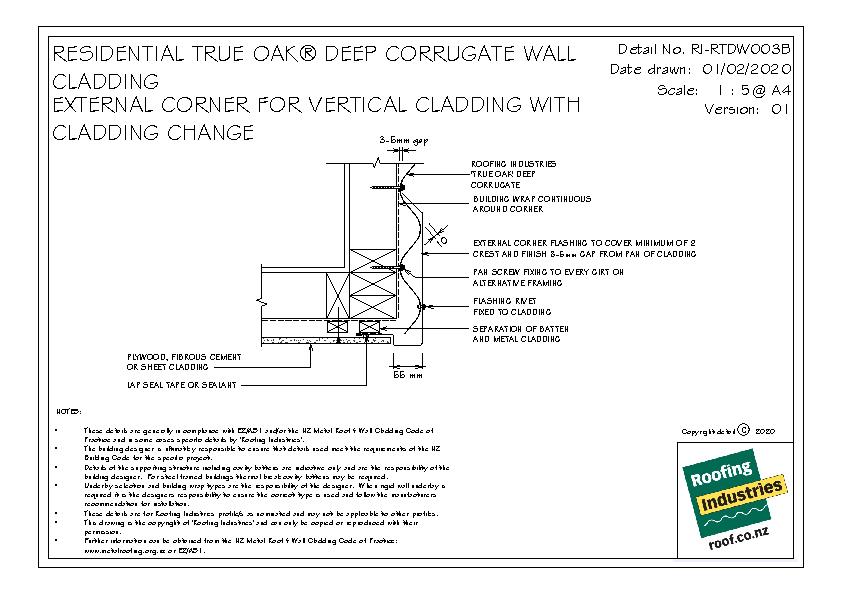

True Oak Deep External Corner for Vertical Cladding with Cladding Change

RI-RTD-W003B

dwg
pdf

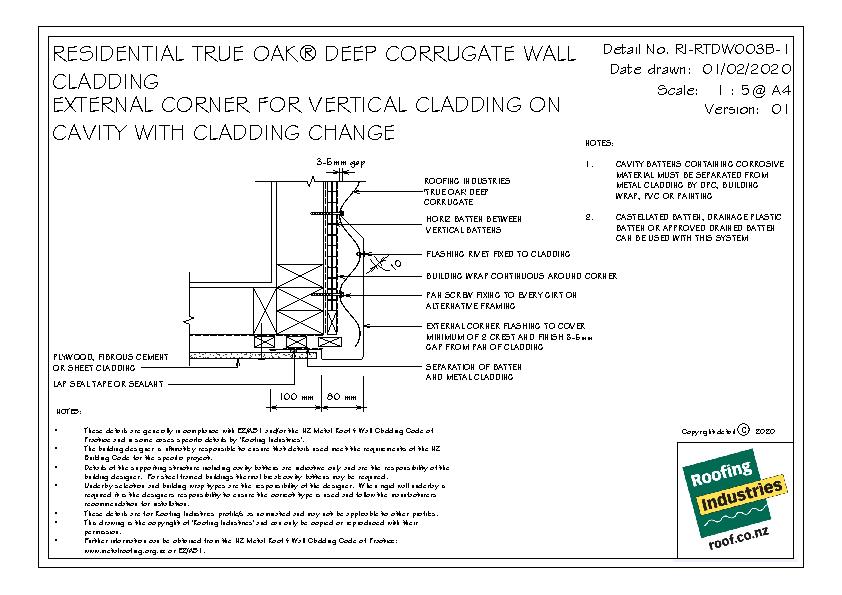

True Oak Deep External Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTD-W003B-1

dwg
pdf

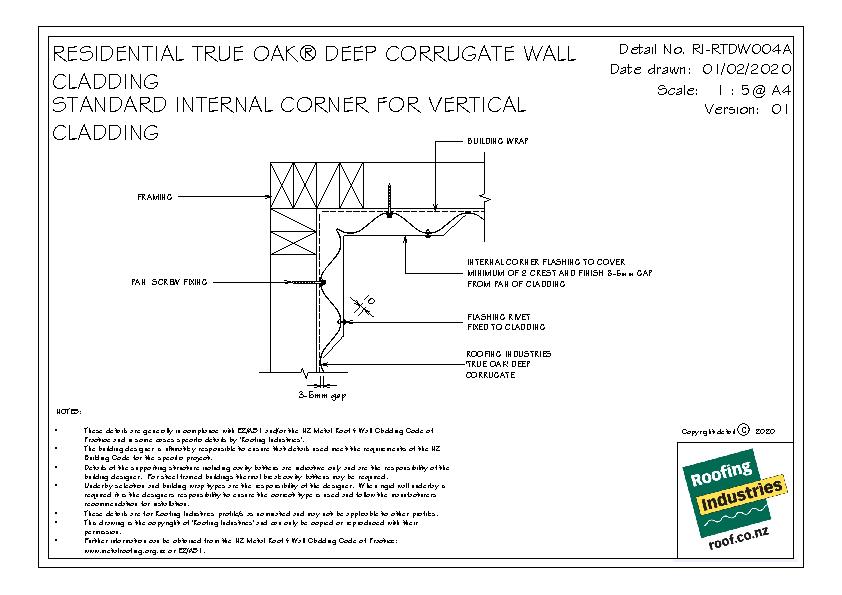

True Oak Deep Standard Internal Corner for Vertical Cladding

RI-RTD-W004A

dwg
pdf

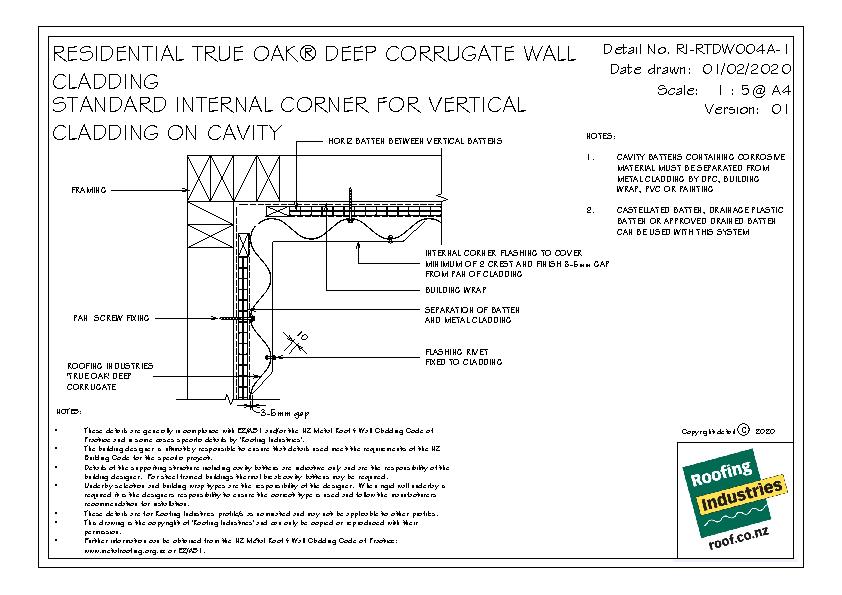

True Oak Deep Standard Internal Corner for Vertical Cladding on Cavity

RI-RTD-W004A-1

dwg
pdf

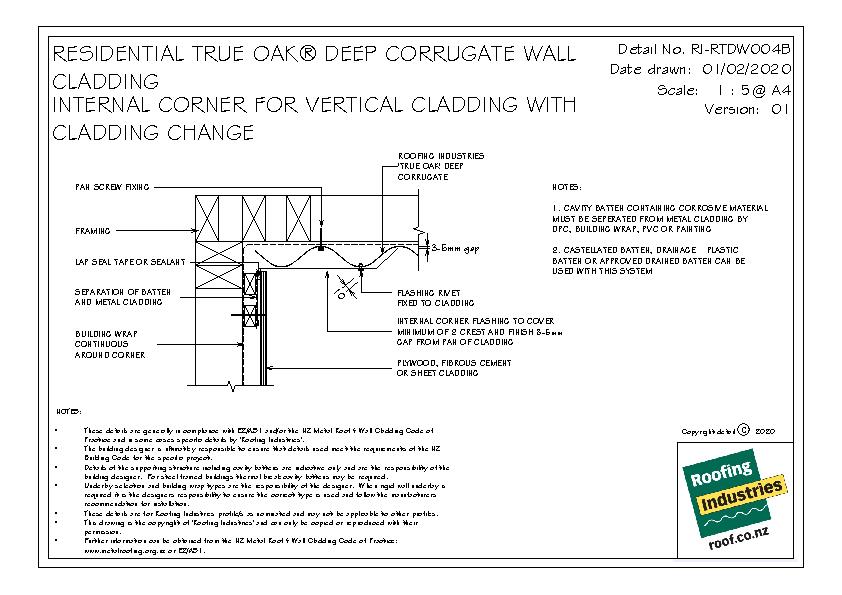

True Oak Deep Internal Corner for Vertical Cladding with Cladding Change

RI-RTD-W004B

dwg
pdf

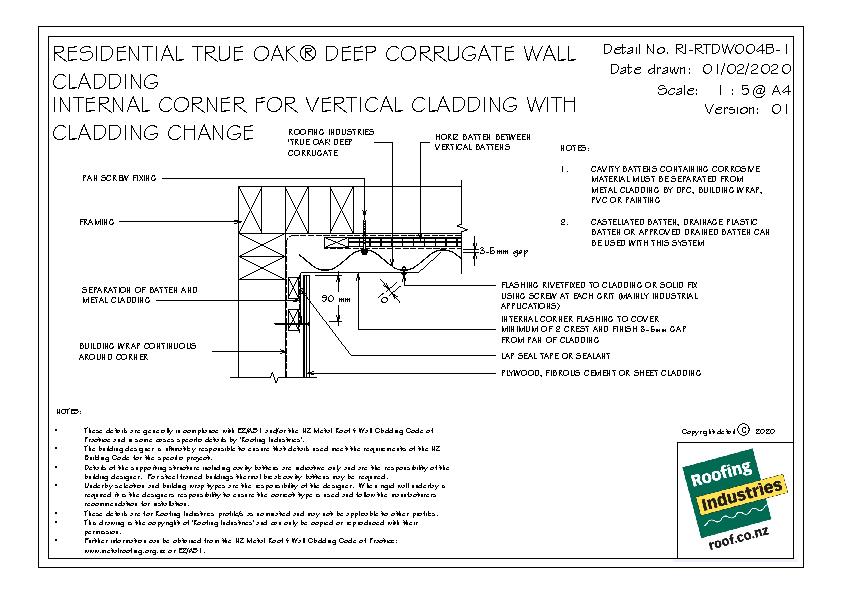

True Oak Deep Internal Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTD-W004B-1

dwg
pdf

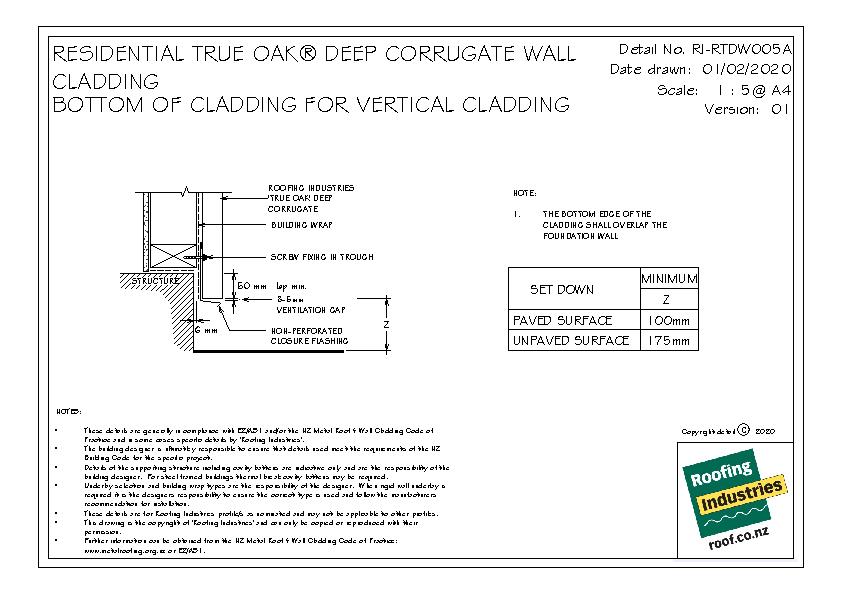

True Oak Deep Bottom of Cladding for Vertical Cladding

RI-RTD-W005A

dwg
pdf

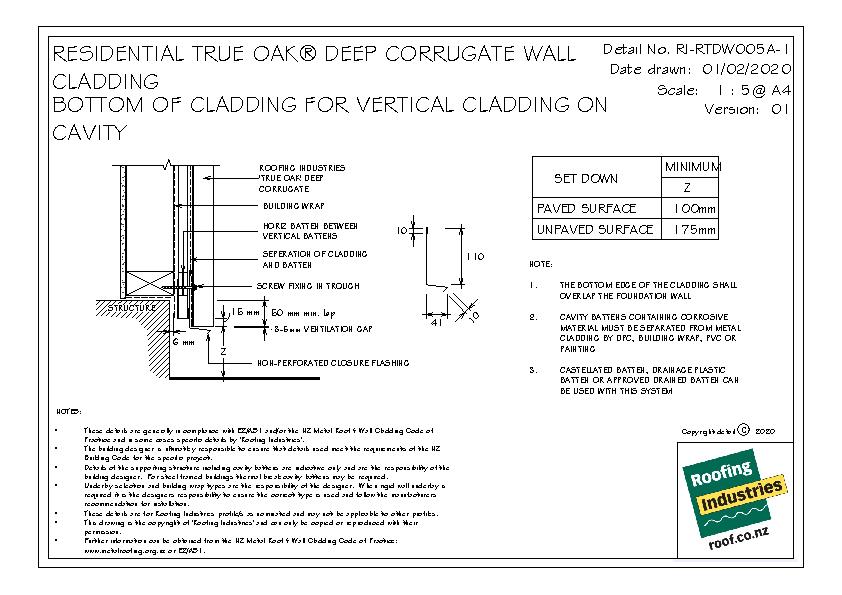

True Oak Deep Bottom of Cladding for Vertical Cladding on Cavity

RI-RTD-W005A-1

dwg
pdf

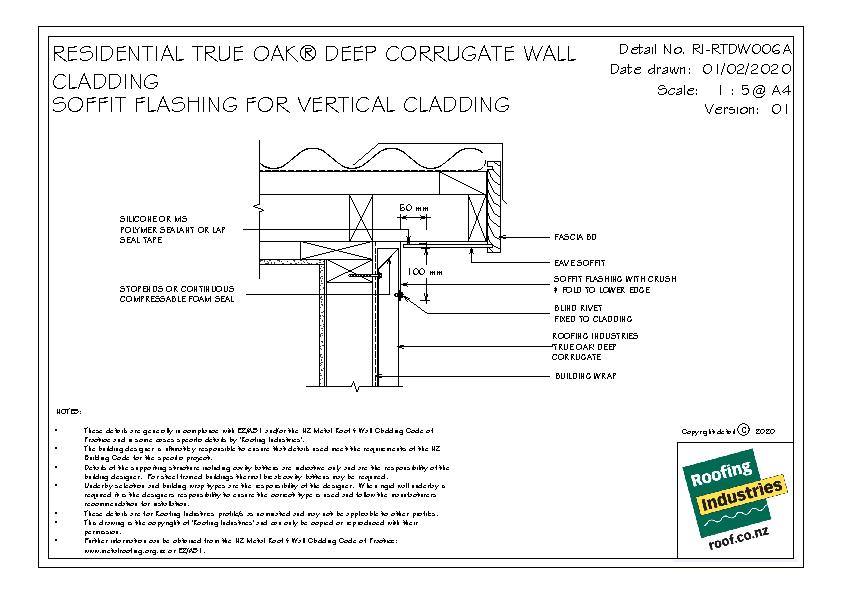

True Oak Deep Soffit Flashing for Vertical Cladding

RI-RTD-W006A

dwg
pdf

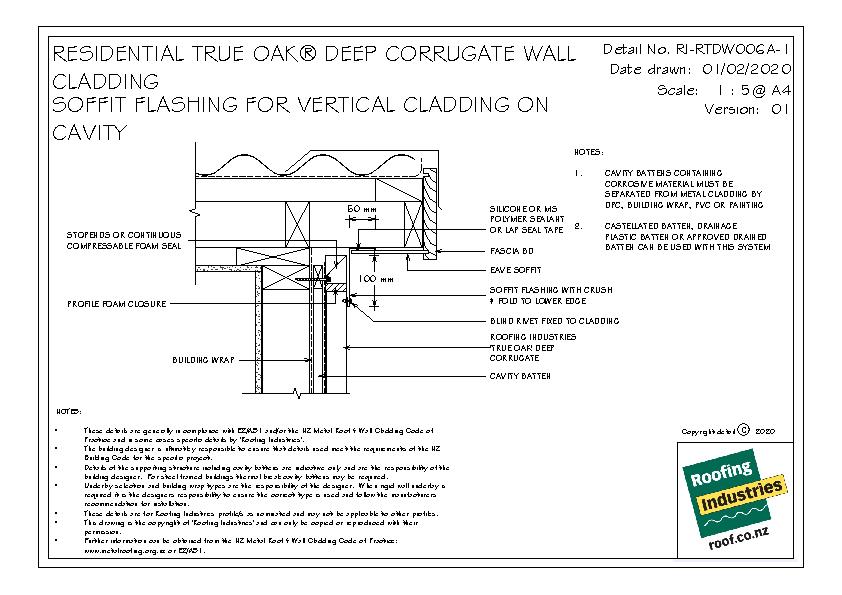

True Oak Deep Soffit Flashing for Vertical Cladding on Cavity

RI-RTD-W006A-1

dwg
pdf

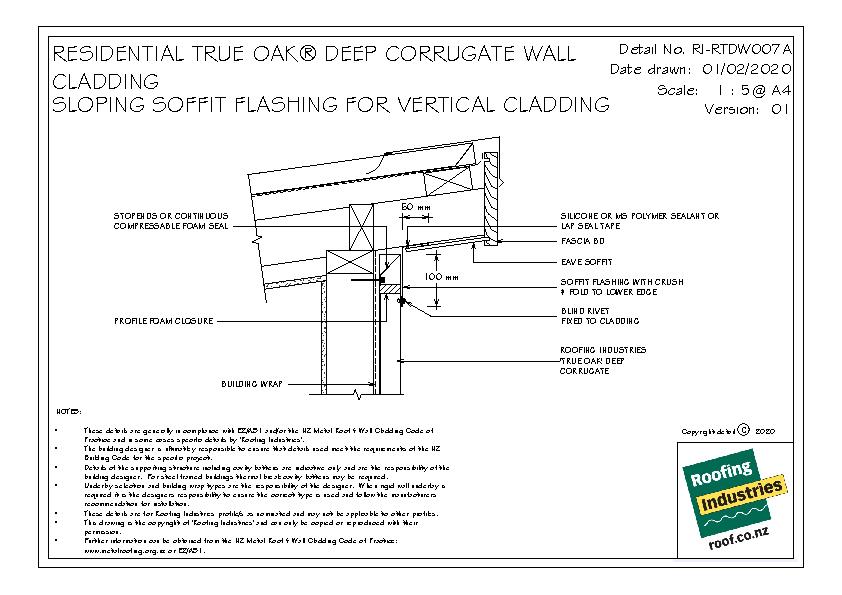

True Oak Deep Sloping Soffit Flashing for Vertical Cladding

RI-RTD-W007A

dwg
pdf

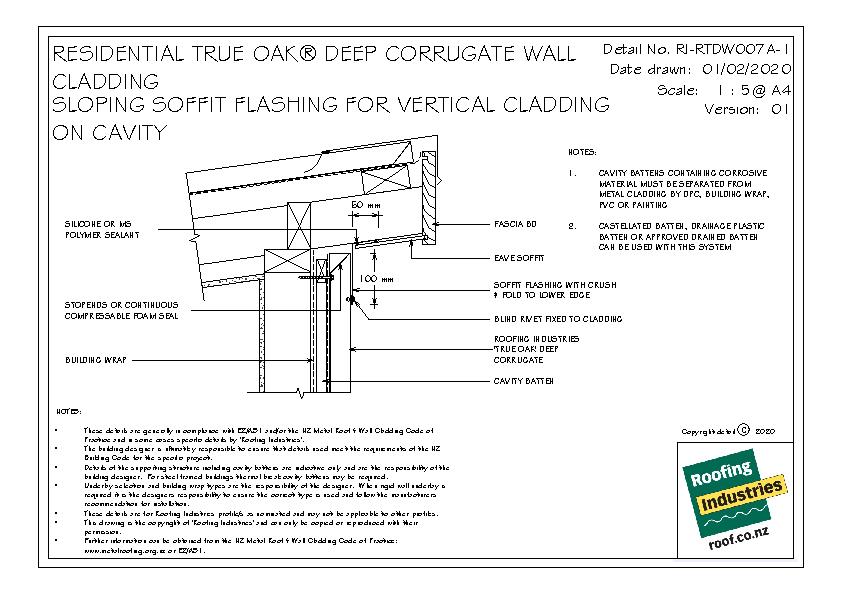

True Oak Deep Sloping Soffit Flashing for Vertical Cladding on Cavity

RI-RTD-W007A-1

dwg
pdf

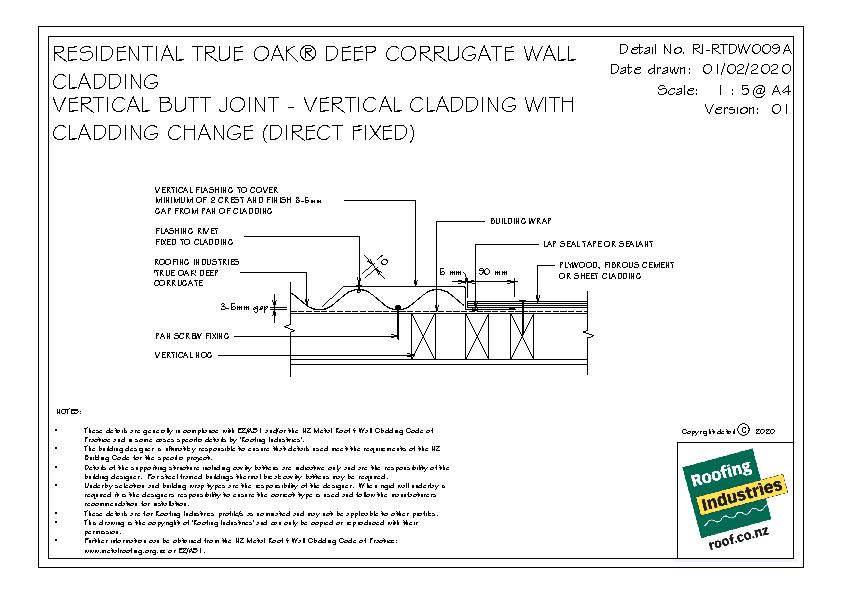

True Oak Deep Vertical Butt Joint Vertical Cladding with Cladding Change (Direct Fix)

RI-RTD-W009A

dwg
pdf

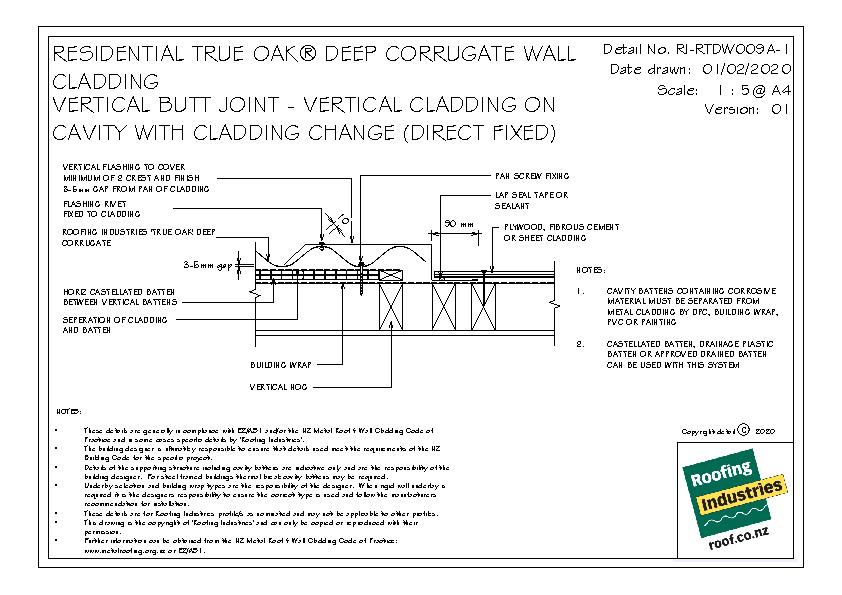

True Oak Deep Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Direct Fix)

RI-RTD-W009A-1

dwg
pdf

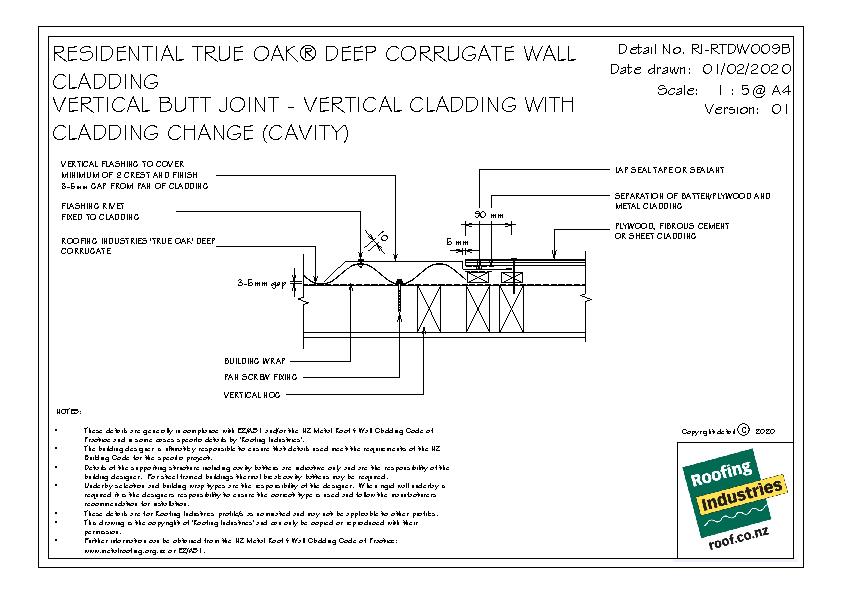

True Oak Deep Vertical Butt Joint Vertical Cladding with Cladding Change (Cavity)

RI-RTD-W009B

dwg
pdf

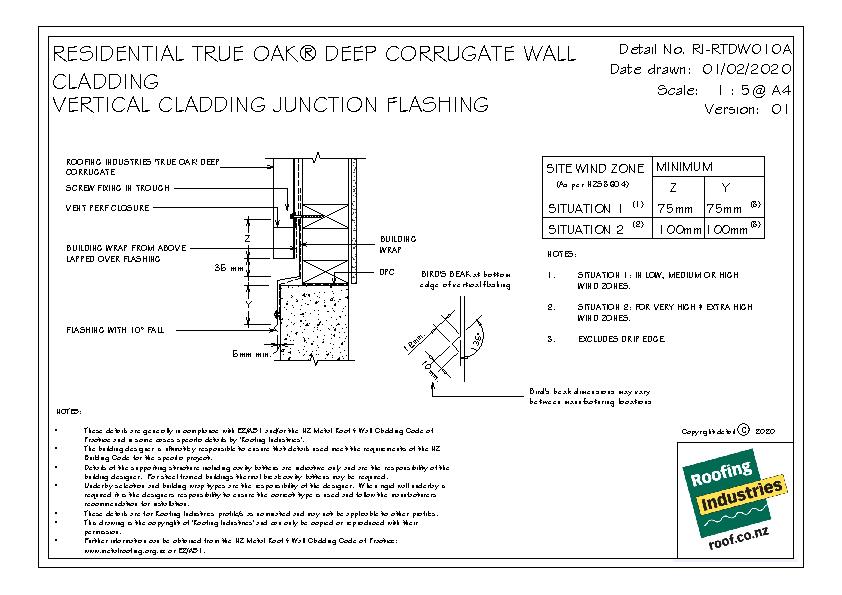

True Oak Deep Vertical Cladding Junction Flashing

RI-RTD-W010A

dwg
pdf

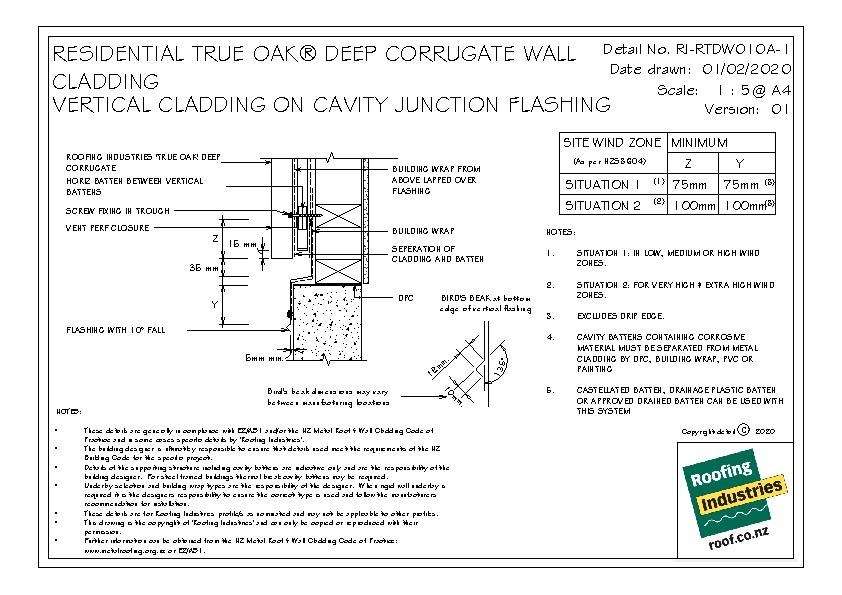

True Oak Deep Vertical Cladding on Cavity Junction Flashing

RI-RTD-W010A-1

dwg
pdf

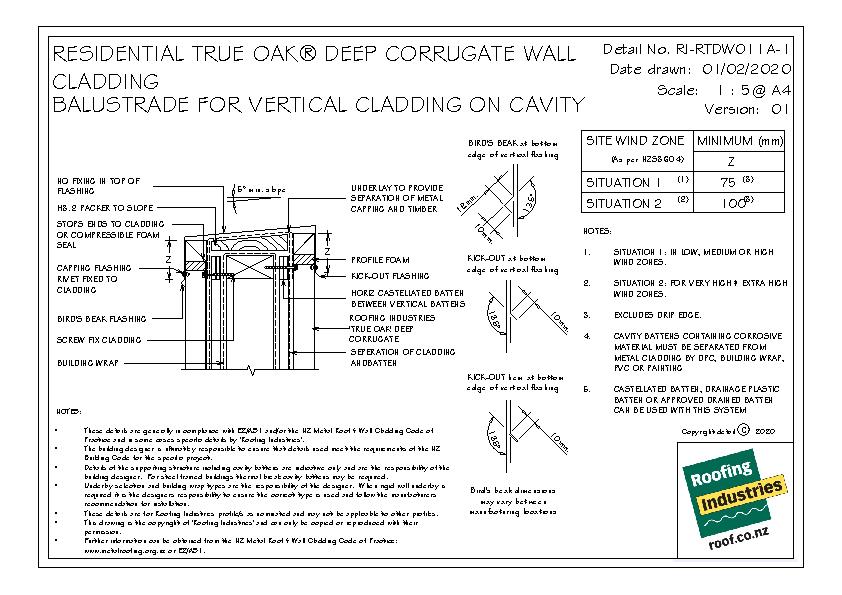

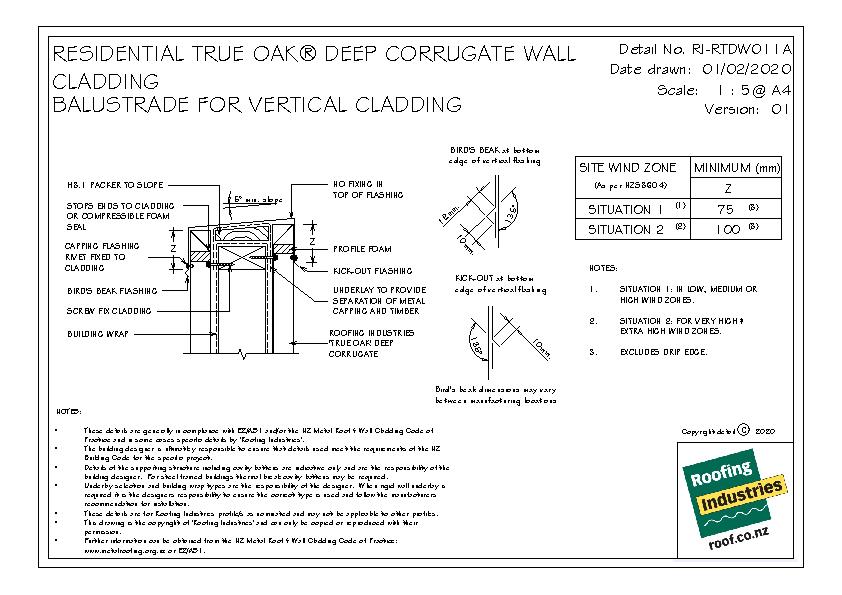

True Oak Deep Balustrade for Vertical Cladding

RI-RTD-W011A

dwg
pdf
True Oak Deep Balustrade for Vertical Cladding on Cavity

RI-RTD-W011A-1

dwg
pdf

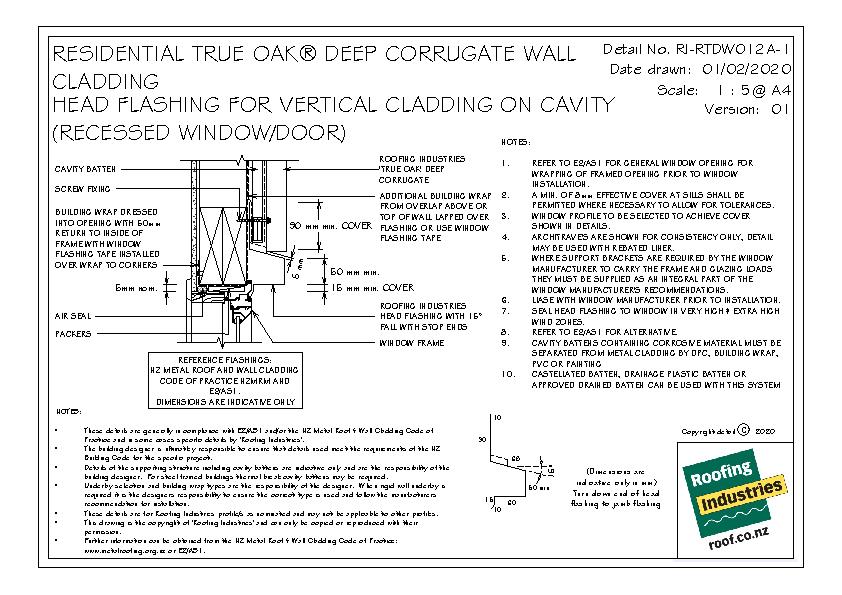

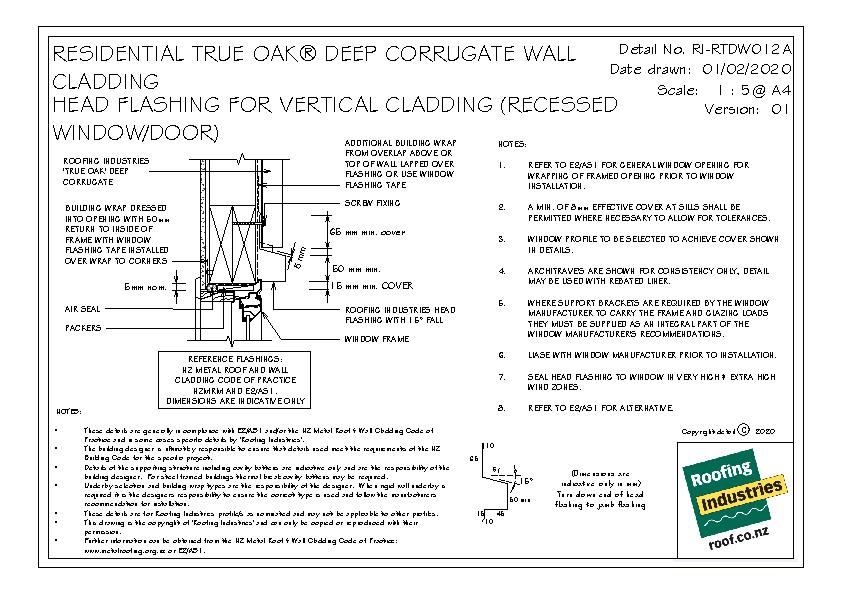

True Oak Deep Head Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTD-W012A

dwg
pdf
True Oak Deep Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTD-W012A-1

dwg
pdf

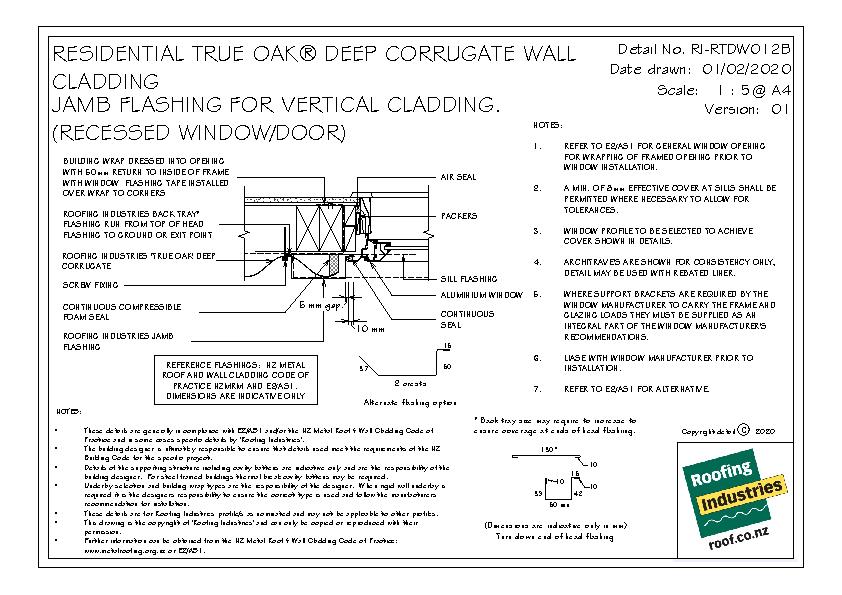

True Oak Deep Jamb Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTD-W012B

dwg
pdf

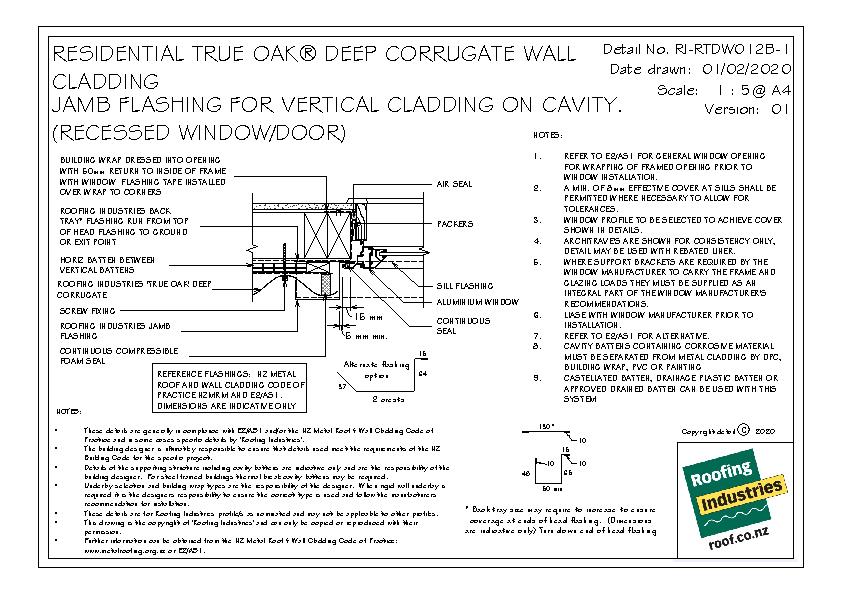

True Oak Deep Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTD-W012B-1

dwg
pdf

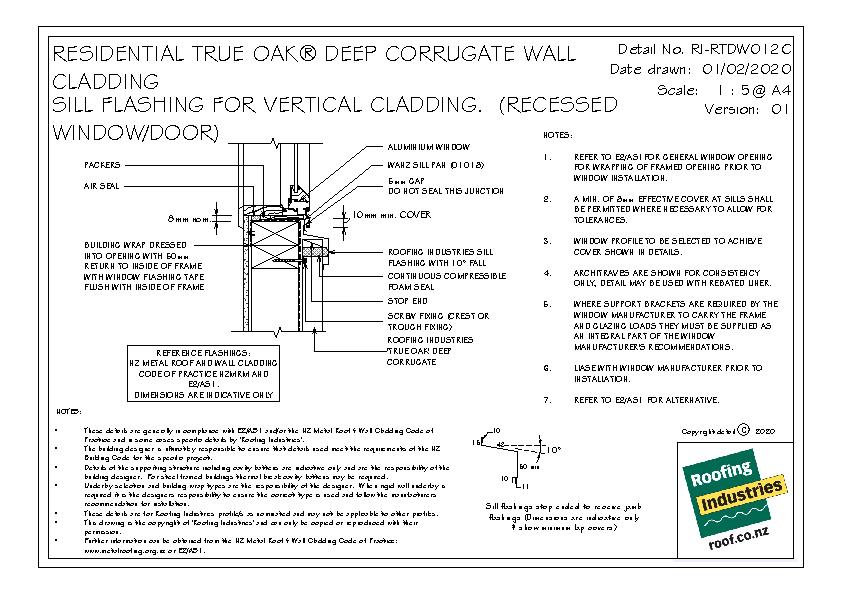

True Oak Deep Sill Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTD-W012C

dwg
pdf

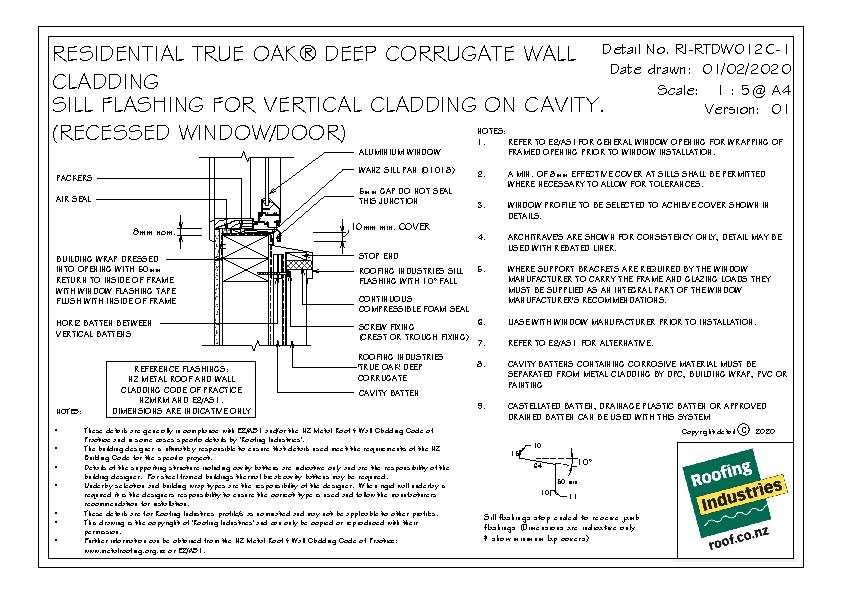

True Oak Deep Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTD-W012C-1

dwg
pdf

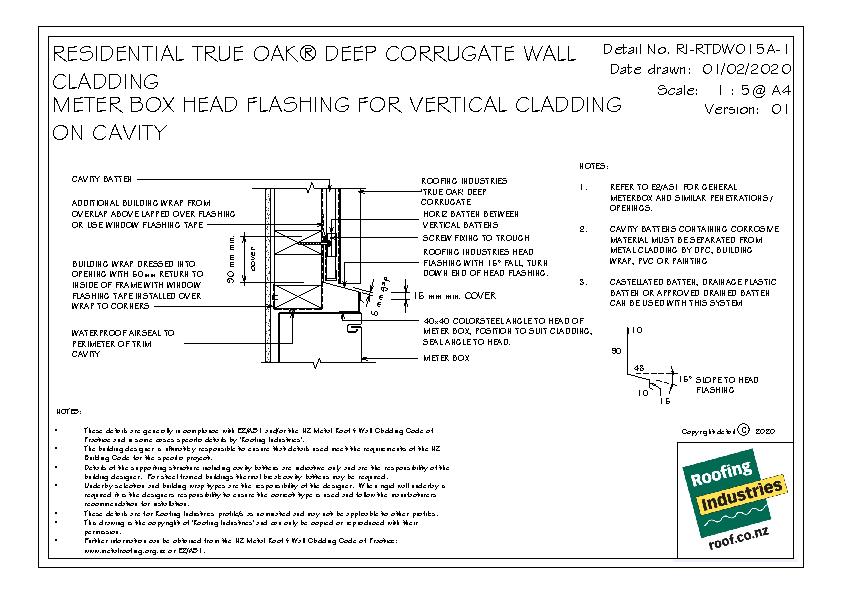

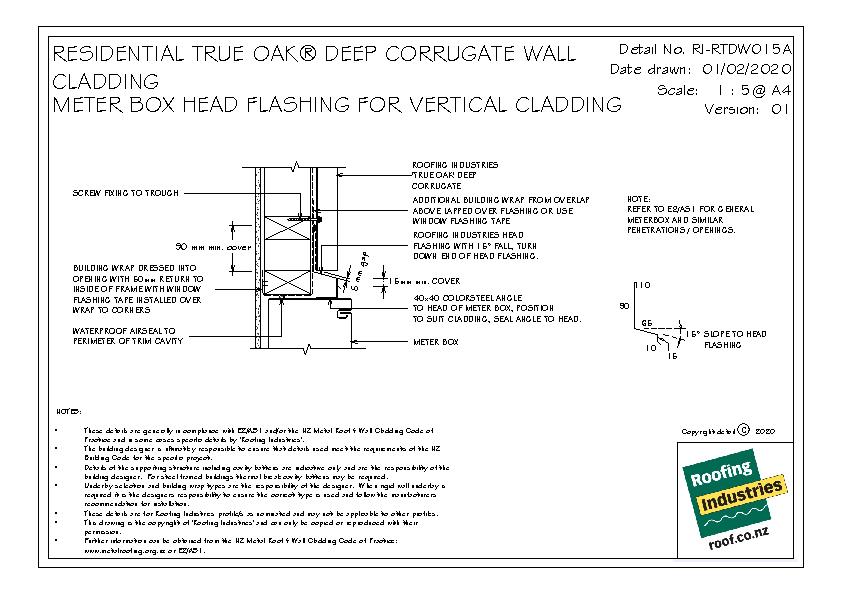

True Oak Deep Meter Box Head Flashing for Vertical Cladding

RI-RTD-W015A

dwg
pdf
True Oak Deep Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RTD-W015A-1

dwg
pdf

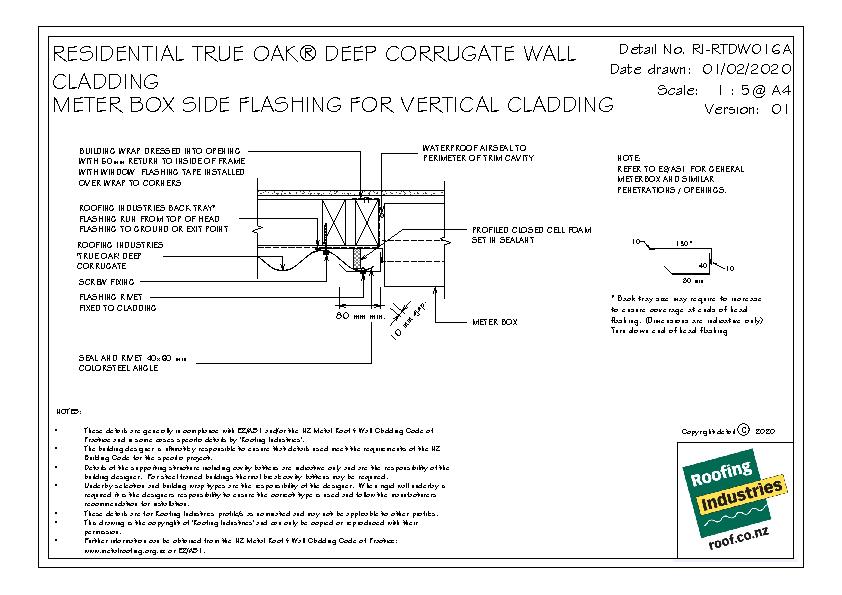

True Oak Deep Meter Box Side Flashing for Vertical Cladding

RI-RTD-W016A

dwg
pdf

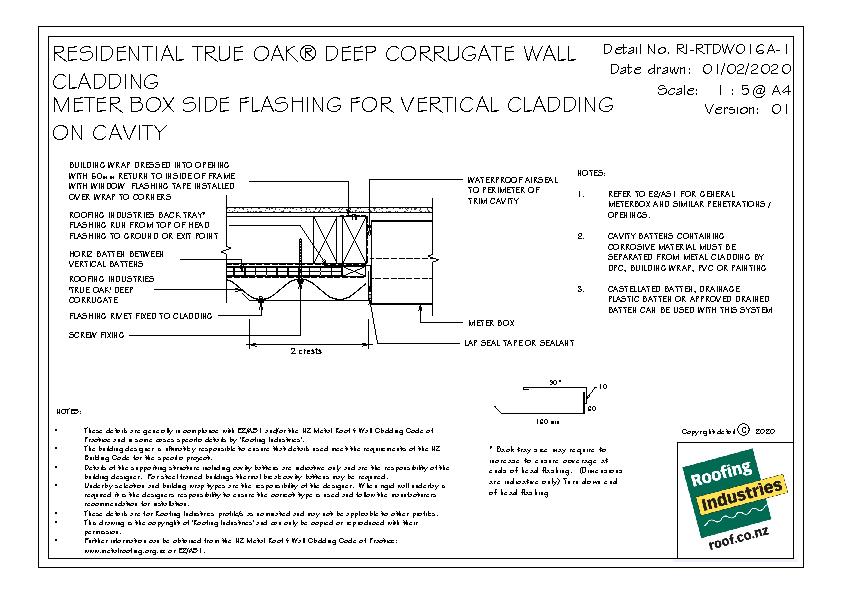

True Oak Deep Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RTD-W016A-1

dwg
pdf

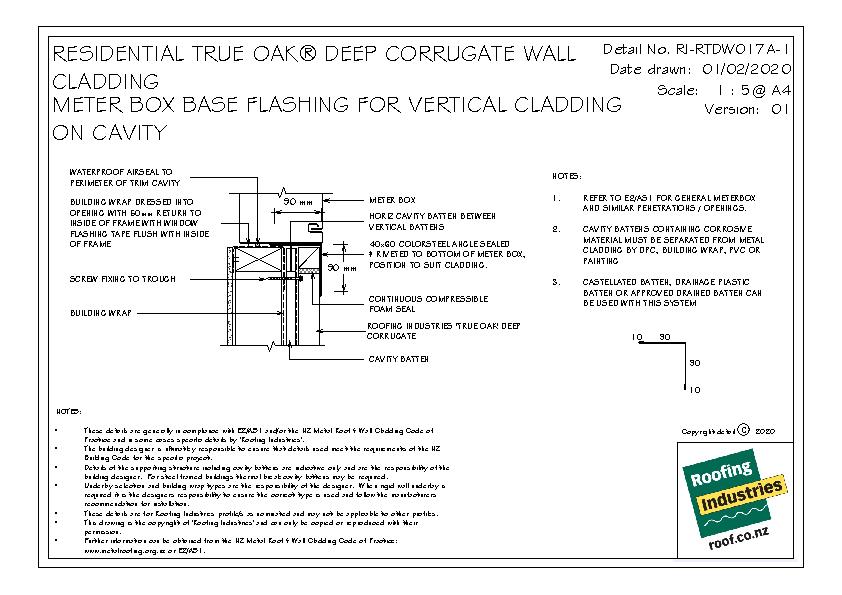

True Oak Deep Meter Box Base Flashing for Vertical Cladding

RI-RTD-W017A

dwg
pdf

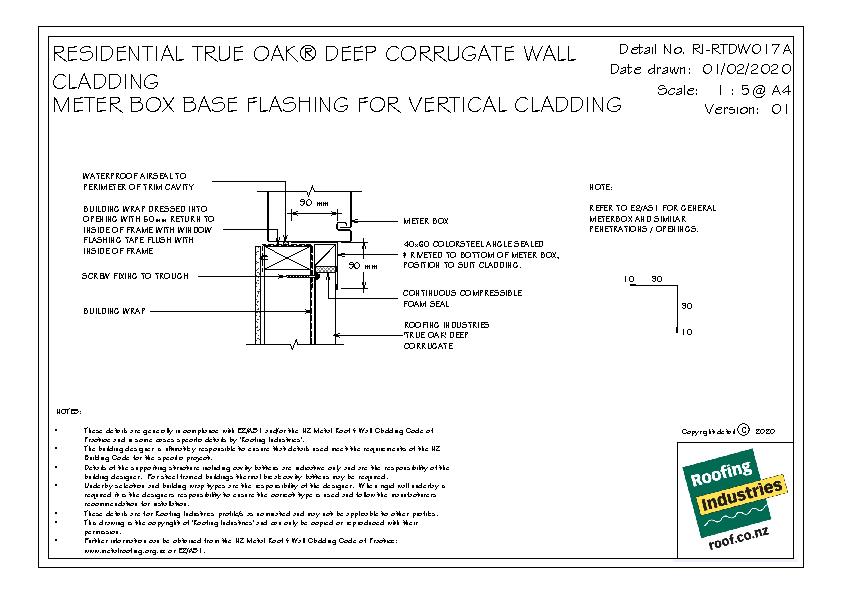

True Oak Deep Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RTD-W017A-1

dwg
pdf

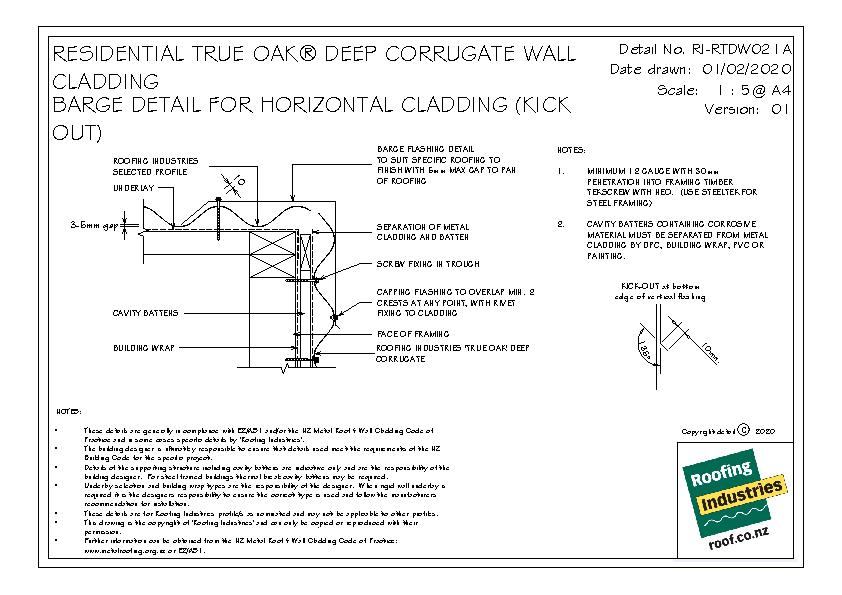

True Oak Deep Barge Detail for Horizontal Cladding (Kick Out)

RI-RTD-W021A

dwg
pdf

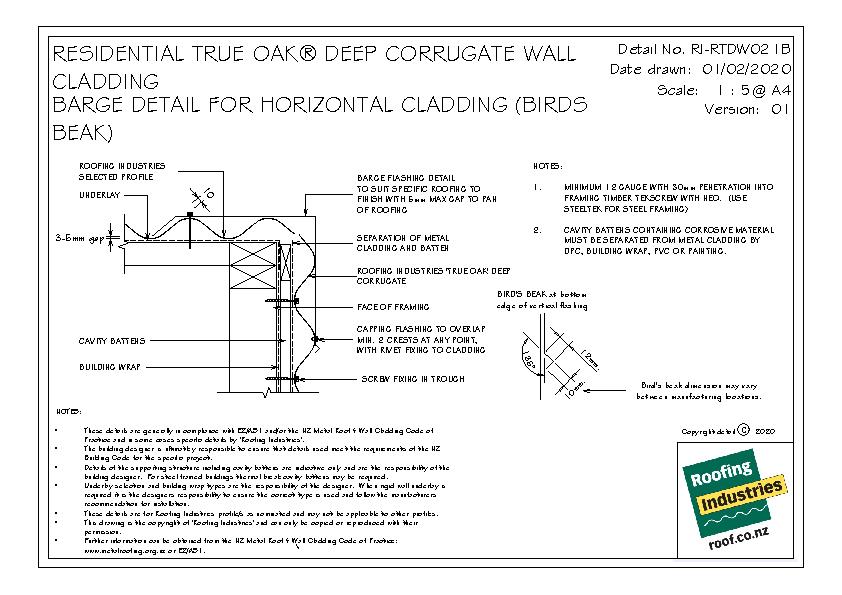

True Oak Deep Barge Detail for Horizontal Cladding (Bird's Beak)

RI-RTD-W021B

dwg
pdf

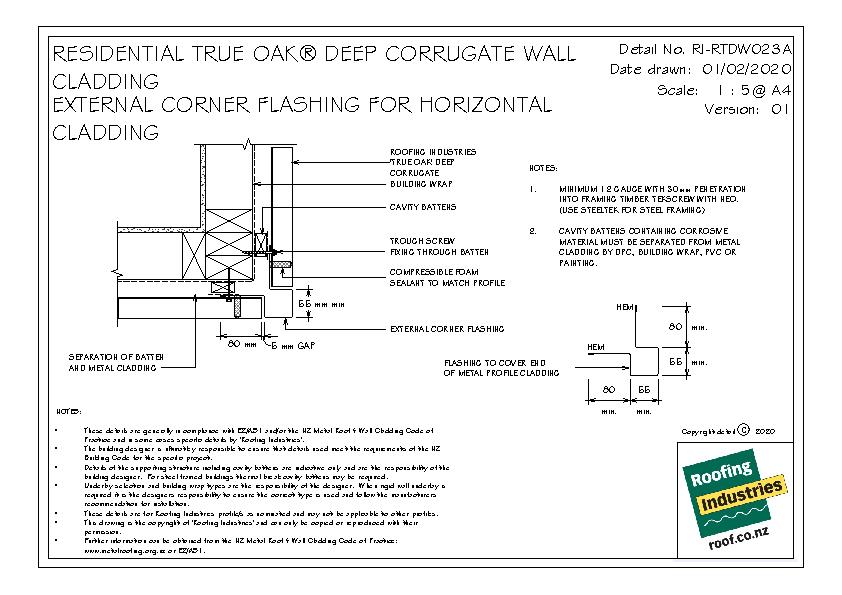

True Oak Deep External Corner Flashing for Horizontal Cladding

RI-RTD-W023A

dwg
pdf

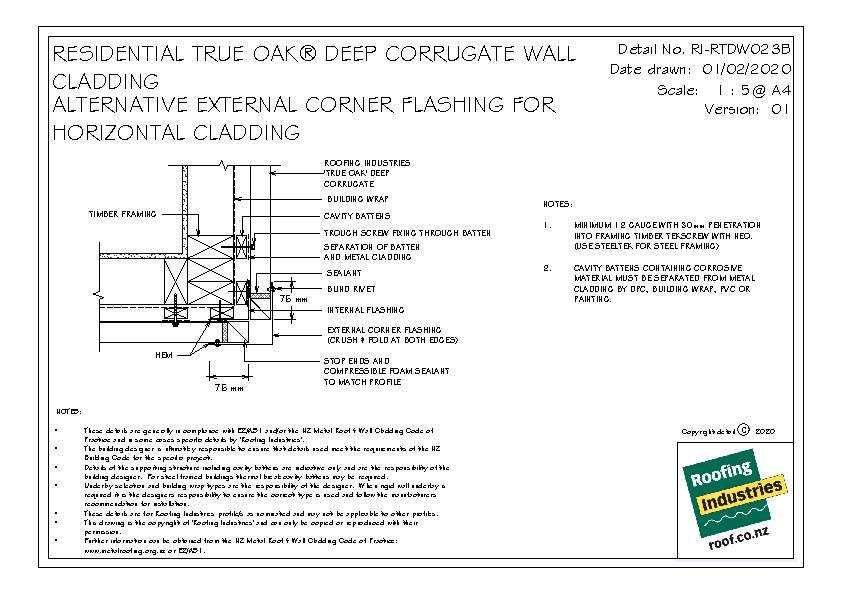

True Oak Deep Alternative External Corner Flashing for Horizontal Cladding

RI-RTD-W023B

dwg
pdf

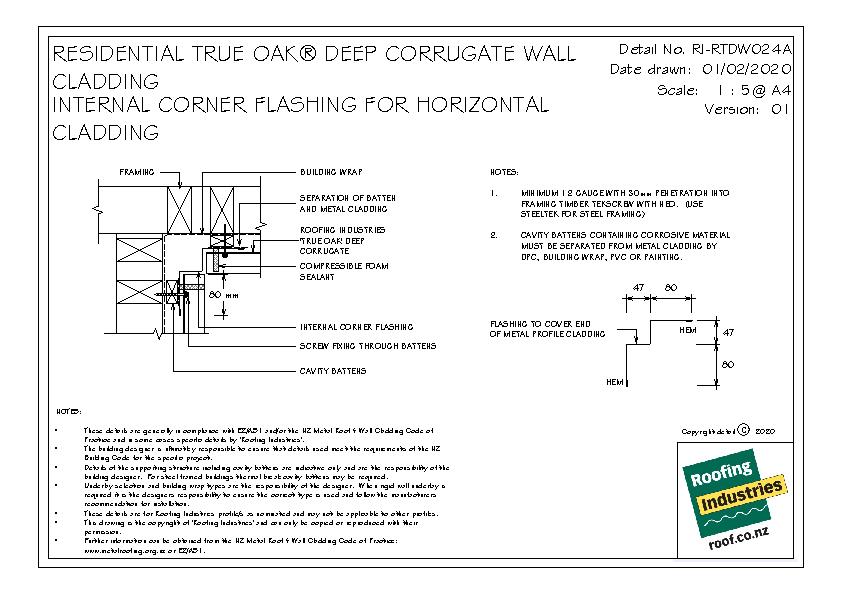

True Oak Deep Internal Corner Flashing for Horizontal Cladding

RI-RTD-W024A

dwg
pdf

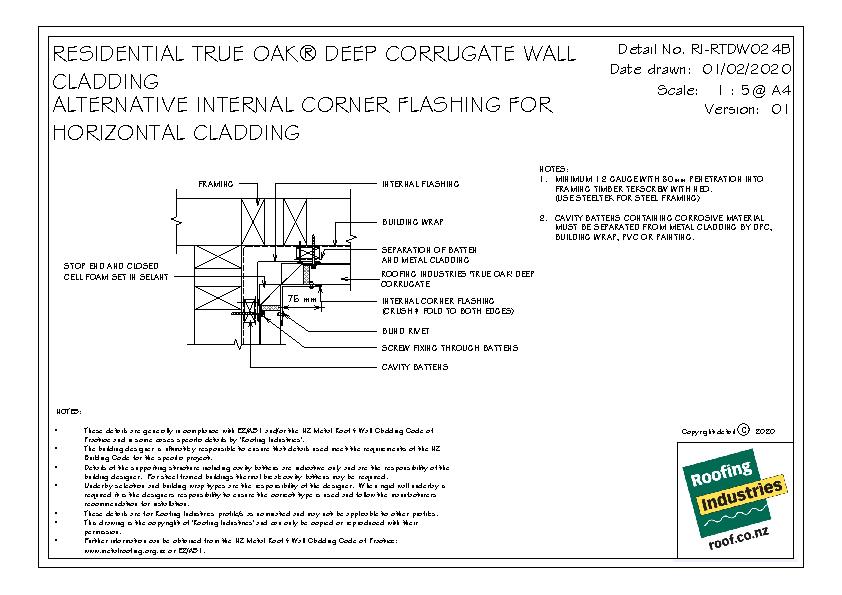

True Oak Deep Alternative Internal Corner Flashing for Horizontal Cladding

RI-RTD-W024B

dwg
pdf

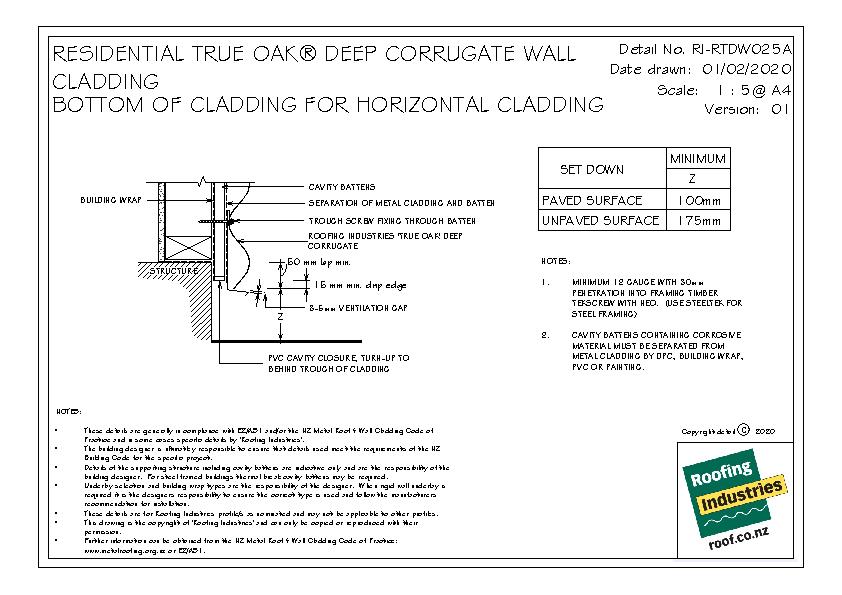

True Oak Deep Bottom of Cladding for Horizontal Cladding

RI-RTD-W025A

dwg
pdf

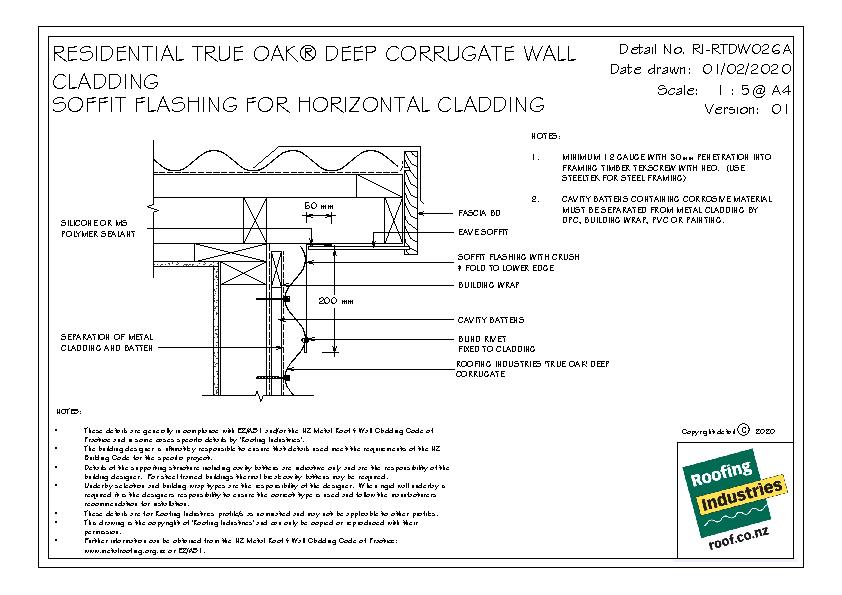

True Oak Deep Soffit Flashing for Horizontal Cladding

RI-RTD-W026A

dwg
pdf
True Oak Deep Sloping Soffit Flashing for Horizontal Cladding

RI-RTD-W027A

dwg
pdf

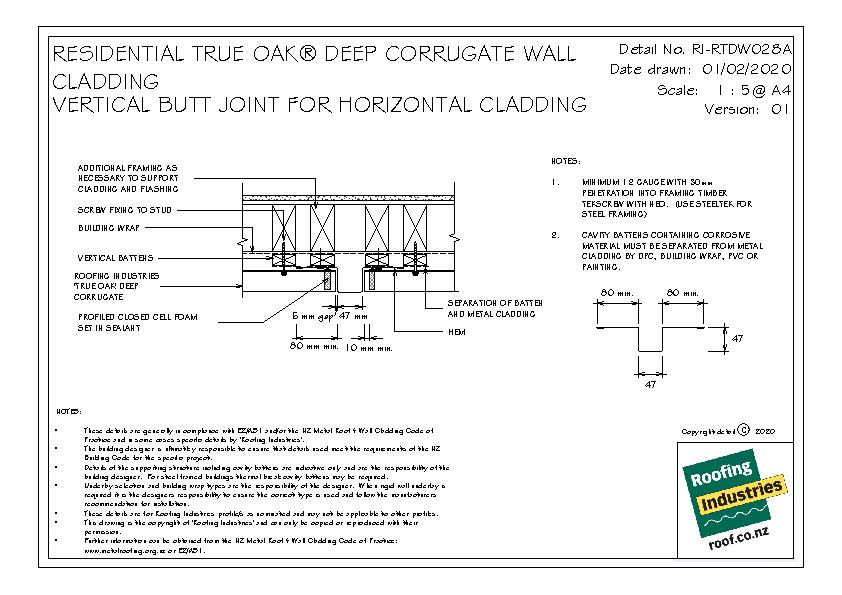

True Oak Deep Vertical Butt Joint for Horizontal Cladding

RI-RTD-W028A

dwg
pdf

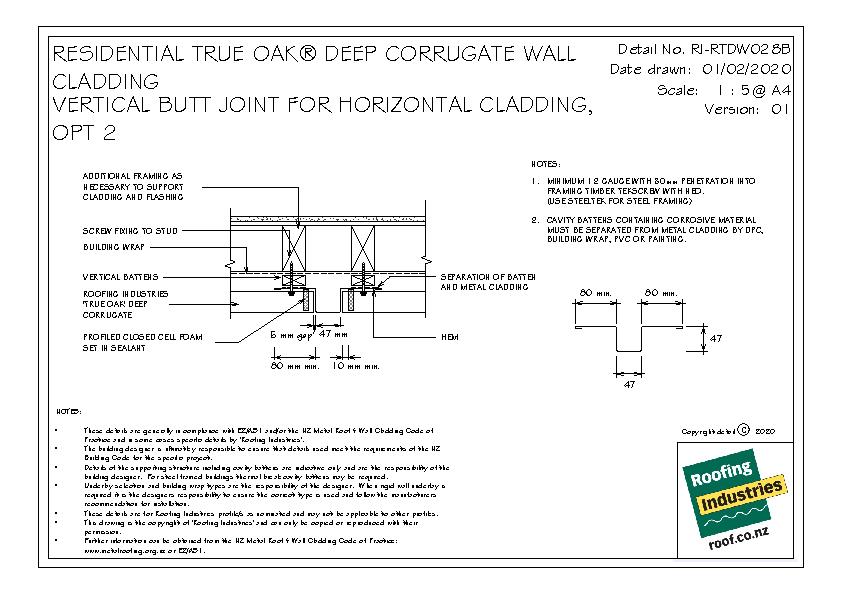

True Oak Deep Vertical Butt Joint for Horizontal Cladding (Option 2)

RI-RTD-W028B

dwg
pdf

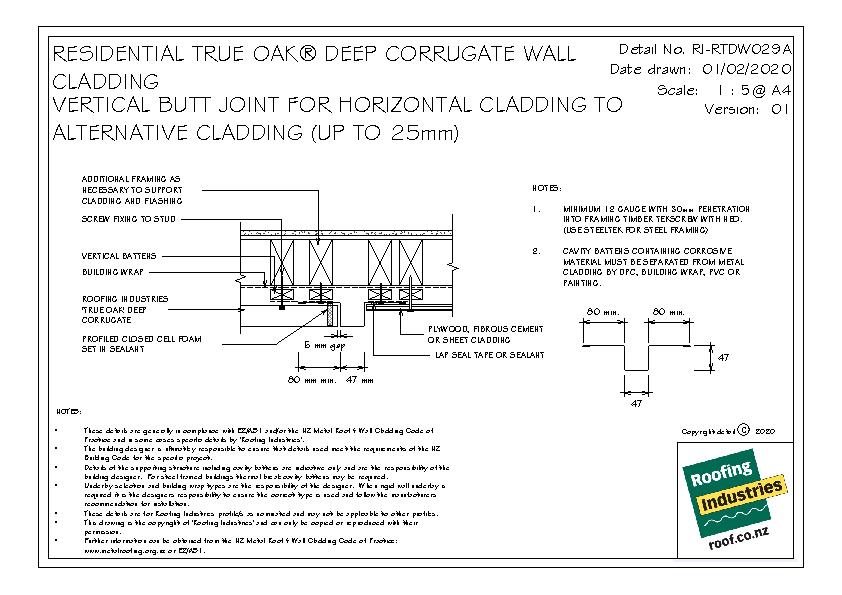

True Oak Deep Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25mm)

RI-RTD-W029A

dwg
pdf

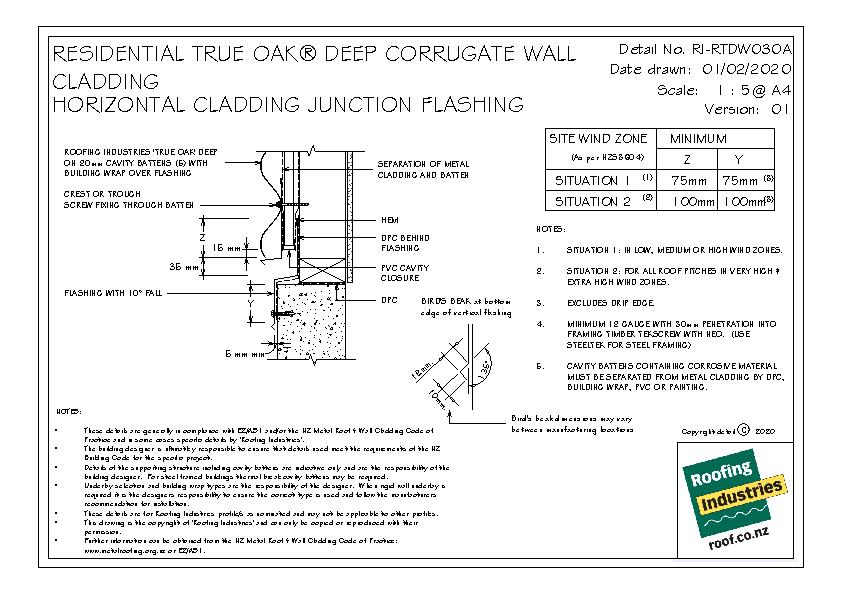

True Oak Deep Horizontal Cladding Junction

RI-RTD-W030A

dwg
pdf

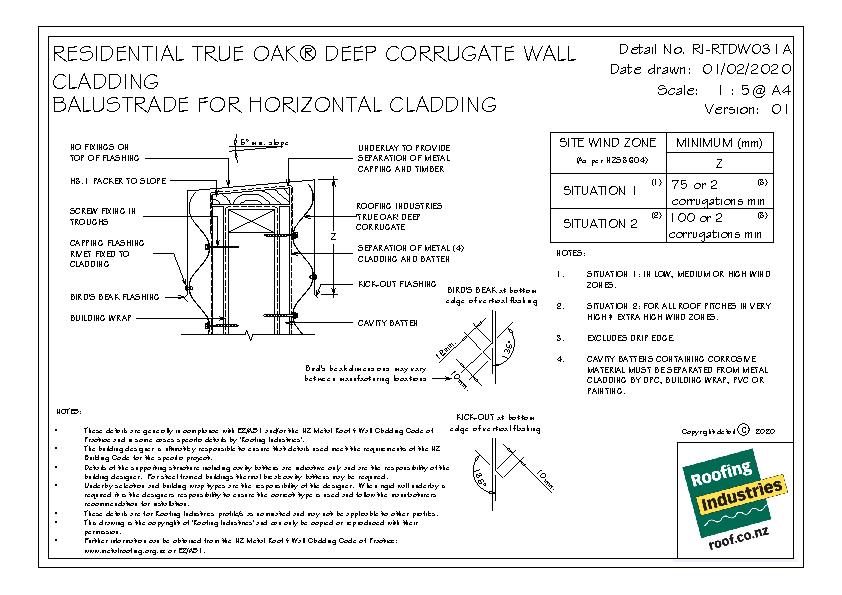

True Oak Deep Balustrade for Horizontal Cladding

RI-RTD-W031A

dwg
pdf

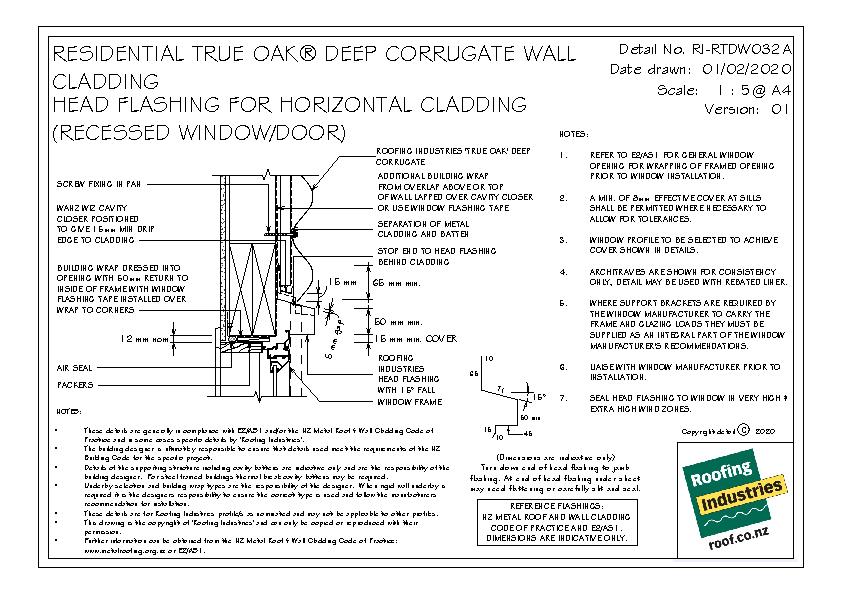

True Oak Deep Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTD-W032A

dwg
pdf

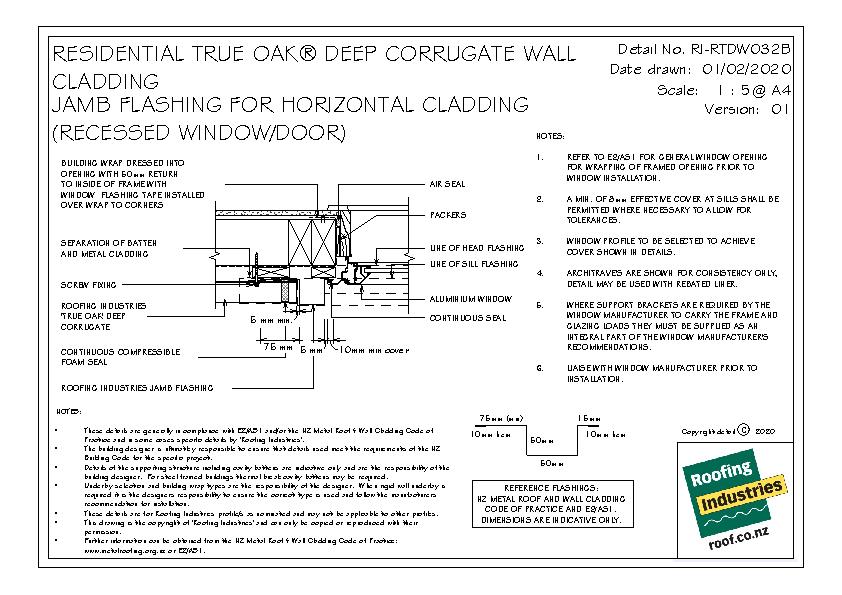

True Oak Deep Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTD-W032B

dwg
pdf

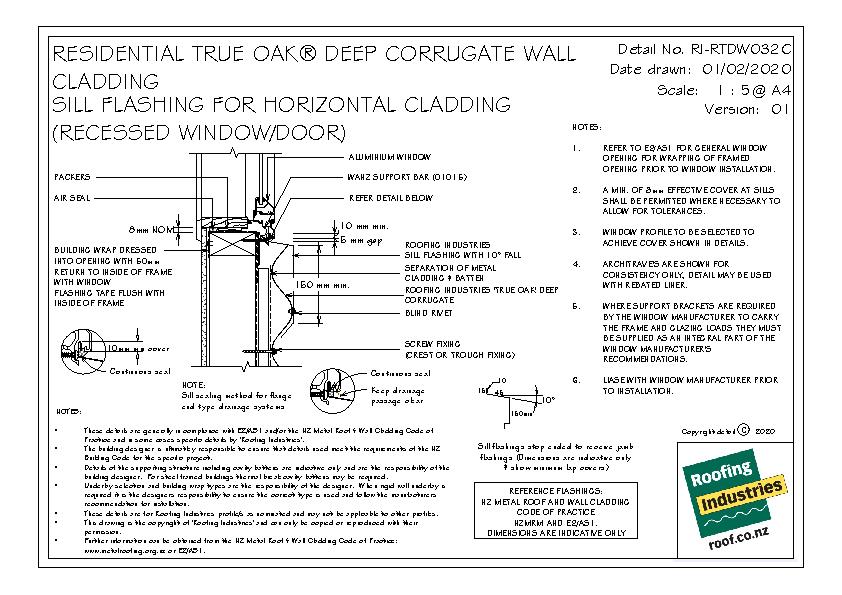

True Oak Deep Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTD-W032C

dwg
pdf

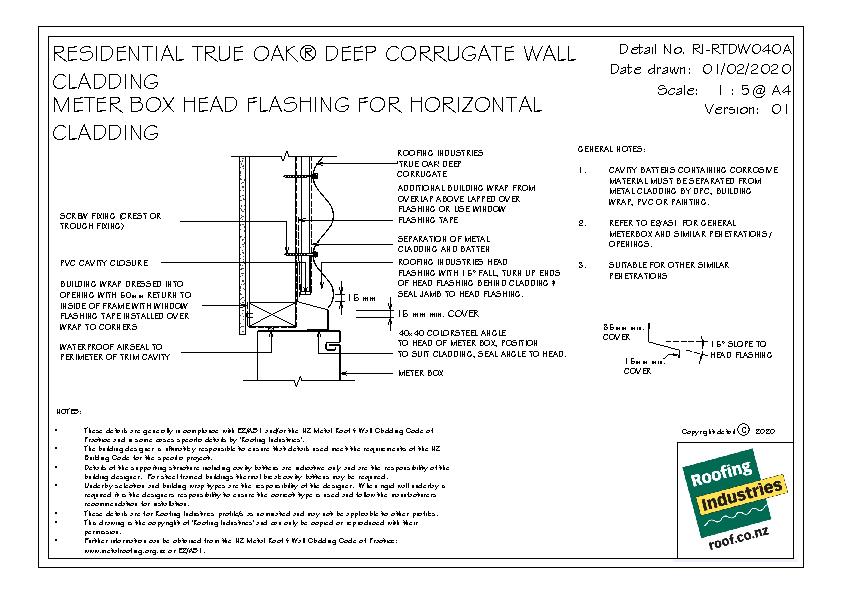

True Oak Deep Meter Box Head Flashing for Horizontal Cladding

RI-RTD-W040A

dwg
pdf

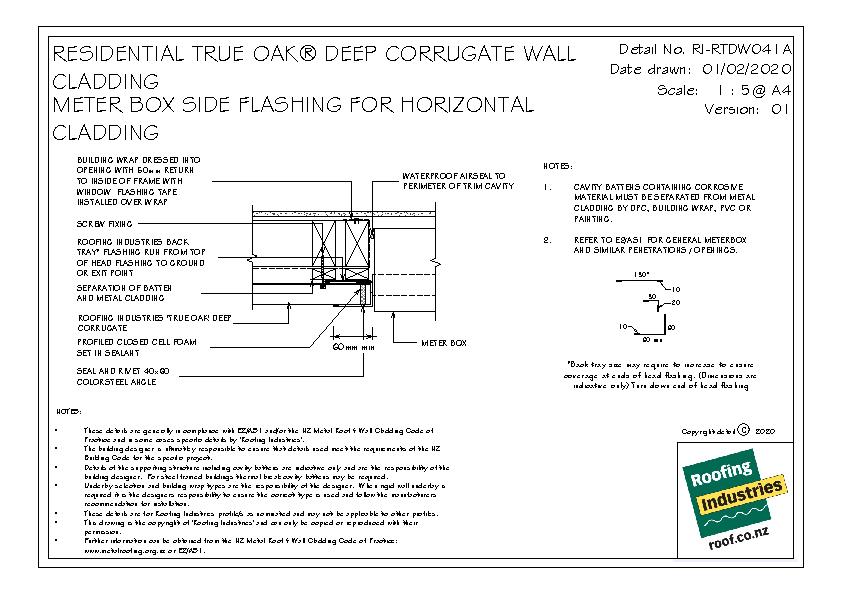

True Oak Deep Meter Box Side Flashing for Horizontal Cladding

RI-RTD-W041A

dwg
pdf

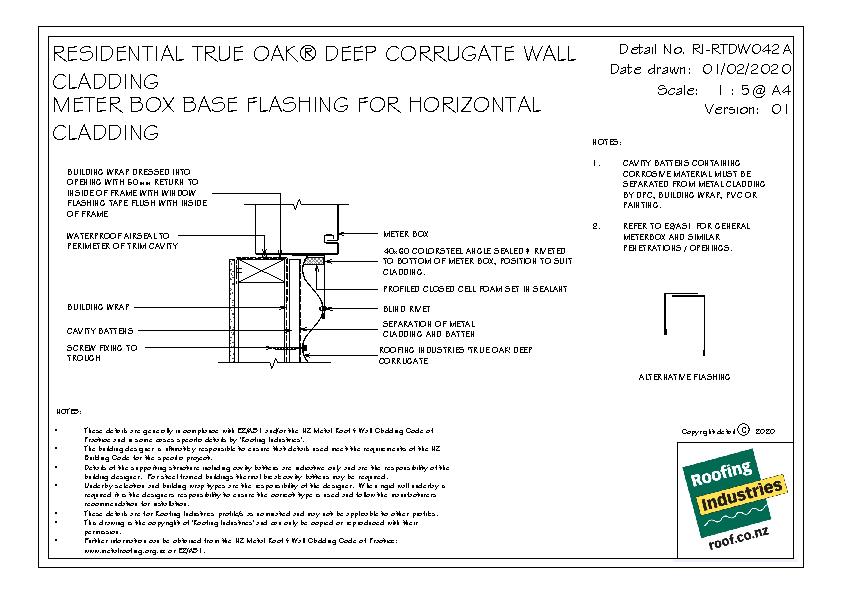

True Oak Deep Meter Box Base Flashing for Horizontal Cladding

RI-RTD-W042A

dwg
pdf
BIM
View full
Filters
RVT Version
Commercial or Residential
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
RI RTD profile shot
True Oak Deep Residential Details 2020

RI-RTD 2010

Revit 2010

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Roofing Industries
August 2023 Case Studies
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Roofing Industries
April 2023 Product News
View all news

Popular Products from Roofing Industries

Roofing Industries Trimrib
Roofing Industries Trimrib
Roofing Industries
Eurostyle Spanlok Roofing and Cladding
Eurostyle Spanlok Roofing and Cladding
Roofing Industries
Roofing Industries Corrugate
Roofing Industries Corrugate
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
