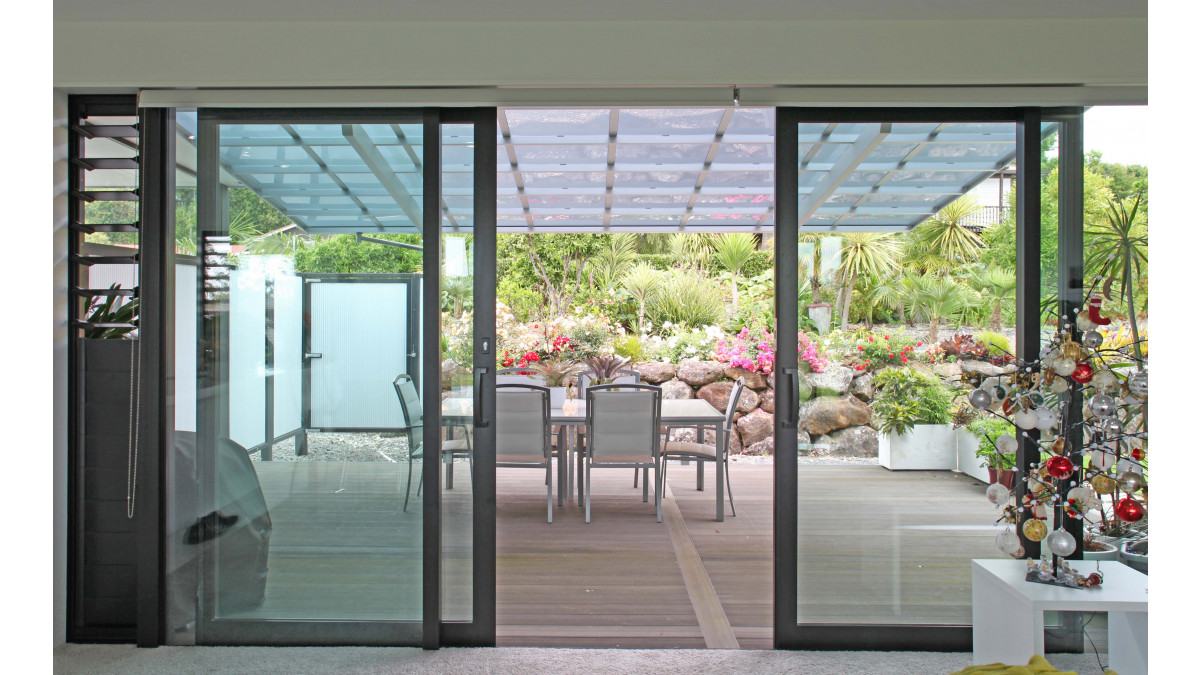

Vantage Metro Series Sliding Doors
Description

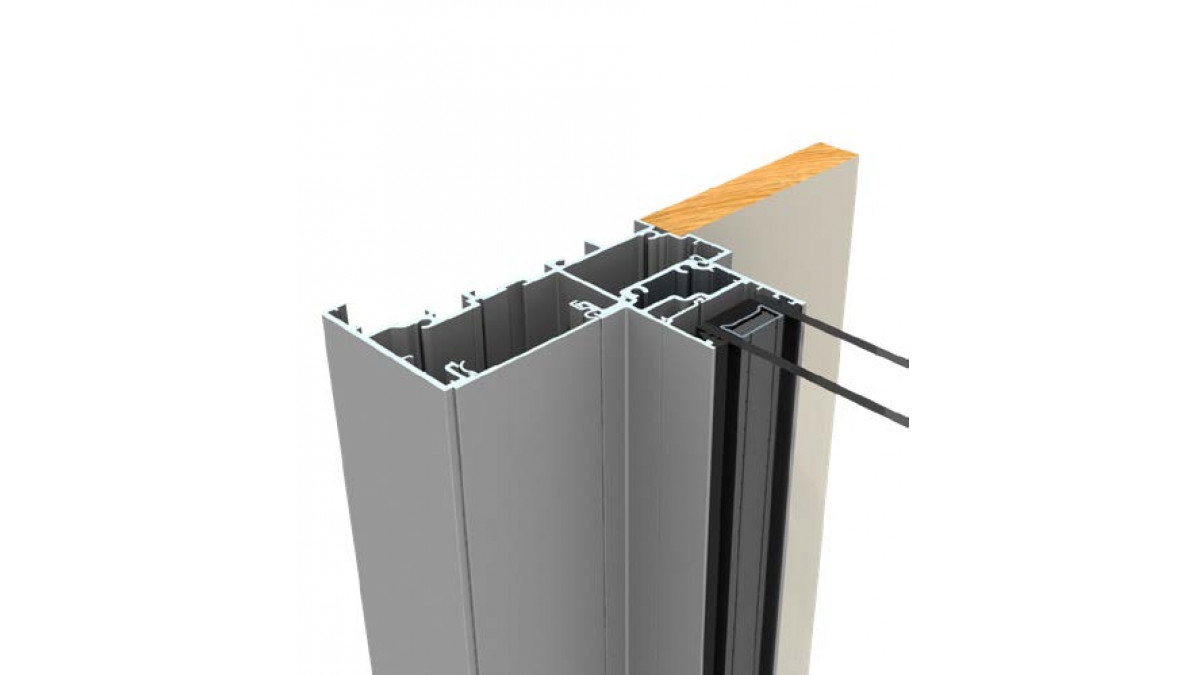

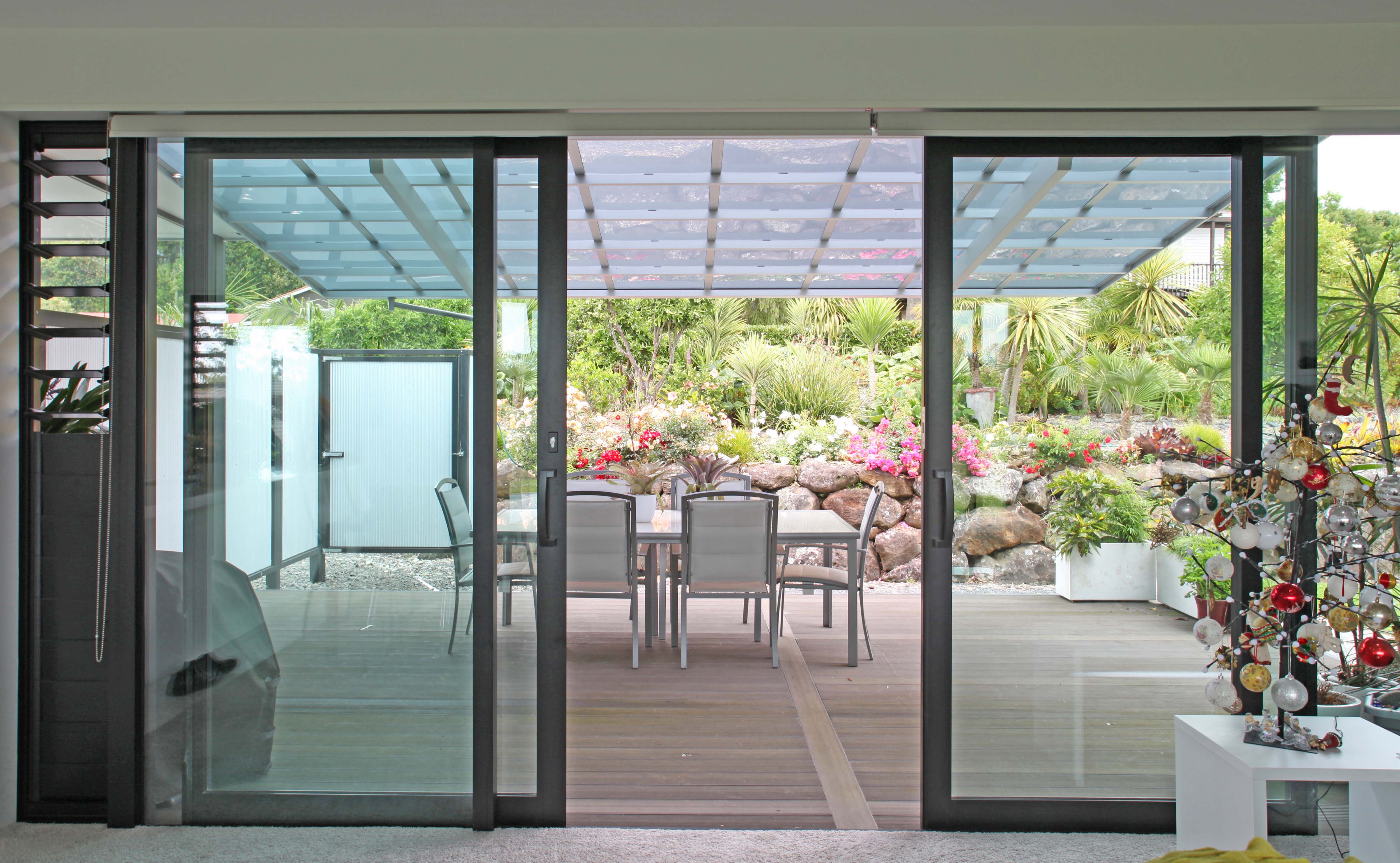

Metro Series sliders move on an external track with fixed sidelight. External sliding doors optimise weathertightness and ensure suitability in demanding locations.

Extra sill support is available in stacking sliders with projecting external tracks. Note that because of the external sliding feature opening windows cannot be placed in adjoining sidelights. Overlights are possible.

Key Features
  • Recommended maximum 2400mm high doors in Extra High wind zones — For larger sizes consider using the APL Architectural Series

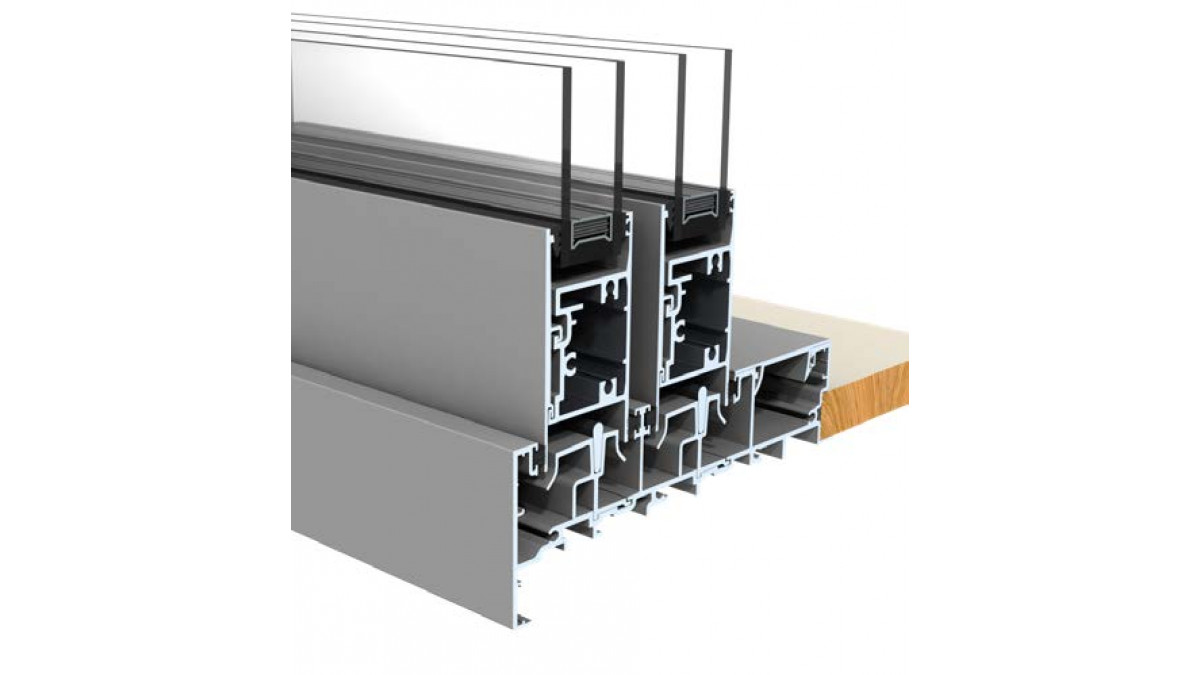

  • The system is bottom rolling with an in-frame track for optimum panel support
  • Metro occupies an intermediate position between Vantage Residential and the APL Architectural Series
  • A lay-back option is available for certain configurations (2-panel and 2+2) where the open panels fold back against an adjoining wall for an unobstructed deck (may require completion of opening from the exterior)
  • Lay-back panels require the facing to be within 15mm of final finished cladding line in order to achieve 180º opening
  • A rebated sill track option is available in sheltered locations
Categories / Ranges
Sliding Doors Vantage Metro Series
Scope of Use
  • Suitable for most residential environments in larger sizes
  • A good option for maximum views and ventilation
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Open bi-folds need to be monitored in windy conditions
  • Recommended maximum 2400mm high doors in Extra High wind zones — For larger sizes consider using the APL Architectural Series
  • In closed position bi-fold door stiles impact views
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2



In-Service History
  • Launched in 2006
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2017
Manufacturer Contact List
Span Tables
Specifier Guide
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WANZ Guide to E2/AS1
CAD/PDF Details

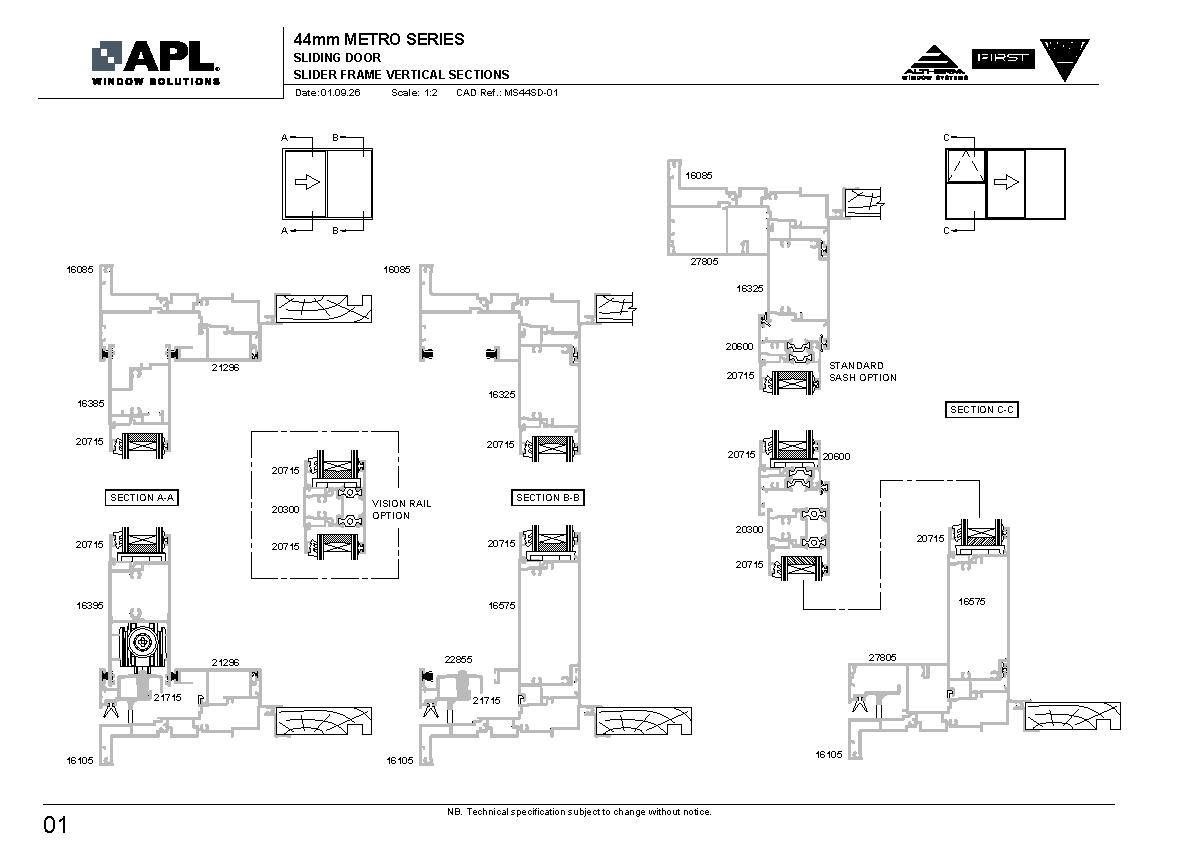

Full Set of Drawings

VMSD

Vantage Metro Series Sliding Door Two Panel FS

VMSD02-0

Vantage Metro Series Sliding Door Two Panel FS

VMSD03-0

Vantage Metro Series Sliding Door Four Panel FSSF

VMSD04-0

Vantage Metro Series Sliding Door Three Panel FSF

VMSD05-0

Vantage Metro Series Sliding Door Three Panel SFF

VMSD06-0

Vantage Metro Series Sliding Door Three Panel FSF

VMSD07-0

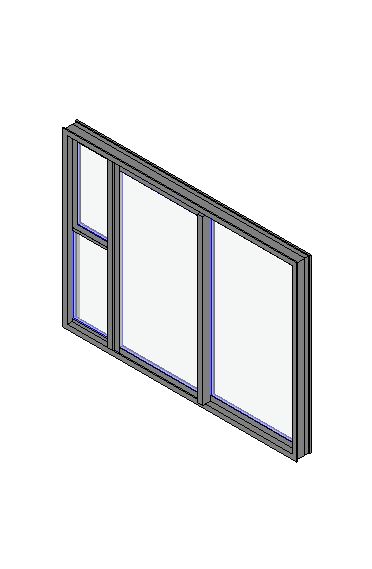

Vantage Metro Series Sliding Door Coupled Sidelight Options

VMSD08-0

Vantage Metro Series Sliding Door Three Panel SSF

VMSD09-0

Vantage Metro Series Sliding Door Three Panel SSF

VMSD10-0

Vantage Metro Series Sliding Door Six Panel FSS / SSF

VMSD11-0

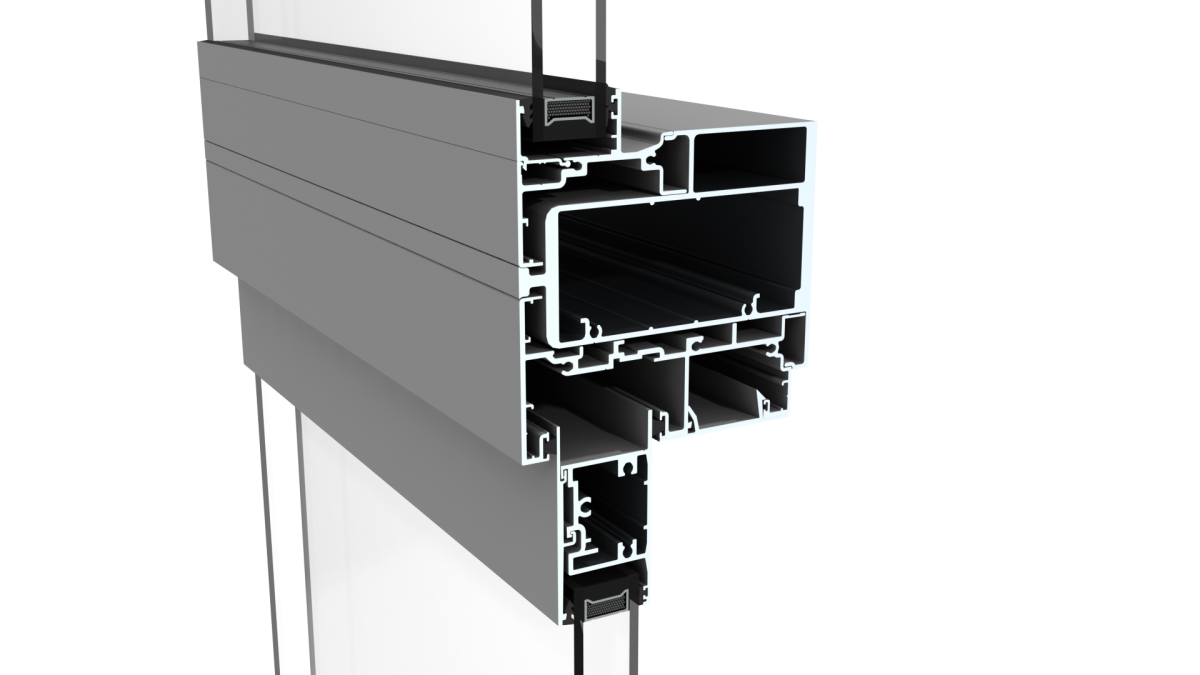

Vantage Metro Series Sliding Door Overlight Options

VMSD12-0

Vantage Metro Series Sliding Door Overlight Options

VMSD13-0

Vantage Metro Series Sliding Door Single Panel Overwall

VMSD14-0

Vantage Metro Series Sliding Door Single Panel Overwall

VMSD15-0

Vantage Metro Series Sliding Door Single Panel Overwall

VMSD16-0

Vantage Metro Series Sliding Door 90° Corner Options

VMSD17-0

Installation Details

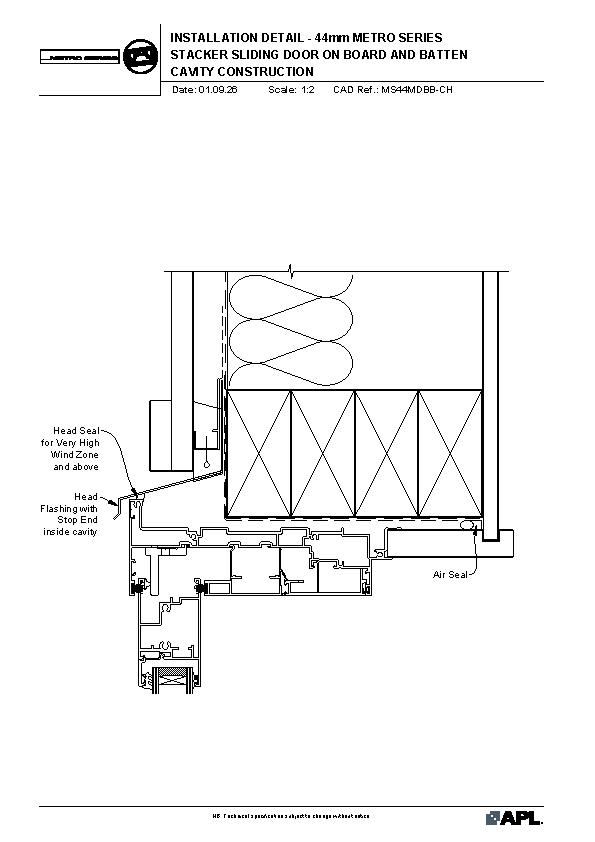

Vantage Metro Series Multislider Door on Board and Batten

MSMDBB

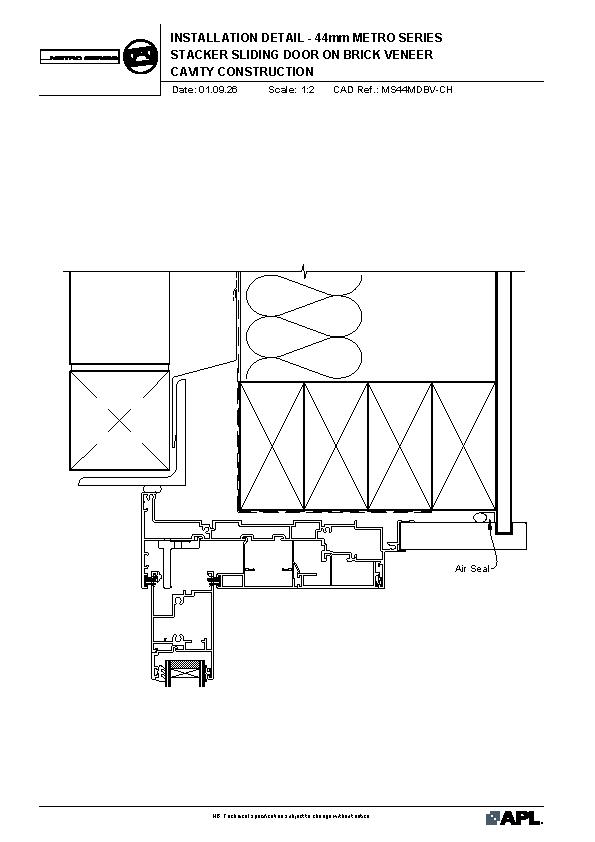

Vantage Metro Series Multislider Door on Brick Veneer

MSMDBV

Vantage Metro Series Multislider Door on Bevelback Weatherboard

MSMDBW

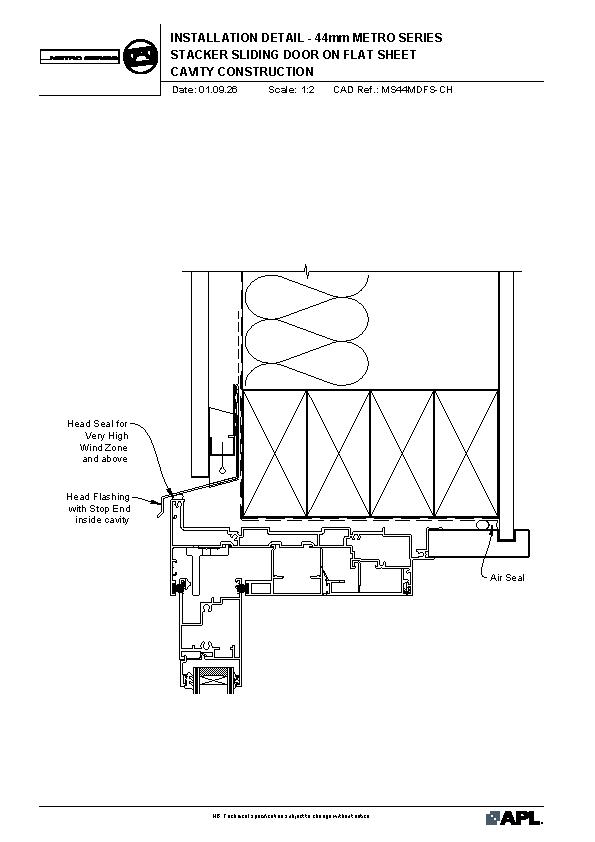

Vantage Metro Series Multislider Door on Flat Sheet

MSMDFS

Vantage Metro Series Multislider Door on No Cladding

MSMDNC

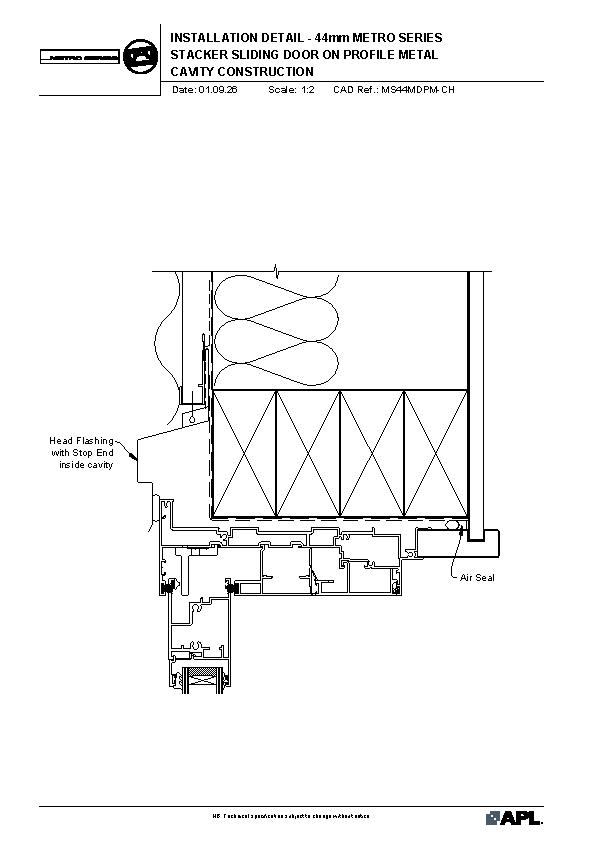

Vantage Metro Series Multislider Door on Profile Metal

MSMDPM

Vantage Metro Series Multislider Door on Rusticated Weatherboard

MSMDRW

Vantage Metro Series Multislider Door on Stucco

MSMDST

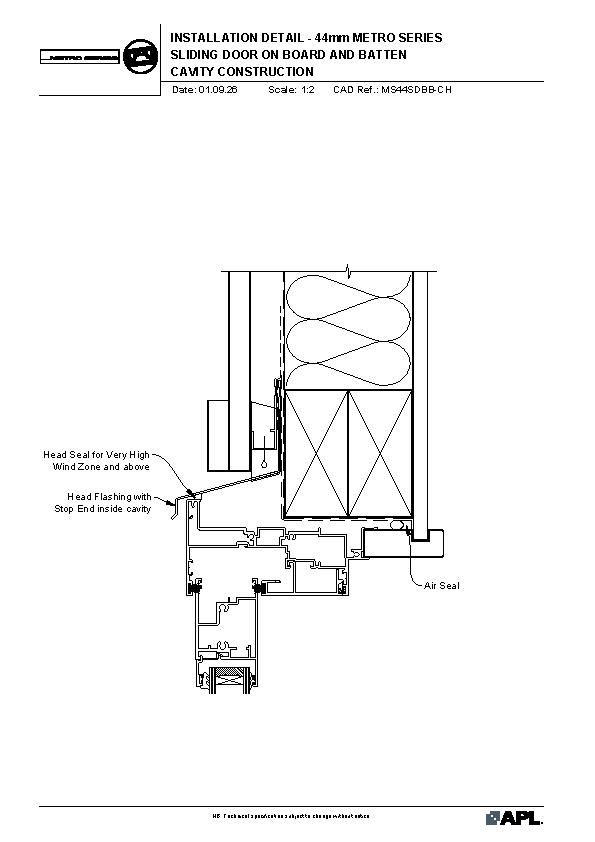

Vantage Metro Series Sliding Door on Board and Batten

MSSDBB

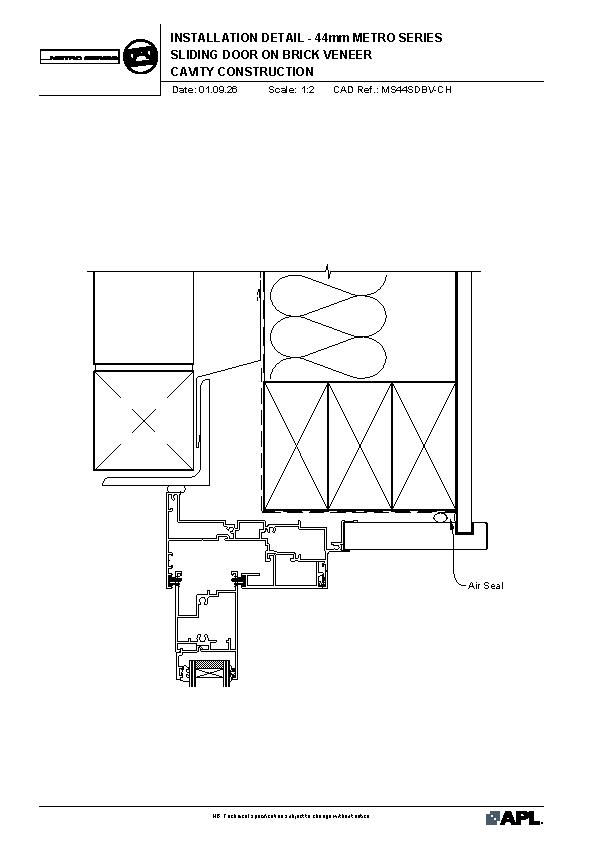

Vantage Metro Series Sliding Door on Brick Veneer

MSSDBV

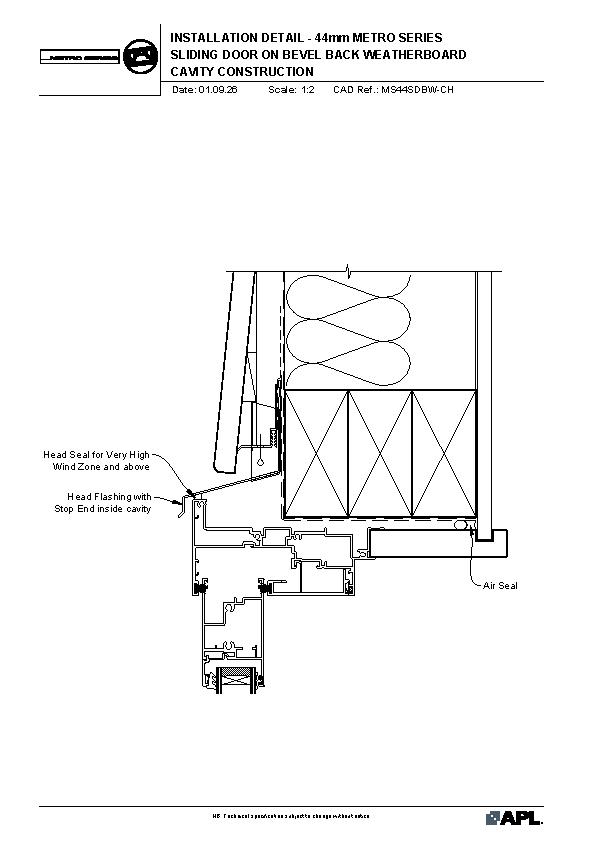

Vantage Metro Series Sliding Door on Bevelback Weatherboard

MSSDBW

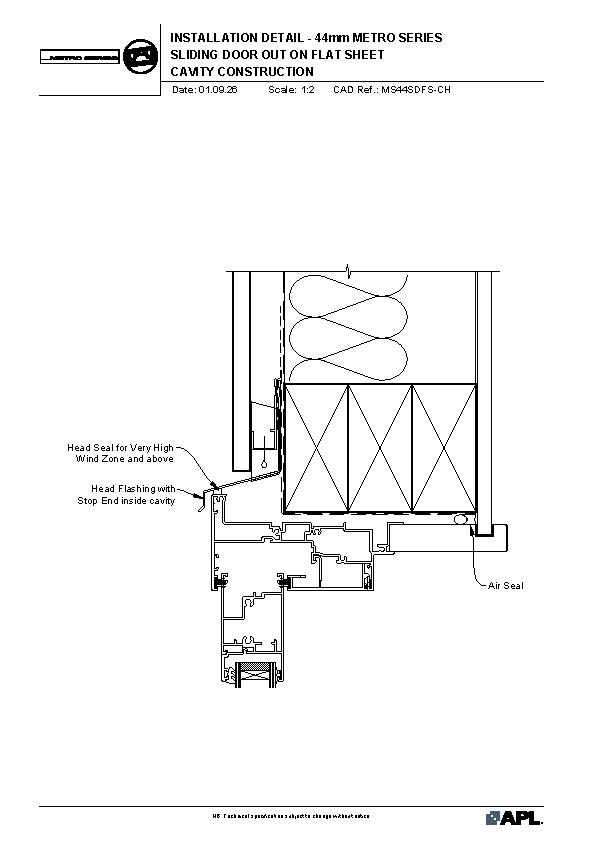

Vantage Metro Series Sliding Door on Flat Sheet

MSSDFS

Vantage Metro Series Sliding Door on No Cladding

MSSDNC

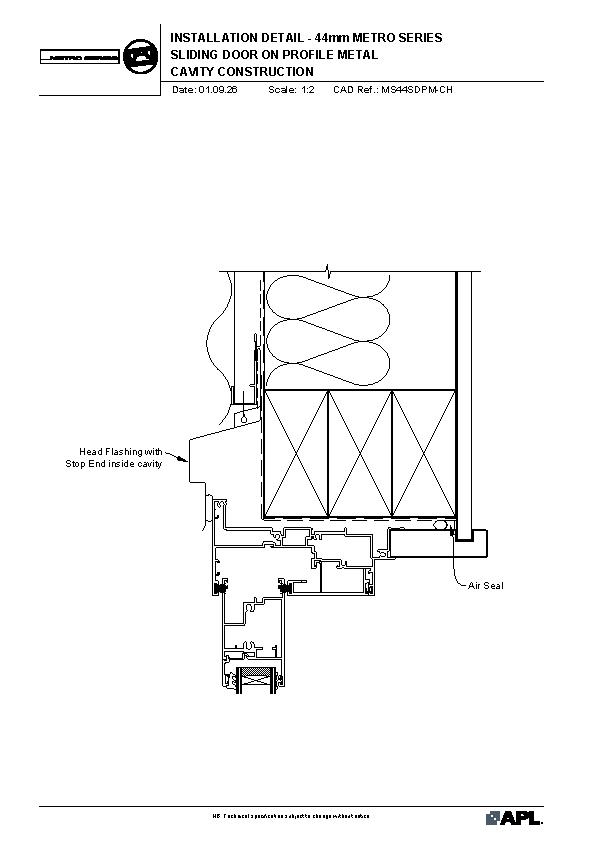

Vantage Metro Series Sliding Door on Profile Metal

MSSDPM

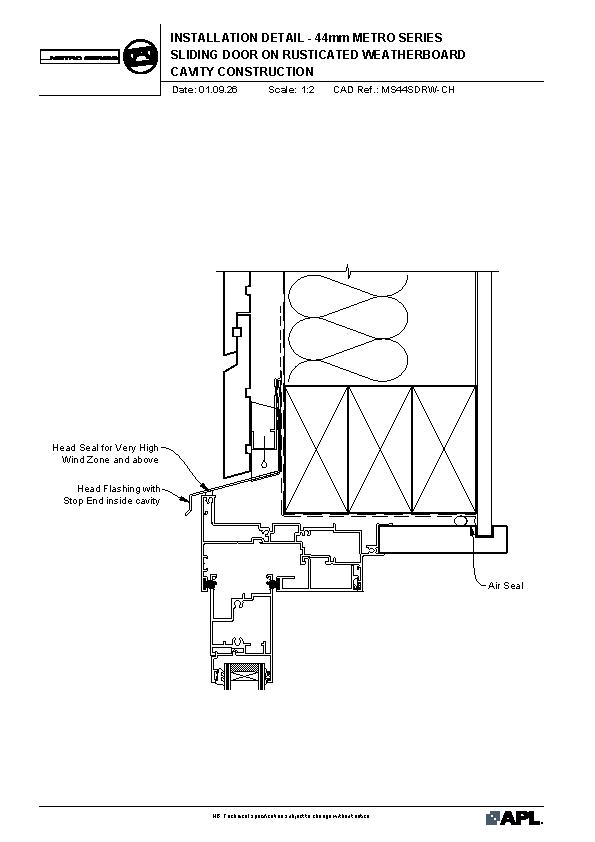

Vantage Metro Series Sliding Door on Rusticated Weatherboard

MSSDRW

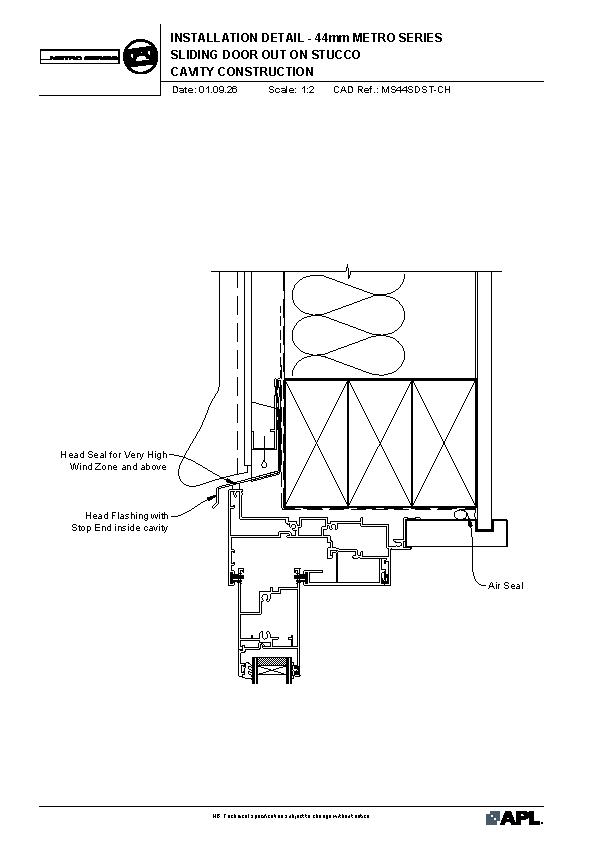

Vantage Metro Series Sliding Door on Stucco

MSSDST

BIM Objects

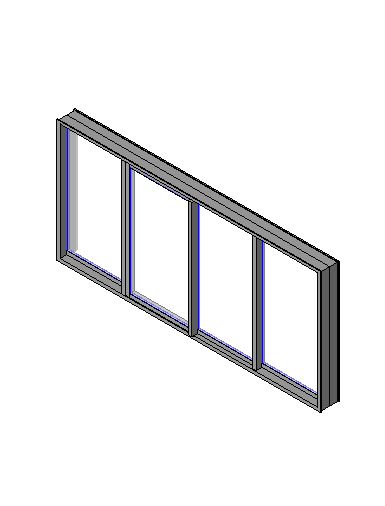

Vantage Metro Series Sliding Door 3+1 FSSF

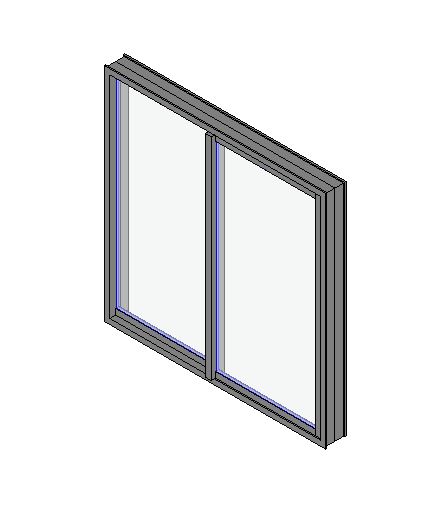

Vantage Metro Series Sliding Door FS

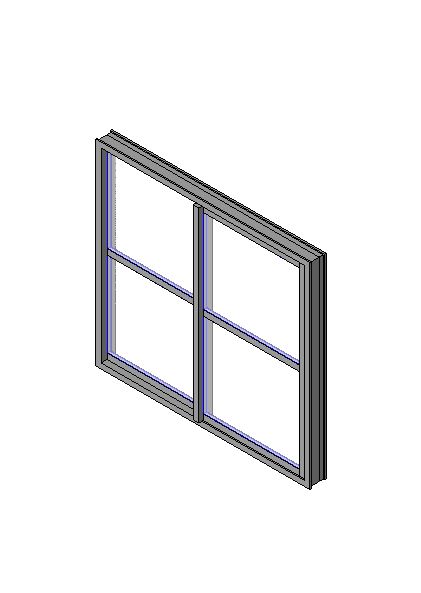

Vantage Metro Series Sliding Door FS vision Rail

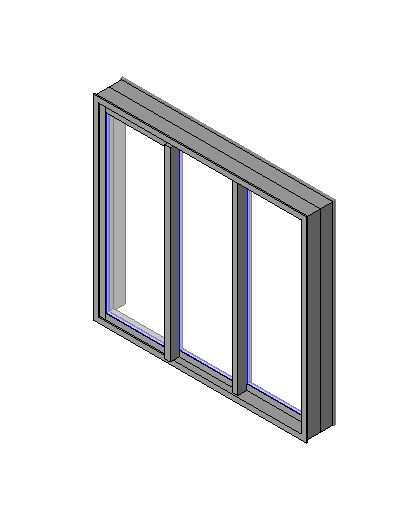

Vantage Metro Series Sliding Door FSF

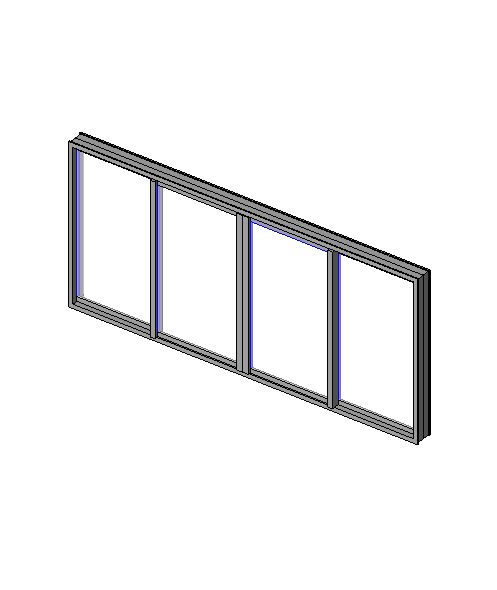

Vantage Metro Series Sliding Door FSSF
Vantage Metro Series Sliding Door FSSF 90° External Corner

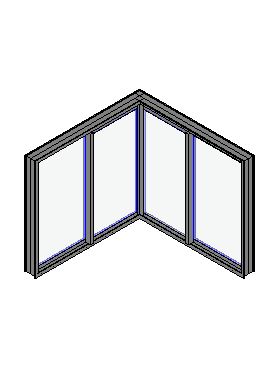

Vantage Metro Series Sliding Door FSSF 90° Internal Corner

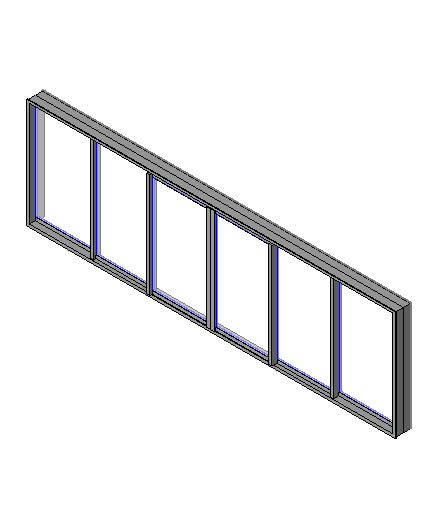

Vantage Metro Series Sliding Door FSSSSF

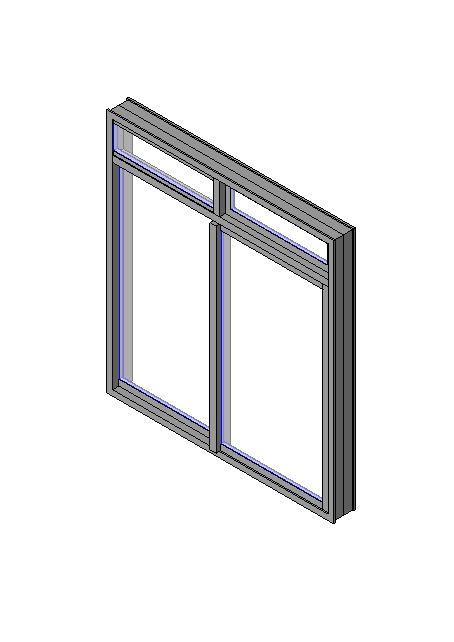

Vantage Metro Series Sliding Door SF with Overlight

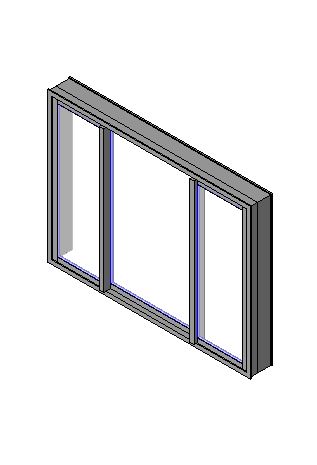

Vantage Metro Series Sliding Door SFS
Vantage Metro Series Sliding Door SSF

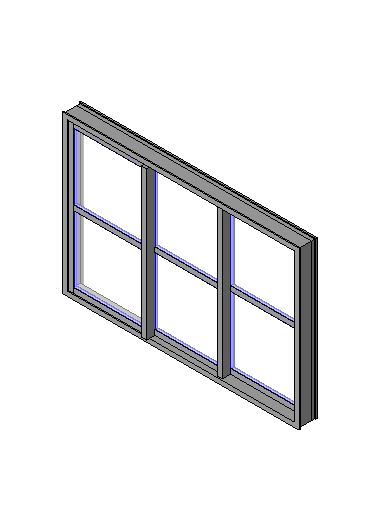

Vantage Metro Series Sliding Door SSF Vision Rail

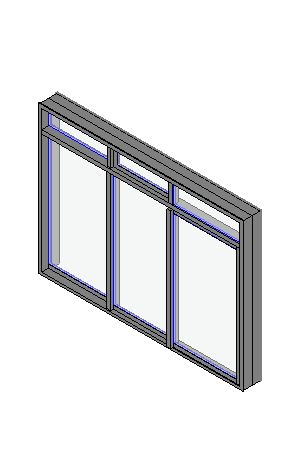

Vantage Metro Series Sliding Door with Overlight SSF
