Vantage Commercial Magnum Commercial Doors
New APL 2019 Specifier Guide now available Order now
Description

Magnum commercial doors are versatile and robust and are suitable for commercial, institutional and some specialised residential settings. They can be mounted in a range of styles — hinged, on floor springs or transom closers, or constructed as sliders, bottom rolling, top hung and with electronic control. Bi-folds are also available.

Magnum doors are compatible with most of the commercial window systems offered.

Key Features

A versatile and robust commercial door system that can be:

  • Hinged
  • Floor sprung (pivot door)
  • Hung on concealed transom closers (pivot door)

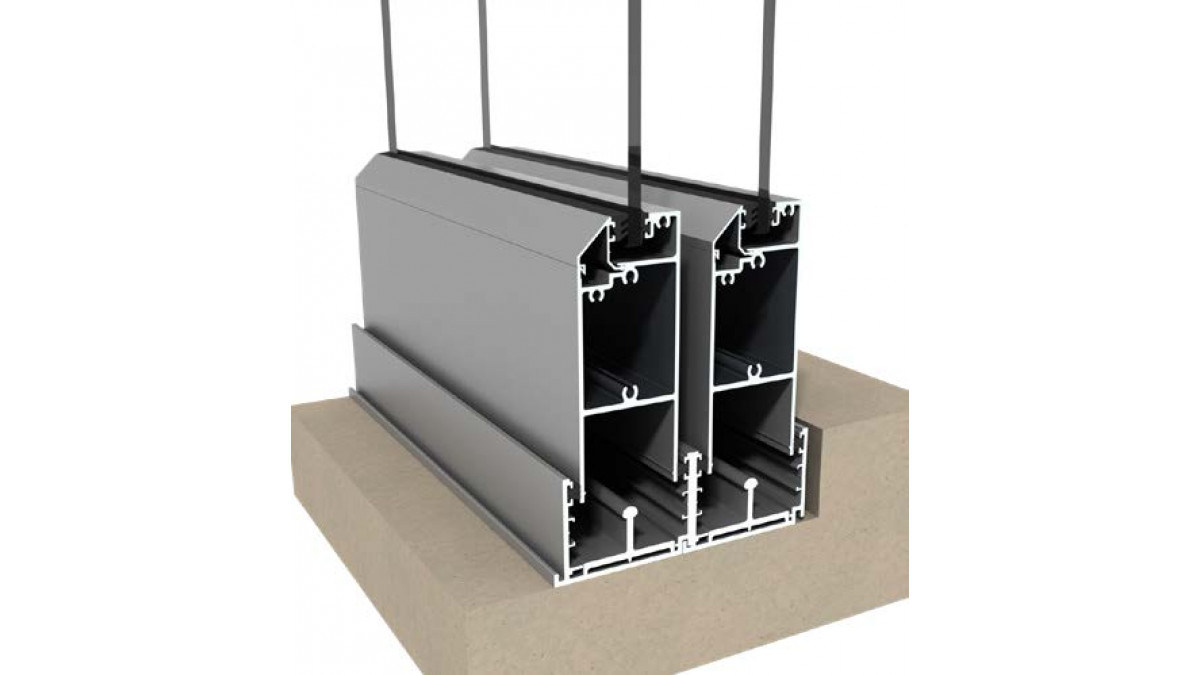

  • Sliding — stacking on multiple tracks (with bottom rollers)
  • Sliding top hung
Categories / Ranges
Sliding Doors Vantage Commercial
Scope of Use
  • Suitable for a wide range of commercial environments
  • Also used in some residential applications
  • Location and exposure suitability will depend on door type used e.g. sliding, hinged
  • Magnum sliders are compatible with the 100mm Shopfront suite
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Magnum sliding doors need good weather cover in either commercial or residential settings (consider using APL Architectural Series sliders if appropriate)
  • Magnum overwall sliders can be specified with appropriate detailing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1998
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2019
Manufacturer Contact List
Span Tables
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WGANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

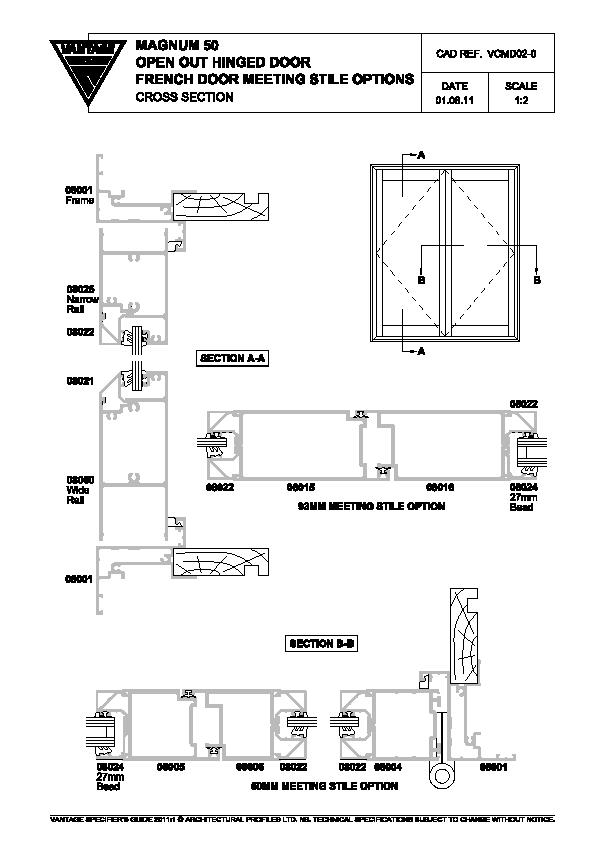

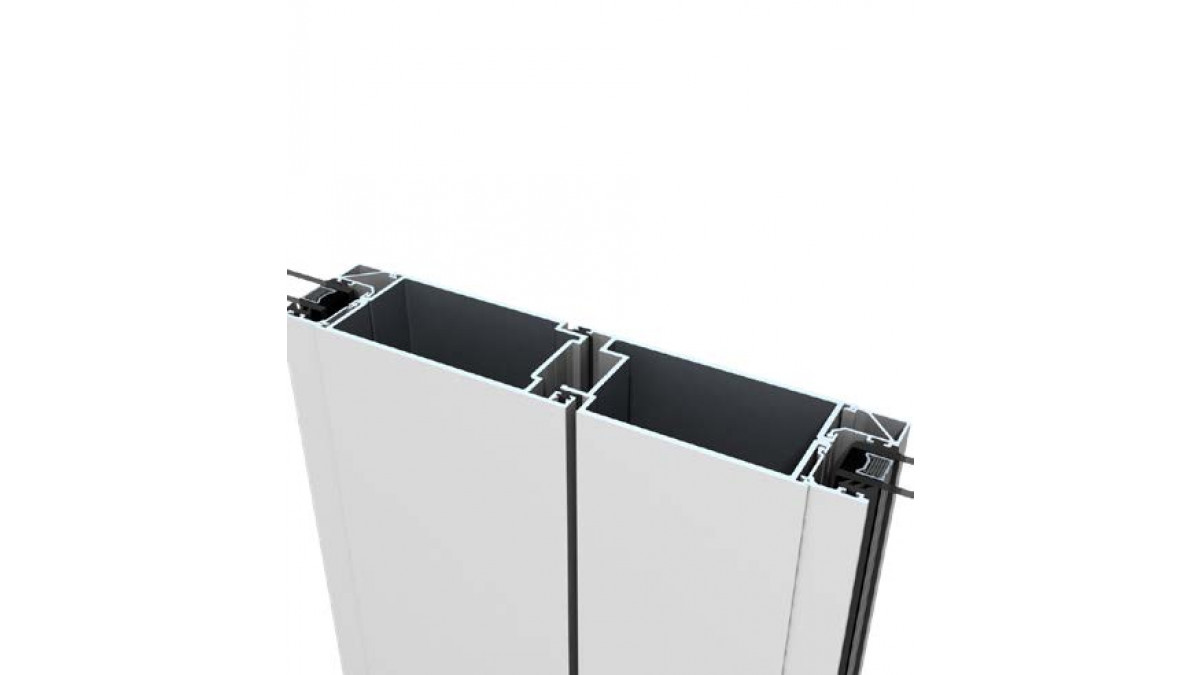

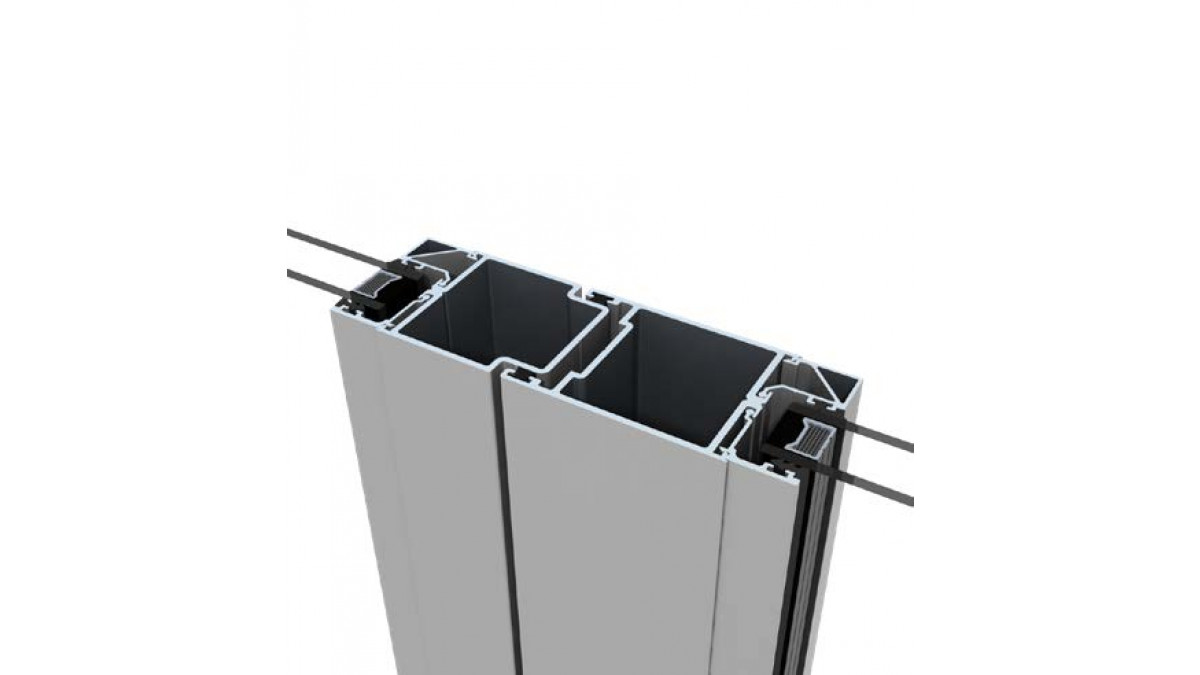

Vantage Commercial Magnum Open Out Hinged Door French Door Meeting Stile Options

VCMD02-0

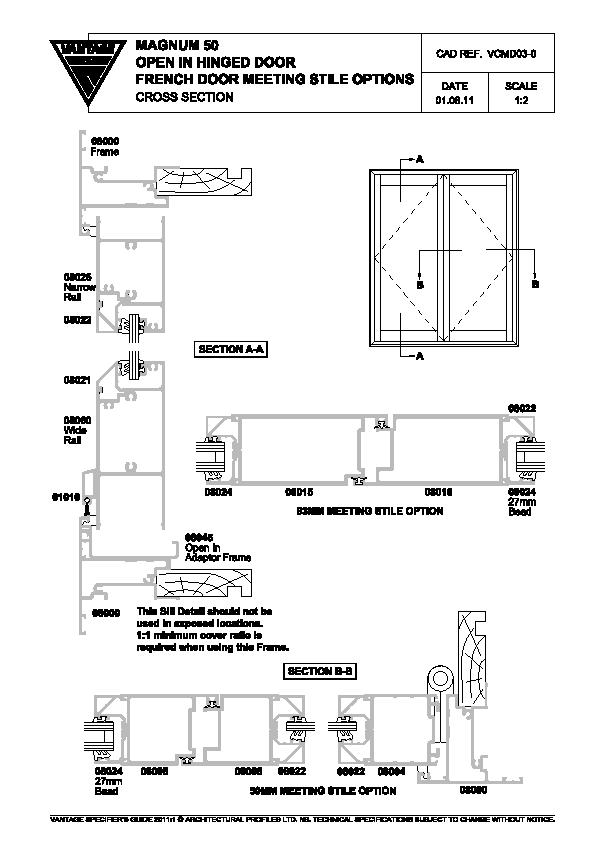

Vantage Commercial Magnum 50 Open In Hinged Door French Door Meeting Stile Options

VCMD03-0

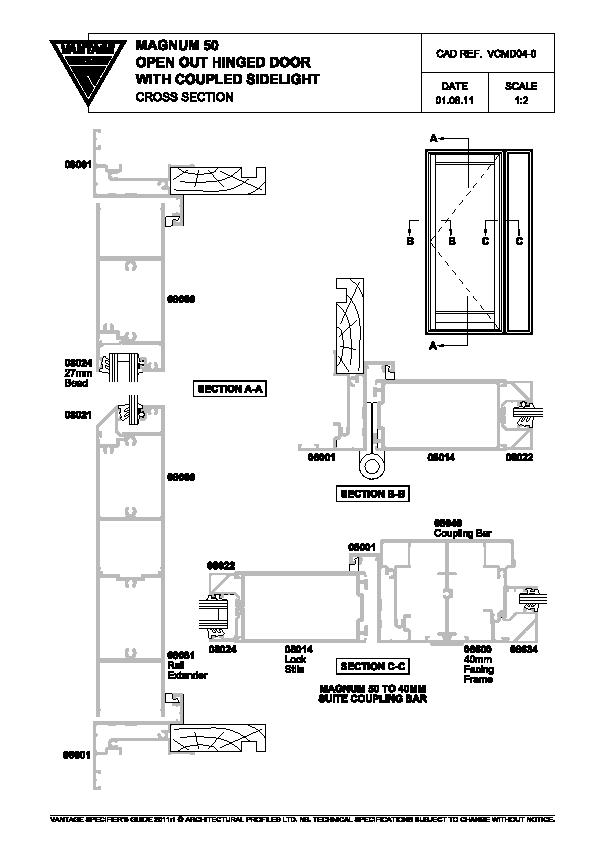

Vantage Commercial Magnum 50 Open Out Hinged Door with Coupled Sidelight

VCMD04-0

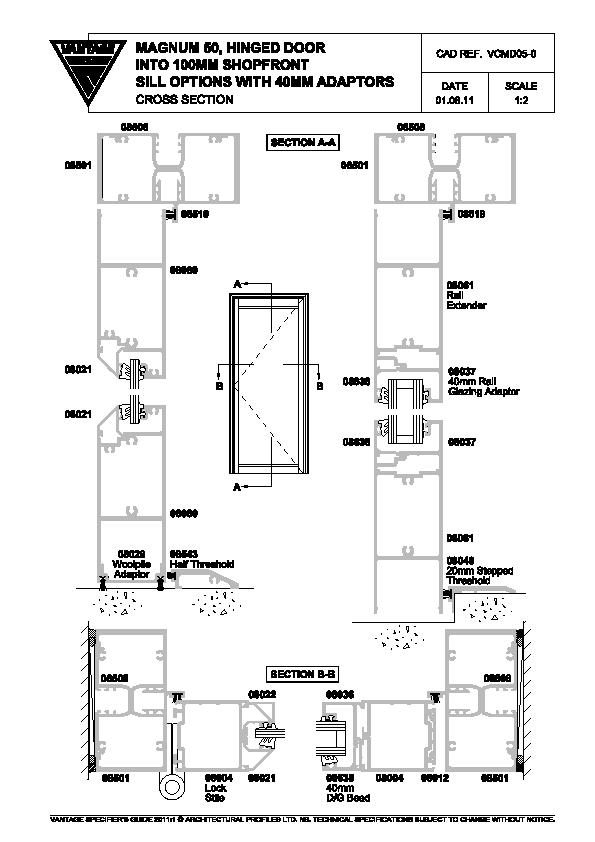

Vantage Commercial Magnum 50, Hinged Door into 100mm Shopfront Sill Options with 40mm Adaptors

VCMD05-0

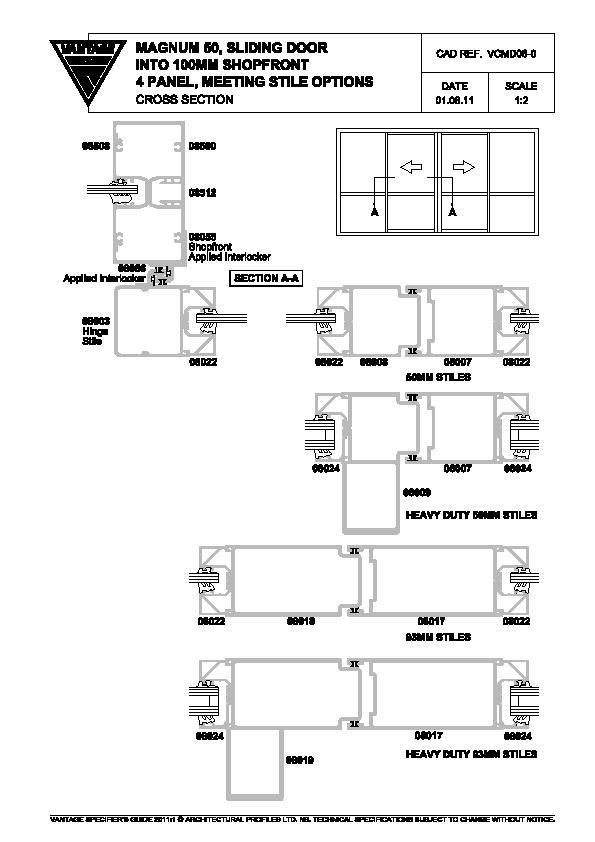

Vantage Commercial Magnum 50, Sliding Door into 100mm Shopfront 4 Panel, Meeting Stile Options

VCMD06-0

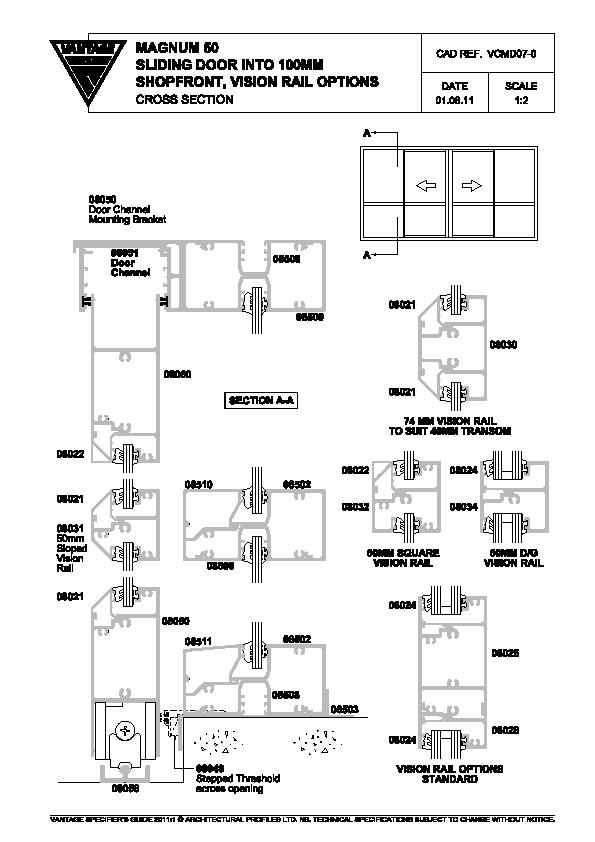

Vantage Commercial Magnum 50 Sliding Door into 100mm Shopfront, Vision Rail Options

VCMD07-0

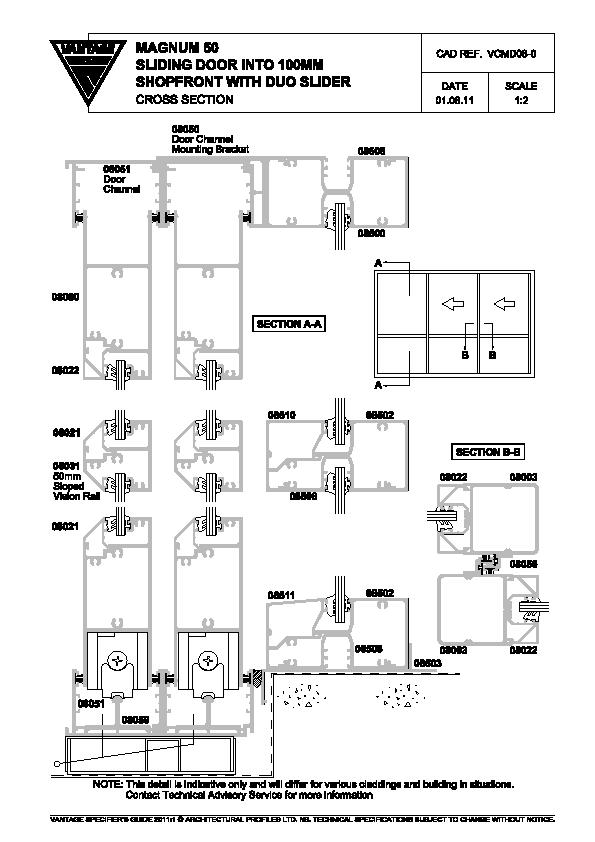

Vantage Commercial Magnum 50 Sliding Door into 100mm Shopfront with Duo Slider

VCMD08-0

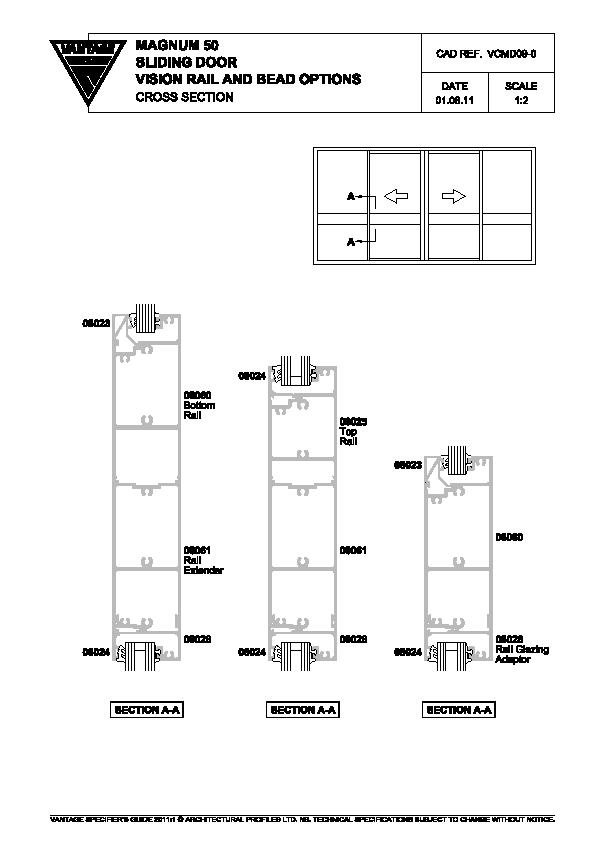

Vantage Commercial Magnum 50 Sliding Door Vision Rail and Bead Options

VCMD09-0

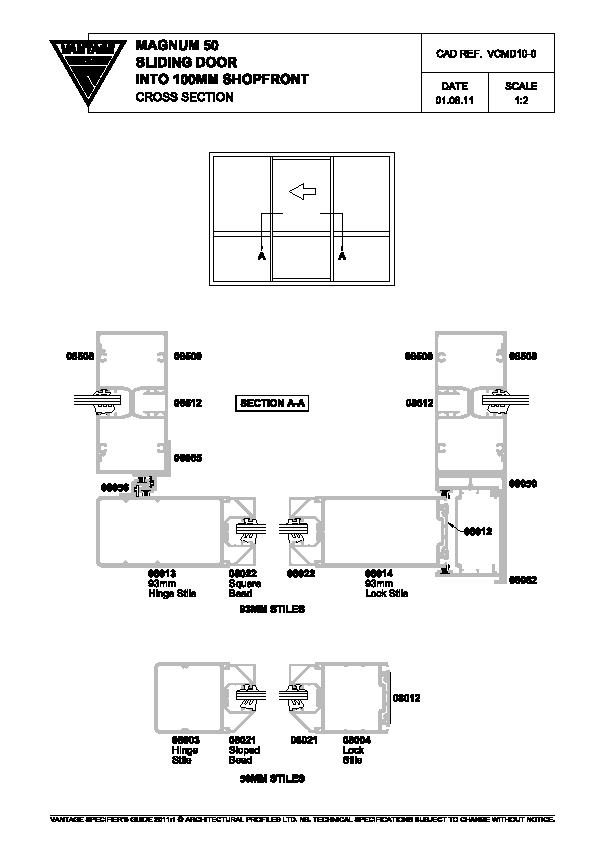

Vantage Commercial Magnum 50 Sliding Door into 100mm Shopfront

VCMD10-0

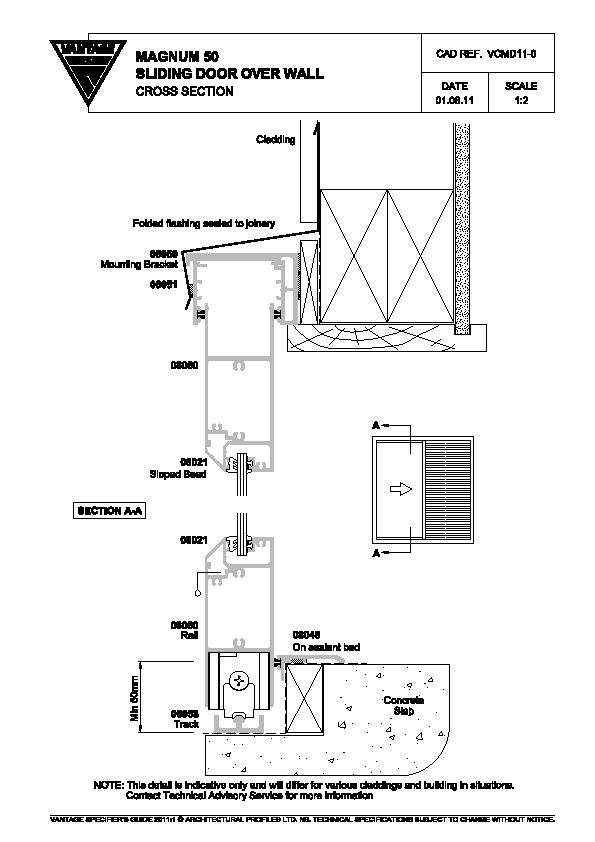

Vantage Commercial Magnum 50 Sliding Door Over Wall

VCMD11-0

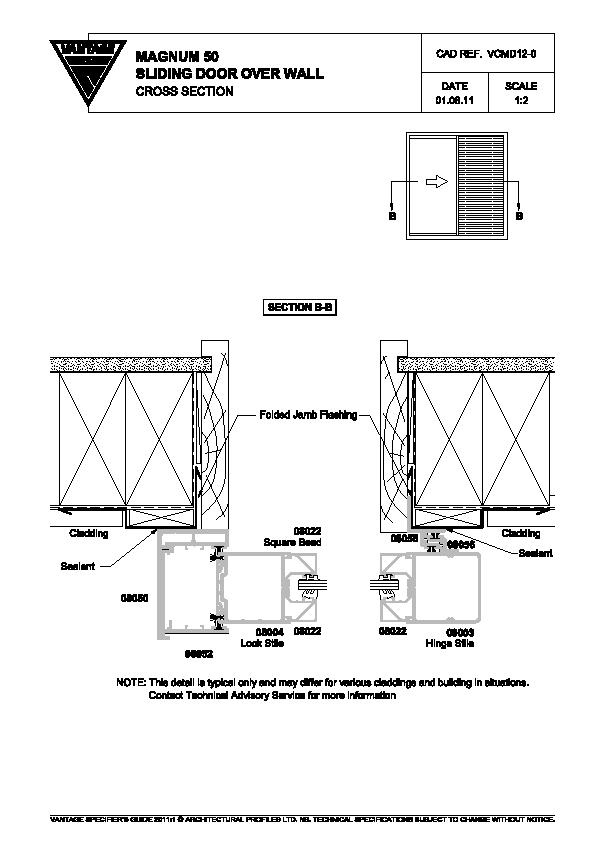

Vantage Commercial Magnum 50 Sliding Door Over Wall

VCMD12-0

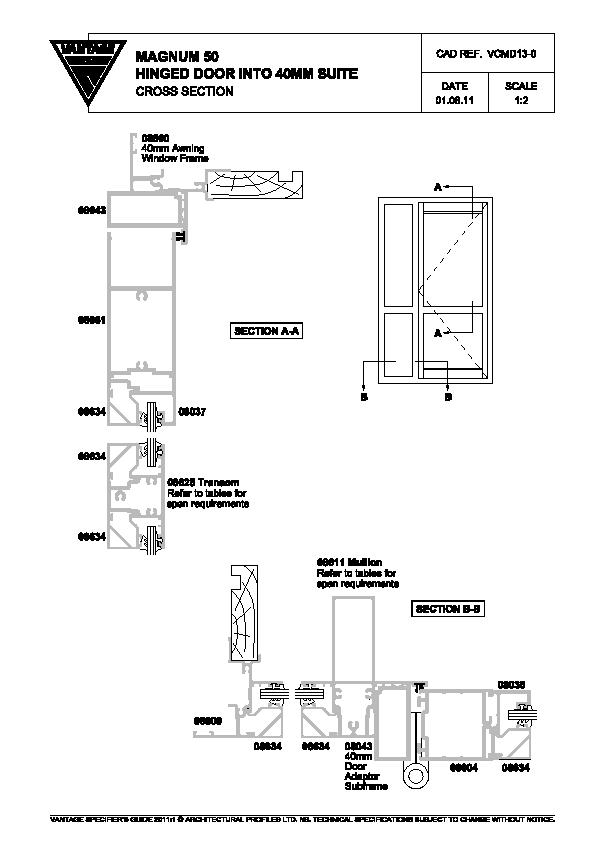

Vantage Commercial Magnum 50 Hinged Door into 40mm Suite

VCMD13-0

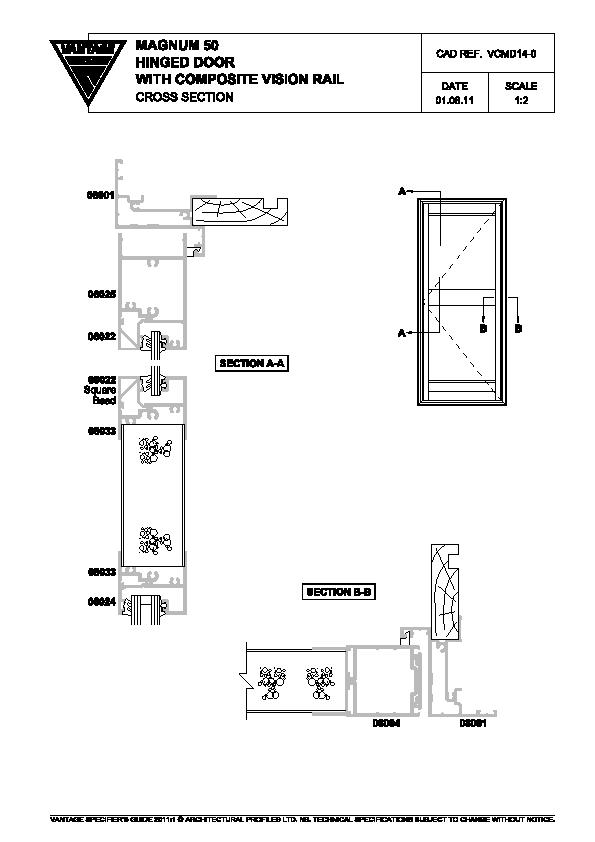

Vantage Commercial Magnum 50 Hinged Door with Composite Vision Rail

VCMD14-0

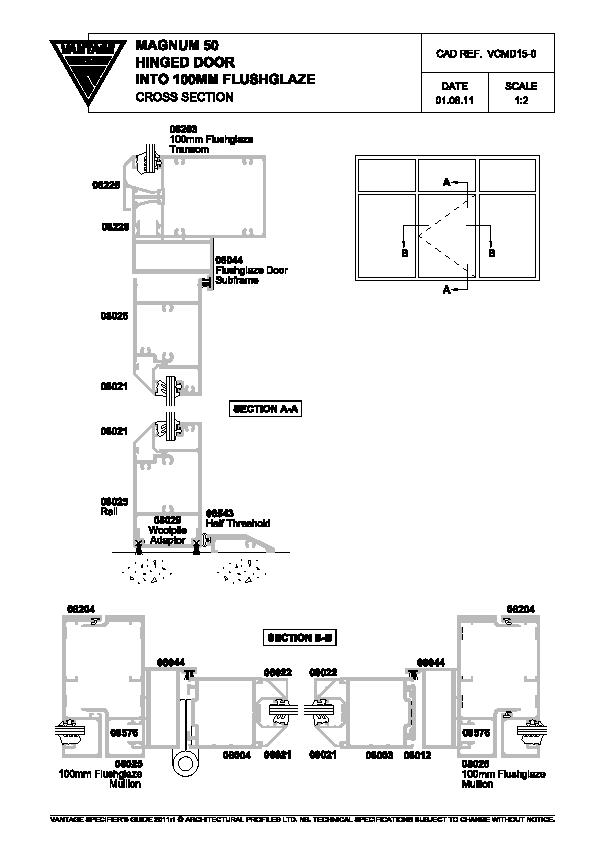

Vantage Commercial Magnum 50 Hinged Door into 100mm Flushglaze

VCMD15-0

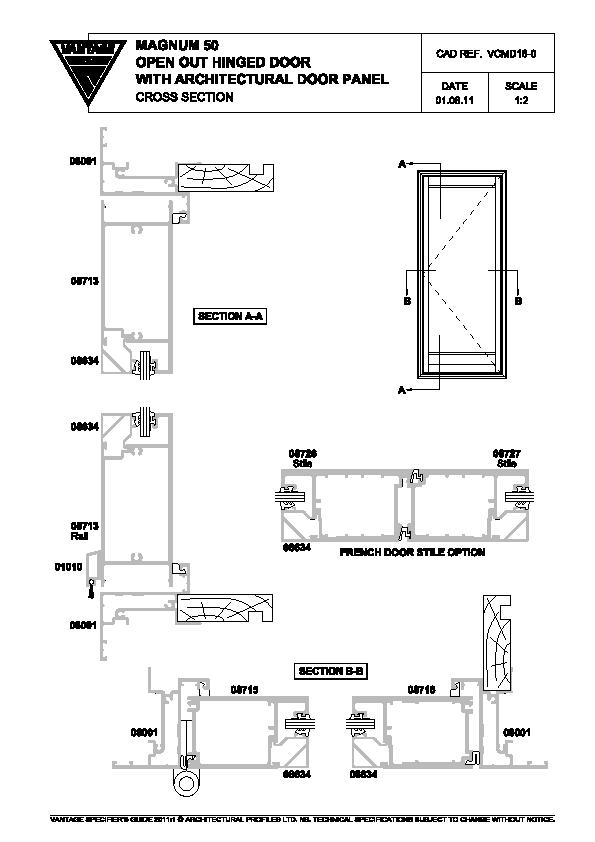

Vantage Commercial Magnum 50 Open Out Hinged Door with Architectural Door Panel

VCMD16-0

BIM
Vantage Commercial Magnum 50, French Door
