APL Architectural Series ThermalHEART® Bi-Fold Windows and Doors
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

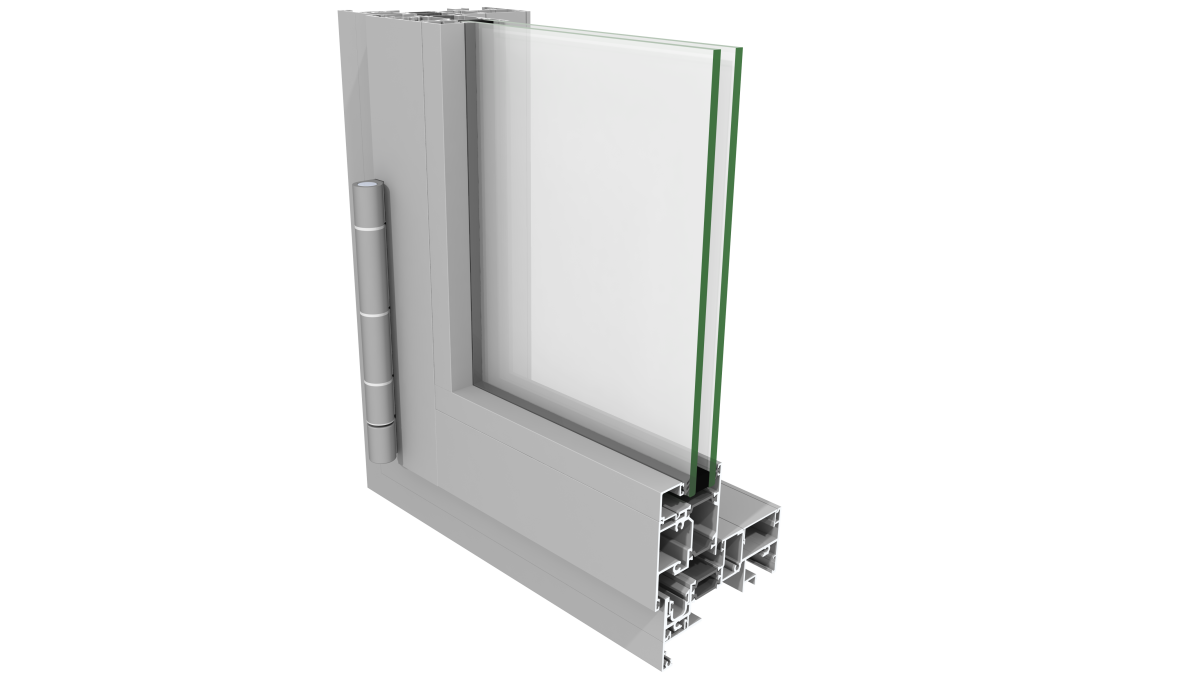

ASTH BD1 v2

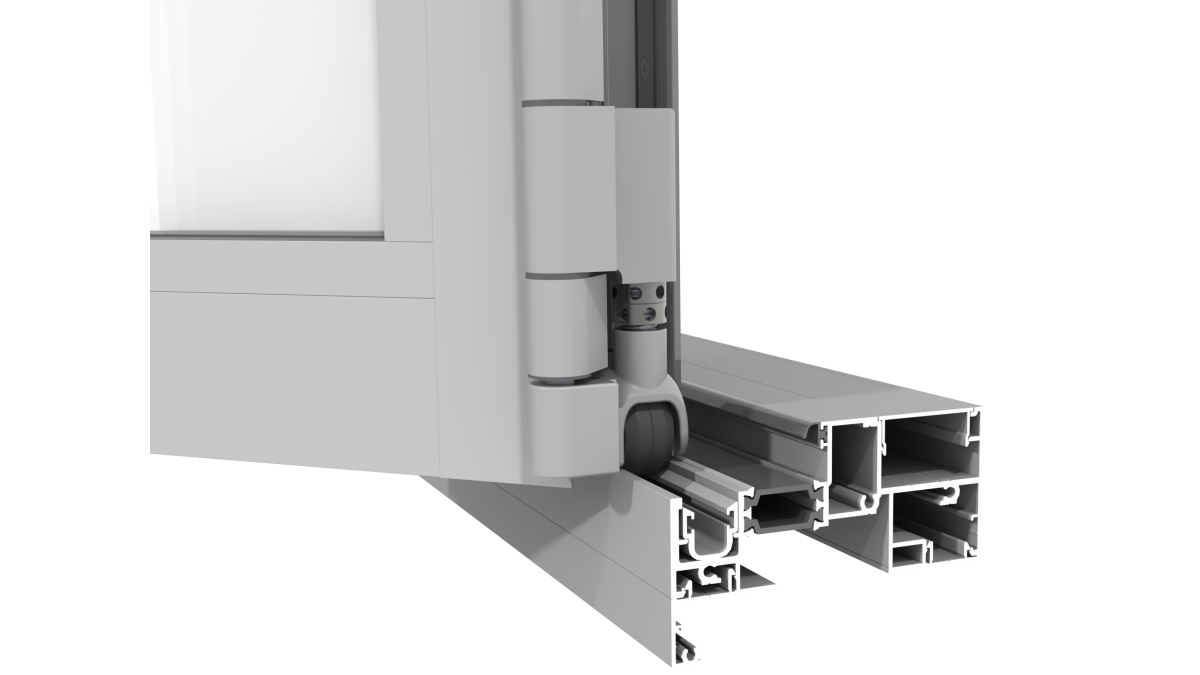

ASTH BD2 v2

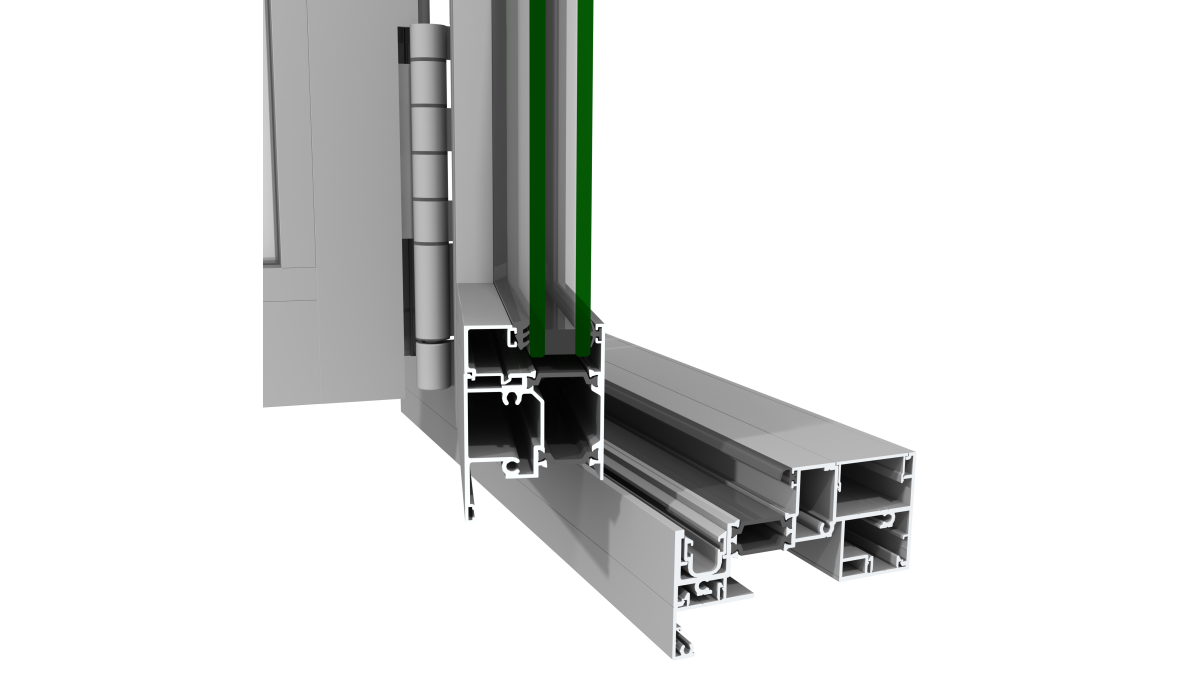

ASTH BD3 v2

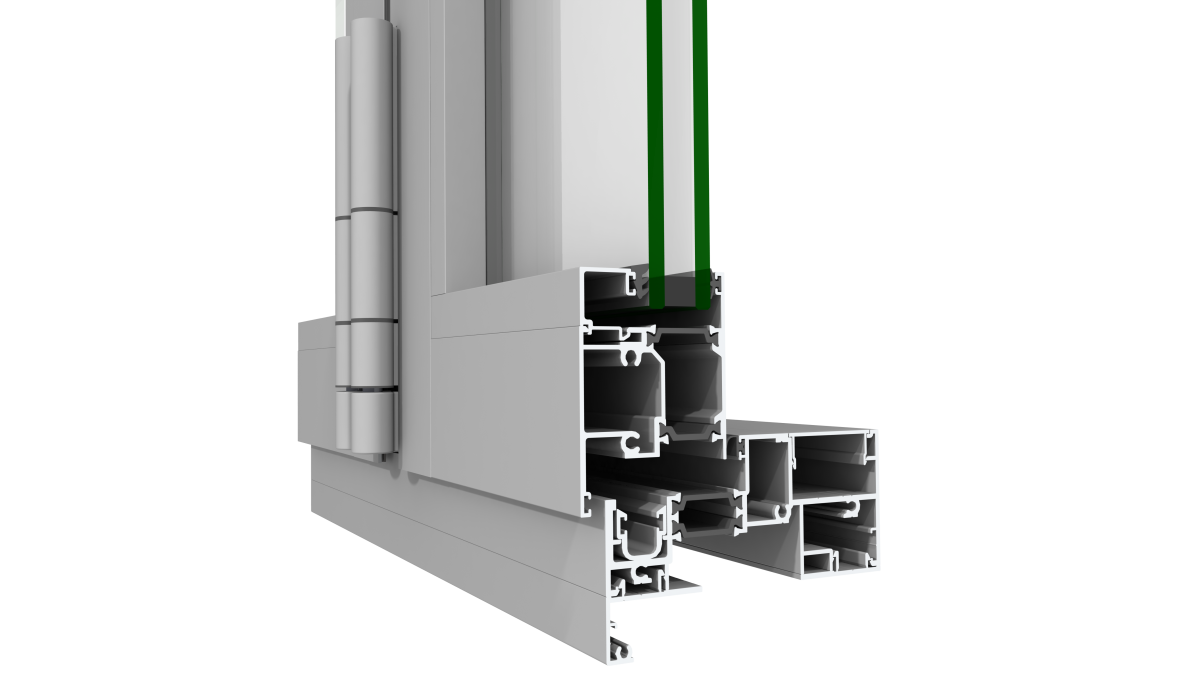

ASTH BD4 v2
Description

The bi-fold system is bottom rolling with an in-frame track for optimum panel support. Rated to 3.0m high in Extra High wind zones. The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail.

Key Features
  • Bottom rolling with an in-frame track for optimum panel support
  • A unique roller design ensures panels move smoothly when built in large sizes
  • The track uses an aluminium insert (black anodised) for roller wear

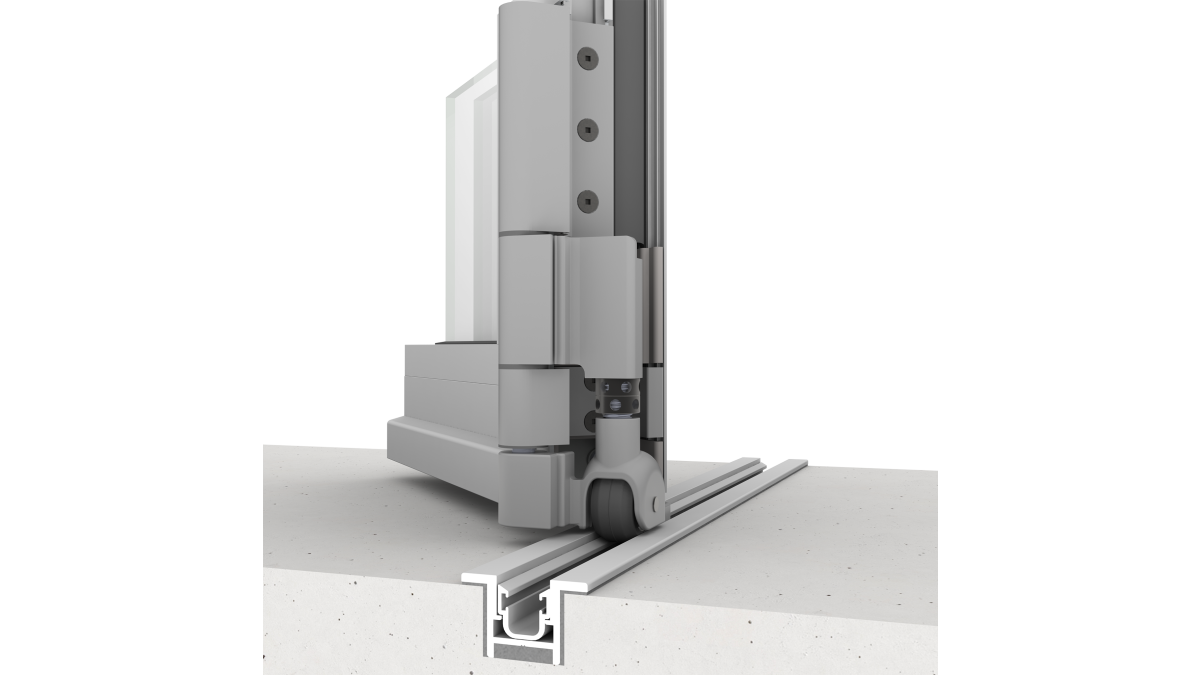

  • A flush sill track is available for sheltered locations
  • Sill tray and seismic frame options
  • Assured smooth operation through enhanced adjustability
  • A slender door stile and rail option is available to minimise visual intrusion
  • Overlights possible
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Categories
Bifold Doors Bifold Windows
Ranges
APL Architectural Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended maximum 3.0m high doors in Extra High wind zones
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Span Tables
pdf
Data Sheet: APL Architectural Series ThermalHEART®

2023

pdf
Full Specification Guide: APL Architectural Series ThermalHEART®
docx
Specification Guide: APL Architectural Series ThermalHEART® Bifold Windows and Doors
docx
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Specifier Guide

2023

URL
Vantage Brochure
URL
Vantage Care, Maintenance & Warranty Brochure (with AGP)
URL
Vantage on Masterspec
URL
WGANZ Guide to E2/AS1
pdf
APL and Sustainability
URL
Declare Label
pdf
Manufacturer Contact List
URL

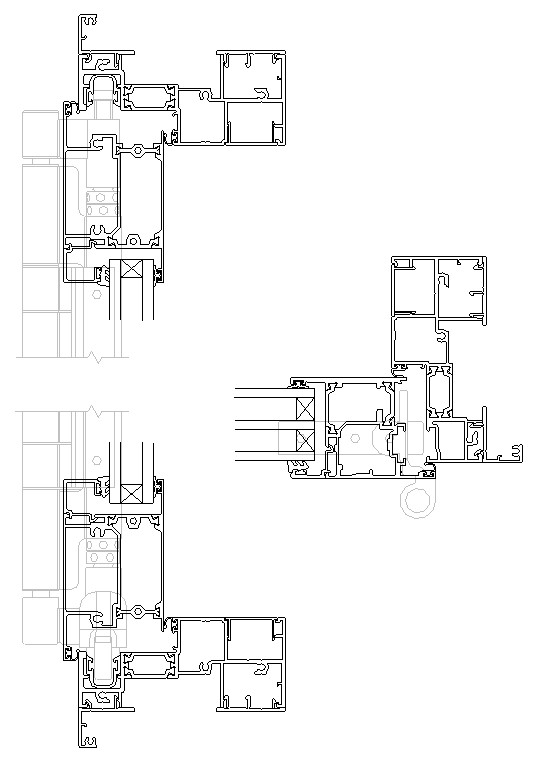

CAD/PDF Details
View full
APL Architectural Thermal Heart Bifold Door Drawings pdf v4
APL Architectural Series ThermalHEART® Bifold Doors

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
APL Architectural Thermal Heart Bifold Window Drawings pdf v3
APL Architectural Series ThermalHEART® Bifold Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
TABD01 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Head/Sill with Rail Options

TABD01

dwg
dxf
pdf
TABD02 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Overlight Transom

TABD02

dwg
dxf
pdf
TABD03 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Overlight Transom with Fixed Window

TABD03

dwg
dxf
pdf
TABD04 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Flush Sill Rail Options

TABD04

dwg
dxf
pdf
TABD05 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Seismic Frame with Overlight Coupler

TABD05

dwg
dxf
pdf
TABD06 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 2 Panel

TABD06

dwg
dxf
pdf
TABD07 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 2 + 1 Panel

TABD07

dwg
dxf
pdf
TABD08 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 3 Panel

TABD08

dwg
dxf
pdf
TABD09 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 2 + 2 Panel

TABD09

dwg
dxf
pdf
TABD10 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 3 + 1 Panel

TABD10

dwg
dxf
pdf
TABD11 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 4 Panel

TABD11

dwg
dxf
pdf
TABD12 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 3 + 2 Panel

TABD12

dwg
dxf
pdf
TABD13 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 4 + 1 Panel

TABD13

dwg
dxf
pdf
TABD14 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 5 Panel

TABD14

dwg
dxf
pdf
TABD15 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 3 + 3 Panel

TABD15

dwg
dxf
pdf
TABD16 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 4 + 2 Panel

TABD16

dwg
dxf
pdf
TABD17 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 5 + 1 Panel

TABD17

dwg
dxf
pdf
TABD18 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors 6 Panel

TABD18

dwg
dxf
pdf
TABD19 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Doors Sidelight Cross Section

TABD19

dwg
dxf
pdf
TABW01 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Windows Head/Sill with Rail Options

TABW01

dwg
dxf
pdf
TABW02 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Windows 2 Panel

TABW02

dwg
dxf
pdf
TABW03 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Windows 3 Panel

TABW03

dwg
dxf
pdf
TABW04 0 pdf v3
APL Architectural Series ThermalHEART® Bifold Windows 2 + 2 Panel

TABW04

dwg
dxf
pdf
Installation Details
View full
TABDBB pdf v5
APL Architectural Series ThermalHEART® Bifold Doors on Board & Batten

TABDBB

dwg
pdf
TABDBV pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Brick Veneer

TABDBV

dwg
pdf
TABDBW pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Bevelback Weatherboard

TABDBW

dwg
pdf
TABDFS pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Flat Sheet

TABDFS

dwg
pdf
TABDPM pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Profile Metal

TABDPM

dwg
pdf
TABDRW pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Rusticated Weatherboard

TABDRW

dwg
pdf
TABDST pdf v2
APL Architectural Series ThermalHEART® Bifold Doors on Stucco

TABDST

dwg
pdf
