Vantage Overhead Glazing Systems
New APL 2019 Specifier Guide now available Order now
Description

A range of overhead glazing bars and roof windows cater for a variety of commercial and residential applications. Bars with a drainage system and condensation collection system are available.

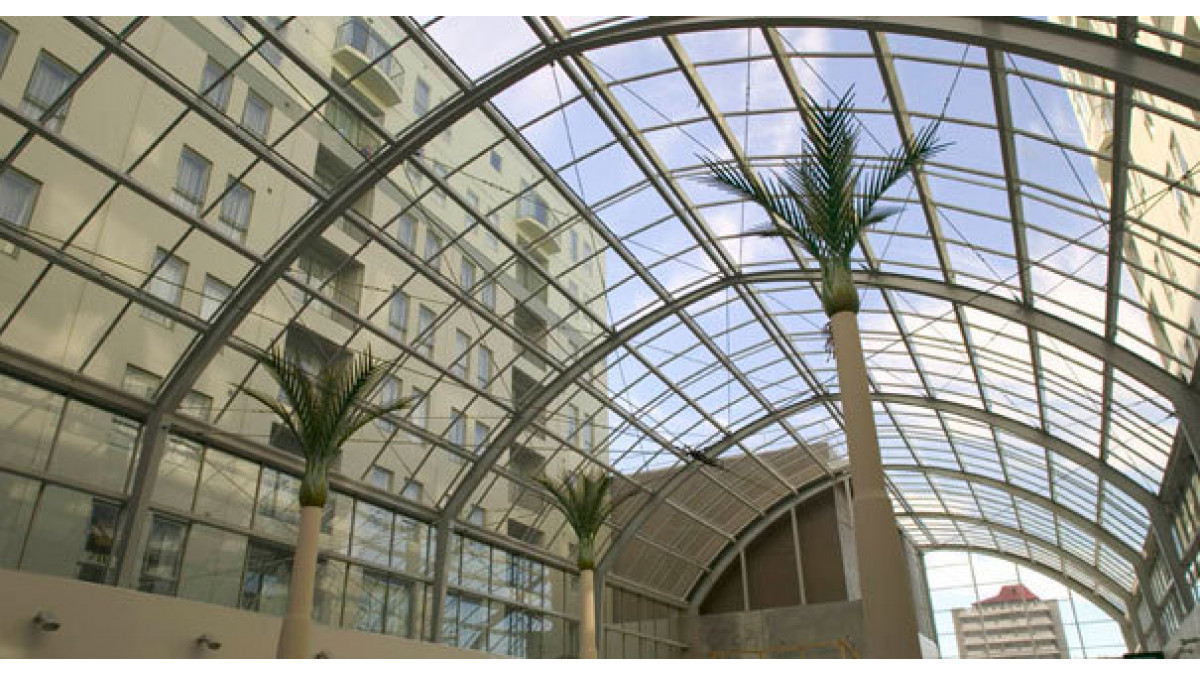

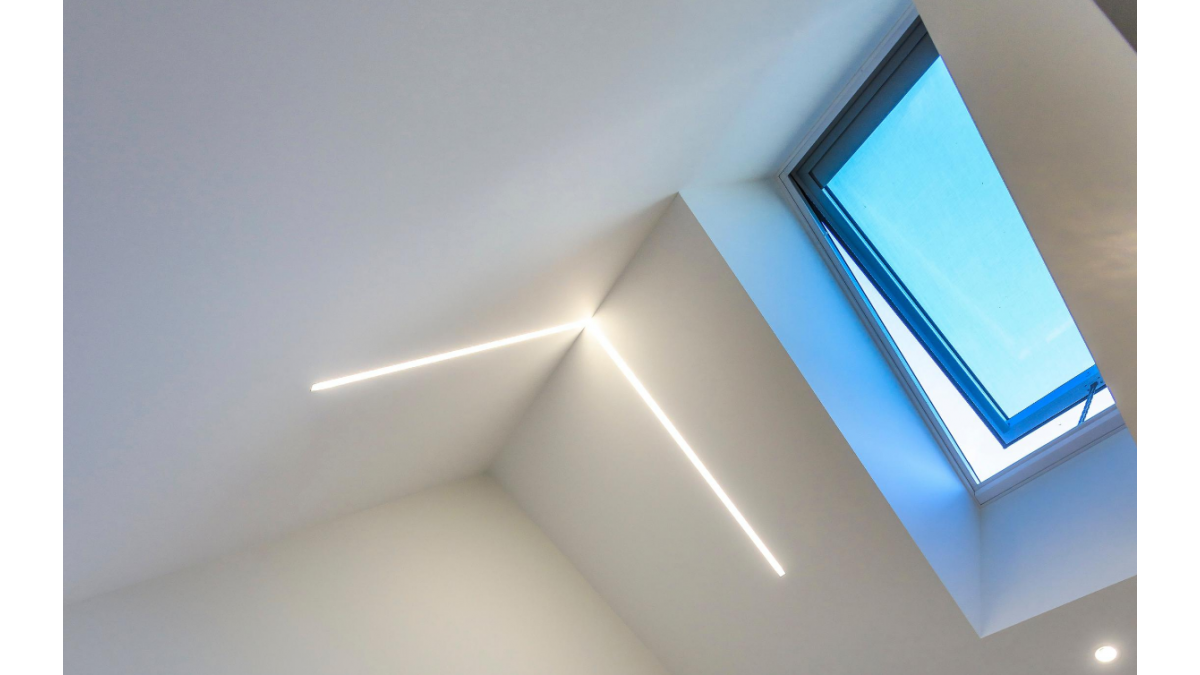

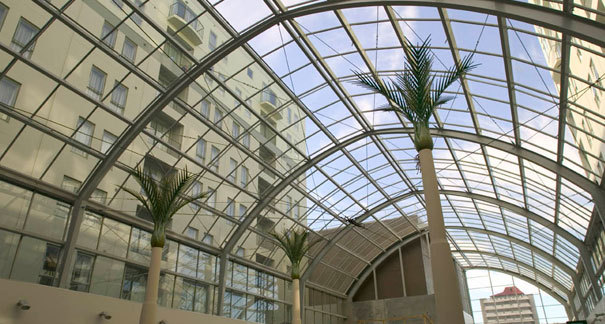

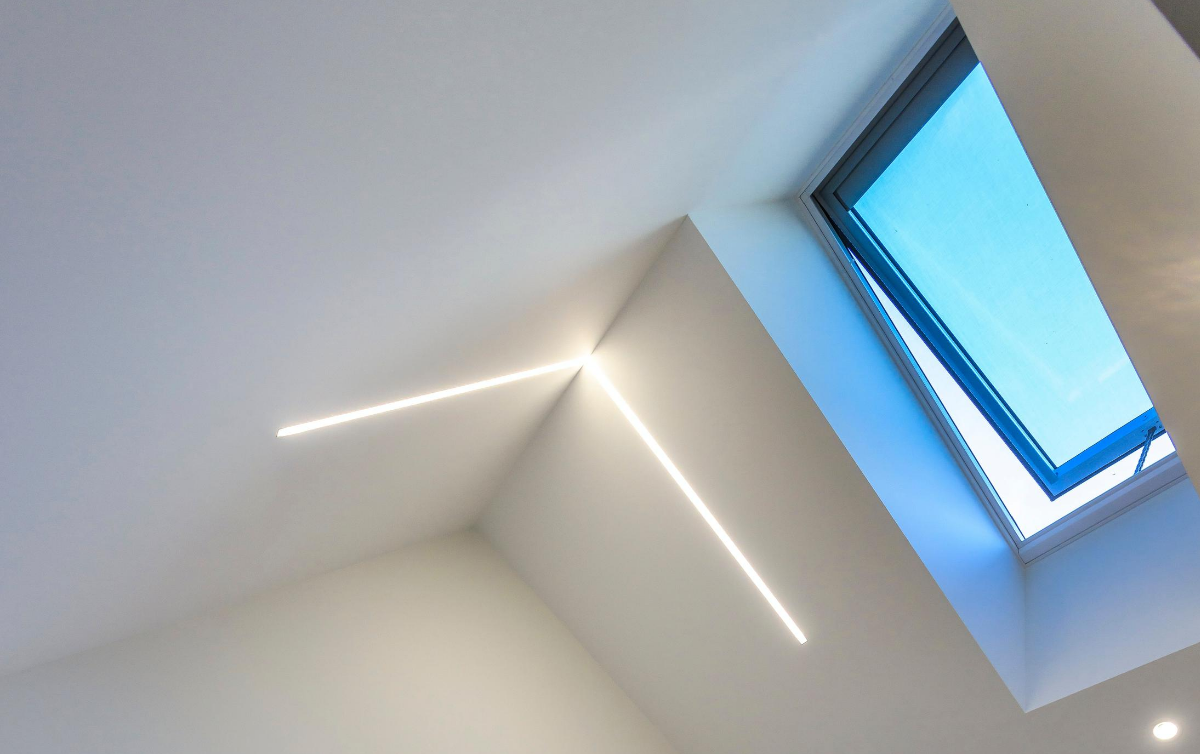

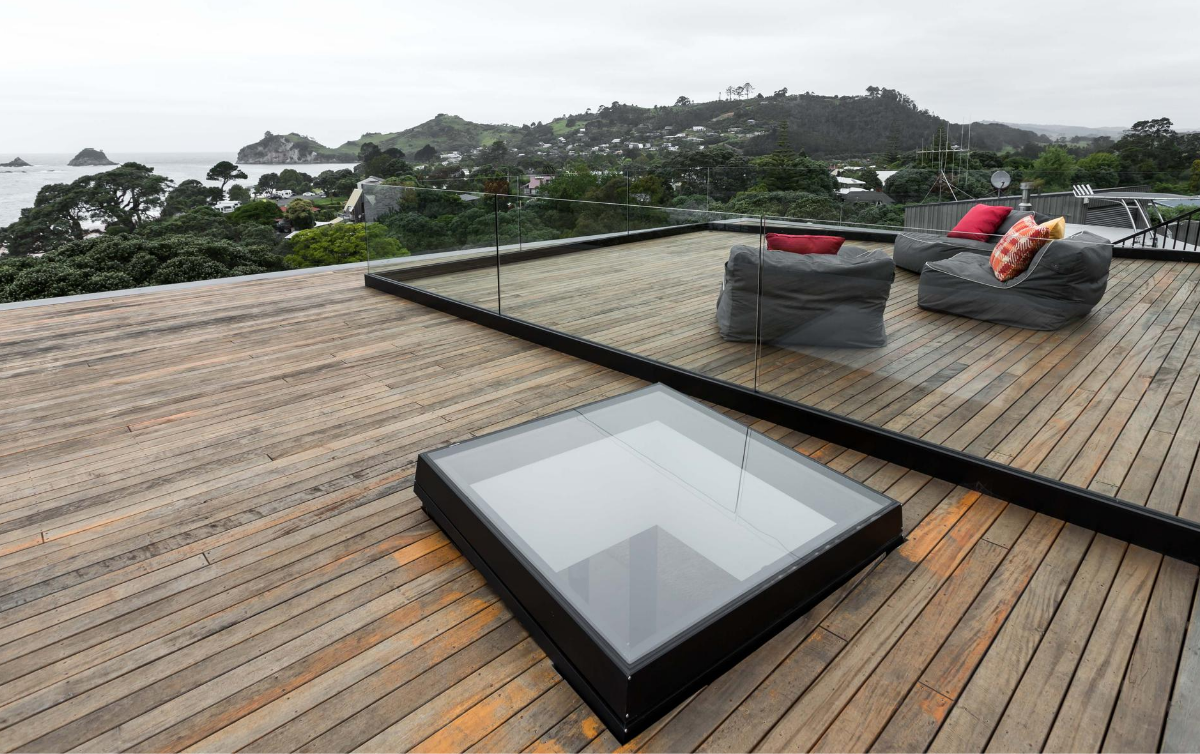

A structurally glazed Thermal Heart roof window for maximum thermal efficiency is available in both opening and fixed options. This is supplied with a 24mm IGU, Argon gas fill and low-e inner pane. A large range of sizes is available, including large expanses for the fixed Thermal Heart window through the use of an added mullion.

Key Features
  • For commercial and residential applications

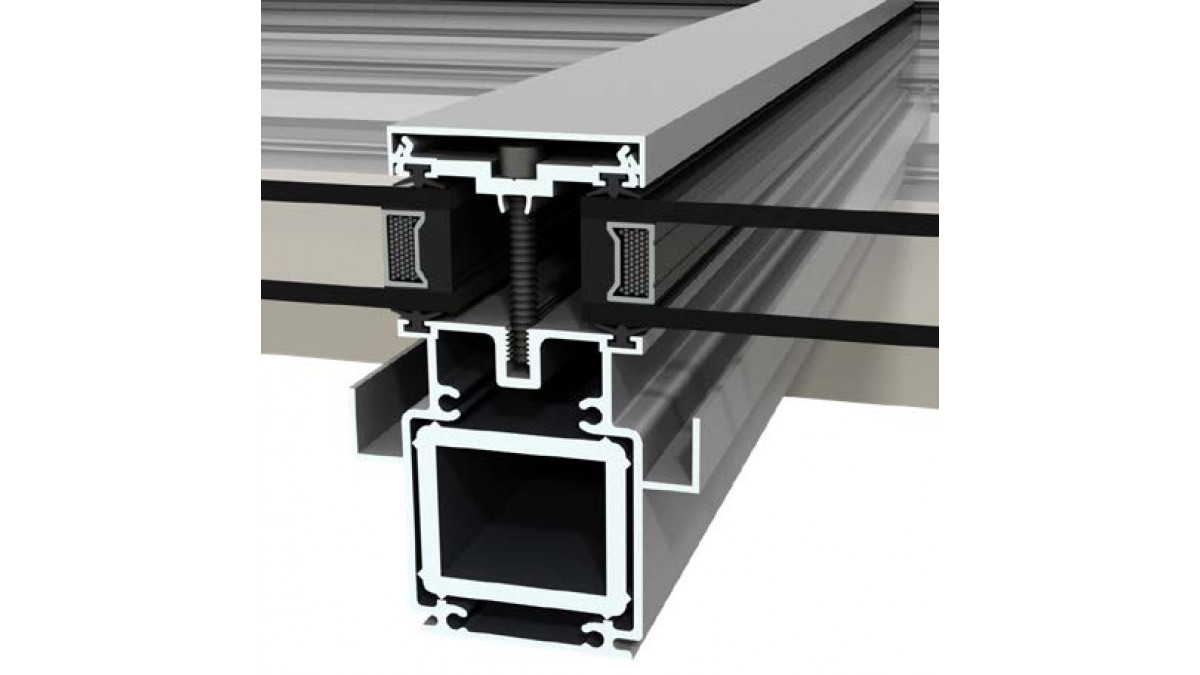

  • Glazing bars retain glass in sloping positions

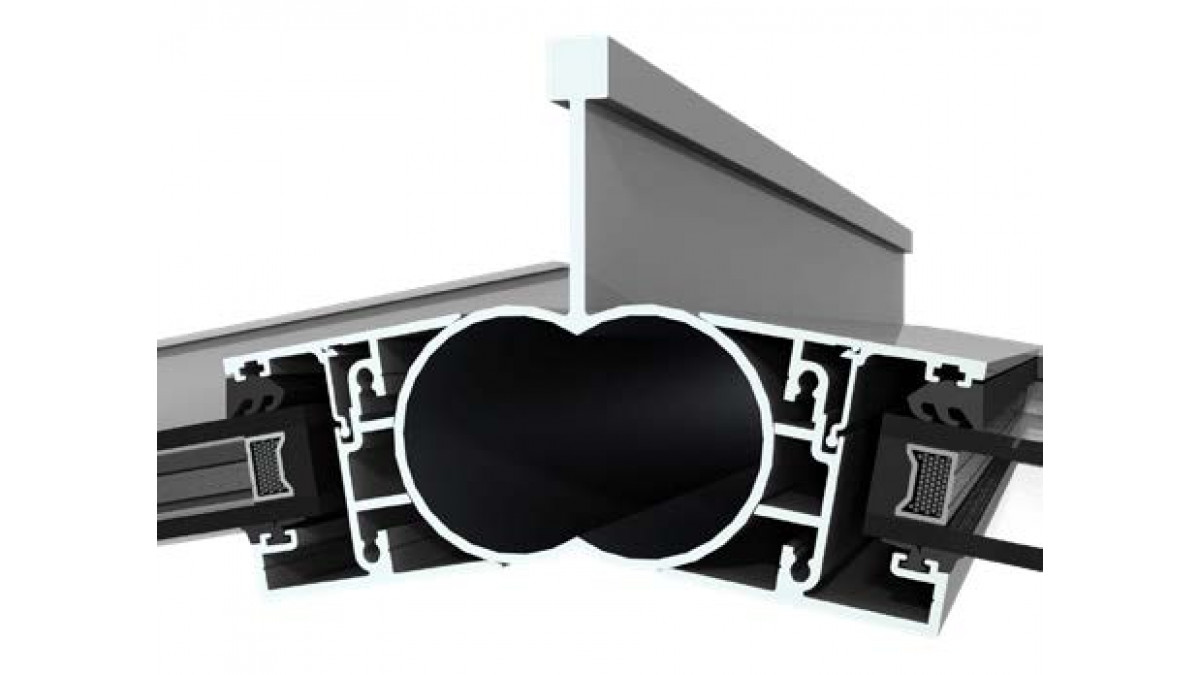

  • A range of overhead glazing configurations is possible including lean-to, ridge line, double pitch and pyramid structures

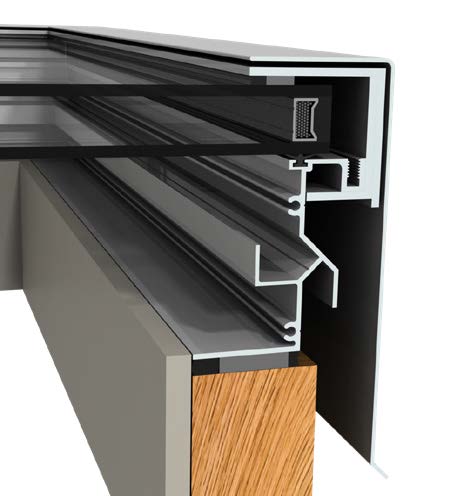

  • Bars with a drainage system and a condensation drainage system are available

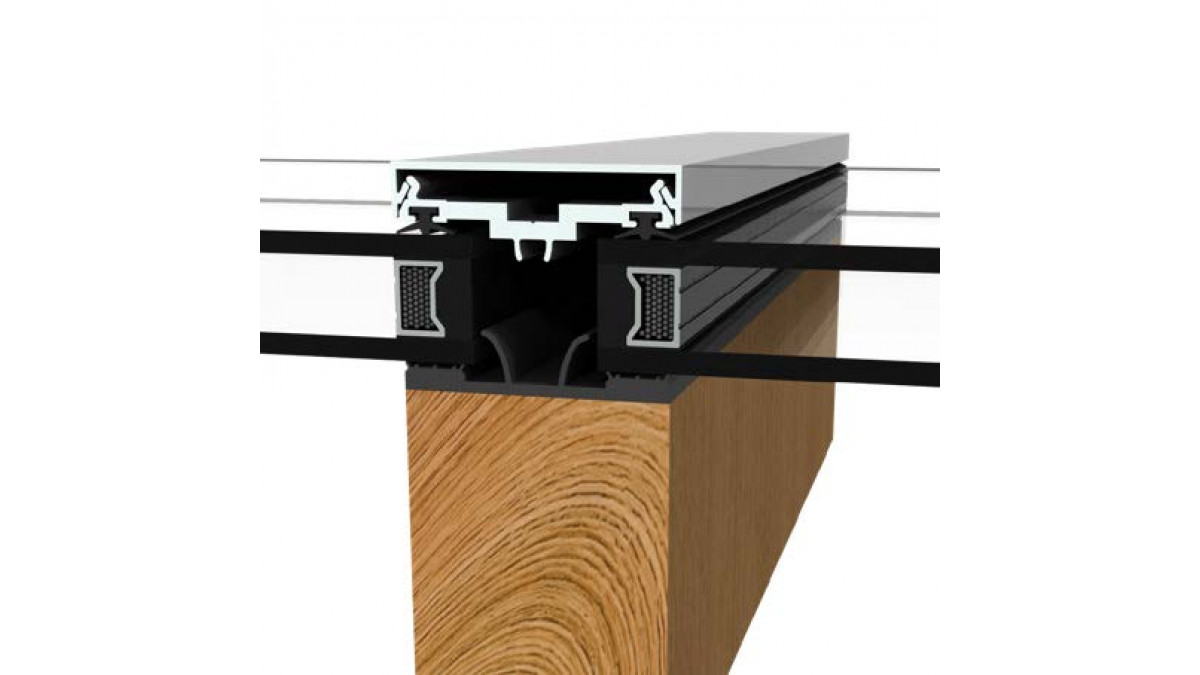

  • A glazing cap system for timber rafters is available
  • A non-thermally broken opening roof window can be set within surrounding glazing bars

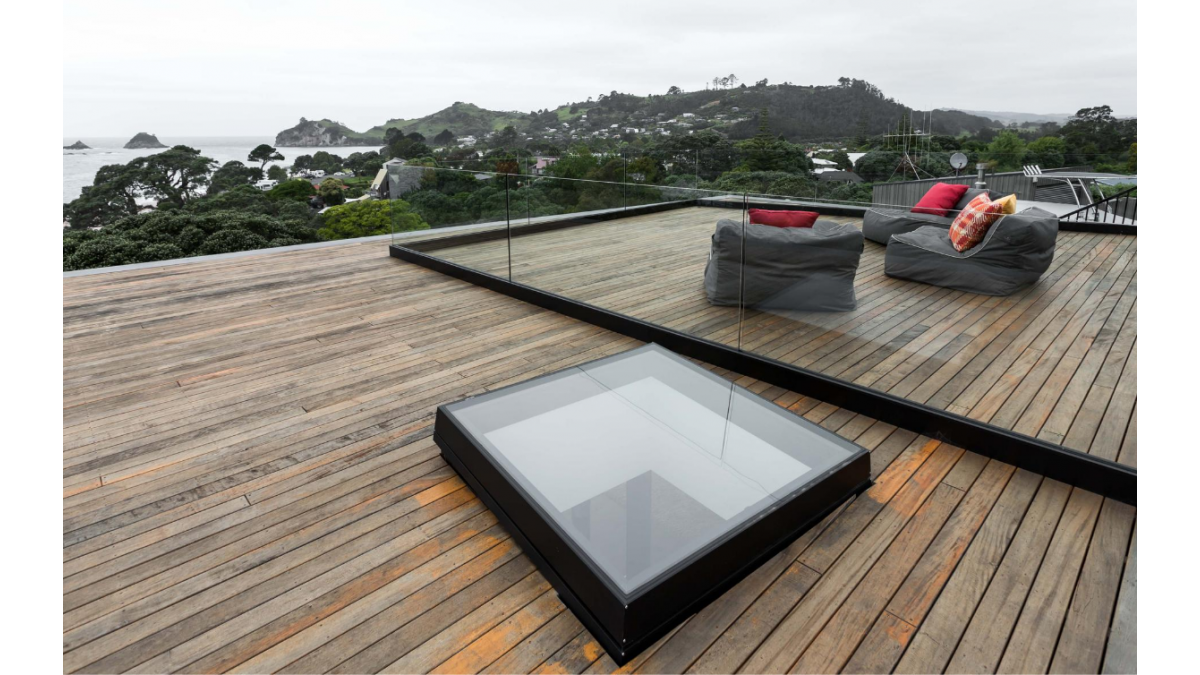

  • A thermally broken, ThermalHEART opening roof windows is available
  • Hinged on the lower side the ThermalHEART roof window allows secure opening when required
  • Fixed window option available
  • Structural glazed design means flush edges — no ponding of water allows windows to be installed to low pitches (minimum 5°)
  • Manual or electric opening options
  • ThermalHEART window is capable of dual colour — one colour to match interior schemes and one to match the roof colour



Scope of Use
  • Suitable for residential and commercial environments
  • Need to be used in defined maximum sizes



Limitations on Use
  • For glazing bar use, sizing will depend on glazing bar choice, wind loadings, span limitations, bar spacing and glass thickness — an engineer’s report may be required
  • To minimise condensation double glazing is recommended in most applications
  • Minimum pitches apply e.g. ThermalHEART roof window requires minimum 5° pitch.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • The glazing bar range was launched in 1997; ThermalHEART roof window in 2008
  • Some design upgrades have taken place
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2019
Manufacturer Contact List
Span Tables
Specifier Guide
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WGANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings
Vantage Overhead Glazing Bars Fixed Skylight, Small Fin Rafter

VCOG01-0

Vantage Overhead Glazing Bars, Fixed Skylight, Small Fin Rafter

VCOG02-0

Vantage Overhead Glazing Bars, Gable Glazing Lean-To, Small Fin Rafter

VCOG03-0

Vantage Overhead Glazing Bars, Double Pitch Ridge Skylight, Large Fin Rafter

VCOG04-0

Vantage Overhead Glazing Bars Fixed Skylight with Roff Vent

VCOG05-0

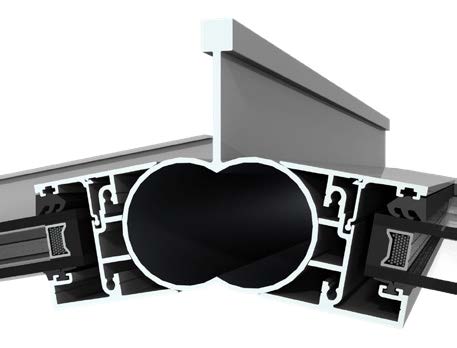

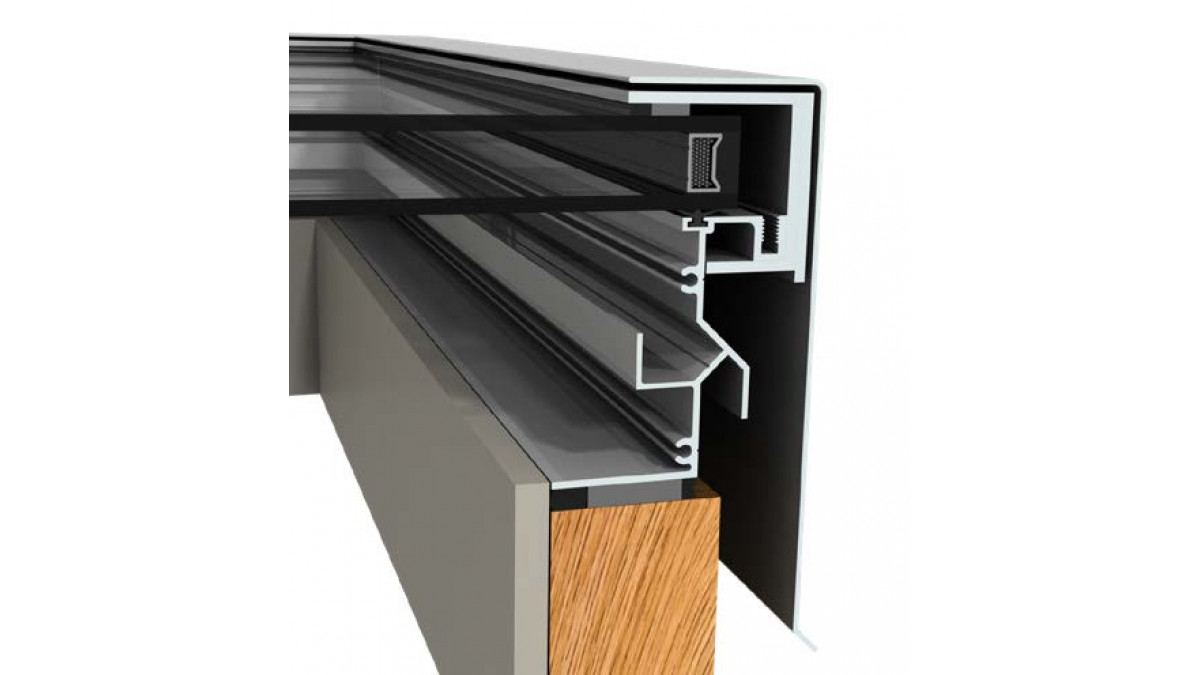

Vantage Overhead Glazing Bars, Double Pitch RF Glazing, Condensation Collection

VCOG06-0

Vantage Overhead Glazing Bars, Pyramid Roof, Condensation Collection

VCOG07-0

Vantage Overhead Glazing Bars, Timber Single Glazed

VCOG08-0

Vantage Overhead Glazing Fixed Skylight with Thermal Heart

VCOG09-0

Vantage Overhead Glazing Fixed Skylight with Thermal Heart

VCOG10-0
