Vantage Residential Axis Entrance Doors
New APL 2019 Specifier Guide now available Order now
Description

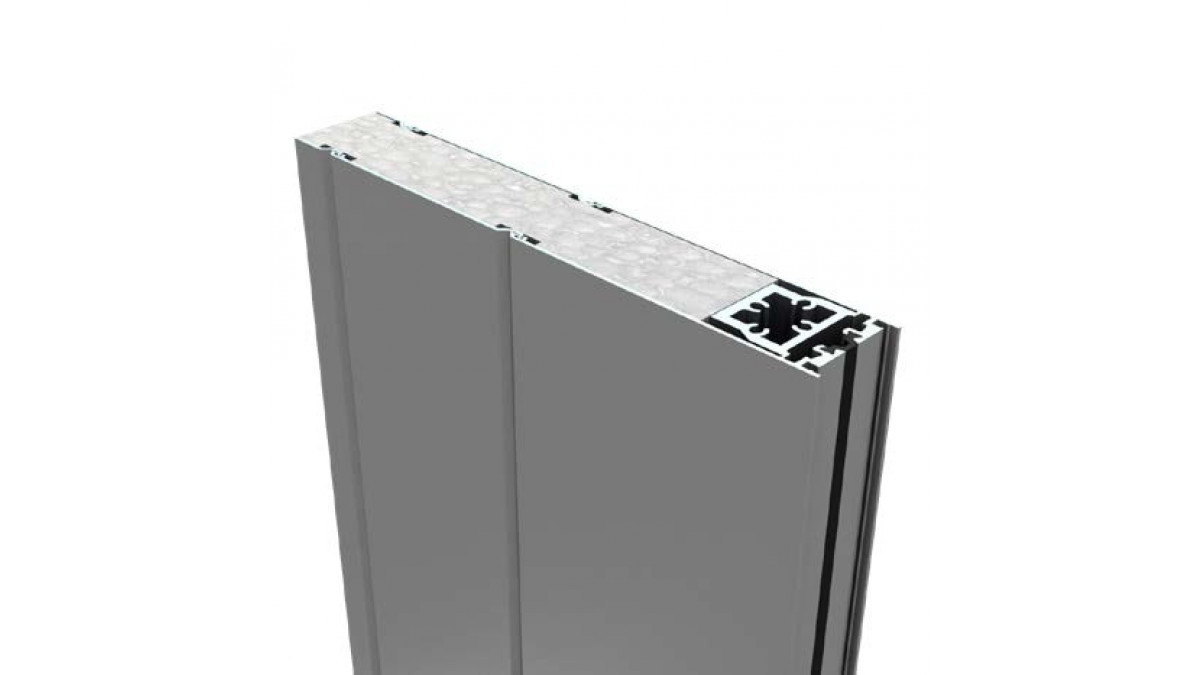

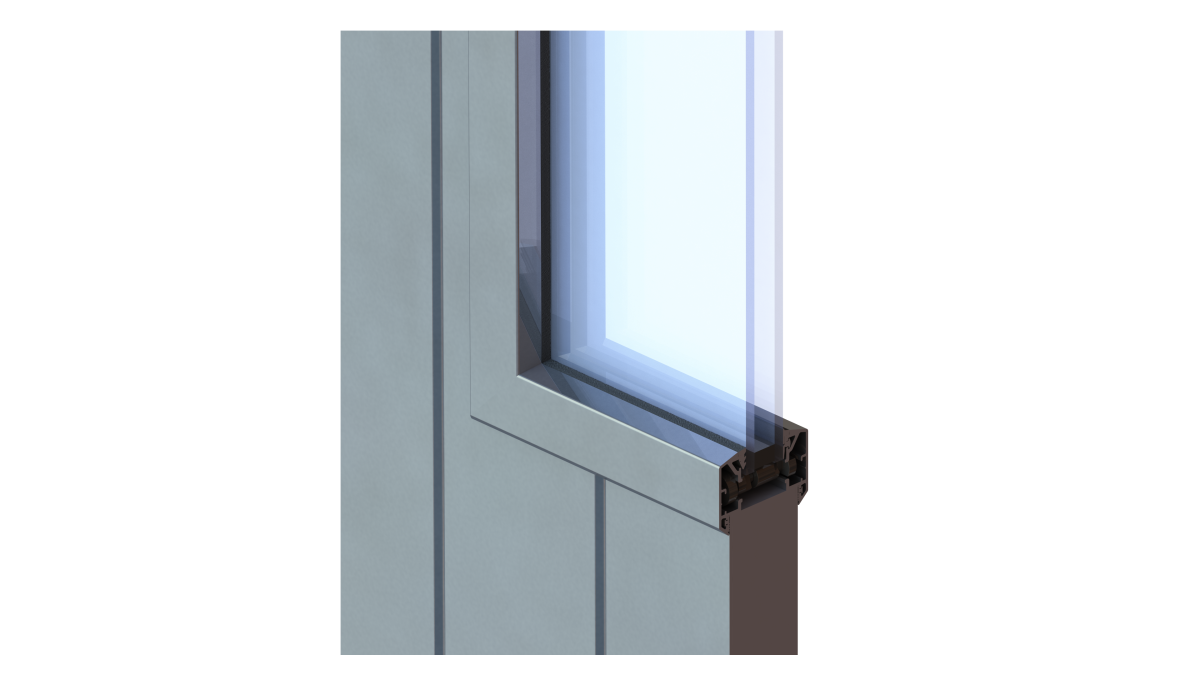

Made from aluminium with vertical tongue and groove planks, Axis doors offer the opportunity for a totally clean aesthetic or a door with glazed inserts for vision or light entry.

The two-part construction offers the opportunity for a dual colour panel — one colour for the outside and a different one for the inside to match interior colour schemes. Axis doors are thermally broken. The solid, foam-filled construction imparts high strength and jemmy resistance.

Key Features
  • For mainstream residential use
  • Tongue and groove panel doors clad in aluminium for low maintenance
  • Panels are 41mm thick and tall heights up to 3000mm are possible depending on the site exposure
  • Two-part (interior/exterior) construction allows a different colour each side to match interior and exterior colour schemes
  • Thermal breaks and polystyrene fill included in the door construction enhance thermal efficiency
  • Authentic and hard wearing wood grain appearance available, as well as powder coat and anodised finishes



Categories / Ranges
Entrance Doors Vantage Residential
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
  • Available in defined maximum sizes
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2005
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2019
Manufacturer Contact List
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WGANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

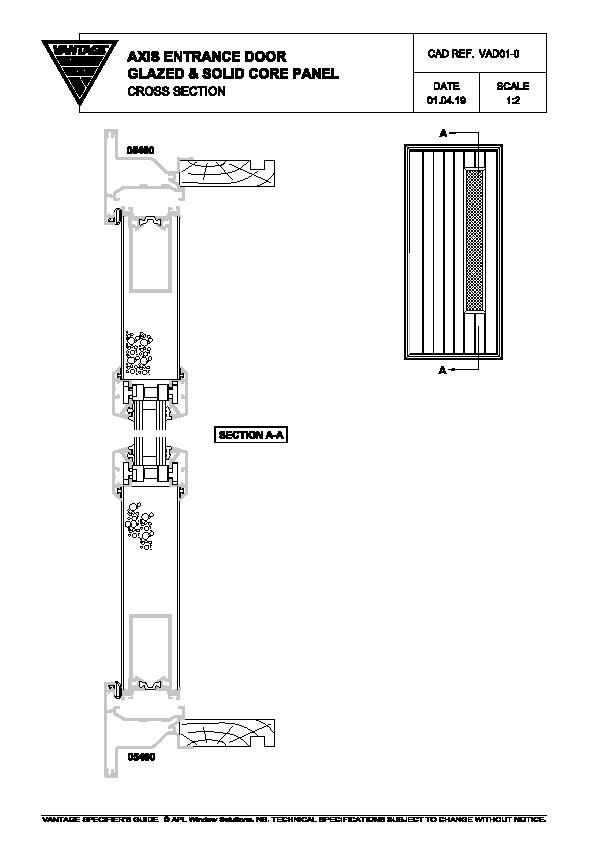

Vantage Residential Axis Entrance Door Glazed and Solid Core Panel

VAD01-0

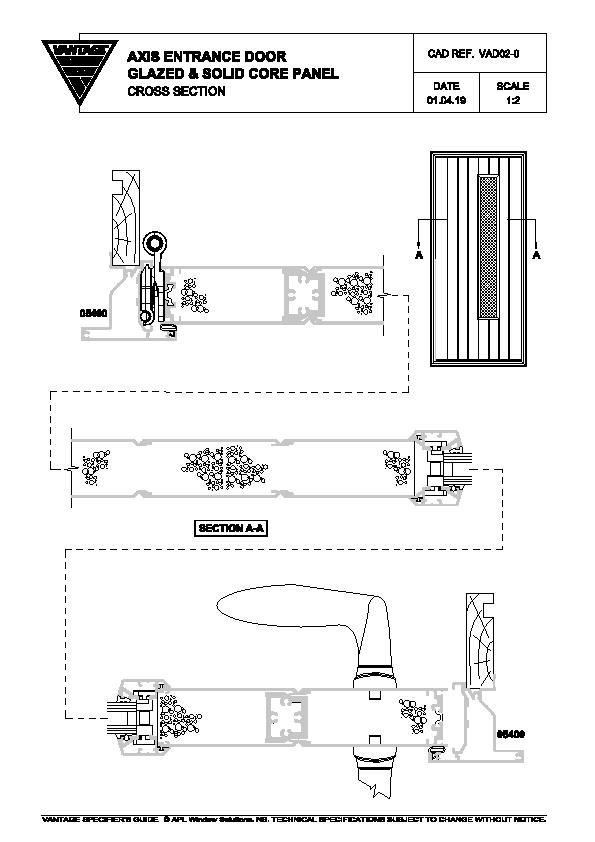

Vantage Residential Axis Entrance Door Glazed and Solid Core Panel

VAD02-0

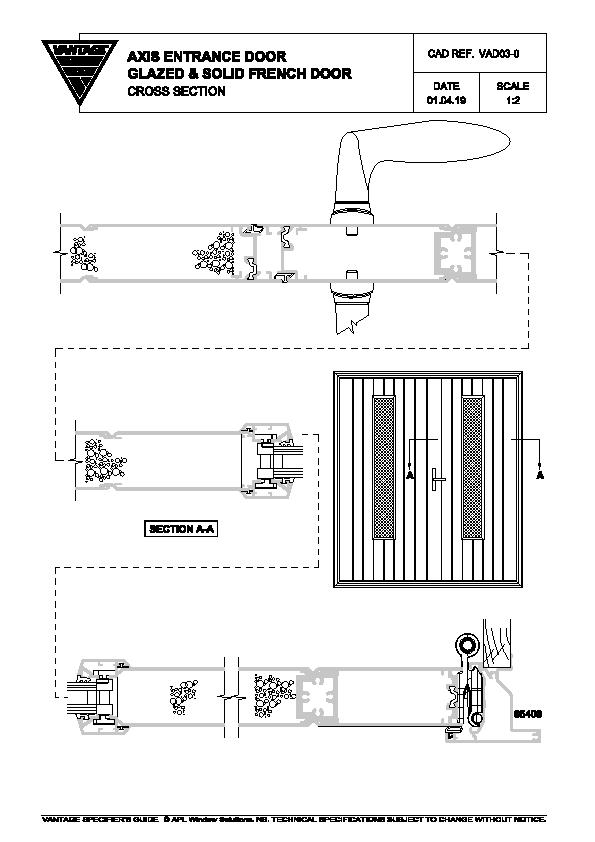

Vantage Residential Axis Entrance Door Glazed and Solid French Door

VAD03-0

Vantage Windows & Doors supplies modern aluminium profiles as one of the national brands of APL Window Solutions, New Zealand’s largest window systems company.
