Commercial 125mm, 150mm, 168mm, 175mm, and 200mm Structural Glaze Systems
VANTAGE Windows & Doors
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

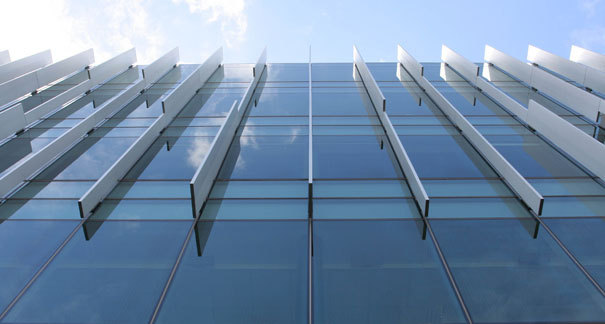

Structural Glaze Fanshawe 5190

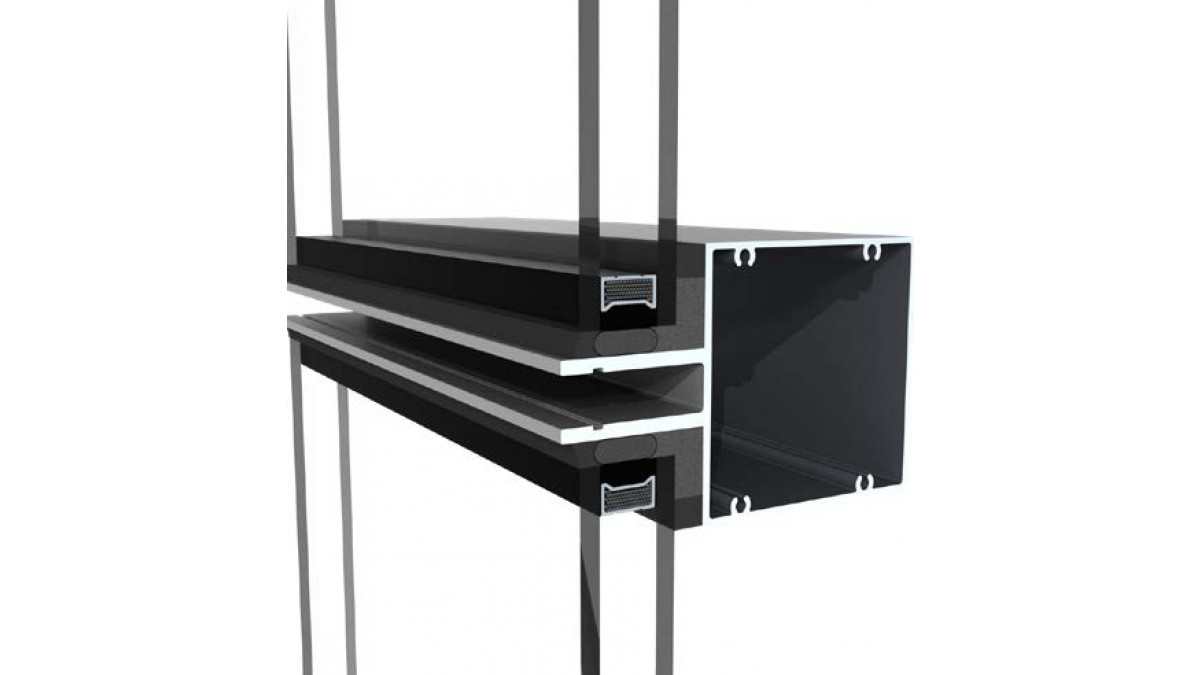

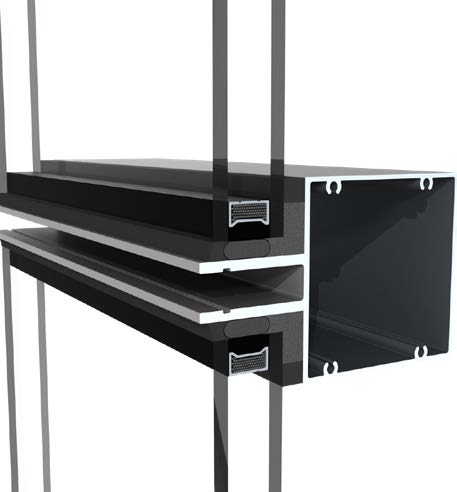

125mm structural glaze transom

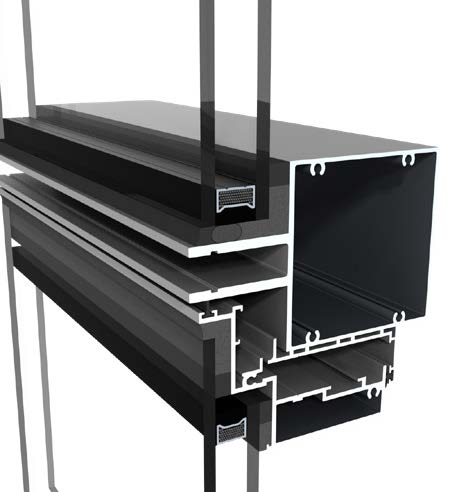

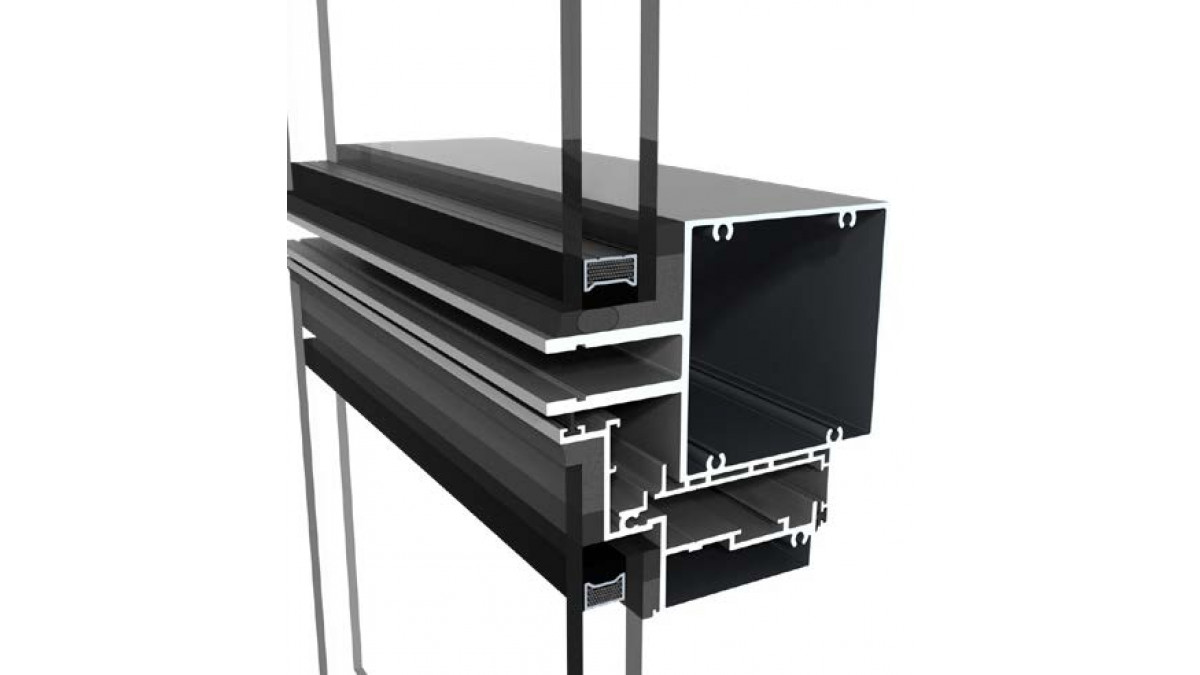

125mm transom and opening sash below

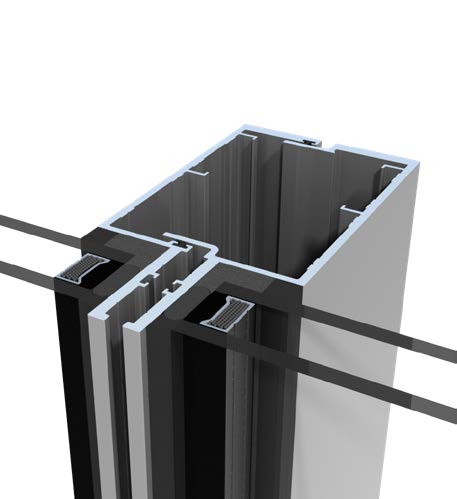

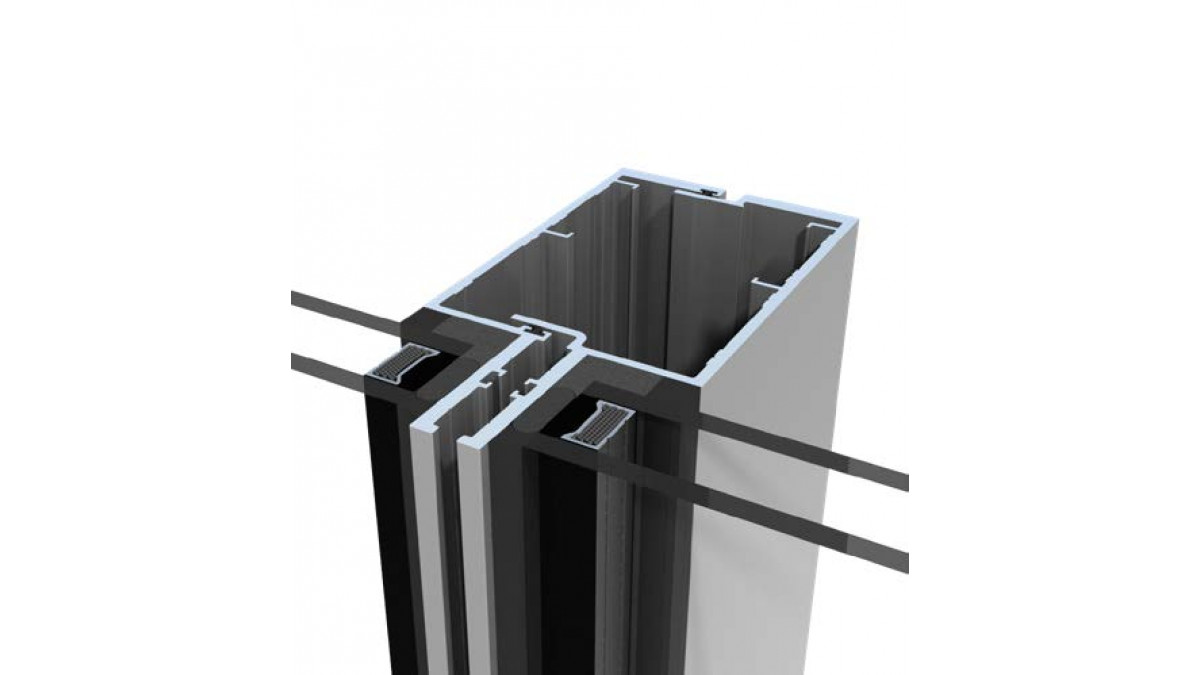

150mm structural glaze mullion

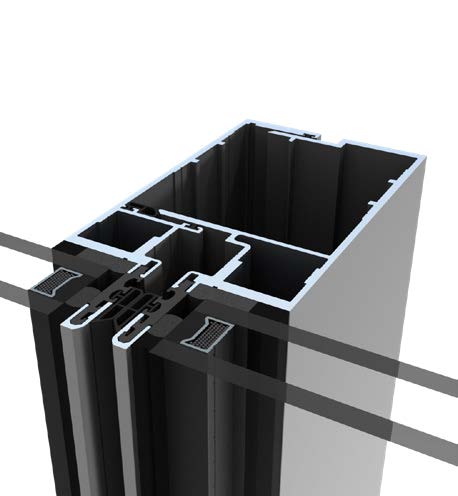

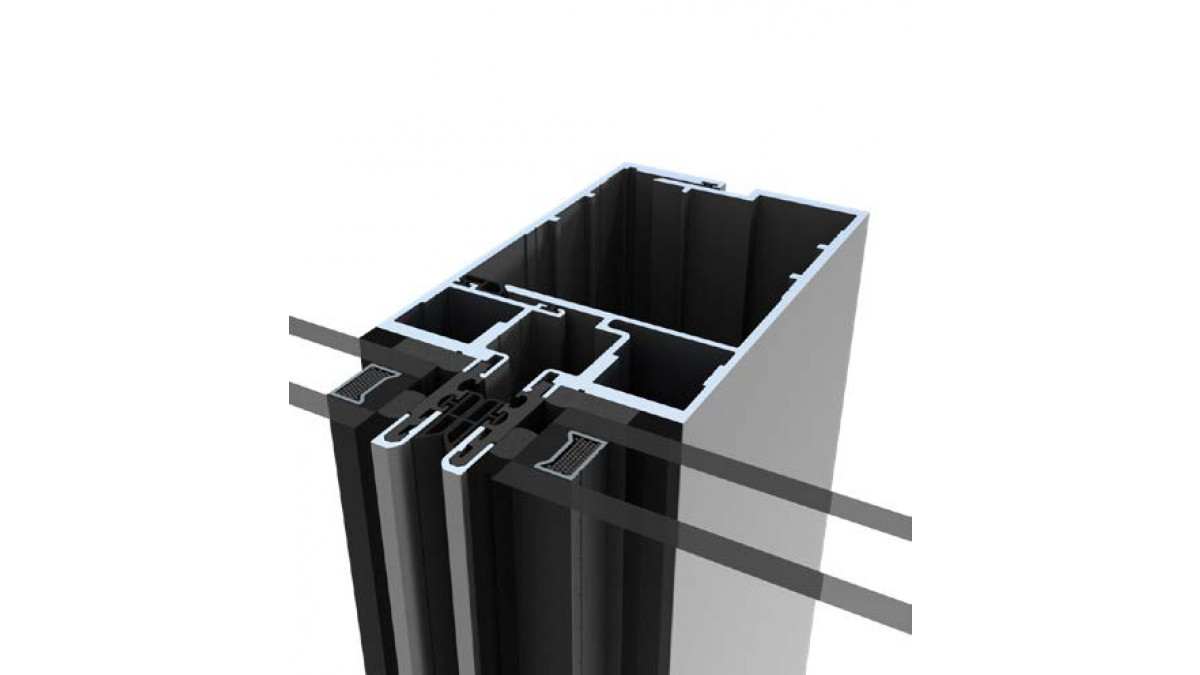

168mm thermally shielded mullion
Description

A four-sided structural glazed, fully panellised system for low to high rise applications. Glass is adhered to the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside.

Opening sashes can be incorporated in the façade without interrupting the 'glass look'. Sun control fins can be added to the outside of transoms and provide a strong horizontal decorative element.

Key Features
  • For low to high rise applications
  • Five systems with different levels of performance available
  • A four-sided structural glazed, fully panellised system
  • Glazing is on the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside
  • The 168mm system has a thermally broken and shielded option available. The 200mm system has a thermally shielded option
  • Unobtrusive opening sashes for natural ventilation
  • Single and double glazing options, including within the same façade with retention of the glass plane
  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system
Categories
Commercial Windows and Shopfronts
Ranges
Commercial Series
Scope of Use
  • For low to high rise applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure
  • Where thermal efficiency is a high priority, the 168mm thermally shielded system is recommended
  • Shop drawings can be supplied when specified
  • Compatible with Magnum commercial doors
Limitations on Use
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001 with later iterations introduced
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Data Sheet
pdf
Span Tables: 125, 150mm
pdf
Span Tables: 168mm
pdf
Environmental Product Declaration (EPD) Report

2023

URL
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Brochure
URL
AGP State of the Art Glass Brochure
URL
Vantage Brochure
URL
AGP Condensation Guide
pdf
APL and Sustainability

2023

URL
EPD: Understanding the global standard
pdf
CAD/PDF Details
View full
VCSG01 0
Full Set of Drawings: Structural Glazed System
pdf
VCSTG01 0
Full Set of Drawings: Thermal Curtain Wall
pdf
VCSG01 0

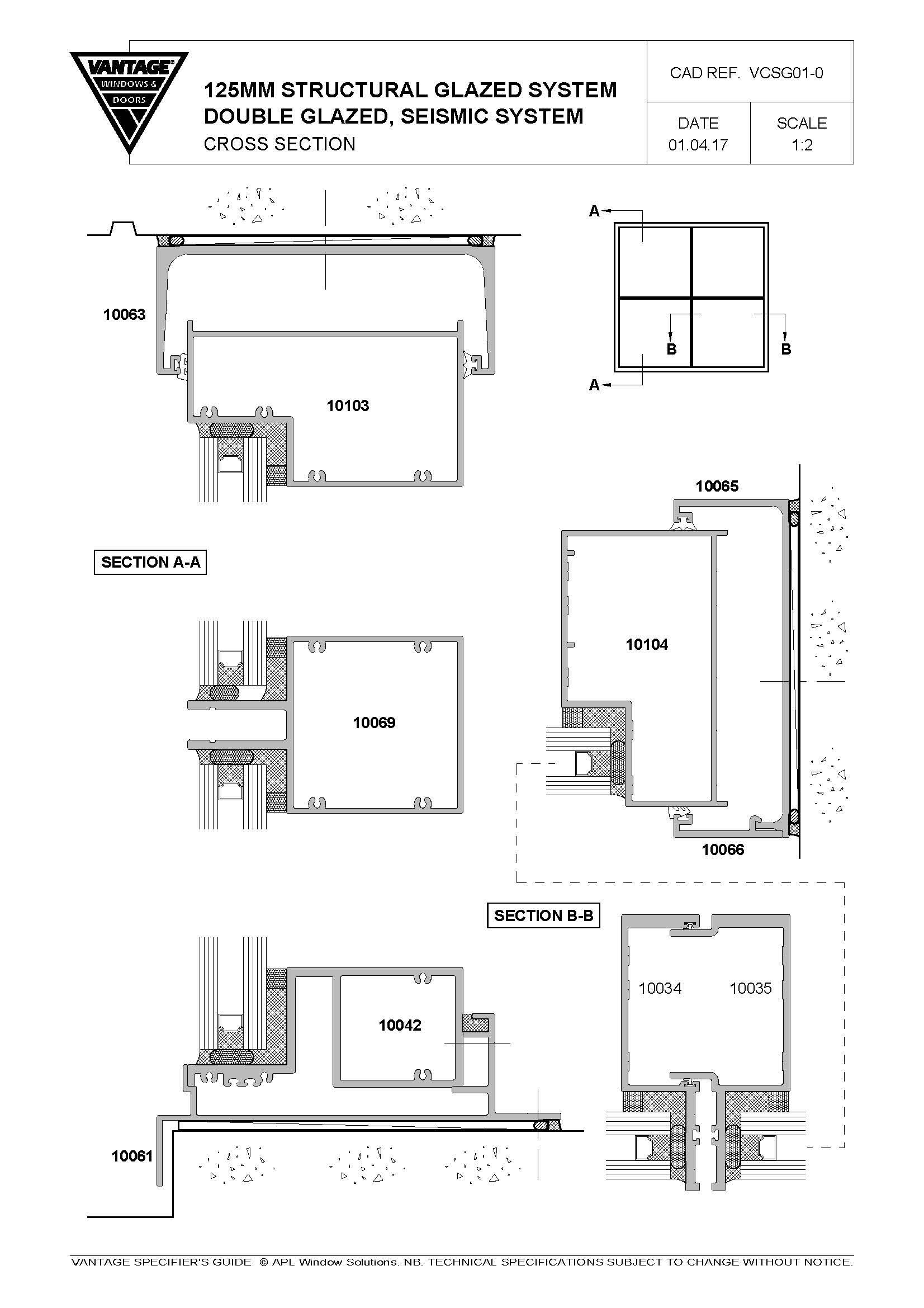

Vantage Commercial 125mm Structural Glaze, Double Glazed Seismic System

VCSG01-0

dwf
dwg
dxf
pdf
VCSG02 0

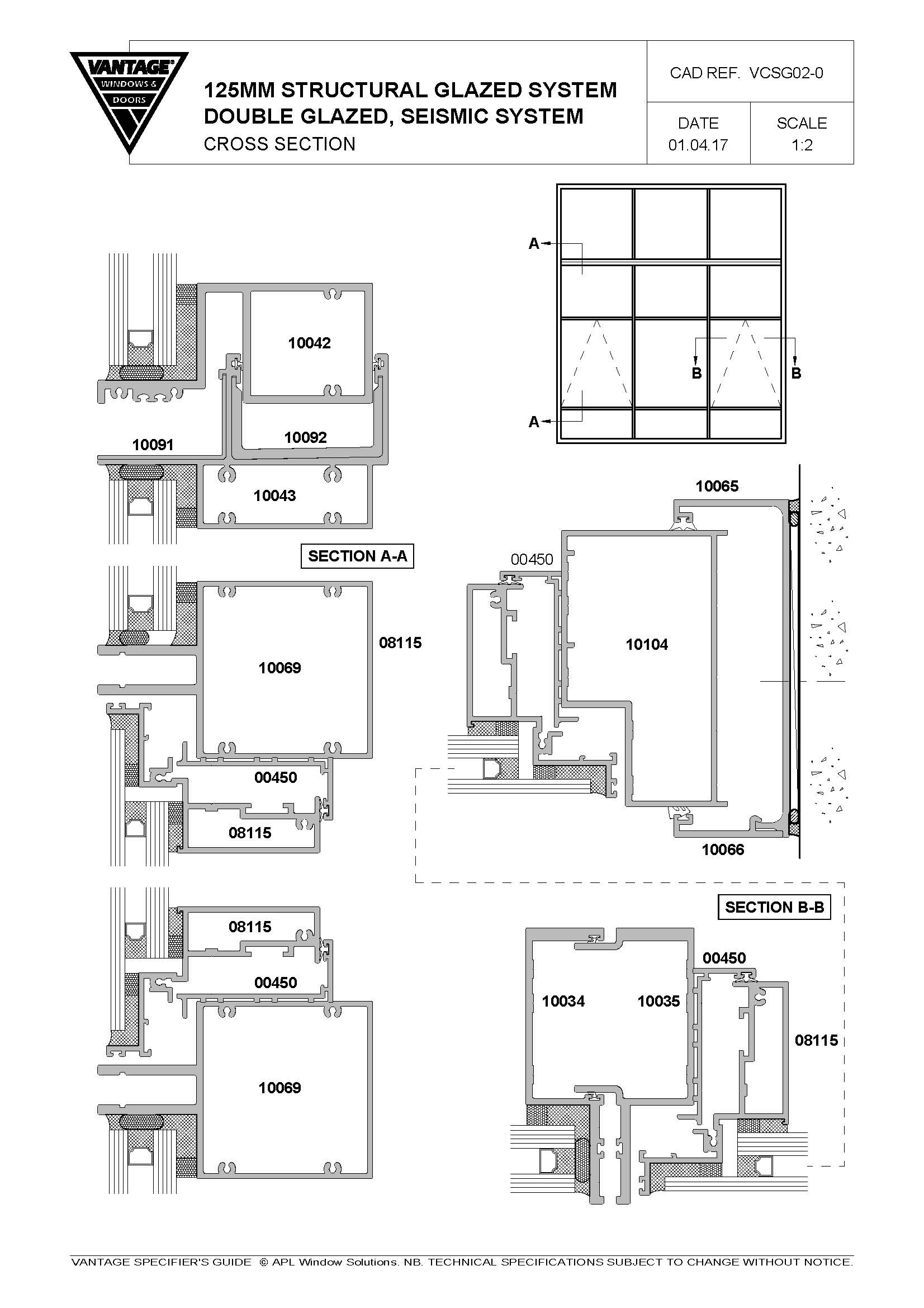

Vantage Commercial 125mm Structural Glazed, Double Glazed Sash

VCSG02-0

dwf
dwg
dxf
pdf
VCSG03 0

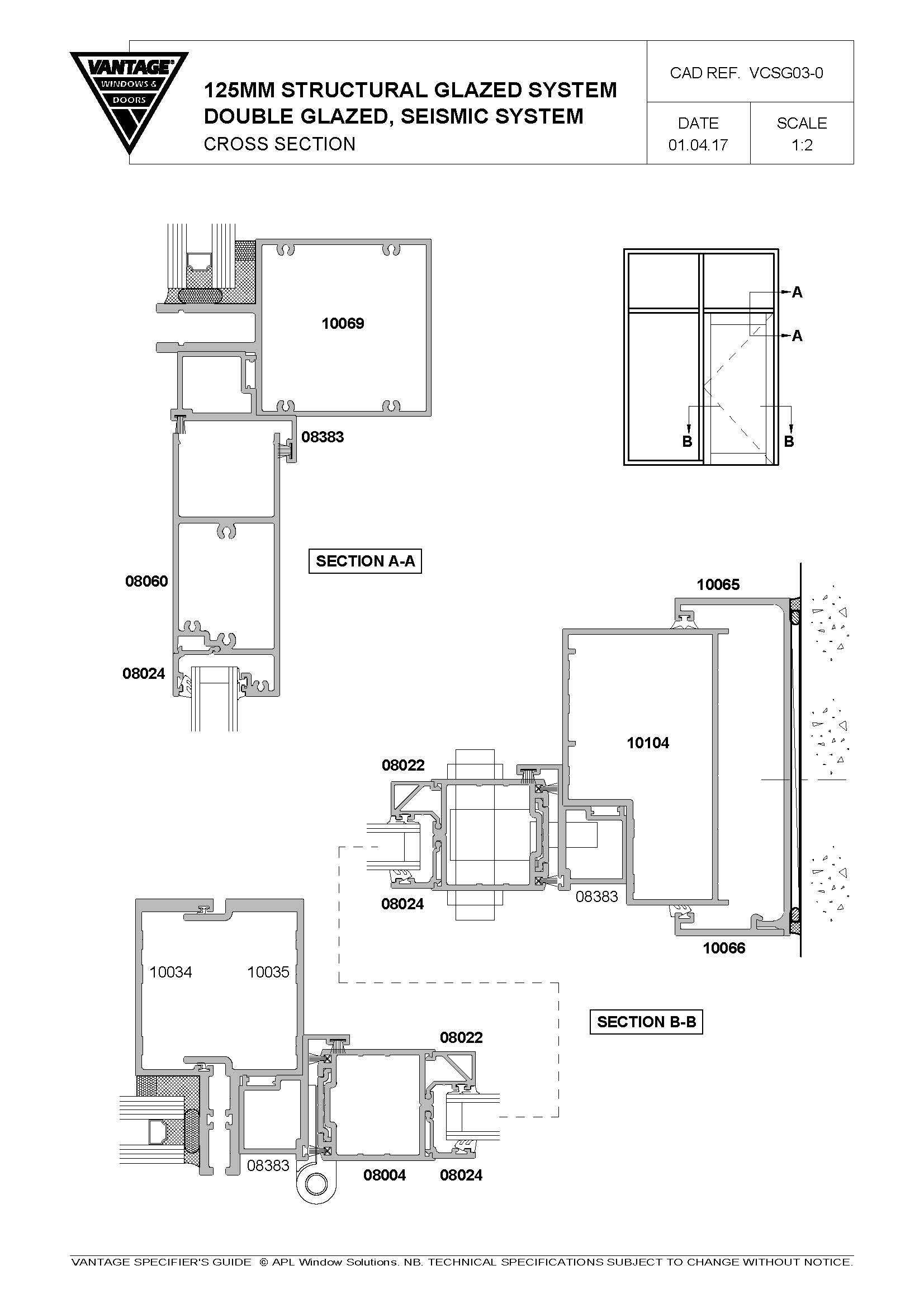

Vantage Commercial 125mm Structural Glazed, Double Glazed Door Adaptor

VCSG03-0

dwf
dwg
dxf
pdf

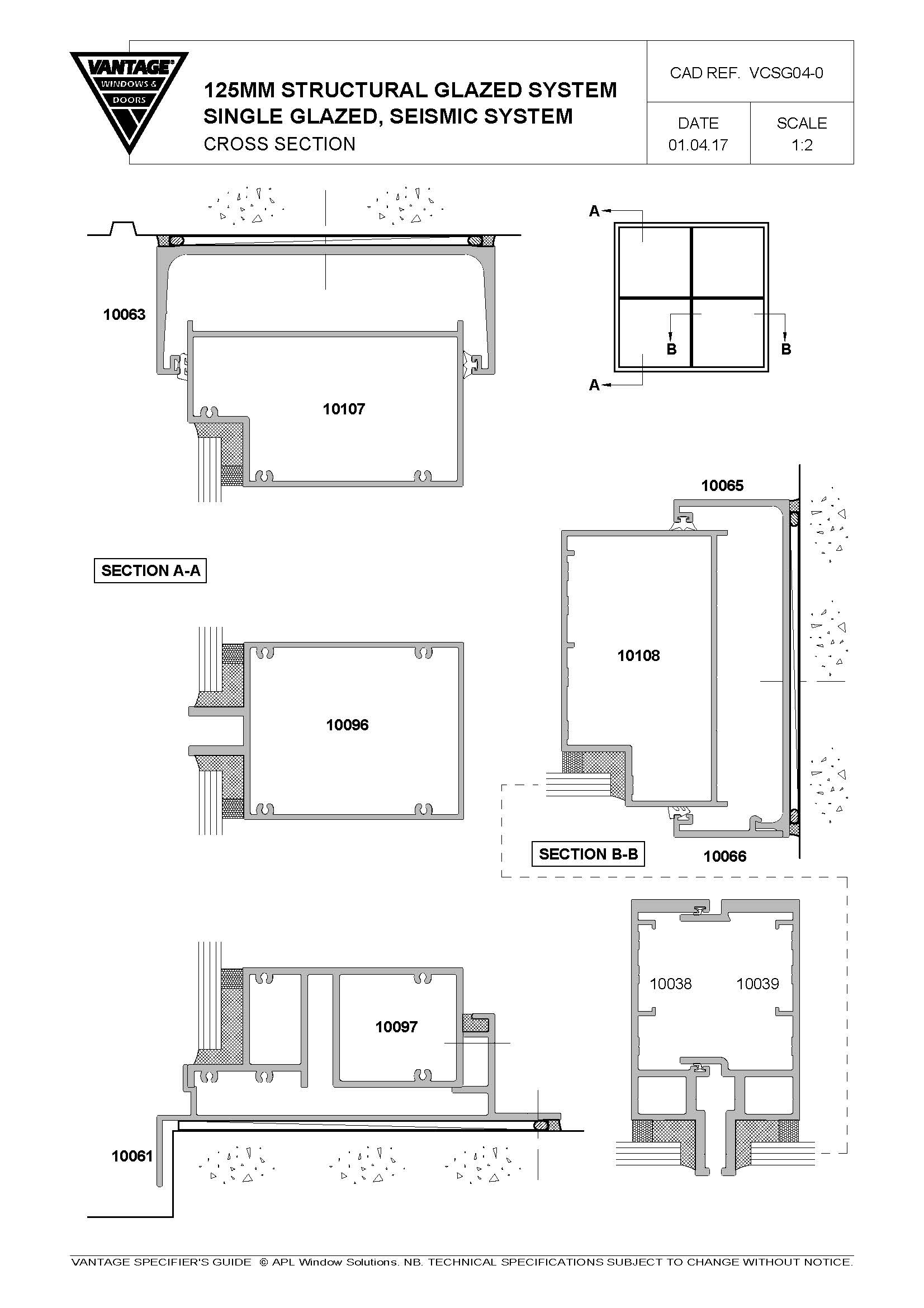

VCSG04 0
Vantage Commercial 125mm Structural Glazed, Single Glazed Seismic System

VCSG04-0

dwf
dwg
dxf
pdf

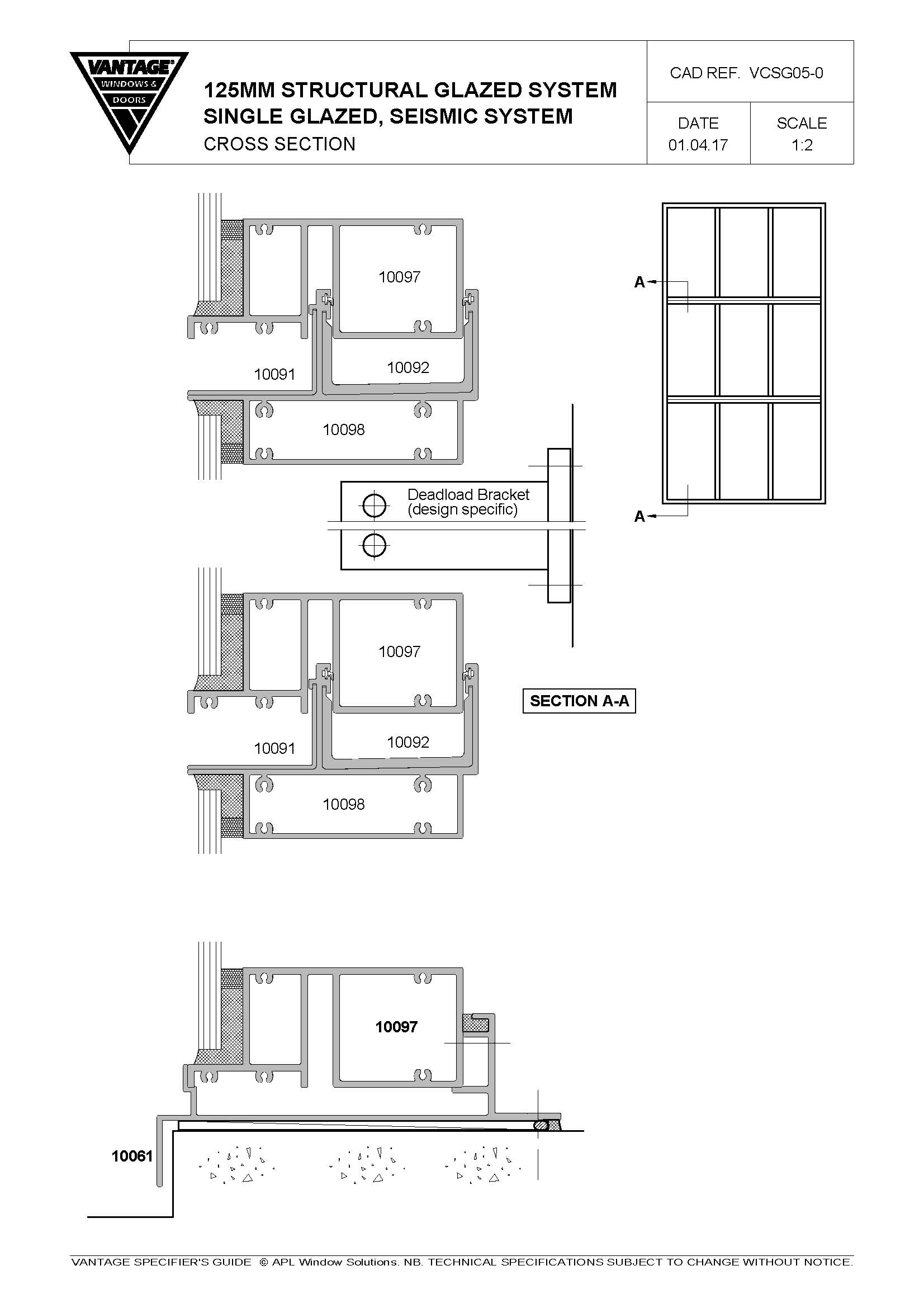

VCSG05 0
Vantage Commercial 125mm Structural Glazed, Single Glazed Split Transom

VCSG05-0

dwf
dwg
dxf
pdf
VCSG06 0
Vantage Commercial 125mm Structural Glazed, Door Adaptor

VCSG06-0

dwf
dwg
dxf
pdf
VCSG07 0

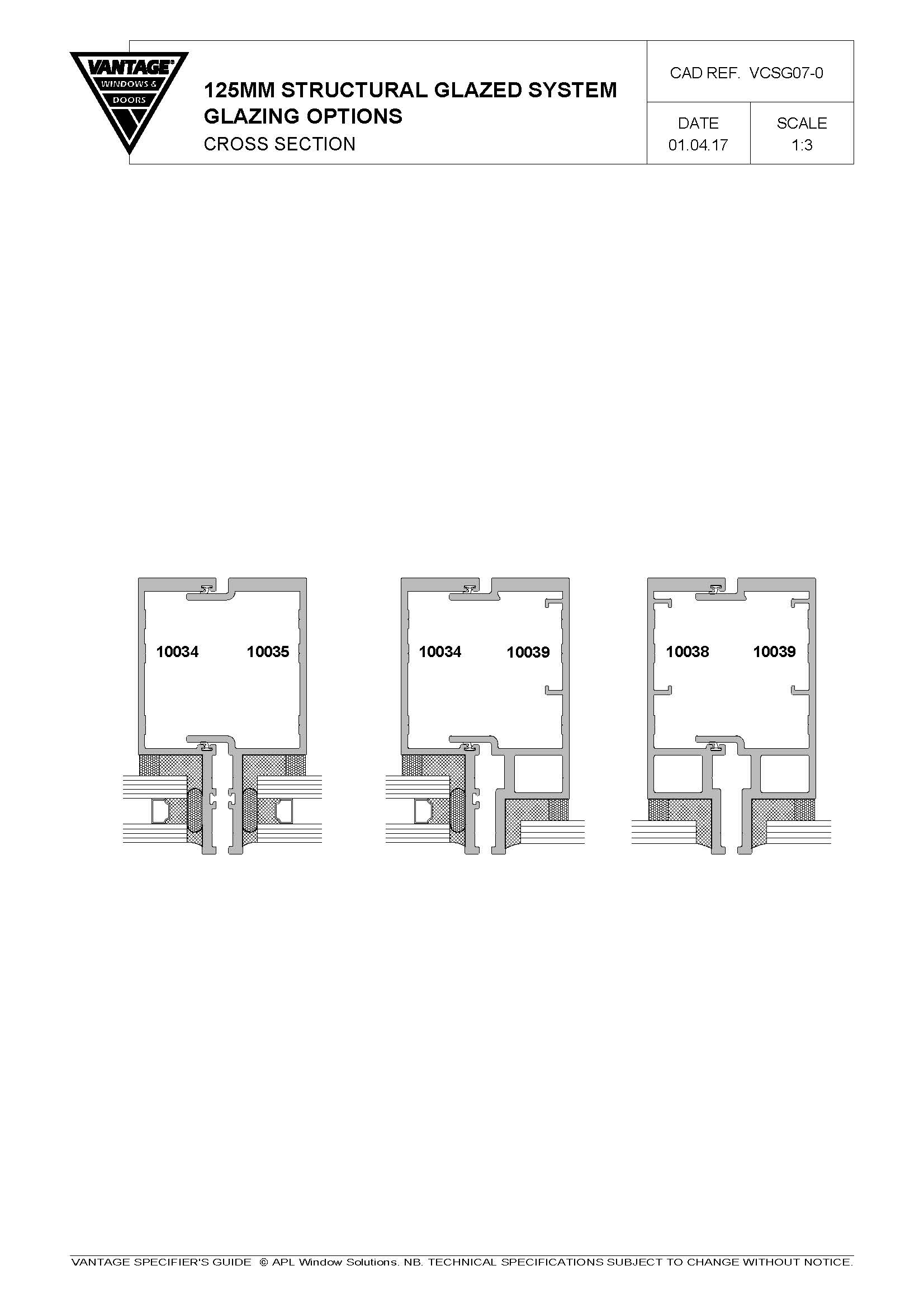

Vantage Commercial 125mm Structural Gglaze, Glazing Options

VCSG07-0

dwf
dwg
dxf
pdf
VCSG08 0

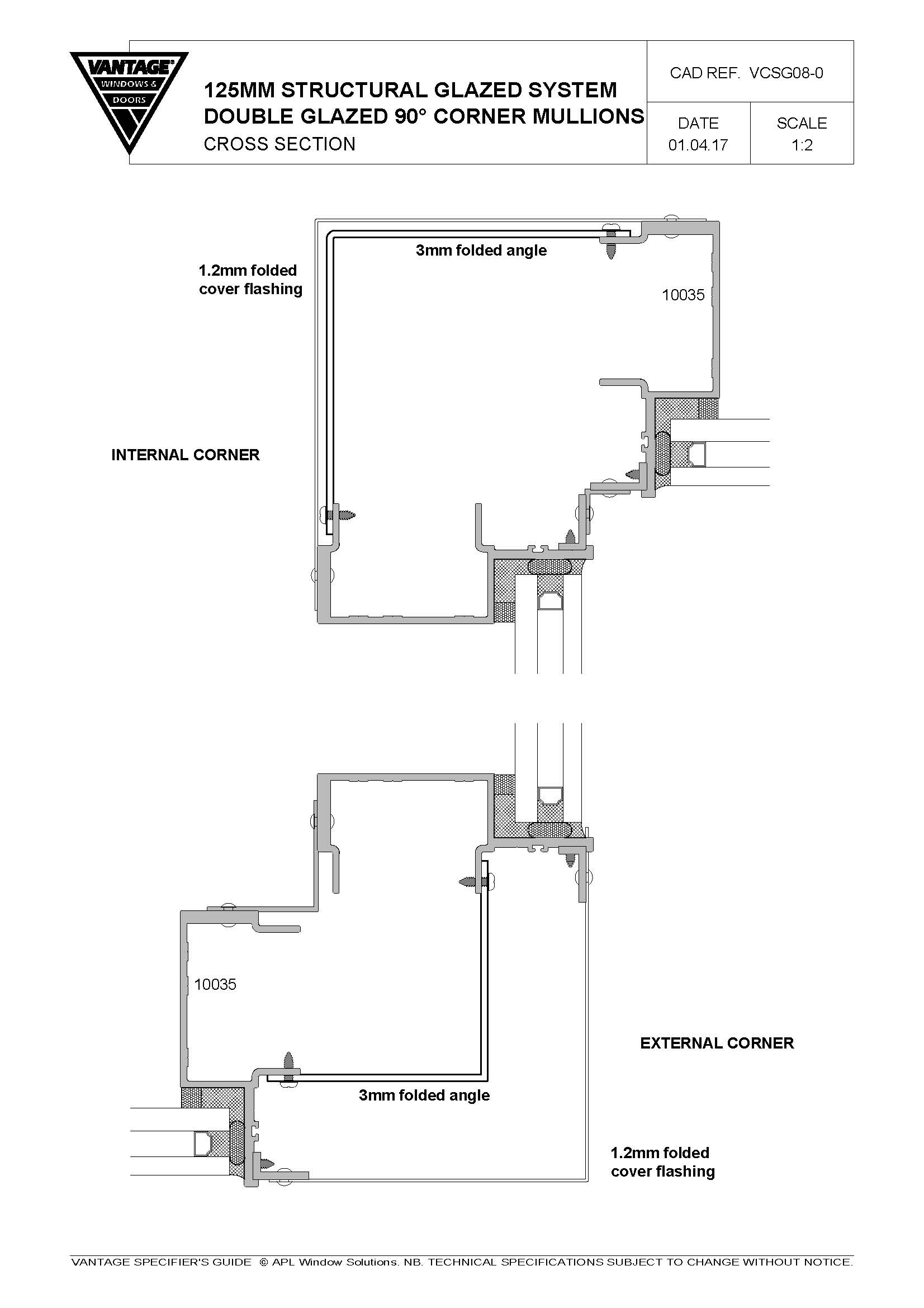

Vantage Commercial 125mm Structural Glazed, Corner Mullions

VCSG08-0

dwf
dwg
dxf
pdf

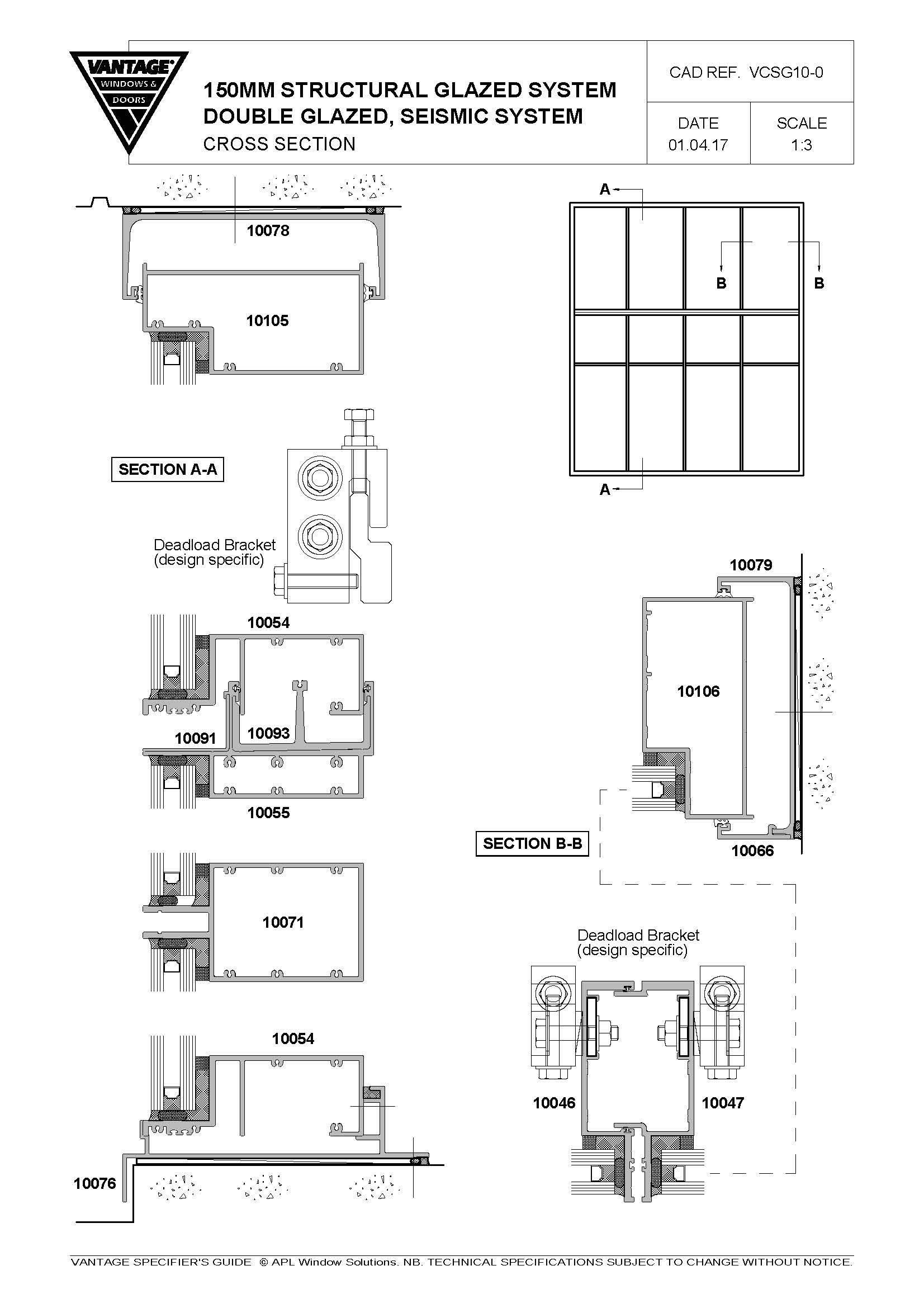

VCSG10 0
Vantage Commercial 150mm Structural Glazed, Seismic System

VCSG10-0

dwf
dwg
dxf
pdf

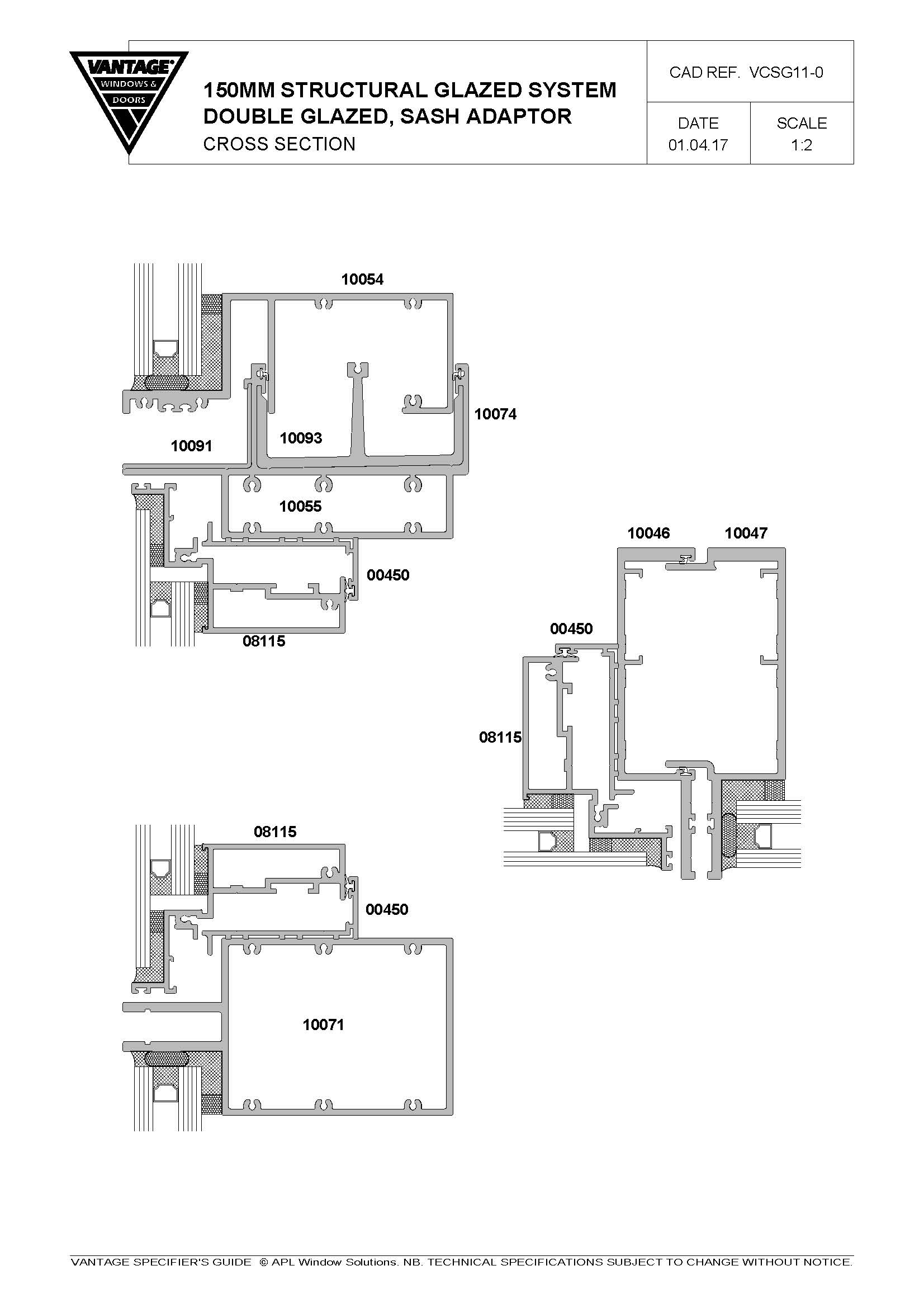

VCSG11 0
Vantage Commercial 150mm Structural Glazed, Double Glazed Sash

VCSG11-0

dwf
dwg
dxf
pdf

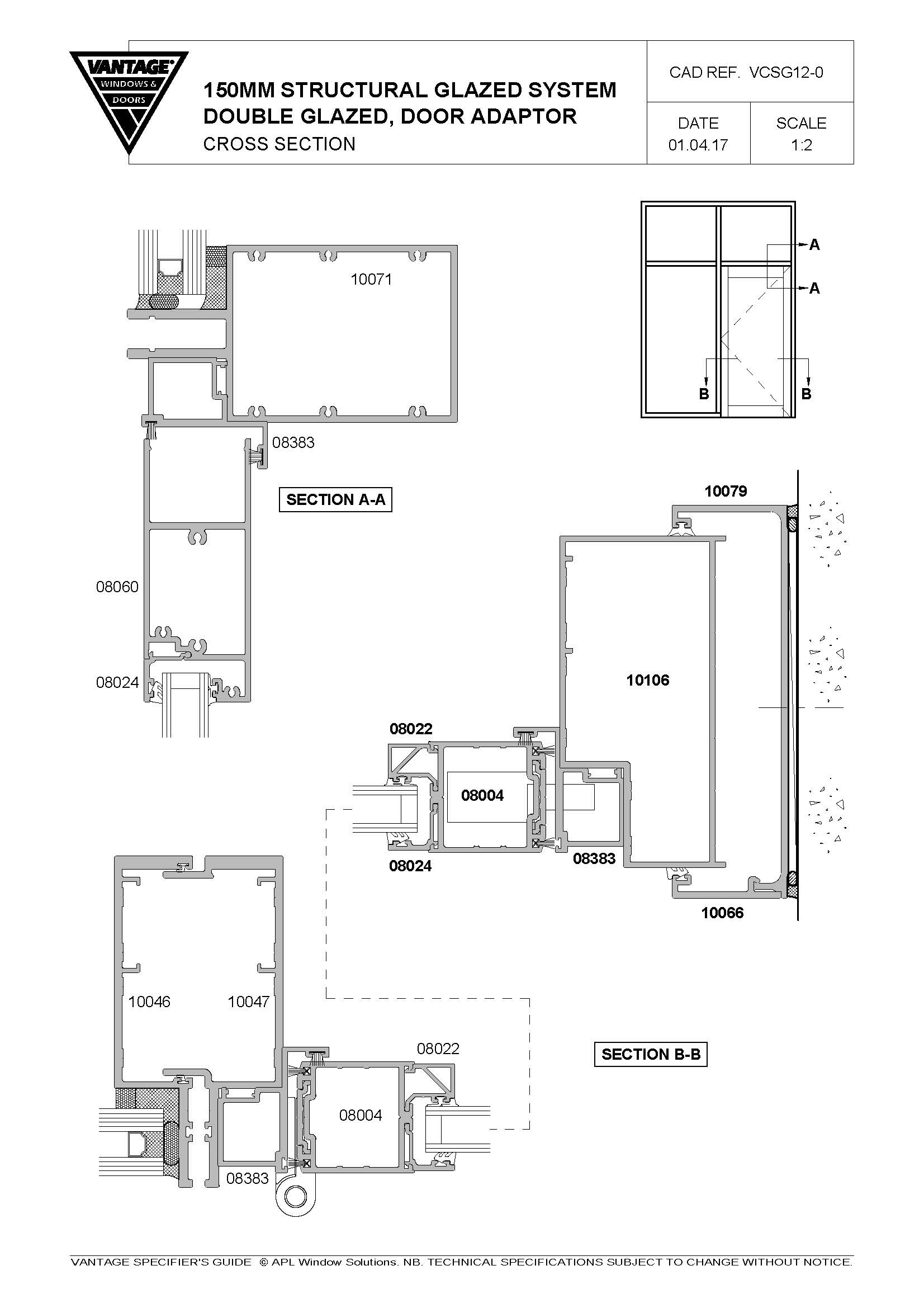

VCSG12 0
Vantage Commercial 150mm Structural Glazed, Door Adaptor

VCSG12-0

dwf
dwg
dxf
pdf
VCSG13 0

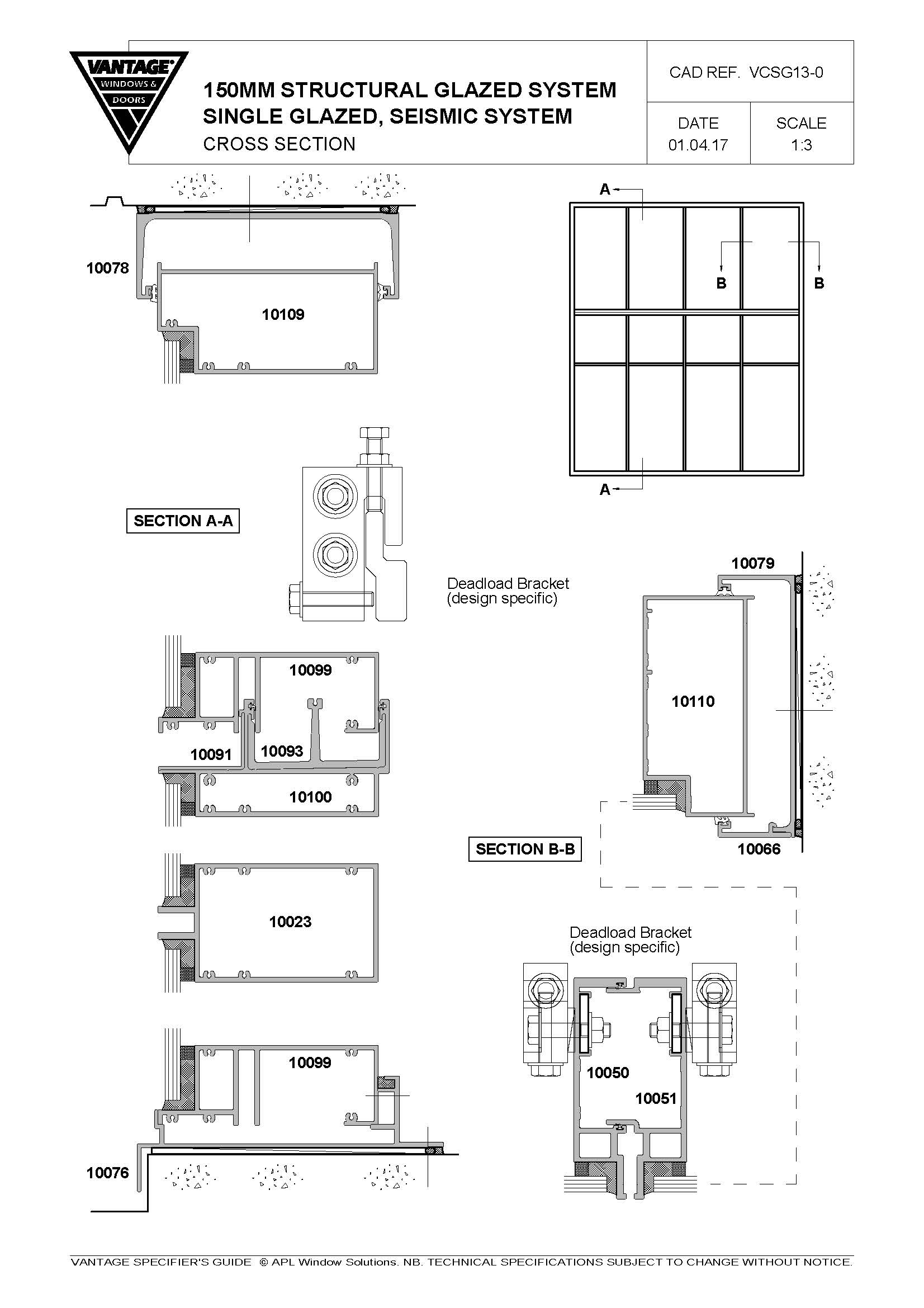

Vantage Commercial 150mm Structural Glazed, Single Glazed Seismic System

VCSG13-0

dwf
dwg
dxf
pdf

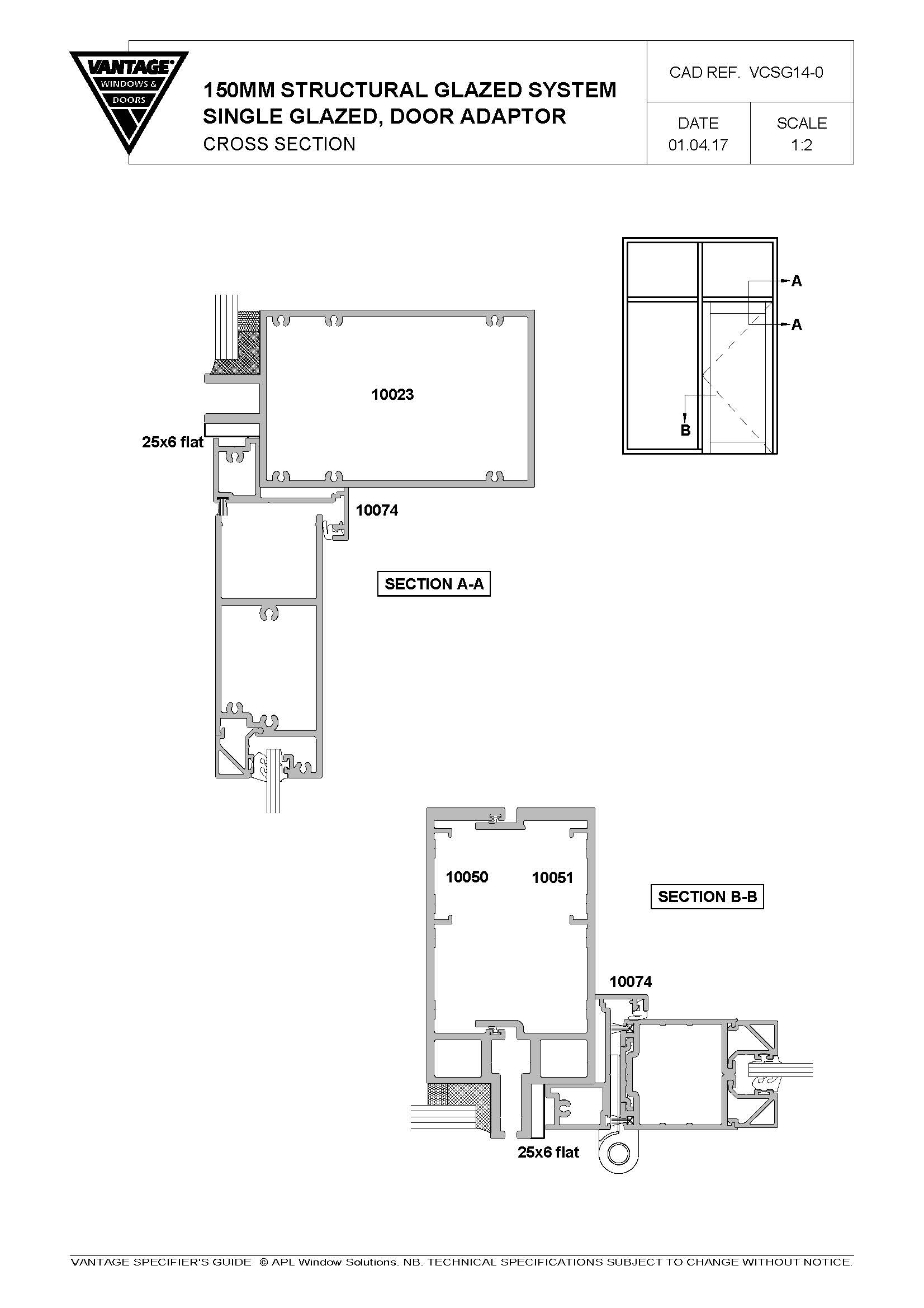

VCSG14 0
Vantage Commercial 150mm Structural Glazed, Single Glazed Door Adaptor

VCSG14-0

dwf
dwg
dxf
pdf
VCSG15 0

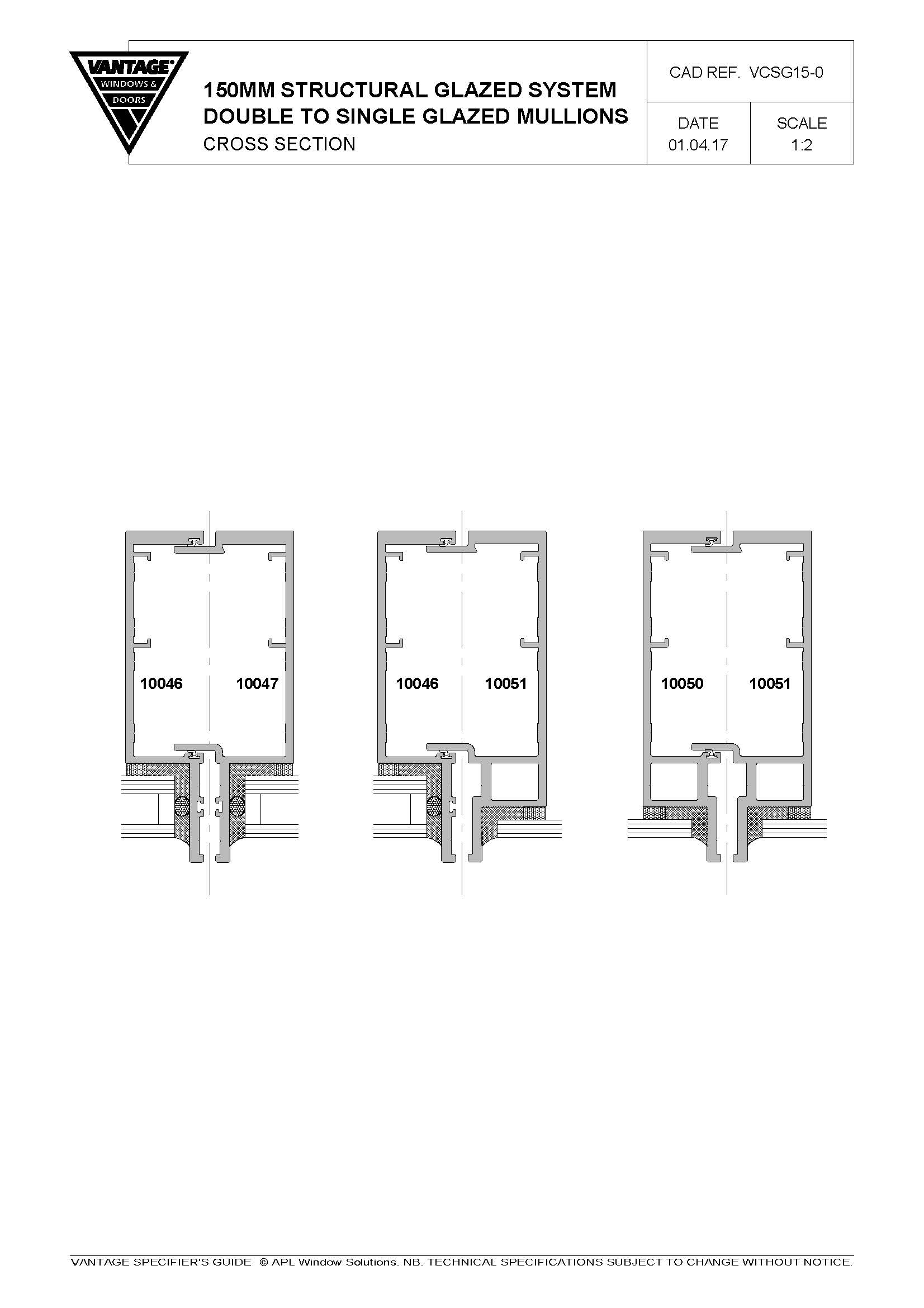

Vantage Commercial 150mm Structural Glazed, Glazing Options

VCSG15-0

dwf
dwg
dxf
pdf

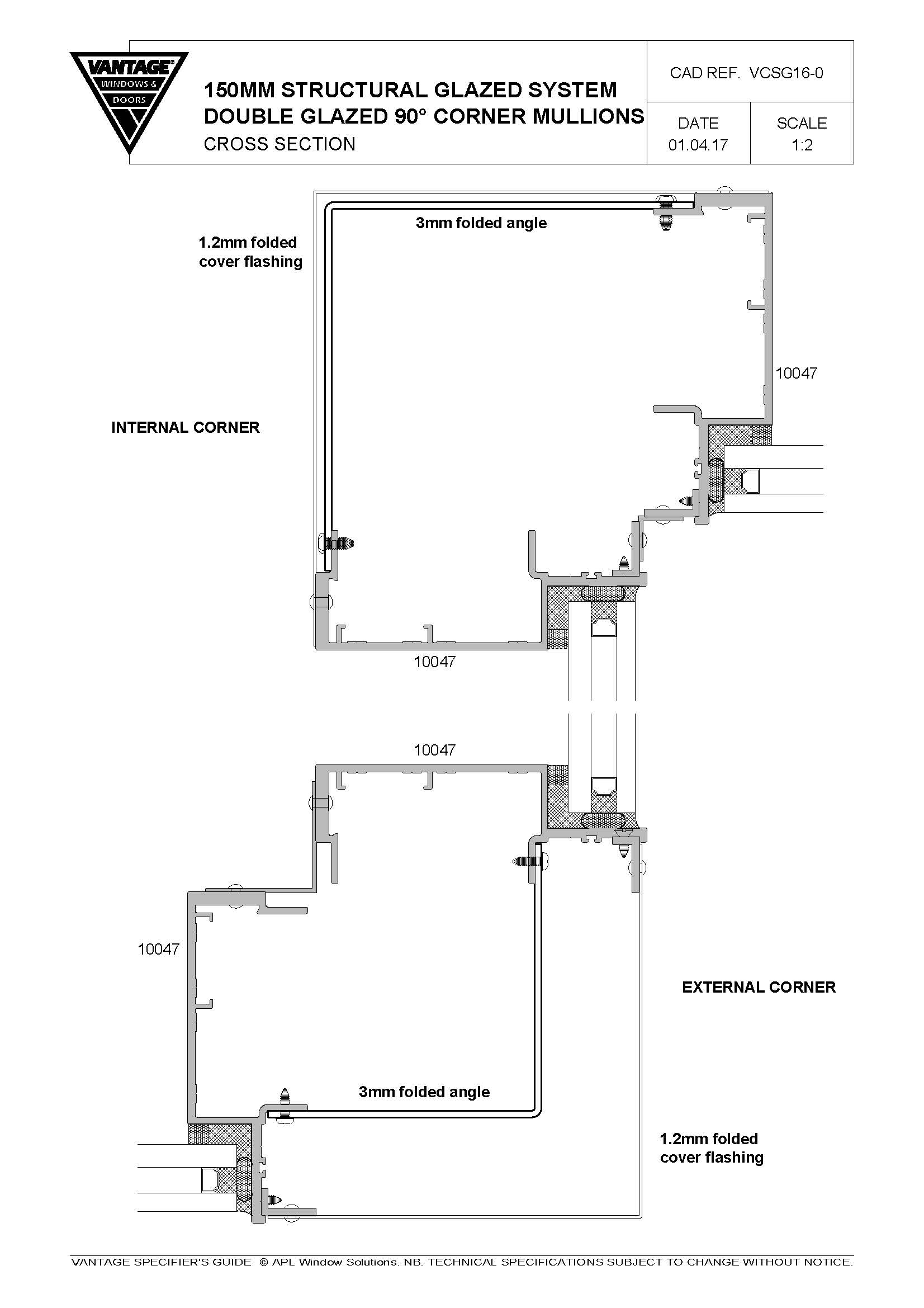

VCSG16 0
Vantage Commercial 150mm Structural Glazed, Corner Mullion

VCSG16-0

dwf
dwg
dxf
pdf
VCSTG01 0

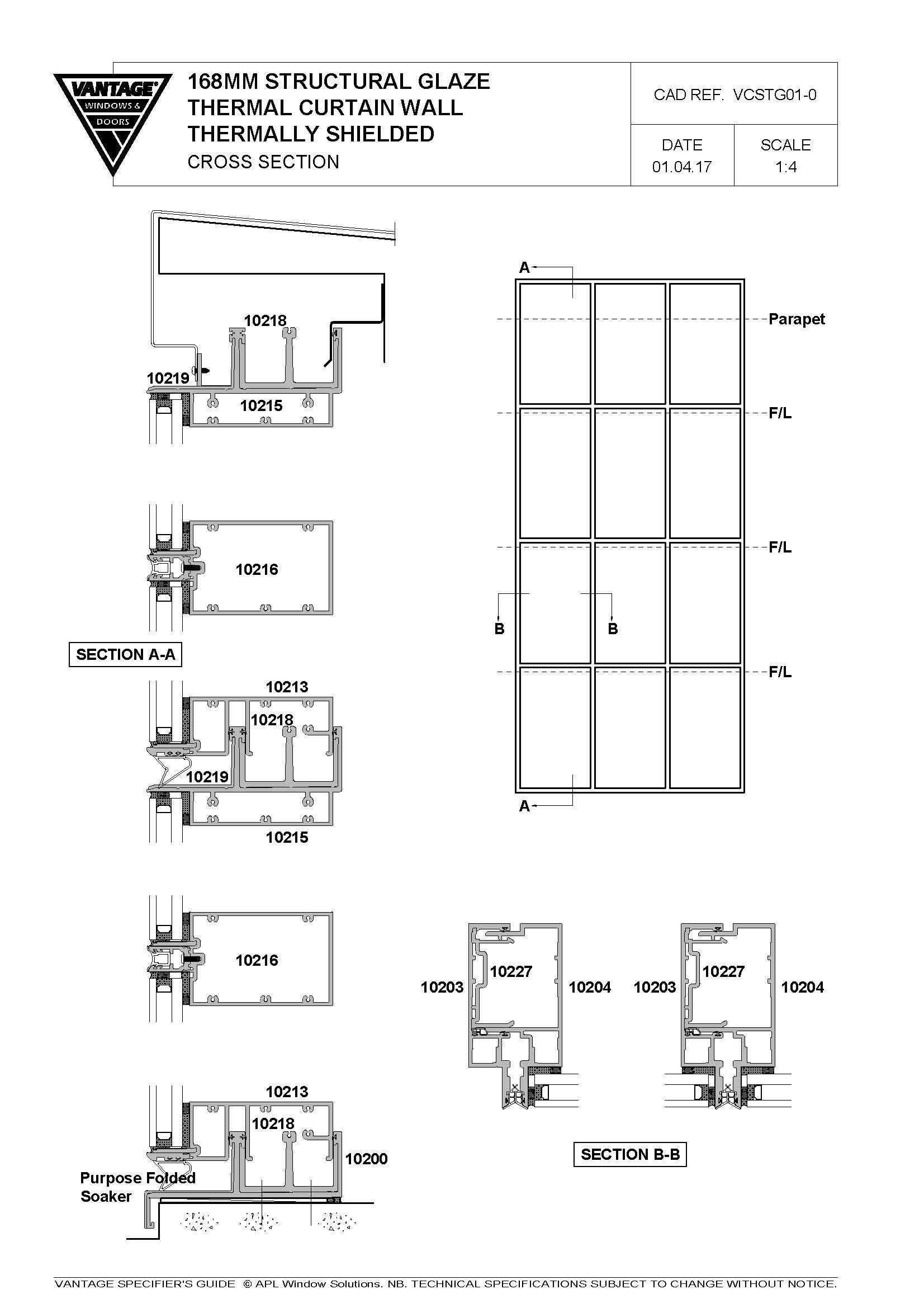

Vantage Commercial 168mm Thermal Curtain Wall Thermally Shielded

VCSTG01

dwf
dwg
dxf
pdf
VCSTG02 0

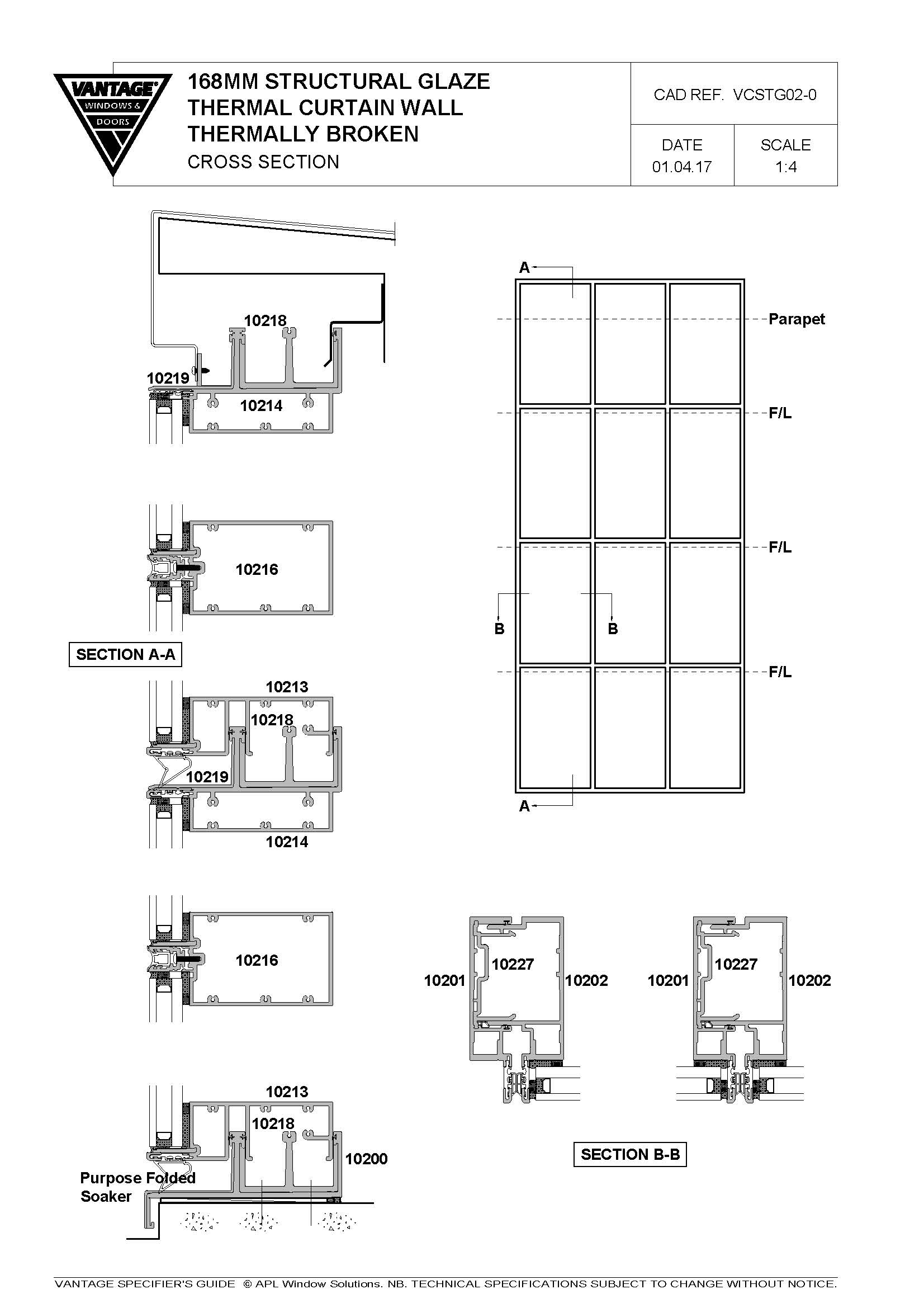

Vantage Commercial 168mm Thermal Curtain Wall Thermally Broken

VCSTG02

dwf
dwg
dxf
pdf
BIM
View full

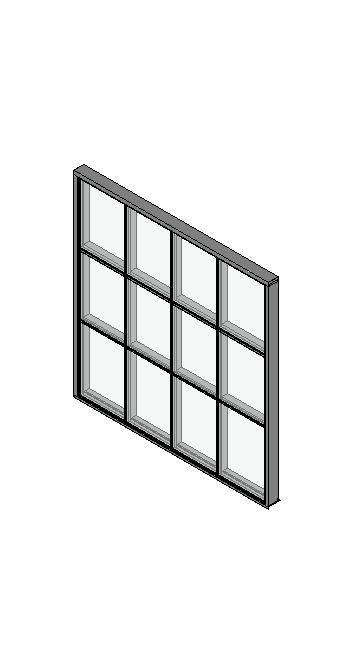

fixed system
Vantage Commercial 125mm Structural Glaze System (Curtain Wall)
rfa
rfa
rvt
EXT corn
Vantage Commercial 125mm Structural Glaze System, External Corner (Curtain Wall)
rfa
rvt

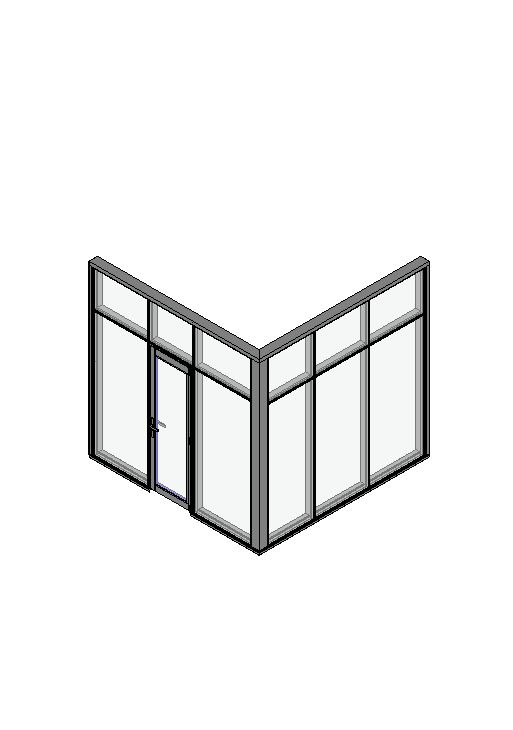

EXT corn with hinged
Vantage Commercial 125mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)
rvt
hinged door
Vantage Commercial 125mm Structural Glaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt

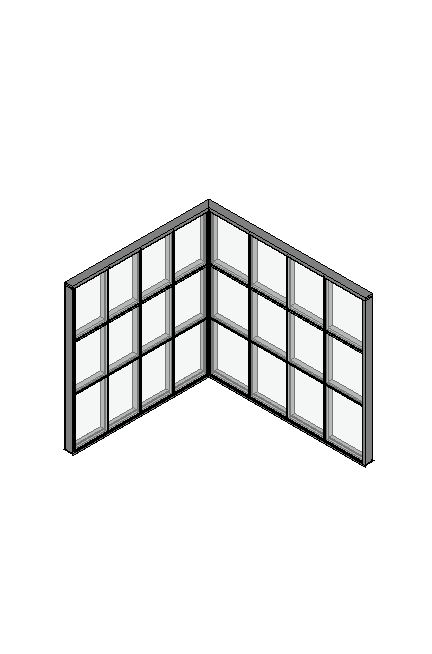

INT corn
Vantage Commercial 125mm Structural Glaze System, Internal Corner (Curtain Wall)
rfa
rvt

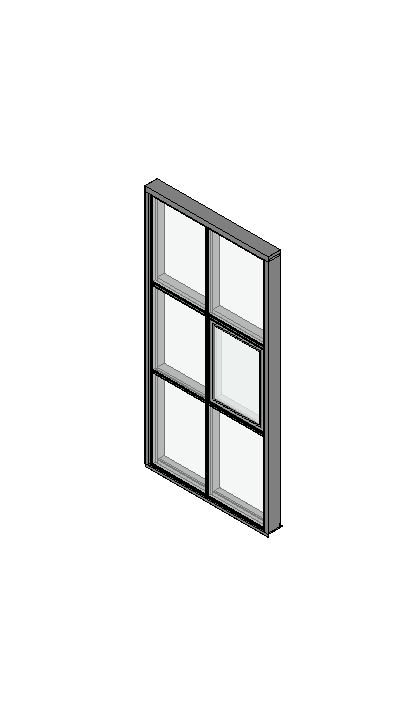

awning
Vantage Commercial 125mm Structural Glazed System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rvt
french door

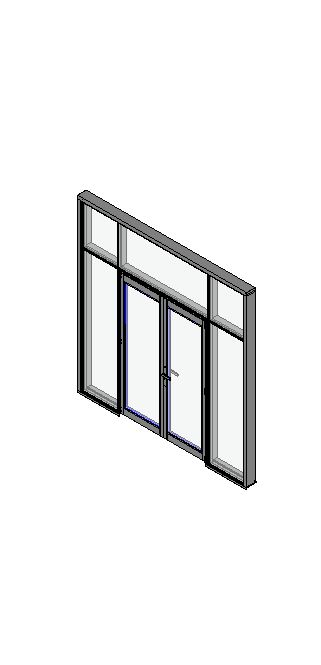

Vantage Commercial 125mm Structural Glazed System, French Door (Curtain Wall)
rfa
rfa
rvt
INT corn with French
Vantage Commercial 125mm Structural System, Internal Corner With French Door (Curtain Wall)
rvt
fixed system
Vantage Commercial 150mm Structural Glaze System (Curtain Wall)
rfa
rfa
rvt
EXT corn

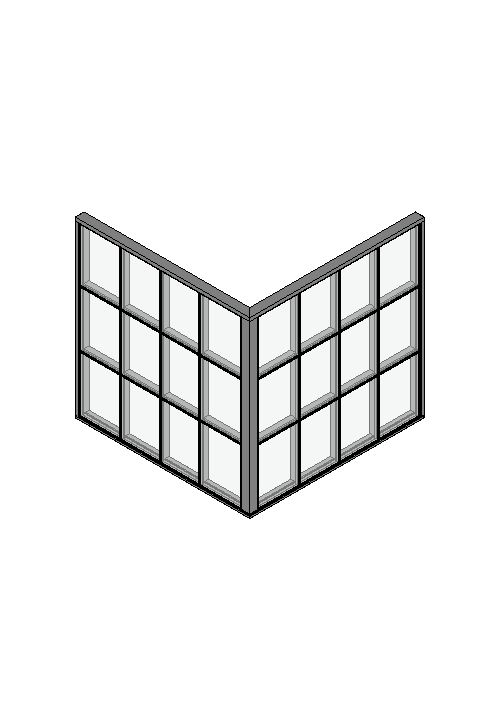

Vantage Commercial 150mm Structural Glaze System, External Corner (Curtain Wall)
rfa
rvt
EXT corn with hinged
Vantage Commercial 150mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)
rvt
hinged door
Vantage Commercial 150mm Structural Glaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt
INT corn
Vantage Commercial 150mm Structural Glaze System, Internal Corner (Curtain Wall)
rfa
rvt
awning
Vantage Commercial 150mm Structural Glazed System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rvt
french door
Vantage Commercial 150mm Structural Glazed System, French Door (Curtain Wall)
rfa
rfa
rvt

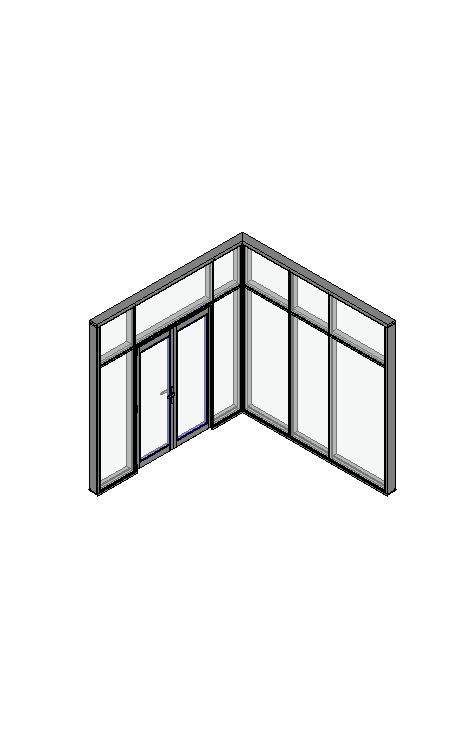

INT corn with French2
Vantage Commercial 150mm Structural System, Internal Corner With French Door (Curtain Wall)
rvt
broken

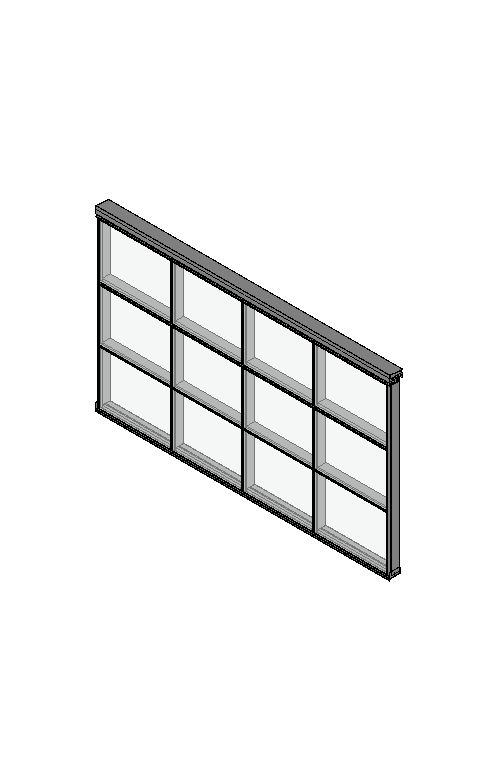

Vantage Commercial 168mm Structural Glaze Thermal, Thermally Broken
zip
zip
shielded

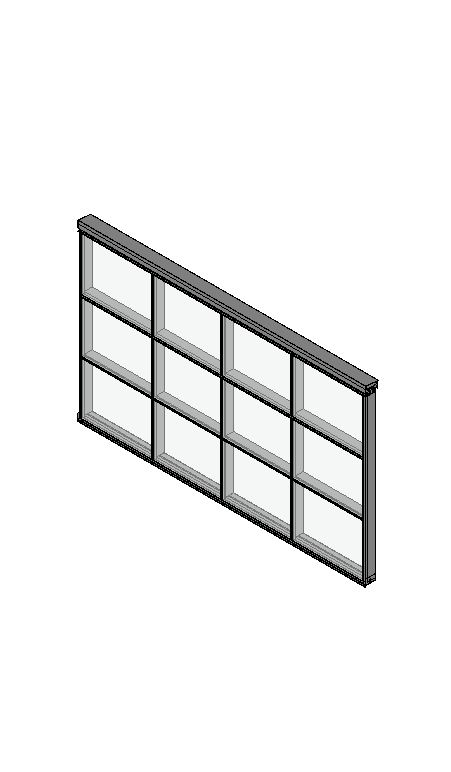

Vantage Commercial 168mm Structural Glaze Thermal, Thermally Shielded
zip
