Vantage Commercial 80mm & 100mm Shopfront
Description

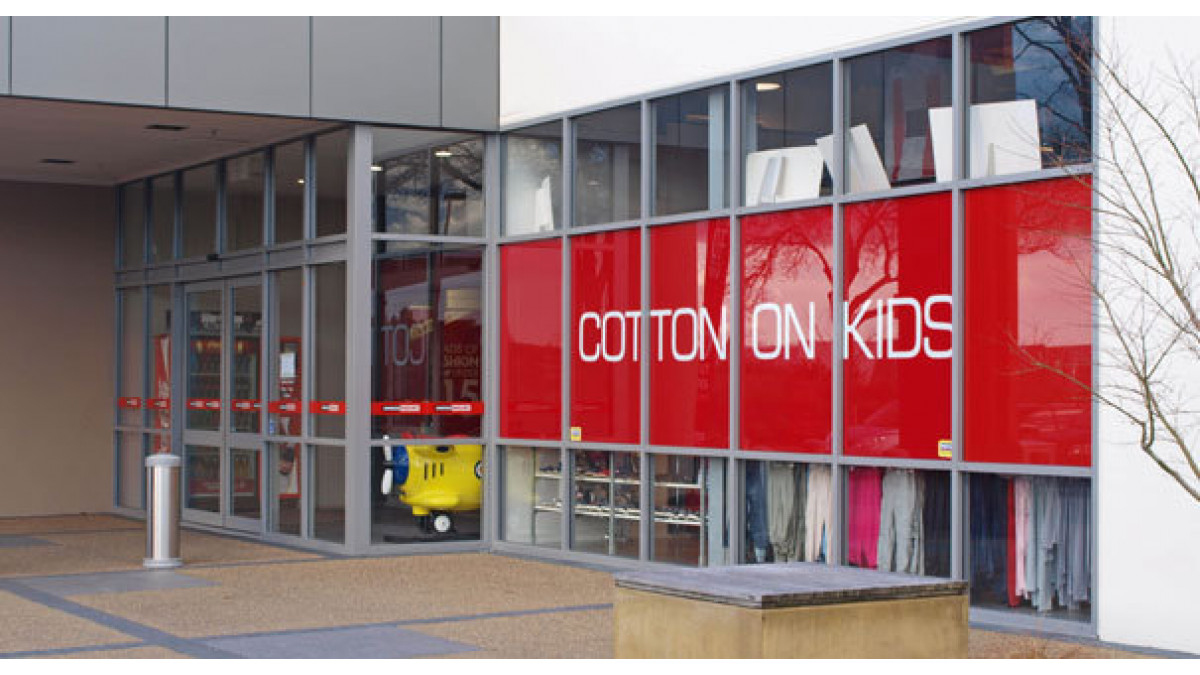

These window systems are designed for shopfront locations, generally at ground level and in protected situations.

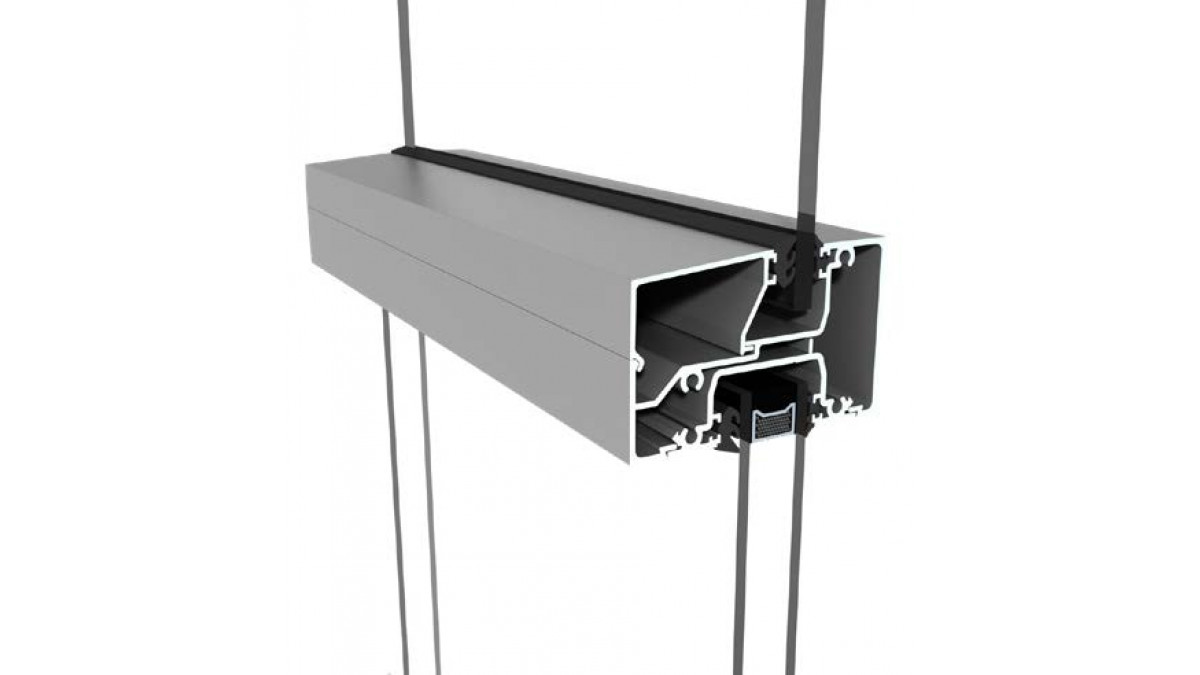

The glazing pocket lies in a central position in the frame and mullion in the 100mm suite and in an offset position in the 80mm suite, giving the windows an appearance of solidity in a setting of robust aluminium profiles.

Key Features
  • For shopfront locations, generally at ground level and in protected situations up to 6m in height
  • The glazing pocket lies in a central position in the frame and mullion for the 100mm suite, and in an offset position in the 80mm suite
  • Can incorporate opening sashes from the 40mm Window Series using an inserted sash adapter
  • Compatible with Magnum commercial doors
  • Incorporates individually drained transoms
  • Can accept double glazing
  • Sill tray available
Scope of Use
  • Designed for ground level environments in weather protected situations
  • Need to be used in defined maximum sizes according to the wind exposure
  • Compatible with opening sashes or Magnum commercial doors mounted in a range of styles — conventional hinged, floor sprung, with concealed transom closer, manual sliding and automatic
Limitations on Use
  • Not suitable for multi-storey or exposed locations
  • Generally preassembled in sections at the factory and joined and sealed on site; glazing is also usually done on site
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1993
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2017
Manufacturer Contact List
Span Tables
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

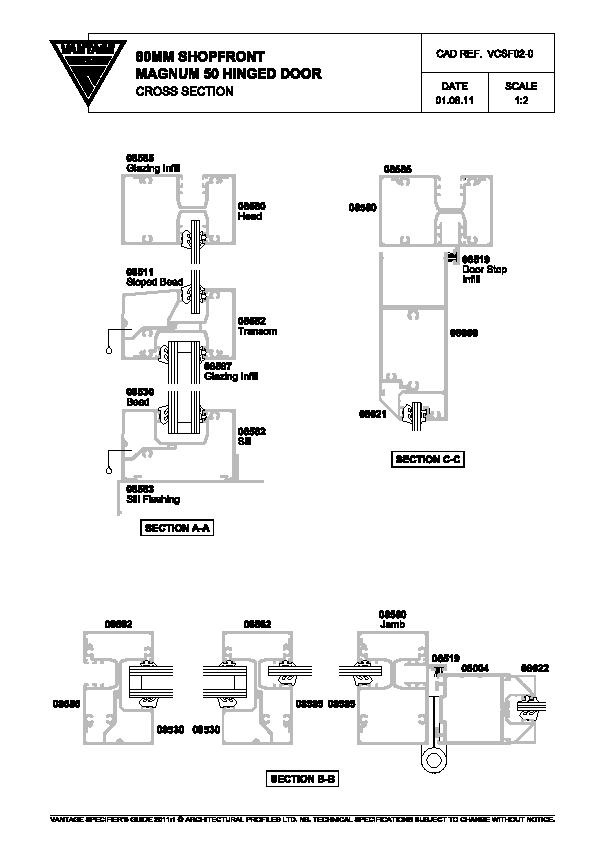

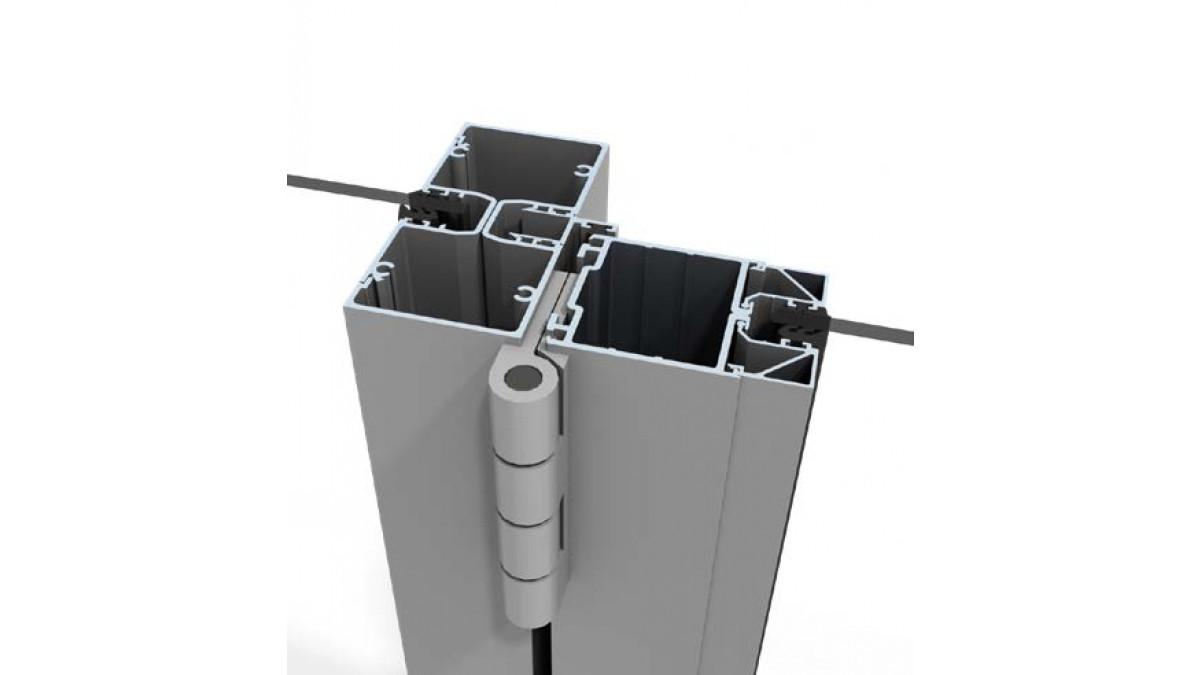

Vantage Commercial 80mm Shopfront Magnum 50 Hinged Door

VCSF02-0

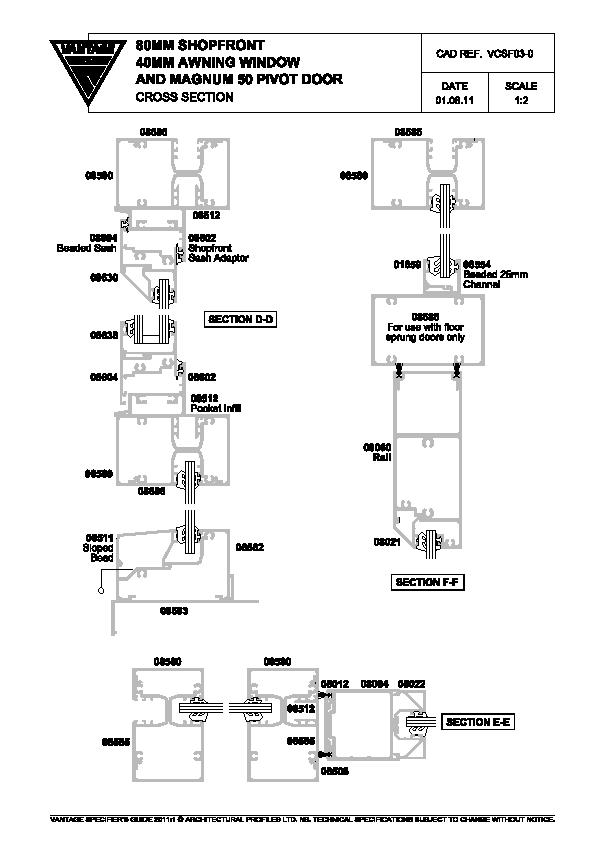

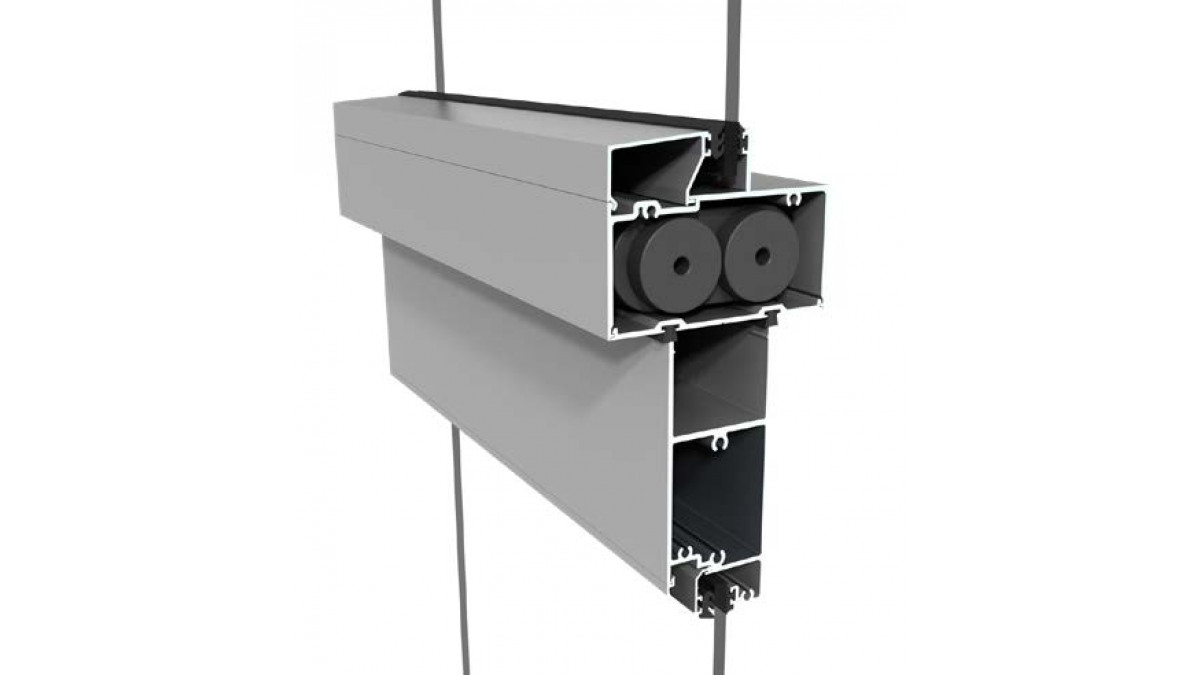

Vantage Commercial 80mm Shopfront 40mm Awning Window and Magnum 50 Pivot Door

VCSF03-0

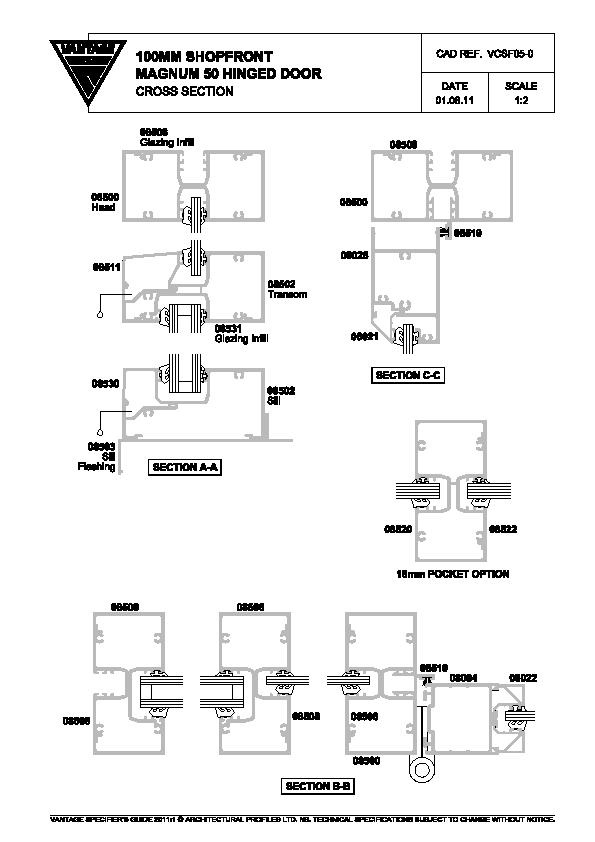

Vantage Commercial 100mm Shopfront Magnum 50 Hinged Door

VCSF05-0

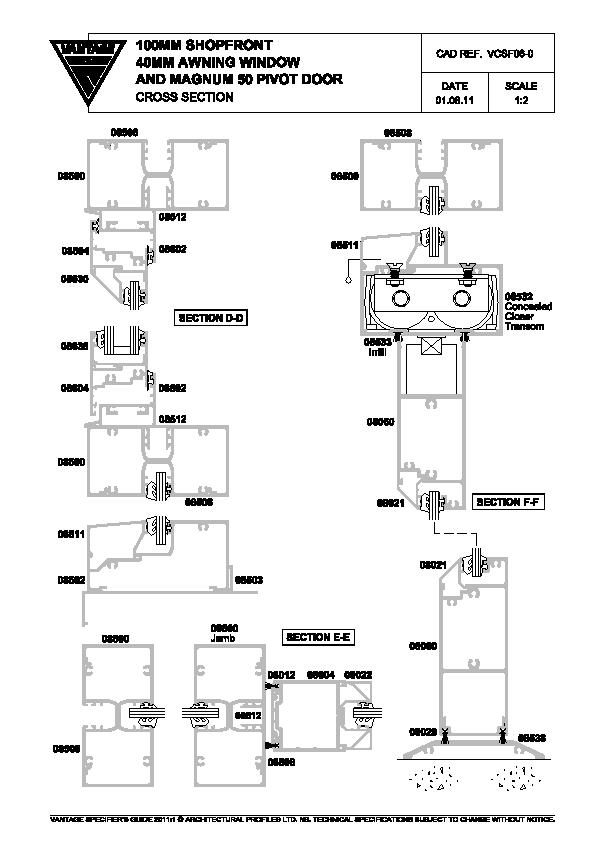

Vantage Commercial 100mm Shopfront 40mm Awning Window and Magnum 50 Pivot Door

VCSF06-0

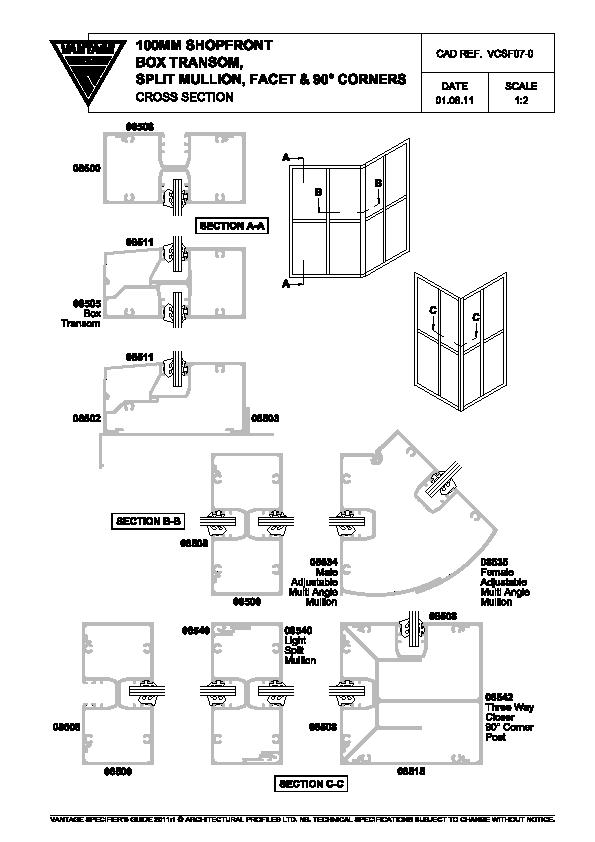

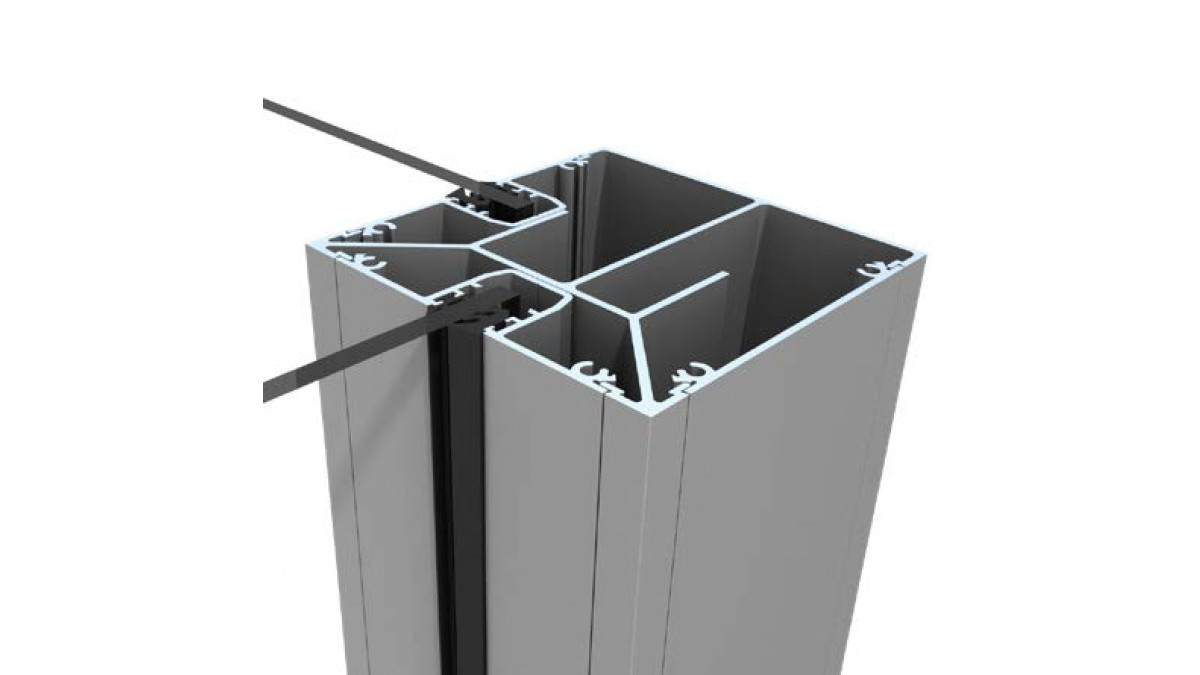

Vantage Commercial 100mm Shopfront Box Transom, Split Mullion, Facet & 90º Corners

VCSF07-0

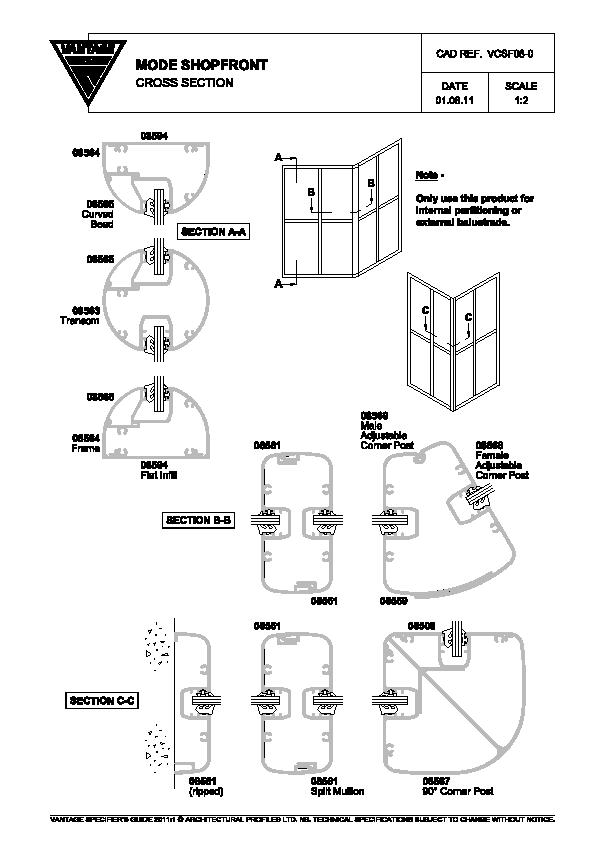

Vantage Commercial Mode Shopfront

VCSF08-0

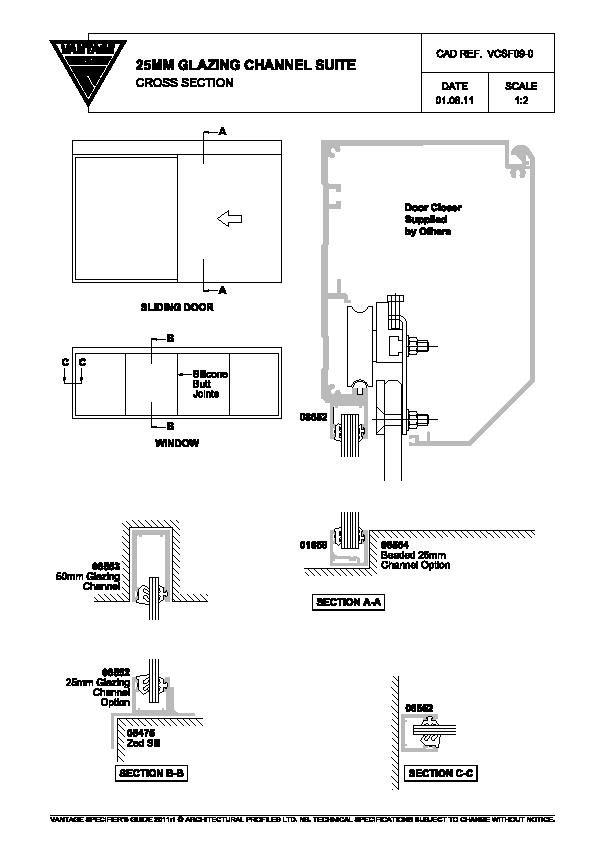

Vantage Commercial 25mm Glazing Channel Suite

VCSF09-0

BIM Objects

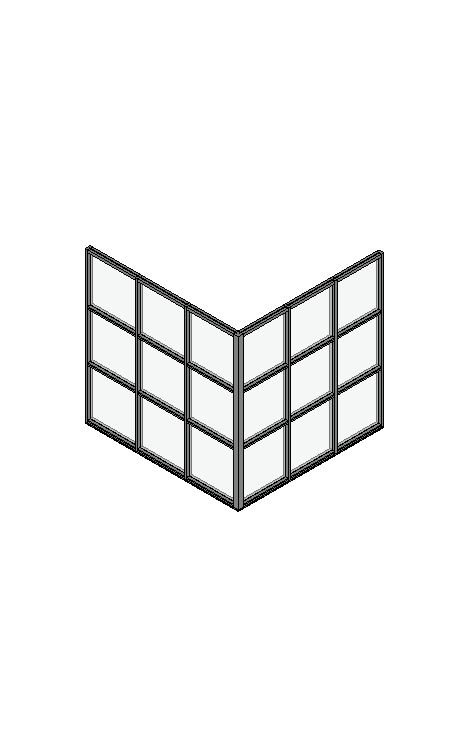

Vantage Commercial 100mm Shopfront, 90° Corner (Curtain Wall)

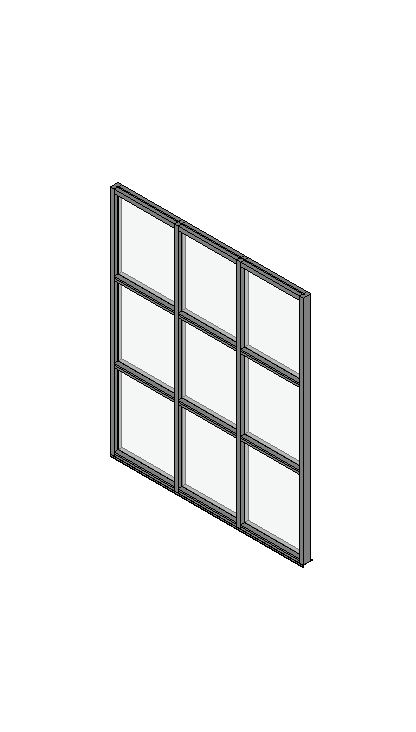

Vantage Commercial 100mm Shopfront, Fixed System (Curtain Wall)

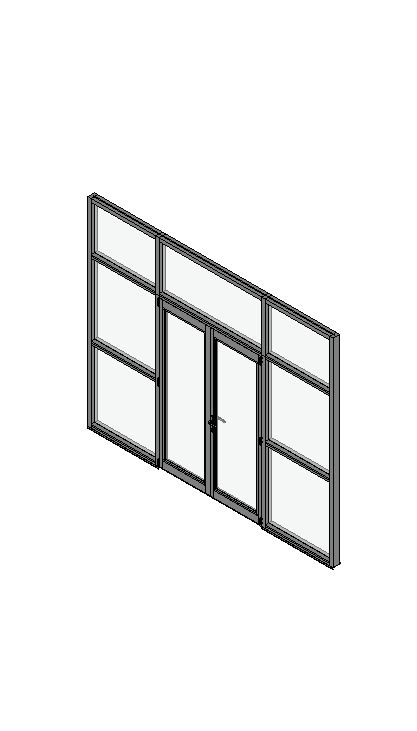

Vantage Commercial 100mm Shopfront, Magnum 50 French Door (Curtain Wall)

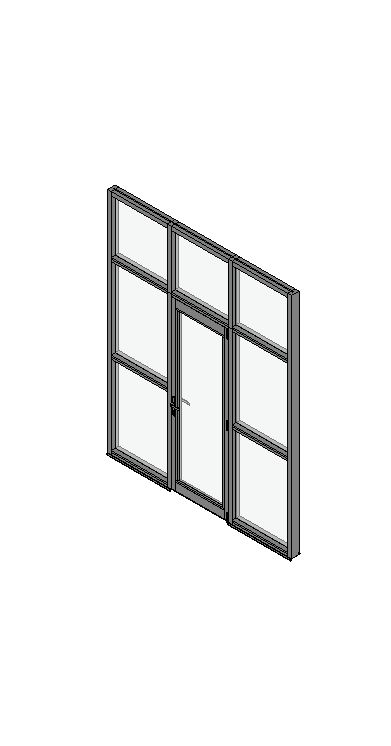

Vantage Commercial 100mm Shopfront, Magnum 50 Hinged Door (Curtain Wall)
Vantage Commercial 100mm Shopfront, Magnum 50 Pivot Door One Panel (Curtain Wall)

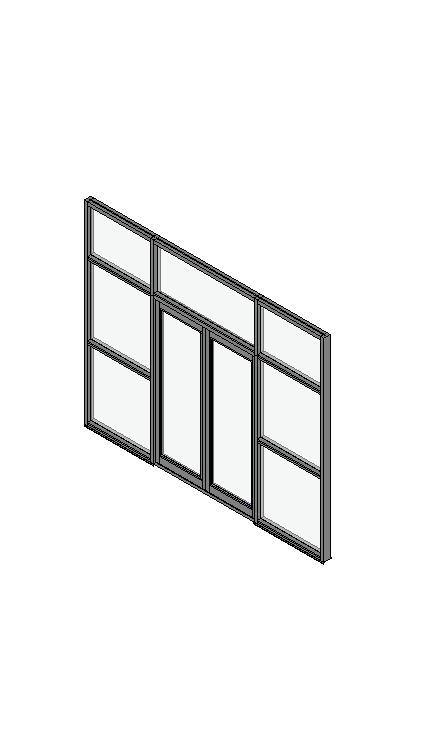

Vantage Commercial 100mm Shopfront, Magnum 50 Pivot Door Two Panel (Curtain Wall)

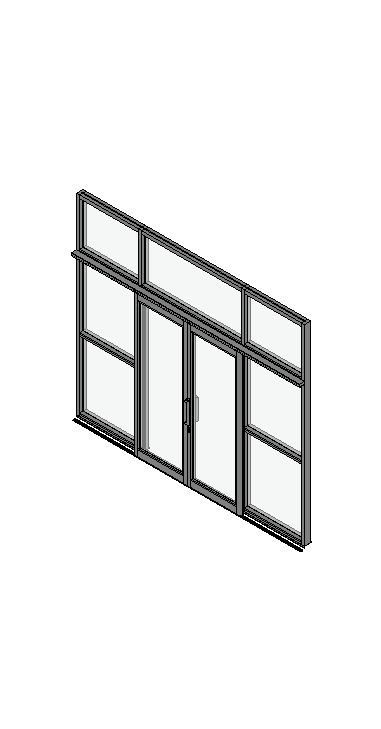

Vantage Commercial 100mm Shopfront, Magnum 50 Sliding Door 4 Panel (Curtain Wall)
