Vantage Residential Hinged & French Doors
Description

These doors are rated to 2.1m high in 'very high' wind zones. For larger sizes consider using the Metro Series or APL Architectural Series.

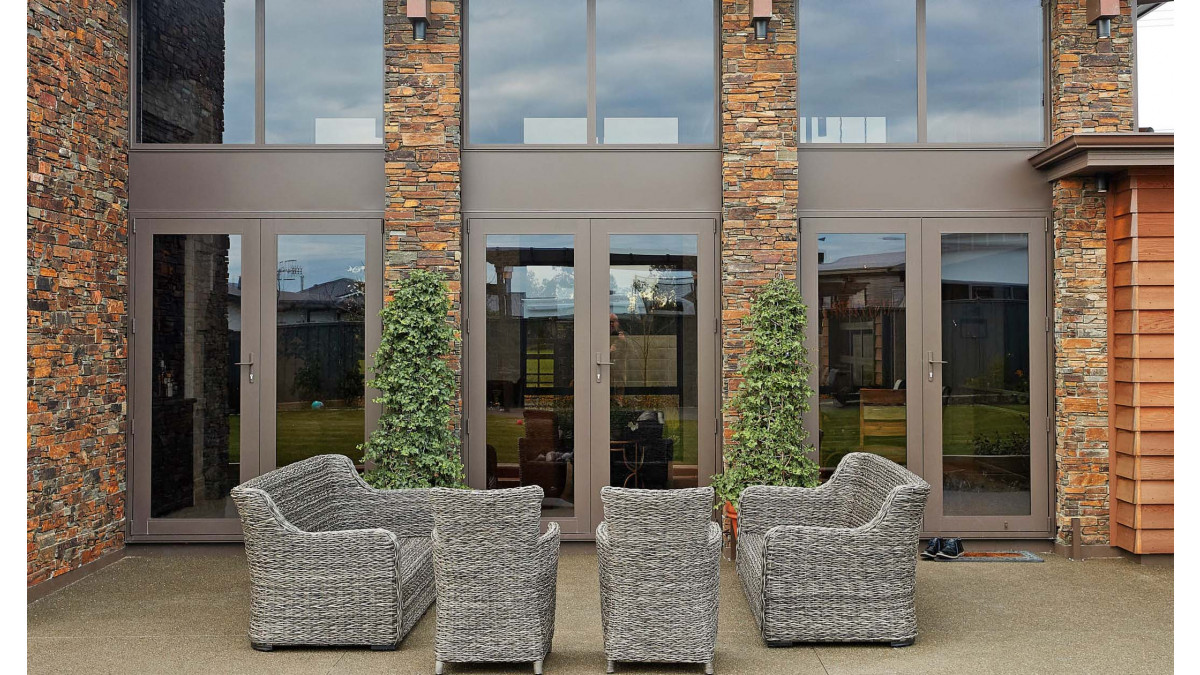

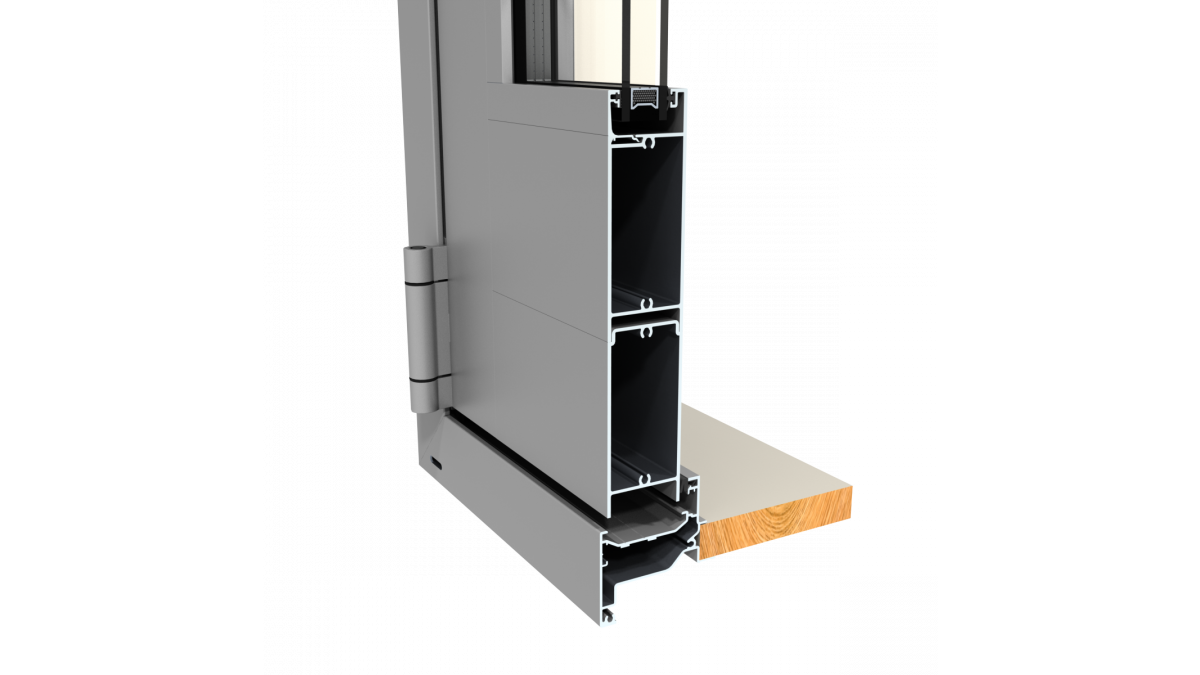

For French doors rebated meeting stiles give a flush appearance and provide superior weathering. Parliament hinges allow doors to open a full 180° in a brick veneer application. A bottom rail extender is available to create a deep look in the classic French door style.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones

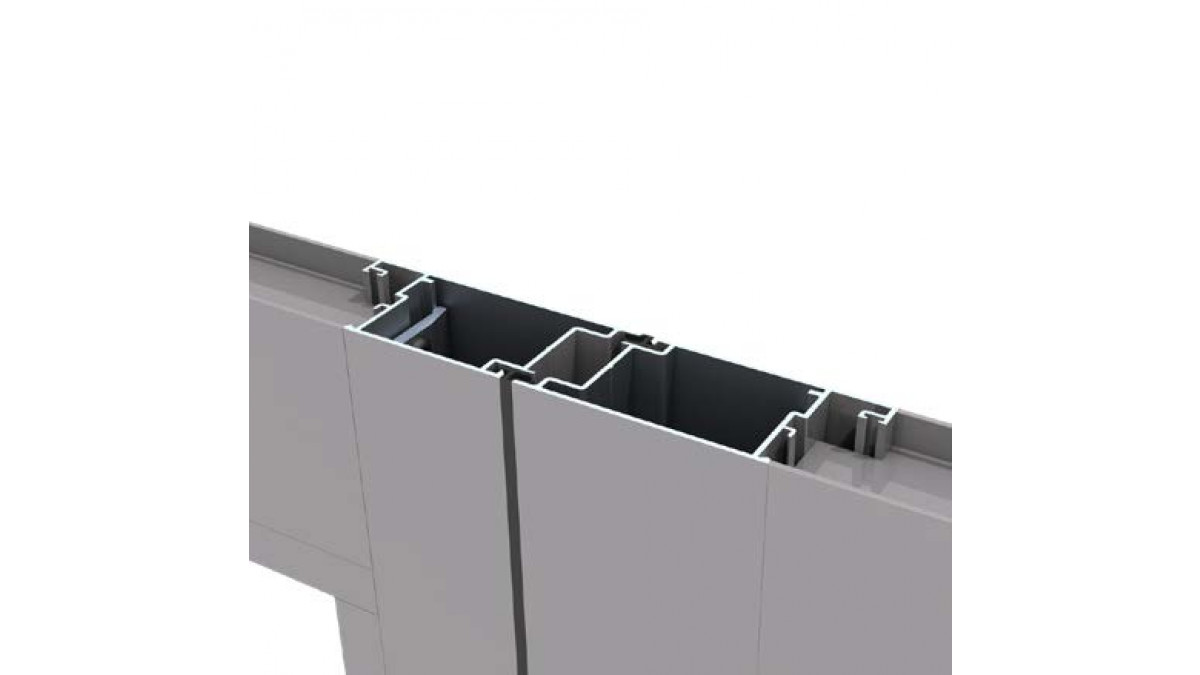

  • Flush meeting stiles for French doors
  • Open-out and open-in frames available
  • Frame facing adaptors available

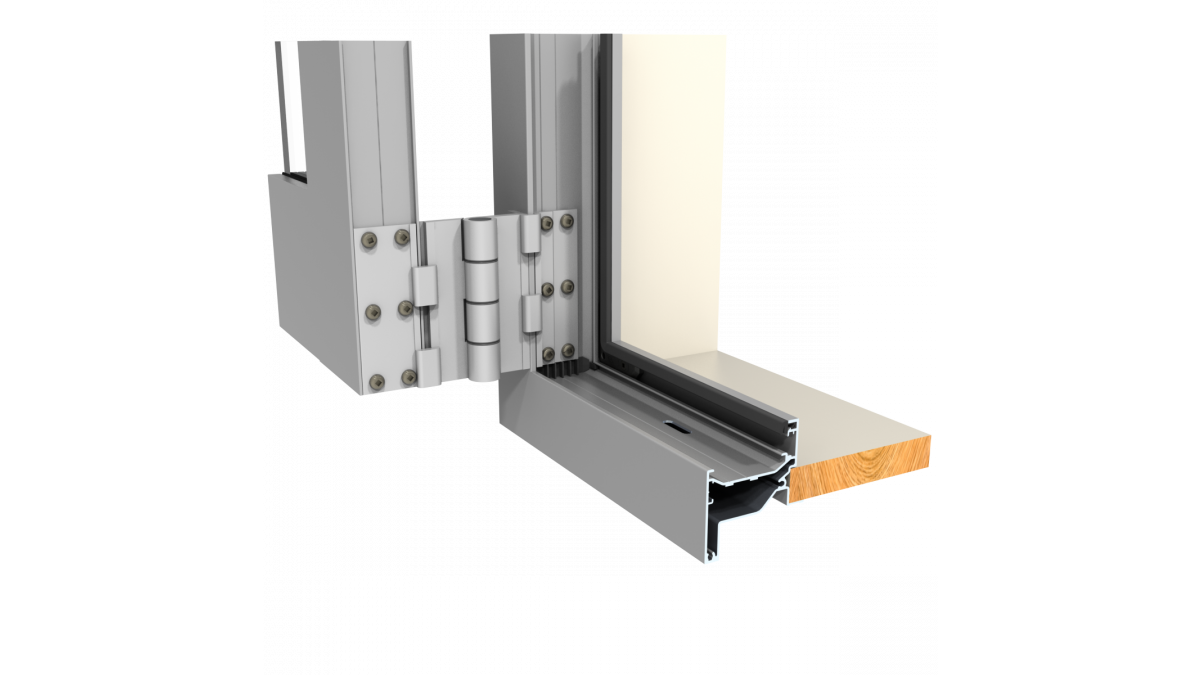

  • Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2700mm high doors in Extra High wind zones
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2017
Manufacturer Contact List
Span Tables
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings
Vantage Residential Hinged Door Open Out Stepped and Parliament Hinge

VHD02-0

Vantage Residential Hinged Door Open in with Sash

VHD03-0

Hinged Door Open Out Stepped Hinge

VHD04-0

Hinged Door Open Out, Curved Top

VHD05-0

Hinged Door Open In and Open Out with Bottom Rail Extender

VHD06-0

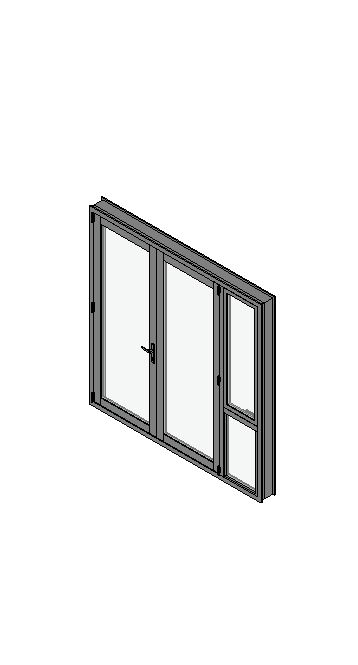

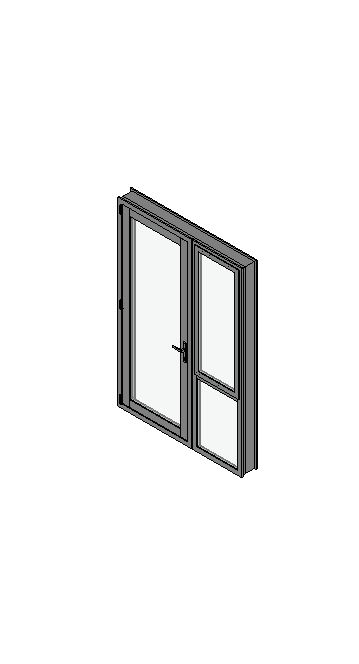

French Door Open Out Coupled Sidelight and 118mm Vision Rails

VHD07-0

French Door Open Out and 70mm Vision Rails

VHD08-0

Hinged Door Sidelight Mullions and Coupling Bar

VHD09-0

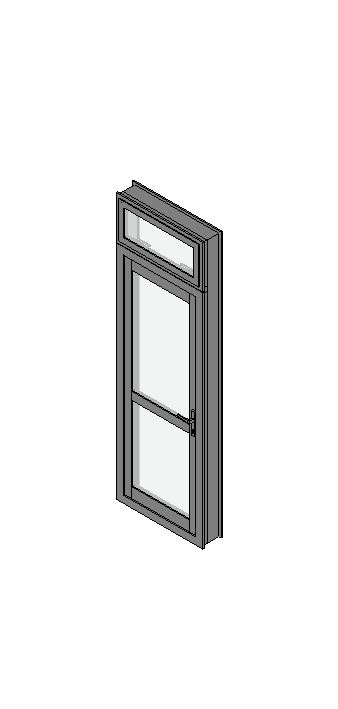

Hinged Door Open In and Open Out with Overlight Transom

VHD10-0

Hinged Door Open Out with Overlight Sash

VHD11-0

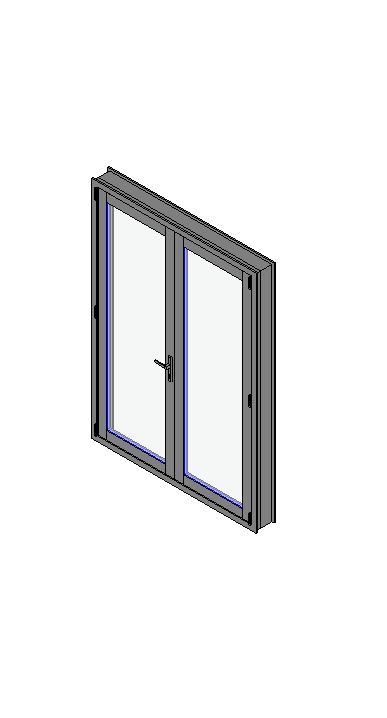

French Door Open In and Open Out

VHD12-0

French Door Open In and Open Out 120mm Wide Stiles

VHD13-0

Vantage Residential French Door Open Out French Fold Away Door

VHD14-0

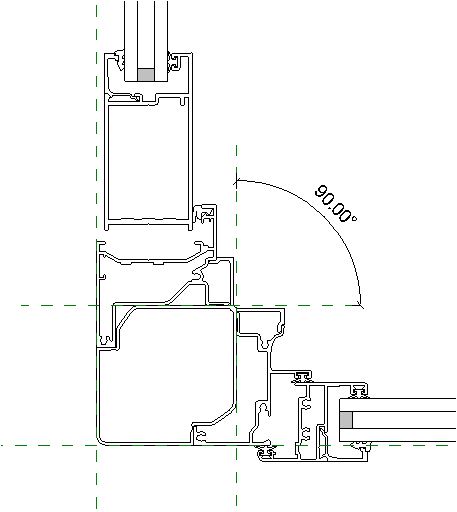

Hinged Door Coupling Bar Options

VHD15-0

Installation Details

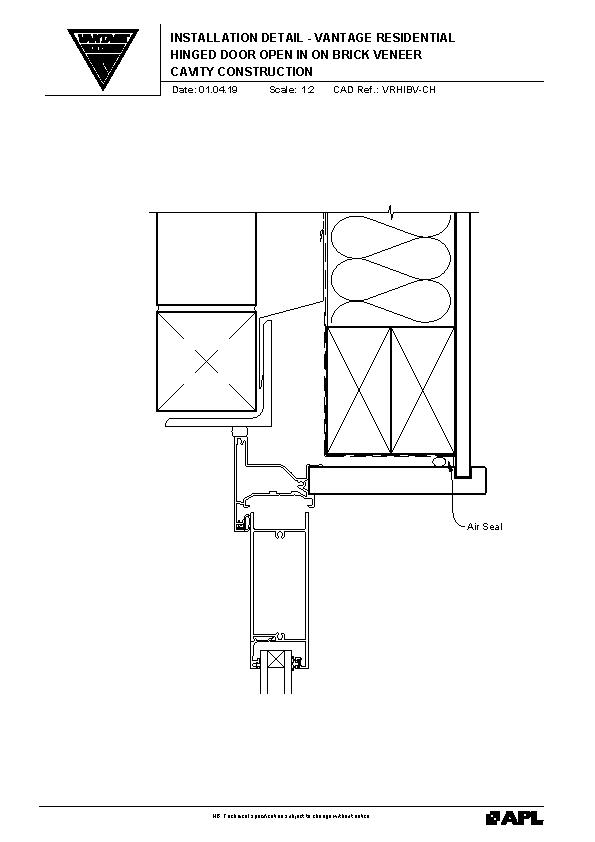

Vantage Residential Hinged Door Open In on Brick Veneer

VRHIBV

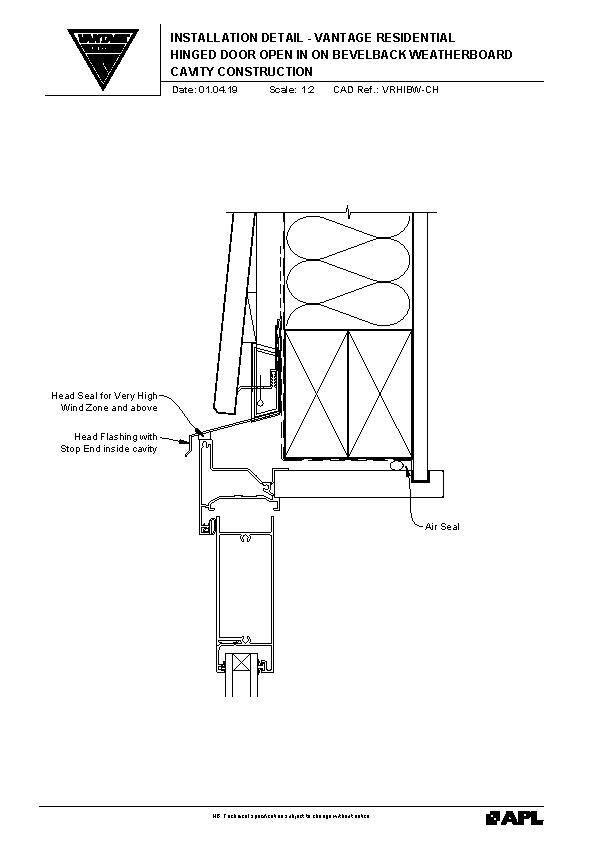

Vantage Residential Hinged Door Open In on Bevelback Weatherboard

VRHIBW

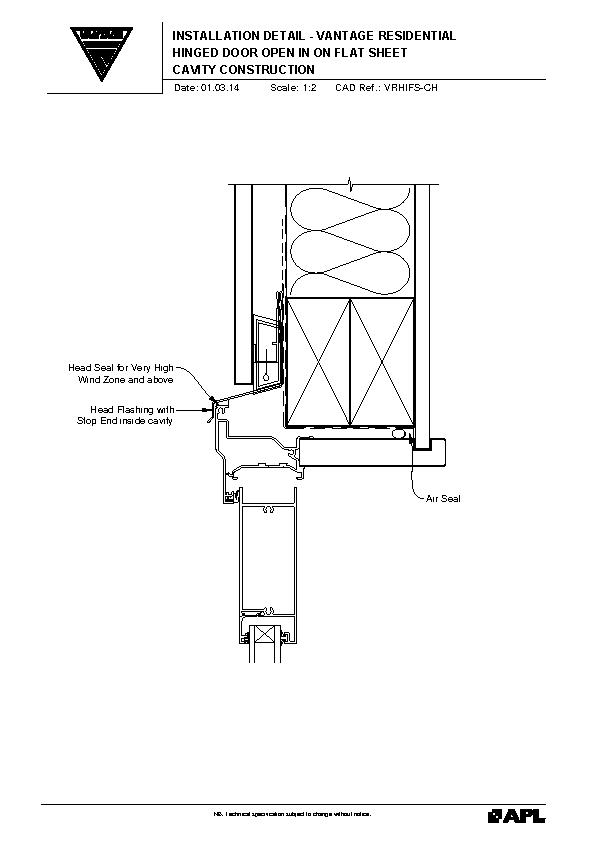

Vantage Residential Hinged Door Open In on Flat Sheet

VRHIFS

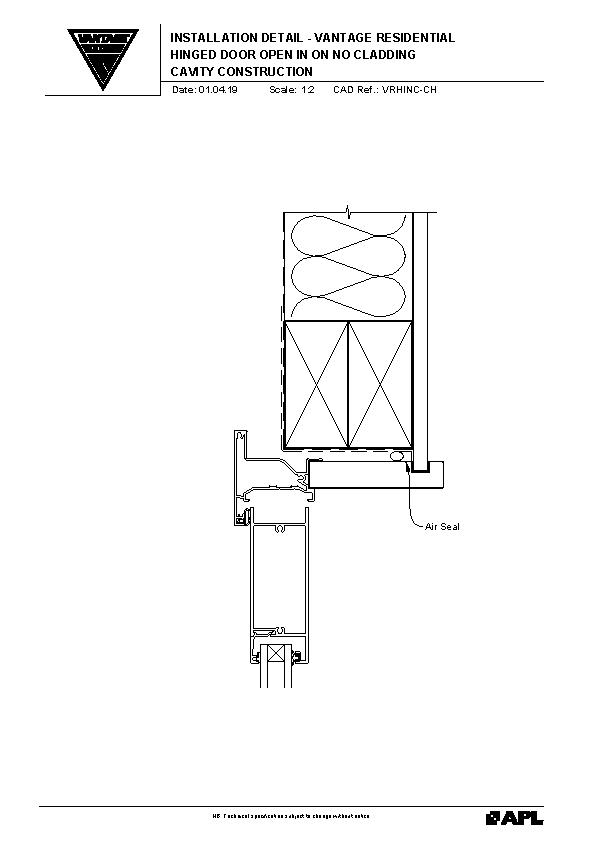

Vantage Residential Hinged Door Open In on No Cladding

VRHINC

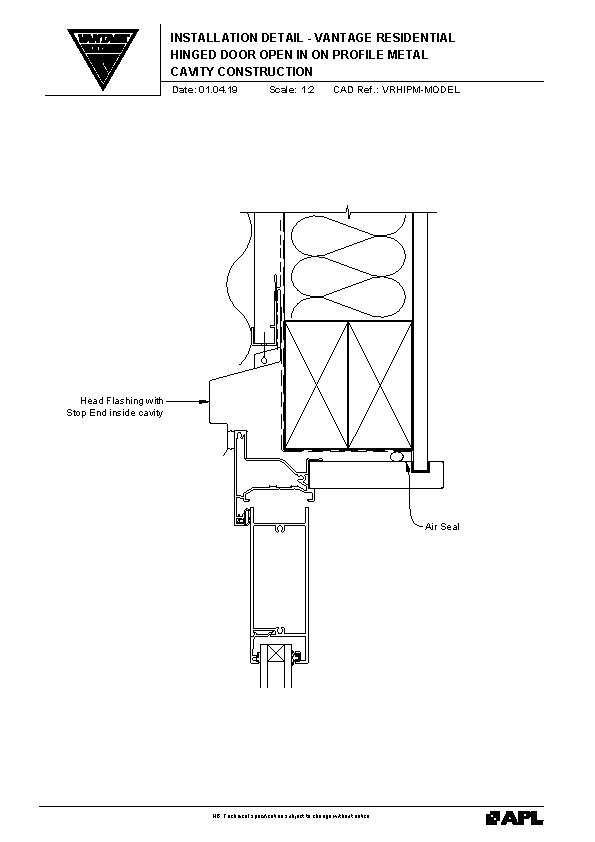

Vantage Residential Hinged Door Open In on Profile Metal

VRHIPM

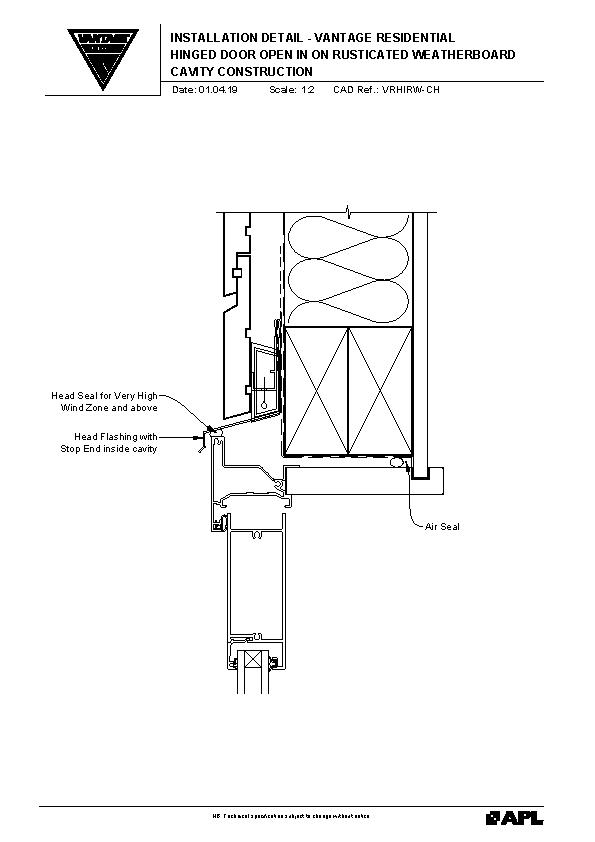

Vantage Residential Hinged Door Open In on Rusticated Weatherboard

VRHIRW

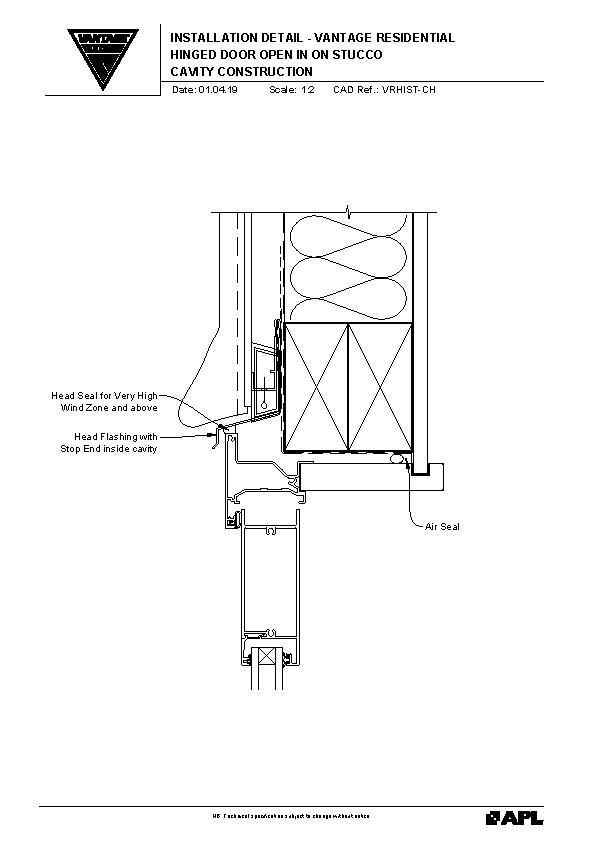

Vantage Residential Hinged Door Open In on Stucco

VRHIST

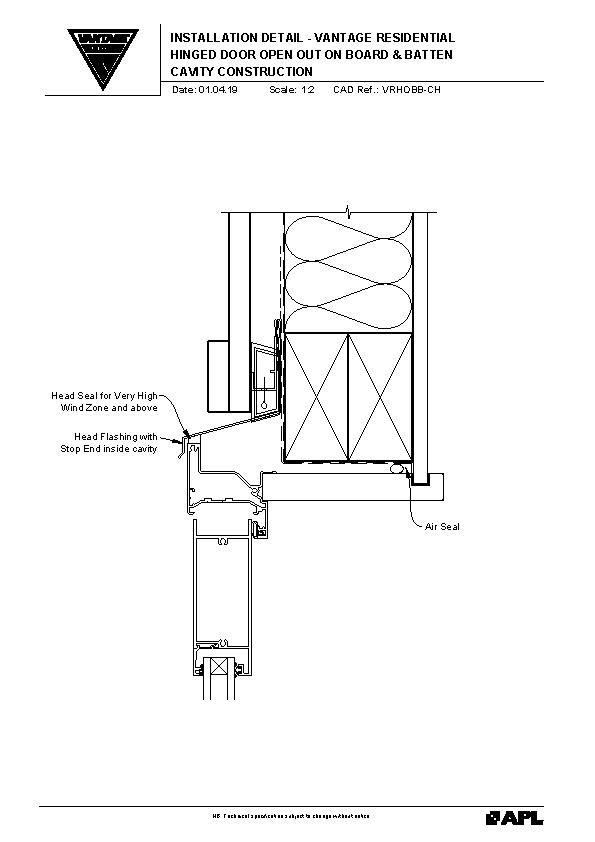

Vantage Residential Hinged Door Open Out on Board and Batten

VRHOBB

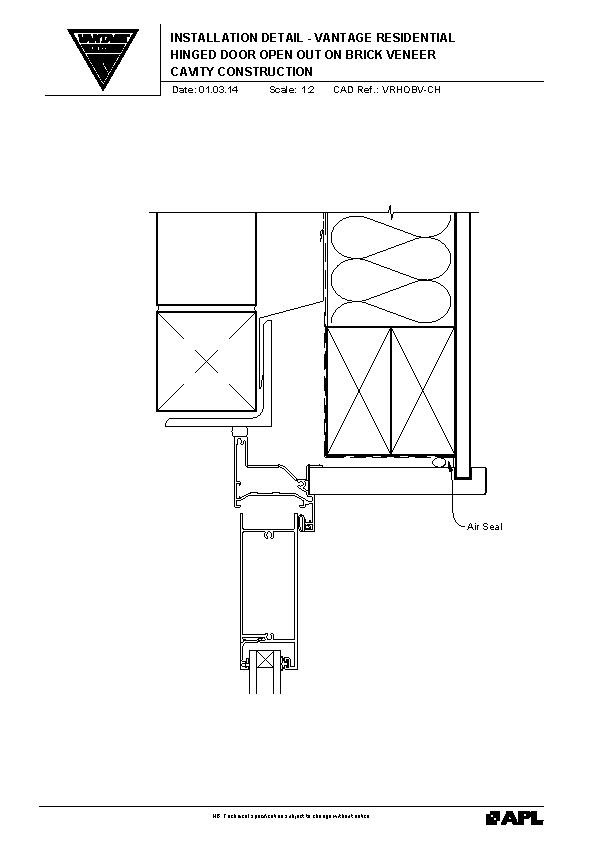

Vantage Residential Hinged Door Open Out on Brick Veneer

VRHOBV

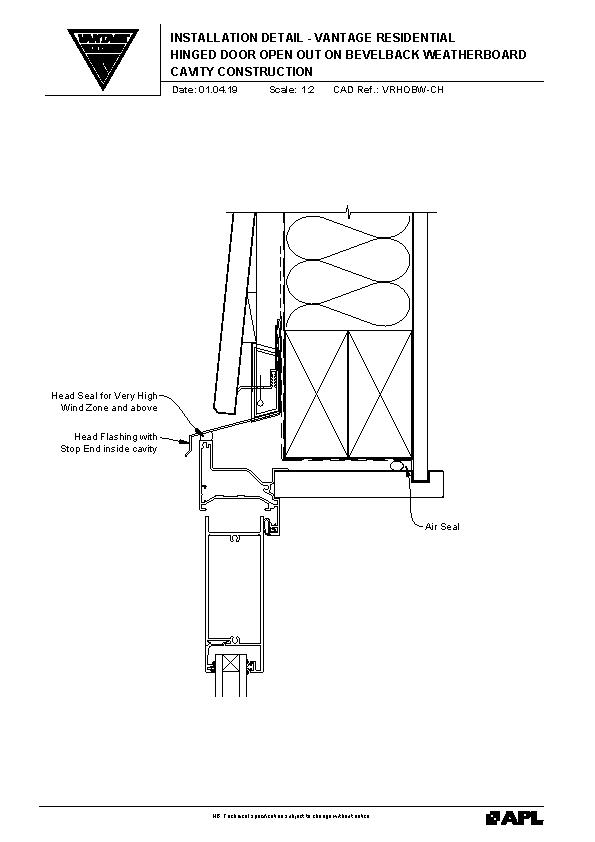

Vantage Residential Hinged Door Open Out on Bevelback Weatherboard

VRHOBW

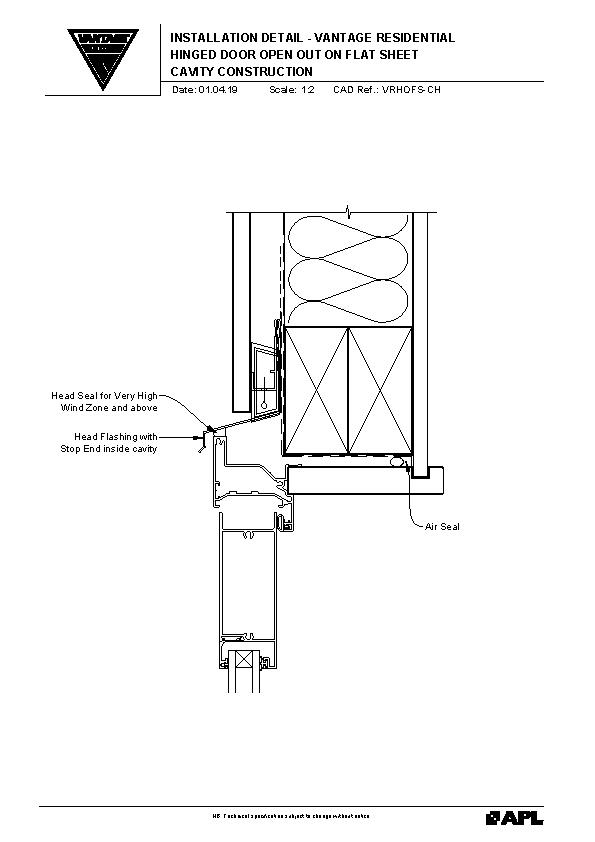

Vantage Residential Hinged Door Open Out on Flat Sheet

VRHOFS

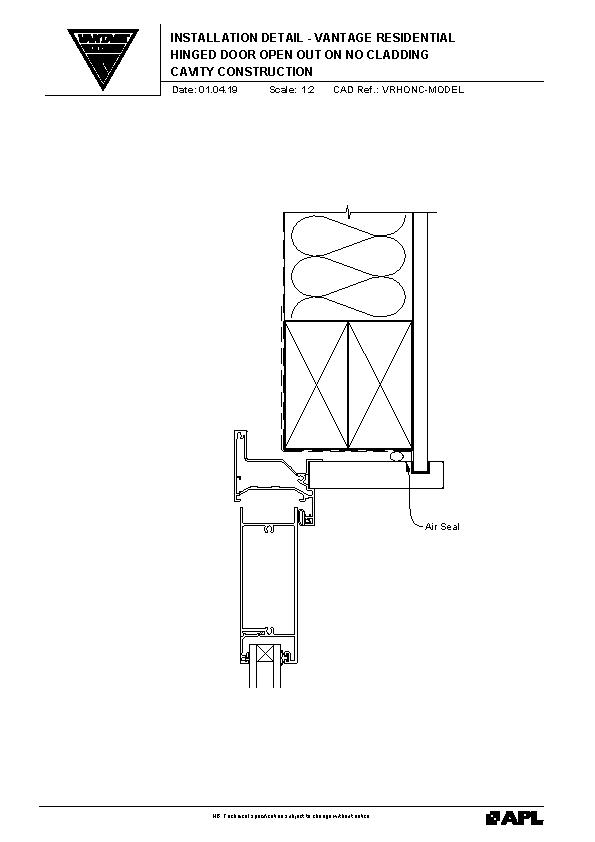

Vantage Residential Hinged Door Open Out on No Cladding

VRHONC

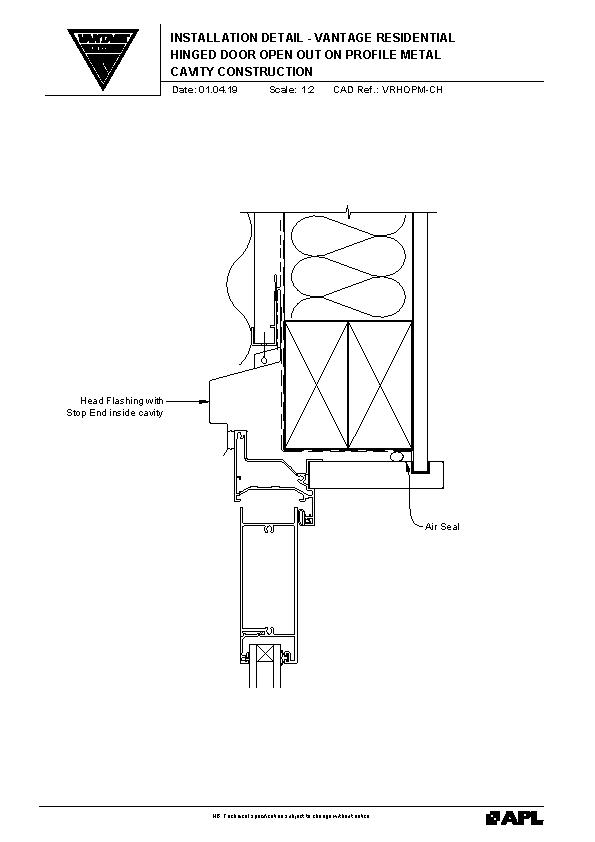

Vantage Residential Hinged Door Open Out on Profile Metal Cavity Construction

VRHOPM

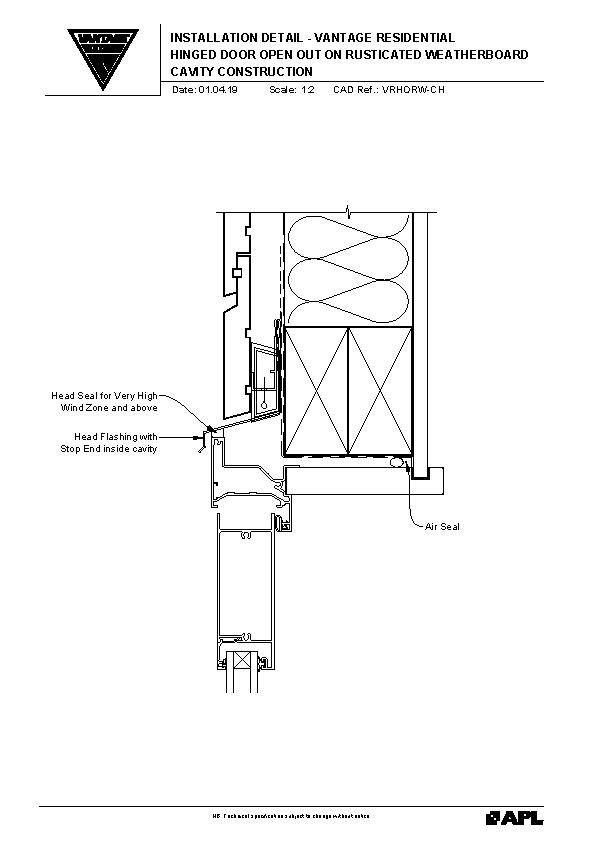

Vantage Residential Hinged Door Open Out on Rusticated Weatherboard

VRHORW

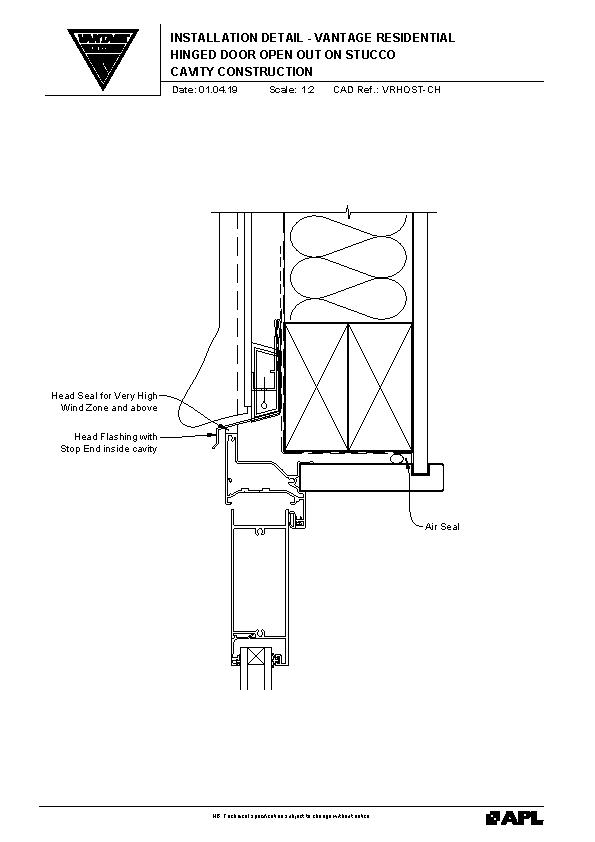

Vantage Residential Hinged Door Open Out on Stucco

VRHOST
