True Oak Corrugate
Roofing Industries
All products

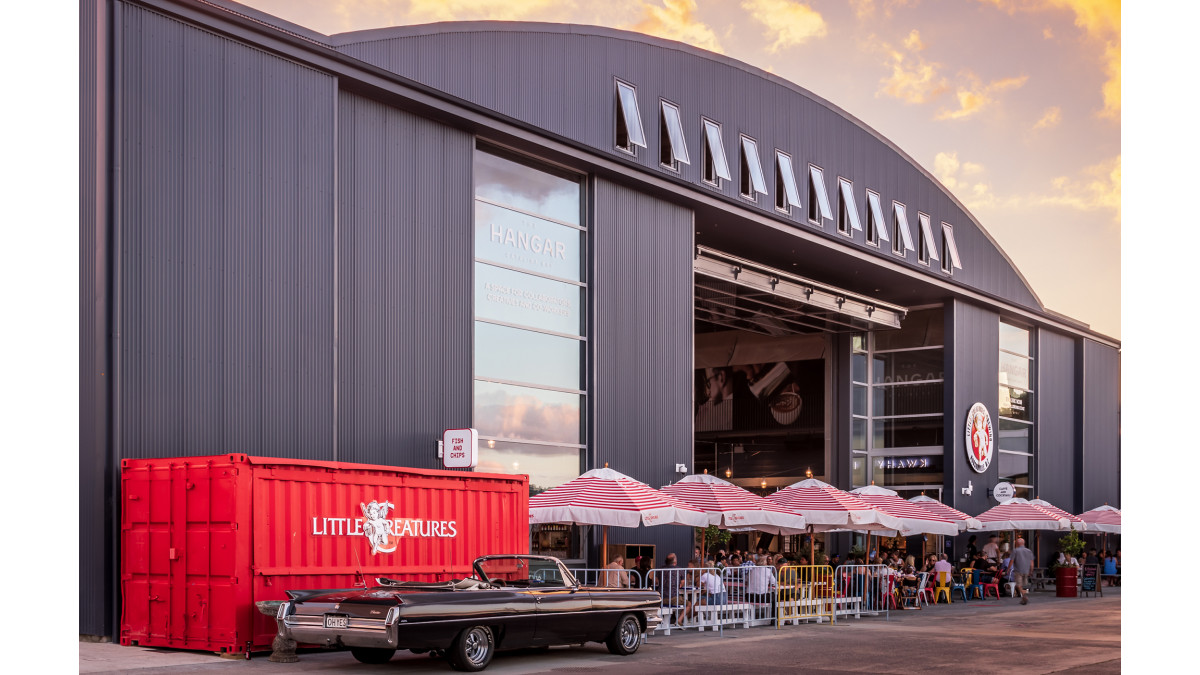

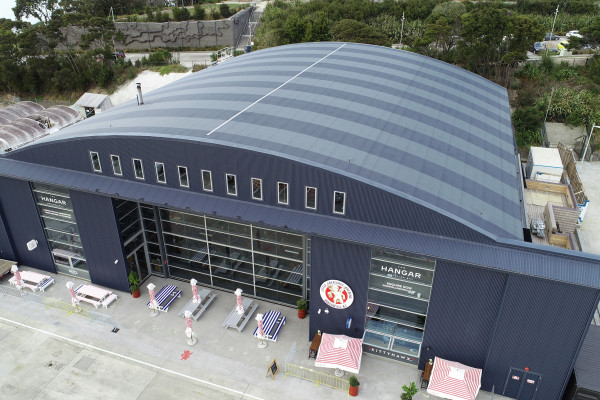

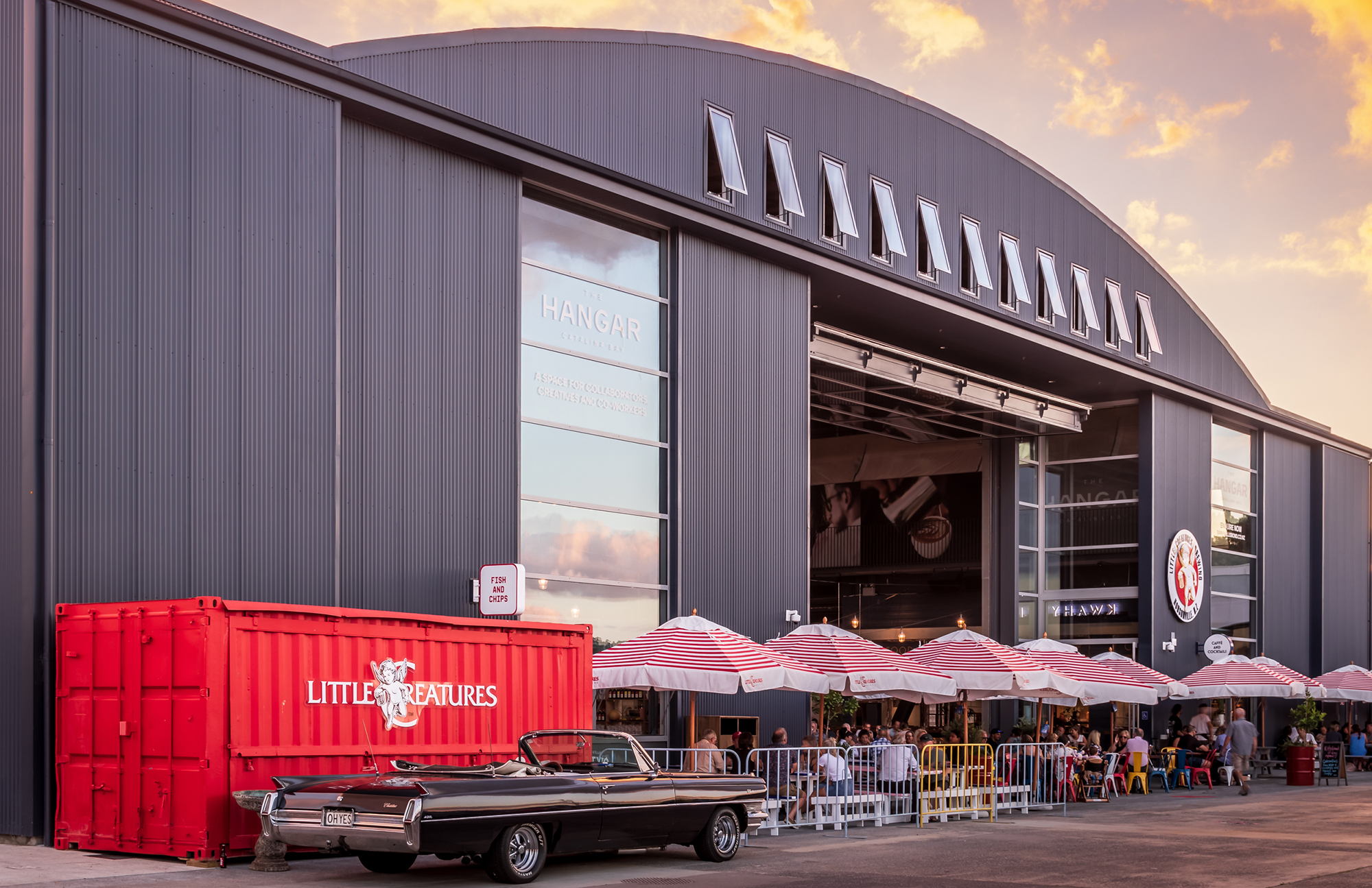

Catalina classic car edit

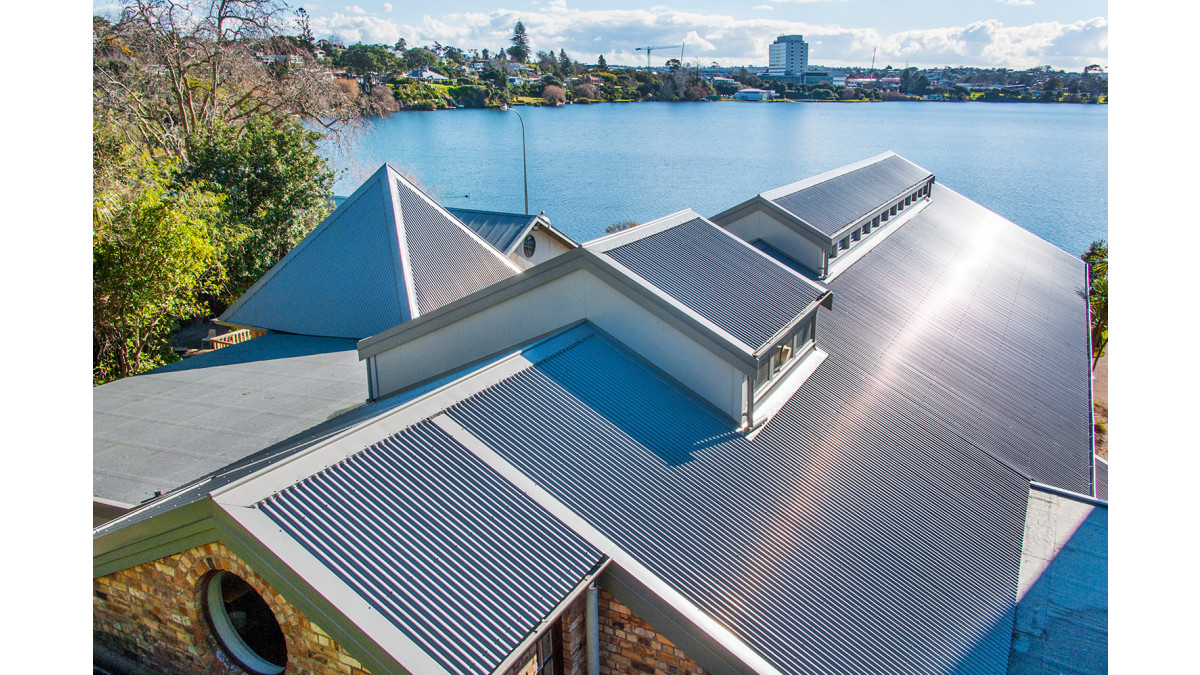

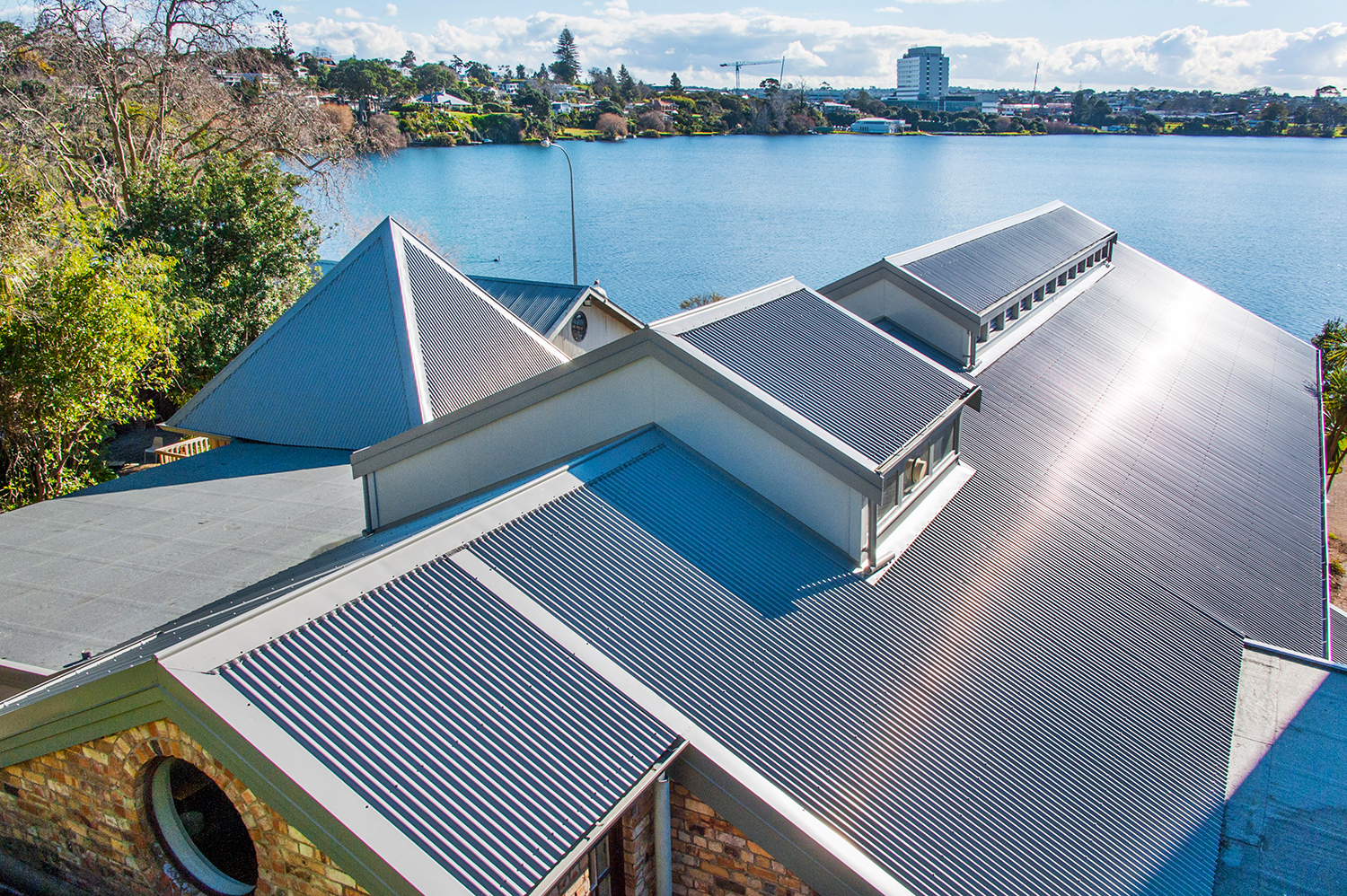

Pumphouse 15 edit

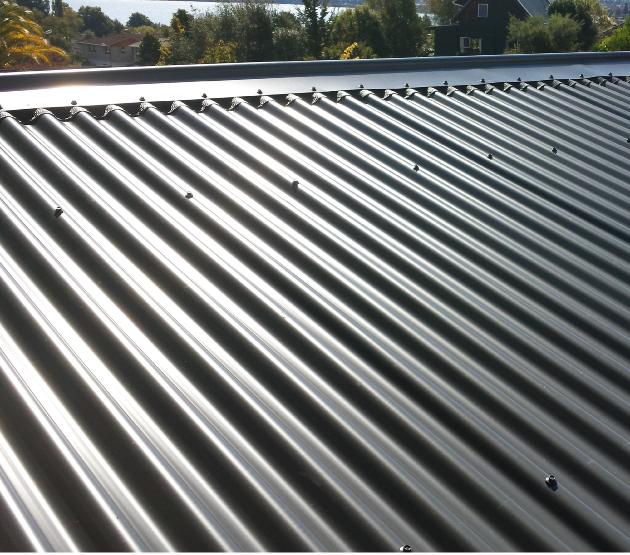

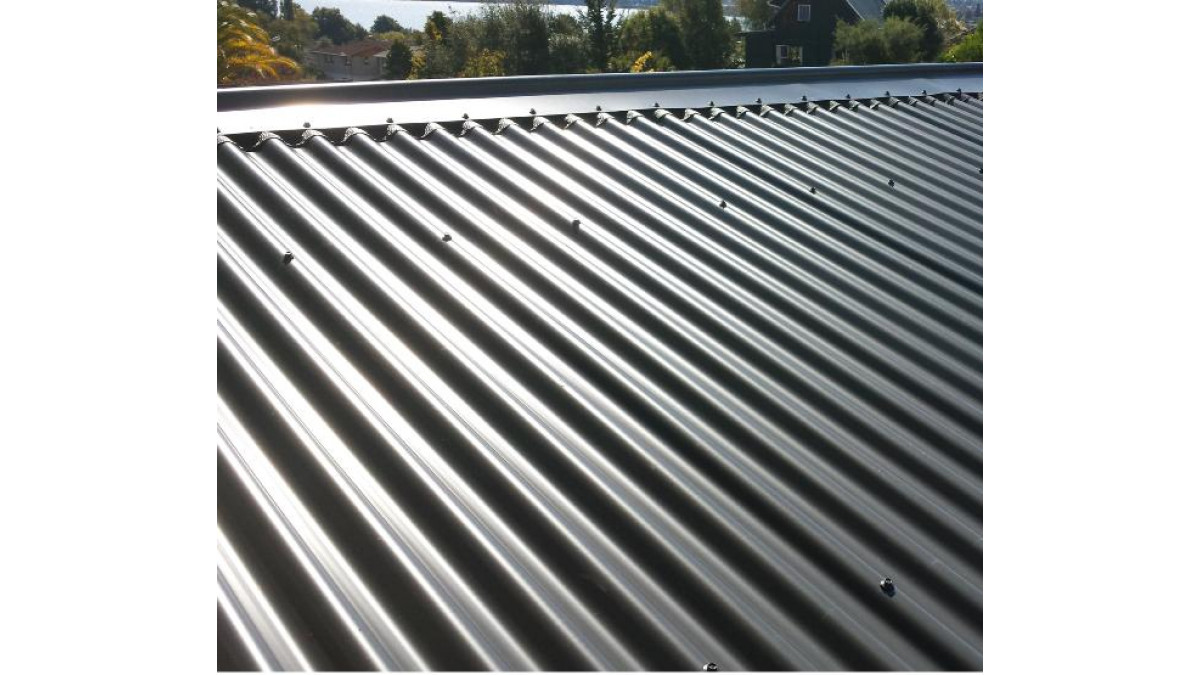

to3
Description

Roofing Industries introduces a major advance in metal corrugated roofing and cladding. True Oak is a return to the original, deeper, rounder sinusoidal wave corrugate profile.

Strikingly different from traditional shallow corrugated profiles, True Oak adds style and charm to any roofline. The distinctive shadowlines and deeper curves transform the performance of corrugated roofing.

Key Features
  • Greater span reduces construction costs
  • Strongest residential metal corrugated profile
  • Warranties meet New Zealand's Building Code
  • Installation possible at 4 degree pitch
  • Enhanced water carrying capacity
  • Ability to down-gauge due to profile strength
  • A snug-fitting lapping edge is aesthetically pleasing
Categories
Metal Cladding Metal Roofing
Scope of Use
  • Commercial Roofing and Cladding
  • Residential roofing and cladding requiring that classic appeal
  • Reroofing of historic and heritage buildings
  • Roofing of outbuildings
  • Low pitch roofs and verandahs
  • Curved and bullnosed projects

Metal Roof and Wall Cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice; and
  • True Oak Corrugate will meet the risk score in E2/AS1 13 - 20 for vertically fixed and also horizontally on a cavity. Over 20 will require specific design.
Limitations on Use

Commercial Design compliance is in accordance with current Roofing Code of Practice v3.0

4° Minimum Roof Pitch Required
4°
Statement of Building Code Compliance

True Oak Corrugate will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 - Durability: Performance B2.3.1(b)
  • Clause E2 - External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure True Oak Corrugate performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

In-Service History

Launched in 2013, True Oak has been installed nationwide on thousands of homes and commercial buildings including historical buildings, public buildings, factories, schools and aged care facilities.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
  • Case Studies
  • News
Documents
Product Brochure: True Oak Corrugate

2017 v2

pdf
Selection Guide: True Oak Corrugate

v2

pdf
Brochure: Ezy-Flo Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
Brochure: Roofing with Style

2023

pdf
Profile Technical Summary

2013

pdf
Tekton Report — E2 Compliance: True Oak

2020

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Commercial or Residential
Roofing Details
Wall Cladding Details
Full Sets
Clear filters
Roofing Industries Gutter Profiles

RI-F01

2020

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf

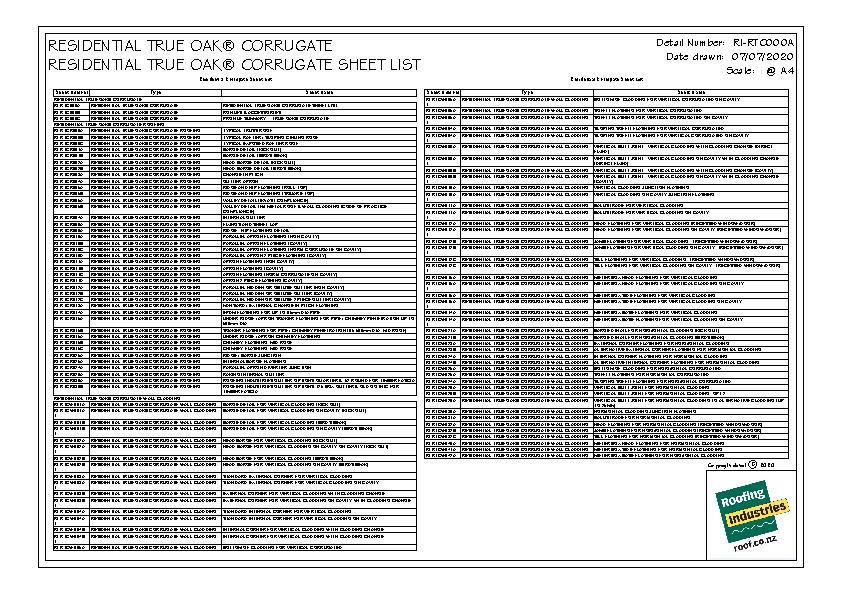

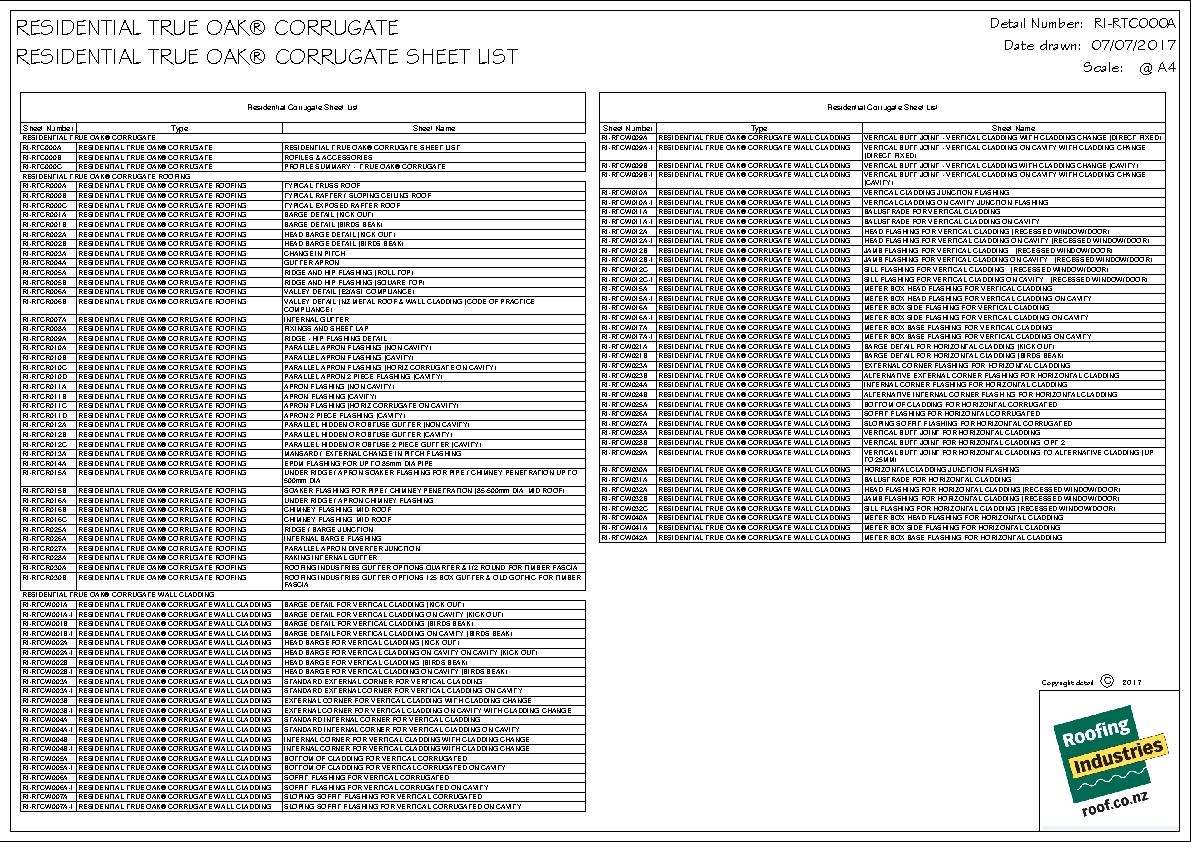

True Oak Corrugate Residential Sheet List

RI-RTC-000A

dwg
pdf

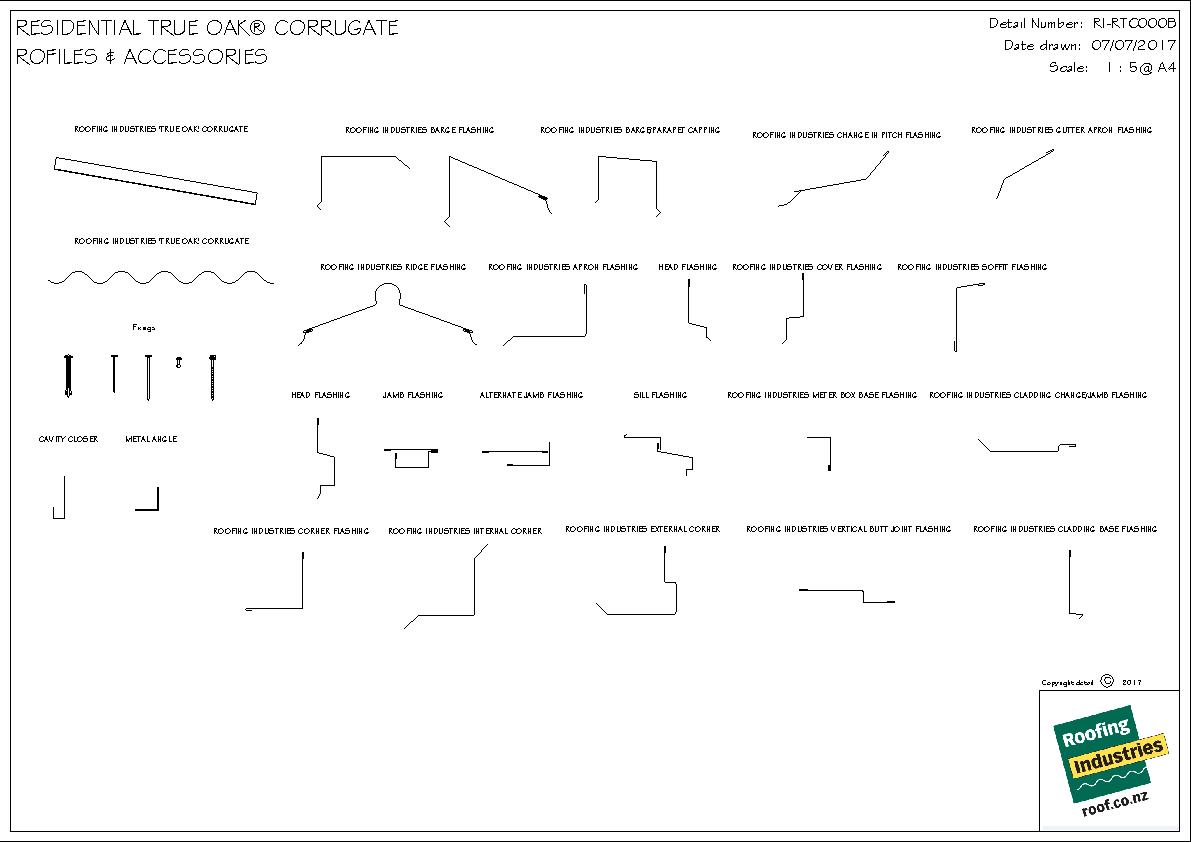

True Oak Profiles and Accessories

RI-RTC-000B

dwg
pdf

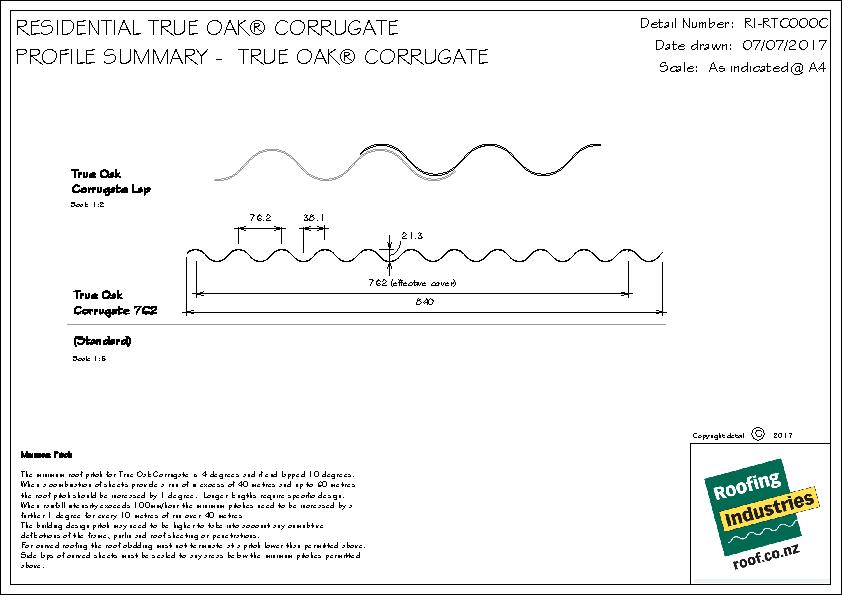

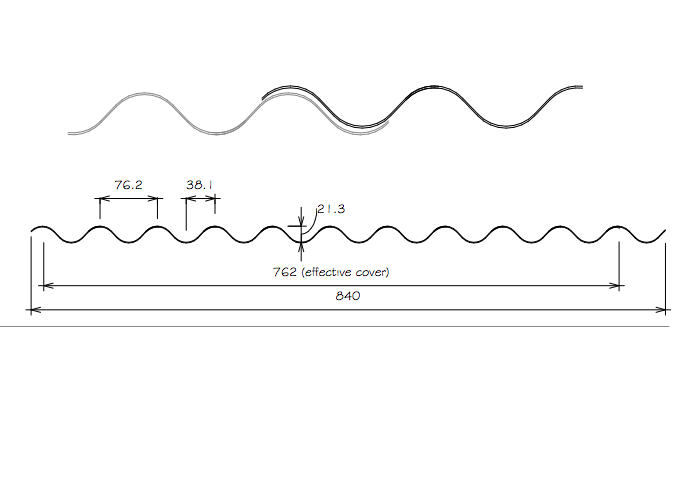

True Oak Profile Summary

RI-RTC-000C

dwg
pdf
True Oak Corrugate Full Set — Residential Roof

RI-RTC-R

2021

pdf
zip

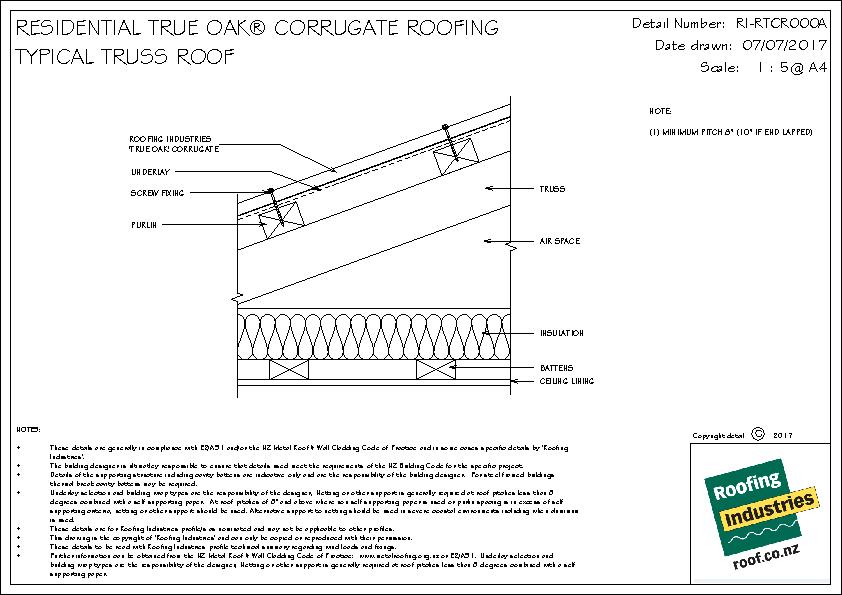

True Oak Typical Truss Roof

RI-RTC-R000A

dwg
pdf

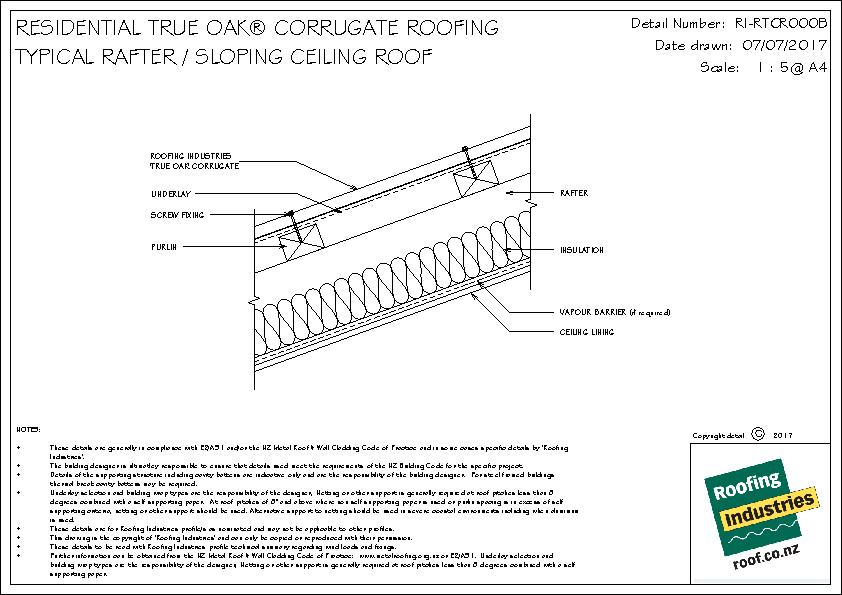

True Oak Typical Rafter / Sloping Ceiling Roof

RI-RTC-R000B

dwg
pdf

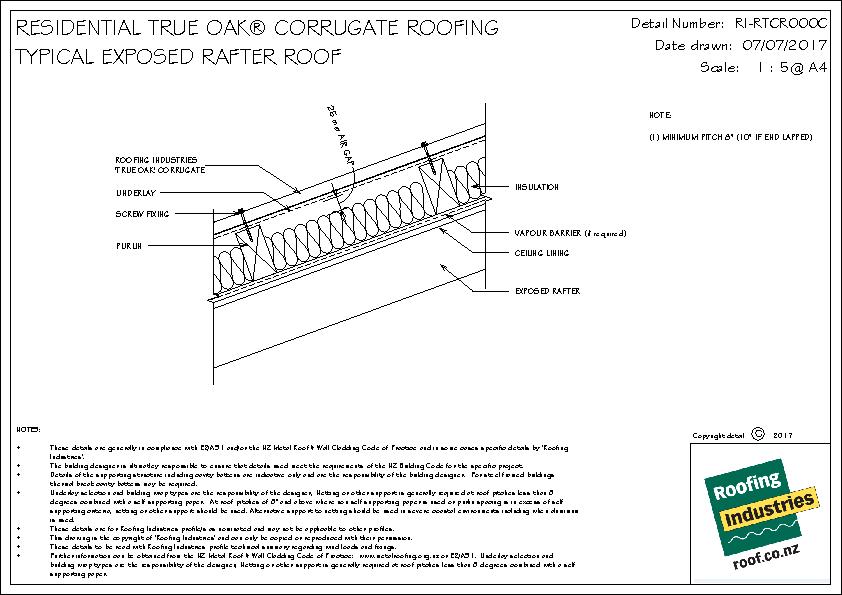

True Oak Typical Exposed Rafter Roof

RI-RTC-R000C

dwg
pdf

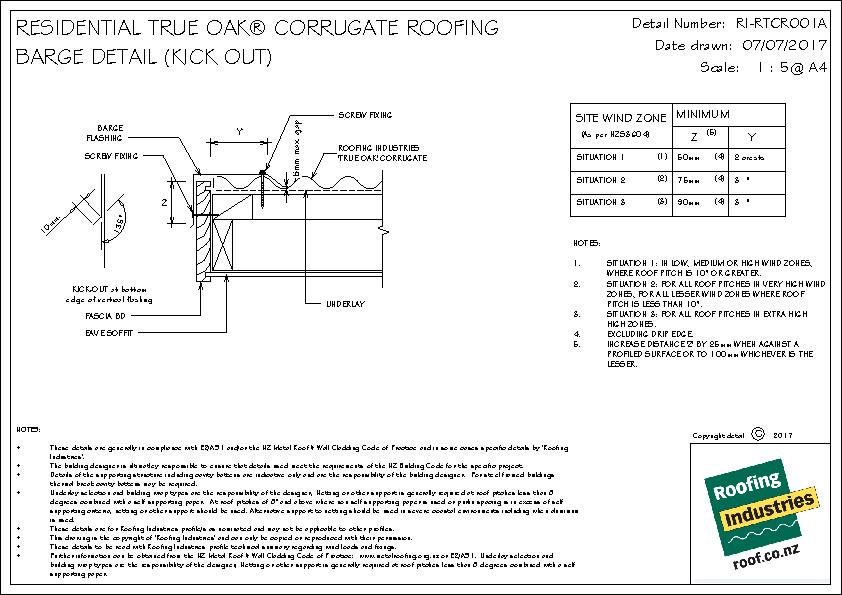

True Oak Barge Detail (Kick Out)

RI-RTC-R001A

dwg
pdf

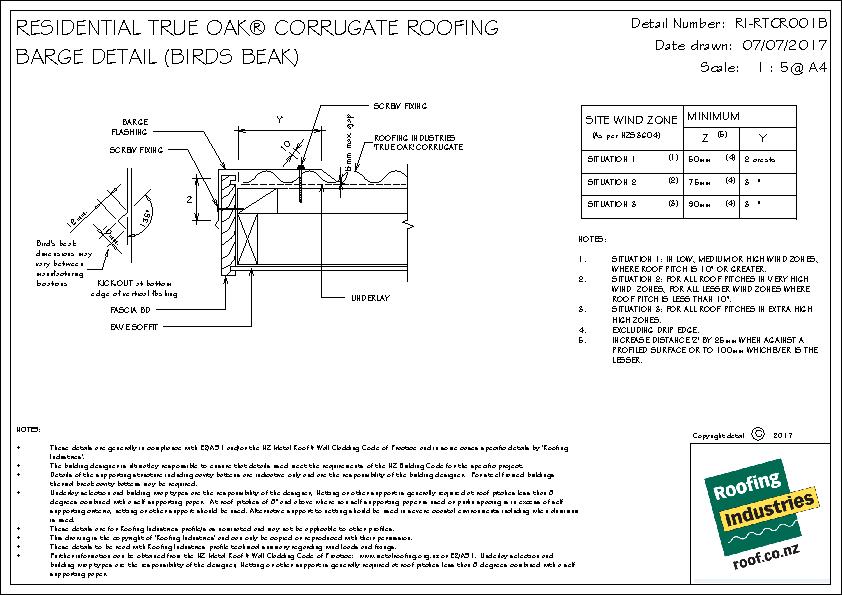

True Oak Barge Detail (Bird's Beak)

RI-RTC-R001B

dwg
pdf

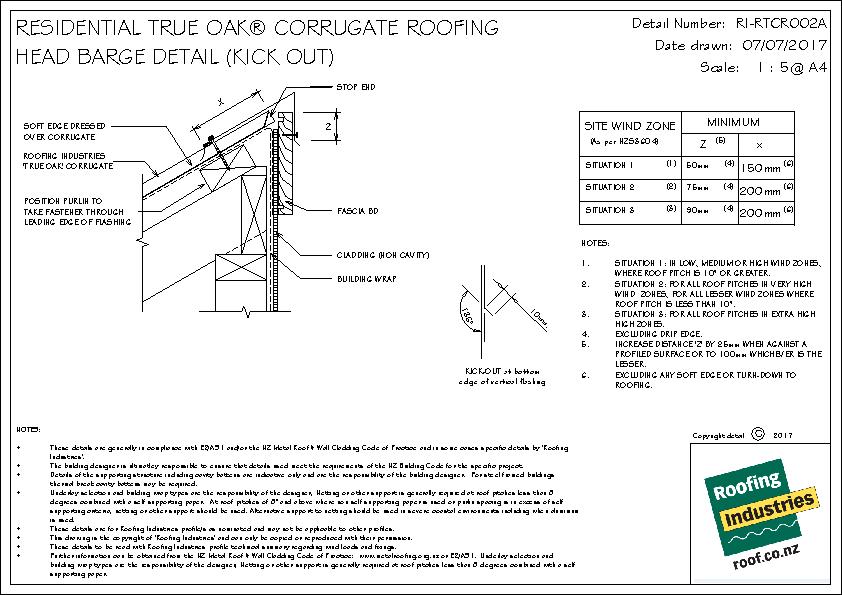

True Oak Head Barge Detail (Kick Out)

RI-RTC-R002A

dwg
pdf

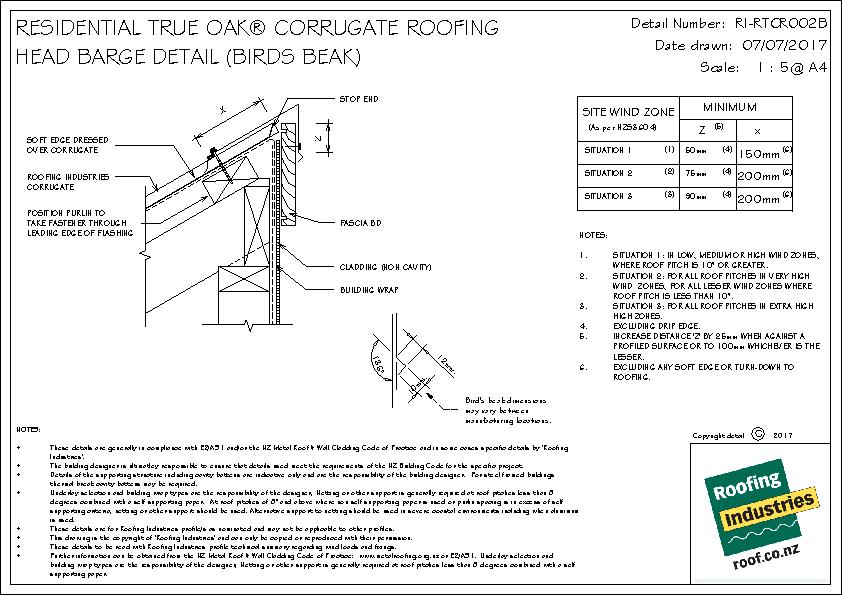

True Oak Head Barge Detail (Bird's Beak)

RI-RTC-R002B

dwg
pdf

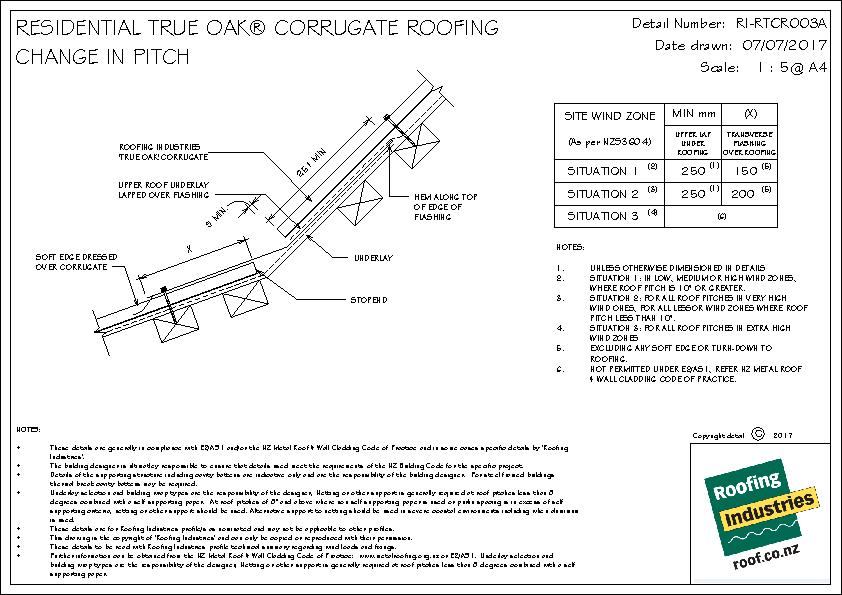

True Oak Change in Pitch

RI-RTC-R003A

dwg
pdf

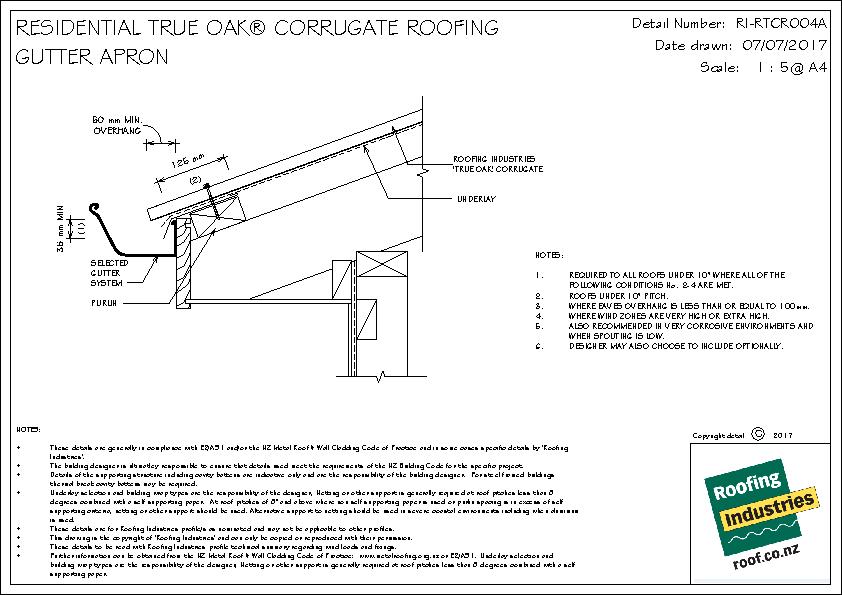

True Oak Gutter Apron

RI-RTC-R004A

dwg
pdf

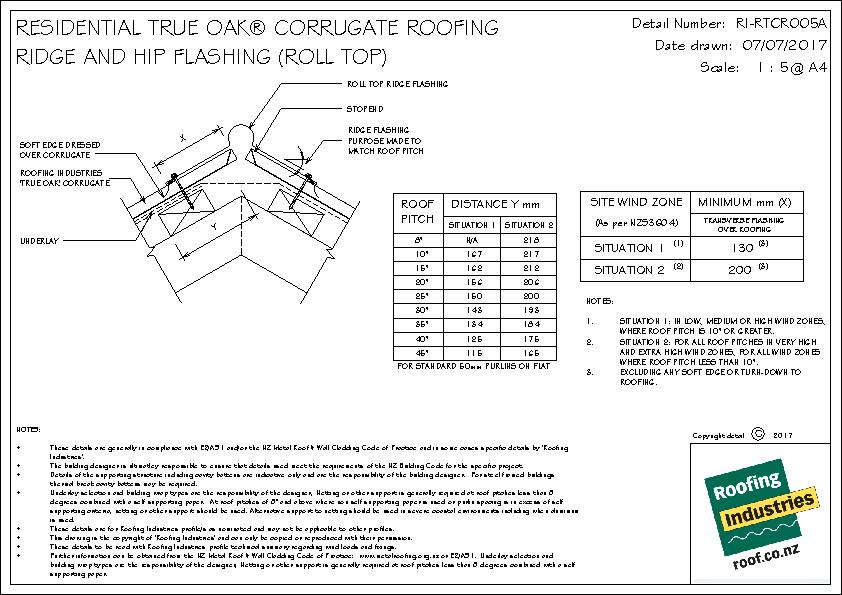

True Oak Ridge and Hip Flashing (Roll Top)

RI-RTC-R005A

dwg
pdf

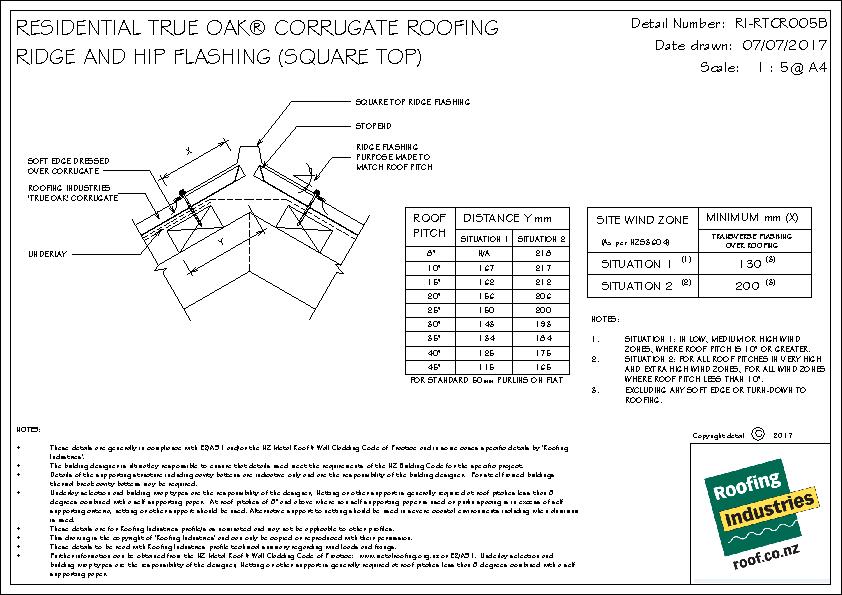

True Oak Ridge and Hip Flashing (Square Top)

RI-RTC-R005B

dwg
pdf

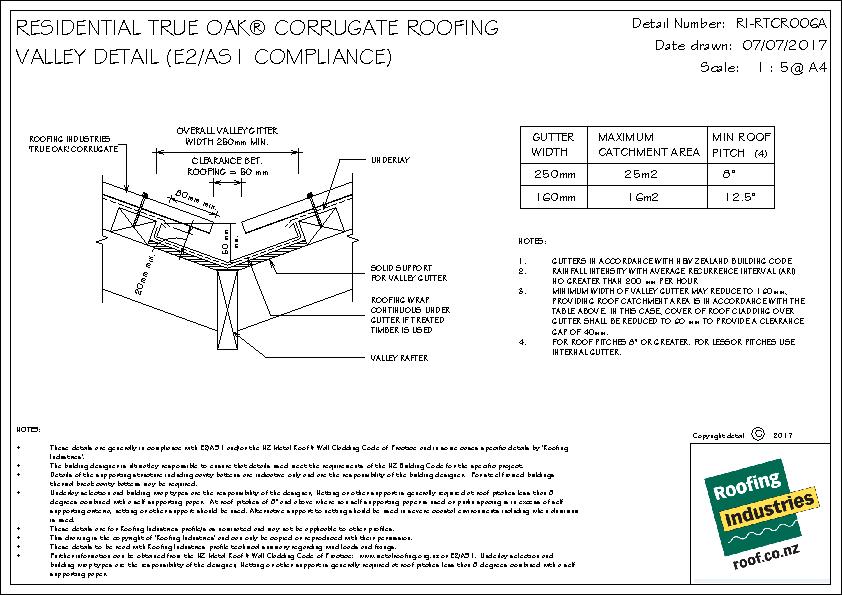

True Oak Valley Detail (E2-AS1 Compliance)

RI-RTC-R006A

dwg
pdf

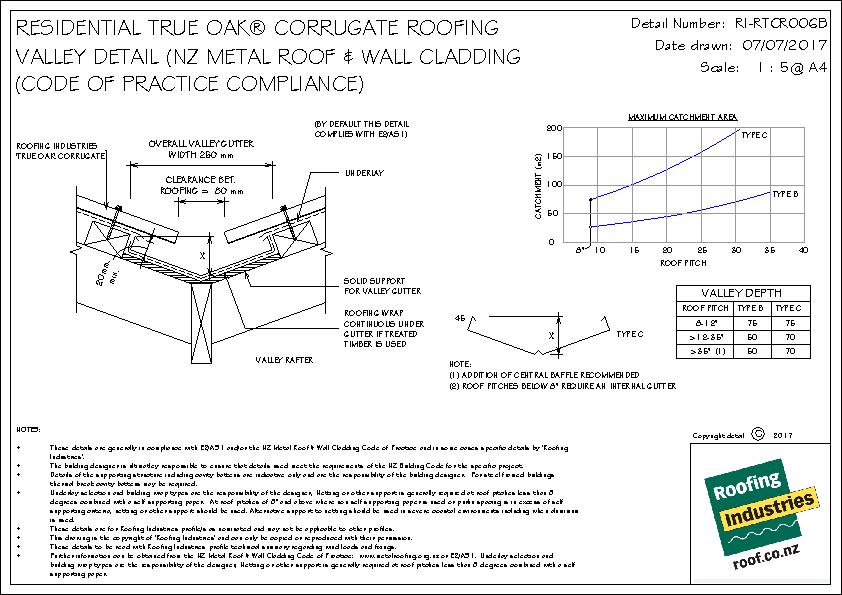

RI-RTCR006B-VALLEY-DETAIL-NZ-METAL-ROOF-WALL-CLADDING-CODE-OF-PRACTICE-COMPLIANCE-pdf.jpg
True Oak Valley Detail (Code of Practice Compliance)

RI-RTC-R006B

dwg
pdf

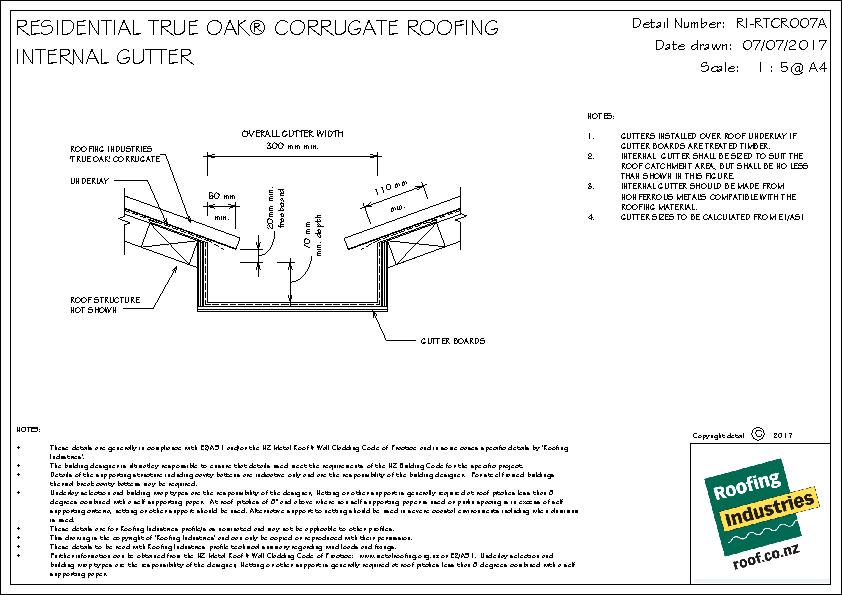

True Oak Internal Gutter

RI-RTC-R007A

dwg
pdf

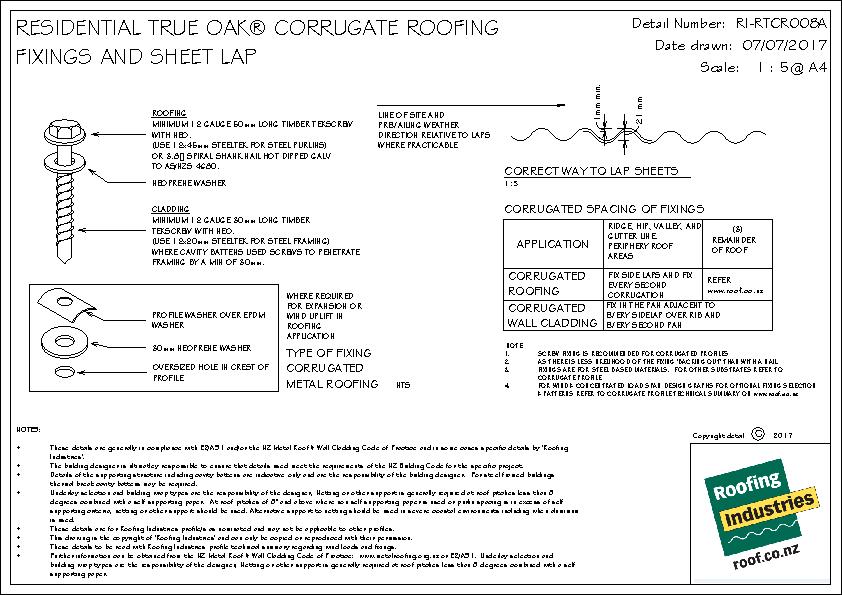

True Oak Fixings and Sheet Lap

RI-RTC-R008A

dwg
pdf

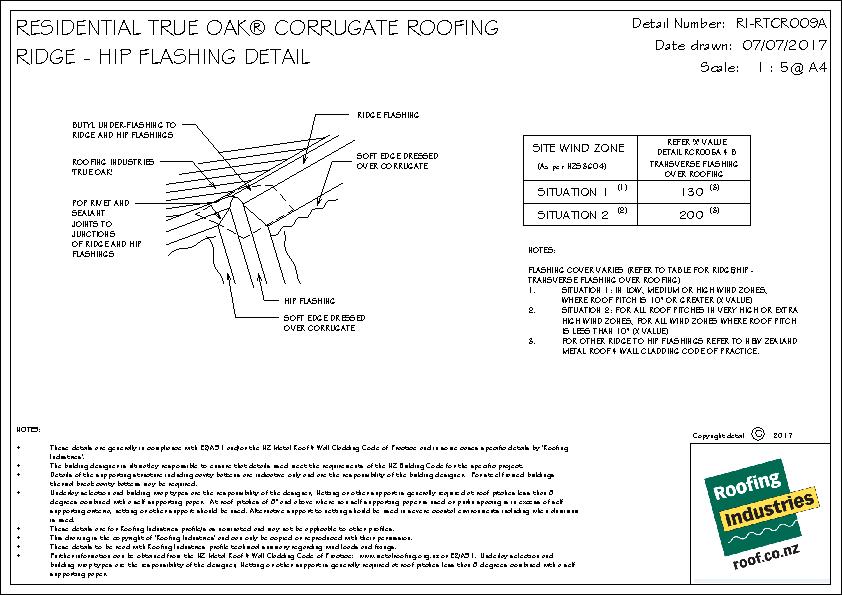

True Oak Ridge and Hip Flashing Detail

RI-RTC-R009A

dwg
pdf

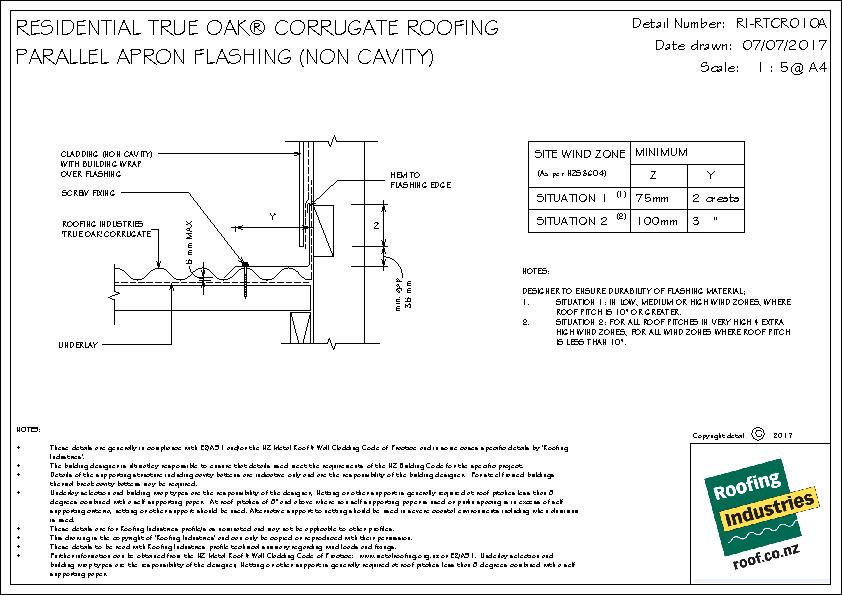

True Oak Parallel Apron Flashing (Non-Cavity)

RI-RTC-R010A

dwg
pdf

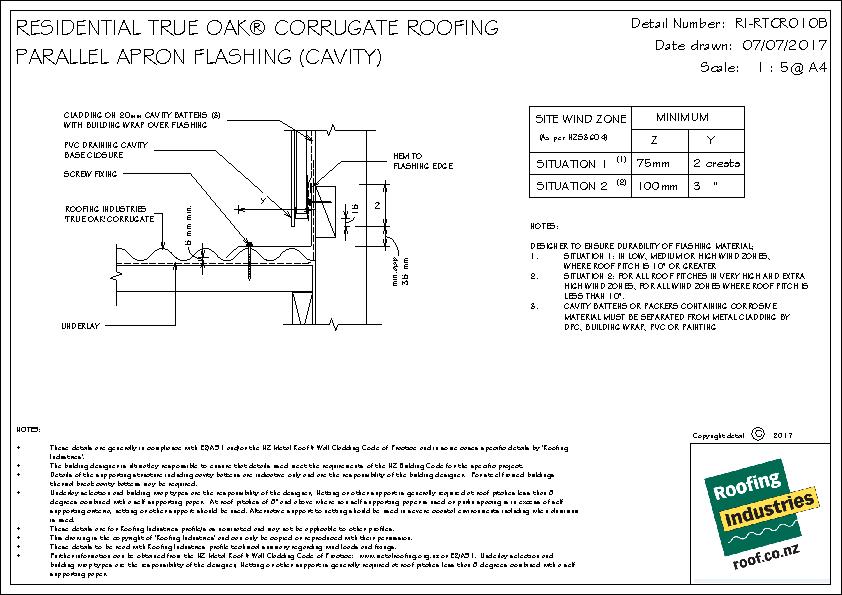

True Oak Parallel Apron Flashing (Cavity)

RI-RTC-R010B

dwg
pdf
True Oak Parallel Apron Flashing (Horizontal Corrugate on Cavity)

RI-RTC-R010C

dwg
pdf

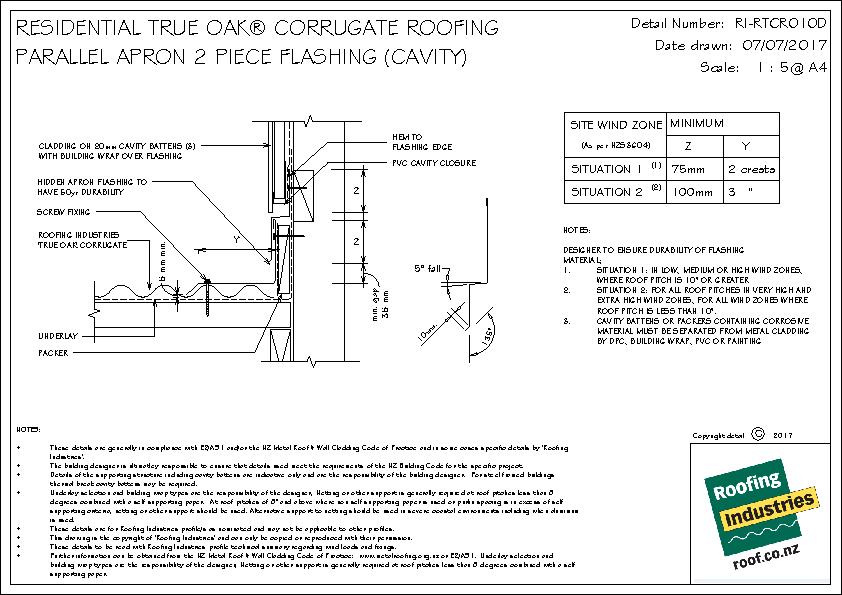

True Oak Parallel Apron 2 Piece Flashing (Cavity)

RI-RTC-R010D

dwg
pdf

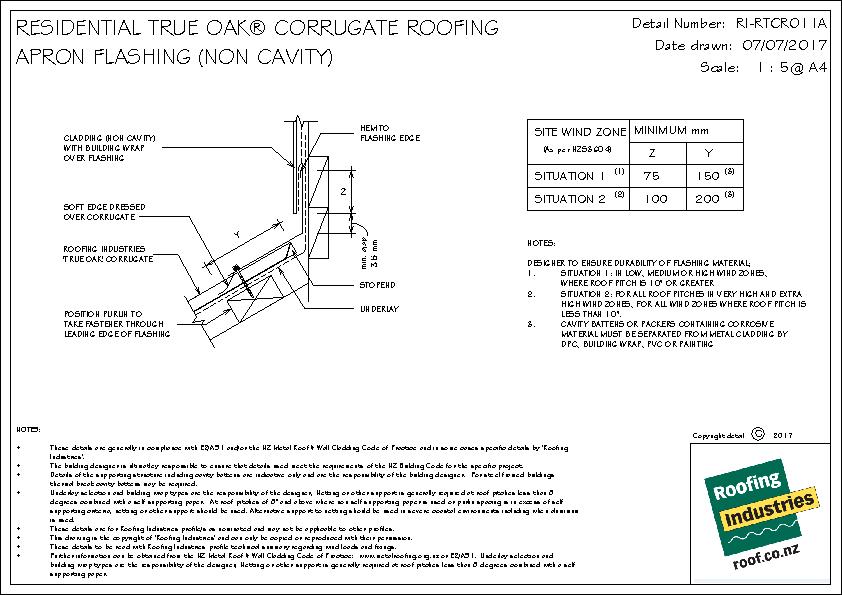

True Oak Apron Flashing (Non-Cavity)

RI-RTC-R011A

dwg
pdf

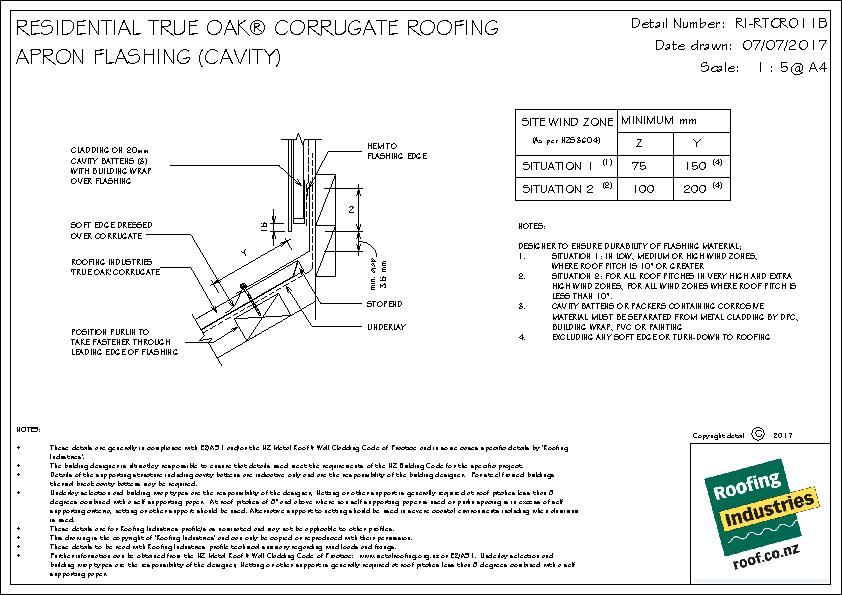

True Oak Apron Flashing (Cavity)

RI-RTC-R011B

dwg
pdf
True Oak Apron Flashing (Cavity)

RI-RTC-R011B

dwg
pdf

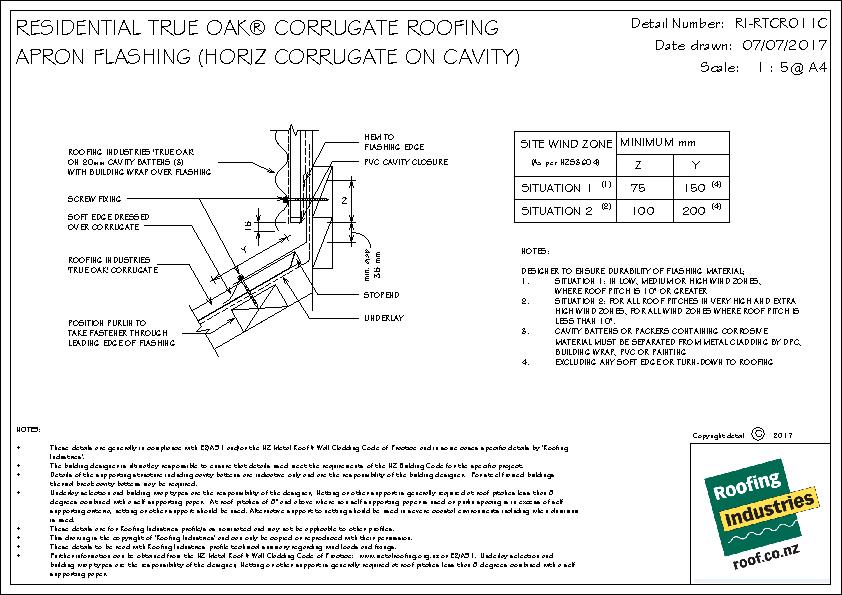

True Oak Apron Flashing (Horizontal Corrugate on Cavity)

RI-RTC-R011C

dwg
pdf

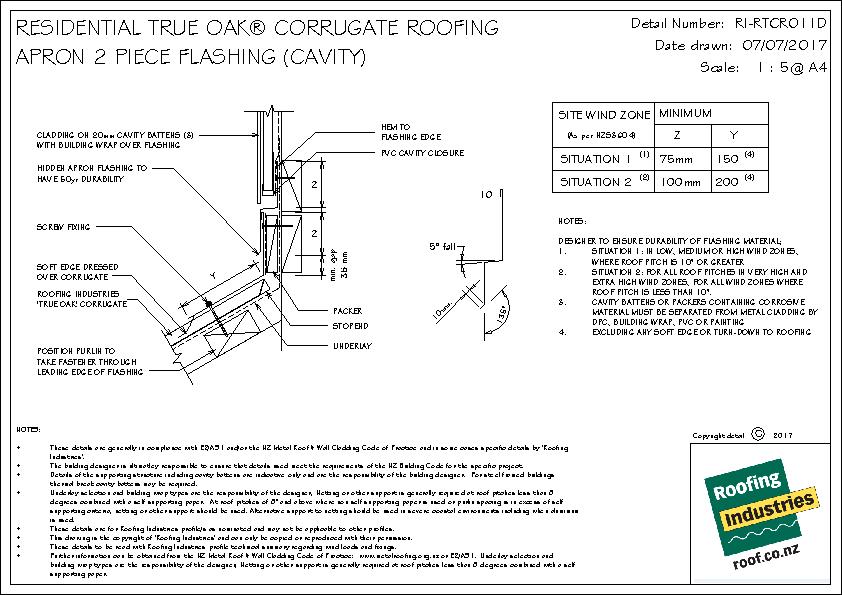

True Oak Apron 2 Piece Flashing (Cavity)

RI-RTC-R011D

dwg
pdf

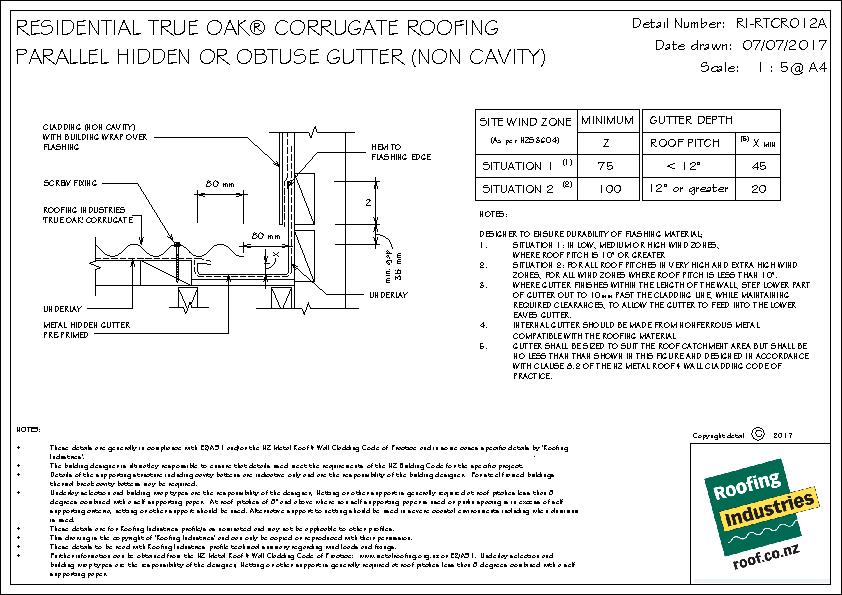

True Oak Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RTC-R012A

dwg
pdf

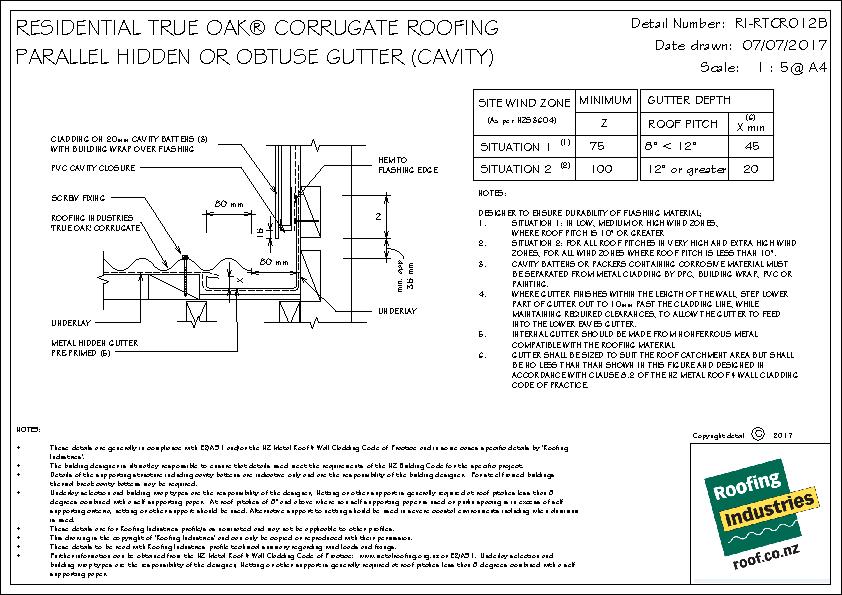

True Oak Parallel Hidden or Obtuse Gutter (Cavity)

RI-RTC-R012B

dwg
pdf

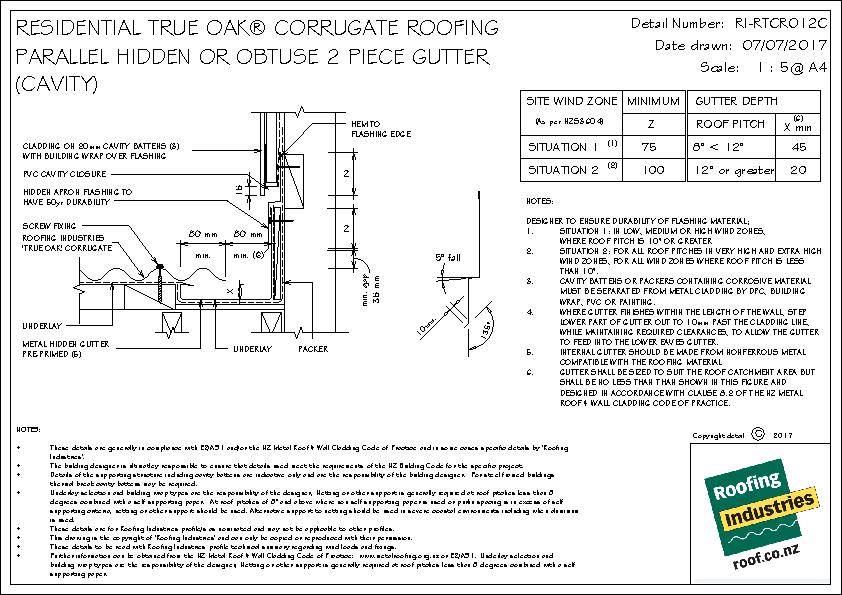

True Oak Parallel Hidden or Obtuse 2 Piece Gutter (Cavity)

RI-RTC-R012C

dwg
pdf

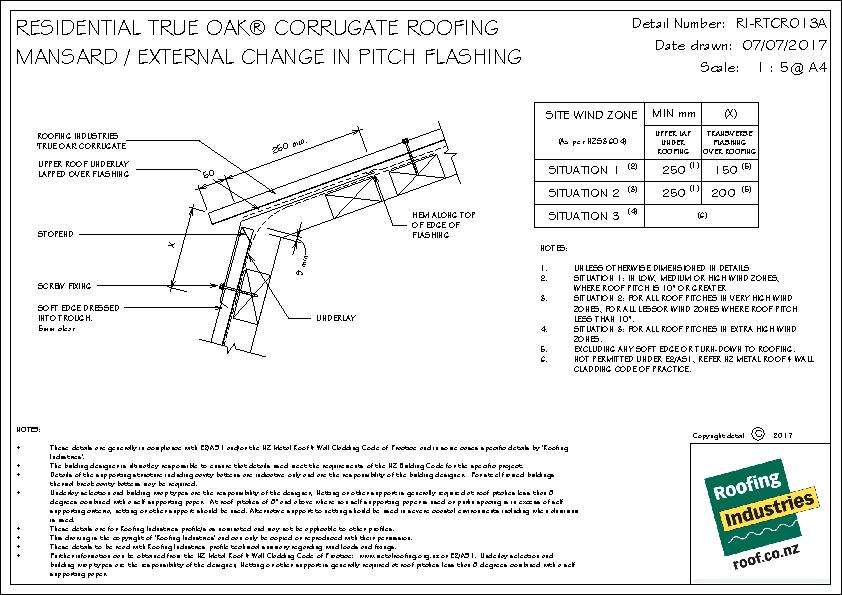

True Oak Mansard External Change in Pitch Flashing

RI-RTC-R013A

dwg
pdf

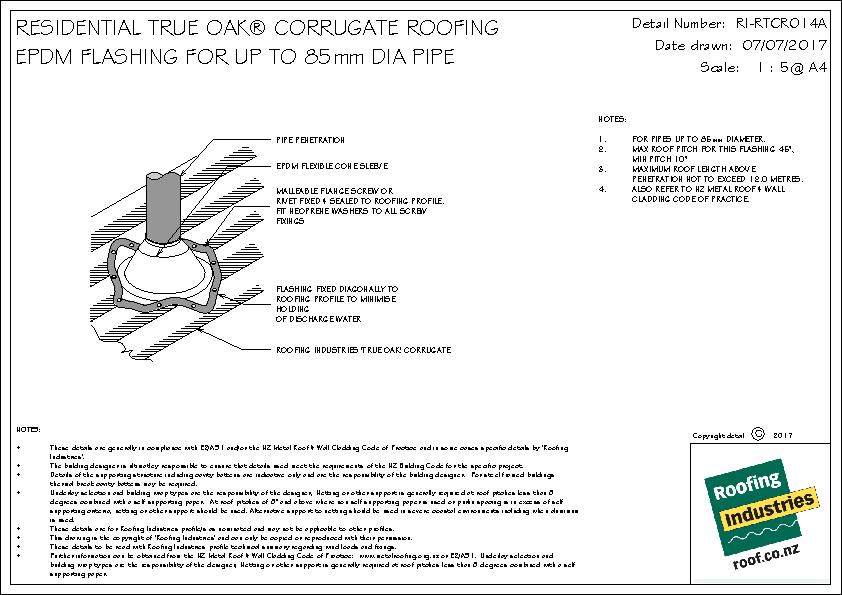

True Oak EPDM Flashing for up to 85mm Pipe

RI-RTC-R014A

dwg
pdf

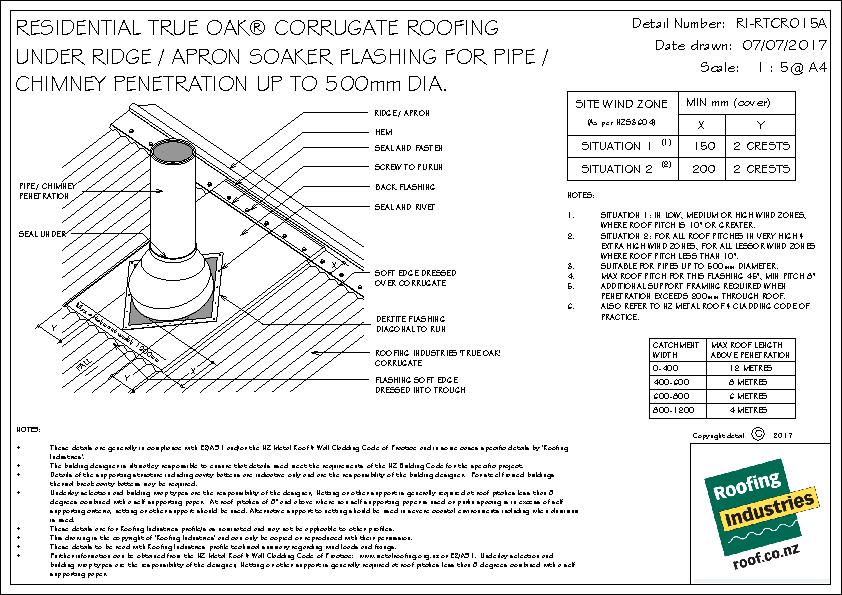

RI-RTCR015A-UNDER-RIDGE-APRON-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-UP-TO-500mm-DIA--pdf.jpg
True Oak Under Ridge Apron Soaker Flashing for Pipe/Chimney Penetration up to 500mm

RI-RTC-R015A

dwg
pdf

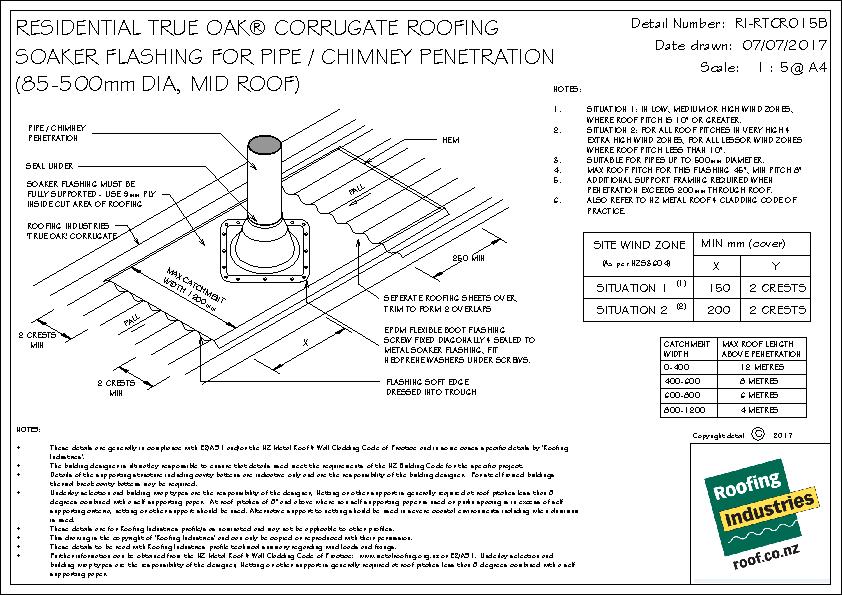

RI-RTCR015B-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-85-500mm-DIA-MID-ROOF-pdf.jpg
True Oak Soaker Flashing for Pipe/Chimney Penetration (85-500mm) (Mid-Roof)

RI-RTC-R015B

dwg
pdf

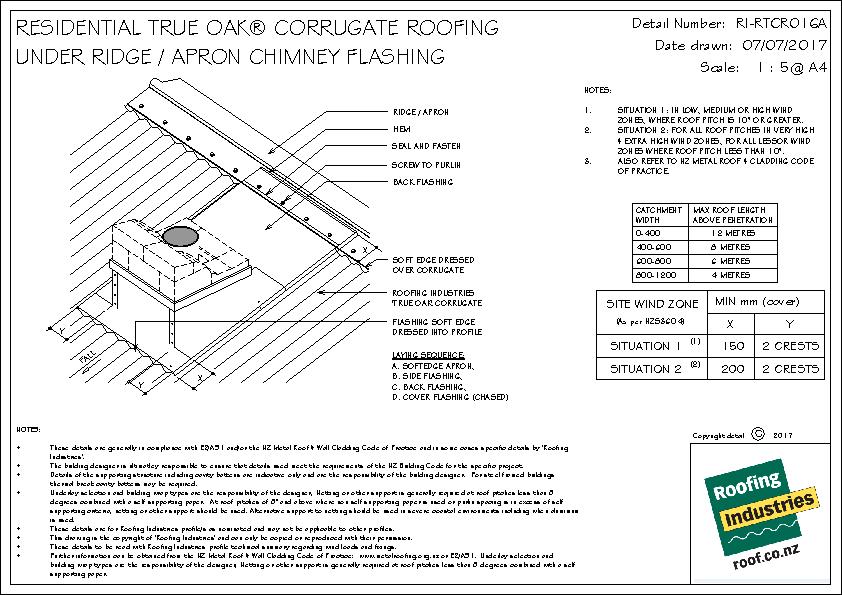

True Oak Under Ridge / Apron Chimney Flashing

RI-RTC-R016A

dwg
pdf
True Oak Chimney Flashing (Mid-Roof)

RI-RTC-R016B

dwg
pdf

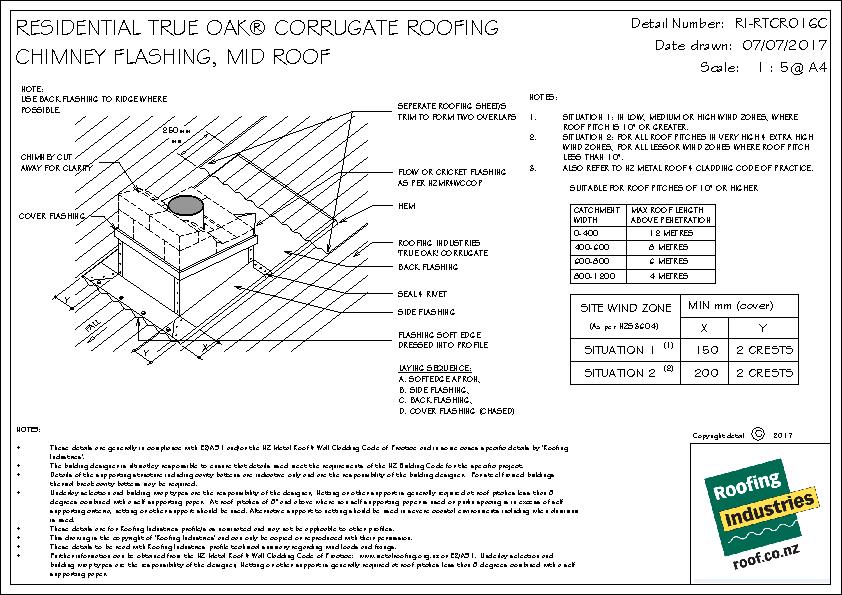

True Oak Chimney Flashing (Mid-Roof)

RI-RTC-R016C

dwg
pdf

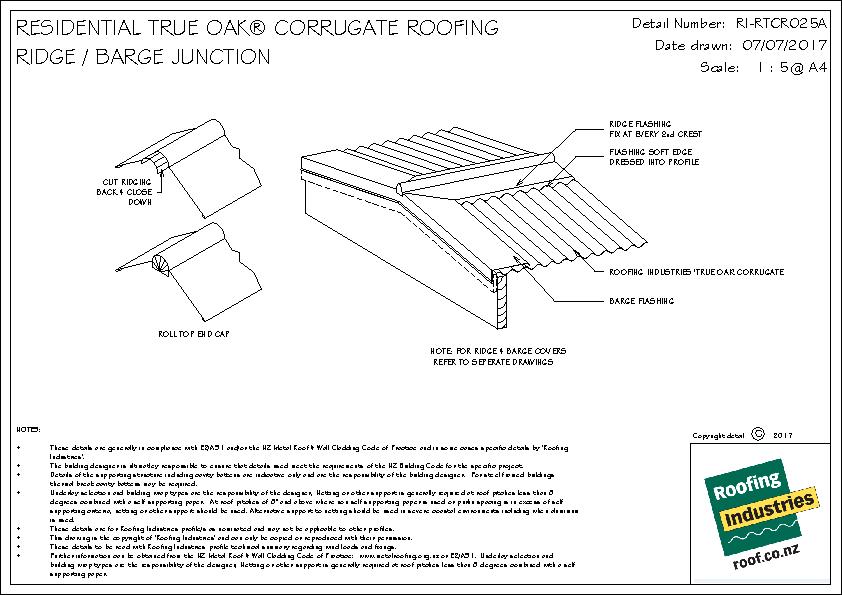

True Oak Ridge / Barge Junction

RI-RTC-R025A

dwg
pdf

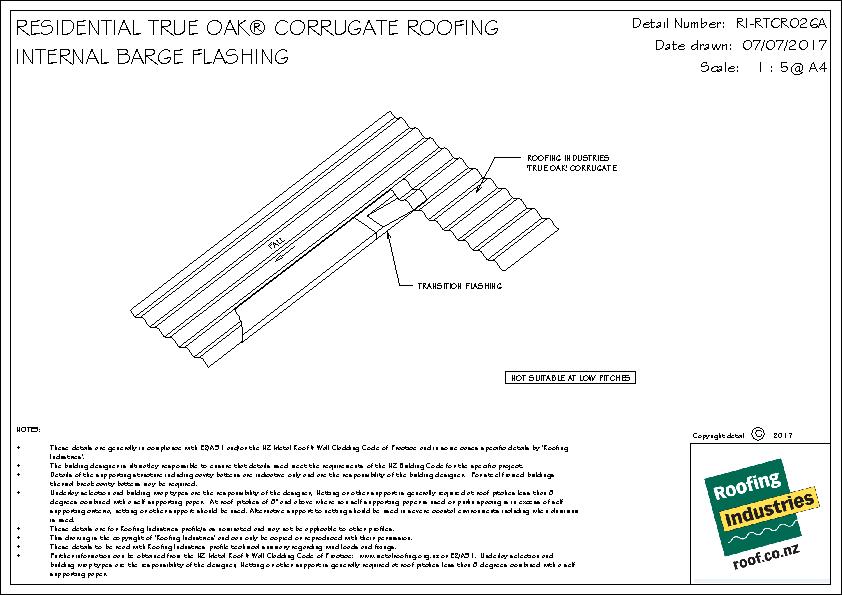

True Oak Internal Barge Flashing

RI-RTC-R026A

dwg
pdf

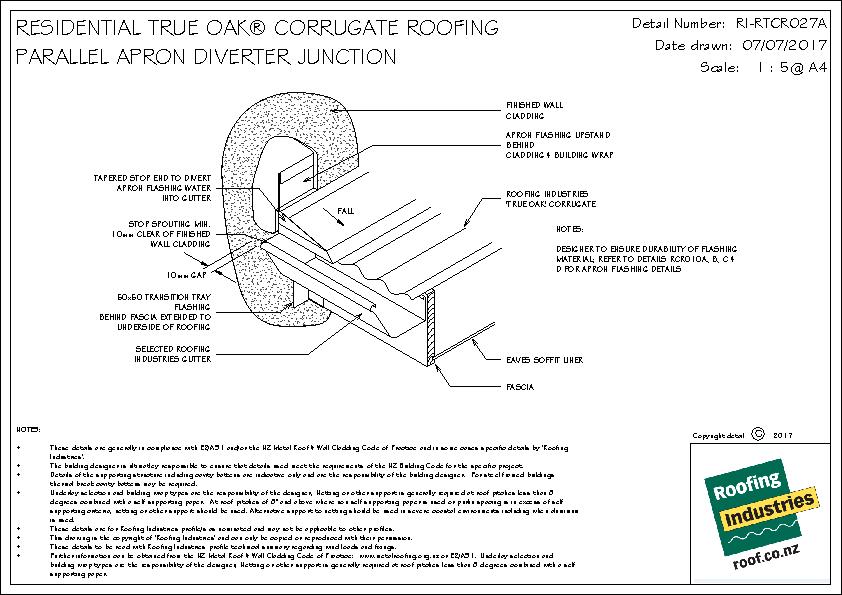

True Oak Parallel Apron Diverter Junction

RI-RTC-R027A

dwg
pdf

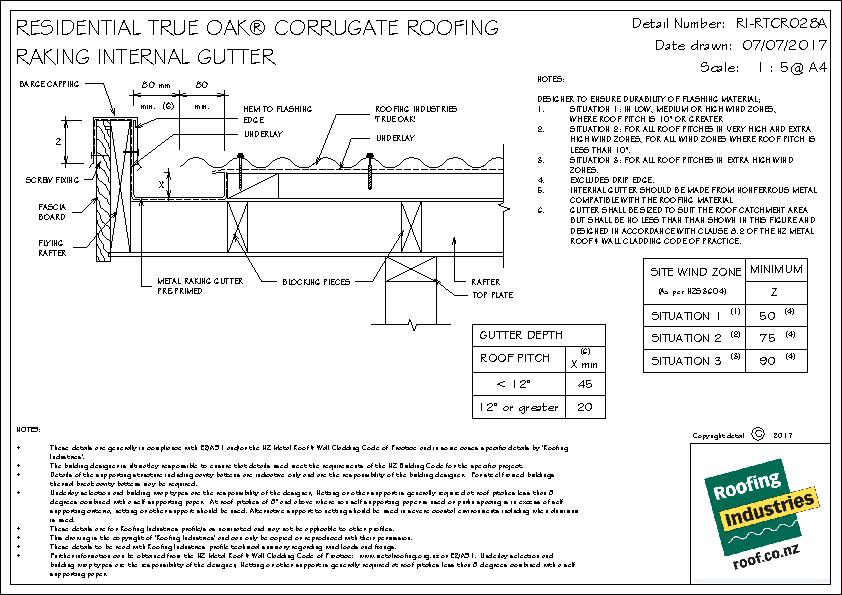

True Oak Raking Internal Gutter

RI-RTC-R028A

dwg
pdf
RI-RTCR030A-ROOFING-INDUSTRIES-GUTTER-OPTIONS-QUARTER-1-2-ROUND-FOR-TIMBER-FASCIA-pdf.jpg

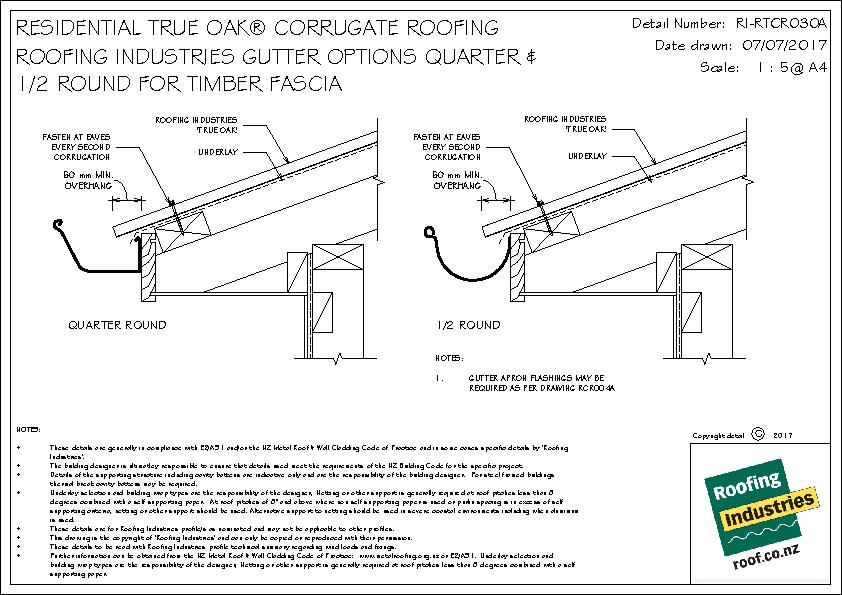

True Oak Gutter Options (Quarter & Half Round for Timber Facia)

RI-RTC-R030A

dwg
pdf

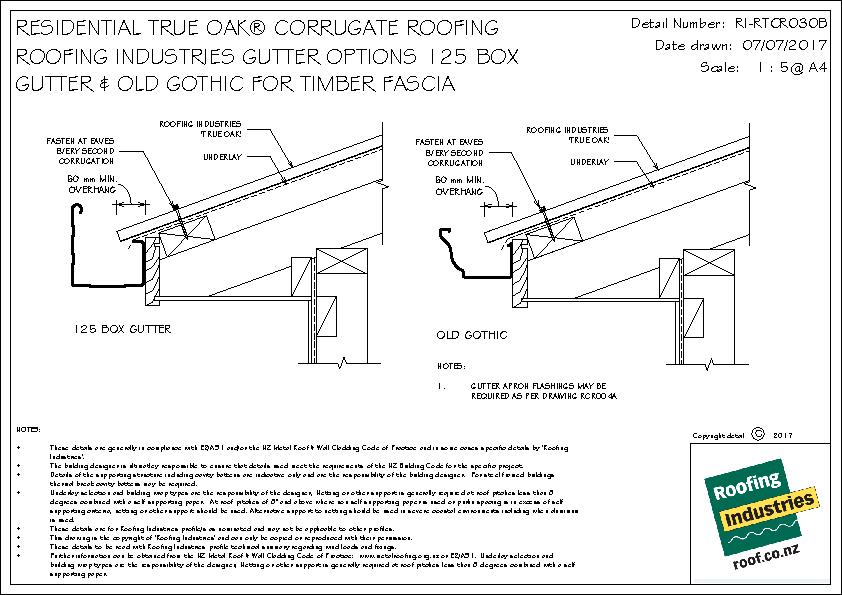

RI-RTCR030B-ROOFING-INDUSTRIES-GUTTER-OPTIONS-125-BOX-GUTTER-OLD-GOTHIC-FOR-TIMBER-FASCIA-pdf.jpg
True Oak Gutter Options (125 Box & Old Gothic for Timber Fascia)

RI-RTC-R030B

dwg
pdf
True Oak Corrugate Full Set — Residential Wall Cladding

RI-RTC-W

pdf
zip

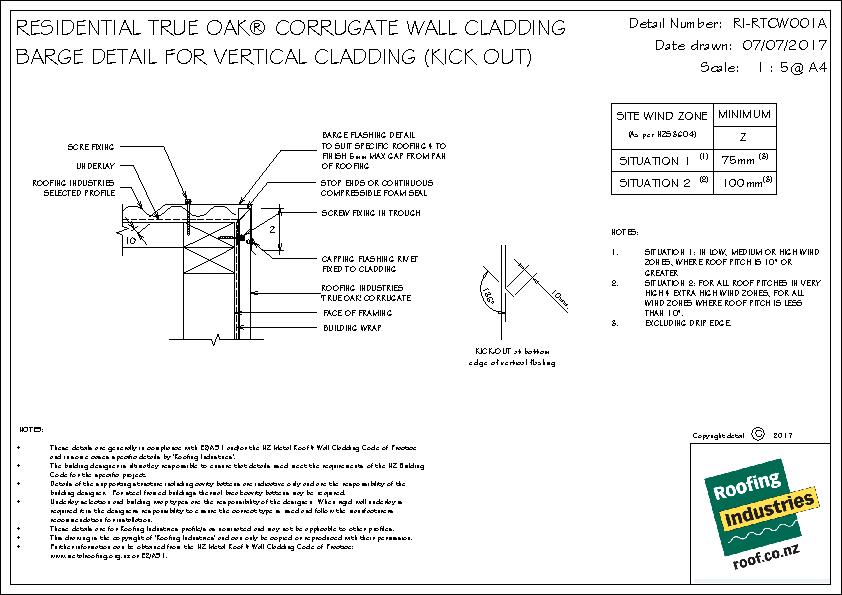

True Oak Barge Detail for Vertical Cladding (Kick Out)

RI-RTC-W001A

dwg
pdf
True Oak Barge Detail for Vertical Cladding On Cavity (Kick Out)

RI-RTC-W001A-1

dwg
pdf

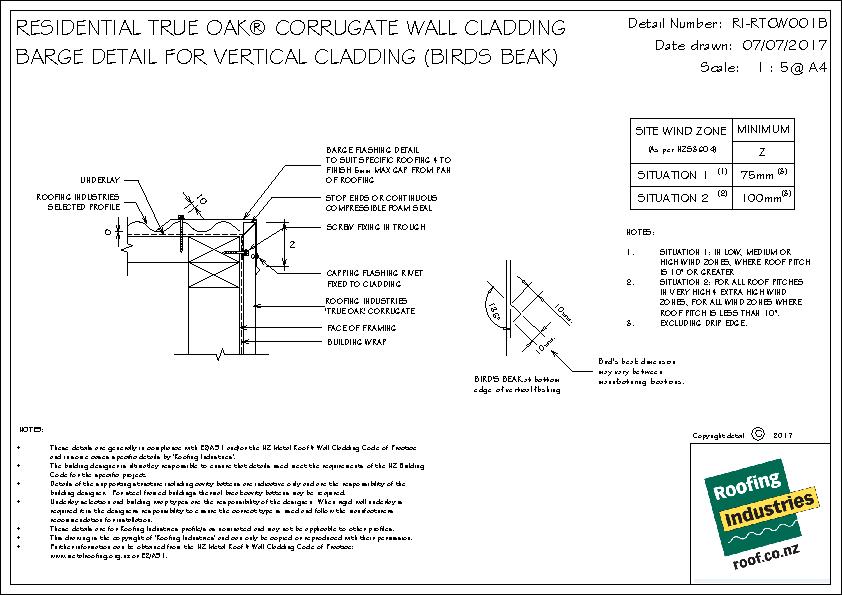

True Oak Barge Detail for Vertical Cladding (Bird's Beak)

RI-RTC-W001B

dwg
pdf

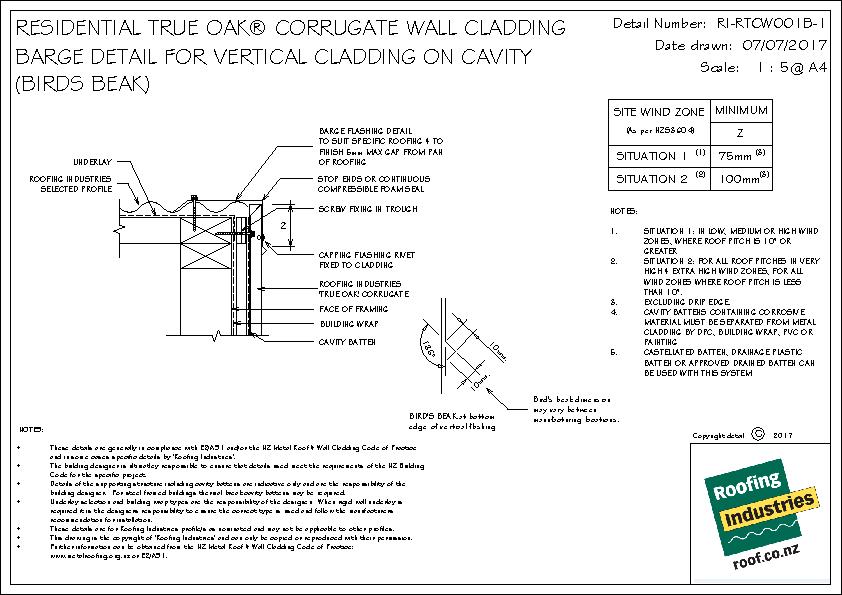

True Oak Barge Detail for Vertical Cladding on Cavity (Bird's Beak)

RI-RTC-W001B-1

dwg
pdf
True Oak Head Barge for Vertical Cladding (Kick Out)

RI-RTC-W002A

dwg
pdf

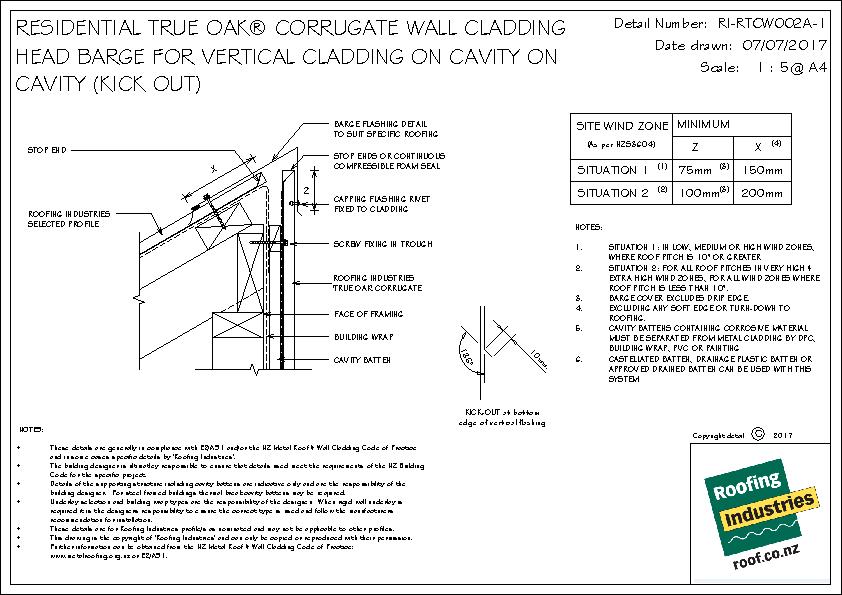

True Oak Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RTC-W002A-1

dwg
pdf

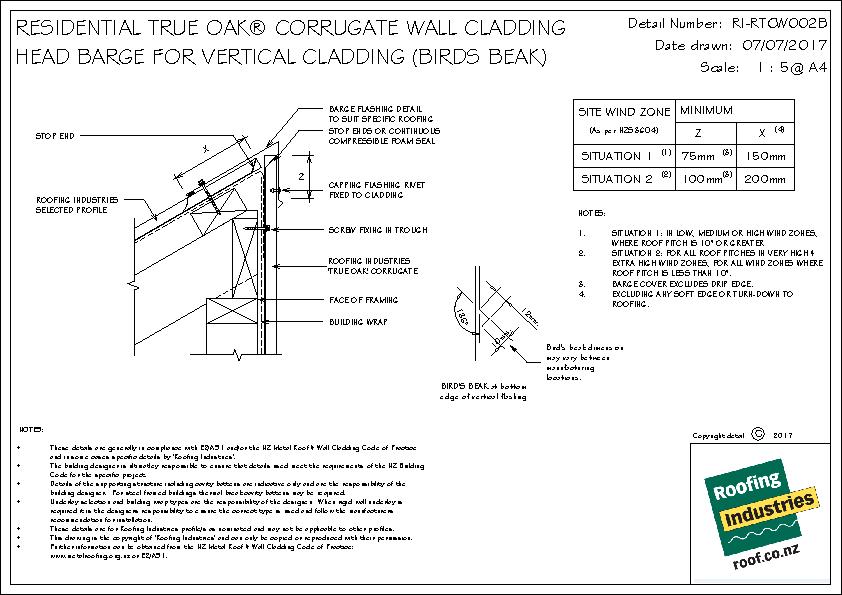

True Oak Head Barge for Vertical Cladding (Bird's Beak)

RI-RTC-W002B

dwg
pdf

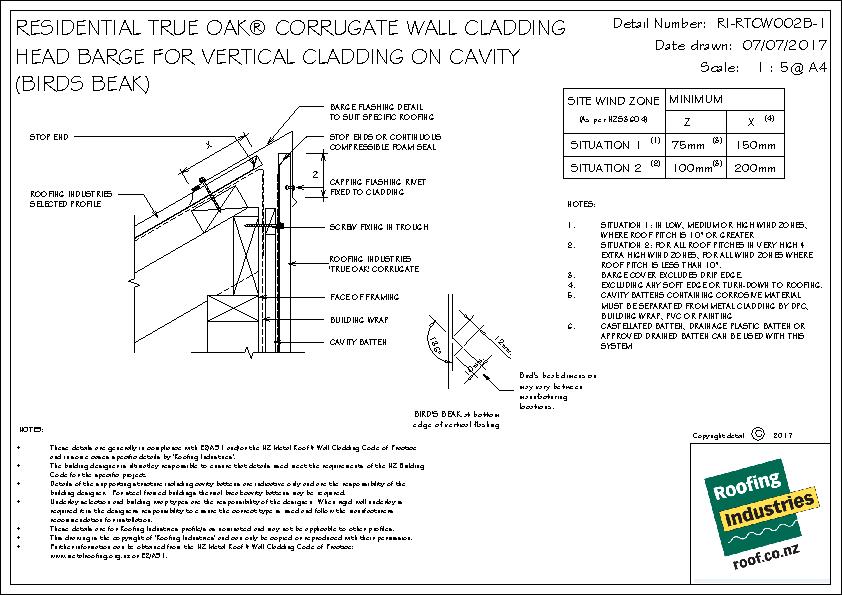

True Oak Head Barge for Vertical Cladding on Cavity (Bird's Beak)

RI-RTC-W002B-1

dwg
pdf

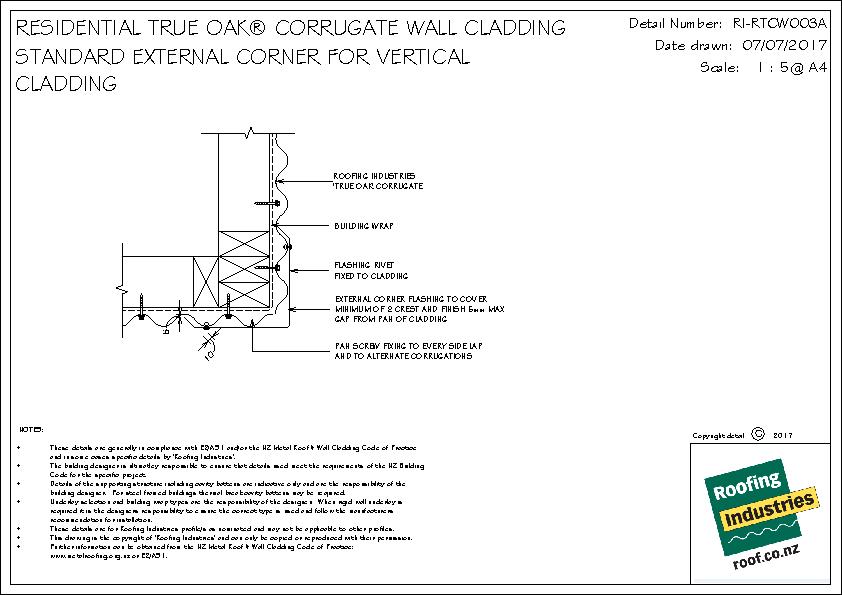

True Oak Standard External Corner for Vertical Cladding

RI-RTC-W003A

dwg
pdf
True Oak Standard External Corner for Vertical Cladding on Cavity

RI-RTC-W003A-1

dwg
pdf

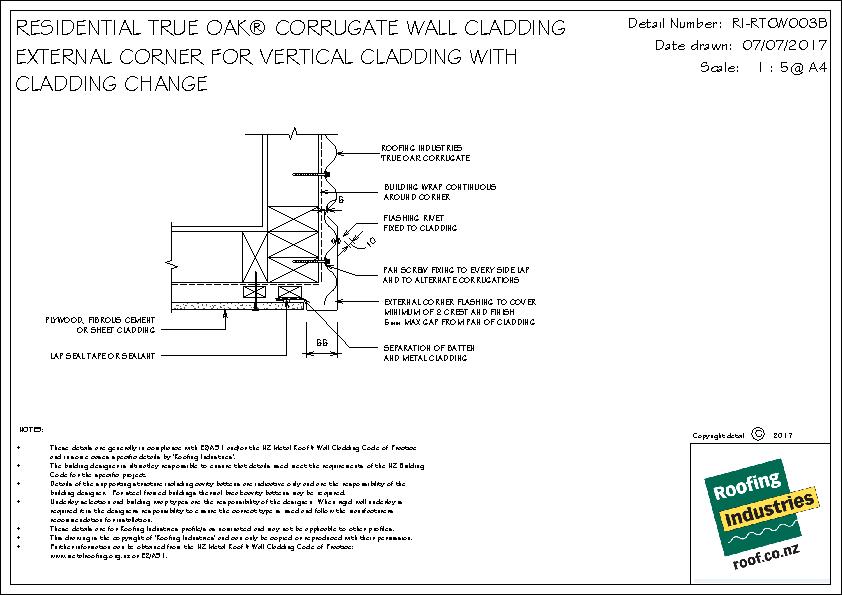

True Oak External Corner for Vertical Cladding with Cladding Change

RI-RTC-W003B

dwg
pdf

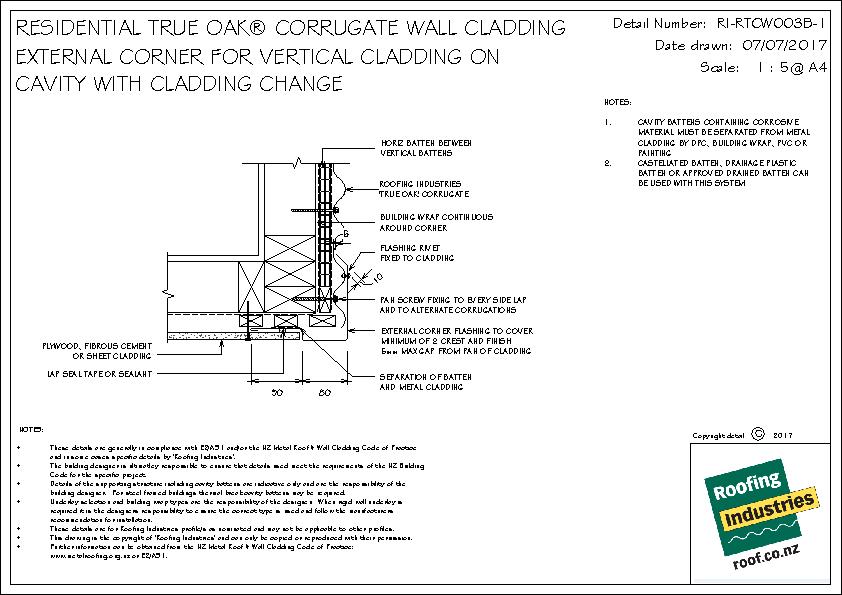

RI-RTCW003B-1-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg
True Oak External Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTC-W003B-1

dwg
pdf

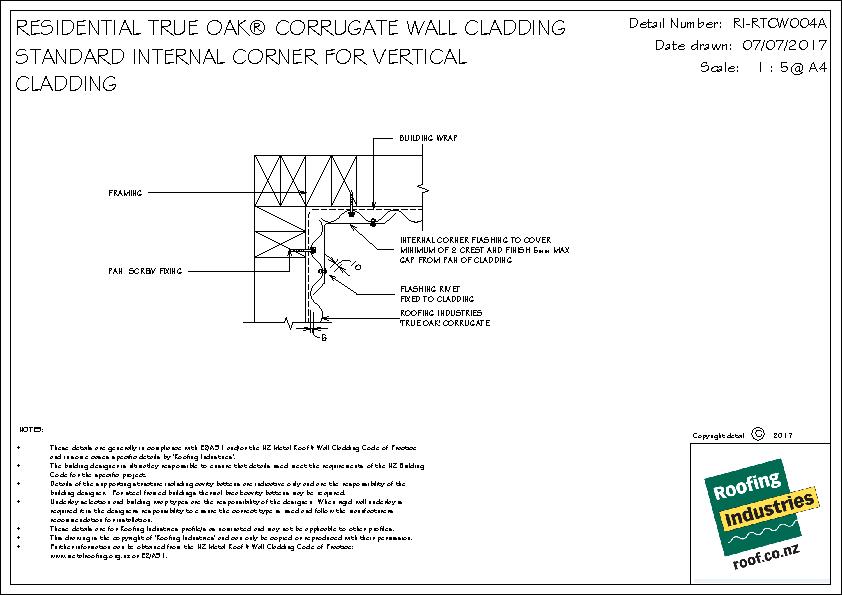

True Oak Standard Internal Corner for Vertical Cladding

RI-RTC-W004A

dwg
pdf

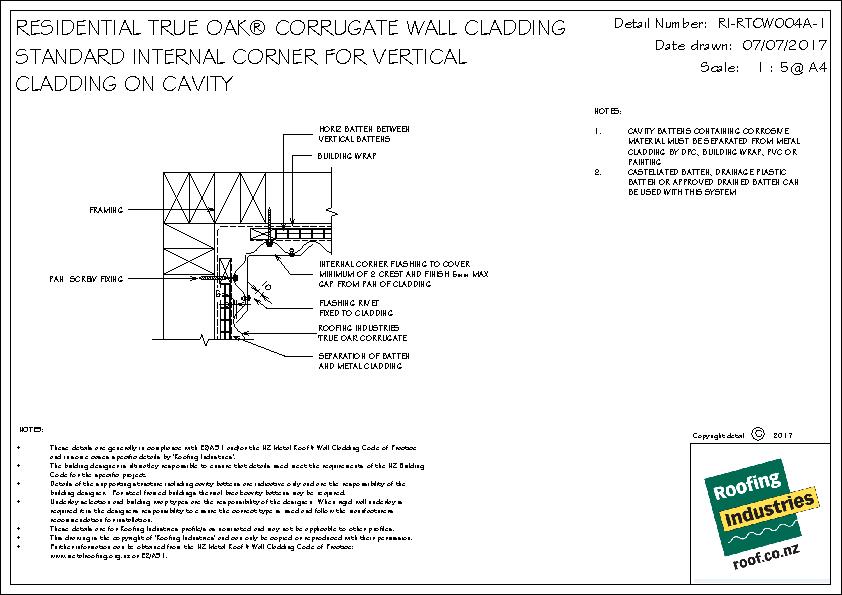

True Oak Standard Internal Corner for Vertical Cladding on Cavity

RI-RTC-W004A-1

dwg
pdf

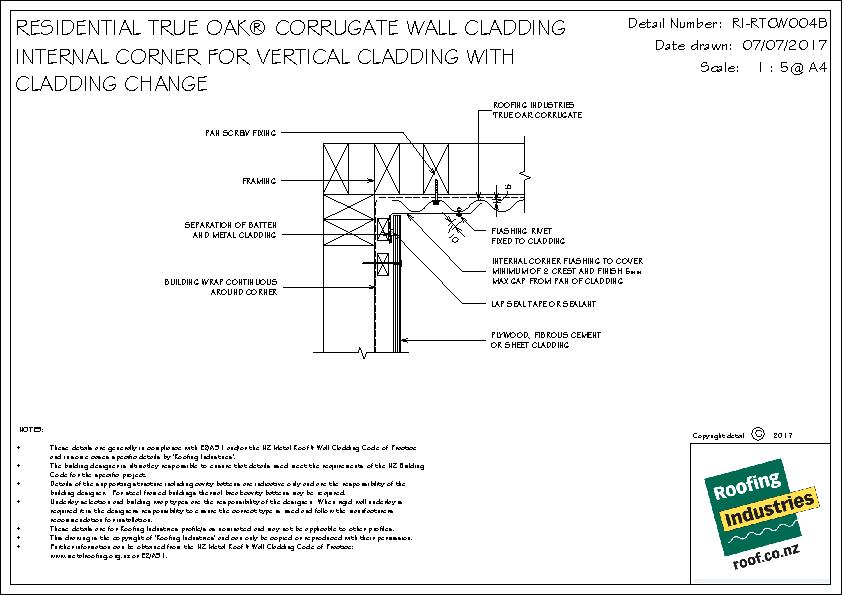

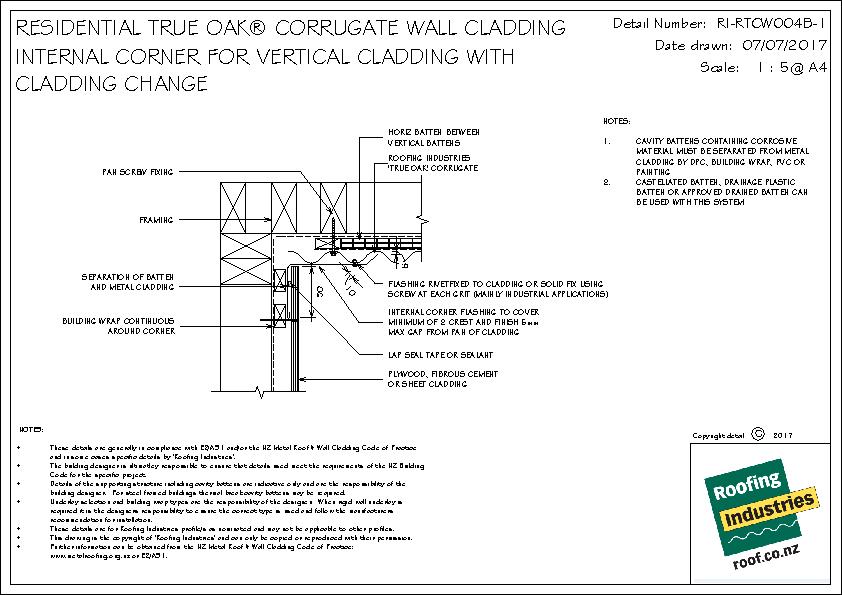

True Oak Internal Corner for Vertical Cladding with Cladding Change

RI-RTC-W004B

dwg
pdf
True Oak Internal Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTC-W004B-1

dwg
pdf

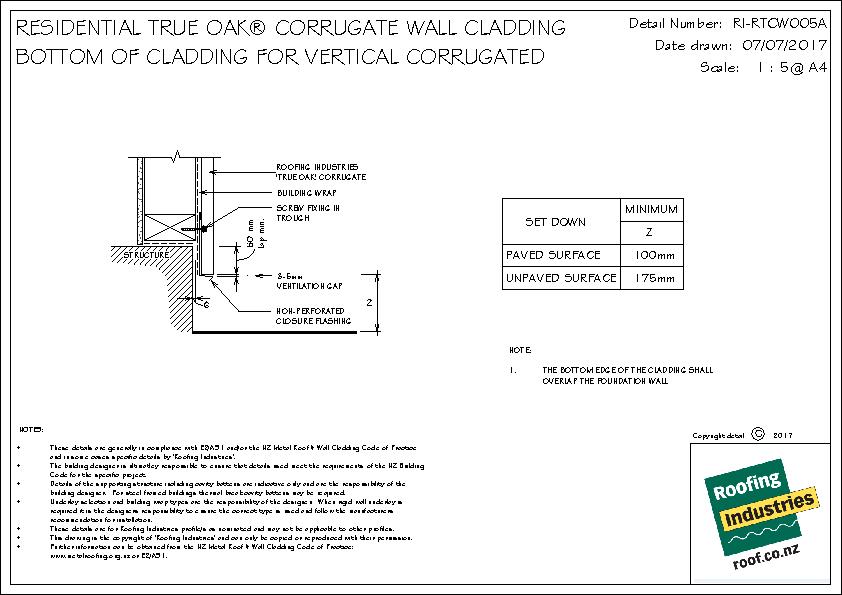

True Oak Bottom of Cladding for Vertical Corrugated

RI-RTC-W005A

dwg
pdf

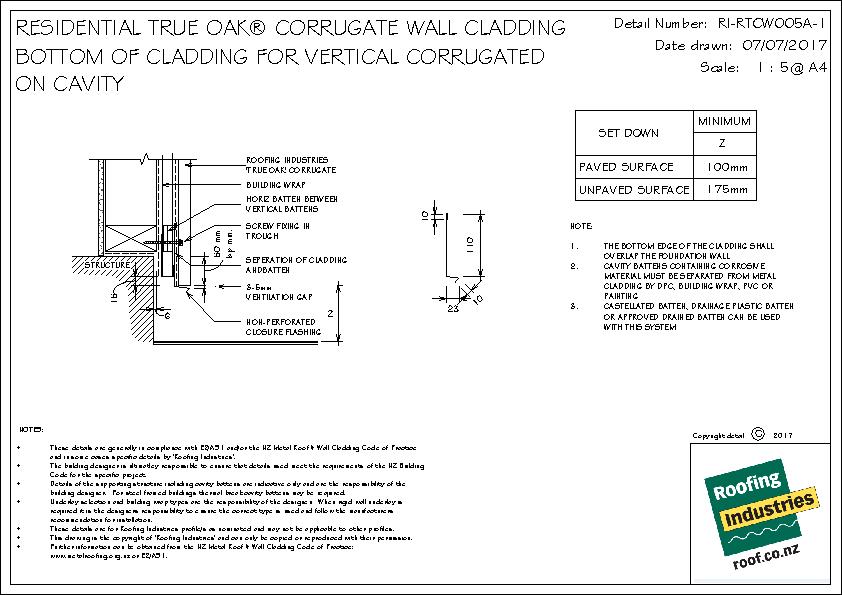

True Oak Bottom of Cladding for Vertical Corrugate on Cavity

RI-RTC-W005A-1

dwg
pdf

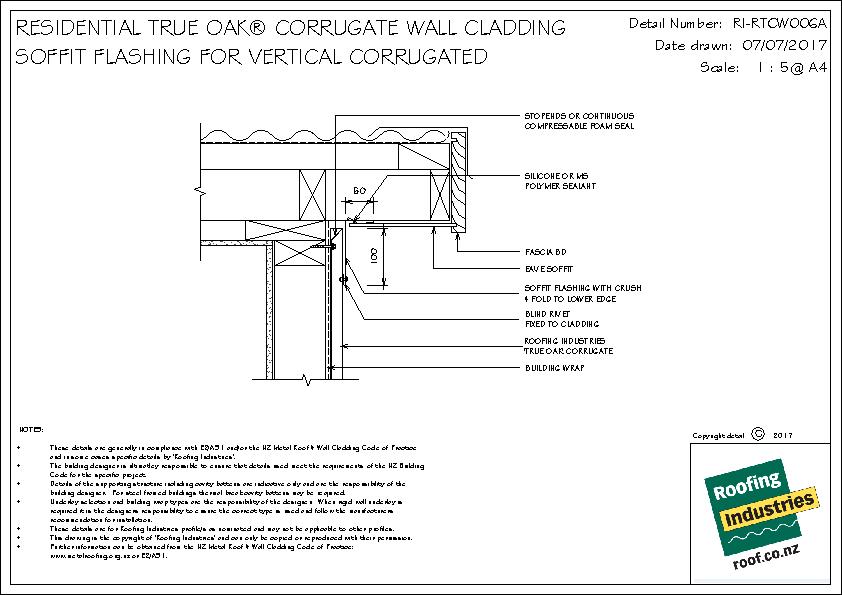

True Oak Soffit Flashing for Vertical Corrugated

RI-RTC-W006A

dwg
pdf

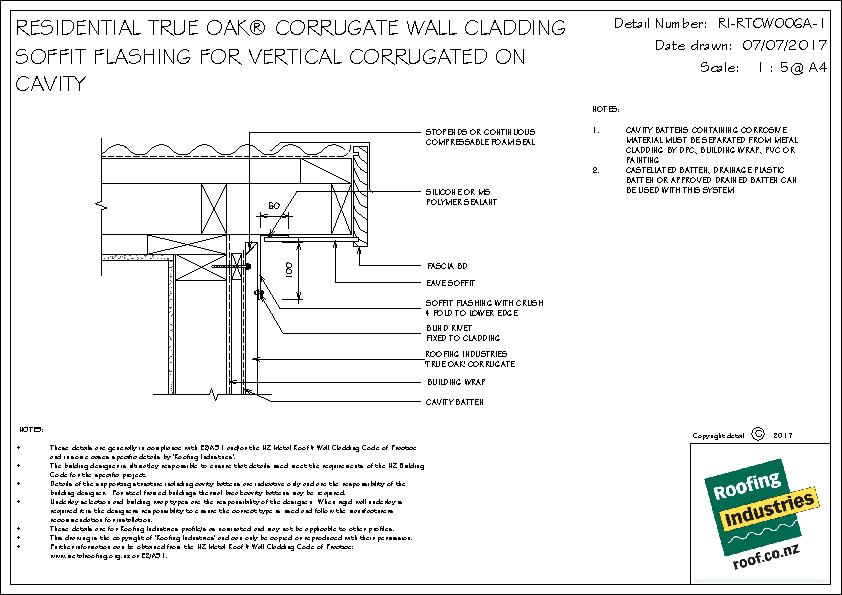

True Oak Soffit Flashing for Vertical Corrugated on Cavity

RI-RTC-W006A-1

dwg
pdf

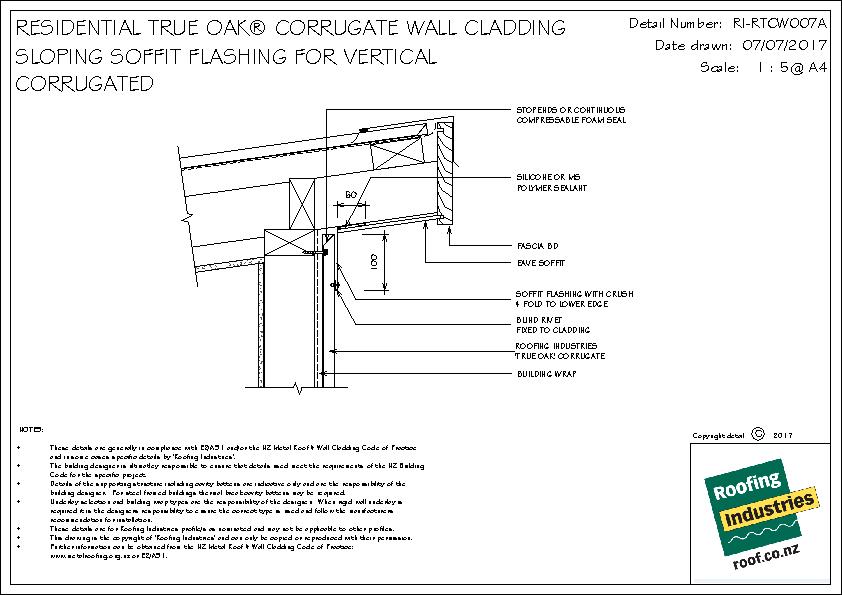

True Oak Sloping Soffit Flashing for Vertical Corrugated

RI-RTC-W007A

dwg
pdf

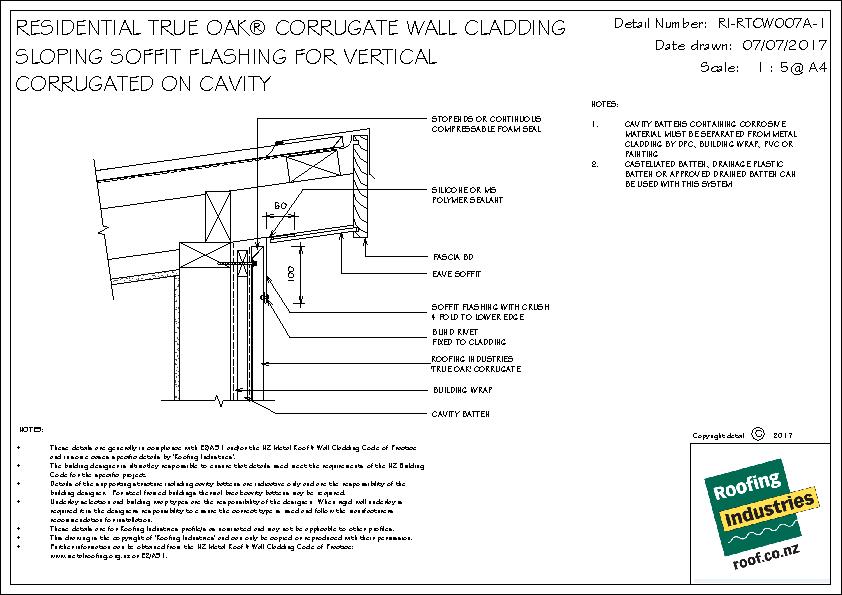

True Oak Sloping Soffit Flashing for Vertical Corrugated on Cavity

RI-RTC-W007A-1

dwg
pdf

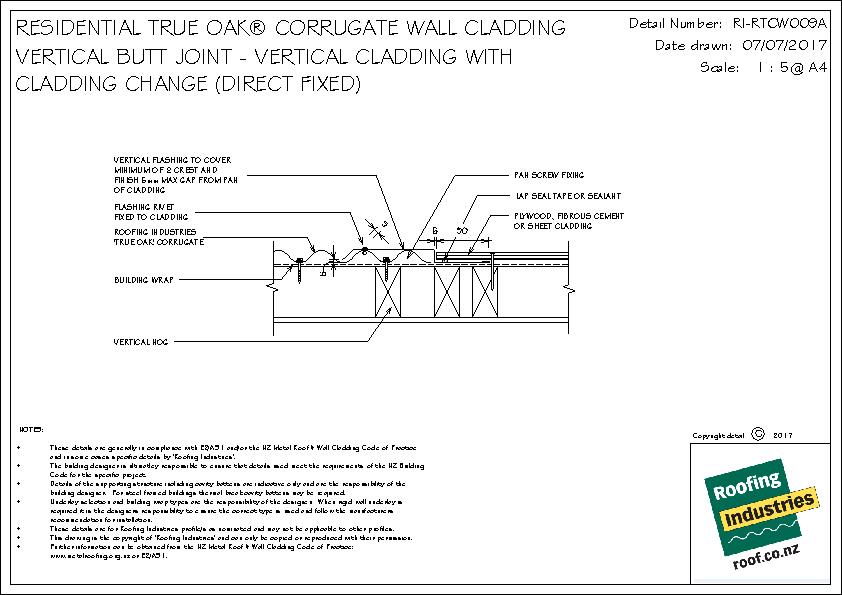

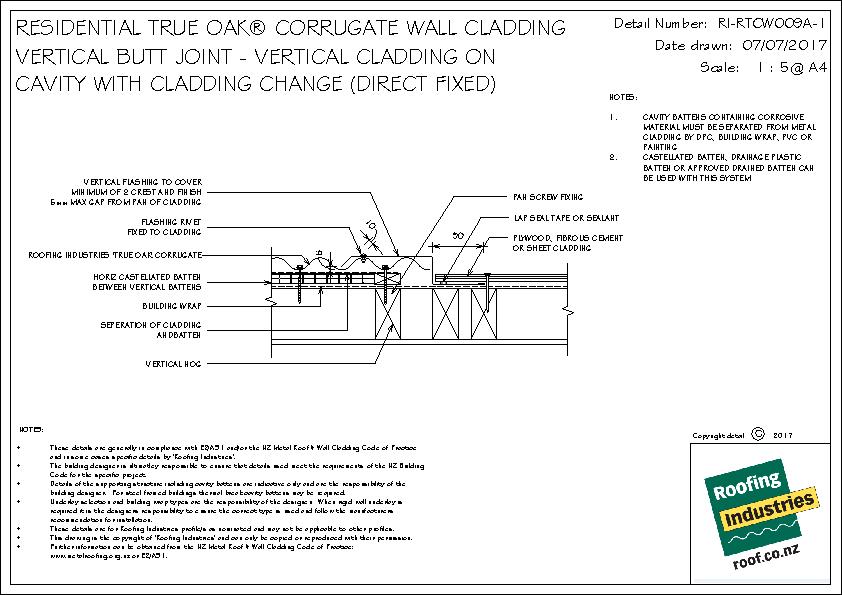

RI-RTCW009A-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg
True Oak Vertical Butt Joint for Vertical Cladding with Cladding Change (Direct Fix)

RI-RTC-W009A

dwg
pdf
RI-RTCW009A-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg
True Oak Vertical Butt Joint for Vertical Cladding on Cavity with Cladding Change (Direct Fix)

RI-RTC-W009A-1

dwg
pdf

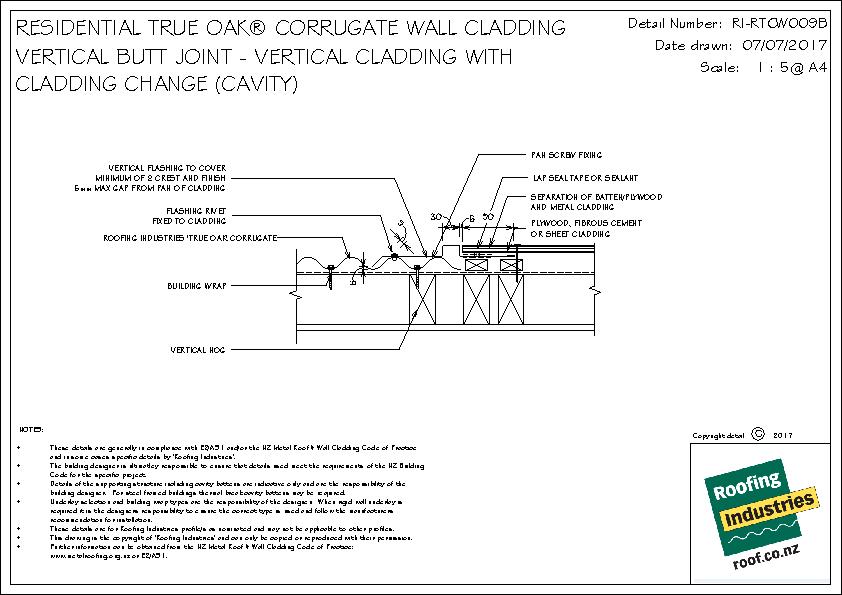

RI-RTCW009B-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg
True Oak Vertical Butt Joint for Vertical Cladding with Cladding Change (Cavity)

RI-RTC-W009B

dwg
pdf

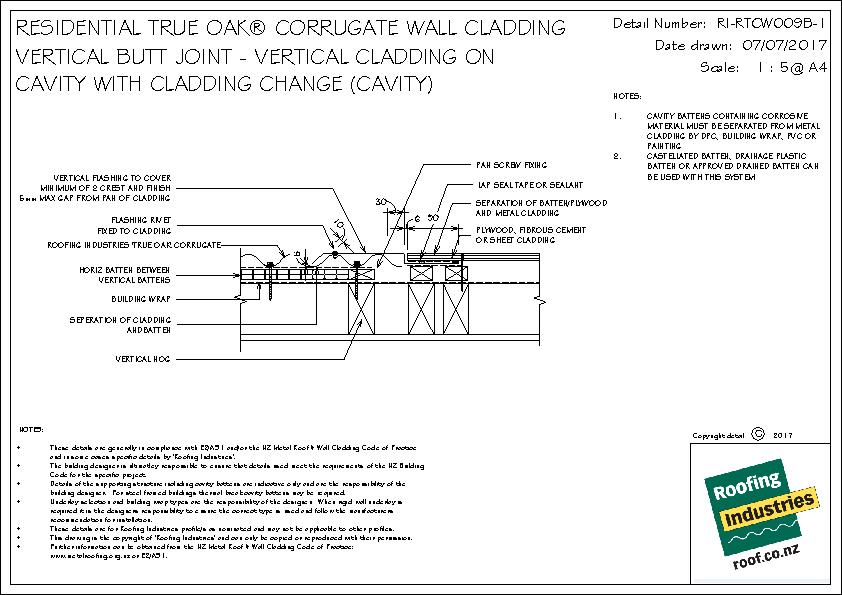

RI-RTCW009B-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg
True Oak Vertical Butt Joint for Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RTC-W009B-1

dwg
pdf
True Oak Vertical Cladding Junction Flashing

RI-RTC-W010A

dwg
pdf

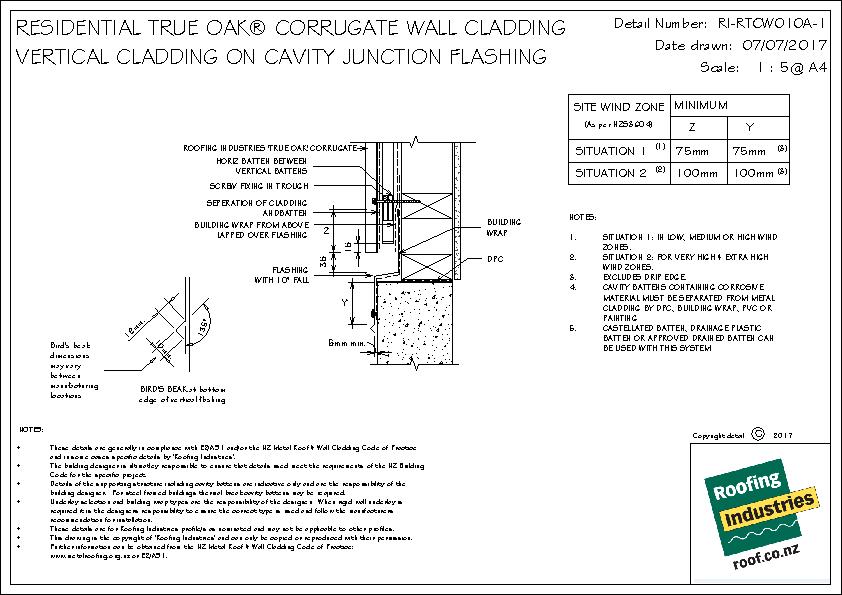

True Oak Vertical Cladding on Cavity Junction Flashing

RI-RTC-W010A-1

dwg
pdf

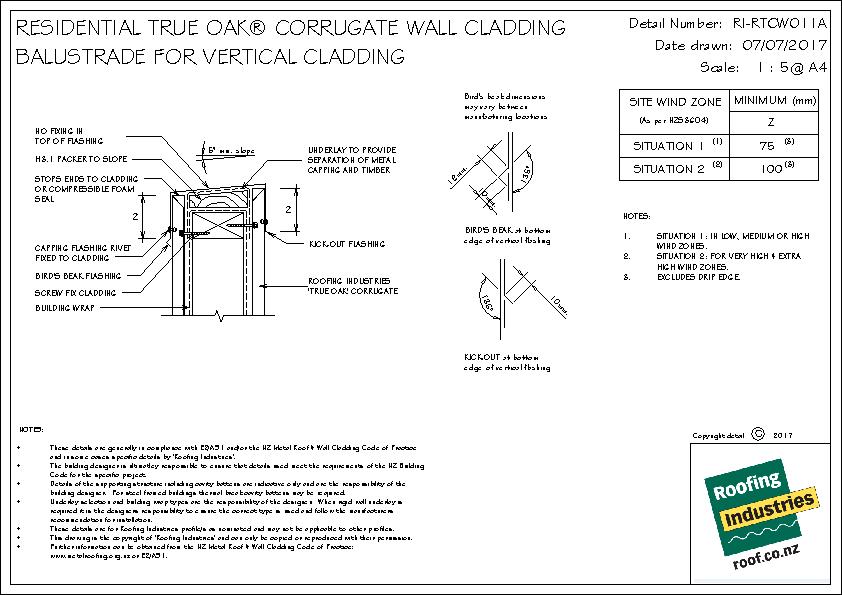

True Oak Balustrade for Vertical Cladding

RI-RTC-W011A

dwg
pdf

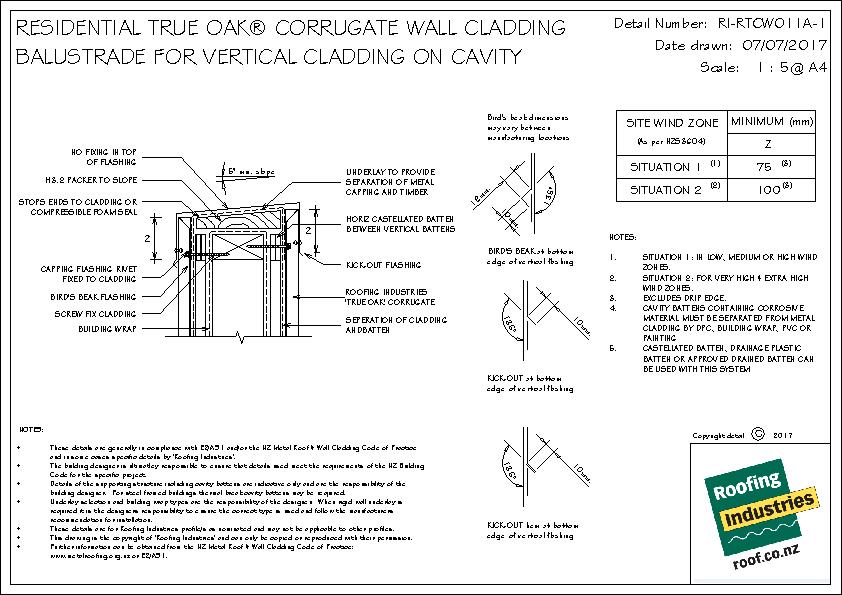

True Oak Balustrade for Vertical Cladding on Cavity

RI-RTC-W011A-1

dwg
pdf

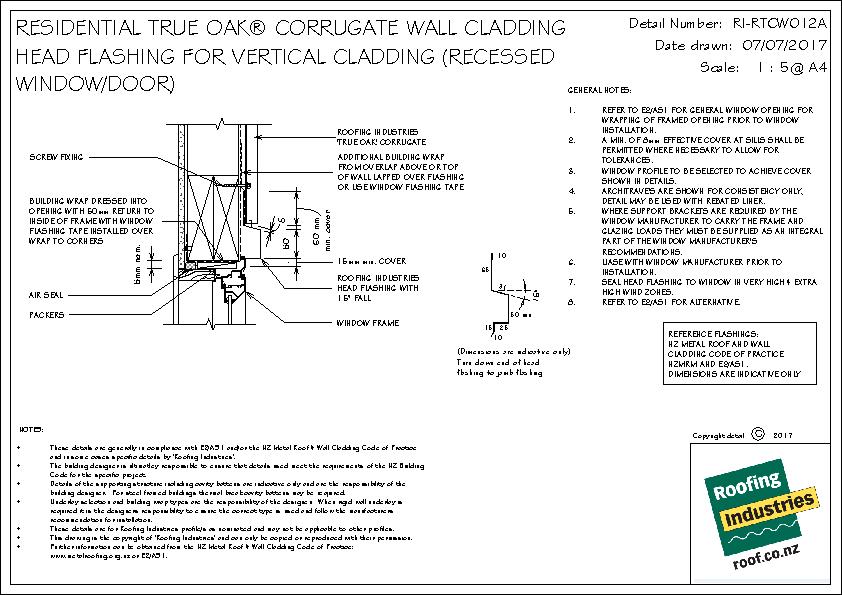

True Oak Head Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTC-W012A

dwg
pdf

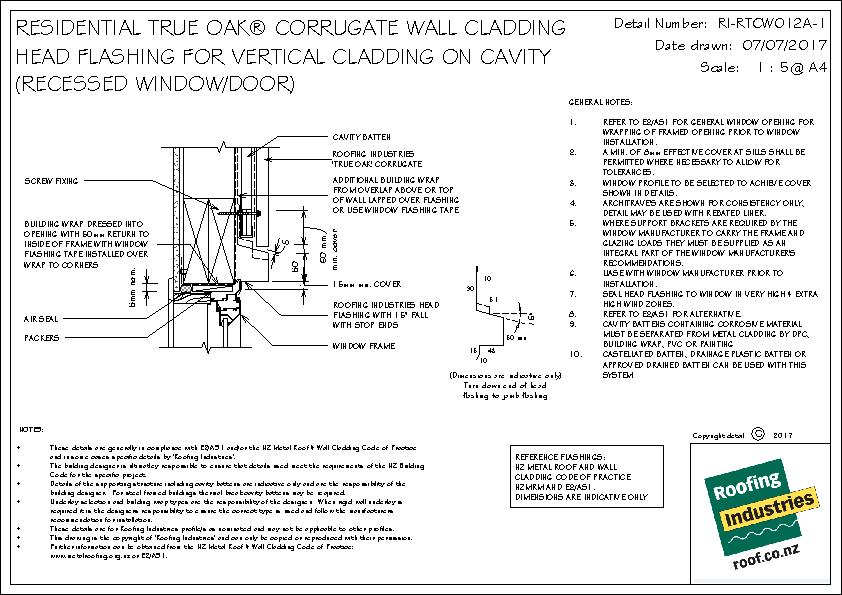

RI-RTCW012A-1-HEAD-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
True Oak Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTC-W012A-1

dwg
pdf

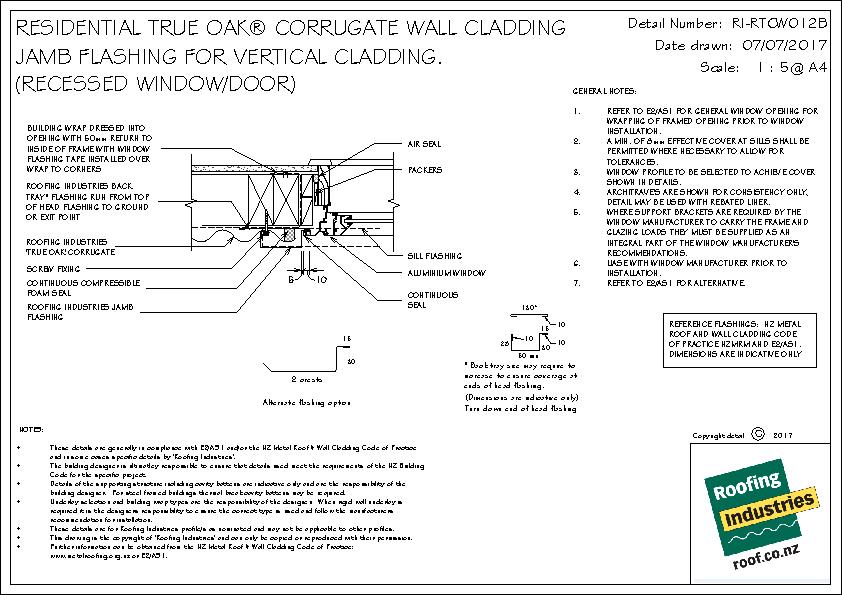

True Oak Jamb Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTC-W012B

dwg
pdf

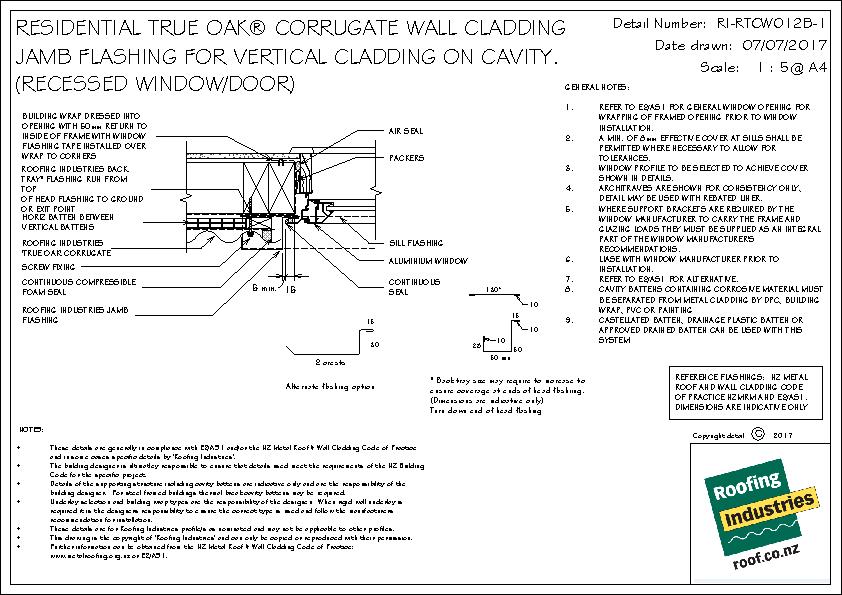

RI-RTCW012B-1-JAMB-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
True Oak Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTC-W012B-1

dwg
pdf

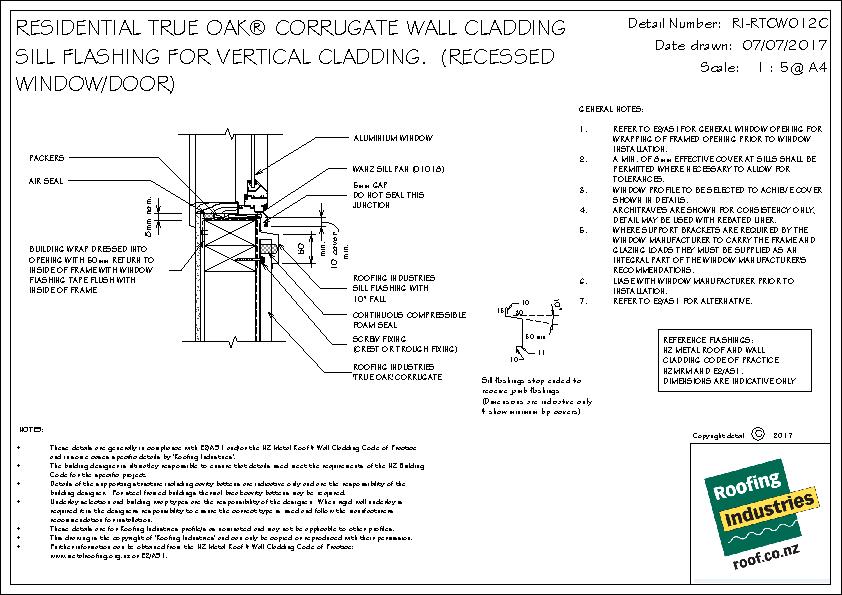

True Oak Sill Flashing for Vertical Cladding (Recessed Window/Door)

RI-RTC-W012C

dwg
pdf

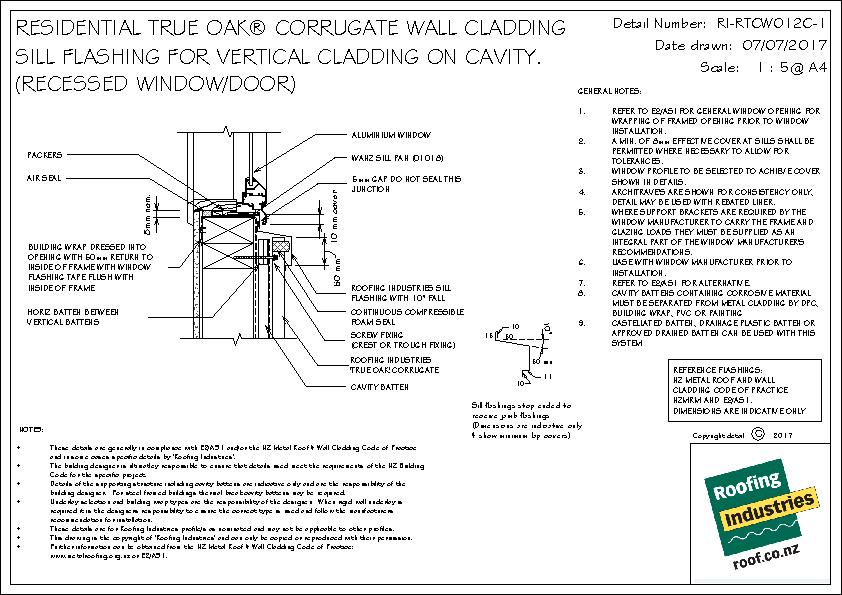

RI-RTCW012C-1-SILL-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
True Oak Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RTC-W012C-1

dwg
pdf

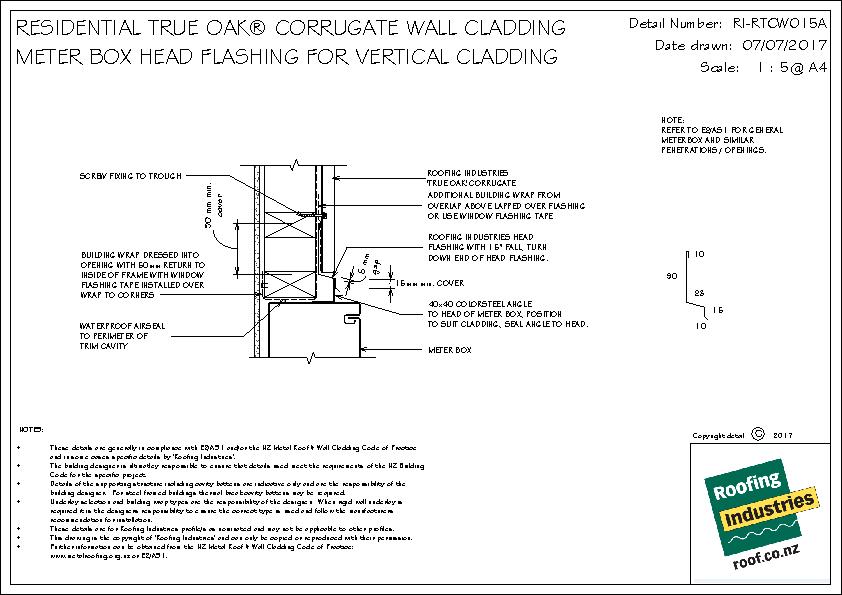

True Oak Meter Box Head Flashing for Vertical Cladding

RI-RTC-W015A

dwg
pdf

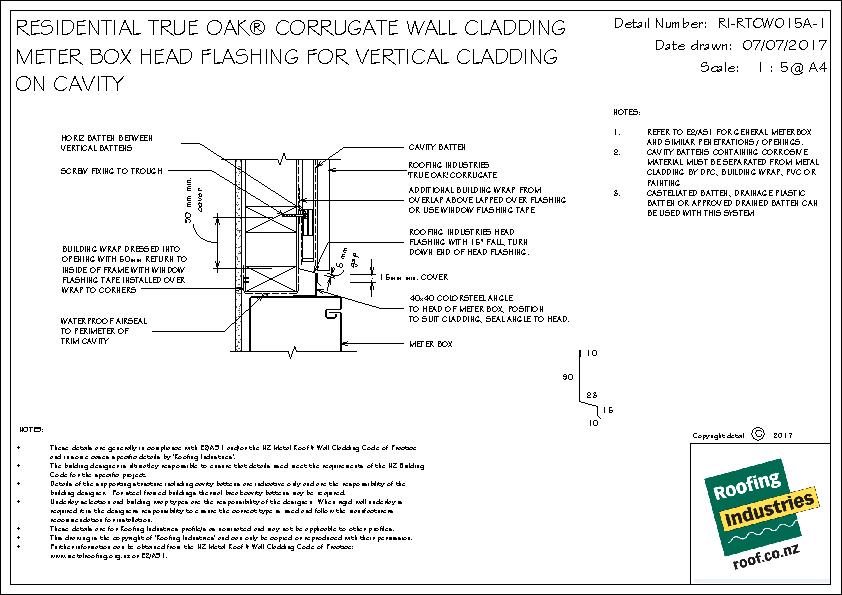

True Oak Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RTC-W015A-1

dwg
pdf

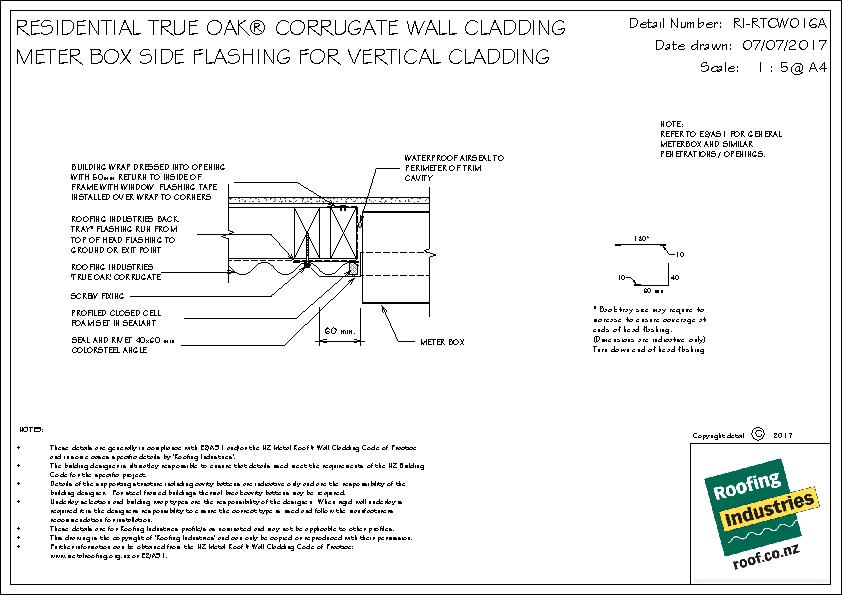

True Oak Meter Box Side Flashing for Vertical Cladding

RI-RTC-W016A

dwg
pdf

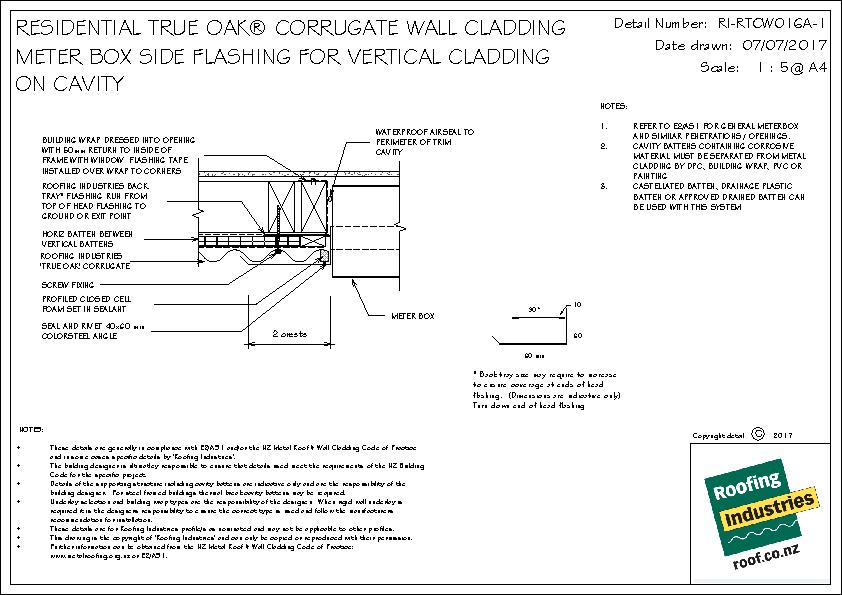

True Oak Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RTC-W016A-1

dwg
pdf

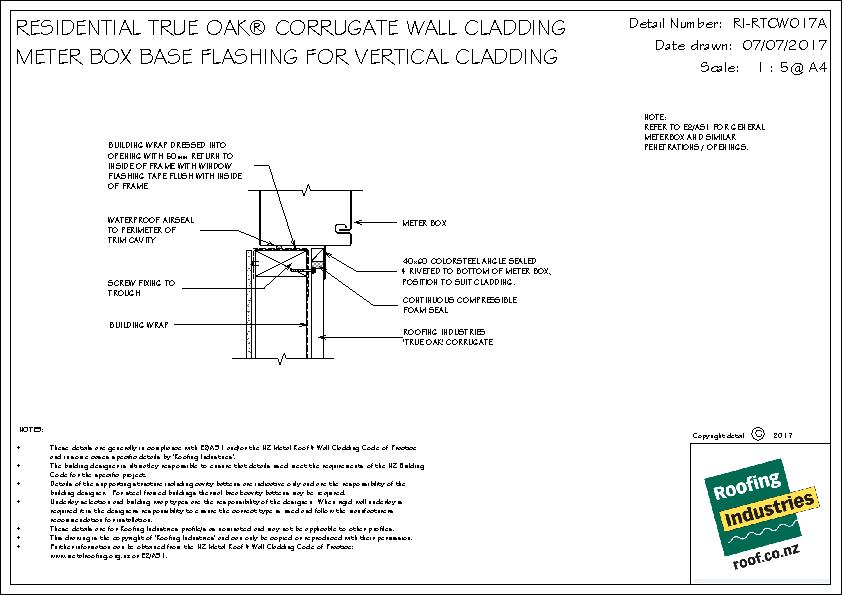

True Oak Meter Box Base Flashing for Vertical Cladding

RI-RTC-W017A

dwg
pdf

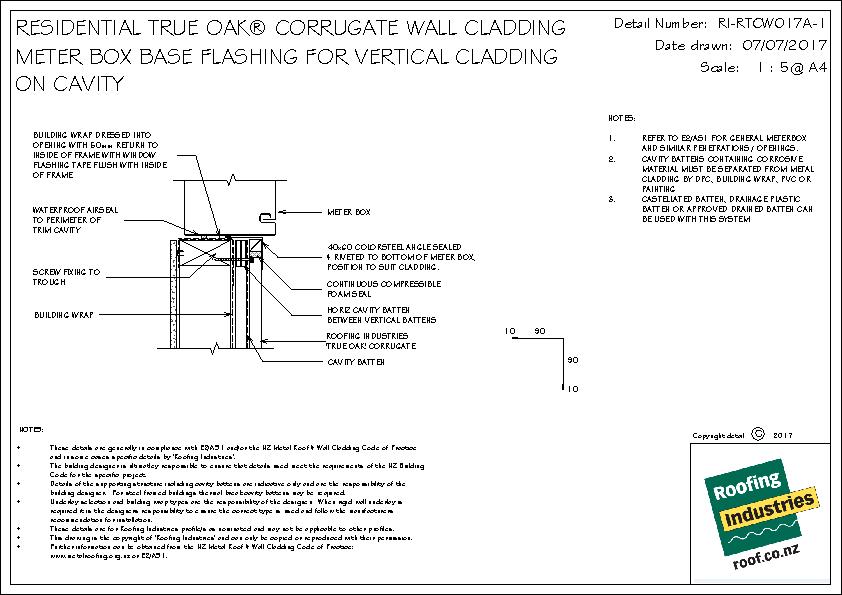

True Oak Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RTC-W017A-1

dwg
pdf

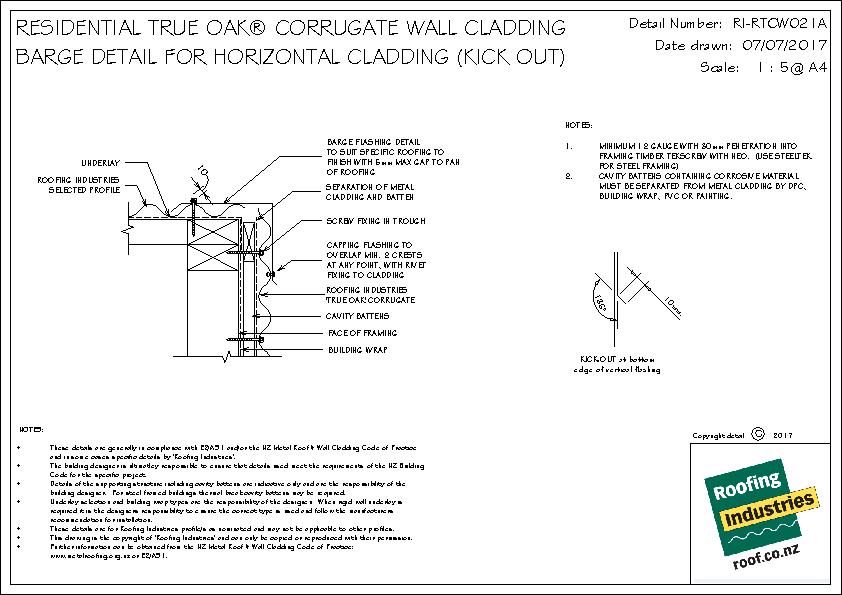

True Oak Barge Detail for Horizontal Cladding (Kick Out)

RI-RTC-W021A

dwg
pdf

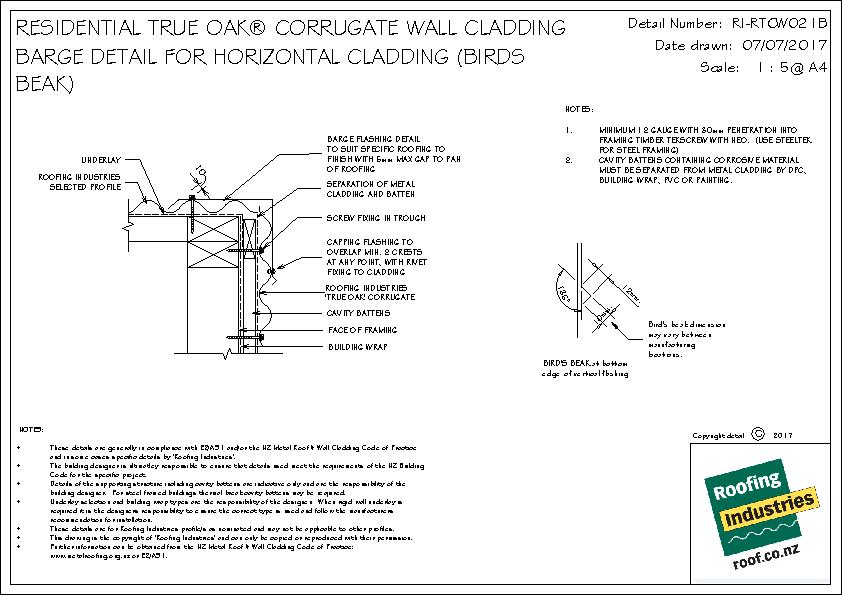

True Oak Barge Detail for Horizontal Cladding (Bird's Beak)

RI-RTC-W021B

dwg
pdf

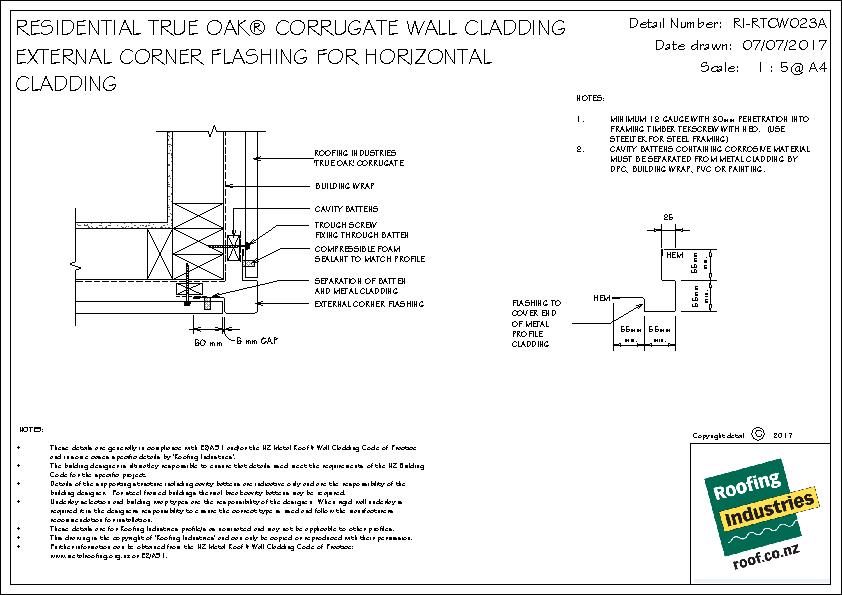

True Oak External Corner Flashing for Horizontal Cladding

RI-RTC-W023A

dwg
pdf

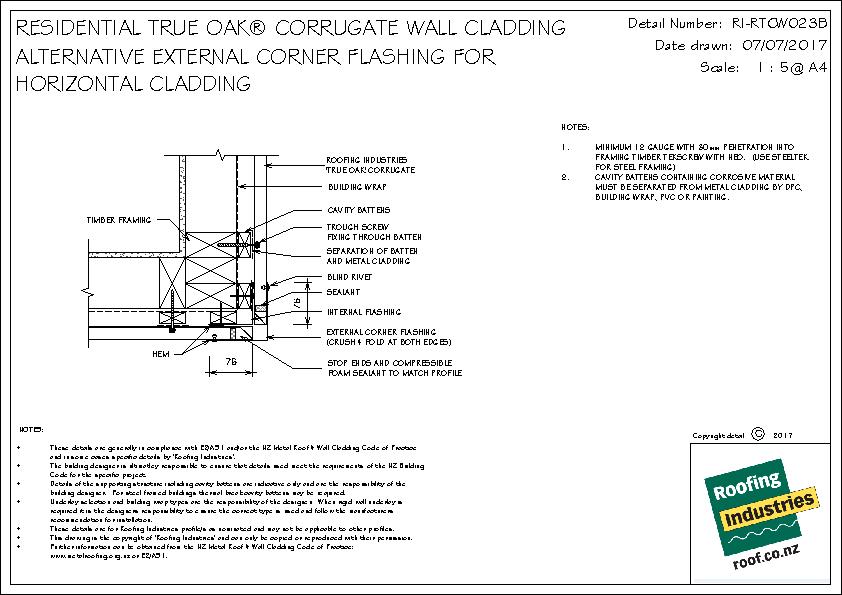

True Oak Alternative External Corner Flashing for Horizontal Cladding

RI-RTC-W023B

dwg
pdf

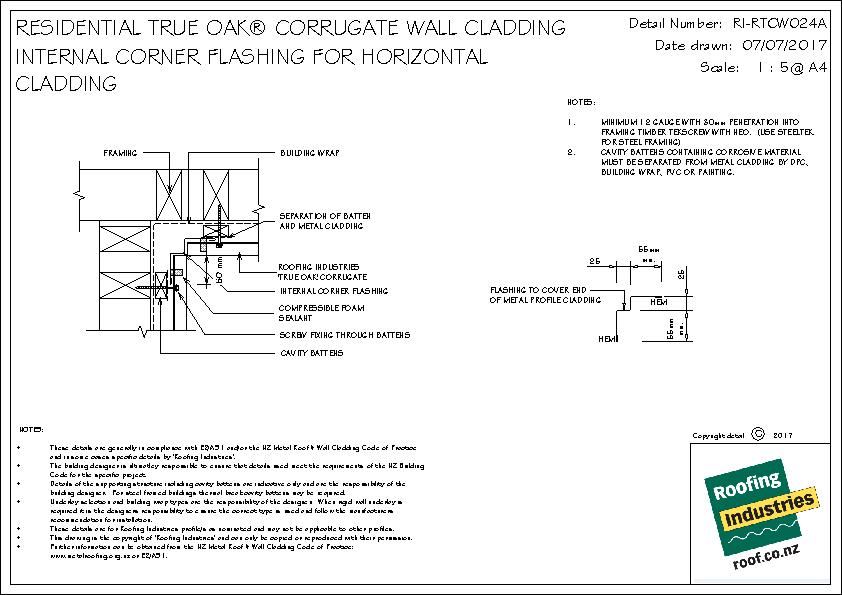

True Oak Internal Corner Flashing for Horizontal Cladding

RI-RTC-W024A

dwg
pdf

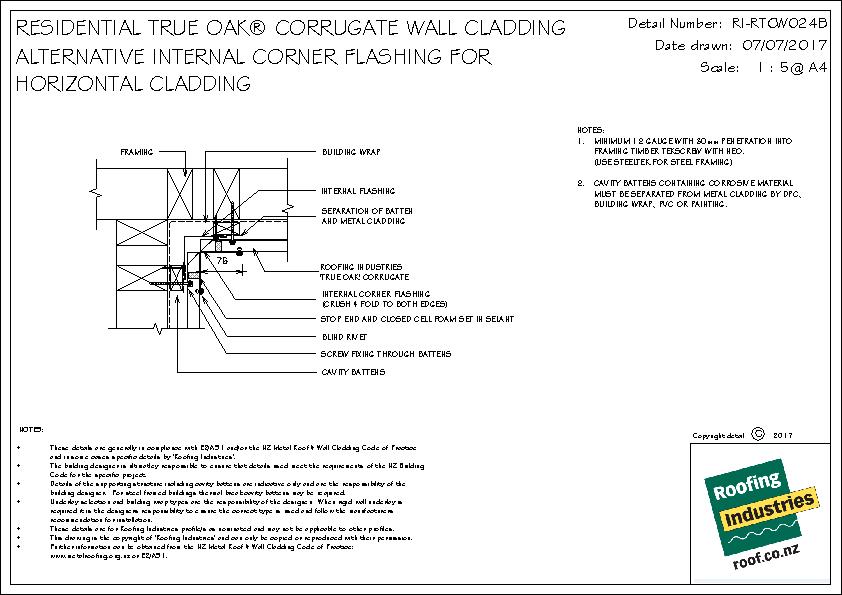

True Oak Alternative Internal Corner Flashing for Horizontal Cladding

RI-RTC-W024B

dwg
pdf

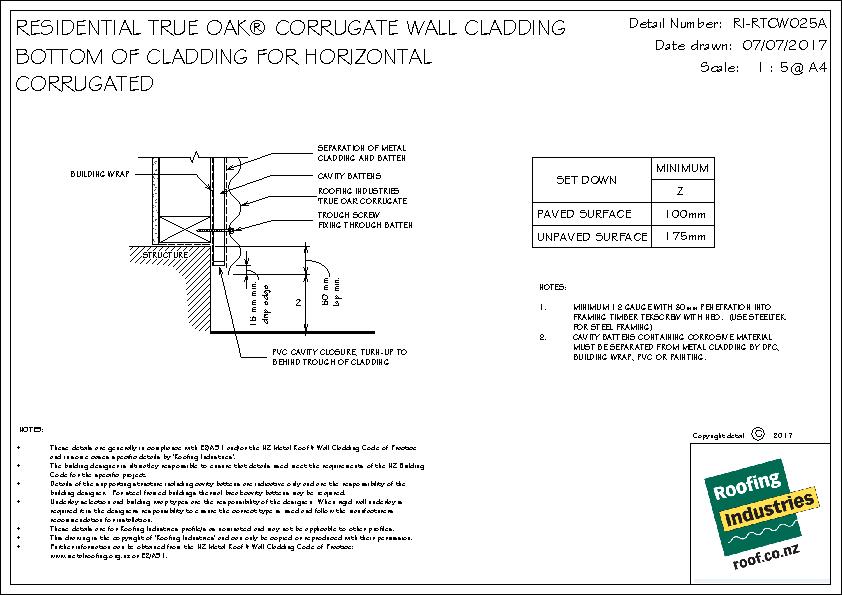

True Oak Bottom of Cladding for Horizontal Corrugated

RI-RTC-W025A

dwg
pdf

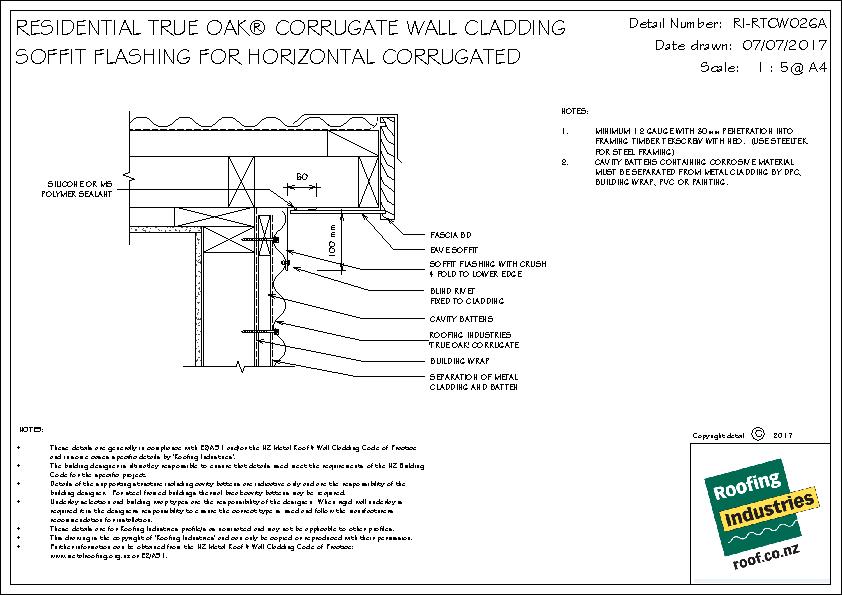

True Oak Soffit Flashing for Horizontal Corrugated

RI-RTC-W026A

dwg
pdf

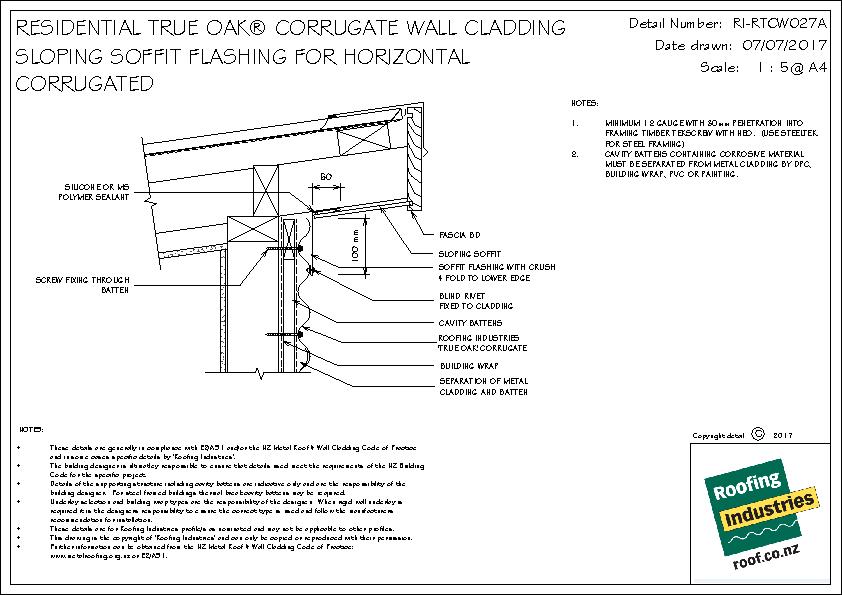

True Oak Sloping Flashing for Horizontal Corrugated

RI-RTC-W027A

dwg
pdf
True Oak Vertical Butt Joint for Horizontal Cladding

RI-RTC-W028A

dwg
pdf
True Oak Vertical Butt Joint for Horizontal Cladding (Opt 2)

RI-RTC-W028B

dwg

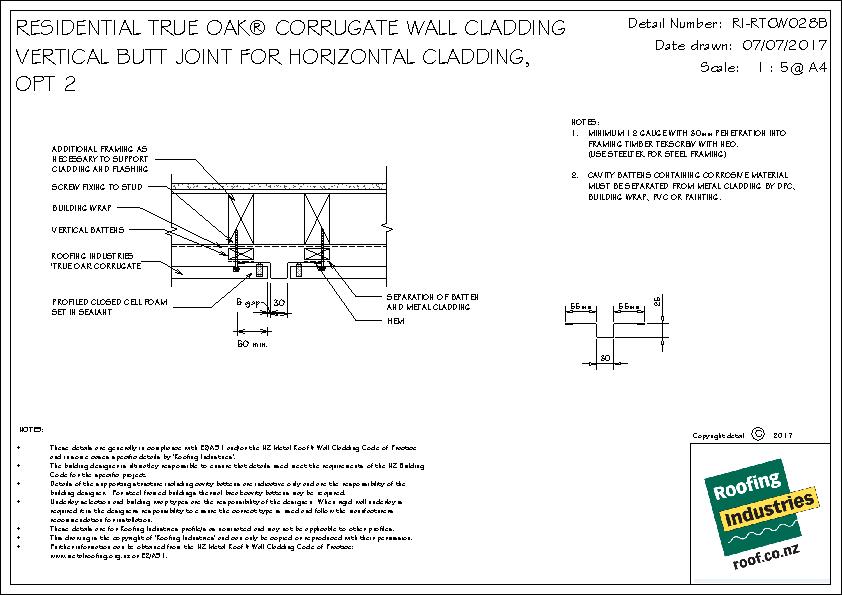

pdf
RI-RTCW029A-VERTICAL-BUTT-JOINT-FOR-HORIZONTAL-CLADDING-TO-ALTERNATIVE-CLADDING-UP-TO-25MM-pdf.jpg

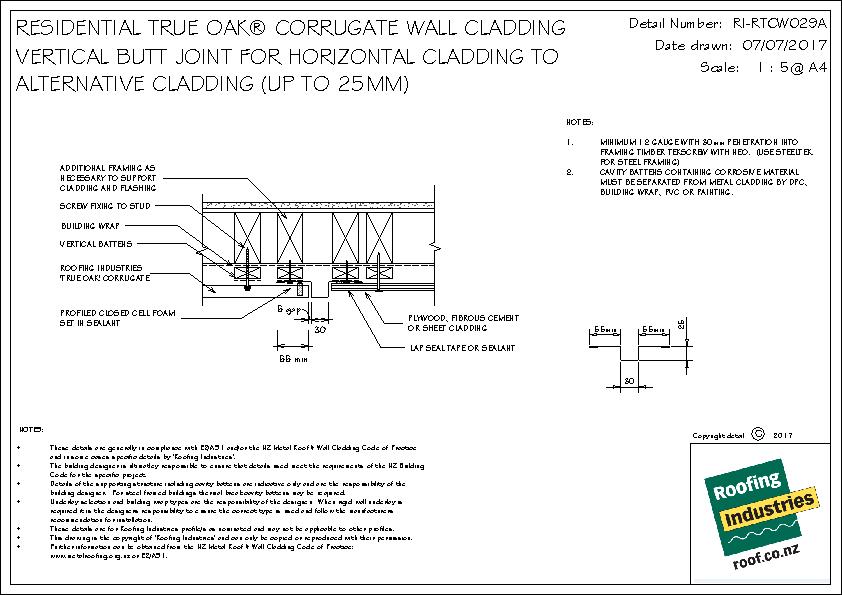

True Oak Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25mm)

RI-RTC-W029A

dwg
pdf

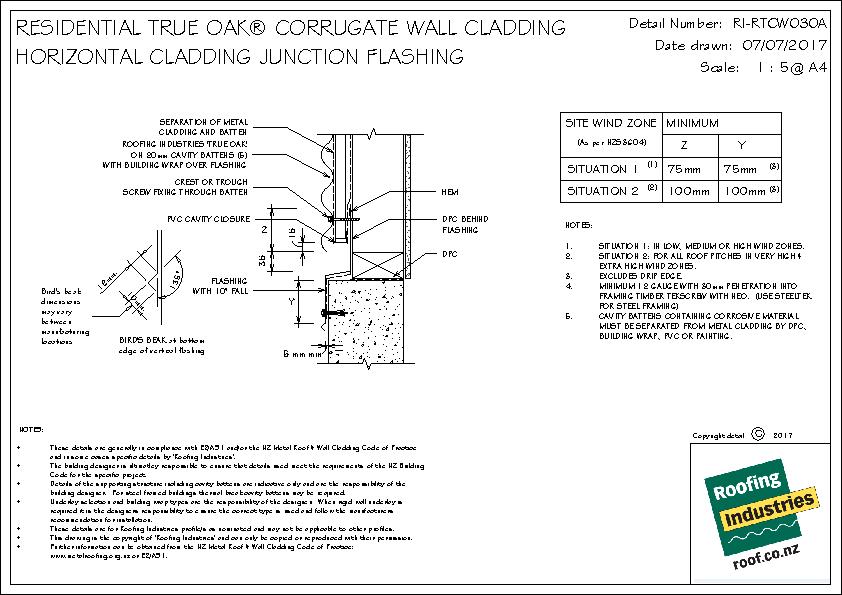

True Oak Horizontal Cladding Junction Flashing

RI-RTC-W030A

dwg
pdf

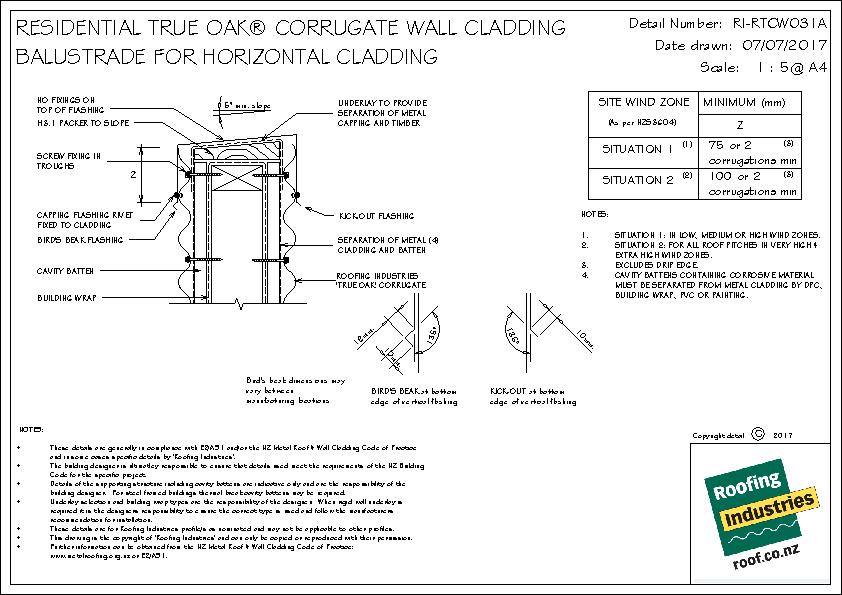

True Oak Balustrade for Horizontal Cladding

RI-RTC-W031A

dwg
pdf

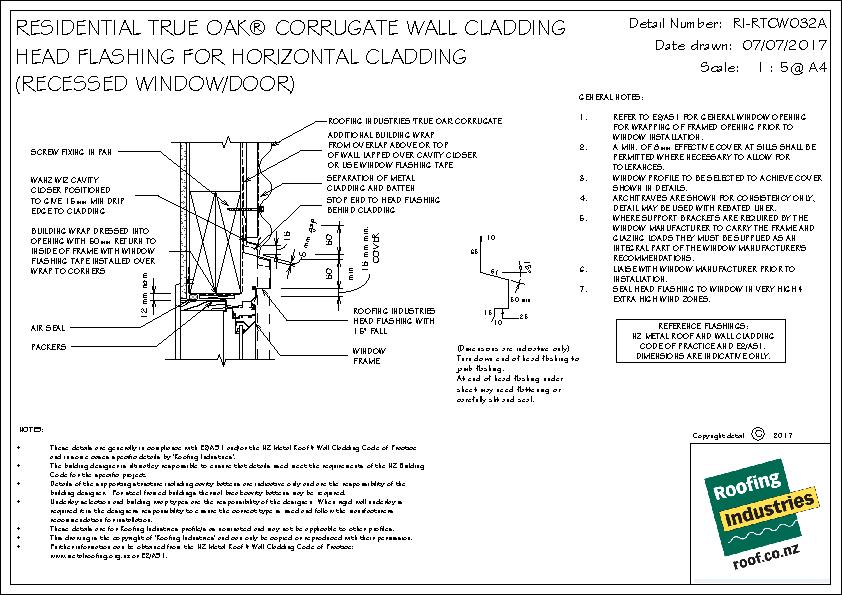

True Oak Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTC-W032A

dwg
pdf

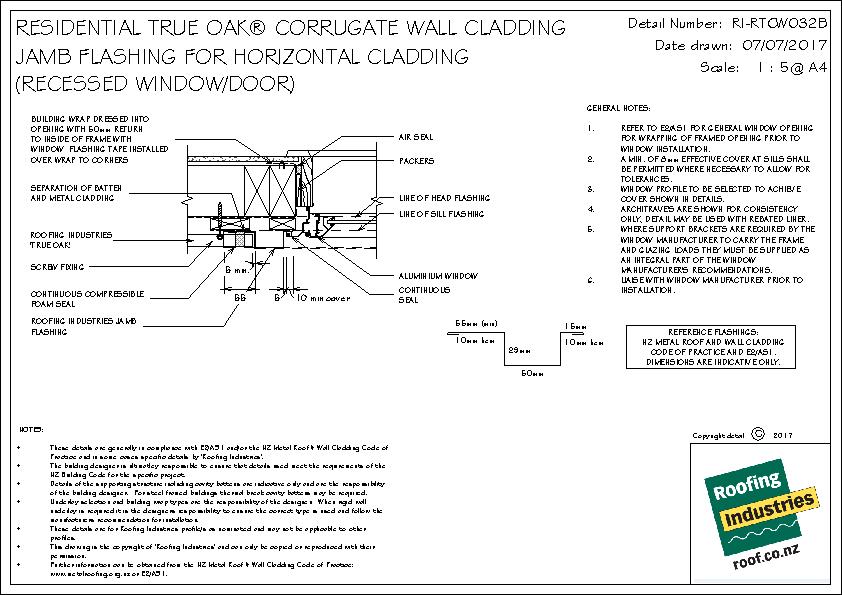

True Oak Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTC-W032B

dwg
pdf

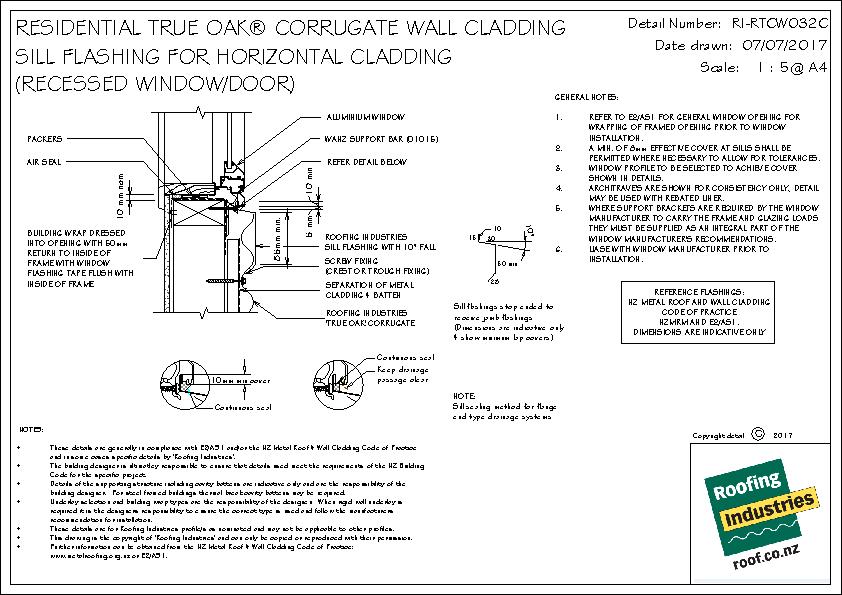

True Oak Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTC-W032C

dwg
pdf

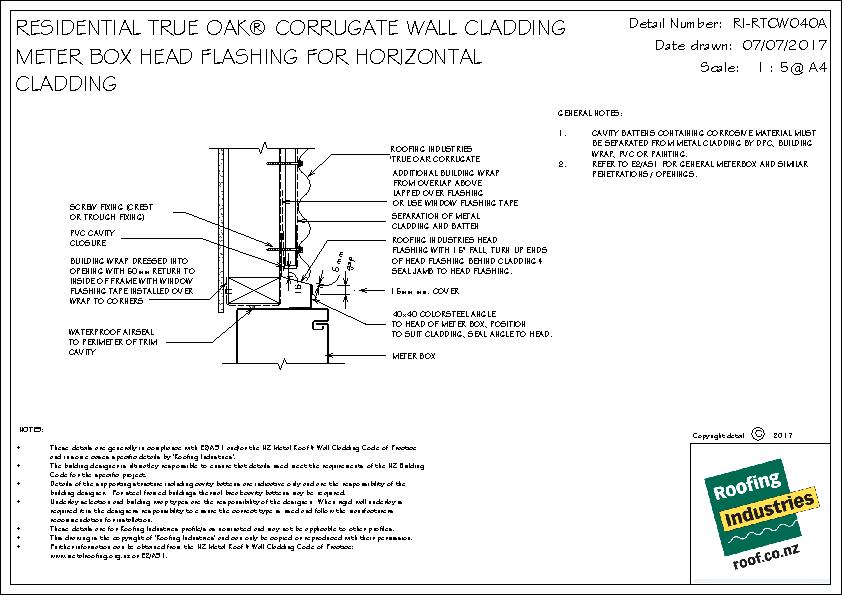

True Oak Meter Box Head Flashing for Horizontal Cladding

RI-RTC-W040A

dwg
pdf

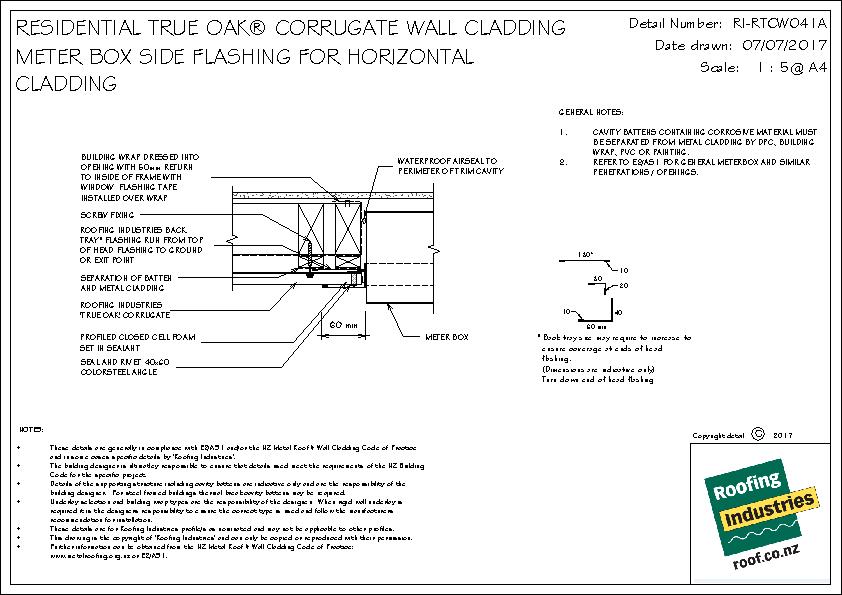

True Oak Meter Box Side Flashing for Horizontal Cladding

RI-RTC-W041A

dwg
pdf

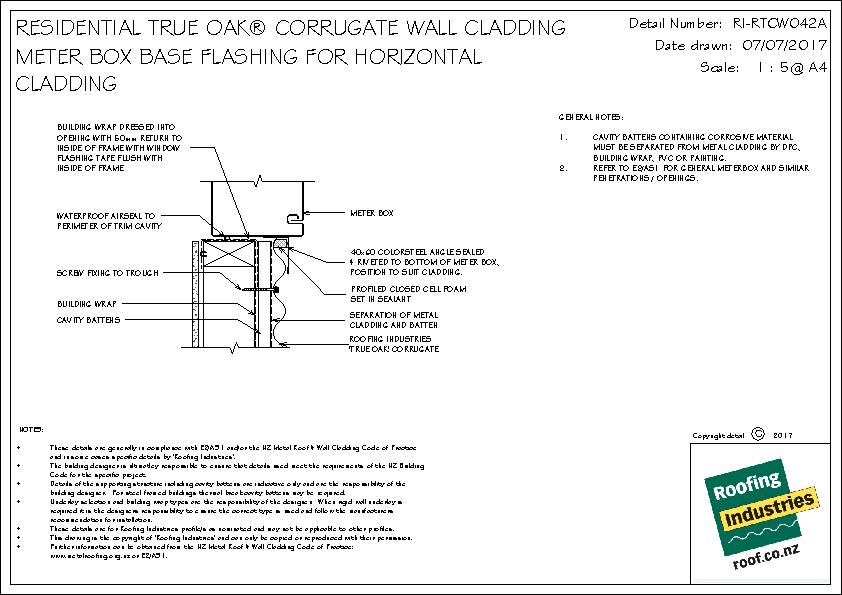

True Oak Meter Box Base Flashing for Horizontal Cladding

RI-RTC-W042A

dwg
pdf
BIM
View full
Filters
RVT Version
Commercial or Residential
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
RI RTC 000C
True Oak Residential Details 2016

RI-RTC 2016

Revit 2016

rvt
RI RTC 000C
True Oak Residential Details 2019

RI-RTC 2019

Revit 2019

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Roofing Industries
August 2023 Case Studies
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Roofing Industries
April 2023 Product News
View all news

Popular Products from Roofing Industries

Roofing Industries Trimrib
Roofing Industries Trimrib
Roofing Industries
Eurostyle Spanlok Roofing and Cladding
Eurostyle Spanlok Roofing and Cladding
Roofing Industries
Roofing Industries Corrugate
Roofing Industries Corrugate
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
