Vantage Commercial 40mm Window Series
New APL 2019 Specifier Guide now available Order now
Description

The 40mm series is a diverse range of window products designed for versatility – as strip windows, hopper and pivoting windows, seismically framed windows and curtain wall applications.

There are numerous sash and fixed light options for different site exposures, glass thickness and aesthetic requirements.

Key Features
  • For low to high rise applications
  • A varied, multi-product window system based on a 40mm frame platform. It includes:
    • Glazed frames and sashes for general commercial applications
    • Glazed frames and sashes for strip windows
    • Hopper windows
    • Pivoting windows
    • Glazed frames seismically separated from the building structure

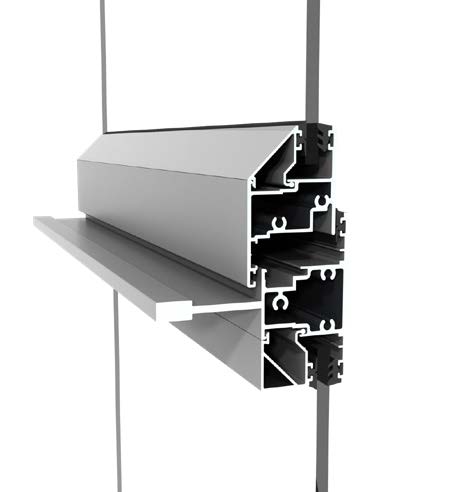

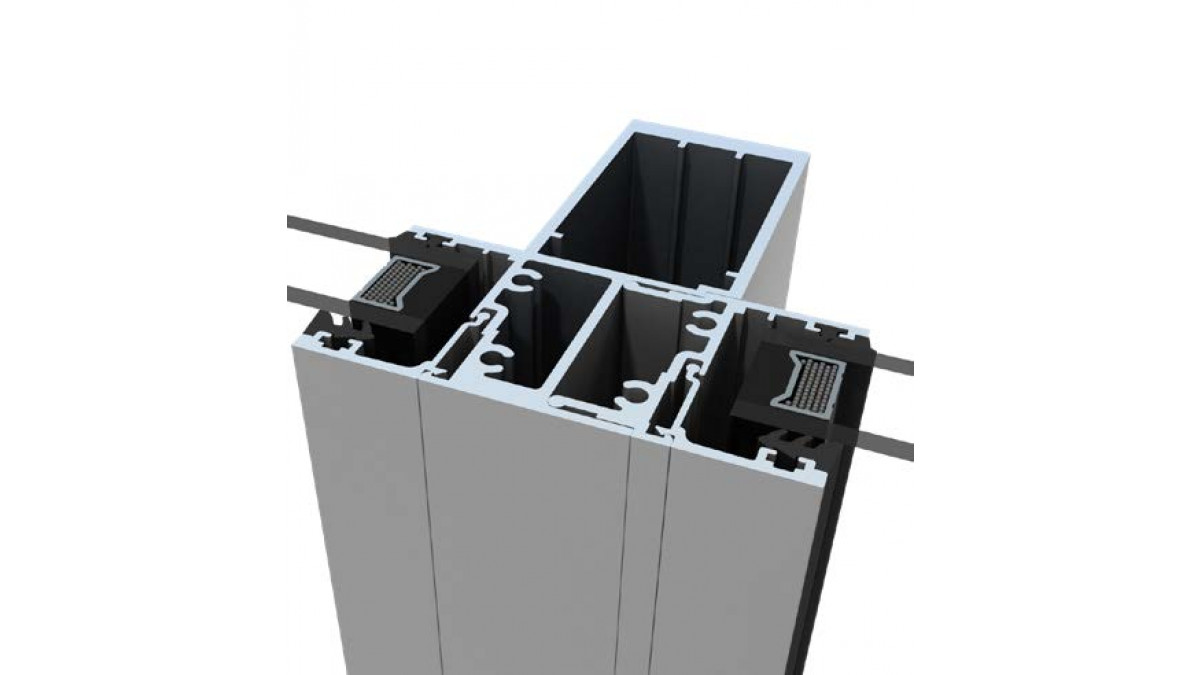

    • Curtain walling

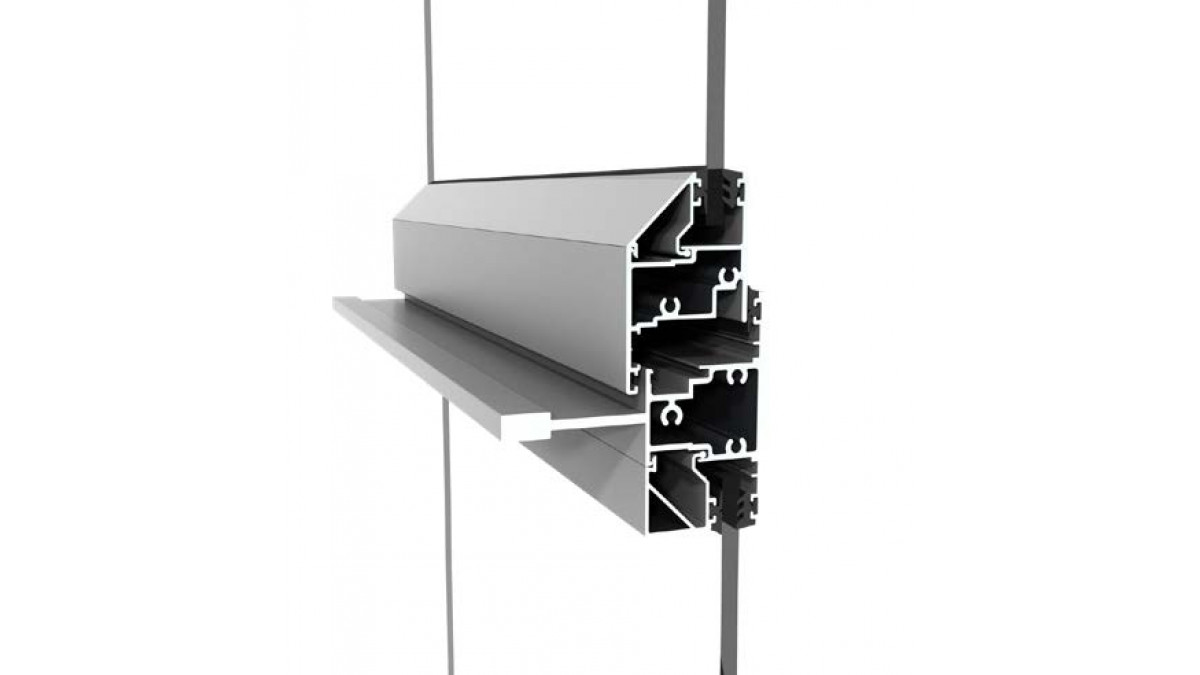

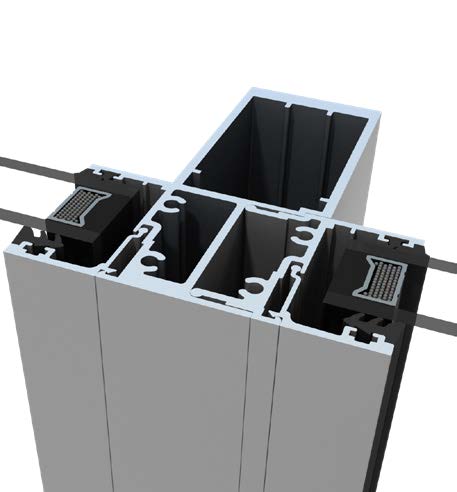

  • Substantially sized box-section extrusions allow large sashes up to 1600mm high x 1000mm wide dependent on the glass used (awning & casement applications)
Scope of Use
  • Suitable for commercial environments
  • For low to high rise applications
  • Need to be used in defined maximum sizes
  • The 40mm window system is compatible with the use of Magnum commercial doors
  • Hopper window option is suitable for institutional and education sector use



Limitations on Use

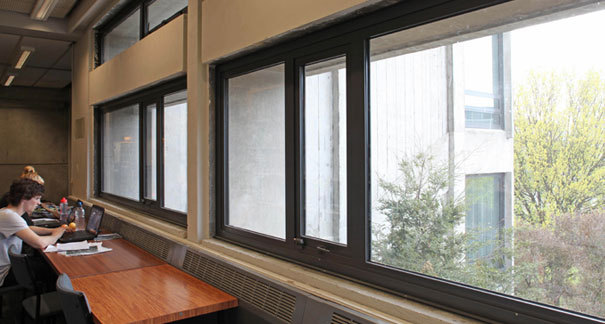

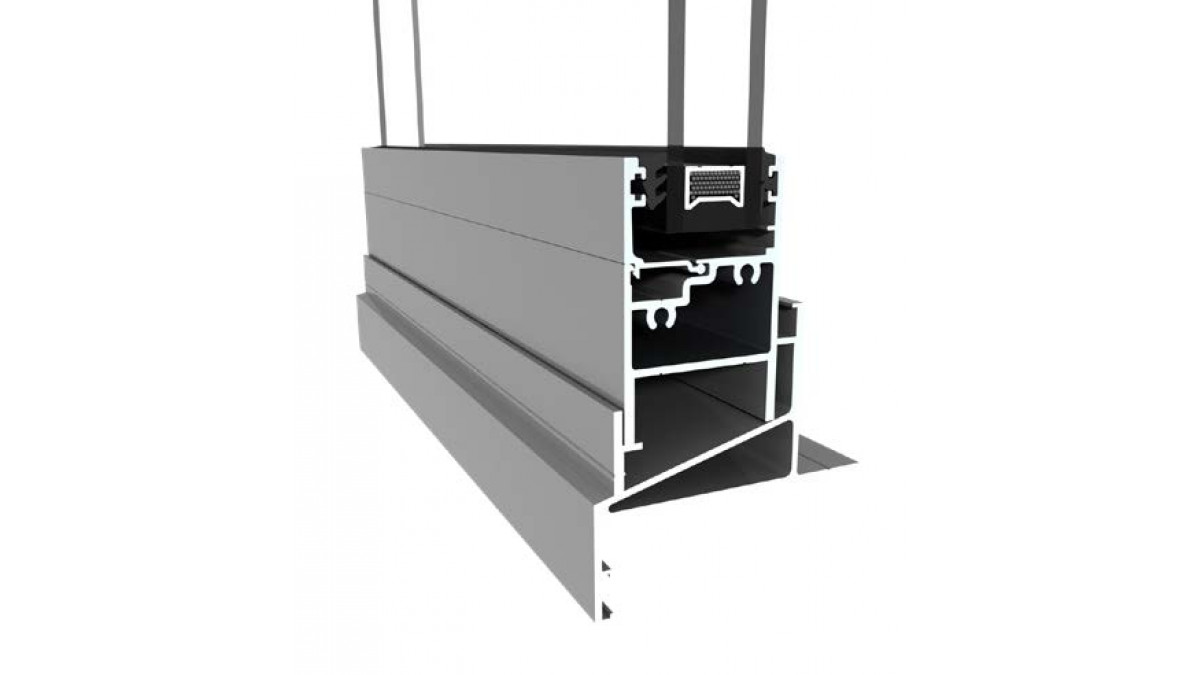

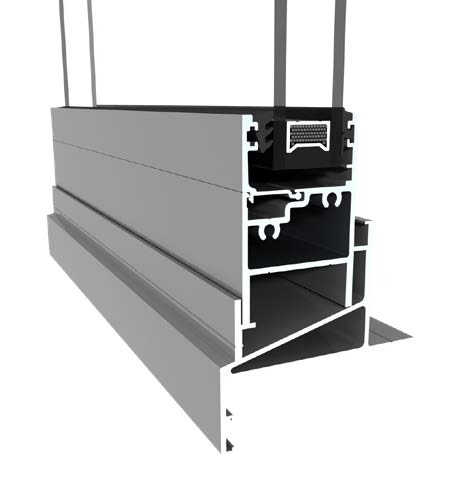

  • The 40mm seismic system is for banks of windows requiring seismic separation in low to medium rise applications
  • Depending on type of project, windows may come fully assembled and glazed or be assembled on site from pre-made modules
  • 40mm curtain wall glazed panels are generally pre-assembled and fixed to continuous runs of curtain wall mullion on site
  • Shop drawings can be supplied by manufacturers when specified



Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • The 40mm window series was launched in 1993
  • Some design upgrades have taken place
  • Widely used by builders and specifiers



Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Producer Statement
Warranty
Other Literature
APL and Sustainability 2019
Manufacturer Contact List
Span Tables
Specifier Guide
Vantage Brochure
Vantage Care & Maintenance Brochure 2017
WGANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

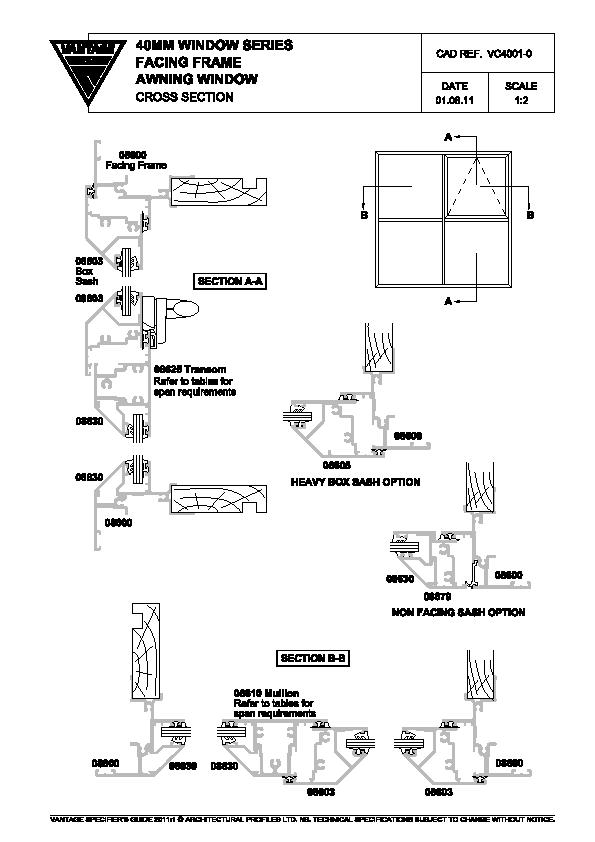

Vantage Commercial 40mm Window Series Facing Frame Awning Window

VC4001-0

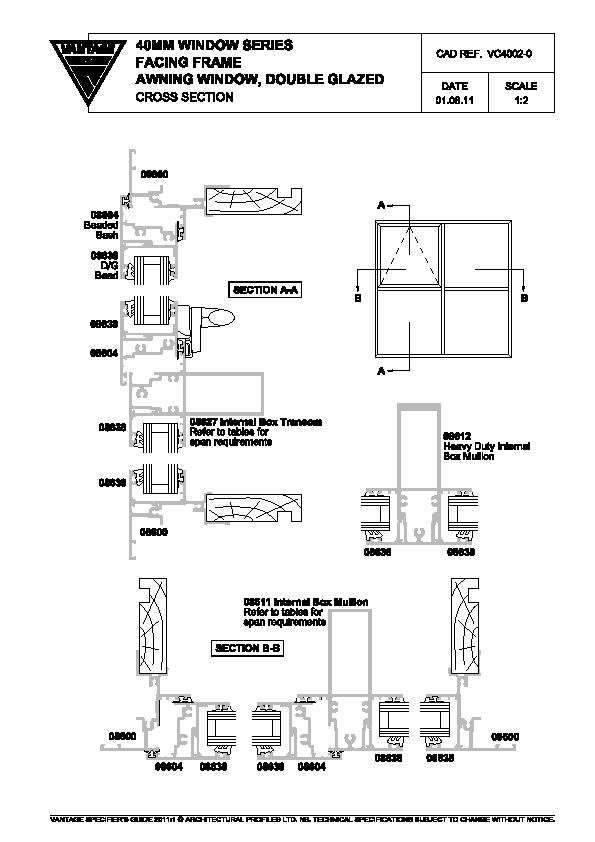

Vantage Commerical 40mm Window Series Facing Frame Awning Window, Double Glazed

VC4002-0

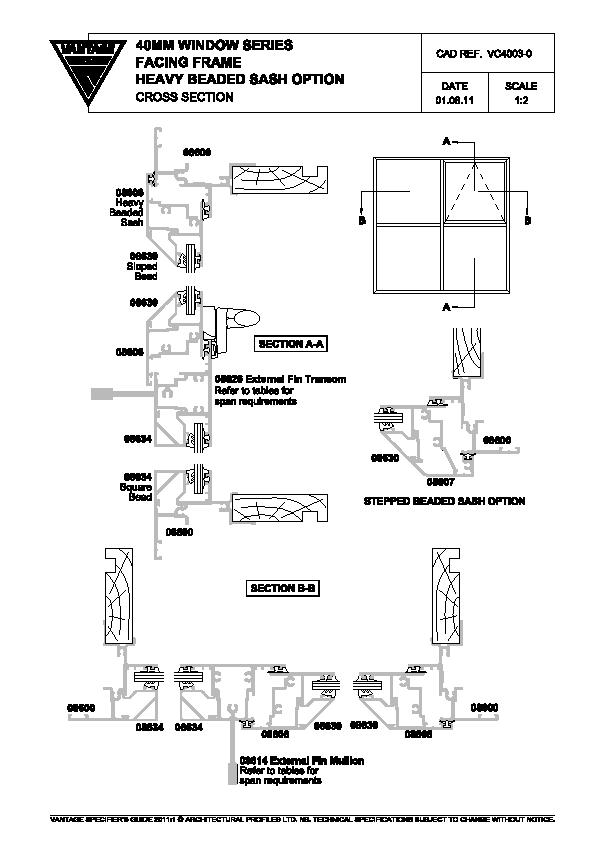

Vantage Commerical 40mm Window Series Facing Frame Heavy Beaded Sash Option

VC4003-0

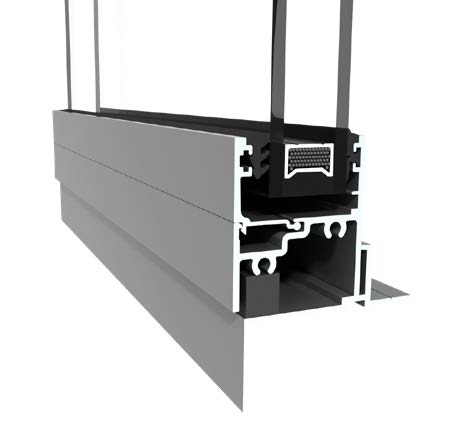

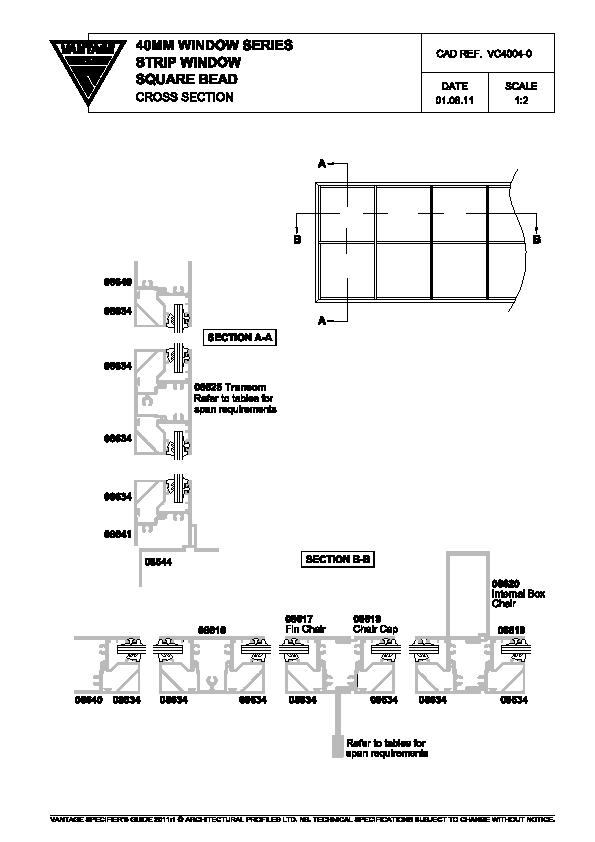

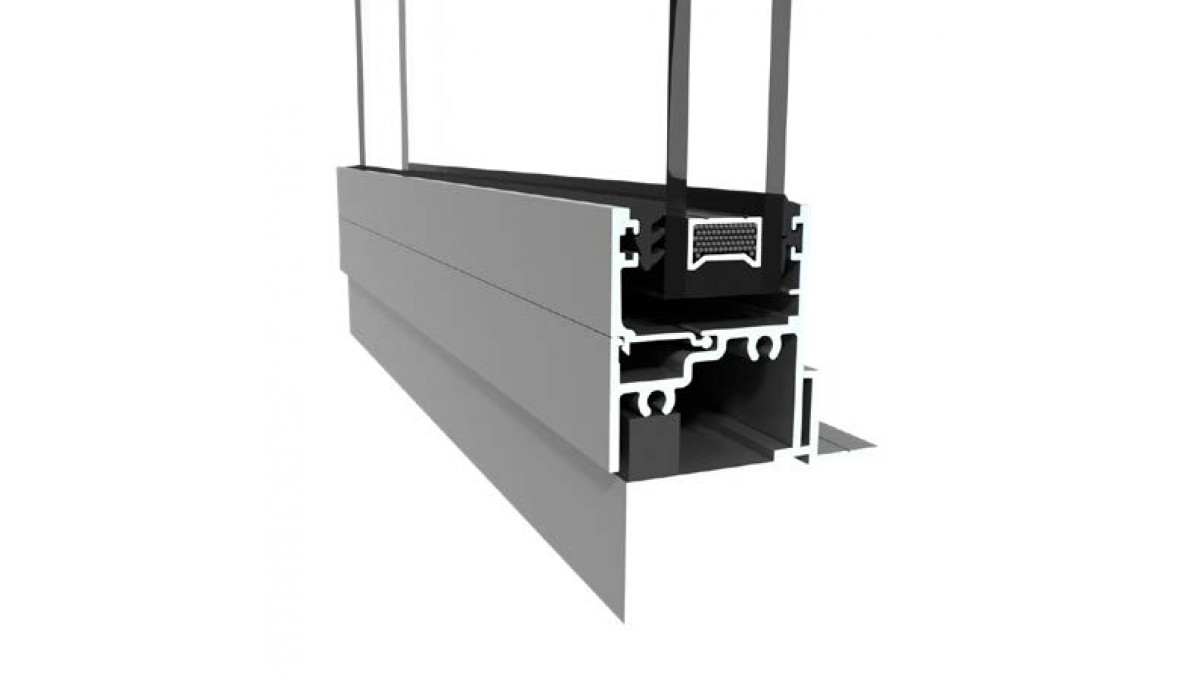

Vantage Commercial 40mm Window Series Strip Window Square Bead

VC4004-0

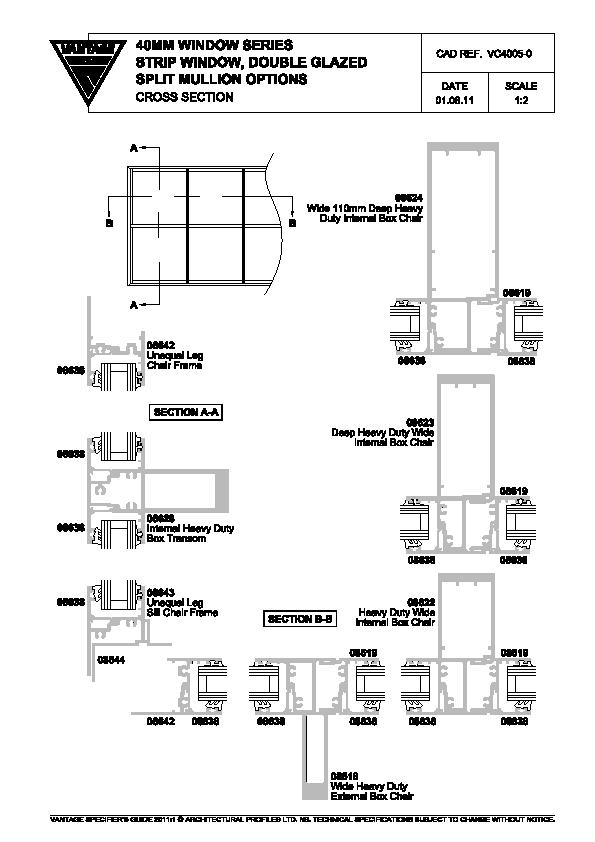

Vantage Commercial 40mm Window Series Strip Window, Double Glazed Split Mullion Options

VC4005-0

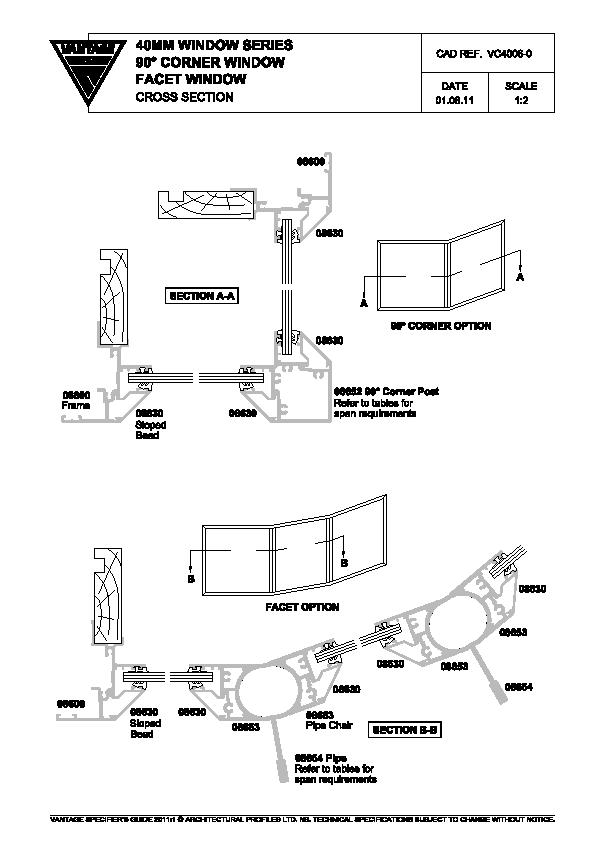

Vantage Commercial 40mm Window Series 90º Corner Window Facet Window

VC4006-0

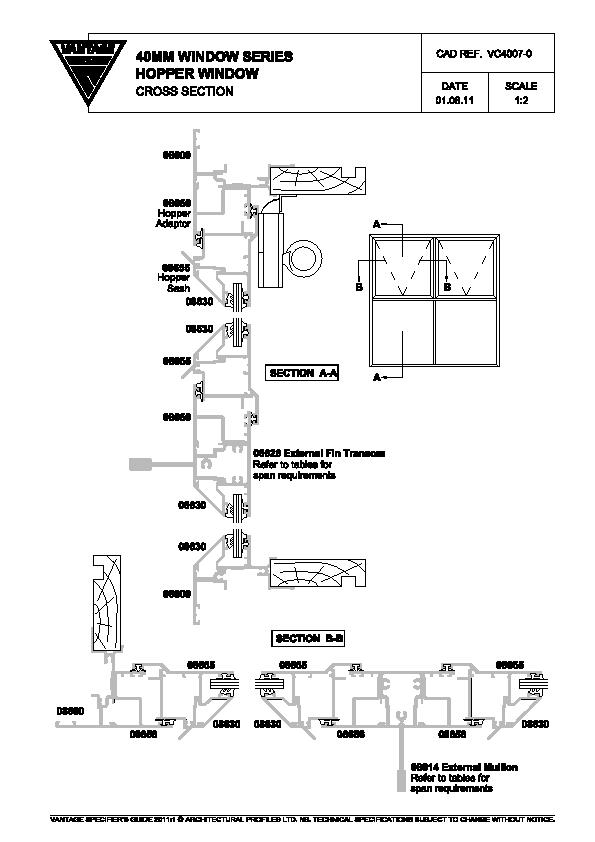

Vantage Commercial 40mm Window Series Hopper Window

VC4007-0

Vantage Commercial 40mm Window Series Pivot Window

VC4008-0

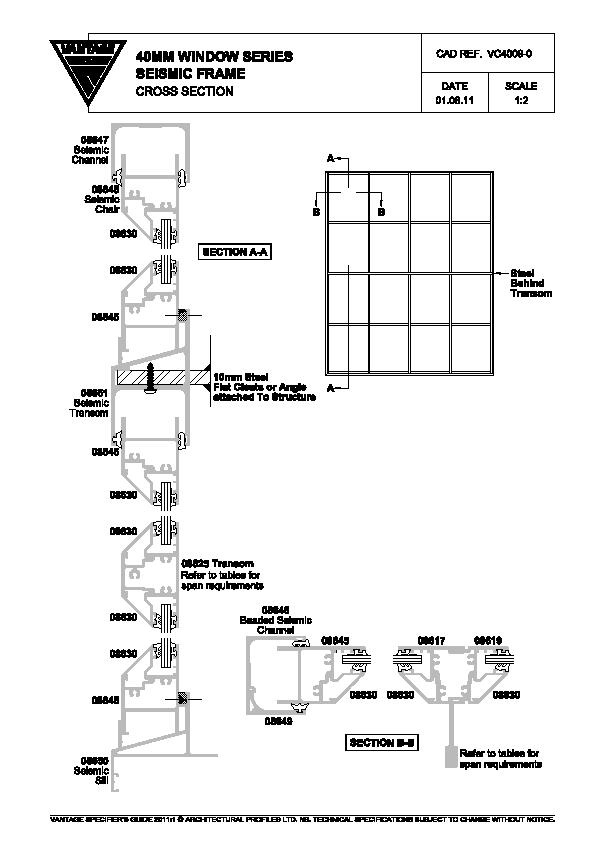

Vantage Commercial 40mm Window Series Seismic Frame

VC4009-0

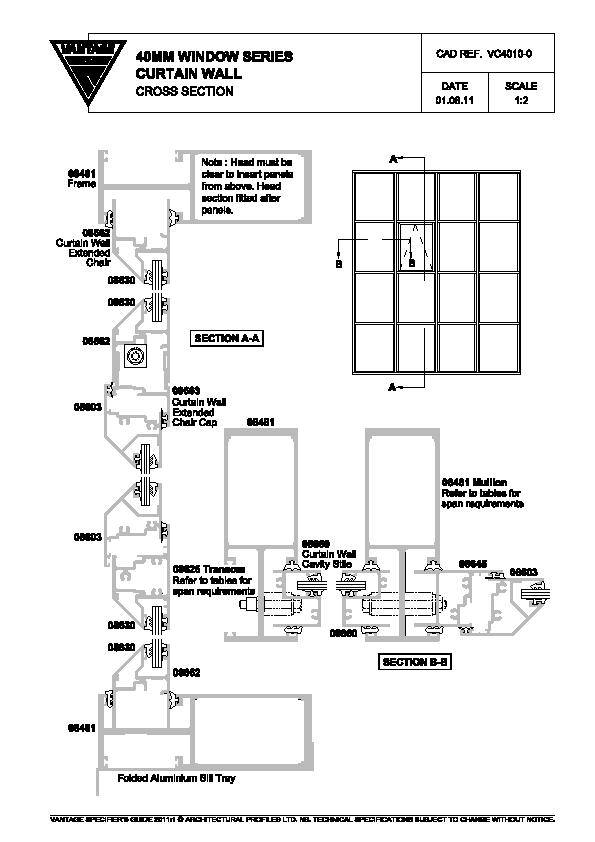

Vantage Commercial 40mm Window Series Curtain Wall

VC4010-0

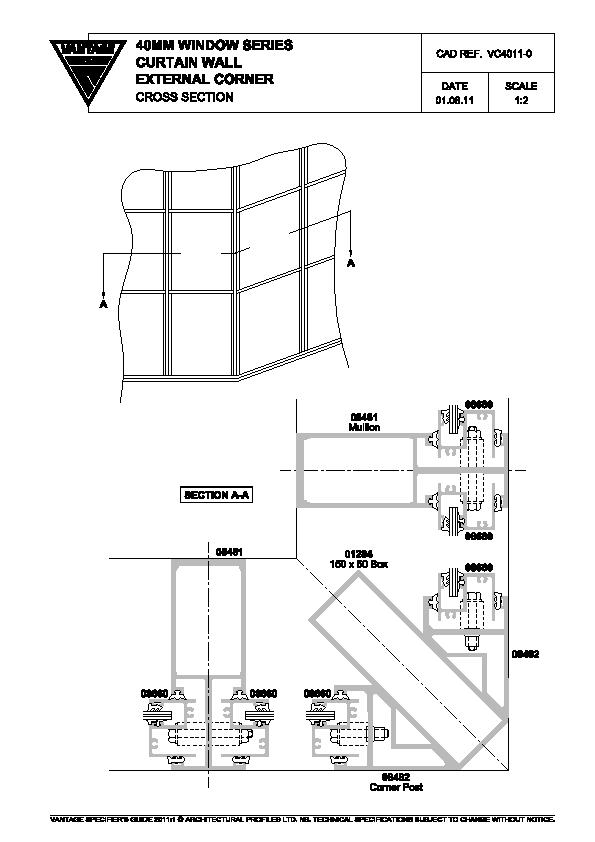

Vantage Commercial 40mm Window Series Curtain Wall External Corner

VC4011-0

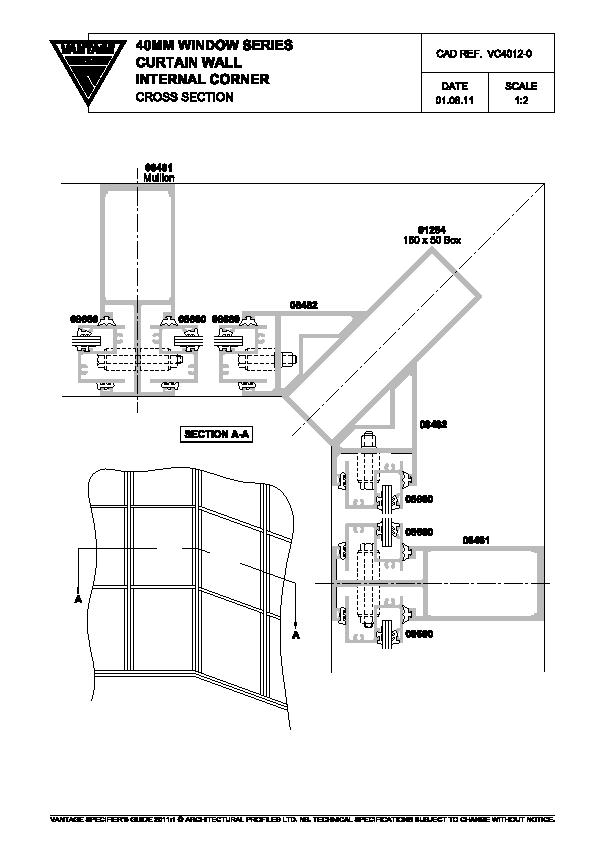

Vantage Commercial 40mm Window Series Curtain Wall Internal Corner

VC4012-0

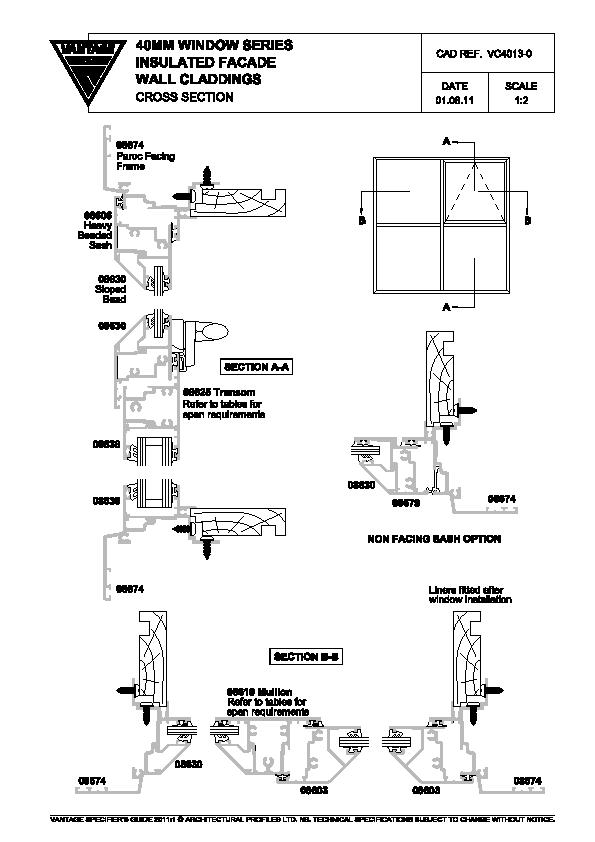

Vantage Commercial 40mm Window Series Insulated Facade Wall Claddings

VC4013-0

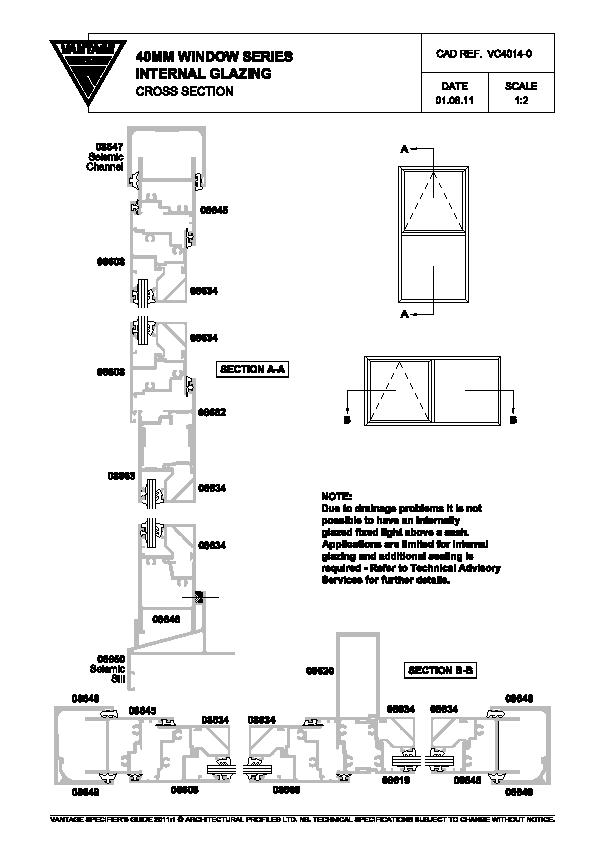

Vantage Commercial 40mm Window Series Internal Glazing

VC4014-0

Vantage Windows & Doors supplies modern aluminium profiles as one of the national brands of APL Window Solutions, New Zealand’s largest window systems company.
