Commercial 100mm, 125mm & 150mm Flushglaze System
VANTAGE Windows & Doors
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

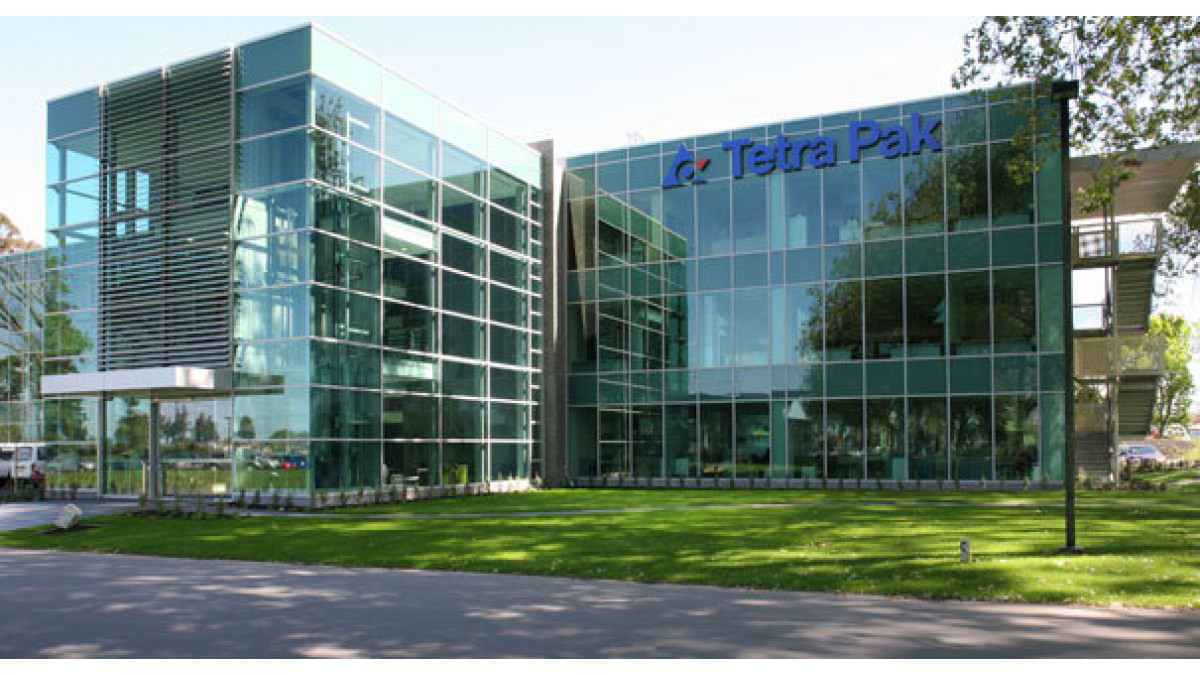

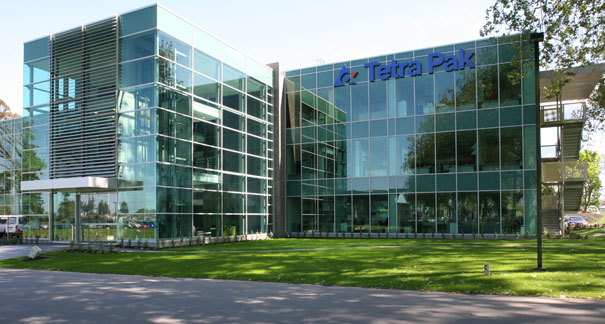

Flushglaze System Tetrapak Bldg oblique daytime

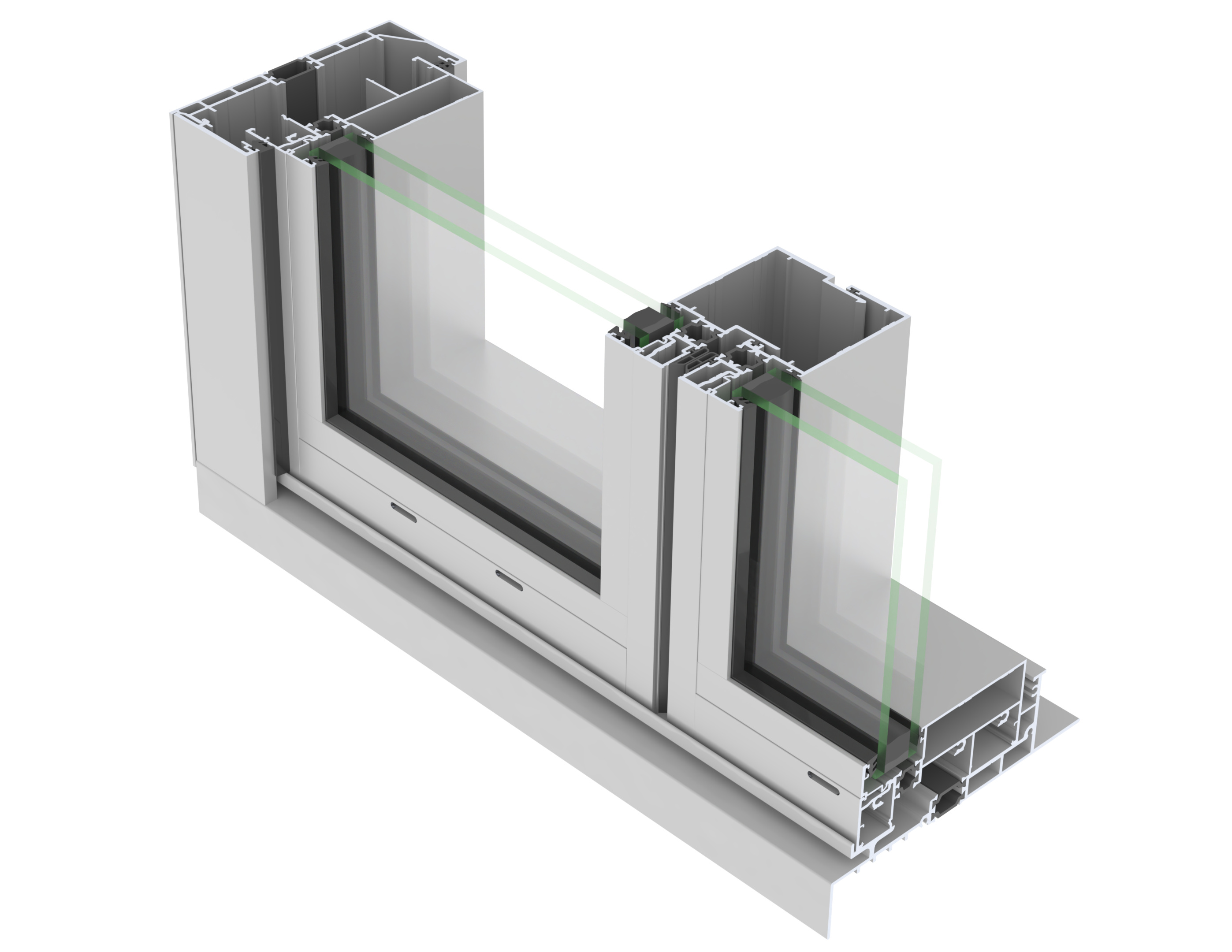

114 Seismic Jamb with Split Mullion

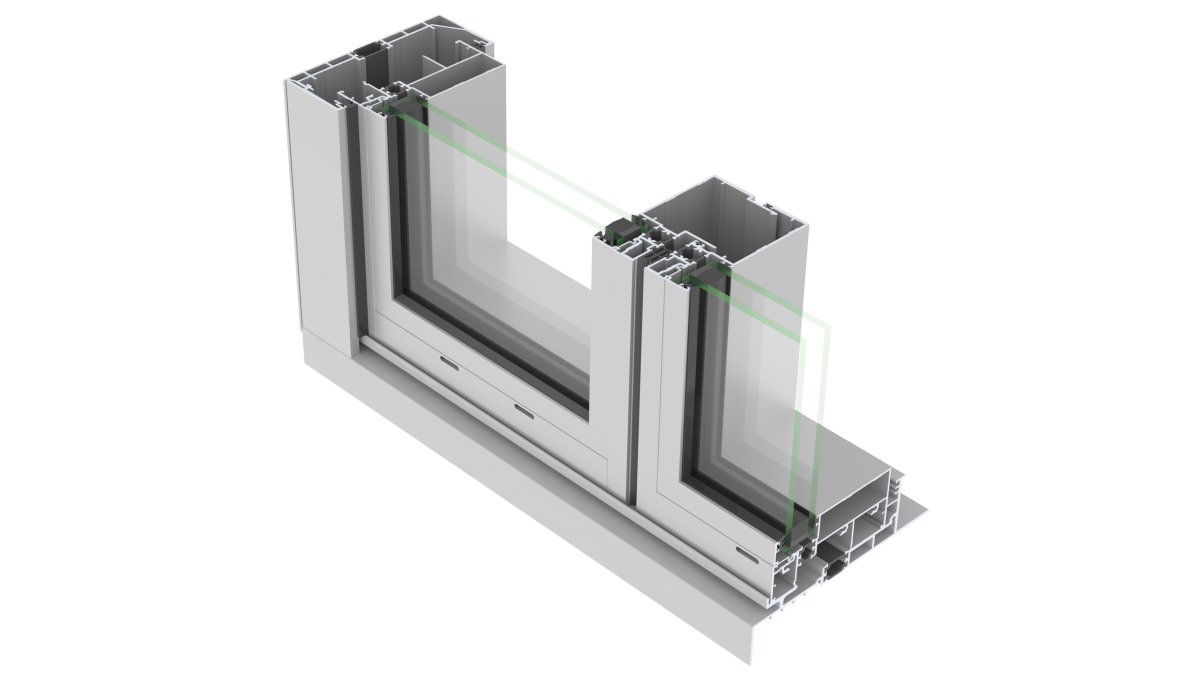

114 Seismic jamb with split mullion

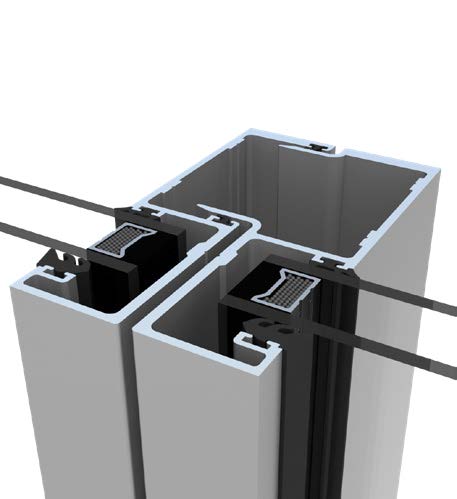

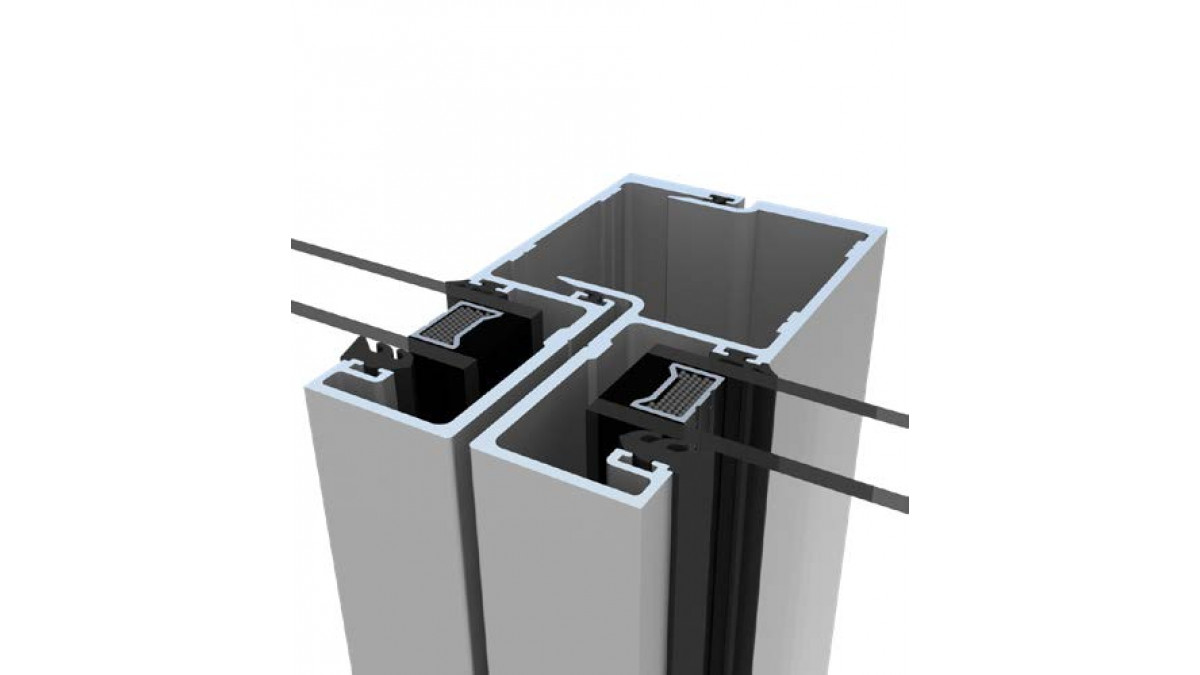

100mm Flushglaze mullion double glaze

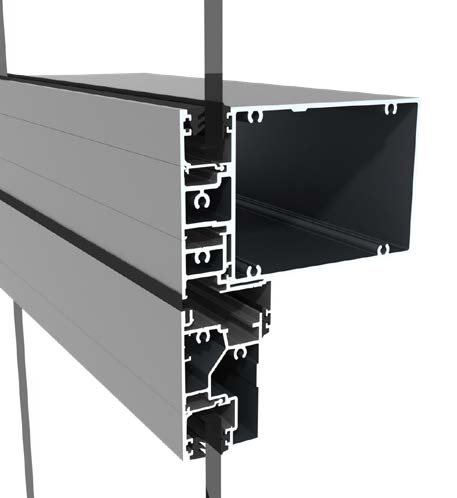

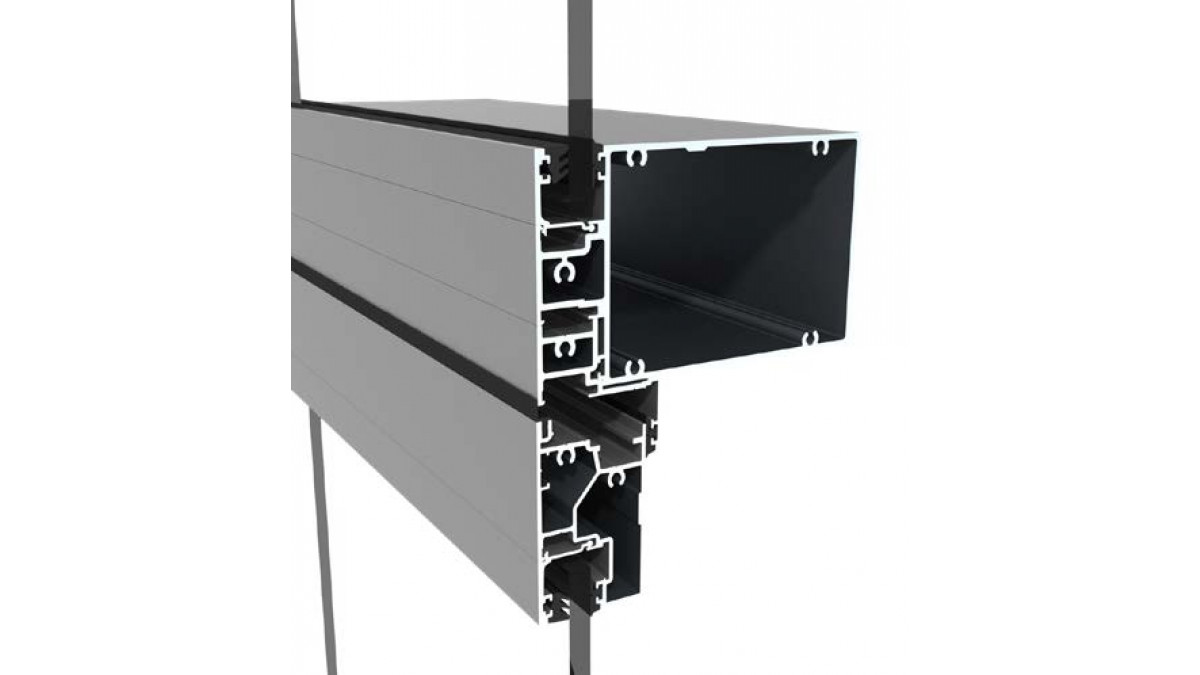

125mm Flushglaze transom and sash

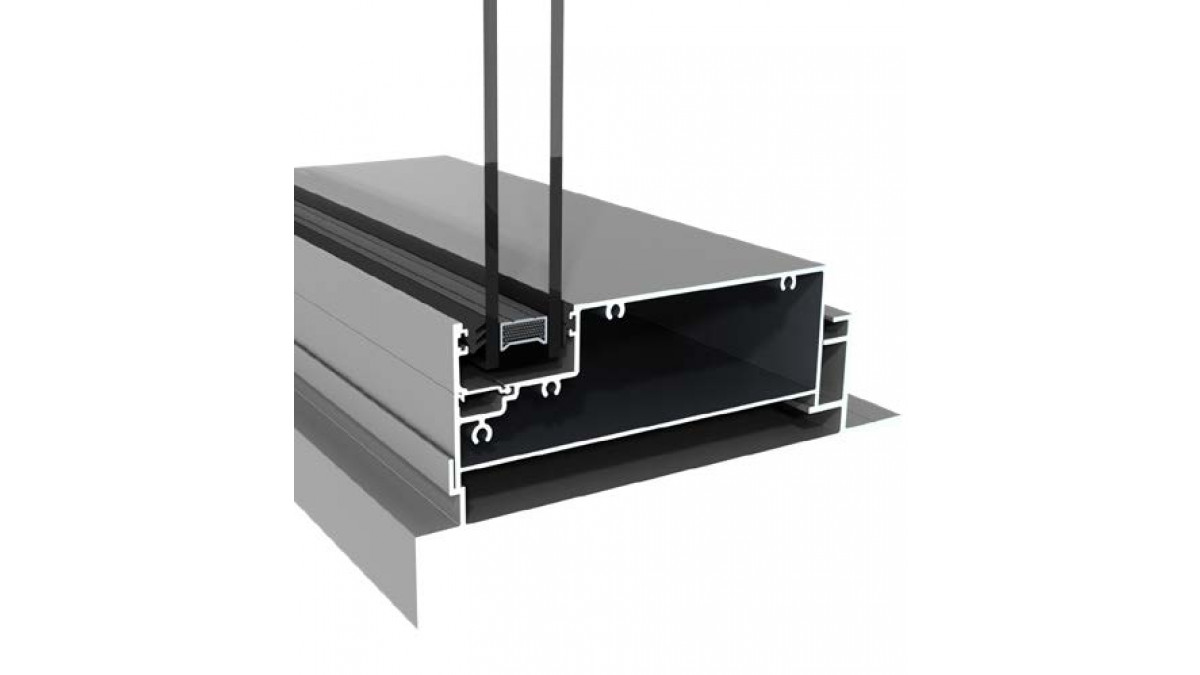

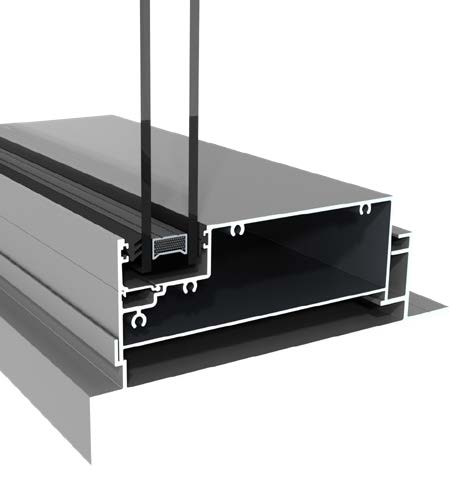

150mm Flushglaze seismic sill

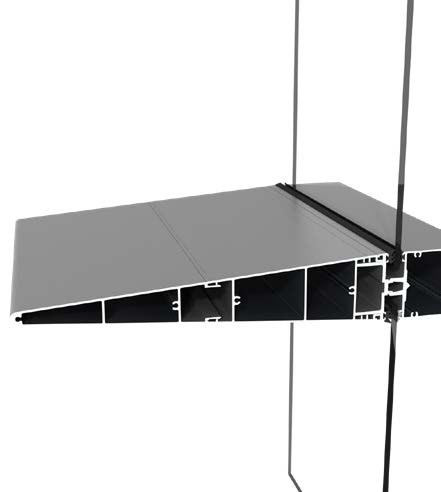

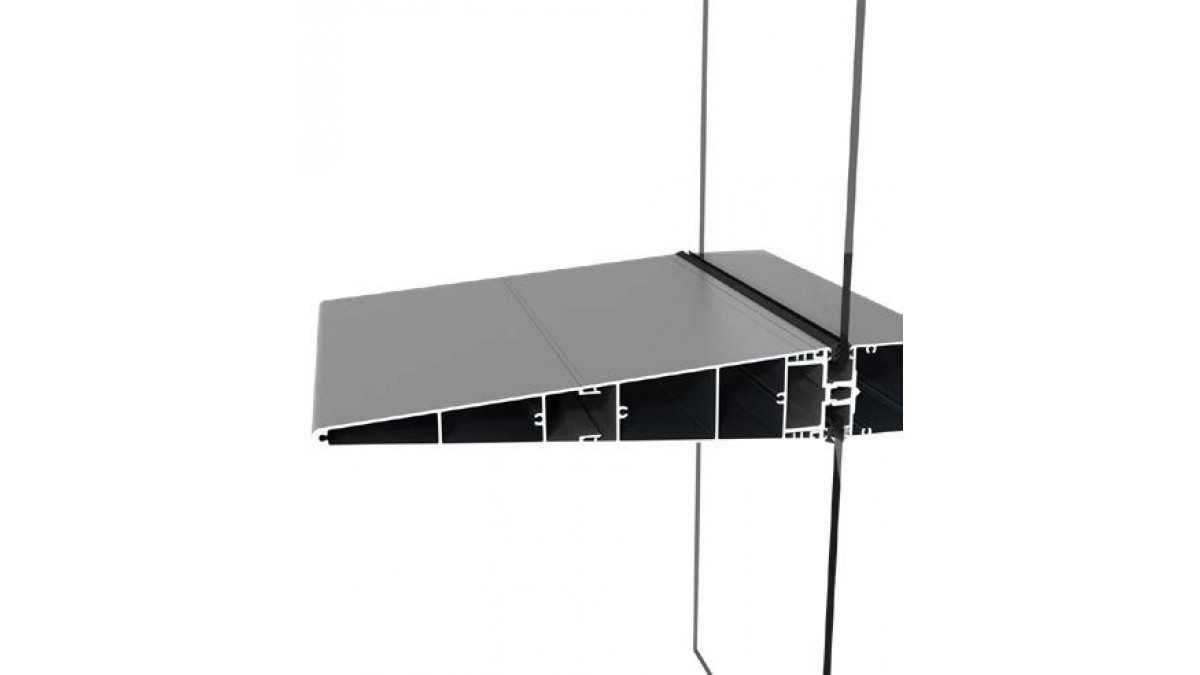

Flushglaze sun fin.
Description

This system is suitable for medium rise and shopfront use. Glazing is nearly flush with the outside face reducing the visual effect of aluminium profiles as viewed from the outside.

Two sash options can be incorporated. The flushglaze system can be used as a curtain wall. Provision can be made for seismic and thermal movement.

Key Features
  • Suitable for shopfront and medium rise commercial applications
  • Three systems with different levels of performance available
  • Glazing is near flush with the outside face reducing the visual effect of aluminium as viewed from the outside
  • Provision can be made for seismic and thermal movement
  • Can incorporate matching opening sashes, including an unobtrusive structurally glazed sash
  • Includes internal drainage which allows this system to be used with confidence on multi-storey buildings
  • Single and double glazing options including mixed within the same façade
  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system and can be structurally glazed vertically to minimise the impact of aluminium beads
  • Structural glazed mullions can be included in the system
Categories
Commercial Windows and Shopfronts
Ranges
Commercial Series
Scope of Use
  • 114mm ThermalHeart+® split mullions are fully compatible with APL Architectural Series ThermalHeart+® system. A full seismic transom will be available early 2027
  • Suitable for shopfront and medium rise commercial applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure. Consult Vantage for specific information
  • Compatible with Magnum commercial doors
Limitations on Use
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Data Sheet
pdf
Span Tables
pdf
Environmental Product Declaration (EPD) Report

2023

URL
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Vantage Brochure
URL
AGP Condensation Guide
pdf
APL and Sustainability

2023

URL
EPD: Understanding the global standard
pdf
CAD/PDF Details
View full
Full Set of Drawings

VCFG

pdf
VCFG01 0

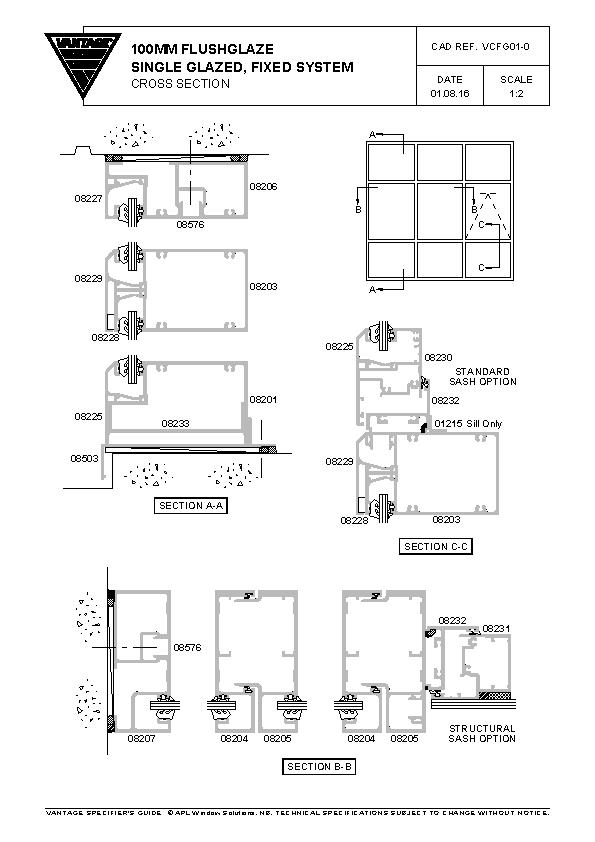

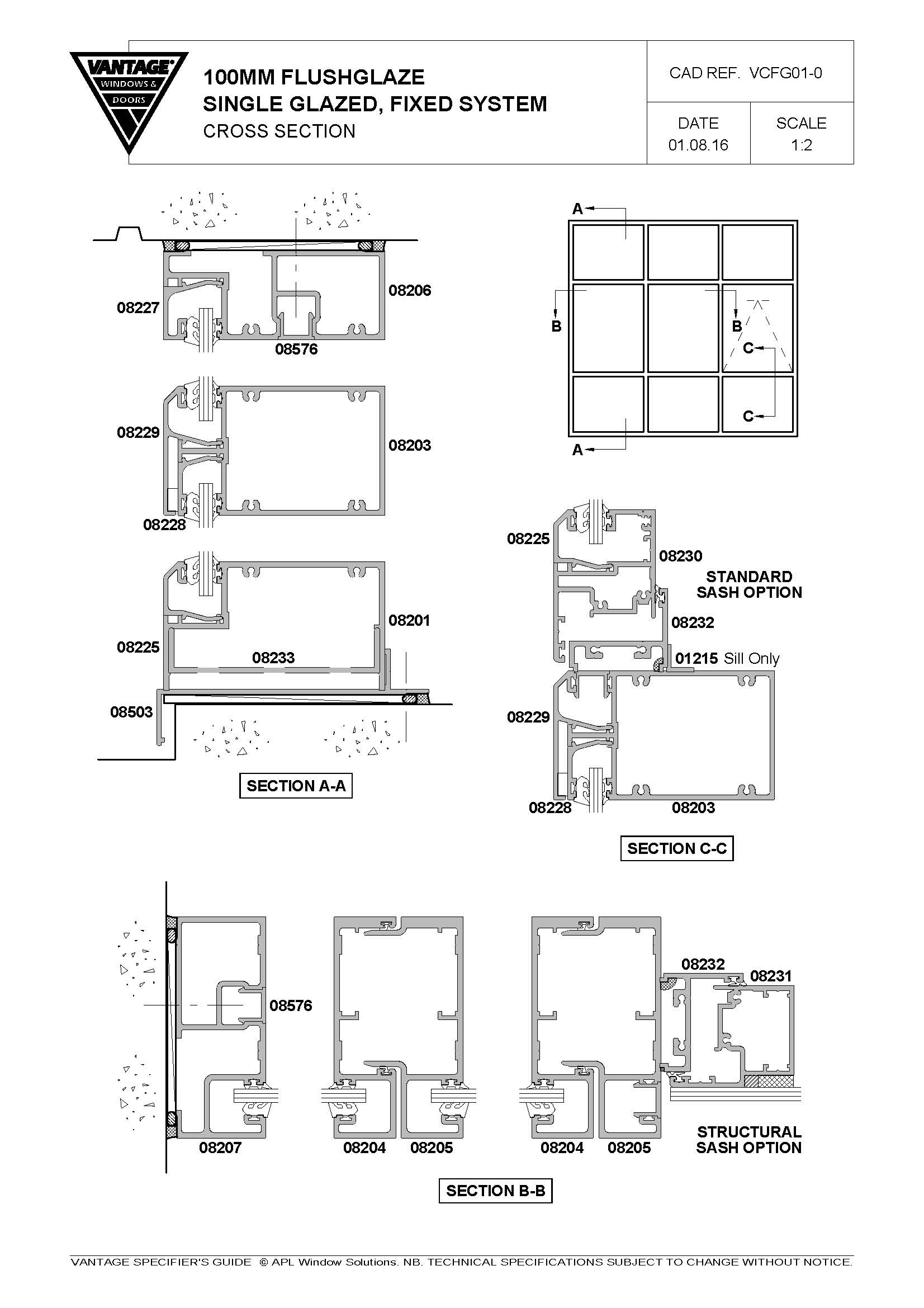

Vantage Commercial 100mm Flushglaze, Fixed System

VCFG01-0

dwf
dwg
dxf
pdf

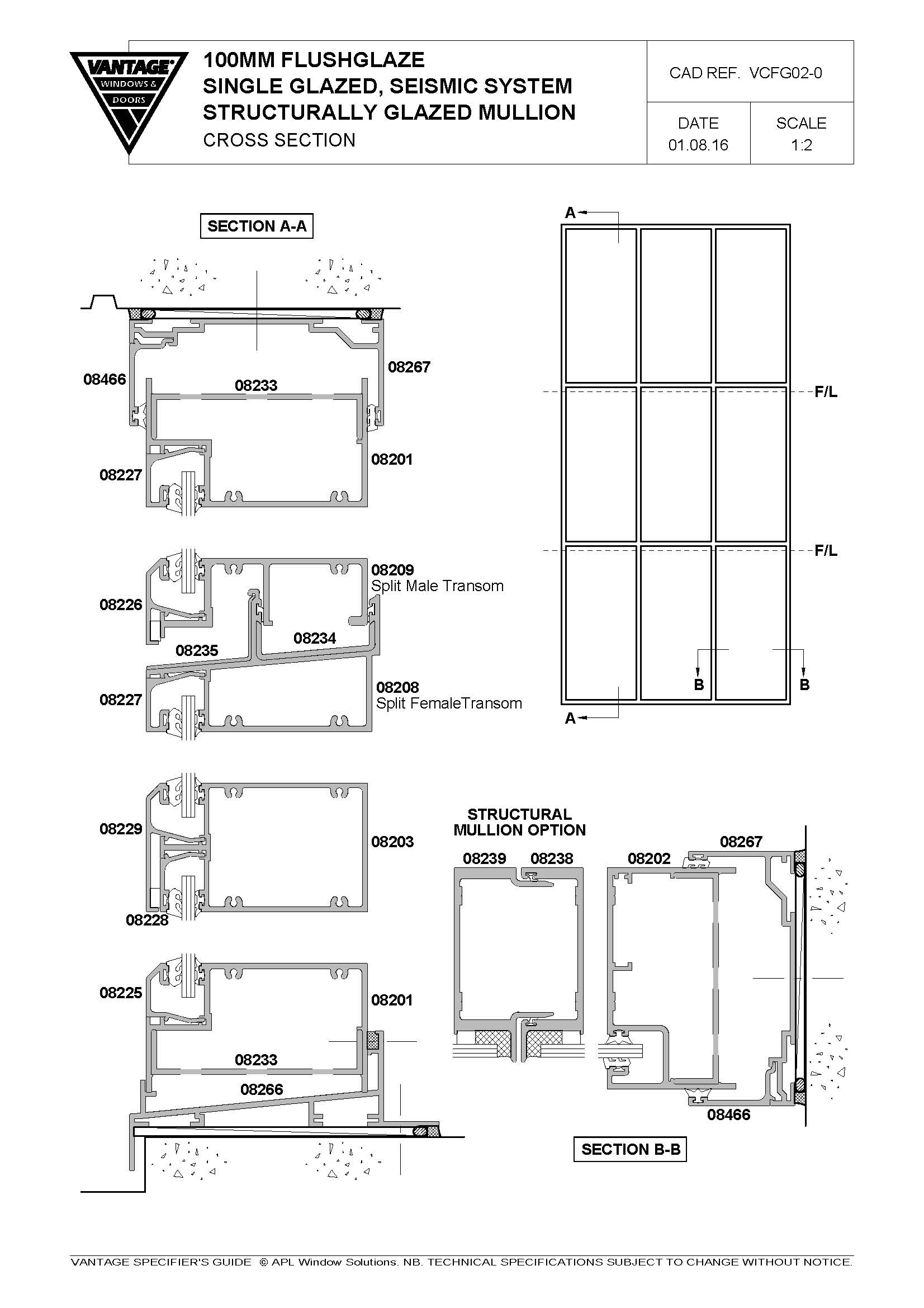

VCFG02 0
Vantage Commercial 100mm Flushglaze, Seismic System Structurally Glazed Mullion

VCFG02-0

dwf
dwg
dxf
pdf
VCFG03 0

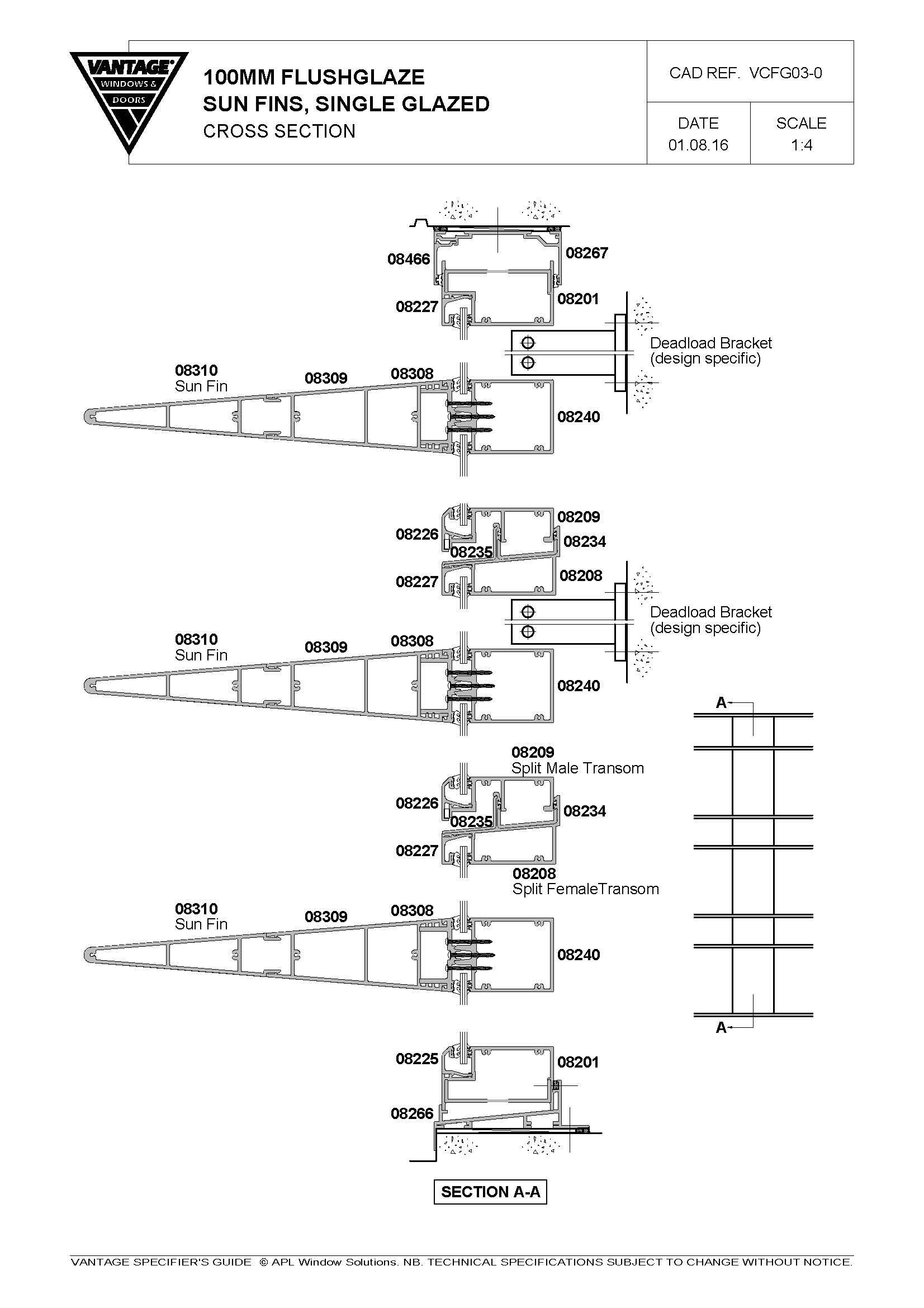

Vantage Commercial 100mm Flushglaze, Sun Fins

VCFG03-0

dwf
dwg
dxf
pdf
VCFG04 0

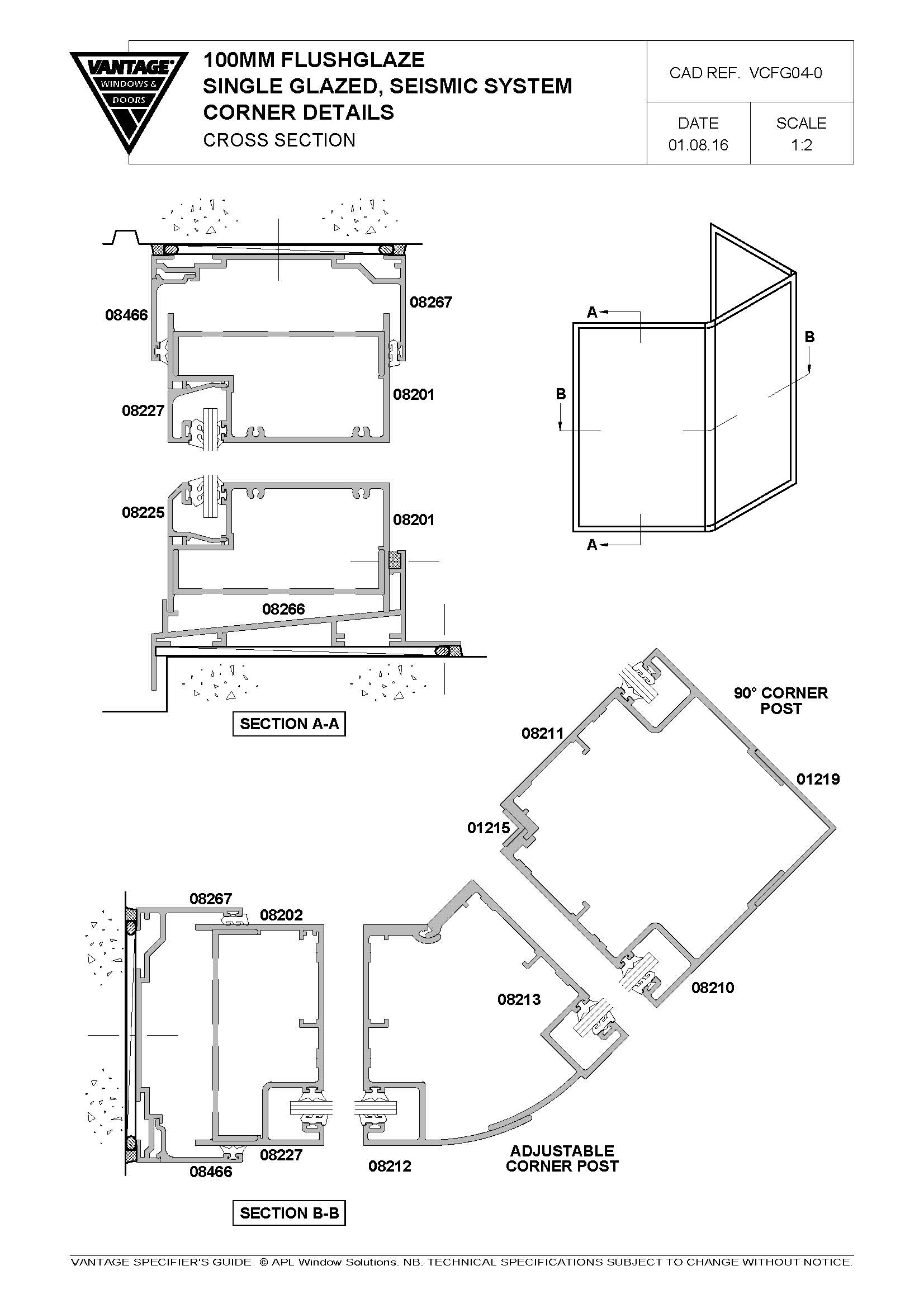

Vantage Commercial 100mm Flushglaze, Seismic System Corner Details

VCFG04-0

dwf
dwg
dxf
pdf

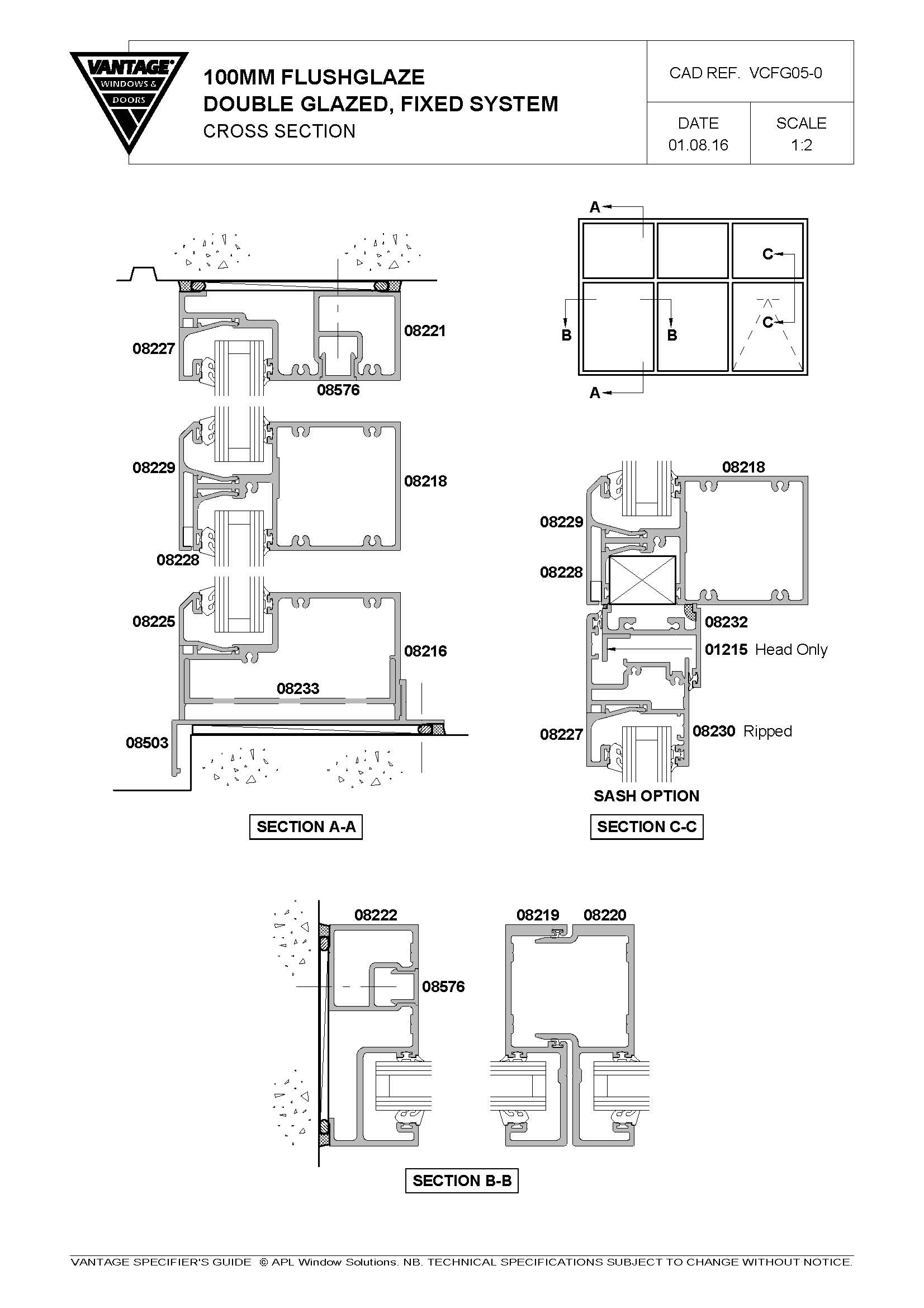

VCFG05 0
Vantage Commercial 100mm Flushglaze, Double Glazed Fixed System

VCFG05-0

dwf
dwg
dxf
pdf
VCFG06 0

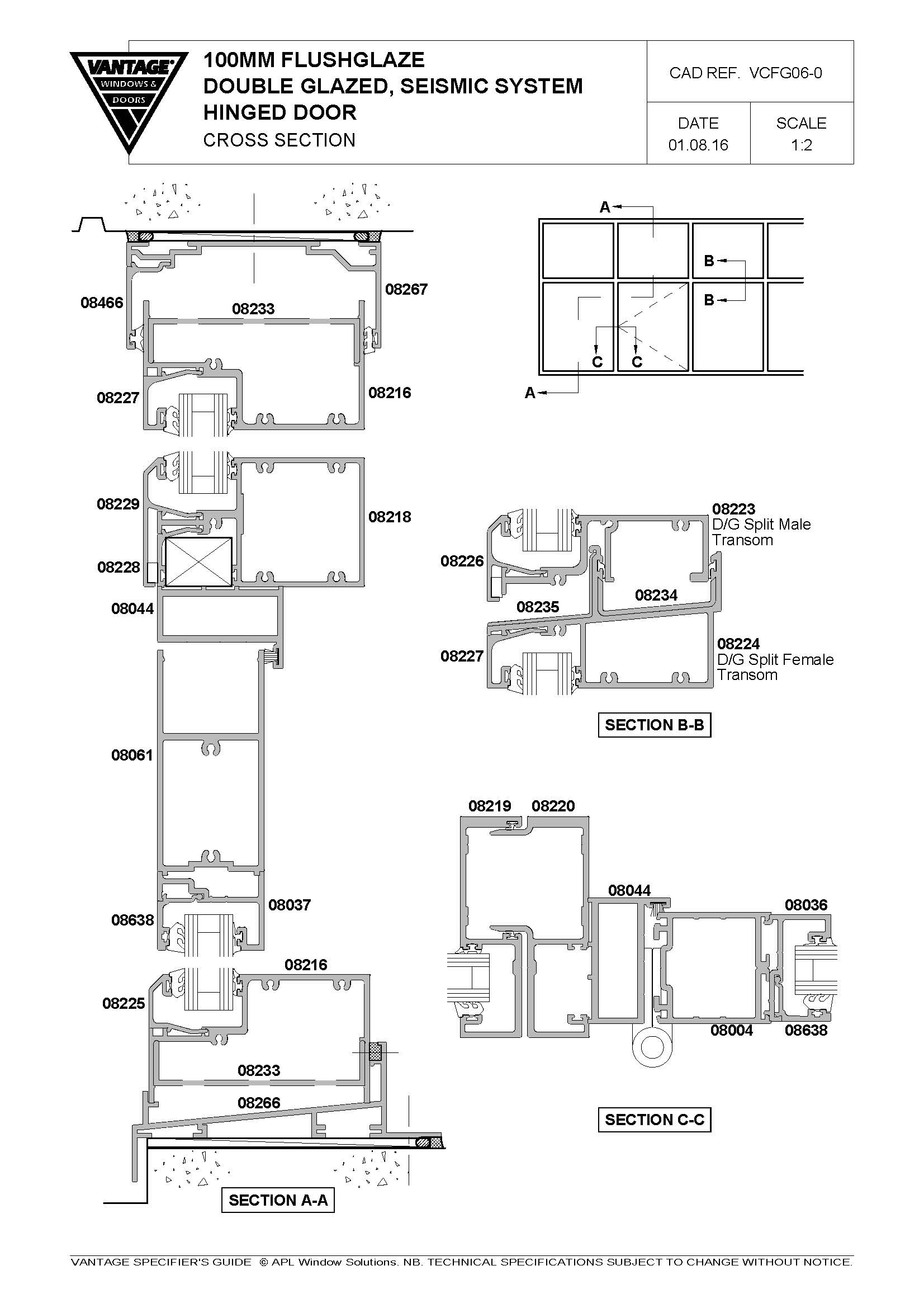

Vantage Commercial 100mm Flushglaze, Seismic System Double Glazed Hinged Door

VCFG06-0

dwf
dwg
dxf
pdf
VCFG10 0

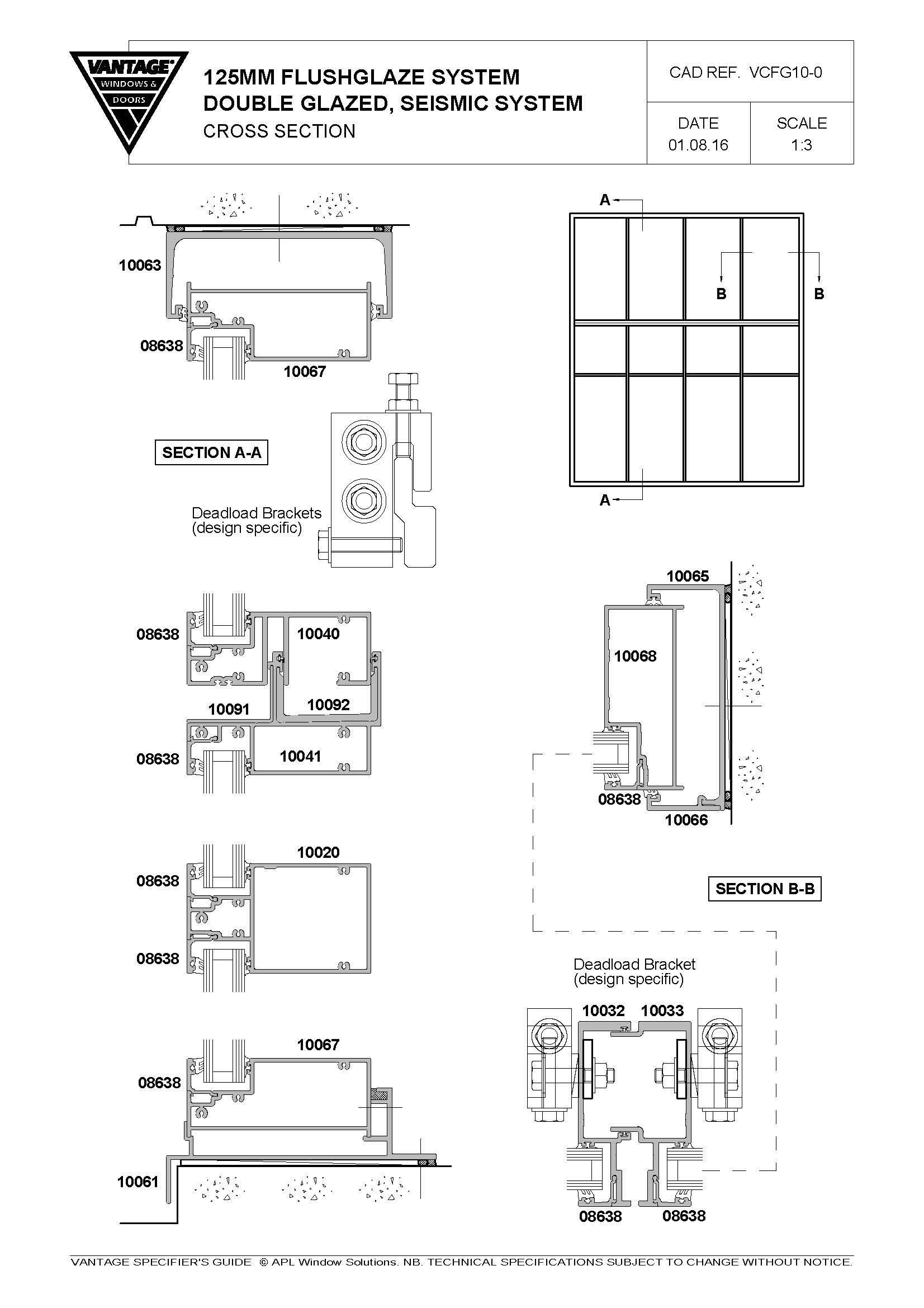

Vantage Commercial 125mm Flushglaze, Seismic System Double Glazed

VCFG10-0

dwf
dwg
dxf
pdf

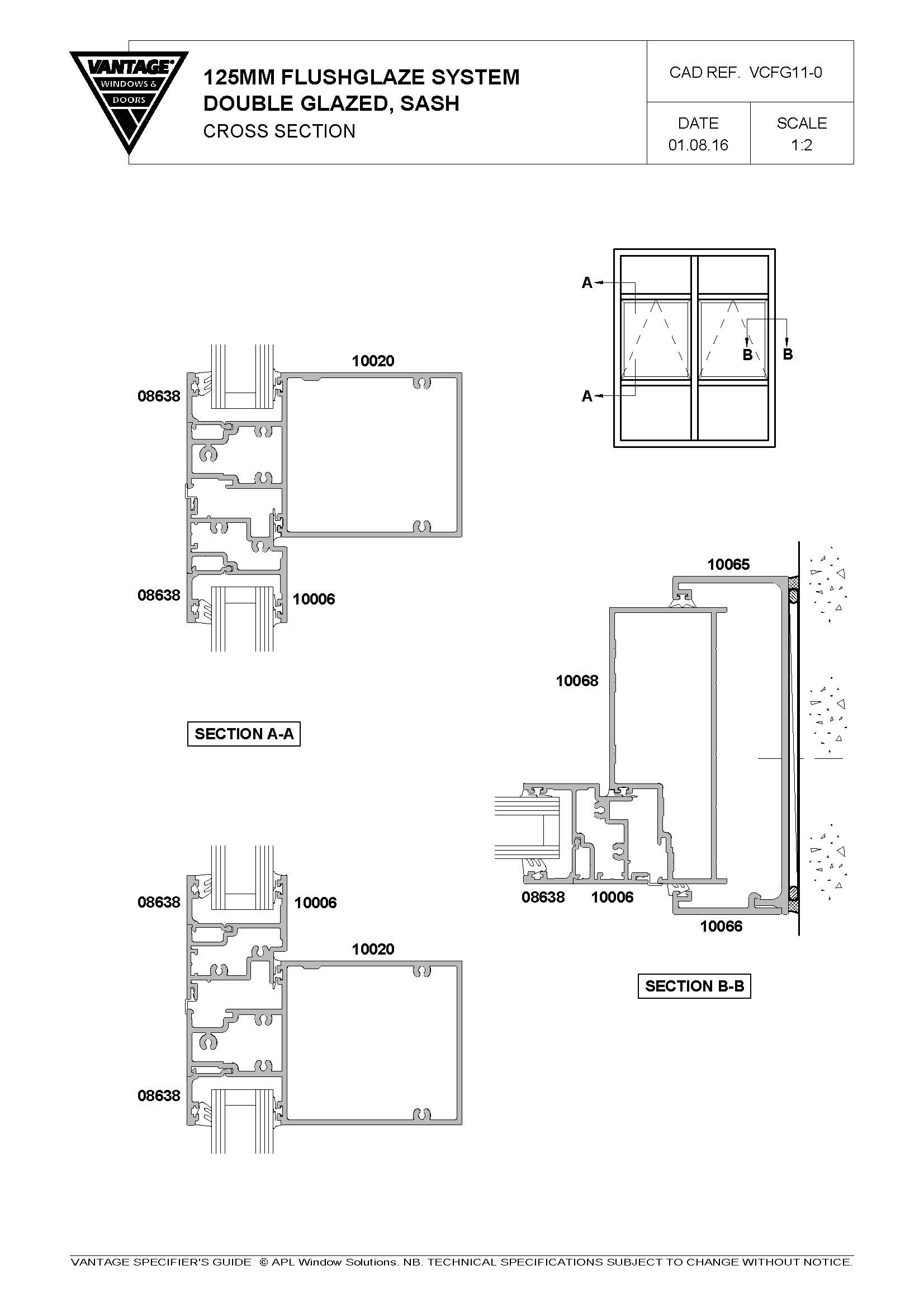

VCFG11 0
Vantage Commercial 125mm Flush Glaze Seismic System Double Glazed, Split Transom

VCFG11-0

dwf
dwg
dxf
pdf
Vantage Commercial 125mm Flushglaze, Open Out Hinged Door

VCFG12-0

dwf
dwg
dxf
pdf
VCFG13 0

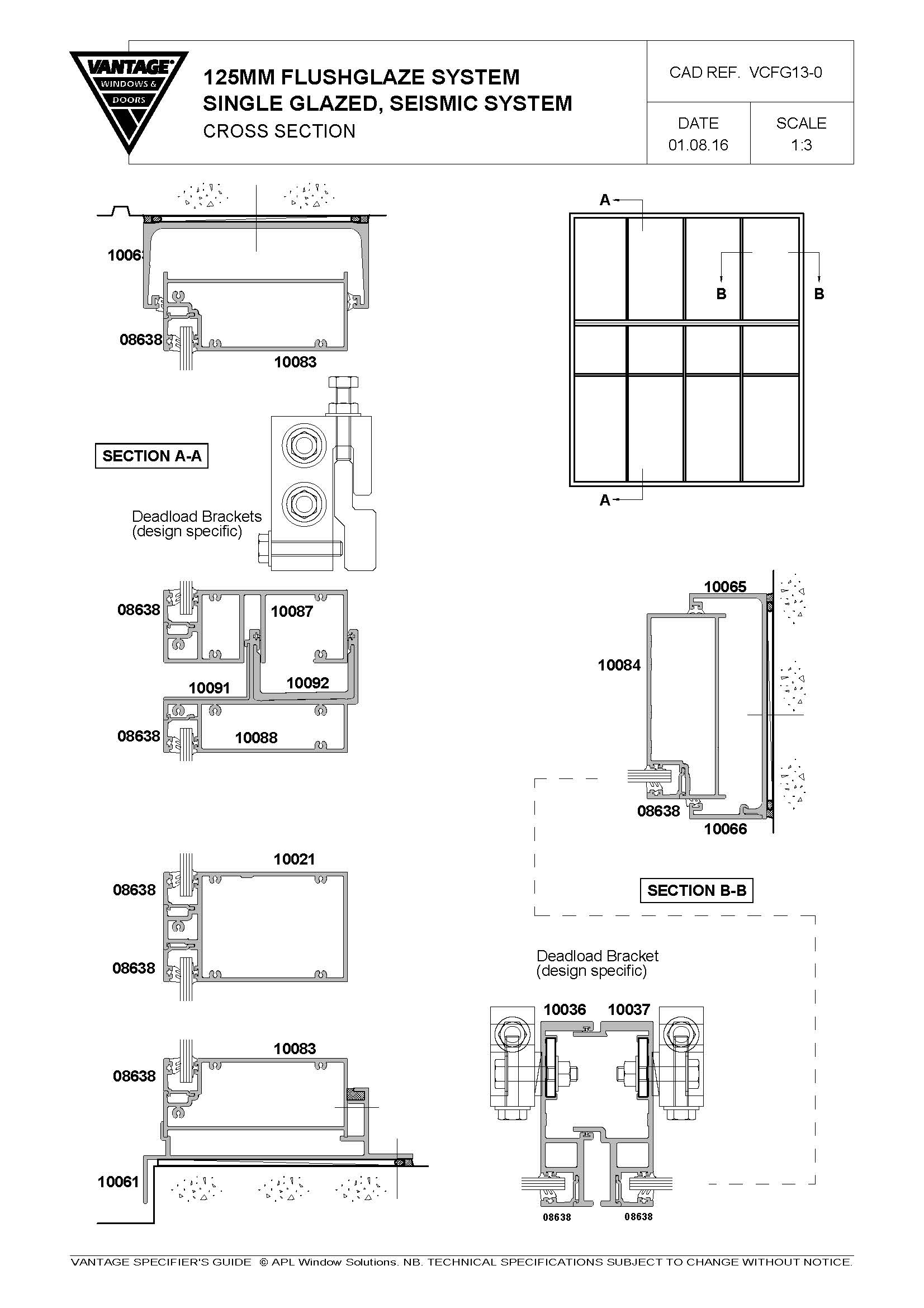

Vantage Commercial 125mm Flushglaze, Single Glazed Seismic System

VCFG13-0

dwf
dwg
dxf
pdf
VCFG14 0

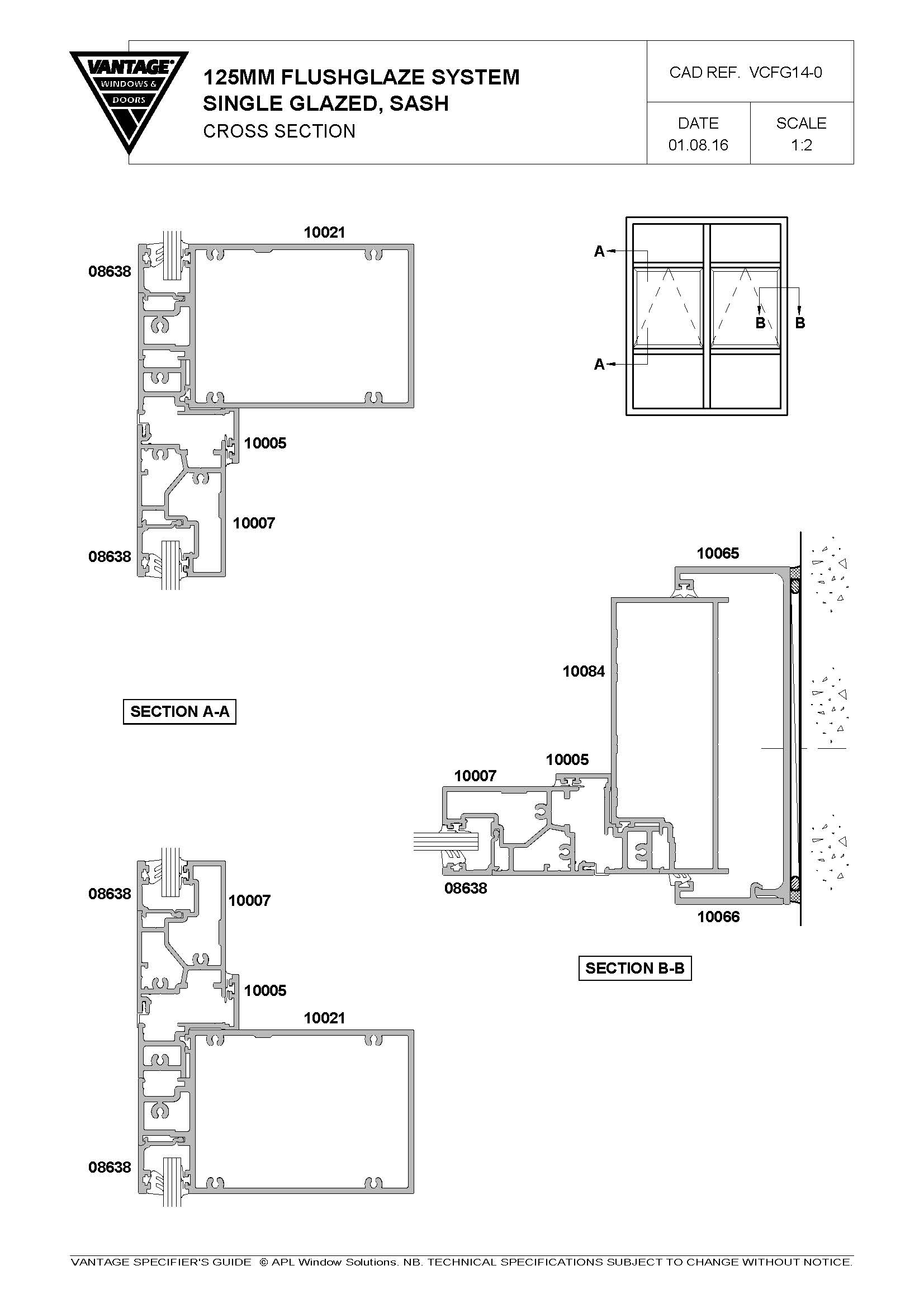

Vantage Commercial 125mm Flushglaze, Single Glazed Sash

VCFG14-0

dwf
dwg
dxf
pdf

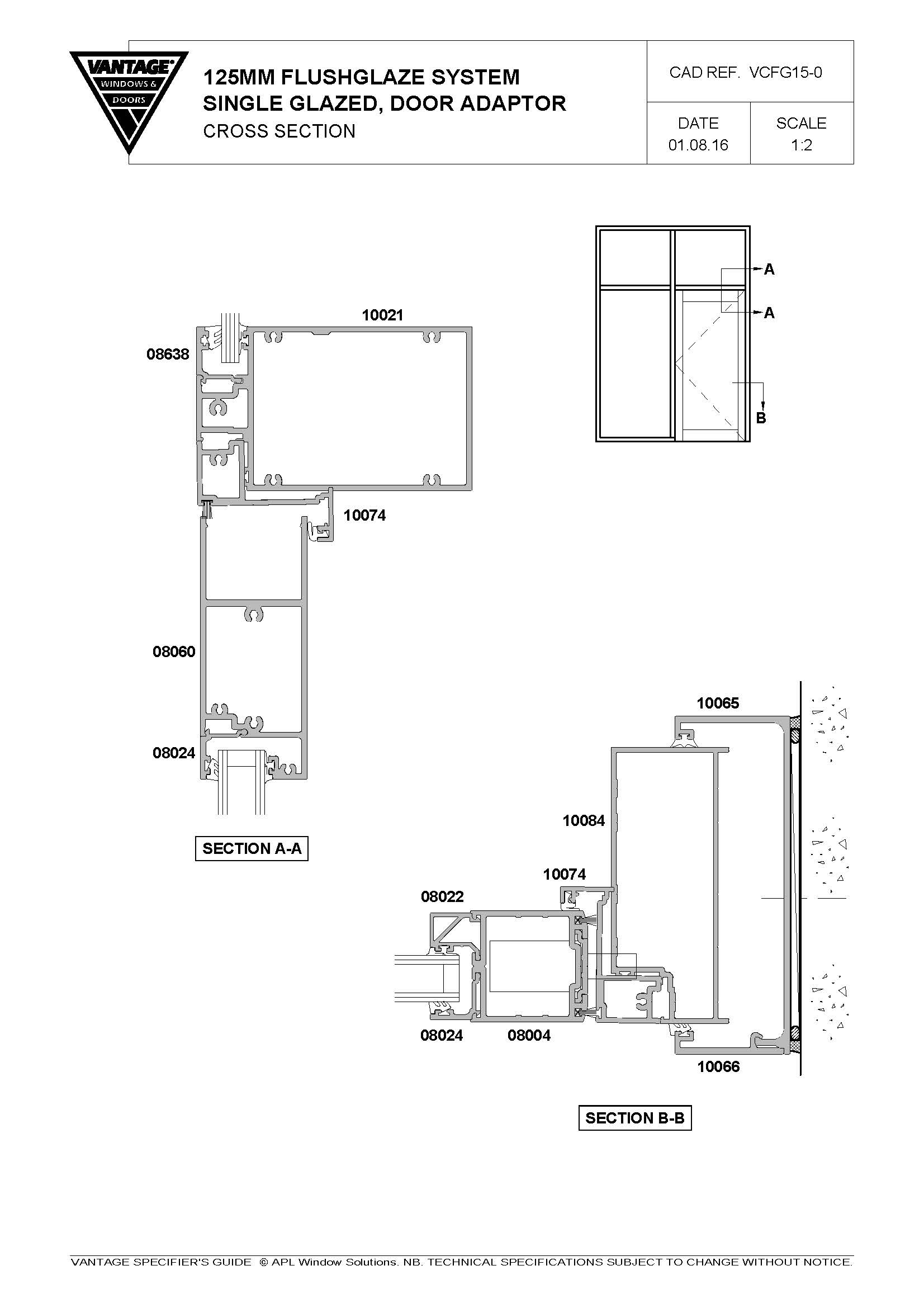

VCFG15 0
Vantage Commercial 125mm Flushglaze, Single Glazed Door Adaptor

VCFG15-0

dwf
dwg
dxf
pdf
VCFG16 0

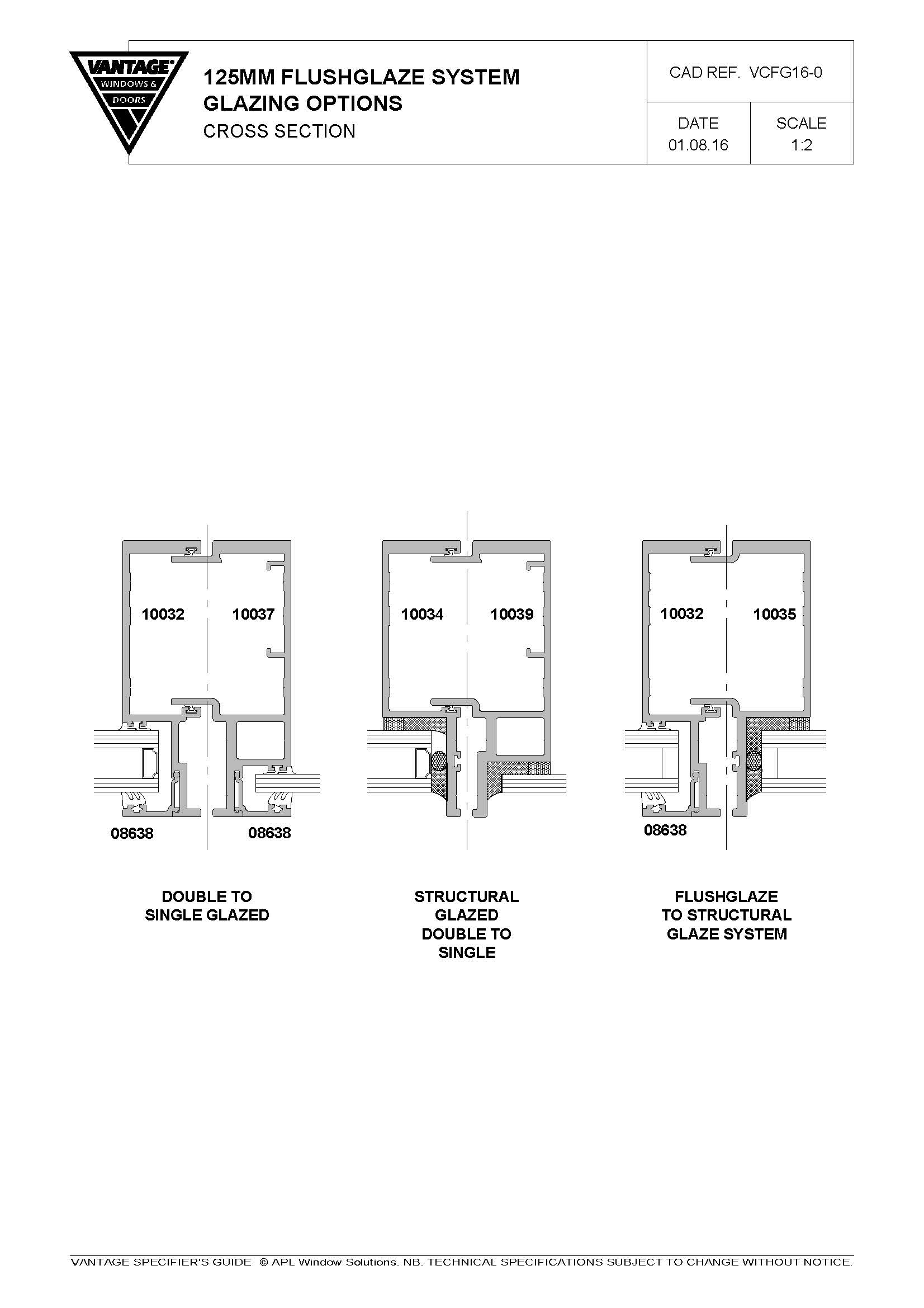

Vantage Commercial 125mm Flushglaze, Glazing Options

VCFG16-0

dwf
dwg
dxf
pdf
VCFG17 0

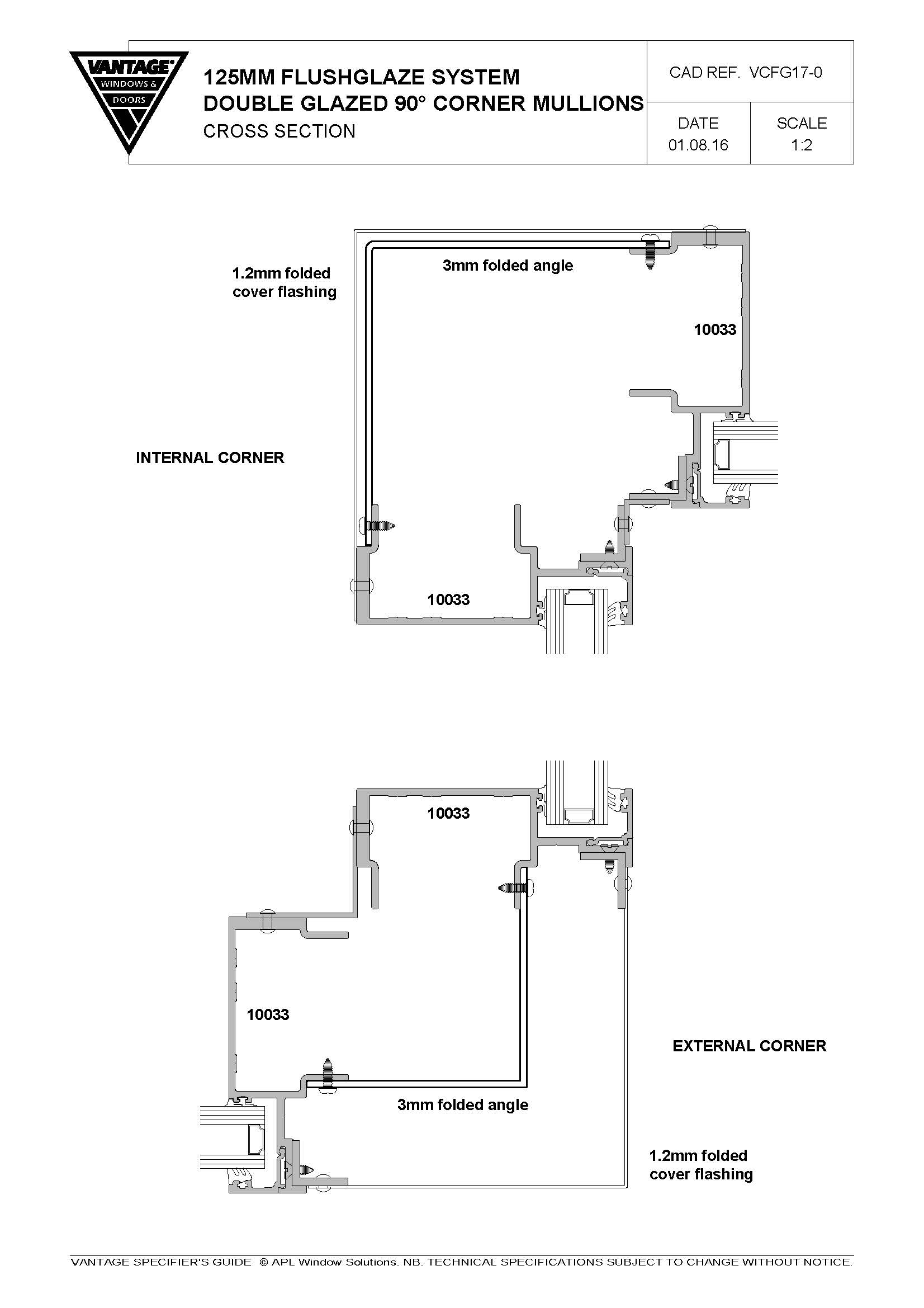

Vantage Commercial 125mm Flushglaze, Corner Mullions

VCFG17-0

dwf
dwg
dxf
pdf
VCFG18 0

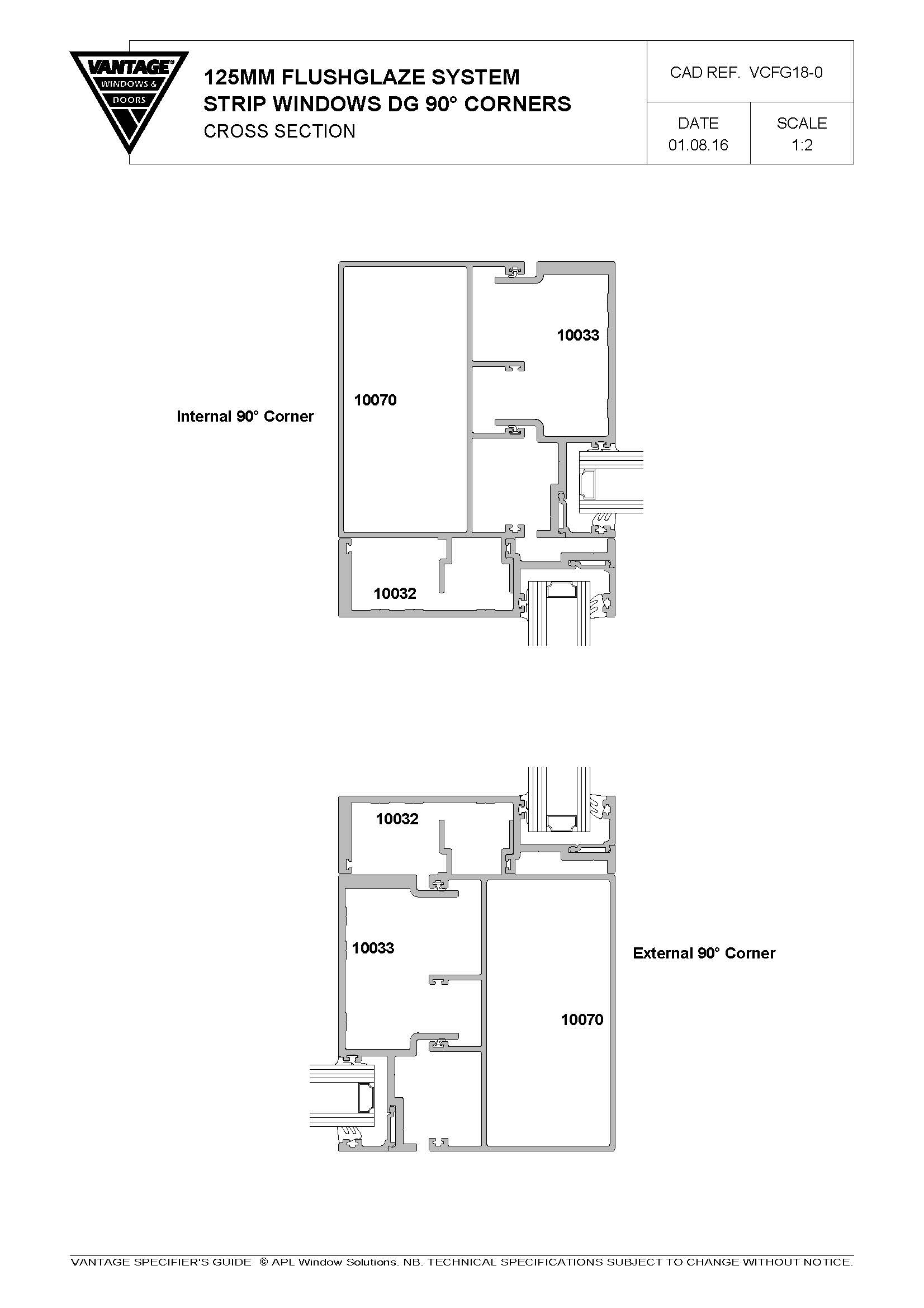

Vantage Commercial 125mm Flushglaze, Strip Windows Corners

VCFG18-0

dwf
dwg
dxf
pdf
VCFG25 0

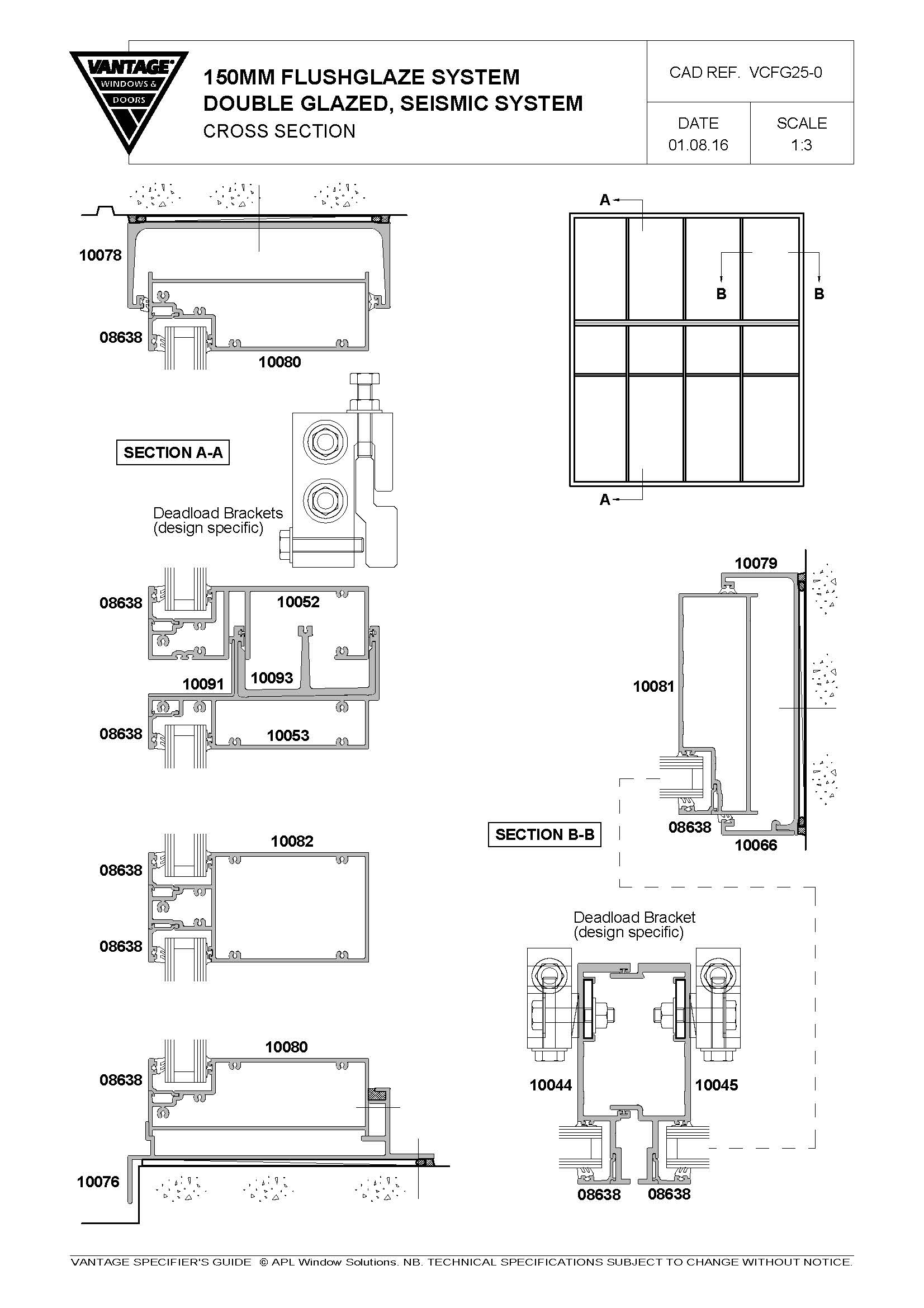

Vantage Commercial 150mm Flushglaze, Seismic System

VCFG25-0

dwf
dwg
dxf
pdf
VCFG26 0

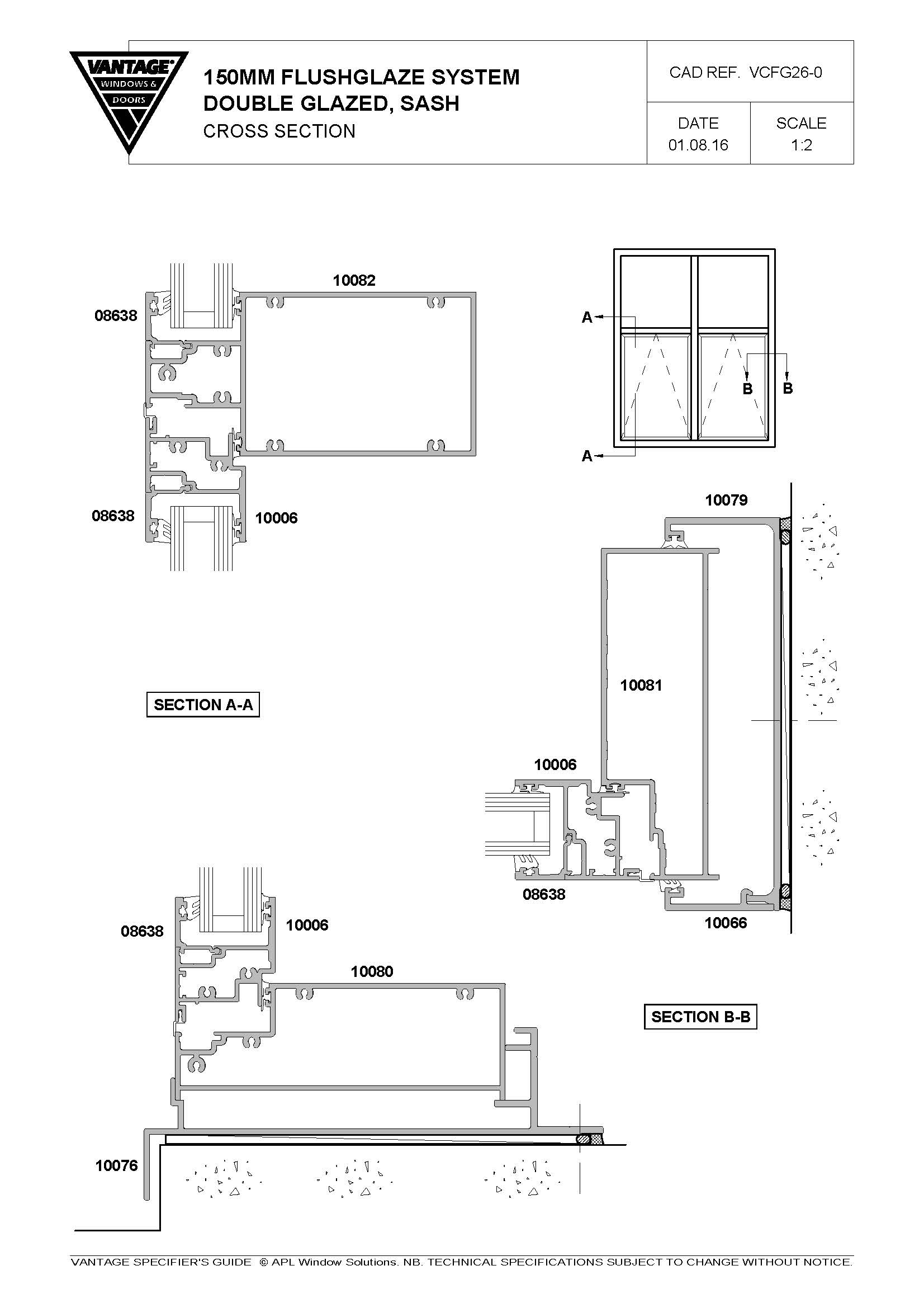

Vantage Commercial 150mm Flushglaze, Double Glazed Sash

VCFG26-0

dwf
dwg
dxf
pdf

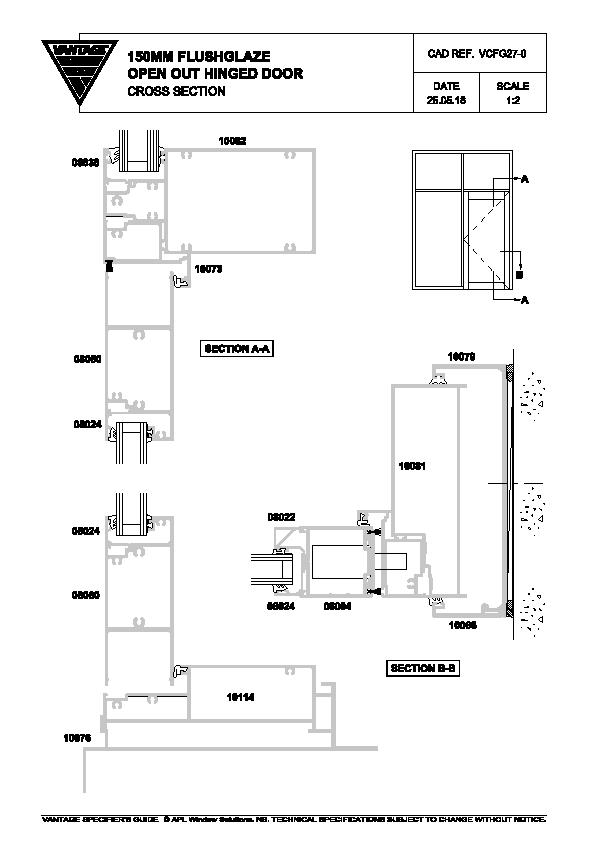

Vantage Commercial 150mm Flushglaze, Open Out Hinged Door

VCFG27-0

dwf
dwg
dxf
pdf

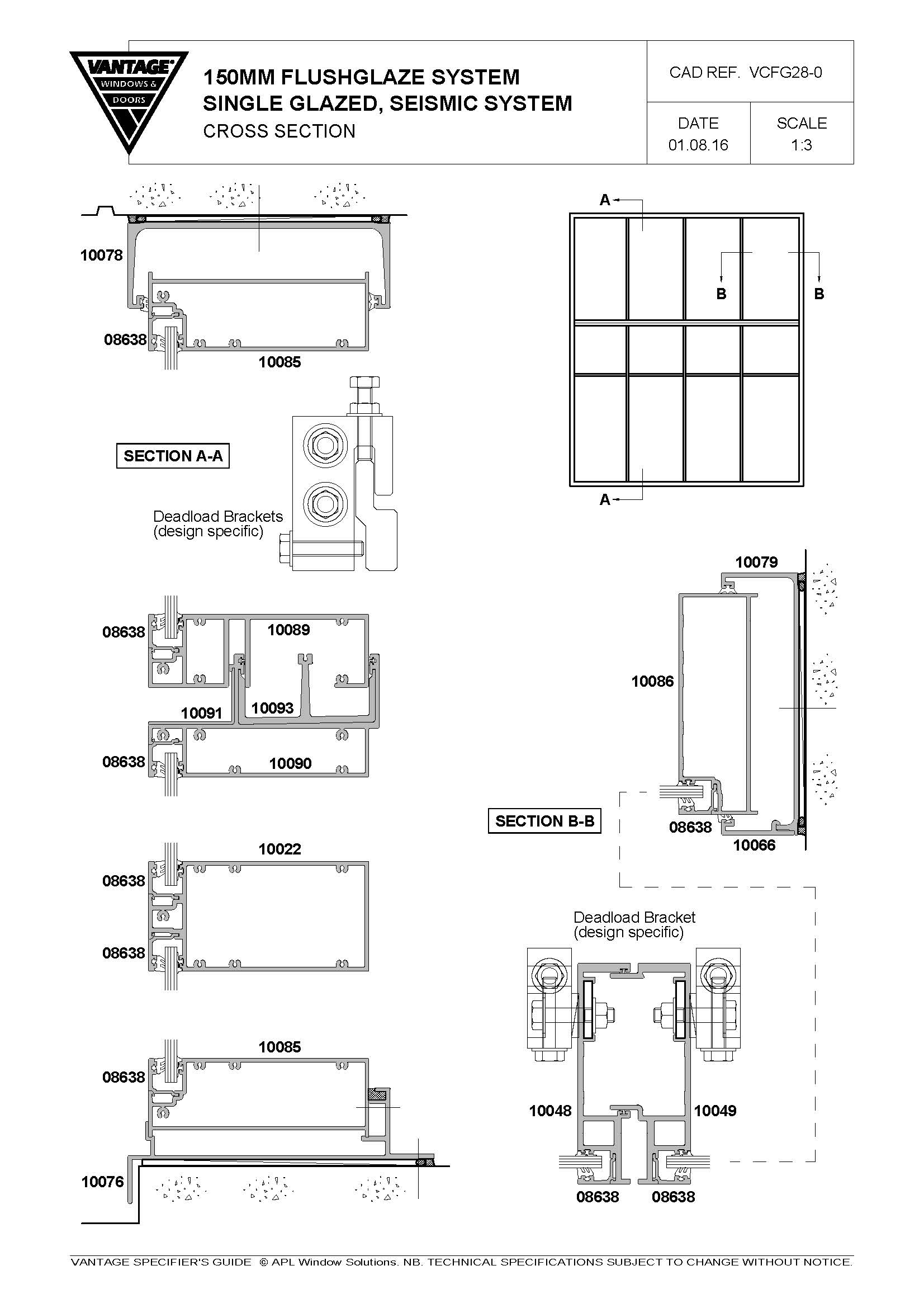

VCFG28 0
Vantage Commercial 150mm Flushglaze, Single Glazed Seismic System

VCFG28-0

dwf
dwg
dxf
pdf
VCFG29 0

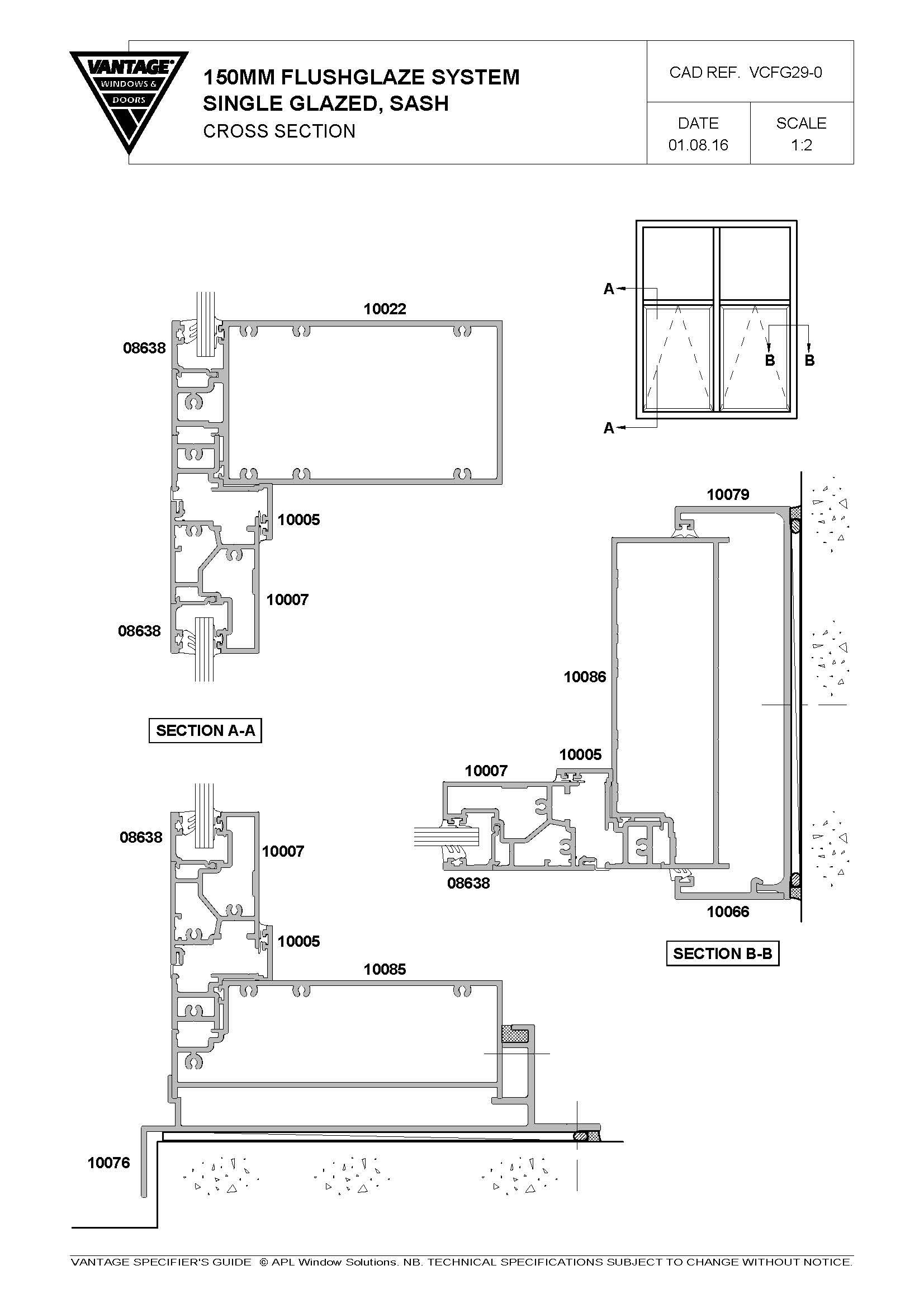

Vantage Commercial 150mm Flushglaze, Single Glazed Sash

VCFG29-0

dwf
dwg
dxf
pdf

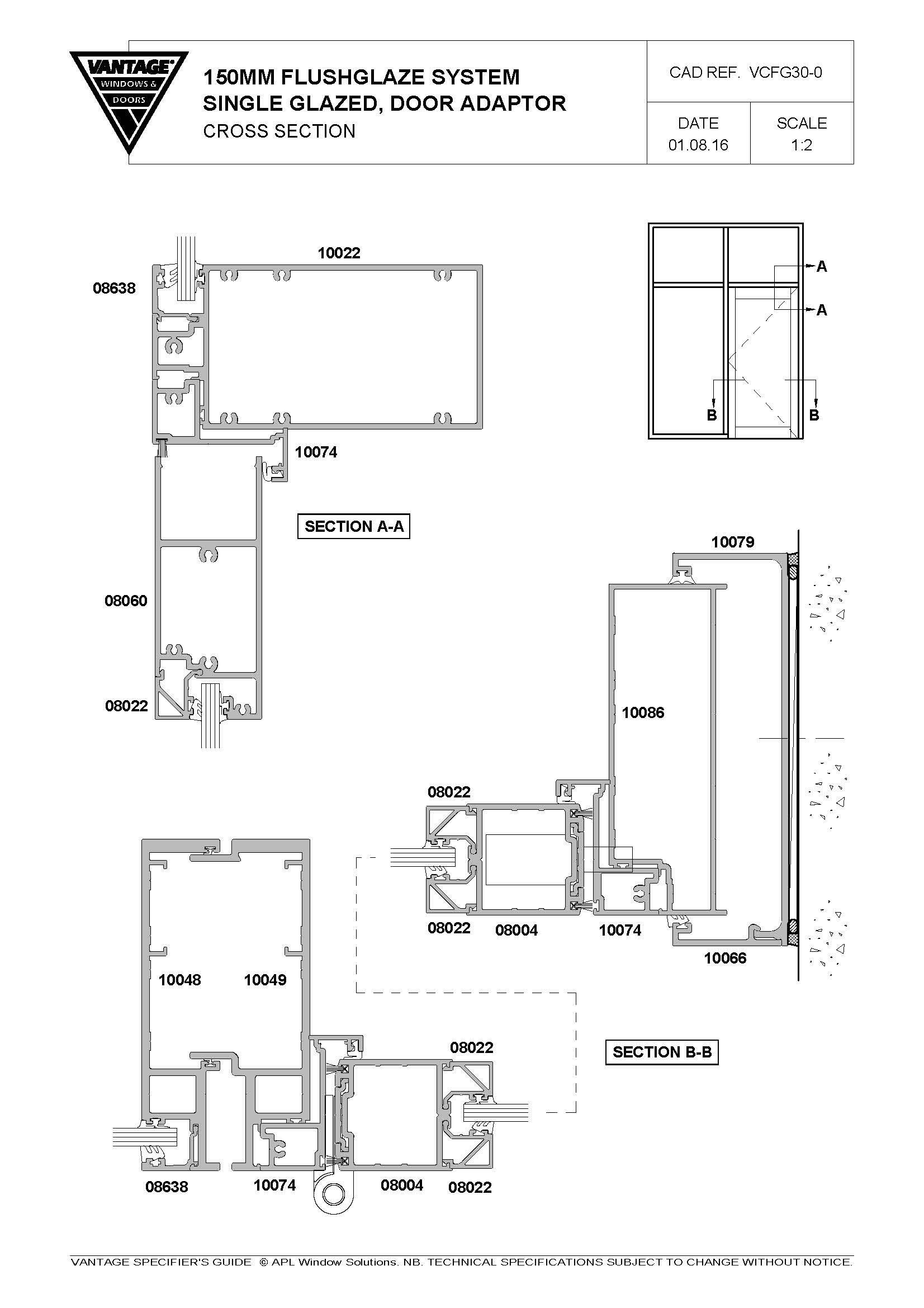

VCFG30 0
Vantage Commercial 150mm Flushglaze, Single Glazed Door Adaptor

VCFG30-0

dwf
dwg
dxf
pdf
VCFG31 0

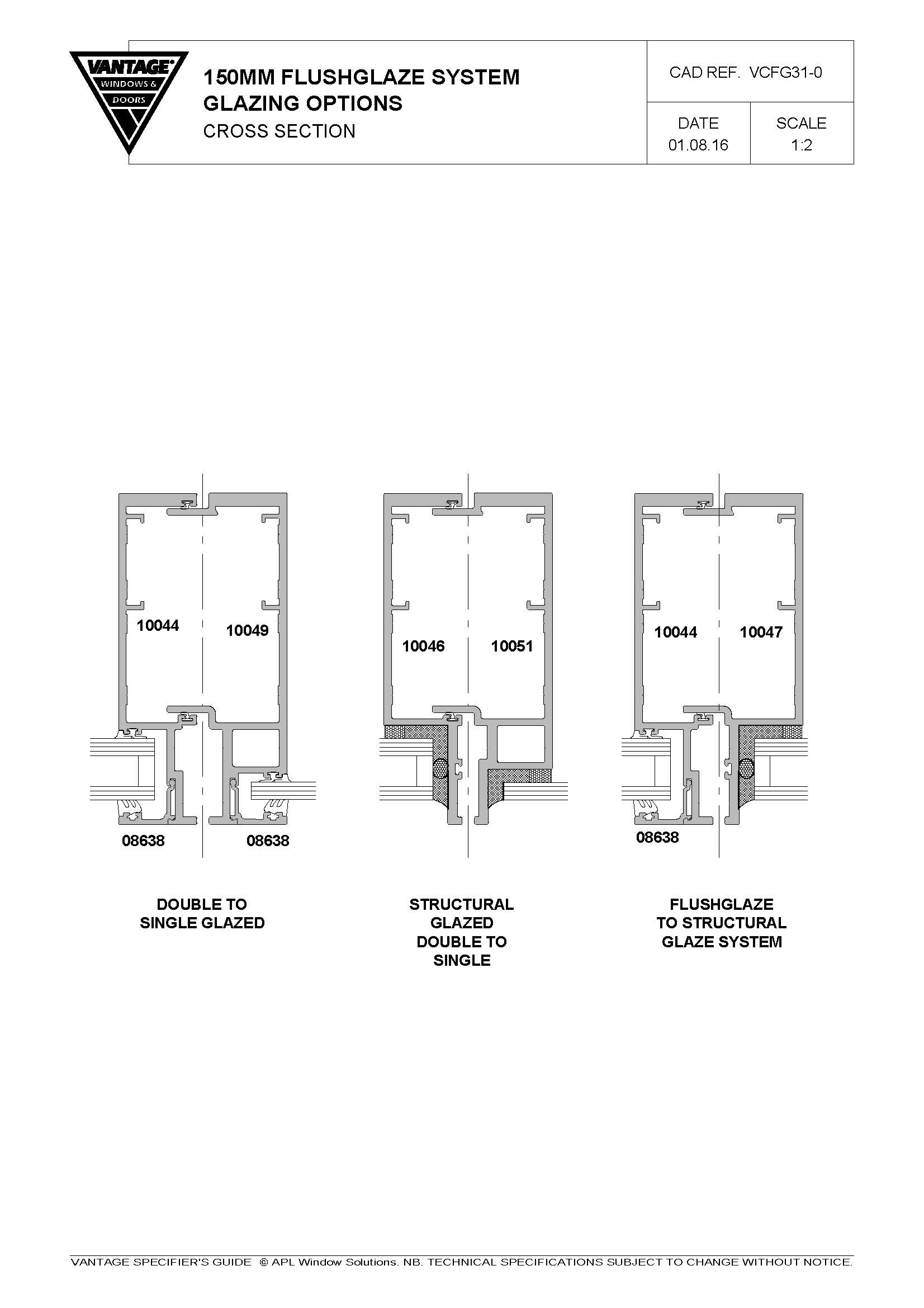

Vantage Commercial 150mm Flushglaze, Glazing options

VCFG31-0

dwf
dwg
dxf
pdf
VCFG32 0

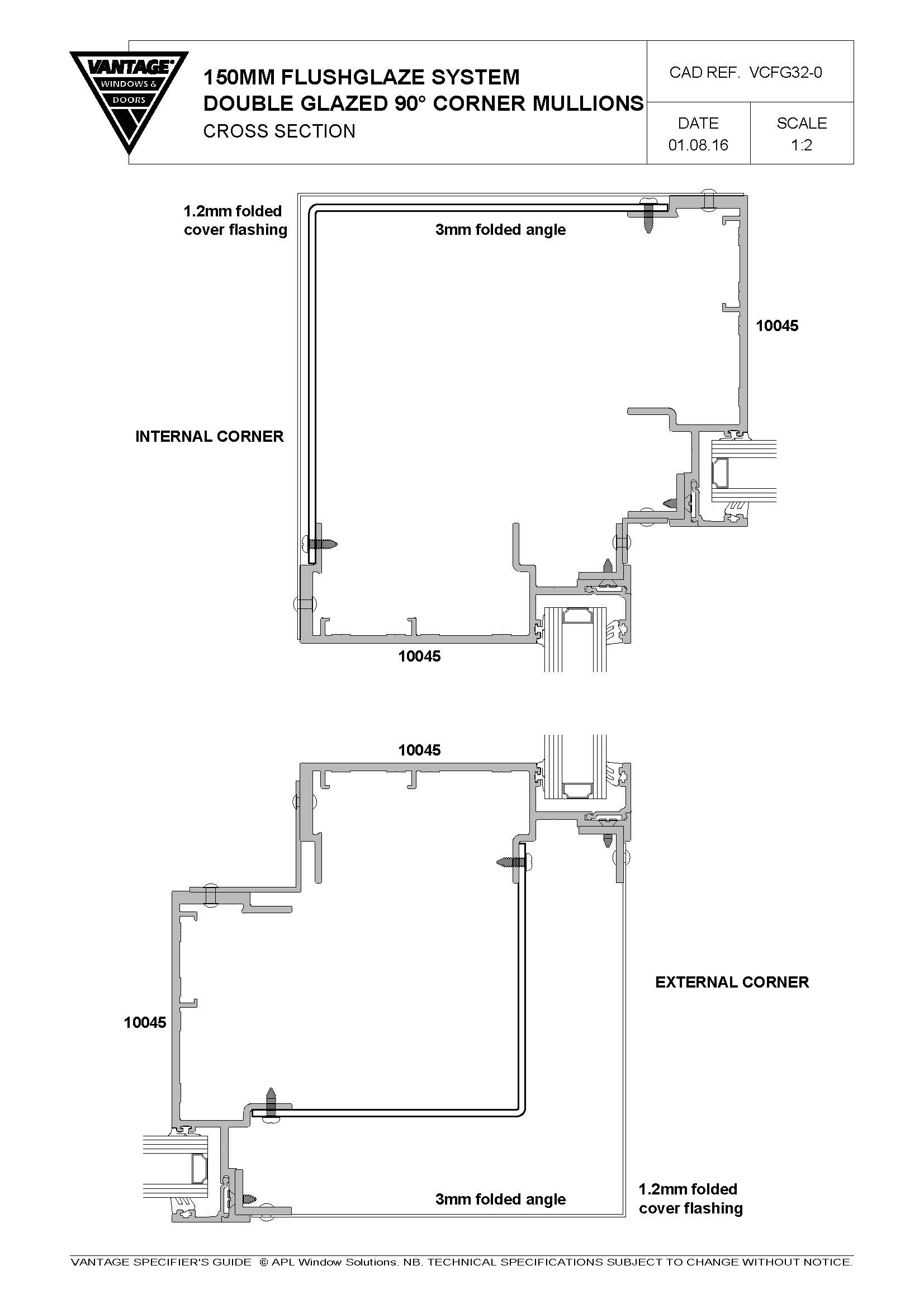

Vantage Commercial 150mm Flushglaze, Corner Mullions

VCFG32-0

dwf
dwg
dxf
pdf
BIM
View full

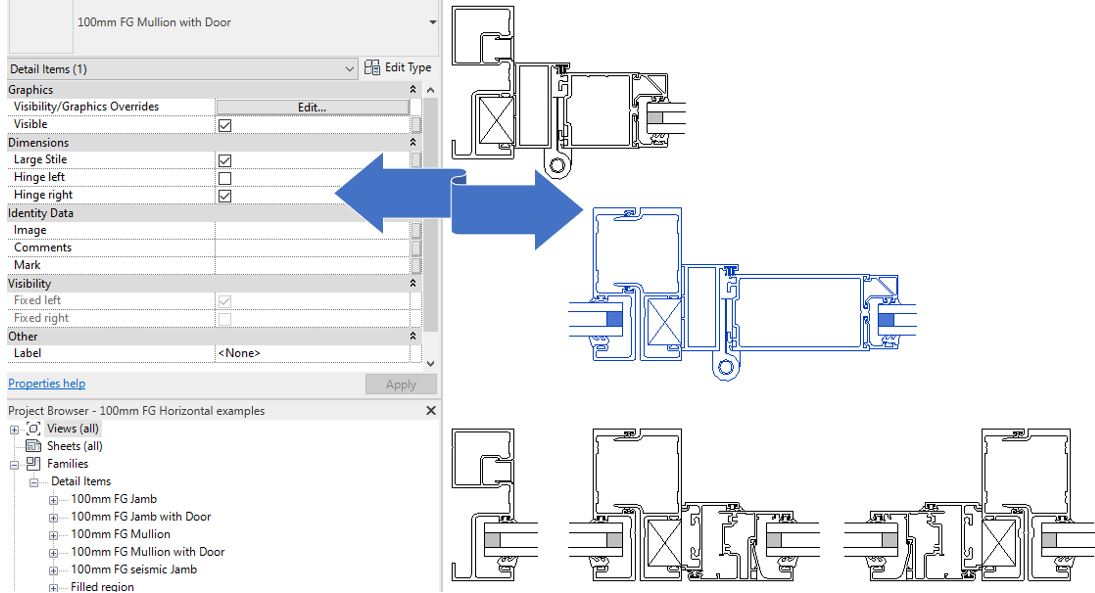

Capture
Vantage Commercial 100mm Flushglaze System

Revit LT 2020

zip

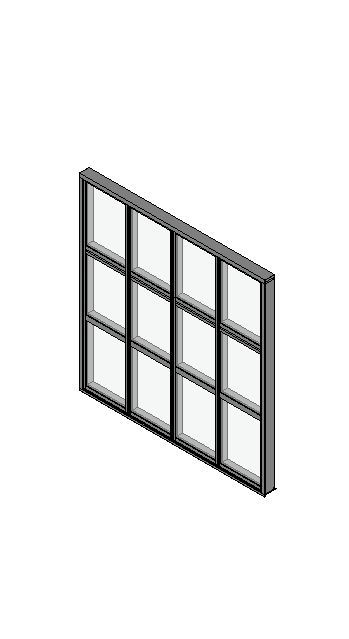

fixed system
Vantage Commercial 125mm Flushglaze System (Curtain Wall)
rfa
rfa
rvt

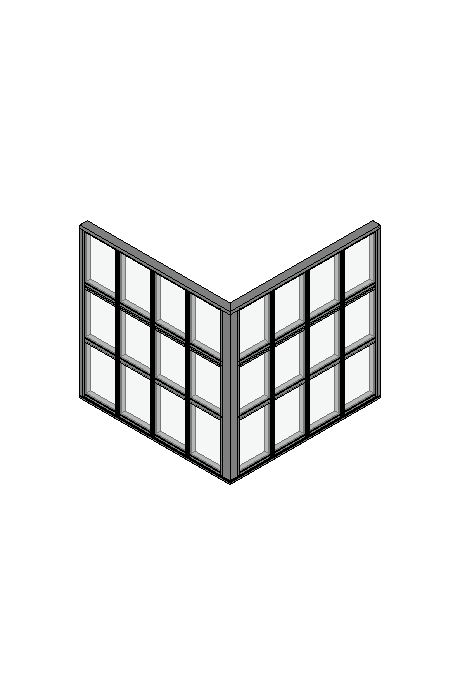

EXT Corner
Vantage Commercial 125mm Flushglaze System, External Corner (Curtain Wall)
rfa
rvt

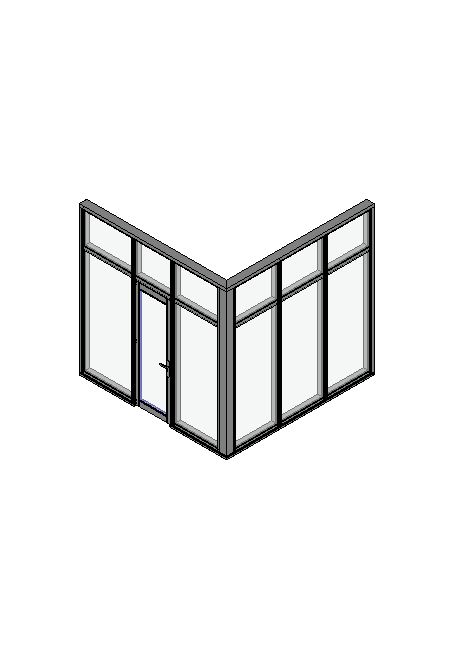

EXT corn with hinged
Vantage Commercial 125mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)
rvt

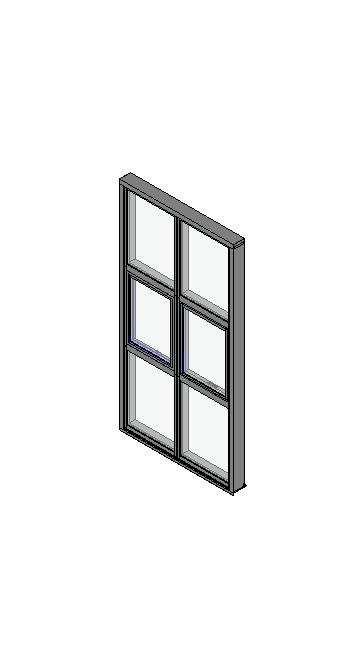

windows
Vantage Commercial 125mm Flushglaze System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rfa
rfa
rvt

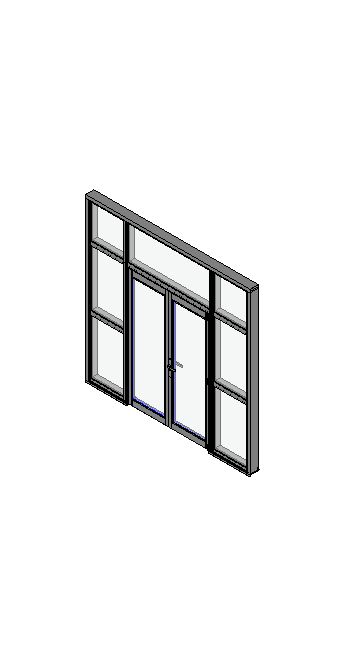

french door
Vantage Commercial 125mm Flushglaze System, French Door (Curtain Wall)
rfa
rfa
rvt

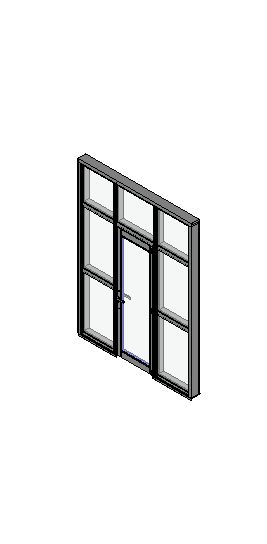

hinged door
Vantage Commercial 125mm Flushglaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt

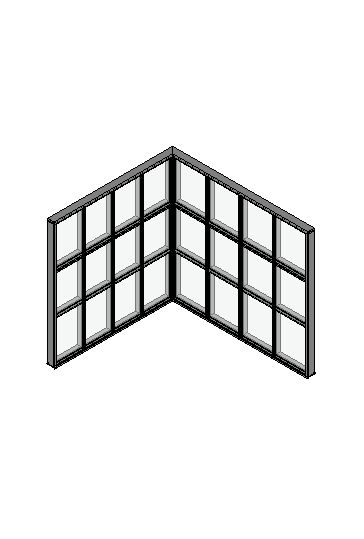

INT Corner
Vantage Commercial 125mm Flushglaze System, Internal Corner (Curtain Wall)
rfa
rvt

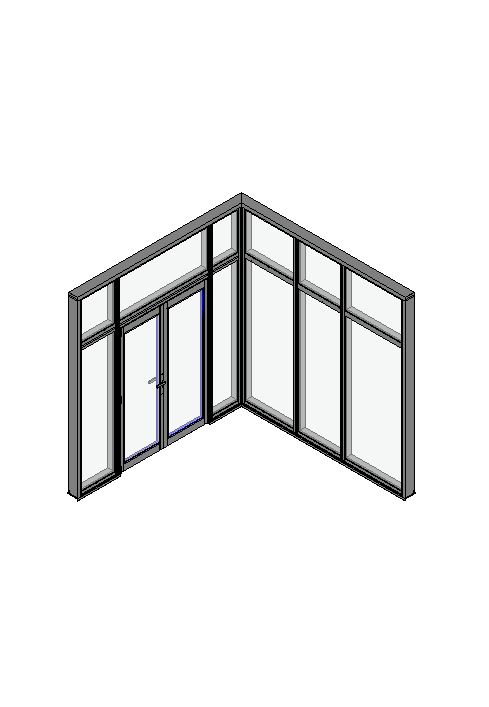

INT corn with French
Vantage Commercial 125mm Flushglaze System, Internal Corner With French Door (Curtain Wall)
rvt

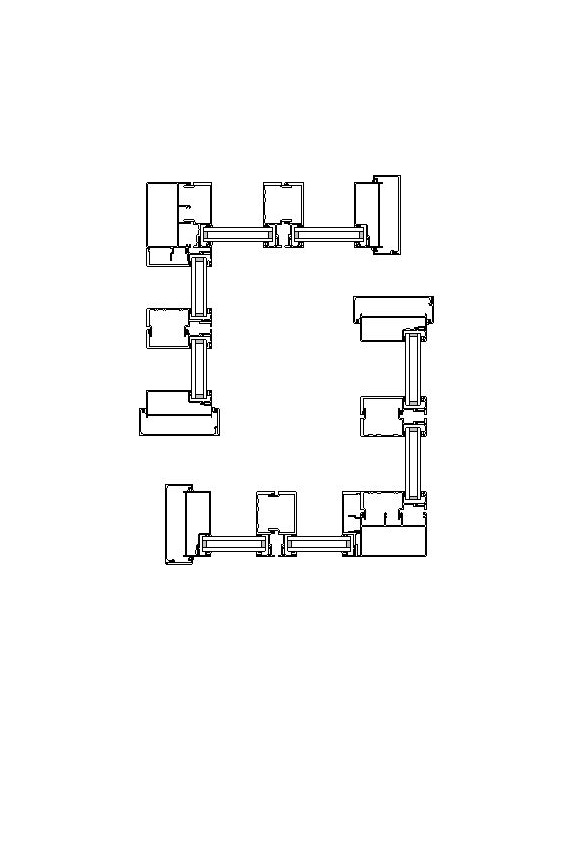

Strip Window
Vantage Commercial 125mm Flushglaze System, Strip Windows Corners (2D)
rfa
rfa
EXT corn with hinged
Vantage Commercial 125mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)
rvt
fixed system
Vantage Commercial 150mm Flushglaze System (Curtain Wall)
rfa
rfa
rvt
EXT Corner
Vantage Commercial 150mm Flushglaze System, External Corner (Curtain Wall)
rfa
rvt
EXT corn with hinged
Vantage Commercial 150mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)
rvt
windows
Vantage Commercial 150mm Flushglaze System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rfa
rfa
rvt
french door
Vantage Commercial 150mm Flushglaze System, French Door (Curtain Wall)
rfa
rfa
rvt
hinged door
Vantage Commercial 150mm Flushglaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt
INT Corner
Vantage Commercial 150mm Flushglaze System, Internal Corner (Curtain Wall)
rfa
rvt
INT corn with French
Vantage Commercial 150mm Flushglaze System, Internal Corner With French Door (Curtain Wall)
rvt
