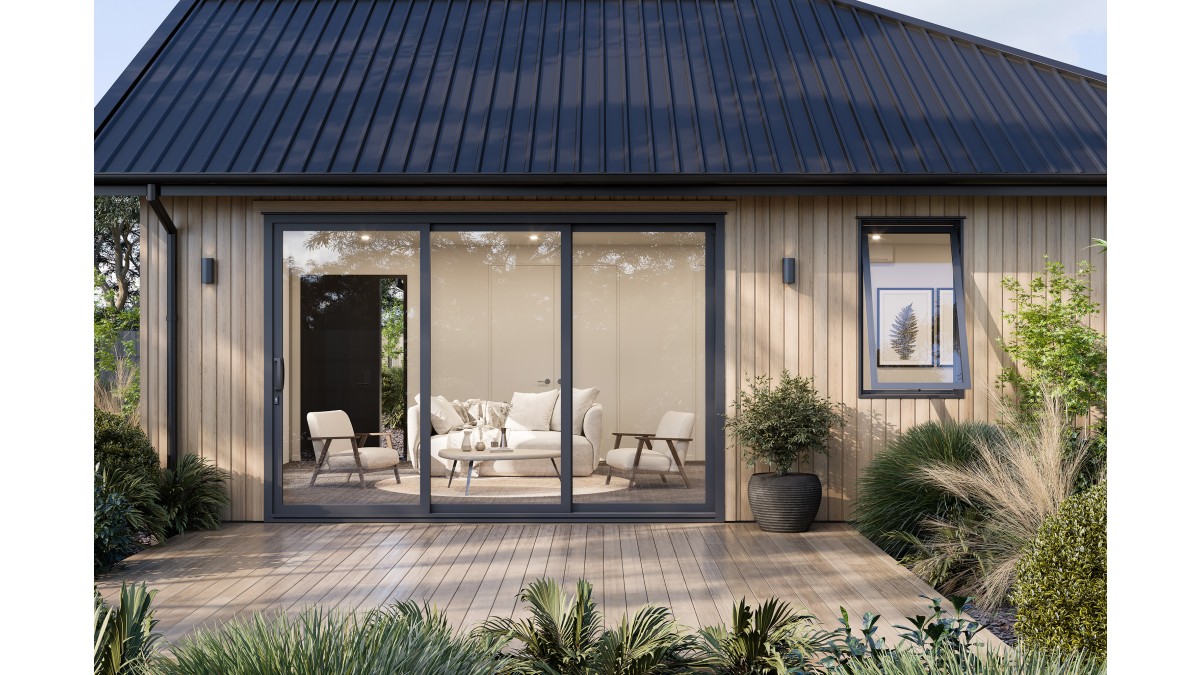

APL Centrafix AW Sash and SD 3P Stacker Final

Product Enquiries

Description

Metro Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track with fixed or sashed sidelight and are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features

An exterior sliding track as standard

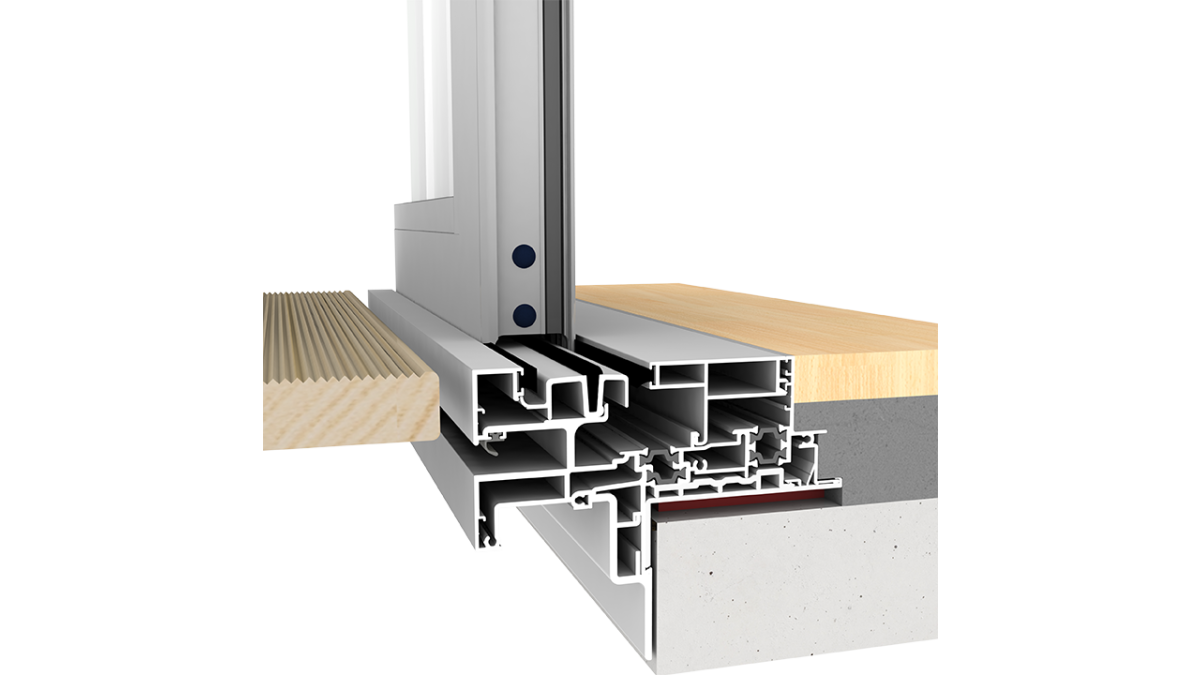

The sill frame has a flush track to optimise inside-to-outside plane
Glazing is deeply set within the building wall, delivering a strong appearance
Interlocker stiles and mullions are flush in the closed position
Door stiles and rails feature slender sightlines
Interlockers vary in depth according to height, width and wind pressure requirements
Corner sliding doors (90°) are available with no corner post (exterior and interior corners)
Innovative sill frame design improves weather and water resistance — door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHEART®
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies
News

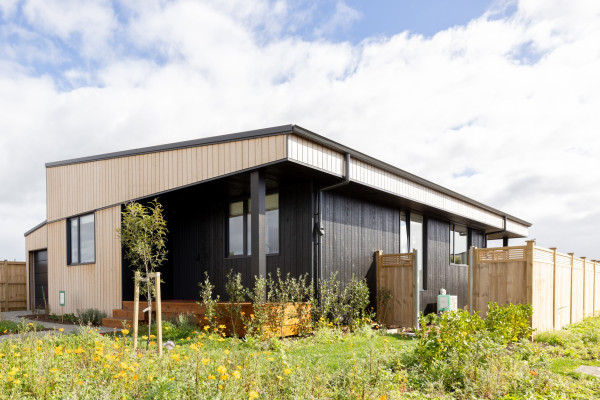

New Centrafix Thermal Windows Feature in Fletcher Living Pilot Project

VANTAGE Windows & Doors

November 2023

Case Studies

APL’s Windows and Doors for Passive House Use

VANTAGE Windows & Doors

February 2024

New Products

National Release of New ThermalHeart+ Window Systems

VANTAGE Windows & Doors

May 2023

New Products

Documents

Centrafix™ System Guide

2023

URL

QR Code: Centrafix™ on Working Spec

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Innovative Flood Prevention with the Jesani Door Channel

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects

Parkwood Estate: A Cutting-Edge 64-Unit Terraced House Project Featuring Triboard

SECTIONS

Passive Fire Protection in CLT Construction

500 Days to Build a House: Not a Record Kiwis Should Be Proud Of

The Take-Up of AAC Intertenancy Walls in Aotearoa

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Metro Series ThermalHEART® with Centrafix™ Sliding Doors

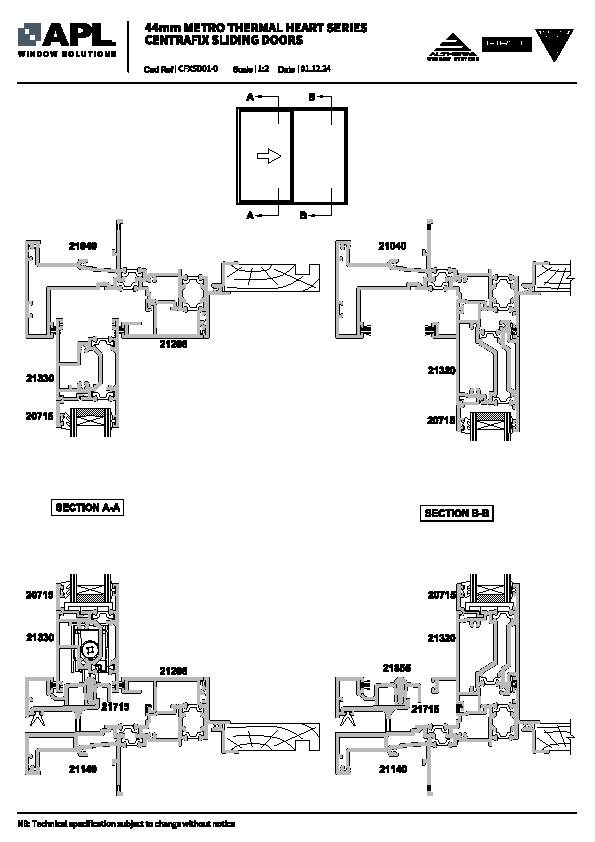

Metro Series ThermalHEART® with Centrafix™ Sliding Doors with Centrafix™ Frame

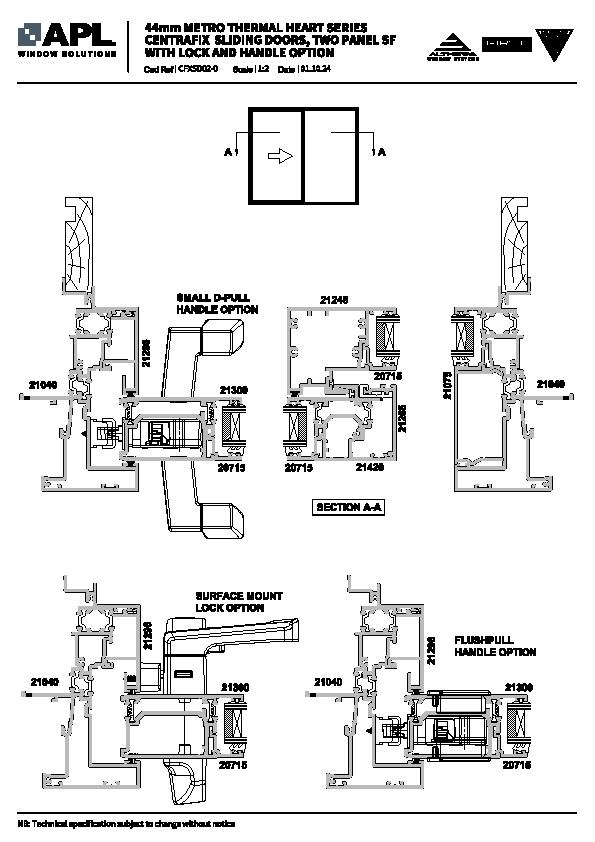

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame

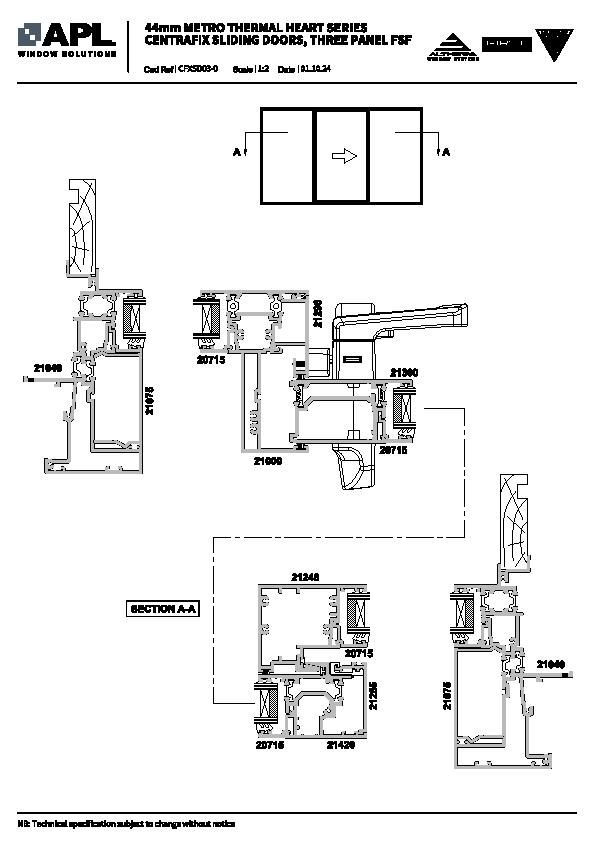

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel FSF Centrafix™ Frame

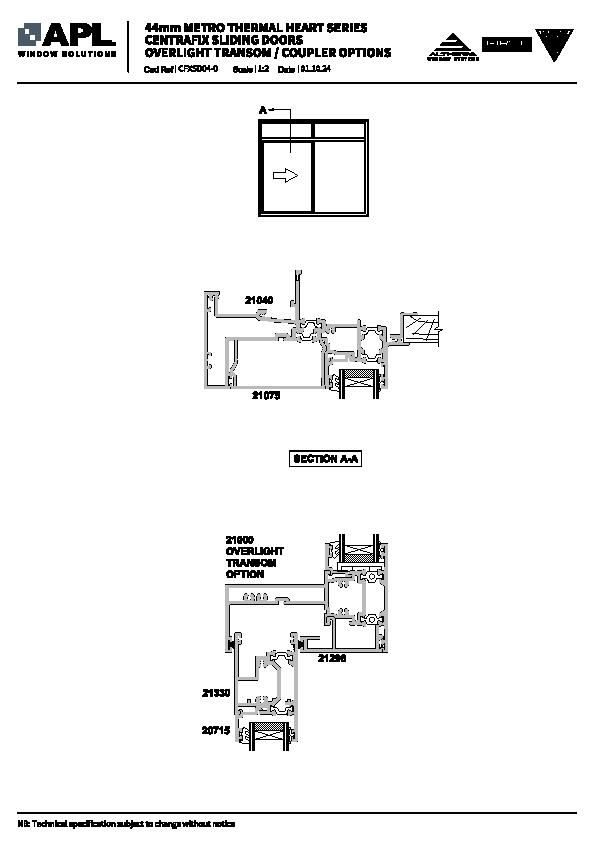

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame

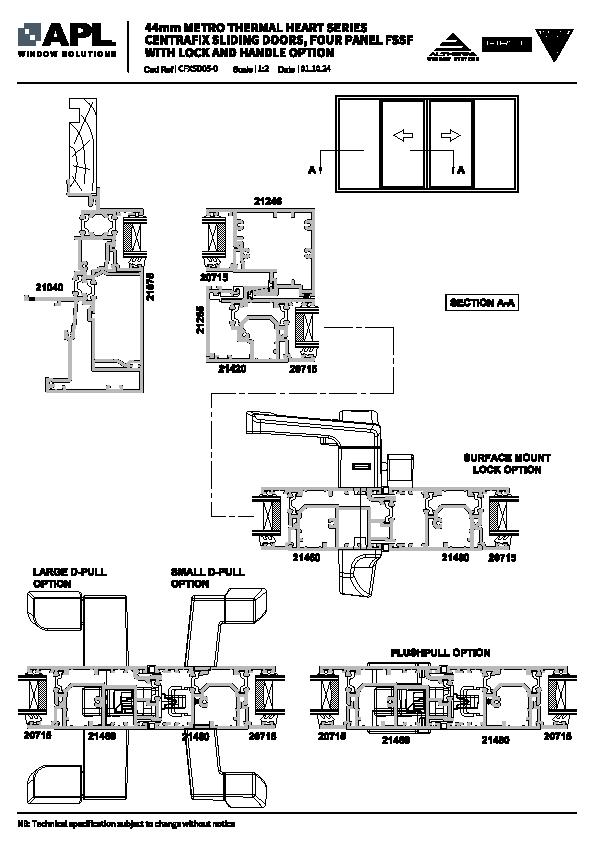

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF Centrafix™ Frame

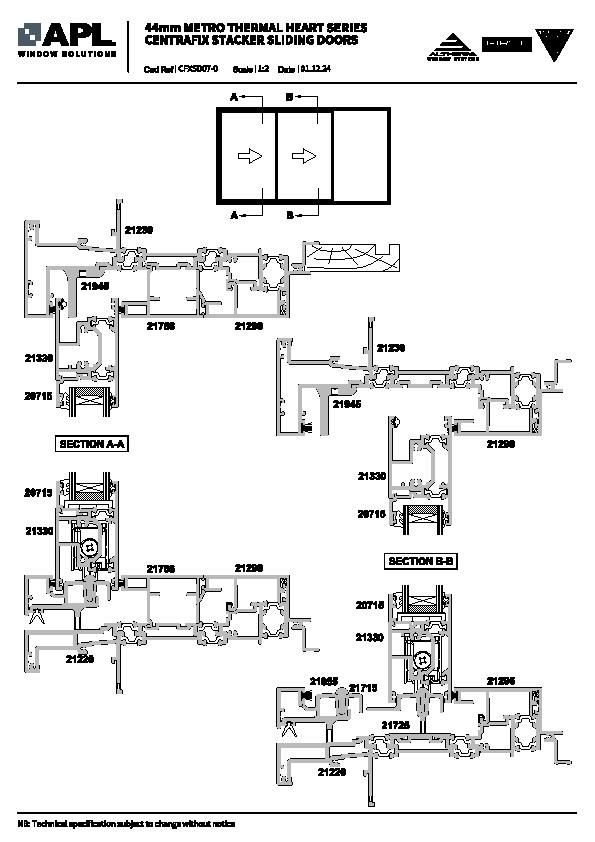

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame

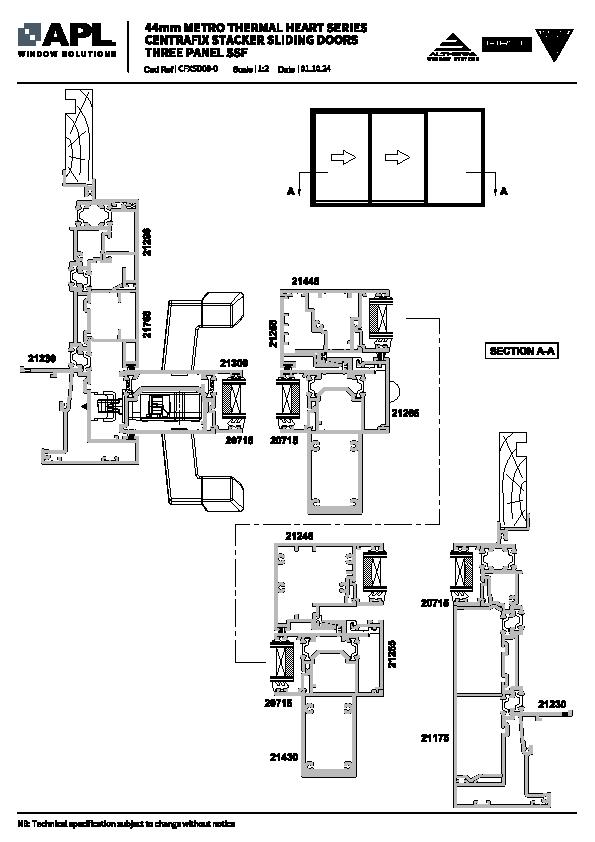

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Three Panel SSF

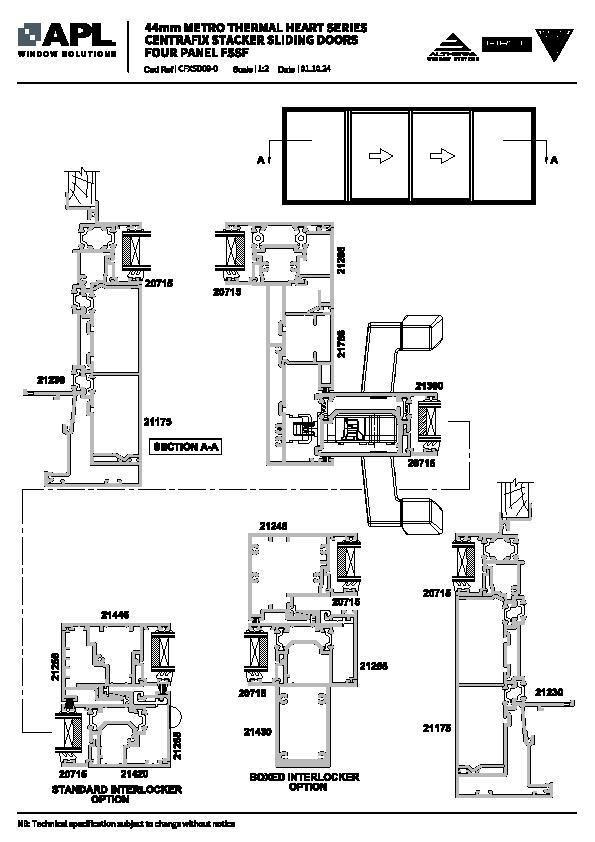

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF

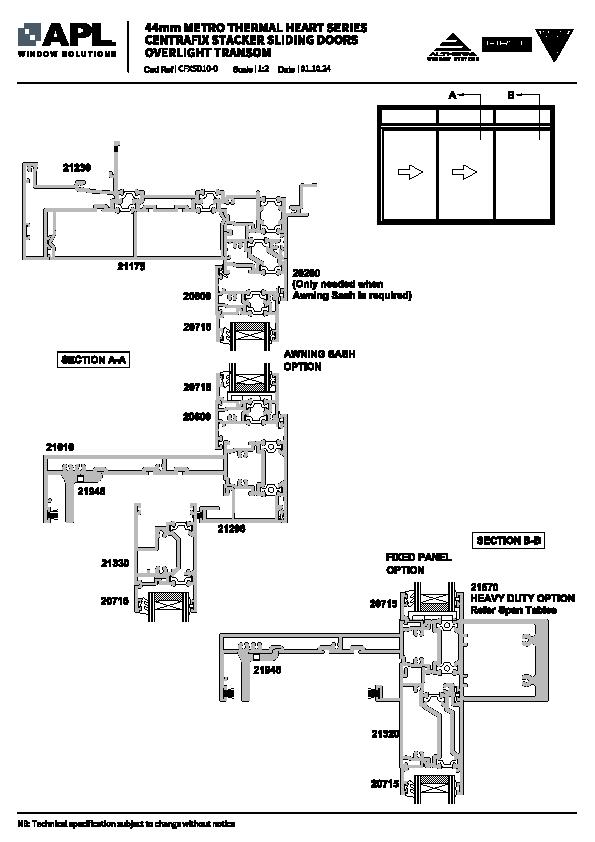

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom

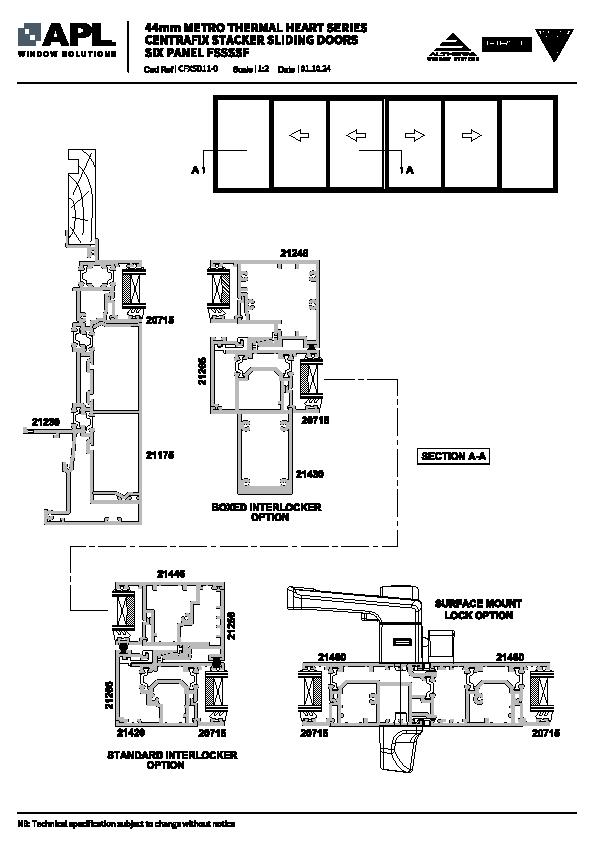

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF

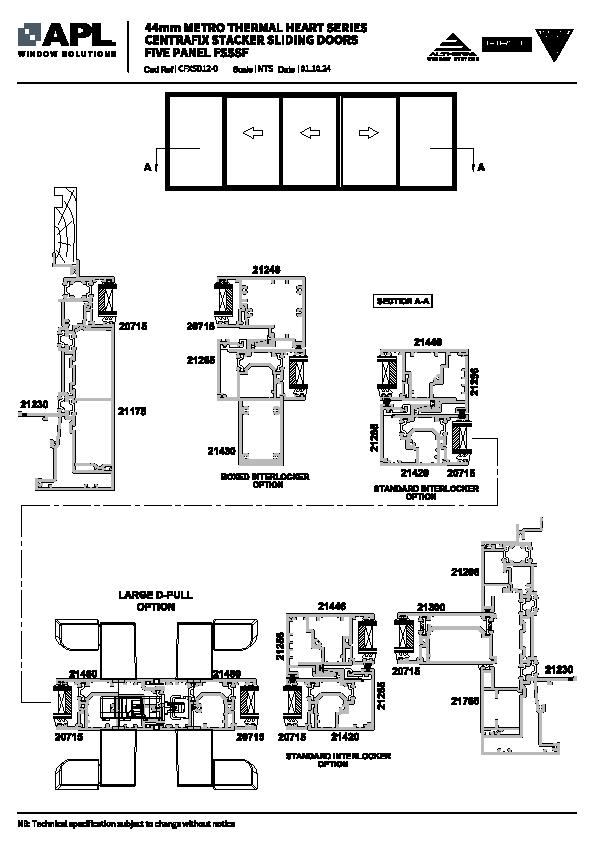

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Five Panel FSSSF

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — 90° Corners

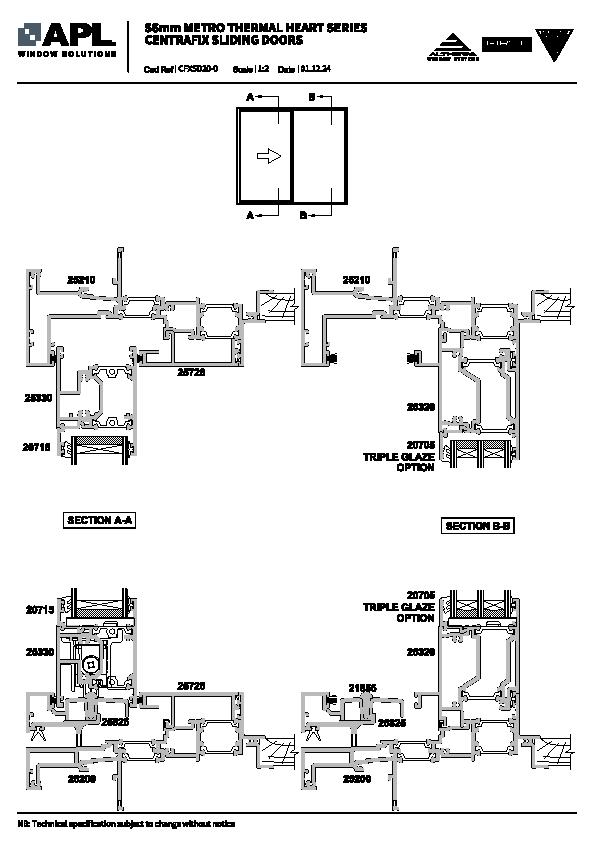

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Centrafix™ Frame (56mm)

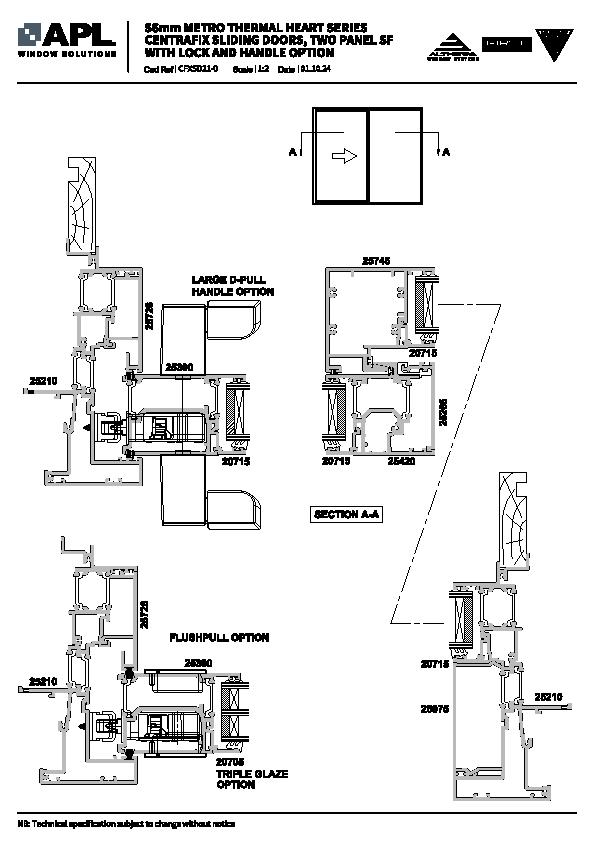

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame (56mm)

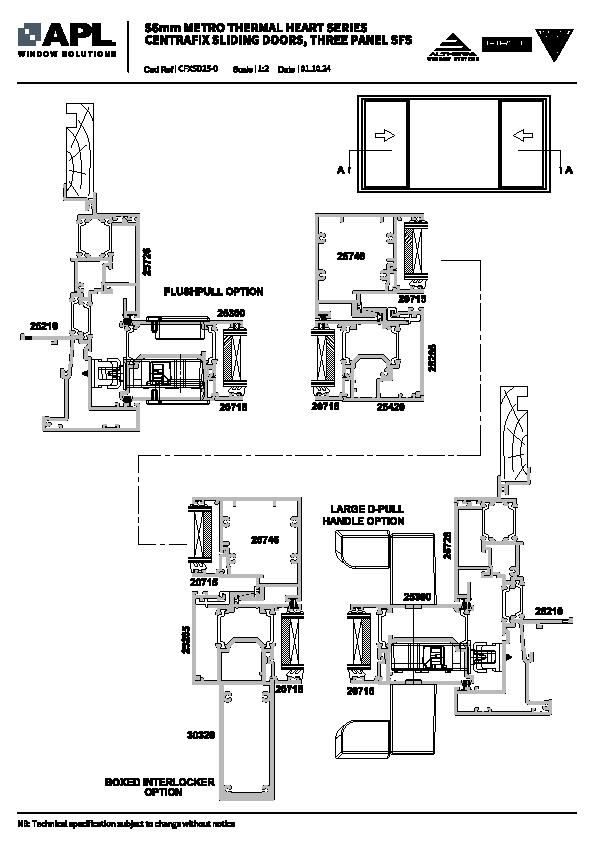

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS (56mm)

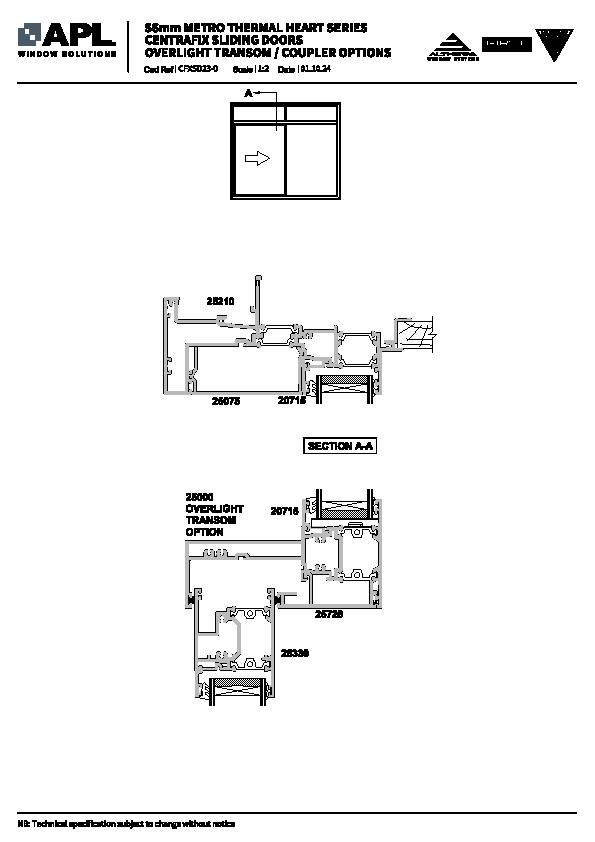

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame (56mm)

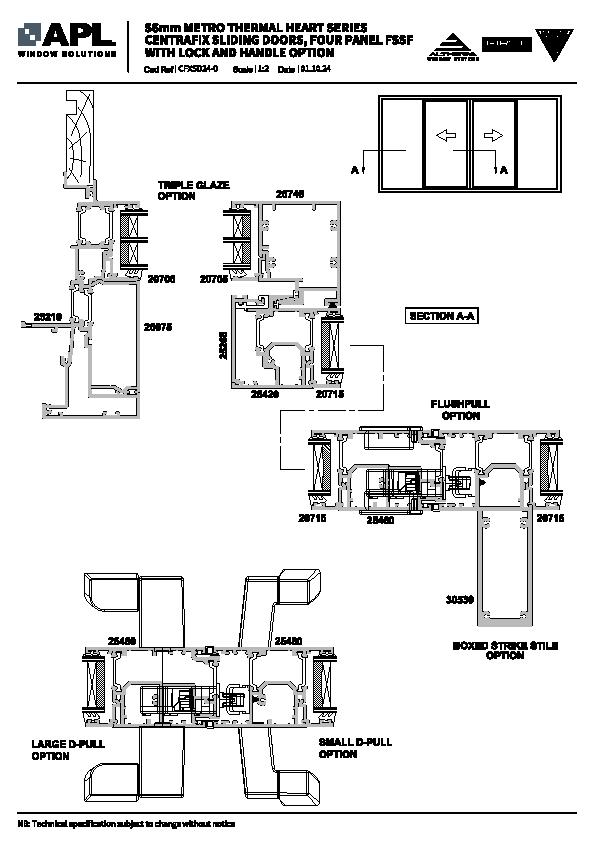

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF, Centrafix™ Frame (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS, Centrafix™ Frame (56mm)

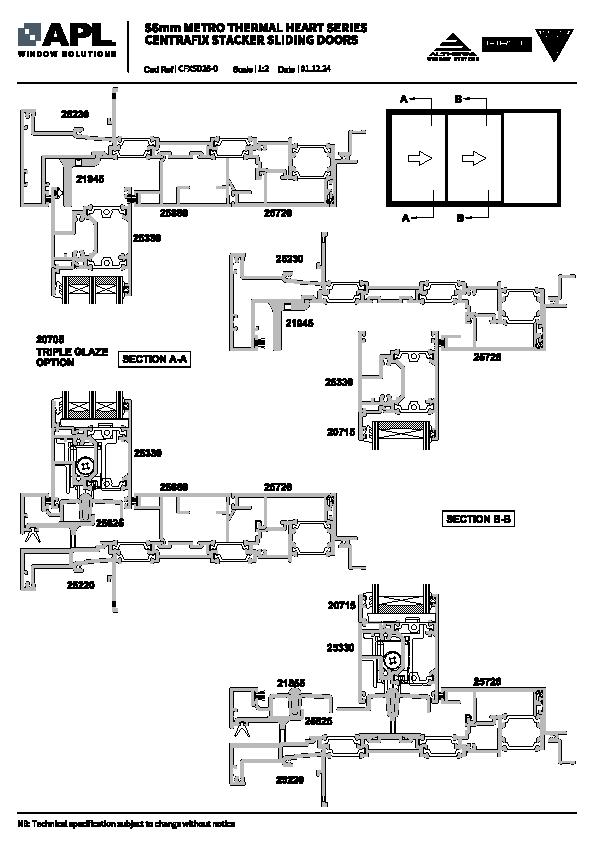

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame (56mm)

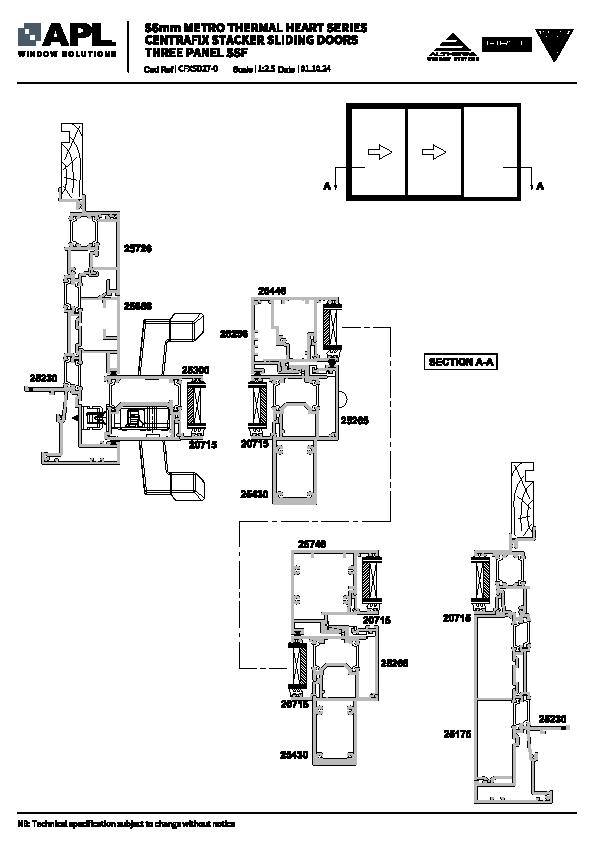

Metro Series ThermalHEART® with Centrafix™ Stacking Sliding Doors — Centrafix™ Frame, Three Panel SSF (56mm)

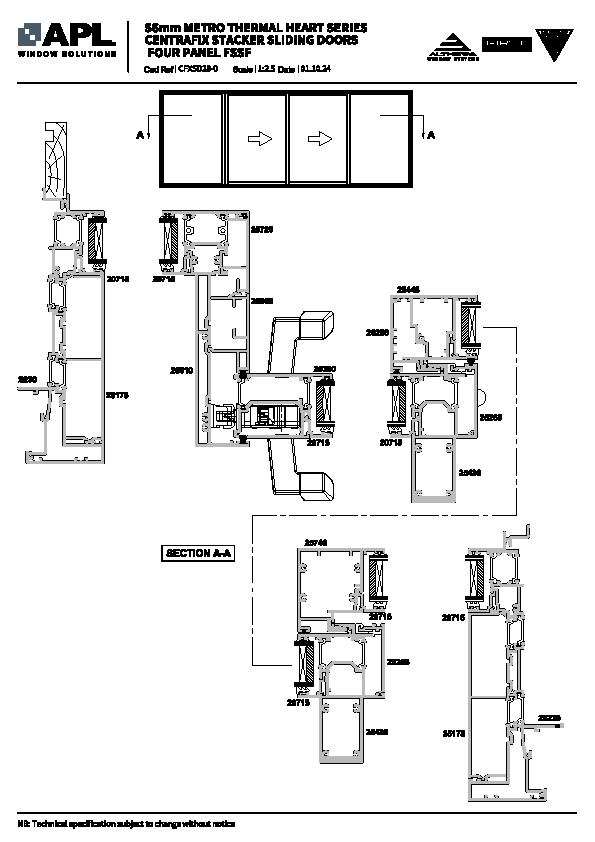

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF (56mm)

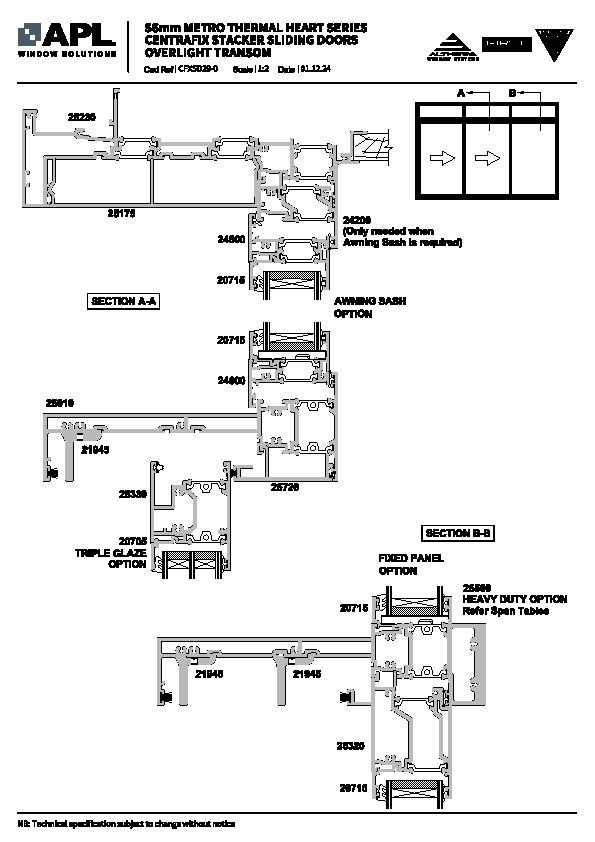

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom (56mm)

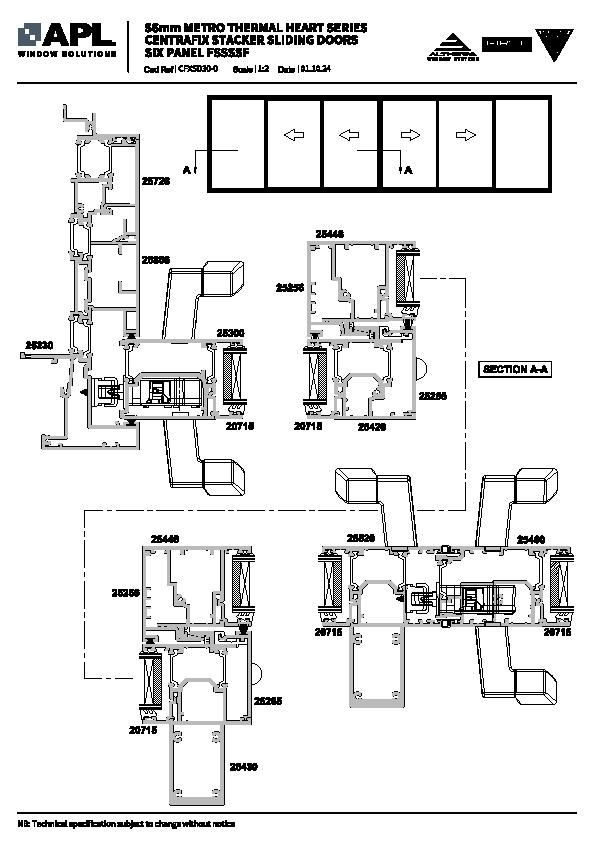

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF (56mm)
