Residential Sliding Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

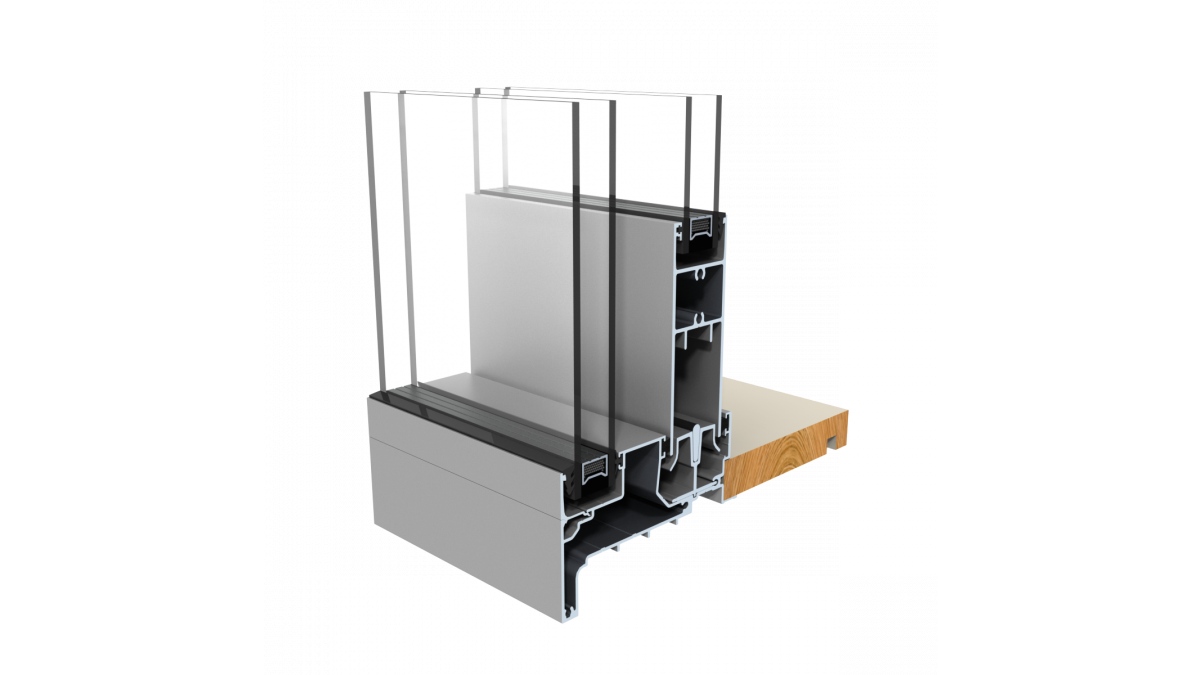

Vantage residential sliders have a 'flushline' sill and easy-glide panels that cope effortlessly with heavier, double glazed doors. The clean lines and simplified styling can be accentuated even further by rebating the frame into the floor pad for a flush floor-to-frame look.

Vantage sliders are rated to 2.1m high in 'very high' wind zones. For higher doors consider using the Metro Series or APL Architectural Series.

Key Features
  • For mainstream residential use
  • Recommended maximum 2100mm high doors in Extra High wind zones. For larger sizes consider using the Metro Series and APL Architectural Series
  • Flush sills facilitate easier indoor-outdoor movement

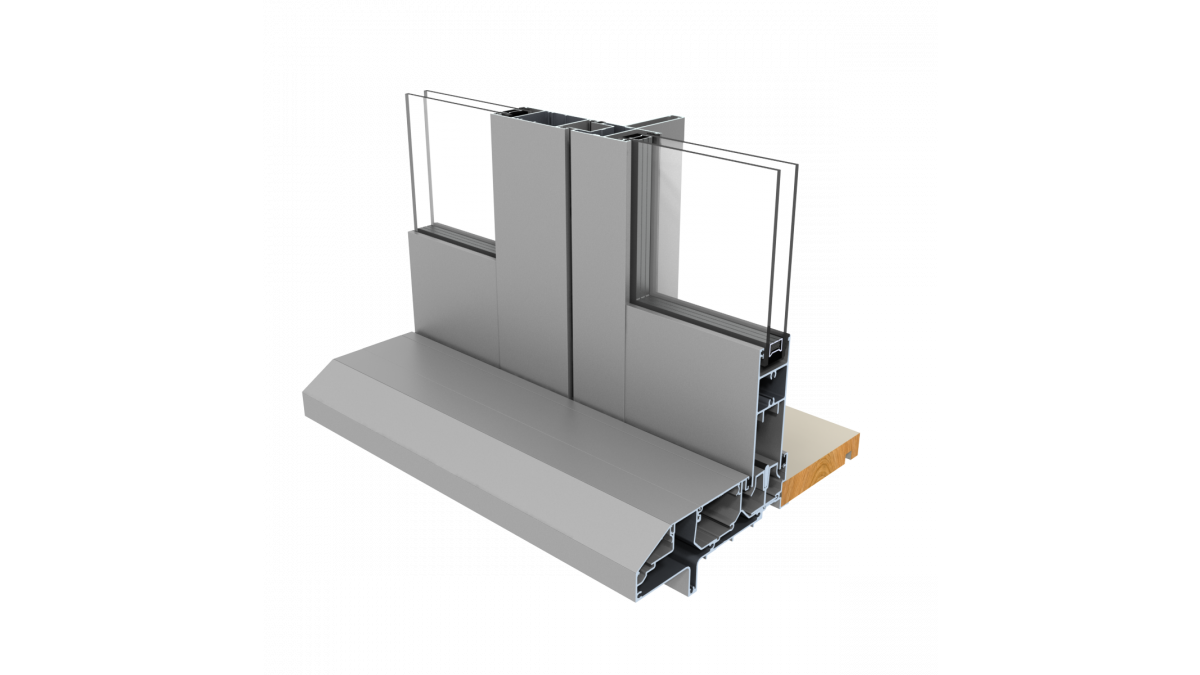

  • Single sliding, double sliding, and Multi Slider options
  • A 4-panel option is available (i.e. three stacking panels)
  • Doors slide on the inside of fixed panels

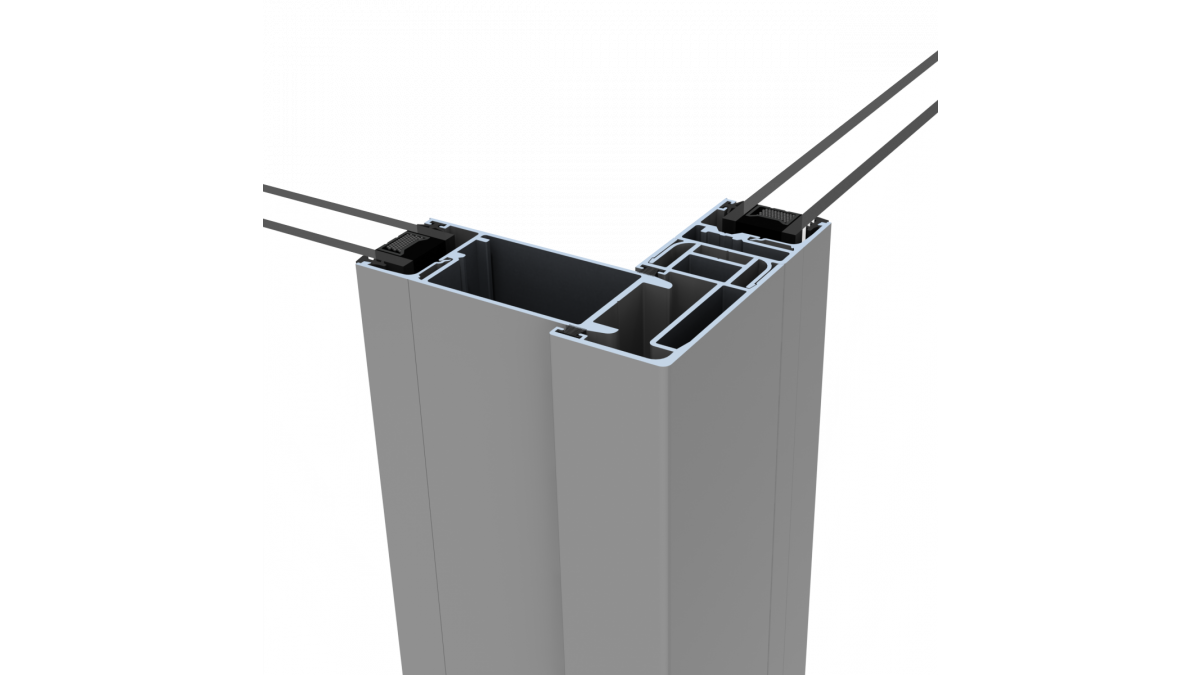

  • Corner sliders without a corner post are possible — either exterior or interior corner formats
  • Interlocker stiles are flush in the closed position for a clean look
Categories
Sliding Doors
Scope of Use
  • Suitable for broad residential use
  • Corner sliders available
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Four-panel option requires appropriate wall thickness
  • Recommended maximum 2100mm high doors in Extra High wind zones. For larger sizes consider using the Metro Series and APL Architectural Series
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Extensively used in residential projects throughout New Zealand for more than 40 years with continuous design upgrades
  • Widely used by homeowners, builders, Group home builders and specifiers
  • Statement of Building Code Compliance
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Span Tables
Specifier Guide
Vantage on Masterspec
Declare Label

2022

Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

Vantage Brochure
AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

CAD/PDF Details
Full Set of Drawings

VSD

Vantage Residential Two Panel FS with Sidelight Sash

VSD01-0

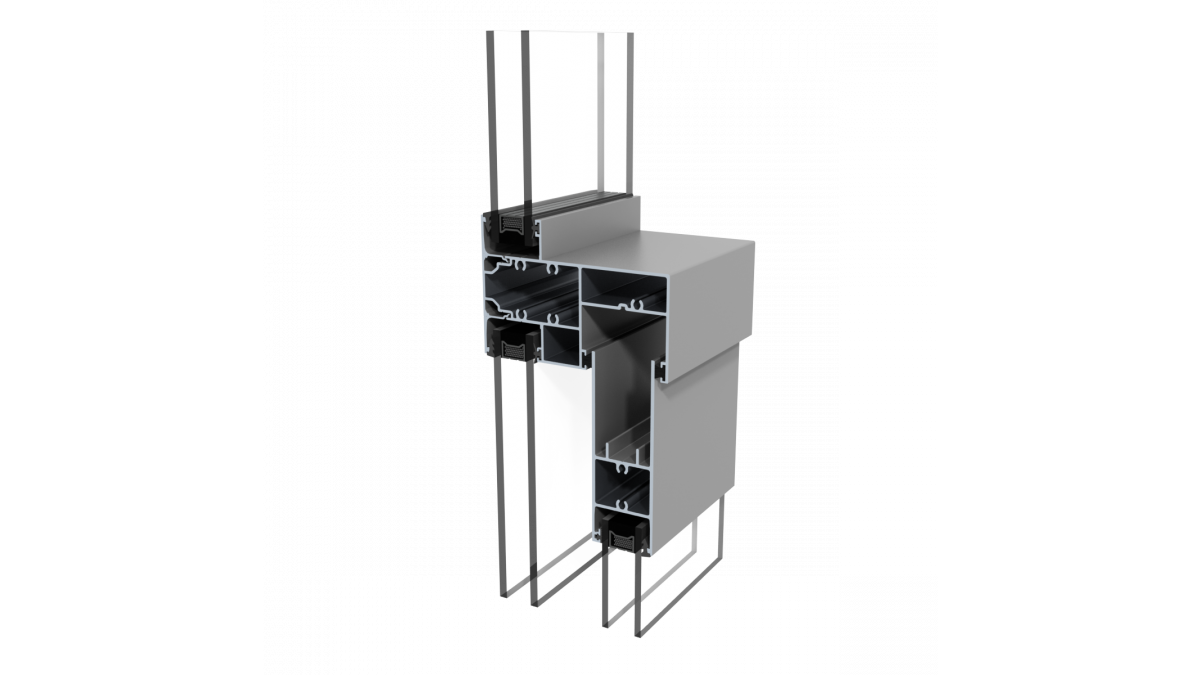

Vantage Residential Sliding Door Two Panel FS with Overlight Transom and Coupling Options

VSD02-0

Vantage Residential Sliding Door Three Panel FSF

VSD03-0

Vantage Residential Sliding Door Four Panel FSSF

VSD04-0

Vantage Residential Sliding Door Two Panel SS

VSD05-0

Vantage Residential Sliding Door Three Panel FSS with Overlight Transom

VSD06-0

Vantage Residential Sliding Door Three Panel FSS

VSD07-0

Vantage Residential Sliding Door Duo FSSSSF

VSD08-0

Vantage Residential Sliding Door Four Panel SSSF

VSD09-0

Vantage Residential Sliding Door Four Panel SSSF

VSD10-0

Vantage Residential Sliding Door 90° Corners

VSD11-0

Installation Details

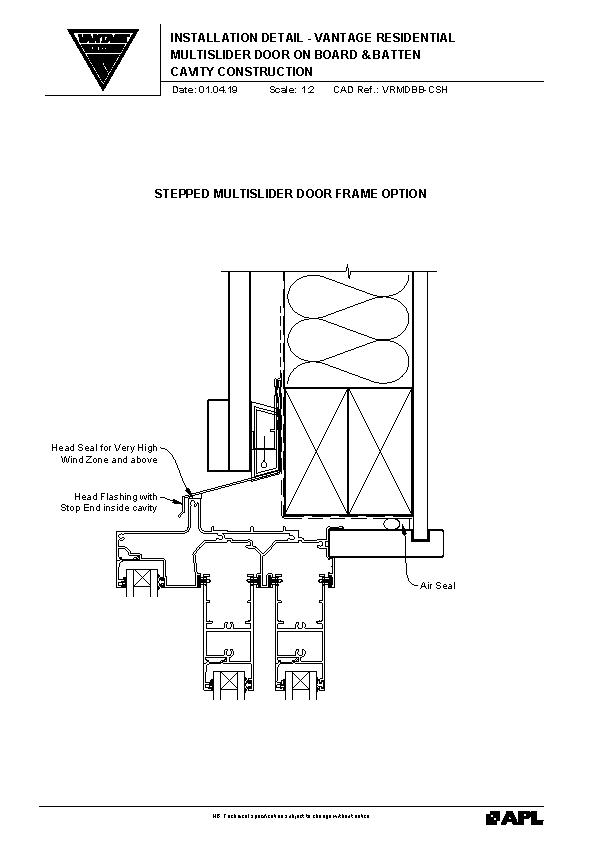

Vantage Residential Mulitslider Door on Board and Batten

VRMDBB

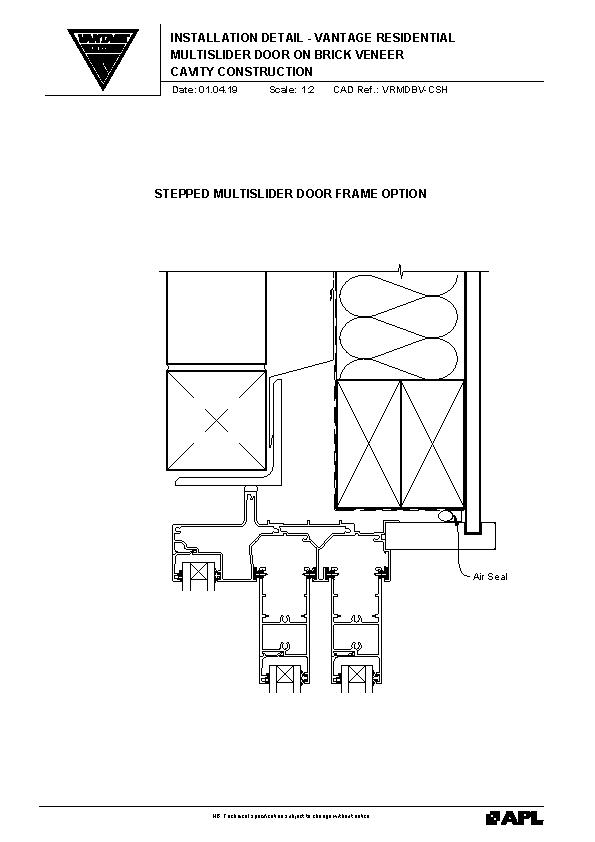

Vantage Residential Mulitslider Door on Brick Veneer

VRMDBV

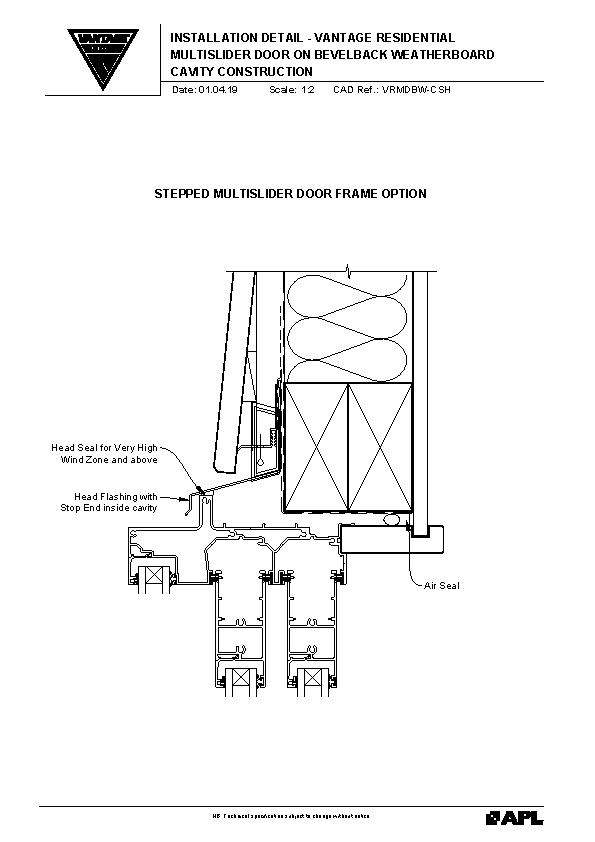

Vantage Residential Mulitslider Door on Bevelback Weatherboard

VRMDBW

Vantage Residential Mulitslider Door on Flat Sheet

VRMDFS

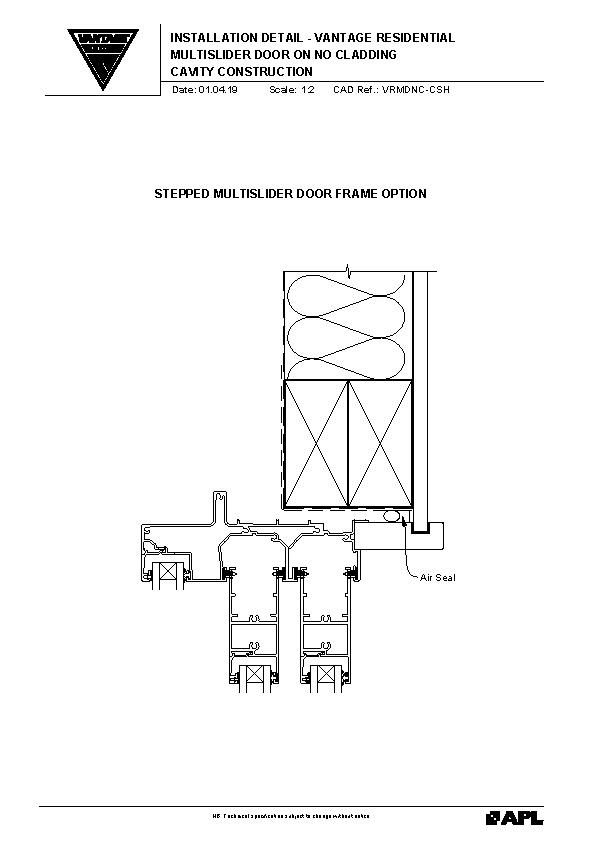

Vantage Residential Multislider Door on No Cladding

VRMDNC

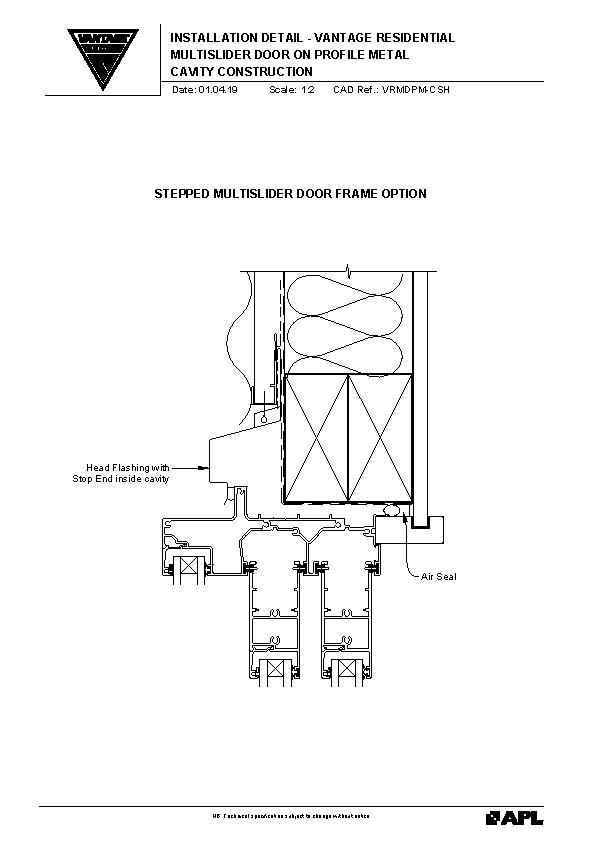

Vantage Residential Multislider Door on Profile Metal

VRMDPM

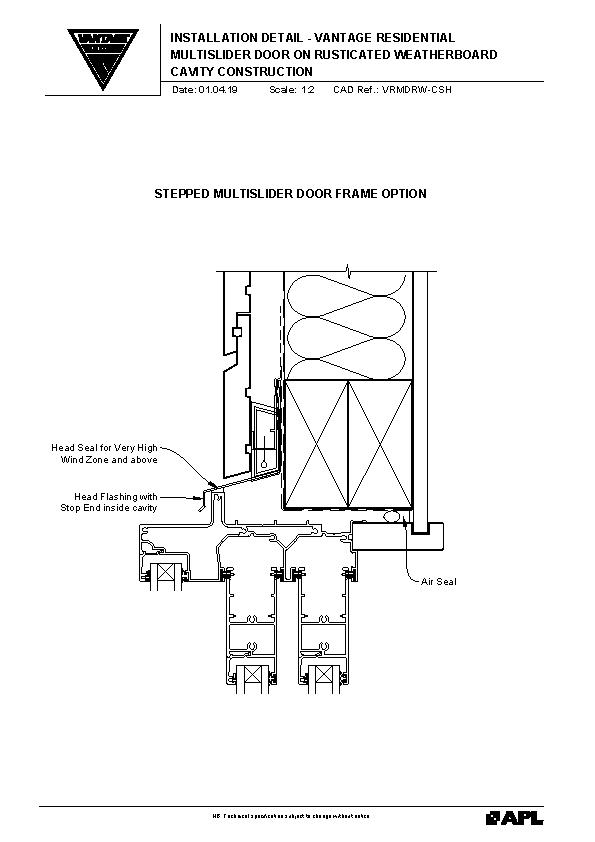

Vantage Residential Multislider Door on Rusticated Weatherboard

VRMDRW

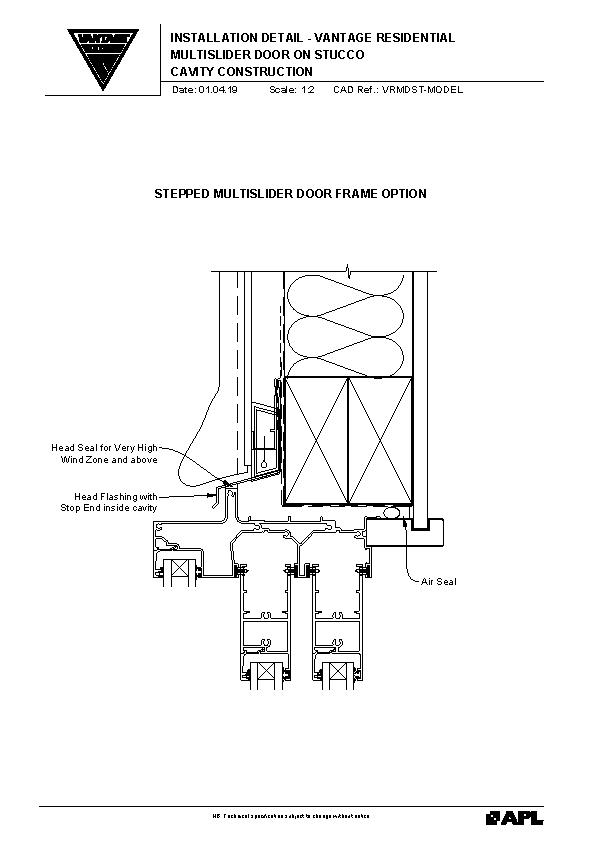

Vantage Residential Multislider Door on Stucco

VRMDST

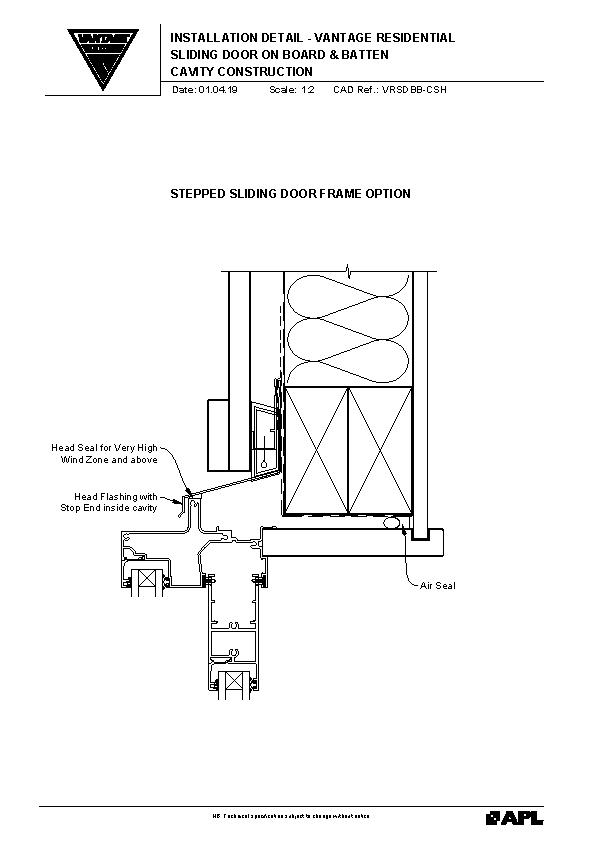

Vantage Residential Sliding Door on Board and Batten

VRSDBB

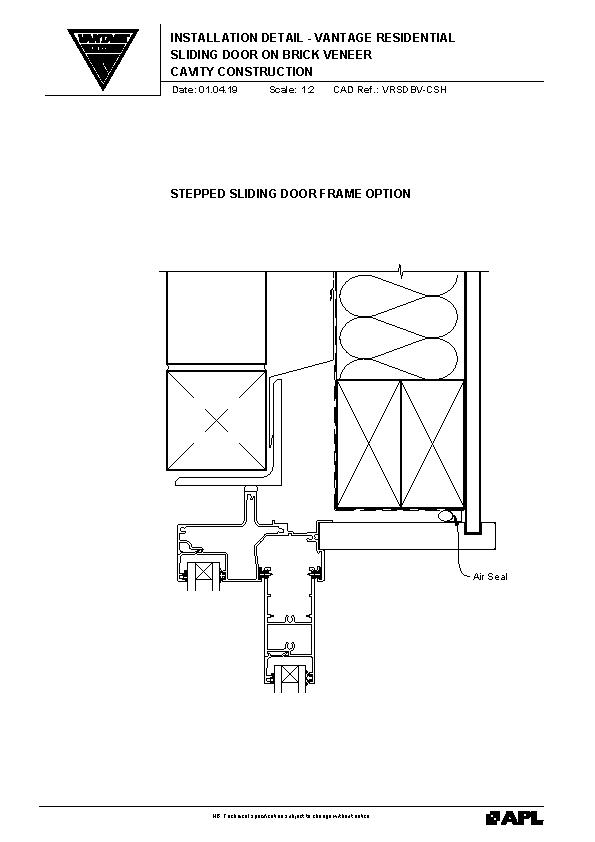

Vantage Residential Sliding Door on Brick Veneer

VRSDBV

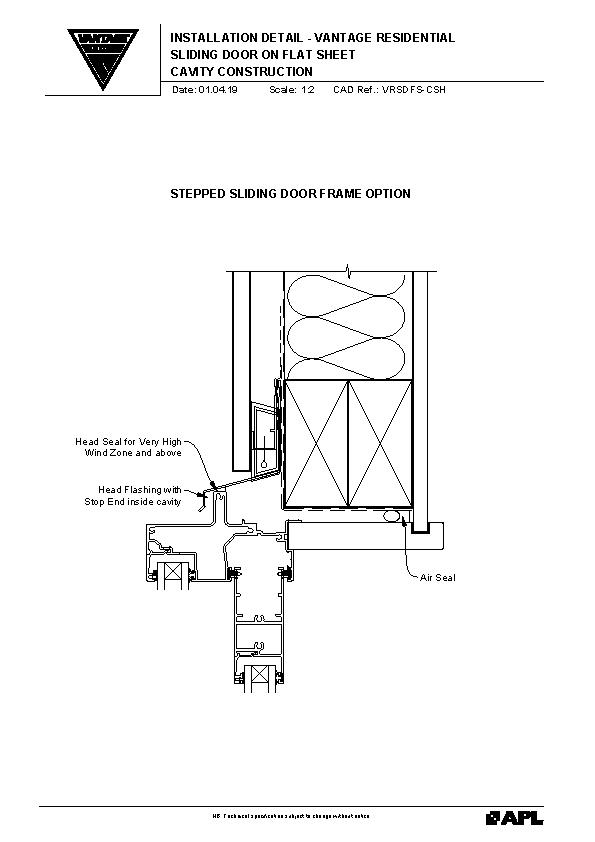

Vantage Residential Sliding Door on Flat Sheet

VRSDFS

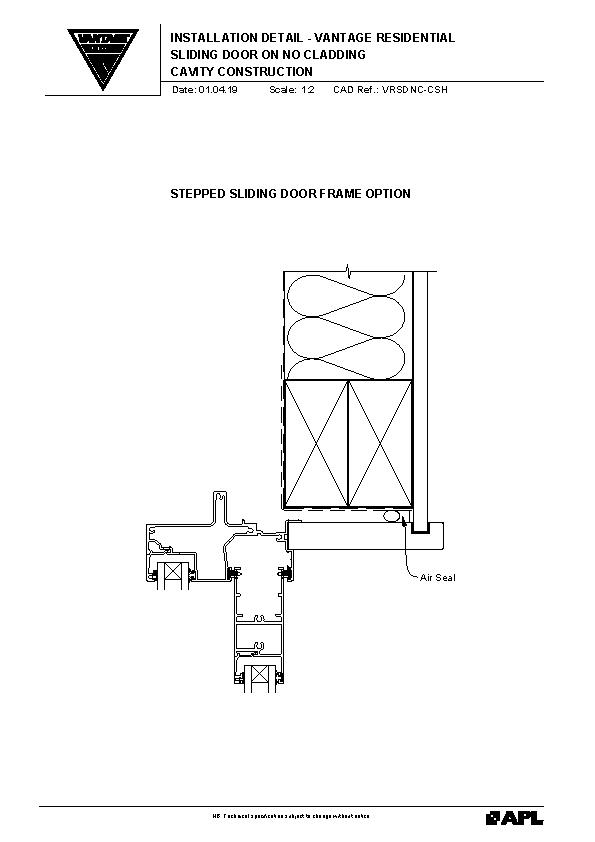

Vantage Residential Sliding Door on No Cladding

VRSDNC

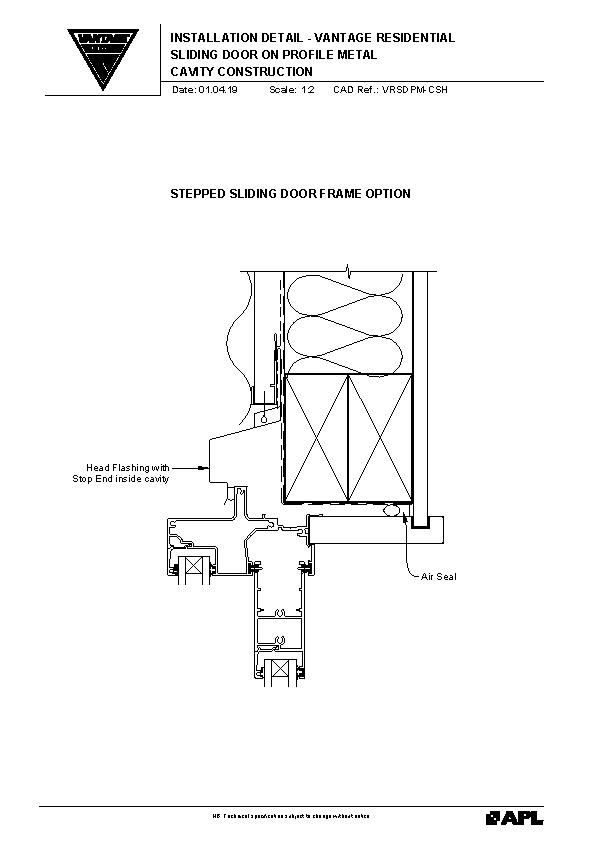

Vantage Residential Sliding Door on Profile Metal

VRSDPM

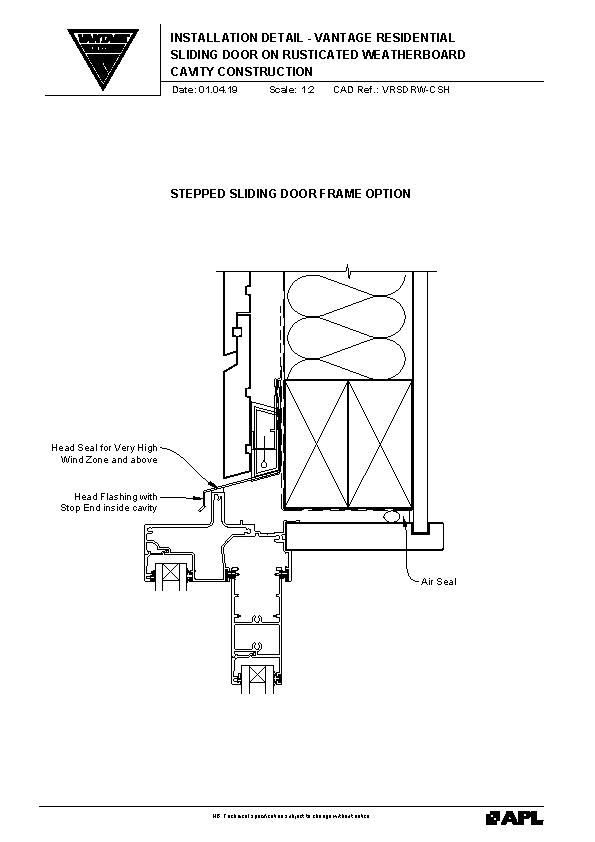

Vantage Residential Sliding Door on Rusticated Weatherboard

VRSDRW

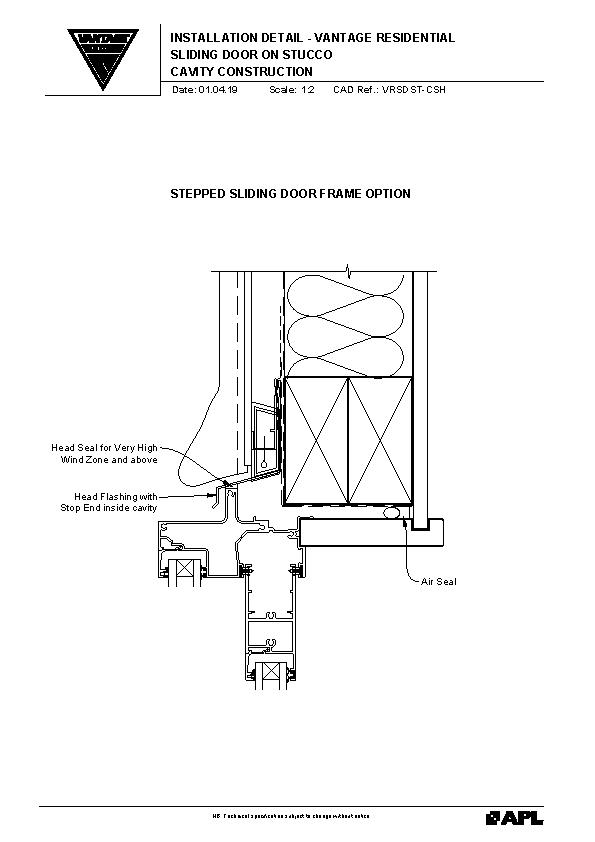

Vantage Residential Sliding Door on Stucco

VRSDST

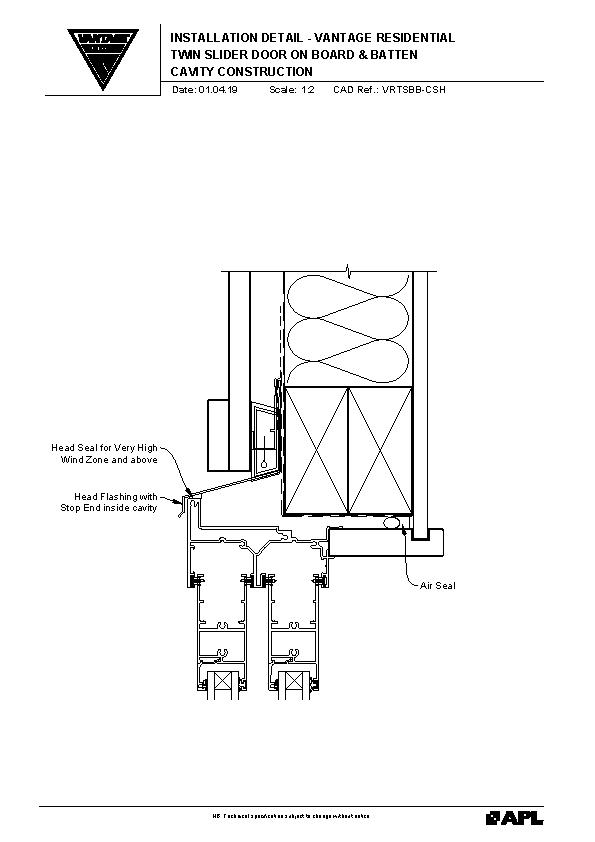

Vantage Residential Twin Slider Door on Board and Batten

VRTSBB

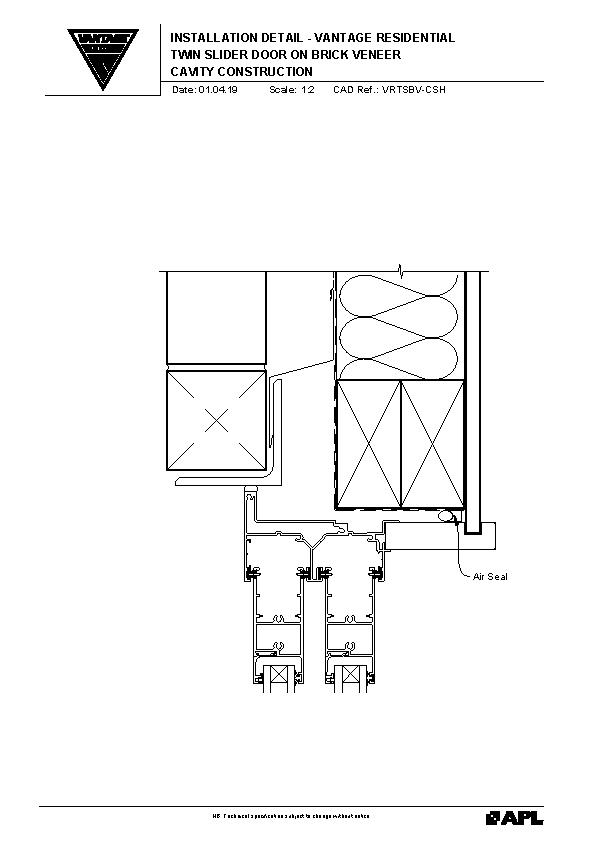

Vantage Residential Twin Slider Door on Brick Veneer

VRTSBV

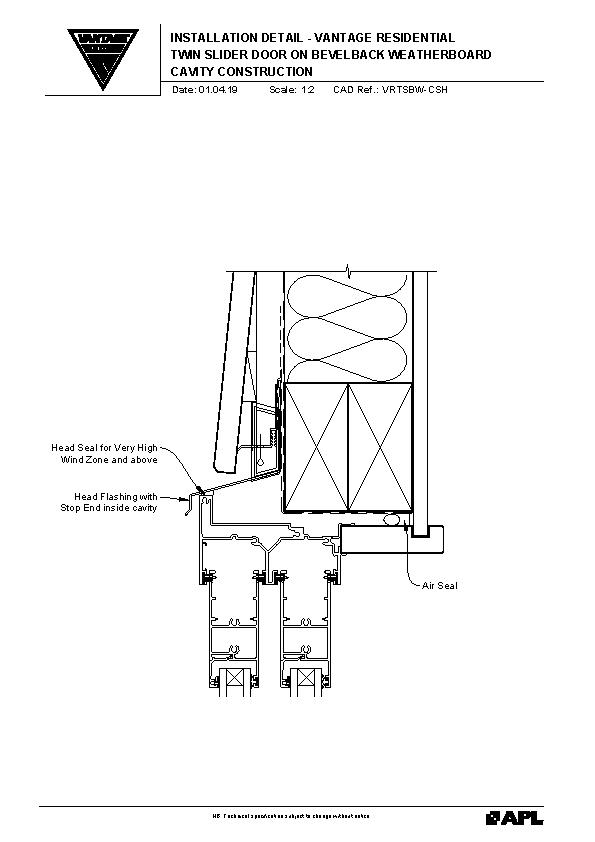

Vantage Residential Twin Slider Door on Bevelback Weatherboard

VRTSBW

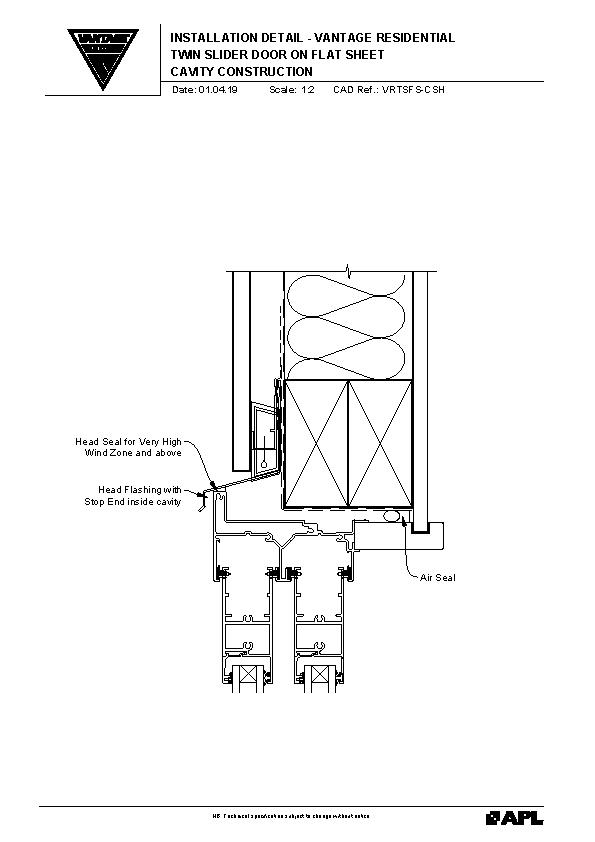

Vantage Residential Twin Slider Door on Flat Sheet

VRTSFS

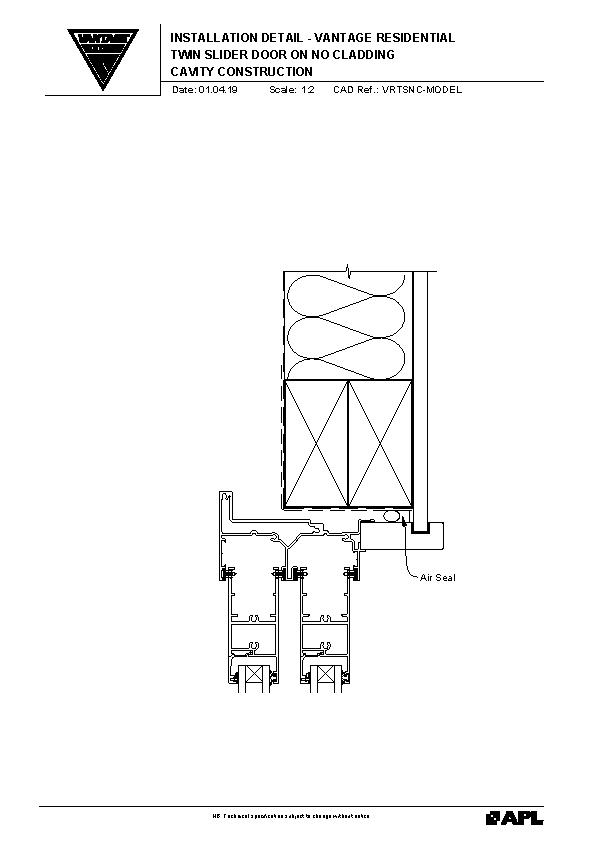

Vantage Residential Twin Slider Door on No Cladding

VRTSNC

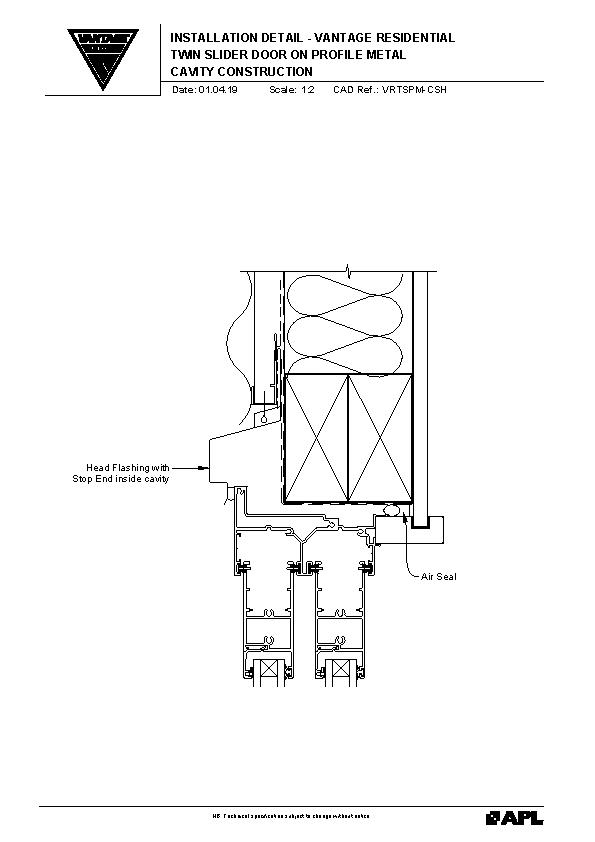

Vantage Residential Twin Slider Door on Profile Metal

VRTSPM

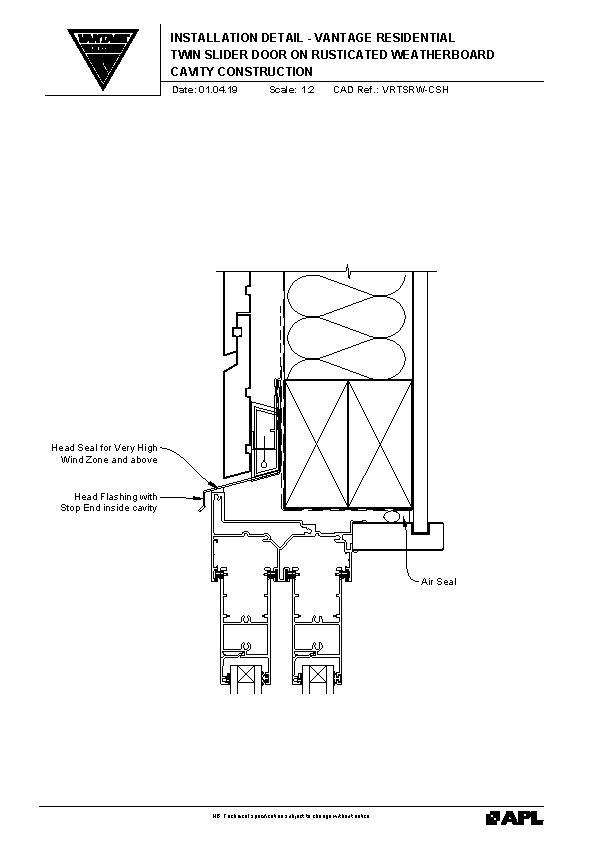

Vantage Residential Twin Slider Door on Rusticated Weatherboard

VRTSRW

Vantage Residential Twin Slider Door on Stucco

VRTSST

BIM
Vantage Sliding Door FSF
Vantage Sliding Door FSSF
Vantage Sliding Door FSSF 90° External Corner
Vantage Sliding Door FSSF 90° Internal Corner
Vantage Sliding Door FSSSSF
Vantage Sliding Door SF
Vantage Sliding Door SF with Overlight
Vantage Sliding Door SS
Vantage Sliding Door SSF

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.

Product Enquiries

News from VANTAGE Windows & Doors

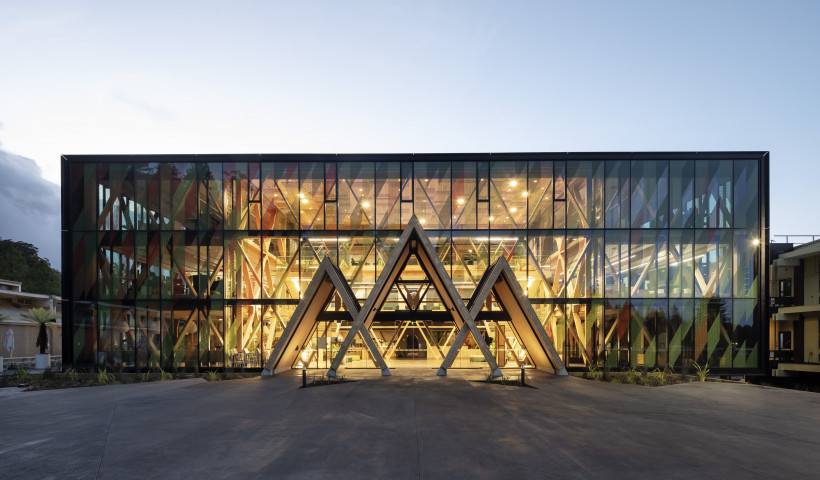

APL Structural Glaze Features in Dubai Award Project

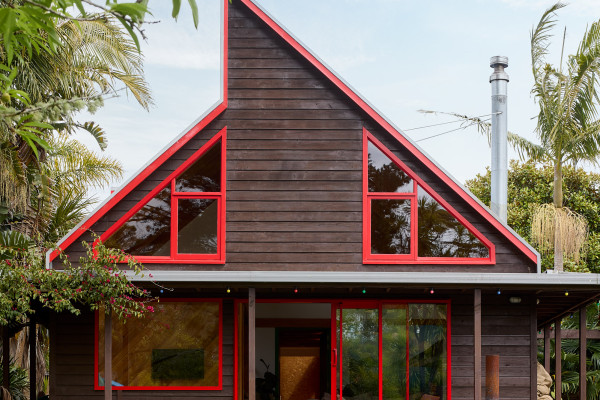

A Fairytale Ending with Vantage Windows & Doors
