ROCKWOOL Stone Wool Insulation
Description

ROCKWOOL stone wool insulation is a world renowned insulation product, providing levels of performance that enhance building performance — thermal, acoustic or sound protection, and non-combustible fire characteristics.

In the roof, where it is important when it comes to improving the cooling and energy efficiency of the building,  it delivers these multiple benefits for the many varieties of flat roofs and pitch roofs. A pitch roof in many cases accounts for up to 50 percent of the building envelope. This insulation also helps slow down the spread of fire, thereby giving extra time for evacuation and rescue operation. Insulating a roof is an effective way to minimise heat loss and reduce heating bills.

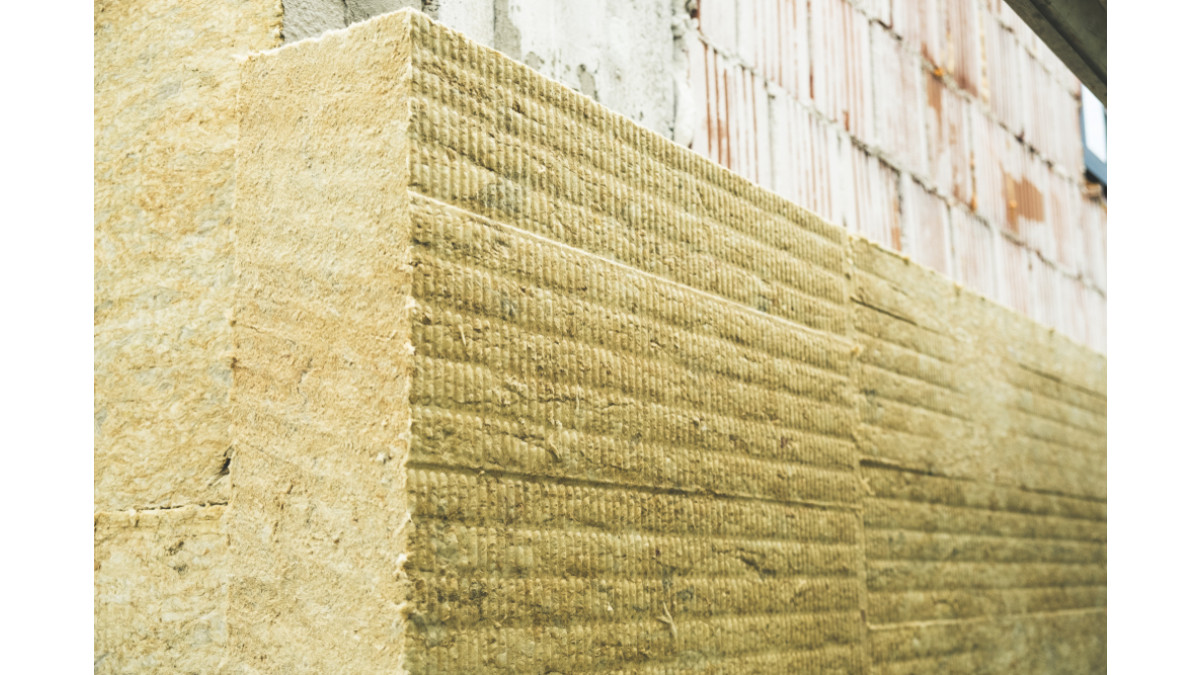

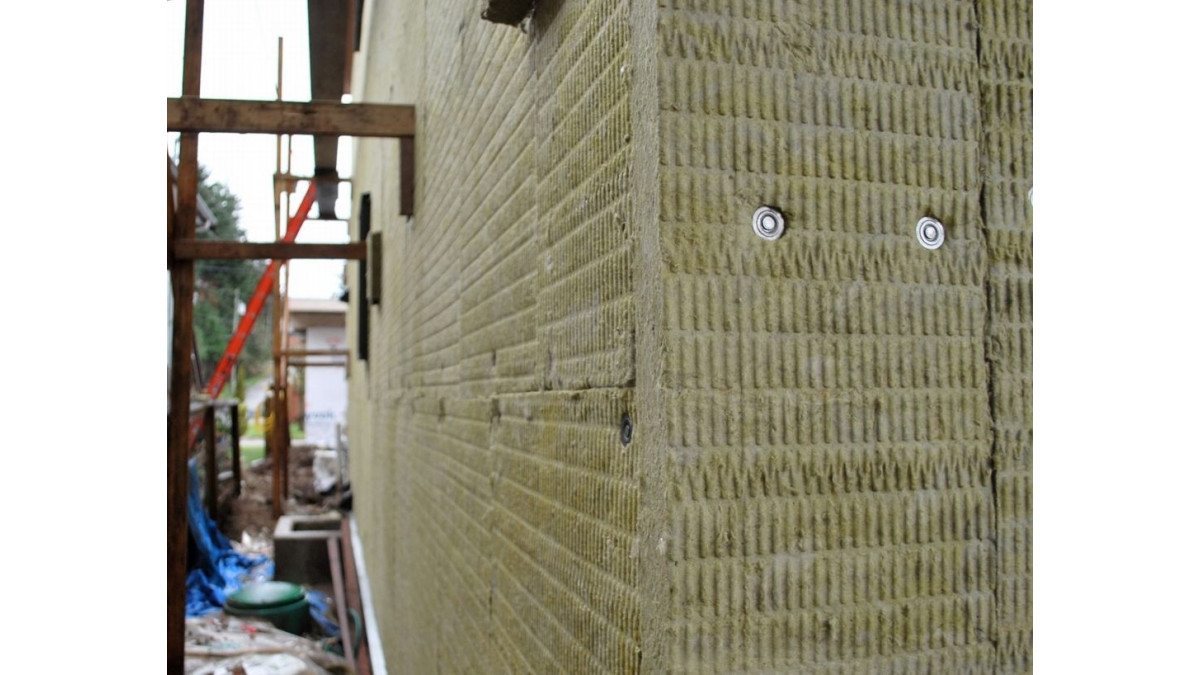

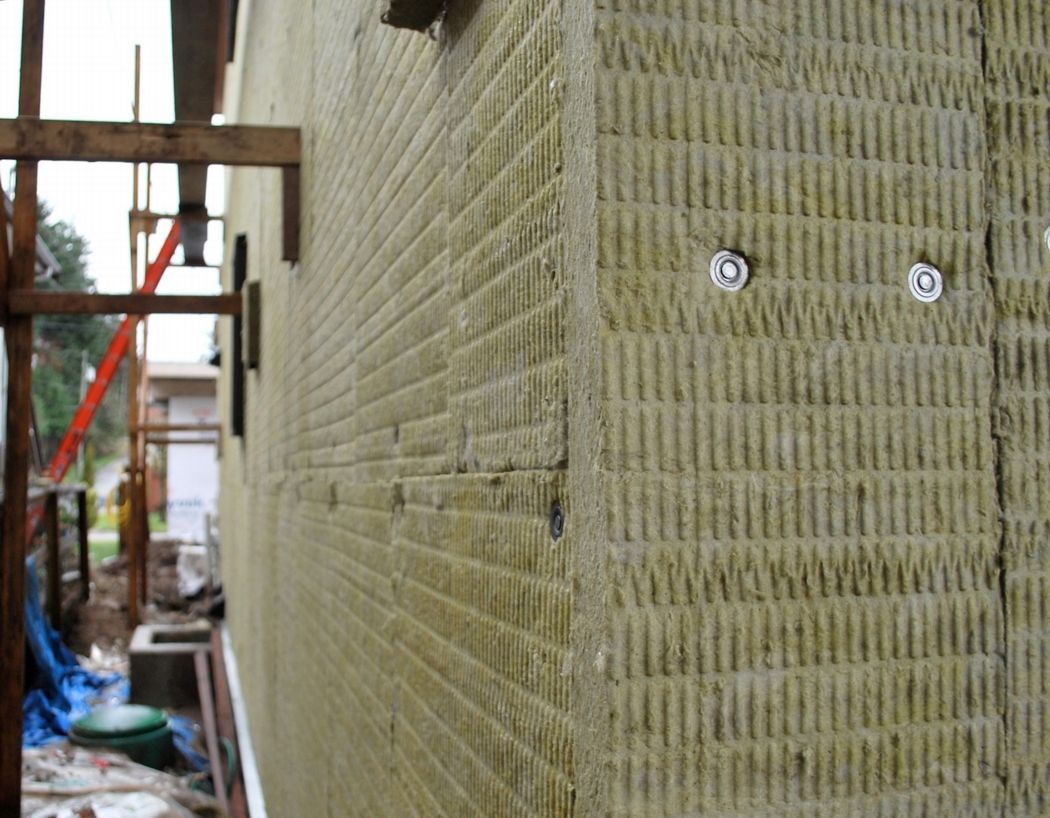

Insulation solutions for exterior wall systems cover a range of cladding over the building envelope including external façades, masonry cavity walls, and metal frame constructions.

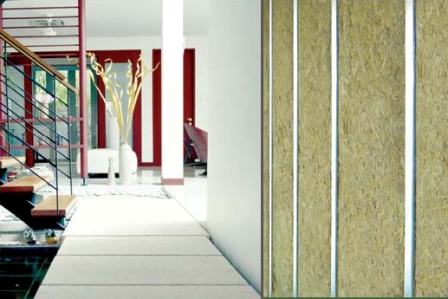

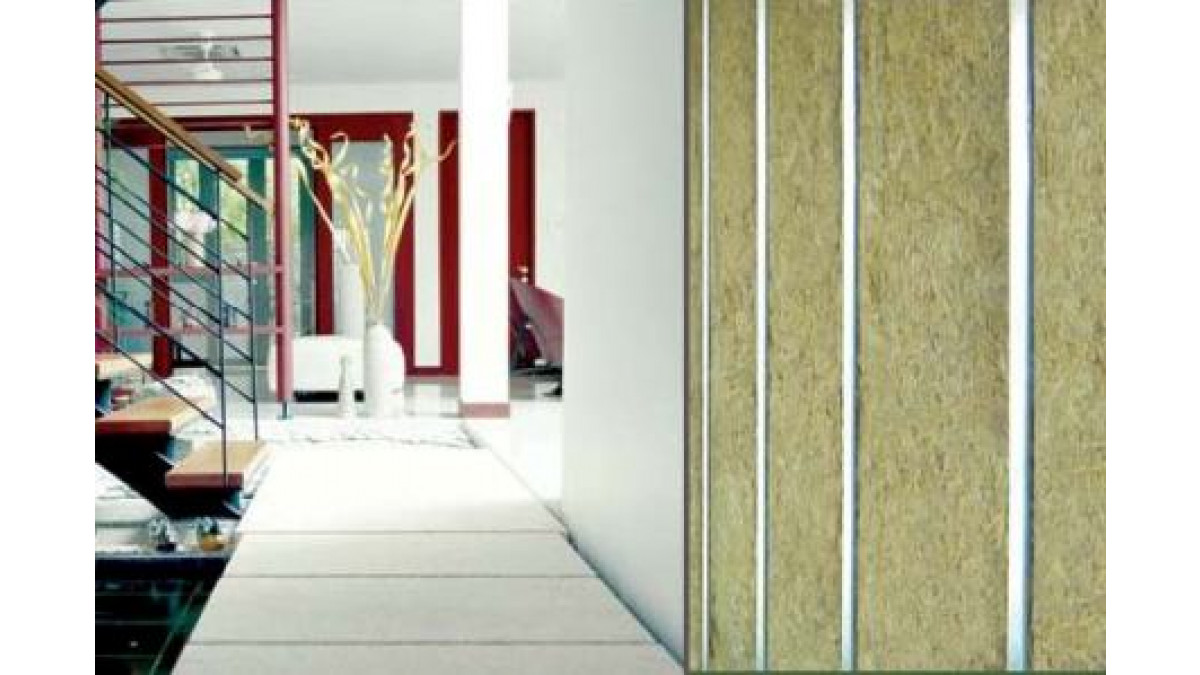

While these exterior applications are aimed primarily at "outsulation" to cover the building envelope with a thermal layer, there are also interior wall applications to enhance the well being of the occupiers: class leading acoustic or sound protection with good thermal values also.

Key Features
  • Fire safety and resistance to high temperatures
  • Usage and maintenance of the buildings
  • Efficiencies and cost savings
  • Designed occupancy comfort level
  • Green product and sustainability
Scope of Use

ROCKWOOL may be supplied faced with various common building materials such as aluminium foil, mineral tissue/scrim/fleece, polyethylene/polypropylene film, wire mesh, bitumen, plaster board, cementitious board, ablative coatings, etc.

ROCKWOOL can be installed in various applications:

  • Exterior wall
  • Interior wall
  • Warm roof
  • Metal insulated roof
  • Soffit
  • Floor
Limitations on Use

There is no hazard statement associated with this material. ROCKWOOL mineral wool is not classified as dangerous according to Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures (CLP).

Statement of Building Code Compliance

ROCKWOOL stone wool products when used, installed and maintained in accordance with the requirements outlined in the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years.
    Where the building is maintained so that provisions of the NZBC E2 and E3 Clauses are met, and where the insulation is not crushed or exposed to conditions that will diminish its thermal performance, ROCKWOOL Stone Wool Insulation can expect to have a serviceable life of at least 50 years. Refer to Installation Guideline and Product Handling and Storage Guideline for more information.
  • Clause E3 INTERNAL MOISTURE: Performance E3.3.1.
    ROCKWOOL Stone Wool Insulation contributes to meeting this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
    ROCKWOOL Stone Wool Insulation is safe when handled.
  • Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a) and H1.3.2 E.
    ROCKWOOL Stone Wool Insulation will contribute to meeting the requirements of NZBC Clause H1, Performance H1.3.1 (a) and H1.3.2 E by complying with NZBC Verification Methods H1/VM1, H1/VM2, NZBC Acceptable Solutions H1/AS1, or H1/AS2.
In-Service History

83 years since the ROCKWOOL Group started production of stone wool. They were the first to manufacture this unique material in Denmark, in 1937. And since then throughout their history, their people have been innovating and discovering ways to transform an abundant, renewable natural resource into materials that bring comfort, safety and sustainability to millions of people worldwide. Available in 39 countries, they are a world wide brand.

Other Performance Attributes
  • Fire-resilience — Withstand temperatures above 1000°C
  • Thermal properties — Save energy by maintaining optimum indoor temperature and climate
  • Acoustic capabilities — Block, absorb or enhance sounds
  • Water properties — Manage a most precious resource
  • Circularity — Reusable and recyclable materials
  • Robustness — Longer-lasting performance and robustness with easier installation
Documents
Comfort Liner Datasheet
Rainscreen Datasheet
Safe n Silent Datasheet

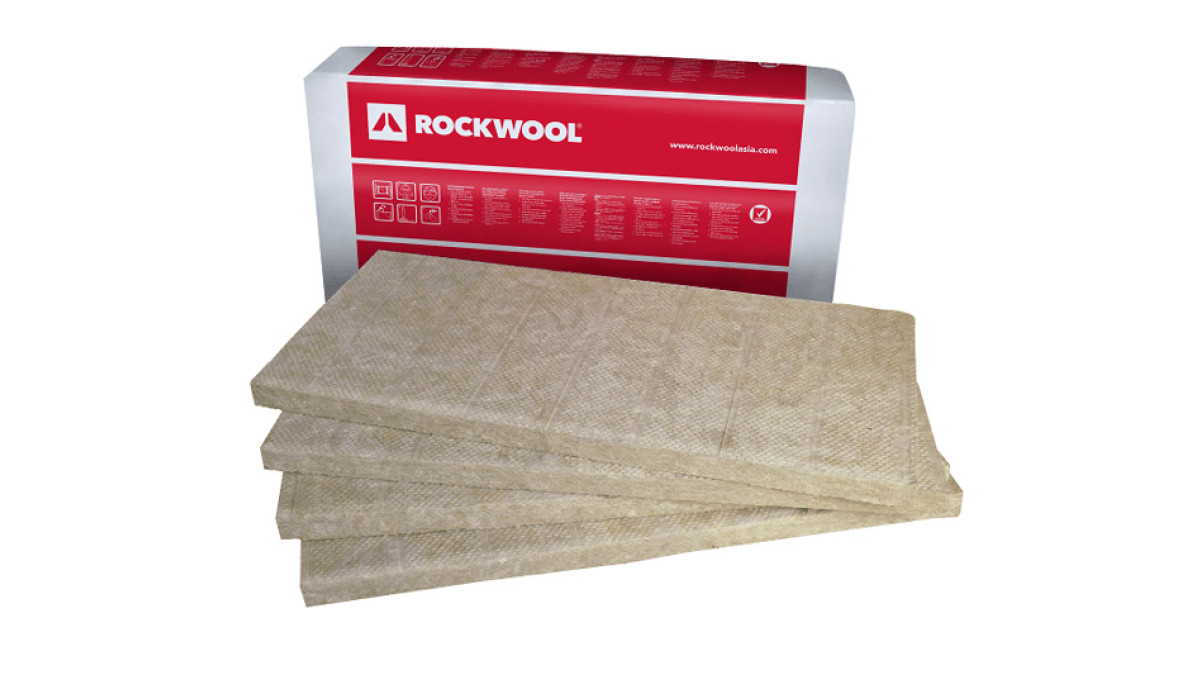

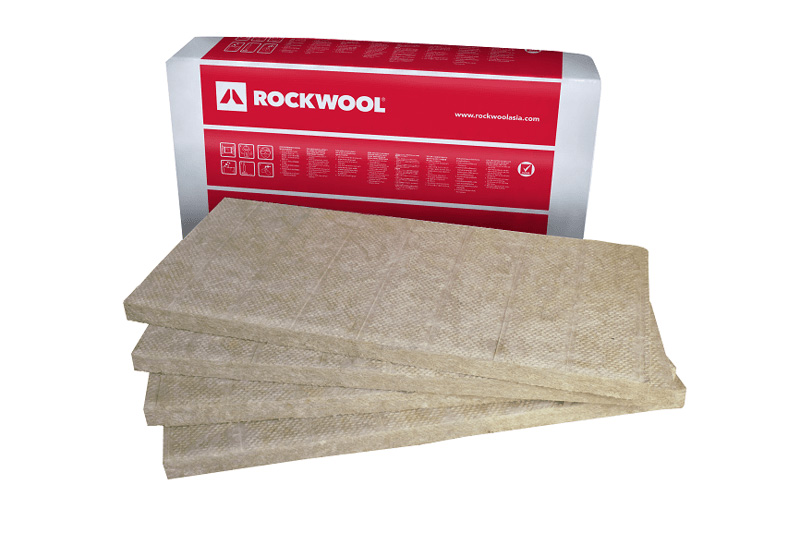

Thermalrock Datasheet
Fire Classification/ Non Combustibility
Hard Rock Roofing
Learn Right Product, Right Place
Sustainability Environmental Product Declaration
World of Rockwool

Outright Continuous Insulation (OCI) supplies high-performance continuous insulation solutions that enhance thermal efficiency, moisture management, acoustic comfort, and fire resilience.

Product Enquiries

News from Outright Continuous Insulation

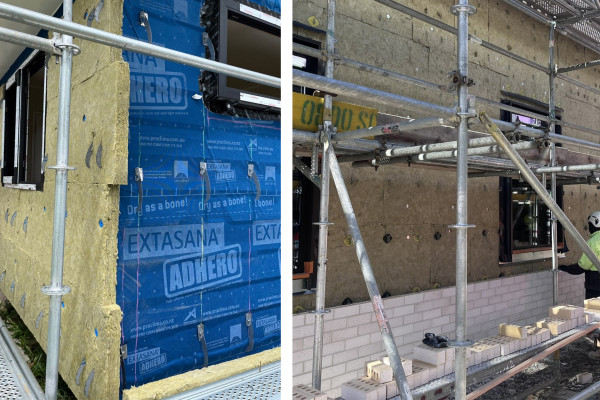

ROCKWOOL Rainscreen Powers a Smarter Pre-Cladding Solution NEW

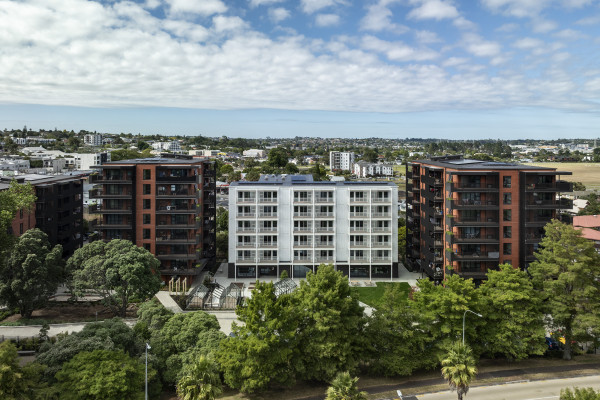

Continuous External ROCKWOOL Insulation Delivers Thermal, Fire and Acoustic Performance

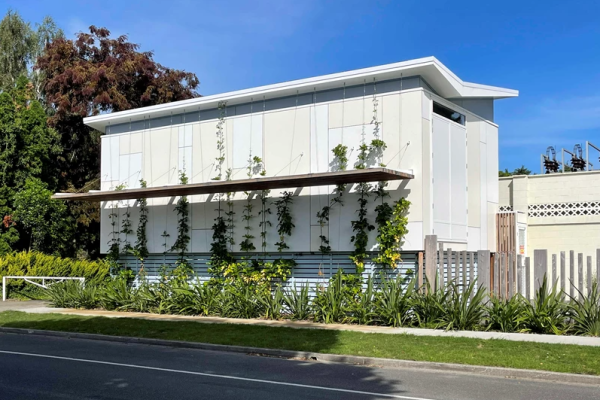

The Little Building That Could: Low Carbon Design for the Windsor Substation
