Fibershield V Vertical Fire Curtain — Up to 30m wide)
Description

Ideal for medium to large openings up to 30m wide, the Fibershield V is a vertical, long span fire curtain with a single compact head box and coil to truly maximise open plan designs.

Fibershield V is made in Germany using a single overhead coil supported with patented floating bearings to create unmatched reliability over long to very long spans.

Key Features
  • Fire tested in accordance with AS1530.4:2014
  • Fire ratings up to -/120/-
  • Approved for openings up to 30m wide
  • Also complies with EN12101.1 Smoke Curtains
  • Ideal for large openings
  • single coil (no overlaps)
  • Headbox — 230mm (W), 70mm (H), 44mm (D)
  • Powder coated to the required colour

Optional

  • Self-levelling bottom bar covers
  • Battery backup
  • Rewind switches
  • Curtain applied signage
Categories
Fire Safety
Scope of Use
  • Ideal for medium to large openings up to 30m wide
  • Vertical curtain
  • Fire ratings up to -/120/-
  • Headbox 230mm (W), 70mm (H), 44mm (D)

Fibershield V long span vertical fire curtain can be used to provide fire and smoke compartmentation in:

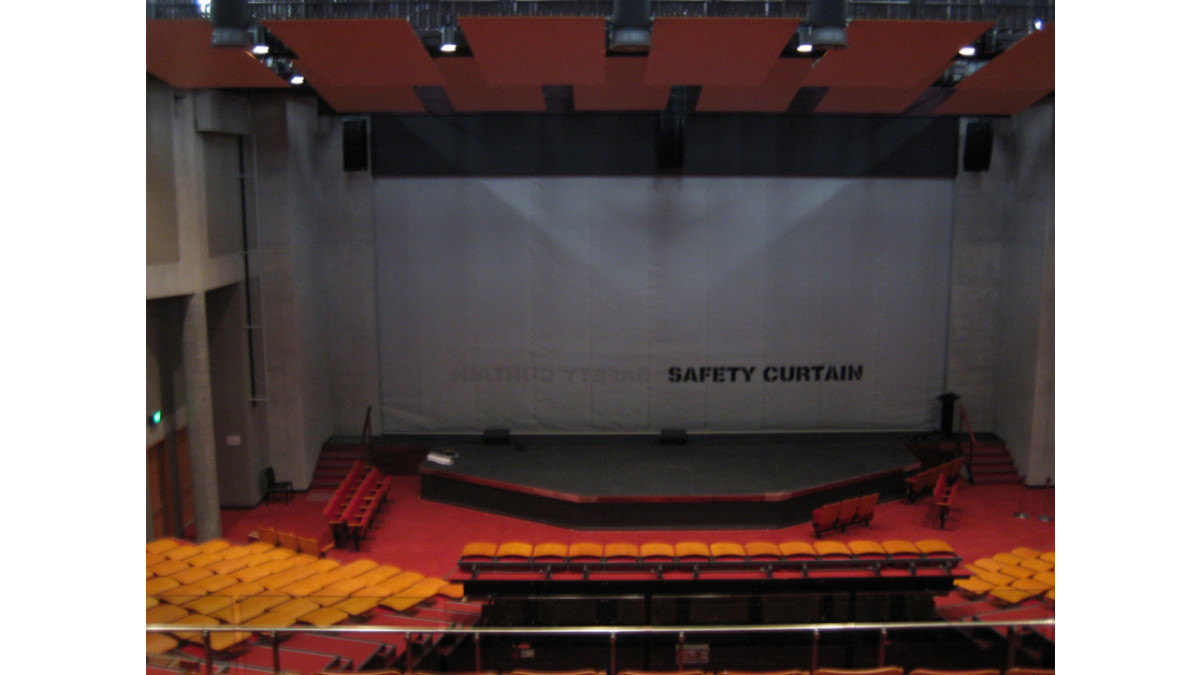

  • Theatres
  • Warehouses
  • Hospitals
  • Office buildings
  • Shopping centres
Limitations on Use
  • Interior use only
  • Maximum Sizes 30,000mm maximum width x 10,000mm max drop
Statement of Building Code Compliance
  • Complies with AS1905.2
  • Fire Rating :  -/120/- when fire tested in accordance with AS1530.4
  • Fire Rating :  Full Scale fire tested to provide a fire resistance level of -/120/120 in conjunction with sprinklers
  • Radiant Heat :  <2.5 kW/m2 @ 50mm and 30 minutes into the Standard Fire Test (ISO834/AS1530.4)
  • Permeability : <25 m3/hour when tested in accordance with EN12101.1
  • Spread of Flame : 0, 0, 0, 2 when tested in accordance with AS1530.3
  • Also complies with EN12101.1 Smoke Curtains
In-Service History

Fibershield V has been installed throughout Australia since 2004.  In applications where openings are larger than 12m wide, Fibershield V has proven time and time again that it is the only viable option available.



Other Performance Attributes

Backed by extensive durability testing — in excess of 10,000 cycles as a single coil (no overlaps), the Fibershield V system performance is well in excess of any overlapped multiple coil system.

The Fibershield V system is extensively tested for pressure resistance, providing the highest pressure ratings of any fire curtain on the market, making it ideal for complex buildings with zone pressurisation and other mechanical smoke control systems.

Warranty

As with all essential services Fibershield V should be maintained in strict accordance with Smoke Control's documented procedures by fully trained and competent technicians. Operational tests alone are not considered adequate and when conducted by inexperienced personnel, may lead to damage of the product. Smoke Control offers a comprehensive preventative maintenance program which has proven costs savings over the life of the product

Documents
Specification Clause: Fibershield V

2015

CAD/PDF Details
Fibershield V Fire Curtain

SCS-FSV-0001 -0008

2020
