Textile Range Upholstery Fastening System — TC-F6H
Description

Designed for mounting textile panels and soft furnishings. The TC-F6H sews onto upholstery for a heavy-duty fixing to interior and exterior surfaces. The transparent slide-lock mechanism ensures the strongest hold to the male clip and easy cushion removal without force. In the event of damage the slider can be replaced in-situ without removing the saddle.

Male clips may be screw fixed (TC-M6) or surface mounted (TC-SM6). The TC-SM6 has a self-adhesive backing.

Key Features
  • TC-F6H sews onto cushion at upholstery construction stage
  • Enables heavy-duty attachment of soft furnishings to painted or gel coat surfaces
  • Slide lock mechanism makes soft furnishings quick to install and easy to remove
  • High quality, secure finish
  • Heavy duty break-out load of 26kg with TC-M6 or 32kg with TC-SM6
  • Screw fix (TC-M6) or surface mounted self adhesive (TC-SM6)
  • No force required to release lock. Pull tab towards edge of the cushion to unlock and remove
  • Hidden fixing — no visible domes, screws, straps or hook and loop tape. Low visibility transparent lock tab when exposed
  • Sliding lock can be replaced without unstitching saddle in the event of damage
  • No removal tool required
  • VHB tape on TC-SM6 is clear in colour and UV stabilised, bonds extremely well to painted, smooth flat surfaces
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Designed for heavy-duty fixing of upholstered panels or soft furnishings to interior and exterior surfaces

  • TC-F6H sews onto cushion at upholstery construction stage
  • Enables heavy-duty attachment of soft furnishings to painted or gel coat surfaces
  • Heavy duty break-out load of 26kg with TC-M6 or 32kg with TC-SM6
  • TC-M6 screw fixed to substrate
  • TC-SM6 is surface mounted with
  • Sliding lock can be replaced without unstitching saddle in the event of damage

Applications:

  • Exterior cushions
  • Internal seating areas
  • Sundeck mattresses and sunbeds
  • Foredeck mounted mattresses

Compatibility:

  • Use with TC-M6, TC-SM6
Limitations on Use
  • See Installation Guide for full information
  • Refer to Clip Selection Guide for suggested panel + substrate
In-Service History

Fastmount Panel Mounting Systems were developed for the high performance demands of the superyacht industry, and have been used in thousands of commercial and residential building projects in New Zealand and around the world since 2004.

Other Performance Attributes
  • VHB tape on TC-SM6 is clear in colour and UV stabilised, bonds extremely well to painted, smooth flat surfaces
  • Pull-out loads independently tested by SGS New Zealand
  • Fastmount has a two year limited warranty on all products
Documents
Installation Guide: TC-F6H & TC-M6

06/20

Installation Guide: TC-F6H & TC-SM6

10/19

Product Sheet: TC-F6H

10/19

Product Sheet: TC-M6

06/20

Product Sheet: TC-SM6

05/20

Test Certificate: Textile Range

INZ64255-06 31/10/18

Maintenance Document
Warranty Information
Product Catalogue Technical Guide

09/20

Fastmount Clip Selection Guides

Architectural & Marine

Fastmount design and manufacture hidden panel mounting systems for interior panels, allowing architects and installers to re-think the panelling process.

Product Enquiries

News from Fastmount

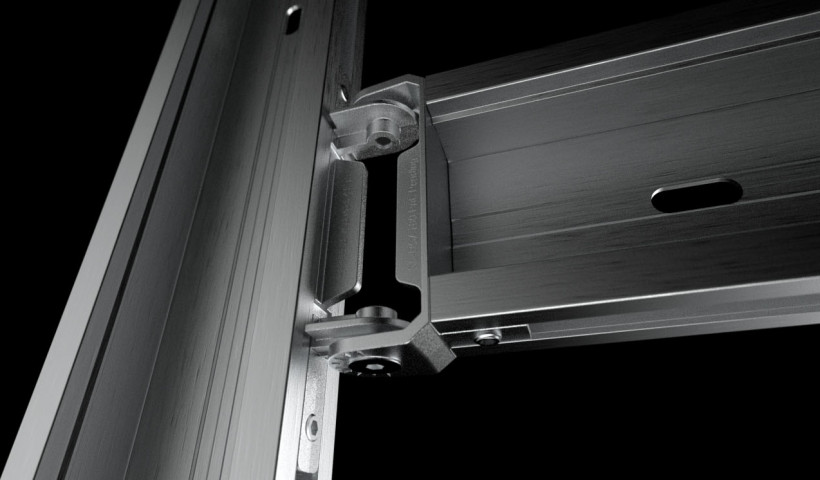

Fastmount Seeks to Standardise Framework and Panel Mounting with New System NEW
