Very Low Profile Range Heavy Duty Panel Fastener — VL-03H
Description

The VL-03H is a very low profile panel fastener ideal for mounting heavy ceiling and wall panels in areas with minimal frame and panel thickness.

The VL-03H clip set uses the patented SuperGroove® system to mechanically engage into adhesive. Screw or adhesive combinations can be used.

Key Features
  • Self-aligning secure mounting
  • Installation requires no special tools or skilled labour
  • Uses a range of adhesives to suit the customer
  • Fast installation
  • 10kg pull-out load
  • Clip lead in for easy fitting
  • Can be screw fixed with lateral adjustment, or glue fixed
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

VL-03H is ideal for mounting heavy ceiling and wall panels in areas with minimal frame and panel thickness

  • 10kg pull-out load
  • Can be screw fixed with lateral adjustment, or glue fixed
  • Self-aligning secure mounting

Applications:

  • Areas with minimal clearance
  • Inspection panels
  • Soft or honeycomb cored panels with thin facings
  • Mounting panels where no drilling is preferred
Limitations on Use
  • See Installation Guide for full information
  • Refer to Clip Layout Guide TD-02, TD-08, TD-09 for clip spacing recommendations
  • Refer to Clip Selection Guide for suggested panel + substrate
In-Service History

Fastmount Panel Mounting Systems were developed for the high performance demands of the superyacht industry, and have been used in thousands of commercial and residential building projects in New Zealand and around the world since 2004.

Other Performance Attributes
  • Pull-out loads independently tested by SGS New Zealand
  • Fastmount has a two year limited warranty on all products
Documents
Installation Guide: VL-03, VL-03H & VL-03 FR

10/19

Product Sheet: VL-03, VL-03H

10/19

Test Certificiate: VL Range

INZ5865-05A 19/06/17

Maintenance Document
Warranty Information
Clip Layout Guide: TD-02

06/19

Clip Layout Guide: TD-08

05/19

Product Catalogue Technical Guide

09/20

Fastmount Clip Selection Guides

Architectural & Marine

Fastmount design and manufacture hidden panel mounting systems for interior panels, allowing architects and installers to re-think the panelling process.

Product Enquiries

News from Fastmount

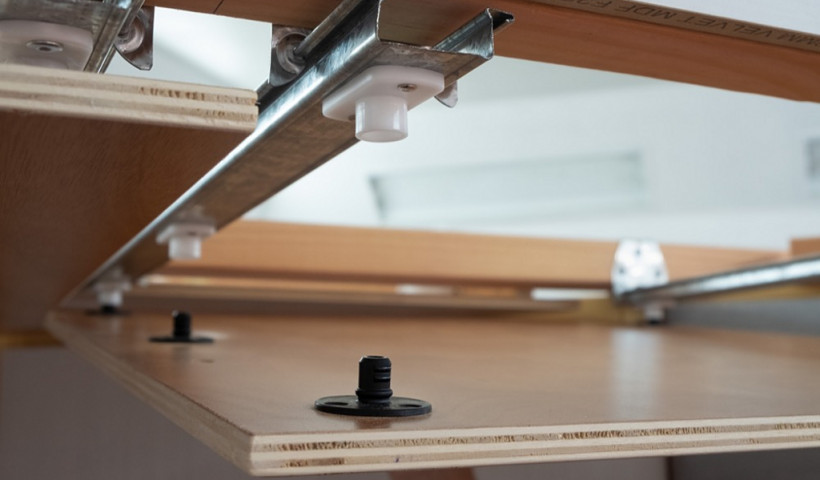

Video: Invisible Mounting Using the PC-SVMX Heavy-Duty Panel Clip
