New Multi Service Transit Box, Fire Plates and Testing Updates from Allproof

A substantial update has introduced some new products, including a newly designed multi service transit box and 50mm and 100mm Fire Plates, to complement Allproof's existing range. Plus they have added two years’ worth of new passive fire tests for plumbing and electrical services.

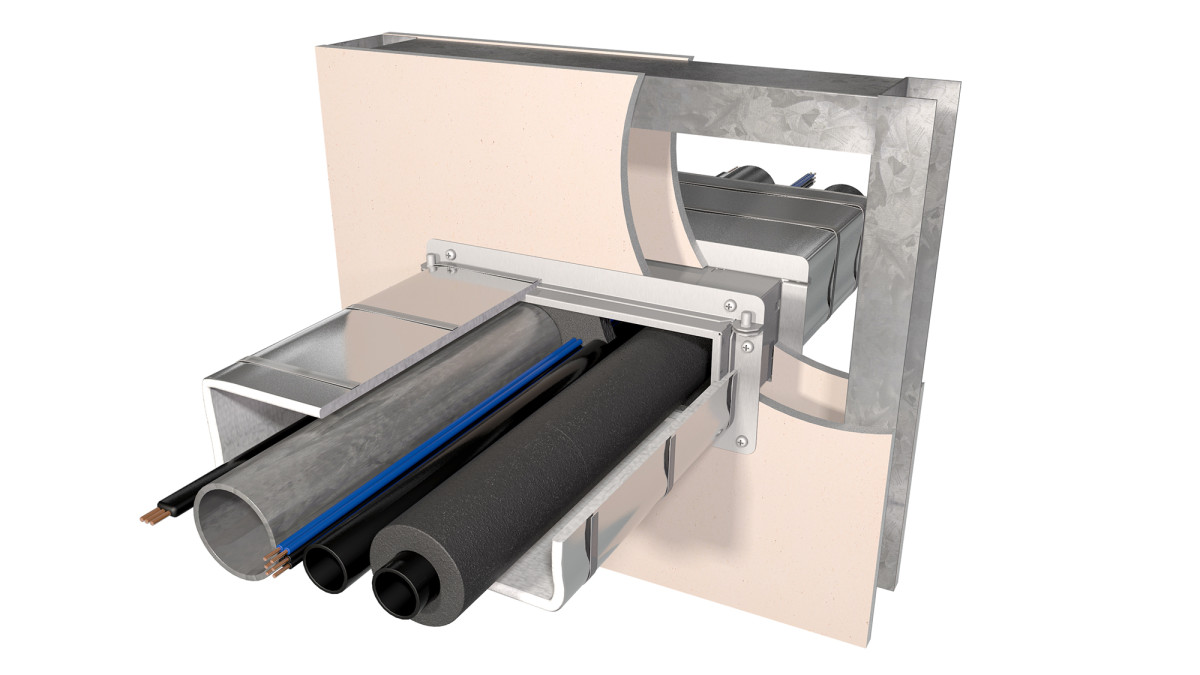

Allproof have published two years’ worth of new passive fire tests for plumbing and electrical services in the online / digital technical manuals. This substantial update has introduced some new products to complement Allproof's existing range. These products include an 200mm Fire Collar for large plumbing pipe systems, a Fire Plate 50mm and 100mm which have been tested to cover large voids in the floor slab in conjunction with a 50mm and 100mm Fire Collar for FWG positions in floor slabs. Additionally, a newly designed multi service transit box constructed from Stainless Steel called the Wallthrough, which caters to the multi service entry point into a Hotel Room or Apartment at the fire rated corridor wall. Allproof have recently undertaken an Acoustics Test on the Wallthrough so that the installation can be assessed for performance by an Acoustics engineering team when adopting the solution for a project.

These products utilise Allproof's advanced Intumescent formulation which provides a fast activating penetration closure for the various systems and services. The new testing encompasses the new devices as well as plumbing and electrical services utilising other Allproof collar types such as ALLFC, DIFC, CIFC etc, on the following substrates: concrete floor slabs, CLT floors and walls, plasterboard walls and ceilings and composite floors.

Continued research and development as well as exceeding existing fire test results through design or installation changes keeps Allproof Industries at the fore front of NZ Passive Fire Product Development and testing.

Allproof have recently reviewed and updated their existing passive fire work section and published a new work section on MasterSpec for the TBA Firefly range. This ensures that selecting and specifying Allproof supplied systems is accessible with excellent support available.

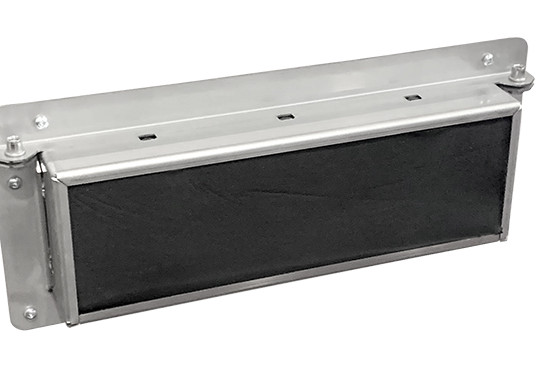

Wallthrough

Allproof Industries

View Product

The Wallthrough is used in fire-rated plasterboard walls where multiple services need to pass through a single penetration, such as at apartment and hotel room entry points.

NZ Made

NZ-Owned Business

The Allproof Industries Wallthrough is designed for use in fire-rated plasterboard walls at apartment and hotel room entry points, providing a robust, stainless steel multi-service penetration solution that can be installed pre- or post-service installation, maintaining fire and smoke resistance in compliance with passive fire protection requirements.

Suitable For Fitting To:

Plasterboard Walls

NZBC C/AS2 C3.1, C3.2 and C3.3: Allproof PFP products are designed to limit the spread of fire between property from its origin by sealing service penetrations in the separating elements of fire cells. The Technical Literature gives the fire resistance ratings (FRRs) for the Allproof Passive Fire Protection Products that can be achieved to provide the FRRs as determined by NZBC Acceptable Solutions C/AS1, C/AS2 and NZBC Verification Method C/VM2.

NZBC C/AS2 4.4 Fire Stopping: Allproof PFP products have been tested in accordance with Appendix C C5.1 for fire stopping. Detailed information on the tested prototypes is available in Allproof’s PFP literature to assist with the correct product selection and install details. When installed as per documentation, Allproof PFP products will provide an FRR consistent with the published results and therefore, if selected correctly, no less than the separating element.

NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.

NZBC F2.3.1: Allproof Passive Fire Protection Products do not present a health hazard to people.

BRANZ Appraised

Fire Plates

Allproof Industries

View Product

The Fire Plate system is designed for use with a Cast-in Rocket fitting that forms a void on the underside of a flat slab substrate at either a 50 mm or 100 mm floor waste gully (FWG) location.

NZ Made

NZ-Owned Business

The Fire Plate system is intended for covering and fire-sealing voids formed on the underside of flat slab substrates when a Cast-in Rocket fitting is used at 50 mm or 100 mm floor waste gully (FWG) locations.

It is suitable for internal applications where a fire collar (ALLFC) will be installed over the void to achieve the required fire resistance rating (FRR). The design allows for positional adjustment to accommodate nearby building services.

Note: Must be installed in accordance with the tested prototype and the requirements of NZBC C/AS2 Clause 4.4.

Suitable For Fitting To:

Concrete floors

NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.

NZBC F2.3.1: Allproof Passive Fire Protection Products do not present a health hazard to people.

BRANZ Appraised

Low Profile Fire Collars

Allproof Industries

View Product

The low-profile pipe collars are designed to be installed in concrete, brick or masonry fire rated walls and floors, and fire rated plasterboard walls.

NZ Made

NZ-Owned Business

Pipe collars are designed to be exposed in a wall or floor application (i.e. face fixed). The collars should always be bolted to the underneath of the concrete floor. In wall situations one collar should be used on each exposed side of the fire rated wall.

Allproof fire collars are to be installed only as tested. Please refer to Fire collar literature for test results and install drawings on Allproof's website allproof.com.

Suitable for fitting to:

Concrete floors
Hollow core construction floors
Rib & timber / ply infill floors
Composite floors
Cross laminated timber floors
Plasterboard ceilings
Concrete, masonry walls
Cross laminated timber walls
Plasterboard walls
Speedpanel walls
Hebel Powerpanel walls

NZBC C/AS2 C3.1, C3.2 and C3.3: Allproof PFP products are designed to limit the spread of fire between property from its origin by sealing service penetrations in the separating elements of fire cells. The Technical Literature gives the fire resistance ratings (FRRs) for the Allproof Passive Fire Protection Products that can be achieved to provide the FRR’s as determined by NZBC Acceptable
Solutions C/AS1, C/AS2 and NZBC Verification Method C/VM2.
NZBC C/AS2 4.4 Fire Stopping: Allproof PFP products have been tested in accordance with Appendix C C5.1 for fire stopping. Detailed information on the tested prototypes is available in Allproof’s PFP literature to assist with the correct product selection and install details. When installed as per documentation Allproof PFP products will provide an FRR consistent with the published results and therefore, if selected correctly, no less than the separating element.
NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.
NZBC F2.3.1 Allproof Passive Fire Protection Products does not present a health hazard to people

BRANZ Appraised

Test Results

Drop In Fire Collars

Allproof Industries

View Product

Allproof Drop-in fire collars offer a straightforward and efficient passive fire rating solution for thin concrete floors or trapezoidal steel tray concrete floors.

NZ Made

NZ-Owned Business

Thin concrete floors (minimum 70mm)
Trapezoidal steel tray concrete floors
Can be retrofitted
Installed and fixed from top side of slab

NZBC C/AS2 C3.1, C3.2 and C3.3: Allproof PFP products are designed to limit the spread of fire between property from its origin by sealing service penetrations in the separating elements of fire cells. The Technical Literature gives the fire resistance ratings (FRRs) for the Allproof Passive Fire Protection Products that can be achieved to provide the FRR’s as determined by NZBC Acceptable
Solutions C/AS1, C/AS2 and NZBC Verification Method C/VM2.
NZBC C/AS2 4.4 Fire Stopping: Allproof PFP products have been tested in accordance with Appendix C C5.1 for fire stopping. Detailed information on the tested prototypes is available in Allproof’s PFP literature to assist with the correct product selection and install details. When installed as per documentation Allproof PFP products will provide an FRR consistent with the published results and therefore, if selected correctly, no less than the separating element.
NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.
NZBC F2.3.1 Allproof Passive Fire Protection Products does not present a health hazard to people

BRANZ Appraised

Test Results

Cast In Fire Collars

Allproof Industries

View Product

Allproof Cast-In Fire Collars are designed to reduce the labour content of passive fire rating plumbing pipe penetrations on concrete floors that are poured on site.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Seals penetraions for plastic plumbing services in the event of a fire
Prevents spread of fire and smoke
To be cast into solid masonry floors

NZBC C/AS2 C3.1, C3.2 and C3.3: Allproof PFP products are designed to limit the spread of fire between property from its origin by sealing service penetrations in the separating elements of fire cells. The Technical Literature gives the fire resistance ratings (FRRs) for the Allproof Passive Fire Protection Products that can be achieved to provide the FRR’s as determined by NZBC Acceptable
Solutions C/AS1, C/AS2 and NZBC Verification Method C/VM2.
NZBC C/AS2 4.4 Fire Stopping: Allproof PFP products have been tested in accordance with Appendix C C5.1 for fire stopping. Detailed information on the tested prototypes is available in Allproof’s PFP literature to assist with the correct product selection and install details. When installed as per documentation Allproof PFP products will provide an FRR consistent with the published results and therefore, if selected correctly, no less than the separating element.
NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.
NZBC F2.3.1 Allproof Passive Fire Protection Products does not present a health hazard to people

BRANZ Appraised

Test Results
