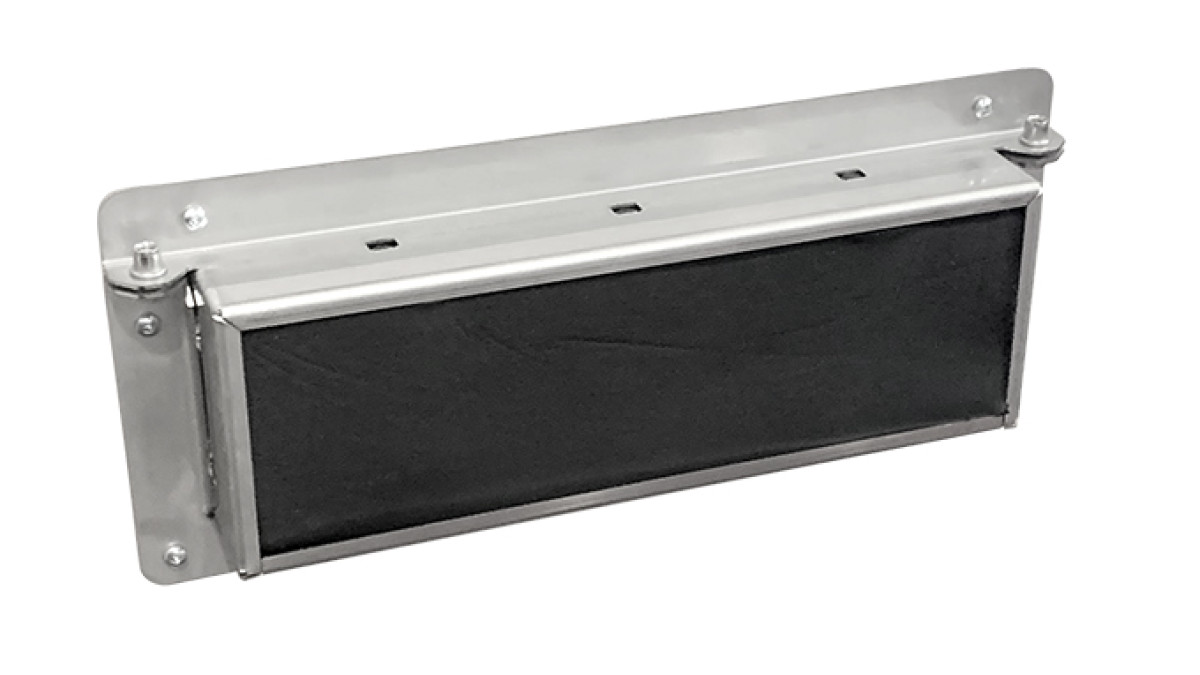

The Allproof Industries Wallthrough is designed for use in fire-rated plasterboard walls at apartment and hotel room entry points, providing a robust, stainless steel multi-service penetration solution that can be installed pre- or post-service installation, maintaining fire and smoke resistance in compliance with passive fire protection requirements.

Suitable For Fitting To:

• Plasterboard Walls

As per requirements set out in NZBC C/AS2 Clause 4.4, Allproof fire stopping product installation “shall be identical to those of the prototype used in tests to establish their FRR.” Allproof passive fire systems are required to be used in closed, internal spaces, protected from excessive moisture, solvents, oxidising agents, acids, and alkalis. They should not be exposed to UV light in service. Separation or protection must be provided to Allproof Passive Fire Protection Products from heat sources such as fireplaces, heating appliances, and chimneys. Part 7 of NZBC Acceptable Solution C/AS1 and C/AS2, and NZBC Verification Method C/VM1 provide methods for separation and protection of combustible materials from heat sources.

NZBC C/AS2 C3.1, C3.2 and C3.3: Allproof PFP products are designed to limit the spread of fire between property from its origin by sealing service penetrations in the separating elements of fire cells. The Technical Literature gives the fire resistance ratings (FRRs) for the Allproof Passive Fire Protection Products that can be achieved to provide the FRRs as determined by NZBC Acceptable Solutions C/AS1, C/AS2 and NZBC Verification Method C/VM2.

NZBC C/AS2 4.4 Fire Stopping: Allproof PFP products have been tested in accordance with Appendix C C5.1 for fire stopping. Detailed information on the tested prototypes is available in Allproof’s PFP literature to assist with the correct product selection and install details. When installed as per documentation, Allproof PFP products will provide an FRR consistent with the published results and therefore, if selected correctly, no less than the separating element.

NZBC B2: Allproof Passive Fire Protection Products meet code compliance with the NZBC Clause B2.3.1 (b), 15 years.

NZBC F2.3.1: Allproof Passive Fire Protection Products do not present a health hazard to people.
