Vinyl Clamping Channel
Description

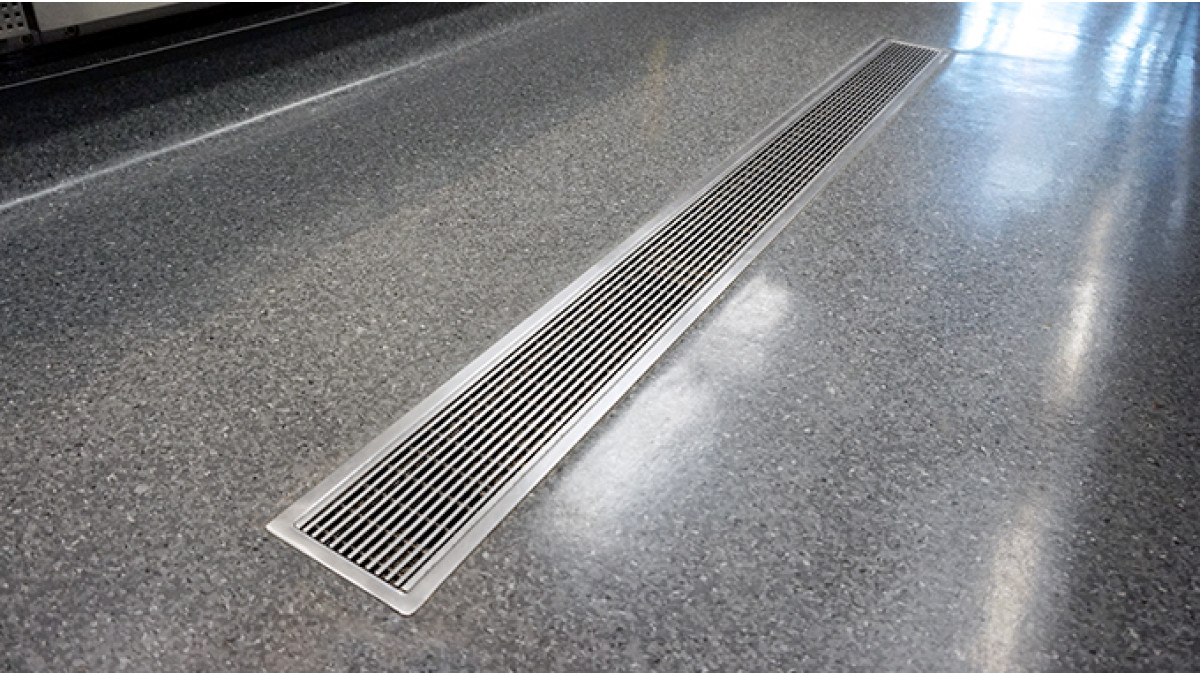

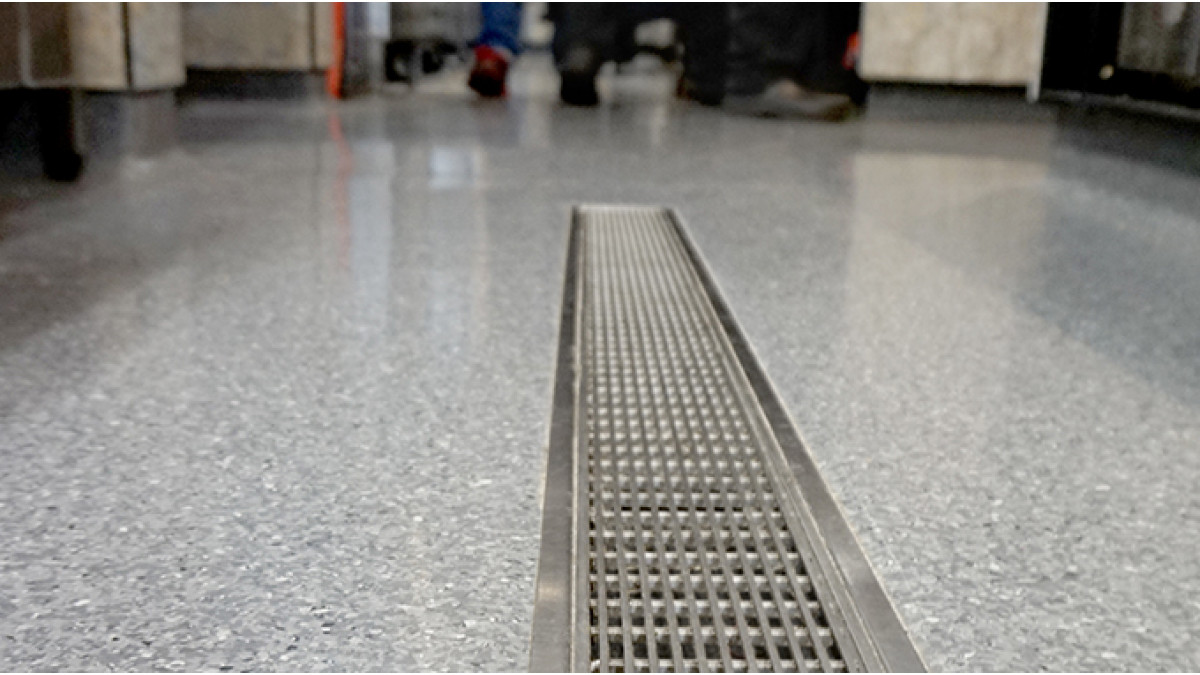

Vinyl Clamping Channels are an ideal floor waste linear channel system for vinyl floors.

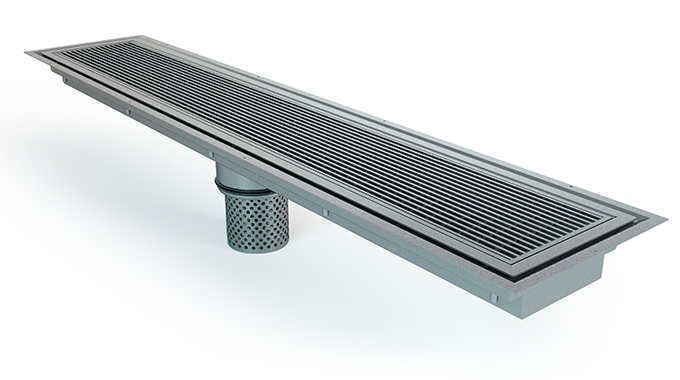

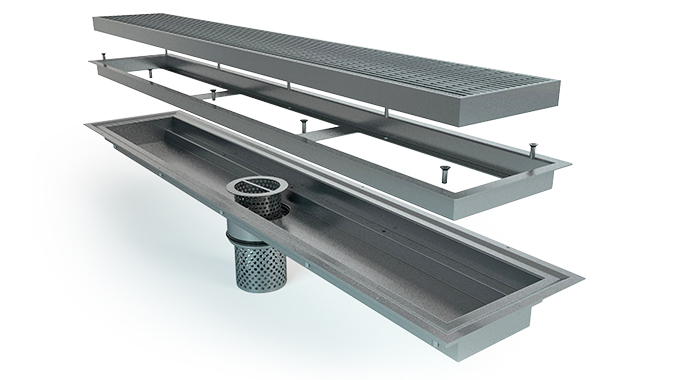

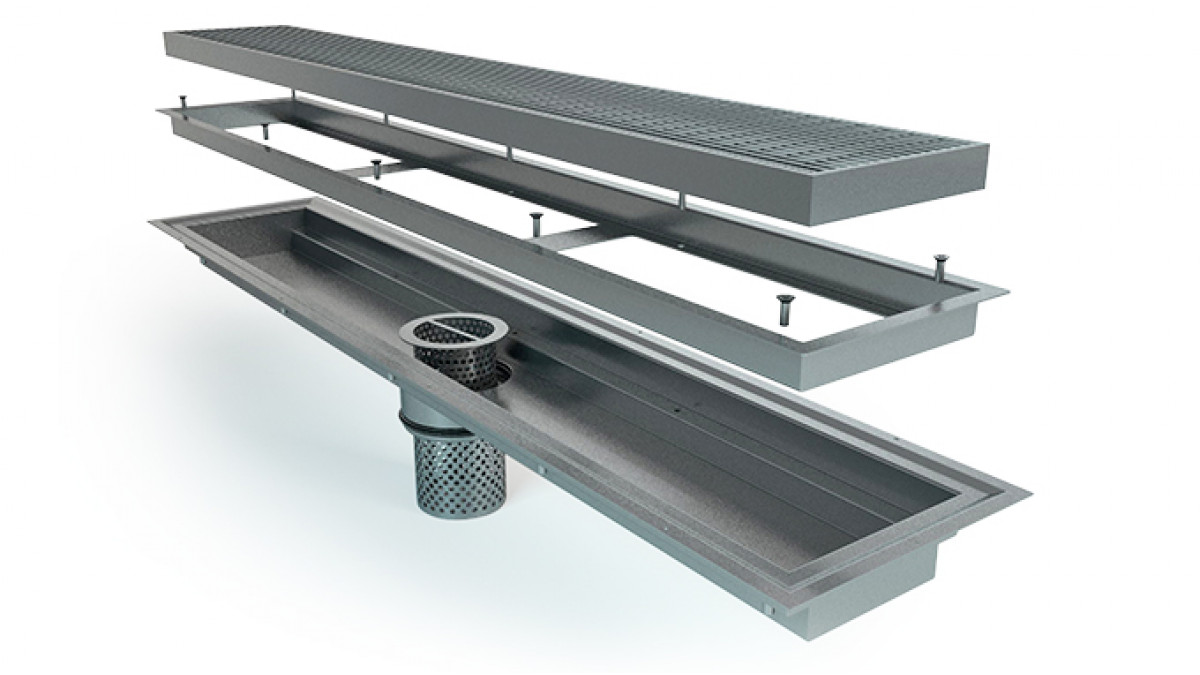

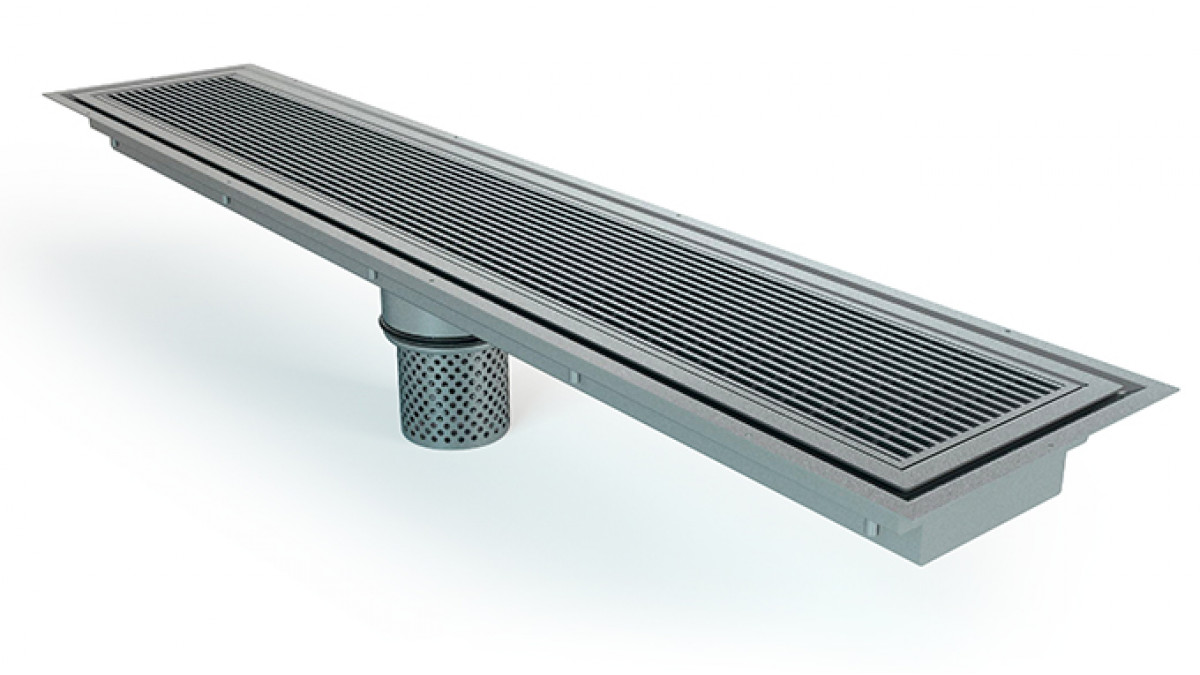

The system incorporates a channel, clamp and grate so that the vinyl isn't disturbed when removing the grate for maintenance.

Standard outlet size is 100mm with a strainer basket, ideal for kitchen applications. A smaller outlet can be requested for shower applications if required. Custom made from 304 and 316 grade stainless steel to suit requirements.

Key Features
  • 304 grade stainless steel
  • Mechanical clamping system for vinyl flooring
  • Designed for standard 2mm thick vinyl
  • Includes 100mm O-ring outlet to suit i.d. for either PVC or HDPE, please specify when ordering
  • Double strainer basket, 1x removal strainer basket (connected by SS cable) & 1x fixed strainer basket
  • Dimensions and SS grade (316) can be customised on request
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Commercial kitchens
  • Vinyl showers
  • Custom made to suit requirements.
Limitations on Use
  • Suitable as a vinyl floor waste solution (see CK series for other flooring applications)
In-Service History
  • Used country wide in commercial kitchens and vinyl showers
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
G3 Food Preparation and Prevention of Contamination compliant
Food Preparation and Prevention of Contamination
Documents
CAD/PDF Link
Installation Details
Food Production Drainage Systems

V2-11/05/22

Maintenance Instructions
Product Warranty

0820

Brochure
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
