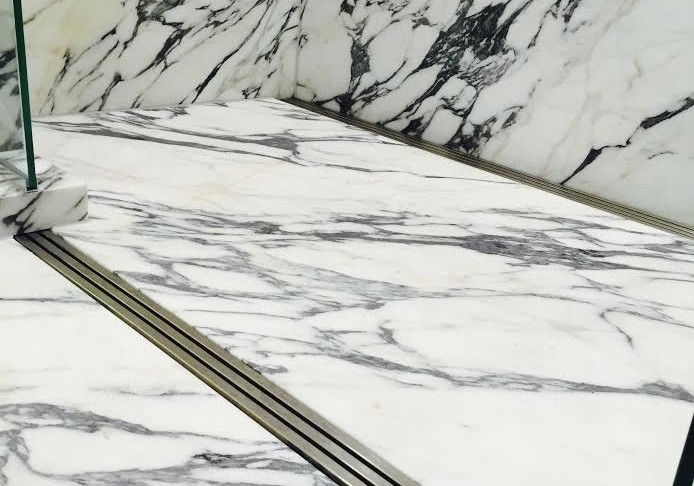

The JESANI Shower Door Channel has been designed to sit as an overflow drainage channel from the shower to the rest of the bathroom area.

Suitable for standard door lengths, and in custom sizes,:

• 50mm width trough
• 38mm threaded outlet
• Timber or concrete substrate
• To suit various floor coverings and to accommodate underfloor heating

Depending on the design configuration of the shower zone, the Shower Door Channel is generally an additional drainage channel to allow for a more open shower door entry, especially if no shower door is required.

Show more

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
• Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
• Clause F2 Hazardous Building Materials: Performance F2.3.1
• Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

Show more

BRANZ Appraised

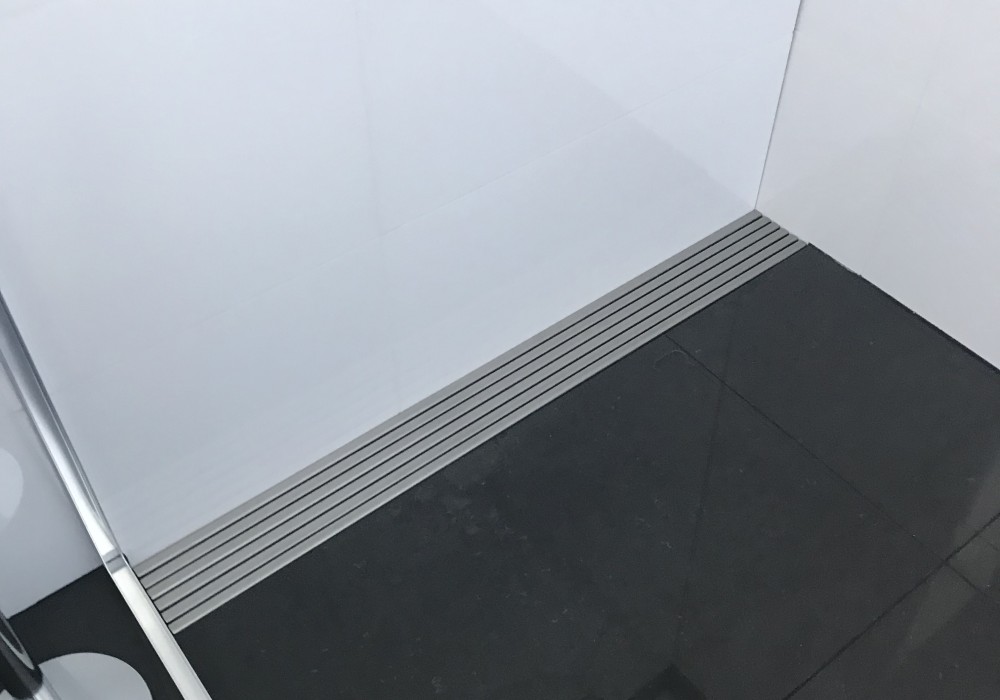

The Wall Mounted JESANI Shower Channel is suitable to create an accessible floor area within the shower zone.

The horizontal and vertical flange system is configured depending on the surrounding walls within the shower area e.g. 3 framed tile walls or 2 framed tiled walls/1 glass wall.

The channel is designed to sit against any wall requiring only a one-way fall to the linear drain.

The channels can be designed to any length, however, if a channel is designed to be 1800mm or longer, it is recommended to include 2 outlets.

• 50mm width trough
• 38mm threaded outlet
• Timber or concrete substrate
• To suit various floor coverings and to accommodate underfloor heating

See BRANZ Appraisal 934 for full information.

Show more

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
• Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
• Clause F2 Hazardous Building Materials: Performance F2.3.1
• Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

Show more

BRANZ Appraised

Internal Moisture

Foul Water

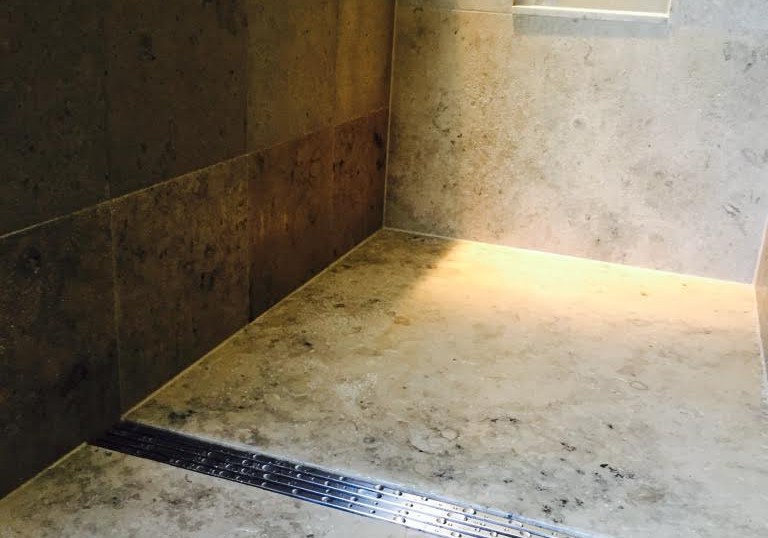

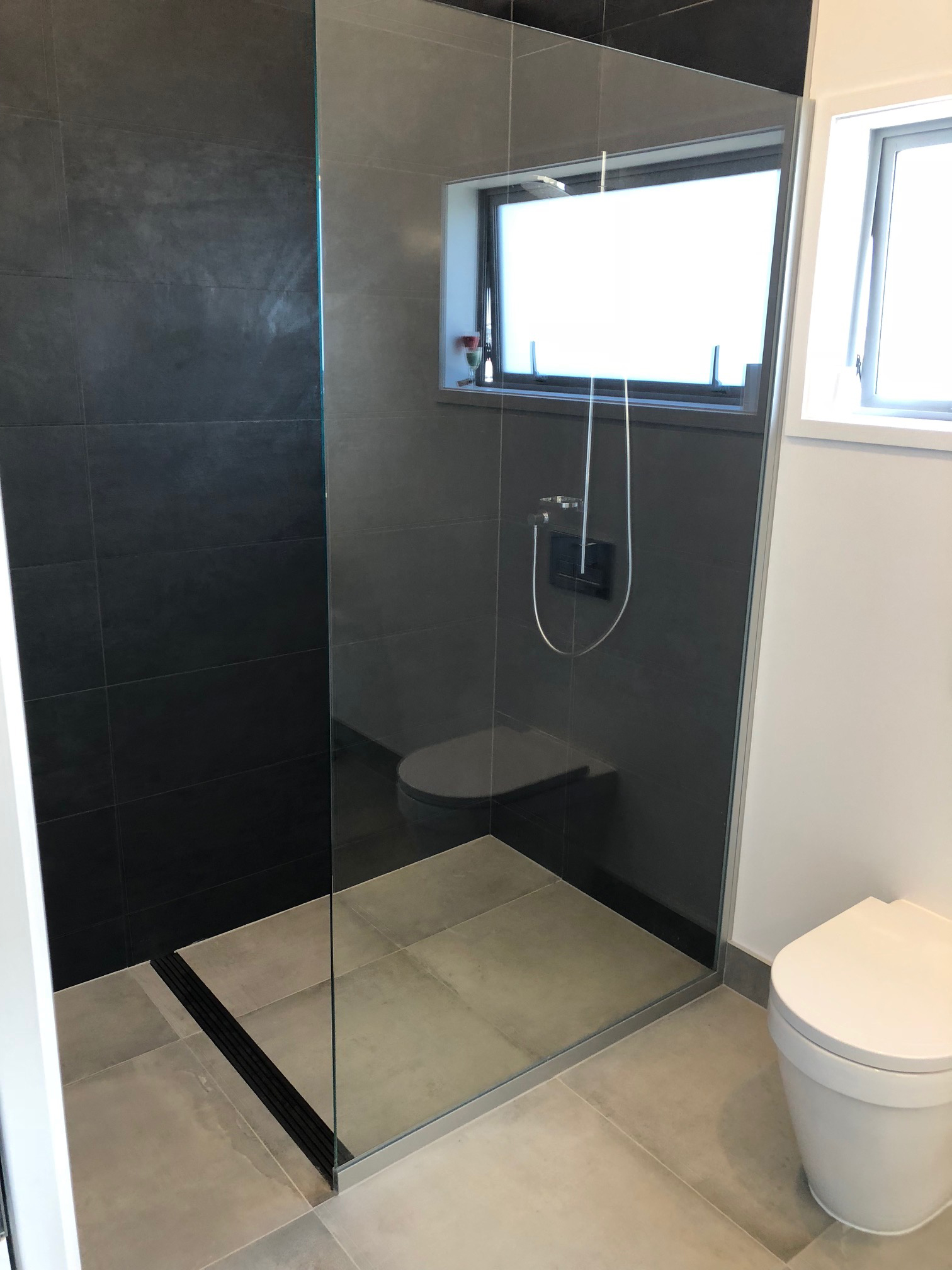

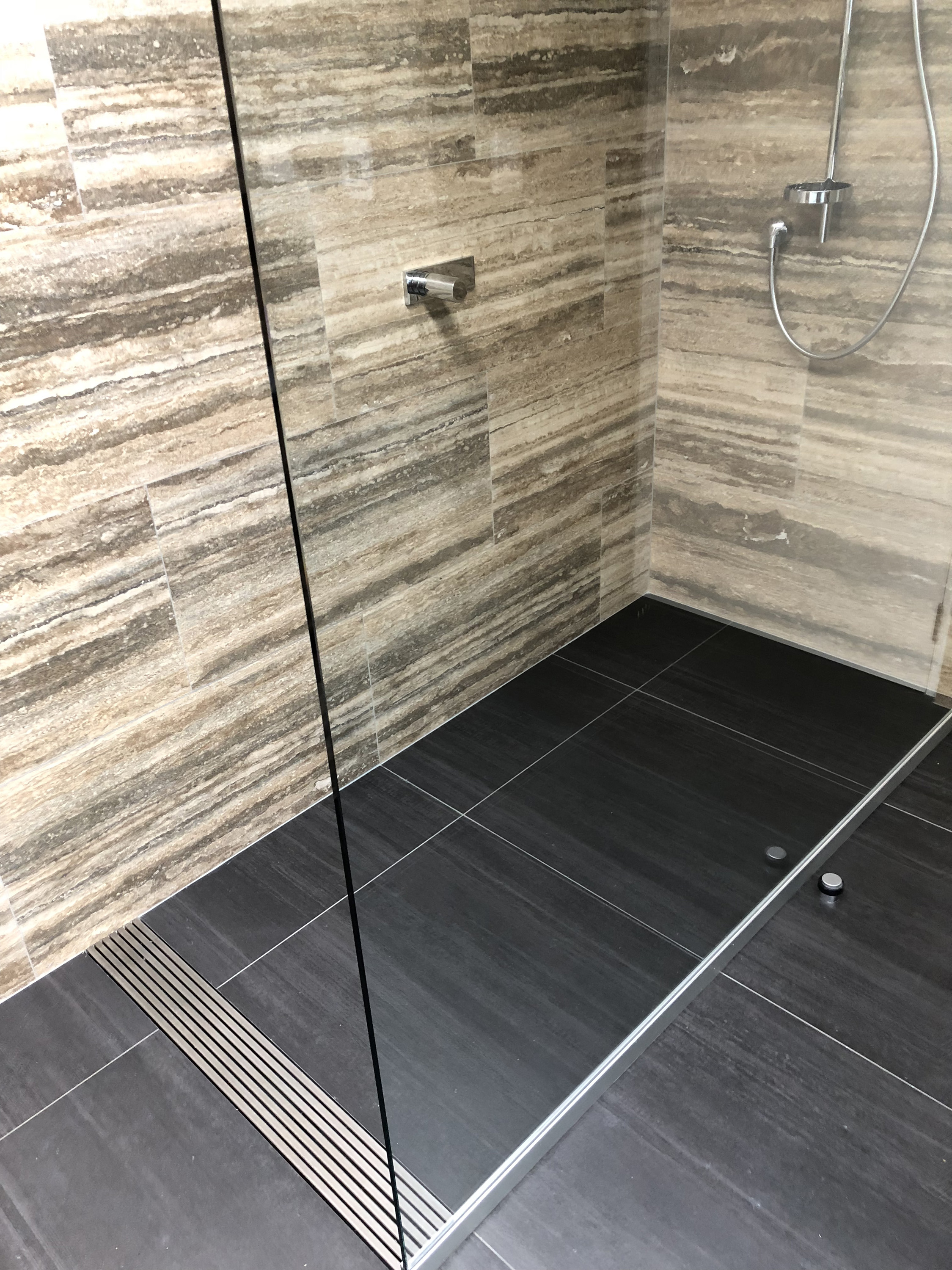

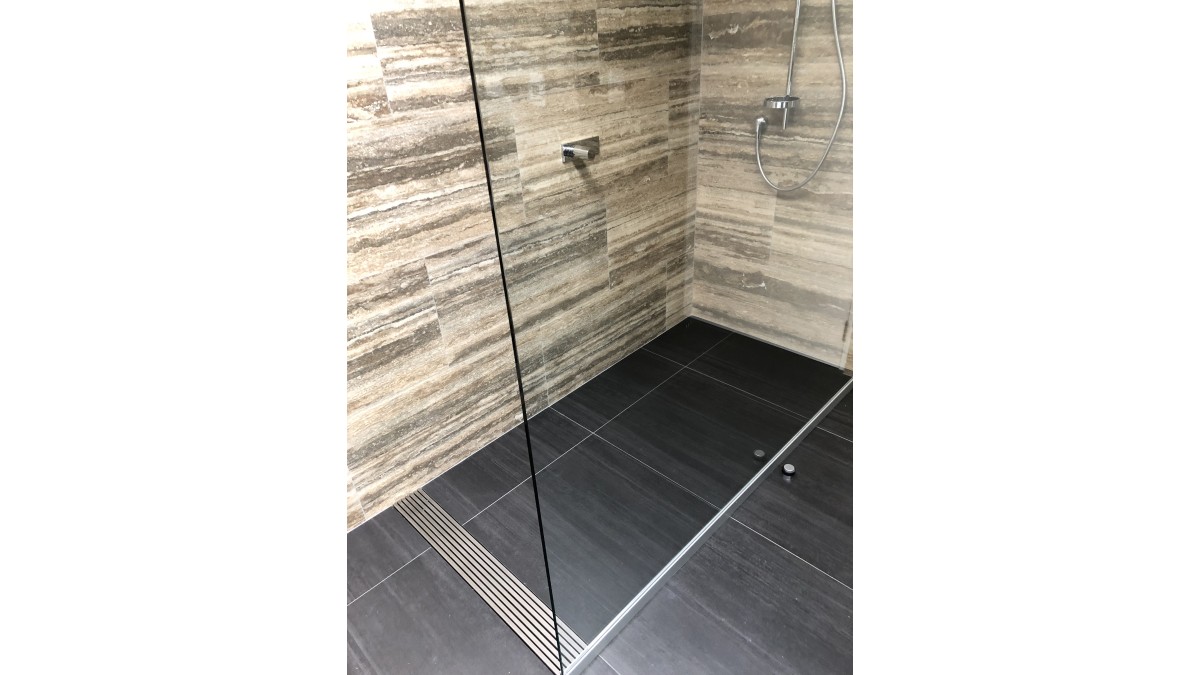

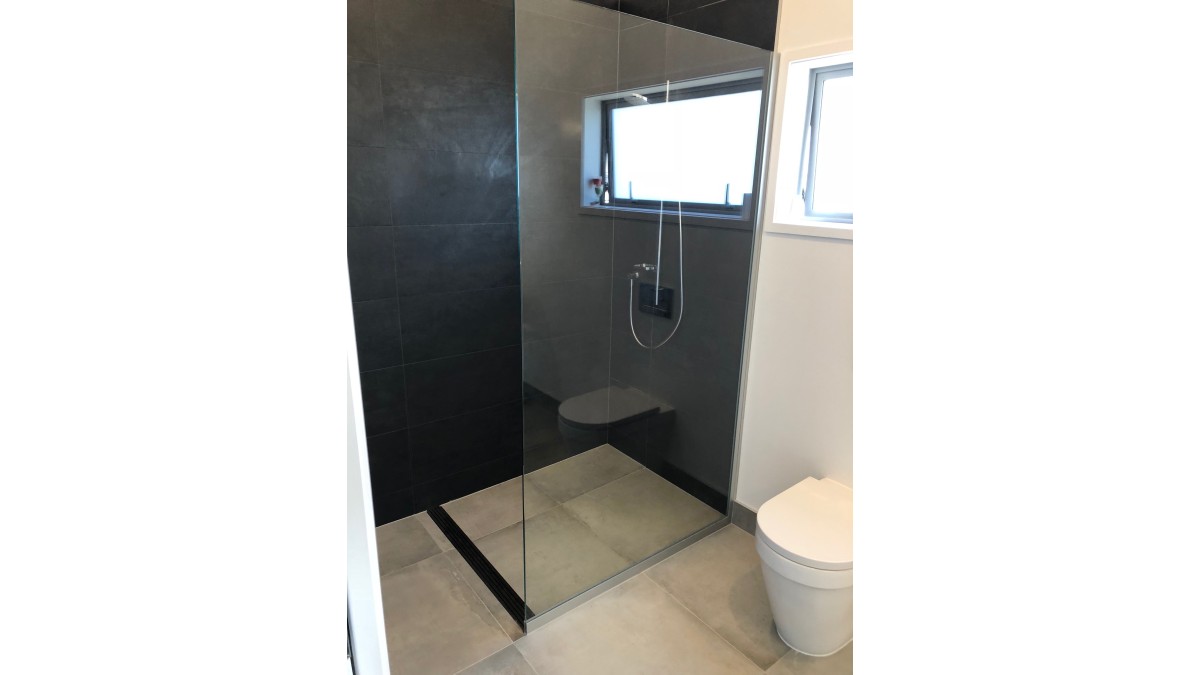

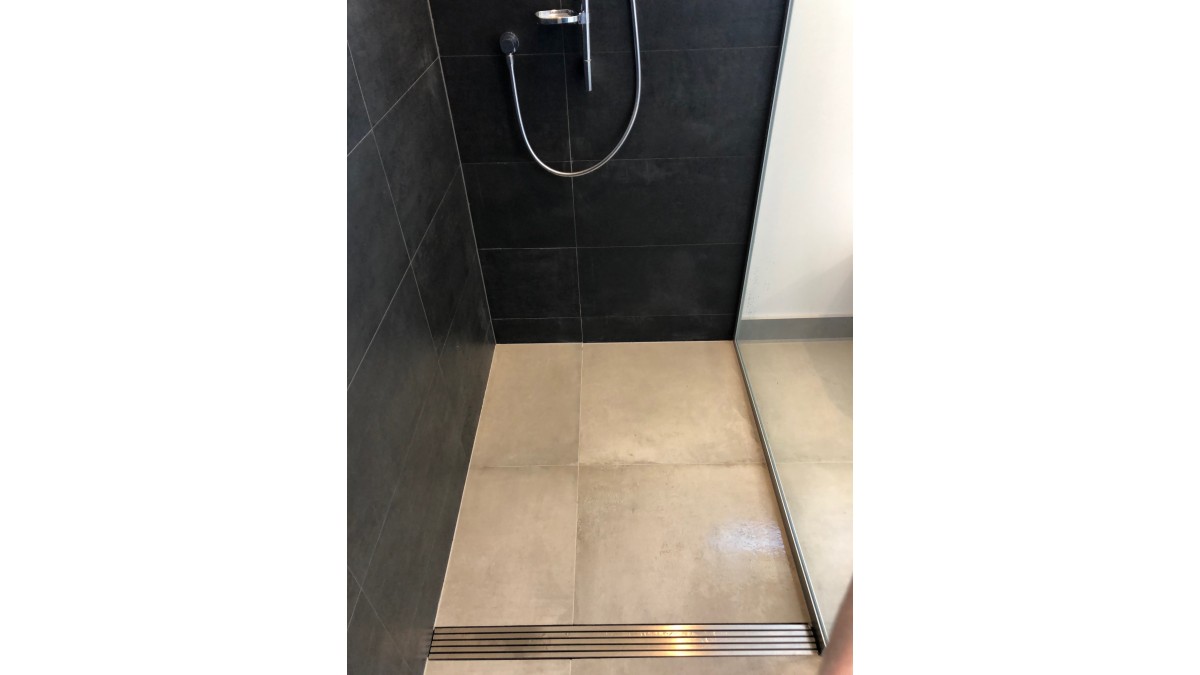

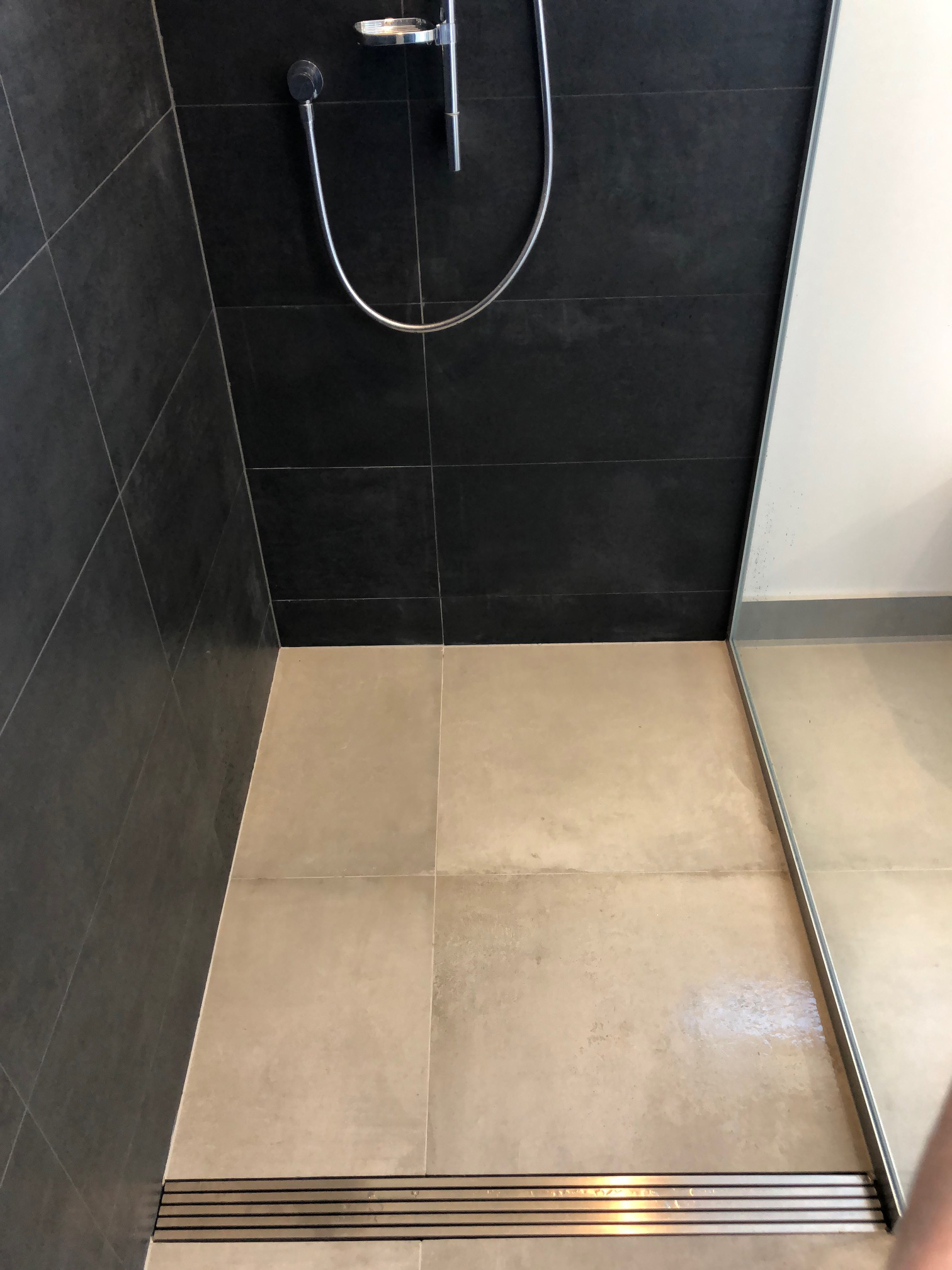

The JESANI Shower Channel — Centre has the ability to sit in a couple of locations in the shower area. It can sit across the shower between 2 walls, or alternatively as a level entry channel leading into the shower.

The level entry option eliminates the need for nib walls or step overs that can be potential hazards leading into the Shower.

The channels can be designed to any length, however, if a channel is designed to be 1800mm or longer, it is recommended to include 2 outlets.

• 50mm width trough
• 38mm threaded outlet
• Timber or concrete substrate
• To suit various floor coverings and can accommodate underfloor heating

See BRANZ Appraisal 934 for full information

Show more

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
• Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
• Clause F2 Hazardous Building Materials: Performance F2.3.1
• Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

Show more

BRANZ Appraised

Internal Moisture

Foul Water

The JESANI Door Channel is suitable for use to contain accidental overflow from sanitary fixtures or sanitary appliances to meet NZBC Clause E3.3.2.

Overflow from:

• Baths
• Showers
• Toilets
• Vanities
• Washing Machines
• Dishwashers
• Plumbed Fridges

The channel is installed along the threshold of interior doorways between wet and dry areas within the home/apartment/unit/holiday home, thus allowing the floor waste position to be located where water always finds its way out.

Suitable for standard door lengths, and in custom sizes:

• 40mm width trough
• 38mm threaded outlet
• 2 bar grill
• Timber or concrete substrate
• To suit various floor coverings, such as carpet to tile, and can accommodate underfloor heating

The Door Channel can also be classed as an Emergency Overflow, which allows an alternative option for the normal plumbing system.

See BRANZ Appraisal 934 for full information.

Show more

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
• Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
• Clause F2 Hazardous Building Materials: Performance F2.3.1
• Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

Show more

BRANZ Appraised

Internal Moisture

Foul Water
