JESANI Shower Channel — Central
Description

The channel is manufactured in Grade 304 Stainless Steel with a 10-40mm deep trough and extensive vertical and horizontal flanges.

The level entry design creates a more accessible and safer floor area for all ages, abilities and mobility aids, eliminating the uneven four way fall to a centre floor drain and also hazardous nib walls/step overs into the shower.

The stainless steel flange system allows for easy installation and fixing and additionally protects the critical joins around the vital areas of water drainage.

Key Features
  • BRANZ Appraised
  • LIFEMARK Product Approved
  • Grade 304 Stainless Steel (316 upon request)
  • Stainless Finish

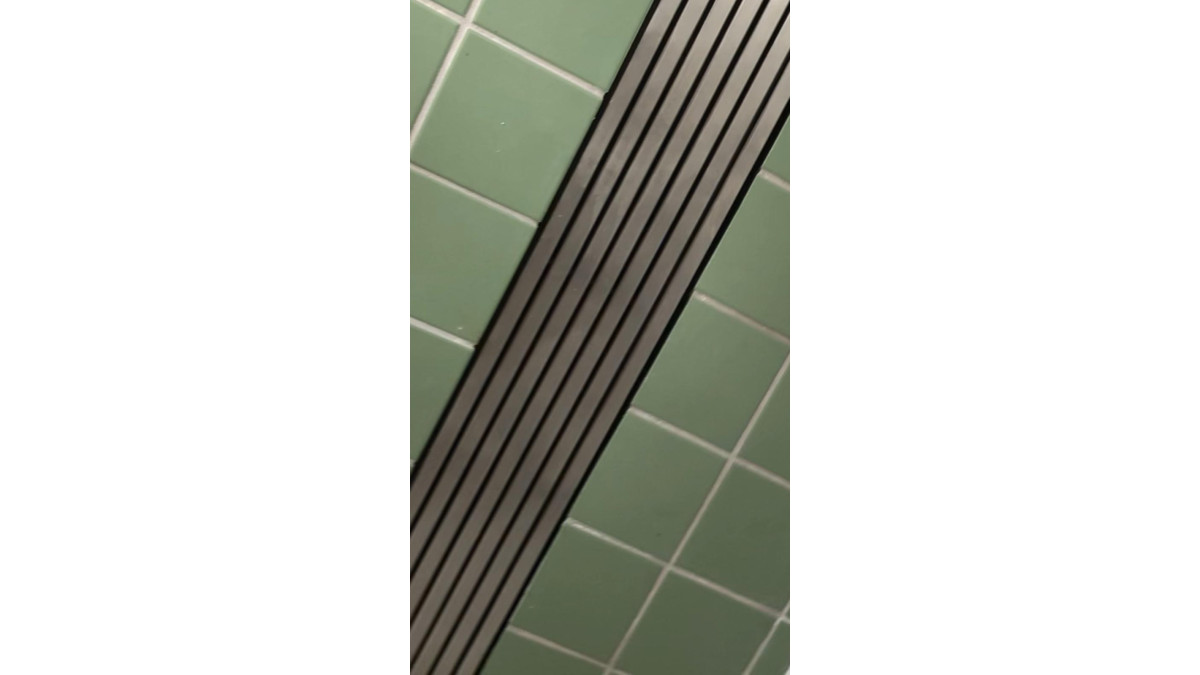

  • Powder Coated Grill/Grate available upon request

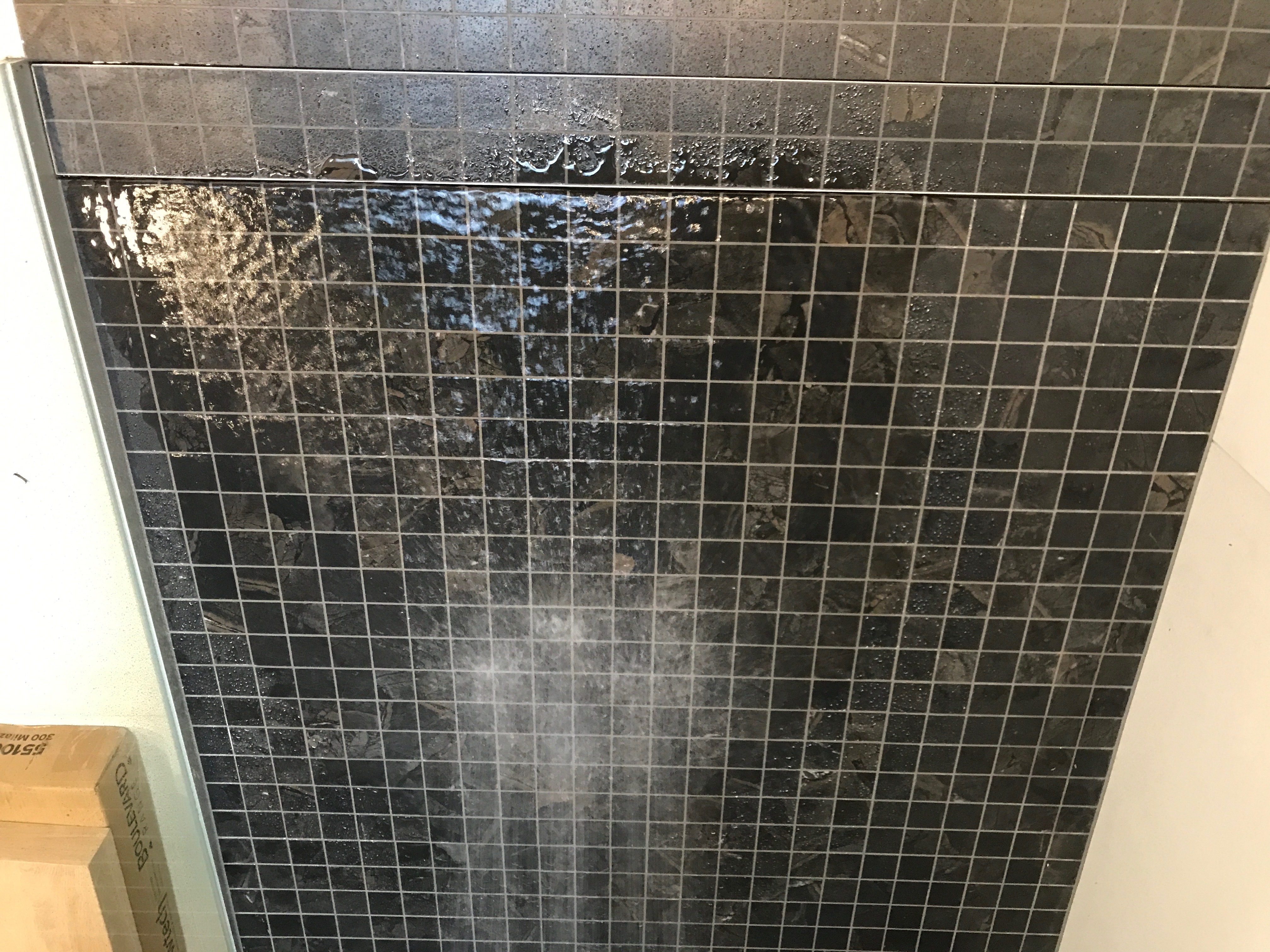

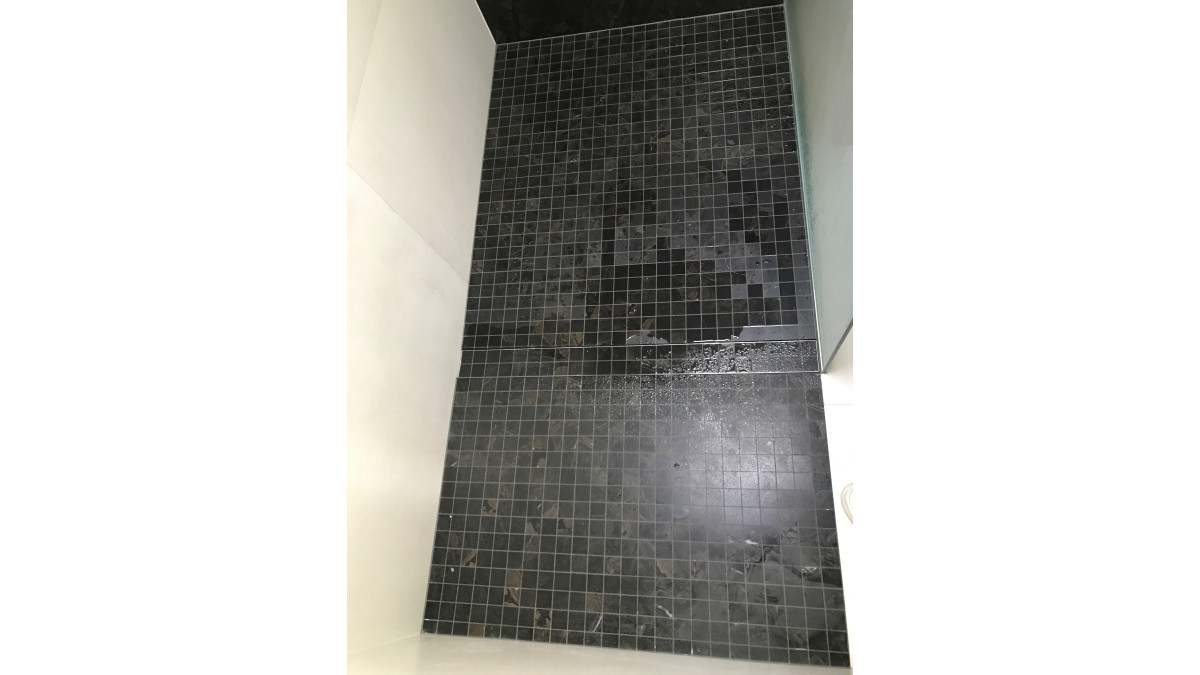

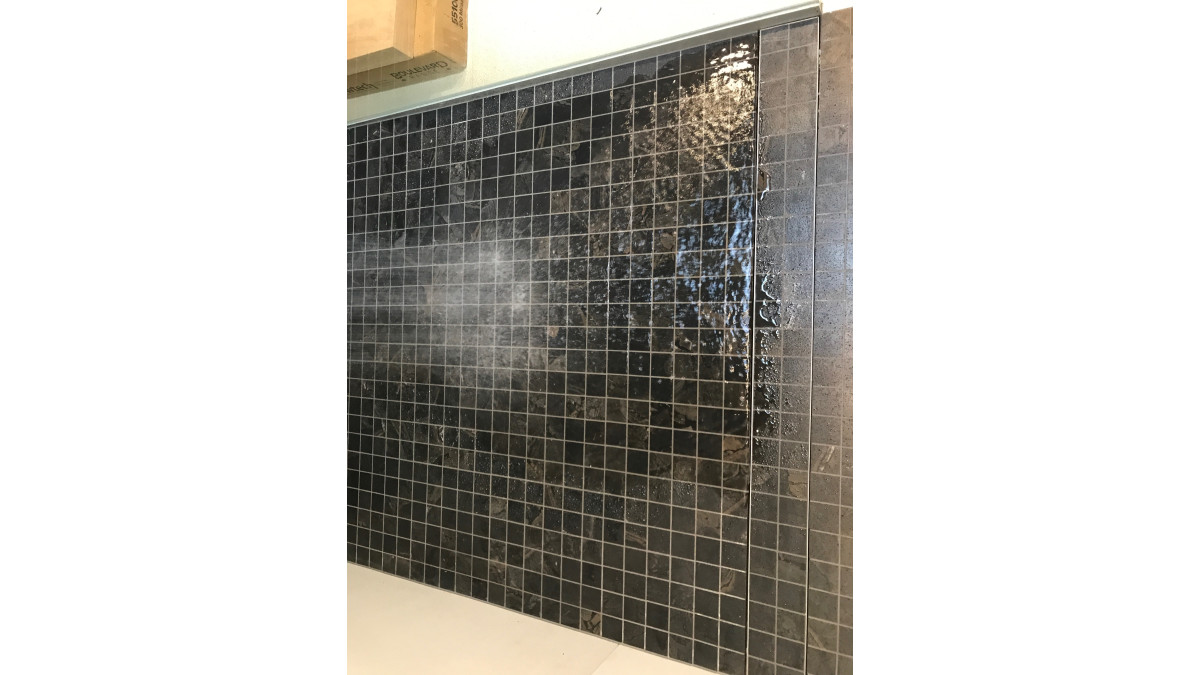

  • Tile insert option upon request
  • Flange configuration to suit tiled walls or glass walls
  • Custom designed lengths and outlet positioning
  • 50mm threaded outlet
  • Easy installation
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
Scope of Use

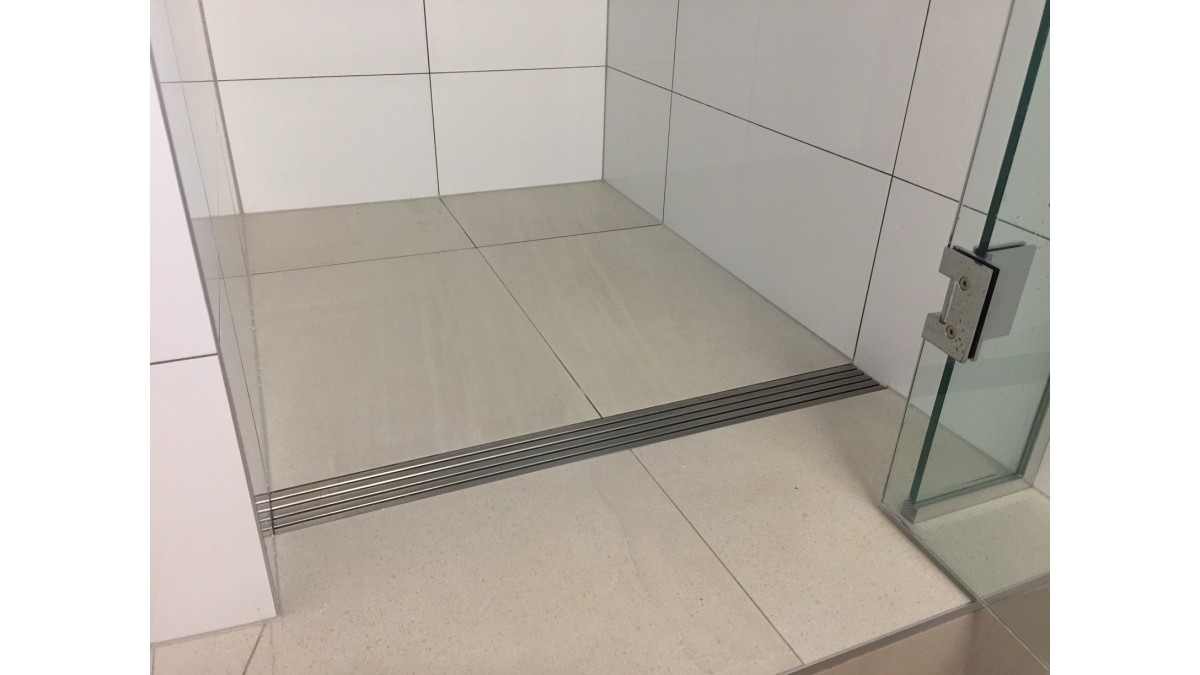

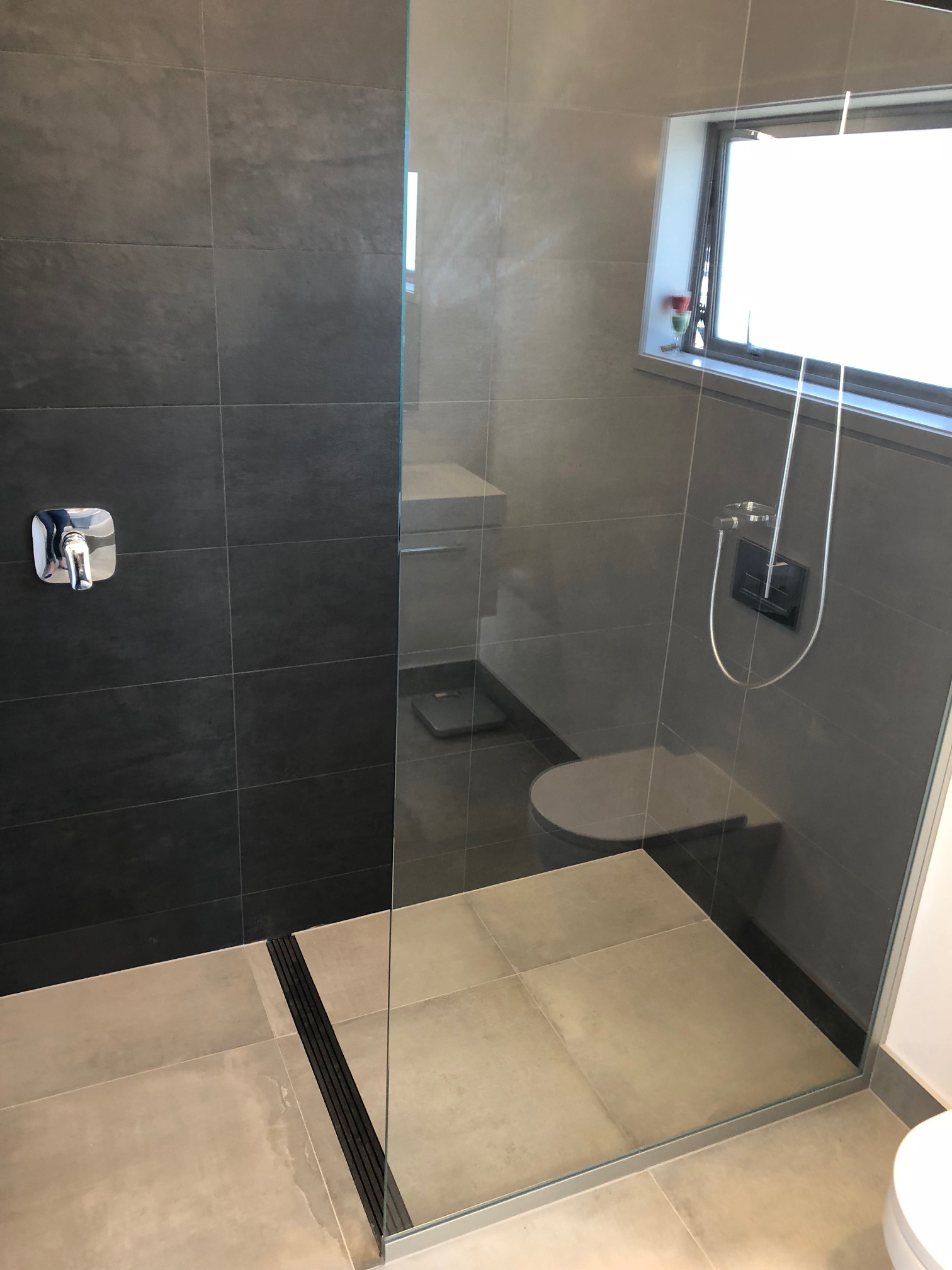

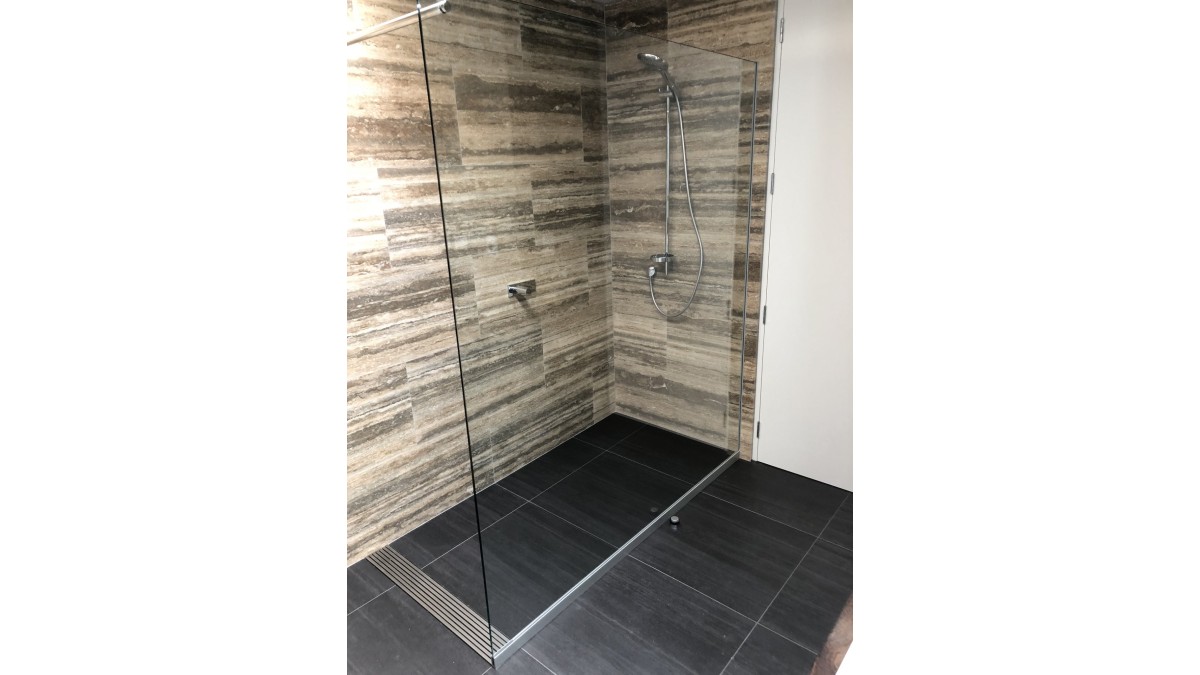

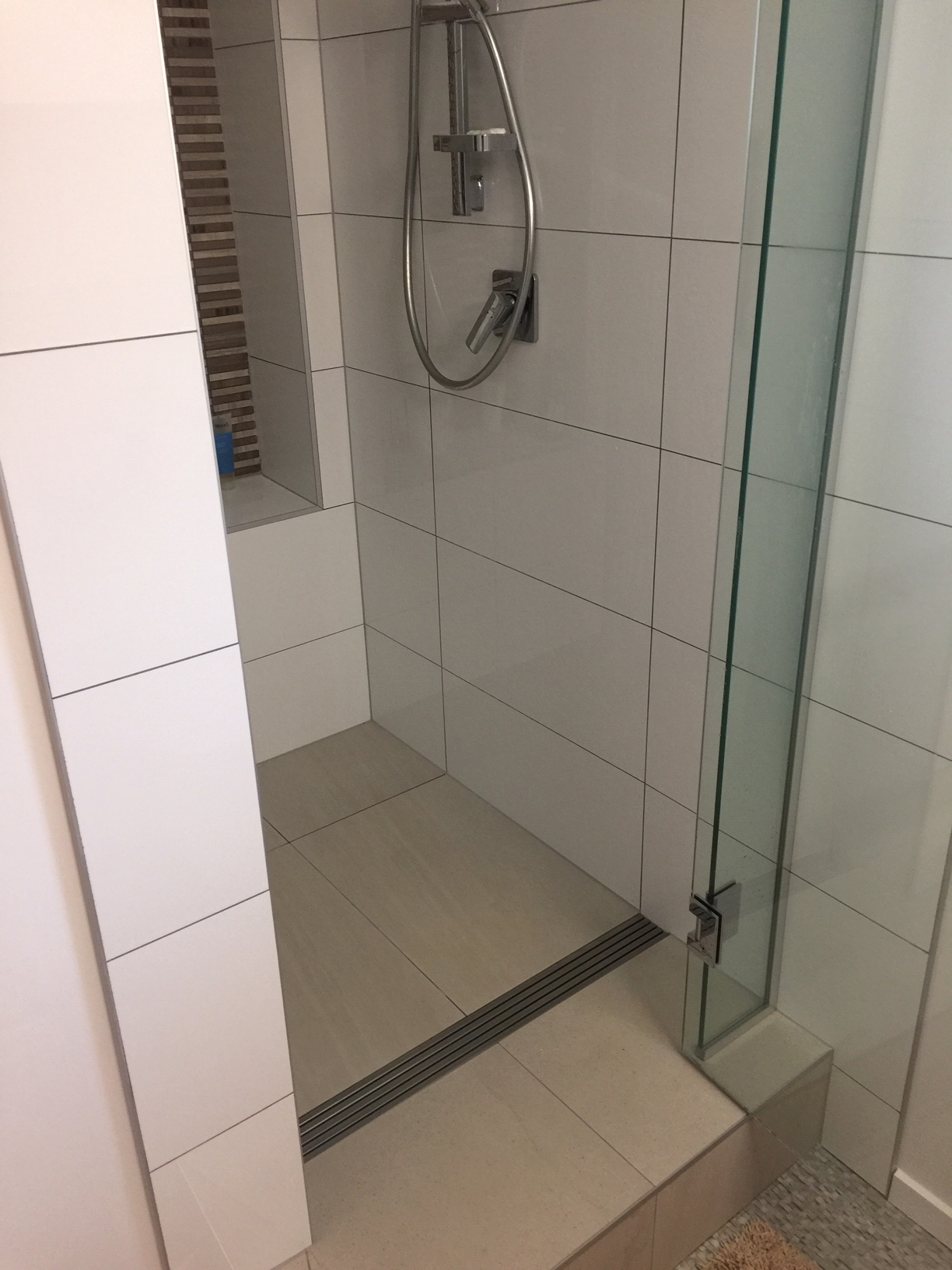

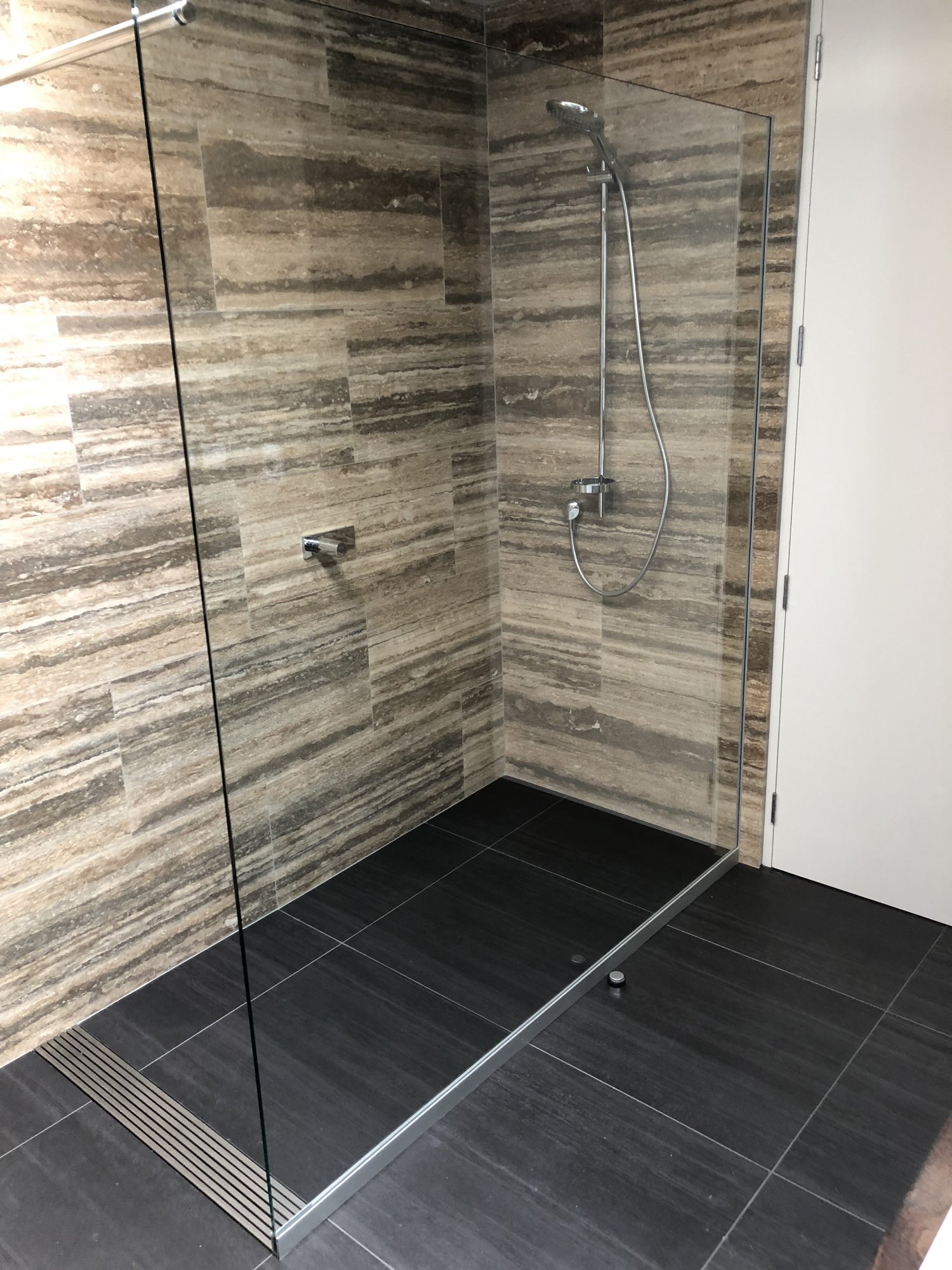

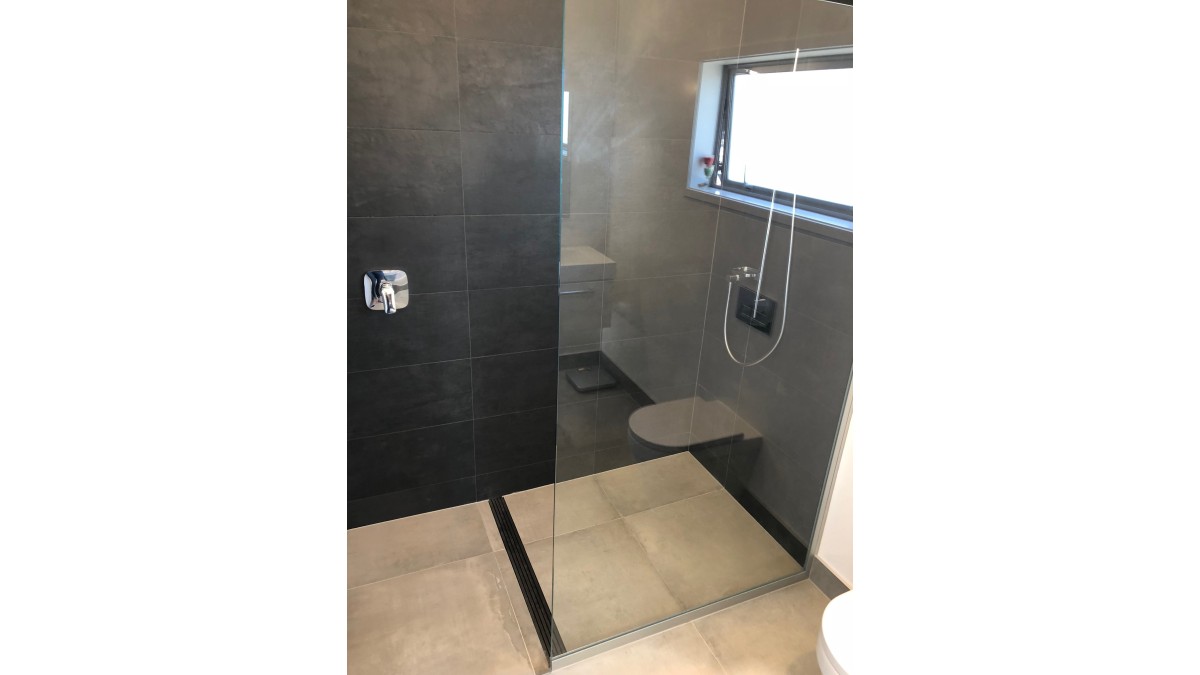

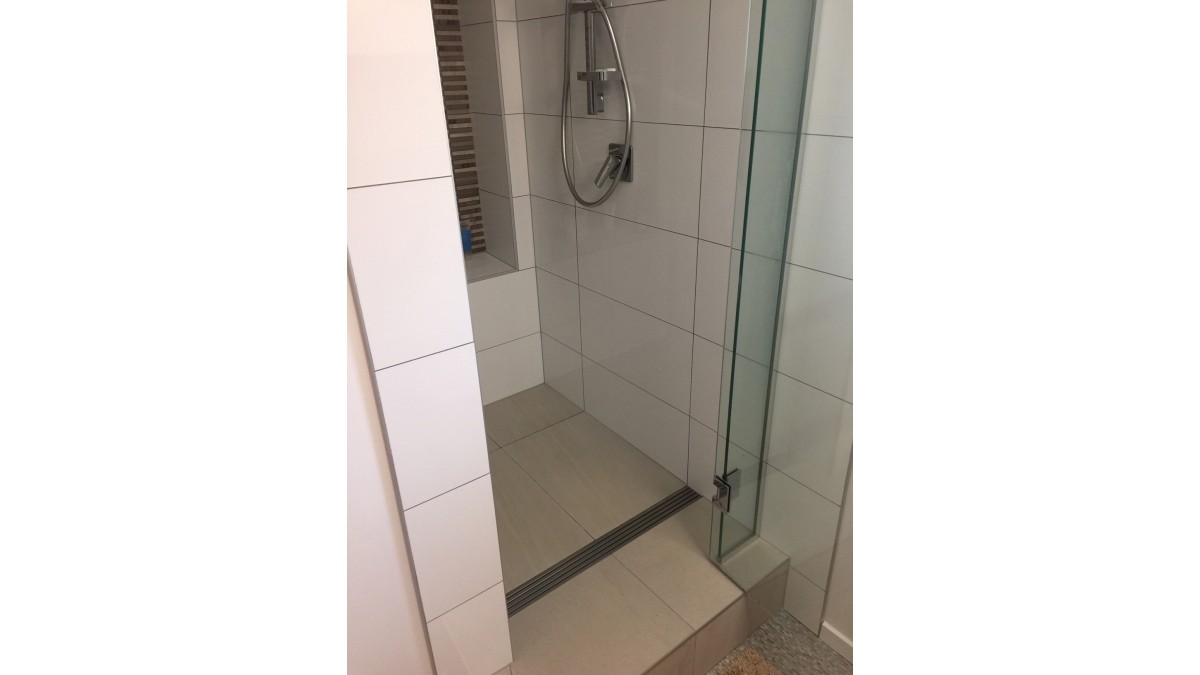

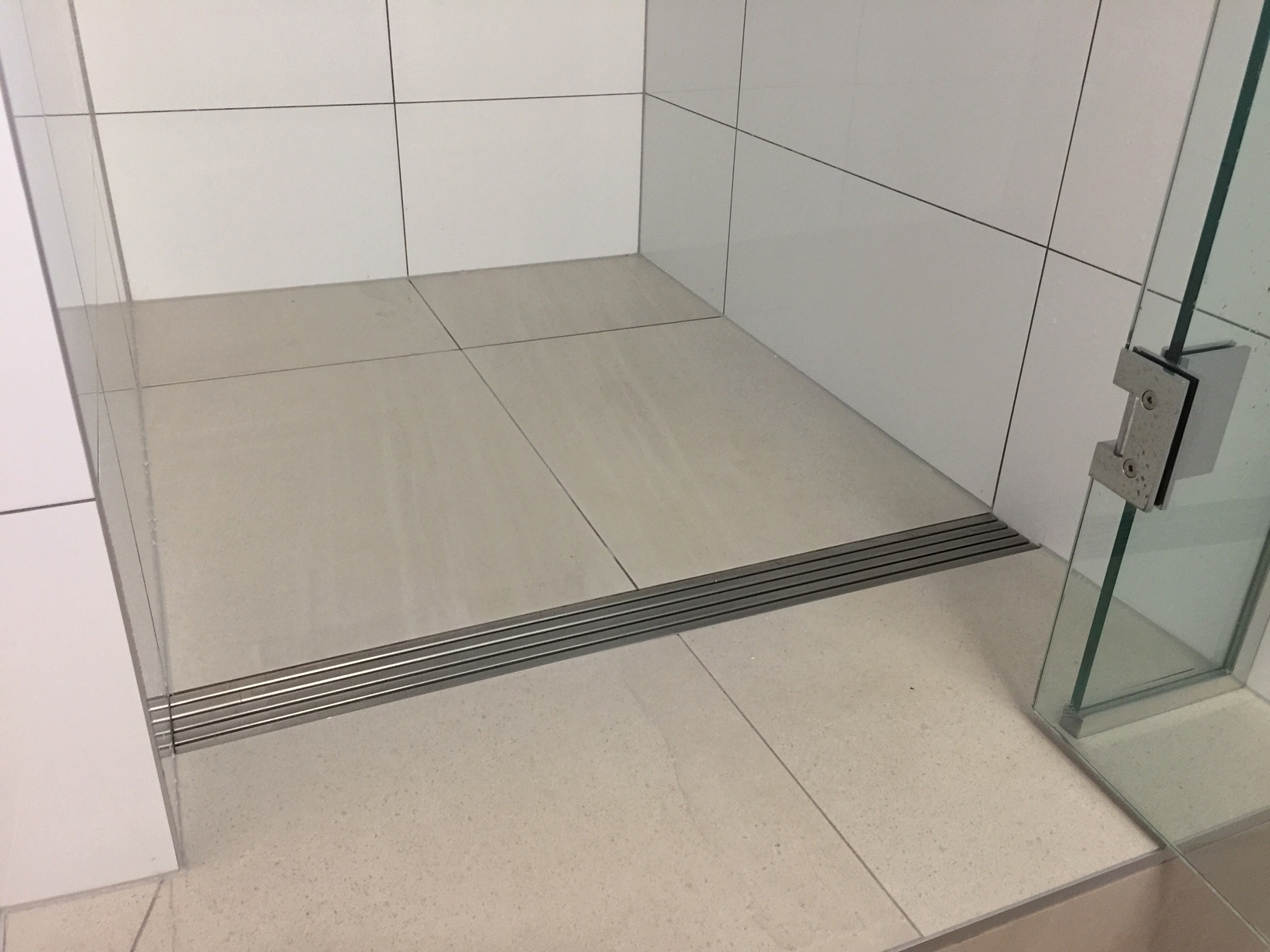

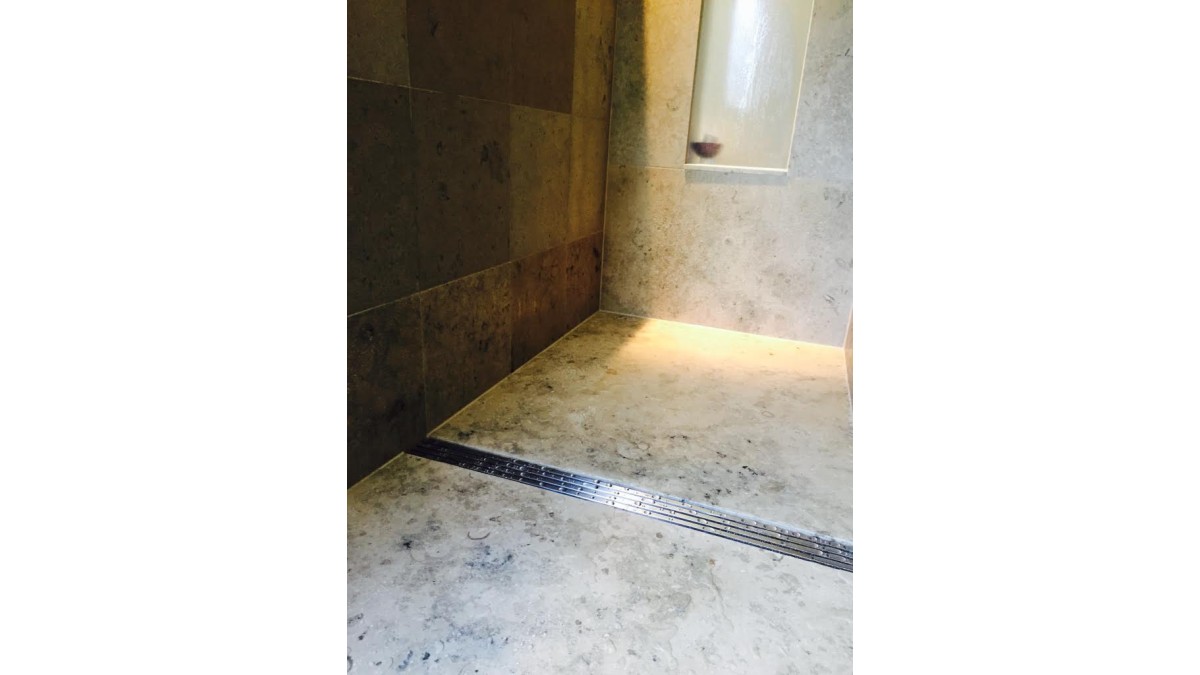

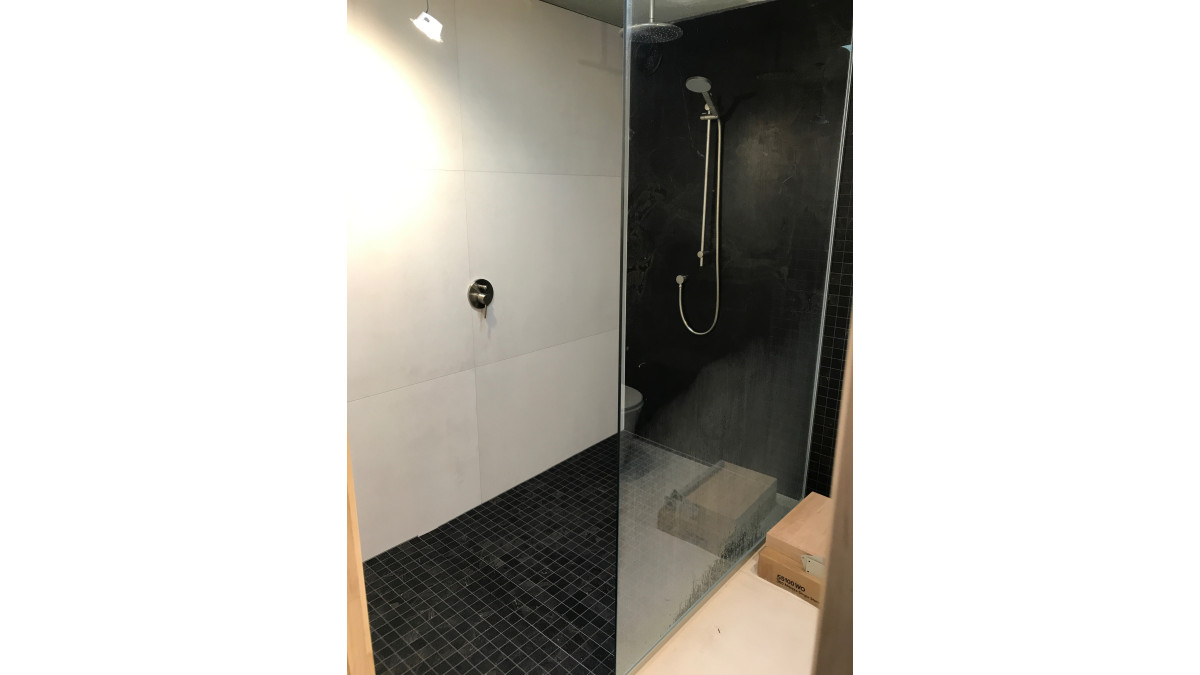

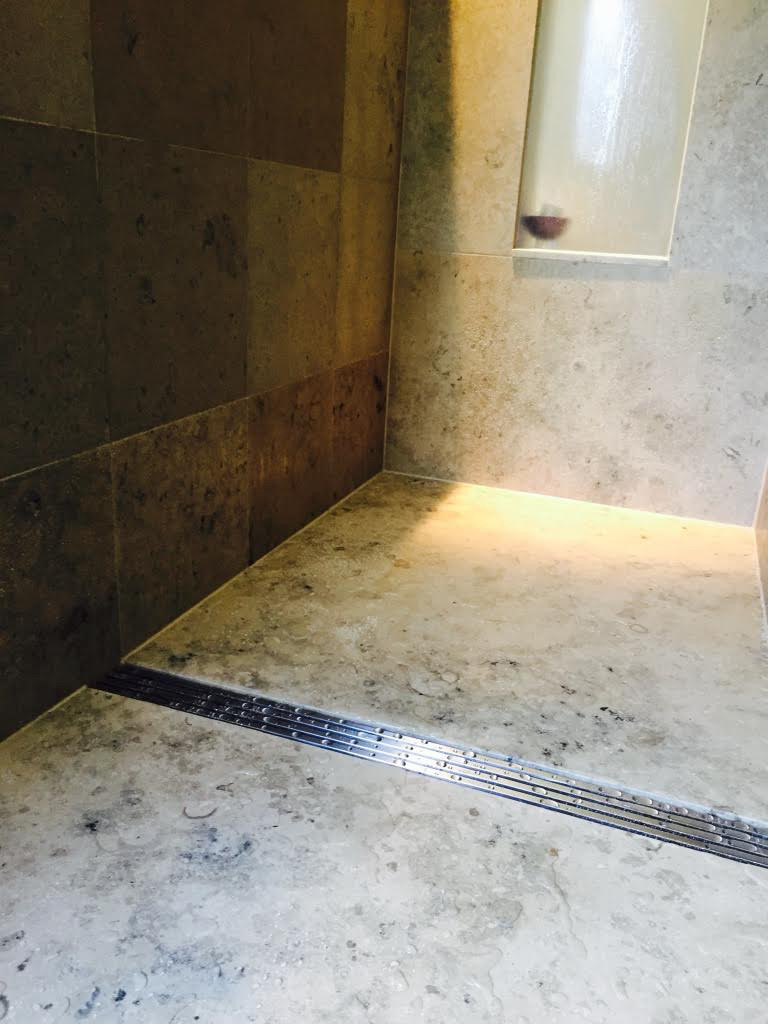

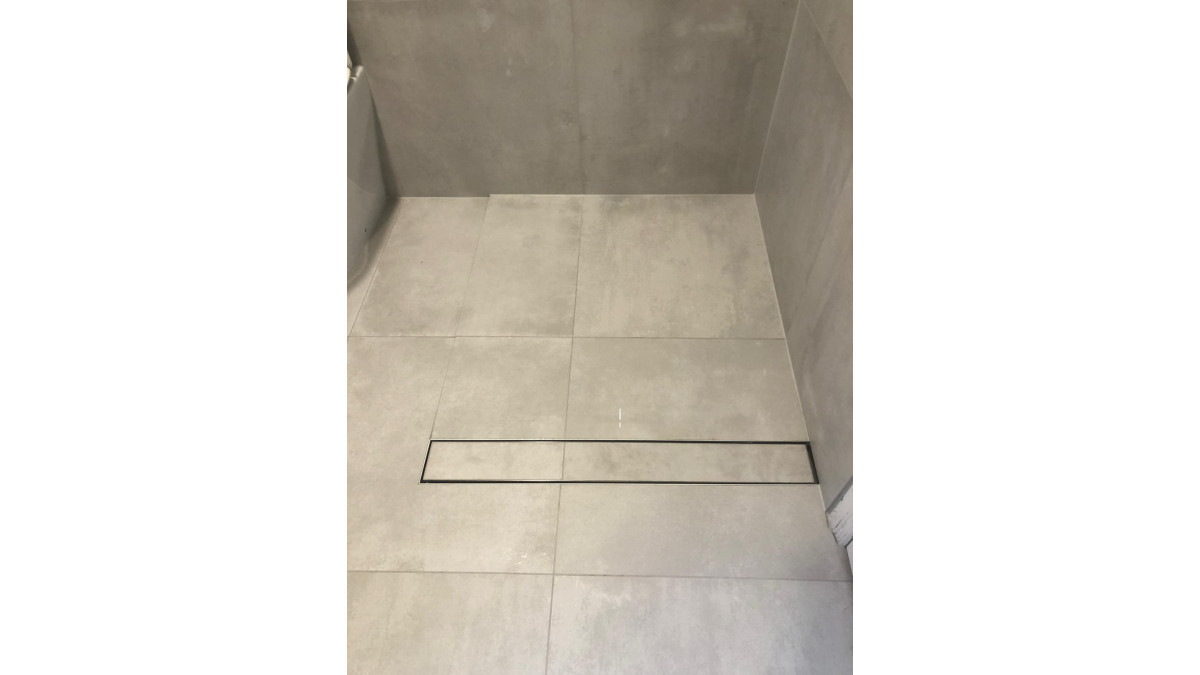

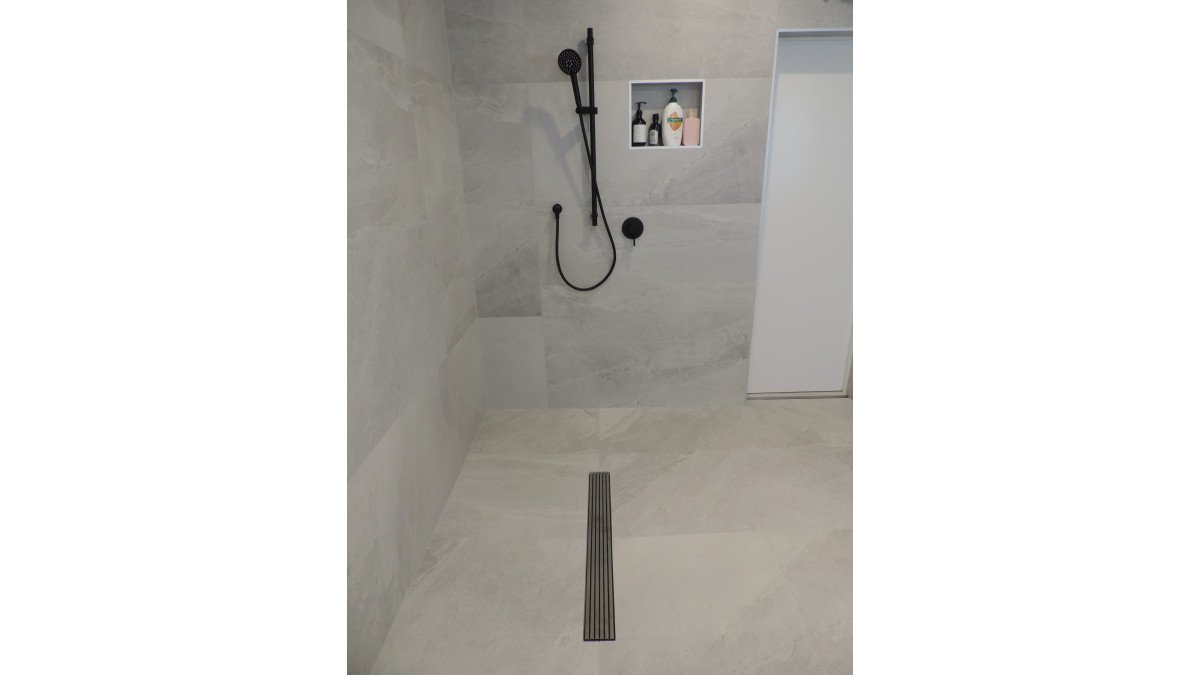

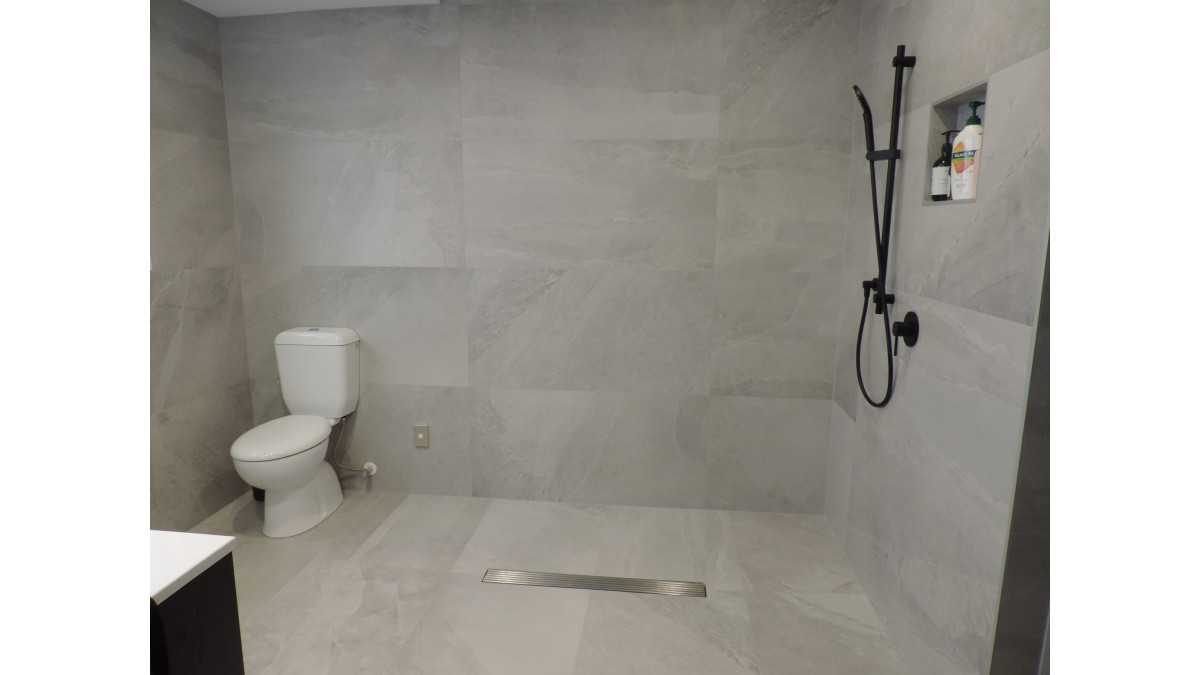

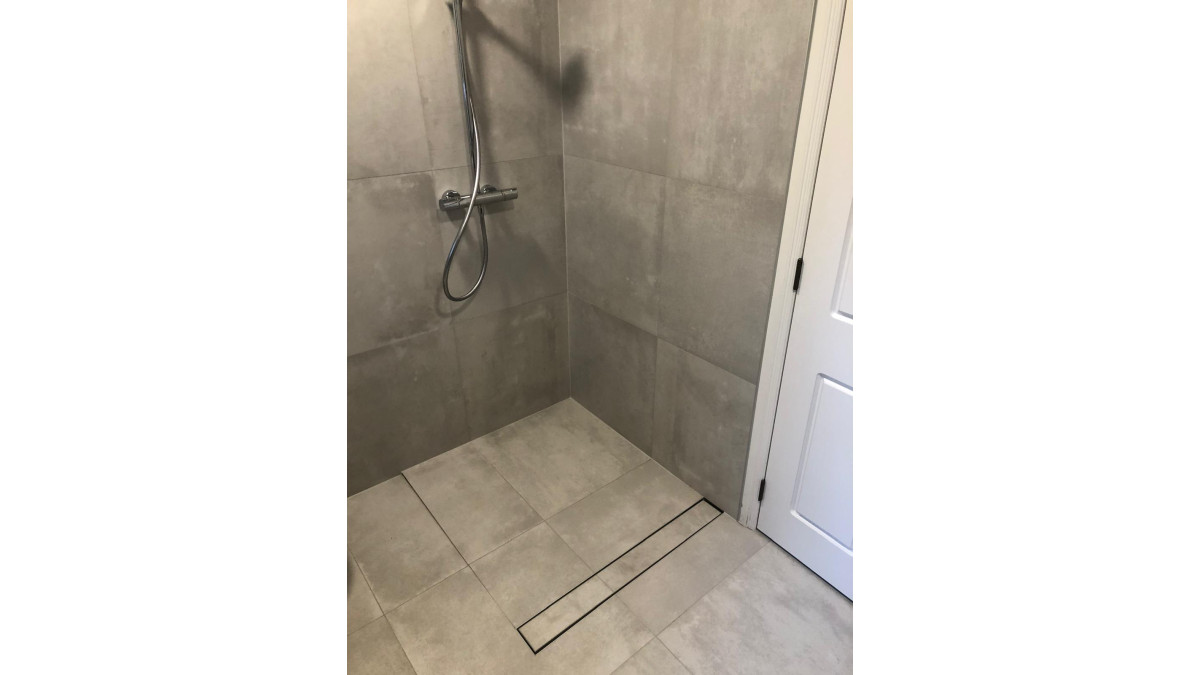

The JESANI Shower Channel — Centre has the ability to sit in a couple of locations in the shower area. It can sit across the shower between 2 walls, or alternatively as a level entry channel leading into the shower.

The level entry option eliminates the need for nib walls or step overs that can be potential hazards leading into the Shower.

The channels can be designed to any length, however, if a channel is designed to be 1800mm or longer, it is recommended to include 2 outlets.

  • 50mm width trough
  • 38mm threaded outlet

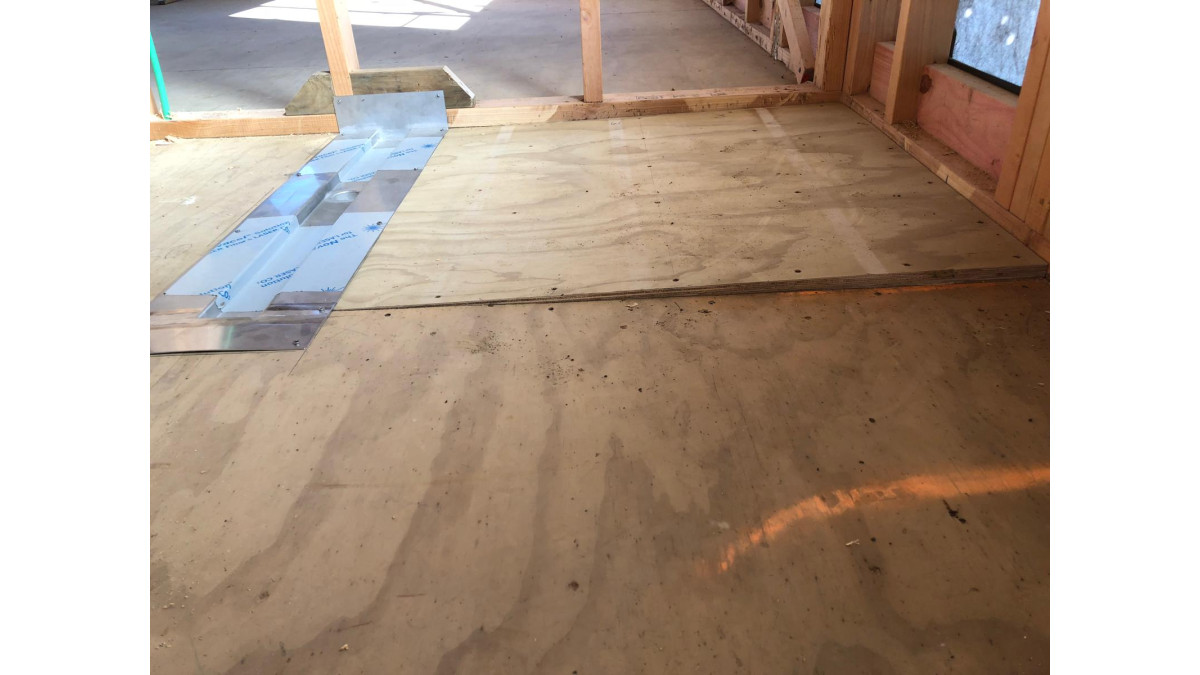

  • Timber or concrete substrate
  • To suit various floor coverings and can accommodate underfloor heating

See BRANZ Appraisal 934 for full information



Limitations on Use
  • Designed for interior use only
Statement of Building Code Compliance

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
  • Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

In-Service History
  • The JESANI Central Shower Channel has been in use since 2015, with the Wall-Mounted version in use since 2010
  • In 2018 there was in increase in the use of the Central Shower channel as a level entry drainage channel for showers
Other Performance Attributes
  • BRANZ Appraisal 934
  • LIFEMARK product approved
  • Grade 304, 1.5mm thick stainless steel (Grade 316 if requested/required)

Durability

The serviceable life of JESANI Shower and Door Channels, when subjected to normal conditions of environment and use, is expected to be compatible with the waterproofing membrane and floor finishes to which they are fitted.

Maintenance

Cleaning care of the stainless steel channel:

  • Avoid carbon steel brushes or steel wool and abrasive detergents; the brushes and wool may leave particles embedded on the surface which can lead to rusting, and abrasive cleaners could introduce the possibility of scratching the surface
  • Clean warm water and wipe are the simplest and safest method, followed by a clean water rinse and dry wipe. Stainless steels thrive with frequent cleaning
  • Periodically allow a cup of clean water to flow down the drain to keep it clear of dust/lint buildup
BRANZ Appraised
BRANZ Appraised
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Documents
BRANZ Appraisal 934

934 [2021]

Installation and Operation
Brochure
Video Demonstrations
CAD/PDF Details

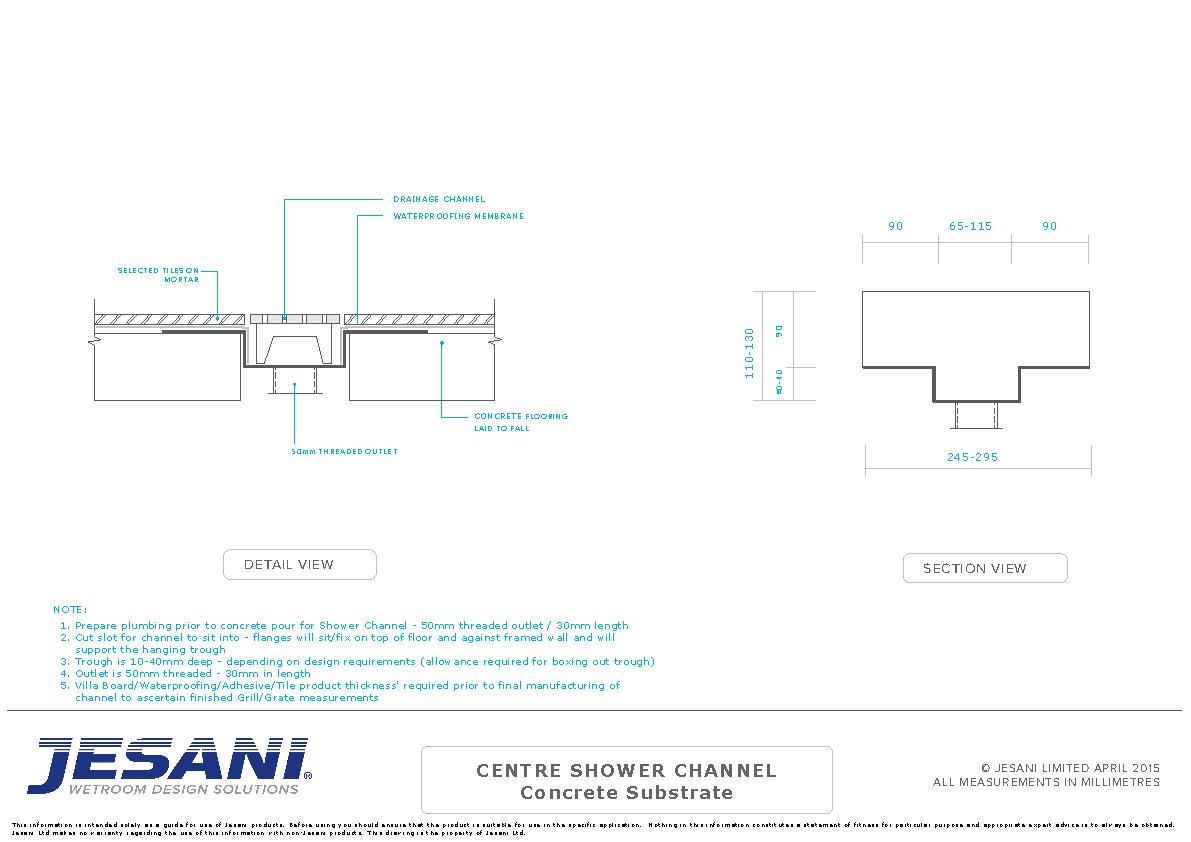

Shower Channel Central — Concrete Floor

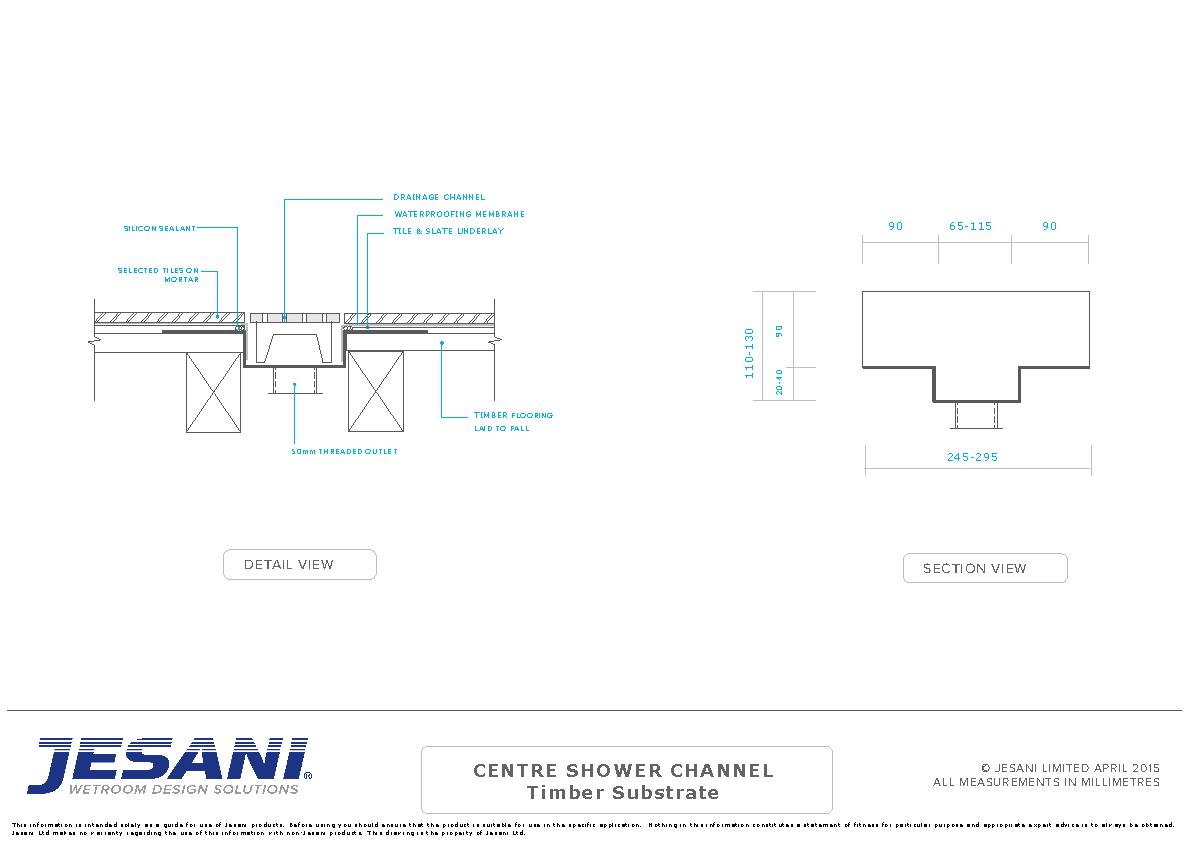

Shower Channel Central — Timber Floor

JESANI deliver New Zealand made custom made linear shower and door channels for residential and commercial use

Product Enquiries

News from JESANI

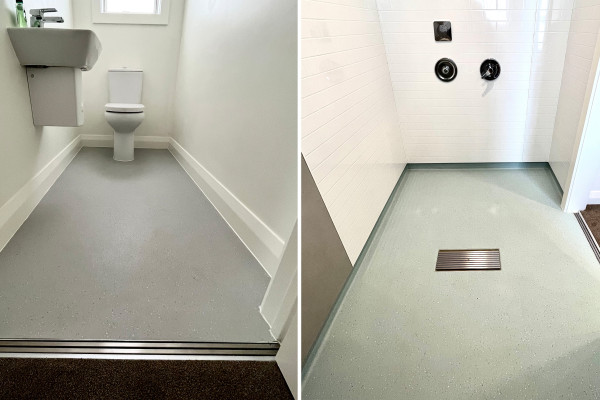

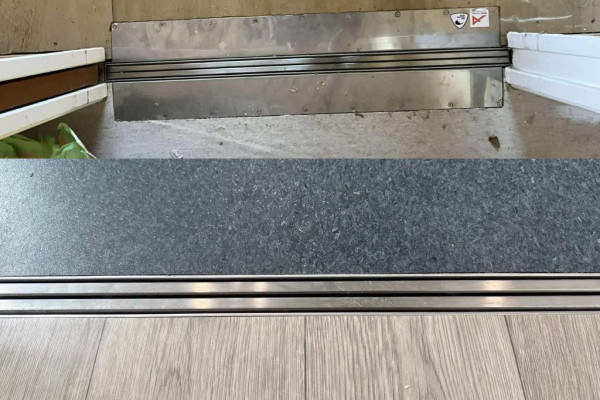

Innovative Flood Prevention with the Jesani Door Channel
