JESANI Shower Channel — Wall Mounted
Description

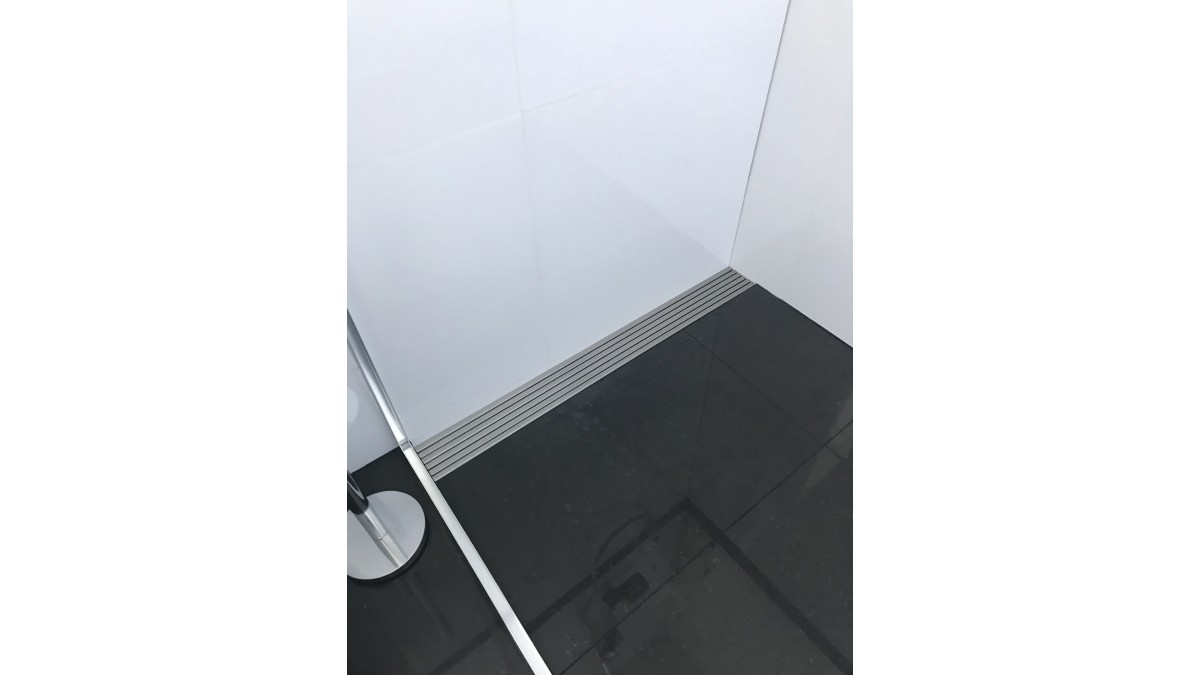

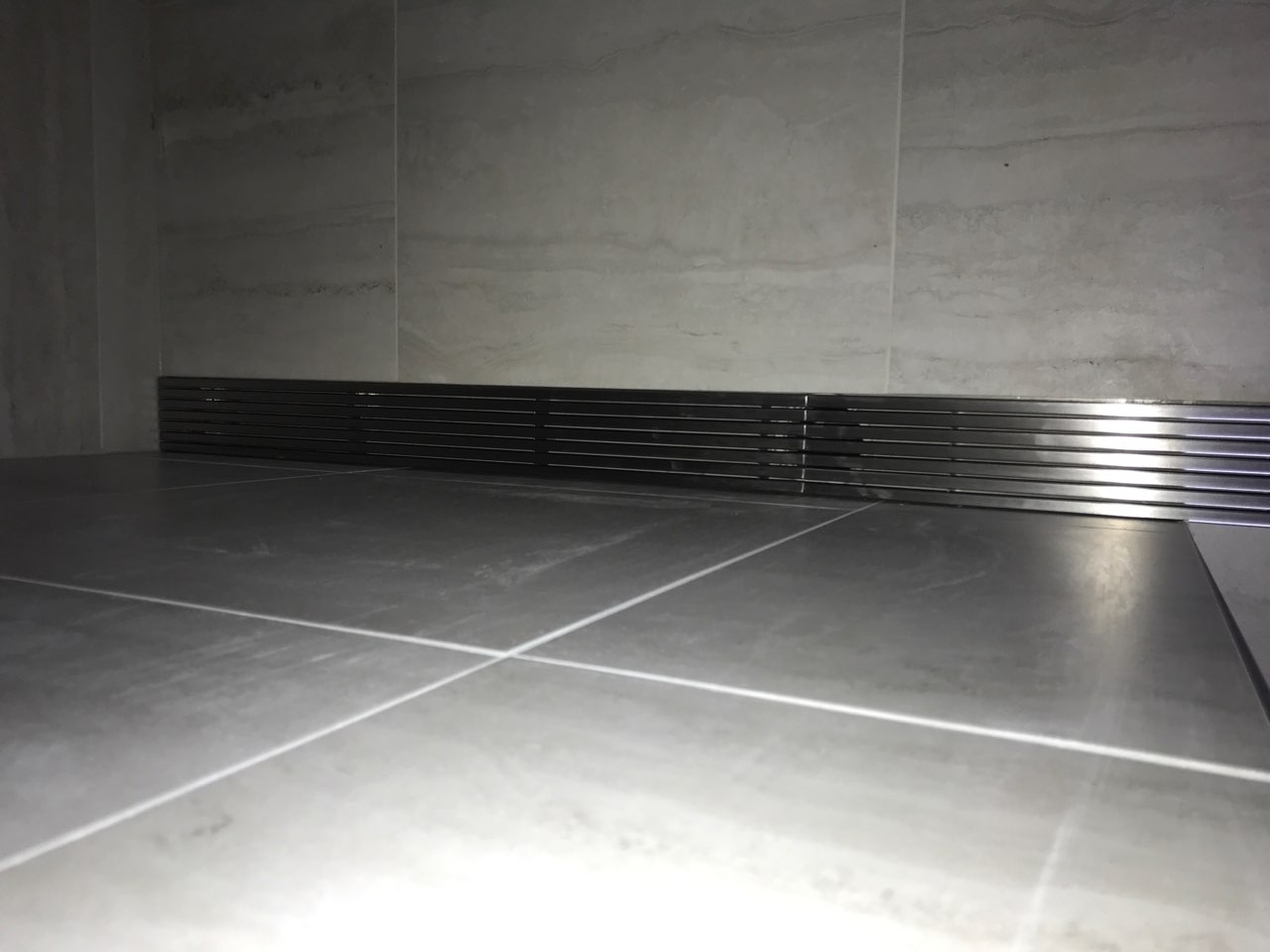

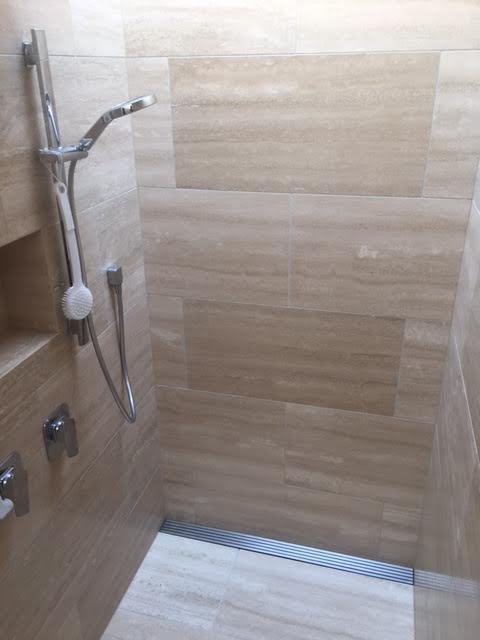

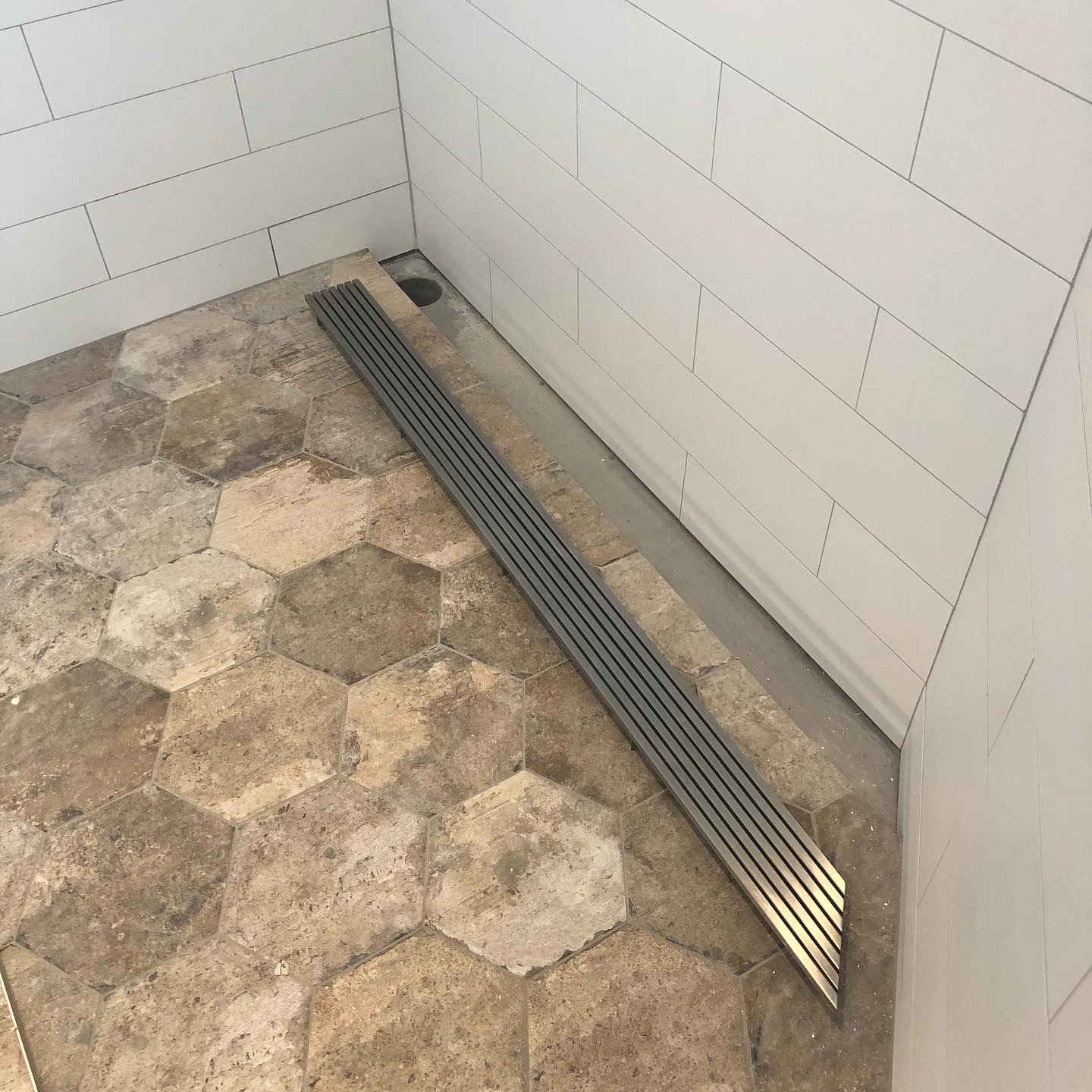

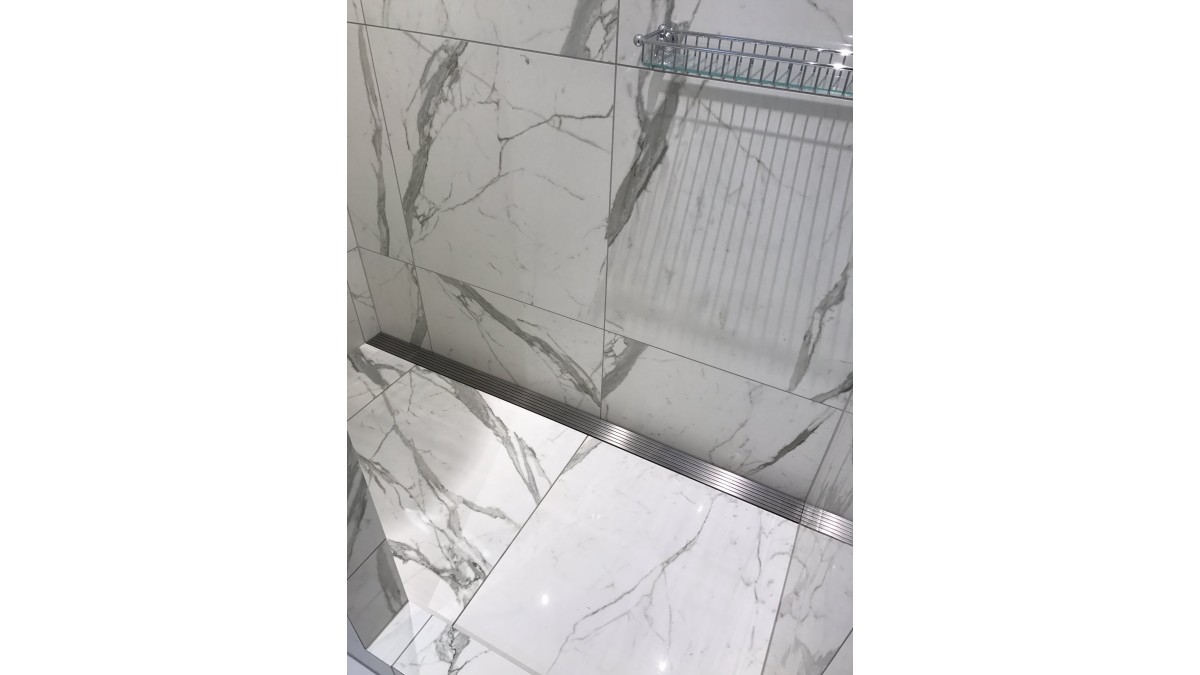

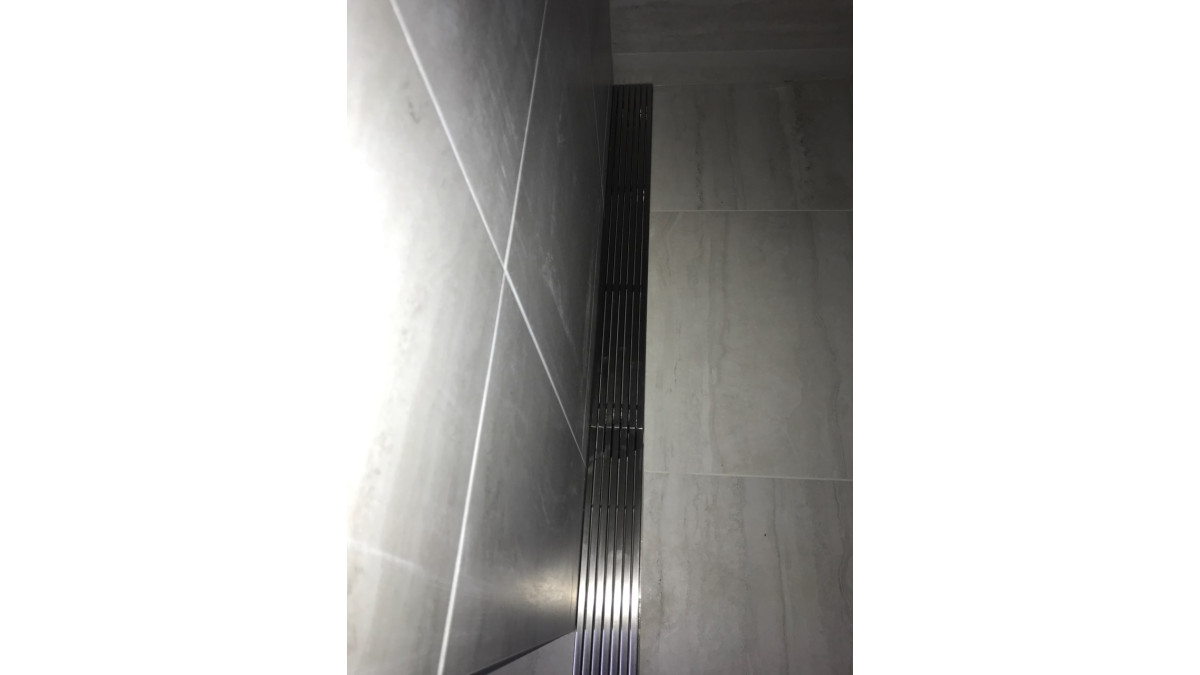

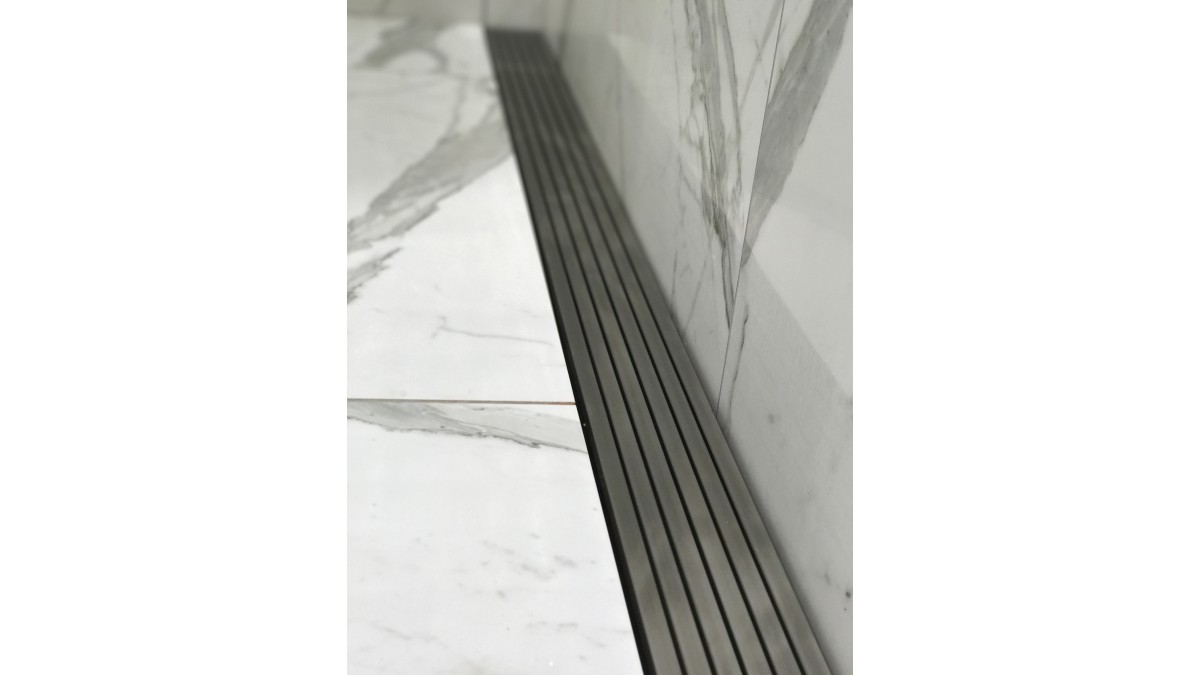

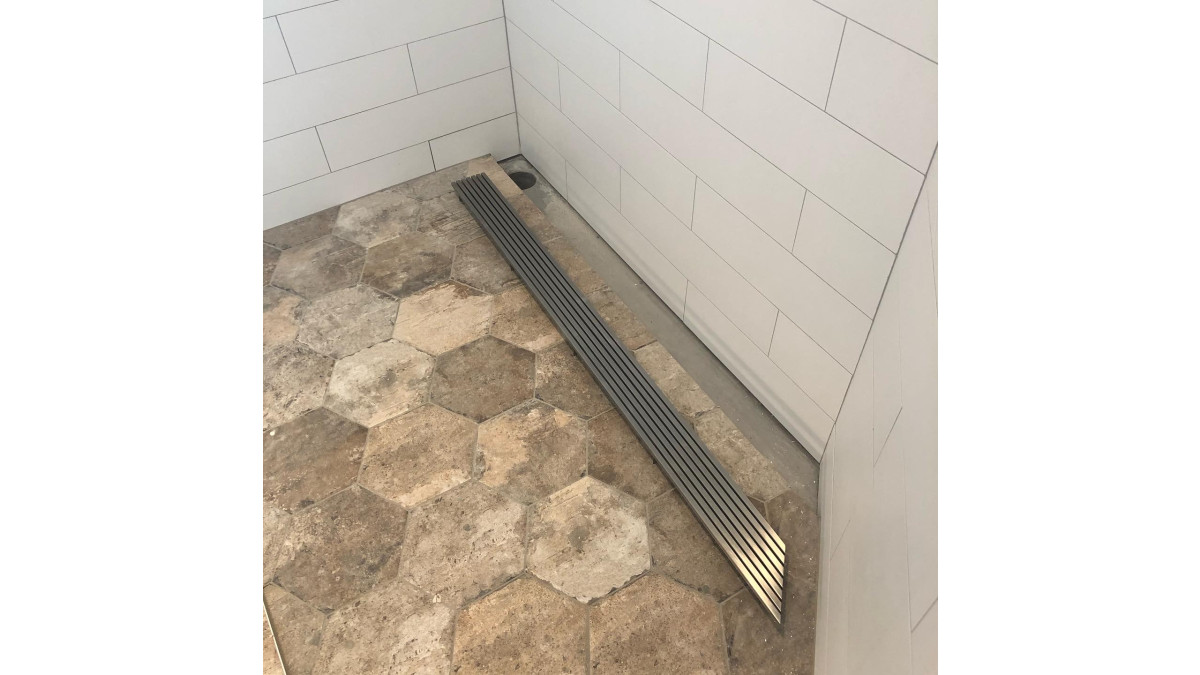

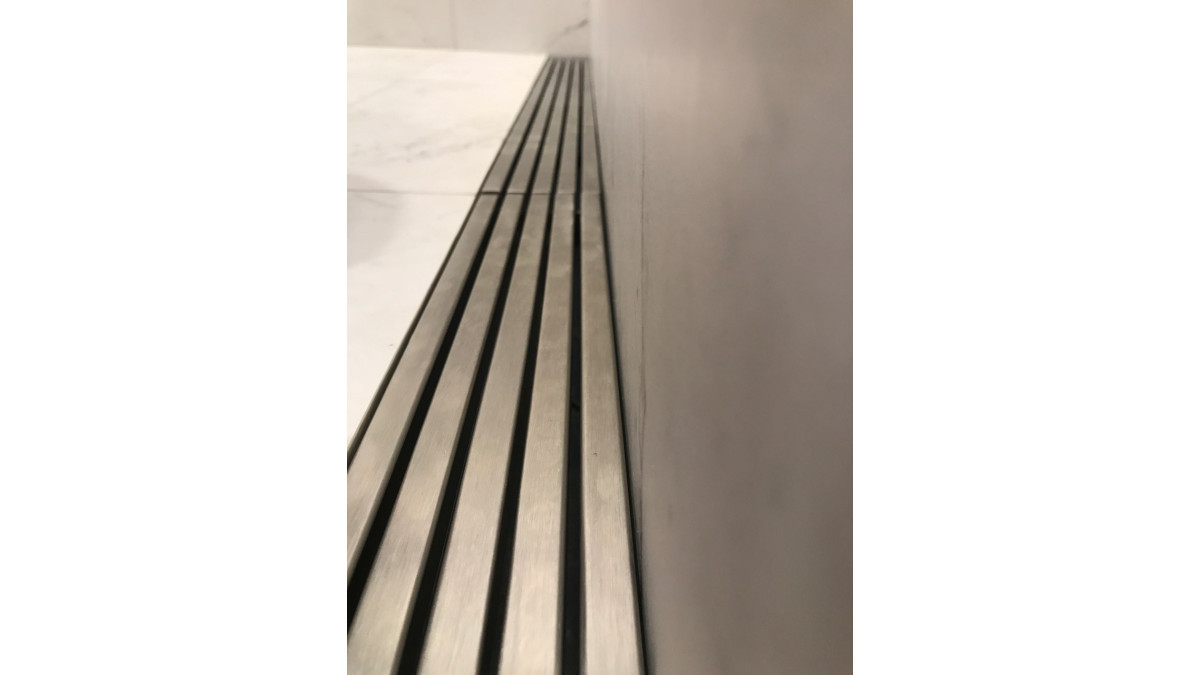

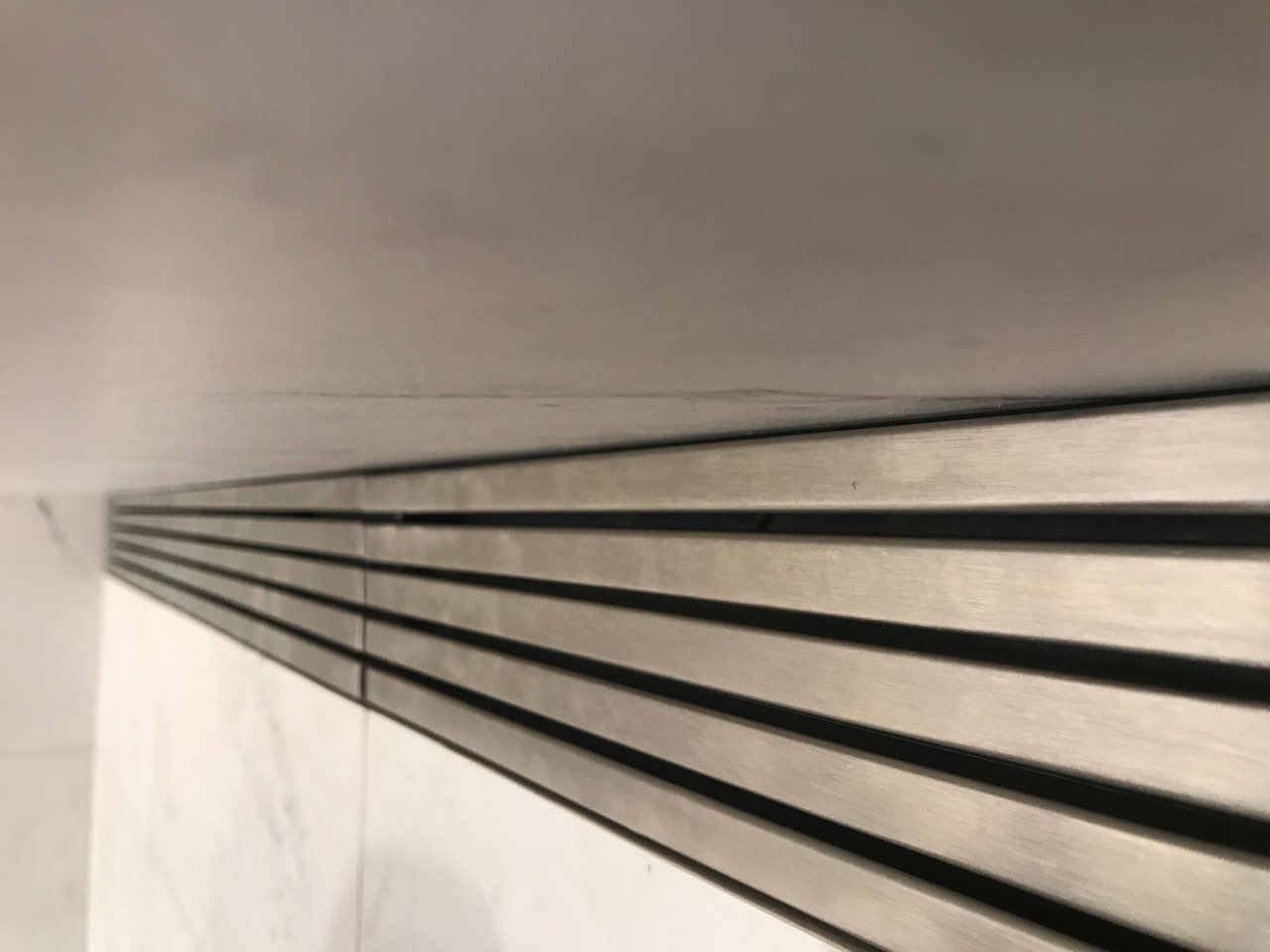

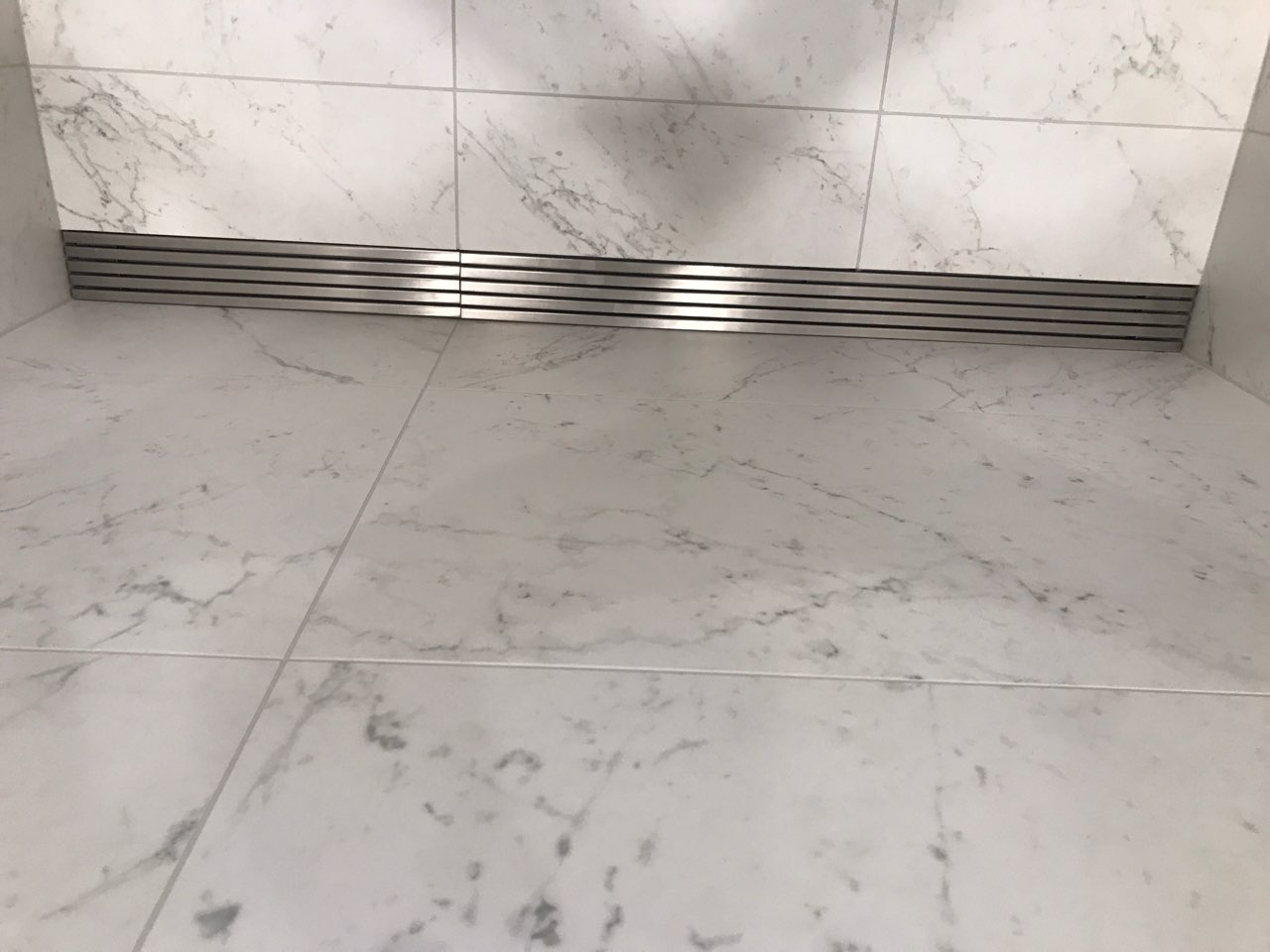

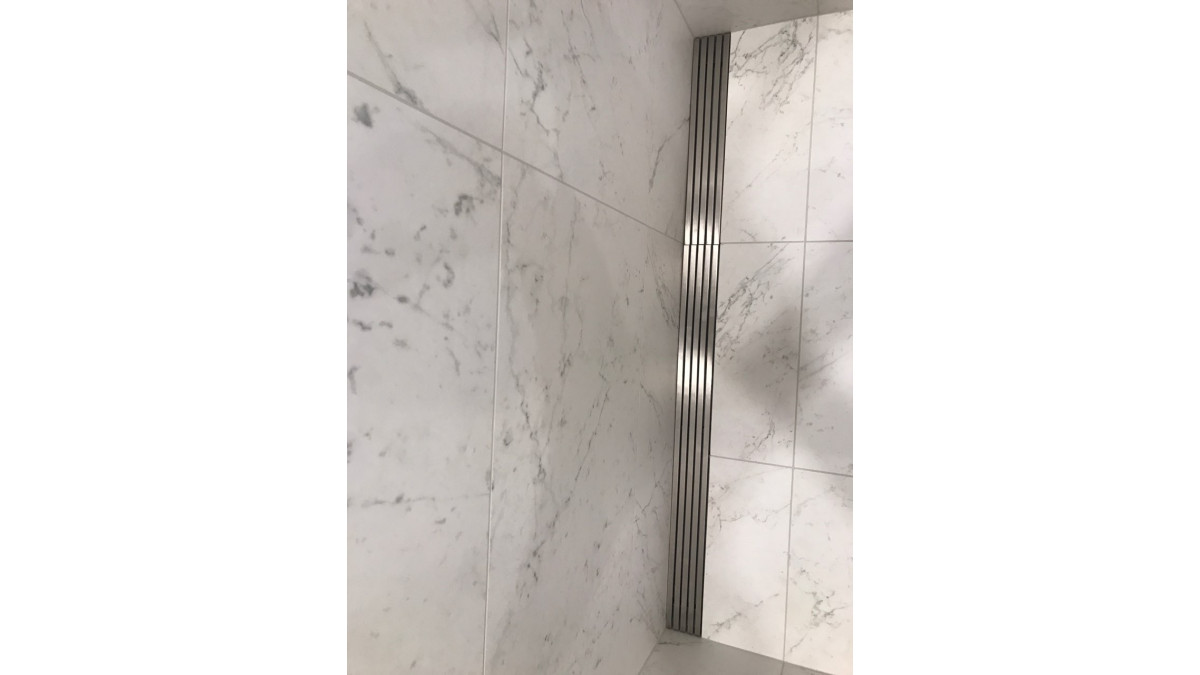

The Wall Mounted JESANI Shower Channel has been designed to sit against the shower wall with a 20-40mm deep stainless steel trough that is surrounded with extensive vertical and horizontal flanges.

This design creates a more accessible and safer floor area for all ages, abilities and mobility aids, eliminating the uneven four-way fall to a centre floor drain.

The stainless steel flange system allows for easy installation and fixing, and additionally protects the critical joins between wall and flooring around the vital areas of water drainage.

Key Features
  • BRANZ Appraised
  • LIFEMARK Product Approved
  • Grade 304 Stainless Steel (316 upon request)
  • Stainless Finish
  • Powder Coated Grill/Grate available upon request

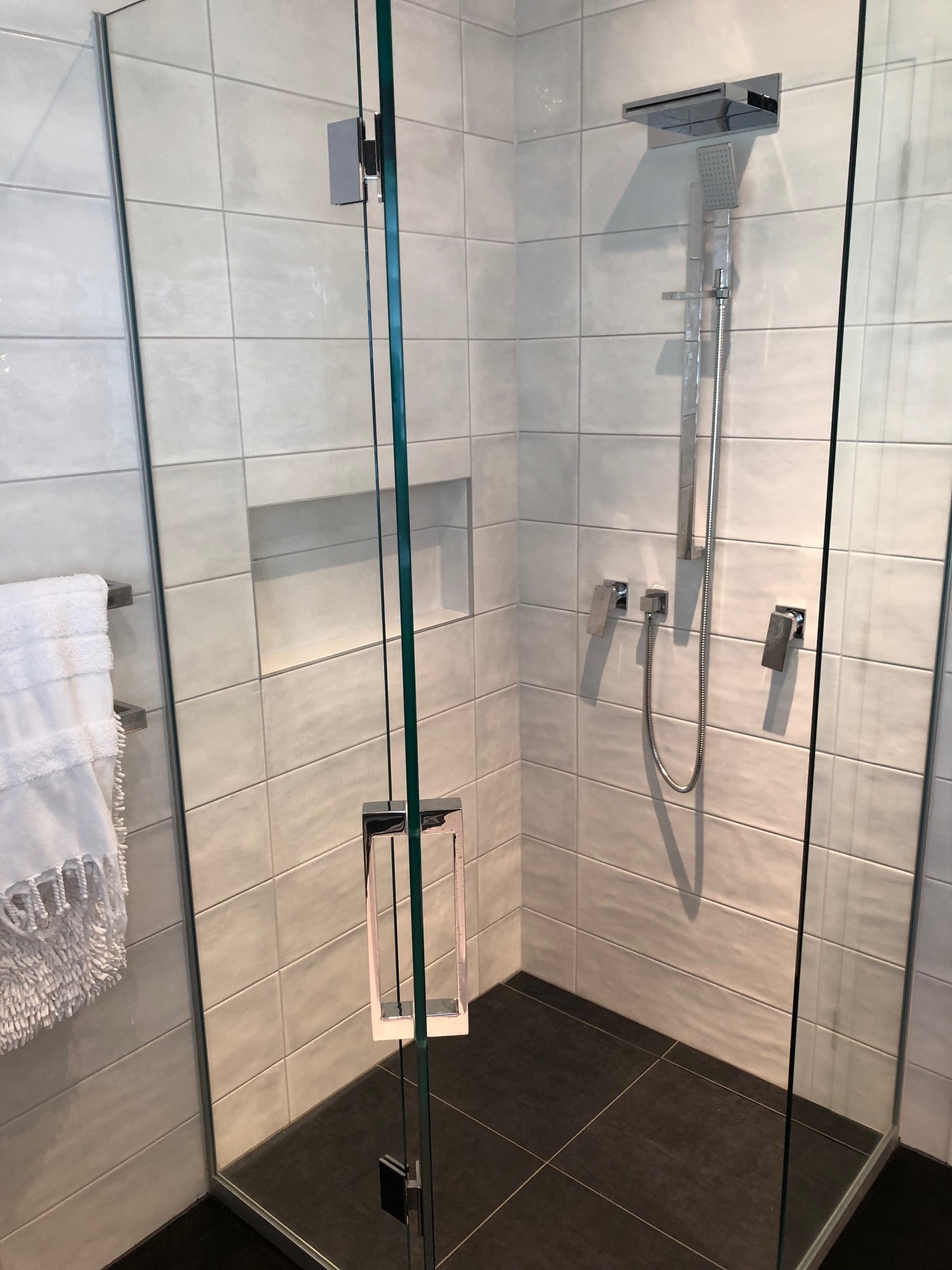

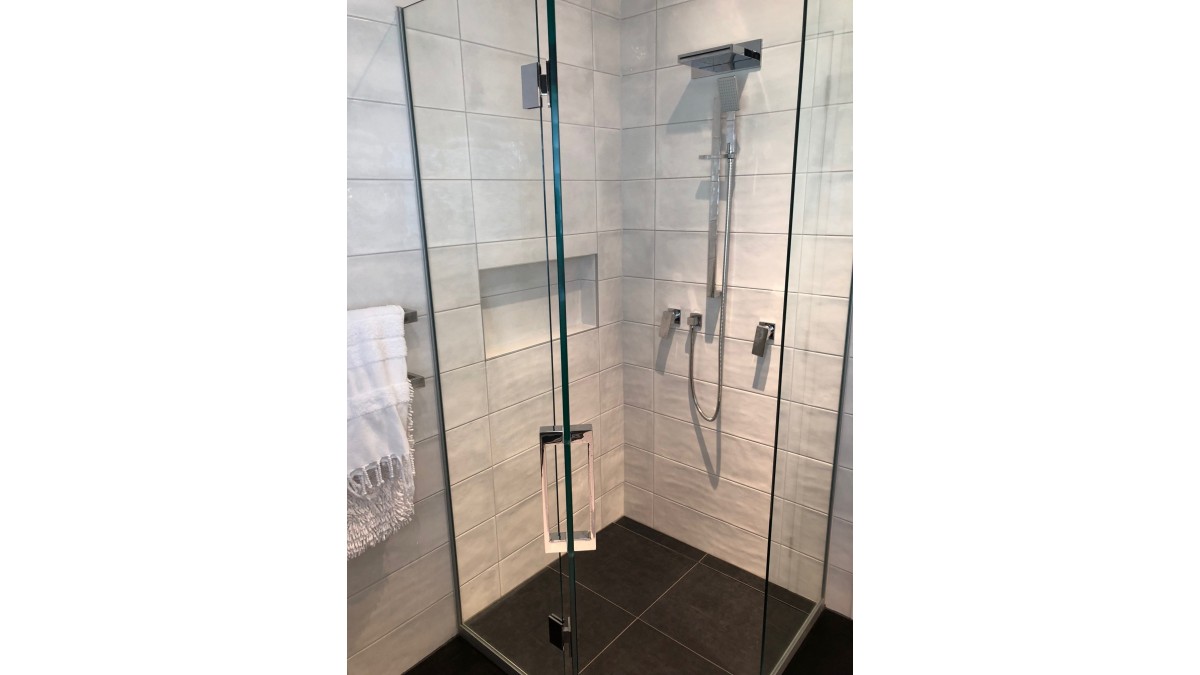

  • Tile insert option upon request
  • Flange configuration to suit tiled walls or glass walls
  • Custom designed lengths and outlet positioning
  • 50mm threaded outlet
  • Easy installation
Categories / Ranges
Channel and Grate Drainage
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
Scope of Use

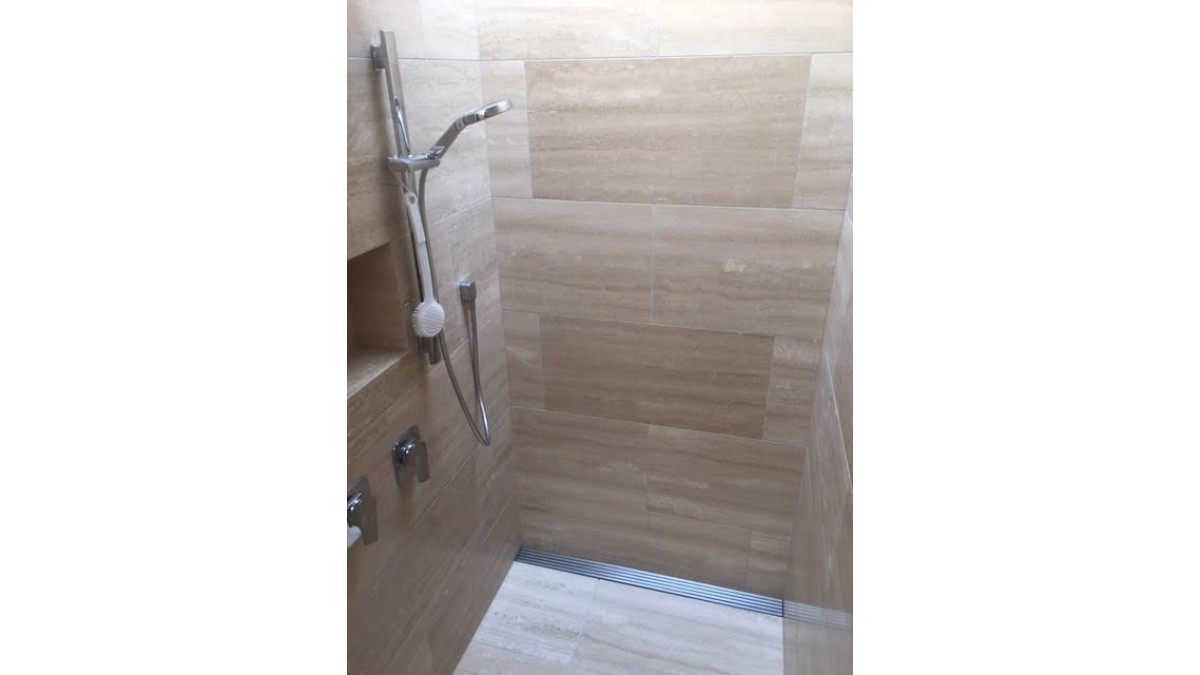

The Wall Mounted JESANI Shower Channel is suitable to create an accessible floor area within the shower zone.

The horizontal and vertical flange system is configured depending on the surrounding walls within the shower area e.g. 3 framed tile walls or 2 framed tiled walls/1 glass wall.

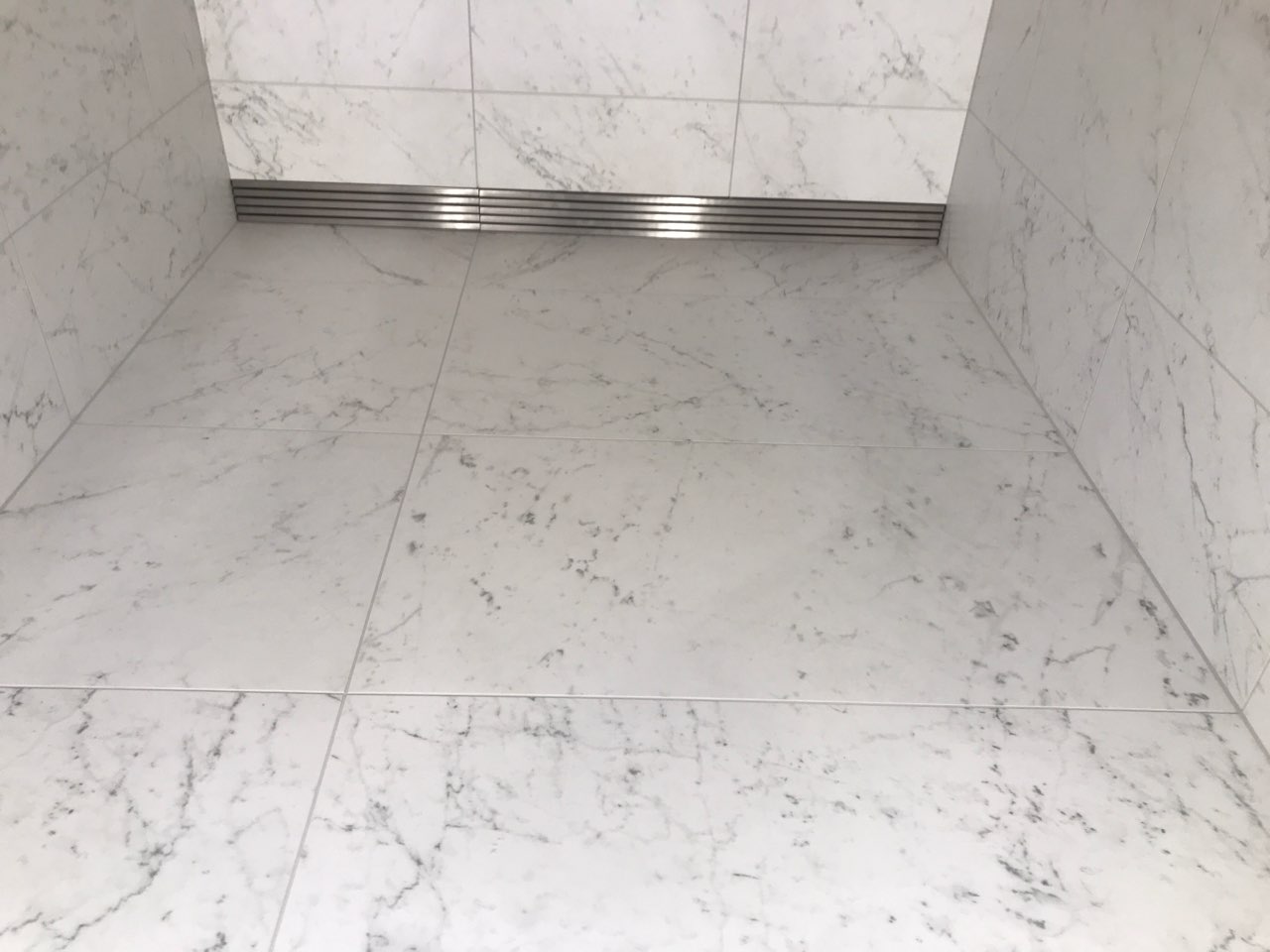

The channel is designed to sit against any wall requiring only a one-way fall to the linear drain.

The channels can be designed to any length, however, if a channel is designed to be 1800mm or longer, it is recommended to include 2 outlets.

  • 50mm width trough
  • 38mm threaded outlet
  • Timber or concrete substrate
  • To suit various floor coverings and to accommodate underfloor heating

See BRANZ Appraisal 934 for full information.

Limitations on Use
  • Designed for interior use only
Statement of Building Code Compliance

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
  • Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

In-Service History
  • The JESANI Shower Channel has been in use since 2010
Other Performance Attributes
  • BRANZ Appraisal 934
  • LIFEMARK product approved
  • Grade 304, 1.5mm thick stainless steel (Grade 316 if requested/required)

Durability

The serviceable life of JESANI Shower and Door Channels, when subjected to normal conditions of environment and use, is expected to be compatible with the waterproofing membrane and floor finishes to which they are fitted.

Maintenance

Cleaning care of the stainless steel channel:

  • Avoid carbon steel brushes or steel wool and abrasive detergents; the brushes and wool may leave particles embedded on the surface which can lead to rusting, and abrasive cleaners could introduce the possibility of scratching the surface
  • Clean warm water and wipe are the simplest and safest method, followed by a clean water rinse and dry wipe. Stainless steels thrive with frequent cleaning
  • Periodically allow a cup of clean water to flow down the drain to keep it clear of dust/lint buildup
BRANZ Appraised
BRANZ Appraised
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Documents
Independent Appraisal (BRANZ)
Installation and Operation
Brochure
Video Demonstrations
CAD/PDF Details

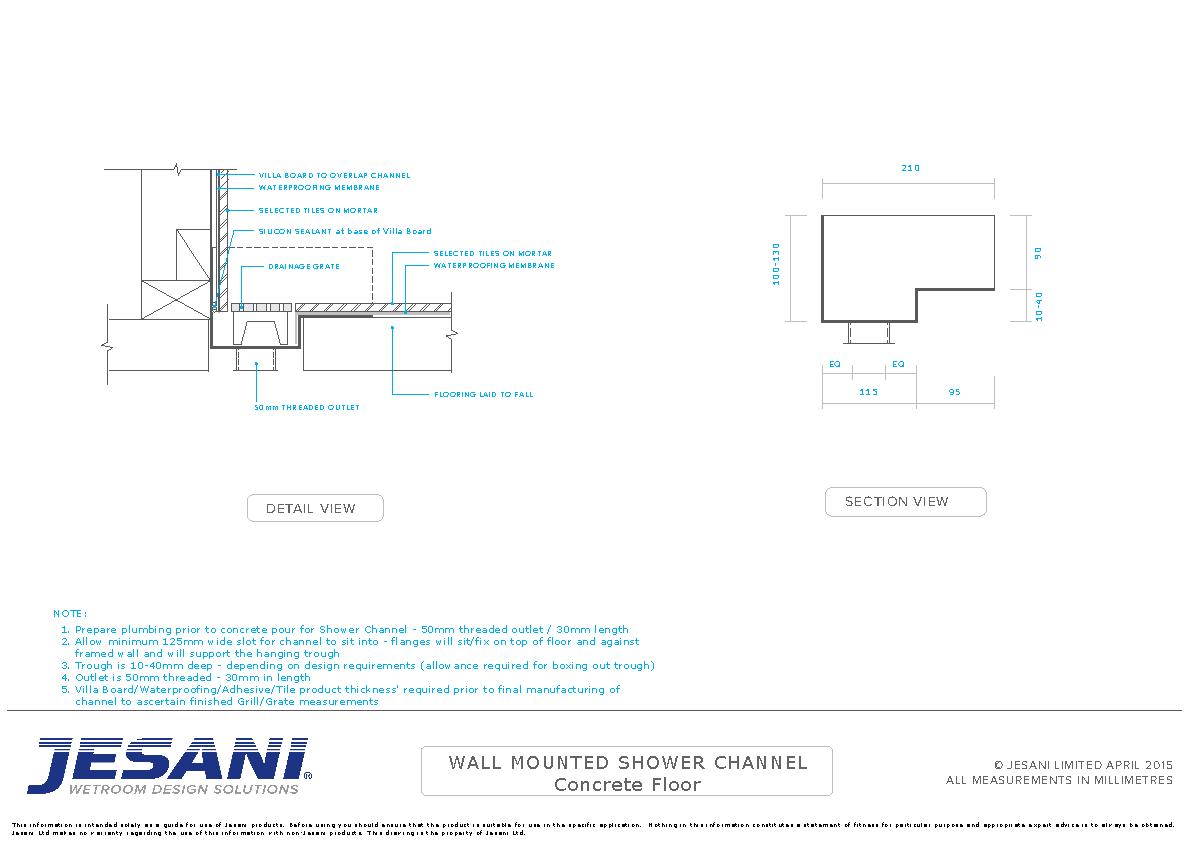

Shower Channel Wall Mounted — Concrete Floor
Shower Channel Wall Mounted — Timber Floor
