Burnside High School’s new Pukehinau 3600m² two storey teaching block features 25 specialist learning spaces predominantly for science and technology. Designed by BCN Architects an essential requirement was to achieve compliance with the Ministry of Education’s Design Quality Learning Spaces (DQLS) acoustic standards. To do this they specified a perforated wood ceiling and an imported high mass mineral fibre ceiling tile. However, the project came in over budget, so the MoE delivery manager was eager to explore cost savings.
Smart substitutions without compromise
Rising to the challenge Asona put forward a cost saving proposal to change the perforated wood to a locally manufactured perforated Polyfon panel and the high mass mineral fibre tile to the Triton Duo ceiling system. The change saved the project over six figures and still meets the original design aesthetic and acoustic performance spec.
After a detailed review, the Ministry of Education approved the substitution to a full Asona system spec, confident the revised solution would meet project goals without compromise.
Tailored solutions that deliver

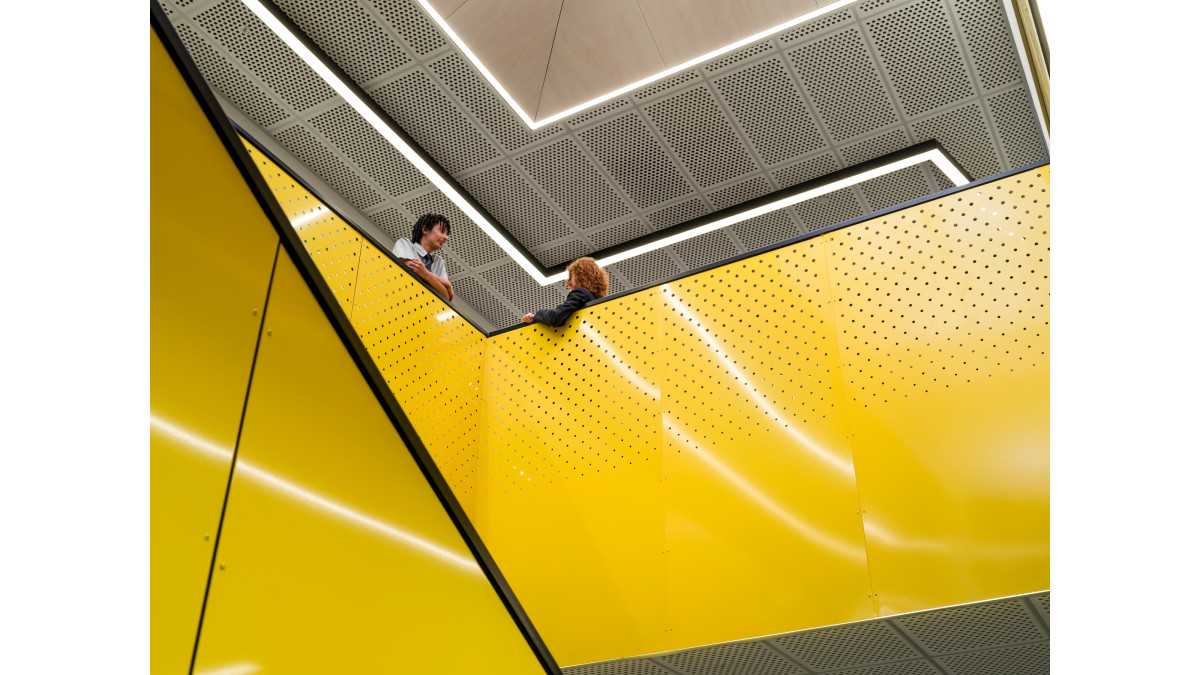

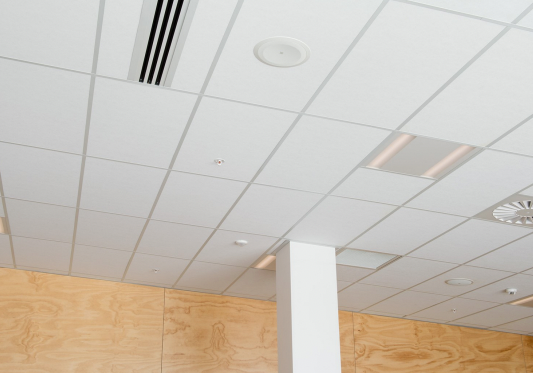

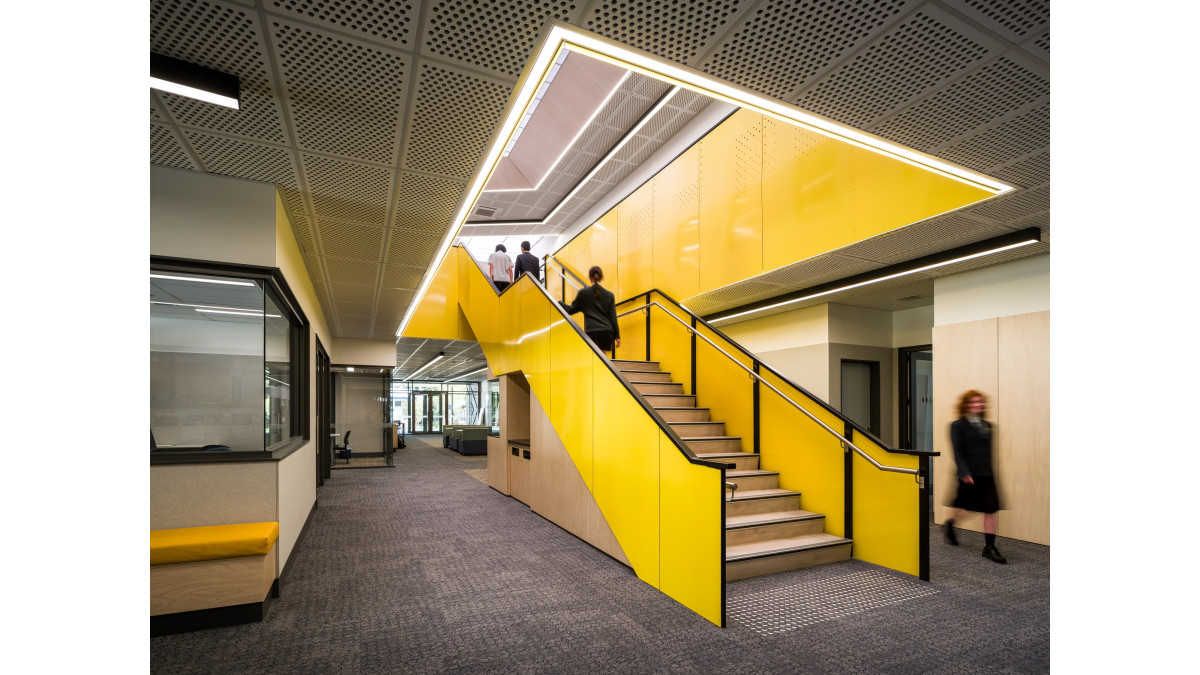

Asona replicated the original perforated wood panel pattern and applied this to their Polyfon material which they perforated at their Auckland factory and then laminated to a Triton 50HD acoustic tile to deliver NRC 0.95 and CAC 35 acoustic performance. The result was a contemporary perforated acoustic ceiling that aligned with the architect’s vision, was lighter weight and at a significantly reduced cost.
Asona also worked with the ceiling contractor on the seismic design and supply of Rondo Donn DX ceiling suspension system to help reduce costs further.
Meeting standards, exceeding expectations

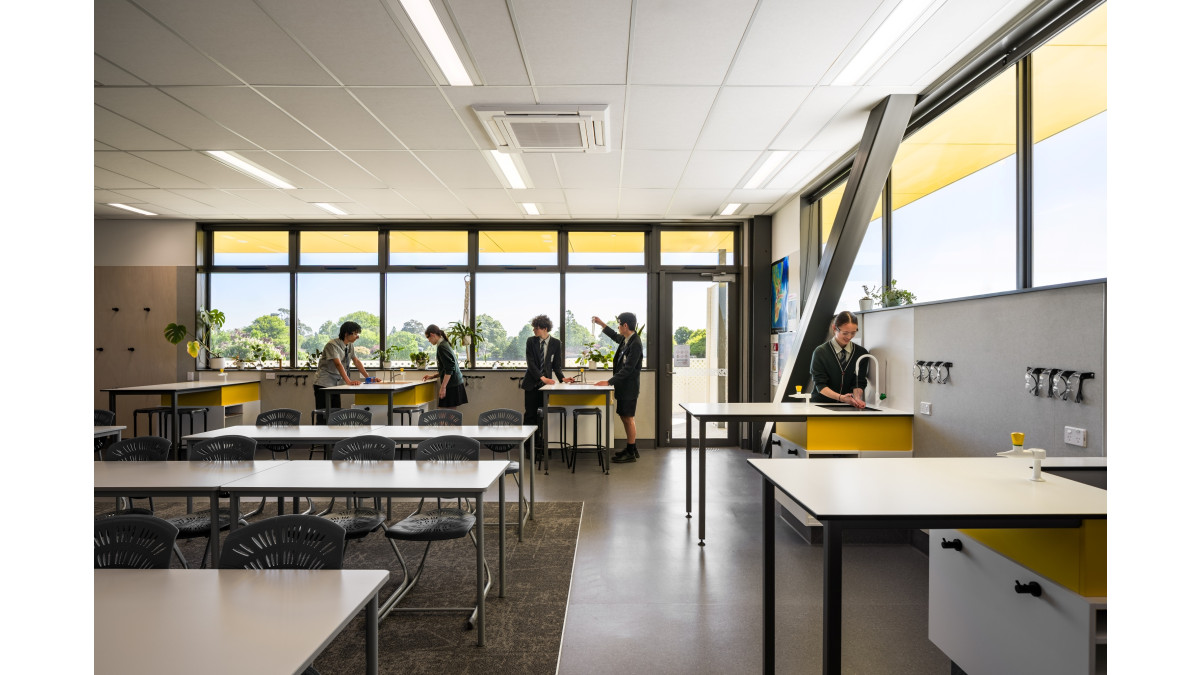

With the installation complete, the results speak for themselves: a modern technical perforated aesthetic, better speech intelligibility, better reverberation control, and a refined, consistent finish throughout. While the shift away from the originally specified products required careful planning, the end result delivered on all fronts: performance, appearance, and budget.
Visit the Asona website to request a consultation for your specific acoustic needs.
Architect: BCN Architects
Builder: Naylor Love
Acoustic Consultant: Powell Fenwick
Photography: Lightforge
Products: Asona Polyfon, Triton 50HD, Triton Duo 50, Rondo Donn DX ceiling grid.
