Polyfon Mesh
Description

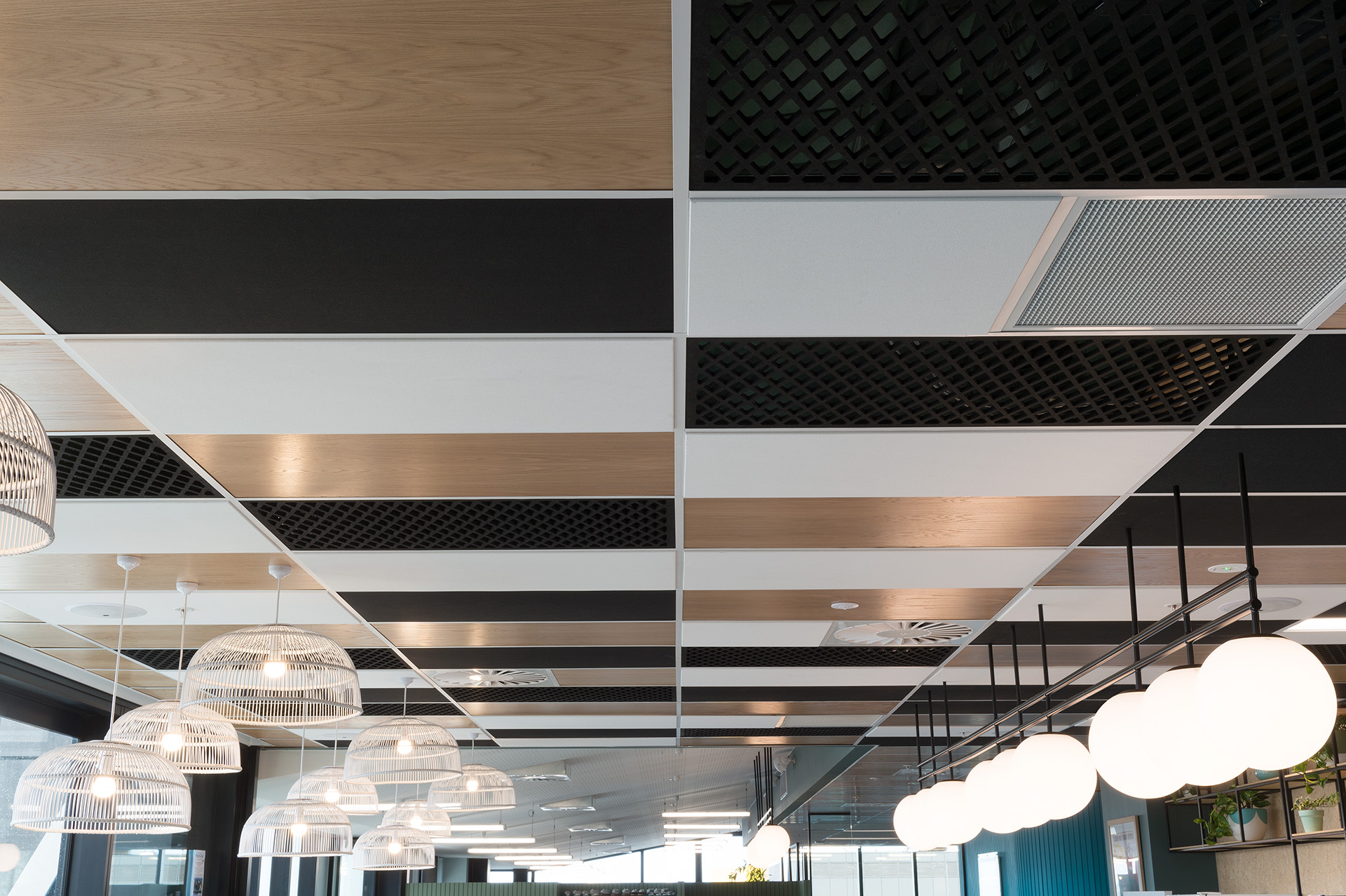

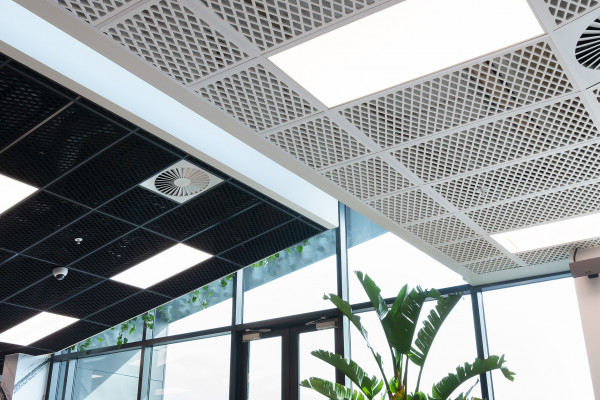

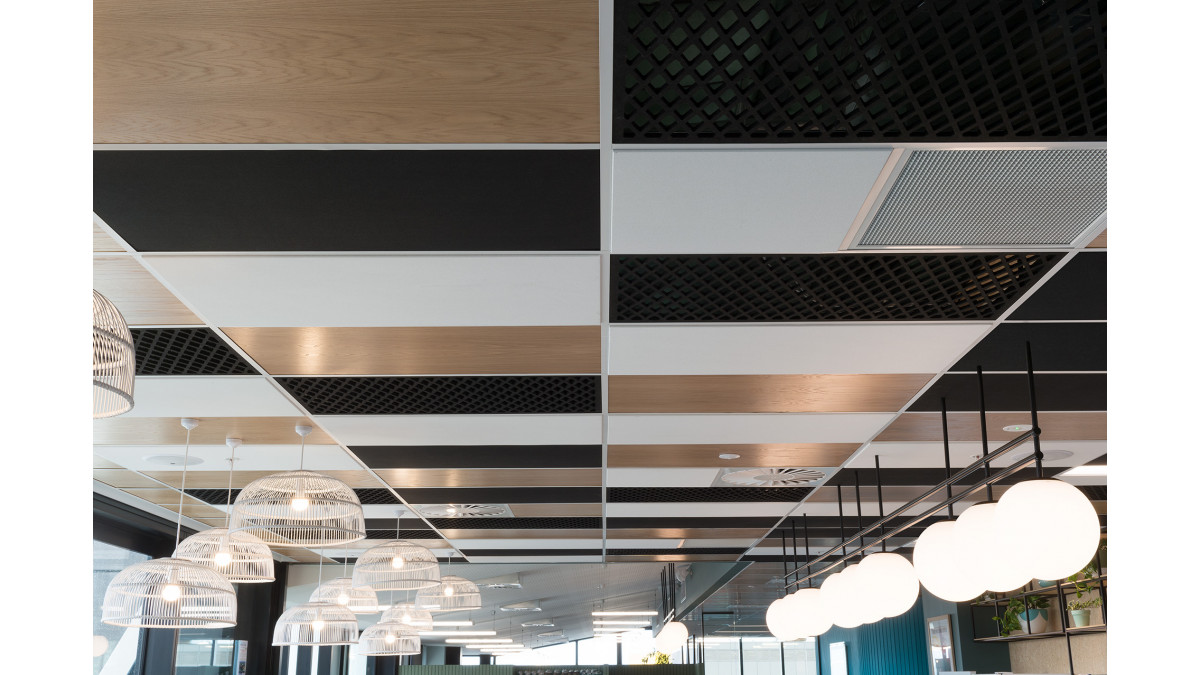

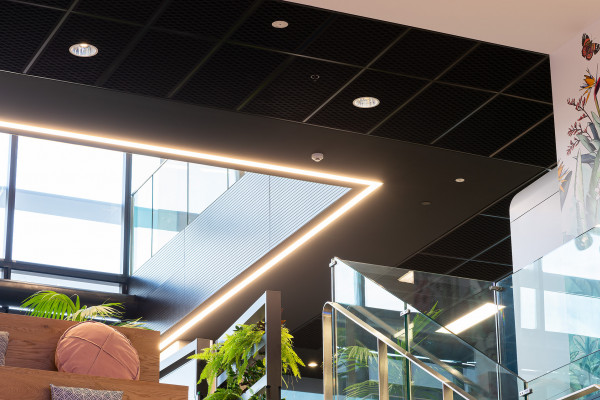

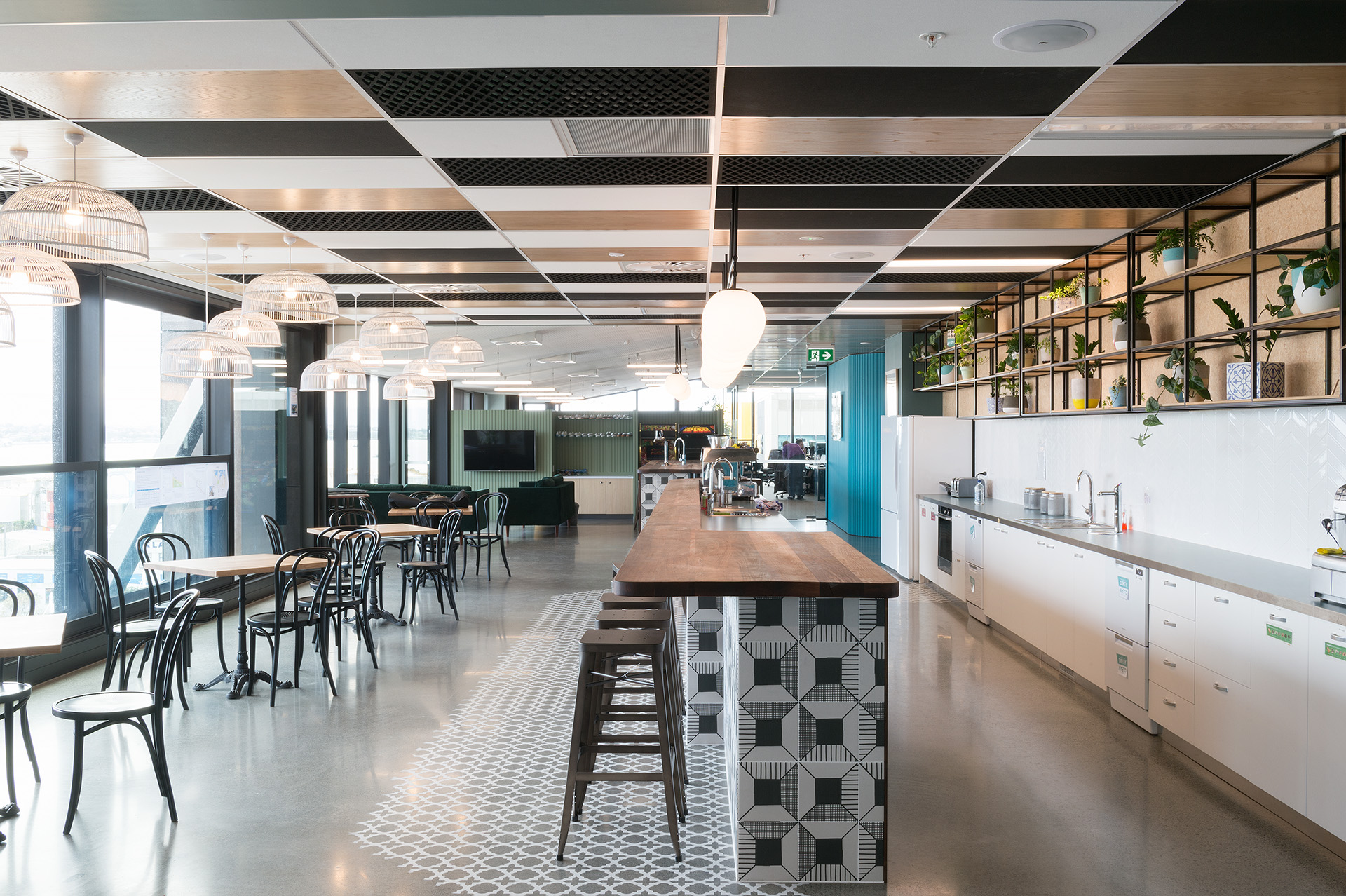

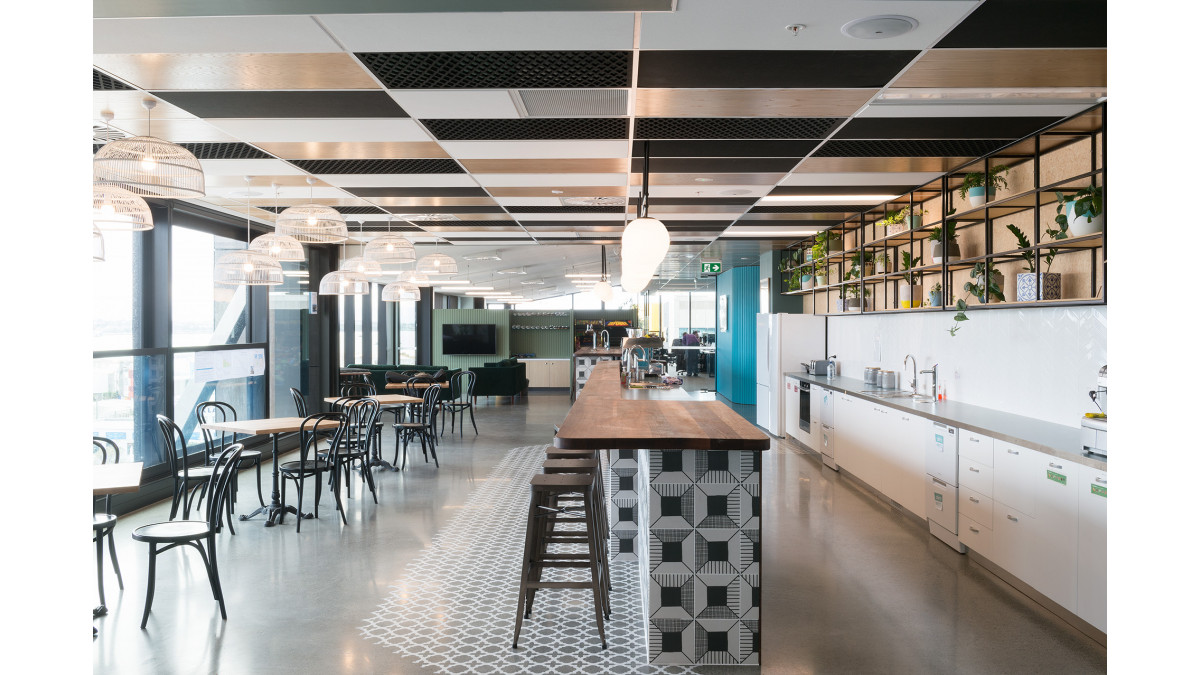

Polyfon Mesh™ is a perforated open cell ceiling panel designed to provide a contemporary industrial aesthetic when using standard two way exposed ceiling grid. Panels may be mixed and matched with other ceiling panel types for design effect or acoustic control. Available in diamond, square and hexagonal.

Made in New Zealand, Polyfon Mesh™ is made from a composite of compressed polyester and a fire resistant glass mat facing.

Key Features
  • Provides a bold industrial look
  • Ideal for retro fit or new

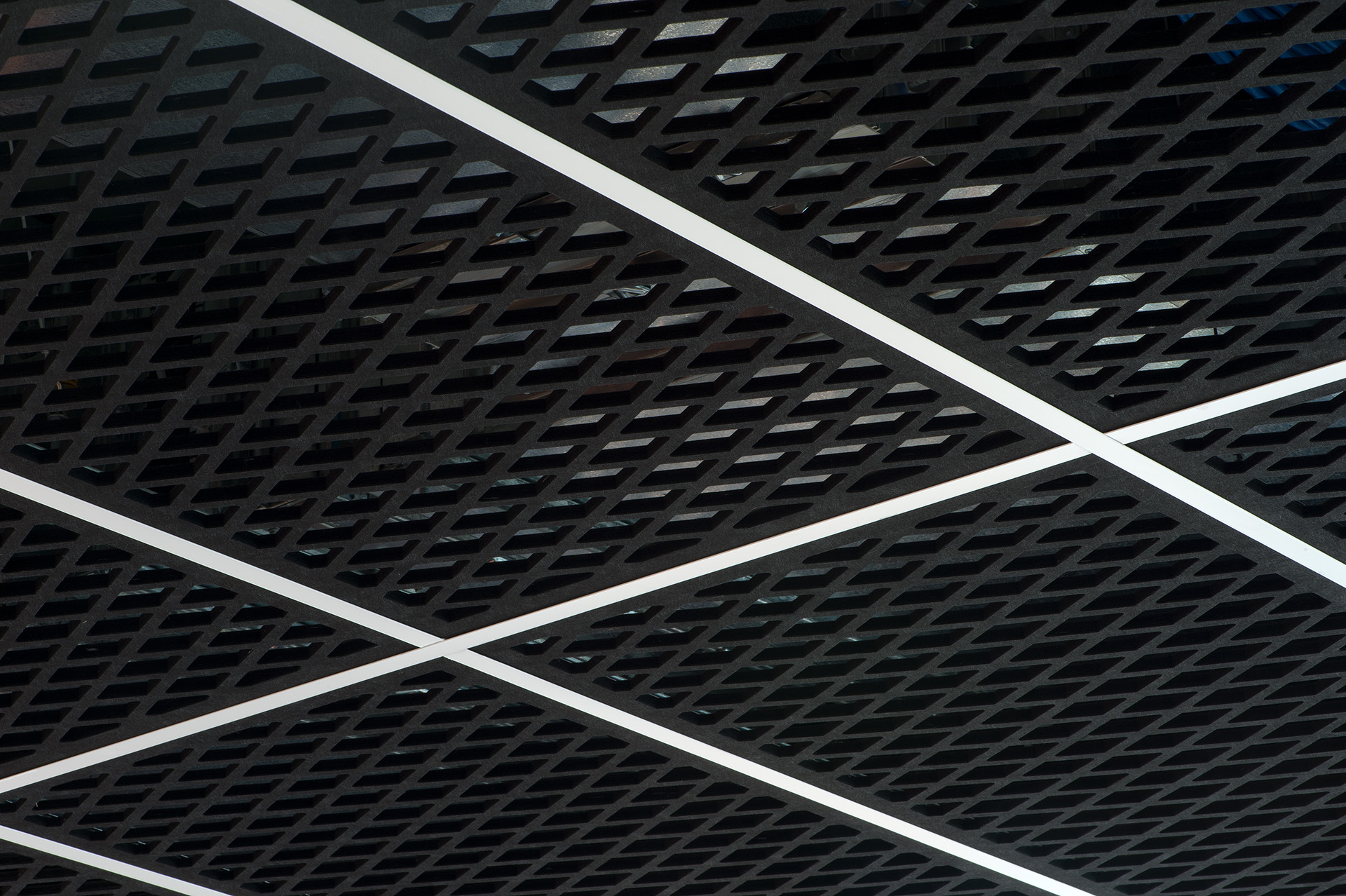

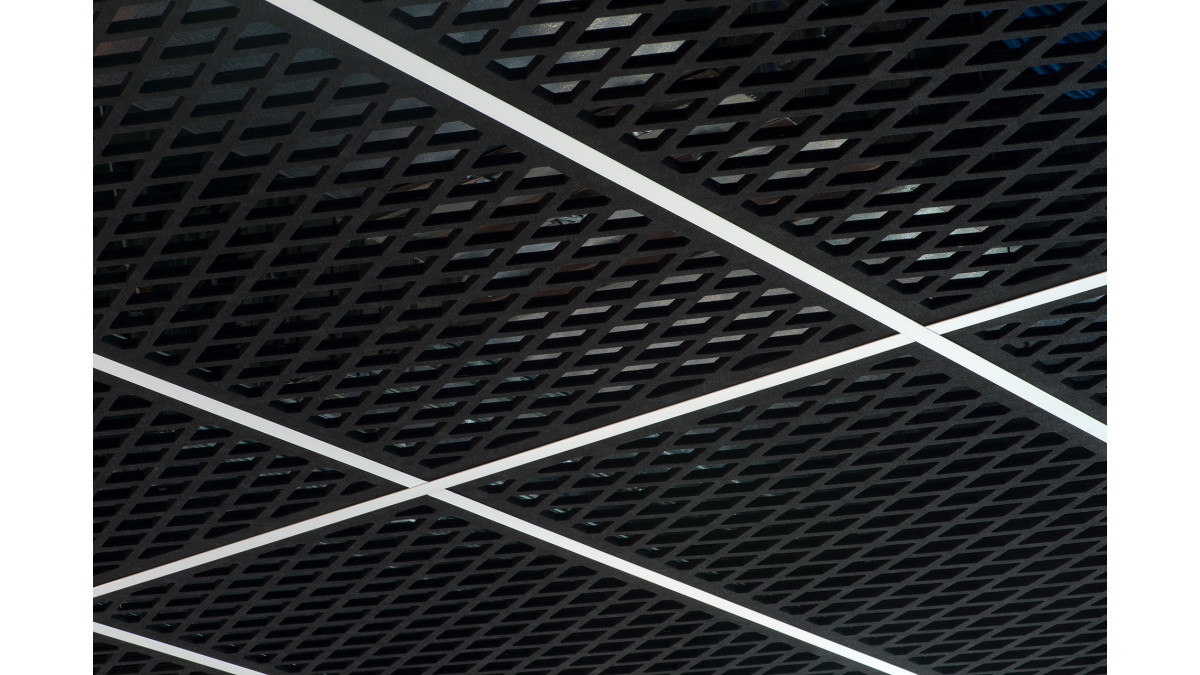

  • Available in 40 x 71mm Diamond, 50 x 50 Square and 40 x 40 Hexagonal perforations
  • Permits visibility to the plenum spaces for security
  • Open area 48-51%, subject to selected perforation and panel size
  • Ideal for passive heat/cooling systems using thermal mass
  • Group 1-S Fire Rating, suitable for all areas including corridors and fire exits
  • Option of White or Black core with matching surface finish or contrasting surface finish, eg RAL7030 grey
  • Dimensionally stable and allows good ventilation
  • Economical alternative to perforated metal, plaster & wood
  • Very light weight for seismic, fits into standard grid systems
  • 600 x 600mm and 600 x 1200mm sizes
  • Manufactured in New Zealand, short lead times
  • Packaging take back and reuse scheme available
  • ISO 9001 registered quality management program
Categories
Suspended Ceilings
Ranges
Polyfon
Declare: LBC Red List Free
Declare: LBC Red List Free
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

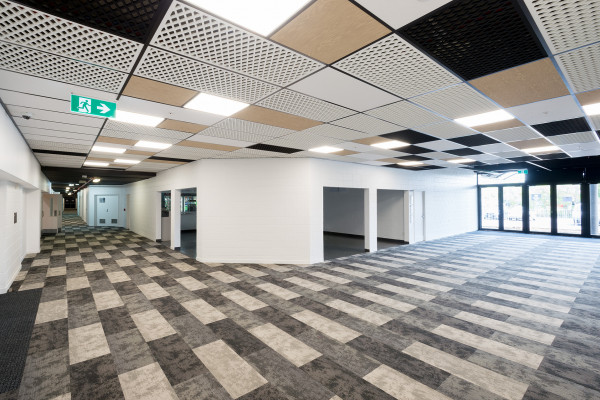

Polyfon Mesh is ideal for deconstructed corporate interiors, retail complexes, airports, showrooms and large volume public spaces.

  • Permits visibility to the plenum spaces for security
  • Ideal for retro fit or new
  • Ideal for passive heat/cooling systems using thermal mass
  • Group 1-S Fire Rating, suitable for all areas including corridors and fire exits
  • Option of White or Black core with matching surface finish or contrasting surface finish, eg RAL7030 grey
  • Very light weight for seismic, fits into standard grid systems
  • 600 x 600mm and 600 x 1200mm sizes
Limitations on Use
  • Installation shall not commence until the building is water tight and dry.
  • All fittings shall be independently supported, use hold down clips in areas of wind uplift.
  • Max 95% R/H at 35°C.
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
Statement of Building Code Compliance
  • Fire Reaction - NZBC verification method C/VM2 material group number: 1-S
  • Clause B2—durability, 5 years
In-Service History
  • Barber Workshop, The Crossing Tauranga
  • Manchester Hotel Christchurch
  • ANZ Sylvia park
  • ADHB
  • Google fitout
  • Fox & Frost Pub Tauranga
  • Custom Fleet
Other Performance Attributes
  • Very lightweight - 0.8-1.5 kg/m²
  • Packaging take back and reuse scheme available
  • ISO 9001 registered quality management program
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
G4 Ventilation compliant
Ventilation
G5 Interior Environment compliant
Interior Environment
Interior Fire Rating 1S
1S
Test Results
Test Results
Documents
Asona Polyfon Mesh

22-01

Warranty

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
