Ultratone Perforated GIB Plasterboard Acoustic Panels by Asona

Ultratone Perforated GIB Plasterboard Acoustic Panels

Description

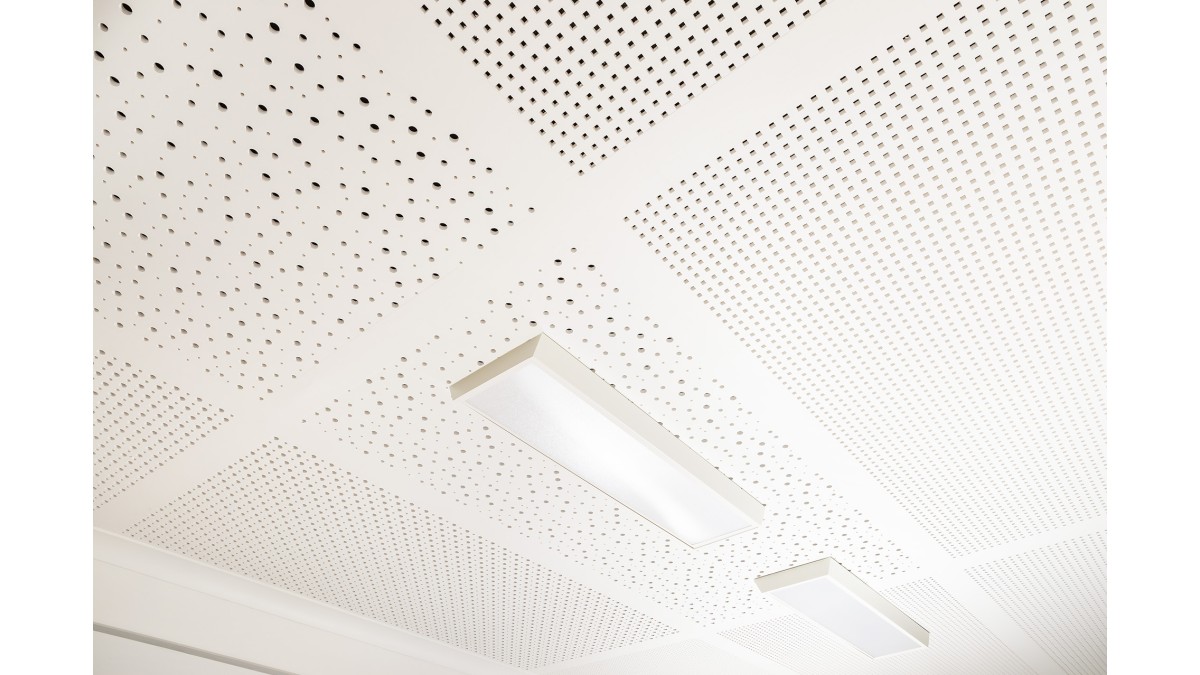

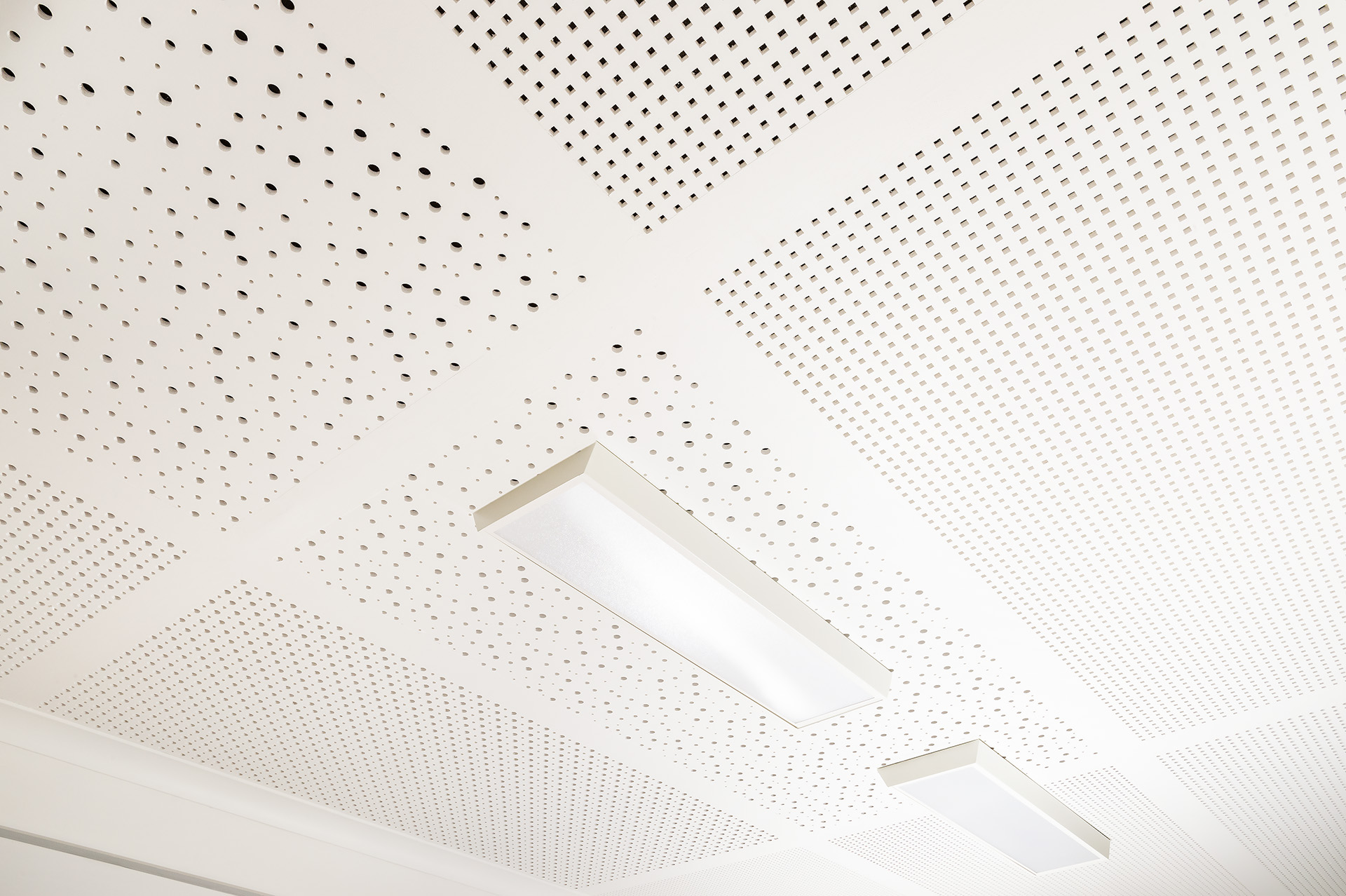

Asona Ultratone™ is a perforated GIB® plasterboard panel designed for acoustic ceilings and wall linings. Made in New Zealand, Ultratone™ is manufactured in a range of perforation patterns and open areas to meet acoustic and aesthetic requirements.

Panels are screw fixed and flush stopped to level 4 and painted on site for a monolithic appearance. SlimSet 50™ and SlimSet 60™ Access Hatches available where maintenance for plenum services is required.

Key Features

Excellent acoustic performance to absorb and diffuse unwanted noise for greater comfort. NRC 0.55-0.80, CAC 30-44 with Asona Triton acoustic tile backer
Durable long lasting plasterboard finish that is easy to repaint without reduction in acoustic performance
Fire safe, Group 1-S rating
Made in NZ for short lead times and low carbon kilometres
Economical
Available in a wide range of perforations patterns
8, 12 or 15mm Ø perforations for a classic look
12 x 12 mm square perforation
Alternating 12 and 20mm Ø perforations

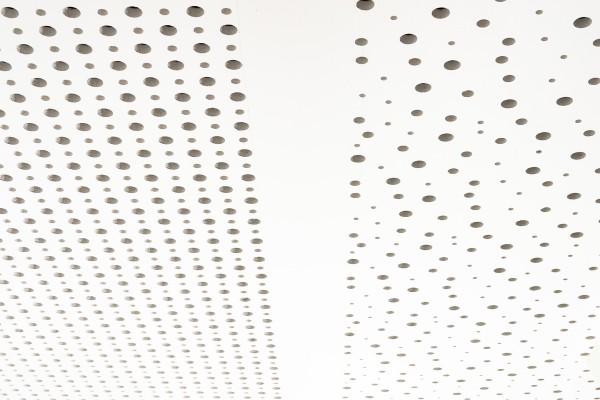

Random 8, 15, and 20mm Ø perforations
All panels come with clear borders for ease of installation and finishing with stronger crack resistant joins
Standard 1200 x 2400mm sheets. Others up to 3.0m to order
Integrates with regular non-perforated 13mm GIB®
Global GreenTag Level A
Standard 600 x 600 mm and 500 x 500mm SlimSet™ integrated access hatches.

Ranges

Ultratone™ Perforated GIB® Plasterboard Wall Products Decorative

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Scope of Use

Asona Ultratone™ is a durable perforated acoustic interior lining for control of unwanted noise reverberation in residential and commercial construction; open plan living and office spaces, meeting rooms, receptions, hallways, hotels, healthcare, retirement facilities, auditoria, libraries, halls, malls etc.

Panels are screw fixed and flush stopped to level 4 and painted on site
Standard 1200 x 2400mm sheets. Others to order
Integrates with regular non-perforated 13mm GIB®

Limitations on Use

Not for use in external applications, wet areas, in contact with moisture or in extreme humidity or temperature conditions
Installed Conditions: Max 90% R/H at 30°C
Not for use with negative air return plenums.
Do not spray paint as this will reduce acoustic performance
Back Loading: Uniform weight of un-supported insulation shall not exceed 2kg/m², point loads e.g. lighting, grills, speakers etc, 1.5kg per piece. Greater loads shall be independently supported

Statement of Building Code Compliance

NZ Building Act

This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (b) (i): Asona Ultratone with only normal maintenance will have a minimum durability of at least 15 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
C3 Fire – Clause C/AS2 4.12.1: Asona Ultratone has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660.

In-Service History

Cain Rd boardroom
Karaka Lifestyle Estate Clubhouse Lounge

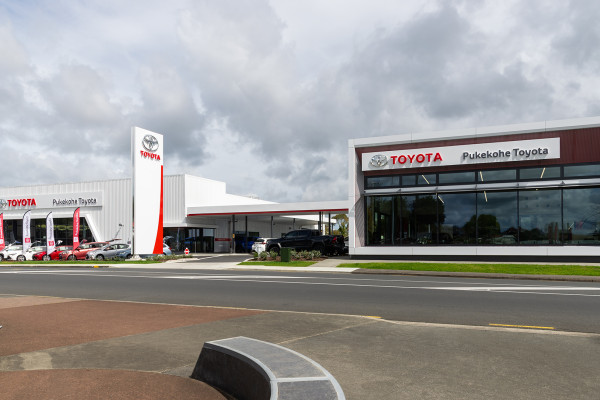

Toyota Pukekohe
Anthony Harper boardroom
Rondo Head Office AKL
Mangawhai beach house

Other Performance Attributes

Excellent acoustic performance to absorb and diffuse unwanted noise for greater comfort.
NRC 0.55-0.80, CAC 30-44 with Asona Triton acoustic tile backer.
