Triton Pool Panel
Description

Triton Pool™ panels are a proprietary edge wrapped 50 mm thick, high sound absorbing, acoustical panel designed for high level swimming pool ceilings. The back of the panel is laminated with an impermeable foil, edges reinforced with a concealed aluminium frame then laminated and edge wrapped in water repellent Sonatex glass mat acoustic facing.

Manufactured in NZ, from bio-soluble glass fibre core, aluminium framed, wrapped in 2 ply Sonatex™ glass mat composite finish sprayed with water repellent and with a foil backer.

Key Features
  • 50 mm thick glass fibre core provides very high sound absorption, NRC 1.00, ISO 11654, αW 1.0

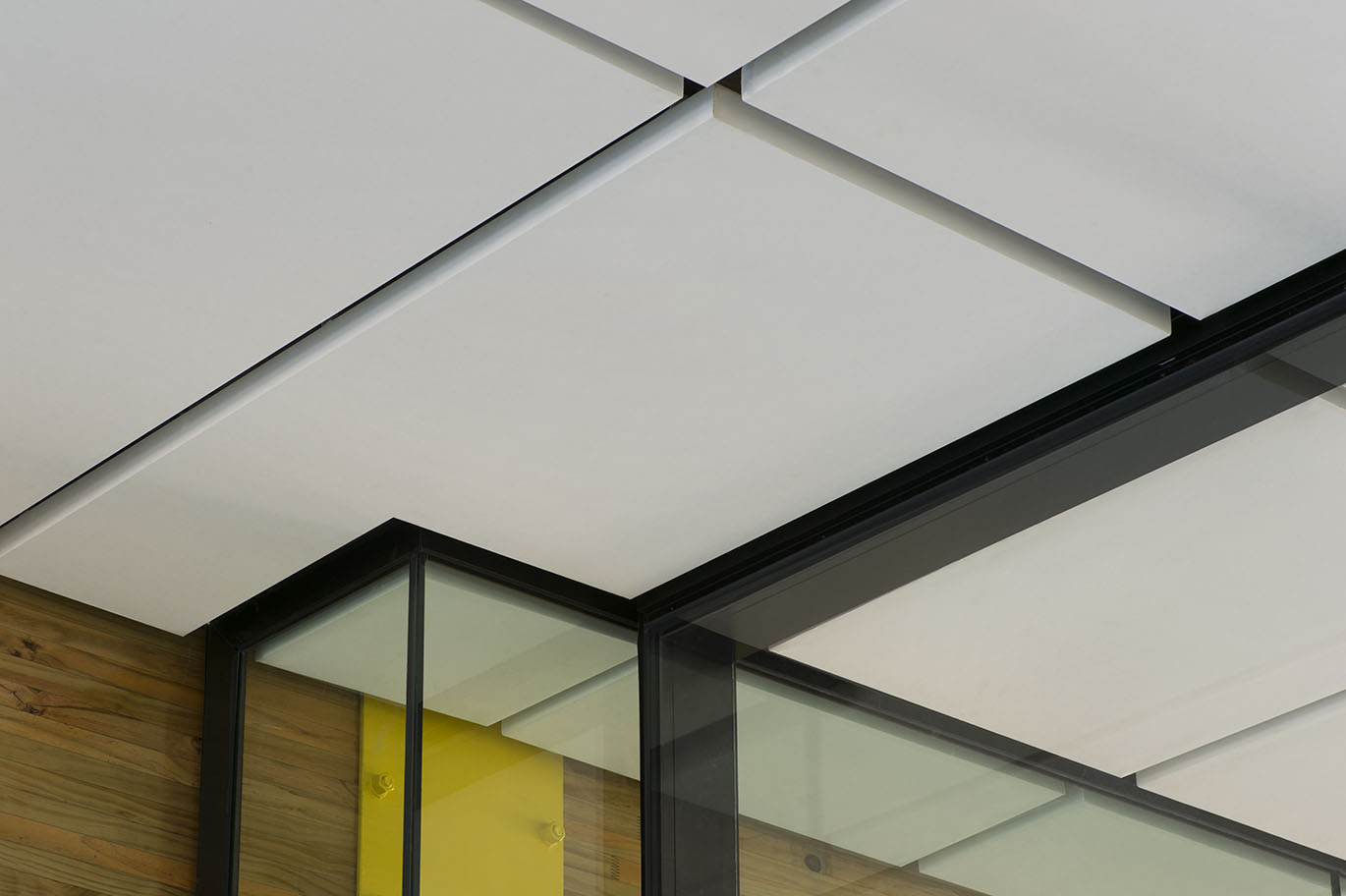

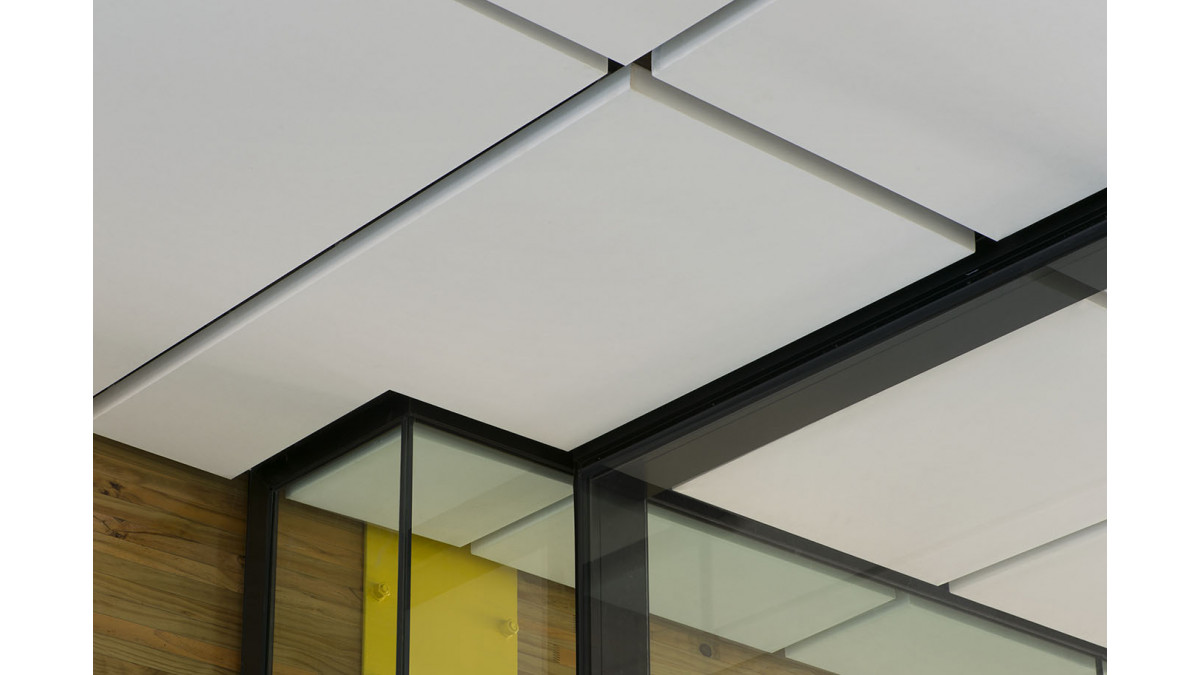

  • Clean wrapped edges with concealed framing eliminates the unsightly edge framing common with other panels
  • High light reflectance in standard white, colours available
  • Available in standard or custom sizes
  • Large modules available up to 1200mm x 3000mm
  • Fire group 1-S rating
  • Corrosion resistant, concealed aluminium frame for strength
  • Foil membrane backed to control condensation
  • Water repellent silicon treated facing, perfect for swimming pool environments
  • Dimensionally stable in high humidity
  • Made in NZ, low embodied energy, 80% recycled content
  • GreenTag certified / Level A
  • Packaging take back and reuse scheme
  • ISO 9001 registered quality management program
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

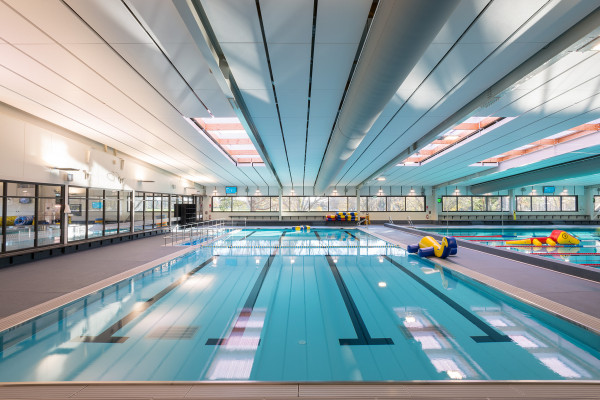

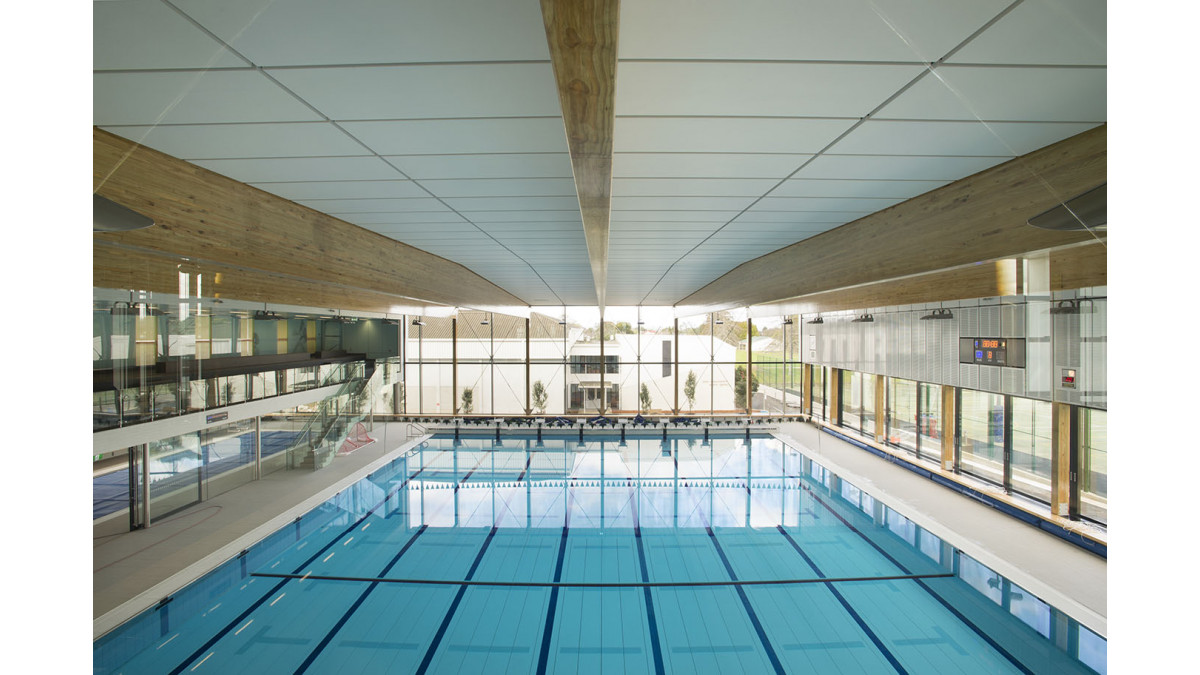

Triton Pool™ panels designed for pool environments and are to be mounted to allow free movement of conditioned air between and behind the panels to reduce the risk of interstitial condensation.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Limitations on Use
  • Not for exterior use
  • Installation shall not commence until the building is watertight and dry
  • Light fittings shall be independently supported
  • Backloading max. 1.5 kg/m², point loads shall be independently supported
  • Max 99% R/H at 45°C. Face not designed for direct contact with water
  • Control humidity to prevent condensation forming on panels
Statement of Building Code Compliance
  • Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings.
  • Clause B2 — durability, 5 years
In-Service History

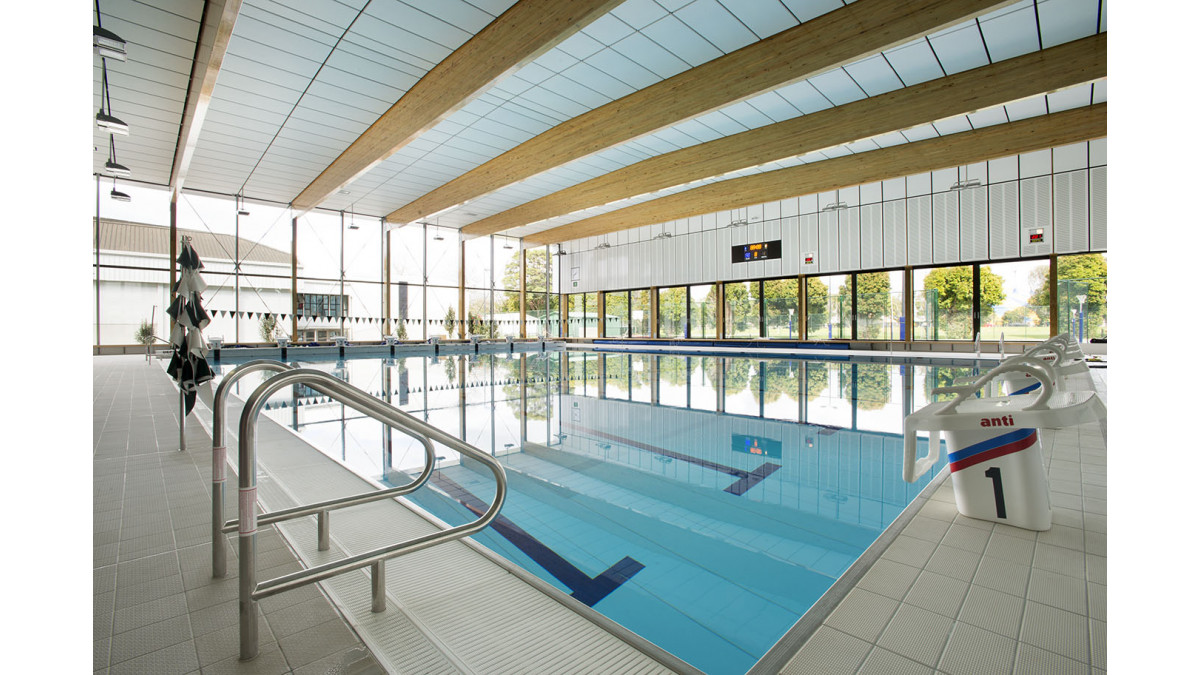

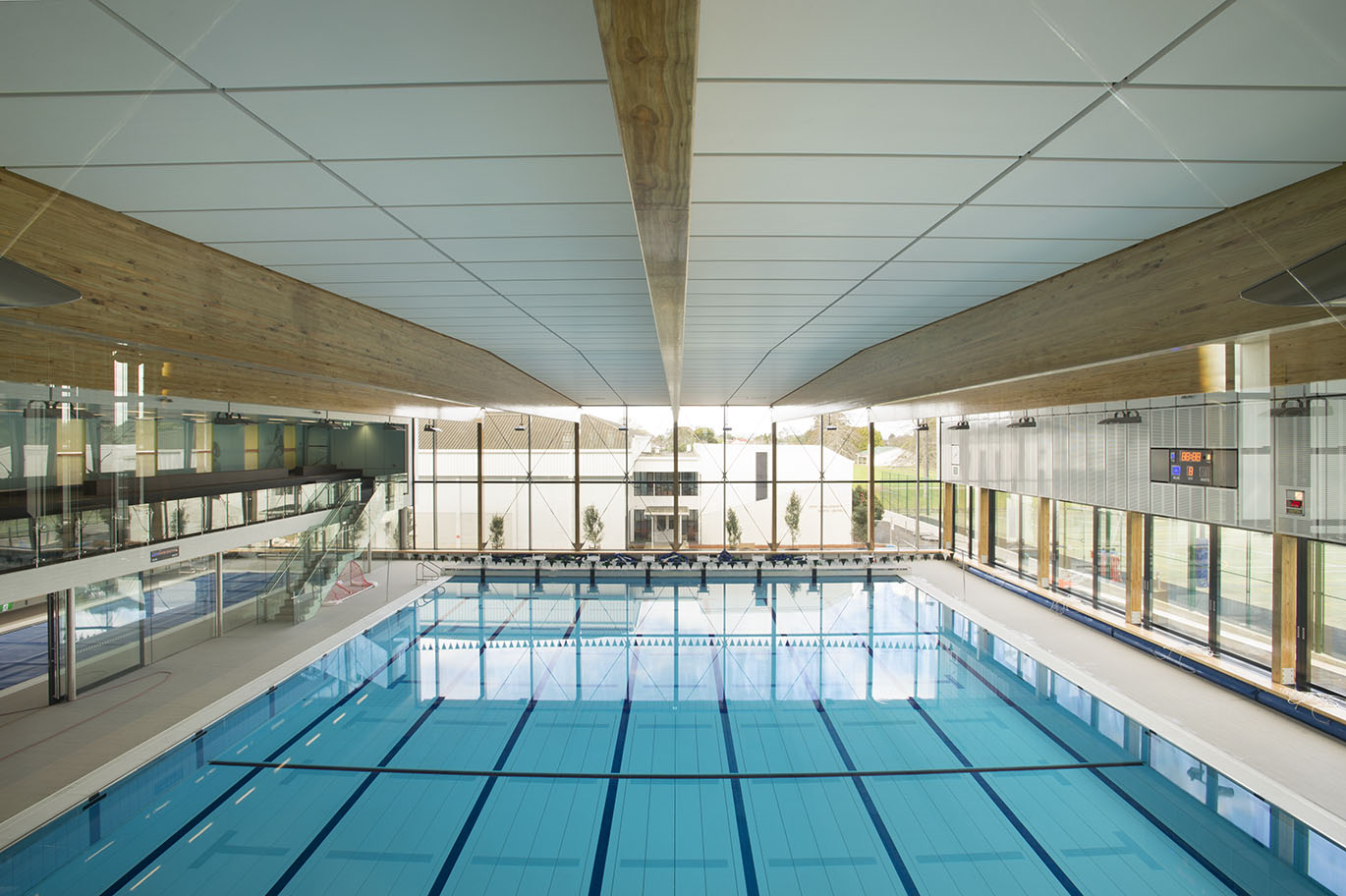

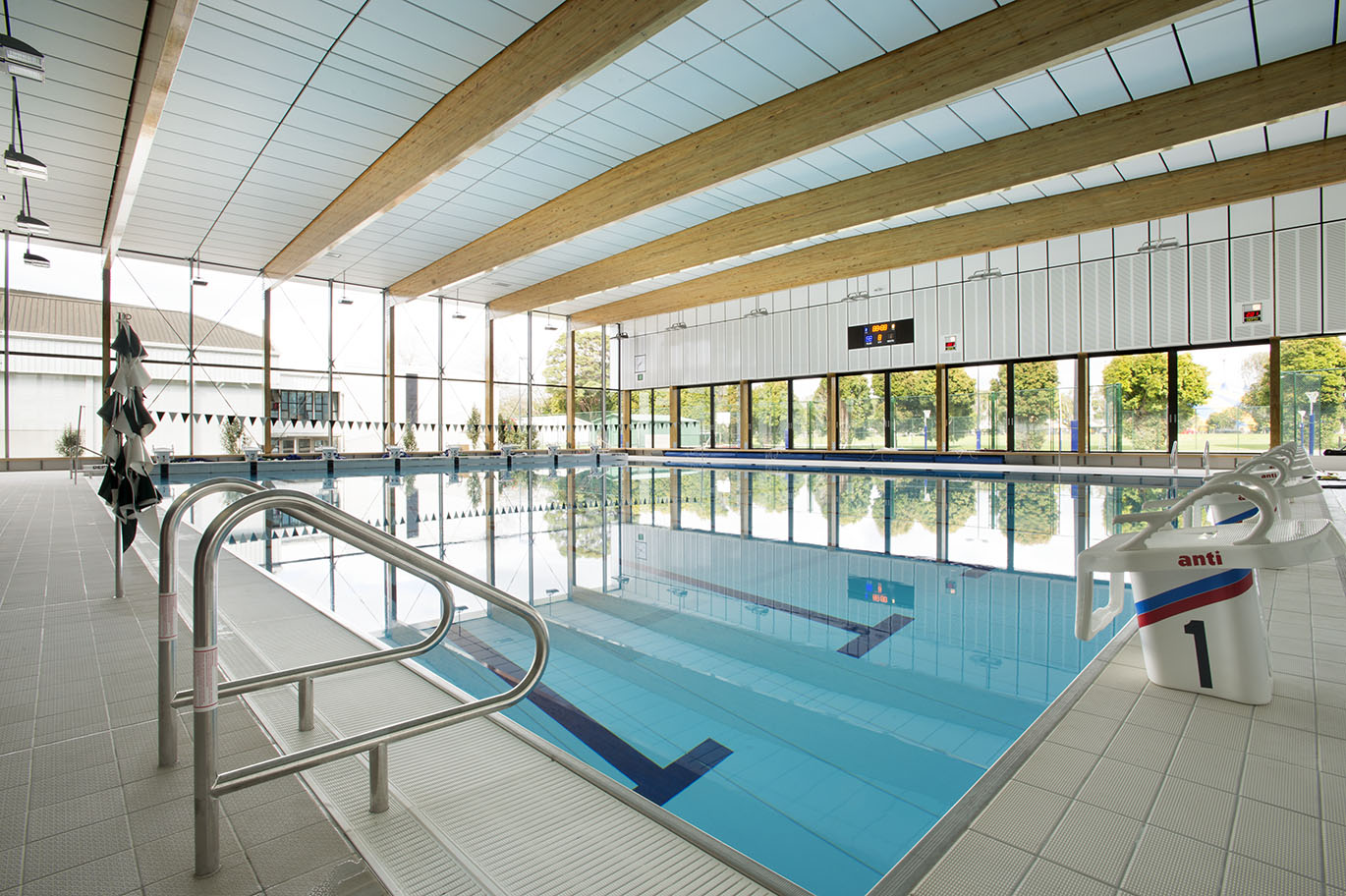

Recent projects include:

  • St Cuthberts Girls Intermediate School Pool
  • Norman Kirk Memorial Pool
  • Otatahuhu Recreational Centre
Other Performance Attributes
  • Light Reflectance - 85% per BS8493:2008, White
  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0
  • Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
  • Board formed from 80% recycled local glass
  • Low VOC < 0.05
  • Product stewardship renew and reuse program available
  • Packaging take back and reuse scheme available
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Interior Fire Rating 1S
1S
Documents
Asona Triton Pool Panel

22-01

Environmental Information - GreenTag Level B

22-04

Maintenance: Triton Range
Warranty
Specification Clause/Guide
