Passive Fire Protection for High Density Residential Developments

Allproof Industries acknowledges just how critical passive fire protection can be in high-density residential buildings. With this in mind, Allproof manufactures passive fire protection products for plumbing penetrations and fittings using high-performance intumescent technology. These products are designed to contain a fire in the compartment of origin, thus limiting the spread of fire and smoke for a sufficient period to ensure the safe evacuation of residents from the building and limiting the damage.

Allproof Industries has built an extensive testing portfolio with independent IANZ accredited fire testing laboratories. Allproof consistently works with the industry to provide exceptional products that can help overcome issues regularly faced on site. All products are tested to AS1530.4 - 2005 and AS4072.1 – 2005, and meet building regulations. Test result references are available in Allproof's Passive Fire Protection brochure with installation details and product selection advice. This brochure is available on the Allproof website and can be downloaded by visiting any related EBOSS product listing.

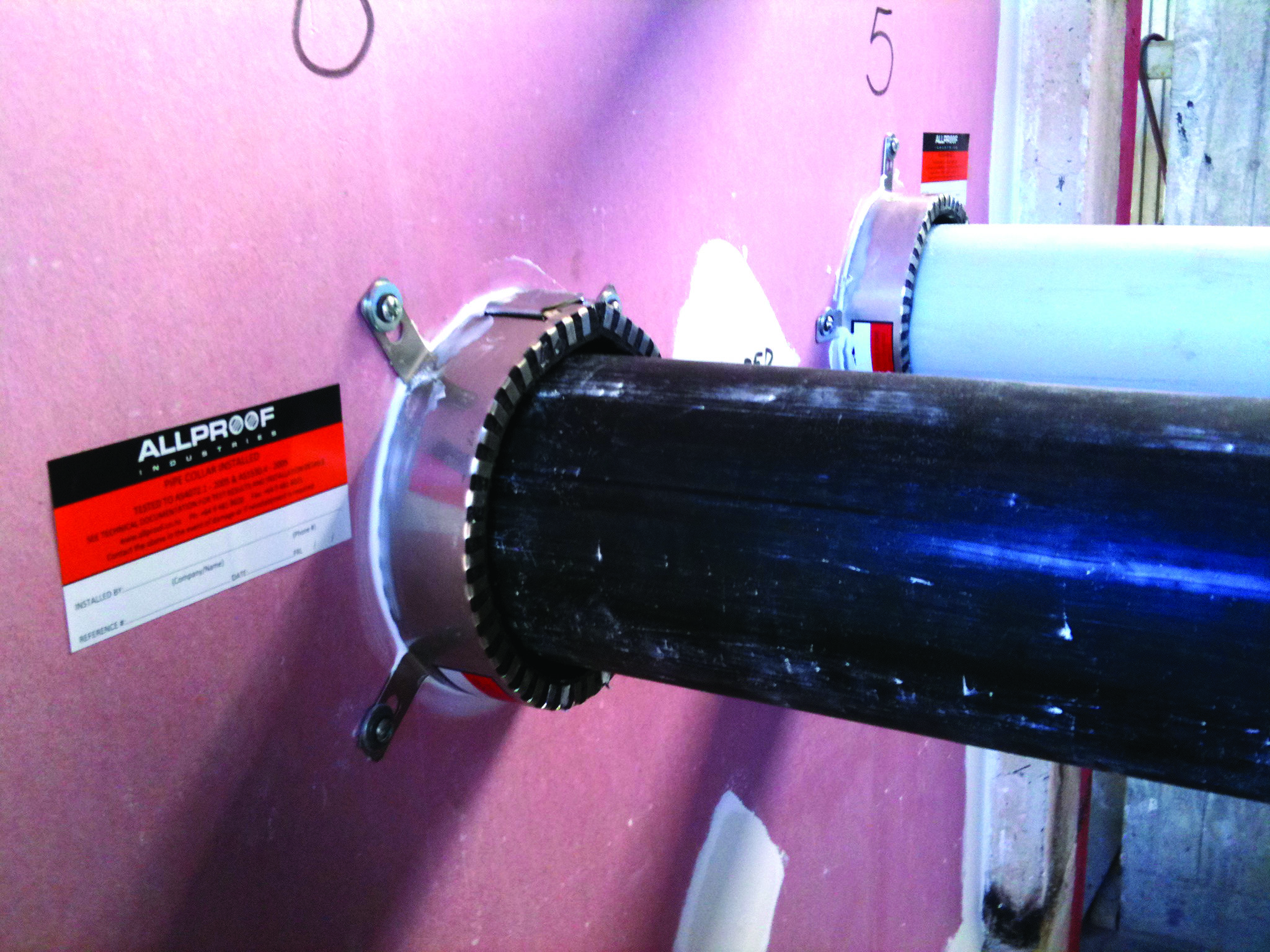

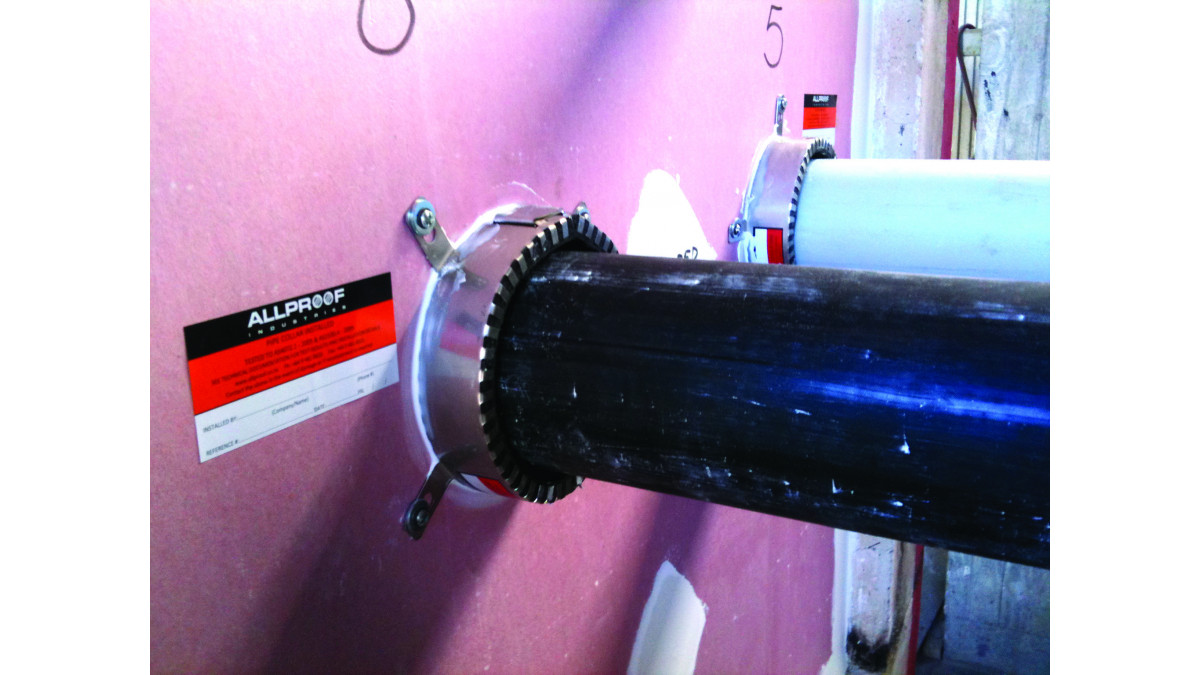

With an extensive range of products designed to fit varying installation methods and scenarios commonly faced in New Zealand, Allproof Industries will work with designers to find the best solution for any project. These product options aid the installation of passive fire protection in concrete install scenarios by offering pre-pour and retrofit fire collars, fire wraps and drop in fire collars for varying floor types such as com floor. For plasterboard situations, retrofit fire collars and fire wraps used in conjunction with a fire band can provide an effective solution.

Allproof is happy to advise on what product will best suit the application and construction methods being used for the project as they fully understand all the varying factors that need to be considered.

Cast In Fire Collars

Allproof Industries

View Product

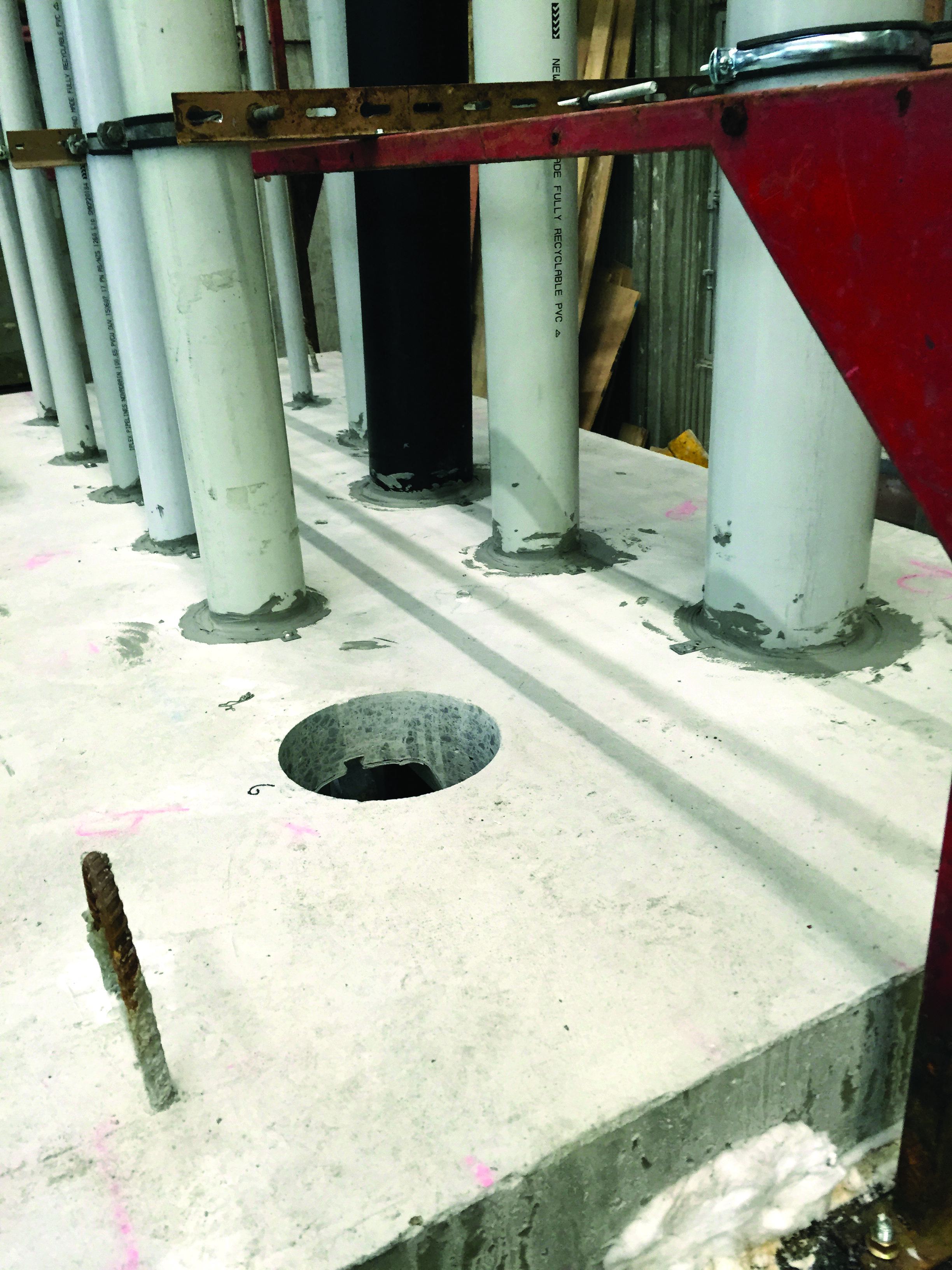

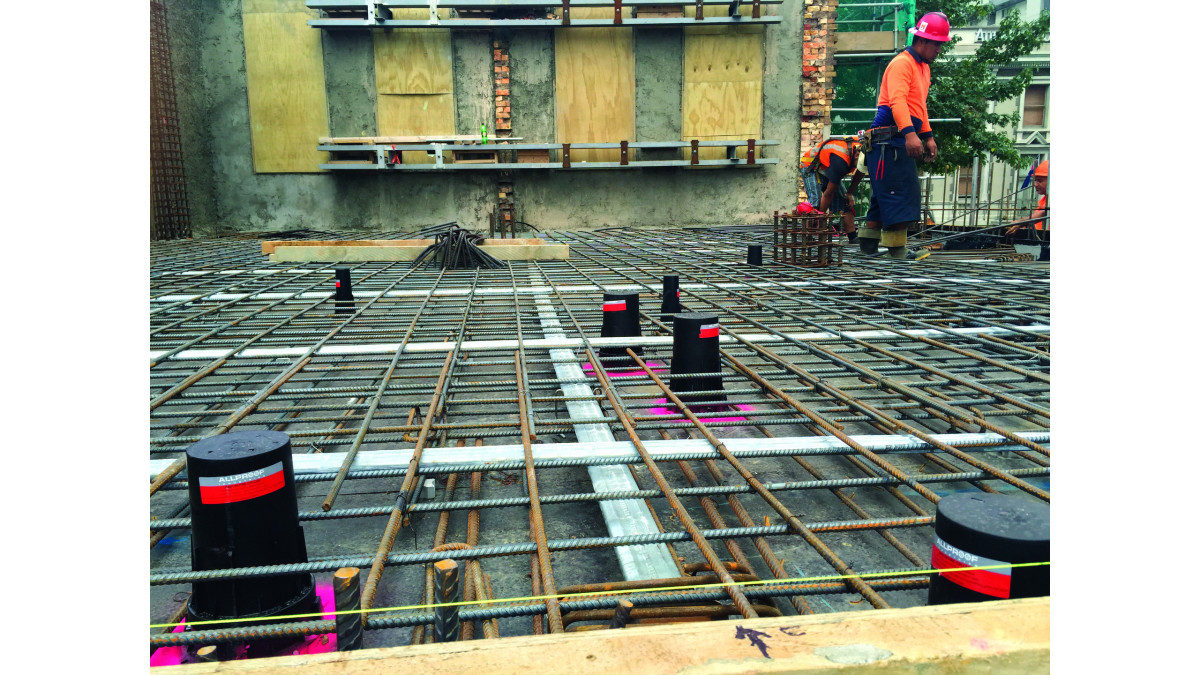

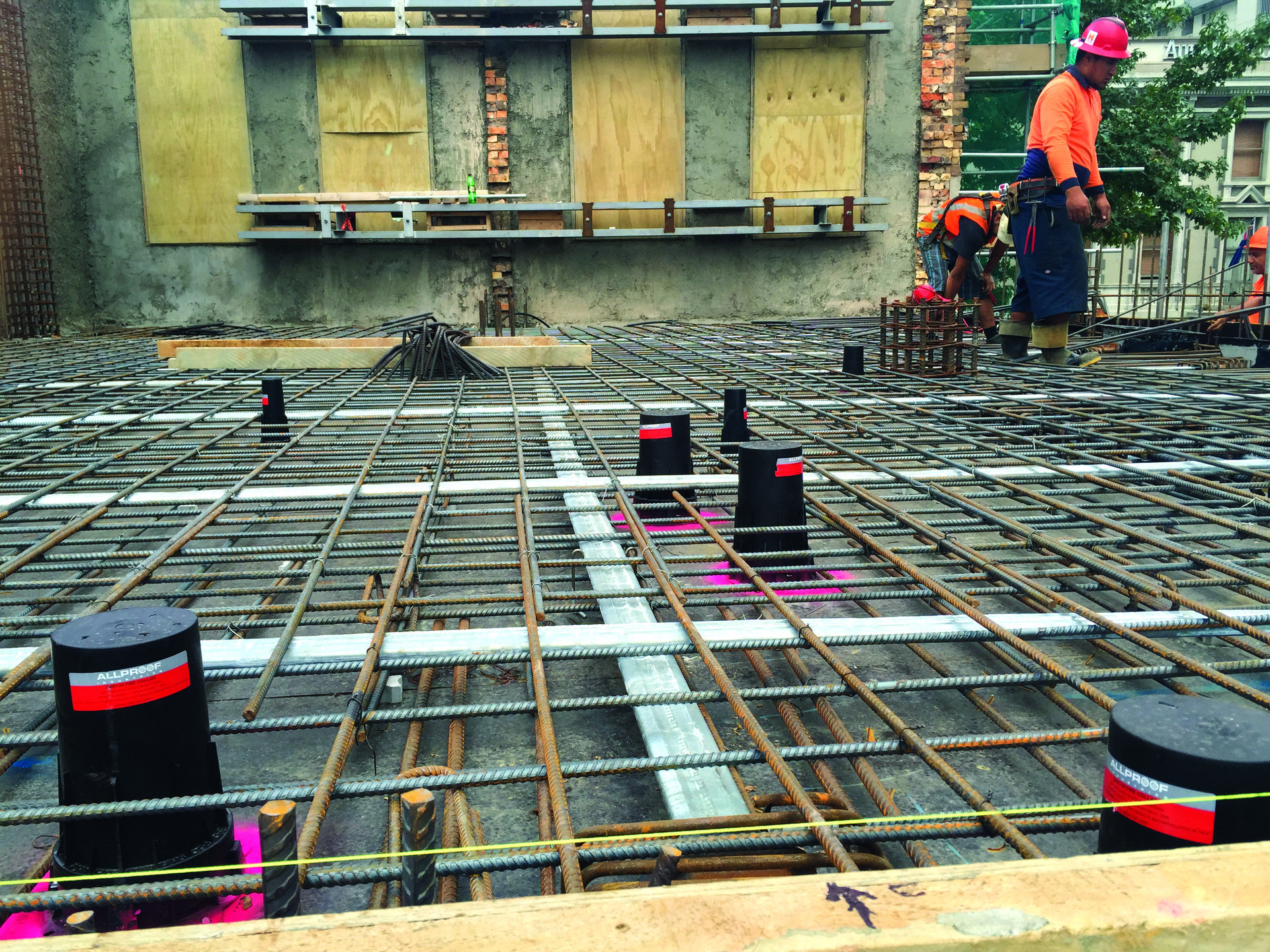

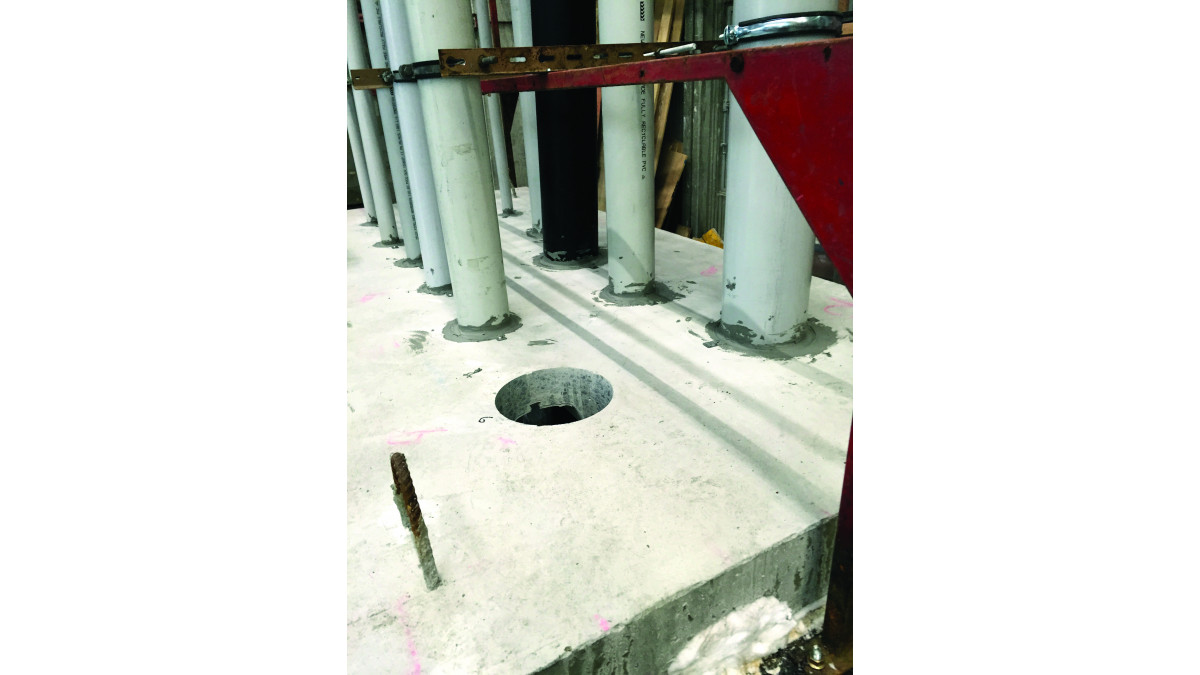

Allproof Cast In Fire Collars are designed to reduce the labour content of passive fire rating plumbing pipe penetrations on concrete floors that are poured on site.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Seals penetraions for plastic plumbing services in the event of a fire
Prevents spread of fire and smoke
To be cast into solid masonry floors

All products are tested to AS1530.4 — 2005 and AS4072.1 — 2005
Allproof fire collar product and technical data BRANZ Appraised — Appraisal No. 1088 [2019]
The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:
- Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
- Clause C4 Movement to place of safety: Performance C4.3

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

BRANZ Appraised

Test Results

Protection from Fire

Drop In Fire Collars

Allproof Industries

View Product

Allproof Drop in fire collars are made from galvanised steel and installed in conjuction with intumescent sealent.

NZ Made

NZ-Owned Business

Thin concrete floors (minimum 70mm)
Trapezoidal steel tray concrete floors
Can be retrofitted
Installed and fixed from top side of slab

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

All performance requirements stated by AS1530.4 — 2014 and AS4072.1 — 2005.

Allproof fire collar product and technical data BRANZ Appraised — Appraisal No. 1088 [2019]

BRANZ Appraised

Test Results

Protection from Fire

Fire Collars

Allproof Industries

View Product

The low profile pipe collars are designed to be installed in concrete, brick or masonry fire rated walls and floors, and fire rated plasterboard walls.

NZ Made

NZ-Owned Business

Pipe collars are designed to be exposed in a wall or floor application (i.e. face fixed). The collars should always be bolted to the underneath of the concrete floor. In wall situations one collar should be used on each exposed side of the fire rated wall.

Allproof fire collars are to be installed only as tested. Please refer to Fire collar literature for test results and install drawings on Allproof's website allproof.com.

Suitable for fitting to:

Concrete, masonry, brick walls.
Plasterboard walls
Concrete floors.
Hollow core construction floors

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

All performance requirements stated by AS1530.4 - 2014 and AS4072.1 - 2005.

Allproof fire collar poduct and technical data Branz Appriased - Appraisal No. 1088 [2019] https://www.branz.co.nz/Appraisal/1088

BRANZ Appraised

Test Results

Protection from Fire

Fire Wraps

Allproof Industries

View Product

Pipe wraps are designed to be installed in solid construction walls and floors and consist of a layer(s) of intumescent sealed in a polyethylene sleeve.

NZ Made

NZ-Owned Business

Concrete, masonry and porous concrete wall constructions
Concrete floor construction
Plasterboard penetrations (with Fireband)

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

All performance requirements stated by AS1530.4 - 2014 and AS4072.1 - 2005.

Allproof fire collar poduct and technical data Branz Appriased — Appraisal No. 1088 [2019]

BRANZ Appraised

Test Results

Protection from Fire

Low Cast-in Stack Fire Collars

Allproof Industries

View Product

Allproof low cast-in stack collars are designed to suit 40-100mm PVC pipe penetrations.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

To be cast into solid masonry floors.

All products are tested to AS1530.4 - 2005 and AS4072.1 - 2005.

BRANZ Appraised

Independent Assessment

Test Results

Protection from Fire
