Description

The VENT Ridge Vent is designed to release warm air from the roof void using the natural convection of rising warm air or by means of negative pressure created by wind blowing over the roof. The RV10 has an adhesive and flexible aluminium flashing which is designed to form to roofing profiles and prevent water ingress on any pitch roof. The RV10 form part of a passive ventilation system that works year round with no moving parts or energy consumption.

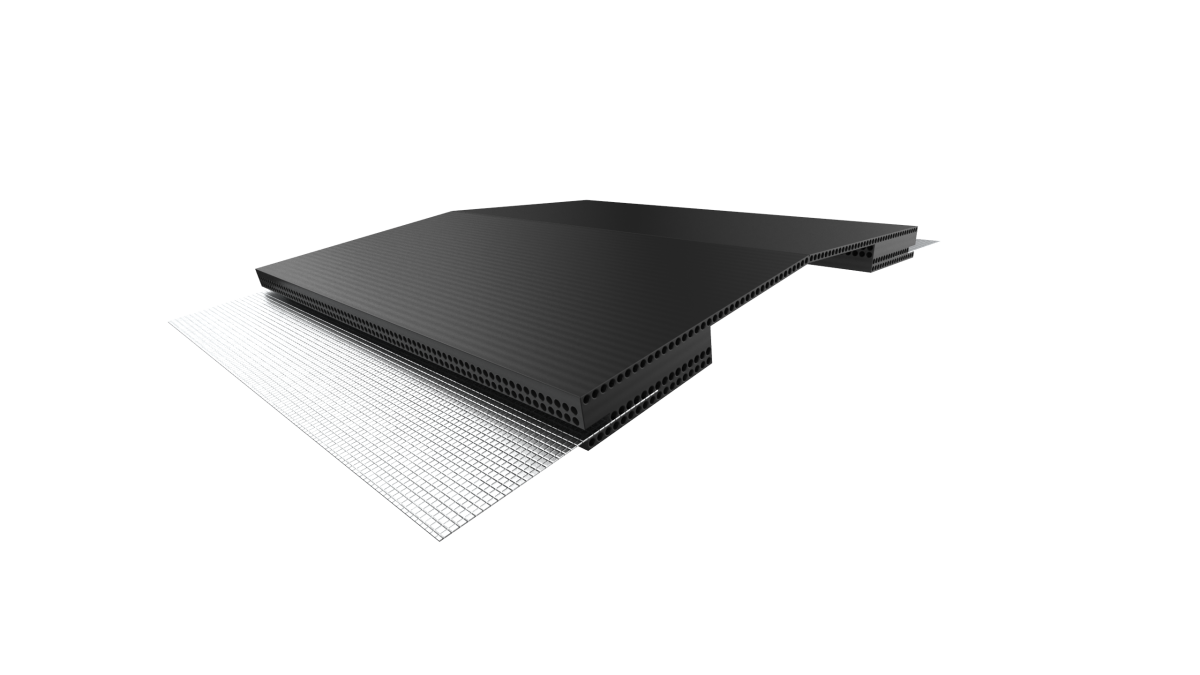

The RV10P is designed to be compatible with roof cladding profiles with a trough depth of <34mm.

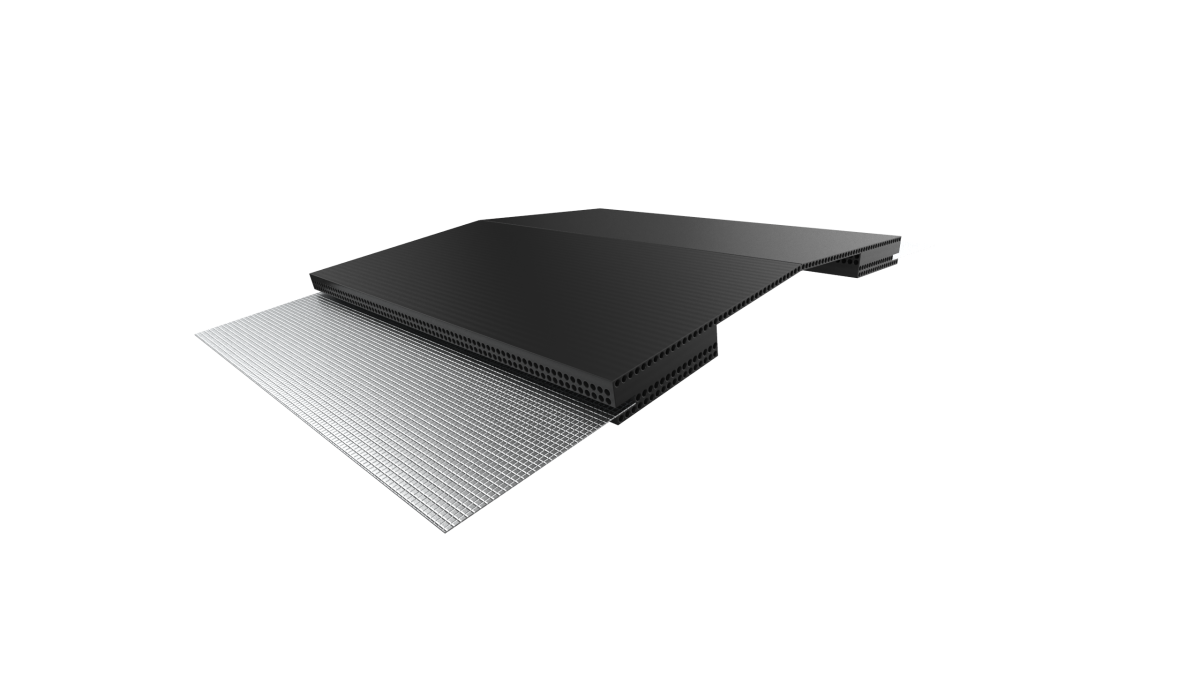

For roof cladding with trough depth of 34mm to 48mm, use RV10DT.

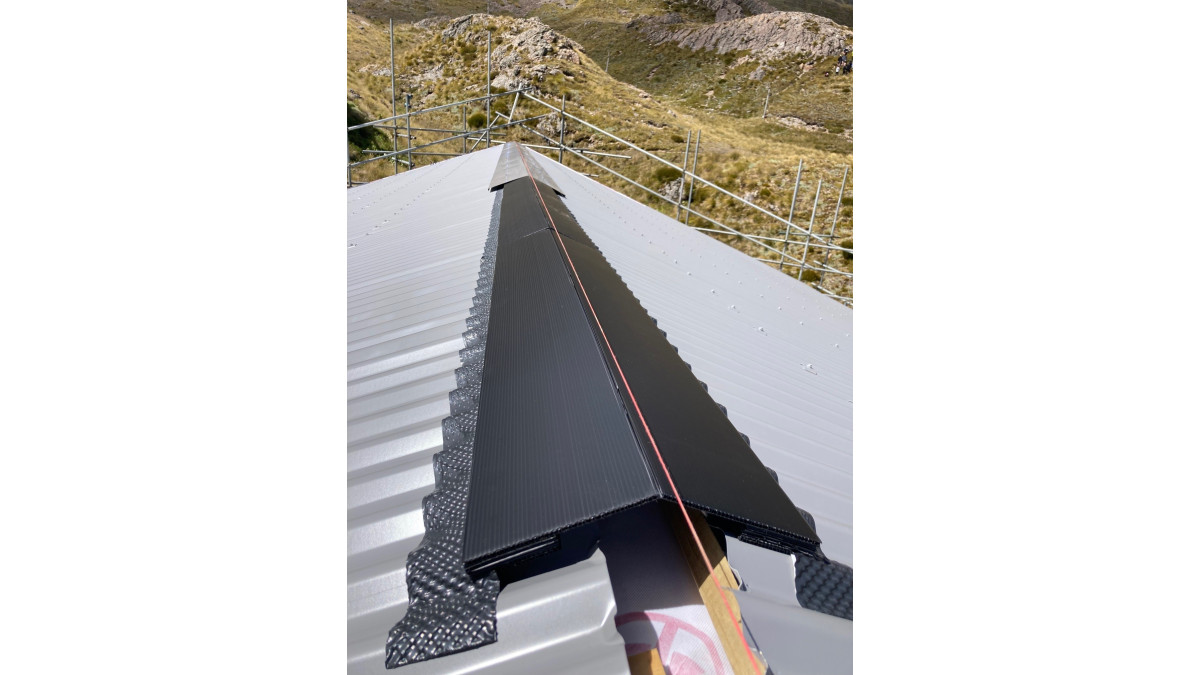

The aluminium soft edge should be notched or snipped as required to suit the roofing profile. Notching or snipping is always required on Deep trough or trapezoidal roofing profiles.

Key Features

BRANZ Appraised
Free airflow of 8,000mm² per linear metre
Releases hot air from roof voids and eliminates condensation
Recommended for cold roof pitch of over 30° and skillion roofs
For trough depths >34mm use an RV10DT (Deep Trough)
New builds or renovations
Easy to install – manufactured in 1200mm lengths for easy handling
Not visible when covered with ridge flashing (Ridge Flashing not included)
Insect proof – recommended 4mm vents to prevent ingress of nesting insects
Manufactured in recycled plastics
15 year warranty

Ranges

Passive Ventilation

Pre-Consumer Recycled Content

Scope of Use

Whilst essential for use on all skillion roofs of any degree pitch and trussed roofs >30°. The VENT Ridge Vents can be applied to any trussed roof profiles.

Compatible with corrugate, trapezoidal and most deep trough (flat pan) roof cladding profiles.
Compatible for shingle type roof.
Suitable for new builds or renovations.
Can be used individually or as part of a proprietary ventilation system.
New builds or renovations
Recommended for cold roof pitch of over 30° and skillion roofs

Recommended Applications:

RV10P and RV10P-Half for cladding profiles with a trough depth <34mm.
RV10DT and RV10DT-Half for cladding profiles with a trough depth 34mm - 48mm.

Limitations on Use

For roof cladding with trough depth of 34mm to 48mm, use RV10DT.
The aluminium soft edge should be notched or snipped as required to suit the roofing profile. Notching or snipping is always required on Deep trough or trapezoidal roofing profiles.

Statement of Building Code Compliance

VENT Ridge Vents and Half Ridge Vents, if designed, used, installed and maintained in accordance with the statements and conditions of the Product Data Sheet, will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. VENT Ridge Vents meet the requirements for loads arising from gravity loads, wind and impact [i.e. B1.3.3 (b), (h) and (j)].
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. VENT Ridge Vents meet these requirements.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. VENT Ridge Vents contribute to meeting this requirement.
Clause E3 INTERNAL MOISTURE: Functional Requirements E3.2 (c). VENT Ridge Vents contribute to meeting this requirement.
Clause F2 HAZARDOUS BUILDING: Performance F2.3.1. VENT Ridge Vents meet this requirement.
