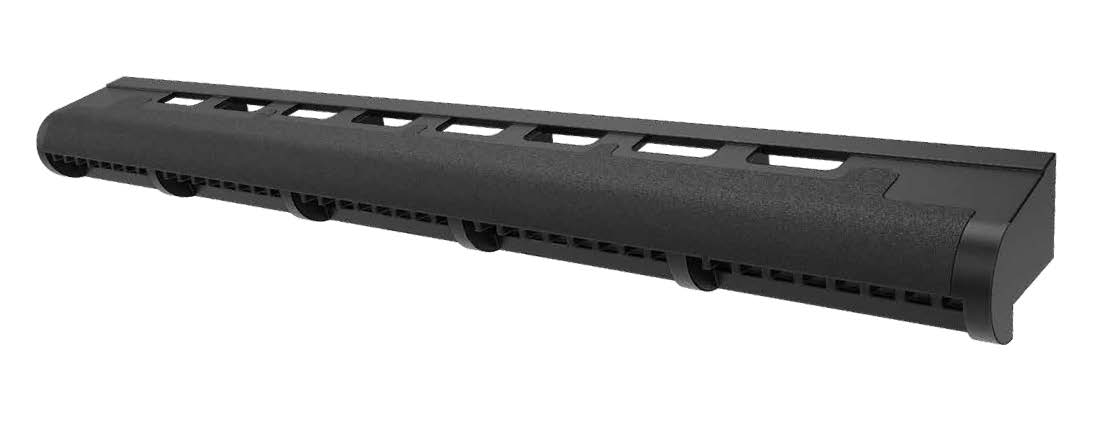

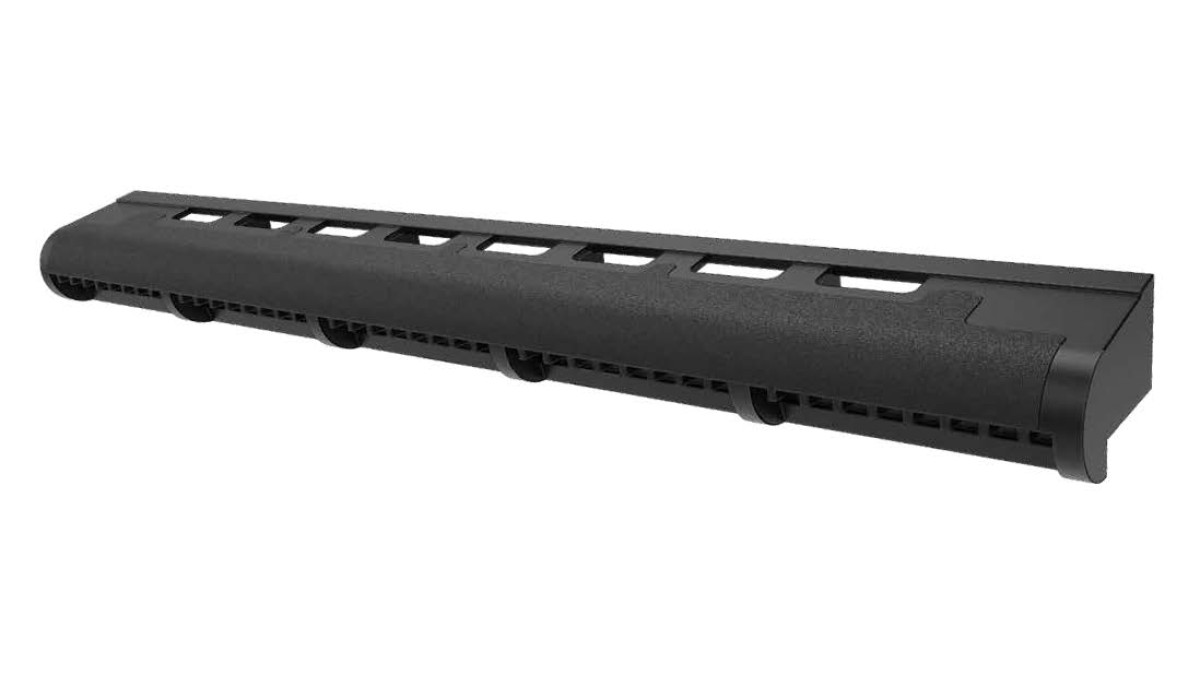

G1200N Over Fascia Vent
Description

The G1200N Over Fascia Vent is designed to discreetly ensure a positive airflow into the roof space between the roof membrane and the fascia board.



Key Features
  • Free airflow of 10,000m² per linear metre
  • Releases hot air from roof voids and eliminates condensation
  • Forms part of a passive ventilation system that works year round with no moving parts or energy consumption
  • Easy to install
  • Not visible as hidden by spouting/gutter
  • Insect proof - 4mm vents prevent ingress of nesting insects
Scope of Use
  • Suitable for roof pitches >15°
  • Compatible with timber or metal fascia
  • Suitable for new builds or renovations
  • Should be used in conjunction with the Roll Panel/Eaves Baffle Vent (G502) to ensure continuous and unimpeded airflow past the insulation
  • To be used as part of a proprietary ventilation system
Limitations on Use

Installation — The G1200N should be nailed or screw to the top of the fascia board through the fixing holes provided along the full length of the eaves.

Documents
Product Technical Statement

July 2021
