1. ProctorPassive Wraptite UV-SA is certified for use with buildings:

• a) designed and constructed to:
  • i. NZS3604 and located in wind zones up to and including Extra High (as defined in NZS3604) or
  • ii. NZS3603 and AS/NZS 1170 with a maximum wind design pressure (ULS) limited by the capacity of the substrate to which ProctorPassive Wraptite UV-SA is applied, and
• b) with the following claddings:

  • i. closed joint face sealed absorbent or non-absorbent directly fixed, or over a nominal 20 mm or more drained cavity, or
  • ii. open joint rain screen installed over a nominal 20 mm or more drained cavity, and where the joint openings in the façade covering are less than 30% of the area, and maximum 30 mm wide, and
  • iii. masonry veneer in accordance with NZBC Acceptable Solution E2/AS1, and
• c) located in any exposure zone except microclimates (as defined in NZS3604), and d) applied to the following substrates: plywood, fibre cement sheet, exterior grade gypsum, timber, OSB board, aluminium (mill finish, painted or powder-coated), steel sheet (including stainless, galvanised or pre-painted), concrete, smooth dense EPS and XPS board, and rigid vinyl.

• i. NZS3604 and located in wind zones up to and including Extra High (as defined in NZS3604) or
• ii. NZS3603 and AS/NZS 1170 with a maximum wind design pressure (ULS) limited by the capacity of the substrate to which ProctorPassive Wraptite UV-SA is applied, and

• i. closed joint face sealed absorbent or non-absorbent directly fixed, or over a nominal 20 mm or more drained cavity, or
• ii. open joint rain screen installed over a nominal 20 mm or more drained cavity, and where the joint openings in the façade covering are less than 30% of the area, and maximum 30 mm wide, and
• iii. masonry veneer in accordance with NZBC Acceptable Solution E2/AS1, and

2. ProctorPassive Wraptite UV-SA shall:

• a) be installed in accordance with the User Guide Wraptite UV-SA Australia & New Zealand July 2022, and not be exposed to the weather or direct sunlight for more than 9 months (4 months where installing an open joint cladding) during construction.

3. Contribution to compliance with Building Code clause H1.3.1(b) is conditional on the element incorporating ProctorPassive Wraptite UVSA being part of the thermal envelope of the building.

Show more

• Clause B2 Durability: Performance Clauses B2.3.1(a) (when used behind masonry or other durable wall claddings) B2.3.1(b), B2.3.2
• Clause C3 Fire affecting areas beyond the fire source: Performance Clauses C3.6 (contributes to), C3.7 (contributes to)
• Clause E2 External Moisture: Performance Clauses E2.3.2 (contributes to); E2.3.6 (contributes to); E2.3.7
• Clause F2 Harardous building materials: Performance Clauses F2.3.1
• Clause H1 Energy Efficiency: Performance Clauses H1.3.1(b) (contributes to)

Show more

CodeMark

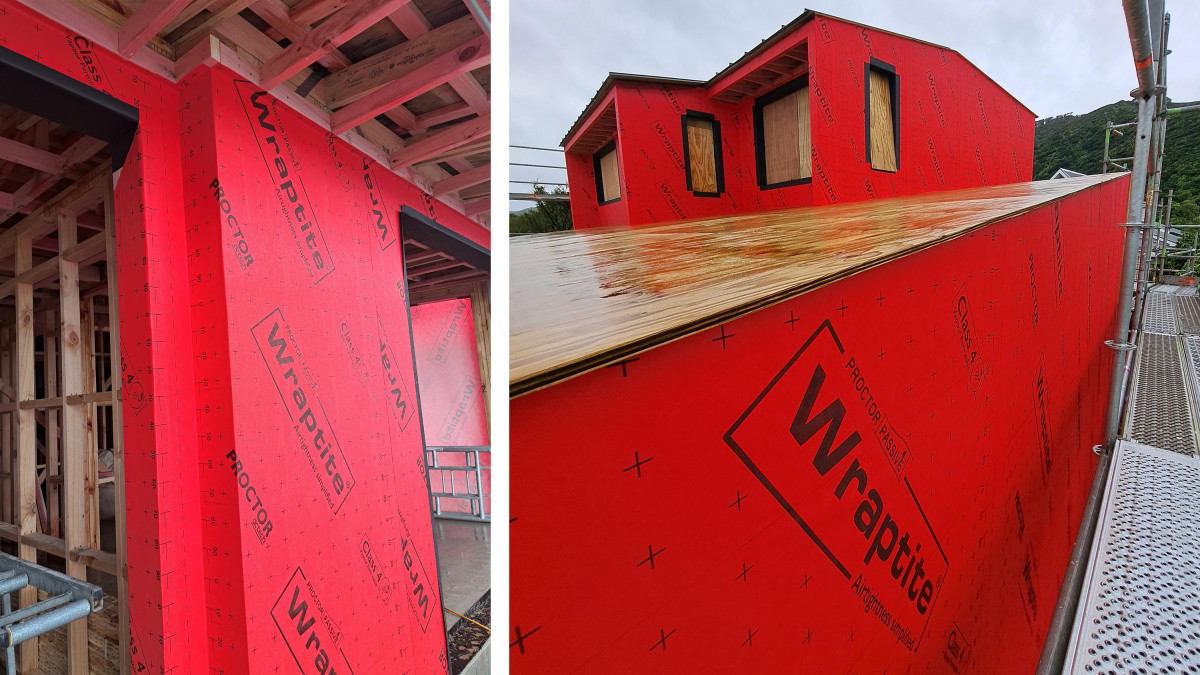

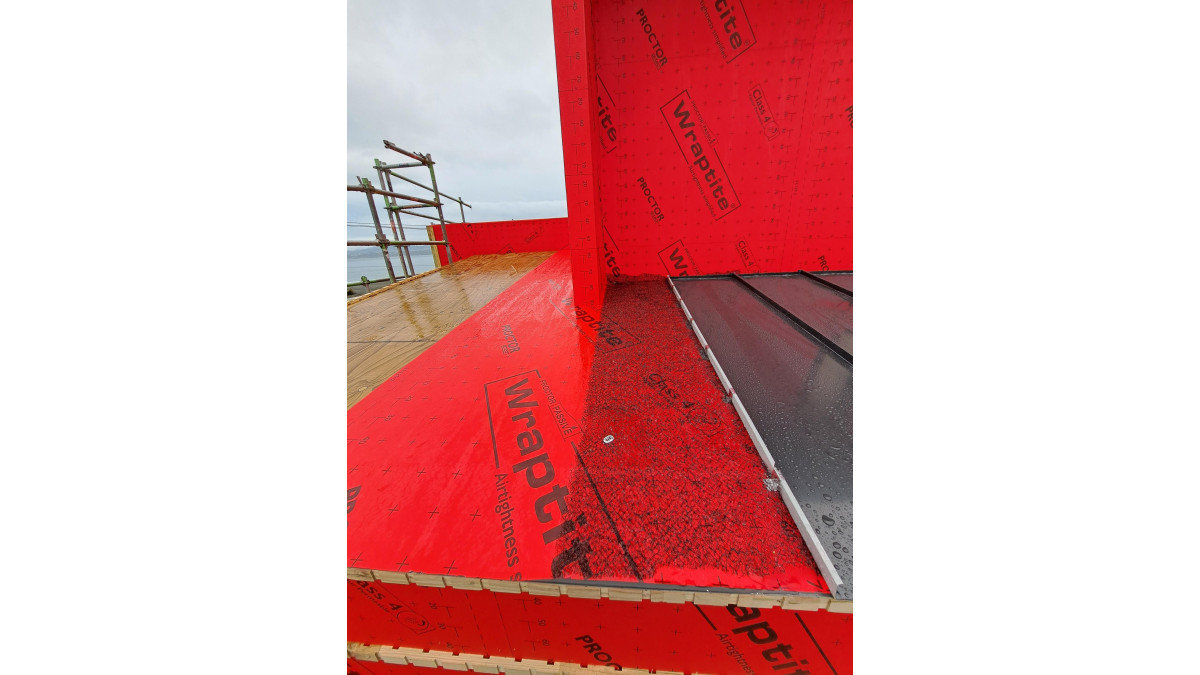

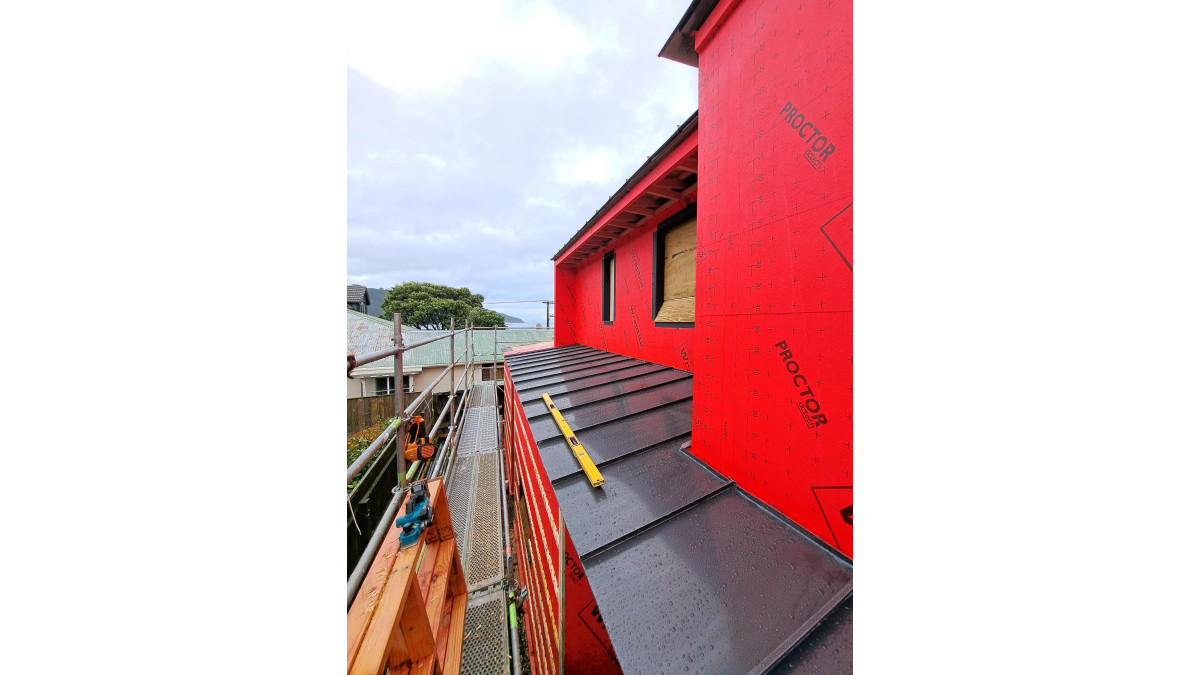

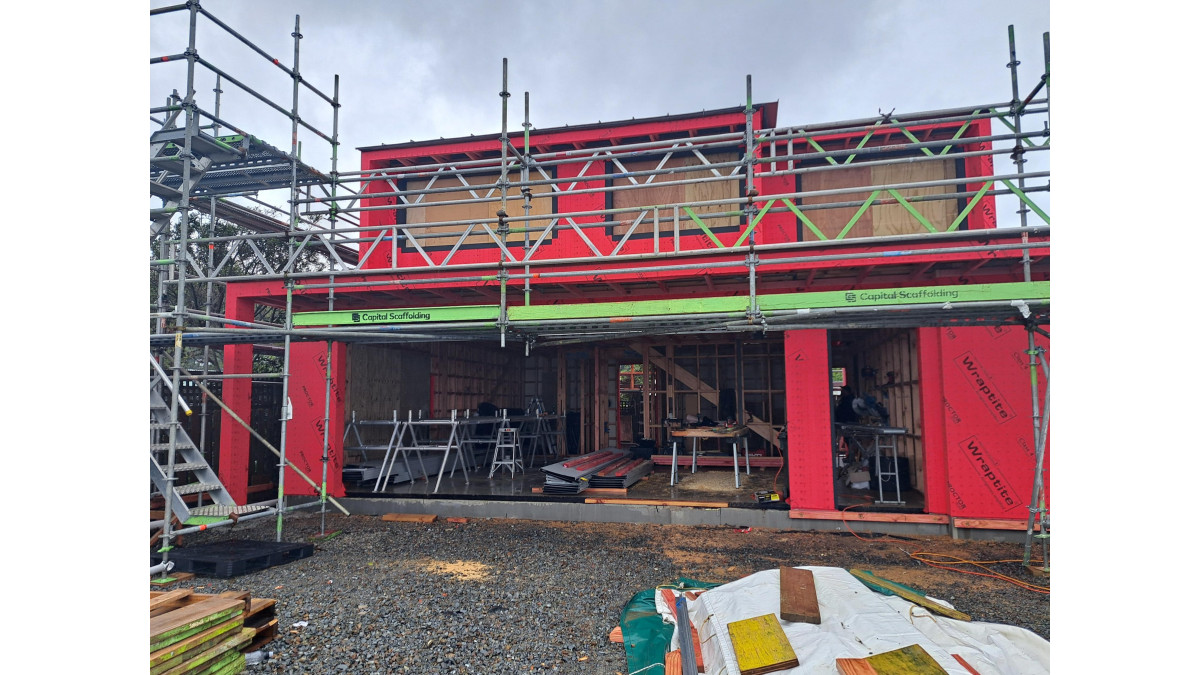

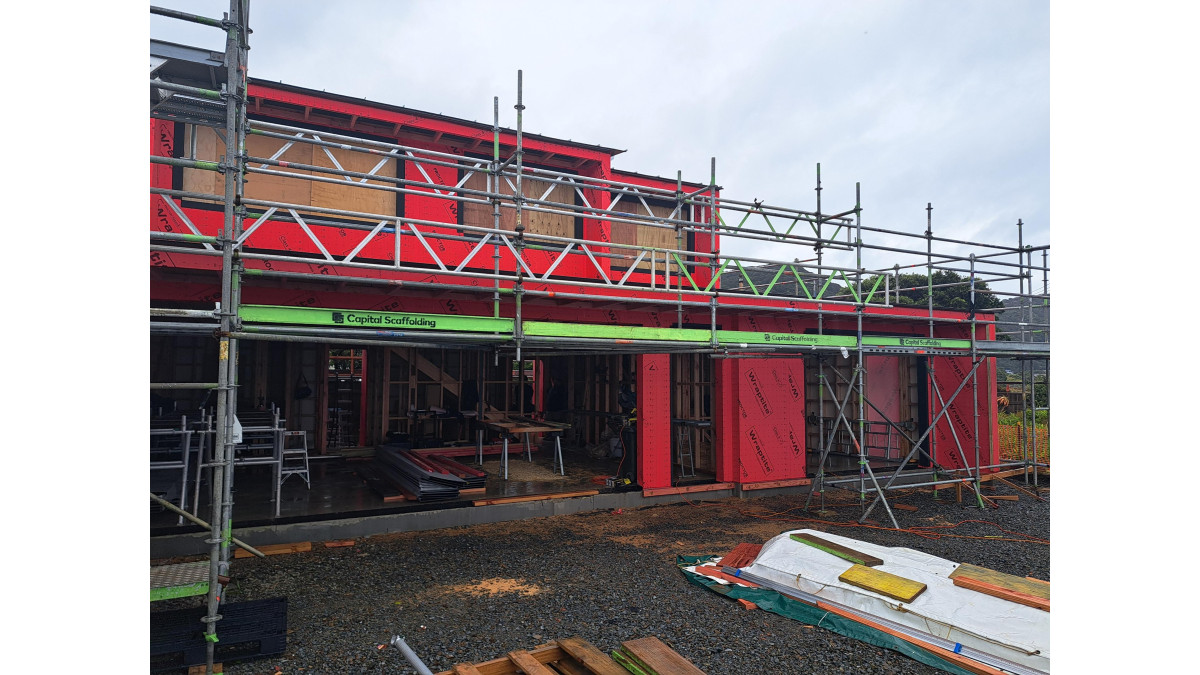

Proctor Passive Wraptite SA can be installed on new and existing buildings and it is suitable for roof and wall applications for residential, commercial and high rise buildings.

Proctor Passive Wraptite SA's high vapour permeable peel and stick products used full coverage in pitched roofs and walls allows excellent drying capacity for assemblies wet during construction and from typical in service leaks over the life-time of the building.

Proctor Passive Wraptite SA can be installed over rigid air barrier, replacing tape and flexible underlay. It offers minimal mechanical fixings and provide greater integrity of installation and system.

Multiple substrate compatibility:

• Exterior Gypsum Sheathing
• Aluminium (painted or mill finish)
• OSB
• Most rigid insulation
• Cast-in place concrete
• Rigid vinyl
• Pre-painted steel
• Galvanised metal
• Precast concrete
• Steel
• Concrete block
• Plywood

Show more

When specified and installed in accordance with the technical literature, Proctor Passive Wraptite SA will comply with the following provisions of the NZ Building Code;

• B1 Structure: B1.3.1, B1.3.2, B1.3.3 (c, h, q), B1.3.4 (a, b, c, d, e)
• B2 Durability: B2.3.1 (a), B2.3.2 (a)
• C Protection from Fire: C3.4(c)
• E2 External Moisture: E2.3.2, E2.3.7 (a, b, c)
• F2 Hazardous Building Materials: F2.3.1

Show more

CodeMark

Roof Ventilation Products have been appraised for use as non-structural roof battens and vents for use with pitched and skillion roof construction on buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area; and,
• with profiled metal roof cladding; and,
• situated in NZS 3604 Wind Zones up to, and including Extra High.

The VENT Vented Batten (VB20) is designed for use on all skillion roof designs irrespective of the roof cladding. It can be used in all climates and weather conditions.

The VENT Vented Batten will fix to the top of the roof purlins, the upper edge of the fascia and underneath the barge flashing, and is compatible with steel and timber purlins.

• Residential skillion roofing and commercial buildings
• Designed to ensure that unimpeded airflow through the roof cavity of a skillion roof design
• Also designed as a purlin vent to allow airflow throughout roof area
• New build or renovation
• VB20 can also be used on walls to create vertical or horizontal ventilation flows

See BRANZ Appraisal 979

Show more

In the opinion of BRANZ, Roof Ventilation Products, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Roof Ventilation Products meet the requirements for loads arising from gravity loads, wind and impact [i.e. B1.3.3 (b), (h) and (j)]
• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. Roof Ventilation Products meet these requirements
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Roof Ventilation Products contribute to meeting this requirement
• Clause E3 INTERNAL MOISTURE: Performance E3.3.1. Roof Ventilation Products contribute to meeting this requirement
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Roof Ventilation Products meet this requirement

See BRANZ Appraisal 979 (2023) for full information.

Show more

BRANZ Appraised
