ProctorPassive Wraptite SA
Description

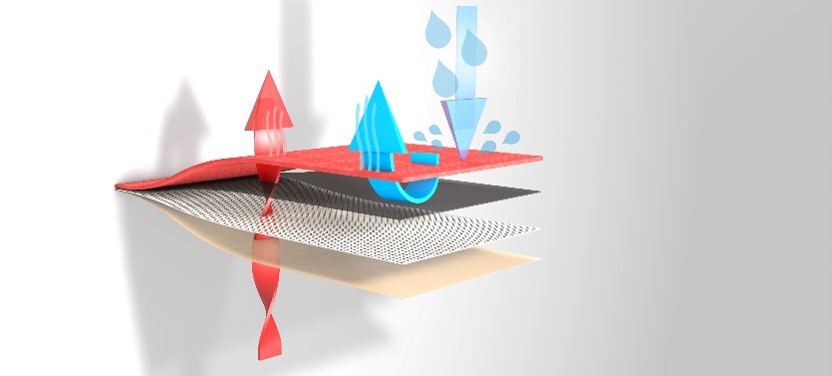

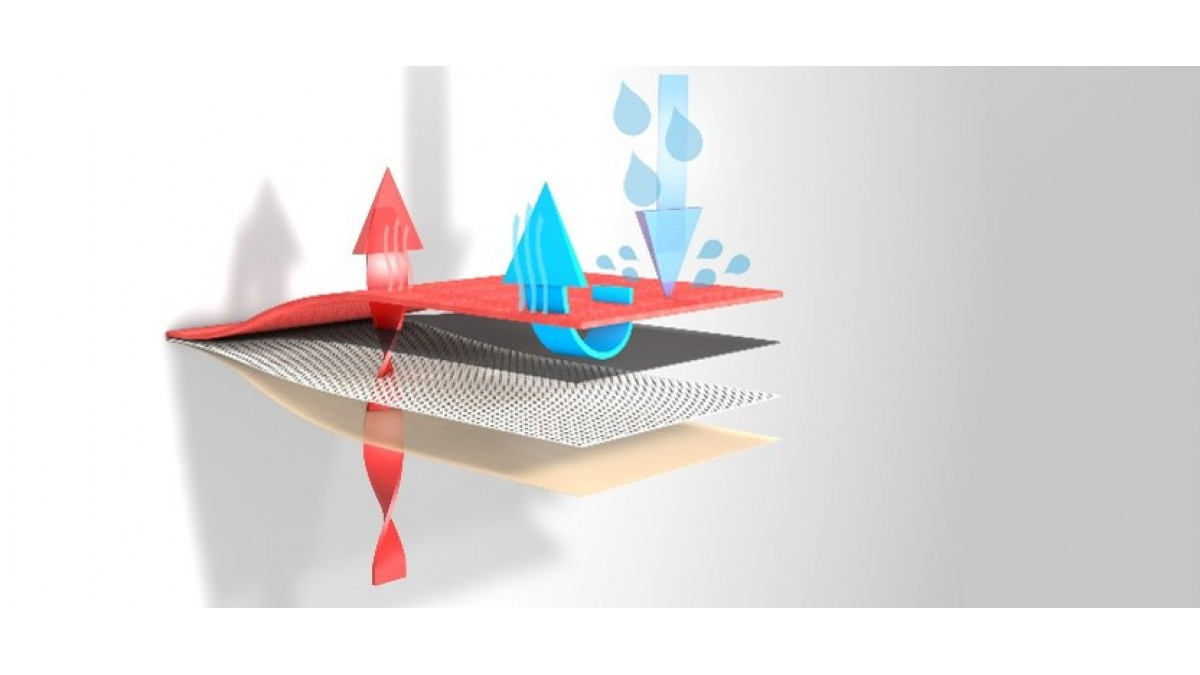

Protor Passive Wraptite-SA is a self adhering airtight and vapour permeable membrane for wall and roof applications.

It combines the best properties of a vapour permeable membrane and a self adhesive water and air barrier in one innovative self-adhering product. Use of highly vapour permeable self-adhesive membranes decreases installation times when compared to mechanically fastened membrane systems and is suitable for residential, commercial and high rise buildings.

Continuous contact of the membrane to the sheathing by even distribution of stress over the entire bonded surface allows better resistance to wind pressures and elimination of stress point concentrations.

Key Features
  • No primer required on most clean substrates down to -6°C
  • Lightweight and easy to install
  • Multiple substrate compatibility
  • UV exposure: six weeks
  • Low flammability (Flammability Index: 1)
  • Wide service temperature range, easily installed in all climates
  • Tear, rip and puncture resistant during and after construction, reducing install costs
  • Zero VOCs, and free of any chemicals on the Living Building Challenge Red List
  • NZBC compliance
  • Approved Sealant: Tremco Dymonic 100
Declare: LBC Red List Free
Declare: LBC Red List Free
Scope of Use

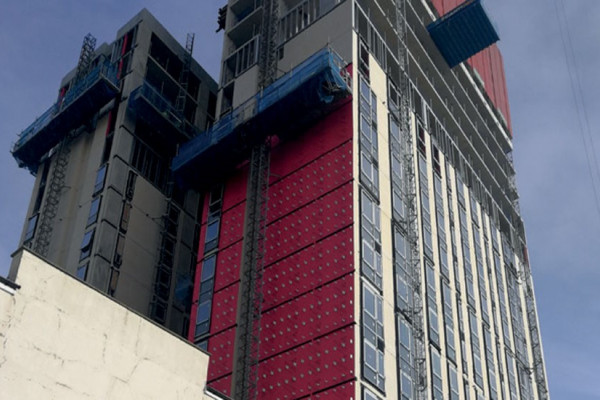

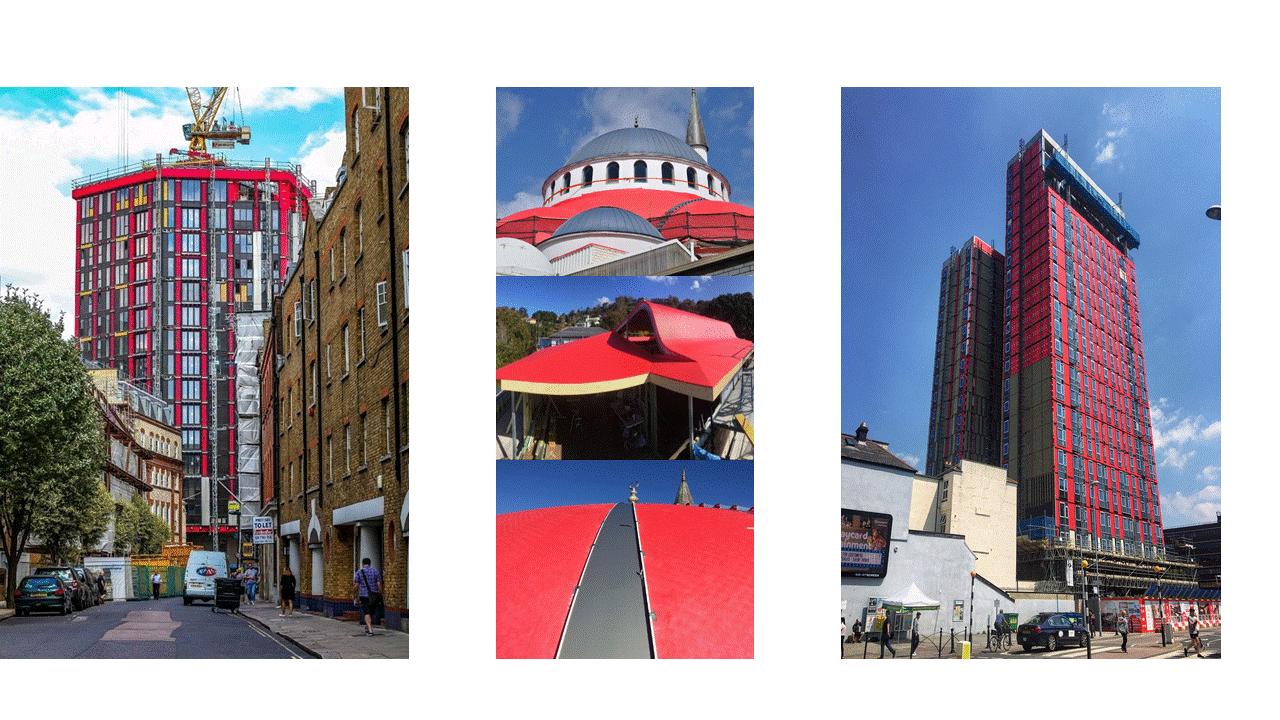

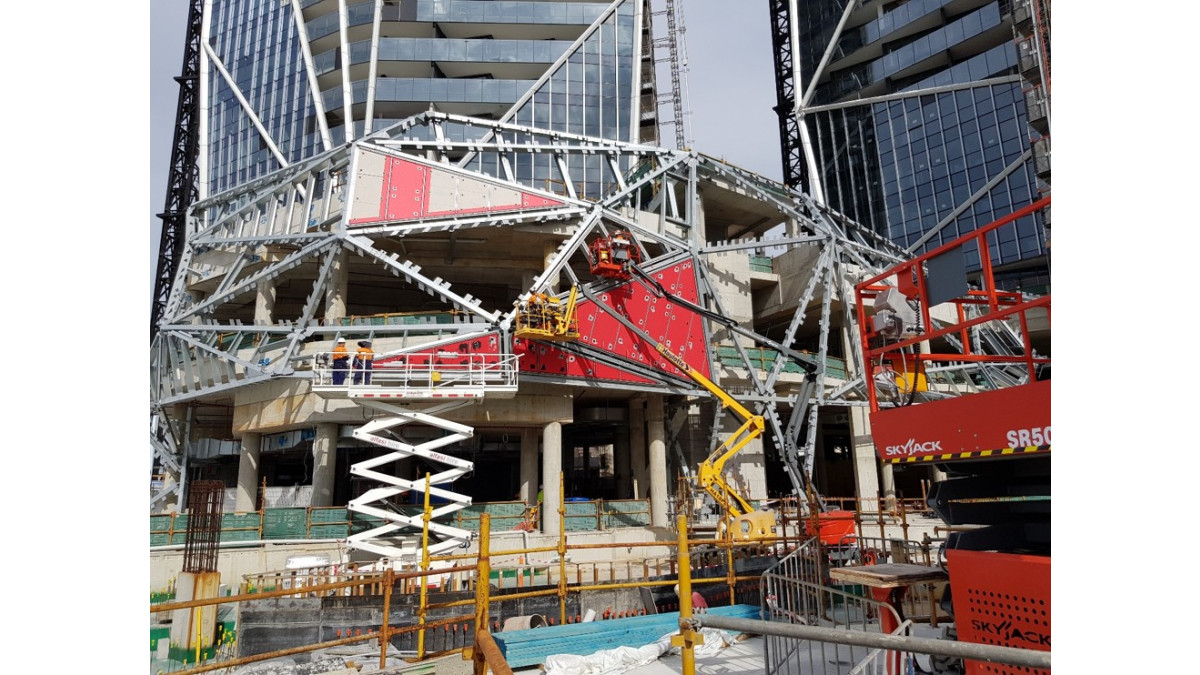

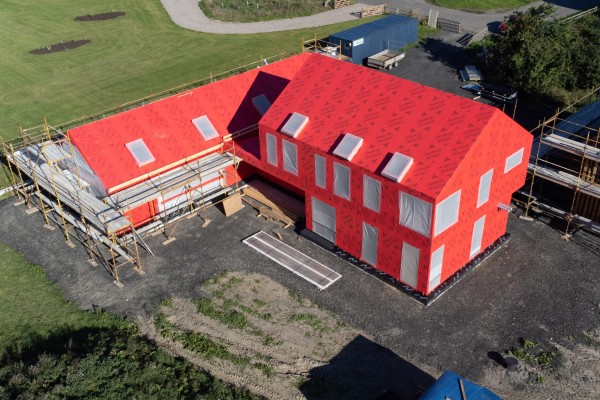

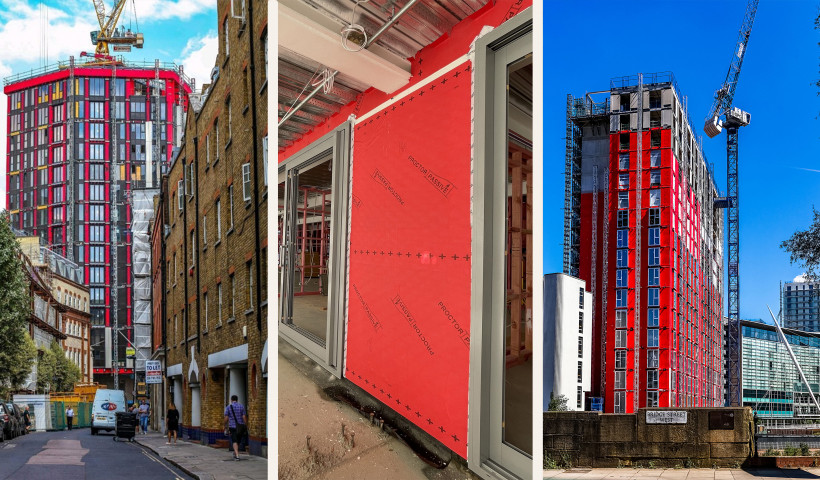

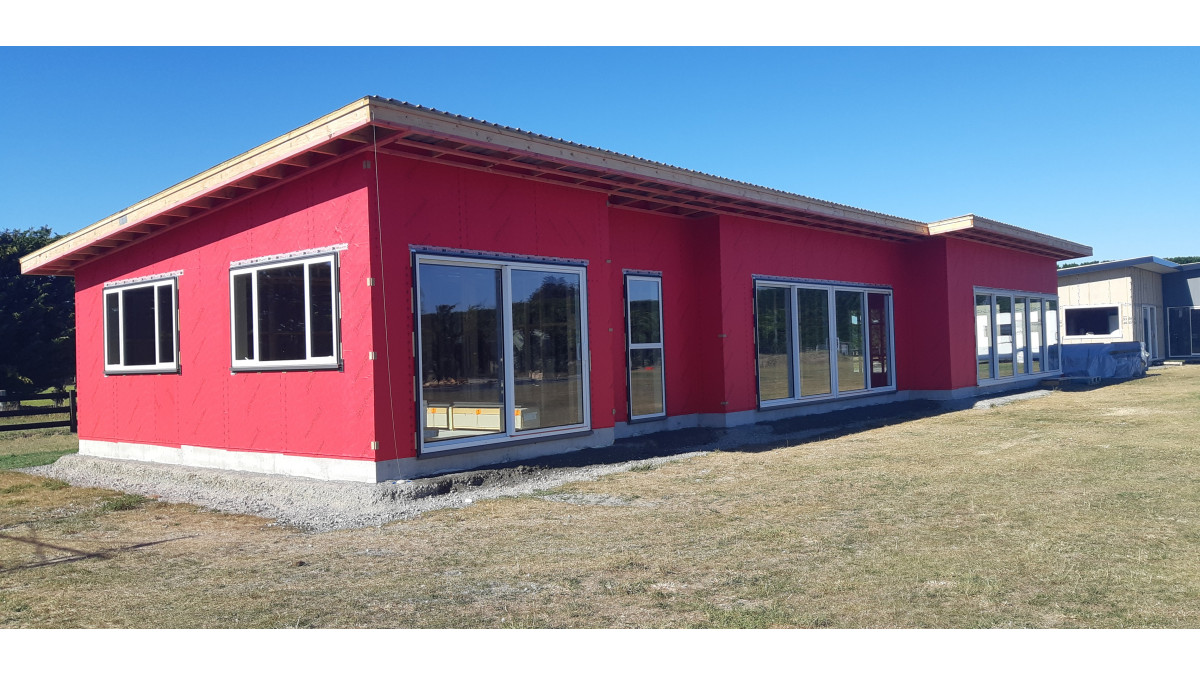

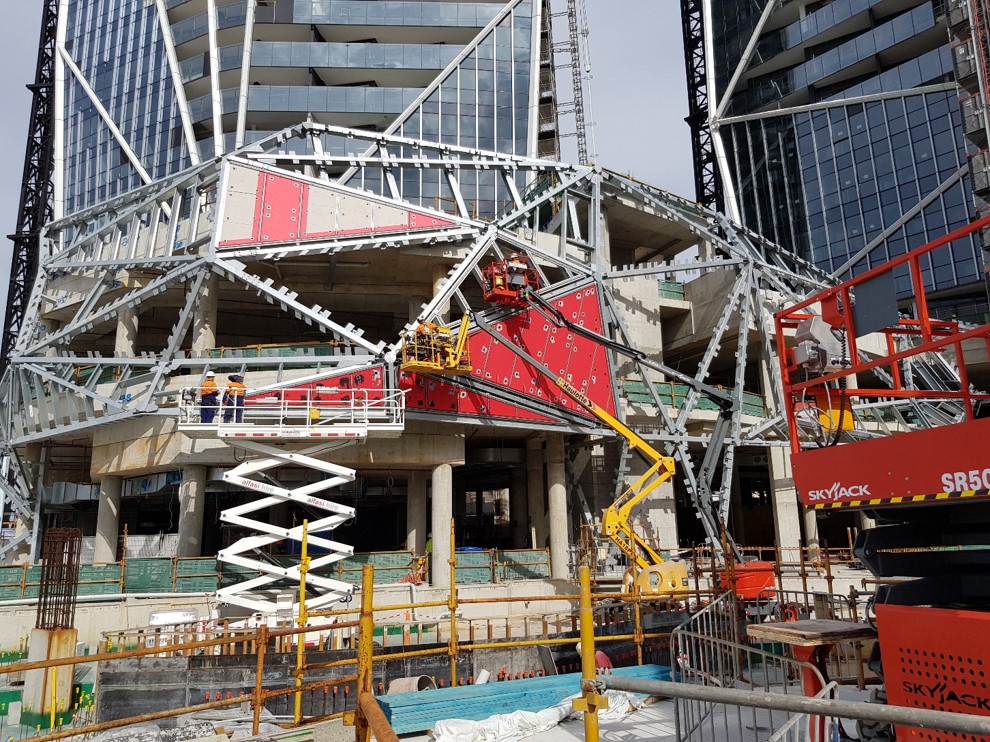

Proctor Passive Wraptite SA can be installed on new and existing buildings and it is suitable for roof and wall applications for residential, commercial and high rise buildings.

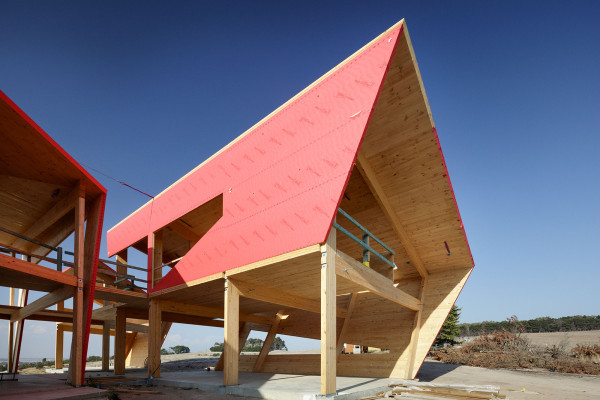

Proctor Passive Wraptite SA's high vapour permeable peel and stick products used full coverage in pitched roofs and walls allows excellent drying capacity for assemblies wet during construction and from typical in service leaks over the life-time of the building.

Proctor Passive Wraptite SA can be installed over rigid air barrier, replacing tape and flexible underlay. It offers minimal mechanical fixings and provide greater integrity of installation and system.

Multiple substrate compatibility:

  • Exterior Gypsum Sheathing
  • Aluminium (painted or mill finish)
  • OSB
  • Most rigid insulation
  • Cast-in place concrete
  • Rigid vinyl
  • Pre-painted steel
  • Galvanised metal
  • Precast concrete
  • Steel
  • Concrete block
  • Plywood
Limitations on Use
  • Proctor Passive Wraptite SA must not be applied in areas where it will be permanently exposed to UV light e.g. behind open-joint cladding
  • Substrate condition is critical to the adhesive performance of any self-adhered membrane or liquid applied flashing.
  • Wraptite SA must be installed in accordance with the Proctor Wraptite SA installation guide for Australia and New Zealand
Statement of Building Code Compliance

When specified and installed in accordance with the technical literature, Proctor Passive Wraptite SA will comply with the following provisions of the NZ Building Code;

  • B1 Structure: B1.3.1, B1.3.2, B1.3.3 (c, h, q), B1.3.4 (a, b, c, d, e)
  • B2 Durability: B2.3.1 (a), B2.3.2 (a)
  • C Protection from Fire: C3.4(c)
  • E2 External Moisture: E2.3.2, E2.3.7 (a, b, c)
  • F2 Hazardous Building Materials: F2.3.1
Other Performance Attributes
  • UV exposure: six weeks
  • Low flammability (Flammability Index: 1)
  • Zero VOCs, and free of any chemicals on the Living Building Challenge Red List
Documents
Product Technical Statement
Installation and Operation
