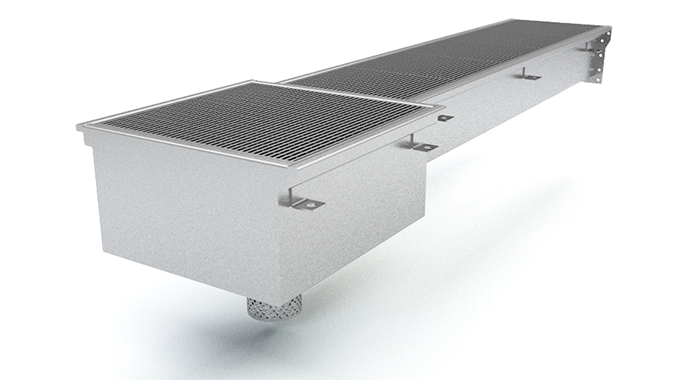

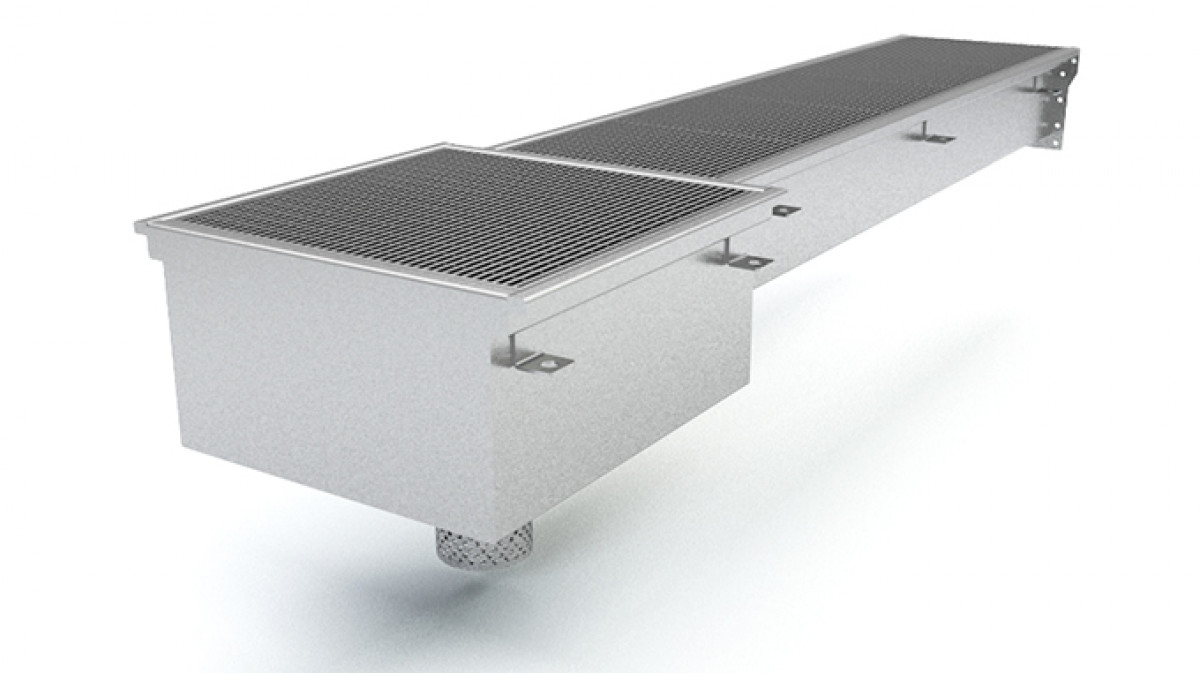

MC Series — Modular Stainless Steel Channel

The MC Series is a modular channel drain system with a sump available in standard sizes making it is easy to tailor system layouts to meet the needs of specific projects.

With numerous channel configuration options available, including width, length, and depth, this system offers flexibility and can be used to create layouts for large complex projects. Made in NZ from 304 stainless steel this system offers an excellent solution making specification, ordering and installation easy.

Key Features
  • 304 grade stainless steel

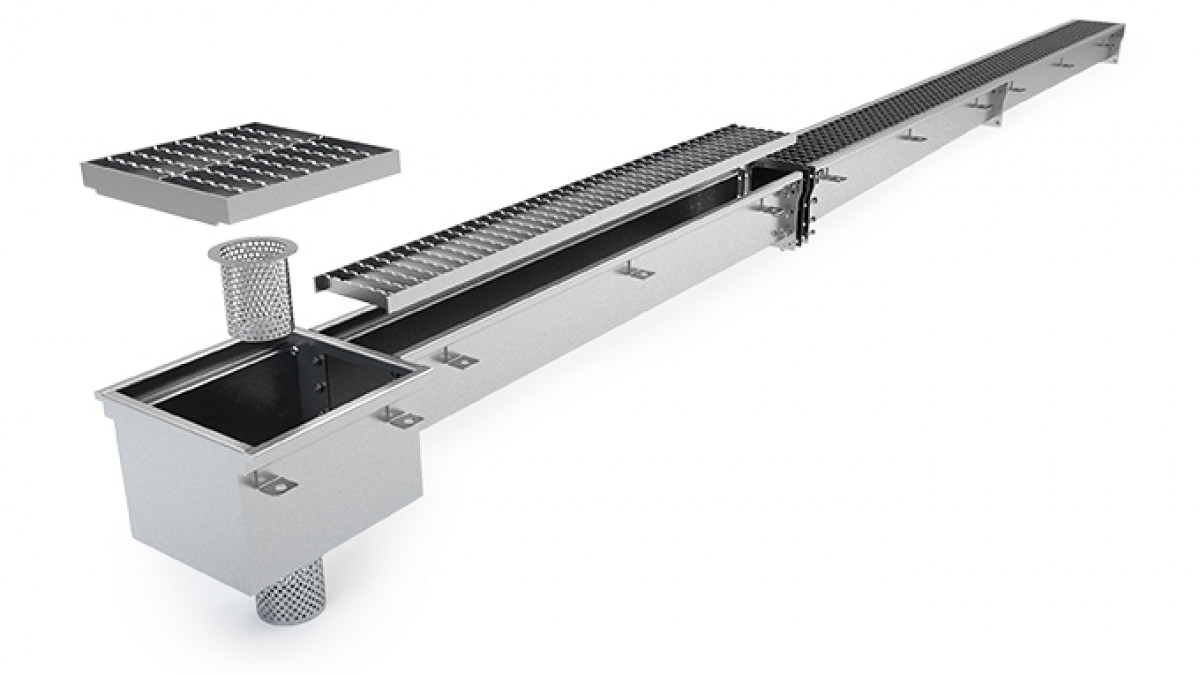

  • Standardised modular components connected together with bolted unions and gaskets
  • 3x grate options with slip resistant (AS4586) and load class (AS3996) testing
  • Includes 100mm O-ring outlet to suit i.d. for either PVC or HDPE, please specify when ordering
  • Epoxy filled safety edges
  • Double strainer basket, 1x removal strainer basket (connected by SS cable) & 1x fixed strainer basket
  • Anti-float tags
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Idea for use in:

  • Butchers
  • Bakeries
  • Supermarkets
  • Commercial Kitchens
  • Restaurants
  • Industrial Food Production
  • Beverage Production Facilities
  • Food Processing Plants
Limitations on Use

To be used with concrete, tile or epoxy finished floors. Not compatible with vinyl flooring systems.

Statement of Building Code Compliance

Designed to fully comply with all NZBC criteria and AS/NZ standards.

E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
G3 Food Preparation and Prevention of Contamination compliant
Food Preparation and Prevention of Contamination
Test Results
Test Results
Product Warranty
