Save Installation Time with DriStud's All Weather Flashing Tape

There has been a need for a Window Flashing Tape in the market that works well in all climates and that will eliminate unnecessary, time consuming processes such as using additional layering, added primer or a heat gun to ensure adequate sealing around window frames. TCL Hunt has found a solution to the problem and has introduced the ultimate all weather tape: DriStud Cool Window Flashing Tape.

DriStud Cool Window Flashing Tape does not contain asphalt and is specifically designed to be installed in temperatures as low as -6°C, and can even be applied to damp surfaces with maximum adhesion. This makes it ideal for applications in the central North Island and the South Island where it can get quite chilly.

With its modified butyl adhesive and high conformable film barrier, DriStud Cool Window Flashing Tape guarantees reliable performance in even severe weather conditions, easily conforming to OSB anomalies and transitions and assisting in the reduction of undesirable water movement. It offers a service temperature range from -25°C to 80°C.

DriStud Cool Window Flashing Tape provides unparalleled protection against water infiltration and decreases time and expenses due to its versatile temperament.

Conventional bituminous window flashing tapes are up to 1000μm thick, whereas DriStud Cool Window Flashing Tape is 381μm thick. This allows the tape to conform easily to most applications within restricted spaces or where fitting tolerance is limited.

Features

CodeMark certified (Certificate Number: AQ-160715-CMNZ)
Can be applied to damp surfaces without primer
Compatible with a wide range of building materials
Can be used for residential and commercial buildings
Suitable for all wind zones of NZS 3604 up to and including 'Extra High'
Compliant with AAMA 711-13 guidelines for preventing water penetration around fasteners

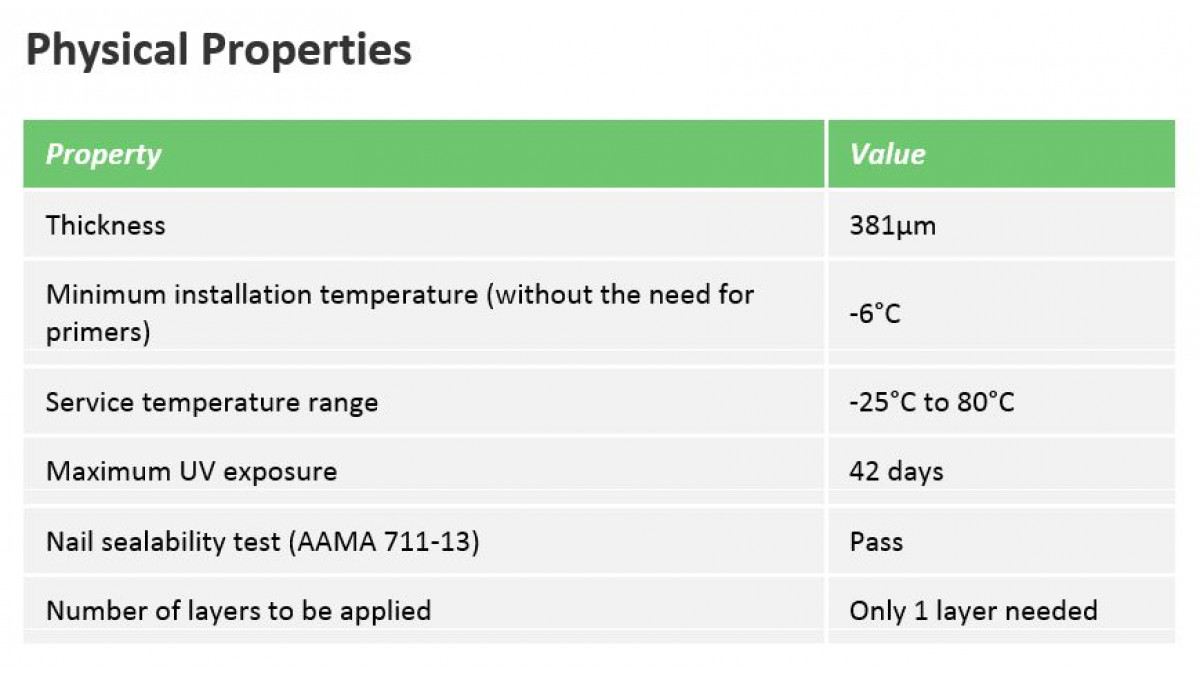

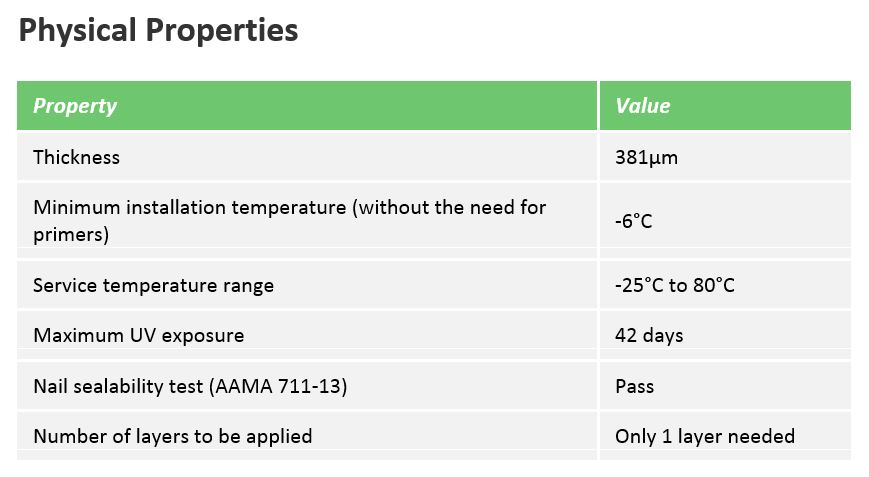

Physical Properties

Property	Value
Thickness	381μm
Minimum installation temperature (without the need for primers)	-6ºC
Service temperature range	-25°C to 80°C
Maximum UV exposure	42 days
Nail sealability test (AAMA 711-13)	Pass
Number of layers to be applied	Only 1 layer needed

DriStud Cool Window Flashing Tape

DriSpace

View Product

DriStud Cool Window Flashing Tape is a window sealing system that can also be used for general sealing of wall penetrations.

DriStud Cool Window Flashing Tape is intended for use in new and existing buildings in conjunction with an underlay or rigid air barrier.

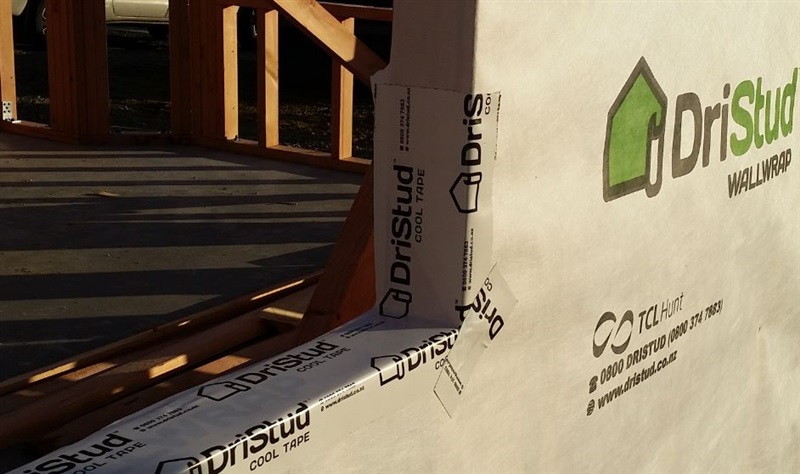

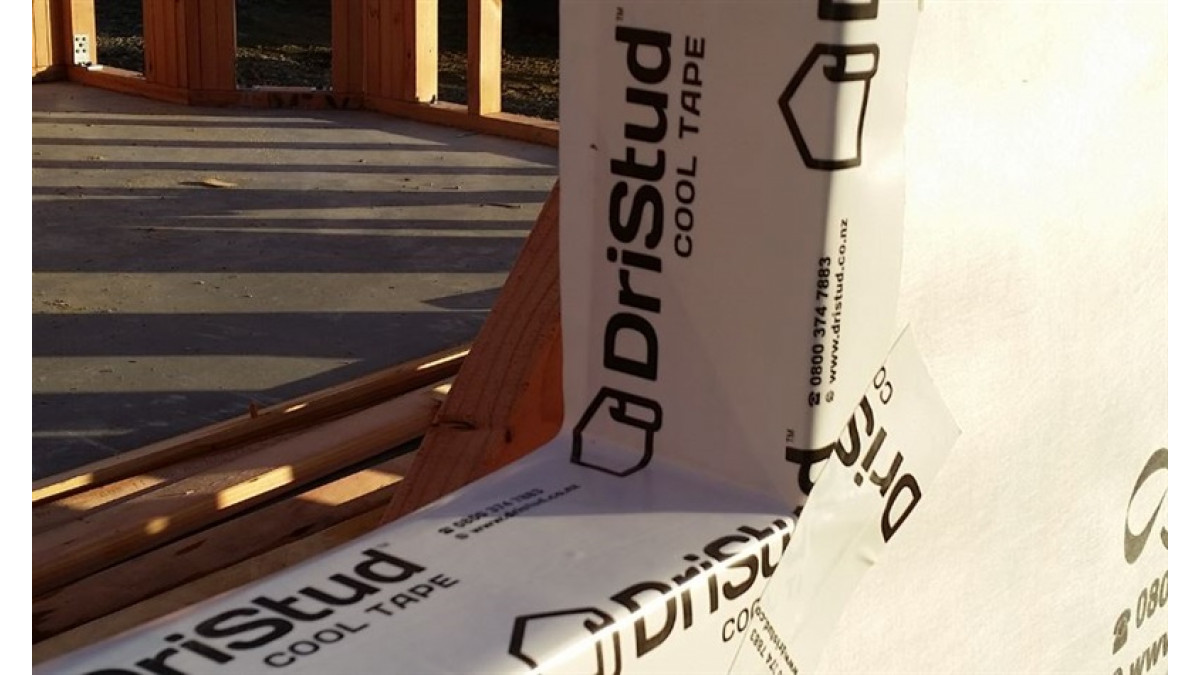

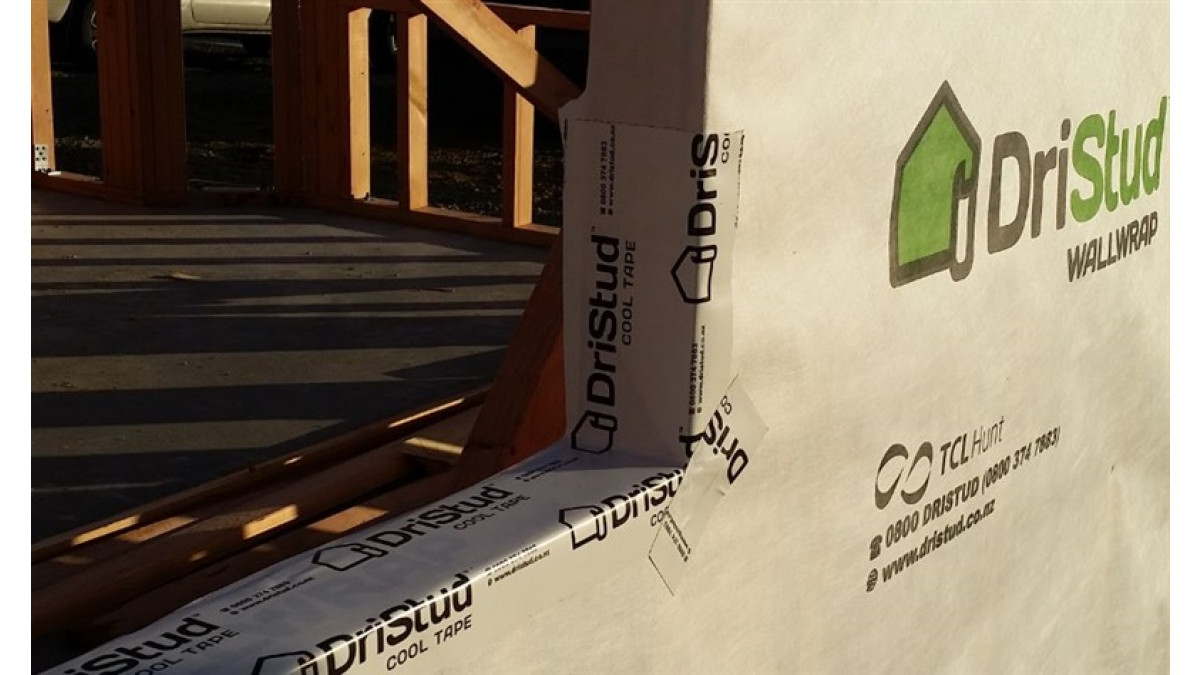

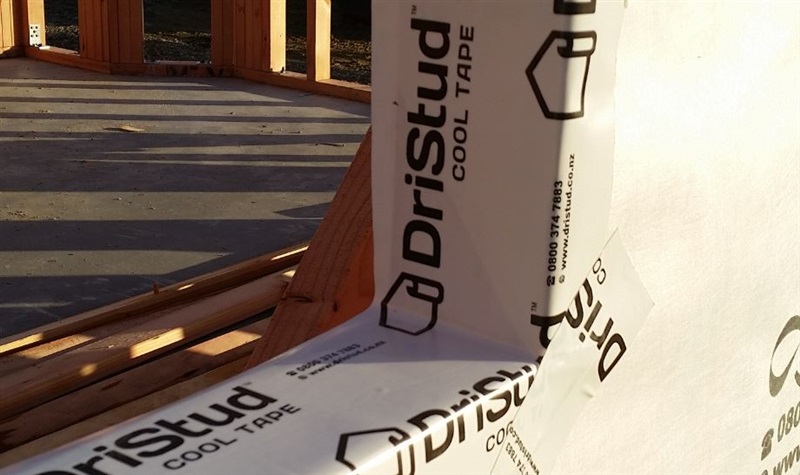

It is used around framed joinery openings and penetrations, providing a secondary weather resistant barrier.
It is designed to be used in conjunction with air seals and joinery flashing systems, but not as a substitute.
DriStud Cool Window Flashing Tape may also be used at joinery heads to seal flashing upstands to the building wrap.
Where a rigid underlay has been installed, DriStud Cool Window Flashing Tape may be used to seal all junctions and penetrations.
It is suitable for use with timber and steel framed buildings as well as masonry structures.
It may be used where the environmental temperature fluctuates between -25ºC and 80ºC.
Must be installed in accordance with the DriStud Cool Window Flashing Tape Installation Manual Rev 1, July 2015.
The scope of the CodeMark certificate covers the use of DriStud Cool Window Flashing Tape in buildings:
- up to 10m in height, and
- with a risk score less than 20, when evaluated against the E2/AS1 risk matrix, and
- in wind zones up to extra high as defined in NZS 3604:2011, and
- in all corrosion zones as defined in NZS3604:2011.

up to 10m in height, and
with a risk score less than 20, when evaluated against the E2/AS1 risk matrix, and
in wind zones up to extra high as defined in NZS 3604:2011, and
in all corrosion zones as defined in NZS3604:2011.

When specified and installed in accordance with the requirements of the CodeMark Certificate, DriStud Cool Window Flashing Tape will comply with the following provisions of the NZ Building Code:

Clause B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, c, q), B1.3.4 (a, b, c, d, e)
Clause B2 Durability:B2.3.1 (b), B2.3.2 (a)
Clause E2 External Moisture: E2.3.2, E2.3.7 (a, b, c)
Clause F2 Hazardous Building Materials: F2.3.1
