Specifying CS Cavity Sliders for a Compliant Solution

CS For Doors manufacture a range of high quality cavity sliders and sliding door products that are highly configurable to create customised solutions. They have been working closely with architects and designers since 1986 to ensure a smooth specification process and have developed a number of solutions to help. CS Cavity Sliders have been rigorously tested by BRANZ, ensuring that they can provide you with a compliant solution — whether it be for a standard residential build, accessible automated health care openings, or sound rated cavity sliders in commercial settings.

Tips to ensure an efficient, compliant specification:

Use a branded work section

CS For Doors has two branded work sections available on MasterSpec: Standard and Specialised. Using the built-in Q&A enables you to narrow down the range of available products to the most suitable one for the project. The help function is recommended if you are unsure or need a bit of help with a unique requirement and a CS Representative can check over the spec and make changes if required.

View CS For Doors' branded work section

Register for drawings access

CAD files are available on the CS website for all their products. Detailed Revit files are also available for CS Cavity Sliders.

Personalised help

Technical experts are available to help with reviewing plans and specifications, specialised detail and custom drawings.

Book a consultation by phone on 021 288 3688 or email [email protected]

Compliance

CS Cavity Sliders have been independently tested by BRANZ so you know they will comply with all relevant standards. View BRANZ Appraisal

CS products have been successfully installed in residential and commercial projects throughout New Zealand and Australia since 1986. Product Technical Statements are available for download here

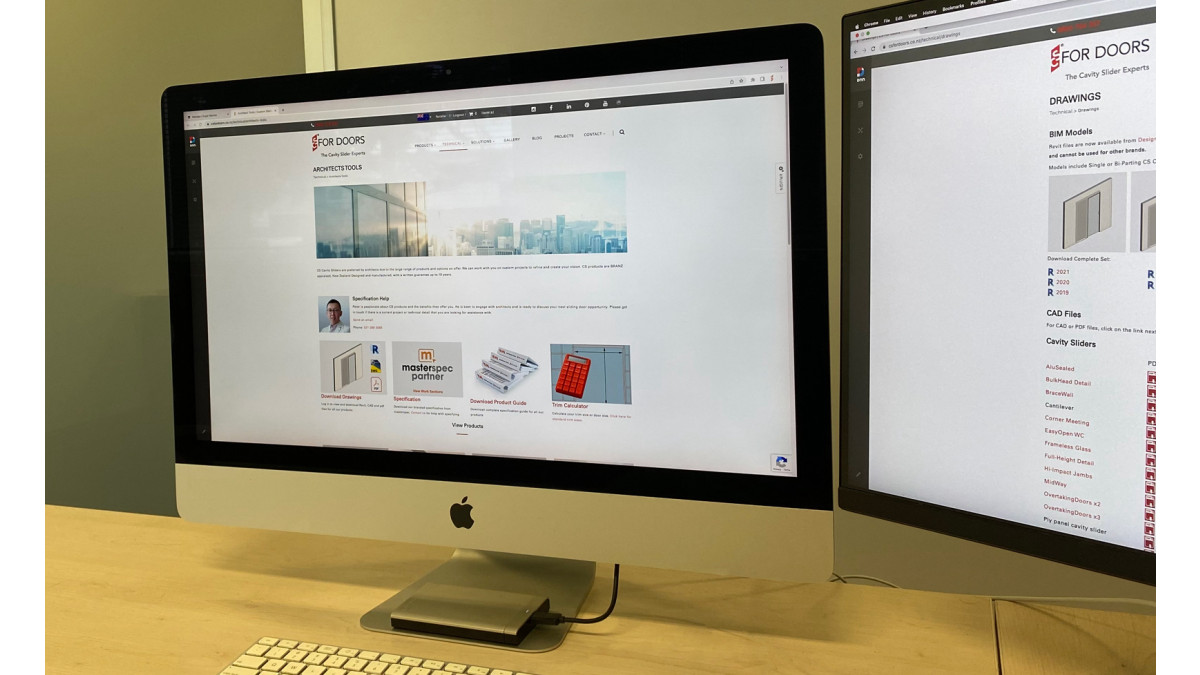

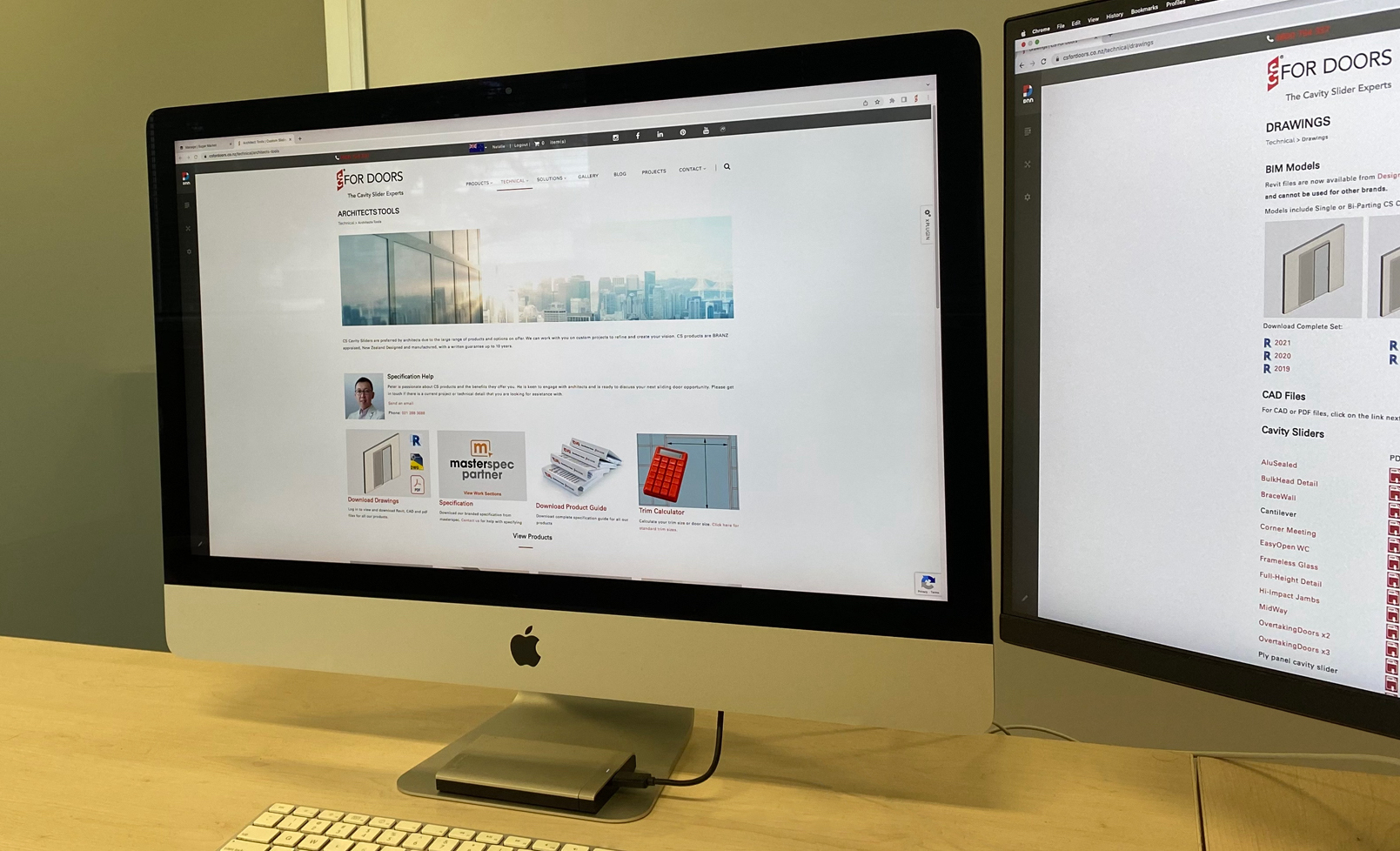

Links to all of these tools are available on the dedicated architects section of the CS For Doors website

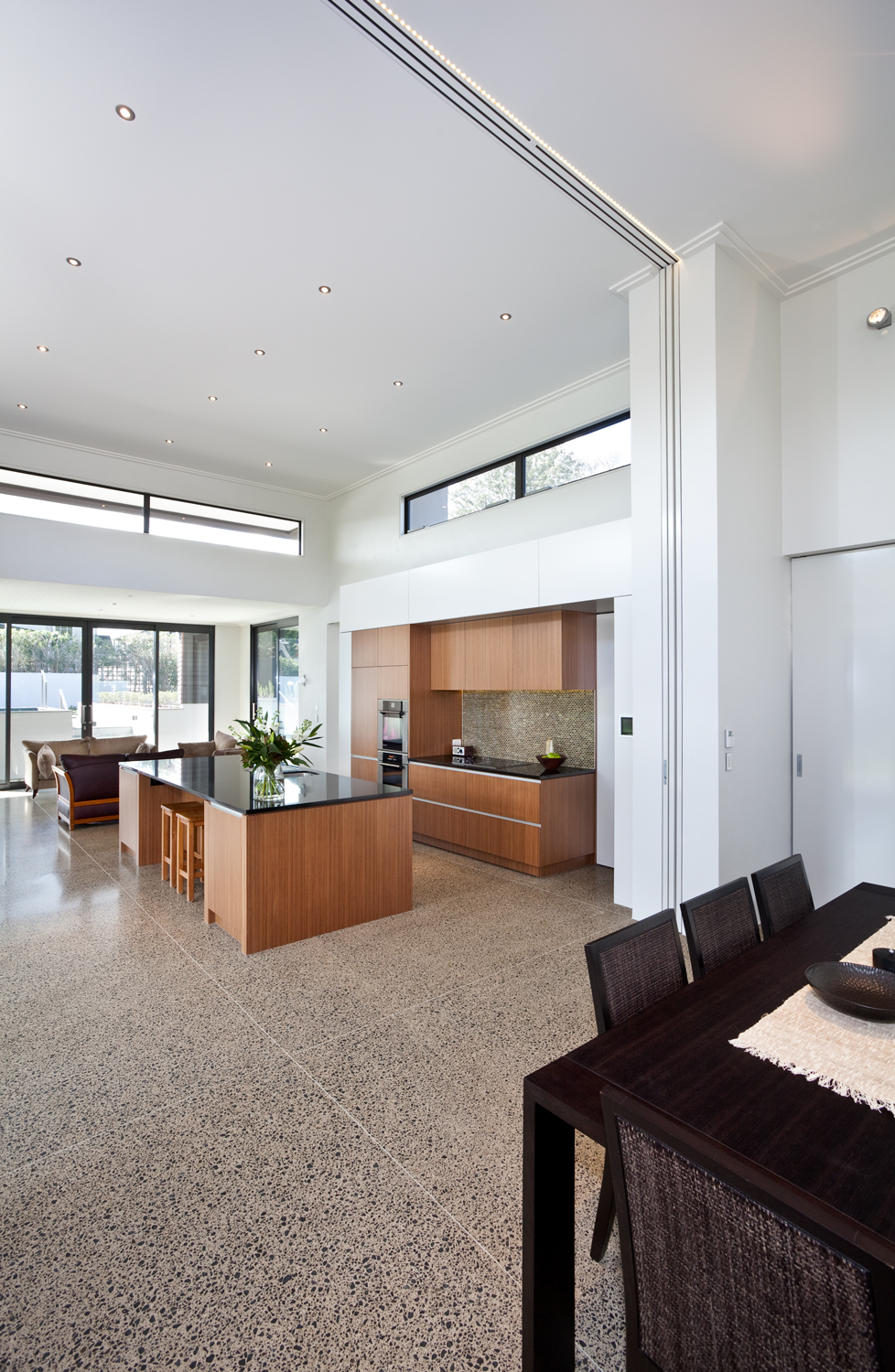

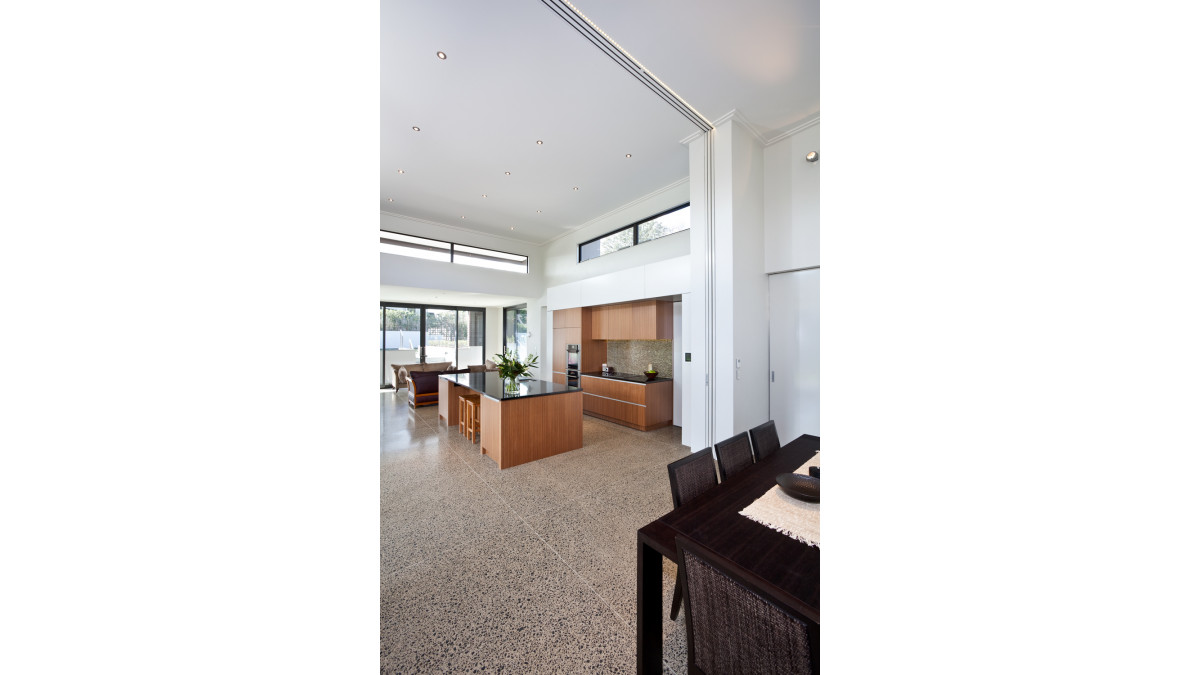

CS OvertakingDoors Cavity Slider

CS For Doors

View Product

CS OvertakingDoors have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

Structure

Durability

Hazardous Building Materials

BRANZ Appraised

CS TimberFormed Cavity Slider

CS For Doors

View Product

CS TimberFormed is a high quality architectural cavity slider engineered to fulfil the majority of your build's requirements.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings
Lintels over the full trim size (opening and pocket) should be sized to ensure that no load is applied to the door assembly
Lintels to NZS3604 are acceptable for door weights up to 75kg per metre width of door. Specific design required when the door weight exceeds 75kg per metre
Track must be fitted level and straight and fixed at maximum 600mm centres to the lintel
Fits into a standard thickness wall (90 x 45mm framing)

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

Structure

Durability

Hazardous Building Materials

BRANZ Appraised

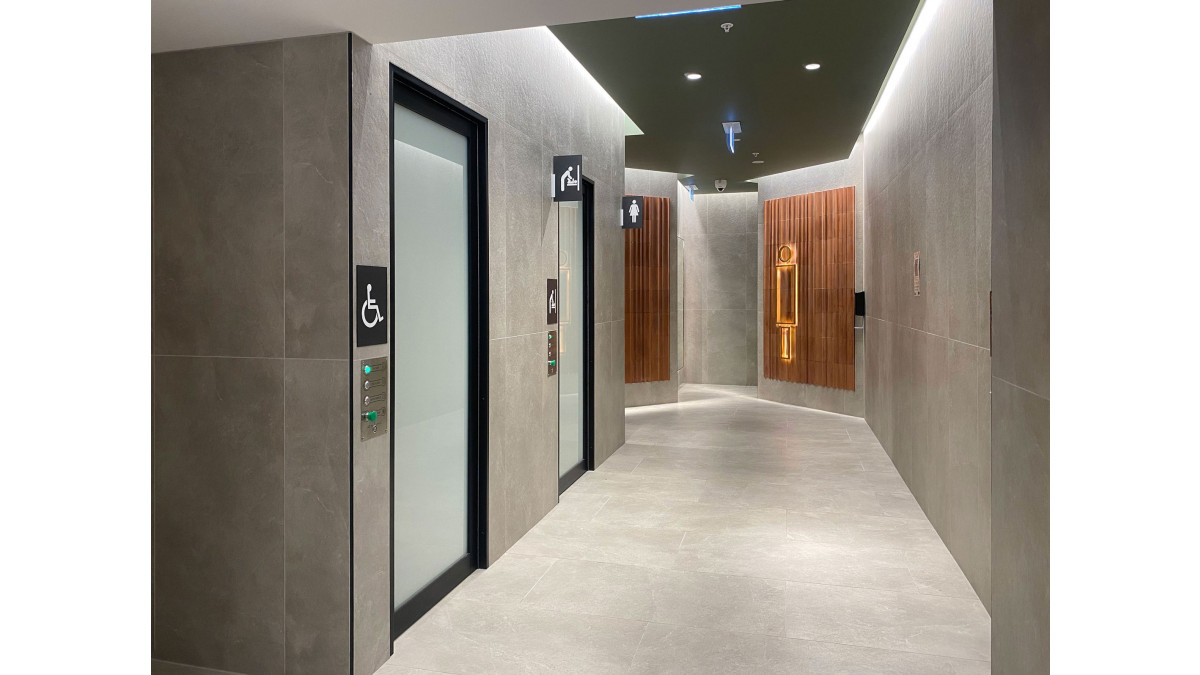

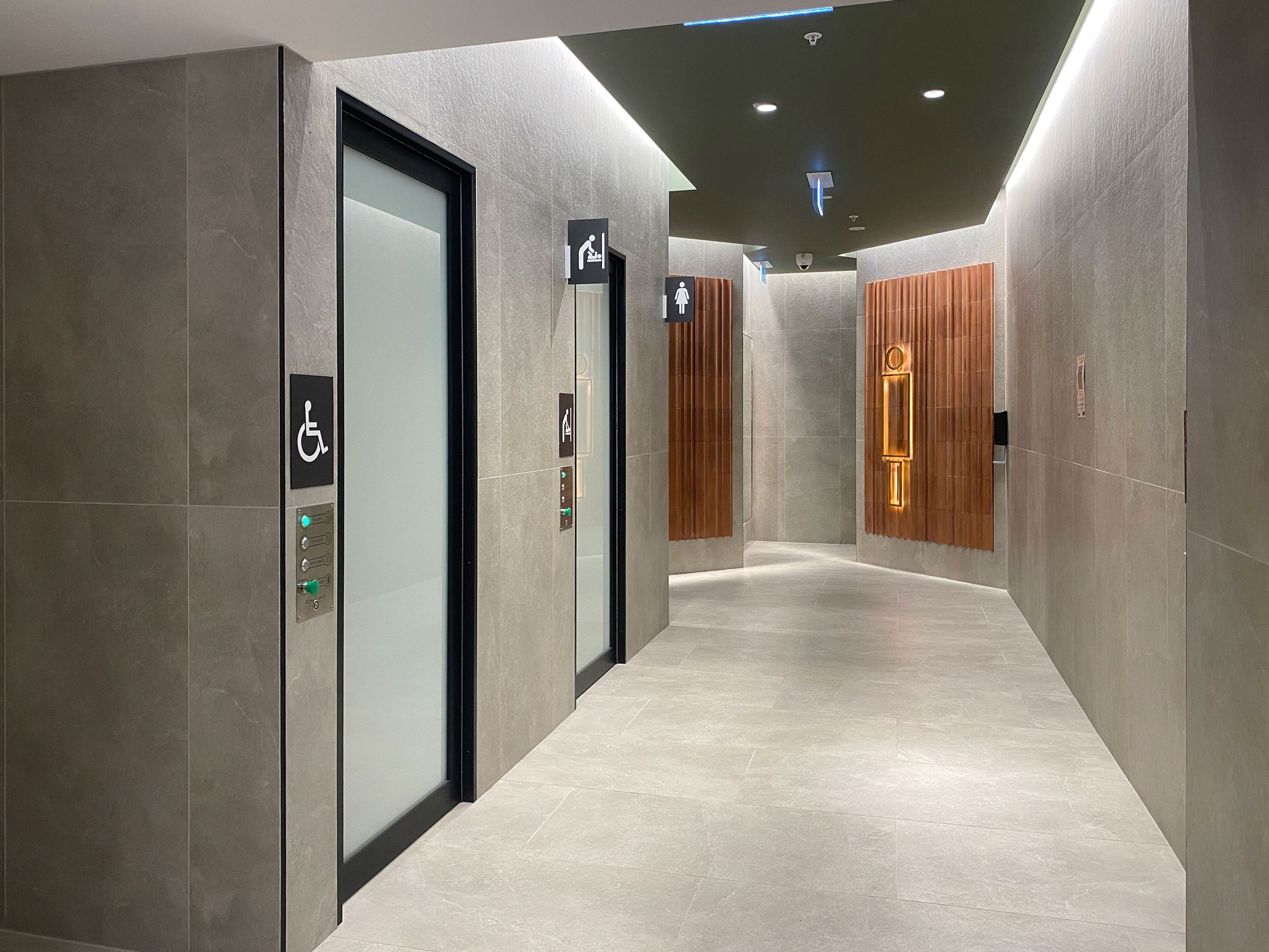

CS AutoCav Commercial Cavity Slider

CS For Doors

View Product

The CS AutoCav has been a vital addition to the building industry.

NZ Made

CS AutomaticUnits are suitable for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Fits into a standard thickness wall (90mm framing)
Neat finished access covers supplied as standard
Available as Single or Bi-Parting (double) units with or without a door fitted

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
