CS OvertakingDoors Cavity Slider
Description

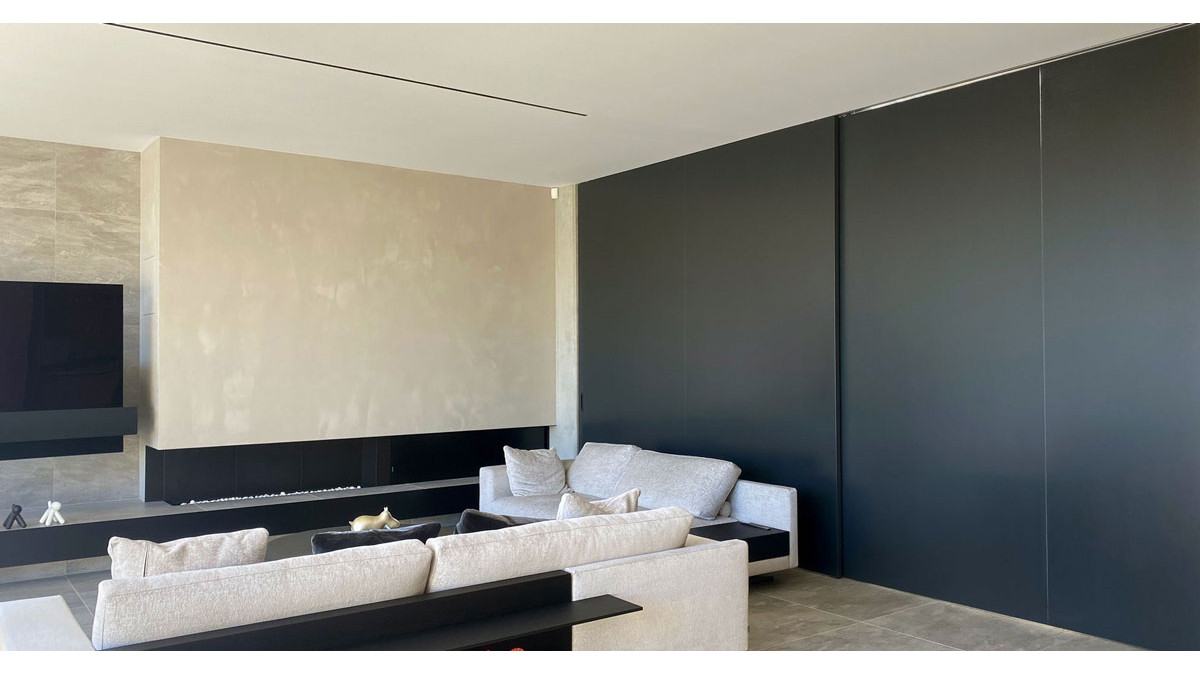

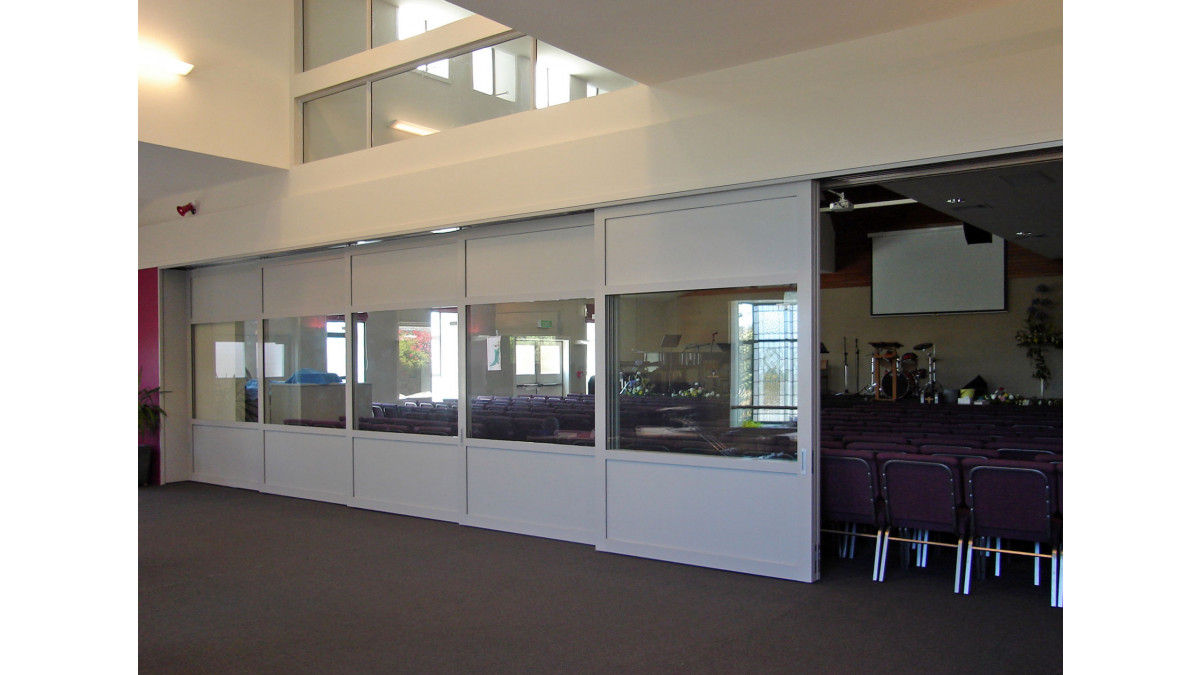

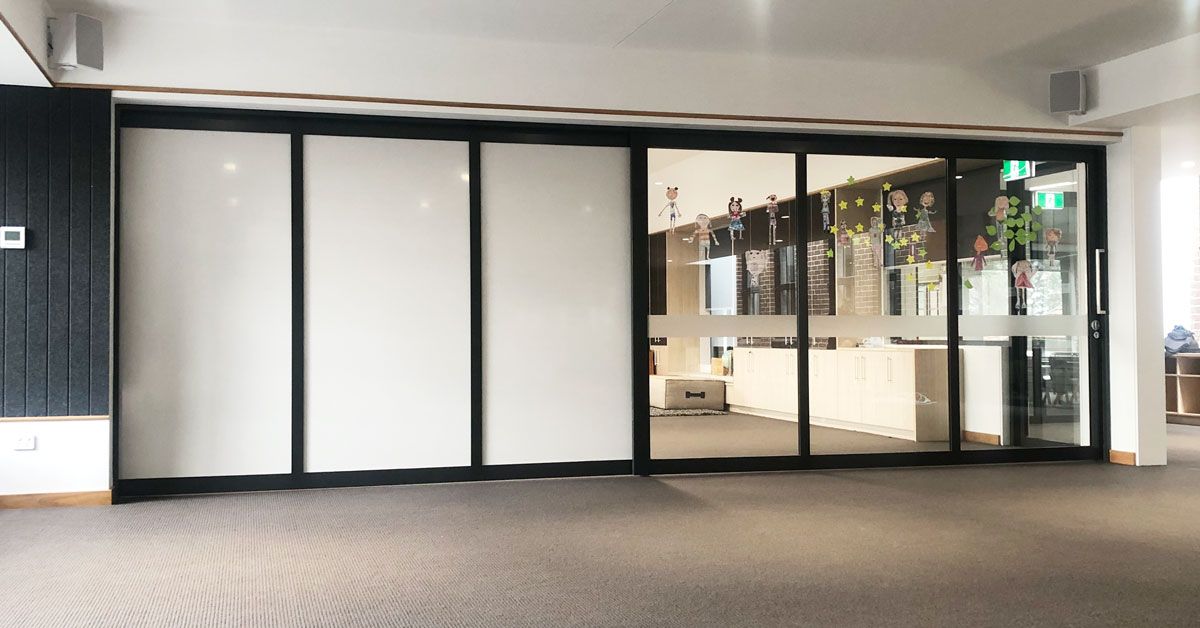

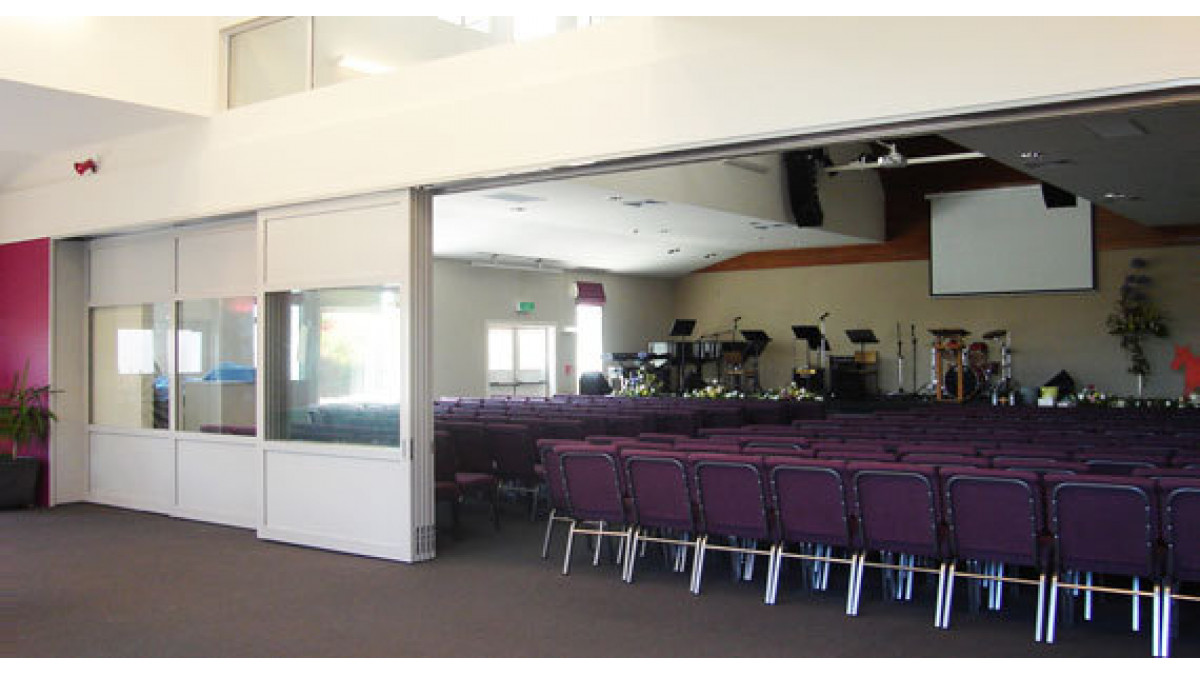

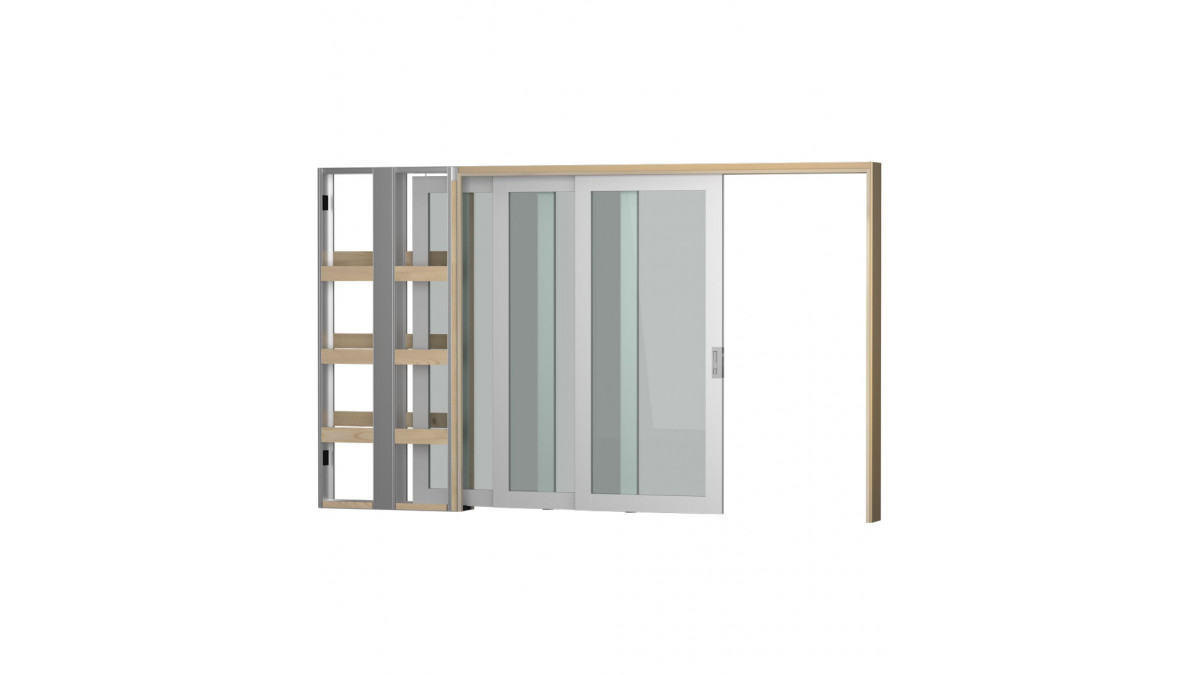

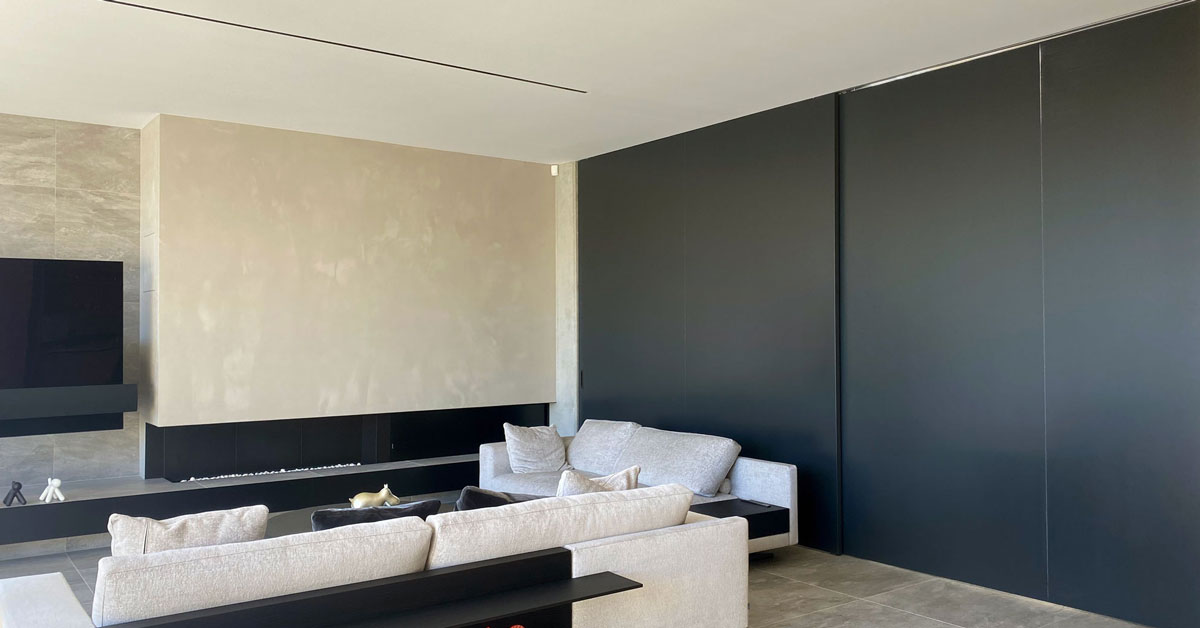

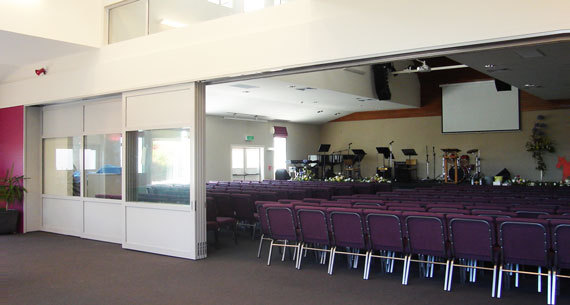

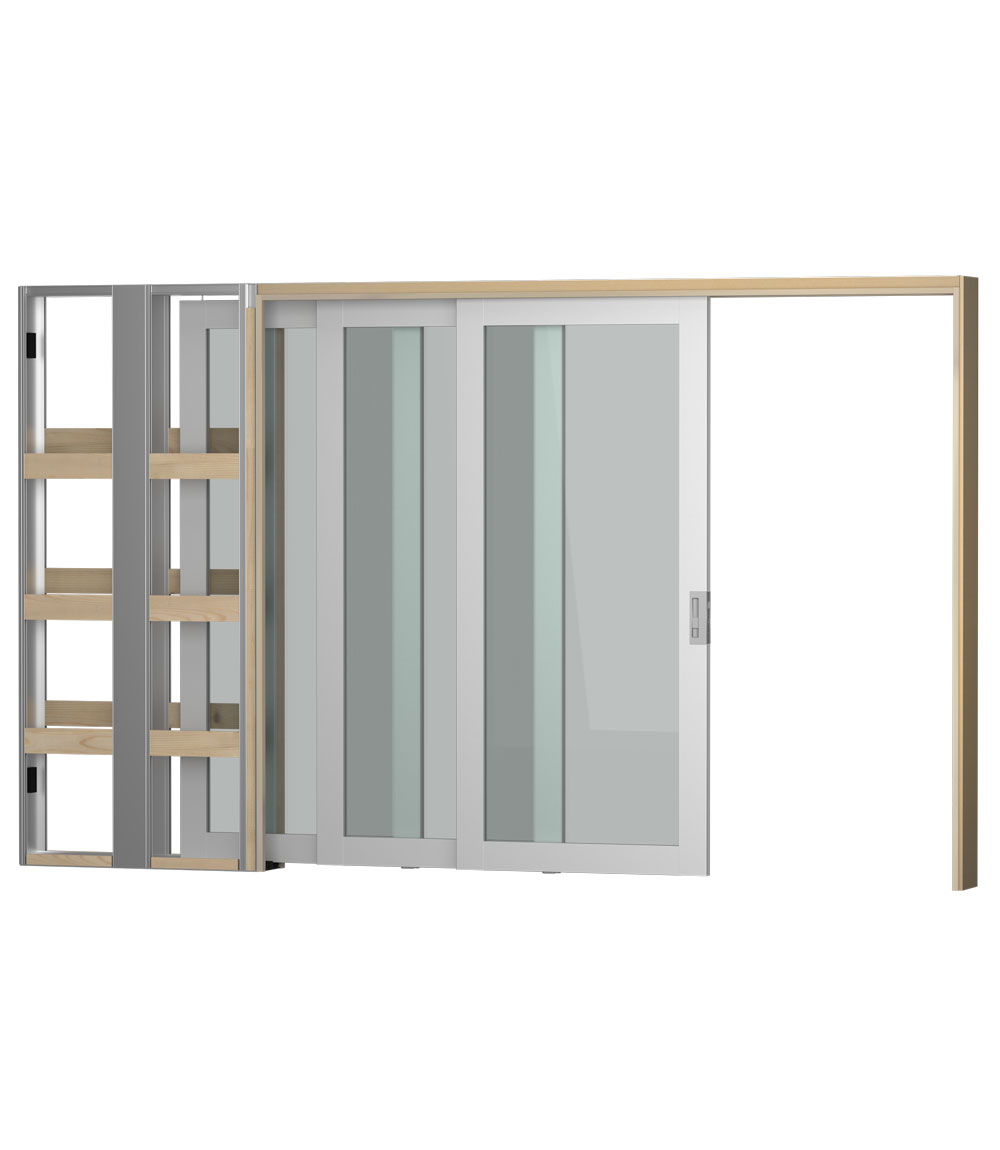

CS OvertakingDoors have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket. These units make great room dividers, and because the width of the pocket can be minimised, the potential size of the door opening can be maximised.

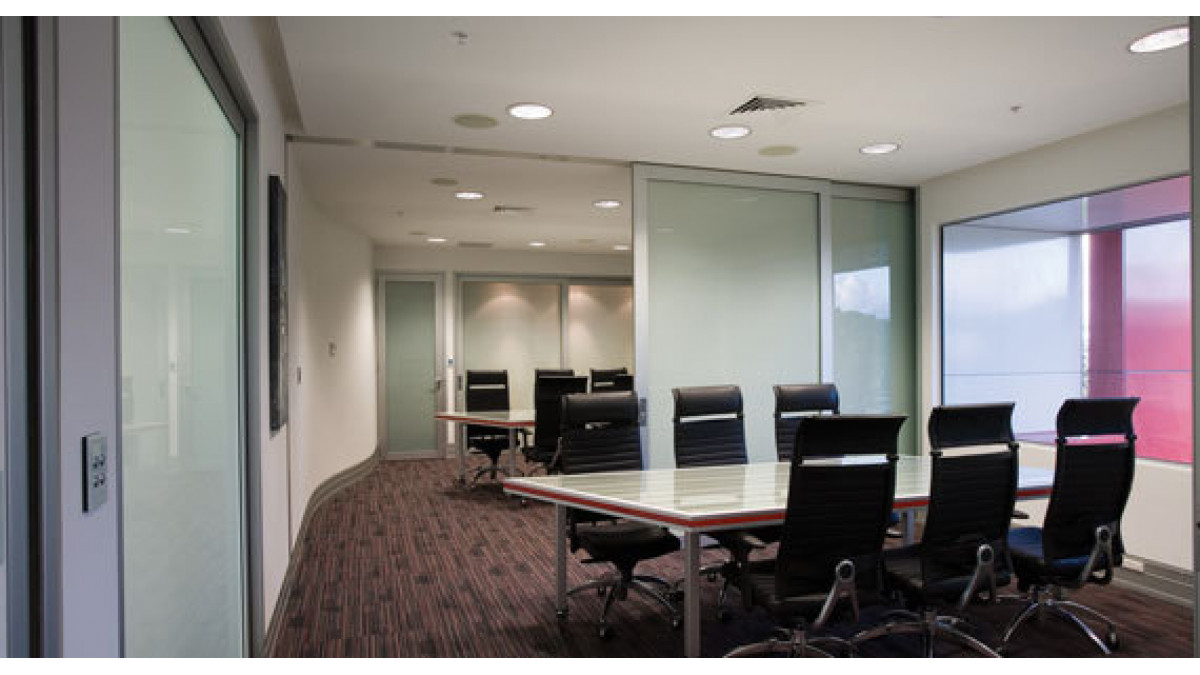

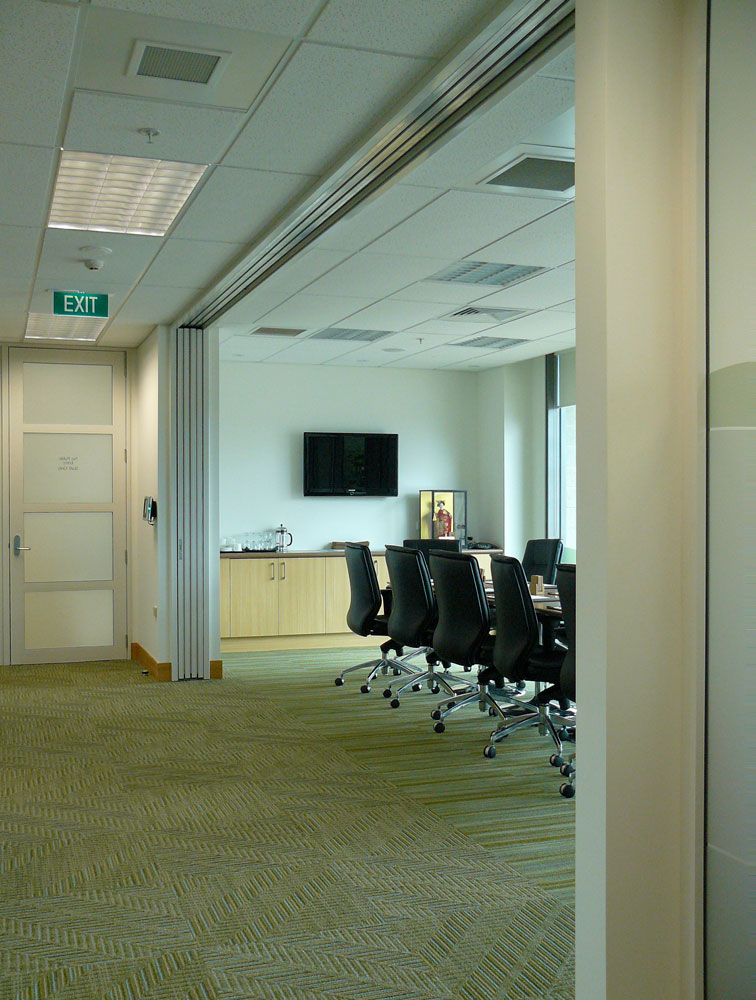

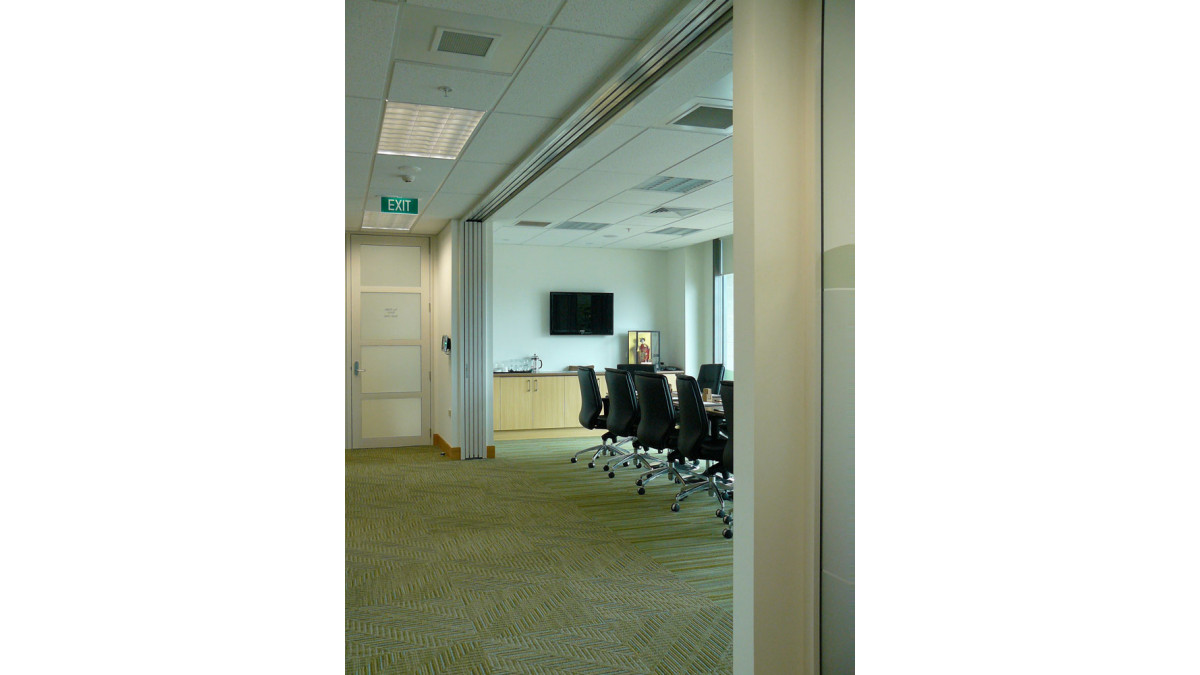

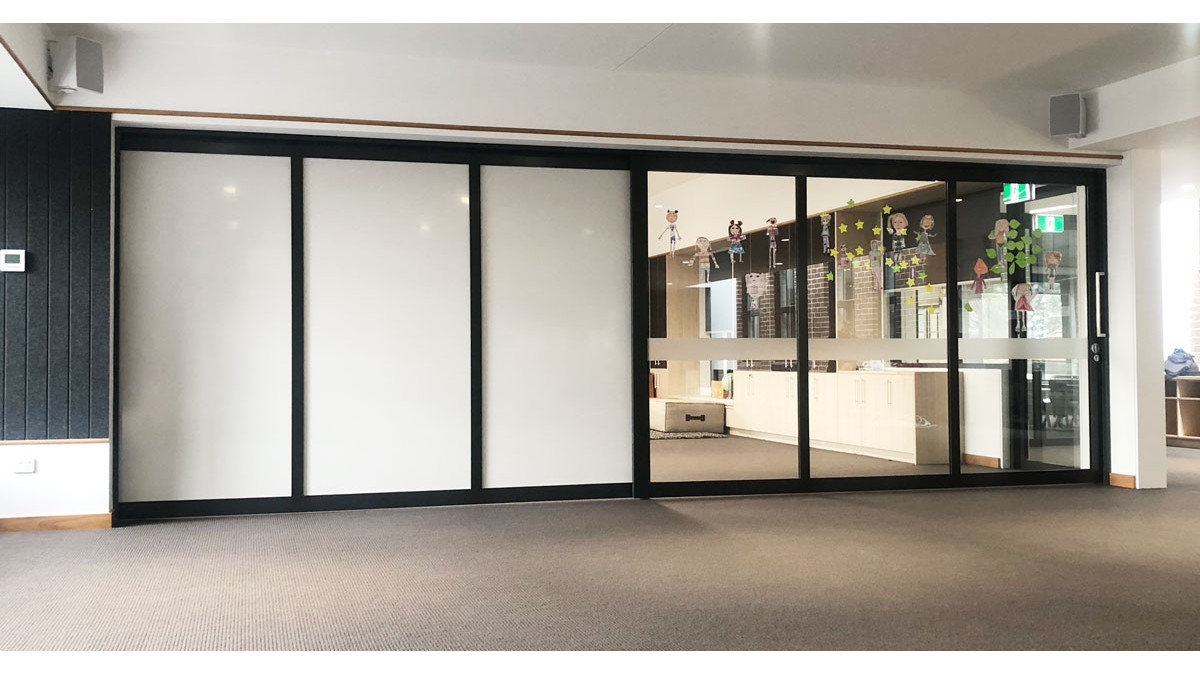

Ideal spaces that benefit from this type of room divider are boardrooms, classrooms, and living areas.

Key Features
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Available as single or bi-parting (double) units with up to 5 doors per pocket
  • Doors cannot jump off the track
  • 140mm framing required (2 doors). Wider framing (50mm per extra door) is required for units with more than 2 doors
  • Supplied fully assembled for on-site installation
  • No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS OvertakingDoors cavity slider to create a specific look or to provide a unique solution:

  • Full-height

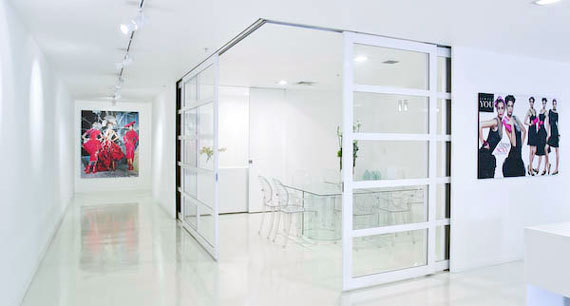

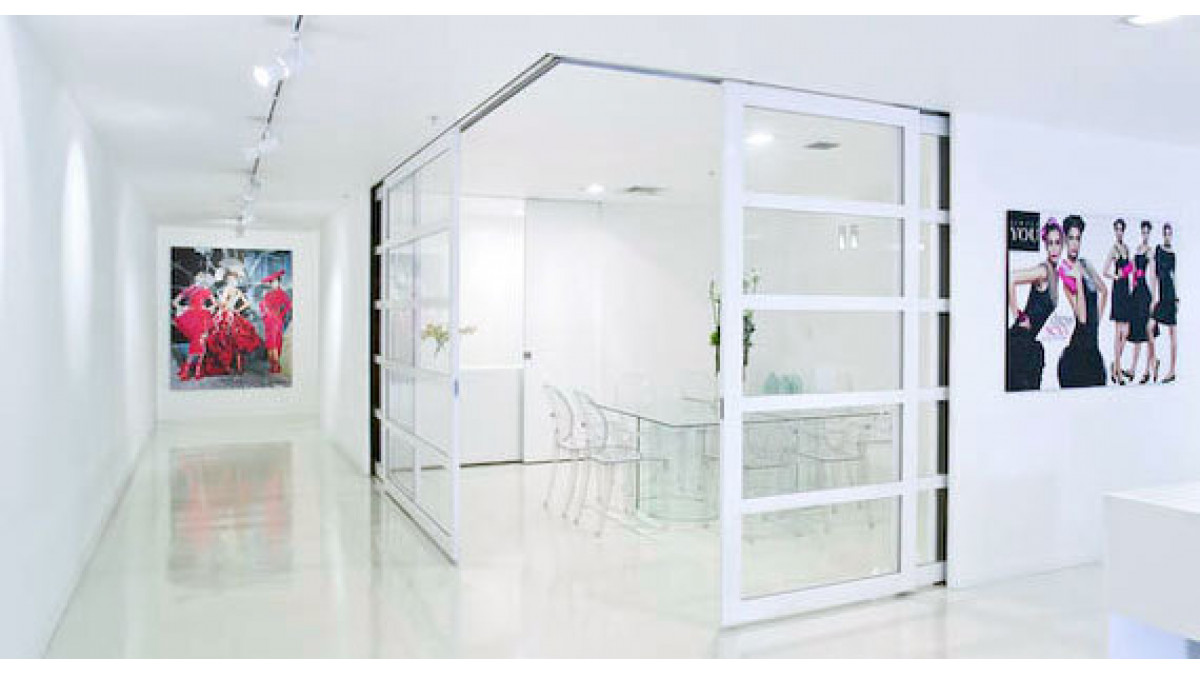

  • CornerMeeting
  • NoClosingJamb
  • ShadowLine
  • SquareStop
  • Servery
  • Extra-WideJambs
  • Protrude100

Maximum size 3000mm high x 3500mm wide

Categories / Ranges
Cavity Sliders CS Cavity Sliders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Limitations on Use
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exitways
  • 140mm framing required (2 doors). Wider framing (50mm per extra door) is required for units with more than 2 doors
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door cannot jump off the track
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
Independent Appraisal (BRANZ)
Maintenance Instructions
Warranty
CS Company Brochure
