CS Loft Series

CS Cavity Sliders (CS for Doors)

All products

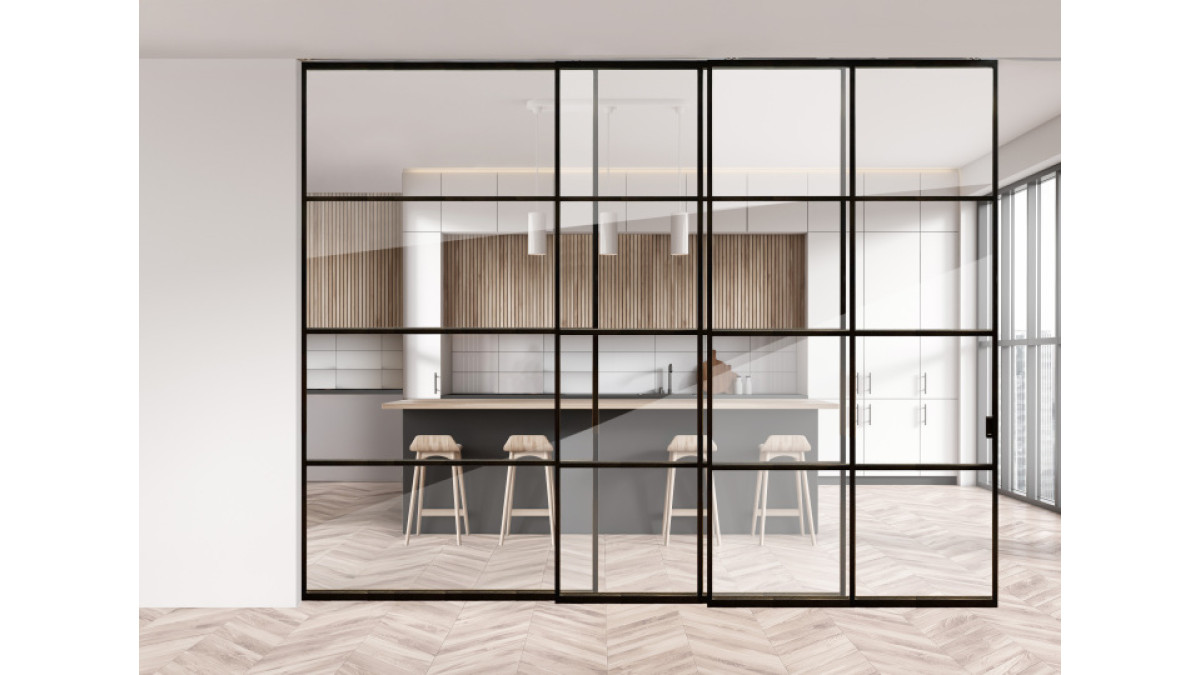

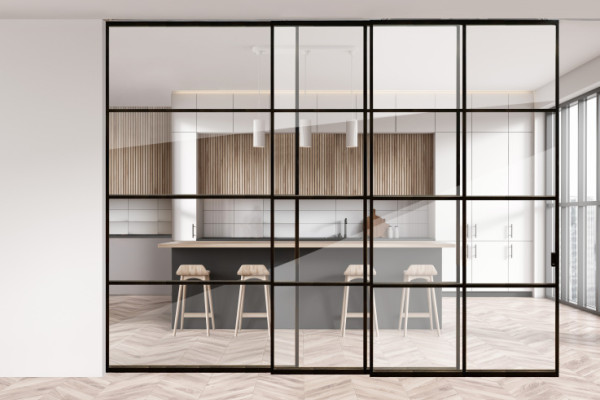

CS Loft Series Overtaking with Fixed Panels

Loft Series Cavity Slider with Fixed Panel 1200x840

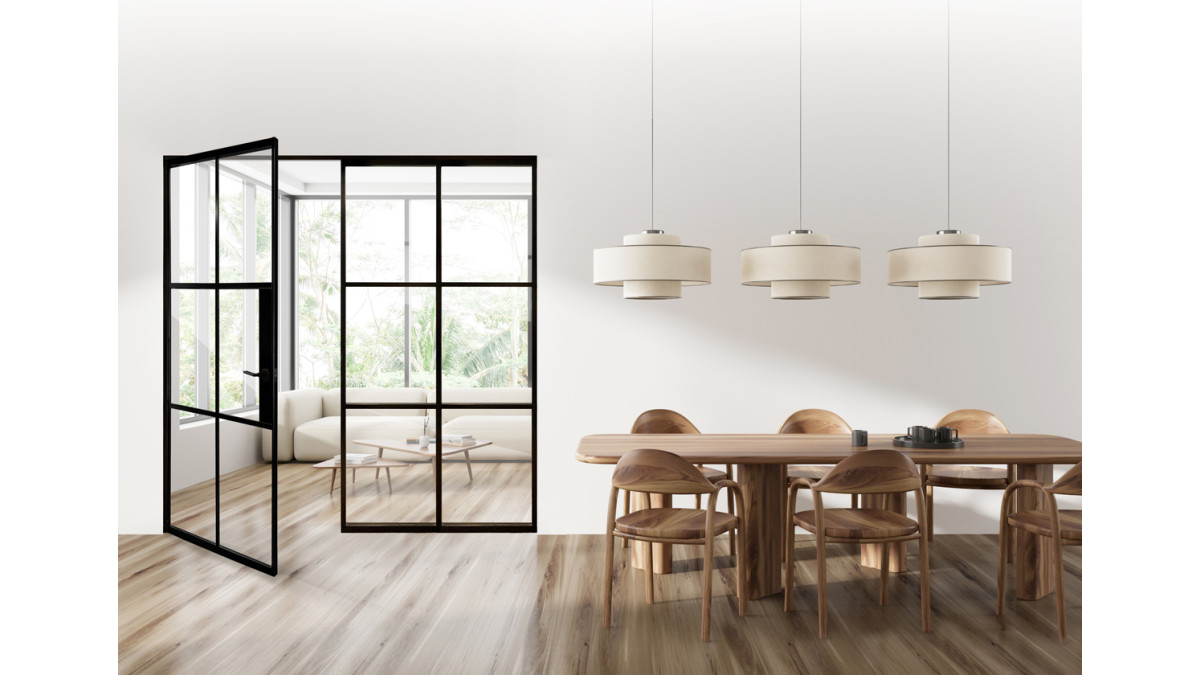

Loft Series Hinged with Fixed Panel 1200x840

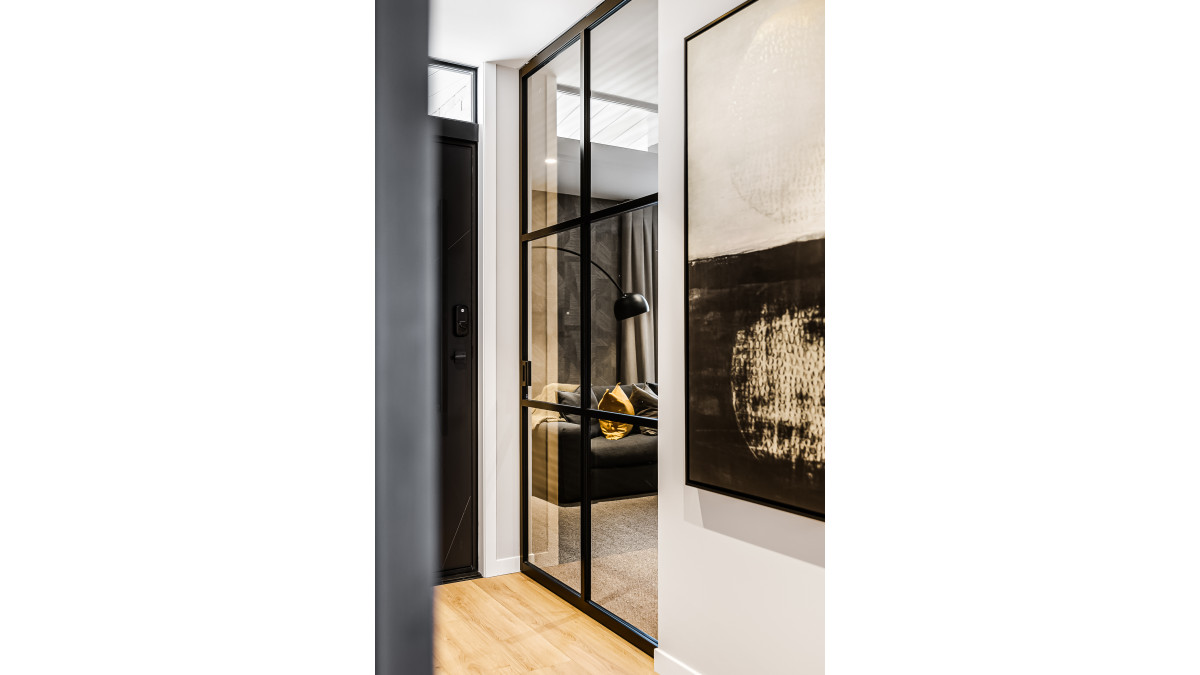

LL25003 House of illusions Maddren 043 (2)

Product Enquiries

Description

The CS Series is a slimline glazed aluminium door system with horizontal and vertical dividers manufactured from high quality aluminium extrusions. The slender profiles create a minimalist glass door suitable for modern or industrial spaces. Designed as a versatile, modular solution, the CS Loft Series is available in multiple configurations including cavity slider, hinged, pivot, overtaking and fixed panels options.

Prefabricated for faster installation and finished with quality aluminium extrusions, each design configuration delivers strength without the need for additional bracing and design freedom to fit the needs of the project. The look is finished with a choice of modern, clean-lined hardware options, or users have the flexibility to specify their own.

The CS Loft Series opens up new possibilities to define, divide, or transform spaces with style and trusted quality.

Key Features

Available in a range of door type: Hinged, Cavity Slider, Pivot and fixed panel options
Door lites come be specified from 1H-1V to 5H-5V
Slimline matt black frame with clear glass
Premium aluminium extrusions engineered for structural integrity
All aluminium components are screwed together for strength and reliability
Factory-fitted with a range of lock block and handle options or specify own choice
Create the appearance of a steel door without the technical drawbacks
Low maintenance

Ranges

CS Door Leaves

NZ Made

Scope of Use

CS Door Leaves are suitable for use in sliding applications in residential, commercial and light industrial buildings
The CS Series is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders for a complete solution

Limitations on Use

Doors are manufactured to customer specifications up to 120kg maximum weight. Higher and wider doors may be specified in consultation with CS Cavity Sliders.

Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

Other Performance Attributes

CS Door Leaves are backed by a 5 year written guarantee
Strong stable construction: all sections have a thick wall for extra rigidity and strength. No additional bracing required.
