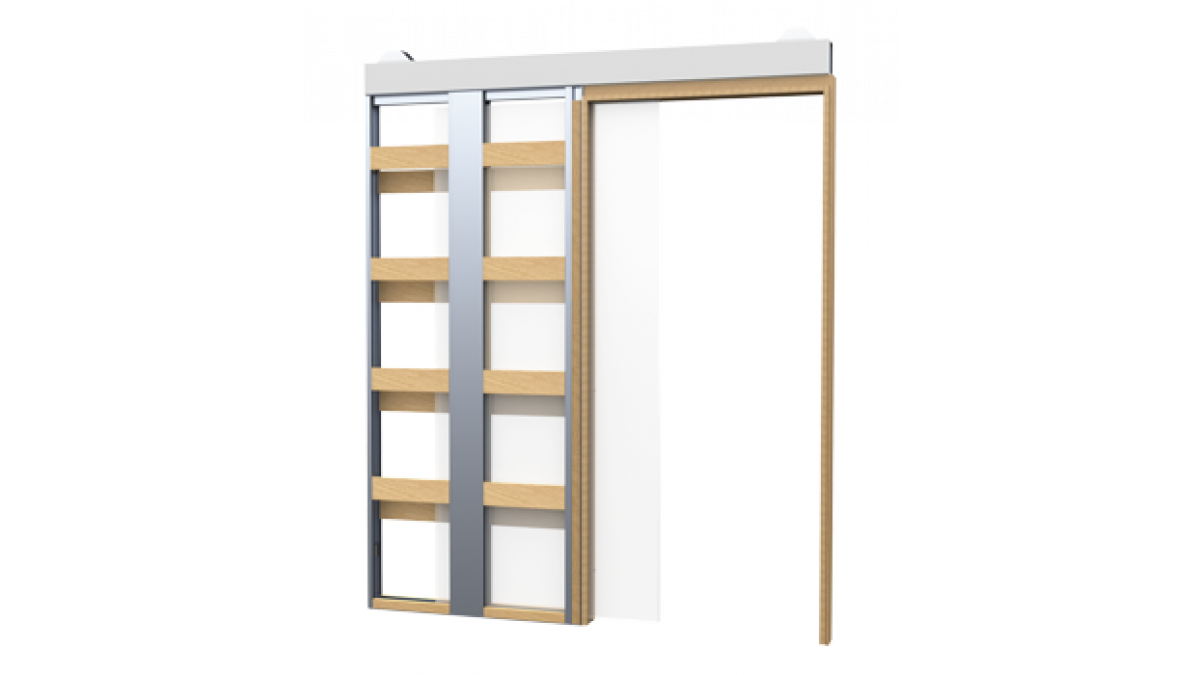

CS AutoCav Commercial Cavity Slider
Description

The CS AutoCav has been a vital addition to the building industry. CS For Doors have taken existing motorised door design and made it more reliable, programmable, functional and 100% New Zealand made.

CS For Doors can supply a complete system including design, commission and servicing.

Key Features
  • Saves on power bills by keeping air conditioned rooms at stable temperatures

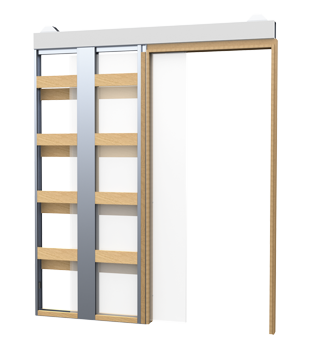

  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • In the event of power failure, the door can be manually opened or a battery backup can be supplied
  • Fits into a standard thickness wall (90mm framing)
  • Neat finished access covers supplied as standard
  • Available as Single or Bi-Parting (double) units with or without a door fitted
  • Ease of operation: the CS AutoCav unit is compatible with most control switching devices
  • Supplied fully assembled for on-site installation
  • No visible floor guides
  • Jambs types available: powder coated or anodised aluminium, or timber jambs (flat or grooved)
  • Enquire about our commissioning services.

Detail Options

Incorporate any of the following architectural detail options with the he CS AutoCav cavity slider to create a specific look or to provide a unique solution.

  • Full-Height
  • NoClosingJamb
  • ShadowLine
  • SquareStop
  • Extra-WideJambs
  • Hi-ImpactJambs
  • Servery
NZ Made
NZ Made
Scope of Use

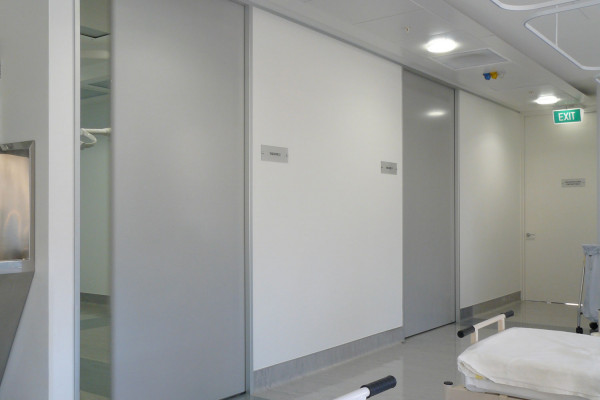

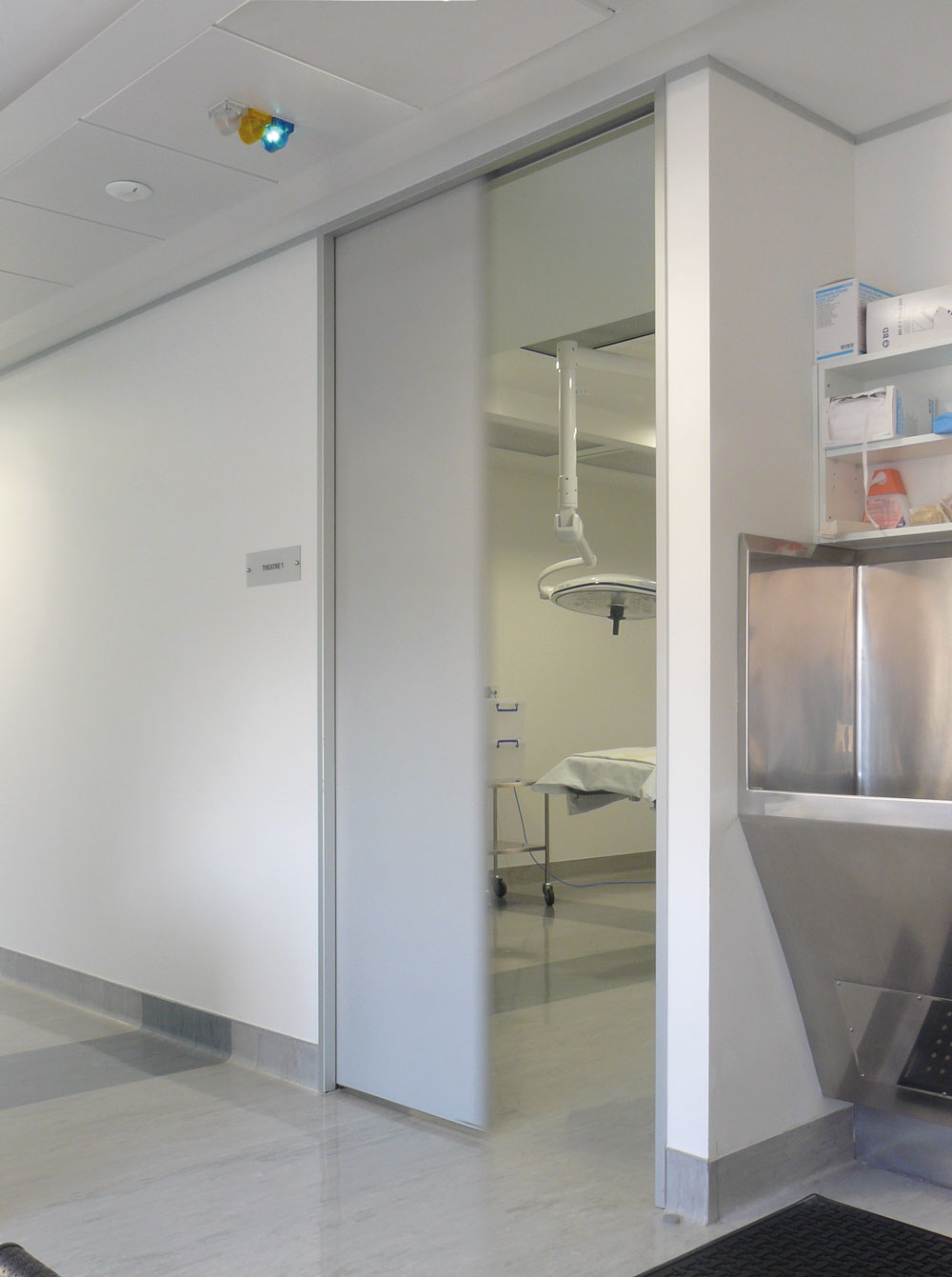

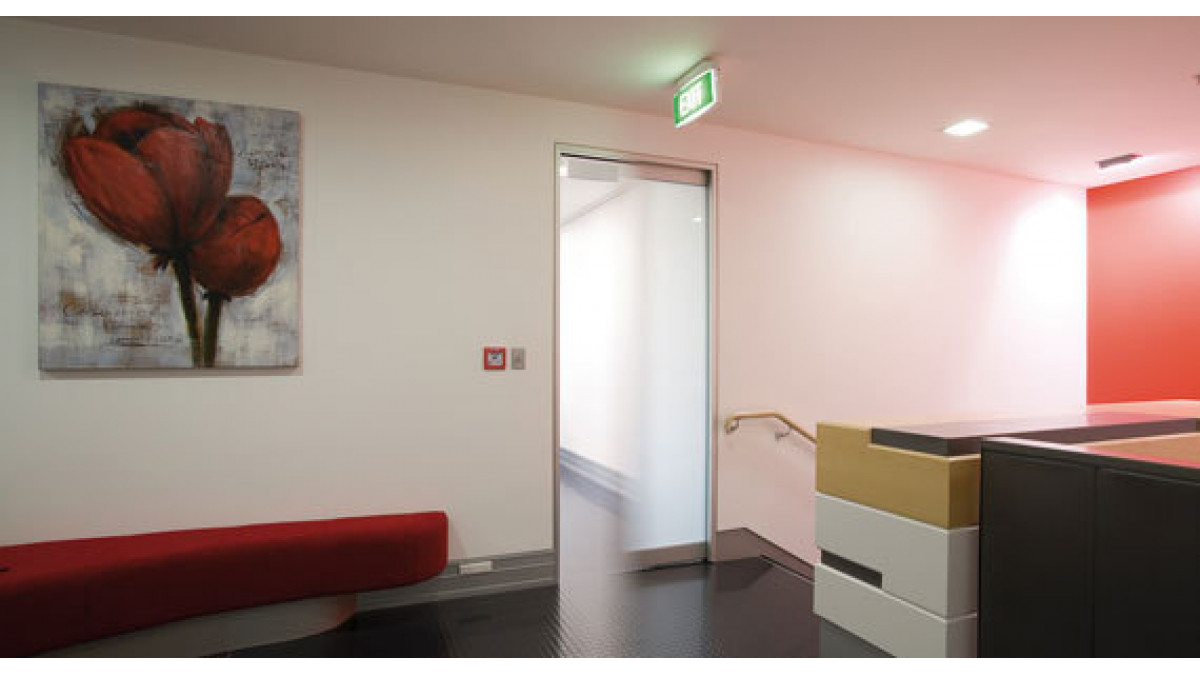

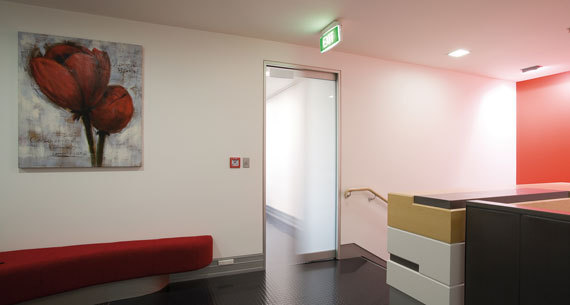

CS AutomaticUnits are suitable for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

  • Fits into a standard thickness wall (90mm framing)
  • Neat finished access covers supplied as standard
  • Available as Single or Bi-Parting (double) units with or without a door fitted
Limitations on Use
  • Minimum door width: 860mm
  • Maximum door weight: 240kg
  • Maximum door size: 3000 x 3500mm
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Automatic Units have been successfully used in commercial and residential projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • CS Automatic Units are backed by a 5 year written guarantee (12 months on electrical components)
Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.

Product Enquiries

News from CS For Doors

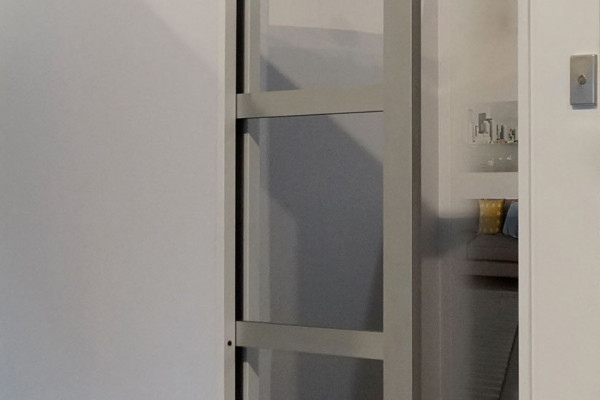

Floor-to-Ceiling Cavity Sliders with the CS SmartMount NEW
