Sound Dampening Cavity Sliding Doors from CS Cavity Sliders

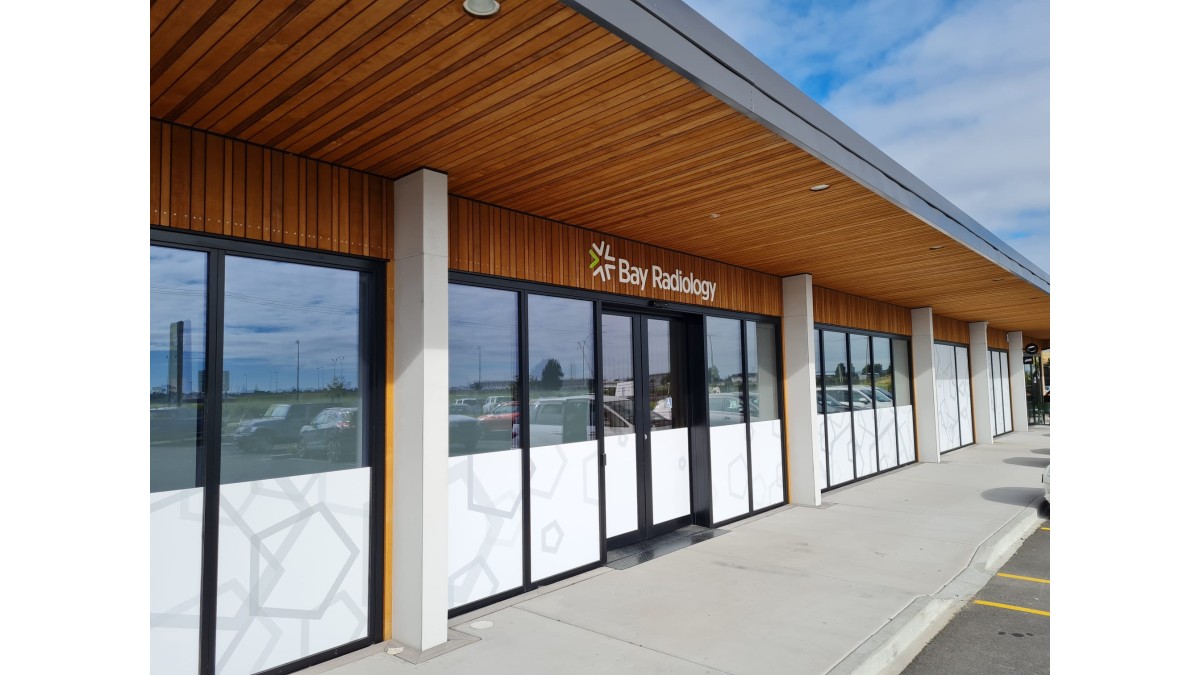

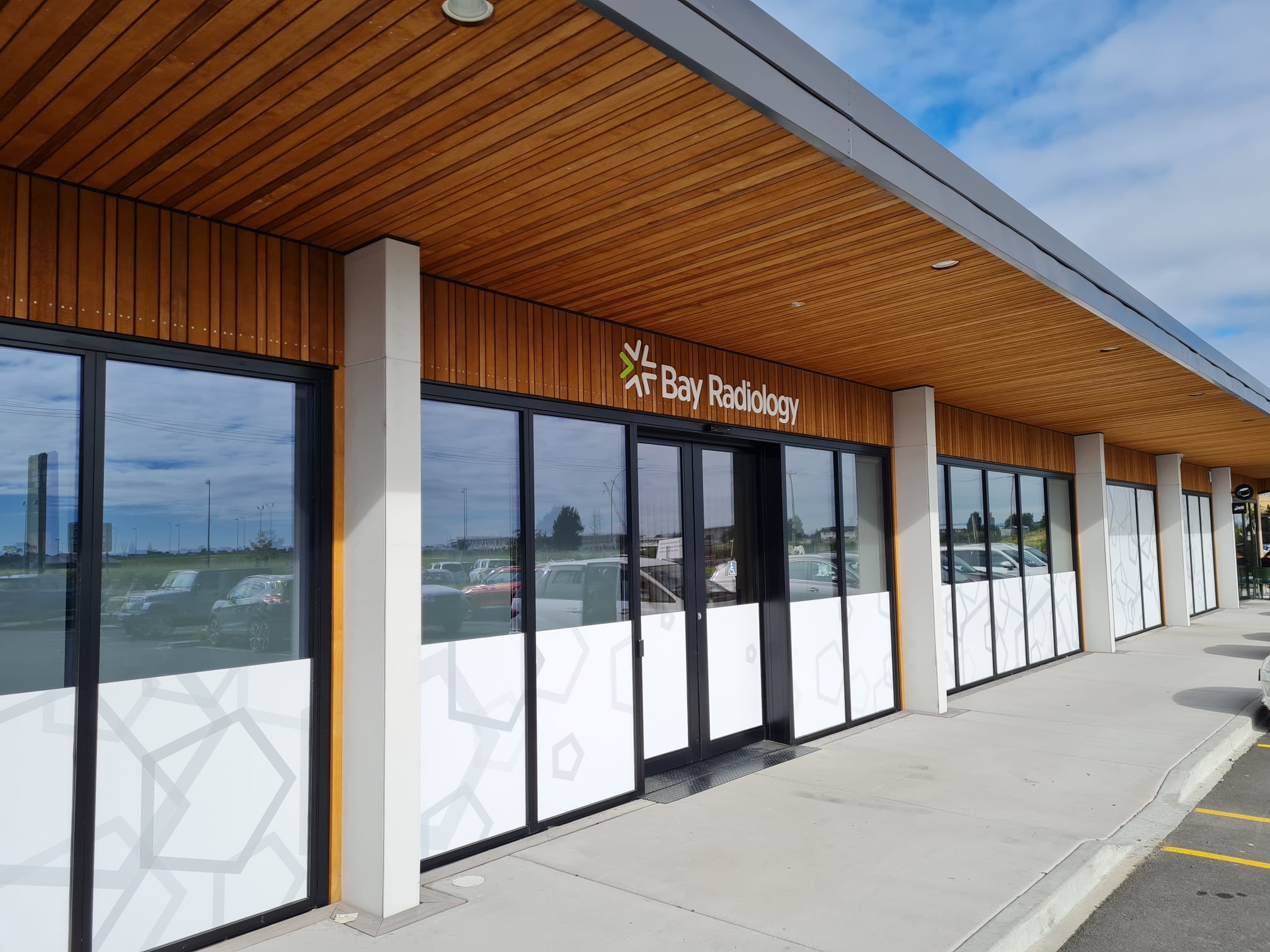

Bay Radiology requested a solution which would provide their waiting area and consultation rooms with a heightened level of confidentiality and sound isolation.

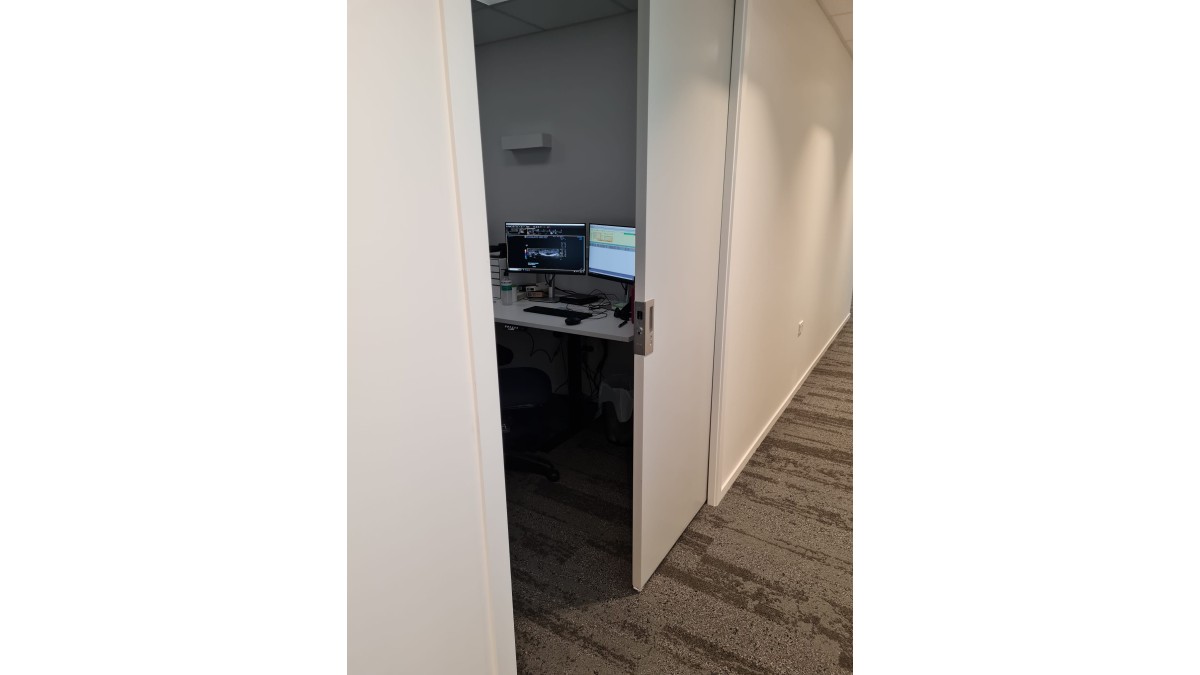

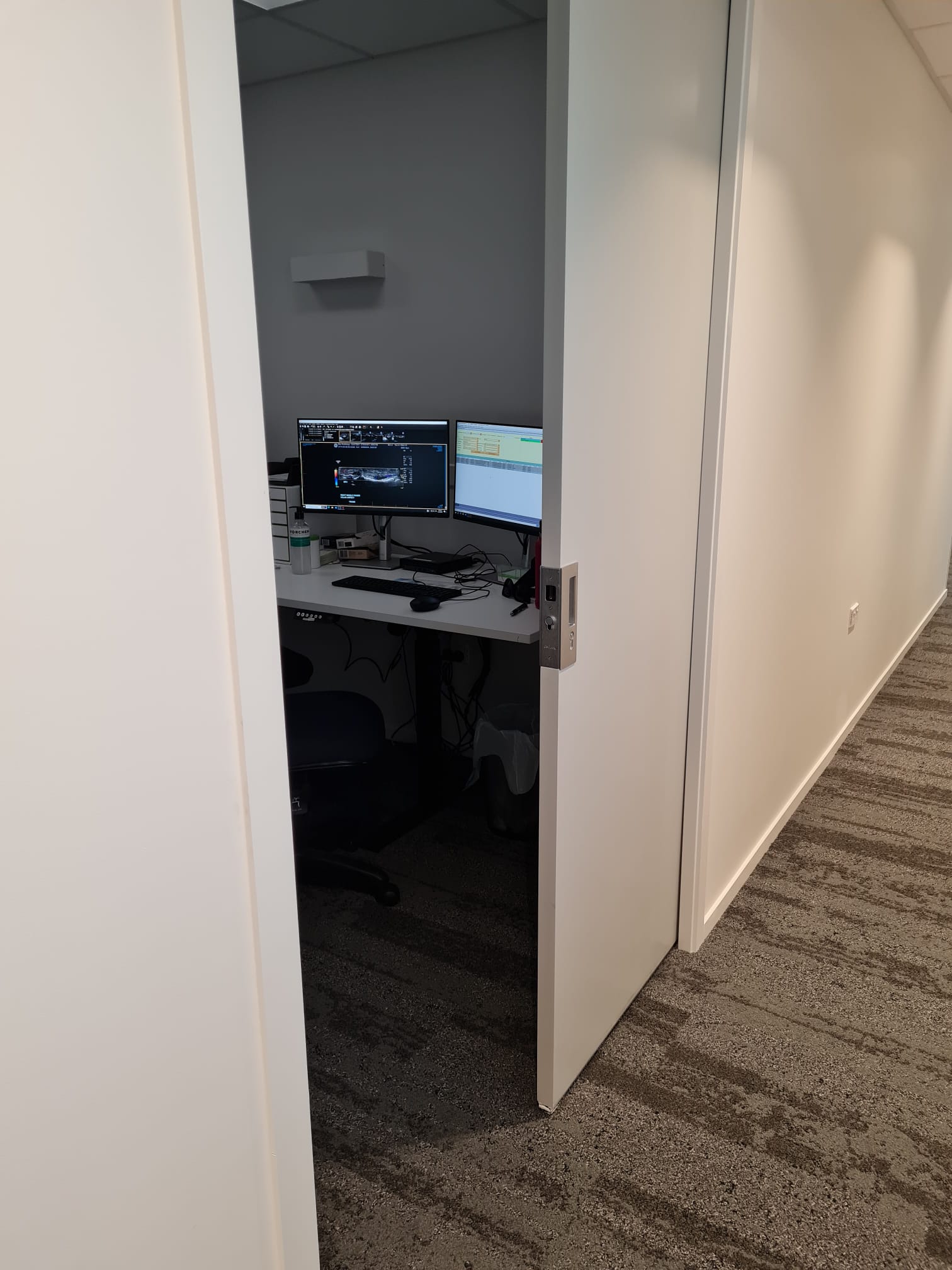

CS Cavity Sliders offered a solution involving four autocavs (three which included CS SoundStop). These were installed where patients are taken for diagnosis and consultation.

CS SoundStop Cavity Sliders are designed to deliver exceptional acoustic performance with impressive Sound Transmission Class (STC) ratings of up to STC 43. Ideal for boardrooms, meeting rooms, and function rooms, CS SoundStop solutions boast specialised acoustic properties to create a highly effective sound barrier, ensuring conversations and activities within these spaces remain private and undisturbed.

For areas where acoustic dampening is desired but not necessarily required, such as bathrooms or media rooms, CS SoundStop offers options with solid core timber or the CS New Yorker with 10mm thick glass. Even in these spaces, the doors can significantly reduce sound transmission, enhancing comfort and minimising disturbances.

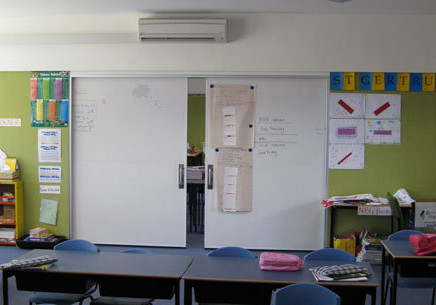

CS SoundStop cavity sliders are available in single or bi-parting units, providing flexibility to meet various design and functional requirements. When it comes to anything interior and sliding, CS For Doors has you covered. CS For Doors offers reliable, high-quality cavity slider door hardware that is made to stand the test of time. Reach out to CS For Doors today to connect with one of their cavity slider door experts and see how their hardware can elevate your next project.

Customer: Total Doors
Architect: Jigsaw Architects
Products: CS Sound Stop Cavity, CS Autocavs with CS New Yorkers

CS NewYorker Door

CS For Doors

View Product

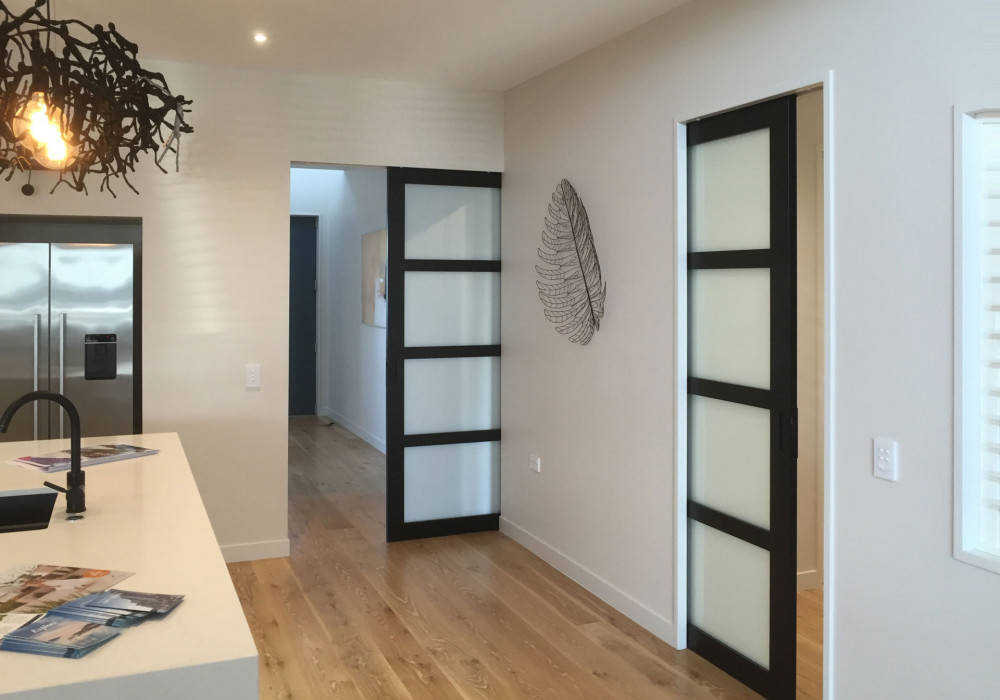

The CS NewYorker is a stylish pre-finished door frame that can be glazed using a wide range of materials, glass being the most popular.

NZ Made

CS Door Leaves are suitable for use in sliding, pivot or hinged applications in residential, commercial and light industrial buildings
Handles: A variety of handles can be factory fitted including a custom designed recessed leading edge pull
The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

BRANZ Appraised

CS SoundStop Cavity Slider

CS For Doors

View Product

CS SoundStop combines all the benefits of standard models with the added feature of measured acoustic ratings up to STC 42 / RW 42 dB.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Acoustic door perfect for areas requiring privacy
The CS AluTec aluminium door leaf is also available for use with the SoundStop cavity slider

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

Structure

Durability

Hazardous Building Materials

BRANZ Appraised

CS AutoCav Commercial Cavity Slider

CS For Doors

View Product

The CS AutoCav has been a vital addition to the building industry.

NZ Made

CS AutomaticUnits are suitable for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Fits into a standard thickness wall (90mm framing)
Neat finished access covers supplied as standard
Available as Single or Bi-Parting (double) units with or without a door fitted

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
