CS NewYorker
Description

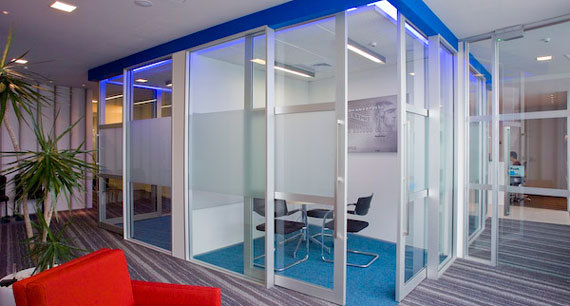

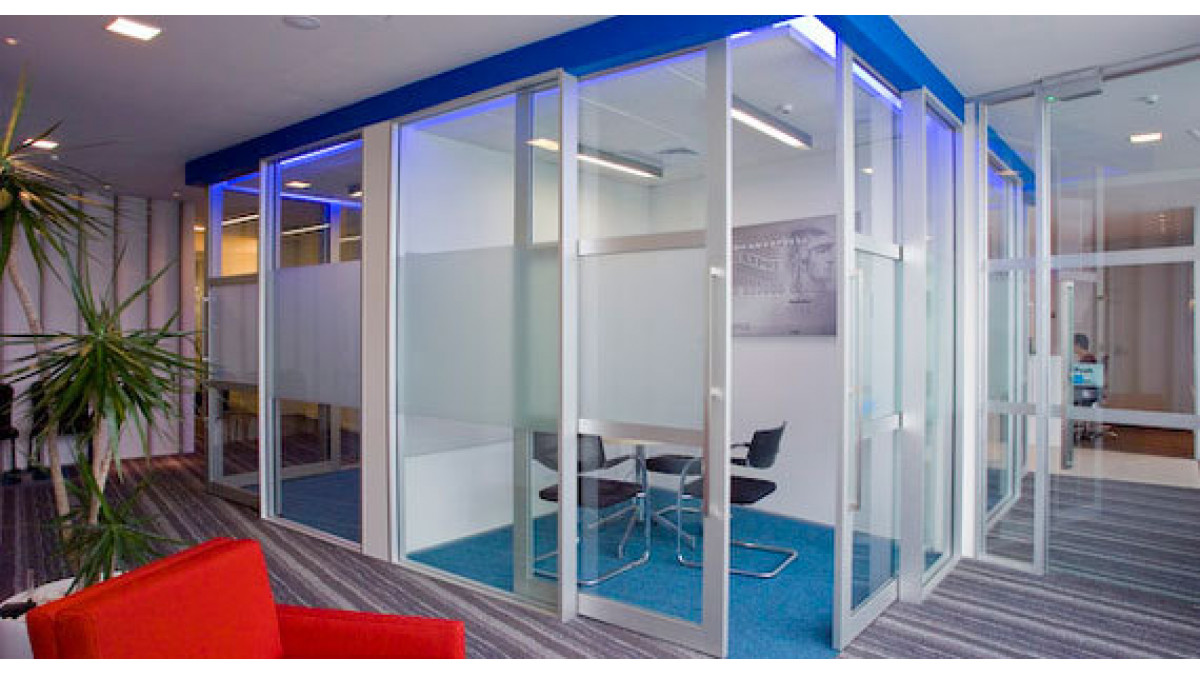

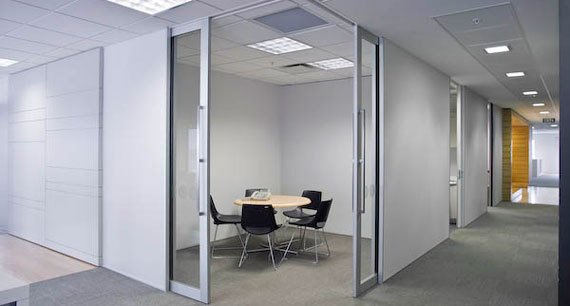

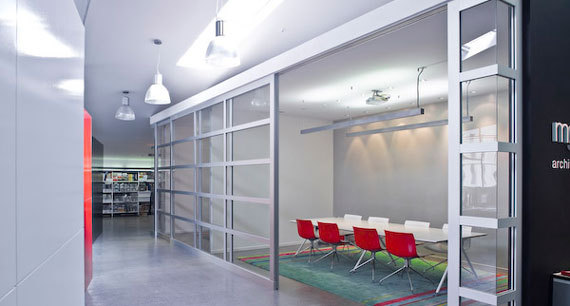

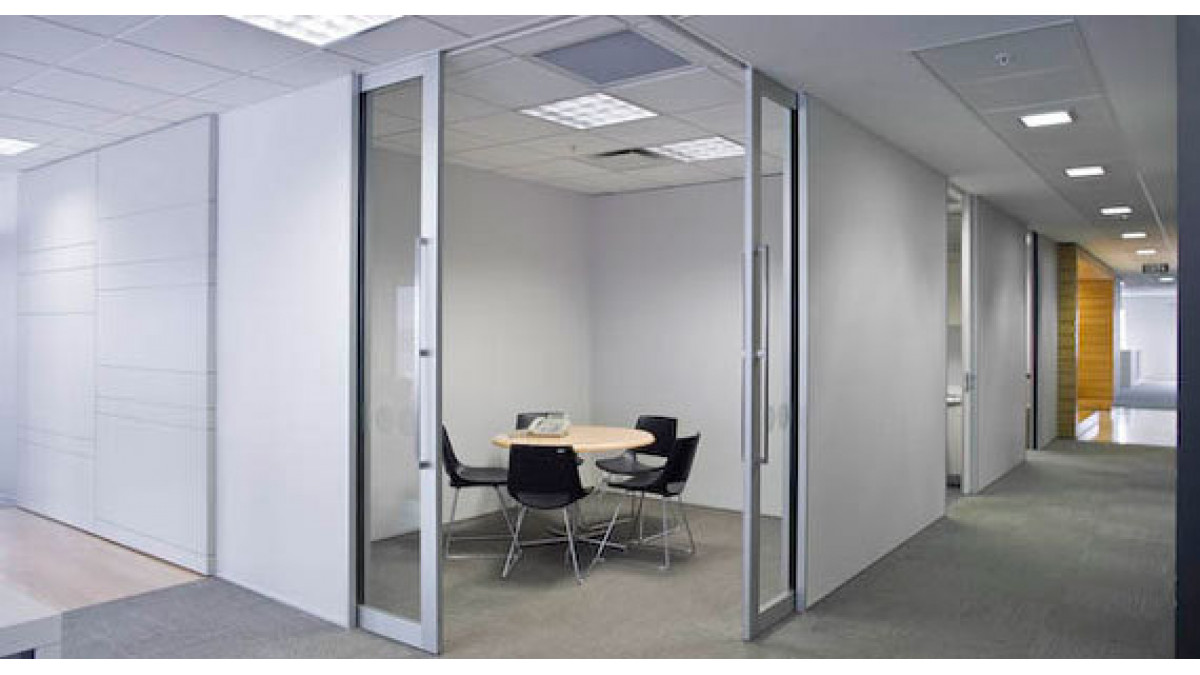

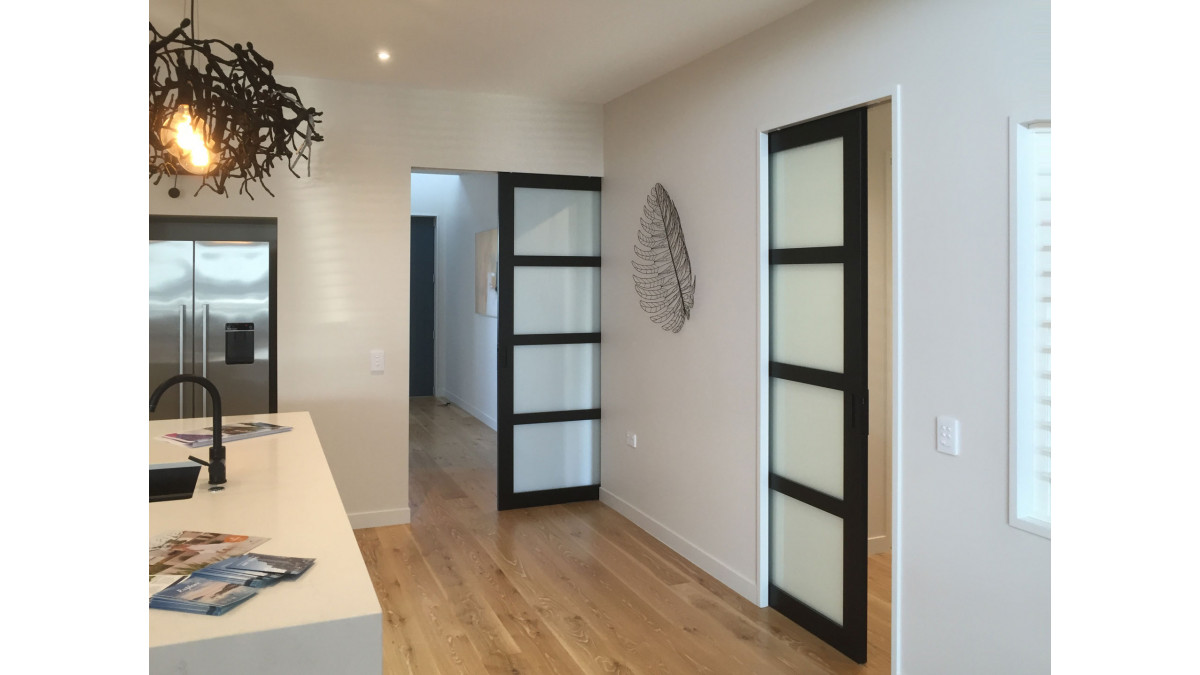

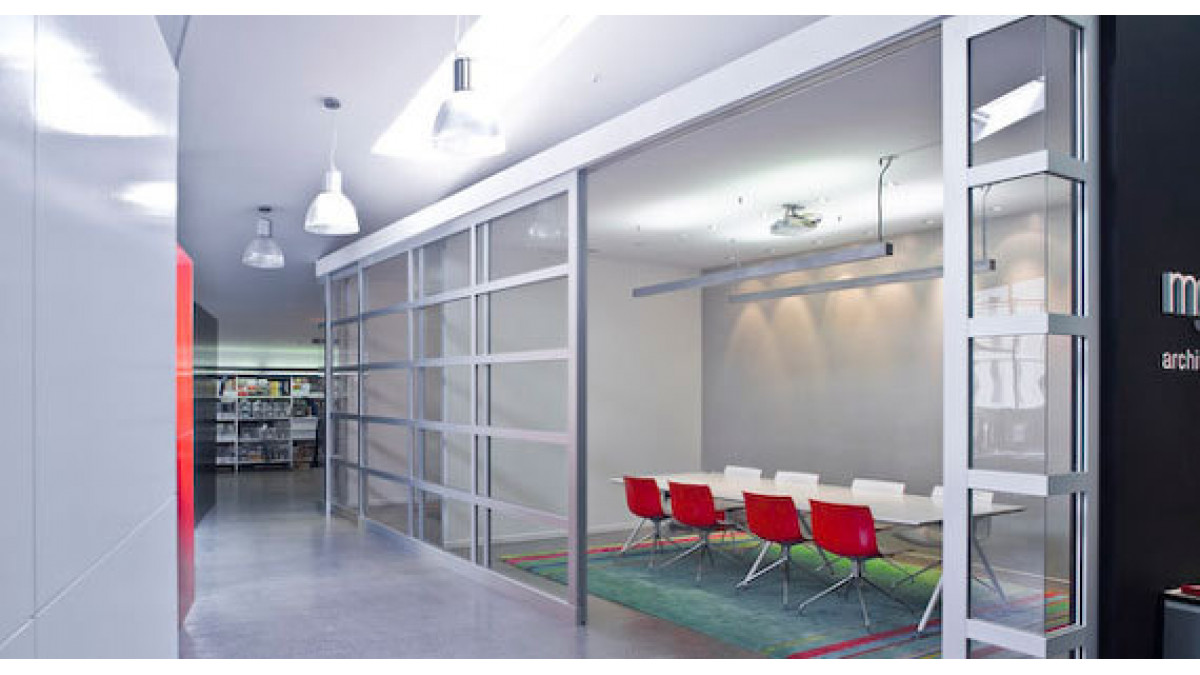

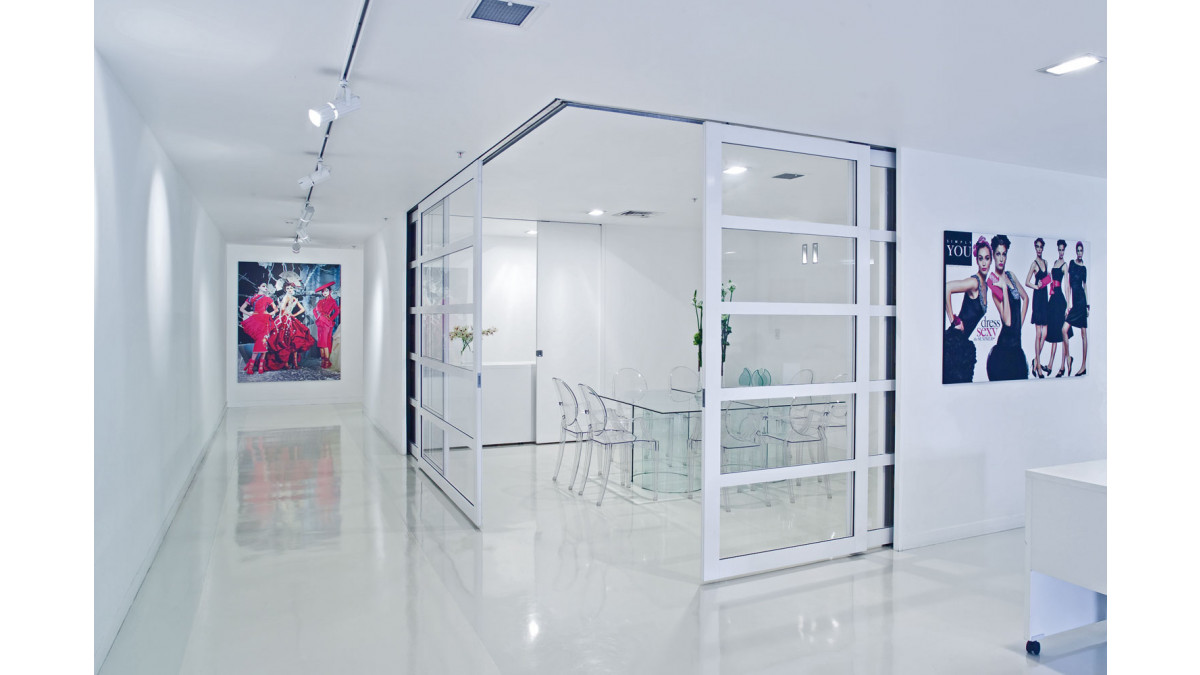

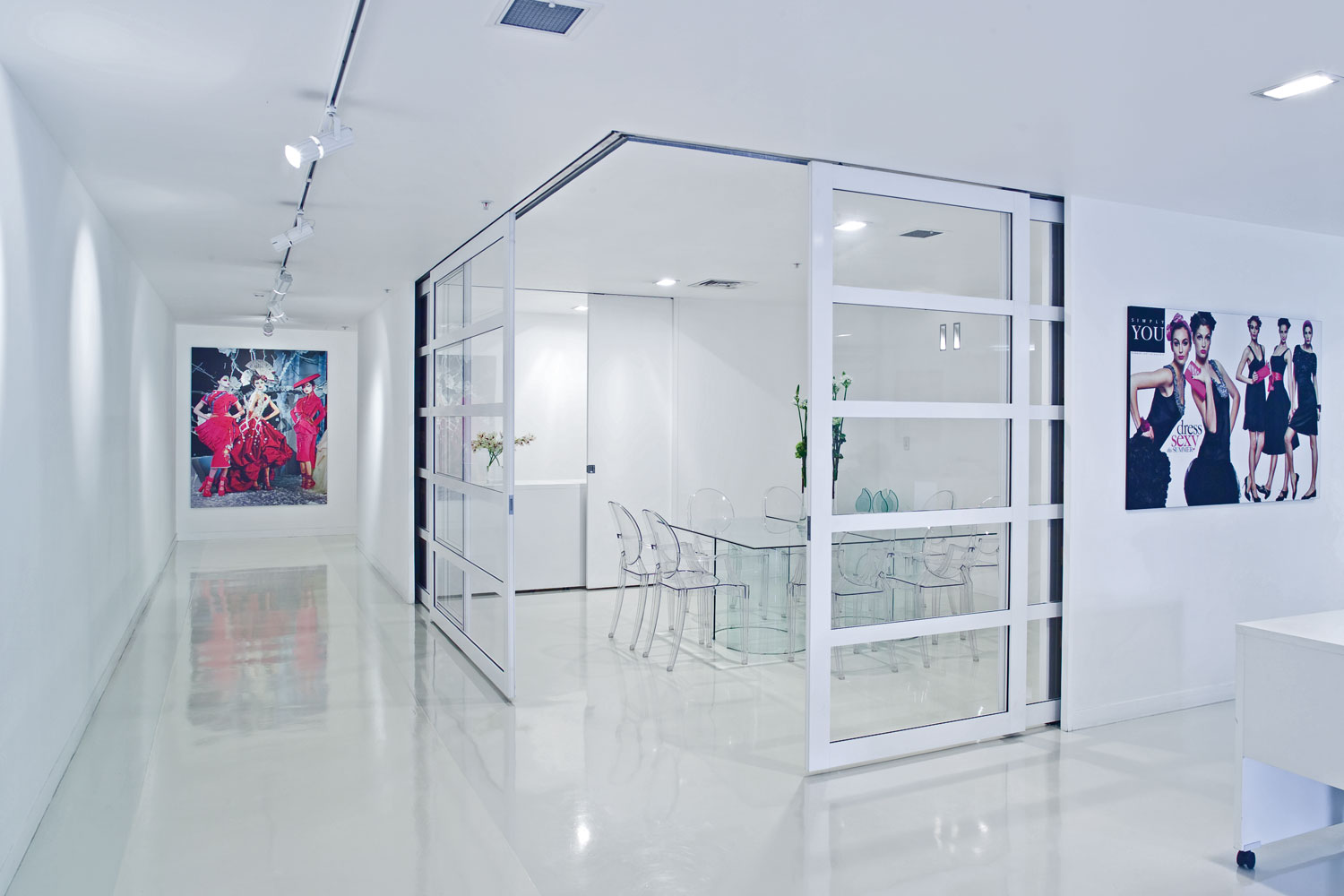

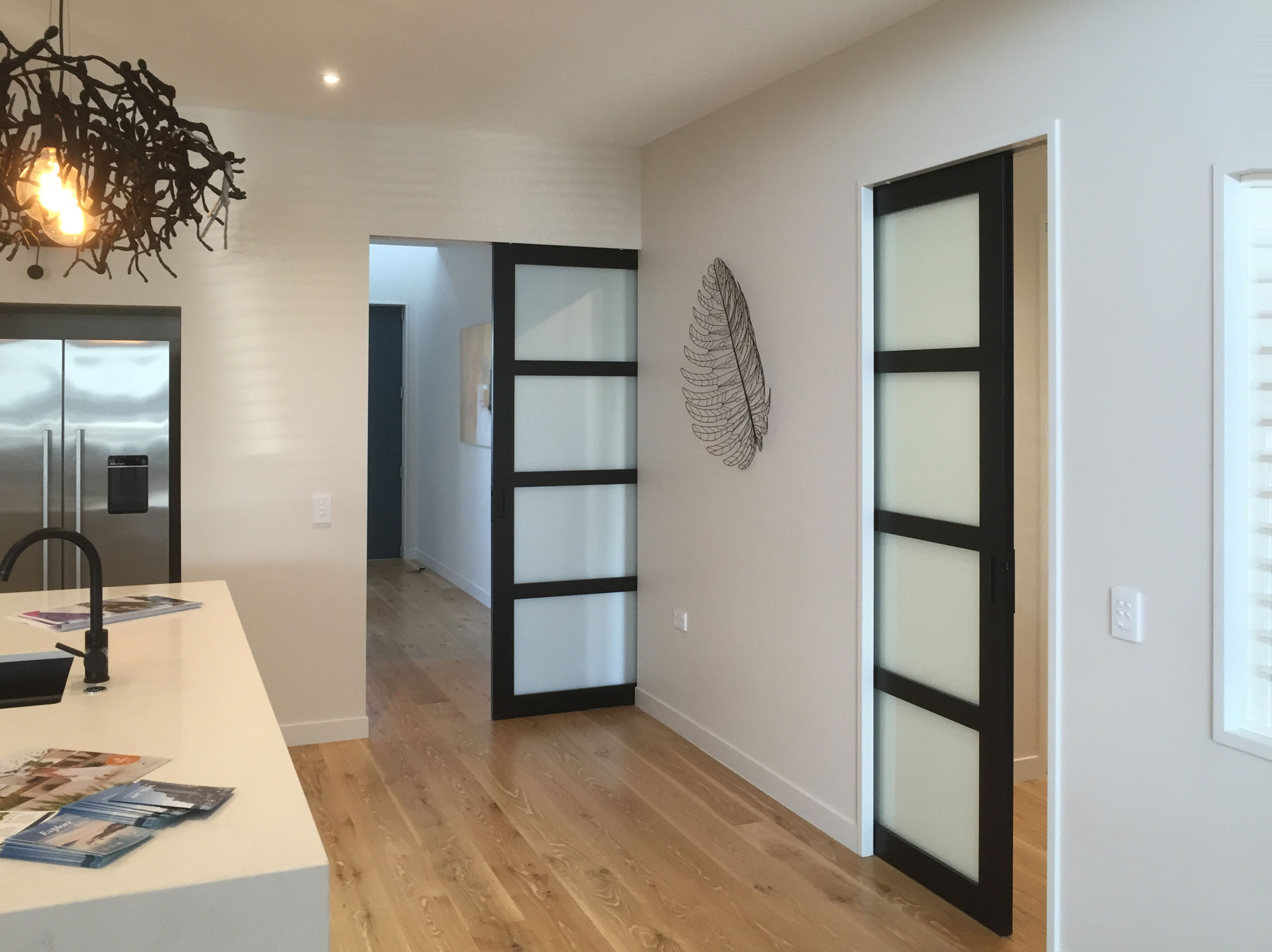

The CS NewYorker is a stylish pre-finished door frame that can be glazed using a wide range of materials, glass being the most popular. The perimeter frame has no visible screws or fastenings, while horizontal or vertical rails (if required) have been purpose designed to maintain overall good looks without compromising strength or reliability. Patent pending.

Most standard mortice locks can be fitted to the front stile, and the lock can be factory-fitted. A clip-in front clashing sits neatly above and below the mortice face plate covering the fixings. The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution.

Key Features
  • Strong stable construction: all sections have a thick wall for extra rigidity and strength
  • Front and back stiles are 100mm, mid rails are 70mm.
  • Pre-finished: manufactured in the factory to arrive on-site fully finished
  • Suitable for cavity sliders, surface sliding or hinged doors
  • A wide range of glazing options including glass, aluminium and perforated sheet, etc. Maximum material thickness is 10.38mm
  • Available with a CaviLock Aluminium Door Front Edge Pull — a flush pull designed specifically for the CS NewYorker
  • No clip-in beadings or plastic screw covers
Categories / Ranges
Cavity Sliders CS Door Leaves
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • CS Door Leaves are suitable for use in sliding, pivot or hinged applications in residential, commercial and light industrial buildings
  • Handles: A variety of handles can be factory fitted including a custom designed recessed leading edge pull
  • The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution.
Limitations on Use

Sizing (sliding):

  • Door leaves may be any size up to up to 3.0m high and 3.0m wide.

Sizing (hinged):

  • Door leaves may be any size up to 3.0m high and 1.2m wide.
  • Higher and wider doors may be specified in consultation with CS For Doors.
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

The CS NewYorker has been successfully used in commercial and residential projects in New Zealand and Australia since 2001.

Other Performance Attributes
  • CS Door Leaves are backed by a 5 year written guarantee
  • Strong stable construction: all sections have a thick wall for extra rigidity and strength
BRANZ Appraised
BRANZ Appraised
Documents
Maintenance Instructions
Warranty
CS Company Intro
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
