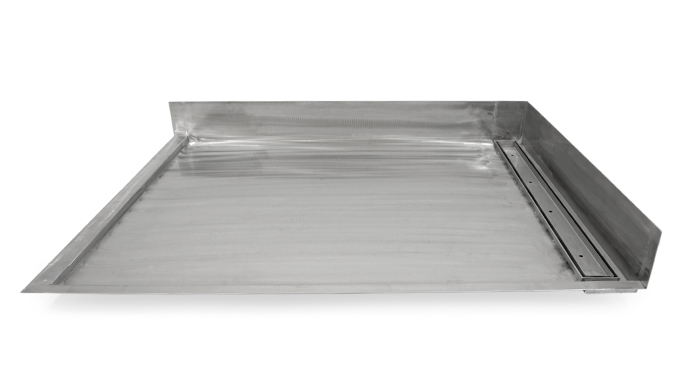

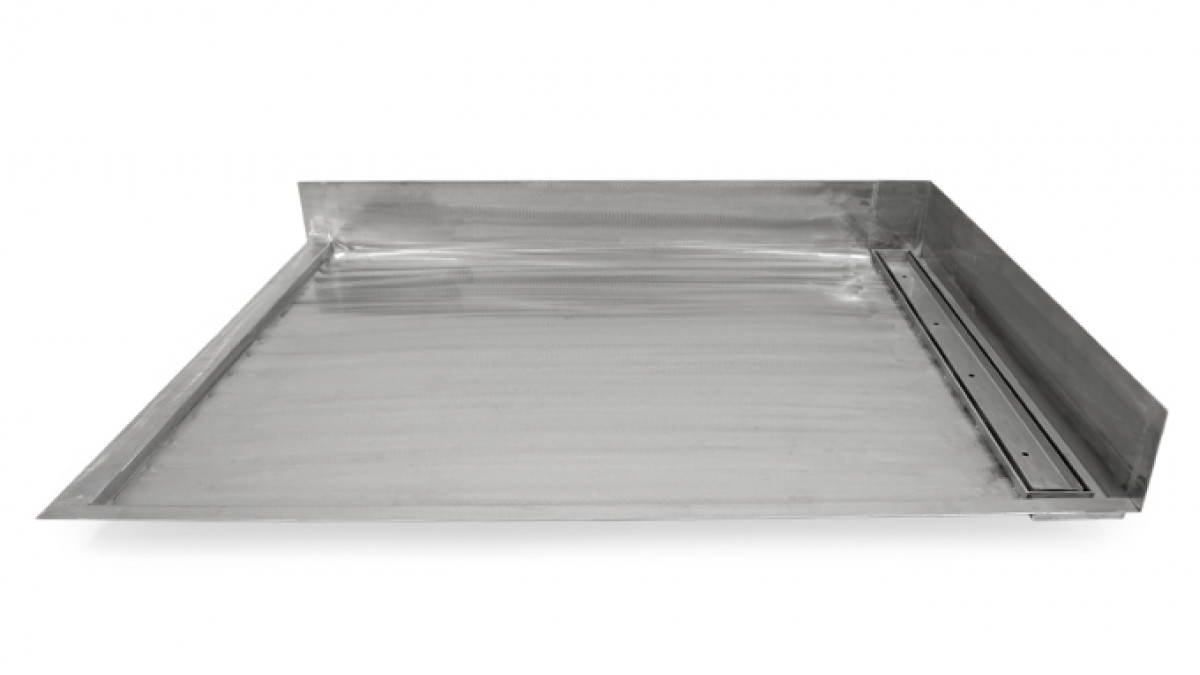

Tile Over Screed Shower Tray

Allproof specialises in customised stainless steel shower trays for project specific applications where off-the-shelf trays may not be suitable. Utilising linear and point drain options, with a variety of wall and edge options, Allproof can create the ideal solution for the installation.

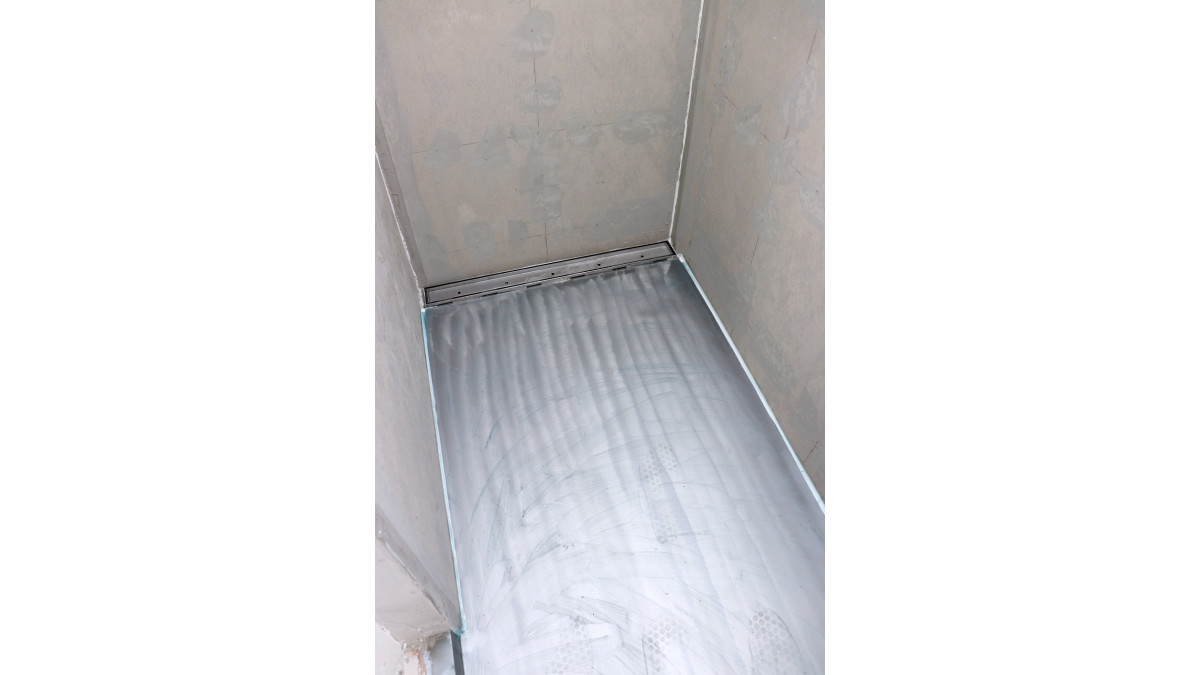

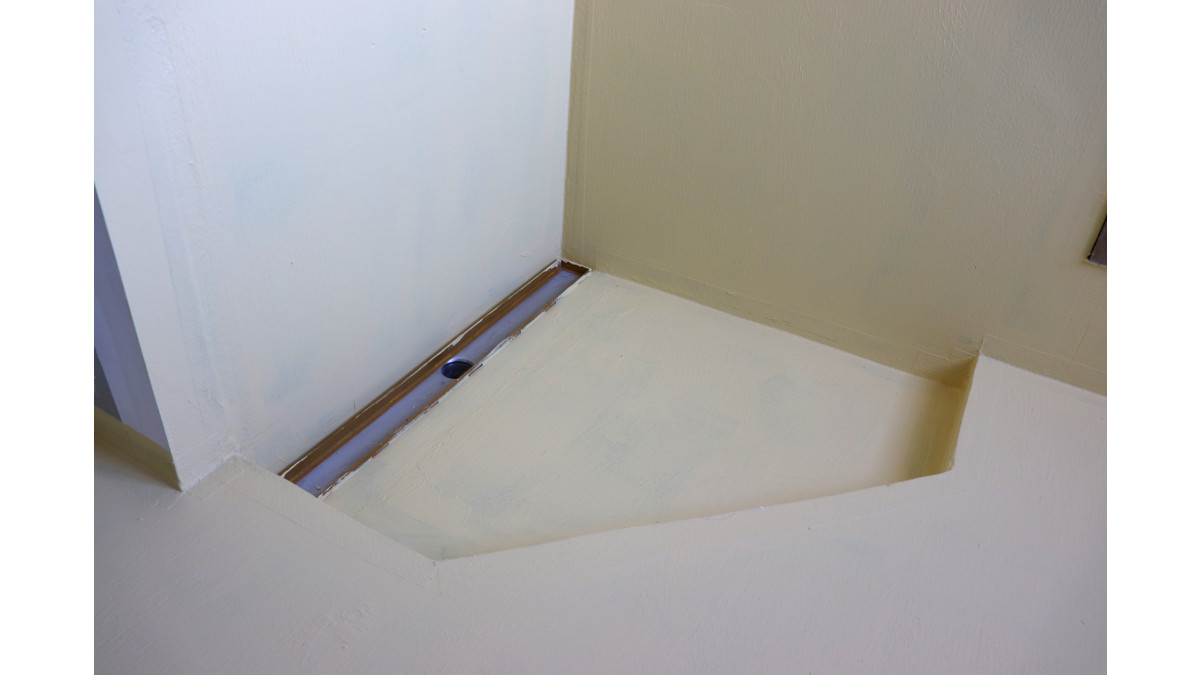

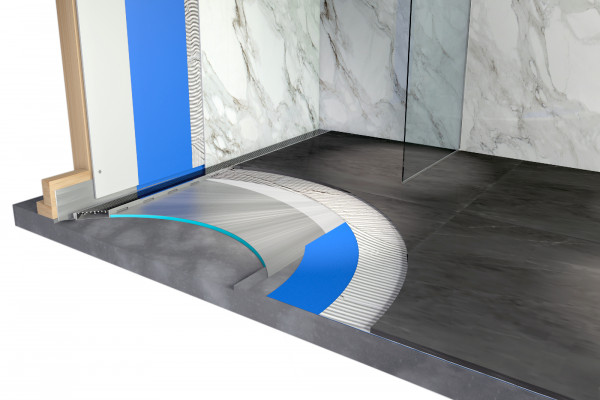

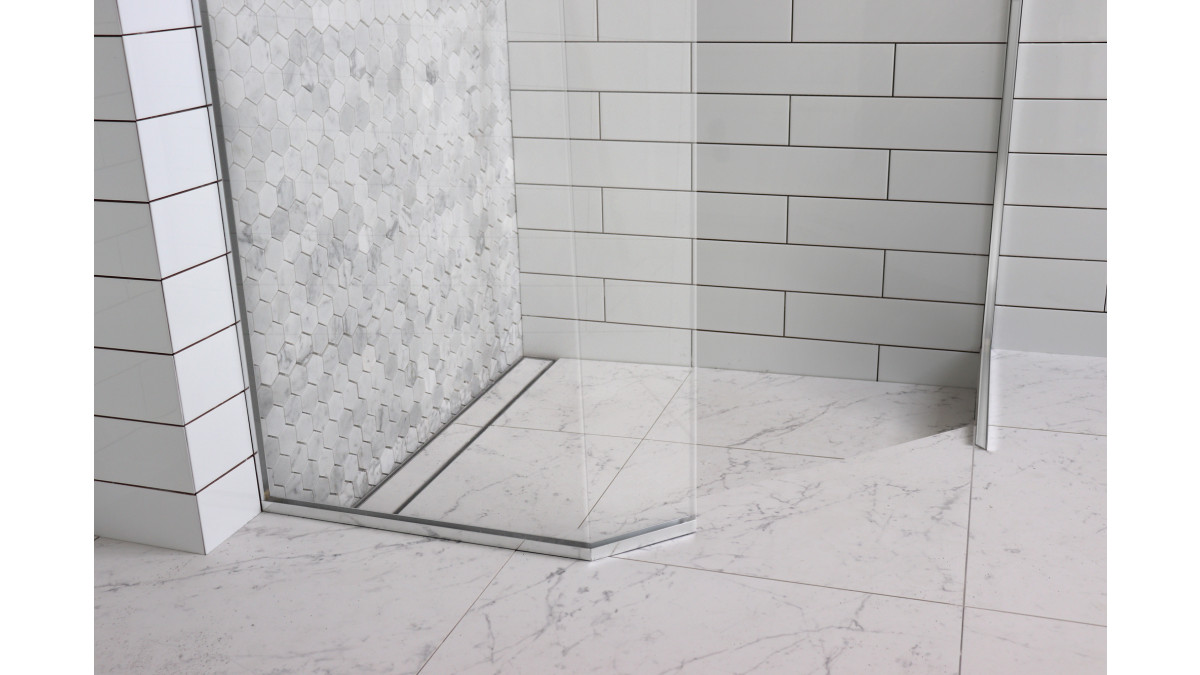

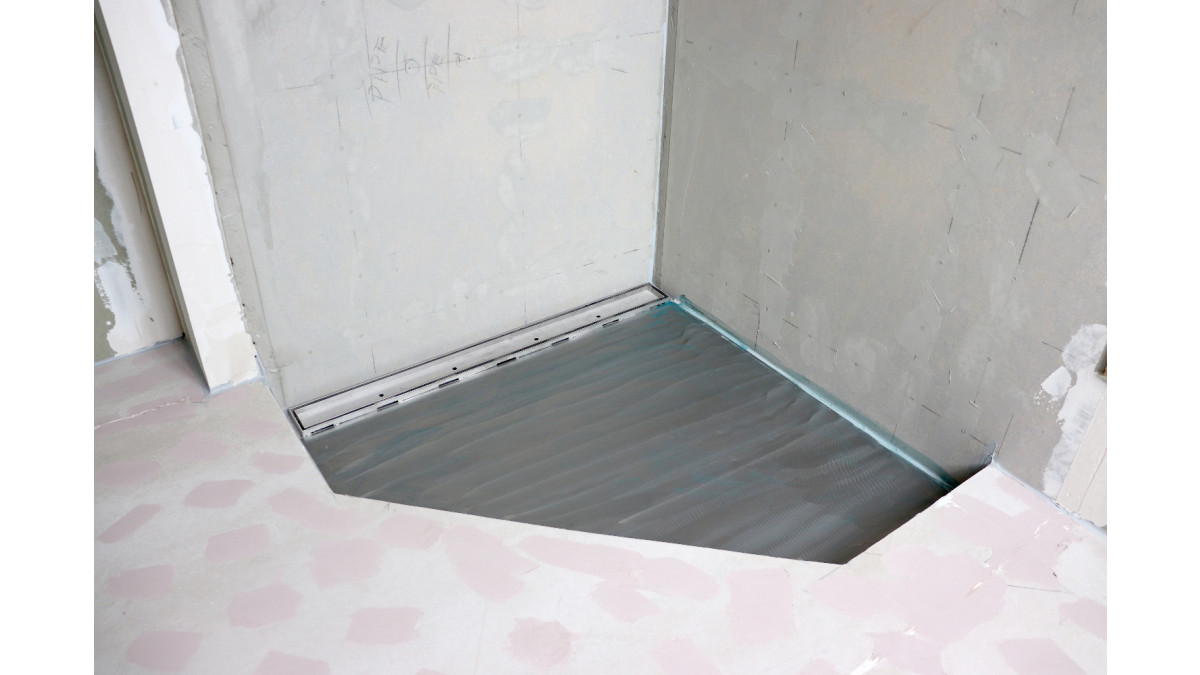

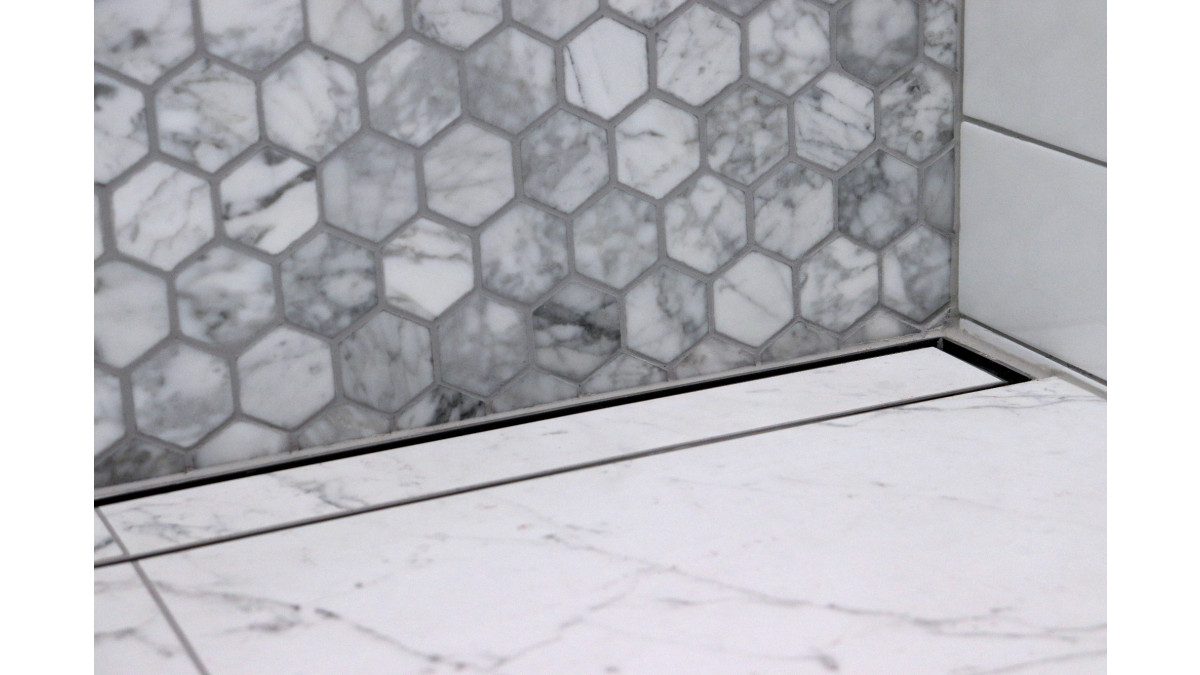

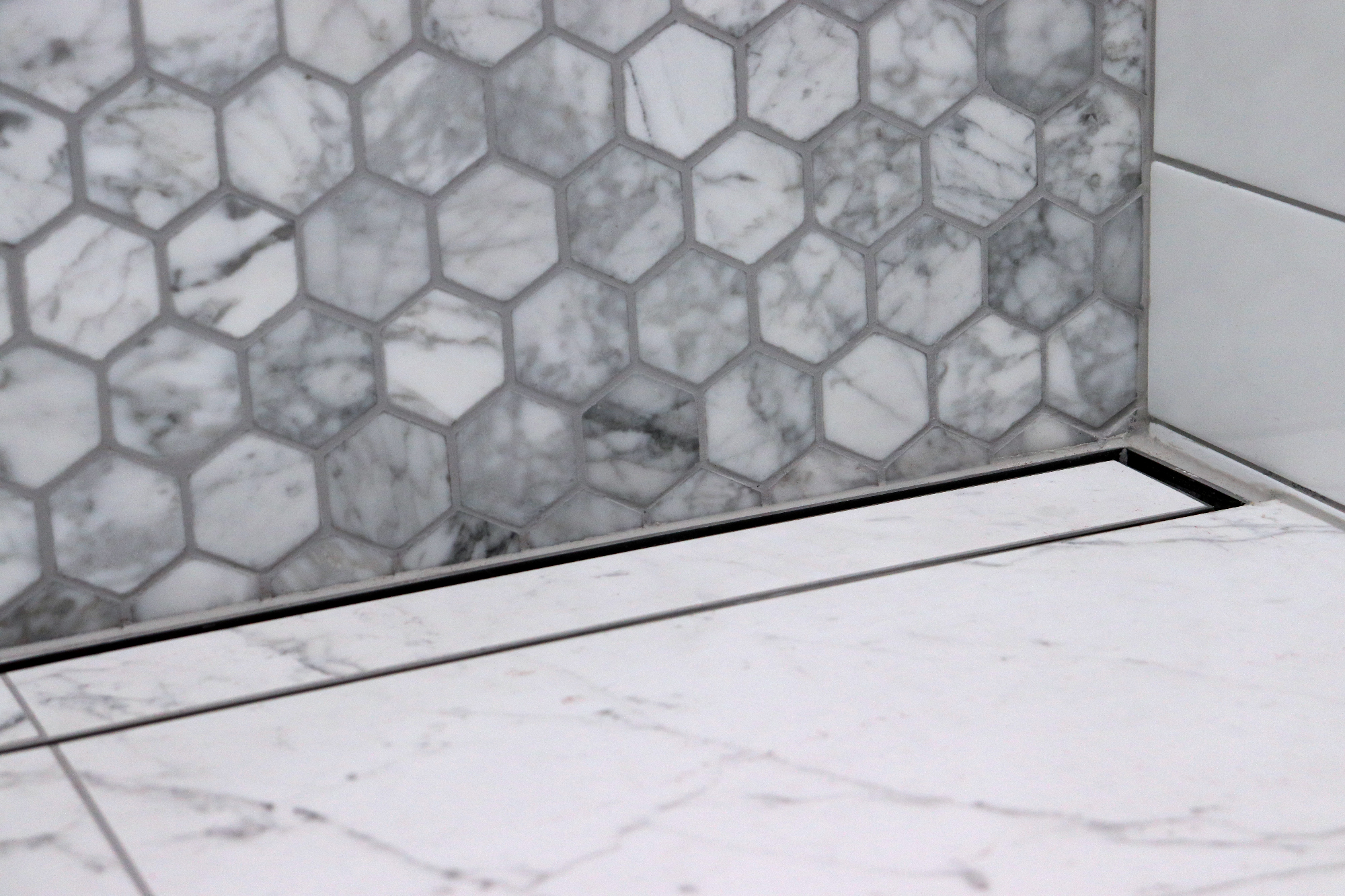

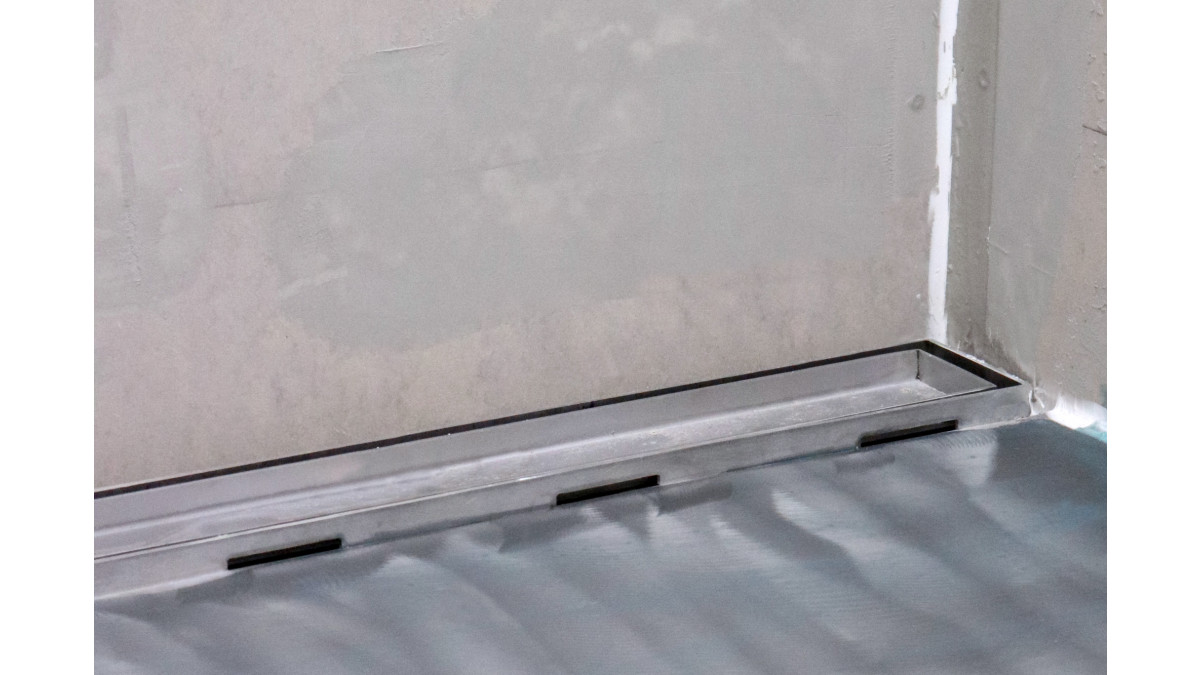

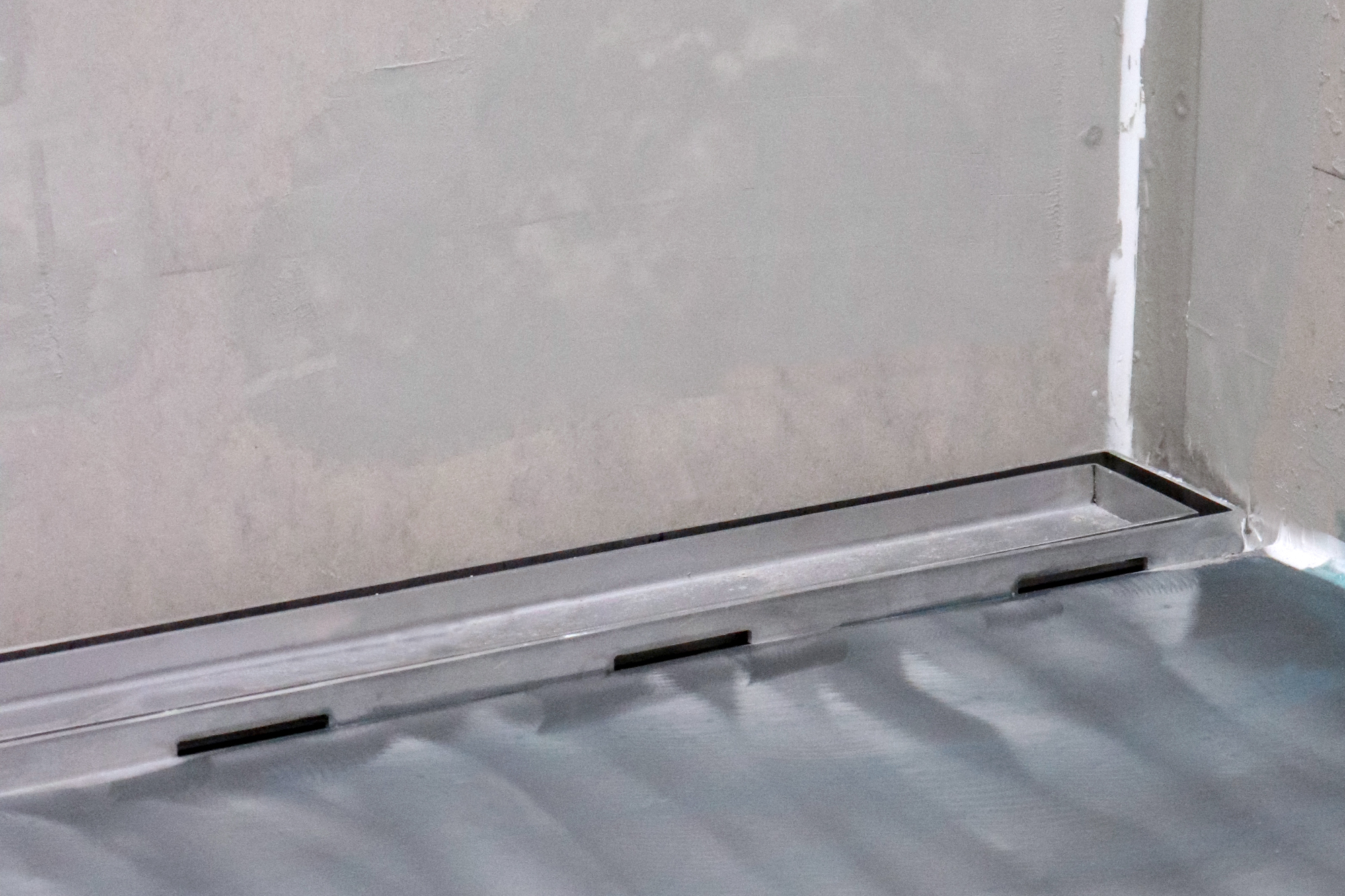

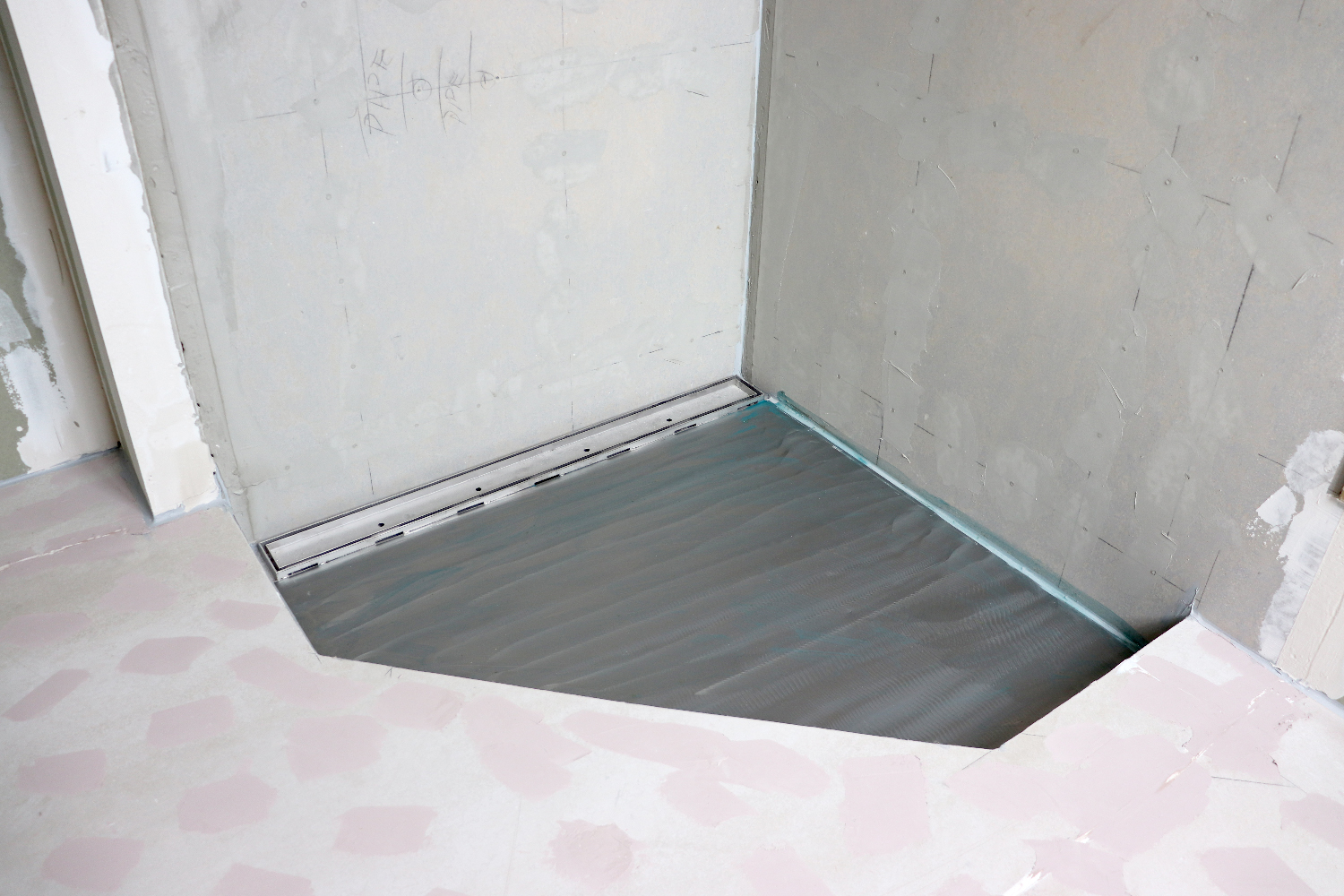

The tile over screed tray creates a level entry shower with the option of a point or channel drain. The base of the tray is recessed into the floor and a screeded fall is created on-site in the tray towards the outlet. This system provides flexibility around the outlet type, location and tray shape. The system includes a tile edge bar on a variety of linear drain options and locating lugs for a tile grate on point drains.

Key Features
  • All stainless construction
  • 304 or 316 stainless steel
  • Variety of grate options
  • Made to measure
  • Discreet tile over finish
Tile Underlay Showers
Shower Trays
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Designed to work as a waterproofing layer below a finished tiled floor in a shower area where water is present

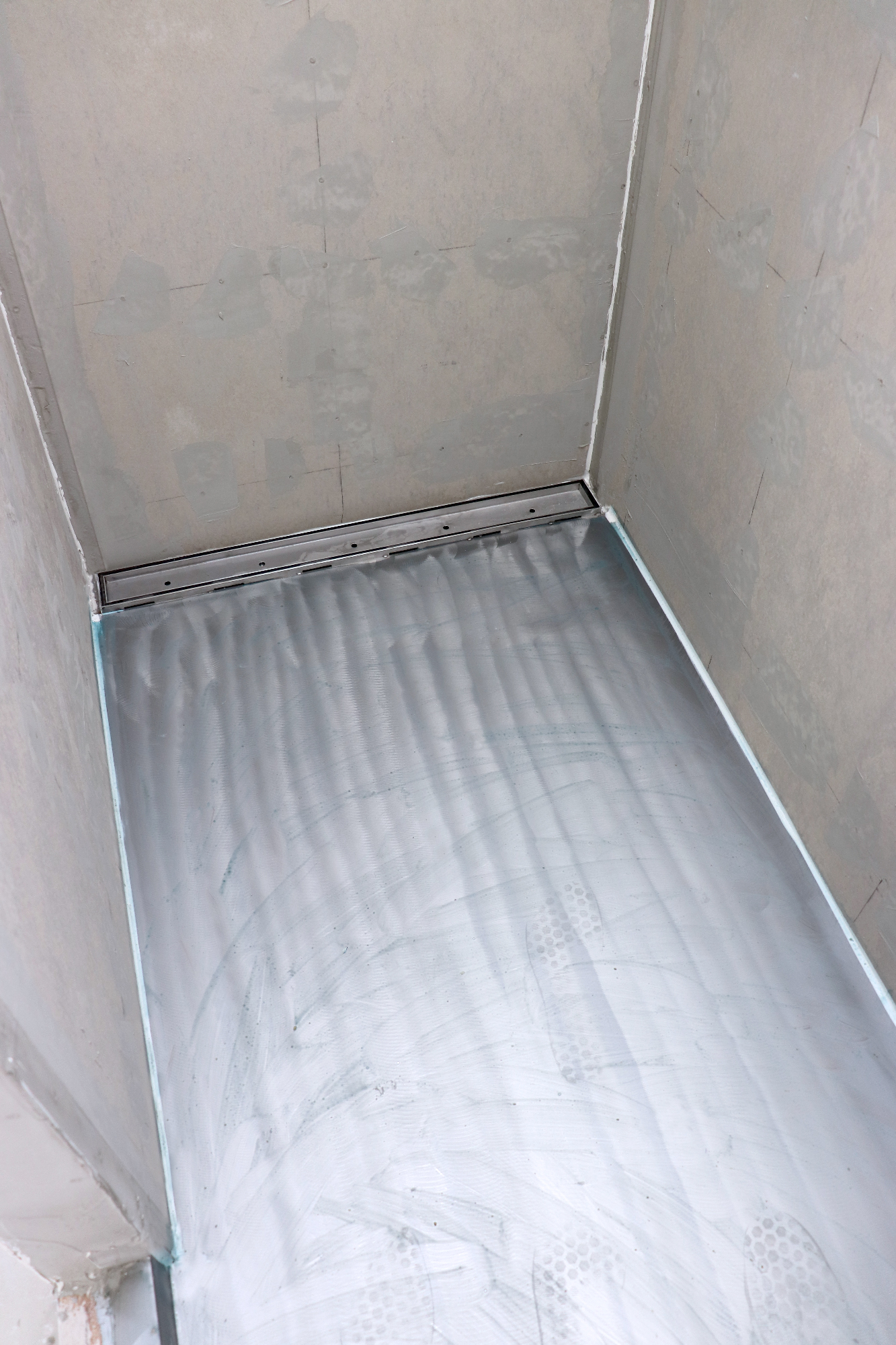

  • Shower trays provide an outlet into an Allproof waste system and are buffed to create a textured surface for screed and membrane bonding
  • Product is fully customisable and will be made bespoke to specific requirements
Limitations on Use

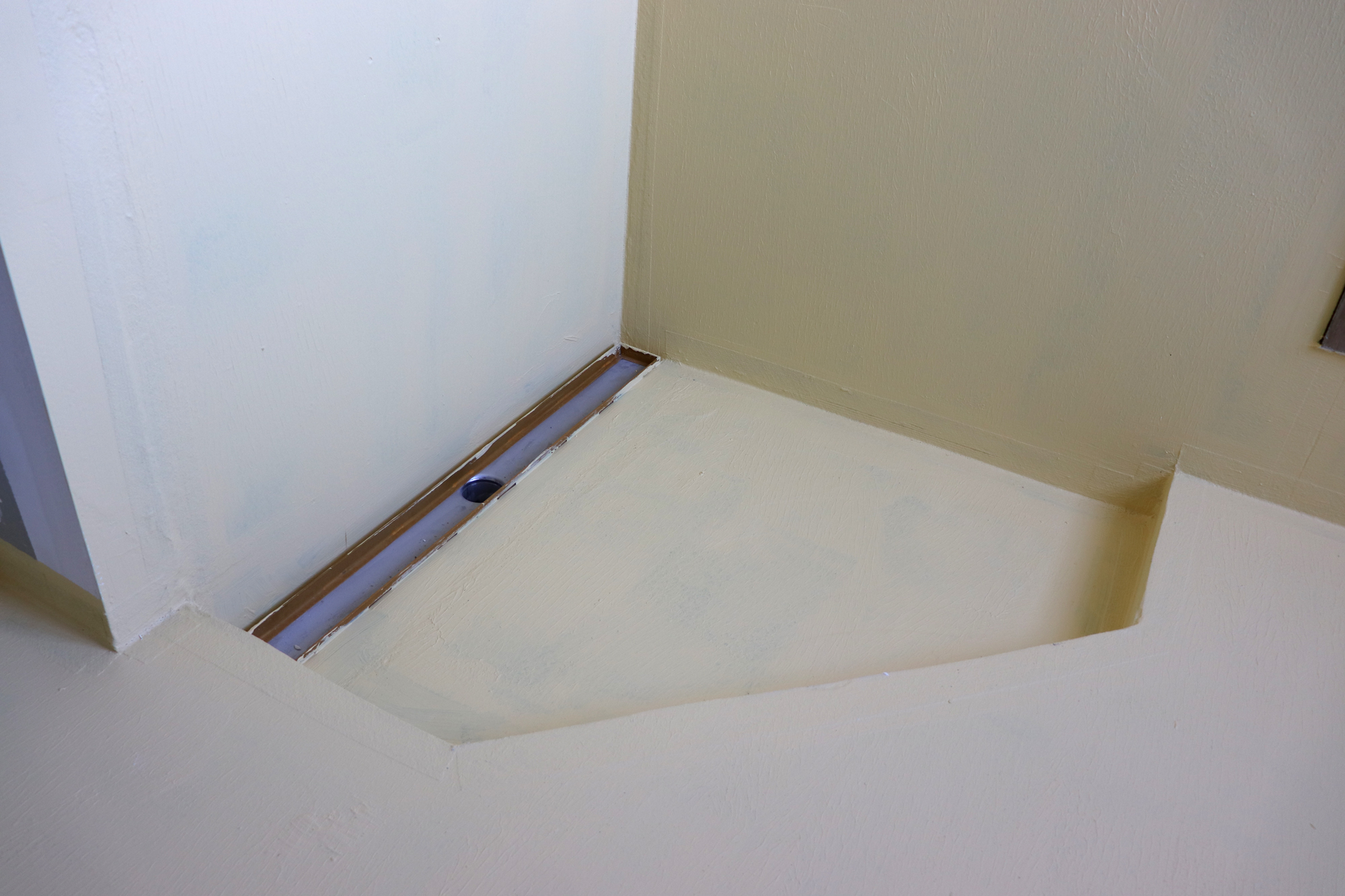

  • Waterproofing membrane is to be dressed onto the product for walls and other floor area, flange area is designed into the system
Statement of Building Code Compliance

Tile over shower trays have been designed to be fully compliant with all NZBC E3 requirement and applicable AS/NZ standards for required falls within the shower.

In-Service History

Allproof have successfully supplied this product to New Zealand homes and commercial projects.

This product's current popularity has stemmed from renovations being made on old villas where a similar system is removed and it has become apparent that the surface and structural integrity of the building is completely free of water damage.

E3 Internal Moisture compliant
Internal Moisture
G12 Water Supplies compliant
Water Supplies
G13 Foul Water compliant
Foul Water
