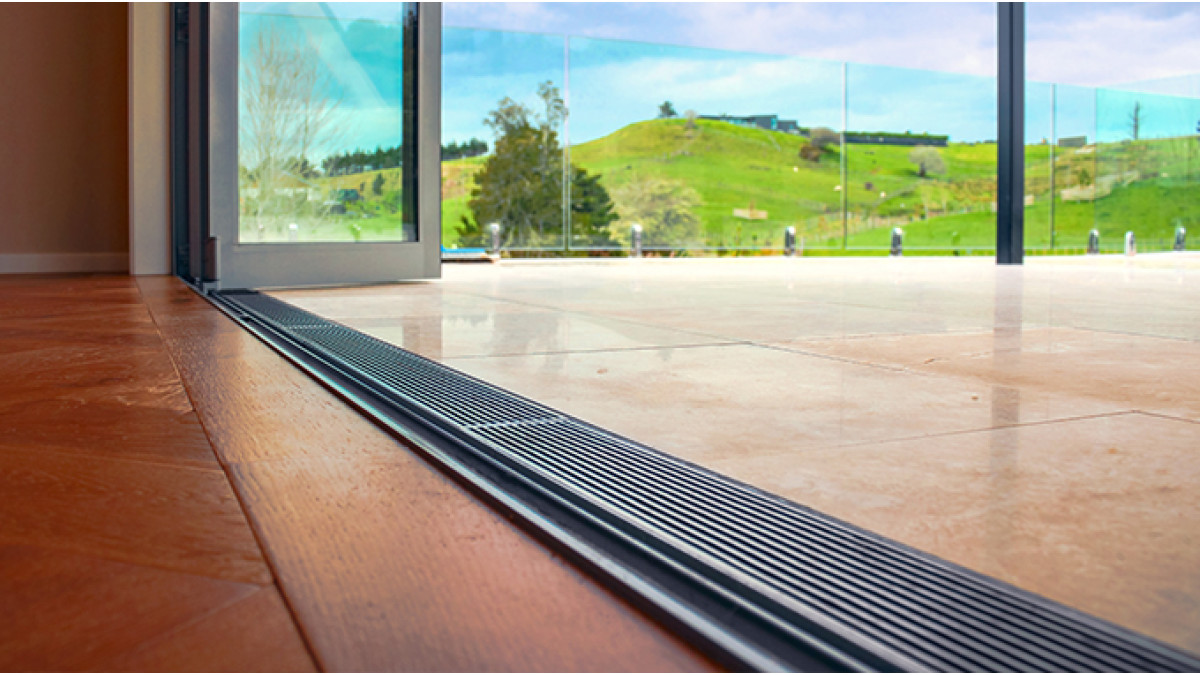

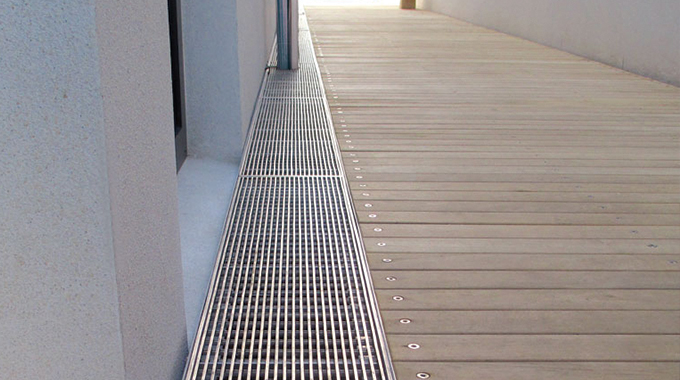

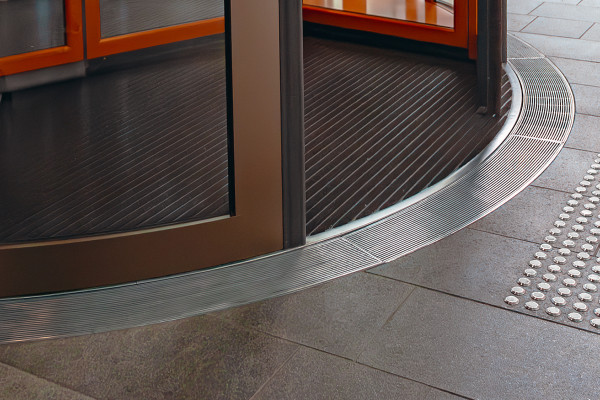

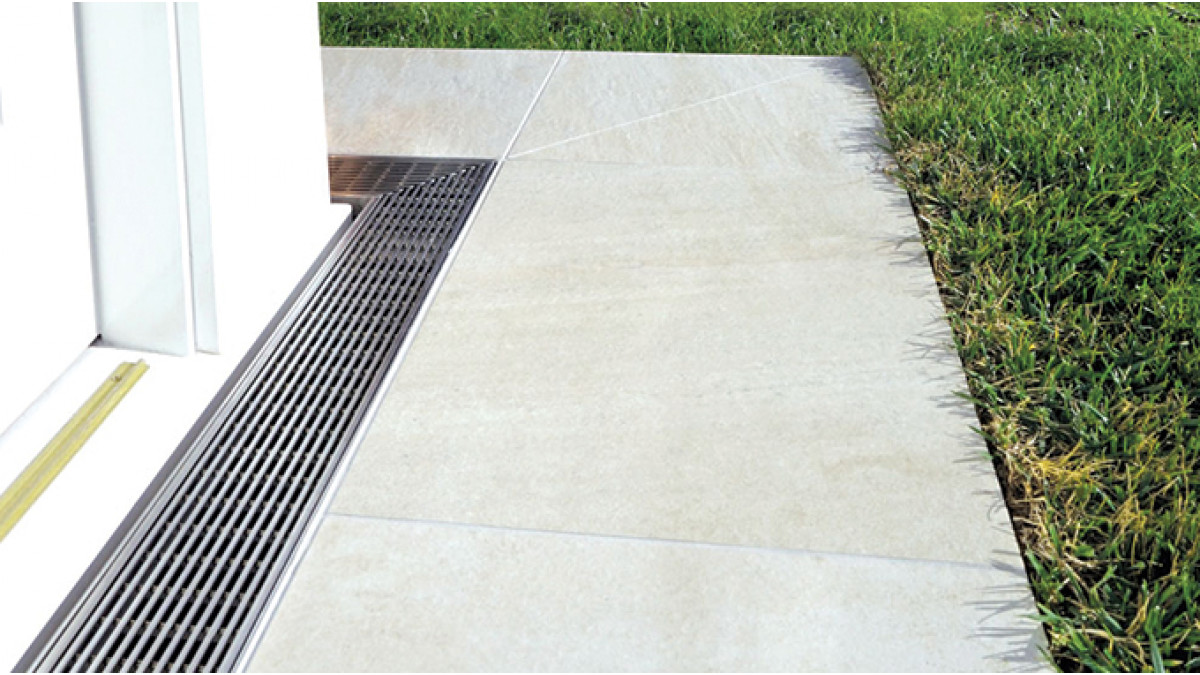

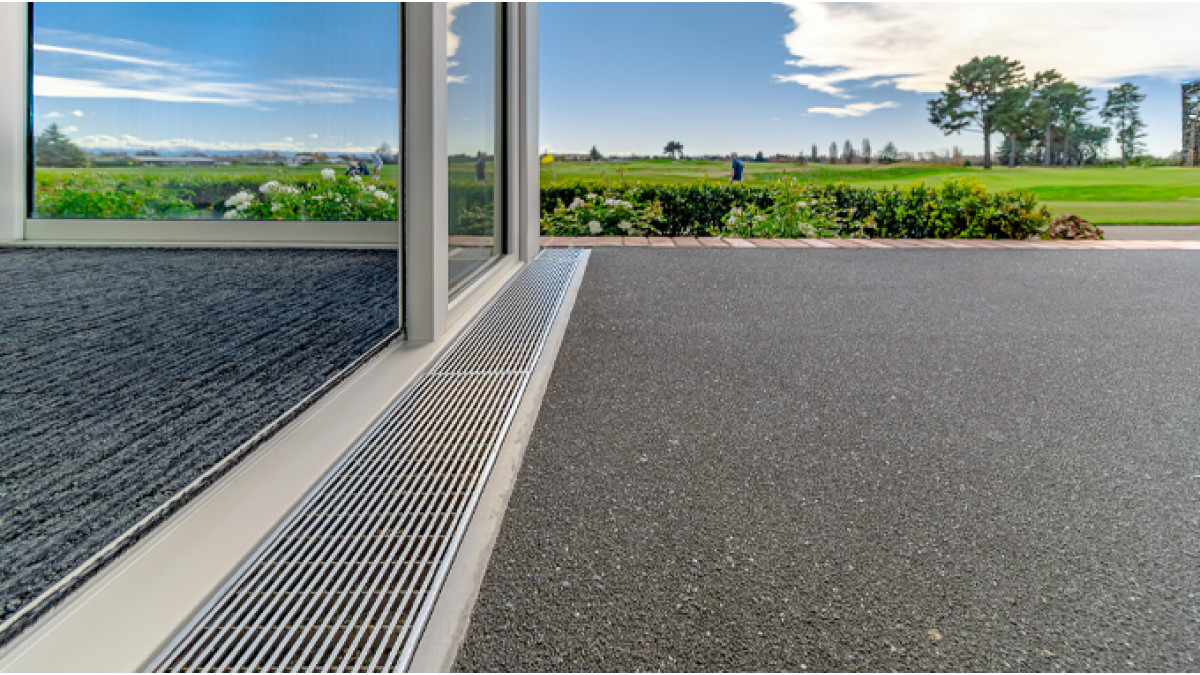

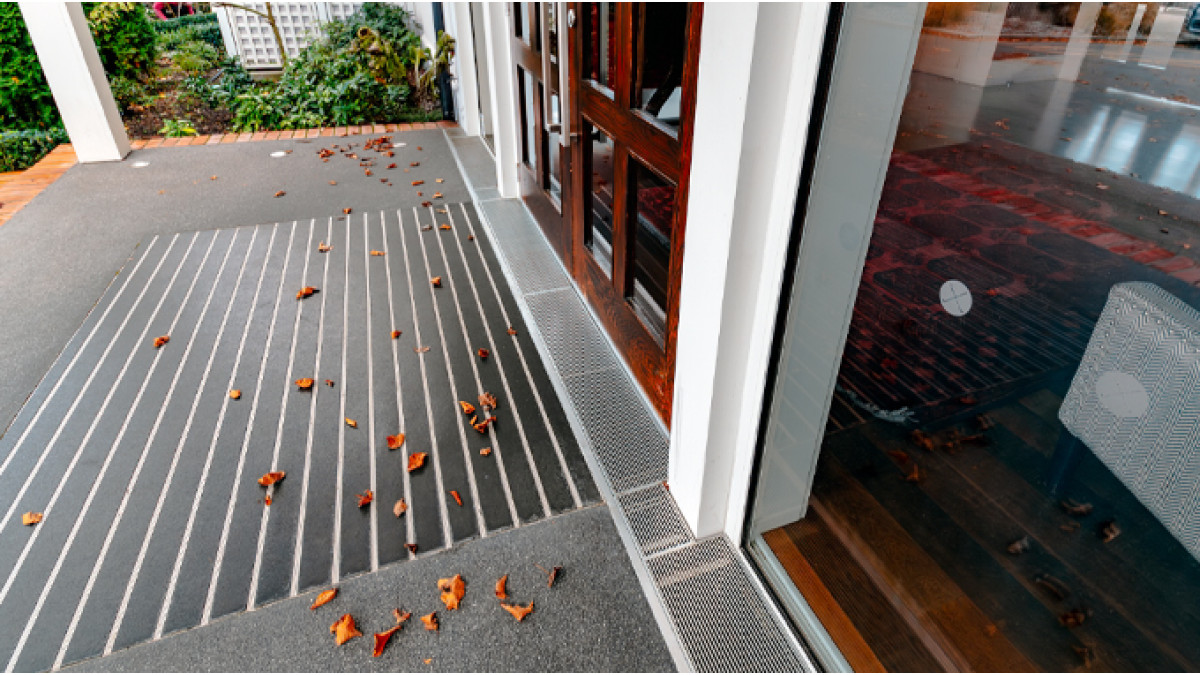

Cantilever Bracket Level Threshold
Description

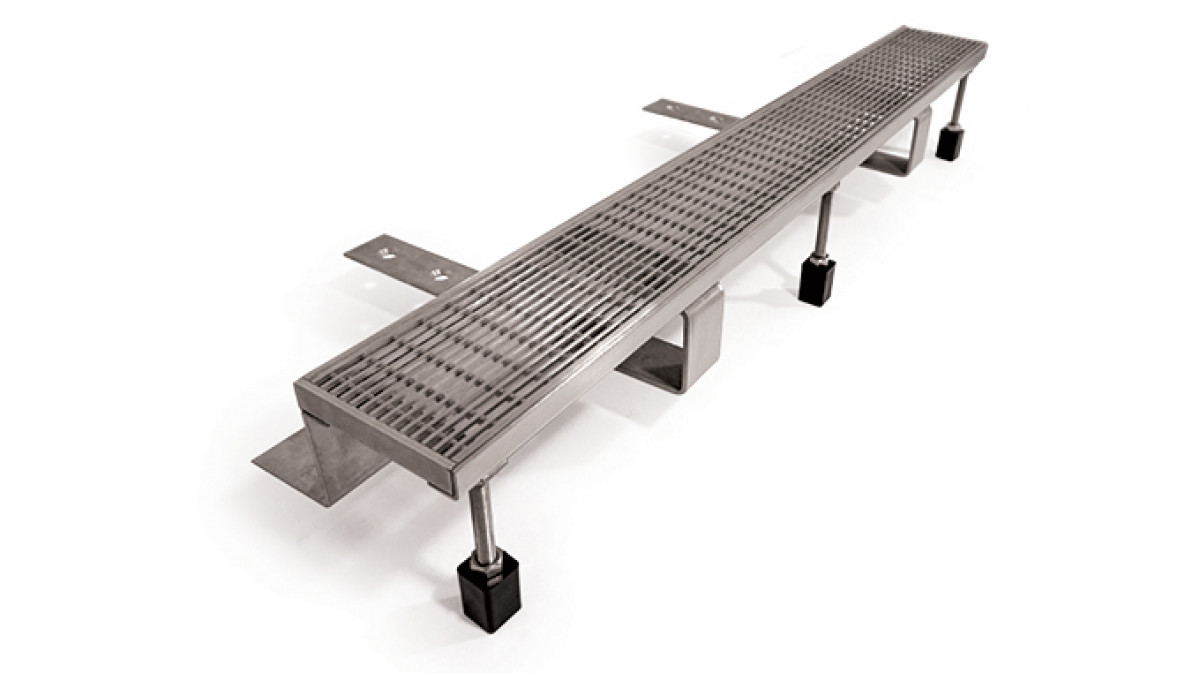

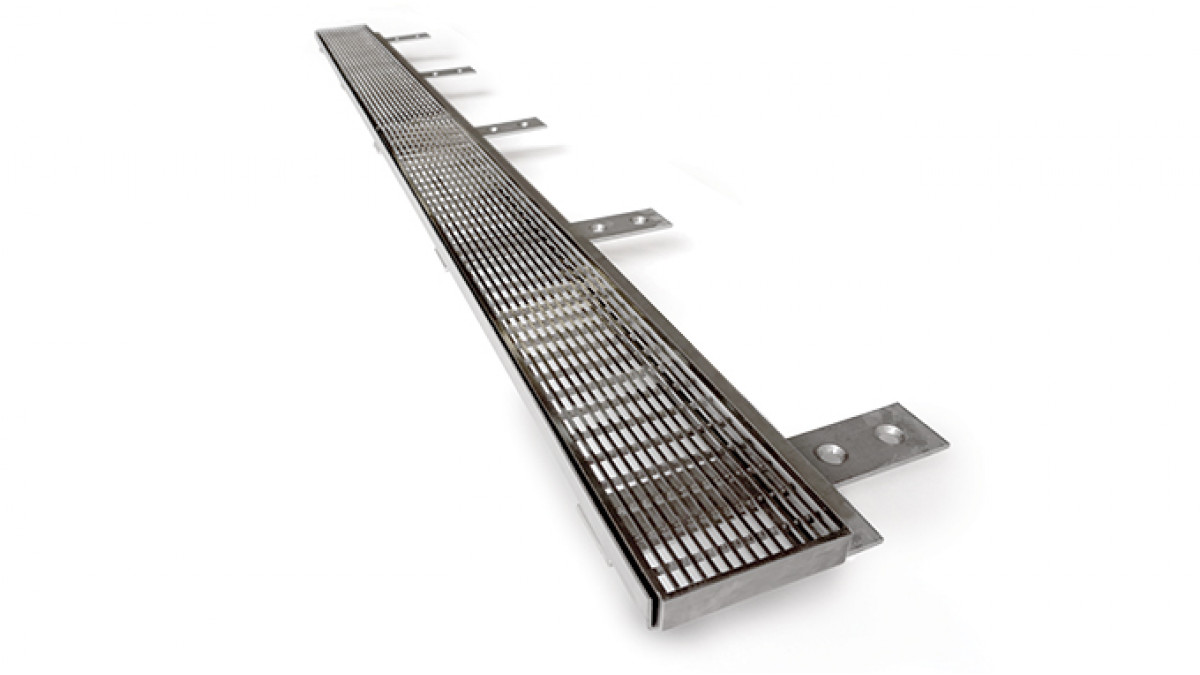

The Cantilever Bracket system is a design that can be used when a permanent level threshold mounting option is desired. The bracket is bolted onto or cast into the slab before the finishing surface is installed/poured.

This fixing system also means a spacer is not required to maintain the 12mm distance and the bracket and joinery remain mechanically separated at all times.

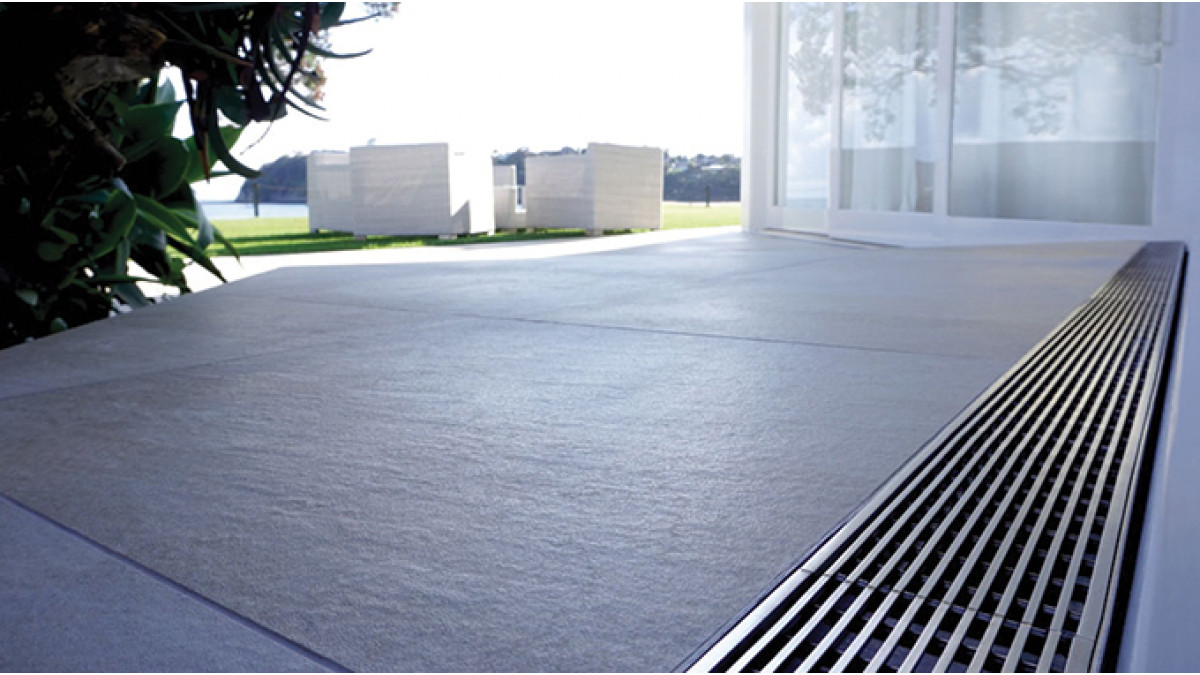

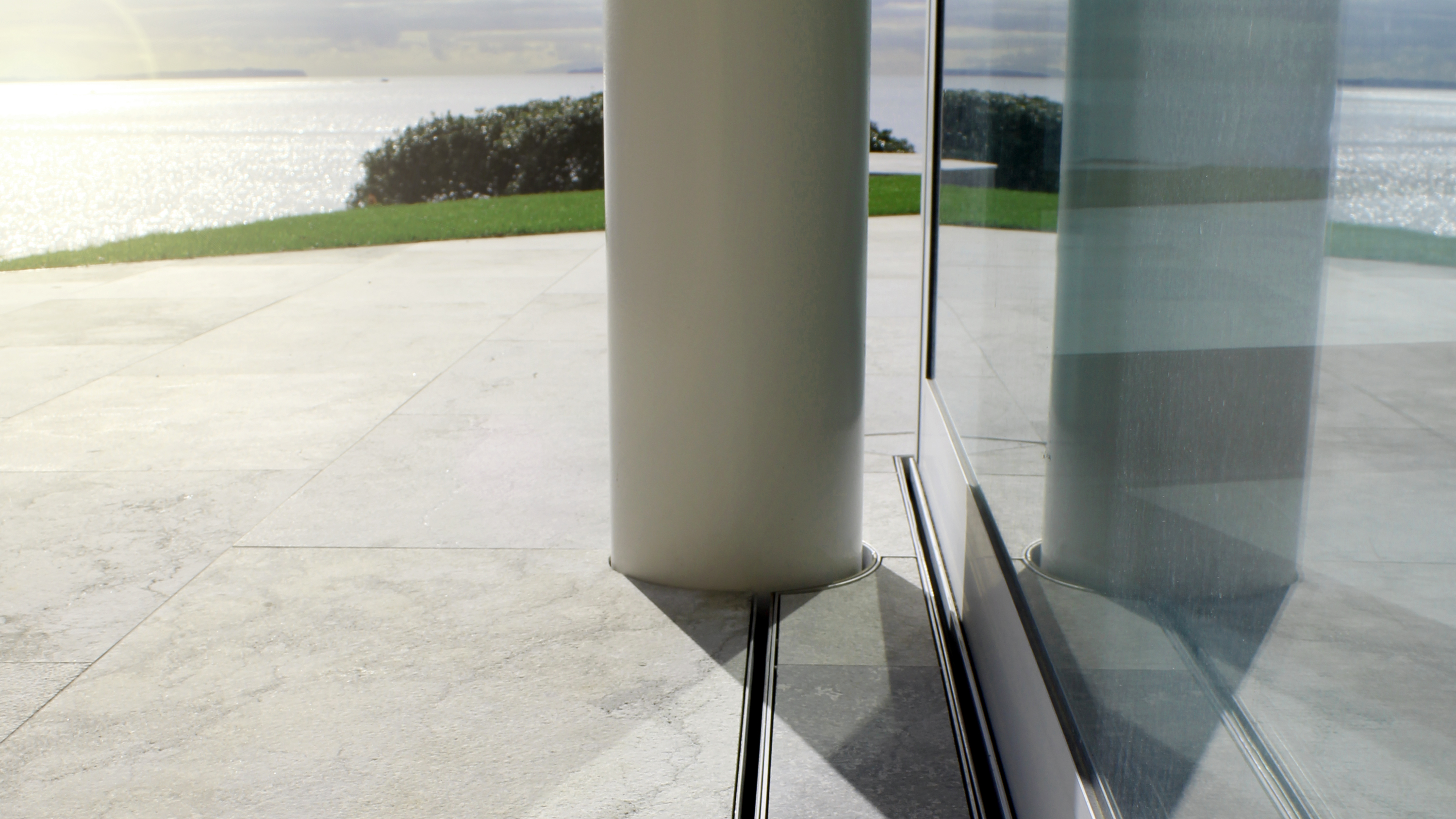

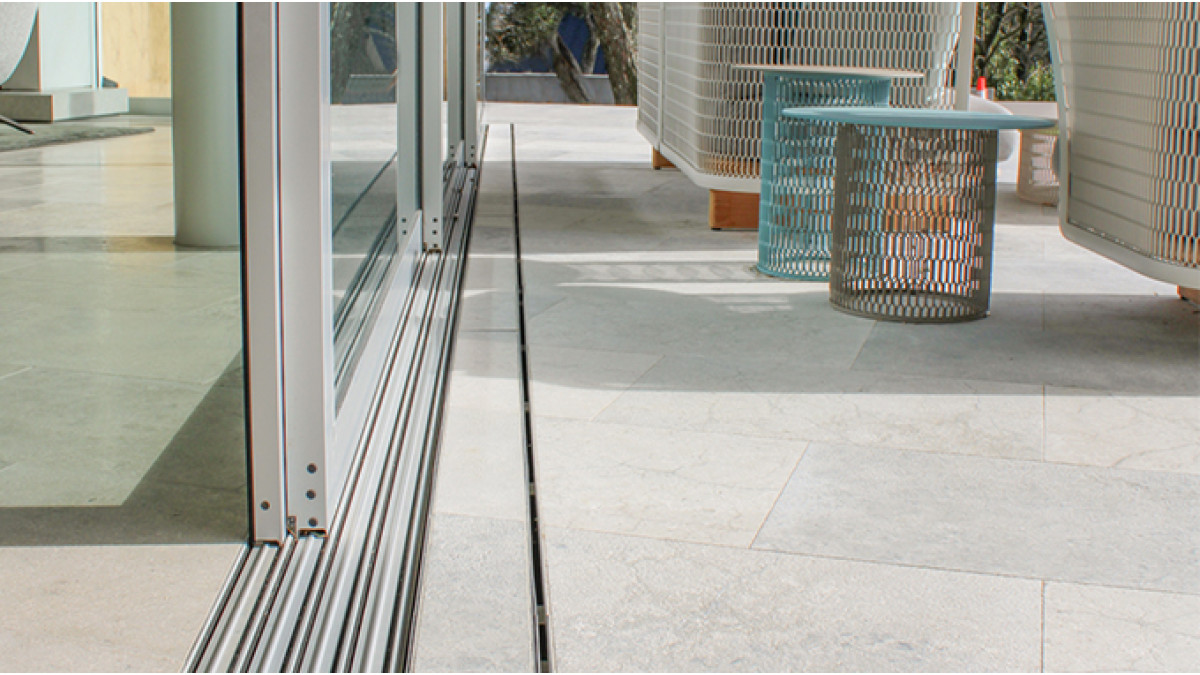

This system is fully customisable and also provides an opportunity to create an E2 compliant channel with a narrower reveal by extending the tiles or pavers out over the channel.

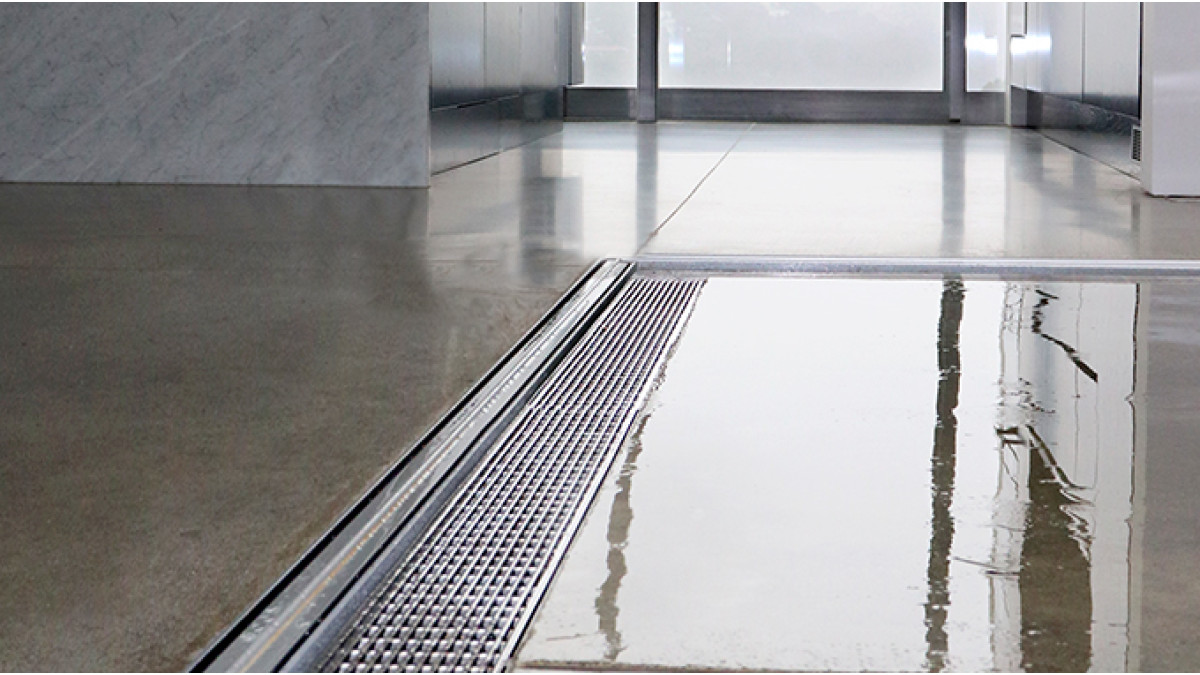

For Concrete finishes Allproof provides a cast in option which requires two pours of concrete, the first providing a platform for the bracket to be affixed to, the second pour provides the finished surface and cantilevered grating.

Key Features
  • Fully E2 compliant with regards to 7.3 Level Threshold
  • Permanent fixed mounting

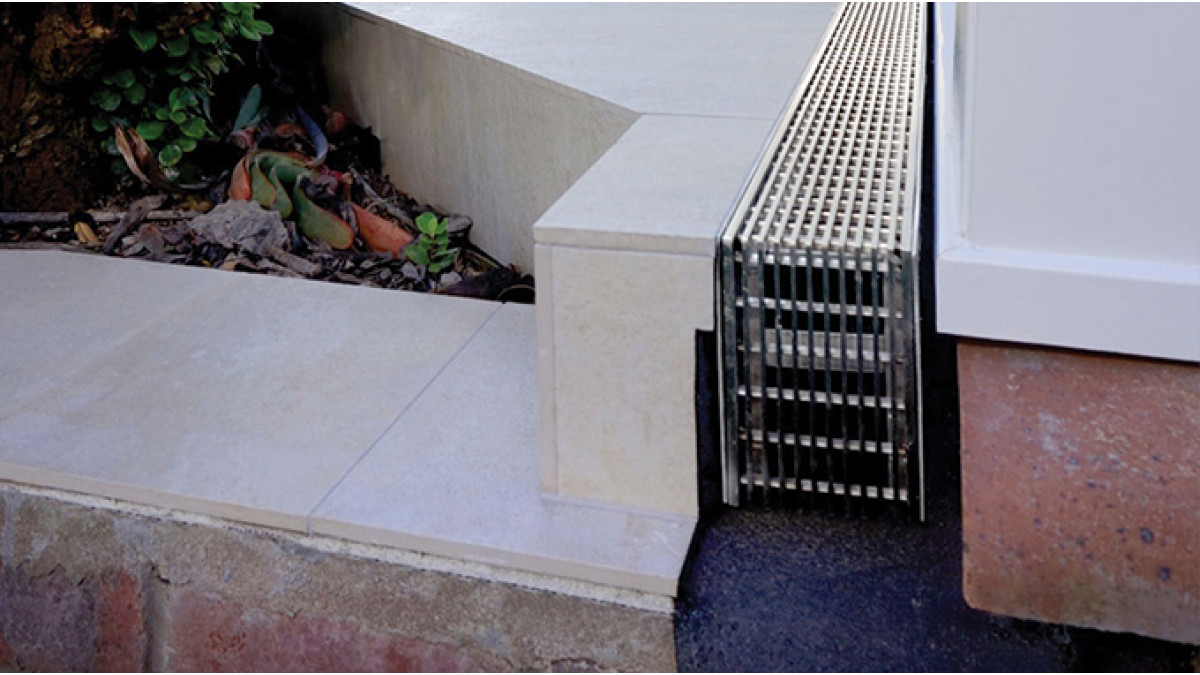

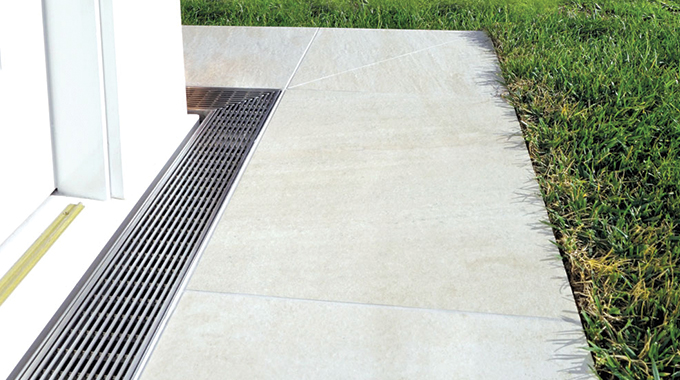

  • Customisable grate so a narrow grate reveal can be achieved with paver or concrete pour overlap of channel
  • Effective level entry solution
  • Wide Range of Grates
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Level entry solution for buildings fully complying to E2 code requirements
  • For concrete and paved surfaces, commercial and residential
In-Service History

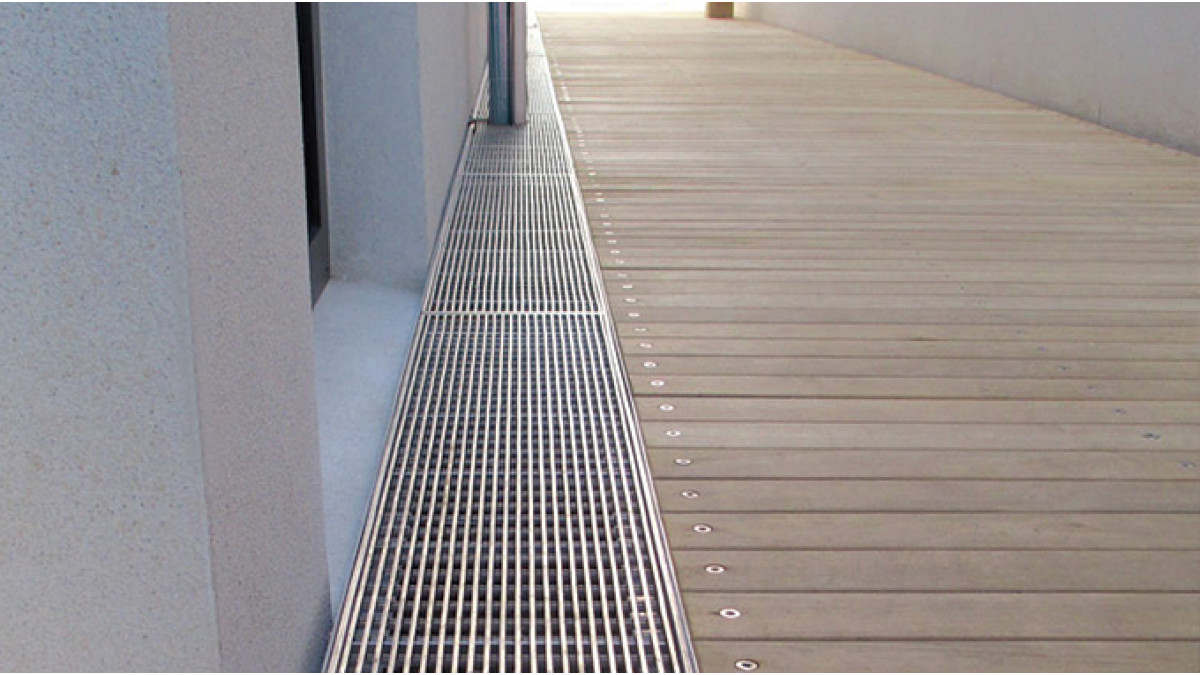

Used Country wide, notably in schools, community centres and other government building as well as residential situations.

Other Performance Attributes
  • All level threshold applications require the construction of a boxed channel - this creates the 200mm width required and the 150mm depth
  • Drip line from sill is maintained permantly by fixing the bracket in place during install, 12mm rubber stoppers optional
  • Customiasable grate so a narrow grate revial can be achieved with paver or concrete pour overlap of channel
  • We can also utilise a 123mm wide grate from our existing polymer concrete range should you wish it to match other drainage systems in the vacinity
E2 External Moisture compliant
External Moisture
Literature
Drawings
CAD
Installation Details
Product Assurance
Maintenance Instructions
Specification Clause (Masterspec)
Warranty
Other Literature
Allproof Industries Brochure
Brochure: Threshold Solutions
