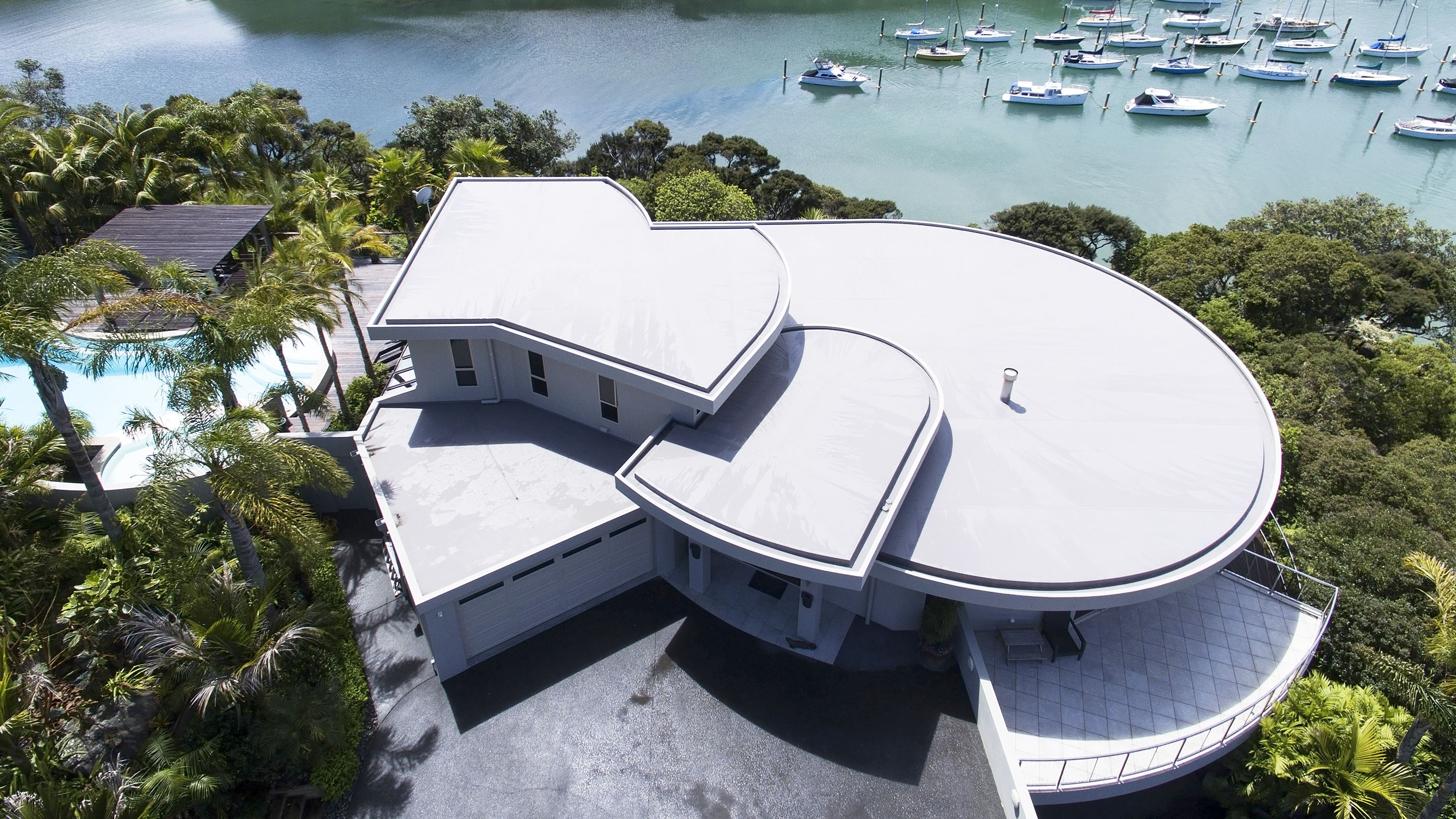

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

• the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
• the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
• situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
• with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

• subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
• with substrates of plywood or suspended concrete slab
• with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Show more

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
• Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

Show more

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

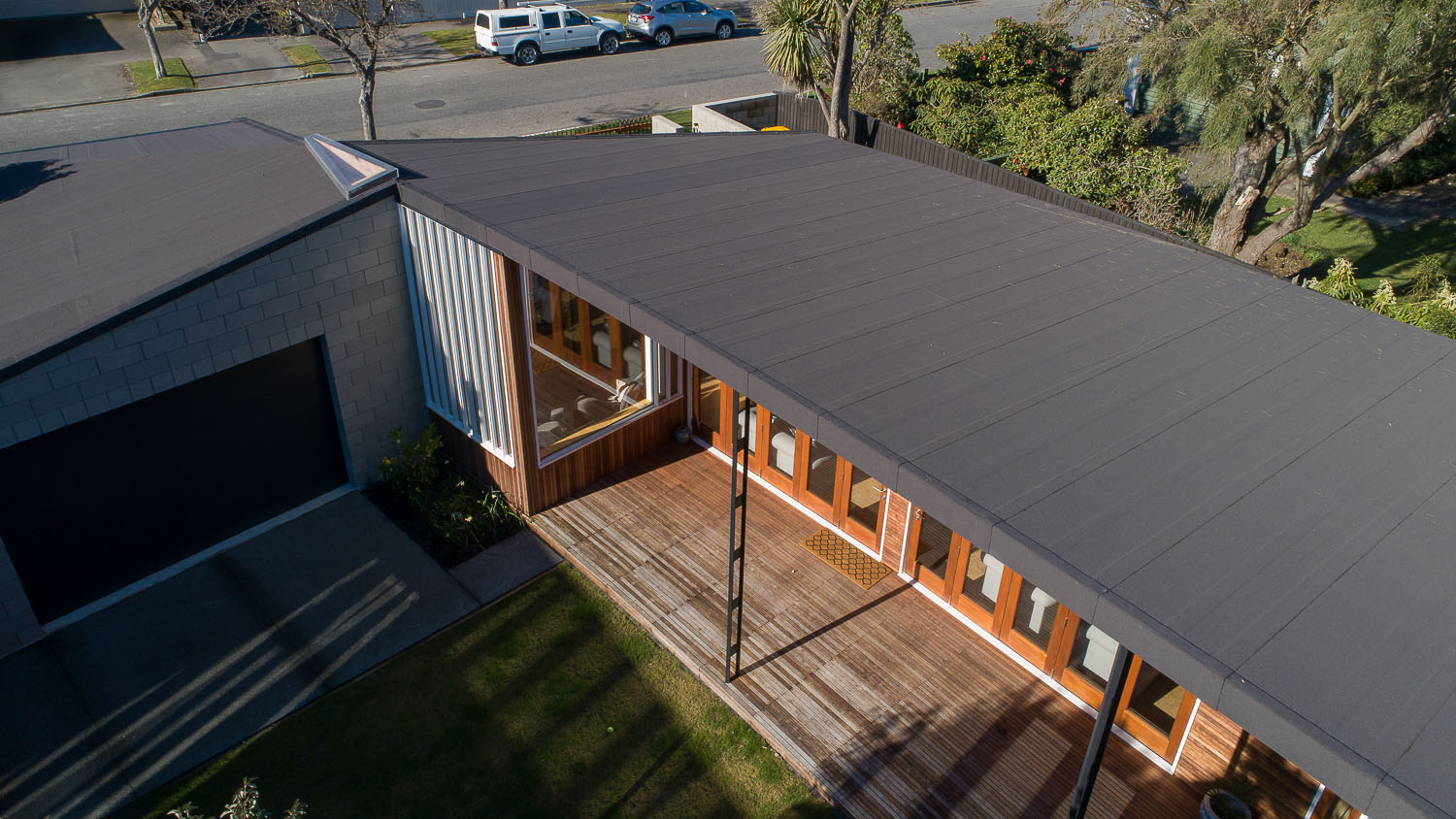

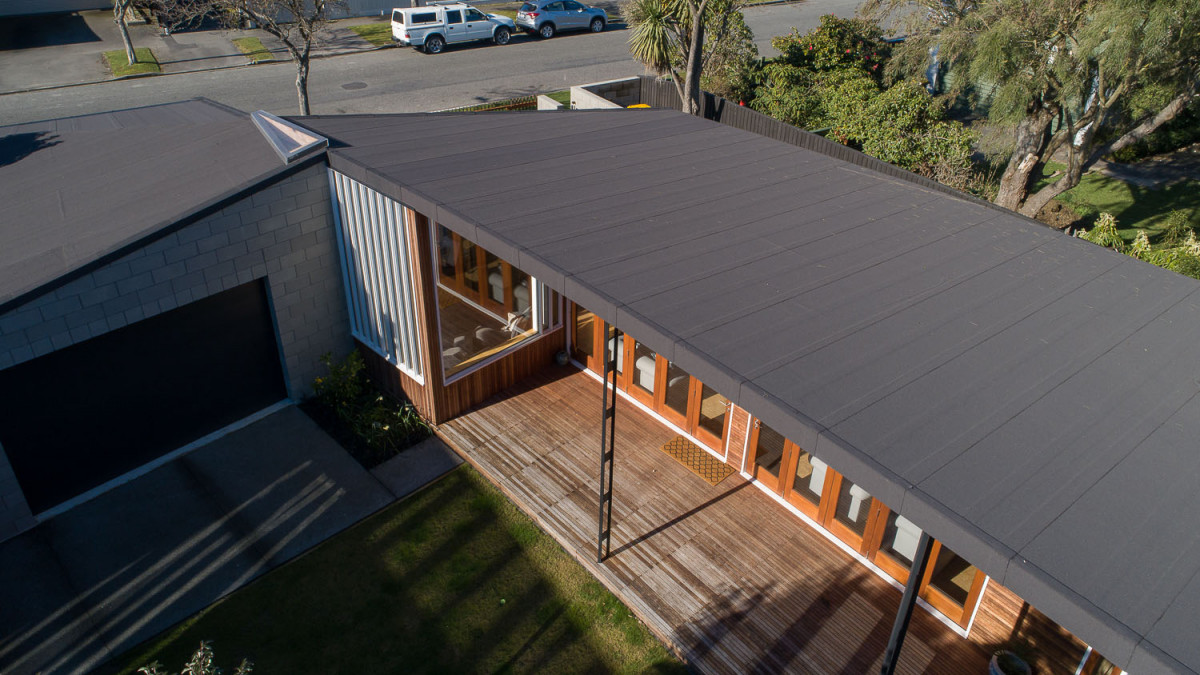

Viking Phoenix Super APAO is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Phoenix Super APAO Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

• The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
• The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
• Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
• With substrates of plywood or suspended concrete slab; and,
• With a minimum fall for roofs of 1:30 (2 degrees).
• Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab.

Show more

• Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c)Viking Phoenix Super APAO Waterproofing Membrane meets these requirements.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Show more

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

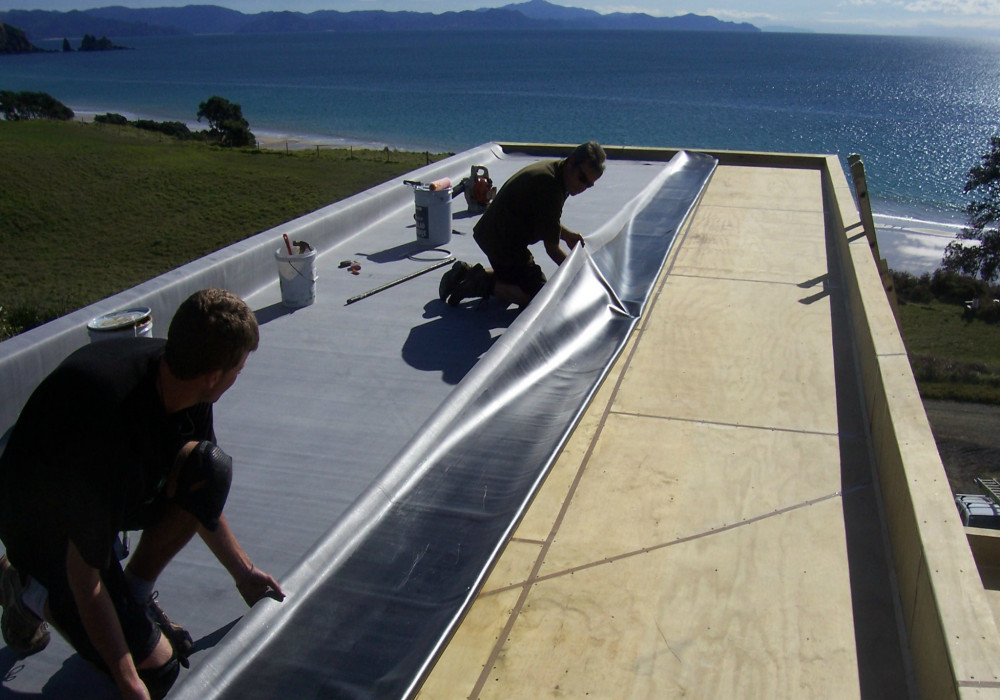

Viking Epiclad Membrane System has been appraised for use as a waterproofing membrane for buildings within the following scope:

• scope limitations of NZBC Acceptable Solution E2/AS1, Paragrpah 1.1; and,
• with timber supporting structures designed and constructed in accordance with the NZBC; and,
• with nominally flat or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC; and,
• with substrates of plywood sheet.

Epiclad Membrane System has also been appraised for use as a waterproofing membrane for external reinforced concrete and plywood roofs and decks for buildings within the following scope:

• up to 3 storeys with a maximum height from ground to eaves of 10m and with a floor plan area limited only by seismic and structural control joints; and,
• with the reinforced concrete structure designed and constructed in accordance with the NZBC; and,
• with nominallly flat, curved or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC.

The Viking Epiclad BRANZ Appraisal is limited to roofs and decks within the following scope:

• constructed to suitable falls (refer paragraph 12.1 -12.9 of the Viking Epiclad Membrane System BRANZ Appraisal); and,
• with no steps within a deck level, no integral roof gardens and no down pipe discharging directly onto a deck.

The design and construction of the substrate and movement and control joints is specific to each building, and therefore the responsibility of the building designer and building contractor and is outside the scope of this appraisal.

Show more

• Clause B1 STRUCTURE: Performance B1.3.1. Viking Epiclad Membrane System meets this requirement.
• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Viking Epiclad Membrane System meets this requirement. See paragraph 9.1 of the Viking Epiclad Membrane System BRANZ Appraisal.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. Roofs, decks, balconies, parapets and gutters incorporating Viking Epiclad Membrane System. See paragraphs 12.1 -12.9 of the Viking Epiclad Membrane System BRANZ Appraisal.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Epiclad Membrane System meets this requirement and will not present a health hazard to people.

Show more

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

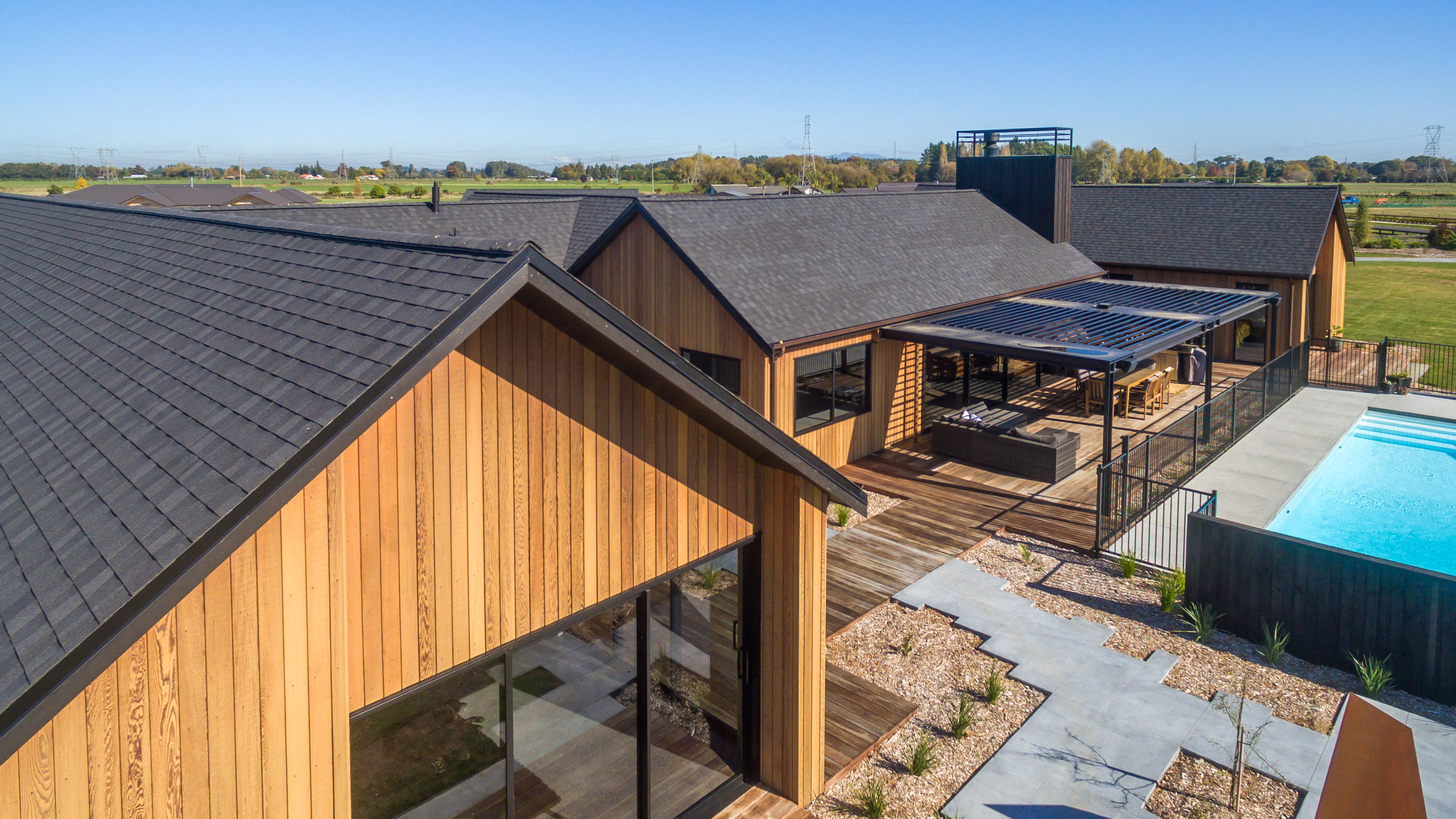

Suitable for residential and commercial pitched roofs and can be used as a re-roofing solution.

Viking CertainTeed Asphalt Roofing Shingles have been appraised as a roof cladding for buildings within the following scope:

• The scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1, with regard to floor plan area and building height; and,
• Constructed with timber roof framing and sheathing complying with the NZBC; and,
• Where the roof slope is 9 degrees or greater for plywood and 10 degrees or greater for Strandsarking; and,
• Situated in NZS 3604 Wind Zones up to and including High, or Extra High for the Landmark Series, Hatteras and Independence shingles only.

Show more

Very High Earthquake Zone

Extra High Wind Zone

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 and B1.3.4. Viking CertainTeed Asphalt Roofing Shingles meet the requirements for loads arising from self-weight, gravity loads, temperature, snow, wind, impact and creep [i.e. B1.3.3 (a), (b), (c), (g), (h), (j) and (q)]. See paragraphs 8.1 - 8.9 of the Viking CertainTeed BRANZ Appraisal.
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking CertainTeed Asphalt Roofing Shingles meet this requirement. See paragraphs 9.1 and 9.2 of the Viking CertainTeed BRANZ Appraisal.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.6. Viking CertainTeed Asphalt Roofing Shingles meet these requirements. See paragraphs 13.1 and 13.2 of the Viking CertainTeed BRANZ Appraisal.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking CertainTeed Asphalt Roofing Shingles meet this requirement and will not present a health hazard to people.

Show more

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
