Epiclad (EPDM) Rubber Waterproofing Membrane
Description

Viking Epiclad is a ‘no nonsense’ membrane made from 100% EPDM (ethylene propylene diene monomer) rubber, with over 25-years of proven performance in New Zealand.

Viking Epiclad has excellent elasticity, tensile and elongation properties and is virtually indestructible by UV, ozone and weathering. The wide sheets mean less joins, minimal installation time and optimal waterproofing capabilities. Unlike other membrane types, Epiclad membrane is arguably the industry’s best at forgiving a timber building substrate flex and movement, without splitting; especially during changing seasons.

Key Features
  • Water potability certified
  • UV resistant
  • Formulated to suit a wide range of climatic conditions
  • Impervious to heat ageing
  • Elongation breaking point
  • Pliable material
  • Can be painted with approved paint systems

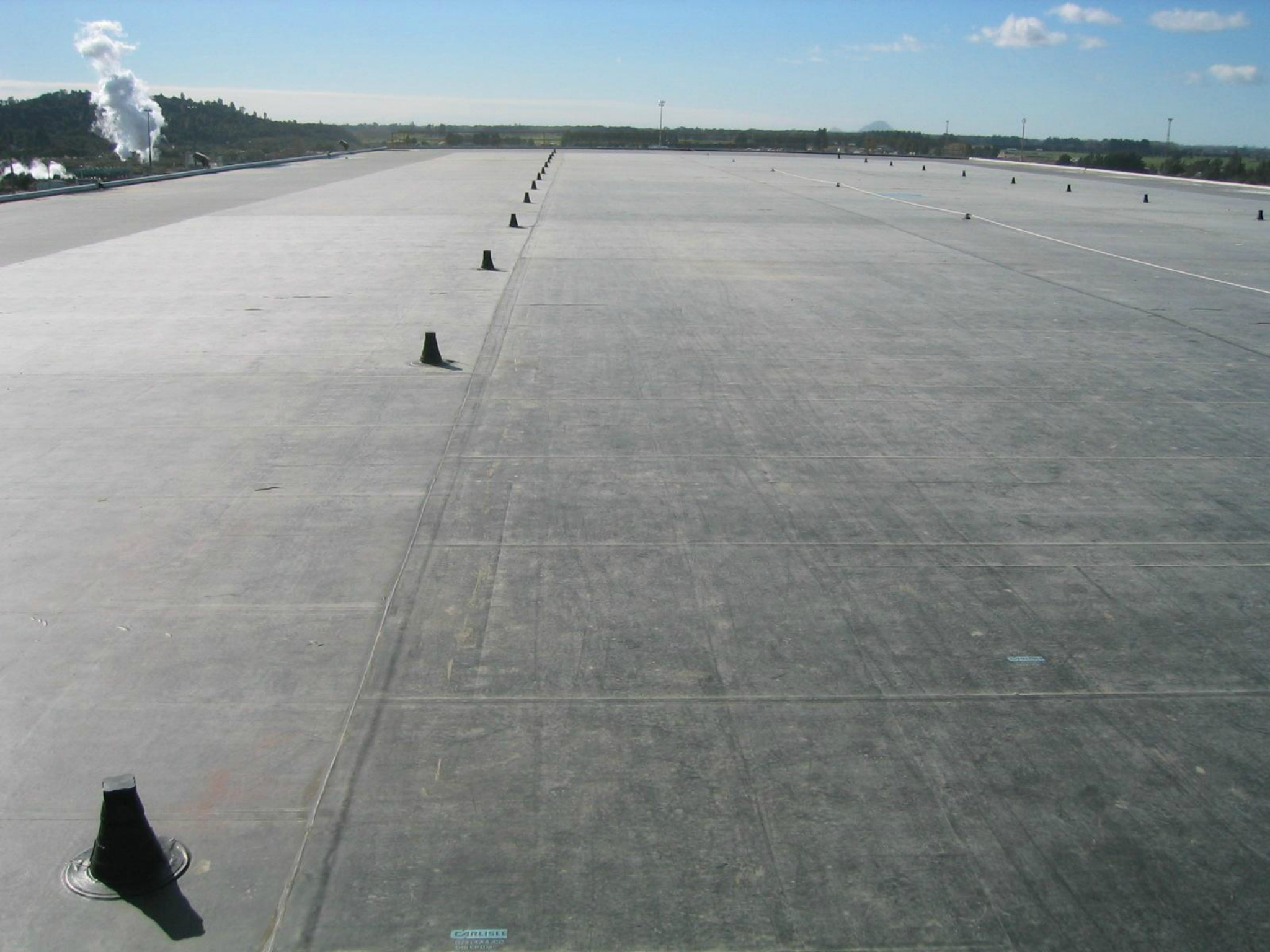

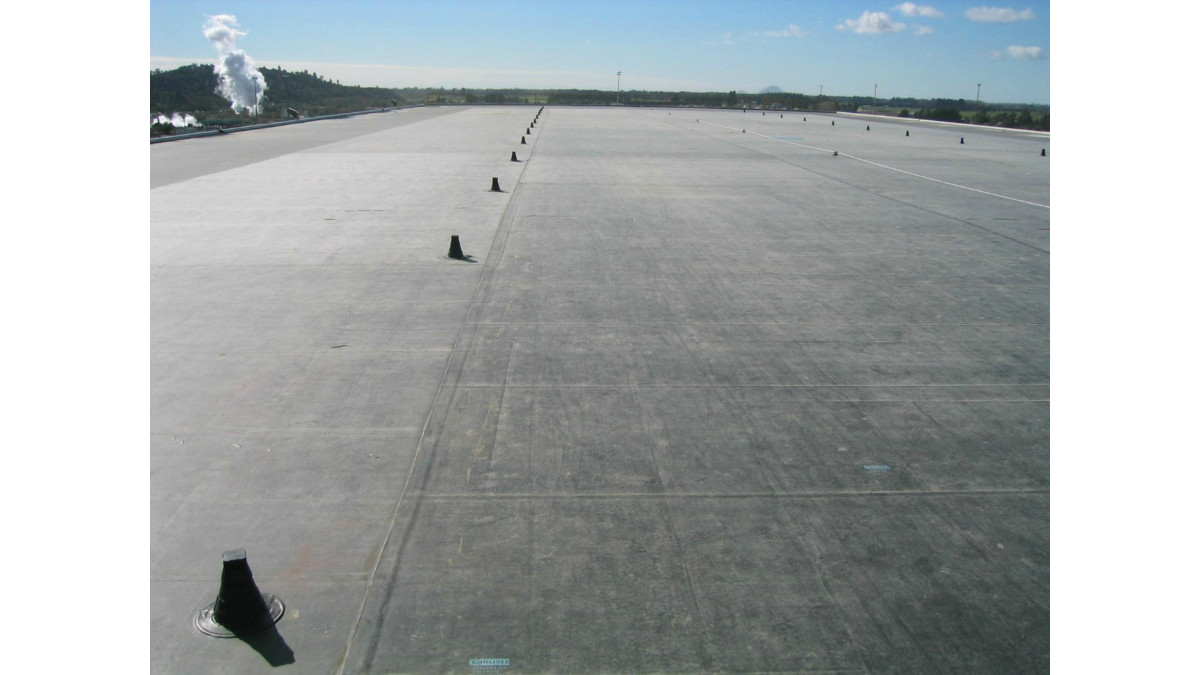

  • Wide rolls (up to 6.0m wide) — fewer joins
  • Installed only by Viking Licensed Applicators
  • 20-year product warranty
  • BRANZ Appraised
NZ-Owned Business
NZ-Owned Business
Scope of Use

Viking Epiclad Membrane System has been appraised for use as a waterproofing membrane for buildings within the following scope:

  • scope limitations of NZBC Acceptable Solution E2/AS1, Paragrpah 1.1; and,
  • with timber supporting structures designed and constructed in accordance with the NZBC; and,
  • with nominally flat or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC; and,
  • with substrates of plywood sheet.

Epiclad Membrane System has also been appraised for use as a waterproofing membrane for external reinforced concrete and plywood roofs and decks for buildings within the following scope:

  • up to 3 storeys with a maximum height from ground to eaves of 10m and with a floor plan area limited only by seismic and structural control joints; and,
  • with the reinforced concrete structure designed and constructed in accordance with the NZBC; and,
  • with nominallly flat, curved or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC.

The Viking Epiclad BRANZ Appraisal is limited to roofs and decks within the following scope:

  • constructed to suitable falls (refer paragraph 12.1 -12.9 of the Viking Epiclad Membrane System BRANZ Appraisal); and,
  • with no steps within a deck level, no integral roof gardens and no down pipe discharging directly onto a deck.

The design and construction of the substrate and movement and control joints is specific to each building, and therefore the responsibility of the building designer and building contractor and is outside the scope of this appraisal.

Limitations on Use

Viking Epiclad Membrane System can only be installed by Viking Licensed Installers.

Statement of Building Code Compliance
  • Clause B1 STRUCTURE: Performance B1.3.1. Viking Epiclad Membrane System meets this requirement.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Viking Epiclad Membrane System meets this requirement. See paragraph 9.1 of the Viking Epiclad Membrane System BRANZ Appraisal.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. Roofs, decks, balconies, parapets and gutters incorporating Viking Epiclad Membrane System. See paragraphs 12.1 -12.9 of the Viking Epiclad Membrane System BRANZ Appraisal.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Epiclad Membrane System meets this requirement and will not present a health hazard to people.
In-Service History

Viking Epiclad has been successfully installed on thousands of properties across New Zealand including those of Ryman Healthcare, Ministry of Justice, Kawerau Pulp and Paper, Sheraton Fiji and Middlemore Hospital.

Other Performance Attributes
  • BRANZ Appriased No. 307 (2013);
  • Backed by a 20-year product warranty, and is eligible for Viking's Full System Warranty, which covers the product and installation warranties in one document (conditions apply);
  • Can be painted with approved paint systems - design flexibility.
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Product Technical Statement
Material Safety Data Sheet
Membrane Protection Sheet
Accreditation
Independent Appraisal (BRANZ)
Independent Appraisal (BRANZ)
Maintenance Instructions
Warranty
Warranty
Warranty
Specification Clause (Masterspec)
Find an approved installer
Substrate Checklist - Concrete
Substrate Checklist - Plywood
Substrate Checklist: Plywood
Additional Information
Additional Information

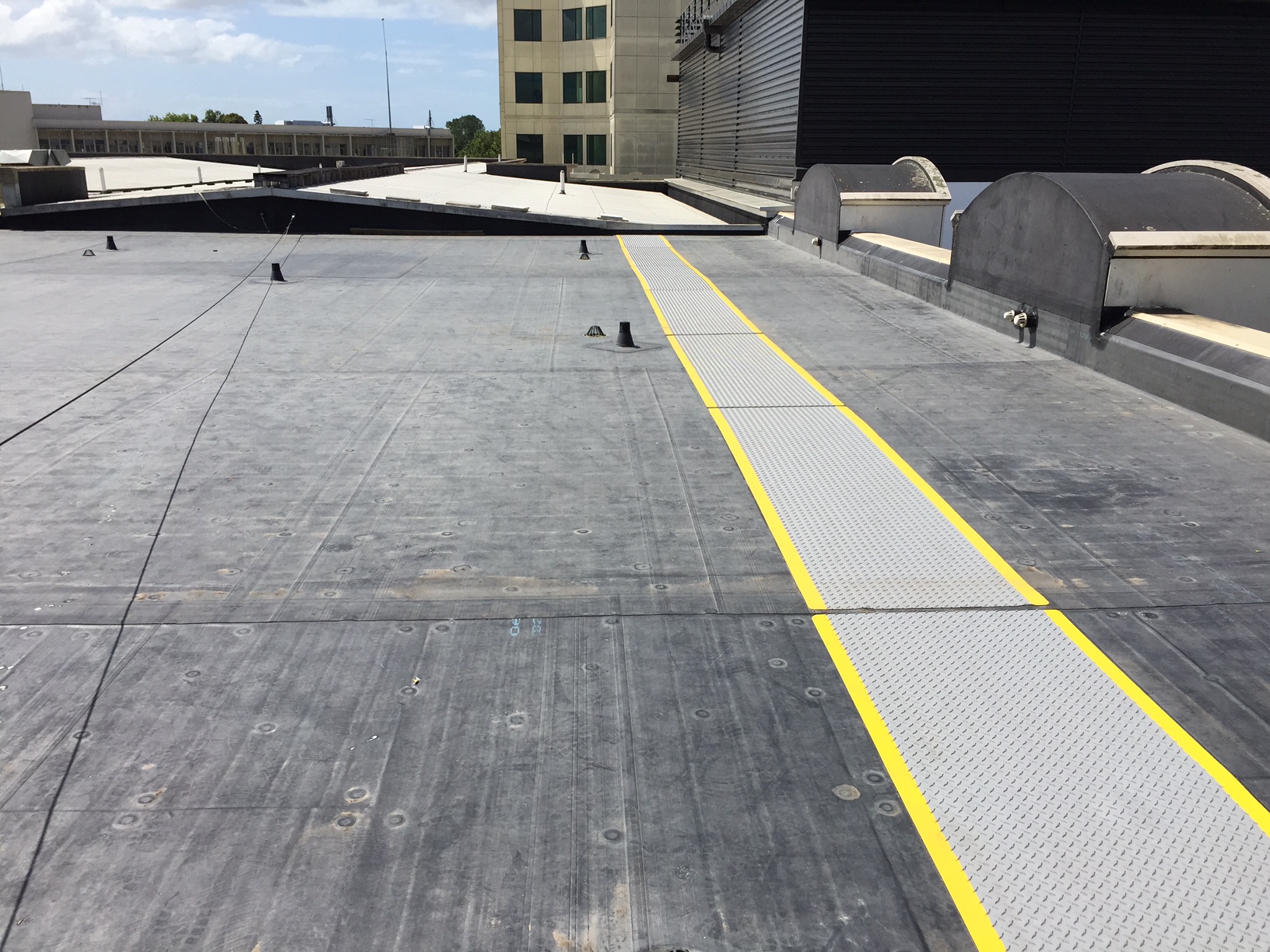

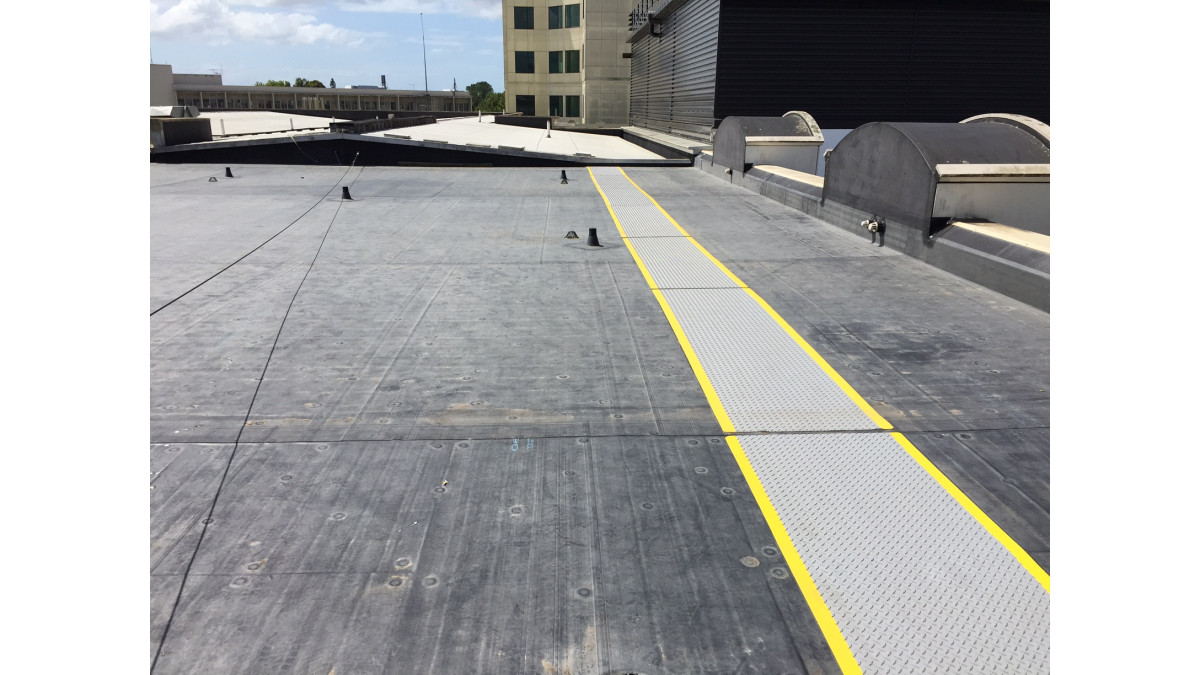

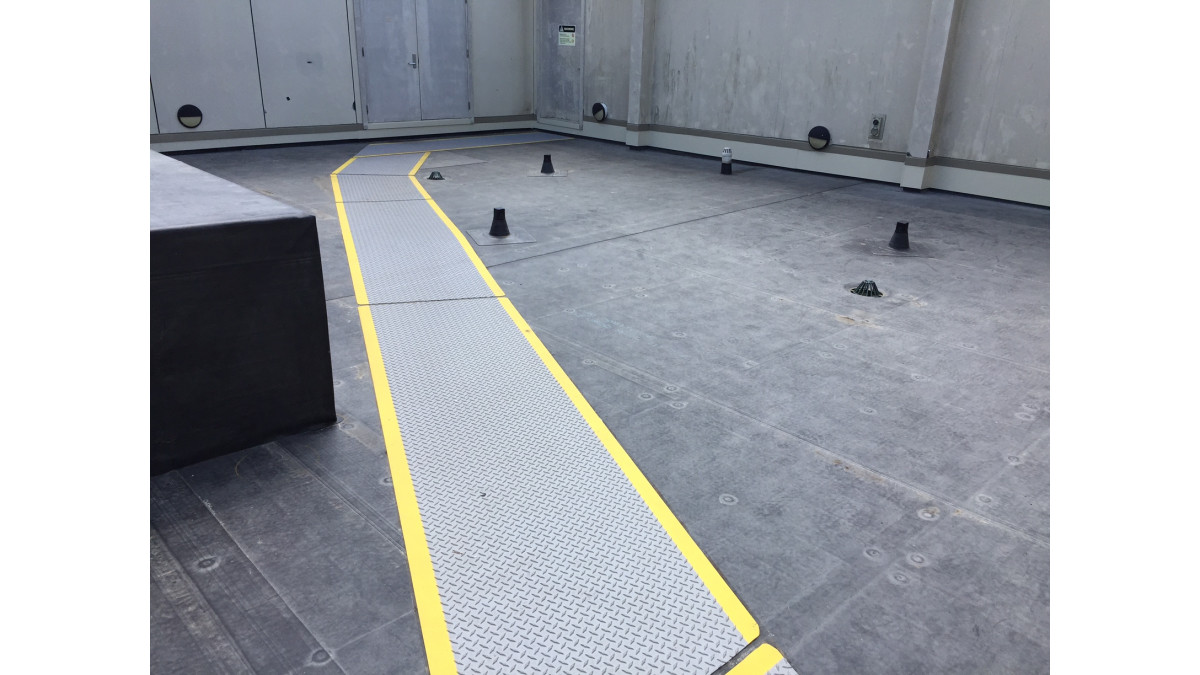

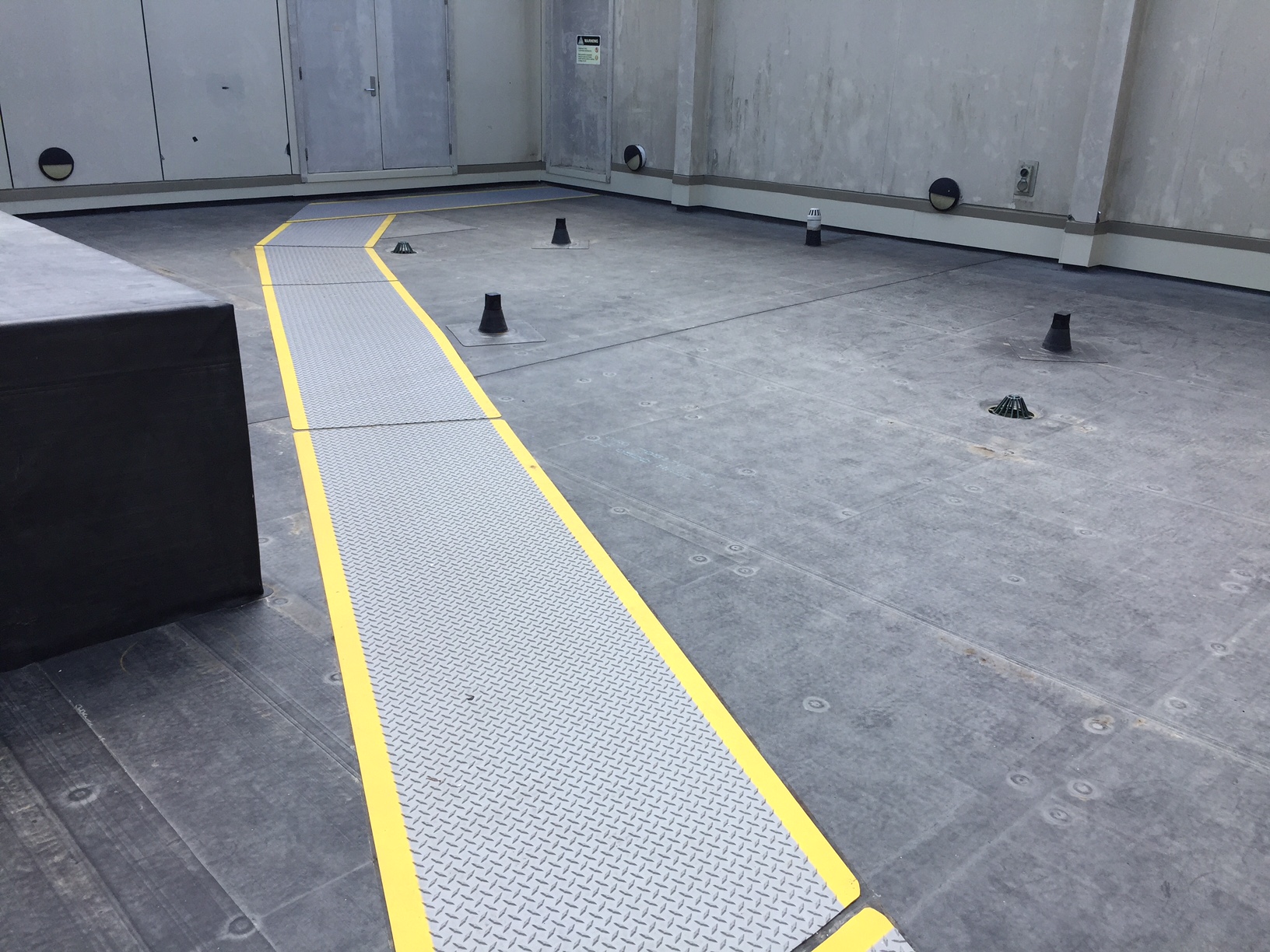

Case Study - Kidz First Children's Hospital
CAD/PDF Details
Butylclad and Epiclad Details Full Set .DWG
Butylclad and Epiclad Details Full Set .PDF
