Viking Roofspec and Coastal Environments: The Perfect Match

The furthest distance from NZ’s coastline is only a 2.5-hour drive, highlighting the narrowness of our islands which get perpetually pelted with salt spray and the roaring forties winds. Viking Roofspec feel they have a duty of care to take NZBC clause B2 (Durability) just as seriously as they do E2 (External Moisture), by supplying materials that last comfortably past their warranty periods.

Despite metal roof coatings having improved with corrosion resistance, there’s something to be said, especially when building on the coast, for eliminating metal altogether. There’s no going past a Viking Enviroclad membrane roof, either on a plywood substrate, or better still as part of a thermally efficient Viking Warm roof. Furthermore, specifying one of Viking’s earthy-coloured Enviroclad membranes will ensure a tasteful and responsible blending with the surrounding environment.

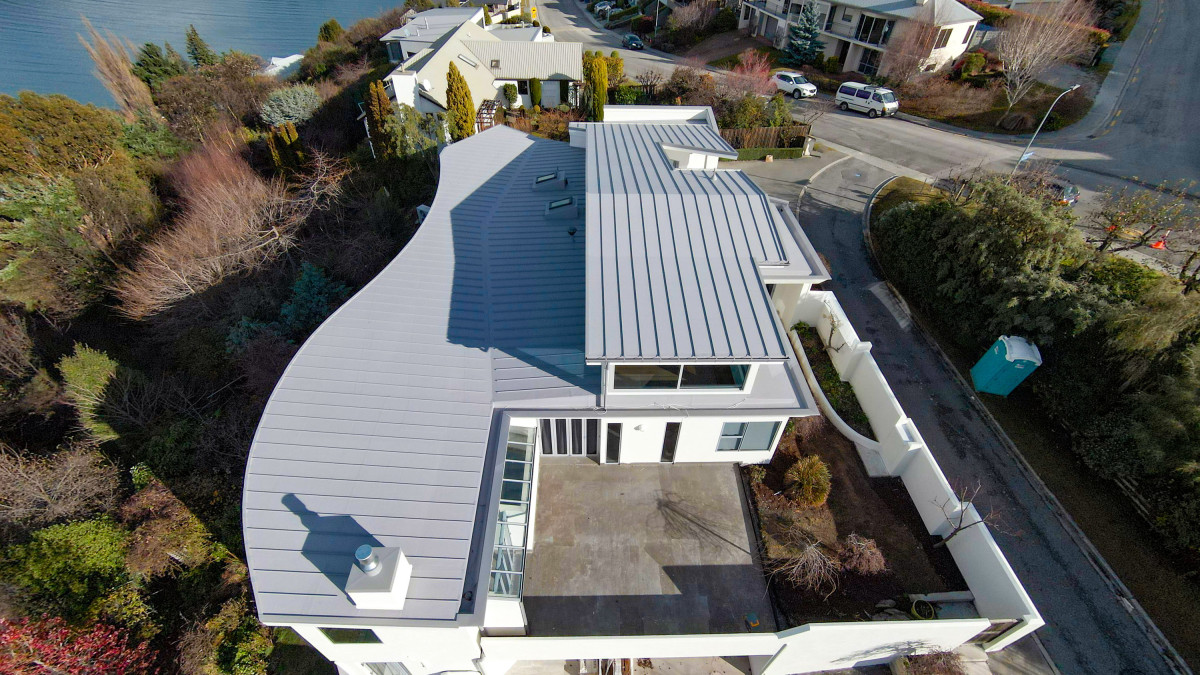

Additionally, the installation of matching coloured TPO weldable ribs will break up the roof plane to enhance the design. These ribs don’t penetrate the membrane but simply weld to its surface. They can be spaced as close or as far apart as you wish. They don’t even need to be parallel. You can create a spoke wheel design if desired. Your roof is a blank canvas.

While on the subject of weldable ribs, solar panels (a Godsend in remote parts of the country) can be mounted on specialised TPO wrapped aluminium bars (named EJOT bars) without penetrating the Enviroclad membrane.

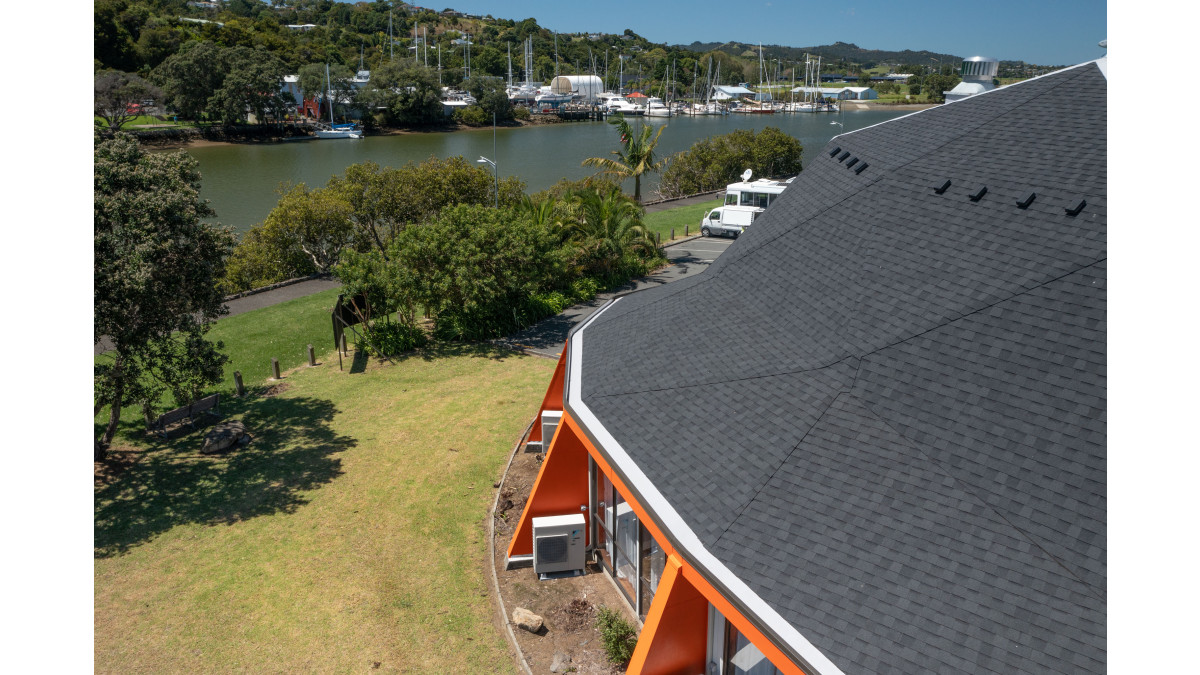

If your preference is for a steeper pitched roof, Viking’s CertainTeed asphalt shingles or Ecostar tiles; the latter made with recycled plastics come with warranties up to 50 years. Installed on a timber-sarked substrate, these stunning looking roofs brace the whole building and won’t suffer from rust.

Viking Roofspec’s roofing; decking and belowground waterproofing systems are certified and distributed as exactly that — ‘systems’. Every component is a tested part of that system; not to be substituted. Viking’s materials are distributed exclusively through its network of qualified Approved Applicator businesses who are licensed in the installation of these materials.

By specifying a Viking system, your roof, deck or below-ground project will serve the environment by lasting well beyond the warranty period — giving the local landfill a break from prematurely dumped materials due to substandard performance.

For more information on Viking Roofspec’s systems, visit: www.vikingroofspec.co.nz

Enviroclad (TPO) Waterproofing Membrane

Viking Roofspec

View Product

Viking Enviroclad offers absolute watertight integrity for low-slope roofs.

NZ-Owned Business

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark

CertainTeed Asphalt Shingles

Viking Roofspec

View Product

Asphalt shingles are individual bituminous sheets (usually 915mm long), nailed on top of a timber-sarked roof substrate with either a layer of bitumen felt or self-adhering membrane in-between.

NZ-Owned Business

Suitable for residential and commercial pitched roofs and can be used as a re-roofing solution.

Viking CertainTeed Asphalt Roofing Shingles have been appraised as a roof cladding for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1, with regard to floor plan area and building height; and,
Constructed with timber roof framing and sheathing complying with the NZBC; and,
Where the roof slope is 9 degrees or greater for plywood and 10 degrees or greater for Strandsarking; and,
Situated in NZS 3604 Wind Zones up to and including High, or Extra High for the Landmark Series, Hatteras and Independence shingles only.

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 and B1.3.4. Viking CertainTeed Asphalt Roofing Shingles meet the requirements for loads arising from self-weight, gravity loads, temperature, snow, wind, impact and creep [i.e. B1.3.3 (a), (b), (c), (g), (h), (j) and (q)]. See paragraphs 8.1 - 8.9 of the Viking CertainTeed BRANZ Appraisal.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking CertainTeed Asphalt Roofing Shingles meet this requirement. See paragraphs 9.1 and 9.2 of the Viking CertainTeed BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.6. Viking CertainTeed Asphalt Roofing Shingles meet these requirements. See paragraphs 13.1 and 13.2 of the Viking CertainTeed BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking CertainTeed Asphalt Roofing Shingles meet this requirement and will not present a health hazard to people.

BRANZ Appraised

EcoStar Roof Tiles

Viking Roofspec

View Product

Viking Ecostar tiles provide an eco-alternative to slate roofing.

NZ-Owned Business

Pre-Consumer Recycled Content

Viking EcoStar Roofing Tiles are suitable for use as a roof cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1, with regard to floor plan area and building height; and,
constructed with timber roof framing and sheathing complying with the NZBC; and,
where the roof slope is 15 degrees or greater; and,
situated in NZS 3604 Wind Zones up to and including 'Very High'

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4
Clause B2 DURABILITY: Performance B2.3.1(a)
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

Dec-K-ing (PVC) Waterproofing Membrane

Viking Roofspec

View Product

Viking Dec-K-ing is a hard-wearing, aesthetic waterproofing membrane, providing the ultimate underfoot finish and waterproofing for decks above living areas.

NZ-Owned Business

Viking Dec-K-ing PVC Waterproofing Membrane has been appraised for use as a waterproofing membrane for buildings within the following scope:

on pedestrian decks and balconies; and,
scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1; and,
with timber supporting structures designed and constructed in accordance with the NZBC; and,
with substrates of plywood sheet and compressed fibre cement sheet.

Viking Dec-K-ing PVC Waterproofing Membrane has also been appraised for use as a waterproofing membrane for external reinforced concrete pedestrian decks and balconies for buildings within the following scope:

up to 3 storeys with a maximum height from ground to eaves of 10m and with a floor plan area limited only by seismic and structural control joints; and,
with the reinforced concrete structure designed and constructed in accordance with the NZBC.

This appraisal is limited to pedestrian decks and balconies within the following scope:

constructed to suitable falls (refer paragraphs 12.1 - 12.9 of the Viking Dec-K-ing BRANZ Appraisal); and,
with no steps within the deck level, no integral roof gardens and no down pipe discharging directly onto the deck.

The design and construction of the substrate and movement and control joints are specific to each building, and are therefore the responsibility of the building designer and building contractor, and are outside the scope of this appraisal.

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.2. Viking Dec-K-ing PVC Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking Dec-K-ing PVC Waterproofing Membrane meets this requirement. See paragraph 9.1 of the Viking Dec-K-ing BRANZ Appraisal.
Clause D1 ACCESS ROUTES: Performance D1.3.3 (d). Viking Dec-K-ing PVC Waterproofing Membrane meets this requirement. See paragraph 7.6 of the Viking Dec-K-ing BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. Decks and balconies incorporating Viking Dec-K-ing PVC Waterproofing Membrane meet these requirements. See paragraphs 12.1 - 12.8 of the Viking Dec-K-ing BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Dec-K-ing PVC Waterproofing Membrane meets this requirement and will not present a health hazard to people.

BRANZ Appraised
